VRT61818W - Vacuum Cleaner Defy - Free user manual and instructions

Product Type	Upright Vacuum Cleaner
Brand	Defy
Model	VRT61818W
Dimensions (H x W x D)	106 x 30 x 26 cm
Weight	5.2 kg
Power Consumption	800 W
Dust Capacity	1.8 L (bagless)
Filtration System	HEPA washable filter
Cord Length	6 m
Noise Level	76 dB(A)
Suction Control	Variable power settings
Floor Type	Carpet and hard floor
Accessories Included	Crevice tool, dusting brush, upholstery tool
Filter Maintenance	Wash and dry every 3 months
Dust Container Emptying	Press release button, empty over bin
Safety Features	Thermal cut-off protection
Power Cord Storage	Automatic cord rewind
Warranty	2 years limited
Spare Parts Availability	Filters, belts, brushroll separately available
Manual Languages	English (additional languages available via request)

Frequently Asked Questions - VRT61818W Defy

How do I empty the dust container?

Press the release button on top of the container, then lift it out. Hold it over a trash bin and press the bottom release to empty. Avoid touching the inner filter.

How often should I clean or replace the filter?

Wash the HEPA filter every 3 months with cold water and let it dry completely for 24 hours. Replace the filter every 6-12 months for best performance.

What should I do if the vacuum loses suction?

Check for blockages in the hose, brushroll, or dust container. Also ensure the filter is clean and that the dust container is not full.

Can I use the vacuum on hardwood floors?

Yes, but ensure the brushroll setting is appropriate for hard floors (e.g., brushroll off or adjusted height) to avoid scratches.

How do I store the power cord?

Press the cord rewind button located on the back of the vacuum. The cord will retract automatically. Hold the plug to prevent whipping.

What does the thermal cut-off feature mean?

If the motor overheats, the vacuum will automatically shut off. Turn it off, unplug, and let it cool for at least 30 minutes before restarting.

How do I clean the brushroll?

Turn off and unplug the vacuum. Use scissors to cut away hair and debris wrapped around the brushroll. Remove the brushroll if needed for thorough cleaning.

Can I use extension cords with this vacuum?

It is not recommended. Use only the supplied cord. If necessary, use a grounded extension cord rated at least 10 amps and fully unwound.

Where can I purchase spare parts?

Spare parts such as filters, belts, and brushrolls are available from Defy authorized service centers or online retailers. Refer to the manual for part numbers.

What does the warranty cover?

The 2-year limited warranty covers manufacturing defects. Normal wear and tear, misuse, or unauthorized repairs are not covered. Keep the purchase receipt.

USER MANUAL VRT61818W Defy

Two electric vacuum cleaner units, one white and one blue, displayed against a plain background (no text or symbols visible)

Please read this user manual first!

Dear Valued Customer,

Thank you for selecting this Defy appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

CONTENT

1 Important safety and environmental instructions 4-5

1.1 General safety 4
1.2 Compliance with WEEE Directive and
Disposing of the Waste Product.... 5
1.3 Compliance with RoHS Directive 5
1.4 Information on Waste Batteries 5
1.5 Package information.... 5

2 Your cordless stick vacuum cleaner 6-7

2.1 Overview 6
2.2 Technical data....7

3 Operation 8-10

3.1 Intended use 8
3.2 Installing the body and brush 8
3.3 Charging the appliance....8
3.4 Operating the appliance....9
3.5 Starting cordless vacuum cleaner ..... 9
3.6 Accessories 10

4 Cleaning and care 11-12

4.1 Cleaning the dust container.... 11
4.2 Cleaning the brush 11
4.3 Storage.... 12
4.4 Handling and transportation.....12

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or material damage.

Failure to follow these instructions voids any granted warranty.

1.1 General safety

• This appliance complies with international safety standards.

- This appliance may be used by children aged 8 years and above and persons whose physical, perceptive or mental skills are impaired or who are inexperienced or not knowledgeable about the appliance as long as they are supervised or informed and made aware of the safe use of the appliance and the encountered dangers. Children should not play with the appliance. Cleaning and user maintenance should not be performed by children unless they are supervised by an adult.

- If the power cable or the appliance itself is damaged, do not use it. Contact an authorised service.

- Your mains power supply should comply with the information supplied on the rating plate of the appliance.

- Do not use the appliance with an extension cable.

- Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges.

- Do not touch the appliance or its plug when it is plugged in if your hands are damp or wet.

- Do not pull the power cable when unplugging the appliance.

- Do not vacuum flammable materials and when vacuuming cigarette ash, make sure that it has cooled down.

- Do not vacuum water or other liquids.

- Protect the appliance from rain, humidity and heat sources.

- Never use the appliance in or near places where combustible or inflammable ambience or places are present.

- Unplug the appliance before cleaning and maintenance.

- Do not immerse the appliance or its power cable in water for cleaning.

• Do not attempt to dismantle the appliance.

- Only use original parts or parts recommended by the manufacturer.

1 Important safety and environmental instructions

• Do not clean particles such cement, plaster and compressed paper in order to prevent the filter from being clogged and the motor being damaged.
• Only use the appliance with the supplied adapter.
• Do not use the appliance without filters; otherwise it can be damaged.
• If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

as1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Information on Waste Batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

1.5 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National

Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your cordless stick vacuum cleaner

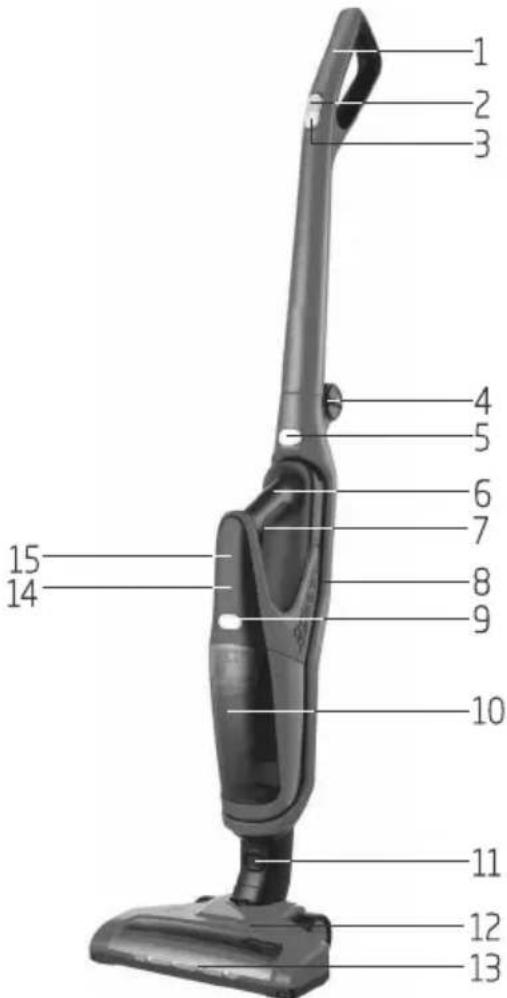

2.1 Overview

1. Stick vacuum cleaner handle
2. Stick vacuum cleaner on/off button
3. Speed adjustment button
4. Handle collapsing button
5. Cordless vacuum cleaner removal button
6. Cordless vacuum cleaner handle
7. Cordless vacuum cleaner on/off button
8. Body
9. Dust container removal button
10. Dust container
11. Brush removal button
12. Brush
13. LED light
14. Handheld vacuum cleaner
15. Charging and power indicator

The values which are declared on the markings affixed to your product or in other printed documents supplied with it represent the values which have been obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

2 Your cordless stick vacuum cleaner

2.2 Technical data

Model VRT 6181	4 VR VRT 61818 VW	VRT 61821 VD
Supply voltage	100-240V~50-60Hz
Power	14.4 W 18 W 21.6 W
Product spec	DC 14.4V 2000mAh Li-on	DC 18V 2000mAh Li-on	DC 21.6V 2000mAh Li-on
Apaptor Input	100-240V~50/60Hz 0.3A	100-240V~50/60Hz 0.3A	100-240V~50/60Hz 0.5A
Apaptor Output	18V 500mA 22V 500mA 27V 500mA
Brush spec	14.4V 5W 14.4V 5W 21.6V 8W
Charging time	4~6H

Technical and design modification rights are reserved.

3 Operation

3.1 Intended use

The appliance has been designed for household use and is not suitable for industrial use.

3.2 Installing the body and brush

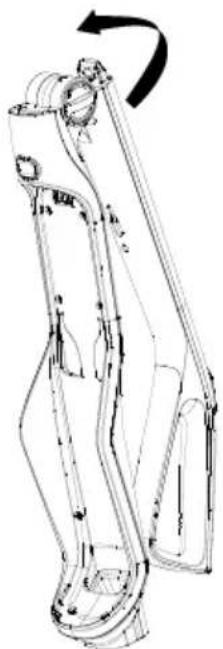

1. Lift the handle (1) in the arrow direction.

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

1. Attach the brush (12) to the body (8).

Technical line drawing of a mechanical device with a base and top component, showing no text or symbols.

1. Attach the handheld cleaner to the body (8).

Line drawing of two different vacuum cleaner designs with motion arrows indicating movement (no text or symbols)

3.3 Charging the appliance

1. Insert the thin end of the adapter to the charger and plug the adapter in.

3 Operation

Technical line drawing of a vacuum cleaner with attached device and cable, showing mechanical assembly (no text or symbols)

1. The charging indicator LED (15) will come on and the product will start to be charged; when charging is done, all charging indicators will be on.
2. If the charging indicator LED (15) is on, this means that the product is being charged.
3. If all levels of the charging indicator LED (15) is on, this means that the product is fully charged.

It takes up to 4-6 hours for the appliance to be fully charged.

WARNING: Appliance cannot be operated during the charging process.

3.4 Operating the appliance

1. Press the on/off button (2) to switch on the appliance.
2. When you press on/off button (2), appliance will start at maximum speed. Press speed adjustment button (3) to use in low speed. When you press speed adjustment button again, the appliance will run at maximum speed again.
3. After using the appliance, switch it off by pressing the On/off button (2).

Check the power indicator LEDs (15) during operation. As charging level decreases, these indicators will gradually go off and the appliance will stop working when all indicators are off.

Appliance will automatically stop if it is placed on charger while still in use.

3.5 Starting cordless vacuum cleaner

1. Press removal button (5) to remove the vacuum cleaner from the body (8).
2. Press on/off button (7) of the cordless vacuum cleaner to switch on your appliance.
3. After using the appliance, switch it off by pressing the On/off button (7) of the cordless vacuum cleaner.

3 Operation

3.6 Accessories

You can use your accessories by inserting them to the end of your vacuum cleaner.

Dust brush

Suitable for cleaning the curtains, and sensitive and fragile objects.

Line drawing of a handheld cleaning device with a handle and internal components (no text or symbols)

Upholstery tool

Suitable for cleaning the floorings, stair steps, inside of the cars, sofas, armchairs etc.

Line drawing of a handheld vacuum cleaner with internal components and a separate view showing internal structure (no text or symbols)

4 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

4.1 Cleaning the dust container

It is recommended to clean the dust container after every use.

1. Press the dust container removal button (9) to remove the dust container (10).
2. Pull the filter by holding the handle and remove it from dust container (10).

Technical line drawing of a mechanical component with internal structure and directional arrow (no text or symbols)

1. Remove the HEPA filter by grasping the handle of the filter holder and turning counterclockwise.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with internal channels and a directional arrow (no text or symbols)

1. Wash out the dust container (10), filter holder and HEPA filter under the running water.

2. Clean the body of the cordless vacuum cleaner (14) with a soft damp cloth.

3. Replace the HEPA filter in its holder after all parts are dried and place filter holder in the dust container (10).

Technical line drawing of a mechanical device with exploded view and internal components (no text or symbols)

1. Replace the dust container (10) in the body of cordless vacuum cleaner (14).

4.2 Cleaning the brush

1. Press the brush removal button (11) and remove the brush (12) from the body (8).

2. To clean the brush (12), release the lock using the roller brush release tab as shown below.

Technical line drawing of a mechanical device with no visible text or symbols

1. Remove the roller brush.

Technical line drawing of a mechanical device with no visible text or symbols

1. After cleaning and drying the roller brush, reattach it and lock the tab.

4 Cleaning and care

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Store the appliance in a vertical position or with its handle folded.
• In order to fold the handle, turn the folding button (4) clockwise and fold the handle (1).
• Keep the appliance out of the reach of children.

4.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

5

Branches

If you have followed the instructions and still have a problem, contact the customer care line on 086 100 3339. They will be able to advise you on any aspect of the appliance.

South African Branches:

BLOEMFONTEIN

Unit Number 5

Monument Business Park

50 Monument Road

Oranjesig, Bloemfontein

[e-mail]

CAPE TOWN

5A Marconi Rd. Montague Gardens, 7441

[e-mail]

DURBAN

135 Teakwood Road, Jacobs,

Durban, 4052

[e-mail]

EAST LONDON

Robbie de Lange Road, Wilsonia,

East London, 5201

[e-mail]

GAUTENG, MIDRAND

127 15th Road, Cnr Pharmaceutical &15th Rd,

Midrand, Gauteng

[e-mail]

POLOKWANE

87 Nelson Mandela Drive, Superbia 0699

[e-mail]

PORT ELIZABETH

112 Patterson Road, North End, Port Elizabeth 6001

[e-mail]

Record in the space below the listed information for future reference.

SERIAL NUMBER......

DATE OF PURCHASE......

PURCHASED FROM......

Sub-Saharan Africa Branches:

ZAMBIA: SOUTHGATE INVESTMENTS LTD

Plot 1606, Sheki Sheki Road

P.O. Box 33681

Lusaka, 10101, Zambia

Tel: [phone]

Fax: [phone]

[e-mail]

NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) LTD

10 Tienie Louw Street, Northern Industrial Area

P.O. Box 21158, Windhoek, Namibia

Tel: [phone]

Fax: [phone]

[e-mail]

ZIMBABWE: TRADECOMAFRICA

Trade Com Africa, 183 Loreley Crescent

Msasa, Harare, Zimbabwe

Tel: [phone]

Cell: [phone]

Cell: [phone]

BOTSWANA: RAY MORGAN AGENCIES

RMA Service Centre, Plot 48, East Gate

Gaborone International Commerce Park

Kgale View, Gaborone

Botswana

Tel: [phone]

Fax: [phone]

Cell: [phone]

[e-mail]; [e-mail]

SWAZILAND: LYNDS DISTRIBUTORS

P.O Box 716, Mbabane, Swaziland, H100

Tel: [phone]

Fax: [phone]

MOZAMBIQUE: COOL WORLD. LDA

This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.

The Company warrants to the original purchaser that for a period of TWO YEARS from date of purchase the appliance is free from defect under normal domestic use, both in workmanship and material, subject to the following conditions.

1. Carry-in service. Small appliances are repaired in our service centres and are not collected from the customers home. Faulty units must be delivered to the purchasing dealer or to the nearest Company Service Centre for warranty repairs.
2. Vitreous enamelware, fuses and lamps are specifically excluded from these warranties. It is an express condition of these warranties that the purchaser takes due care and attention in the use and maintenance of the appliance. Abuse, misuse in conflict with operating instructions, connection to incorrect voltages and subjection to commercial use shall release the Company from its obligations.
3. This warranty shall become void and cease to operate if the appliance is dismantled by, or any repairs to the appliance are effected by any persons not duly authorised by the Company, or if substitute parts not approved by the Company are used in the appliance, or if the serial number of the appliance is removed.
4. The Company shall not be responsible for damages resulting from fire, flood, civil disturbances or any Act of God. The Company shall not, in terms of these warranties be responsible nor held liable for any consequential loss or damage of any kind caused by or due to the failure or malfunction of the appliance. The Company shall not be responsible for damages caused by insect and/or animal infestation.
5. The Company shall not be responsible for transportation or other costs other than those incurred within the provisions of Point 1 of this Certificate.
6. For warranties in the Republic of South Africa and Sub-Saharan Africa, please contact your nearest Defy office. Please refer to the previous page for respective South African branches and Sub-Saharan Africa branches.
7. Where service is requested under warranty and no fault or defect can be found by the Company, all costs incurred will be for the purchaser's account.
8. This Certificate as well as your invoice will serve as proof of purchase. For the purpose of warranty, it will be essential to produce this Certificate and invoice. Failure to do so, will render the purchaser liable for service costs.

KEEP THIS CERTIFICATE AND SALES INVOICE AS PROOF OF PURCHASE FOR WARRANTY PURPOSES.
