VC6325B - Vacuum Cleaner Defy - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Defy
Model	VC6325B
Power Supply	220-240 V~, 50/60 Hz
Power Consumption	800 W
Cable Length	7 m
Dust Container	Yes, with removal button
Suction Power Adjustment	Yes, with knob and blue/red LED indicator
Accessories Included	Parquet/carpet brush, hard floor brush, upholstery tool, dust brush, crevice tool, telescopic tube
Filter Requirement	Must be used with filters; do not operate without filters
Warranty	2 years from date of purchase
Safety Features	Auto shut-off? Not specified; general safety compliant with international standards
Storage	Parking hook for brush
Weight	Approx. 5 kg (estimated)
Dimensions	Not specified; typical upright size
Compliance	WEEE Directive, RoHS Directive
Service Network	South Africa and Sub-Saharan Africa branches listed

Frequently Asked Questions - VC6325B Defy

How do I clean the filters?

Switch off and unplug the appliance. Remove the filters and tap them gently to remove dust. Do not use water unless specified; if washable, rinse with water and let dry completely before reinstalling. Never use hot air to dry.

What should I do if suction power decreases?

First, check if the dust container is full. The suction power adjustment knob turns red when the container is full. Empty the container and clean the filters if needed. Also check for blockages in the hose or nozzle.

Can I vacuum liquids?

No, this vacuum cleaner is designed for dry use only. Do not vacuum water or other liquids as it may damage the appliance.

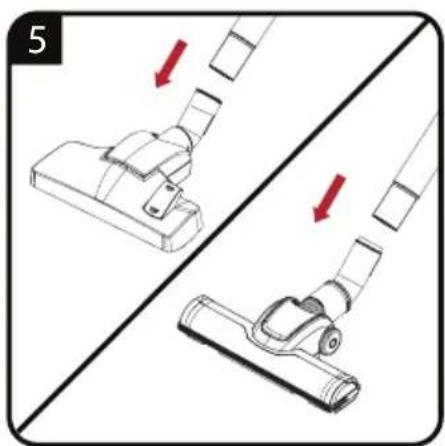

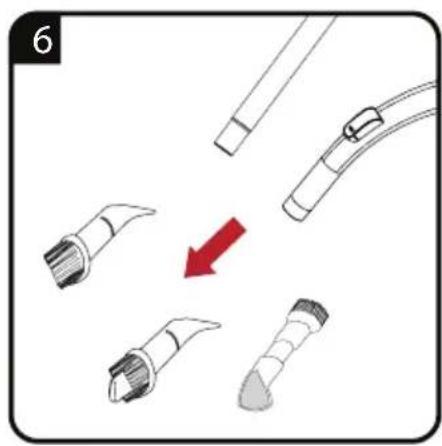

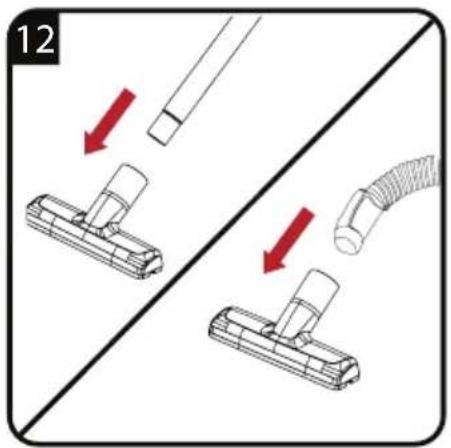

How do I attach the different brushes?

Attach the desired brush or tool directly to the hose or telescopic tube. For the parquet/carpet brush, use the brush adjustment latch to switch between hard floor and carpet mode. The parking hook allows storing the brush conveniently.

Is it safe to use an extension cord?

No, do not use an extension cable with this appliance. Plug directly into a mains socket secured with a 16 A fuse minimum.

How often should I replace the filters?

Filter replacement frequency depends on usage. Check the filters regularly and replace them if they are damaged or worn out. Using original or manufacturer-recommended parts is advised.

What does the red LED on the suction knob mean?

The blue status LED turns red when suction power decreases or the dust container is full. Empty the container and clean filters to restore performance.

Can children use this vacuum cleaner?

This appliance can be used by children aged 8 and above under supervision. Children shall not play with the appliance. Cleaning and maintenance by children without supervision is not allowed.

What should I do if the power cable is damaged?

Do not use the appliance. Contact an authorized service center for repair or replacement. Do not attempt to fix it yourself.

How should I store the vacuum cleaner?

Unplug the appliance and store it in a dry place out of reach of children. Use the parking hook to keep the brush in place. If storing long-term, keep in original packaging if possible.

USER MANUAL VC6325B Defy

Black and white photo of a vacuum cleaner with coiled hose and handle (no text or symbols visible)

EN	OPERATION CLEANING AND CARE

Illustration of various household cleaning and repair tools including a vacuum cleaner, hose, and a gift box with a red arrow (no text or symbols)

Line drawing of a vacuum cleaner with attached hose and pipe, no text or symbols present

Diagram of a medical or surgical device with a red arrow indicating a point of interest (no text or symbols present)

Illustration of hands holding a cylindrical object with a red double-headed arrow indicating motion (no text or symbols)

Diagram showing two different vacuum cleaner blade positioning, with red arrows indicating movement direction (no text or symbols)

Illustration of medical or surgical tool tips with a red arrow indicating a process (no text or symbols present)

Diagram of a vacuum cleaner with a red arrow indicating motion, showing mechanical components and a patterned pattern (no text or symbols)

Technical line drawing of a vacuum cleaner with red arrow indicating component (no text or symbols)

Line drawing of a car interior with a hand pointing to the engine compartment, showing no text or symbols.

Technical line drawing of a vacuum cleaner with internal components and fan array (no text or symbols)

Diagram showing two views of a mechanical device with a hand adjusting its component, no text or symbols present.

Line drawing of a robotic device pouring granular material into a container (no text or symbols)

Illustration of a hand inserting a component into a device housing (no text or symbols visible)

Exploded view diagram of a device showing internal components and a grid-patterned base (no text or symbols)

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Defy appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

1. On/Off button
2. Dust container
3. Suction nozzle
4. Hose cap
5. Hose
6. Dust container removal button
7. Suction power adjustment knob
8. Parquet/carpet brush parking hook

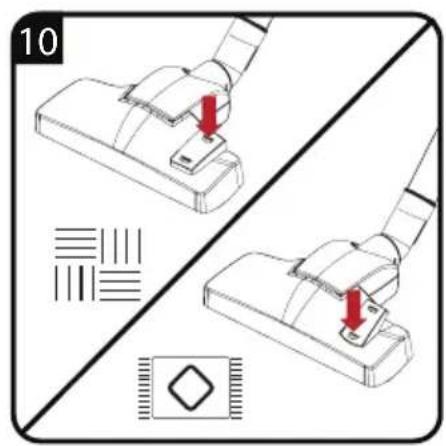

9. Brush adjustment latch
10. High performance parquet/carpet brush
11. Telescopic tube adjustment latch
12. Telescopic tube
13. Vacuum control
14. Handle
15. Hard floor brush
16. Upholstery tool
17. Dust brush
18. Crevice tool

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

Technical data

Supply voltage : 220-240 V\~, 50/60 Hz

Power : 800 W

Cable length : 7m

Technical and design modification rights are reserved.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies v international safety standards.

• This appliance can be used children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• If the power cable or the appliance itself is damaged, do not use it. Contact an authorised service.

• Your mains power supply should comply with the information on the rating plate of the appliance.
• The mains supply on which you will use the appliance must

be secured with a 16 A fuse minimum.

by• Do not use the appliance with an extension cable.

• To avoid any damage to the power cable, prevent it from being squeezed, bent or rubbed on sharp edges.
• Do not touch the plug when the appliance is plugged in if your hands are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ash, make sure that it has cooled down.
• Do not vacuum water or other liquids.

1 Important safety and environmental instructions

• Protect the appliance from rain, humidity and heat sources.
• Never use the appliance in or near places where combustible or inflammable ambience or places are present.
• Unplug the appliance before cleaning and maintenance.
• Do not immerse the appliance or its power cable in water for cleaning.
• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorised service.
• Do not dismantle the appliance.
• Only use the original parts or parts recommended by the manufacturer.
• Do not use the appliance without filters; otherwise, it can get damaged.
• When vacuum-cleaning the stairs, the appliance should be located below the user.
• If you keep the packaging materials, store them out of the reach of children.

2 Information

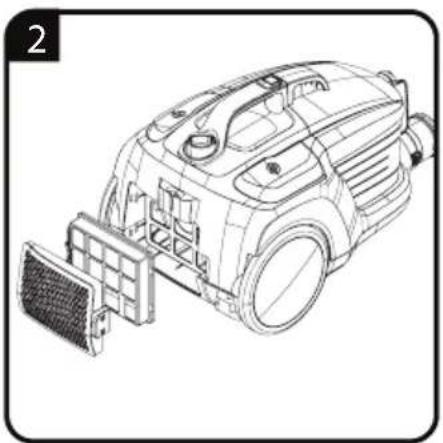

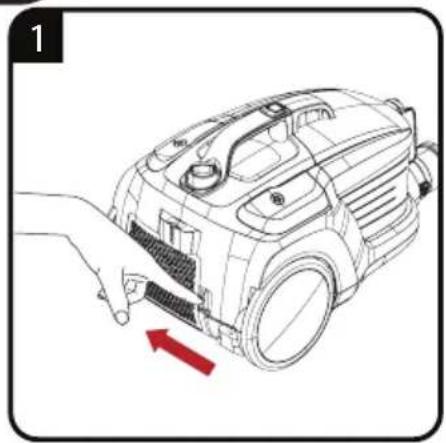

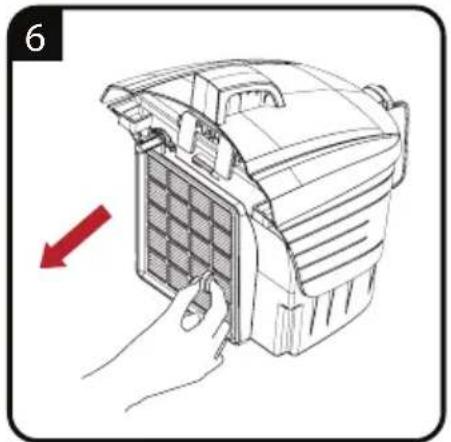

2.1 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

WARNING: Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: Attach the filters into their places after they are dried.

Blue status led of the suction power adjustment knob turns into red when suction power decreases or the container is full.

Suction power adjustment knob turns into red when the container is full.

2.2 Storage

- If you do not intend to use the appliance for a long time, store it carefully.

• Unplug the appliance.
• Keep the appliance out of the reach of children.

2.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

2 Information

2.4 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

2.5 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.6 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

□

Branches

If you have followed the instructions and still have a problem, contact the customer care line on 086 100 3339. They will be able to advise you on any aspect of the appliance.

South African Branches:

BLOEMFONTEIN

Unit Number 5

Monument Business Park

50 Monument Road

Oranjesig, Bloemfontein

[e-mail]

CAPE TOWN

5A Marconi Rd. Montague Gardens, 7441

[e-mail]

DURBAN

135 Teakwood Road, Jacobs,

Durban, 4052

[e-mail]

EAST LONDON

Robbie de Lange Road, Wilsonia,

East London, 5201

[e-mail]

GAUTENG, MIDRAND

127 15th Road, Cnr Pharmaceutical &15th Rd,

Midrand, Gauteng

[e-mail]

POLOKWANE

87 Nelson Mandela Drive, Superbia 0699

[e-mail]

PORT ELIZABETH

112 Patterson Road, North End, Port Elizabeth 6001

[e-mail]

Record in the space below the listed information for future reference.

SERIAL NUMBER......

DATE OF PURCHASE......

PURCHASED FROM......

Sub-Saharan Africa Branches:

ZAMBIA: SOUTHGATE INVESTMENTS LTD

Plot 1606, Sheki Sheki Road

P.O. Box 33681

Lusaka, 10101, Zambia

Tel: [phone]

Fax: [phone]

[e-mail]

NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) LTD

10 Tienie Louw Street, Northern Industrial Area

P.O. Box 21158, Windhoek, Namibia

Tel: [phone]

Fax: [phone]

[e-mail]

ZIMBABWE: TRADECOMAFRICA

Trade Com Africa, 183 Loreley Crescent

Msasa, Harare, Zimbabwe

Tel: [phone]

Cell: [phone]

Cell: [phone]

BOTSWANA: RAY MORGAN AGENCIES

RMA Service Centre, Plot 48, East Gate

Gaborone International Commerce Park

Kgale View, Gaborone

Botswana

Tel: [phone]

Fax: [phone]

Cell: [phone]

[e-mail]; [e-mail]

SWAZILAND: LYNDS DISTRIBUTORS

P.O Box 716, Mbabane, Swaziland, H100

Tel: [phone]

Fax: [phone]

MOZAMBIQUE: COOL WORLD. LDA

This certificate is issued by DEFY APPLIANCES (PTY) LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.

The Company warrants to the original purchaser that for a period of TWO YEARS from date of purchase the appliance is free from defect under normal domestic use, both in workmanship and material, subject to the following conditions.

1. Carry-in service. Small appliances are repaired in our service centres and are not collected from the customers home. Faulty units must be delivered to the purchasing dealer or to the nearest Company Service Centre for warranty repairs.
2. Vitreous enamelware, fuses and lamps are specifically excluded from these warranties. It is an express condition of these warranties that the purchaser takes due care and attention in the use and maintenance of the appliance. Abuse, misuse in conflict with operating instructions, connection to incorrect voltages and subjection to commercial use shall release the Company from its obligations.
3. This warranty shall become void and cease to operate if the appliance is dismantled by, or any repairs to the appliance are effected by any persons not duly authorised by the Company, or if substitute parts not approved by the Company are used in the appliance, or if the serial number of the appliance is removed.
4. The Company shall not be responsible for damages resulting from fire, flood, civil disturbances or any Act of God. The Company shall not, in terms of these warranties be responsible nor held liable for any consequential loss or damage of any kind caused by or due to the failure or malfunction of the appliance. The Company shall not be responsible for damages caused by insect and/or animal infestation.
5. The Company shall not be responsible for transportation or other costs other than those incurred within the provisions of Point 1 of this Certificate.
6. For warranties in the Republic of South Africa and Sub-Saharan Africa, please contact your nearest Defy office. Please refer to the previous page for respective South African branches and Sub-Saharan Africa branches.
7. Where service is requested under warranty and no fault or defect can be found by the Company, all costs incurred will be for the purchaser's account.
8. This Certificate as well as your invoice will serve as proof of purchase. For the purpose of warranty, it will be essential to produce this Certificate and invoice. Failure to do so, will render the purchaser liable for service costs.

KEEP THIS CERTIFICATE AND SALES INVOICE AS PROOF OF PURCHASE FOR WARRANTY PURPOSES.
