Product Type	LED Smart TV
Model	TV-55UHD123T2S2SM
Screen Size	55 inches (139.7 cm)
Resolution	3840 x 2160 (4K UHD)
Display Technology	LED
Dimensions with Stand (W x H x D)	1240 x 774 x 268 mm
Dimensions without Stand (W x H x D)	1240 x 718 x 88 mm
Weight with Stand	11.2 kg
Weight without Stand	11.1 kg
Power Consumption	150 W
Voltage / Frequency	100-240 V ~ 50/60 Hz
Sound Output (RMS)	10 W + 10 W (stereo)
Operating System	Android 9.0
Processor	Quad Core 1.5 GHz ARM Cortex A53x4
RAM / Storage	1.5 GB / 8 GB
TV System	PAL/SECAM B/G, D/K, I
Digital Tuner	DVB-T2/C/S2 (terrestrial, cable, satellite)
Smart TV Features	Media Player, Screen Mirroring, EShare, Web Browser
Connectivity	Wi-Fi, Ethernet (RJ45), Bluetooth (via USB dongle)
HDMI Inputs	3 (HDMI 3 with ARC)
USB Ports	2 (USB 2.0, max 5V/500mA)
Other Connectors	CI+ slot, Digital Audio Output (coaxial), Headphone jack, Mini AV, Mini YPbPr

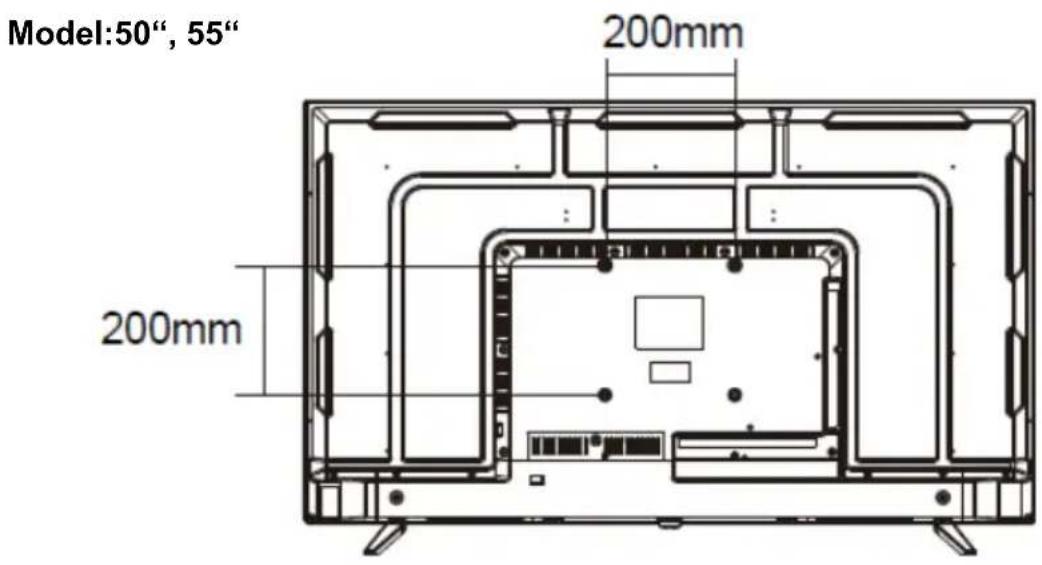

VESA Wall Mount	200 x 200 mm (M6 screws, length 8 mm)
Remote Control Batteries	2 x AAA (not included)
Energy Efficiency Class	Not specified in manual (assume A+ typical)

Frequently Asked Questions - TV-55UHD123T2S2SM Vivax

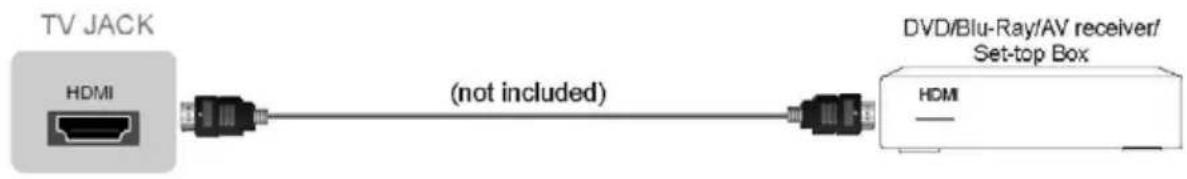

How do I connect external devices like a DVD player or game console?

Use an HDMI cable to connect the device to one of the HDMI ports (HDMI1, HDMI2, HDMI3). Press the INPUT button on the remote, select the corresponding HDMI source, and press OK. For older devices without HDMI, use the Mini AV or Mini YPbPr inputs with appropriate cables.

Can I play media files from a USB drive?

Yes. Insert a USB drive (FAT32 or NTFS) into the USB port. Go to the Media Player app on the Smart TV home screen or select File Browser to browse photos, music, and videos. Supported formats include MPEG, AVI, MP4, MKV, JPEG, BMP, and more (see manual for full list).

How do I set up TV channels for the first time?

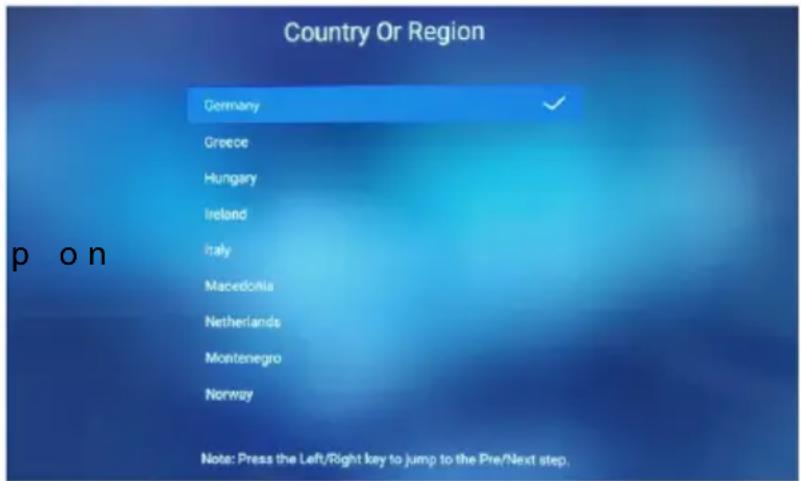

During the first-time installation wizard, select your language, country, time zone, and network. Then choose StartTV and select Digital Auto Tuning. The TV will scan for available DVB-T2/C/S2 channels. You can also perform a manual scan later via Menu > Channel > Manual Tuning.

Can I use the TV as a computer monitor?

Yes. Connect your PC via HDMI. The TV supports resolutions up to 3840x2160 @ 60Hz over HDMI. Use the Picture Mode option to select PC Game or adjust settings for optimal text clarity.

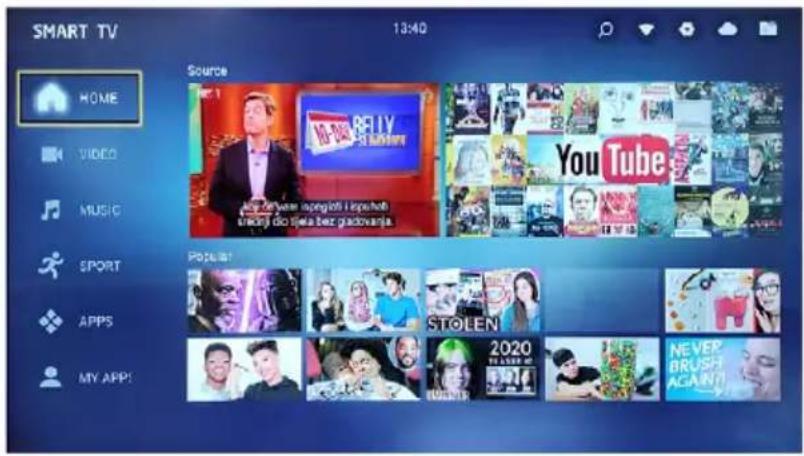

How do I access the Smart TV features and apps?

Press the HOME button on the remote to open the Smart TV launcher. You can navigate to APPS to see pre-installed apps like YouTube, Netflix, and the TV Store. For additional apps, use the Play Store (alternative app store) located in the MY APPS menu.

What should I do if the remote control stops working?

First, check the batteries (AAA) and replace them if needed. Ensure there are no obstacles between the remote and the TV’s IR sensor (front panel). If the problem persists, unplug the TV for 60 seconds and try again. If still not working, contact support.

Can I mount the TV on the wall?

Yes. Use a VESA standard wall mount (200x200 mm) with M6 screws (length 8 mm). Remove the stand before mounting. Ensure the wall can support the TV's weight (approx. 11 kg). See manual for detailed instructions.

How do I enable subtitles or change audio language?

During a broadcast, press the S.TITLE (Subtitle) or AUDIO button on the remote. Alternatively, go to Menu > Channel > Subtitle Language or Multi Audio to set your preferred options (if available from the broadcaster).

Does the TV support recording live TV?

Yes. Connect a USB storage device (up to 1TB). Go to Menu > Channel > Record and set up the recording disc. You can start recording by pressing the REC button on the remote during a DVB channel. The T-SHIFT button allows pausing/rewinding live TV.

How do I reset the TV to factory settings?

Press MENU, go to Settings > Reset TV. Confirm by pressing OK. This will erase all channels, installed apps, and personal settings. The TV will restart and show the first-time installation screen again.

USER MANUAL TV-55UHD123T2S2SM Vivax

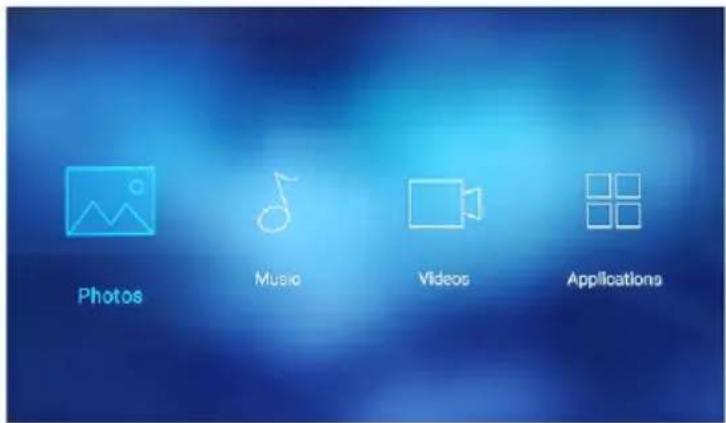

Media player — Pristupite svojim muzičkim zapisima, slikama i video materijalima putem vašeg USB medija te ih pokrenite direktno na TV prijamniku.

Kontrolirajte sve funkcije pomoću jednog daljinskog upravljača. Priključite vaš televizor direktno na zemaljsku, ili kabelsku mrežu te uživajte u sadržajima u najvišoj kvaliteti.

Popis pribora uz uređaj

Prilikom otvaranja kutije i instalacije uređaja, provjerite da li ste uz vaš uređaj dobili sav potreban pribor:

• Korisnički priručnik s jamstvenom izjavom
• Daljinski upravljač
• Baterije x2

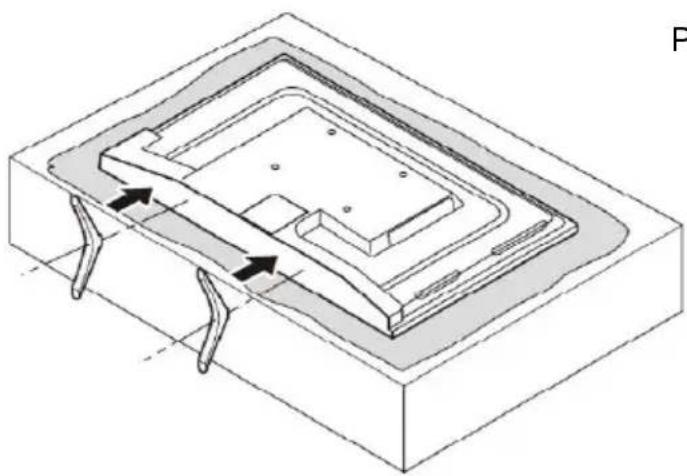

• Stalak i Vijci za stalak

Two identical line drawings of a V-shaped structure with internal segments, no text or symbols present.

Slike služe samo kao referenca i mogu se neznatno razlikovati od stvarnog proizvoda. Pri tome funkcionalnost ostaje ista.

Munja sa simbolom strelice unutar trokuta upozorava korisnika na prisutnosti opasnog neizoliranog napona unutar proizvoda, te koji može biti dovoljno jak da bi predstavljao rizik od strujnog udara ili ozljeda.

Uskličnik unutar trokuta upozorava korisnika o prisutnosti važnih uputa o rukovanju i održavanju u dokumentu priloženom u pakiranju.

OPREZ

RIZIK OD STRUJNOG UDARA NE OTVARAJTE UREĐAJ

Symbolic illustration of a candle crossed out by two crossed lines, representing fire and smoke (no text or labels)

20. Uporaba Slušalica - Oprez

Isometric technical diagram of a mechanical component with internal channels and mounting brackets (no text or symbols)

Napomena: Zidni nosač nije dio pribora uz TV prijamnik. Ako vam je potreban zidni nosač, kontaktirajte svog prodavača za VESA standardni zidni nosač.

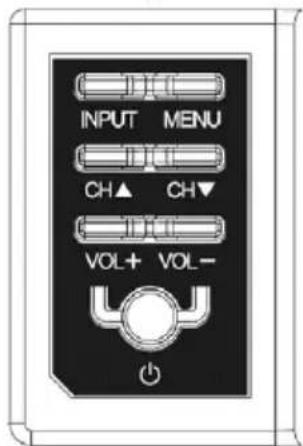

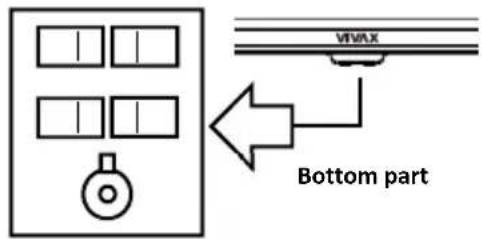

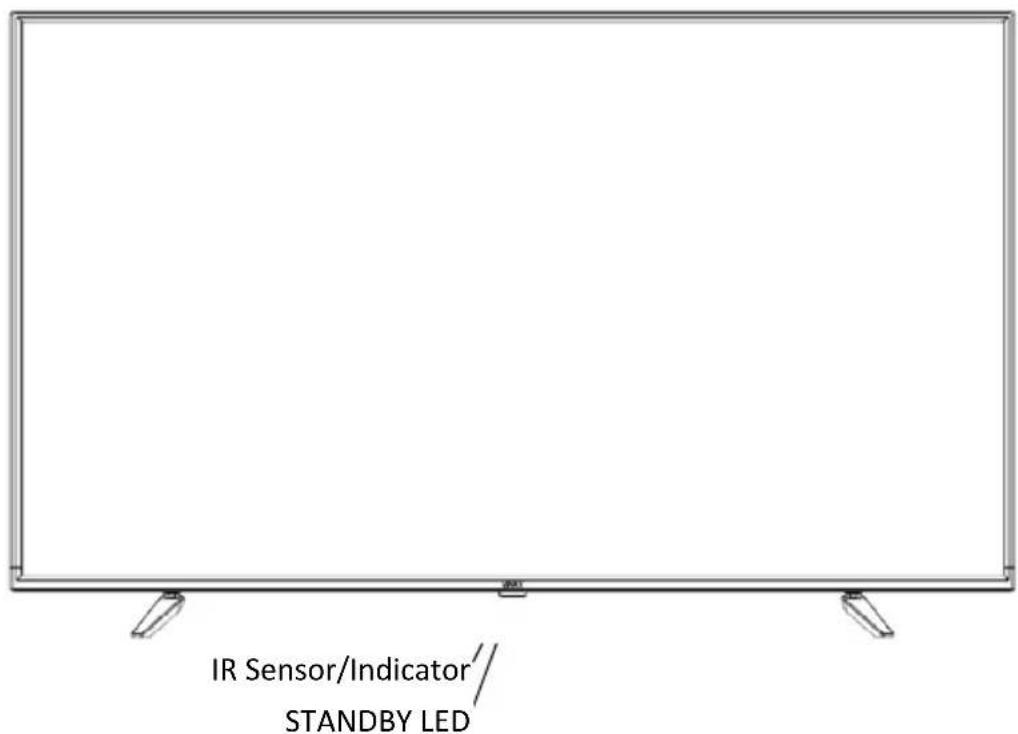

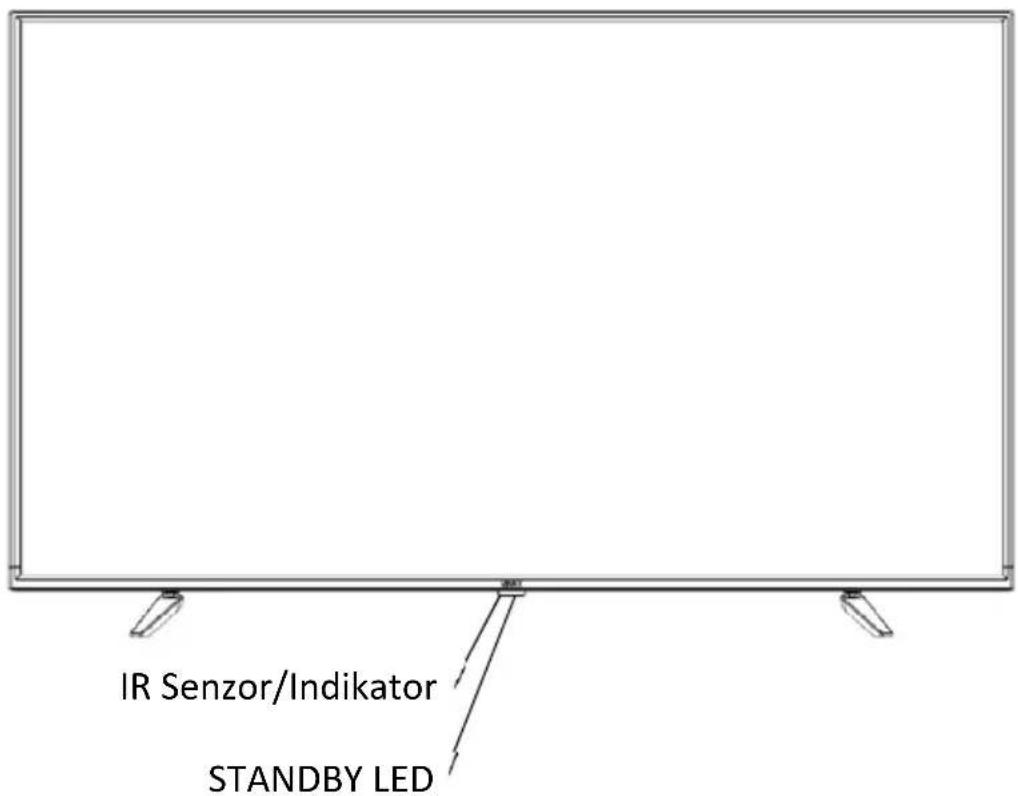

Prednja strana TV prijamnika

VOL + Tipka za pojačavanje zvuka; U modu aktivnog Izbornika (MENU), tipka ima istu funkciju kao desna strelica na daljinskom upravljaču i koristi se za odabir opcija u Izborniku.

MENU/CH▼ Kratki pritisak tipke mijenja kanale. Dugi pritisak tipke aktivira otvaranje sustava Izbornika (MENU).

MENU: Prikazu Glavnog Izbornika

INPUT: Prikazu Izbornika Izvora (Source)

Simple diagram with six geometric shapes: circles, circles, circles, squares, and rectangles arranged horizontally (no text or labels)

NAPOMENE

Slika je samo za informaciju. Vaš uređaj može se neznatno razlikovati od gornje slike.

Priključite USB uređaj kao što je USB memorija ili USB tvrdi disk ili digitalnu kameru za pregledavanje fotografija, slušanje glazbe ili gledanje video materijala. Ovaj ulaz koristi se i za nadogradnju software-a. Nadogradnja će se izvršiti automatski čim USB sa datotekama za nadogradnju bude umetnut u USB sučelje.

NAPOMENE

• Prilikom priključenja tvrdog diska ili USB memorije, uvijek priključite adapter napajanja spojenog uređaja u izvor napajanja. Preopterečenje USB priključka može dovesti do oštećenja. Najveća dozvoljena potrošnja struje USB ulaza iznosi 500mA.
• TV prijamnik ne podržava samostalne, nestandardne tvrde diskove visokih performansi koji nemaju vanjsko napajanje, ukoliko je zahtjevana struja jača ili jednaka 500mA. To može dovesti do oštećenja TV uređaja ili tvrdog diska.
• USB utor podržava napon od 5V.
• Maksimalna podržana veličina prostora za pohranu je 1T.

▶ COAX: DIGITAL AUDIO OUT

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a battery pack with two batteries and a battery, no text or symbols present.

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

NAPOMENE

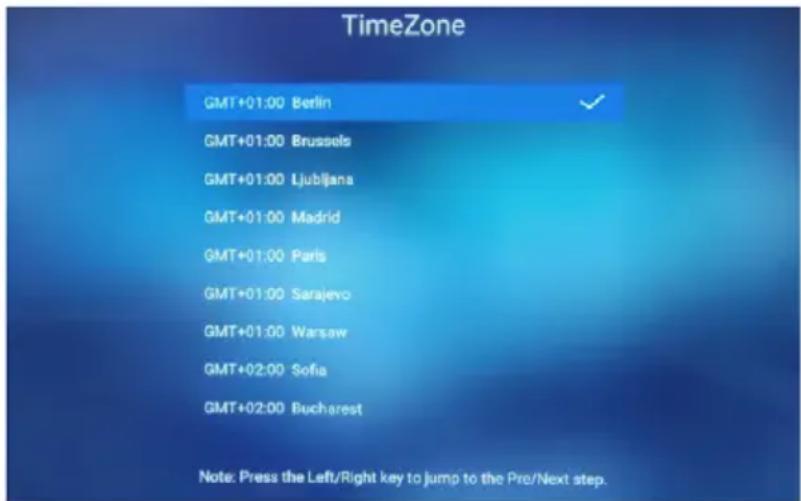

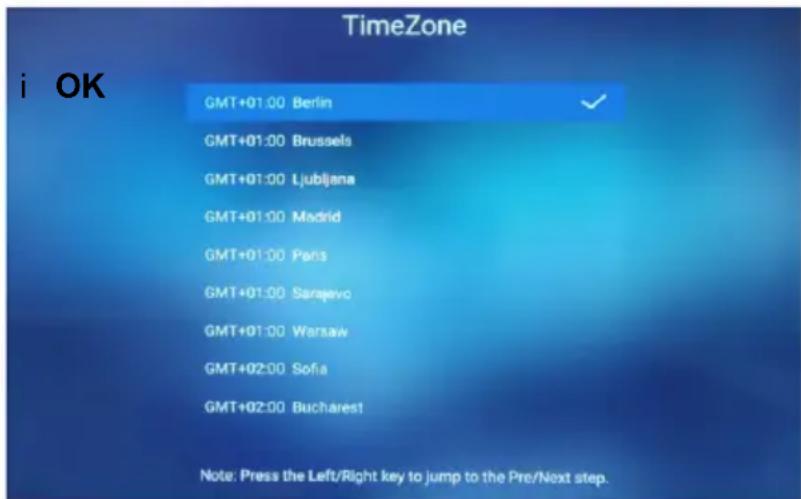

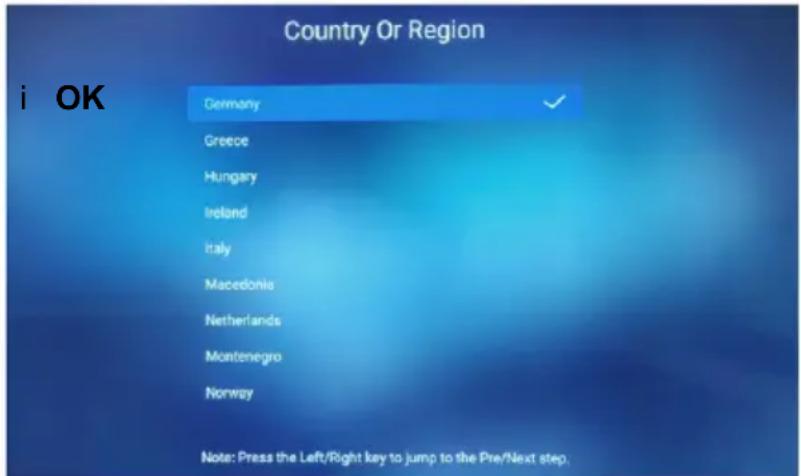

TimeZone (Vremenska zona)

Pritisnite ▼ / ▲ i OK tipku za odabir vremenske zone Regije / Države u kojoj instalirate vaš TV.

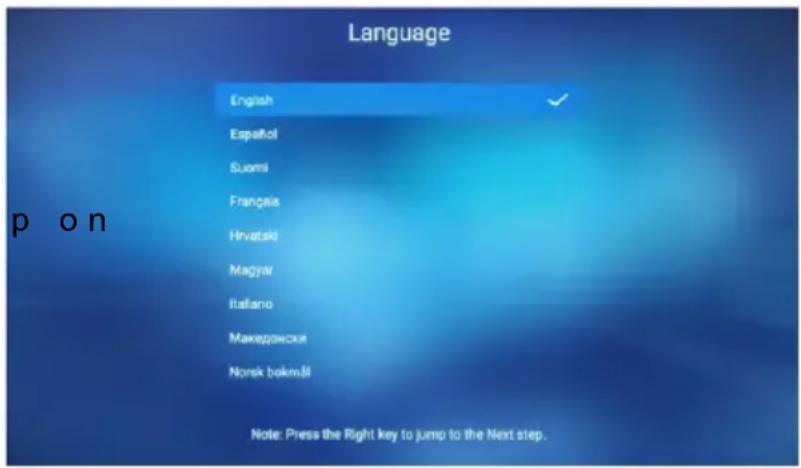

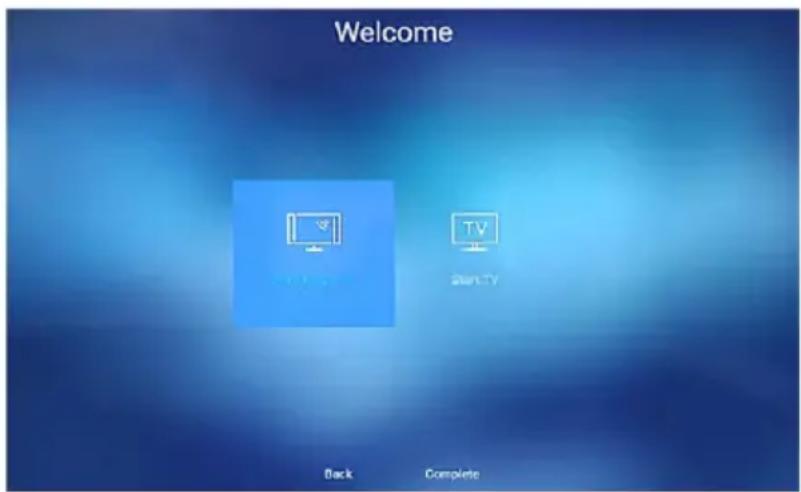

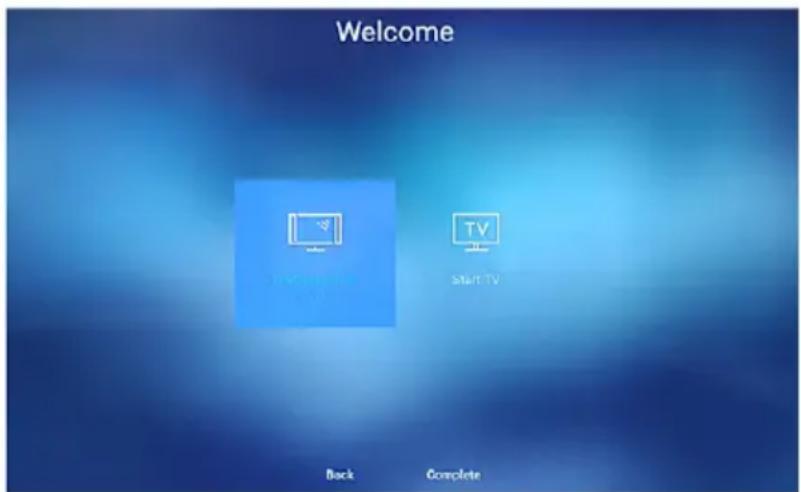

Welcome (Dobrodošli)

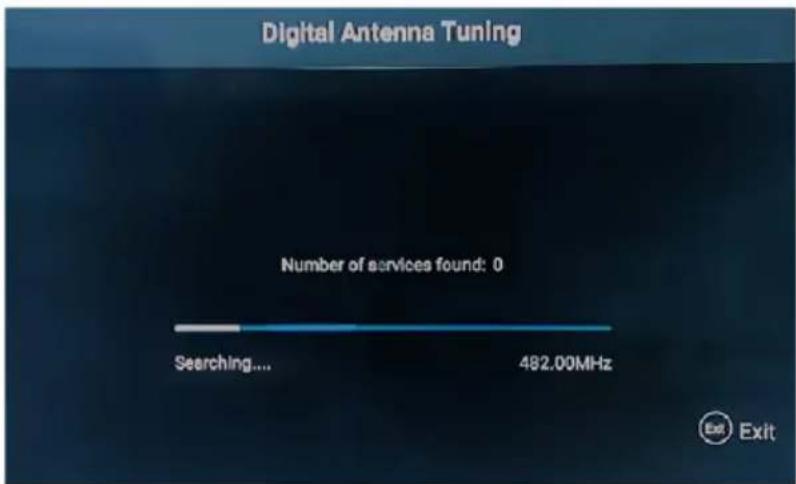

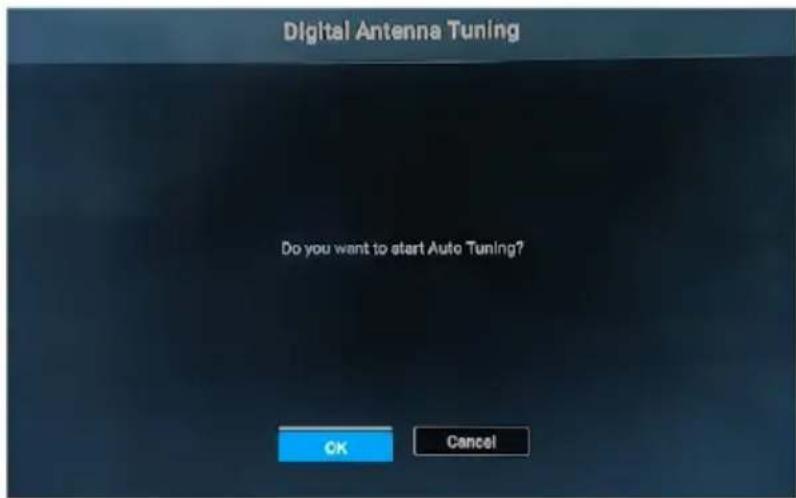

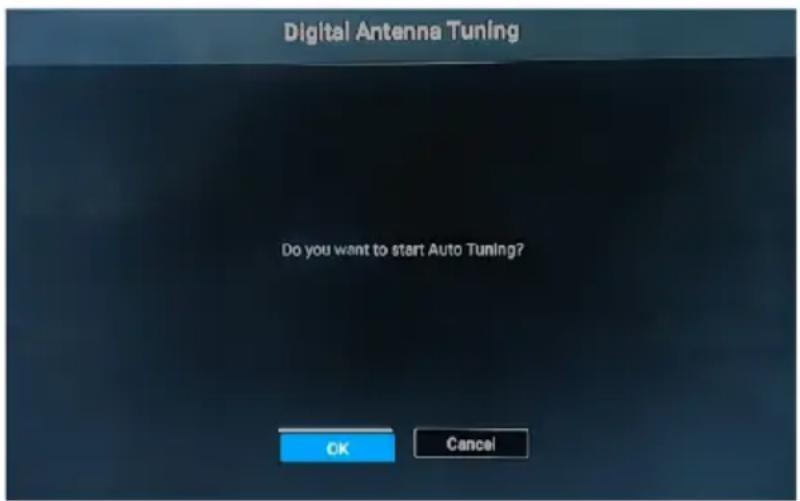

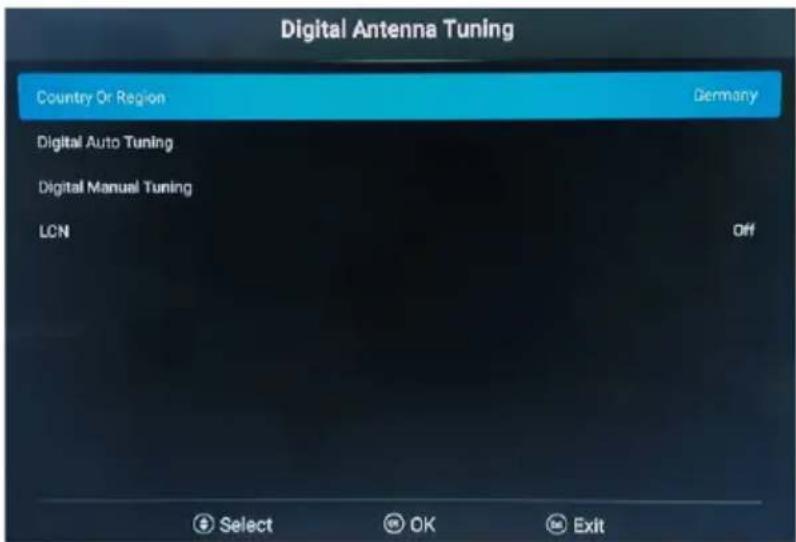

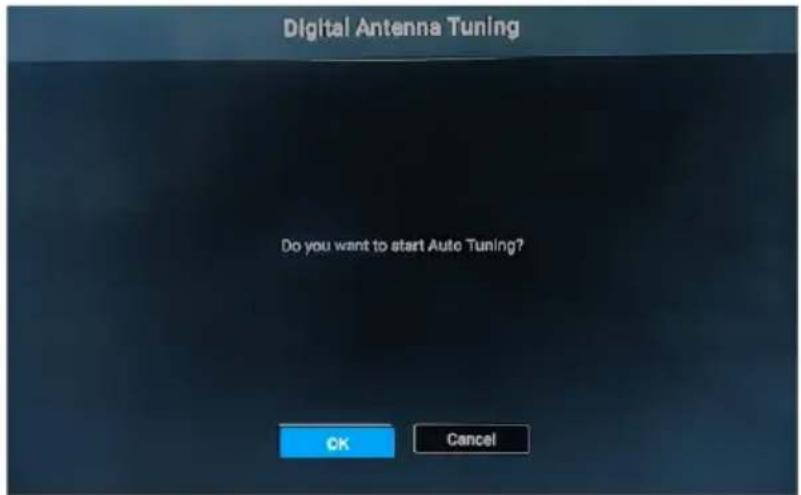

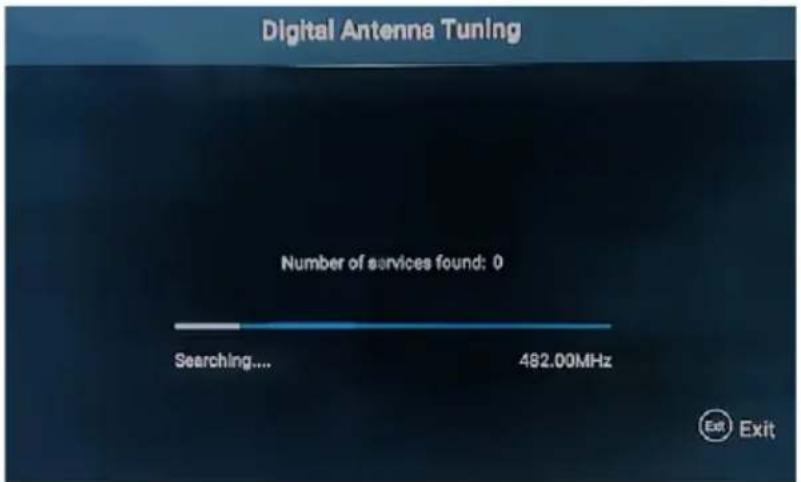

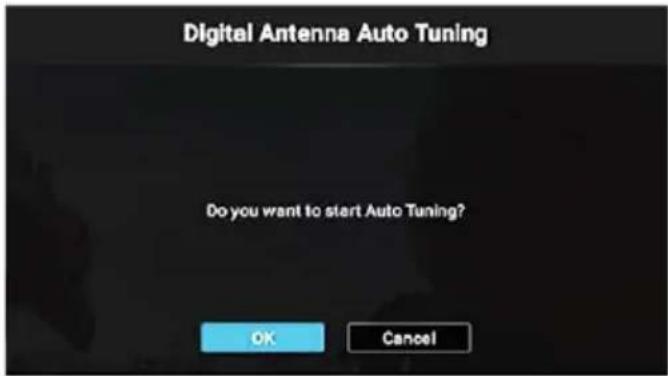

a.) Digital Auto Tuning (Digitalno Auto ugađanje)

Pritisnite OK za potvrdu automatske pretrage kanala.

TV će pretražiti sve dostupne DTV programe i pohraniti u Listu kanala.

Opaska:

Ako vam je potrebna ATV ili DVB-S ili DVB-C pretraga, pritisnite tipku INPUT i odaberite željeni izvor. Zatim možete nastaviti s automatskom pretragon za kanale na odabranom izvoru.

b.) Digital Manual Tuning (Digitalno Ručno ugađanje)

Pritisnite OK za ulazak u mod Ručne pretrage kanala.

zaslonu će se prikazati prvi program iz liste pronađenih kanala.

LCN

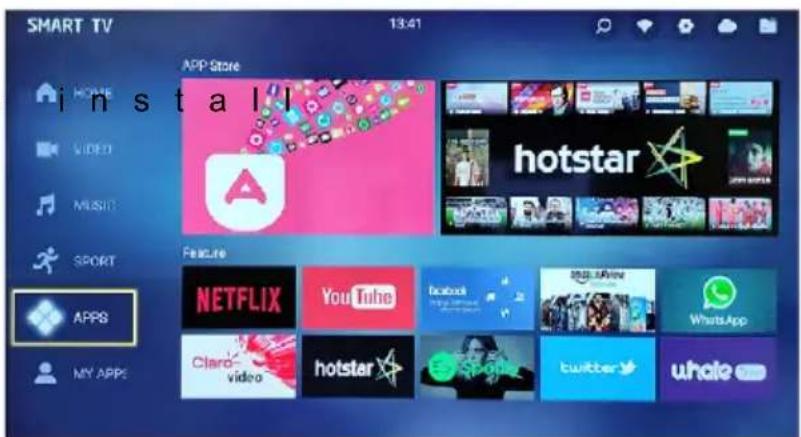

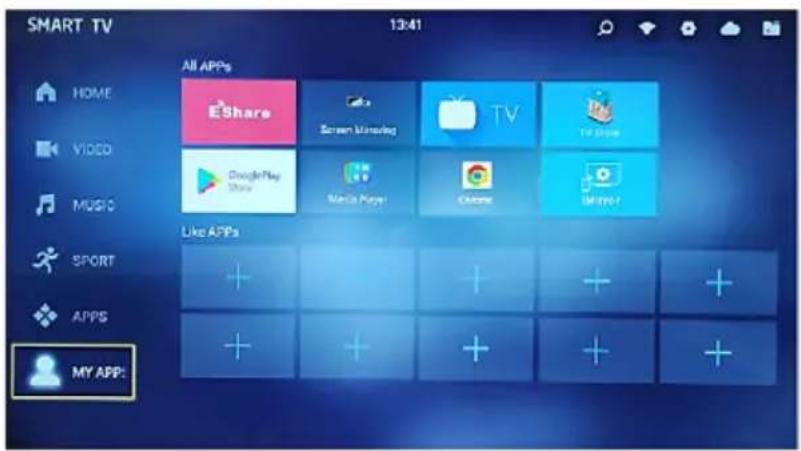

MY APPS (MOJE APPLIKACIJE):

Prikaz instaliranih aplikacija i pristup u alternativnu App Trgovinu (Google Play Store) za instalaciju App koje nisu pronadene u glavnoj APP trgovini.

Za više informacija pogledajte poglavlje „SMART postavke i navigacija kroz izbornike“

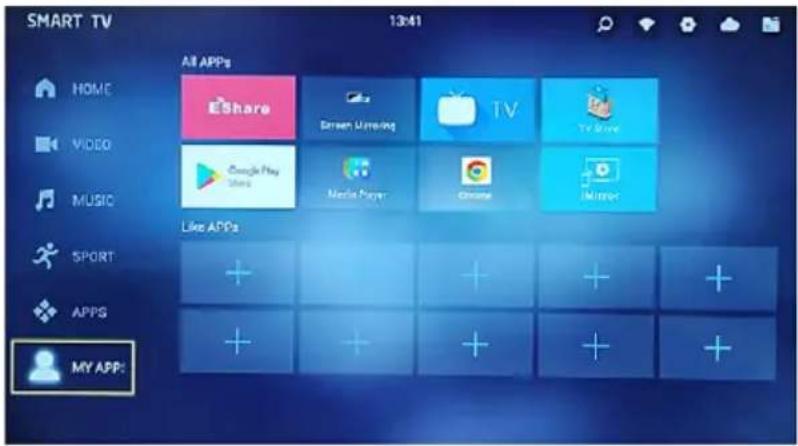

Tvornički instalirane App (All APPs)\*:

Eshare	Dijeljenje Audio/Video sadržaja izmeđuSmartPhone-a i TV-a
Screen Mirroring	Prikaz slike sa Smart uređaja na TV-u (Android)
Imirror	Prikaz slike sa Smart uređaja na TV-u (iOS)
TV	TV App za gledanje TV kanala
TV Store	Glavna App prodavnica
Play Store:	Rezervna App trgovina

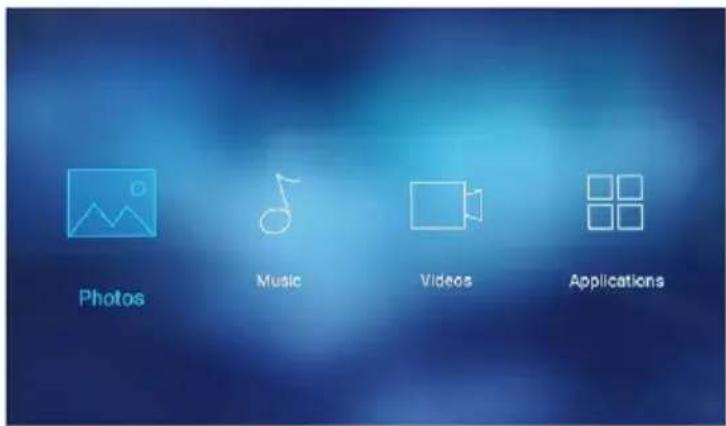

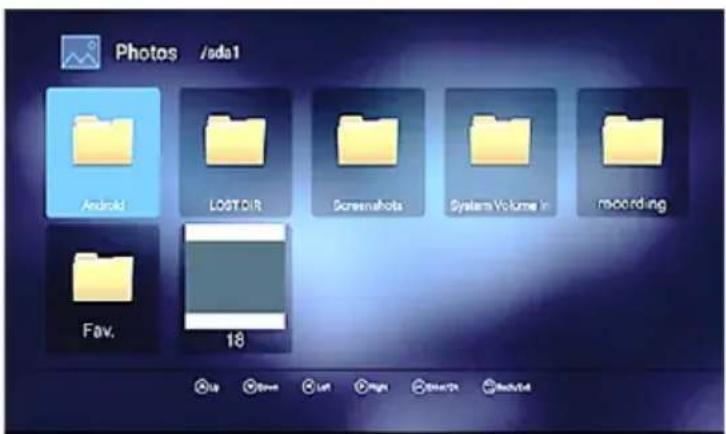

Media Player:	App za reprodukciju Photo/Video/Audio sadržaja
Chrome	Internet pretraživač***

Napomene: !

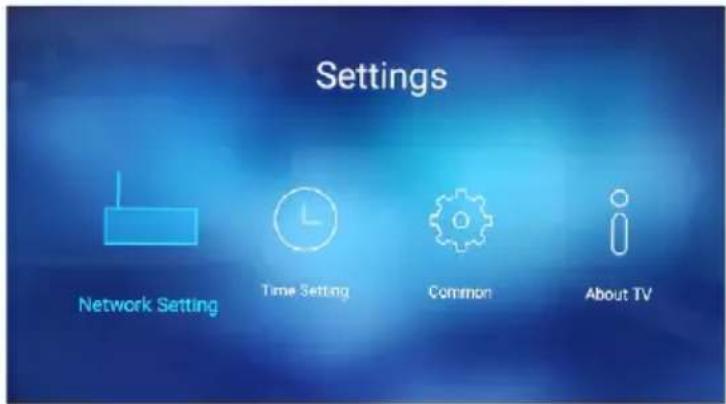

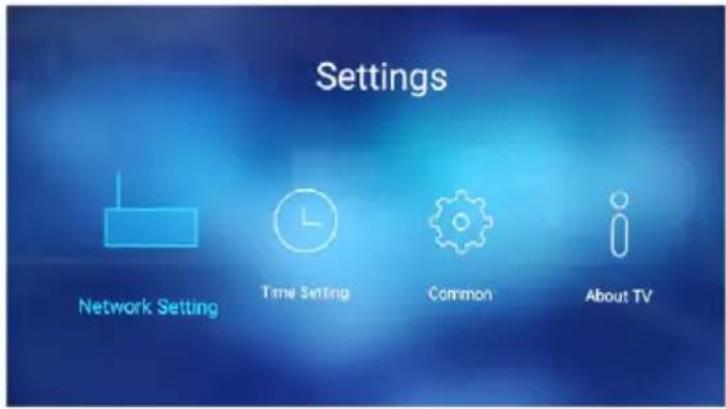

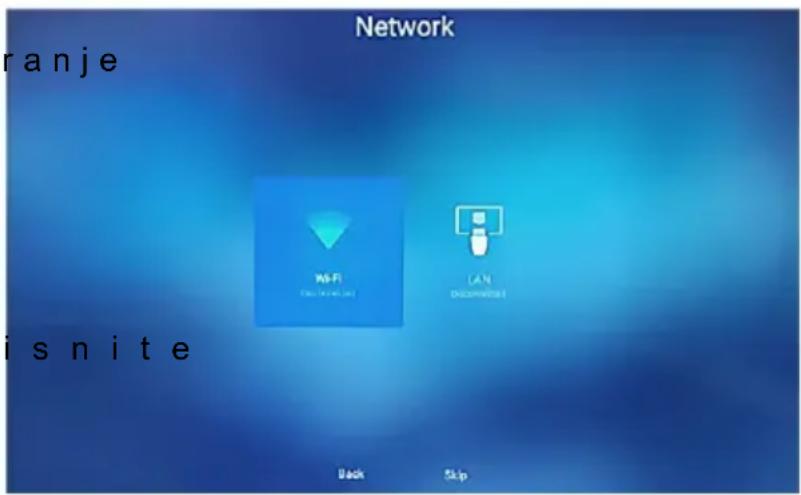

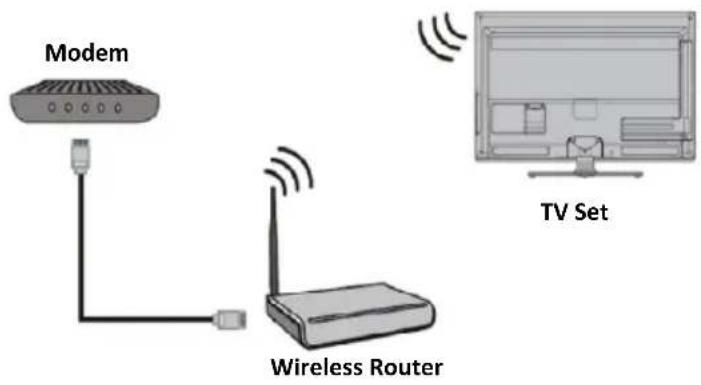

Wi-Fi Settings (Wi-Fi Postavke):

Ugađanje Wi-Fi postavki, postavki

Video:

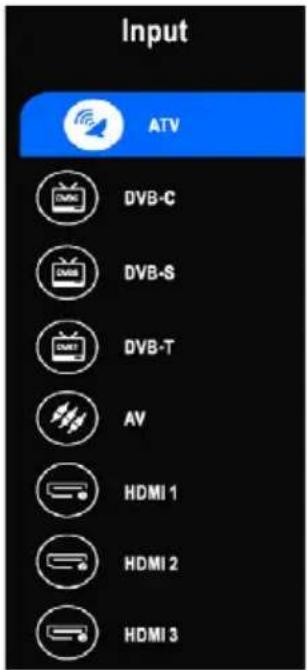

Input Source (Odabir ulaza)

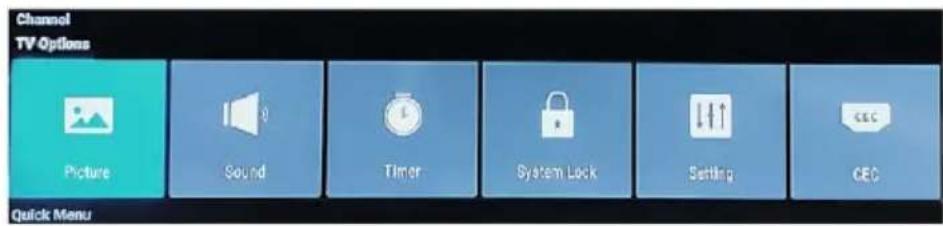

TV OPTIONS (TV OPCIJE)

Jgađanje postavki Slike, Zvuka, Tajmera, Zaključavanja i drugih općih postavki

QUICK (BRZI IZBORNIK)

Brzi izbor modova Slike, Zvuka, Samoisključenja TV-a i Medij reproduktora.

Za ulazak u Pod-Izbornik pritisnite OK.

Unutar Pod-Izbornika pritisnite tipke ◀ / ▶ za pomicanje i označavanje određene opcije u Pod-Izborniku.

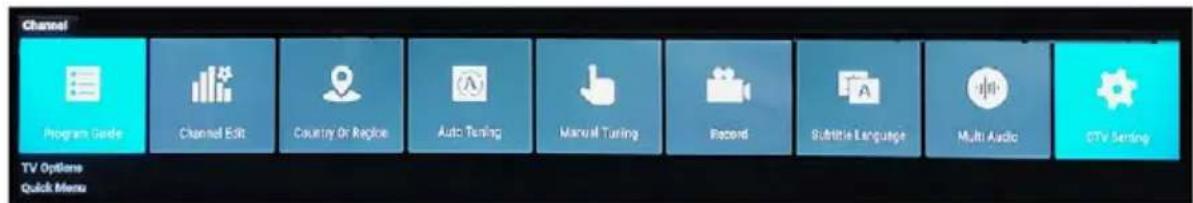

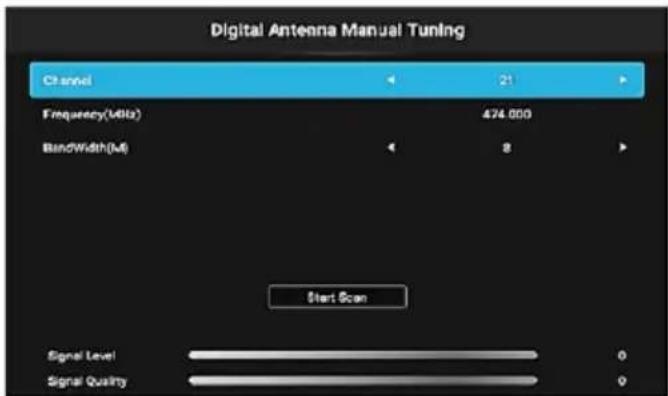

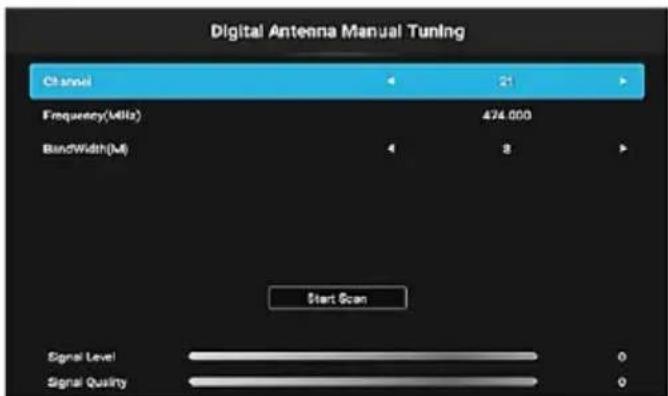

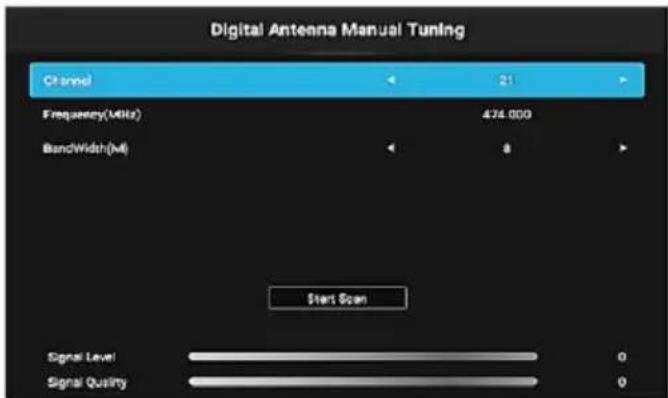

Manual Tuning (Ručna pretraga)

Channel (Kanal):

Pritisnite tip postavljanje kanala koji želite pretražiti.

Prije početka pretrage, ugodite i Širinu Frekv. Kanala (Bandwith).

Za početak pretrage označite ikonu „Start Scan“ (Započni pretragu).

Ovisno o vašim postavkama, TV će pretražiti sve dostupne TV programe i pohraniti ih u listu kanala

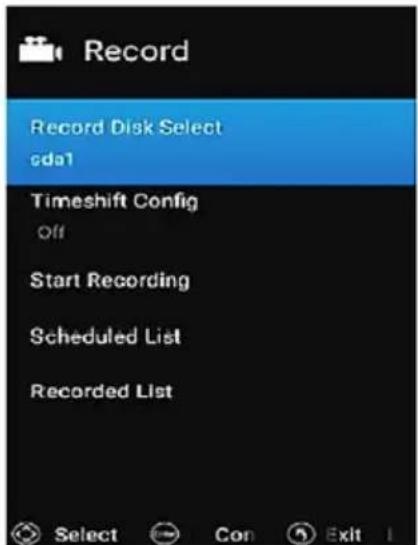

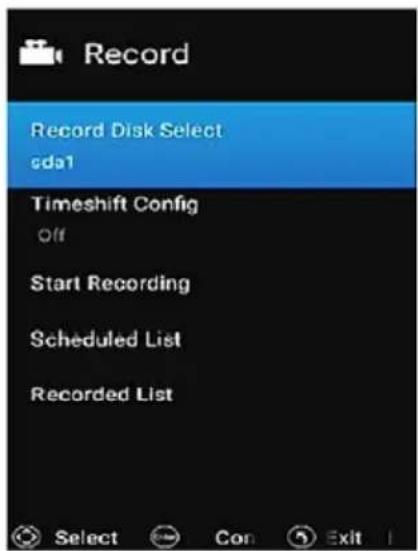

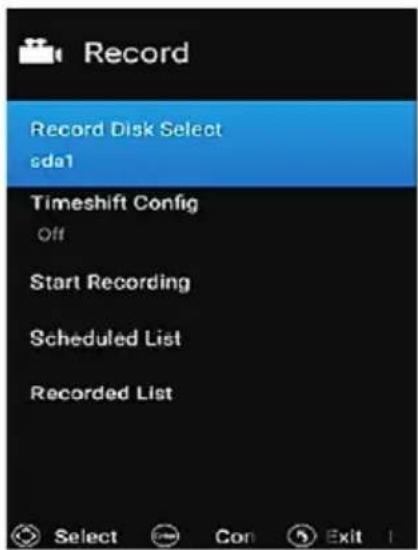

Record (Snimanje)

Pristup postavkama DVB snimanja:

Record Disc select (Odabir Diska za snimanje): Odabir puta za snimanje DVB kanala na vanjsku memoriju.

Time Shift Config (TimeShift konfiguracija): Postavke vremenskog pomaka, npr.: Maksimalna veličina datoteke, Maksimalno trajanje itd.

Start Recording (Početak snimanja): Snimanje DVB kanala.

Scheduled List channel list (Lista Tajmera za snimanje): Prikaz rasporeda snimanja

Recorded list (Lista snimljenih zapisa): Pristup listi svih DVB snimanja

Subtitle Language (Jezik podnaslova)

Postavke odabira DVB podnaslova prilikom emitiranja u višejezičnim podnaslovima.

Multi Audio (Multi Zvuk)

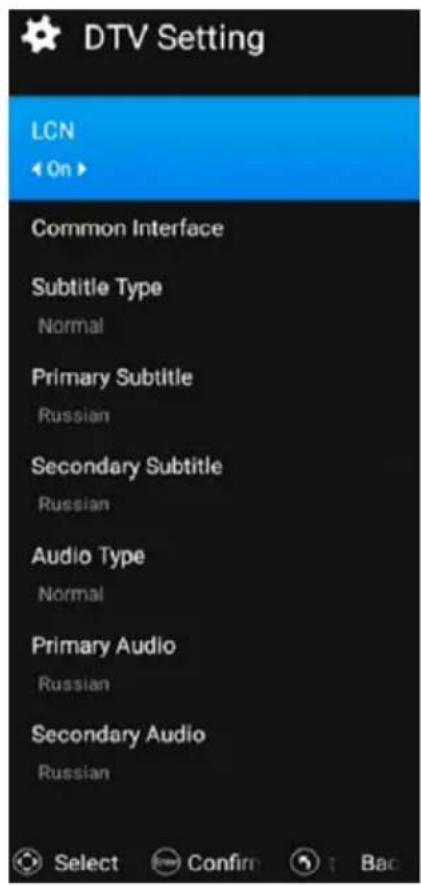

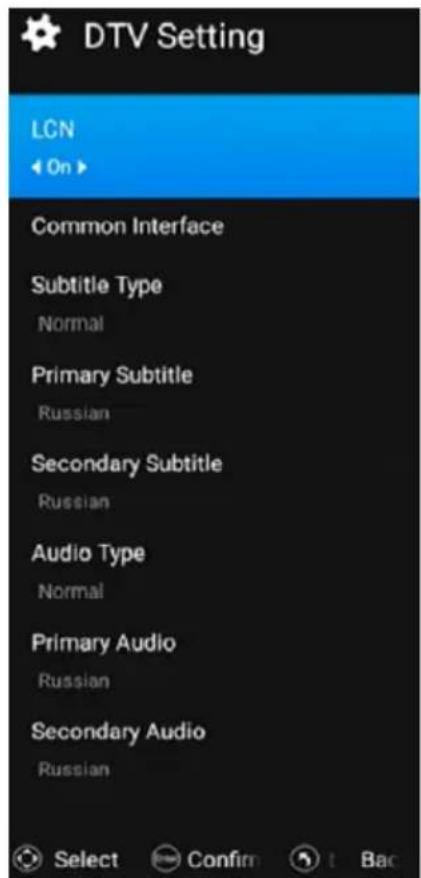

DTV Settings (DTV postavke)

LCN:

Subtitle (Type, Primary/Secondary Subtitle): Podnaslov (Tip, Primarni/Sekundarni podn.)

Audio (Type, Primary/Secondary Audio):

Audio (Tip, Primarni/Sekundarni Audio)

Napomena: Za podršku ove funkcije potrebno je odašiljanje takve usluge od strane distributera programa.

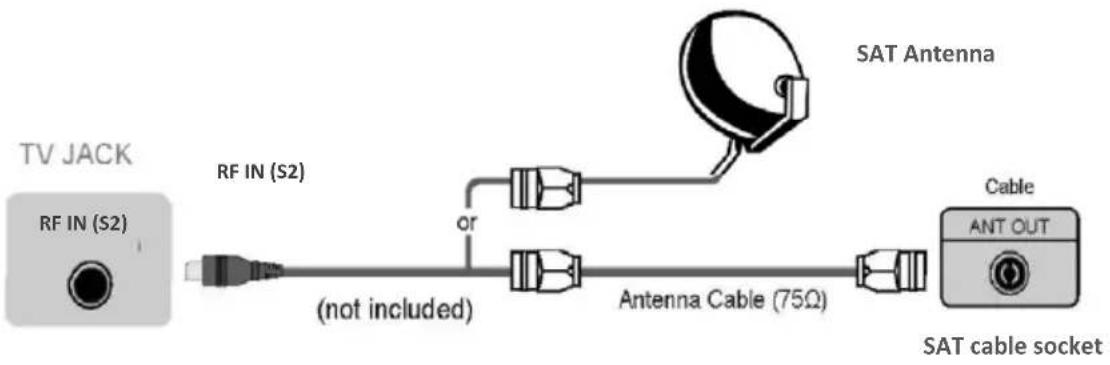

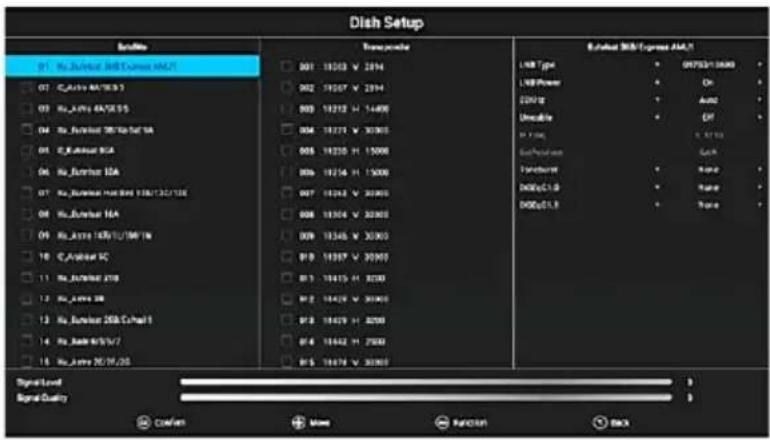

Satelitski prijam:

Za prijam satelitskih kanala, potrebno je ugoditi tip satelitske antene, naziv satelita i ostale postavke satelita.

Pritisnite tipku INPUT i odaberite DVB-S izvor.

Odaberite satelit koji želite primati i pretražiti kanale.

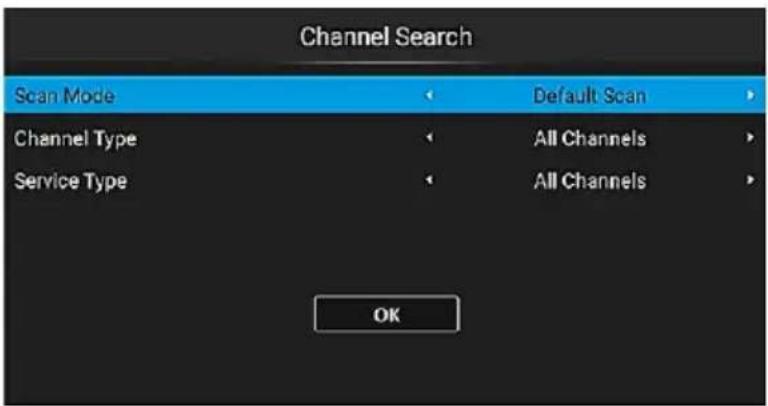

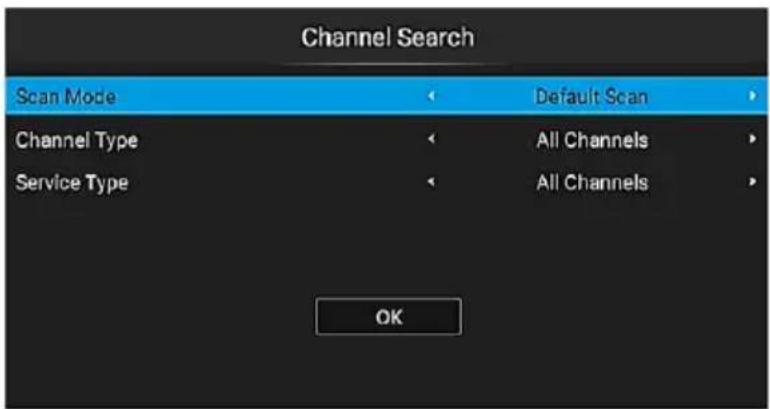

Ugodite Scan mode (Mod pretrage), Channel i Service type (Tip kanala i vrsta usluge), označite „OK“ i pritisnite tipku OK za početak pretrage Satelita.

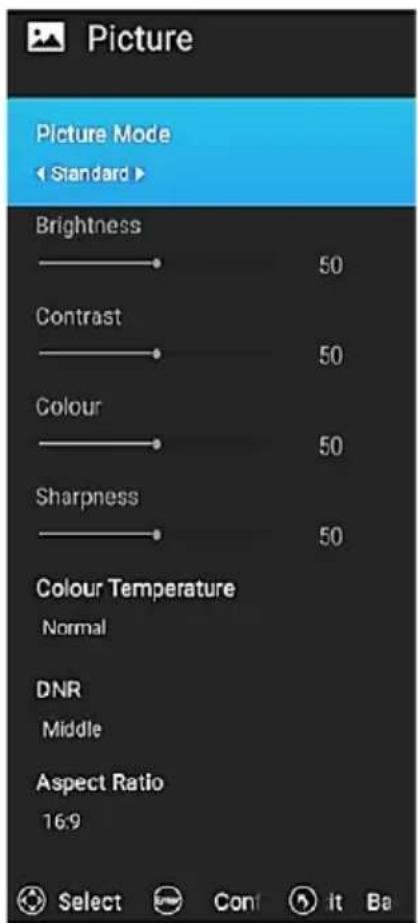

TV OPTIONS (TV OPCIJE)

Colour Temp. (Temperatura Boje)

Promjena cjelokupnog tona boje u slici.

Balance (Balans)

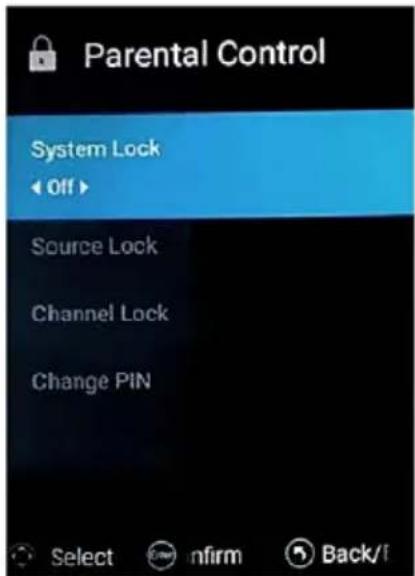

Program restrictions (Programska ograničenja)

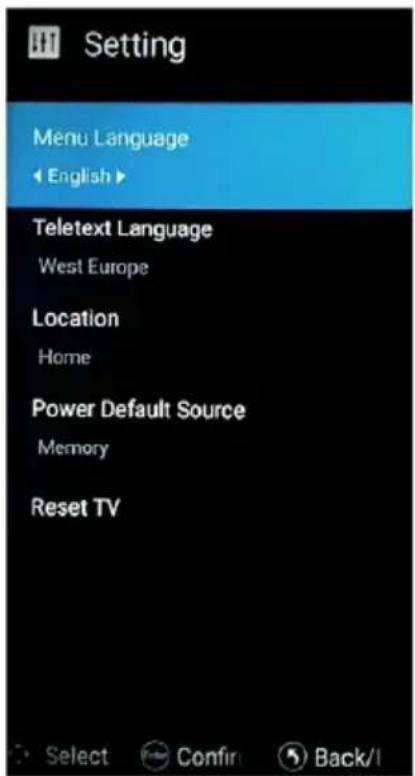

Power Default Source (Početno stanje pri uključenju TVa)

Postavite početni TV način rada prilikom uključenja TV-a.

Možete postaviti: Memory (Memorirano Zadnje stanje), Smart Home page (SMART HOME stranica) ili standard TV mode (TV mod).

Reset

Pritisnite tipke ▼ / ▲ za odabir Reset TV, tada pritisnite OK tipku za potvrdu reseta uređaja.

Pažnja: TV će izbrisati sve korisničke postavke, liste kanala i instalirane aplikacije od strane korisnika.

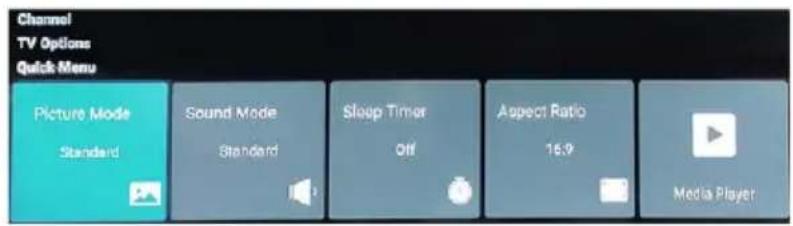

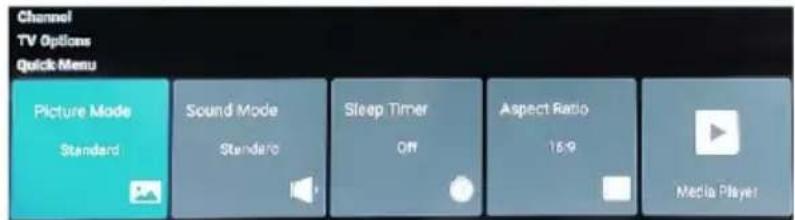

QUICK MENU (BRZI IZBORNIK)

Pritisnite ▼ / ▲ za odabir opcije Quick Menu (Brzi izbornik) da biste lakše i brže ugodili osnovne postavke TV-a. Slijedite upute na zaslonu.

Možete lako pristupiti sljedećim prečacima:

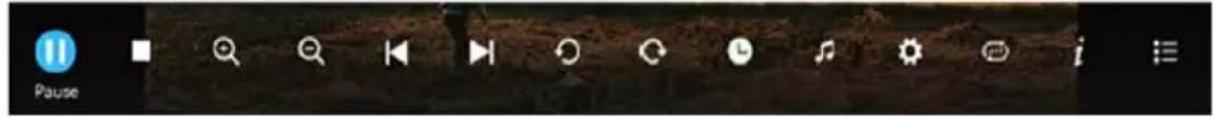

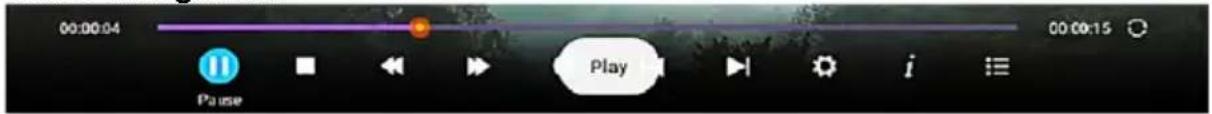

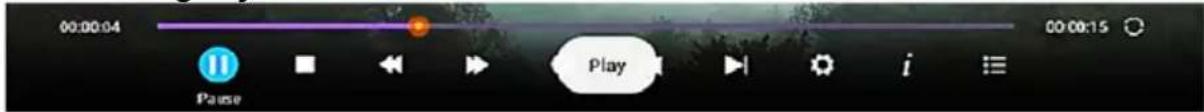

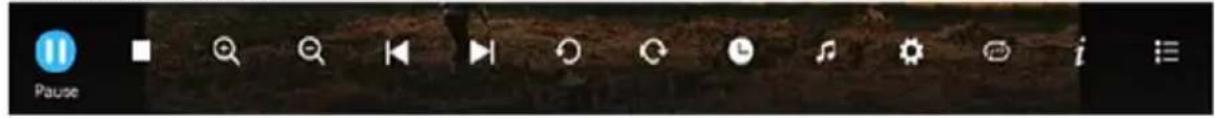

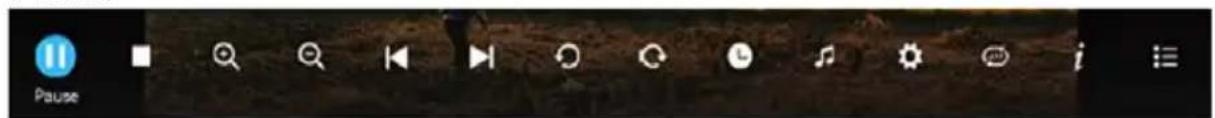

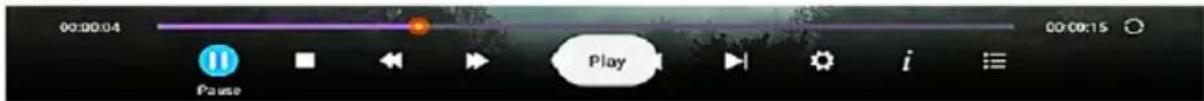

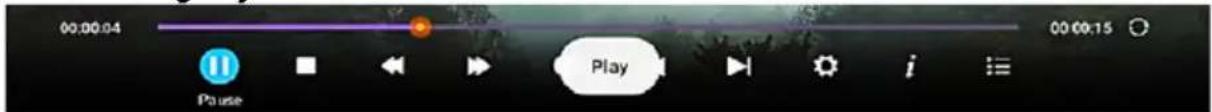

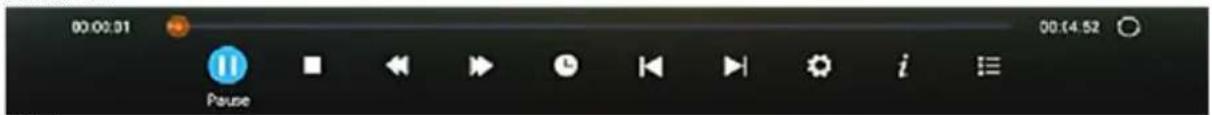

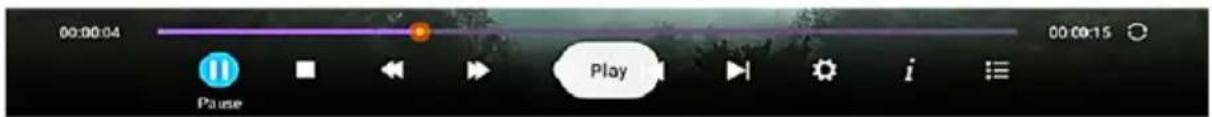

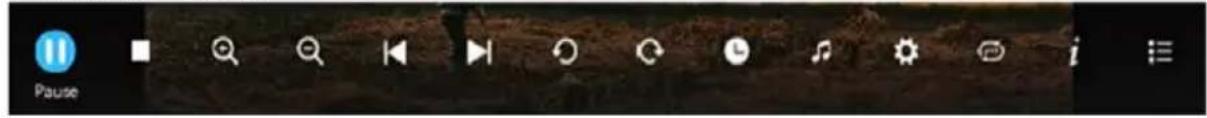

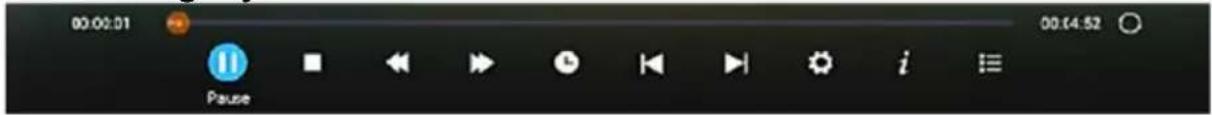

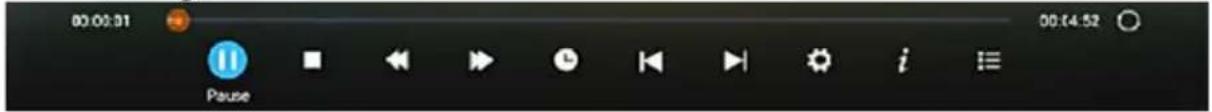

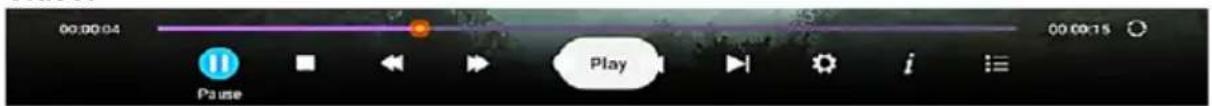

Video navigacija:

Ostale informacije

Rješavanje problema

Ukoliko televizor ne radi ispravno prije nego kontaktirate ovlašteni servis, pažljivo pročitajte donju tablicu.

Preporuča se isključivanje uređaja iz utičnice na 60 sekundi te zatim ponovno uključenje. Ovaj jednostavni process često pomaže u uklanjanju problema u radu uređaja.

Medija plejer - pristupite svojoj muzici, slikama I filmovima preko mreže ili USB medija i pokrenite ih na televizoru.

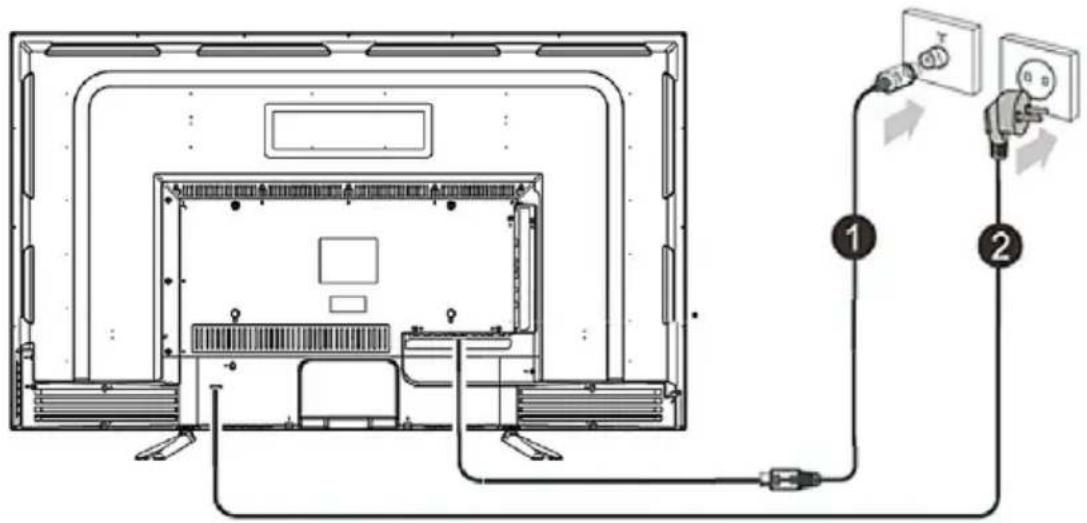

Sve radi pomoću jednog daljinskog upravljača. Spojite televizor na antenu, satelitsku antenu ili kablovsku mrežu li uživajte u sadržajima, u visokom kvalitetu.

Popis pribora uz uređaj

Prilikom otvaranja pakovanja i instalacije uređaja, proverite da li ste uz vaš uređaj dobili sav potreban pribor:

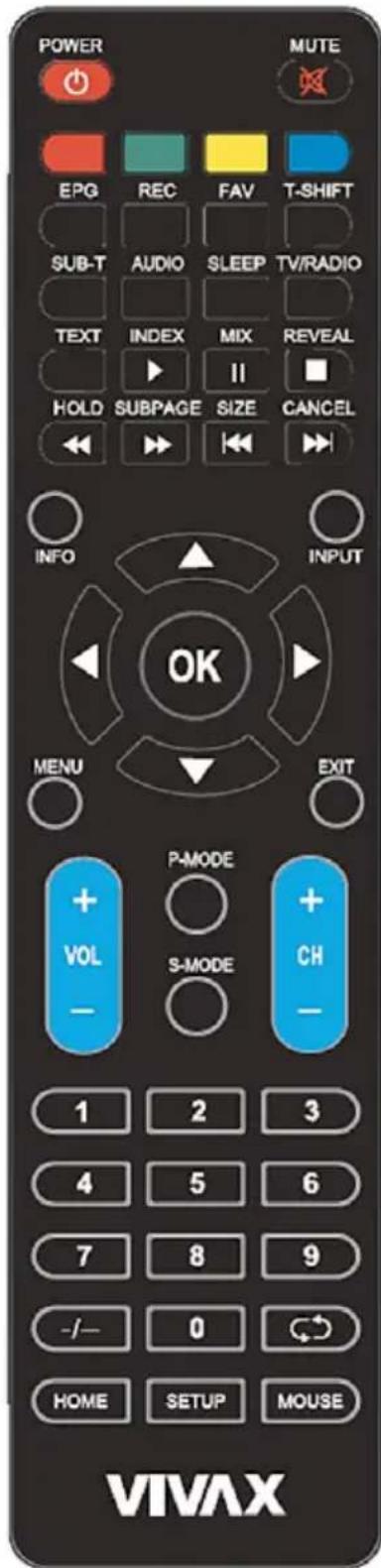

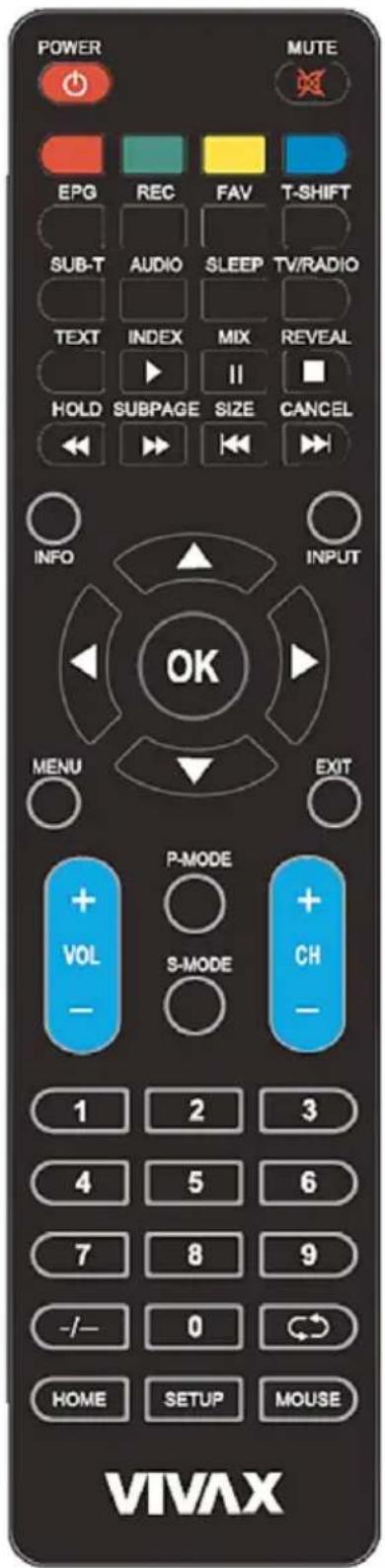

Front view of a black VIVA X remote control with blue and red buttons (no readable text or symbols beyond branding)

Two identical line drawings of a V-shaped structure with internal segments, no text or symbols present.

Slike služe samo kao referenca i mogu neznatno da se razlikuju od stvarnog proizvoda. Pri tom, funkcionalnost ostaje ista.

Munja u okviru trougla upozorava korisnika na prisustvo opasnog, neizolovanog napona u okviru proizvoda, koji može da bude dovoljno jak da bi predstavljao rizik od strujnog udara I povreda.

Uzvičnik u okviru trougla upozorava korisnika na uputstva o rukovanju i održavanju, priložena u pakovanju.

OPREZ

RIZIK OD STRUJNOG UDARA NE OTVARAJTE UREĐAJ

Ne otvarajte stražnji poklopac. Ni u kom slučaju korisniku nije dozvoljen rad u okviru televizijskog seta. Samo kvalifikovani tehničar iz ovlašćenog servisa ima dozvolu za takav rad.

Glavni utikač upotrebljava se za isključivanje TV prijemnika sa napajanja. Kada je utikač priključen na napajanje, uređaj će da bude u stanju mirovanja (standby).

Nepravilna zamena baterije, uključujući zamenu druge baterije sličnog ili istog tipa, može da dovede do rizika od paljenja ili eksplozije. Ne izlažite baterije toploti, poput sunčeve svetlosti, vatri ili vremenskim nepogodama.

Symbolic illustration of a candle crossed out by a diagonal line, representing fire or smoke (no text or numbers present)

Isometric technical diagram of a mechanical component with internal channels and mounting brackets (no text or symbols)

Napomena: Zidni nosač nije deo pribora uz TV prijemnik.

Ako vam je potreban zidni nosač, kontaktirajte sa svojim prodavcem u vezi sa VESA standardnim zidnim nosačem.

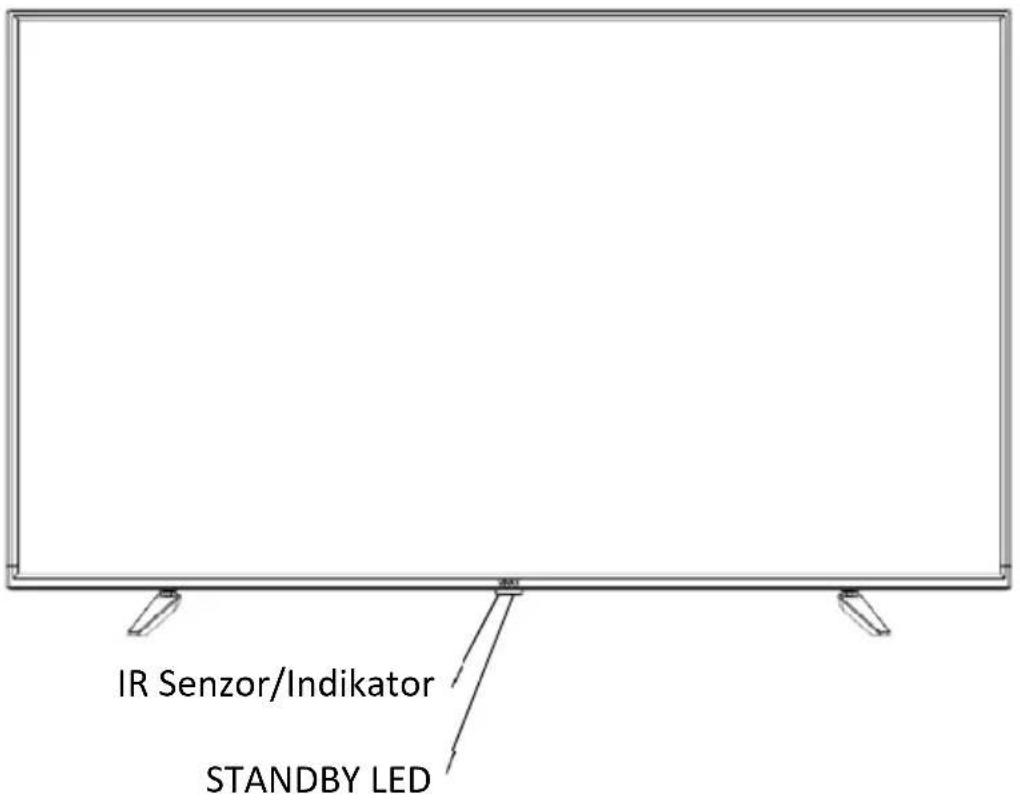

Prednja strana TV prijemnika

		Opis
1	IR senzor daljinskog upravljača	Prima signal iz daljinskog upravljača. Ne postavljajte nikakve prepreke između senzoraldaljinskog upravljača pošto to može da utiče na ispravan radlkontrolu uređaja daljinskim upravljačem.
2	Indikator stanja	Crveno svetlo svetli u modu čekanja. Plavo svetlo svetli kada je televizor uključen.

NAPOMENE

VOL + Dugme za pojačavanje zvuka; U modu aktivnog Menija (MENU), dugme ima istu funkciju kao desna strelica na daljinskom upravljaču i koristi se za odabir opcija u Meniju.

MENU/CH▼

Kratkim pritiskom dugmeta menjaju se kanali. Dužim pritiskom dugmeta aktivira se otvaranje sustava menija (MENU).

MENU: Prikazu Glavnog menija

CH▼: promena kanala u listi programa. U modu aktivnog Menija (MENU), dugme ima istu funkciju kao donja strelica na daljinskom upravljaču i koristi se za odabir opcija u Meniju.

INPUT/CH▲

Kratkim pritiskom dugmeta menjaju se kanali. Dužim pritiskom dugmeta aktivira se otvaranje menija za odabir Izvora.

INPUT: Prikazu Menija Izvora (Source)

CH▲: promena kanala u listi programa. U modu aktivnog Menija (MENU), dugme ima istu funkciju kao gornja strelica na daljinskom upravljaču i koristi se za odabir opcija u Meniju.

Model 55"

/ Power

Uključivanje TV-a ili vraćanje u mod čekanja.

INPUT : Izbor vrste signala.

MENU : Ulaz/izlaz iz glavnog menija

CH - : Taster za promenu programa „prema dole“ u listi programa; Biranje predhodne opcije u meniju

CH + : Taster za promenu programa „Prema gore“ u listi programa; Biranje slijedeće opcije u meniju

Simple diagram with six geometric shapes: circles, circles, and rectangles arranged horizontally (no text or labels)

NAPOMENE

Spojite USB uređaj kao što je USB memorija ili USB tvrdi disk ili digitalnu kameru za pregledavanje fotografija, slušanje muzike ili gledanje video materijala. Ovaj ulaz upotrebljava selza nadogradnju softvera. Nadogradnja će da se izvrši automatski čim USB sa datotekama za nadogradnju bude umetnut u USB ulaz.

NAPOMENE

• Prilikom spajanja hard diska ili USB memorije, uvek priključite adapter napajanja priključenog uređaja u izvor napajanja. Preopterećenje USB priključka može da dovede do oštećenia. Naiveća dozyoliena potrošnia struje iznosi 500mA.
• TV prijemnik ne podržava samostalne, nestandardne hard diskove koji nemaju eksterno napajanje, ako je zahtevana struja jača ili jednaka 500mA. To može da dovede do oštećenia TV uređaja ili hard diska.
• USB ulaz podržava napon od 5V.
• Maksimalna podržana veličina prostora za memorisanje je 1TB.

Ako želite da reprodukujete DTV video, brzina prenosa USB uređaja za memorisanje ne sme da bude manja od 5 MB/s.

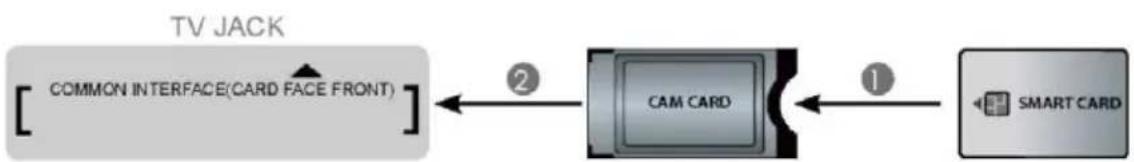

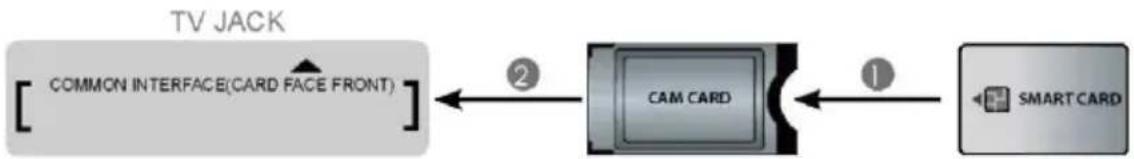

▶ CI: COMMON INTERFACE (CI INTERFEJS)

Umetnite CI ili CI+ modul za otvaranje kodiranih programa kao što su PAYTV ili HD PAYTV programi.

NAPOMENE

• Pre umetanja/uklanjanja CI modula isključite TV uređaj a zatim umetnite CI karticu u CI modul prema uputstvima proizvođača modula.
• Nemojte stalno da umećete ili uklanjate CI modul pošto to može dovesti do oštećenia ili kvara.
• CI modullkarticu morate da nabavite od svog provajdera za programe koje želite da primate.
• Umetnite CI modul sa Smart karticom u smeru prikazanom na modululSmart kartici
• CI nije podržan u nekim državamalregijama; proverite sa ovlašćenim distributerom.

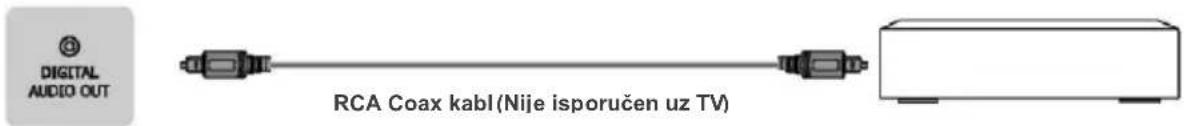

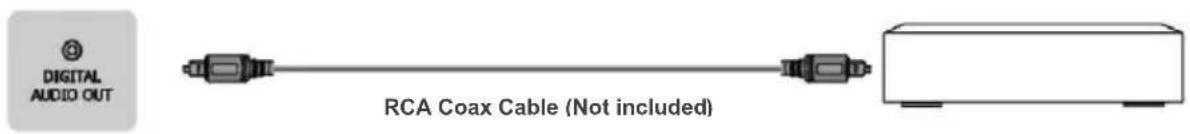

▶ COAX: DIGITAL AUDIO OUT

Za reprodukciju TV audio sadržaja na spoljašnjem uređaju, priključite spoljašnji digitalni audio uređaj na digitalni optički izlaz TV uređaja. Pre spajanja digitalnog audio sistema na optički priključak trebali biste da smanjite jačinu zvuka TV uređajalaudio sistema da bi izbegli nenadano pojačanje zvuka.

TV DIGITAL AUDIO

Audio pojačalo

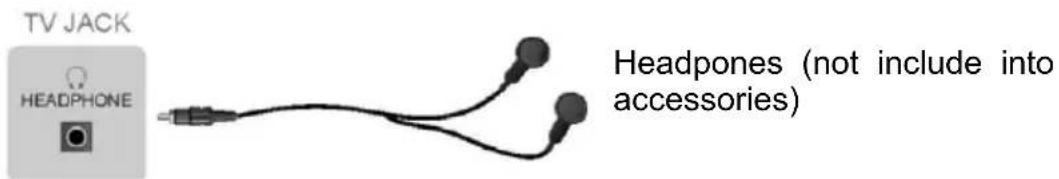

▶ EARPHONE (SLUŠALICE)

Simple line drawing of a hand holding a device with an arrow indicating direction (no text or symbols)

Simple line drawing of a battery pack with two batteries and a battery, no text or symbols present.

Simple line drawing of a hand holding a device with an arrow pointing to it (no text or symbols)

NAPOMENE

- Slika proizvoda služi samo za informaciju, stvarni proizvod može da se razlikuje u izgledu.

- Stare baterije odložite na označeno mesto za odlaganje. Nemojte da bacate baterije u vatru.

- Ne mešajte tipove baterijalne kombinujte upotrebljene sa novim baterijama.

- Odmah zamenite prazne baterije da biste sprečili curenje kiseline u odeljak za baterije daljinskog upravljača.

- Ako ne planirate da koristite daljinski upravljač duže vreme uklonite baterije.

- Baterije ne smeju da se izložu preteranoj toploti poput sunčeve svetlosti, grejalica ili vatre.

- Hemikalije iz baterija mogu da izazovu osiplopekotine na koži. Ako baterije cure očistite odeljak krpom. Ako hemikalije dođu u dodir sa kožom, odmah operite kožu.

- Source: Izbor ulaza

Izaberite izvor ulaza u zavisnosti od toga koji je video uređaj spojen na televizor. Kako biste izabrali izvor ulaza: Pritisnite taster [INPUT]. Kada se pojavi lista izvora ulaza, pritisnite [▲/▼] kako biste izabrali izvor a zatim pritisnite OK za povezivanje.

- Podešavanje volumena

Country or Region (Zemlja ili Region)

Pritisnite ▼ / ▲ tipku za odabir Regiona / Države u kojoj instalirate vaš TV.

Pritisnite ▶ za odabir sledećeg koraka

TimeZone (Vremenska zona)

Pritisnite ▼ / ▲ taster za biranje vremenske zone Regije / Države u kojoj instalirate vaš TV.

Pritisnite ▶ za biranje sledećeg koraka.

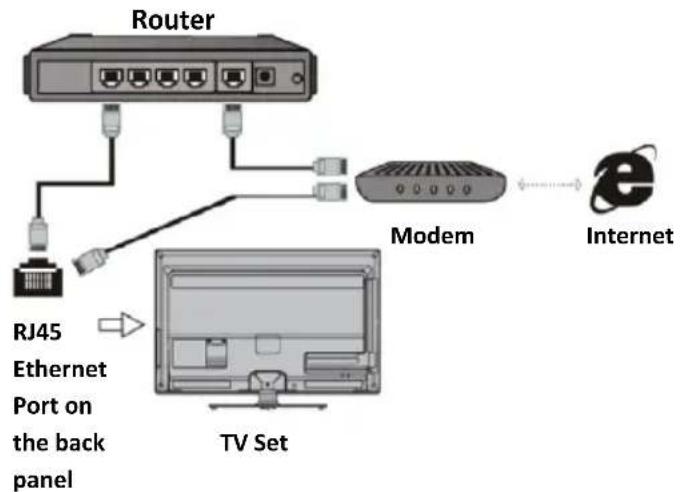

Network (Mreža)

Pritisnite ◀ / ▶ / ▼ / ▲ i OK taster za bi opcije i podešavanje Wi-Fi ili žičane LAN mrežne konekcije.

Za preskakanje ovog podešavanja, odaberite opciju „Skip“ (Preskoči) i prit taster OK za sledeći korak. Odaberite opciju „Back“ (Nazad) z a povratak na prethodni korak i zatim pritisnite taster OK.

Welcome (Dobrodošli)

Pritisnite ◀ / ▶ / ▼ / ▲ i OK taster za biranje i podešavanje sledećih opcija:

1. StartTV:

Ulazak u postavljanje i pretragu TV kanala.

Ukoliko treba da napravite pretragu TV/SAT programa, preporuka je da birate ovu opciju.

2. Start Launcher (SMART TV glavni meni):

Ulazak u SMART TV mod rada.

Ako ste birali opciju Start Launcher, preskočite 1. poglavlje (StartTV) i proverite poglavlje 2 (Start Launcher).

1. StartTV

Digital Antenna Tuning (digitalno antensko podešavanje)

Pritisnite taster ▼/▲ za biranje opcije i pritisnite OK za potvrdu.

Country or Region (Država ili Region)

LCN

Opcijom LCN podešavate želite li da prikaz programa u tabeli bude prema redosledu kako je to odredio davatelj usluge (opcija "On") ili da se programi poredaju prema redosledu kako su pronađeni (LCN podešen na "Off").

Čestitamo!

Vaš TV prijemnik je sada spreman za upotrebu.

2. Start Launcher (SMART TV glavni meni)

Ako ste odabrali opciju za ulazak u SMART način rada, početni ekran SMART moda TV-a bit će prikazan na ekranu.

MY APPS (MOJE APPLIKACIJE):

Prikaz instaliranih aplikacija i pristup u alternativnu App Prodavnicu (Google Play Store) za instalaciju App koje nisu pronađene u glavnoj APP trgovini.

Za više informacija pogledajte poglavlje „SMART postavke i navigacija kroz iszbornike“

Fabrički instalirane App (All APPs)\*:

Eshare	Deljenje Audio/Video sadržaja između Smart uređaja i TV-a
Screen Mirroring	Prikaz slike sa Smart uređaja na TV-u (Android)
Imirror	Prikaz slike sa Smart uređaja na TV-u (iOS)
TV	TV App za gledanje TV kanala
TV Store	Glavna App prodavnica
Play Store:	Rezervna App prodavnica
Media Player:	App za reprodukciju Photo/Video/Audio sadržaja
Chrome	Internet pretraživač***

Napomene: !

TV sistem poseduje dvije App prodavnice.

Glavna prodavnica s aplikacijama je „TV Store“ smeštena u SMART TV APPS početnoj stranici. App prodavnici pristupate odabirom App Store ikone

Alternativnu App prodavnicu (Play Store for TV), koristitite za instalaciju Aplikacija koje niste pronašli u glavnoj prodavnici Aplikacija. Play Store Prodavnica smeštena je u MY APPS meniju 📄.

Vivax Vivax ne može da garantuje da će se sve aplikacije moći instalirati i da će sve aplikacije raditi ispravno. Rad aplikacija prvenstveno ovisi o izdavaču aplikacija i davatelju usluga na App Trgovinama.

Ovakav problem se ne smatra neispravnošću uređaja i nije pokriven garancijom.

*Dostupne aplikacije i prikaz aplikacija i ekrana zavisi i od trenutne verzije softvera..

SMART postavke i navigacija kroz menije

Na SMART TV Glavnoj stranici, u gornjem desnom uglu ekrana nalaze se ikone pristupa u dodatne aplikacije i ulaz u Postavke (Settings) Smart TV-a.

Za navigaciju koristite strelice i taster OK.

Pretraživač:

Pretražujte video sadržaje na Internetu. Pomoću tastera sa strelicama izaberite stavku, a zatim pritisnite taster OK.

Wi-Fi Settings (Wi-Fi Postavke):

Podešavanje Wi-Fi postavki, postavki

Video:

Input Source (Odabir ulaza)

Za biranje spoljašnjeg audio/video izvora možete da pritisnete taster INPUT na daljinskom upravljaču ili tastaturi za prikaz liste dostupnih ulaznih signala.

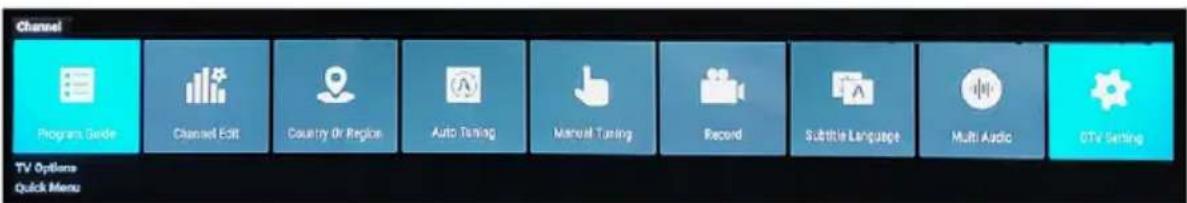

TV OPTIONS (TV OPCIJE)

Za ulazak u Pod-meni pritisnite OK.

Unutar Pod-menija pritisnite tastere ◀ / ▶ za pomeranje i označavanje određene opcije u Pod-meniju.

1. Pritisnite taster MENU za prikaz Glavnog menija.
2. Pritisnite taster ▼/▲ za biranje Menija CHANNEL (KANAL).
3. Pritisnite OK taster za ulaz u Pod-meni .
4. Pritisnite taster ◀ / ▶ za biranje opcije koju želite da podešavate.
5. Pritisnite OK taster za ulaz i podešavanje.
6. Posle podešavanja, pritisnite taster MENU za memorisanje promena i povratak u prethodni Meni ili pritisnite EXIT taster za izlazak iz moda podešavanja.

EPG Program Guide (Elektronski Programski Vodič):

Prikaz programskih informacija na ekranu.

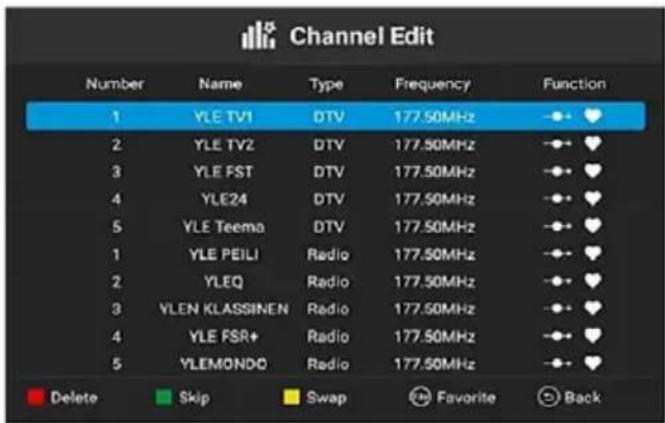

Channel Edit (Uređivanje kanala)

Manual Tuning (Ručna pretraga)

Channel (Kanal):

Pritisnite taster ◀ / ▶ za postavljanje kanala koji želite da pretražite.

Pre početka pretrage, podesite i Širinu Frekv. Kanala (Bandwith).

Za početak pretrage označite ikonu „Start Scan“ (Pokreni pretragu).

U zavisnosti od vaših podešavanja, TV će pretražiti sve dostupne TV programe i sačuvati ih u listi kanala.

Record (Snimanje)

Pristup postavkama DVB snimanja:

Record Disc select (Odabir Diska za snimanje): Odabir puta za snimanje DVB kanala na spoljnu memoriju.

Time Shift Config (TimeShift konfiguracija): Podešavanja vremenskog pomeranja (TimeShift), npr.: Maksimalna veličina datoteke, maksimalno trajanje itd..

Start Recording (Početak snimanja): Snimanje DVB kanala.

Scheduled List channel list (Lista Tajmera za snimanje): Prikaz rasporeda snimanja

Recorded list (Lista snimljenih zapisa): Pristup listi svih DVB snimaka.

Subtitle Language (Jezik titlova)

Multi Audio (Multi Zvuk)

Postavke Audio jezika prilikom emitovanja u višejezičnom prienosu.

DTV Settings (DTV postavke)

LCN:

Opcijom LCN (Logical Channel Numbering) podešavate želite li prikaz programa u listi prema redosledu kako je to odredio provajder (opcija "On") ili da se programi poređaju prema redosledu kako su pronađeni prilikom pretrage (opcija LCN postavljena na "Off").

Common Interface:

Prikaz detaljnih informacija o CI ili CI+ kartici koja je umetnuta u vaš CI utor.

Subtitle (Type, Primary/Secondary Subtitle): Titl (Tip, Primarni/Sekundarni podn.)

Podešavanje DVB titlova i željenih jezika.

Audio (Type, Primary/Secondary Audio): Audio (Tip, Primarni/Sekundarni Audio)

Podešavanje višejezičnog emitovanjaa DVB Audio jezika.

TV OPTIONS (TV OPCIJE)

Picture (Slika)

Picture Mode (Mod Slike)

Pritisnite ▼ / ▲ taster za odabir opcije Picture Mode (Mod Slike), tada pritisnite OK za ulaz u Pod-meni.

Možete da podešavate sliku putem već predefinisanih postavki slike ili da birate User (Korisnik) mod slike, gde onda ručno možete da podešavate pojedine parametre slike kao što su kontrast, svetlina, boja, oštrina i ton.

Napomena: Za promenu moda slike, osim kroz Meni Slika, možete promeniti mod slike i direktnim pritiskom na taster Picture Mode na daljinskom upravljaču.

Kada je odabran User (Korisnik) mod, pritisnite OK za ulazak u Pod-meni podešavanja parametara slike: Contrast (Kontrast)/Brightness (Svetlina) / Colour (Boja) / Sharpness (Oštrina)

Svetlina Podesite svetlinu slike, ovo utiče na tamne delove slike.

Kontrast Podesite kontrast.

Boja Podesite zasićenost boje.

Colour Temp (Temperatura boje)

Promena ukupnog tona boje u slici.

Pritisnite ▼/▲ kako biste odabrali Colour Temp (Temperatura boje), zatim pritisnite OK kako biste ušli u podmeni.

Pritisnite ▼/▲ kako biste odabrali vrednost (Dostupni načini: Cold (Hladno), Normal (Normalno), Warm (Toplo).)

DNR (Dinamic Noise Reduction) (Smanjenje šuma u slici)

Ova opcija filtrira i smanjuje šum slike te poboljšava njen kvalitet.

Možete da birate:

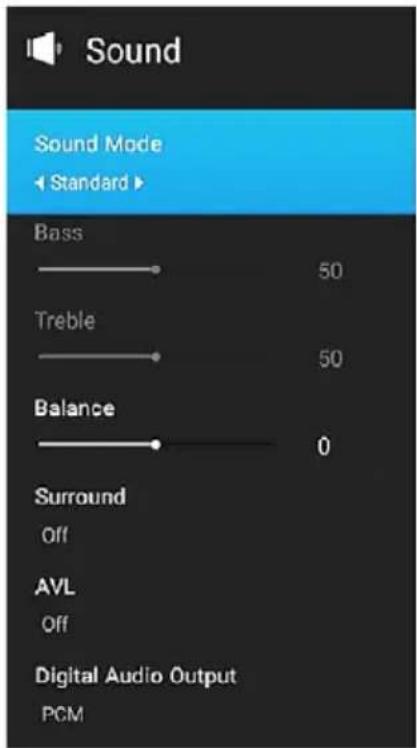

Balance (Balans)

Pritisnite taster ▼/▲ za biranje opcije, Pritisnite taster ◀/▶ za podešavanje balansa zvuka.

Surround

Surround funkcija koristi se za poboljšanje zvuka i doživljaja prostora u vašoj sobi. Pritisnite taster ▼ / ▲ kako biste odabrali Surround, tada pritisnite OK i ◀ / ▶ za On (Uklj.) ili Off (Isklj.).

AVL (Auto Volume - Auto nivo zvuka)

Ova se funkcija automatski koristi za smanjenje razlike u jačini zvuka između različitih programa.

Pritisnite taster ▼ / ▲ za biranje Auto Volume Level (Auto nivo zvuka), zatim pritisnite ◀ / ▶ za biranje On (Uklj.) ili Off (Isklj.).

Digital Audio output (Digitalni audio izlaz)

Pritisnite taster ▼ / ▲ za biranje tipa Digitalnog Audio Izvora, zatim pritisnite taster ◀ / ▶ za biranje: Auto / PCM / Off.

Audio Description (Audio opis)

Amblyopia: funkcija za slabovidne osobe koja dodaje dodatni audio zapis koji se meša kako biste se dodatno opisalo događanje ne ekranu.

Kako bi ova funcija bila dostupna distributer programa mora da pruža ovu uslugu.

Pritisnite taster ▼ / ▲ za biranje AD Switch (AD uključenje) funkcije, zatim pritisnite taster ◀ / ▶ za biranje On (Uklj.) ili Off (Isklj.).

Kada je funkcija “AD Switch” uključena, možete da podesite jačinu dodatnog opisa podešavanjem opcije Volume (Jačina).

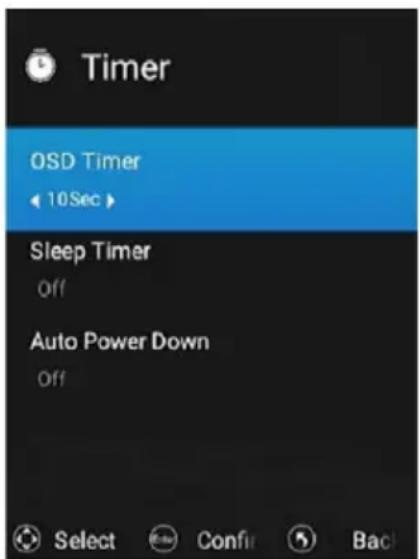

Timer

OSD Timer

Pritisnite taster ▼ / ▲ za biranje opcije OSD Timer (OSD vreme prikaza) (trajanja prikaza poruka i informacija na ekranu), zatim pritisnite ▼ / ▲ za odabir OSD vremena prikaza.

Možete da izaberete:Off(Isklj.), 10s, 20s, 30s i 40s.

Sleep Timer (Samoisključenje)

Pritisnite taster ▼ / ▲ za biranje opcije Sleep Timer (Samoisključenje), tada pritisnite taster ◀ / ▶ za podešavanje automatskog isključenja TV prijemnika kada prođe podešeno vreme.

Moguće vrednosti su: Off (Isklj), 15Min, 30Min, 60Min, 90Min, 120Min, 180Min.

Auto Power Down (Automatsko isključenje)

Pritisnite taster ▼ / ▲ za odabir opcije Auto Power Down (Automatsko isključenje), zatim pritisnite taster OK i ◀ / ▶ za podešavanje vremena nakon kojeg se TV automatski isključuje.

Pritisnite taster ▼ / ▲ za biranje: Off (lsklj.), 1hour (1sat), 2hours, 3hours ili 4 hours (4 sata) (fabrički).

Program restrictions (Programska ograničenja)

Napomena: Odabirom „Store-Shop“ (Prodavnica)

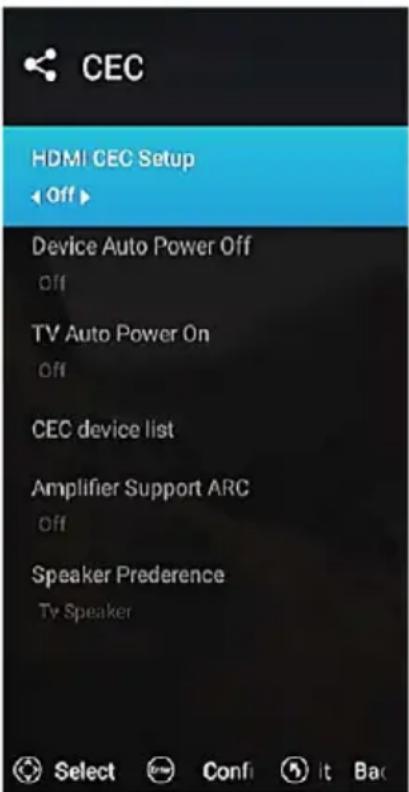

Amplifier Support ARC (Audio Return Channel) (Samo HDMI3 ulaz):

- Ova funkcija vraća audio signal putem istog HDMI kabla koji se koristi za slanje video zapisa na TV. U ovom slučaju vam nije potreban poseban audio kabl za vraćanje zvuka sa televizora.

Speaker Preference (Postavke zvučnika):

- Ovom funkcijom postavljate konfiguraciju vaših zvučnika: TV Speaker (TV zvučnici) ili External Speakers (Spoljašnji zvučnici).

QUICK MENU (BRZI MENI)

Pritisnite ▼ / ▲ za izbor opcije Quick Menu (Brzi Meni) da biste lakše i brže podesili osnovne postavke TV-a. Sledite uputstva na ekranu.

Photo navigacija:

Audio navigacija:

Video navigacija:

Ostale informacije

Rešavanje problema

Two identical 3D mechanical bracket diagrams with no text or symbols

Isometric technical diagram of a mechanical component with internal channels and mounting brackets (no text or symbols)

INPUT: Ogled menija vira (SOURCE)

Simple diagram with six geometric shapes: circles, circles, circles, squares, and rectangles arranged horizontally (no text or labels)

OPOMBE

▶ CI: COMMON INTERFACE (CI VMESNIK)

▶ COAX: DIGITAL AUDIO OUT

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Simple line drawing of a battery pack with two batteries and a battery, no text or symbols present.

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

OPOMBE

• Source: Izbira vira (vhod)

- Izberite vir glede na to, katera video naprava je priključena na TV.

a.) Digital Auto Tuning (Digitalno samodejno iskanje)

Opomba:

LCN

MY APPS (MOJE APPLIKACIJE):

Weather forecast (Vremenska napoved): Direktni dostop do Aplikacije za vremensko napoved.

Settings (Nastavitve):

Video:

Input Source (Izbira vira)

TV OPTIONS (TV OPCIJE)

Za vstop v podmeni pritisnite OK.

Subtitle Language (Jezik Podnapisov)

Multi Audio (Multi Zvok)

DTV Settings (Nastavitve DTV)

LCN:

Subtitle (Type, Primary/Secondary Subtitle): Podnaslov (Tip, Primarni/Sekundarni podn.)

Izbiro vrste Podnapisov.

TV OPTIONS (TV OPCIJE)

Colour Temp. (Temperatura Barve)

Balance (Ravnovesje)

Pritisnite gumb ▼ / ▲, da izberete možnost. Pritisnite gumb da ◀ / ▶ nastavite ravnovesje zvoka.

Surround

Opomba: Ko je izbran način "Store-način trgovine", naprava bo prikazala informacijsko vrstico z značilnostimi naprave.

Amplifier Support ARC (Audio Return Channel) (Samo HDMI3 ulaz):

Photo navigacija:

Audio navigacija:

Video navigacija:

Druge informacije

Reševanje težav

Če TV ne deluje pravilno in preden se obrnete na pooblaščeni servisni center, si preberite spodnje tabele.

Important Safety Instructions 5

Installation 10

Stand Installation 10

Wall mount installation 11

TV Front 12

Control Panel 13

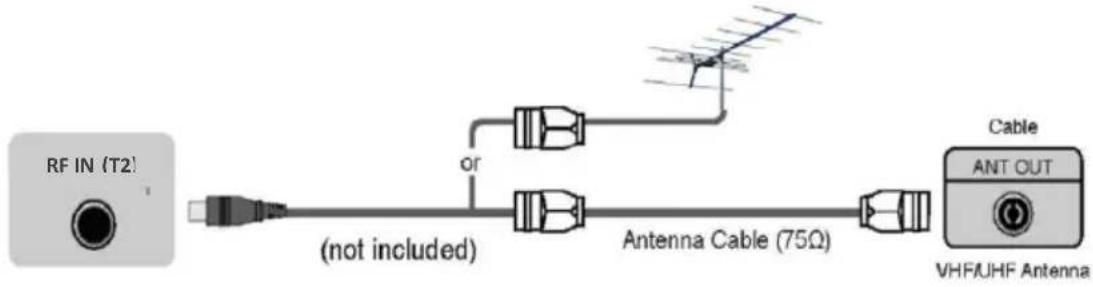

Antenna and Power Connection 14

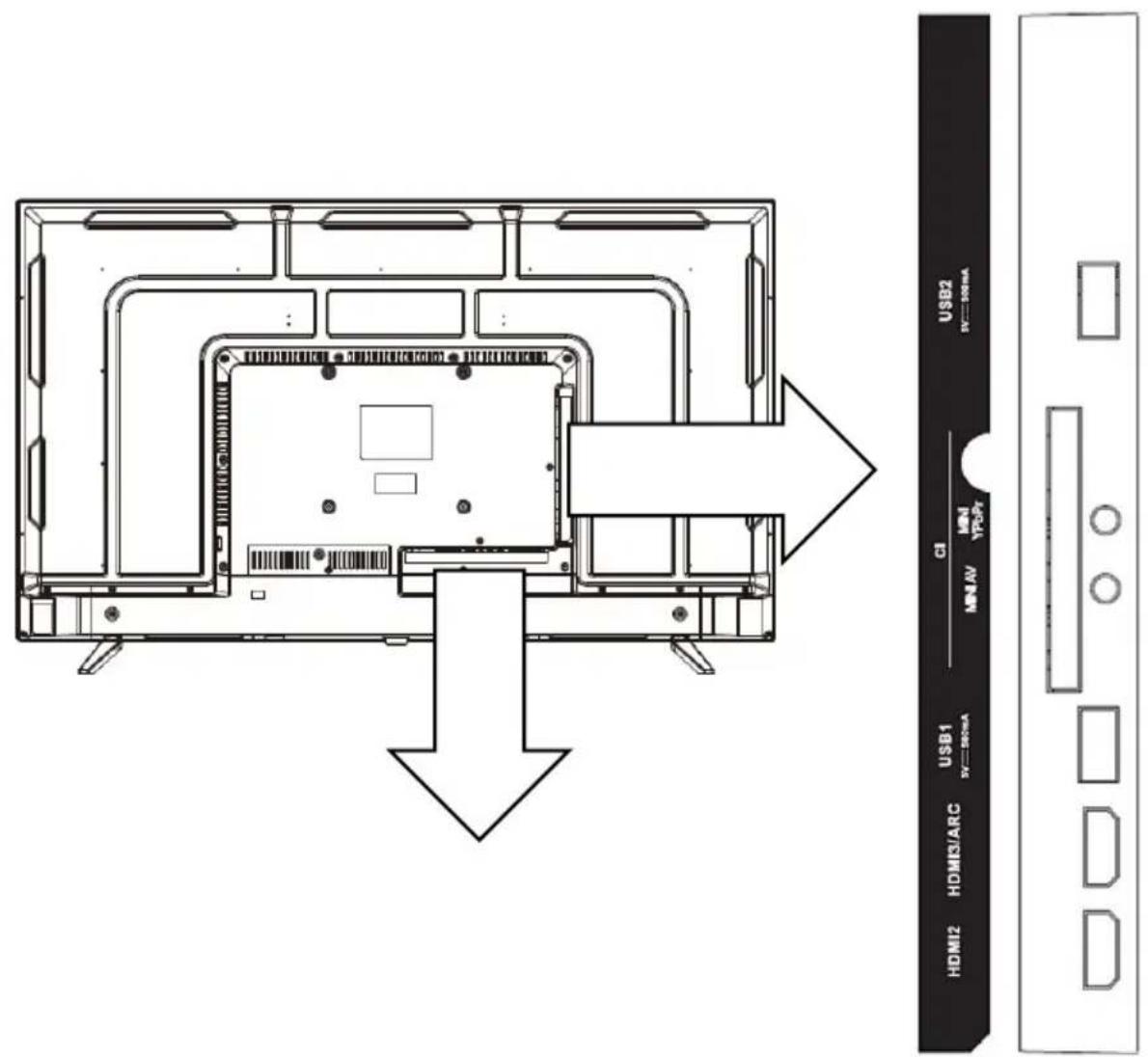

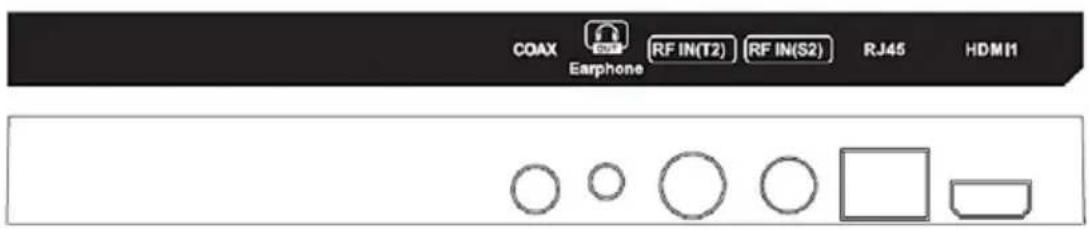

TV Rear 15

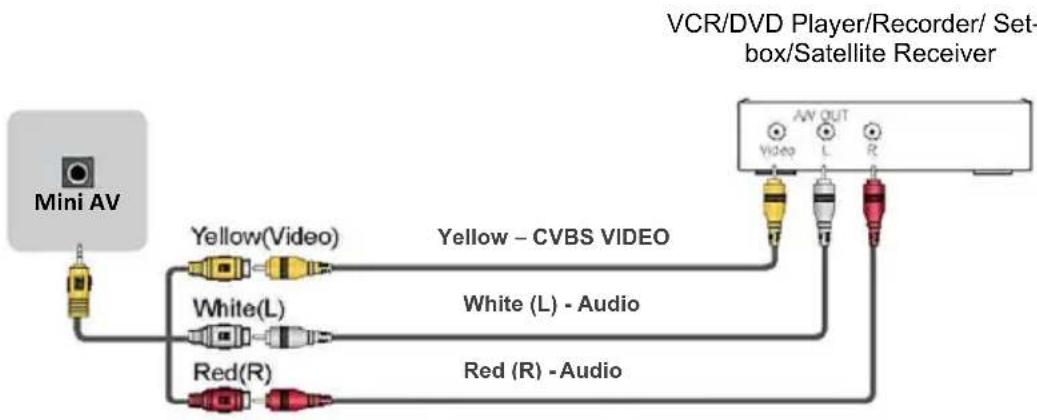

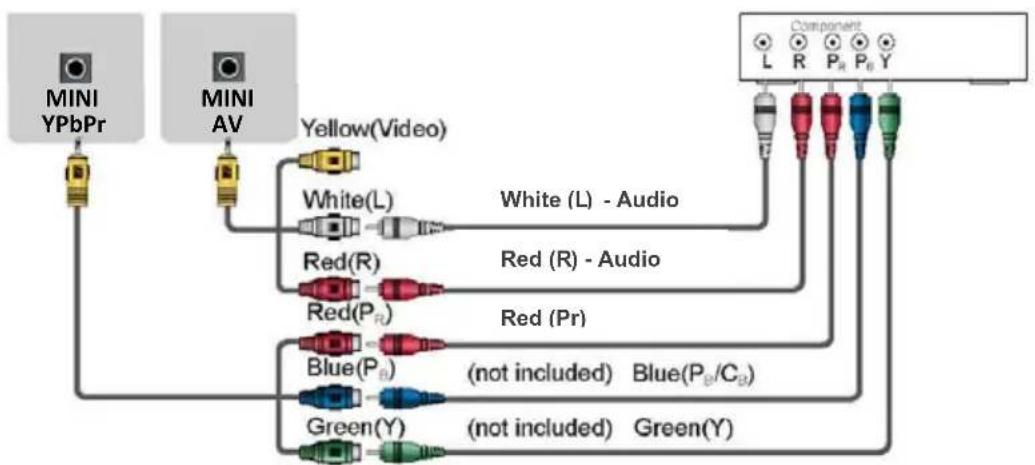

Connections 16

Remote Controller 21

Installing batteries in the Controller 23

Using the Remote Control 24

Basic Features 26

First time installation 26

StartTV Menu 28

Start Launcher 29

Smart mode Settings and Navigation 31

Main Menu 32

Channel 33

TV Options 37

Picture 37

Sound 38

Timer 39

System Lock 40

Setting 40

CEC 41

Quick Menu 42

Other Information 43

Trouble Shooting 43

Format List 45

Technical Specifications 46

Disposal of Waste Electrical & Electronic Equipment 47

EU Declaration of Conformity 47

Product Fiche (at the end of the Manual)

Warranty Declaration (at the end of the Manual)

WELCOME

This device lives up to the highest standards, innovative technology and high user comfort.

With this TV you can do it fast and simple, whilst in the comfort of your living room.

Media player — access your music, pictures and videos from your network or USB storage media and play them directly on your TV.

Everything works with one remote control now. Connect your TV directly to your terrestrial, satellite antenna or cable and enjoy contents in high quality without loss

The Accessories

When opening the box and installing the machine, make sure you have get all the necessary accessories:

• User manual with warranty statem
• Remote Control
• Batteries x2
• Stand and Screws for stand

Images are for reference only

Pure geometric line drawing of two symmetrical V-shapes with no text or symbols

The flash with the symbol of arrowhead, inside an equilateral triangle alerts the user about the presence of a dangerous tension not isolated inside the product which can be sufficiently powerful to constitute a risk of electrocution.

The point of exclamation inside an equilateral triangle alerts the user about the presence of important operating instructions and maintenance in the document enclosed in the package.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Do not open the back cover. In no case the user is allowed to operate inside the TV set. Only a qualified technician from the manufacture is entitled to operate.

Main plug is used as the disconnect device, the disconnect device shall remain ready for operating.

Incorrect replacement of the battery may lead to the risk, including the replacement of another similar or the same type. Do not expose batteries to heat such as sun or fire or something like that.

The device should not be exposed to dripping and spraying and it can not be placed under objects filled with liquids.

Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television.

IMPORTANT SAFETY INSTRUCTIONS

1. Read, Retain, Follow All Instructions

Read all safeties and operations about the TV. Retain them safely for future reference. Follow all operations and instructions accordingly.

WARNING: People (including children) with reduced physical, nervous or mental disabilities or who lack experience and / or knowledge of safe use of the device do not allow the use of electrical devices unattended!

2. Heed Warnings

Adhere to all warnings on the appliance and in the operating instructions.

3. Cleaning

Unplug the TV from the wall outlet before cleaning. Do not use liquid, abrasive, or aerosol cleaners. Cleaners can permanently damage the cabinet and screen. Use a soft dampened cloth for cleaning.

4. Attachments and Equipment

Never add any attachment and/or equipment without approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.

5. Water and Moisture

The apparatus shall not be exposed to dripping of splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

6. Setting

Do not place this TV on an unstable cart, stand or table. Placing the TV on an unstable base can cause the TV to fall, result in serious personal injuries as well as damage to the TV. Use only a cart, stand, bracket or table recommended by the manufacturer or salesperson.

7. Ventilation

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation for the TV and to protect it from overheating. Do not cover the ventilation openings in the cabinet and never place the set in a confined space such as built-in cabinet unless proper ventilation is provided. Leave a minimum 10 cm gap all around the unit.

8. Power Source

This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company.

9. Grounding or Polarization

TV equipped with this sign have a polarized alternating current line plug. The unit has a double insulation (Class II Protection), and no need additional grounding. Do not defeat the safety purpose of the polarized plug. For check do you need Grounding socket, check rating plate on the unit back side.

10. Lightning

For added protection for this TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will protect the TV from damage due to lightning and power-line surge.

11. Power Lines and Antenna cables

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. Where installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

12. Overloading

Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

13. Object and Liquid Entry

Never push any kinds of object into this TV through openings as they may come up against dangerous voltage points or short-out parts that could result in fire or electric shock. Never spill any kinds of liquid on or into the TV.

14. Outdoor Antenna Grounding

If an outside antenna or cable system is connected with the TV, be sure the antenna or cable system is grounded so as to provide protection against voltage surges and built-up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

15. Servicing

Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

16. Damage Requiring Service

Unplug the TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power-supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the TV.
• If the TV has been exposed to rain or water.
• If the TV operates abnormally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.
• If the TV has been dropped or the cabinet has been damaged.

17. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

18. Safety Check

Upon completion of any service or repair to the TV, ask the service technician to perform safety checks to determine that the TV is in safe operating condition.

19. Heat

The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that product heat. The TV should not be placed near open flames and sources of intense heat.

20. Earphones use - Attention

Excessive sound pressure from earphones and headphones can cause hearing loss. If you notice any disturbance or hum noise in your ears, stop using the headset or earphones. To prevent possible hearing damage, do not listen at high volume levels for long periods

1. Power cord and Plug should be easily accessible. Do not put a TV or furniture on the power cord. A damaged power cord or plug can cause fire or electric shock. Do not bend or squeeze the power cord. Unplug your TV from main supply to hold the plug and pull it from the power outlet. Never pull the power cord. Never touch a power cord / plug with wet hands, it could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cables.

2. The instructions for installation or use provided with non-floor standing televisions likely to be used in the home and weighing over 7 kg shall contain the following information or equivalent:

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support. -Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of knowledge and experience to use the appliance, unless they are supervised by a person who is responsible for their safety or you're not received training on the use of appliances

Children do not always correctly recognize possible danger situations.

Swallowing batteries can be fatal. Keep batteries out of the reach of small children. If the battery is swallowed, immediate contact medical help.

Packaging equipment and protective bags keep away from children. There is a risk of suffocation.

LED Panel

Materials used when generating this product are made up of fragile elements. Therefore, product can be broken when in cases of falling over or bumps. LED panel is a high tech product and offers you high detailed images. From time to time, a few inactive pixels on screen can appear in blue, green or red steadily. This hes no effect over the product performance.

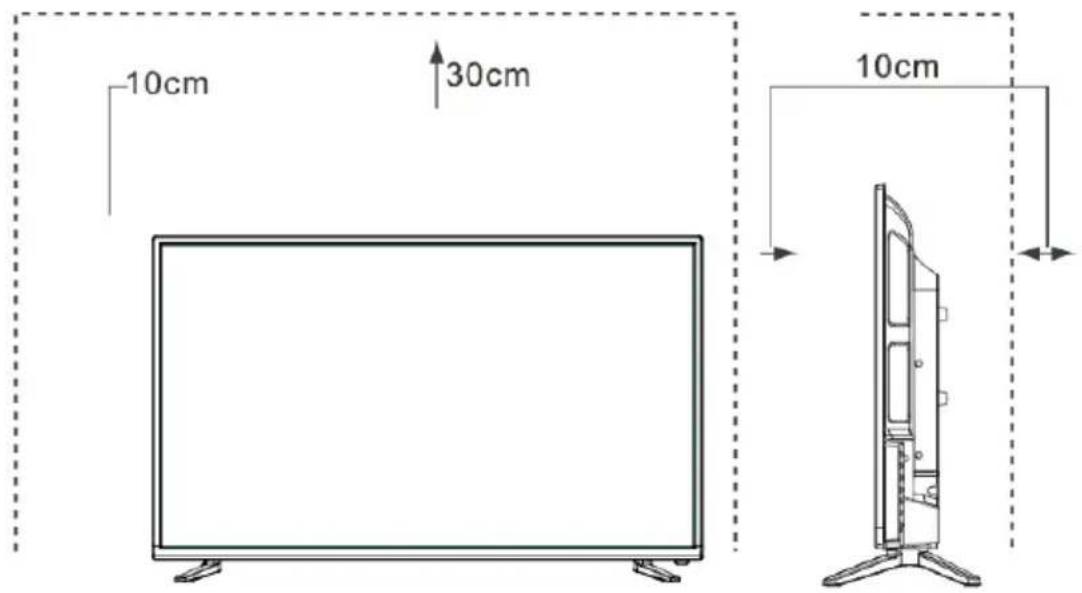

Positioning the TV set

Place the TV set on a firm and flat surface, leaving a space of at least 10cm around the set and 30cm from the top of the set to the wall.

STAND INSTALLATION

Notes

• The TV screen is very fragile, and must be protected at all times when removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the screen, come into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.
• For tabletop use, the TV must be attached to the provided stand as shown on this page.
• Product images are only for reference, actual product may vary in appearance

WARNING! Be sure to disconnect the AC power cord before installing a stand or wall-mount brackets.

CAUTION!

Carefully place your TV facedown on a soft, cushioned surface to prevent damage to the TV or scratching to the screen.

Follow the illustrations and textual instructions below to complete the installation steps:

1. Attach the stand to the TV set as shown in the picture.
2. Use the screws to fix the stand tightly.

Isometric technical diagram of a mechanical component with internal channels and directional arrows (no text or symbols)

Plase take note on the base direction

Wall mount installation

• Remove the stand before installing the TV on the wall mount.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized wall mount and contact the local dealer or qualified personnel.
• To prevent injury, TV must be securely attached to the floor/wall in accordance with the installation instructions.
• Use the screws and wall mounts that meat the following specs.

Size VESA S	STANDARD SCREW DIMENSION
50“, 55“ VESA	200x200 M6, length 8mm, 4pcs

Note: The wall mount is not contained in the accessories. If you need a wall mount, please contact your dealer for VESA standard wall mount.

TV Front

		Description

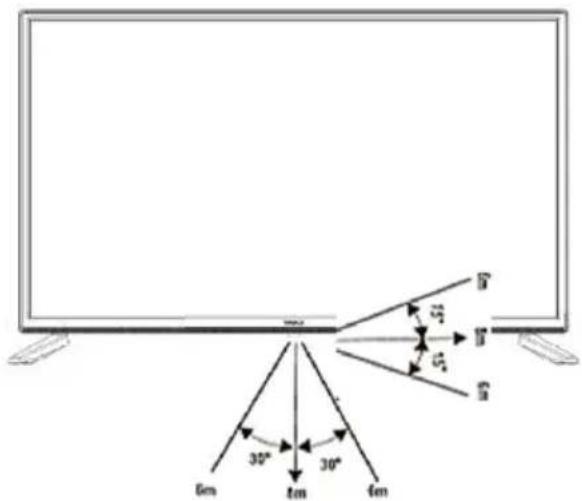

1	IR Remote Sensor	Receive remote signals from the remote control.Do not put anything near the sensor, as its function may be affected.
2	Remote Indicator	Red light up in standby mode. Blue LED will light up when unit is work on.

NOTES

The Picture is Only for Reference.

Powering on the TV requires several seconds to load program.

Do not rapidly turn the TV off as it may cause the TV to work abnormally.

Control Panel

Model 50"

/ Power

Turn the TV on or enter into standby mode.

VOL- Volume decreasing. In the TV

Menu system, it acts like the left arrow key on the remote control and can be used to select Menu options.

VOL +

Volume increasing. In the TV Menu system, it acts like the left arrow key on the remote control and can be used to select Menu options.

MENU/CH▼

Short press to achieve Channel decreasing. Long press to achieve MENU function.

MENU: Displays the TV Main menu

CH▼: Scans down trough the channel list. In the TV Menu system, it acts like the down arrow on the Remote control and can be used to select menu options.

INPUT/CH▲

Short press to achieve Channel increasing. Long press to achieve INPUT (Source) list.

INPUT: Displays the Source List

CH▲: Scans up trough the channel list. In the TV Menu system, it acts like the down arrow on the Remote control and can be used to select menu options.

Model 55"

/ Power

Turn the TV on or enter into standby mode.

INPUT Signal source selection button.

MENU Enter / Exit the main menu.

CH ▼

Channel decreasing short cut key; decrease the channel No. and select the last option in the menu.

CH ▲

Channel increasing short cut key; increase the channel No. and select the next option in the menu.

VOL- Volume decreasing short cut key; enter into

the next menu and adjust OSD options (decreasing).

VOL + Volume increasing short cut key; enter into

the next menu and adjust OSD options(increasing).

Pure mechanical assembly diagram showing a downward arrow indicating force or direction (no text or symbols)

Antenna and Power Connection

1. Connect the antenna cable into the TV antenna input terminal at the rear panel and wall antenna socket.

2. Connect the Power plug into the wall outlet.

TV Rear

NOTES

The Picture is Only for Reference.

Check the jacks for position and type before making any connections. Loose connections can result in image or color problems. Make sure that all connections are tight and secure.

Not all A/V devices have the ability to connect to a TV, please refer to the user's manual of your A/V device for compatibility and connections procedure.

Before connecting external equipment, remove the mains plug from the wall socket. This may cause electric shock.

▶ CONNECTIONS

▶ RF IN (T2): Connect (DVB-T2) an outdoor VHF/UHF antenna or cable

▶ RF IN (S2): Connect (DVB-S2) an outdoor Satellite dish or Sat. Cable convection. (option, only models with Satellite Tuner)

▶ HDMI1, HDMI2, HDMI3 Digital connection

Connect an HDMI cable from an external A/V equipment.

Some devices such as DVD player require HDMI signal to be set to output in the device's settings.

Please consult your device user manual for instructions. Please note that the HDMI connector provides both video and audio signals, it's not necessary to connect an audio cable.

- Press [INPUT] button, when the list of Input Source appears, press [▲/▼] to select the source [HDMI], then press [OK] to connect.

Note: HDMI3 supports ARC (Audio Return Channel) function. With this function, you don't need to connect RCA Audio cables to your Audio system.

▶ USB

Connect the USB devices such as hard drives, USB sticks and digital cameras for browsing photos, listening music and watching recorded movies. At the same time update is also an easy thing and will be done just by plugging the USB with the updating files into the same interface

NOTES

When connecting a hard disk or a USB hub, always connect the mains adapter of the connected device to the power supply. Exceeding a total current consumption may result in damage. The maximum current consumption is 500mA (USB 3.0 socket: 1000mA).

For individual non-standard high-capacity mobile hard disk, if it's impulse current is greater than or equal 500mA, it may cause TV-rebooting or self-locking. So the TV does not support it.

The USB port supports a voltage of 5V.

The maximum supported storage space of the hard disk is 1T.

If you want to play the video streaming of a DTV program, the transfer rate of the USB storage device must not be less than 5MB/s.

▶ CI: COMMON INTERFACE

Insert the CI or CI+ module for watching scrambled services like pay-tv channels or some HD channels

NOTES

- Before you insert/remove the CI module, ensure that the TV is switched off. Then insert the CI card into the CI module in accordance with the Service Provider's instructions.

- Do not repeatedly insert or remove the Common Access Module as this may damage the interface and cause a malfunction.

- You must obtain a CI module and card from the service provider of the channels you want to watch.

- Insert the CI module with the SmartCard in the direction marked on the module and SmartCard.

- CI is not supported in some countries and regions; check with your authorized dealer.

▶ COAX: DIGITAL AUDIO OUT

Connect to an external digital audio device.

Before connecting a digital audio system to the SPDIF DIGITAL AUDIO jack, you should decrease the volume of both the TV and the system to avoid that the volume suddenly become bigger.

TV SOCKET DIGITAL AUDIO
Audio Amplifier

▶ EARPHONE

Connect Headphone for audio out of the TV.

▶ MINI YPbPr

Connect a component cable and an audio cable from an external A/V Device.

The component output ports Y, PB and PR on the VCD or DVD can sometimes be identified as Y, CB and CR.

Press [INPUT] button, when the list of Input Source appears, press [▲/▼] to select the source [YPbPr] and press [OK] to connect.

Connection Cables are not included

▶ MINI AV

Connect the Composite cable from an external A/V Device.

Use the audio and video cables to connect the external A/V device's composite video/audio jacks to the TV's jacks. (Video = yellow, Audio Left = White, and Audio Right = Red)

- Press [INPUT] button, when the list of Input Source appears, press [▲/▼] to select the source [AV] and press [OK] to connect.

Connection Cables are not included

▶ RJ45 LAN INPUT

Connect the RJ45 LAN (Local Area network) cable for connecting to external modem or network access equipment.

Your TV will require an internet connection to operate all functions. Data usage charges may apply.

To access the internet, you must subscribe high speed broadband internet service from your internet service provider.

Your TV can be connected to your home network in two ways:

• Wired: Using the RJ45 (LAN) connector on the back panel.
• Wireless: Using the internal wireless or external wireless USB adapter and your home wireless network.

Note: The following instructions are just the usual ways to connect your TV to the wired or wireless network. The connection method may be different depending on your actual network configuration. If you have any questions about your home network, please refer to your ISP (Internet Service Provider)

Connecting to a wired network:

1. Ensure you have:
2. An ethernet cable long enough to reach your TV
3. A router or modem with an available Ethernet port
4. A high-speed inte-rnet connection
5. An Ethernet (LAN) port on the back of the TV
6. Connect your ethernet cable to the router and to the Ethernet port on the back of the TV.
7. Use the Network Settings to configure the TV.

Connecting to a wireless network:

To connect to a wireless network

1. Ensure you have:

2. A router broadcasting a high-speed wireless signal

3. A high-speed internet connection

4. Use the Network Settings to configure the TV.

REMOTE CONTROLLER

1. POWER button: Press for turning the TV On / Off

2. MUTE button with crossed-speakers: press the button to restore volume

3. RED/GREEN/YELLOW/BLUE/ button: Used for TXT in DTV mode: Teletext direct access corresponded with color of the button with teletext function color presented on the TV screen.

4. EPG button: To display the electronic program guide while the browser / menu is not running

5. REC button: Press to start recording current DVB channel (USB device should be connected into USB slot)

6. FAV button: Adds the current channel to your FAV (favorite) list, or erase the current channel from FAV list.

7. T-SHIFT button: Press to start T-SHIFT function of current DVB channel. After paused watching, press T-SHIFT again to continue to watch channel.

8. S.TITLE button: display subtitles on the screen / turn off the subtitles

9. AUDIO button: to change the ways of broadcasting sound: right, left, mono, stereo

10. SLEEP button: setting the TV to turn off automatically

11. TV/RADIO button: Press to enter a radio station, press again to enter TV programs

12. TEXT button: show teletext on the screen

13. INDEX button: Shows the main teletext page (TXT mode)

▶ button: Playback (USB, T-Shift mode)

1. MIX button: show mixed TXT and TV picture | | button: Pause playback (Media, T-Shift mode)

2. REVEAL button: show hidden signs (TXT mode)

button: Stop playback (Media mode, T-Shift mode)

Note: All picture in this manual are examples, only for reference, actual product may differ from the pictures. The buttons not mentioned here are not used.

1. HOLD button: keep the current page and prevent loading new content (TXT mode).

◀◀ button: rewind back (Media Mode)

1. S.PAGE button: display of the current sub page (TXT mode)

▶▶ button: forward (Media mode)

1. SIZE button: Change Teletext size (TXT mode)

|◀◀ button: Switching to the previous chapter / page / display (Media mode)

1. CANCEL button: Cancel Txt display (TXT mode)

▶▶| button: Switching to the next chapter / page / display (Media mode)

1. INFO button: Press to display current channel informations

2. INPUT button: Button: source settings

3. ▲▼◀▶ buttons: to increase / decrease / select up, down items and value adjustments in the menu

4. OK button: To confirm the entry on display

5. MENU button: Access the Main menu or return from Sub-menues.

6. EXIT button: Exit from current Menu or Function

7. VOL +/- button: Increase / decrease volume

8. P-MODE button: Directly choose the picture mode.

9. S-MODE button: Directly choose the sound mode.

10. CH ▲▼ buttons: scrolling programs

11. NUMBER (0-9) button: pressing these buttons digits are entered. Programs on ATV and DTV are directly elected, and are entering passwords for parental lock

12. -/-- : To switch the Channel digit (option)

13. button: Directly back to the previous program

14. HOME button: Press to open SMART Android Main page

15. SETUP button: Press to open SMART Android Main Menu

16. MOUSE button: Switch pointer into Mouse mode

▶ Installing Batteries in the Remote Control

Slide the back cover to open the battery compartment of the remote control. Insert two AAA size batteries. Make sure to match the (+) and (-) ends of the batteries with the (+) and (-) ends indicated in the battery compartment.

Close the battery compartment cover.

(1) Gently open battery cover

(2) Insert the batteries

(3) Gently push cover back

Simple line drawing of a hand holding a device with an arrow indicating direction (no text or symbols)

Simple line drawing of a battery holder with two batteries and a cylindrical load (no text or symbols)

Simple line drawing of a hand holding a device with an arrow indicating direction (no text or symbols)

NOTES

Product image is only for reference, actual product may vary in appearance.

Dispose of your batteries in a designated disposal area. Do not throw the batteries into a fire.

Do not mix battery types or combine used batteries with new ones.

Remove depleted batteries immediately to prevent battery acid from leaking into the battery compartment.

If you do not intend to use the remote control for a long time, remove the batteries.

Batteries should not be exposed to excessive heat, such as sunshine, heat registers, or fire.

Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.

Remote Control Operation Range

Point the remote control at the TV within no more than 5 metres from the remote control sensor on the TV and within 60° in front of the TV.

The operating distance may vary depending on the brightness of the room.

- Turning your TV on and off

Turning off to standby mode: Press [ ( | ) Power Standby] on the back RHS panel or on the remote control to switch to standby mode. You can activate the unit again by pressing [ ( | ) Power Standby].

Power indicator: Light indicates standby mode. There will be no light when the power switch is in the off position.

▶ NOTE

Remove the connection from the wall power outlet if you do not intend to use the unit for long periods, for example if you plan to be away a few days. Wait at least 5 seconds after turning off if you want to re-start the TV.

- Selecting the Input Source

Select the Input Source depending on the video device you have connected to your TV.

To select the Input Source: Press [INPUT] button. When the list of Input Source appears, press [▲/▼] to select the source, then Press [OK] to connect.

- Adjusting the volume

Press [VOL ▲/VOL ▼] to increase or decrease the volume.

Press [MUTE] to turn the sound off. Press [MUTE] again to turn the sound back on.

- Changing channels

Press the [CH ▲/CH ▼] buttons to go to the next higher or lower channel. Or, Press the number buttons to select a channel. For example, to select channel 12, press [1], then press [2].

- Selecting the sound mode

Press the [Sound Mode] button to select between 5 different pre-adjusted sound modes: Standard, Music, Movie, Sports and Personal.

- Selecting the picture mode

Press the [Picture Mode] button to select between 6 different pre-adjusted picture modes: Standard, Cinema Day, Cinema Night, PC Game, Dynamic and Personal.

- Selecting the aspect ratio

Press the [ASPECT] button to change the screen aspect ratio among Normal, 4:3, Wide, Zoom and Cinema

▶ NOTE

The option of aspect is vary with different source.

- Setting the Sleep Timer

You can specify how long you want your TV to wait for before it automatically turns off.

Pressing [SLEEP] button repeatedly will allow you to change the sleep timer mode: Off, 15Min, 30Min, 45Min, 60Min, 90Min, 120Min and 240Min.

- Displaying Channel List

Press [OK] to display the full list of digital and analogue channels available.

• Electronic Programming Guide (EPG)

Provides convenient access to the television programs that will be available in the next 7 days. The info

displayed by the EPG is made available by the commercial television networks for digital channels only. The EPG also provides a simple way to program the recording of your favorite programs. There is no need to setup complicated timers.

BASIC FEATURES

First time installation

Connect an RF cable from the Tv's input called "RF-In" and to your TV Aerial socket. Than, connect power cord plug to the electric socket and switch on (Power on) TV.

The „First Time installation“ screen will appear on the screen:

OSD Language

Press ▼ / ▲ and OK button to select the language to be used for menus and message.

Press ▶ to jump on next or previous screen.

Country or Region

Press ▼ / ▲ and OK button to select the Country/Region of installation of your TV.

Press ▶ to jump on next or previous screen.

TimeZone

Press ▼ / ▲ and OK button to highlight and select region in which TV receiver is installed.

Press ▶ to jump on next or previous screen.

Network

Press ◀ / ▶ / ▼ / ▲ and OK button to highlight your Wi-Fi or wired LAN preferred network connection.

To Skip this option, select „Skip“ and press OK or „Back“ to jump on previous screen.

Welcome

Press ◀ / ▶ / ▼ / ▲ and OK button to highlight and select your next step:

1. StartTV:

Enter into Channel Search and Tune.

If you would like to Search for TV/SAT channels, we recommend to choose this option firstly.

2. Start Launcher:

Enter into SMART TV mode.

In case you choose SMART TV, Skip Chapter 1 (StartTV) and check chapter 2 (Start Launcher).

1. StartTV

Digital Antenna Tuning

Press ▼ / ▲ to select Option and press OK to confirm.

Country or Region

Press OK to confirm and select region in which TV receiver is installed.

a.) Digital Auto Tuning

Press OK to confirm Auto Search Channels. TV will search all available DTV programmes and store into Channel list.

Note:

If you need ATV or DVB-S or DVB-C scan, press the INPUT button and select the source you want. Then you can continue with Auto Tuning with selected source.

b) Digital Manual Tuning

Press OK to confirm Manual Search Channels.

Once the channel search is complete, the first program will be displayed on the screen and list of found channels.

LCN

With LCN option yu can adjust whether you want to see the programs on the list in the order specified by the service provider ("On") or arranged in the order that they were found (LCN option "Off").

Congratulations!

Now, your TV is ready to use.

2. Start Launcher

If you have selected the option to enter SMART mode, the home screen of the SMART mode of the TV will be displayed on the screen.

Press ▼ / ▲ / ◀ / ▶

button to select option.

Press OK button to confirm selection or open App.

To watch TV Channels:

Press arrows to select „Source-TV App“ (the first left App on the TV screen) with TV picture or press the "INPUT" button and select the TV source. When you enter into „TV App“, with arrows button you can navigate trough App and choose TV Source type (ATV, DVB-C, DVB-T or DVB-S).

If you have not previously setup TV channels, you will need to search for channels on the selected source and save channels in the memory of TV.

To launch SMART Apps:

Press ▼ / ▲ / ◀ / ▶ to select App and press OK to launch App or start Download from App Store.

On the left part of the screen, you can select one of the following main category items:

HOME: List and select most common, favourite Apps, like YouTube, Netflix etc or system App proposal for installation...

VIDEO: Select available Video clips, movies etc.

AUDIO: Select available Audio clips, songs etc.

SPORT: Select available Sport clips, live Sport broadcasts etc.

APPS: Enter into APP Store to search & Apps and list of installed or most popular Apps for installation.

MY APPS: Enter into list of installed Apps and App Store to install Apps

The list „Like APPs“ is list of personal favpotite App which you can add according to your personal preferences.

For more Info please check Chapter „Smart mode Settings and Navigation“.

Factory installed Apps (All APPs)\*:

Eshare Share video/Audio files between Smartphone and TV

Screen Mirroring Clone Smart device display (Android)

lmirror Clone Smart device display (iOS)

TV TV Application to watch TV channels

TV Store Main App Store

Media Player: App for Photo/Video/Audio play

Chrome: Internet Browser

Note:

The TV has two App Stores.

The Main Store is „TV App Store“ located in the SMART TV APPS page 📋, when you select the App Store icon 📋.

Other Store (Play Store for TV), you can use for installing alternative apps that are not found in the primary „TV App Store“. The Play Store is located in the MY APPS menu 📷.

Vivax can not guarantee that all applications will be able to be installed and that all installed applications will work properly. It primarily depends on the App publisher and App Store service provider.

This problem is not considered as device failure and it is not covered by the warranty.

*Available App and Screen presentation depends about current software version.

Smart mode Settings and Navigation

On the SMART TV Main page, on the upper right corner, you have access into several options. Navigate with arrows and OK button to select and adjust items.

Search browser: Search for Video content on Internet. To choose item,

use arrow buttons and then press OK button.

Wi-Fi Settings:

Settings connected to Wi-Fi setup, Time settings, Common settings and About TV (info about TV system)

Weather forecast: Direct access to Weather forecast App

Settings:

Network Setting (Wi-Fi and Wired network), Time settings, Common settings (Language, keyboard Input method, App manage etc...) and About TV (info aboutTV system)

File browser:

Browse through TV file system to find or to navigate Files and Folders.

In File Browser you can Lunch & Play different

Photo/Video/Audio files and other Apps.

To navigate through File Manager, Play and Settings of files, use buttons shown on the bottom of the screen.

Photo:

Audio:

Video:

Select Input Source

To choose external Audio/Video source directly, you can press INPUT button on the Remote or Keypad to display the input source list.

Press ▼ / ▲ button to select the input source.

Press OK button to enter the input source,

Press EXIT button to quit.

The OSD (On Screen Display) menu enables you to approach and Adjust the Standard TV functions.

To use OSD menu system, press MENU button on remote control, than press ▼ / ▲ to select SUB-MENU:

CHANNEL Adjust TV Channels (DTV, ATV, Satellite, Cable)

TV OPTIONS Picture, Sound, Timer, Lock and other settings

QUICK. Shortcut to Picture, Sound modes, Sleep Timer and Media player

To enter into SUB-MENU, press OK button.

Press ◀ / ▶ button to move selection within each option in the SUB-MENU.

To adjust item, press ▶ or OK button.

Press ◀ / ▶ button to adjust value of selected item.

To return in previous Menu, press MENU button.

To Exit from OSD Menu, press EXIT button or repeatedly press MENU button.

Note: If available, use the text help messages at the bottom of each screen for easier navigation and help

CHANNEL

In this menu you can Setup, Search or Edit TV channels. You can provide Manual or Auto Scan features. Also, you can setup DVB Recording, Subtitle and Audio options.

Default password to enter into Menu system is : 0 0 0 0

Note: If you need ATV or DVB-S or DVB-C scan, press the INPUT button and select the source you want.

Then you can continue with Tuning with selected source. DVB-T Tuning will go automatically.

1. Press MENU button to display the main menu.
2. Press ▼ / ▲ button to select CHANNEL in the main menu.
3. Press OK button to eneter into Submenu.
4. Press ◀ / ▶ button to select the submenu or option that you want to adjust in the CHANNEL menu.
5. Press OK button to enter and adjust selected item.
6. After finishing your adjustment, Press MENU button to save and return back to the previous menu or press EXIT button to enter into normal TV mode.

EPG Program Guide:

Electronic program Guide Informations.

Channel Edit

Via color buttons, you can edit the programme, such as delete, skip channel, etc. You can also add or erase the channel from the favorite channel list via FAV button on the remote control.

- Press Red

button to delete the selected program in the list.

- Press Green button to skip the selected channel.

When CH+/CH- is executed, this program is skipped and the program can be selected by pressing the number keys only.

• Press Yellow button to Swap programs in the list.
• Press FAV button to add or remove the channel to your favorite list.

Country or Region

Select County/Region of TV installation

Auto Tuning

Automatic Channel Search all available channels

Press OK button to search all available Channels.

Manual Tuning

Channel:

Press ◀ / ▶ button to adjust exact channel scan.

Before start to scan, adjust Channel Bandwidth.

To start Scan, choose select button on the screen „Start Scan“.

According to your selection, TV will automatically search all programs and add into Channel list.

Record

Access to DVB Recording settings:

Record Disc select – Selecting external memory path to record DVB Channels

Time Shift Config - Configuration Time Shift settings e.g.: Max File size, max duration etc.

Start Recording - Start Recording DVB Channel

Scheduled List channel list – Recording Timer

Recorded list – Access to all PVR files (recorded channels)

Subtitle Language

Setting DVB Subtitles

Multi Audio

Setting Audio Languages

DTV Settings

LCN:

With LCN option yu can adjust whether you want to see the programs on the list in the order specified by the service provider ("On") or arranged in the order that they were found (LCN option "Off").

Common Interface:

Informations and settings related with Conditional Access CI+ module (Decoder)

Subtitle (Type, Primary/Secondary Subtitle):

Adjust DVB Subtitle style and preferred language.

Note: It need code stream given from broadcaster to support this function.

Audio (Type, Primary/Secondary Audio):

Adjust DVB Audio style and preferred Audio language.

Note: It need code stream given from broadcaster to support this function.

Satellite reception:

To receive Satellite channels, you need to setup your TV on Satellite dish type, Satellite name and other Satellite settings.

Press INPUT button and select DVB-S source.

Select Satellite which you want to scan.

Setup Scan mode, Channel and Service type select „OK“ and press OK button to start scan selected Satellite.

TV OPTIONS

In this menu you can Adjust Picture, Sound, Timer, Parental Lock and CEC settings.


Picture Mode

Press ▼ / ▲ button to select Picture Mode, then press OK and ◀ / ▶ to adjust option.

Select preset Picture mode: Standard, Dynamic, Mild or User.

You can change the value of contrast, brightness, color, sharpness and tint when the picture is in User mode only.

TIPS: You can press Picture Mode button on the Remote Controller to change the Picture Mode directly.

When you choose User mode, press OK to enter into Sub Menu to adjust picture settings:

Contrast/ Brightness/ Colour/ Sharpness

Press ▼ / ▲ button to select option, then press Press OK and ◀ / ▶ button to adjust.

Brightness: Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture.

Contrast: Adjust contrast.

Colour: Adjust the saturation of the color.

Sharpness: Adjust the sharpness of the picture

Color Temp

Change the overall color cast of the picture.

Press ▼ / ▲ button to select Color Temperature, then press OK button to enter sub-menu.

Press ▼ / ▲ button to adjust optimal color temperature (Picture looks brighter when Color temperature is higher).

DNR (Dinamic Noise Reduction)

To filter out and reduces the image noise and improve picture quality.

You can choose:

Off Select to turn off video noise detection.

Low Detect and reduce low video noise.

Middle Detect and reduce moderate video noise.

High Detect and reduce enhanced video noise.

Aspect Ratio

To choose picture format.

You can choose: Auto, 16:9, 4:3, Zoom1, Zoom2, Panorama.

Sound

Sound Mode

Press ▼ / ▲ button to select Sound Mode, then press ◀ / ▶ button to change mode.

Select preset Sound mode: Standard, Cinema, Music or User.

You can change the value of Treble and Bass when the sound is in User mode.

TIPS: You can press Sound button on the remote control to change the Sound Mode directly.

Standard Produces a balanced sound in all environments.

Cinema Enhances treble and bass for a rich sound experience.

Music Preserves the original sound. Good for musical programs.

User Select to customize audio settings (Bass Treble).

Note: The treble and bass are only available in User mode, you can adjust them, as you like.

Balance

Press ▼ / ▲ button to select option, Press OK and ◀ / ▶ button to adjust.

Surround

This feature is used to enhance the sound and experience of the space in your room.

Press ▼ / ▲ button to select Surround, then press OK and ◀ / ▶ button to select On or Off.

AVL (Auto Volume)

This item is used for reducing the difference between channel and program's volume automatically.

Press ▼ / ▲ button to select Auto Volume Level, then press OK and ◀ / ▶ button to select On or Off.

Digital Audio output

Press ▼ / ▲ button to select type of Digital Audio output, then press ◀ / ▶ button to select Auto / PCM / Off.

Audio Description

This is Amblyopia function for the blind persons. The additional Audio track will be mixed with original Audio and additionally describe the current scene.

It need code stream given from broadcaster to support this function.

Press ▼ / ▲ button to select AD Switch, then press OK and ◀ / ▶ button to select On or Off.

When AD Switch is active, you can adjust Volume by Lang. Volume option.

Timer

OSD Timer

Press ▼ / ▲ button to select OSD Timer (showing OSD time on the screen), then press ◀ / ▶ button to choose OSD Off time.

You can choose: Off, 10s, 20s, 30s and 40s.

Sleep Timer

Press ▼ / ▲ button to select Sleep Timer, then press OK and ◀ / ▶ button to adjust auto turn off TV.

Available options are: Off, 15Min, 30Min, 60Min, 90Min, 120Min, 180Min.

Auto Power Down

Press ▼ / ▲ button to select Auto Power Down option, then press OK and ◀ / ▶ button to adjust time of auto turn off TV.

Press ▼ / ▲ to select Off, 1hour, 2 hours, 3 hours or 4 hours (default).

Tips: The remote control does not make any operation in the hypothesis time, it TV will turn off into Standby mode automatically. If you do any operation, it will reset the time

System Lock

System Lock

Press ▼ / ▲ button to select System Lock, then press OK button to make Lock options valid.

Default password is 0 0 0 0.

In case you forget what you set, please call the service center

Source Lock

Lock Sources of your TV

Channel Lock

Lock Channels. To watch locked channel, you should enter Password (PIN) to unlock channel!

Program restrictions

You can set the parental control function to suit viewing for children of all ages and adjust restriction level. Press ◀ / ▶ to select Parental rating level.

Change PIN

You can change default password. To set new password (PIN), please follow instructions shown on the screen.

Setting

Menu Language

Press ▼ / ▲ button to select Menu Language, then press OK and ◀ / ▶ button to adjust OSD Language.

Teletext Language

Press ▼ / ▲ button to select Teletext Language, then press OK and ◀ / ▶ button to adjust TXT language. You can choose: West Europe / East Europe / Russian / Arabic etc...

Location

Press ▼ / ▲ and OK to choose Home or Store mode. For a standard home use set the option to "Home".

To display image in the shop, select "Store Mode", unit will present the main fetures on the screen.

Note: When the option is active, on the screen will constantly be shown line with the characteristics of the TV

Power Default Source

Set the initial TV mode each time you turn it on.

You can set values: Memory (Last state), Smart Home page or standard TV mode.

Reset

Press ▼ / ▲ button to select Reset TV, then press OK button to confirm reset.

Attention: TV will erase all customer settings, channel lists and installed App. TV will reset into initial Factory state.

CEC

CEC (Consumer Electronics Control) is an HDMI feature that allows you to command and control other CEC enabled devices that are connected through HDMI, without user intervention.

Press ▼ / ▲ button to select CEC menu option, then press OK button to enter sub-menu. In this Menu, you can adjust all settings related with HDMI CEC Control:

HDMI CEC Setup:

- Allow the TV to control External Devices trough HDMI connection

Device Auto power off:

- Allow Power Off the External Devices trough HDMI connection

TV Auto power On:

- Allow Power On of the TV trough HDMI connection.

CEC Device List:

- Press OK button to open the main List of available devices.

Amplifier Support ARC (Audio Return Channel):

- This function returns Audio through the same HDMI channel that is used to send Video to the TV. In that case, you don't need separate Audio cable to return Audio from the TV.

Speaker Preference:

- Choose kind of speakers you use: TV Speker or External Speakers.

QUICK MENU

Press ▼ / ▲ to select Quick Menu option to make easy and fast TV setup. Follow instruction on the screen.

You can easy access to a following shortcuts:

Picture Mode Quick Picture Settings

Sound Mode Quick Audio Settings

Sleep Timer Quick change Auto switch Off Timer

Aspect Ratio Quick Aspect ratio display

Media Player

Note: Before operating Media menu, Plug In USB device, then choose Media Player App or File Browser in SMART HOME screen.

You can select PHOTOS, MUSIC, VIDEOS or APPLICATIONS by using ◀ / ▶ button.

Photos Navigation

To choose file for play, use

▼ / ▲ / ◀ / ▶ and OK.

Continue to press the OK button to enter the corresponding FileSelector menu

Photo navigation:

Audio navigation:

Video navigation:

Other Information

Troubleshooting

If the TV does not operate as usual or appears to be faulty please read carefully this section. Many operational issues can be resolved by users.

It is also advisable to unplug the TV from the AC socket on the wall for 60 seconds or more, then reconnect and start again. This simple procedure helps in restoring stable conditions for electric circuits and firmware of the unit.

Please contact Manufacturer Customer Care if the problem is unresolved or you have other concerns.

SYMPTOMS	POSSIBLE SOLUTIONS
No sound or picture.	Check if the power cord is plugged into a powered AC outlet.A power switch on the right side bottom edge of the front panel must be turned on. Press the [POWER] button in the remote control to activate the unit from Standby.Check to see if LED light is either red or blue. If illuminated, power to TV is OK.
I have connected an external source to my TV and I get no picture and/or sound.	Check for the correct output connection on the external source and for the correct input connection on the TV.Make sure you have made the correct selection for the input mode for the incoming signal.
When I turn On my television, there is a few second delay before the picture appears. Is this normal?	·Yes, this is normal. That is the TV searching for previous setting information and initializing the TV.
Picture is normal, but no sound.	·Check the volume settings.·Check if Mute mode is set "on".
Sound but no picture or black and white picture.	·If black and white picture first unplug TV from AC outlet and re-plug after 60 seconds.·Check that the Colour is set to 50 or higher.·Try different TV channels.
Sound and picture distorted or appear wavy.	·An electrical appliance may be affecting TV set. Turn off any appliances, if interference goes away, move appliance farther away from TV.·Insert the power plug of the TV set into another power outlet.
Sound and picture is blurry or cuts out momentarily.	·If using an external antenna, check the direction, position and connection of the antenna.·Adjust the direction of your antenna or reset or fine tune the channel.
Horizontal/vertical stripe on picture or picture is shaking.	·Check if there is interfering source nearby, such as appliance or electric tool.
The plastic cabinet makes a "clicking" type of sound.	·"Click" sound can be caused when the temperature of the television changes. This change causes the television cabinet to expand or contract, which makes the sound. This is normal and the TV is OK..
Remote control does not work.	·Confirm that TV still has power and is operational.·Change the batteries in the remote control.·Check if the batteries are correctly installed.

playable format list

Media File Ext. Codec		Remark
		Video Audio
.mpg MPEG-1, MPEG-2			AAC, AC3*,PCM	Max Resolution: 3840x2160
MJPEG.avi				Max Data Rate: 40 Mbps
MPEG-2, .ts H.264,AVS*,AVS+		MPEG-4 SP/ASP, H.263/H.264		Max Resolution: 3840x2160 Max Data Rate: 20 Mbps
HEVC		MP3, WMA
VIDEO		MPEG-4 SP/ASP, H.263/H.264, HEVC
.dat MPEG-MPEG-4 SP
.mp4		H.263/H.264, H.265 HEVC
MPEG-1, MPEG-2				Max Resolution: 720x576
		MPEG-2		Max Data Rate: 40 Mbps
		RV30/RV40	COOK, MP2	Max Resolution: 3840x2160
AUDIO		--	MP3	Sample Rate: 8K~48KHz Bit Rate: 32K~320Kbps
		--	AAC	Sample Rate: 16K~48KHz Bit Rate: 32K~442Kbps Channel: Mono/Stereo
PHOTO		Progressive JPEG		Max Resolution: 1024x768
		Baseline JPEG		Max Resolution: 15360x8640
		BMP		Max Resolution: 9600x6400
				Pixel Depth: 1/4/8/16/24/32 bpp
		Non-interlaced		Max Resolution: 9600x6400
		Interlaced		Max Resolution: 1280x800

SUBTITLE	.srt	SubRip
	.ssa/.ass	SubStation Alpha
	.smi	SAMI
	.sub	SubViewer MicroDVD DVSubtitleSystem SubIdx(VobSub)	SubViewer 1.0 & 2.0 Only
	.txt	TMPlayer

If the media codec is not supported by the player, a warning will be given.

REMARK:

It may happen that due to different versions of the 'Codec' version and file format, the device may not support some of above formats. If this happens, convert your record to another compatible format. The manufacturer is not responsible for the incompatibility of the device and your records and the possible loss of the contents of your files.

We can not guarantee that all downloaded App Store Apps will work properly.

Technical Specifications

Model TV-50UHD123T2S2SM TV-55UHD123T2S2SM
Size with stand (mm)	1125 x 700 x 268 1240 x 774 x268
Size without stand (mm)	1125 x 652 x 88 1240 x 718 x 88
Weight with stand (kg)	9,2 11,2
Weight without stand (kg)	9,1 11,1
Display size 50 inches	55 inches
Resolution 3840x2160	3840x2160
Sound Power (RMS)	10 W + 10 W	10 W + 10 W
Power	115 W	150 W
Voltage	100-240V ~ 50/60Hz
AV Color system	PAL, SECAM
TV system	PAL/SECAM-B/G, D/K, I DVB-T+C DVB-T2 H.264/H.265 HEVC, DVB-S2
Working environment	Temperature: 5°C - 45°C Humidity: 20% - 80% RH Atmosfere pressure: 86 kPa - 106 kPa
IC Core / Android / Mem.	Quad Core 1,5GHz ARM Cortex A53x4 / Android 9.0 1,5GB / 8GB
Component mode	480I / 60Hz, 480P / 60Hz, 576I / 50Hz, 576P / 50Hz, 720P / 50Hz, 720P / 60Hz, 1080I / 50Hz, 1080I / 60Hz, 1080P / 50Hz, 1080P / 60Hz
HDMI mode	480I / 60Hz, 480P / 60Hz, 576I / 50Hz, 576P / 50Hz, 640 x 480, 800 x 600, 1024 x 768 60Hz, 720P / 50Hz, 720P / 60Hz, 1080I / 50Hz, 1080I / 60Hz, 1080P / 50Hz, 1080P / 60Hz, 3840I / 60Hz, 3840P / 60Hz

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC..

"CI Plus" logo is a trademark and a trademark of CI Plus LLP company.

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the product(s) and / or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge. Alternatively, in some

countries you may be able to return your products to your local retailer upon purchase of an equivalent new product. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

Disposal of waste batteries

Check local regulations for disposal of waste batteries or call your local customer service in order to get instructions on the disposal of old and used batteries. The batteries in this product should not be disposed of with household waste. Be sure to dispose of old batteries in special places for disposal of used batteries that are found in all

retail shops where you can buy batteries.

EU Declaration of Conformity

Hereby, M SAN Grupa d.d. declares that the radio equipment type TV set is in compliance with Directive 2014/53/EU (RED Directive).

The full text of the EU declaration of conformity is available at the following internet address: www.msan.hr/dokumentacijaartikala

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

JAMSTVENI LIST

VIVAX

HR

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
   Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.

2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore za koje jamstvo traje 24 mjeseca.

3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.

4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

5. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija se produljužuje za vrijeme trajanja popravka.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:

POTPIS I PEČAT PRODAVCA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.
2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.
5. Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.
6. PRAVO NA REKLAMACIJU NE OBUHVATA

Kosova Electronic Service Center

Kosova Electronic Service Center

VIVAX Air Conditioners; White Goods and Small Home appliances
