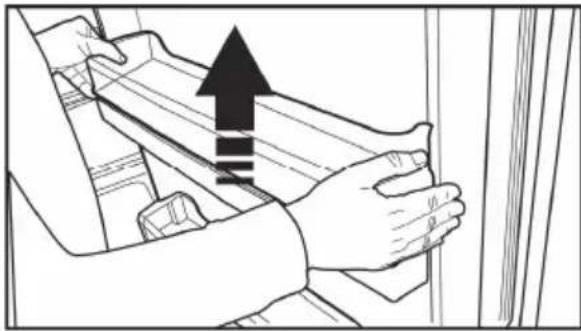

How do I clean the water dispenser tank?

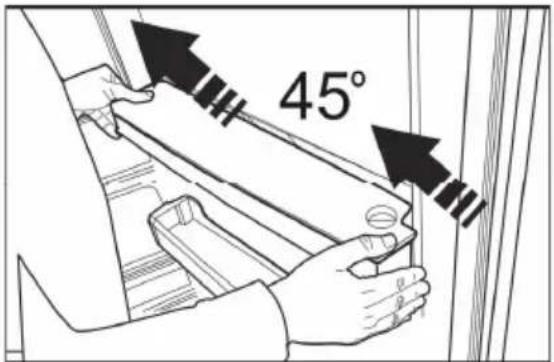

Remove the water filling reservoir from the door rack. Take off the lid, wash by hand with mild soap and water (do not use dishwasher). Reassemble all seals properly to prevent leaks.

Why is there condensation on the side walls?

Condensation is normal in humid weather or frequent door openings. Wipe with a dry cloth. Ensure door is fully closed and reduce opening frequency. If persistent, adjust thermostat warmer.

How do I replace the interior light bulb?

Unplug the refrigerator. Remove the light cover with a flat screwdriver. Replace with a 5 W max LED screw cap bulb (12 V DC, available from Defy spares). Refit cover and test.

What kind of warranty does the Defy DAD240s have?

It comes with a 3-year full warranty (parts and labour) plus an additional 2-year parts-only warranty upon registration at www.defy.co.za. Warranty valid for domestic use only.

Is the refrigerant R600a flammable?

Yes, R600a is a flammable hydrocarbon. Do not damage the cooling circuit. In case of leakage, ventilate the room, avoid flames or ignition sources. Contact service for repair.

USER MANUAL DAD240s Defy

Abstract geometric pattern with four empty circles and a diagonal gray line (no text or symbols)

Simple line drawing of a kitchen range hood (no text or symbols)

Simple line drawing of a kitchen oven with no text or symbols

Blank white image with no visible content or text

Simple line drawing of a washing machine with no text or symbols

Simple line drawing of a kitchen appliance outline (no text or symbols)

Customer Care Line
(after sales service)

086 100 3339

Part number: 3817610100 AG

Refrigeration

Instruction manual

Read this manual before initial installation and operation of the product!

Dear Customer,

Your new Defy refrigerator was manufactured in a state of the art facility and has passed the strictest quality control procedures.

Please read this manual carefully before using your product for the first time and then store it within easy reach for future reference.

We trust you will enjoy years of trouble free use.

The user manual:

• This manual will provide you with information on how to safely operate and care for your refrigerator in order that you gain the maximum benefit from it.
• Pay particular attention to any safety instructions.
• Please read all additional documents supplied with your refrigerator.
• Please note that this manual may be used for several similar but different models. Please check for relevance regarding your particular model.

Explanation of symbols used in this manual

Important safety information. Warning for hazardous situations with regard to life and property.

Caution; Warning for supply voltage.

Caution; Warning for fire hazard.

Caution; Warning for hot surfaces.

Useful information. Important information or useful hints about usage.

Unpacking

Remove all packaging.

Ensure that packing material is disposed of in a responsible manner and that any plastic bags are cut up to prevent children playing with them and accidentally suffocating.

If the refrigerator is damaged in any way do not use it. Report the damage to your dealer who will take the necessary corrective action.

	This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the refrigerator by a person responsible for their safety.
	Children should be supervised to ensure that they do not play with the refrigerator.

1. Your Refrigerator 4

2. Important Safety Information 5

Warnings 5

Child safety 6

HCA Warning 6

Energy saving tips 7

Placing foods 7

3. Placing and Installation 7

Transportation instructions 7

Before using the refrigerator 8

Electrical connection 8

Adjusting the feet 9

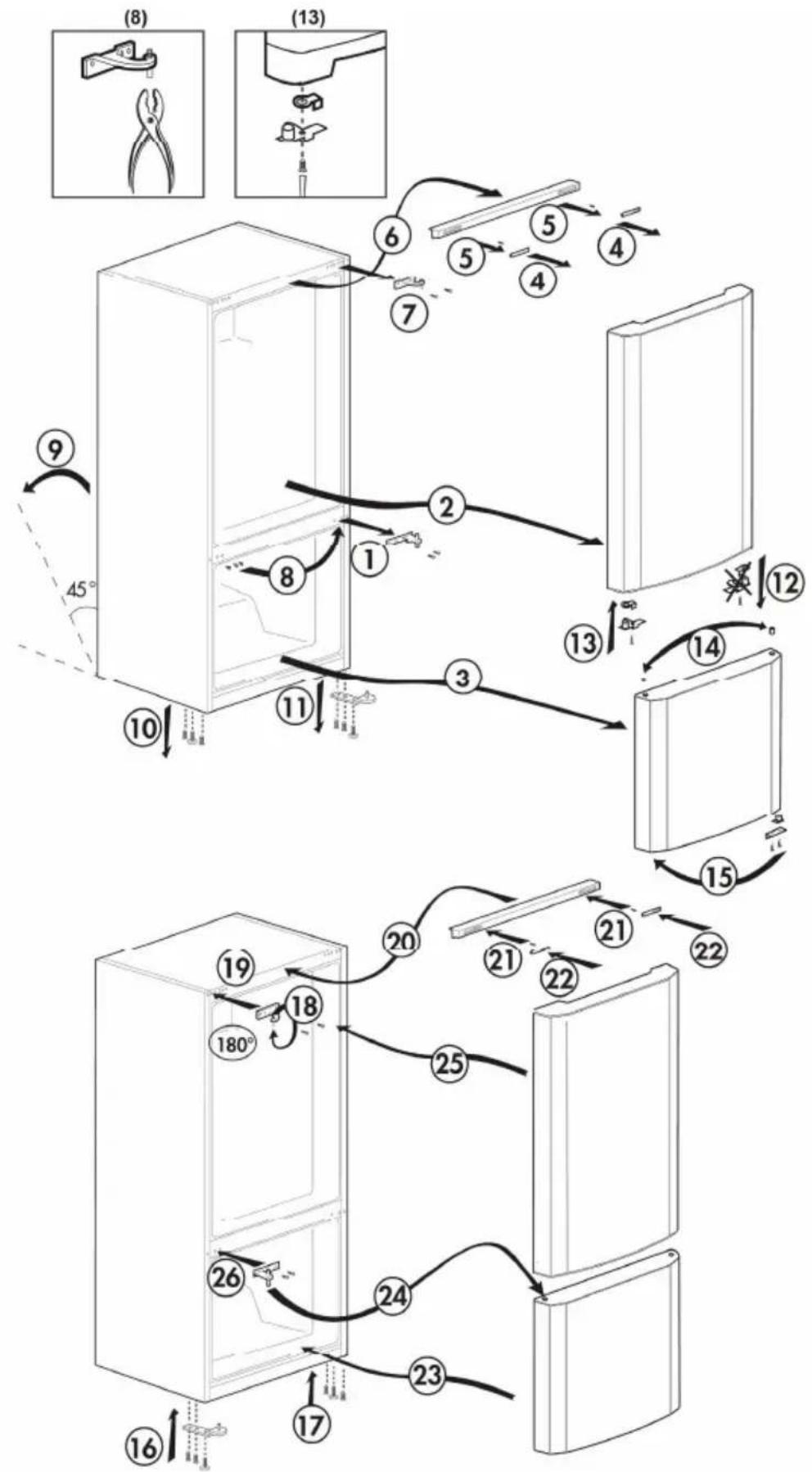

Reversing the doors 9

4. Using your refrigerator 11

Temperature control and adjustment 11

Defrosting 11

5. The freezer compartment 12

Deep freeze information 14

Deep Freeze packaging information 14

6. Water dispenser 13

1. Maintenance and cleaning 15

2. Trouble shooting 16

3. Specifications 17

4. Branches 19

5. Warranty 20

	Figures in this manual are schematic and may not match your refrigerator exactly.
	Values stated on the refrigerator labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with the relevant standards. Depending on operational and environmental conditions of the refrigerator, these values may vary.

1. Freezer compartment shelf
2. Thermostat knob
3. Adjustable shelves
4. Crisper glass
5. Crisper
6. Adjustable legs

7. Fridge compartment door shelves

8. Bottle shelf

9. Freezer compartment
10. Fridge compartment

	The manufacturer strives for continuous improvement. For this reason, technical specifications, text and illustrations in this manual are subject to change without notice.
	Figures represented in this instruction manual are schematic and may not correspond exactly with your refrigerator. If the parts are not included in the refrigerator you have purchased, they may be model specific and therefore only valid for some models.

2 Important safety information

Please review and observe the following information. Failure to do so may result in injuries or material damage and will render any warranty void.

Warnings

• Hand this owners manual over to the new owner should ownership change.
• The refrigerator must only be used for its intended purpose, i.e. the storing of edible foodstuff.
• The refrigerator is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
• Consult with your authorised DEFY service centre for all questions and problems relating to the refrigerator. Only authorised agents are to carry out repairs.
• Vapour and vaporized cleaning materials must never be used in the cleaning and defrosting the refrigerator. The vapour may come into contact with the electrical parts and cause a short circuit or electric shock.
• Do not allow children to hang on the refrigerator door as the unit could topple forward risking personal injury. Never use the parts on your refrigerator, such as the door, as a means of support or step.
• Do not use electrical appliances inside the refrigerator or freezer.
• Keep ventilation openings, in the refrigerator or in the built-in structure, clear of obstructions.
• Disconnect the refrigerator from the power source when cleaning, during routine maintenance or if it will not be used for an extended period.

	Do not drill, cut or modify the refrigerator. Injuries may result if the refrigerant circuit is damaged. See HCA warning. Do not damage the refrigerant circuit.
	Repairs must be carried out by authorised persons only. Repairs carried out by incompetent persons create a user risk.

- To unplug the refrigerator, remove the plug by pulling on the plug and not the cable!

- Exposing the refrigerator to rain, snow, sun and wind is an electrical safety risk.

- Should the power cord of the refrigerator become damaged or should it need replacing at any time, it must be replaced by a special purpose made lead which can only be obtained from a DEFY Authorised Service Agent.

- Never connect your refrigerator to electricity saving systems as they will damage the refrigerator.

- Do not store medicine or academic research samples which require strict temperature control in the refrigerator.

- Do not store or use flammable gas, benzene, petrol or volatile substances in or near the refrigerator.

- Do not store explosive substances such as aerosol cans with a flammable propellant in the refrigerator.

- In the event of a malfunction, disconnect the refrigerator from the power supply.

- Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall down and injure you and damage the refrigerator when you open the door. Never place objects on top of the refrigerator, they may fall down and injure you when you open or close the refrigerator door.

- If there is a blue light fitted on the refrigerator, do not look at the blue light through optics.

- The lamp(s) used in this appliance is not suitable for household room illumination, it is a 12V DC LED lamp available only from Defy spares outlets. DO NOT USE 230V!

	This appliance operates on 12 or 24 Volts DC (Direct Current) only! Under no circumstances must this appliance be directly connected to an AC (Alternating Current) power source.
	A battery-powered refrigerator or freezer has a cooling capacity lower than AC units. As the compressor is small, the unit runs more efficiently but lacks the ability to cool large warm loads as quickly as AC appliances.

• The refrigerator may move if the adjustable legs are not properly levelled on the floor. Levelling the adjustable legs on the floor helps prevent the refrigerator from moving.
• When carrying the refrigerator, do not hold on the door handle as this may cause the handle to break.
• When placing your refrigerator next to another refrigerator or freezer, the distance between the devices should be at least 80 mm. Failure to do so may cause adjacent walls to humidify.
• For refrigerators with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment as they may burst.
• Do not touch frozen food with your hands; they may stick to your hand.
• Never pour or spray water into or on the refrigerator and do not store liquids, pot plants or open containers on top of the refrigerator as these might spill causing electrical shorting.
• For manually controlled refrigerators, wait at least 5 minutes before starting the refrigerator after a power failure.
• Avoid any damage to the power cable when transporting the refrigerator.
• Bending the cable may cause a fire.
• Never place heavy objects on the power cable.

Diagram showing a device with a switch and power plug, no text or symbols present

• Do not touch the plug with wet hands.
• On delivery, check to make sure that the refrigerator is not damaged and that all the parts and accessories are in perfect condition.
• Ensure that the plug remains readily accessible. Do not use multiple adapter plugs or an extension cable. (When 230 V AC charger is used)
• Ensure that there is sufficient spacing between the refrigerator and surrounding walls.

- Unplug the refrigerator before cleaning.

Child safety

• If the door has a lock, the key should be kept out of reach from children.
• If you are discarding an old refrigerator with a lock or latch fitted to the door, disable the lock/latch, and ensure that the refrigerator is left in a safe condition to prevent children from being trapped inside and suffocating.
• Children must be supervised to prevent them from tampering with the refrigerator.

HCA Warning

Refrigerator cooling systems containing R600a:

At DEFY, the care and protection of our environment is an on going commitment. The refrigerator may contain non CFC / HFC natural substances in the cooling system (Called R600a) and in the insulation (Called cyclopentane). These are potentially flammable if exposed to fire. Take care not to damage, the cooling circuit / pipes of the refrigerator in transportation and in use.

In case of damage do not expose the refrigerator to fire or potential ignition sources and immediately ventilate the room where the refrigerator is situated.

Ignore this warning if your refrigerators cooling system contains R134a.

	Warning: Never dispose of the Refrigerator in a fire.
	Do not dispose of your Refrigerator along with regular household waste. Contact your local authority for disposal information and facilities available.
	Do not operate a damaged refrigerator. Consult with your nearest DEFY service centre with any concerns
	Never connect the refrigerator to the power supply during installation. Death or serious injury may result.

Energy saving tips

- Ensure your refrigerator is installed in a well ventilated area. If the ambient temperature is low (but in no case lower than 5 degrees C), then the energy saving will be more. Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators. Keep food in closed containers.

- Ensure the time between buying chilled/frozen food and placing it in the refrigerator is kept at a minimum, particularly in summer. Use a cooler bag or a special carrier bag to carry frozen food. Do not put hot food or drinks in the refrigerator.

- Do not leave the door(s) of the refrigerator open for long and ensure they are closed properly after each opening.

Placing foods
Freezer compartment shelves.	Various frozen food such as meat, fish, ice cream, and vegetables.
Egg holder. Eggs.
Fridge compartment shelves.	Food in pans, covered plates and closed containers.
Fridge compartment door shelves.	Small and packaged food or drinks (such as milk and fruit juice). Delicatessen products (cheese and butter).
Crisper. Vegetables and fruits.

Values stated in the documentation are obtained in laboratory conditions in accordance with the relevant standards. Depending on operational and environmental conditions of the refrigerator, these values may vary.

If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.

• Defrost your refrigerator regularly.
- Defrost frozen food in the fridge compartment, so that frozen food acts as an ice pack to assist cooling in the fridge. This will provide energy saving and preserve the food quality.
- Do not put hot food or drinks in your refrigerator.
- Do not overload your refrigerator. This restricts effective air circulation in the refrigerator.
- Pay attention to keep your food in closed containers.

3

Placing and Installation

Transportation instructions

1. The refrigerator must be transported only in an upright position. The packing must be intact during transportation.
2. When positioning your refrigerator, take care not to damage flooring, pipes, wall coverings etc. Do not move the refrigerator by pulling the door or handle.

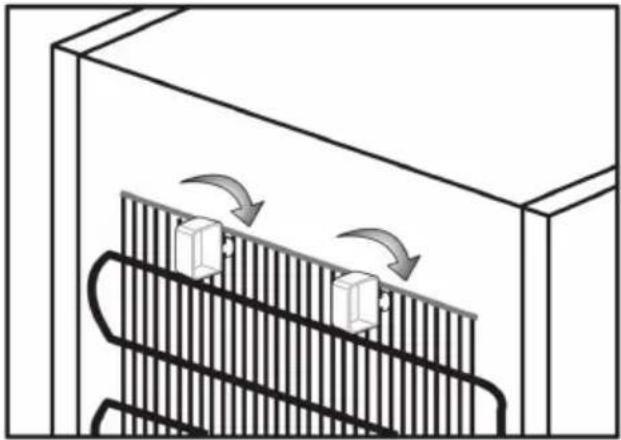

When re-transporting your refrigerator

• Your refrigerator must be emptied and cleaned prior to any transportation.
• The shelves, accessories, crisper etc. In your refrigerator must be fastened securely with adhesive tape to protect against any jolts.

• Packaging must be tied with thick tape and strong rope and the transportation guidelines printed on the package must be followed.

• Install your refrigerator in a place that allows for ease of use.

• Keep your refrigerator away from heat sources such as stoves, geysers humid places and direct sunlight.
• There must be appropriate air ventilation around your refrigerator in order to achieve efficient operation. The refrigerator is to have at least a 50 mm space from the ceiling and at least a 50 mm space from the wall. Fit the Two plastic wall spacers supplied with the appliance rotating 1/4 turn to the condenser at the back of the appliance (See Diagram).

Diagram of a refrigerated room with cooling pipes and heat exchangers, showing airflow direction (no text or symbols)

If the floor is covered with a carpet, your refrigerator must be elevated 25 mm from the floor.

1. Place your refrigerator on an even floor surface to prevent jolts.
2. Do not keep your refrigerator in ambient temperatures under 10^ C.

Please make sure that the interior of your refrigerator is cleaned thoroughly.

Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heaters and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
	If two refrigerators are to be installed side by side, there should be at least 8 cm distance between them.

Before using the refrigerator check that:

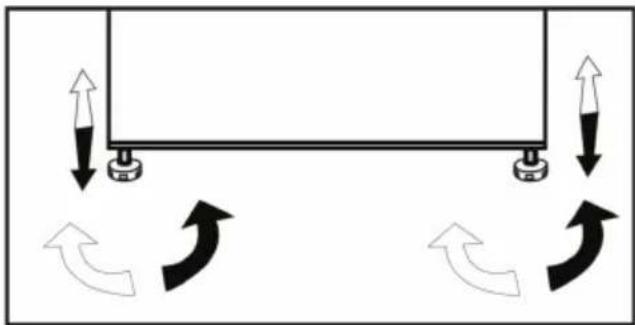

1. The feet have been adjusted for perfect levelling.
2. The interior of the refrigerator is clean and dry.
3. Check the required distance between your refrigerator and the wall in order to allow for free air circulation.
4. The DC power supply has been correctly connected. When the door is open the interior light will come on.
5. You may hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running, this is quite normal.
6. Do not load the refrigerator immediately after it is switched on. Wait until the correct storage temperature has been reached.

Electrical connection

This appliance operates on 12 or 24 Volts DC (Direct Current) only! Under no circumstances must this appliance be directly connected to an AC (Alternating Current) power source.

Polarity is important in wiring this DC appliance. Be sure that the positive terminal of the battery or charge controller coincides with the positive wire to the compressor, and the negative terminal of the battery or charge controller coincides with the negative wire to the compressor.

The leads should be connected using cable shoes and screwed connections. Joined leads should be avoided.

	THE APPLIANCE MUST ONLY BE CONNECTED TO A 12V OR 24 VDC POWER SOURCE, SUCH AS A BATTERY OR CHARGE CONTROLLER. THE UNIT WILL AUTOMATICALLY OPERATE ON EITHER 12 OR 24 VDC. THE USER DOES NOT NEED TO MAKE ANY ADJUSTMENT. NOTE: COMPRESSOR MAY NOT START WITHOUT A BATTERY IN THE CIRCUIT. BATTERY MUST BE AT LEAST 100 AH CAPACITY.
	+ to + and - to - Positive to Positive and Negative to Negative
	IMPORTANT: Before connecting the appliance, please see the installation diagram on page 18.

When operating your refrigerator for the first time, please observe the following instructions during the initial six hours:

• The door should not be opened frequently.
• The refrigerator must be operated empty without any food in it.
• Do not unplug your refrigerator.
• Original packaging and foam materials should be kept for any future transportation or moving.

Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not followed.

	The front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm in order to avoid condensation.
	A damaged refrigerator must not be operated before it is repaired! There is danger of an electric shock!
	Important!Care must be taken while cleaning/ carrying the refrigerator not to touch the bottom of the condenser metal wires at the back of the refrigerator, as this could cause injury.
	DEFY declines to accept any liability should the instructions not be followed.

Adjusting the feet

The refrigerator may move if the adjustable legs are not properly levelled on the floor.

Levelling the adjustable legs on the floor:

Level your refrigerator by turning the front legs as shown in the illustration below.

The corner where the legs are is lowered when the leg is turned in the direction of the black arrow and raised when turned in the opposite direction.

Having someone to carefully assist in tilting the refrigerator slightly will help facilitate this process.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Reversing The Doors

We recommend that you reverse doors (if required) before switching on for the first time.

Tools required:

Small and medium size screwdrivers and a pair of pliers.

Spare Parts:

The following parts, which are exclusively for left hand side fitted hinge operation, are available from a Defy spares outlet:

Upper door top trim hinge covers – there are 2 different parts, one for each side of the top trim.

Upper door middle hinge bushing/door stopper assembly.

Keep all the parts which have been removed when reversing the doors in a safe place for possible future re-use.

: Have somebody to assist you when moving the refrigerator and to hold the doors when removing / re-fitting hinges and doors to avoid injury and damage to the product

Please refer to diagrams supplied.

presented in this instruction manual are schematic and may not correspond exactly with your refrigerator.

If the parts are not included in the refrigerator you have purchased, they may be model specific and therefore only valid for some models.

Reversing the doors

Proceed in numerical order

4

Using your refrigerator

Temperature control and adjustment

Illustration of a hand holding a device with arrows indicating motion or force (no text or symbols)

Operating temperatures are controlled by the thermostat knob (see diagram) located on the ceiling of the fridge compartment. Settings may be made from 1 to 5, 5 being the coldest position. When the appliance is switched on for the first time, the thermostat should be adjusted so that after 24 hours, the average fridge temperature is no higher than +5°C.

Set the thermostat half way between the 1 and 5 setting and monitor to obtain the desired temperature i. e. towards 5 you will obtain a colder fridge temperature and vice versa. Some sections of the fridge may be cooler or warmer. (such as the salad crisper and the top part of the cabinet). This is quite normal. The normal storage temperature of the freezer should be -18°C. Lower temperatures may be obtained by adjusting the thermostat knob towards position 5.

Check the temperature with an accurate thermometer to ensure that the storage compartments are kept to the desired temperature. Remember to take the reading very quickly since the thermometer temperature will rise very rapidly after it has been removed from the freezer. Each time the door is opened cold air escapes and the internal temperature rises. Never leave the door open and ensure it is closed immediately after food is added or removed.

In case of a temporary ice build up in the fridge compartment, reduce the thermostat setting to 1, monitoring at the same time that the fridge temperature is maximum +5 degrees C. Once the ice build up disappears and the refrigerator starts auto defrosting again as normal, then you may increase the thermostat setting, if required.

Defrosting Fridge compartment

The fridge compartment defrosts automatically. The defrosting water runs to the drain tube via a collection container at the back of the appliance (1). (See diagram).

During defrosting water droplets may form at the back of the fridge compartment where the concealed evaporator is located. Some droplets may remain on the liner and refreeze when defrosting is completed. Do not use pointed or sharp edged objects such as knives or forks to remove the droplets which have frozen.

Illustration of a hand holding a tool over a surface with a downward arrow indicating direction (no text or symbols)

If at any time the defrost water does not drain from the collection channel, check to ensure that no food particles have blocked the drain tube. The drain tube can be cleared by pushing the special plastic plunger provided down the drain tube (2). If the frost layer reaches about 7 mm, reduce the setting (i.e. from 4 to 1) to restart automatic defrosting.

Defrosting Freezer compartment

Defrosting is very easy and without mess due to a dedicated defrost collection basin. Defrost twice a year or when a frost layer of around 7 mm (1/4") has formed. To start the defrosting procedure switch off the refrigerator at the power supply and pull out the plug. All food should be wrapped in several layers of newspaper and stored in a cool place (e.g. fridge or larder). Remove all freezer drawers. Containers full of warm water may be placed carefully in the freezer to speed up the defrosting process.

Illustration of a hand inserting a card into a filing cabinet (no text or symbols visible)

Do not use pointed or sharp edged objects such as knives or forks to remove the frost. Never use hairdryers, electrical heaters and other similar electrical appliances for defrosting. When defrosting has finished, sponge out any defrost water which collects at the bottom of the freezer and dry the interior thoroughly.

Line drawing of a hand cleaning a wall-mounted object from a shelf (no text or symbols)

Insert the plug in to the power supply and switch on at the power supply.

5

The freezer compartment

Deep-freeze information

• Food must be frozen as rapidly as possible when placed in a freezer to maintain its quality.
• It is possible to keep food for a long time period only at temperatures of -18 degrees C or lower.
• The quality of food in a freezer can be maintained for many months at temperatures of -18 degrees C or lower.
• Pre-packed commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a (4 star) frozen food storage compartment.

- To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered: Put packages in the freezer as quickly as possible after purchase. Ensure that contents are labelled and dated. Do not exceed "Use By" or "Best Before" dates on the packaging. If there is a power failure do not open the freezer door. Even if the power failure lasts up to the "Temperature rise time", frozen food will not be affected. In case the failure lasts longer, the food must be checked and when necessary, must be consumed immediately or must be frozen after being cooked.

• Wrap all food before storage. Seal all foods, or place in airtight containers to prevent dehydration.
• Eliminate all the air pockets from packages and keep air out by firm sealing.
• When packaging in sheet material such as aluminium foil, parcel tightly and press out all air pockets. All folds should be sealed with deep-freeze sealing tape.
• Unwrapped food containing acids or salt may permanently stain the cabinet interior.
• When loading bulk into the freezer, load one quarter at a time and allow to freeze before loading the next quarter.
• Divide food into reasonable portions according to your requirements.
• Allow hot food to cool before putting it into the freezer. Freeze cooked food in small quantities. This ensures rapid freezing and maintains the quality of the food.
  • Always use appropriate packaging material to avoid odour penetration or degradation of the food.
• Transport pre-frozen food from the supermarket in foil lined cooler bags and transfer to the home freezer as soon as possible.
• Place fresh food to be frozen near the side walls of the freezer to ensure fast freezing.
• Never exceed the maximum freezing capacity of the freezer.
• Do not freeze too large a quantity of food at any one time. The quality of the food is best preserved when it is frozen right through to the centre as quickly as possible.
  • Take special care not to mix already frozen food and fresh food.

Deep Freeze packaging information

Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odour, oils and acids and they must also be airtight. They must be made from materials that are suitable for deep freeze usage.

Materials necessary for packaging

Cold resistant adhesive tape, Self adhesive labels, Rubber rings and a Pen.

	Food that has defrosted must be consumed within 24 hours. Only cooked food can be refrozen. Do not re-freeze food that has defrosted.
	Do not exceed the expiry date shown on food packs.
Do not take out frozen food with wet hands. Your hands could stick to the frozen food.
	Note: If the door of the freezer is difficult to open just after being closed, this is due to the pressure difference which will equalize and allow for the door to be opened normally after a few minutes.

6 Water Dispenser (Some models)

The water dispenser is a very useful feature with regards to accessing chilled water without having to open the door of your fridge. Since you do not have to open the door of your fridge frequently, you also save on electricity.

Using the water dispenser

Push in the lever of the water dispenser with your glass for water flow. Releasing the lever cuts off the water flow. When operating the water dispenser, maximum flow is achieved by fully depressing the lever. Please note, how much water flows from the dispenser depends on how far you depress the lever. As the level of water in your cup / glass rises, gently reduce the amount of pressure on the lever to avoid overflow. If you depress the lever by a small amount, then the water will only trickle; this is perfectly normal and is not a fault.

Simple line drawing of a rectangular container with a central trough (no text or symbols)

Filling the water dispenser's tank

The water tank filling reservoir is located inside the door rack. Open the reservoir cover and fill up with pure and clean drinking water. Close the cover.

Line drawing of a mechanical component with two stacked parts, no text or symbols present

Line drawing of a mechanical device with two arrows indicating direction (no text or symbols)

Warning!

Do not fill the water tank with any liquid other than drinking water; beverages such as fruit juice, carbonated beverages and alcoholic drinks are not suitable for use with the water dispenser. If such liquids are used, the water dispenser will malfunction and may be damaged beyond repair. The warranty does not cover such usage. Some of the ingredients and additives in these drinks / beverages may also attack and damage the water tank material.

Use clean and pure drinking water only.

Capacity of the water tank is 2.0 litres; do not overfill. Push the arm of the water dispenser with a rigid glass. If you are using disposable plastic glasses, push the arm with your fingers from behind the glass.

Cleaning the water tank

- Remove the water filling reservoir inside the door rack.

Line drawing of a hand opening a door handle next to an upward arrow and vertical bars (no text or symbols)

- Remove the water dispenser shelf by holding from both sides.

Line drawing of hands adjusting a door handle with an upward arrow indicating motion (no text or symbols)

- Grab the water dispenser reservoir on both sides & remove it at an angle of 45^ .

- Clean the reservoir by removing its lid.

Line drawing of a hand holding a metal bracket with a pull rod, showing an upward arrow (no text or symbols)

IG: Do not wash any of the water tank parts in a dishwashing machine.

represented in this instruction manual are schematic and may not correspond exactly with your refrigerator. If the parts are not included in the refrigerator you have purchased, they may be model specific and therefore only valid for some models.

Ensure that the parts and seals removed (if any) as shown in the diagram below, during cleaning are properly refitted to prevent any water leakage.

Water tray

Any water that drips whilst using the water dispenser accumulates in the spillage tray.

Remove the plastic strainer by pressing on the side as shown in the figure. With a clean and dry cloth, remove the water that has accumulated.

Line drawing of a hand pressing down on a computer monitor (no text or symbols)

7 Maintenance and Cleaning

1. Always disconnect the plug from the power supply before cleaning.

2. Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax polish for cleaning.

3. Use luke warm water to clean the cabinet of the refrigerator and wipe it dry.

4. Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to two litres of water to clean the interior and wipe it dry with a soft cloth.

5. Make sure that no water enters the temperature control box or lamp housing and other electrical items.

6. If the refrigerator is not going to be used for a long period of time, switch it off and unplug the power cable, remove all food, clean it and leave the door ajar.

7. Any dust that gathers on the condenser, which is located at the back of the

refrigerator, should be removed once a year with a vacuum cleaner or dusted using a soft bristle brush.

1. Check door seals regularly to ensure they are clean and free from food particles.

9. Never:

- Clean the refrigerator with unsuitable material; e.g. petroleum based products.

- Subject it to high temperatures in any way,

- Scour, rub etc., with abrasive material.

1. Always ensure that the defrost drain, located below the back wall evaporator in the refrigerator section, is clean and free from obstructions.

2. Shelves and freezer baskets may be removed for cleaning purposes. Replace baskets in original positions. To remove a freezer drawer, pull it as far as possible, tilt it upwards and then pull it out completely.

3. There is no need to defrost semi no frost models, the freezer defrosts automatically. For static models see defrosting.

4. Carefully dispose of the burnt-out light bulb. A replacement light bulb can only be obtained from a Defy spares outlet.

Warning: Do not damage the refrigerant circuit. Do not use electrical appliances inside the food storage compartments of the refrigerator, unless they have been recommended by the manufacturer.

Ensure the fridge contents do not touch the back wall of the refrigerator to prevent them from freezing.

Protection of plastic surfaces

Do not place liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they may damage the plastic surfaces. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

Replacing the light bulb

1. Switch off at the power supply and pull out the plug.

- Shelves may be removed for easy access.

1. Use a flat tipped screwdriver to remove the light diffuser cover by inserting the blade into the recess to prise the cover off.

2. First check that the bulb is not loose by ensuring it is securely screwed into the holder. Refit the plug and switch on. If the bulb works, replace the light cover by inserting the rear lug and pushing up to locate the front two lugs.

3. If the light still fails to work, switch off at the power supply and pull out the plug. Replace the bulb with a new 5 watt (max) screw cap LED bulb.

8 Trouble Shooting

Please review this list before calling a service centre. It could save you time and money. This list includes frequent complaints that do not arise from defective workmanship or material usage. Some of the features described here may not apply to your model.

Symptom Check
The refrigerator does not operate.	Battery voltage may be below 10.7 V DC.Make sure the refrigerator plug is securely plugged in.Check for a blown fuse.Inspect the power supply cord for damage.Eliminate the use of an extension cord, if any is being used for the charger.Compressor may have overheated in extreme high ambient conditions.Unplug and allow to cool for about 1 hour.
Condensation on the side wall of the fridge compartment.	Very cold ambient conditions. Frequent opening and closing of the door.Highly humid ambient conditions. Storage of food containing liquid in open containers. Leaving the door ajar. Switching the thermostat to a colder degree.Decreasing the amount of time the door is left open or using it less frequently.Covering the food stored in open containers with a suitable material.Wipe the condensation using a dry cloth and check if it persists.
Compressor is not running. • The protective thermal relay of the compressor will blow out during sudden power failures or plug-outs and plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not yet been balanced. Your refrigerator will start running approximately after 15 minutes. Please call a service centre if the refrigerator does not start up at the end of this period.The refrigerator is in defrost cycle. This is normal for an automatic defrosting refrigerator. The defrosting cycle occurs periodically.Your refrigerator is not connected to the power supply. Make sure that the plug is properly fitted into the power supply.Have the temperature adjustments been correctly made?
Condensation on the inner walls of refrigerator.	Hot and humid weather increases icing and condensation. It is normal and not a fault.Doors might have been left ajar; ensure the doors are fully closed.Doors might have been opened frequently or left ajar for a long time; open them less frequently.
Food kept in the fridge compartment drawers are freezing.	The fridge temperature might have been adjusted to a very low temperature.Adjust the fridge temperature to a warmer degree and check.
Freezer temperature is very low while the fridge temperature is sufficient.	The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and check.
Fridge temperature is very low while the freezer temperature is sufficient.	The fridge temperature might have been adjusted to a very low temperature.Adjust the fridge temperature to a warmer degree and check.
Temperature in the fridge or freezer is very high.	The fridge temperature might have been adjusted to a very high degree.Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches a sufficient level.Doors might have been opened frequently or left ajar for a long time; open them less frequently.Door might have been left ajar; close the door completely.Large amount of hot food might have been put in the refrigerator recently.Wait until the fridge or freezer reaches the desired temperature.The refrigerator might have only been connected to the power supply recently. Complete cooling down of the refrigerator takes time.
The fridge is running continuously or for a long time.	·Your new refrigerator may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time.·The ambient room temperature may be high. This is quite normal.·The refrigerator might have only been connected to the power supply recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer.·Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until the food has cooled down.·Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.·The freezer or fridge compartment door might have been left ajar. Check that the doors are tightly closed.·The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.·The door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. A damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.
Humidity occurs on the outside of the refrigerator or between the doors.	·There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.
Bad odour inside the refrigerator.	·The inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, lukewarm water or carbonated water.·Some containers or package materials might cause the smell. Use a different container or different brand of packaging material.
Crispers are stuck. ·The food might be touching the ceiling of the drawer. Rearrange the food in the drawer.
The door is not closing. ·Food packages may prevent the door's closing. Repack the packages that are obstructing the door.·The refrigerator is not completely level on the floor and rocks when slightly moved. Adjust the elevation screws.·The floor is not level or strong. Make sure that the floor is level and capable of carrying the weight of the refrigerator.

Warning: Repairs must be carried out by authorised persons only. Repairs carried out by incompetent persons create a user risk.

DANGER! Always disconnect the refrigerator from the power supply before any maintenance or cleaning.

9 Specifications

MODEL D190
APPLIANCE TYPE FRIDGE
Net volume (l) 151
Dimensions (HxWxD) mm 1450 x 495 x 525
Climate class SN
Refrigerant R134a

The energy input for the different ambient is important.

25 degrees - 2 x 90WP solar panels. (In the southern hemisphere the solar panels must face north).

30 degrees - 2 x 100WP solar panels. (Applicable for Africa only, recommendations for the rest of the world on request).

35 degrees - 2 x 120WP solar panels.

For sustainability two AGM batteries per system or three high cycle solar batteries are recommended in order that the fridge/freezer can operate on a 12vdc and 24vdc energy system.

180WP = 6.1kWhr/m² = 27° North @ Ambient Temperature of 25°C.

Installation diagram

1. Connect Solar Panel A and Solar Panel B in parallel to each other (positive to positive, and negative to negative).
2. Connect battery A to battery B in parallel to each other (positive to positive, and negative to negative).
3. Connect the positive (red) cable of the solar panel to the positive input of the solar charge controller.
4. Connect the negative (black) cable of the solar panel to the negative input of the solar charge controller.
5. Connect the positive (red) cable of the batteries to the positive input of the solar charge controller.
6. Connect the negative (black) cable of the batteries to the negative input of the solar charge controller.
7. Connect the refrigerator to the solar charge controller.

Important notes:

1. Solar panels should face 27 degrees North for best efficiency.
2. The batteries should be kept indoors.
3. The mains cable of the refrigerator should not be extended.
4. Should you require more solar panels, it can be added by connecting them in parallel with the existing solar panels.
5. The refrigerator cannot be connected to 230V AC.

South African Branches:

BLOEMFONTEIN

Unit Number 5

Monument Business Park

50 Monument Road

Oranjesig, Bloemfontein

[e-mail]

CAPE TOWN

5A Marconi Rd. Montague Gardens, 7441

[e-mail]

DURBAN

135 Teakwood Road, Jacobs,

Durban, 4052

[e-mail]

EAST LONDON

Robbie de Lange Road, Wilsonia,

East London, 5201

[e-mail]

GAUTENG, MIDRAND

127 15th Road, Cnr Pharmaceutical &15th Rd,

Midrand, Gauteng

[e-mail]

POLOKWANE

87 Nelson Mandela Drive, Superbia 0699

[e-mail]

PORT ELIZABETH

112 Patterson Road, North End, Port Elizabeth 6001

[e-mail]

Sub-Saharan Africa Branches:

ZAMBIA: SOUTHGATE INVESTMENTS LTD

Plot 1606, Sheki Sheki Road

P.O. Box 33681

Lusaka, 10101, Zambia

Tel: [phone]

Fax: [phone]

[e-mail]

NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) LTD

10 Tienie Louw Street, Northern Industrial Area

P.O. Box 21158, Windhoek, Namibia

Tel: [phone]

Fax: [phone]

[e-mail]

ZIMBABWE: TRADECOMAFRICA

Trade Com Africa, 183 Loreley Crescent

Msasa, Harare, Zimbabwe

Tel: [phone]

Cell: [phone]

Cell: [phone]

BOTSWANA: RAY MORGAN AGENCIES

RMA Service Centre, Plot 48, East Gate

Gaborone International Commerce Park

Kgale View, Gaborone

Botswana

Tel: [phone]

Fax: [phone]

Cell: [phone]

[e-mail]; [e-mail]

SWAZILAND: LYNDS DISTRIBUTORS

P.O Box 716, Mbabane, Swaziland, H100

Tel: [phone]

Fax: [phone]

MOZAMBIQUE: COOL WORLD. LDA

Please register your product at

www.defy.co.za

DEFY APPLIANCES (PTY) LTD

P.O.BOX 12004

JACOBS

DURBAN

4026

SOUTH AFRICA

This certificate is issued by DEFY APPLIANCES LIMITED manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.

The Company warrants to the original purchaser that for a period of *THREE YEARS from date of purchase, plus an additional *TWO years on registration, the appliance is free from defect under normal domestic use, both in workmanship and material, subject to the following conditions.

1. Repair or replacement of any part of this appliance, found by the Company to be defective, shall be at the election of the Company. The Company reserves the right to effect such service through any of its Service Divisions or Authorised Service Dealers. The cost of such service shall be borne by the Company in full, provided that the appliance is located no further than 50km from a Company Service Centre or an Authorised Service Dealer. Where the appliance is located beyond the 50km radius, the purchaser shall be liable for the standard travelling charges, as determined by the Company.
2. Vitreous enamelware, fuses and lamps are specifically excluded from these warranties. It is an express condition of these warranties that the purchaser takes due care and attention in the use and maintenance of the appliance. Abuse, misuse in conflict with operating instructions, connection to incorrect voltages and subjection to commercial use shall release the Company from its obligations.
3. This warranty shall become void and cease to operate if the appliance is dismantled by, or any repairs to the appliance are effected by any persons not duly authorised by the Company, or if substitute parts not approved by the Company are used in the appliance, or if the serial number of the appliance is removed.
4. The Company shall not be responsible for damages resulting from fire, flood, civil disturbances or any Act of God. The Company shall not, in terms of these warranties be responsible nor held liable for any consequential loss or damage of any kind caused by or due to the failure or malfunction of the appliance. The Company shall not be responsible for damages caused by insect and/or animal infestation.
5. The Company shall not be responsible for transportation or other costs other than those incurred within the provisions of Point 1 of this Certificate.
6. For warranties in the Republic of South Africa and Sub-Saharan Africa, please contact the customer care line. Please refer to the previous page for respective South African branches and Sub-Saharan Africa branches.
7. Where service is requested under warranty and no fault or defect can be found by the Company, all costs incurred will be for the purchaser's account.
8. This Certificate as well as your invoice will serve as proof of purchase. For the purpose of warranty, it will be essential to produce this Certificate and invoice. Failure to do so, will render the purchaser liable for service costs.

KEEP THIS CERTIFICATE AND SALES INVOICE AS PROOF OF PURCHASE FOR WARRANTY PURPOSES.

*THREE YEARS full coverage, additional *TWO YEARS (with registration) will cover only parts, labour cost to be charged accordingly. Please register your product at www.defy.co.za in order to activate the additional two year warranty.
