Product Type	Microwave Oven
Brand	Kelvinator
Model	KMT642K3JSM
Capacity	20 Liters
Power Output	800 Watts
Dimensions (W x D x H)	440 x 360 x 260 mm
Net Weight	11.5 kg
Power Supply	230 V / 50 Hz
Control Type	Digital with LED Display
Defrost Function	Yes, by weight or time
Auto Cook Programs	8 preset menus
Timer	Up to 95 minutes
Turntable	Yes, 270 mm glass
Interior Light	Yes
Child Lock	Yes
Door Type	Side opening with handle
Material	Stainless steel / ABS plastic
Cleaning	Wipe with damp cloth; avoid abrasives
Spare Parts	Available from authorized service centers (e.g., turntable, fuse)
Repairability Index	6.5/10 (estimated)

Frequently Asked Questions - KMT642K3JSM KELVINATOR

What is the capacity of the Kelvinator KMT642K3JSM microwave?

The Kelvinator KMT642K3JSM has a capacity of 20 liters, suitable for medium-sized dishes.

How do I defrost food using this microwave?

Press the Defrost button, then enter the weight of the food in kg (max 2 kg). The microwave will automatically adjust time and power.

Can I use metal containers in the microwave?

No, metal containers can cause sparks and damage the microwave. Use microwave-safe glass, ceramic, or plastic containers.

How do I clean the microwave interior?

Wipe the interior with a damp cloth and mild detergent. Do not use abrasive cleaners. For odors, heat a bowl of water with lemon juice for 3 minutes.

Why does the microwave not start?

Check that the door is fully closed and the child lock is not activated. Also, ensure the power cord is plugged in and the outlet works.

How do I set the timer?

Turn the Timer/Weight dial to set cooking time up to 95 minutes. Press Start to begin.

What is the power consumption of this microwave?

The microwave consumes approximately 1200 Watts during operation (800W output). Standby consumption is minimal.

Can I use the microwave without the turntable?

No, the turntable ensures even cooking. Always use it unless specific instructions say otherwise.

How do I activate the child lock?

Press and hold the Stop/Clear button for 3 seconds until a lock icon appears. Repeat to unlock.

Where can I find spare parts?

Spare parts such as turntable, fuse, and door switch are available from Kelvinator authorized service centers or online retailers.

USER MANUAL KMT642K3JSM KELVINATOR

Microwave Oven INSTRUCTION MANUAL

Model: *MT642K3JSM

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a qualified servicer.

ADDENDUM

If the appliance is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the appliance and possibly lead to a hazardous situation

Specifications

Model:	*MT642K3JSM
Rated Voltage:	220V~60Hz
Rated Input Power(Microwave):	1550W
Rated Output Power(Microwave):	1100W
Rated Input Power(Grill):	1200-1400W
Oven Capacity:	42L
Turntable Diameter:	∅345mm
External Dimensions:	553x441x326m
Net Weight:	Approx. 17.8 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a qualified servicer to remove any cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
15. Use this appliance only for its intended uses as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
16. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep power cord away from heated surface and do not cover any vents on the oven.
20. Do not let the power cord hang over the edge of the table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

22. The contents of feeding bottles and baby food jars should be stirred or shaken and the temperature checked before consumption in order to avoid burns.

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.

24. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.
26. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet and the venting of this oven is not compromised.
27. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
28. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
29. Accessible parts may become hot during use. Young children should be kept away from the appliance.
30. Surface of a storage drawer can get hot.
31. Do not use harsh or abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface and may cause shattering of the glass. Also, do not use a steam cleaner on this appliance.
32. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
33. Only use the temperature probe recommended for this oven (for ovens provided with a facility to use a temperature-sensing probe.)
34. The rear surface of the appliance should be placed against a wall.

To Reduce the Risk of Injury to Persons

Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding plug can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

CLEANING

Be sure to unplug the

appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CAUTION

Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

UTENSILS

See the instructions on “Materials you can use in microwave oven” or “Materials to be avoided in microwave oven”. There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 2.5cm away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 5mm above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacture's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

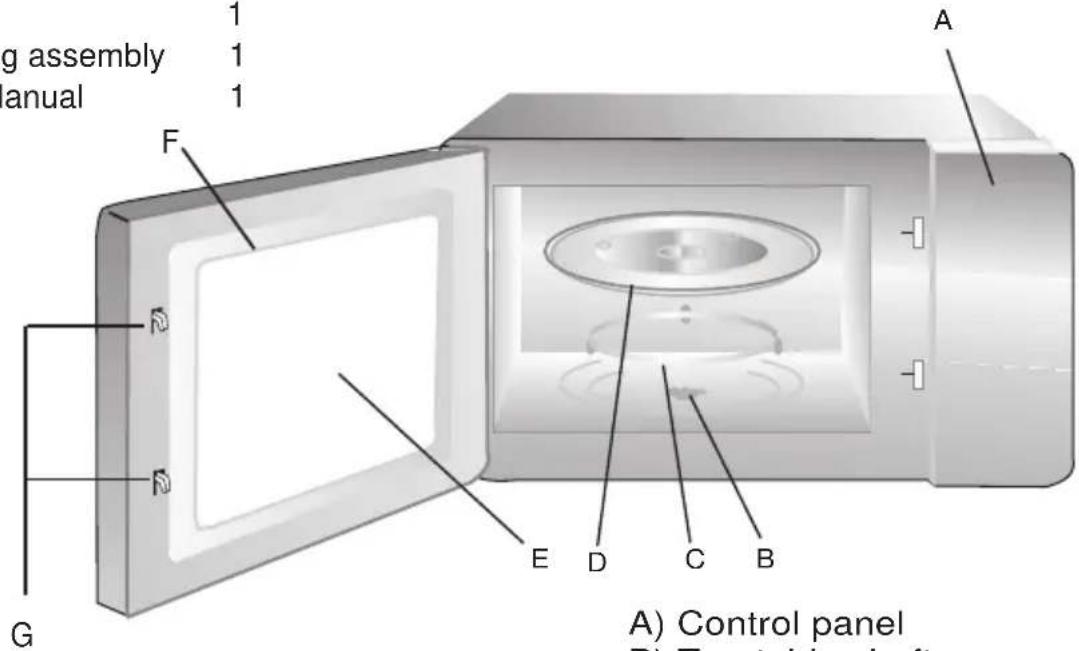

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

Grill Rack( Only for Grill series )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

1. Select a level surface that provides enough open space for the intake and/or outlet vents.

A minimum clearance of 7.5cm is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 30cm above the oven.
(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet vents can damage the oven.
(4) Place the oven as far away from radios and TV as possible.
Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

OPERATION

1. Power Level

11 power levels are available.

Level	10	9	8	7	6	5	4	3	2	1	0
Power	100%	90%	80%	70%	60%	50%	40%	30%	20%	10%	0%
Display	PL10	PL9	PL8	PL7	PL6	PL5	PL4	PL3	PL2	PL1	PL0

2. Clock Setting

(1) Press "CLOCK/TIMER "once, "00:00" will display.
(2) Press the number keys and enter the current time. For example, time is 12:10 now, please press "1,2,1,0" in turn.
(3) Press "CLOCK/TIMER" to finish clock setting. ":" will flash and the clock will be lighted.
(4) If the numbers input are not within the range of 1:00--12:59, the setting will be invalid until valid numbers are input.

Note: (1) In the process of clock setting, if the "STOP/CANCEL" button is pressed or if there is no operation within 1 minute, the oven will go back to the former setting automatically.

(2) If the clock needs to be reset, please repeat step 1 to step 3.

3. Kitchen Timer

(1) Press "CLOCK/ TIMER " twice, LED will display 00:00, the first hour figure flashes.
(2) Press the number keys and enter the timer time (the maximum cooking time is 99 minutes and 99 seconds)
(3) Press " START/+30SEC." to confirm setting.
(4) When the timer time arrives, the buzzer will ring 5 times. If the clock is set (12-hour system), LED will display the current time.

Note: 1) The kitchen timer is different from 12-hour system. The kitchen timer is simply a timer.
2) When using the kitchen timer, programs cannot be set.

4. Microwave cook

(1) Press "TIME COOK" once, LED will display "00:00".
(2) Press number keys to input the cooking time; the maximum cooking time is 99 minutes and 99 seconds.
(3) Press "POWER" once, LED will display "PL10". The default power is 100% power. Now you can press number keys to adjust the power level.
(4) Press " START/+30SEC." to start cooking.

Example: to cook the food with 50% microwave power for 15 minutes.

a. Press "TIME COOK" once."00:00" displays.
b. Press "1", "5", "0", "0" in order.
c. Press "POWER" once, then press "5" to select 50% microwave power.
d. Press "START/+30SEC." to start cooking.

Note:1) In the process of cooking, if the "STOP/CANCEL" button is pressed or if there is no operation within 1 minute, the oven will go back to the former setting automatically.

2) If "PLO" selected, the oven will work on fan only with no power. You can use this level to remove any oven odors.
3) During microwave cooking, "POWER" can be pressed to change to the power you need. After pressing "POWER", the current power setting will flash for 3 seconds. Now you can press the number button to change to the new power setting. The oven will work with the selected power for the rest of the time

5. Grilling Cooking

(1) Press the "GRILL/COMBO" button once to choose the grill function. The LED will display "G-1".
(2) Set the cooking time, the maximum cooking time is 99 minutes and 99 seconds. Example: Set 12 minutes 50 seconds, press "1", "2", "5", "0" in order.
(3) Press " START/+30SEC. " to start cooking. The cooking time counts down.

Note: When half the grilling time passes, the oven pauses and beeps twice. This is normal.

You can just press “START/+30 SEC” to continue cooking. But in order to have the best effect of grilling food, you should turn the food over, close the door, and then press “START/+30 SEC” to continue cooking. If there is no operation in 1 minute, the oven will continue working and beep once.

6. Combination cooking (microwave + grilling)

(1) Press the "GRILL/COMBO" button twice or thrice to choose "Combination 1" (55%microwave+45%grill) or "Combination 2" (36%microwave+64%grill), LED will display "C-1" or "C-2".
(2) Set the cooking time, the maximum cooking time is 99 minutes and 99 seconds. Example: Set 12 minutes 50 seconds, press "1", "2", "5", "0" in order.
(3) Press " START/+30SEC." to start cooking. The cooking time counts down.

Function Display		Microwave Power	Grill Power
Combi.1 C-1	55% 45%
Combi.2 C-2	36% 64%

7. Speedy Cooking

(1) In waiting state, instant cooking at 100% power level can be started by select a cooking time from 1 to 6 minutes by pressing number pads1 to 6. Press "START/+30SEC." to increase the cooking time; the maximum cooking time is 99 minutes and 99 seconds.
(2) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can be started by pressing " START/+30SEC ". Each press on the same button will increase cooking time by 30 seconds. the maximum cooking time is 99 minutes and 99 seconds.
(3) After pressing "TIME COOK" and the cooking time is selected, press "START/+30SEC." to start cooking at 30 seconds with full microwave power.

Note: during microwave cooking and time defrost, time can be added by pressing "START/30SEC." button.

8. Weight Defrost Function

(1) Press "W.T./TIME DEFROST" once, LED will display "dEF1".
(2) Press numerical buttons to input weight to be defrosted. Input the weight ranged between 100\~2000 g.
(3) If the weight input is not within 100\~2000g, the input will be invalid. A "beep" will sound and the unit will not work until valid numbers are input.
(4) Press " START/+30SEC." to start defrosting and the cooking time remaining will be displayed.

9. Time Defrost Function

(1) Press "W.T./TIME DEFROST" twice, LED will display "dEF2".
(2) Press number pads to input defrosting time. The effective time range is 00:01\~99:99
(3) The default microwave power is power level 3. If you want to change the power level, press "POWER" once, and the LED will display "PL 3", then press the number pad of the power level you wanted.
(4) Press " START/+30SEC. " to start defrosting. The remaining cooking time will be displayed.

10. POPCORN

a) Press "POPCORN" repeatedly until the number you wish appears in the display, "50", "100" grams will display in order.
For example, press "POPCORN" once, "50" appears.
b) Press " START/+30 SEC." to cook, buzzer will sound five times and then return back to waiting state.

11. POTATOES

a) Press "POTATO" repeatedly until the number you wish appears in the display. "1", "2", "3" will display in order.

"1"SET : 1 potato (approximately 230 gram)

"2"SETS: 2 potatoes (approximately 460 gram)

"3"SETS: 3 potatoes (approximately 690 gram)

For example, press "POTATO" once, "1" appears.

b) Press " START/+30 SEC." to cook, buzzer sounds once. When cooking is finished, the buzzer sounds five times and then returns back to the waiting state.

12. FROZEN VEGETABLE

a) Press "FROZEN VEGETABLE" repeatedly until the number you wish appears in the display, "150", "350", "500" grams will display in order.

For example, press "FROZEN VEGETABLE" once, "150" appears.

b) Press " START/+30 SEC. " to cook. Buzzer sounds once. When cooking is finished, the buzzer sounds five times and then returns back to the waiting state.

13. BEVERAGES

a) Press " BEVERAGE " repeatedly until the number you wish appears in the display, "1", "2", "3" cup will display in order. One cup is about 120ml. For example, press "BEVERAGE" once, "1" appears.

b) Press " START/+30 SEC. " to cook. Buzzer sounds once. When cooking is finished, the buzzer sounds five times and then returns back to the waiting state.

14. MEAT Function

A. Chicken menu

a) Press " MEAT " once to choose chicken menu,"CHIC" displays.

b) Press " START/+30 SEC. " to confirm the menu. "400" displays.

c) Keep pressing " MEAT " to choose chicken weight."600", "800", "1000" or "1200" grams can be selected.

d) Press " START/+30 SEC. " to cook. Buzzer sounds once. When cooking is finished, the buzzer sounds five times and then returns back to the waiting state.

B. BEEF menu

a) Press " MEAT " twice to choose beef menu,"BEEF" displays.

b) Press " START/+30 SEC. " to confirm the menu. "300" displays.

c) Keep pressing " MEAT " to choose beef weight."500", "700", "900" or "1100" grams can be selected.

d) Press " START/+30 SEC." to cook. Buzzer sounds once. When cooking is finished, the buzzer sounds five times and then returns back to the waiting state.

C. PORK menu

a) Press " MEAT " three times to choose pork menu,"PO" displays.
b) Press " START/+30 SEC. " to confirm the menu. "150" displays.
c) Keep pressing " MEAT " to choose pork weight."300", "450", "600" or "750" grams can be selected.
d) Press " START/+30 SEC." to cook. Buzzer sounds once. When cooking is finished, the buzzer sounds five times and then returns back to the waiting state.

15. DINNER PLATE

a) Press "DINNER PLATE" repeatedly until the number you wish appears in the display, "250", "350", "500" grams will display in order.
For example, press "DINNER PLATE" once, "250" appears.
b) Press " START/+30 SEC." to cook. Buzzer sounds once. When cooking is finished, the buzzer sounds five times and then returns back to the waiting state.

16. FROZEN PIZZA

a) Press "FROZEN PIZZA" repeatedly until the number you wish appears in the display, "100", "200", "400" grams will display in order.
For example, press "FROZEN PIZZA" once, "100" appears.
b) Press " START/+30 SEC." to cook. Buzzer sounds once. When cooking is finished, the buzzer sounds five times and then returns back to the waiting state.

17. Multi-stage cooking

At most, 2 stages can be set for cooking. In multi-stage cooking, if one stage is defrosting, then defrosting shall be placed at the first stage automatically.

Note: Auto cooking cannot work in the multi-stage cooking mode.

Example: if you want to cook with 80% microwave power for 5 minutes + 60% microwave power for 10 minutes. The cooking steps are as following:

(1) Press "TIME COOK" once, then press "5", "0", "0" to set the cooking time;
(2) Press "POWER" once, then press "8" to select 80% microwave power.
(3) Press "TIME COOK" once, then press "1", "0", "0", "0" to set the cooking time;
(4) Press "POWER" once, then press "6" to select 60% microwave power.
(5) Press "START/ +30 SEC." to start cooking.

18. LOCK FUNCTION FOR CHILDREN

Lock: In waiting state, press " STOP/CANCEL " for 3 seconds, there will be a long "beep" denoting the entering into the children-lock state; meanwhile, LED will display " [---]".

Lock quitting: In locked state, press " STOP/CANCEL " for 3 seconds, there will be a long "beep" denoting that lock is released.

19. MEMORY FUNCTION

(1) Press "0/MEMORY" to choose memory 1-3 procedure. The LED will display 1,2,3.
(2) If the procedure has been set, press "START/+30 SEC." to use it. If not, continue to set the procedure. Only one or two stages can be set.
(3) After finishing the setting, press "START/+30 SEC" once to save the procedure and return back to the waiting state. If "START/+30 SEC" is pressed again, it will start cooking.

Example: to set the following procedure as the second memory, that is memory 2. to cook the food with 80% microwave power for 3 minutes and 20 seconds.

The steps are as follow:

a. In the waiting state, press "0/MEMORY" twice or until the screen displays "2".
b. Press "TIME COOK" once, then press "3", "2", "0" in order.
c. Press "POWER" once, "PL10" display, then press "8" and "PL8" displays.
d. Press "START/+30 SEC." to save the setting. The buzzer sounds once then returns back to the waiting state. If you press "START/+30SEC." again, the procedure will be saved as the memory 2 and operated.
e. If the electricity is not turned off, the procedure will be saved until it is reset.
f. If you want to run the saved procedure, in waiting state press "0/MEMORY" twice. The screen displays "2", then press "START/+30SEC." to run.

20. INQUIRING FUNCTION

(1) In cooking state, press "CLOCK/TIMER", the LED will display clock for three seconds.
(2) In the microwave cooking state, press "POWER" to inquire microwave power level, and the current microwave power will be displayed. After three seconds, the oven will turn back to the previous state. In multi-stage state, the inquiring way can be done by the same way as above.

21. COOKING END REMINDING FUNCTION

When the cooking is over, the buzzer will sound 5 "beep" to alert user the cooking is finished.

22. OTHER SPECIFICATIONS

(1) In standby state, if the set clock digital tube displays current time, the icon " : " would flash; otherwise, it shows " 0:00 ".
(2) In setting function state, LED displays corresponding setting.
(3) In working or pause state, LED displays surplus cooking time.

Trouble-shooting

Normal
Microwave oven interfering with TV reception	Radio and TV reception may be interfered with when Microwave oven is operating. It is similar to the Interference of small electrical appliances like mixers, vacuum cleaners, and electric fans. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door. Hot air coming out of vents.	In cooking, steam may come out of the food.Most will exhaust from the vents. But some condensation may accumulate on a cool place like the oven door. It is normal.
Oven started accidentally with no food in it.	Do not run the oven without any food inside. If the oven is accidentally turned on while empty, it is very dangerous. Shut the oven off immediately.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug in again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker.
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
