Product Type	Solo Microwave Oven
Brand	Kelvinator
Model	KM32EG
Capacity	32 liters (approx. 1.1 cu ft)
Microwave Power	900 Watts
Power Consumption	1500 Watts (approx.)
Voltage / Frequency	220-240 V ~ 50 Hz
Dimensions (H x W x D)	29.5 x 48.6 x 39.0 cm
Weight	14.5 kg
Control Type	Digital touchpad with LED display
Timer	Up to 99 minutes 99 seconds
Turntable	Yes, 315 mm glass plate
Child Lock	Yes, press and hold STOP for 3 seconds
Defrost Function	Yes, by weight or time
Clock	12-hour or 24-hour display
Cooking Modes	Microwave, defrost, multi-stage cooking
Door Safety	Interlock system, automatic shutoff when door opens
Interior Light	Yes
Ventilation	Side vents, ensure 10 cm clearance
Material	Stainless steel interior, painted steel exterior
Color	Stainless steel / Black
Accessories Included	Glass turntable, turntable ring, user manual

Frequently Asked Questions - KM32EG KELVINATOR

How do I set the clock on my Kelvinator KM32EG microwave?

Press the Clock button, then use the number pads to enter the time. Press Clock again to confirm. Hold the button for 3 seconds to toggle between 12h and 24h format.

How do I use the defrost function?

Press the Defrost button. Then enter the weight of the food in grams (e.g., 500 for 500g) or the time if using time defrost. Press Start. The microwave will pause and beep to remind you to turn the food.

What power levels are available?

The KM32EG has 10 power levels: High (100%), Medium High (85%), Medium (70%), Medium Low (50%), Low (30%), and Defrost (20%). Press Power Level repeatedly to select.

How do I clean the microwave?

Unplug the microwave. Wipe the interior with a damp cloth and mild soap. Do not use abrasive cleaners. Clean the turntable and ring in warm soapy water. The glass tray is dishwasher safe.

Can I remove the turntable for cleaning?

Yes. Lift the glass turntable and the rolling ring straight up. Wash them separately. Reinstall with the glass turntable centered on the coupling.

How do I activate the child lock?

Press and hold the Stop/Clear button for 3 seconds until the display shows L. To unlock, press and hold the same button for 3 seconds again.

Why does my microwave not heat?

Check that the door is closed securely. Ensure the power supply is working. If the problem persists, it may be a faulty magnetron or fuse. Contact a qualified technician.

Can I use metal containers?

No, do not use metal containers or aluminum foil in the microwave, as they can cause arcing and damage the unit. Use microwave-safe glass or ceramic dishes.

What is the recommended installation clearance?

Place the microwave on a flat, stable surface. Leave at least 10 cm of space on the sides and back for proper ventilation. Keep the top vent clear.

How do I set multi-stage cooking?

Enter the first stage (e.g., time and power level), then press Timer and enter the second stage. Press Start. The microwave will automatically switch between stages.

USER MANUAL KM32EG KELVINATOR

Line drawing of a microwave oven with front panel and side door (no text or symbols)

Before operating this oven, please read these instructions completely.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING : If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person : (1) door (bent), (2) hinges and latches(broken or loosened), (3) door seals and sealing surfaces.
(d) WARNING : It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.
(e) WARNING : Liquids or other foods must not be heated in sealed containers since they are liable to explode.
(f) WARNING : Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

TABLE OF CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY 1

TABLE OF CONTENTS 1

EARTHING INSTRUCTIONS 2

INSTALLATION 2

SPECIFICATIONS 3

IMPORTANT 3

IMPORTANT SAFETY INSTRUCTIONS 4

FEATURES DIAGRAM 5

COOKING IN TWO STAGES 10

KITCHEN TIMER MODE 11

SPEEDY COOK 12

CARE AND CLEANING 18

QUESTIONS AND ANSWERS 19

COOKING TECHNIQUES 20

DEFROSTING GUIDE 21

DEFROSTING CHART 22

COOKING & REHEATING CHART 23

VEGETABLE CHART 24\~25

RECIPIES 26\~28

EARTHING INSTRUCTIONS

This appliance must be earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a earthing wire with a earthing plug. The plug must be plugged into an outlet that is properly installed and earthed.

WARNING: Improper use of the earthing plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the earthing instructions are not completely understood, or if doubt exists as to whether the appliance is properly earthed. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade earthing plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be equal to or greater than the electrical rating of the appliance.

INSTALLATION

1 Steady, flat location

This oven should be set on a steady, flat surface. This oven is designed for counter top use only.

2 Leave space

All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat and, eventually, oven failure. The minimum height of free space necessary above the top surface of the oven is minimum 100mm.

3 Away from radio and TV sets

Poor television reception and radio interference may result if the oven is located close to a TV, Radio antenna, feeder and so on. Position the oven as far from them as possible.

4 Away from heating appliance and water taps

Keep the oven away from hot air, steam or splash when choosing a place to position it, or the insulation might be adversely affected and breakdowns occur.

5 Power supply

- Check your local power source. This oven requires a current of approximately 13 amperes, 230V 50Hz.

• Power supply cord is about 1.1 meters long.

- The voltage used must be the same as specified on this oven. Using a higher voltage may result in a fire or other accident causing oven damage. Using low voltage will cause slow cooking. We are not responsible for damage resulting from use of this oven with a voltage of ampere fuse other than those specified.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarity qualified person in order to avoid a hazard.

6 Examine the oven after unpacking for any damage such as:

A misaligned door, Broken door, A dent in cavity. If any of the above are visible, DO NOT INSTALL, and notify dealer immediately.

7 Do not operate the oven if it is colder than room temperature.

(This may occur during delivery in cold weather.) Allow the oven to become room temperature before operating.

SPECIFICATIONS

POWER SUPPLY 230V~50Hz, SINGLE PHASE WITH EARTHING
POWER CONSUMPTION	MICROWAVE	1400 W
	GRILL 1150 W
	COMBINATION 2500 W
MICROWAVE ENERGY OUTPUT 1000W
MICROWAVE FREQUENCY 2450MHz

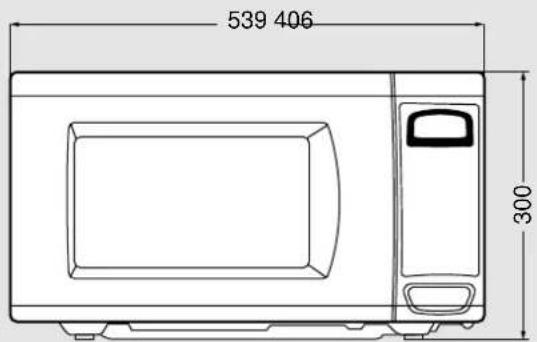

OUTSIDE DIMENSIONS (WXHXD) 539 x 300 x		435mm(21.2 x 11.8 x 17.1 in)
CAVITY DIMENSIONS (WXHXD) 354 x 228 x 373mm(13.9 x 9.0 x 14.6 in)
NET WEIGHT APPROX. 17Kg
TIMER 59 min. 90 sec.
POWER SELECTIONS 10 LEVELS
CAVITY VOLUME 1.1 Cu.Ft.

* Specifications are subject to change without notice.

Technical line drawing of a rectangular electronic component with mounting base (no text or symbols)

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code.

Green-and-yellow : Earth

Blue : Neutral

Brown : Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter 'E' or by the earth symbol or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter 'N' or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter 'L' or coloured red.

WARNING: This appliance must be earthed.

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING : To prevent fire, burns, electric shock and other warnings:

Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven:

1. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items or for sterilizing purposes.
2. Do not use the oven when empty, this could damage the oven.
3. Do not use the oven cavity for any type of storage, such as papers, cookbook, cookware, etc.
4. Do not operate the oven without the glass tray in place. Be sure it is properly sitting on the rotating base.
5. Make sure you remove caps or lids prior to cooking when you cook food sealed in bottles.
6. Do not put foreign material between the oven surface and door. It could result in excessive leakage of microwave energy.
7. Do not use recycled paper products for cooking. They may contain impurities which could cause sparks and/or fires when used during cooking.
8. Do not pop popcorn unless popped in a microwave approved popcorn popper or unless it's commercially packaged and recommended especially for microwave ovens. Microwave popped corn produces a lower yield than conventional popping; there will be a number of unpopped kernels. Do not use oil unless specified by the manufacturer.
9. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc., without first piercing them several times with a fork.
10. Do not pop popcorn longer than the manufacturer's directions. (popping time is generally below 3 minutes). Longer cooking

does not yield more popped corn, it can cause scorchings and fire.

Also, the cooking tray can become too hot to handle or may break.

1. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
2. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
3. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
4. Always test the temperature of food or drink which has been heated in a microwave oven before you give it to somebody, especially to children or elderly people. This is important because things which have been heated in a microwave oven carry on getting hotter even though the microwave oven cooking has stopped.
5. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
6. Keep the waveguide cover clean at all times. Wipe the oven interior with a soft damp cloth after each use. If you leave grease or fat anywhere in the cavity it may overheat, smoke or even catch fire when next using the oven.
7. Never heat oil or fat for deep frying as you cannot control the temperature and doing so may lead to overheating and fire.
8. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

SAVE THESE INSTRUCTIONS

FEATURES DIAGRAM

① Door seal - Door seal maintains the microwave energy within the oven cavity and prevents microwave leakage.
② Reflector (Insulator Heater)
③ Heating Element
④Oven cavity
⑤ Safety interlock system
⑥Control panel
⑦ Metal Rack
⑧Coupler - This fits over the shaft in the center of the ovens cavity floor. This is to remain in the oven for all cooking.

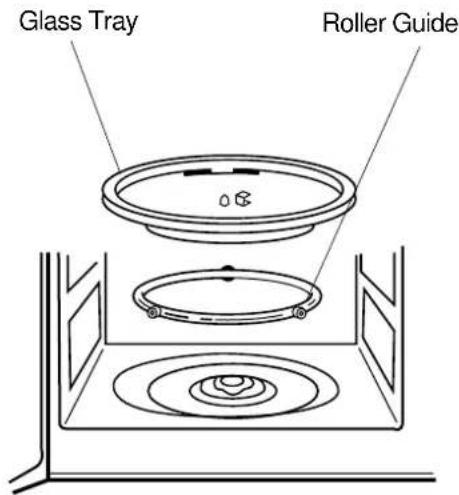

⑨Roller guide - This must always be used for cooking together with the glass cooking tray.
⑩Glass cooking tray - Made of special heat resistant glass. Food in a proper receptacle is placed on this tray for cooking.
⑪ Door viewing screen - Allows viewing of food. The screen is designed so that light can pass through, but not the microwave.
⑫ Door hook - When the door is closed, it will automatically shut off. If the door is opened while the oven is operating, the magnetron will immediately stop operating.

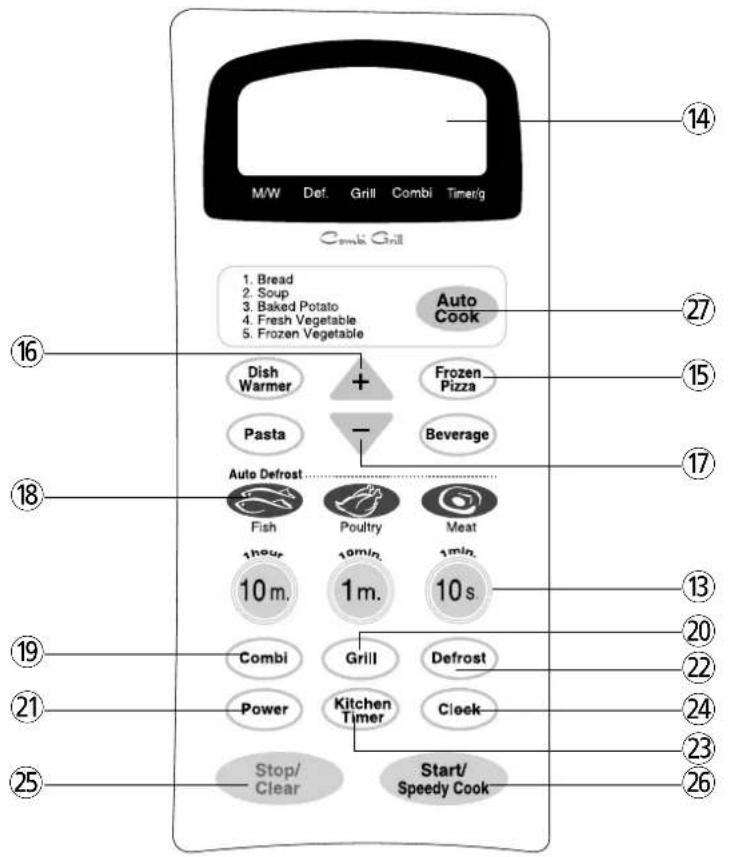

FEATURES DIAGRAM (continued)

⑬Time set pad-Used to set the cooking time and the present time.
⑭Display-Cooking time, power level, indicators and present time are displayed.
⑮One touch-Used to cook or reheat specific quantities of food.
⑯More-Used to add time to cooking.
⑰Less-Used to remove time from cooking.
⑱ Auto Defrost-Used to defrost foods. (for weight)
⑲Combi-Used to cook COMBI.

⑳Grill-Used to cook GRILL.
②1Power-Used to set power level.
②Defrost-Used to defrost foods.(for time)
②3 Kitchen Timer-Used as a minute timer, to delay the start of cooking, or to set a holding time after cooking.
⑳Clock-Used to set clock.
⑲Stop/Clear-Used to stop the oven operation or to delete the cooking data.
⑳Start/Speedy cook-Used to start the oven and also used to set a reheat time.
⑳Auto cook-Used to cook or reheat.

OPERATION PROCEDURE

This section includes useful information about oven operation.

1. Plug power supply cord into 230V AC 50Hz power outlet.
2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking.
3. Shut the door. Make sure that it is firmly closed.

1 The oven light is on when the microwave oven is operating or the door is opened.
2 The oven door can be opened at any time during operation by touching the door release button on the control panel. The oven will automatically shut off.
3 Each time a pad is touched, a BEEP will sound to acknowledge the touch.
4 The oven automatically cooks on full power unless set to a lower power level.
5 The display will show ":0" when the oven is plugged in.
6 Time clock returns to the present time when the cooking time ends.

7 When the STOP/CLEAR pad is touched during the oven operation, the oven stops cooking and all information retained.

To erase all information (except the present time), touch the STOP/CLEAR pad once more. If the oven door is opened during the oven operation, all information is retained.

8 If the START pad is touched and the oven does not operate, check the area between the door and door seal for obstructions and make sure the door is closed securely.

The oven will not start cooking until the door is completely closed or the program has been reset.

Make sure the oven is properly installed and plugged into the electrical outlet.

WATTAGE OUTPUT CHART

- The power-level is set by pressing the POWER pad. The chart shows the display, the power level and the percentage of power.

Touch POWER pad Power Level (Display) Approximate Percentage of Power

once P-HI 100%

twice P-90 90%

3 times P-80 80%

4 times P-70 70%

5 times P-60 60%

6 times P-50 50%

7 times P-40 40%

8 times P-30 30%

9 times P-20 20%

10 times P-10 10%

11 times P-00 0%

CONTROLS

SETTING THE CLOCK

When the oven is first plugged in, the display will flash ":0" and a tone will sound. If the AC power ever goes off, the display shows ":0" when the power comes back on.

CLOCK

1. Touch CLOCK pad. This is a 12 hour clock system.

2. Touch CLOCK pad once more. This is a 24hour clock system.

NOTE: This oven has multiple clock system. If you want 12 hour clock system, omit this step.

1. Enter the correct time of day by touching the numbers in sequence.

2. Touch CLOCK pad.

CLOCK

The display stops blinking, and the colon start blinking. If you selected 12 hour clock system, this digital clock allows you to set from 1:00 to 12:59. If you selected 24 hour clock system, this digital clock allows you to set from 0:00 to 23:59.

1. Touch STOP/CLEAR pad.

NOTE: If you attempt to enter an incorrect time, the time will not be set and a error signal tone will sound. Touch the CLOCK pad and re-enter the time.

TIME DEFROSTING

When TIME DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off.

DEFROST

1. Touch DEFROST pad.

The DEFROST indicator lights and " : 0" is displayed.

1. Touch number pads for the desired defrosting time.

The display will show the numbers you pressed in the order you touched.

1. Touch START pad.

NOTE: Your oven can be programmed for 99 minutes 90 seconds.(99:90)

When you touch START pad, the DEFROST indicator starts blinking to show the oven is in the DEFROST mode. The display counts down the time to show you how much defrosting time is left in the DEFROST mode. The oven beeps during the defrosting cycle to signal that the food needs to be turned or rearranged. When the defrosting time ends, you will hear 3 beeps.

WEIGHT DEFROSTING

WEIGHT DEFROSTING lets you easily defrost food by eliminating guesswork in determining defrosting time. Follow the steps below for easy defrosting.

MEAT	1. Touch MEAT pad.	The DEFROST & g indicator light and "500" is displayed.
2. Select desired defrosting weight.		The display will show what you touched.
3. Touch START pad.		MEAT DEFROSTING begins.
POULTRY	1. Touch POULTRY pad.	The DEFROST & g indicator light and "800" is displayed.
2. Select desired defrosting weight.		The display will show what you touched.
3. Touch START pad.		POULTRY DEFROSTING begins.
FISH	1. Touch FISH pad.	The DEFROST & g indicator light and "300" is displayed.
2. Select desired defrosting weight.		The display will show what you touched.
3. Touch START pad.		FISH DEFROSTING begins.

* WEIGHT DEFROST CHART

Touch pad MEAT	POULTRY FISH
once 500 g 800 g	300 g
twice 800 g 1000 g	500 g
3 times 1000 g	1200 g	800 g
4 times 1200 g	1500 g	1000 g

The defrosting time is automatically determined by the weight selected.

The g indicator goes off and the DEFROST indicator blinks and the defrosting time counts down in the display window. The oven beeps during the defrosting cycle to signal that the food needs to be turned or rearranged. When the defrosting time ends, you will hear 3 beeps.

COOKING IN ONE STAGE

POWER

x6

1. Touch POWER pad. (Select desired power level.)

2. Touch the number pads for the cooking time.

3. Touch START pad.

The M/W indicator lights. The display will show what you touched.

NOTE: If steps 1nd 2 are omitted, the oven will cook at full power.

This example shows power level 5. The display will show the numbers you pressed in the order you touched.

NOTE: Your oven can be programmed for 99 minutes 90 seconds.(99:90)

When you touch START pad, the M/W indicator starts blinking to show the oven is cooking. The display counts down the time to show how much cooking time is left. When the cooking time ends, you will hear 3 beeps.

NOTE: Using lower power levels increases the cooking time which is recommended for foods such as cheese, milk and slow cooking of meats.

COOKING IN TWO STAGES

All recipes require frozen foods to be defrosted fully before cooking. This oven can be programmed to automatically defrost foods before cooking.

DEFROST

1. Touch DEFROST pad.

2. Touch number pads for the defrosting time you want.

POWER

x6

1. Touch POWER pad. (Select desired power level.)

2. Touch number pads for desired cooking time.

3. Touch START pad.

The DEFROST indicator lights and “: 0” is displayed and the lb indicator starts blinking.

The display will show the numbers you pressed in the order you touched.

The M/W indicator lights and "P-HI" is The display will show what you touched. This example shows power level 5.

The display will show the number you

When you touch START pad, the DEFROST and M/W indicators come on to confirm the power levels selected. The DEFROST indicator starts blinking to show you that the oven is in DEFROST mode. The display counts down the time remaining in DEFROST mode. When the oven beeps, turn over, break apart and/or redistribute the food. At the end of DEFROST mode, the oven will beep and start M/W cook. The DEFROST indicator goes off and the M/W indicator starts blinking. The display counts down the time remaining in M/W cook. When M/W cook ends, you will hear 3 beeps.

KITCHEN TIMER MODE

Timer operates as a minute timer, can be set to delay cooking and used as a hold setting after cooking. However delay cooking can not be programmed for defrost. Timer operates without microwave energy.

HOW TO USE AS A MINUTE TIMER

KITCHEN TIMER

1. Touch KITCHEN TIMER pad.

The KITCHEN TIMER indicator lights and “: 0” is displayed.

1. Press the amount of time you want to count down.

The display will show the numbers you pressed in the order you touched.

1. Touch START pad.

The display counts down the time remaining in KITCHEN TIMER mode. When KITCHEN TIMER mode ends, you will hear 3 beeps.

HOW TO USE TO DELAY THE START OF COOKING

KITCHEN TIMER

1. Touch KITCHEN TIMER pad.

The KITCHEN TIMER indicator lights and “: 0” is displayed.

1. Press the amount of time you want to delay time.

The display will show the numbers you pressed in the order you touched.

1. Program the desired power level and cooking time for food to be cooked.

The kitchen timer will begin counting down to zero and cooking will then begin.

1. Touch START pad.

HOW TO USE TO SET A HOLDING TIME

1. Program the desired defrosting time.

The KITCHEN TIMER indicator lights and “: 0” is displayed.

KITCHEN TIMER

1. Touch KITCHEN TIMER pad.

The display will show the numbers you pressed in the order you touched.

1. Press the amount of time you want the oven to hold.

Defrosting will start. After defrosting, stand time will count down.

1. Touch START pad.

NOTE: Your oven can be programmed for 99 minutes 90 seconds. (99:90)

SPEEDY COOK

SPEEDY COOK allows you to reheat for 30 seconds at 100% (full power) by simply touching the SPEEDY COOK pad.

By repeatedly touching the SPEEDY COOK pad, you can also extend reheating time to 5 minutes by 30 second increments.

SPEEDY COOK

1. Touch SPEEDY COOK pad. When you touch SPEEDY COOK, ":30" is displayed.

After 1.5 seconds, the oven starts reheating.

ONE TOUCH COOKING

One touch cook allows you to cook or reheat many of your favorite foods by touching just one pad. To increase quantity, touch chosen pad until number in display is same as desired quantity to cook.

PASTA

1. Touch PASTA pad once for 1 serving or twice for 2 serving.

When you touch PASTA pad once, "1" is displayed. After the 1.5 seconds, the display is changed into cooking time and the oven starts cooking.

WARNING - PLEASE NOTE

As ONE TOUCH cooking functions preset times are approximate, cooking times may vary due to such factors as cup/container size, food/beverage quantity and food/beverage type. Always pay close attention when using this function to prevent overcooking.

\* PASTA \*

• 1 serving : Touch PASTA once.
• 2 serving : Touch PASTA twice within 1.5 seconds.

NOTE: 1. Place pasta into a deep casserole and double quantity of water.

1. Cover with lid or plastic wrap. After cooking, stir.
2. If possible, let stand 3 to 5 minutes or until liquid has been absorbed.

FROZEN PIZZA

1. Follow package directions for preparation model.
2. Touch FROZEN PIZZA pad once for 200g pizza or twice for 400g pizza.

When you touch FROZEN PIZZA pad once, "200g" is displayed.

After 1.5 seconds, the display shows the cooking time and the oven starts cooking.

\* FROZEN PIZZA \*

• 200 g : Touch FROZEN PIZZA once.
- 400 g : Touch FROZEN PIZZA twice within 1.5 seconds.

NOTE: 1. Use only frozen pizza at a time.

1. Use only frozen pizza made for microwave ovens.
2. If the cheese of frozen pizza does not melt sufficiently, cook a few seconds longer.
3. Some brands of frozen pizza may required more or less cooking time.

ONE TOUCH COOKING (CONTINUED)

BEVERAGE

1. Pour beverage in microwave mug. Place it on the turntable. Do not cover. Stir before serving.
2. Touch BEVERAGE pad once for 1 cup, twice for 2 cups or three times for 3 cups.

When you touch BEVERAGE pad once, "1" is displayed.

After 1.5 seconds, the display changes into cooking time of quantity and the oven starts cooking.

\* BEVERAGE \* (200ml/cup)

• 1 cup(mug) : Touch BEVERAGE once.
• 2 cups(mugs) : Touch BEVERAGE twice within 1.5 seconds.
• 3 cups(mugs) : Touch BEVERAGE three times within 1.5 seconds.

DISH WARMER

1. Touch DISH WARMER pad once for 350g or twice for 450g.

When you touch DISH WARMER pad once, "350" is displayed.

After 1.5 seconds, the display is changed into cooking time and the oven starts cooking.

\* DISH WARMER \*

• 350 g : Touch DISH WARMER once.
• 450 g : Touch DISH WARMER twice within 1.5 seconds.

NOTE: 1. Put food on microwave plate.

1. Cover with vented plastic wrap.

AUTO COOK

1. Touch AUTO COOK pad.

When you touch AUTO COOK pad once, "AC-1" is displayed. By repeatedly touching this pad, you can select other food category as shown in the chart below.

CATEGORY	FOOD WEIGHT	TOUCH PAD DIRECTIONS
AC-1 BREAD 4slices Touch AUTO COOK once Place bread on a microwave dish.
AC-2 SOUP 350 g Touch AUTO COOK twice				Pour soup into microwave bowl or mug. Stir before serving.
AC-3	BAKED 3potatoes Touch AUTO COOK Wash and pierce POTATO (200-250 g each) three times potatoes with a fork. Place them on turntable.
AC-4	FRESH VEGETABLE	200 g	Touch AUTO COOK four times	Trim and wash the mixed vegetables. Place them in the round dish. Add to 2 Tbsp. water.
AC-5	FROZEN VEGETABLE	200 g package	Touch AUTO COOK Place five times	the vegetables in the round dish. Add to 2Tbsp. water.

START

1. Touch START pad.

When you touch START pad, the display changed into cooking time of quantity and the oven starts cooking.

LESS, MORE

To alter one touch cooking or cooking time whilst oven is in operation, use LESS or MORE.(except for defrosting) Press LESS/MORE to decrease/increase the one touch cooking time in multiples of 10 seconds.

The overall one touch cooking time can be increased to a maximum of 99 minutes 50 seconds.

Press LESS/MORE to decrease/increase the cooking time in multiples of 1 minute.

The overall cooking time can be increased to a maximum of 99 minutes.

CHILD SAFETY LOCK

The safety lock prevents unwanted oven operation such as by small children.

To set, press and hold STOP/CLEAR for 3 seconds, LOCK indicator lights.

To cancel, press and hold STOP/CLEAR for 3 seconds, LOCK indicator goes off.

1. Press STOP/CLEAR pad.

2. You can restart the oven by touching START pad.

3. Touch STOP/CLEAR once more to erase all instructions.

4. You must enter in new instructions.

5. Open the door.

- You can restart the oven by closing the door and touching START.

NOTE: Oven stops operating when door is opened.

UTENSIL TEST Dishes

that do not absorb microwave energy are best for microwave cooking. Lock on the label to verify that particular cups, glasses, plates are indeed suitable, especially paper goods. If you are not sure, try this utensil test to check. Put the empty utensil in the microwave oven. Put one cup of water in a glass measure next to the empty utensil. Heat on HI for 1 minute. After 1 minute the water should be warm but the utensil should not. If the utensil is warm, it is not suitable for microwave cooking.

MICROWAVE UTENSILS

Utensils should be checked to ensure that they are suitable for use in microwave ovens; for example,

Glass, Ceramic and China

Ovenproof glass or ceramic baking dishes are the most used microwave utensils.

Many of these items are readily available in most homes: glass measure, custard cups, mixing bowls, covered casseroles, pie plates and round or square cake dishes. Ovenproof dinner ware is usually safe to use in the microwave.

Do not heat or cook in glass jars or bottles.

Do not use dishes with silver, gold, platinum or other metal trim. Arcing may occur and/or the dish may break.

Do not use delicate or stemmed glassware. Although the glass may be transparent to microwave energy, heat from the food may cause the glassware to crack.

Plastics & Paper

When heating food in plastic or paper containers, check the oven frequently due to the possibility of ignition;

Plastic dishes, cups, mugs and bowls may be used in the oven for short periods of time. None of these should be used in the oven for prolonged periods because distortion and melting may occur.

Check manufacturer's recommendations concerning microwave safety.

Plastic wrap can be used to cover dishes in most recipes if the dish is deep enough to avoid plastic wrap touching the food. Always vent the wrap by folding back one corner to allow excess steam to escape.

Plastic cooking bags should be slit before cooking so excess steam can escape.

Do not use wire twist ties to close the bag. Wire twist ties can cause arcing which can damage the oven.

Paper cups, wax paper, napkins, paper towels, and plates may be used for short cooking. Prolonged time in the oven can cause paper to burn. Do not use recycled paper products, such as brown paper bags.

They contain impurities which may cause arcing and damage the oven.

Metal

Metal utensils should not be used in the oven. Metal reflects microwave energy so foods will not cook evenly.

Metal can cause arcing and damage the oven.

1 Turn the oven off before cleaning.
2 In a method to clean the door seal area, you can use the mild detergent with a damp cloth in case that the food or something like that adhere to the door seal area.
3 Keep the inside of the oven clean. When food spatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. The use of harsh detergent or abrasives is not recommended.
4 The outside oven surface should be cleaned with soap and water, rinsed and dried with a soft cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
5 If the Control Panel becomes wet, clean with a soft, dry cloth. Do not use harsh detergents or abrasives on Control Panel.
6 If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth.

This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

7

It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

Line drawing of a hand holding a circular component inside a corner frame (no text or symbols)

8

The roller guide and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent water or window cleaner and dry. The roller guide may be washed in mild sudsy water.

ROLLER GUIDE

1 The ROLLER GUIDE and oven floor should be cleaned frequently to prevent excessive noise.
2 The ROLLER GUIDE MUST ALWAYS be used for cooking together with the Glass Tray.

GLASS TRAY

1 DO NOT operate the oven without the Glass Tray in place.
2 DO NOT use any other Glass Tray with this oven.
3 If Glass Tray is hot, ALLOW TO COOL before cleaning or placing it in water.
4 DO NOT cook directly on the Glass Tray.

Do not attempt to defeat or tamper with safety interlocks.

Do not place any object between the oven front frame and the door or allow residue to build up on sealing surfaces. Wipe with a mild detergent, rinse and dry. Never use abrasive powders or pads.

Do not subject the oven door strain or weight such as a child hanging on an open door. This could cause the oven to fall forward resulting in injury to you and damage to the oven.

Do not operate the oven if door seals or sealing surfaces are damaged; or if door is bent; or if hinges are loose or broken.

Do not operate the oven empty. This will damage the oven.

Do not attempt to dry clothes, newspapers or other materials in the oven. They may catch on fire.

Do not use recycled paper products as they may contain impurities which may cause sparks or fires.

Do not hit or strike the control panel with hard objects. This can damage the oven.

FOOD

Never use your microwave oven for home canning. The oven is not designed for proper home canning. Improperly canned food may spoil and be dangerous to consume.

Always use the minimum recipe cooking time. It is better to undercook rather than over cook foods. Undercooked foods can be returned to the oven for more cooking. If food is overcooked, nothing can be done.

Heat small quantities of food or foods with low moisture carefully. These can quickly dry out, burn or catch on fire.

Do not heat eggs in the shell. Pressure may build up and eggs can explode.

Potatoes, apples, egg yolks and sausages are examples of food with non-porous skins. These must be pierced before cooking to prevent bursting.

Do not attempt to deep fat fry in your microwave oven.

Always stir liquids before heating. Heated liquids can erupt, if not mixed with air.

Do not leave the oven unattended while popping corn.

Do not pop popcorn in a paper bag unless it is the commercially prepared Microwave Popcorn product. The kernels can overheat and ignite a brown paper bag.

Do not put packaged Microwave Popcorn bags directly on the oven tray. Place the package on a microwave safe glass or ceramic plate to avoid overheating and cracking the oven tray.

Do not exceed the Microwave Popcorn manufacturers' suggested popping time. Longer popping does not yield more popcorn but it can result in scorch burn of fire. Remember, the popcorn bag and tray can be too hot to handle. Remove with caution and use pot holders.

BEFORE YOU CALL FOR SERVICE

Refer to following checklist, you may prevent an unnecessary service call.

* The oven doesn't work;

1. Check that the power cord is securely plugged in.
2. Check that the door is firmly closed.
3. Check that the cooking time is set.
4. Check for a blown circuit fuse or tripped main circuit breaker in your house.

* Sparking in the cavity;

1. Check utensils. Metal containers or dishes with metal trim should not be used.
2. Check that metal skewers or foil does not touch the interior walls.

If there is still a problem, contact the service station.

A list of these stations is included in the oven.

DO NOT ATTEMPT TO SERVICE THE OVEN YOURSELF!

CARE AND CLEANING

Although your oven is provided with safety features, it is important to observe the following:

1. It is important not to defeat or tamper with safety interlocks.
2. Do not place any object between the oven front face and the door or allow residue to accumulate on sealing surfaces. Wipe the sealing area frequently with a mild detergent, rinse and dry. Never use abrasive powders or pads.
3. When opened, the door must not be subjected to strain, for example, a child hanging on an opened door or any load could cause the oven to fall forward to cause injury and also damage to the door. Do not operate the oven if it is damaged, until it has been repaired by a competent service technician. It is particularly important that the oven closes properly and that there is no damage to the:

i) Door(bent)
ii) Hinges and Hookes(broken or loosened)
iii) Door seals and sealing surfaces.

1. The oven should not be adjusted or repaired by anyone except a properly competent service technician.
2. The oven should be cleaned regularly and any food deposits removed;
3. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

QUESTIONS AND ANSWERS

* Q : I accidentally ran my microwave oven without any food in it. Is it damaged?

A : Running the oven empty for a short time will not damage the oven. However, it is not recommended.

* Q : Can the oven be used with the glass tray or roller guide removed?

A: No. Both the glass tray and roller guide must always be used in the oven before cooking.

* Q : Can I open the door when the oven is operating?

A: The door can be opened anytime during the cooking operation. Then microwave energy will be instantly switched off and the time setting will maintain until the door is closed and START is touched.

* Q : Why do I have moisture in my microwave oven after cooking?

A: The moisture on the side of your microwave oven is normal. It is caused by steam from cooking food hitting the cool oven surface.

* Q : Does microwave energy pass through the viewing screen in the door?

A : No. The metal screen bounces back the energy to the oven cavity. The holes are made to allow light to pass through. They do not let microwave energy pass through.

Version NO. IM-00

COOKING TECHNIQUES

STANDING TIME

Dense foods e.g. meat, jacket potatoes and cakes, require standing time (inside or outside of the oven) after cooking, to allow heat to finish conducting to cook the center completely. Wrap meat joints and jacket potatoes in aluminium foil while standing. Meat joints need approx. 10-15 minutes, jacket potatoes 5 minutes. Other foods such as plated meal, vegetables, fish etc require 2-5 minutes standing. After defrosting food, standing time should also be allowed. If food is not cooked after standing time, return to the oven and cook for additional time.

MOISTURE CONTENT

Many fresh foods e.g. vegetables and fruit, vary in their moisture content throughout the season, particularly jacket potatoes. For this reason cooking times may have to be adjusted. Dry ingredients e.g. rice, pasta, can dry out during storage so cooking times may differ.

DENSITY

Porous airy foods heat more quickly than dense heavy foods.

CLING FILM

Cling film helps keep the food moist and the trapped steam assists in speeding up cooking times. Pierce before cooking to allow excess steam to escape. Always take care when removing cling film from a dish as the build-up of steam will be very hot.

SHAPE

Even shapes cook evenly. Food cooks better by microwave when in a round container rather than square.

SPACING

Foods cook more quickly and evenly if spaced apart. NEVER pile foods on top of each other.

STARTING TEMPERATURE

The colder the food, the longer it takes to heat up. Food from a fridge takes longer to reheat than food at room temperature.

LIQUIDS

All liquids must be stirred before and during heating. Water especially must be stirred before and during heating, to avoid eruption. Do not heat liquids that have previously been boiled. DO NOT OVERHEAT.

TURNING & STIRRING

Some foods require stirring during cooking. Meat and poultry should be turned after half the cooking time.

ARRANGING

Individual foods e.g. chicken portions or chops, should be placed on a dish so that the thicker parts are towards the outside.

QUANTITY

Small quantities cook faster than large quantities, also small meals will reheat more quickly than large portions.

PIERCING

The skin or membrane on some foods will cause steam to build up during cooking. These foods must be pierced or a strip of skin should be peeled off before cooking to allow the steam to escape. Eggs, potatoes, apples, sausages etc, will all need to be pierced before cooking. DO NOT ATTEMPT TO BOIL EGGS IN THEIR SHELLS.

COVERING

Cover foods with microwave cling film or a lid. Cover fish, vegetables, casseroles, soups. Do not cover cakes, sauces, jacket potatoes or pastry items.

DEFROSTING GUIDE

- Do not defrost covered meat. Covering might allow cooking to take place. Always remove outer wrap and tray. Use only containers that are microwave-safe.

- Begin defrosting whole poultry breast-side-down. Begin defrosting roasts fat-side-down.

- The shape of the package alters the defrosting time. Shallow rectangular shapes defrost more quickly than a deep block.

- After 1/3 of the defrost time has elapsed, check the food. Toy may wish to turn over, break apart, rearrange or remove thawed portions of the food.

- During defrost, the oven will prompt you to turn the over. At this point, open oven door and check the food. Follow the techniques listed below for optimum defrost results. Then, close oven door, touch the START pad to complete defrosting.

- When defrosted, food should be cool, but softened in all areas. If still slightly icy, return to microwave oven very briefly, or let stand a few minutes. After defrosting, allow food to stand 5-60 minutes if there are any icy areas.

Poultry and fish may be placed under running cool water until defrosted

Turn over: Roast, ribs, whole poultry, turkey breasts, hot dogs, sausages, steaks, or chops.

Rearrange : Break apart or separate steaks, chops, hamburger patties, ground meat, chicken or seafood pieces, chunks of meat such as stew beef.

Shield: Use small strips of aluminum foil to protect thin areas or edges of unevenly shaped foods such as chicken wings. To prevent arching, do not allow foil to come within 1-inch of oven walls or door.

Remove: To prevent cooking, thawed portions should be removed from the oven at this point. This may shorten defrost time for food weighing less than 3 lbs.(1350g).

DEFROSTING CHART

Item and Weight	Defrosting Time	Standing Time	Special Techniques
BEEFMineed beef 1 lb./454g	8-10 min.	15-20 min.	Break apart and remove thawed portions with fork.
Stew Meat 1^1/2 lbs./675g	9-11 min.	25-30 min.	Separate and rearrange once.
Loin Roast 2 lbs./900g	14-16 min.	45-60 min.	Turn over after half the time.Shield as needed.
Patties 4 (4 oz..110g )	6-8 min.	15-20 min.	Turn over after half the time.
PORKLoin Roast 2 lbs./900g	14-15 min.	45-60 min.	Turn over after half the time.Shield as needed.
Spareibs 1 lb. 450g	5-6 min.	25-30 min.	Separate and rearrange once.
Chops 4 (5 oz./125g)	6-7 min.	25-30 min.	Separate and turn over once.
Minced 1lb./450g	7-9 min.	15-20 min.	Break apart and remove thawed portions with fork.
POULTRYWhole Chicken 2^1/2 lbs./1125g	15-17 min.	45-90 min.	Break side down. Turn over after half the time. Shield as needed.
Chicken Breasts1lb./450g	7-8 min.	15-30 min.	Separate and rearrange once.
Fryer Chicken(cut up)2lbs./900g	11-13 min.	25-30 min.	Separate and rearrange once.
Chicken Thighs 1^1/2 lbs./675g	10-12 min.	15-30 min.	Separate and rearrange once.
FISH & SEAFOODWhole Fish 1lb./450g	5-6 min.	15-20 min.	Turn over after half the time.Shield as needed.
Fish Fillets 1^1/2 lb./675g	6-7 min.	15-20 min.	Separate and turn over once.
Shrimp ^1/2 lb./225g	2-3 min.	10-15 min.	Separate and rearrange once.

* The times are approximate because freezer temperatures vary.

COOKING & REHEATING CHART

Item Power Level Cooking Time Per lb./450g
MEAT
BeefStanding / rolled Rib - Rare P-80 7-9 min.- Medium P-80 8-10 min.- well done P-80 10-12 min.Ground Beef (to brown for casserole) P-HI 4-6 min.Hamburgers, Fresh or defrosted(4oz. Each/100g) 2 patties P-HI 2-4 min.4 patties P-HI 3-5 min.
PorkLoin, Leg P-80 10-13 min.Bacon 4 slices P-HI 2-3 min.6 slices P-HI 3-4 min.
NOTE: The above times should be regarded only as a guide, Allow for difference in individual lasts and preferences. The times may vary due to the shape, cut, and composition of the meat.
POULTRY
ChickenWholeBreast(boned)portions		P-HI 6-8 min.P-80 5-7 min.P-80 5-7 min.
TurkeyWhole		P-HI		8-10 min.
NOTE: The above times should be regarded only as a guide. Allow for difference in individual tastes and preferences. The times may vary due to the shape, cut, and composition of the food.
FRESH FISH
Item	PowerLevel	Cooking TimePer lb./450g	Method	StandingTime
Fish Fillets	P-HI	3-5 min.	Add 15-30 ml(1-2 Tbsp)	2-3 min.
Whole Mackerel,Cleaned and Prepared	P-HI	3-5 min.	-	3-4 min.
Whole Trout, Cleanedand Prepared	P-HI	4-6 min.	-	3-4 min.
Salmon Steaks	P-HI	4-6 min.	Add 15-30 ml(1-2 Tbsp)	3-4 min.
ITEM	POWER LEVEL	Cooking Time	Standing Time
Lasagna1 serving( 10^1/_2 oz./300g)	P-HI	4-6 min.	Place lasagna on microwaveable plate.Cover with plastic wrap and vent.
Casserole1 cup4 cups	P-HIP-HI	1^1/_2 -3 min.4-6 min.	Cook covered in microwaveable casserole.Stir once halfway through cooking.
Mashed potatoes1 cup4 cups	P-HIP-HI	2-3 min.6-8 min.	Cook covered in microwaveable casserole.Stir once halfway through cooking.
Baked beans1 cup	P-HI	2-3 min.	Cook covered in microwaveable casserole.Stir once halfway through cooking.

ITEM POWER LEVEL Cooking Time Standing Time
Ravioli or pasta in sauce1 cup P-HI 2-3 min. Cook covered in microwaveable casserole.4 cups P-HI 6-9 min. Stir once halfway through cooking.
Sandwich roll or bun1 roll P-HI 20-30 sec. Wrap in paper tower and place on glass			microwaveable rack* Note : Do not use recycled paper towels.

VEGETABLE CHART

* Note : Use power level P-HI unless otherwise noted.

VEGETABLES AMOUNT TIME SPECIAL INSTRUCTIONS
AsparagusFresh spears 1 lb./Frozen spears	450g 3-6 min. In medium 10-oz./280g package	casserole, place 3-5 min. In medium casserole.	14 cup water.
BeansFresh greenFrozen greenFrozen lima	1 lb./450g cut in half 10-oz./280g package 10-oz./280g package	8-13 min. 7-10 min. 5-8 min.	In medium casserole, place 12 cup water. In medium casserole, place 2 tbsp water. In medium casserole, place 14 cup. Water.
BeetsFresh, whole	1 bunch( 114 - 112 lbs.) /560-680g	10-14 min.	In medium casserole, place 12 cup water.
BroccoliFresh cutFresh spears 1 bunch (1 14 - 112 lbs.) /560-680gFrozen, chopped Frozen spears	1 bunch( 114 - 112 lbs.) /560-680g 10-oz./280g package 10-oz./280g package	4-8 min. 6-9 min. 3-6 min. In medium casserole. 3-6 min.	In large casserole, place 12 cup water. In large casserole, place 12 cup water. In medium casserole, place 3 tbsp water.
CabbageFresh Wedges	1 medium head (about 2 lbs./900g)	5-8 min. In large casserole, place 14 cup water.
Carrotsfresh, sliced frozen	1 lb./450g 3-6 min. In large casserole, place 10-oz./280g package	3-5 min.	12 cup water. In medium casserole, place 2 tbsp water.
Cauliflower flowerets 1 medium fresh, whole frozen	head 5-9 min. (about 2 lbs./900g) 1 medium head (about 2 lbs./900g) 10-oz./280g package	In large casserole, place 5-12 min. 2-6 min.	12 cup water. In large casserole, place 12 cup water. In medium casserole, place 2 tbsp water.
Corn frozen kernel	10-oz./280g package	2-6 min.	In medium casserole, place 2 tbsp water.
Corn on the cob fresh frozen	(per ear) 1-5 ears 1 ear	1-4min. 2-5 min.	In large glass baking dish, place corn. If corn is in husk, use no water;if corn has been husked, add 14 cup water. Rearrange after half of time. Place in large oblong glass baking dish. Cover with vented plastic wrap. Rearrange after half of time.
Mixed vegetable frozen 10-oz./280g	package 2-5 min. In medium casserole, place 3 tbsp water.
Peas fresh, shelled 1 lbs (450g) unshelled 4-7 min. In medium casserole, place 1/4 cup water. frozen 10-oz.(280g) package 2-6 min. In medium casserole, place 2 tbsp water.
Potatoes fresh, cubed, white fresh, whole, 1 (6-8 oz./160-220g) 2-4 min.	4 potatoes (6-8 oz. 9-12 /160-220g each) min.		Peel and cut into 1-inch cubes. Place in large casserole with 1/2 cup water. Stir after half of time.Pierce with cooking fork. Place in the oven, 1-inch apart, in circular arrangement.Let stand 5 minutes.
Spinach fresh 10-16 oz./280 oz.-450g 3-6 min. In large casserole, place washed spinach frozen, chopped, 10-oz./280g package 3-6 min. In medium casserole, place 3 tbsp water.and leaf
Squash fresh, summer, and yellow winter, acorn, or butternut	1 lb./450g sliced. 1-2 squash (about 1 lb./450g each)	3-5 min. 5-9 min.	In large casserole, place 1/4 cup water.Cut in half and remove fibrous membranes.In large glass baking dish, place squash cut-side-down. Turn cut-side-up after 4 minutes.

RECIPES

TOMATO & ORANGE SOUP

1 oz.(25g) butter
1 medium onion, chopped
1 large carrot & 1 large potato, chopped
1 ^3/4 lb(800g) canned, chopped tomatoes juice and grated rind of 1 small orange
1 12 pints(900ml) hot vegetable stock salt and pepper to taste

FRENCH ONION SOUP

1 large onions, sliced
1 tbsp (15ml) corn oil
2 oz.(50g) plain flour
2 pints(1.2 liters) hot meat or vegetable stock salt and pepper to taste
2 tbsp (30ml) parsley, chopped
4 thick slices French bread
2 oz.(50g) cheese, grated

STIR FRIED VEGETABLES

1 tbsp(15ml) sunflower oil
2 tbsp (30ml) soy sauce
1 tbsp (15ml) sherry
1"(2.5cm) root ginger, peeled and finely grated
2 medium carrots, cut into fine strips
4 oz.(100g) button mushrooms, chopped
2 oz.(50g) beansprouts
4 oz.(100g) mange-tout
1 red pepper, seeded and thinly sliced
4 spring onions, chopped
4 oz.(100g) canned water chestnuts, sliced
1/4 head of chinese leaves, thinly sliced

HONEYED CHICKEN

4 boneless chicken breasts
2 tbsp(30ml) clear honey
1 tbsp(15ml) whole grain mustard
^1/2 tsp(2.5ml) dried tarragon
1 tbsp(15ml) tomato puree
^1/4 pint(150ml) chicken stock

1. Melt the in a large bowl on P-HI for 1 minute.
2. Add the onion, carrot and potato and cook on P-HI for 6 minutes. stir halfway through cooking.
3. Add the tomatoes, orange juice, orange rind and stock. Mix thoroughly. Season with salt and pepper to taste. Cover the bowl and cook on P-HI for 13 minutes. stir 2-3 times during cooking, until the vegetables are tender.

4. Blend and serve immediately.

5. Place the onion and oil a bowl, mix well and cook on P-HI for 2 minutes.

6. Stir in the flour to make a paste and gradually add stack. Season and add the parsley.
7. Cover the bowl and cook on P-70 for 15 minutes.
8. Pour the soup into serving bowls, submerge bread and sprinkle generously with cheese.

9. Cook on P-70 for 2 minutes, until the cheese has melted.

10. Place the oil, soy sauce, sherry, ginger, garlic and carrots in a large bowl, mix thoroughly

11. Cover and cook on P-HI for 4-5 minutes, stirring once.
12. Add the button mushrooms, beansprouts, mange-tout, red pepper, spring onions, water chestnuts and chinese leaves. Mix thoroughly.
13. Cook on P-HI for 5-6 minutes, until the vegetables are tender. Stir 2-3 times during cooking.

Stir fried vegetables are ideally served with meat or fish.

1. Place the chicken breasts in a casserole dish.
2. Mix all remaining ingredients together and pour over the chicken. Salt and pepper to taste.
3. Cook on P-HI for 11-12 minutes. Rearrange and coat the chicken with the sauce twice during cooking.

BLUE CHEESE & CHIVE JACKETS

2 baking potatoes, (approx.9 oz.(250g) each)

2 oz.(50g) butter

4 oz.(100g) blue cheese, chopped

1 tbsp(15ml) fresh chives, chopped

2 oz.(50g) mushrooms, sliced salt and pepper to taste

WHITE SAUCE

1 oz.(25g) butter

1 oz.(25g) plain flour

1/2 pint(300ml) milk

salt and pepper to taste

STRAWBERRY JAM

11/2 lb.(675g) strawberries, hulled

3 tbsp(45ml) lemon juice

1 ^1/2 lb.(675g) caster sugar

4 oz.(100g) self raising flour, sifted

2-3 tbsp(30-45ml) milk

OMELETTS

^1/_2 oz.(15g) butter

4 eggs

6 tbsp(90ml) milk

salt & pepper

1. Prick each potato in several places. Cook on P-HI for 10-11 minutes. Halve and scoop the flesh into a bowl, add the butter, cheese, chives, mushrooms, salt and pepper, mix thoroughly.

2. Pile mixture into the potato skins and place in a flan dish, on the rack.

3. Cook on P-50 for 10 minutes.

4. Place the butter in a bowl and cook on P-HI for 1 minute, until melted.

5. Stir in the flour and whisk in the milk. Cook on P-HI for 4-5 minutes, stirring every 2 minutes until thick and smooth. Season with salt and pepper to taste.

6. Place strawberries and lemon juice in a very large bowl, heat on P-HI for 5 minutes, or until the fruit has softened. Add sugar, mix well.

7. Cook on P-70 for 20-25 minutes, until setting point*is reached, stir every 4-5 minutes.

8. Pour into hot, clean jars. Cover, seal and label.

* setting point : To determine setting point, place 1 tsp(5ml)jam onto chilled saucer. Allow to stand for 1 minute. Move surface of jam gently with your finger, if the surface wrinkles setting point has been reached.

1. line the base of 8" (20.4cm) cake dish with grease-proof paper.

2. Cream the margarine and sugar together until light and fluffy. Beat in the eggs and fold in the sifted flour alternately with the milk.

3. Pour into prepared container. Cook on P-HI for 4-5 minutes, until a skewer comes out cleanly.

4. Leave the cake to stand for 5 minutes before turning out.

5. Whisk together eggs and milk. Season.

6. Place butter in 10"(26cm) flan dish. Cook on P-HI for 1 minute, until melted. Coat the dish with the melted butter.

7. Pour omelette mixture into flan dish. Cook on P-HI for 2 minutes. whisk mixture and cook again on P-HI for 1 minutes.

SCRAMBLED EDD

^1/_2 oz.(15g) butter

2 eggs

2 tbsp(30ml) milk

salt & pepper

SAVORY MINCE

1 small onion, diced

1 clove garlic, crushed

1 tsp(5ml) oil

7 oz.(200g) can chopped tomatoes

1 tbsp(15ml) tomato puree

1 tsp(5ml) mixed herbs

8 oz.(225g) minced beef

salt and pepper

1. Melt the butter in a bowl on P-HI for 1 minute.
2. Add the eggs, milk and seasoning and mix well.

3. Cook on P-HI for 3 minutes, stirring every 30 seconds.

4. Place onion, garlic and oil in casserole, and cook on P-HI for 2 minutes or until soft.

5. Place all other ingredients in casserole. Stir well.
6. Cover and cook on P-HI for 5 minutes then P-50 for 8-12 minutes or until the meat is cooked.
