Brand	Silver Cross
Model	Nostalgia Sleigh Cot Bed
Product Type	Convertible Cot Bed (Cot, Day Bed, Toddler Bed)
Recommended Mattress Size	1400 x 700 mm (UK standard cot mattress)
Maximum Mattress Thickness	100 mm
Mattress Base Positions	3 adjustable height positions (lowest safest)
Internal Height (lowest position)	At least 500 mm from mattress surface to top edge
Internal Height (highest position)	At least 200 mm from mattress surface to top edge
Age Range	Birth to approximately 4 years
Weight Limit (Toddler Bed)	Not specified; suitable until child can climb out
Materials	Wood and metal (based on assembly parts)
Assembly Required	Yes, by two adults
Conversion Modes	Cot, Day Bed (with side panel removed), Toddler Bed
Safety Standards	BS 8509:2008+A1:2011 (cot bed)
Cleaning	Wipe with damp cloth; do not use abrasives or bleach; dry thoroughly
Spare Parts	Only use Silver Cross approved parts
Fire Warning	Keep away from open flames and strong heat sources
Strangulation Hazard	Avoid strings, cords, blinds; tighten all fittings
Product Dimensions	Not specified; fits standard UK cot mattress (1400x700 mm)
Product Weight	Not specified

Frequently Asked Questions - Nostalgia Sleigh Cot Bed Silver Cross

How do I assemble the Silver Cross Nostalgia Sleigh Cot Bed?

Assembly requires two people. Follow the step-by-step instructions in the manual. Use the provided bolts (D) and crescent washers (G) as indicated. Ensure all fittings are tightened properly.

What size mattress should I use?

We recommend a standard UK cot mattress size 1400 x 700 mm (400 size). The mattress thickness must not exceed 100 mm. The gap between mattress and sides should be no more than 30 mm.

How do I convert the cot into a day bed?

Remove one side panel (B) and attach the remaining parts as shown in the 'Day Bed' section of the manual. Use bolts (D) and crescents (G) in 6 locations, then secure with feet (F).

How do I convert the cot into a toddler bed?

First remove the bottom panel (C). Then attach the half-length side rails (B1) using bolts (D) and crescents (G) in 4 locations on each side. Finally, secure the bed ends (A) and feet (F).

What are the different mattress base positions?

The mattress base can be fitted in three positions. The lowest position is the safest and should be used as soon as your baby can sit up. The internal height must be at least 500 mm in lowest position and at least 200 mm in highest.

Can I use more than one mattress?

No, do not use more than one mattress in the cot. This could create a suffocation hazard.

How do I clean the cot bed?

Clean with a damp cloth. Never use abrasives or bleach. Dry thoroughly immediately after cleaning.

Is the cot bed safe for a newborn?

Yes, the cot bed is suitable from birth. Always use the lowest mattress position for newborns and ensure no loose bedding or toys. Follow all safety warnings.

What should I do if a part is broken or missing?

Do not use the cot/bed if any part is broken, torn or missing. Use only spare parts approved by Silver Cross. Contact your retailer or Silver Cross for replacements.

When should I stop using the cot bed?

Stop using the cot when your child can climb out (typically around 2-3 years). The toddler bed mode can be used until approximately 4 years of age, but supervise always.

USER MANUAL Nostalgia Sleigh Cot Bed Silver Cross

New Nostalgia Sleigh Cot/Cot Bed

Assembly Instructions

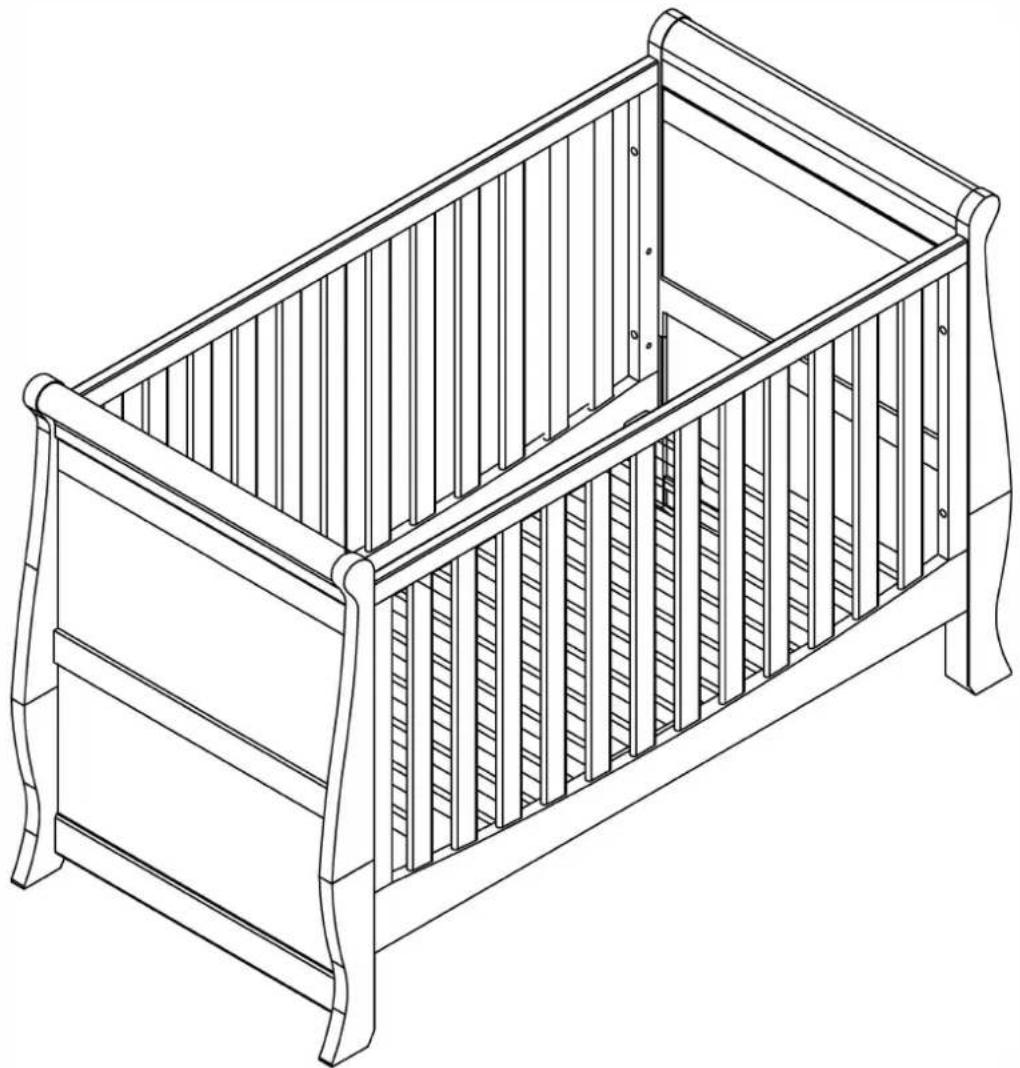

Line drawing of a baby crib with vertical slats and ornate legs (no text or symbols)

IMPORTANT: THE ASSEMBLY OF THIS

PRODUCT REQUIRES TWO PEOPLE

IMPORTANT: KEEP THESE INSTRUCTIONS

FOR FUTURE REFERENCE

Parts List :

Isometric line drawing of a rectangular metal frame structure (no text or symbols)

A = 2 pcs (L \ amp; R)

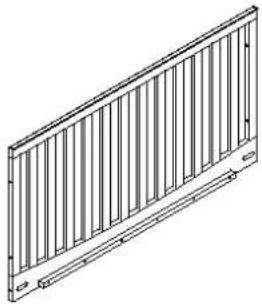

Isometric line drawing of a metal fence structure with vertical slats and base railings (no text or symbols)

B = 2 pcs

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

B 1 = 2 pcs

Isometric line drawing of a rectangular metal grate or rack structure (no text or symbols)

C = 1 pc

Fittings List :

Retain all extra fittings for conversion into day and toddler Bed

D 1 = 4 pcs

M 6 × 1 3 mm

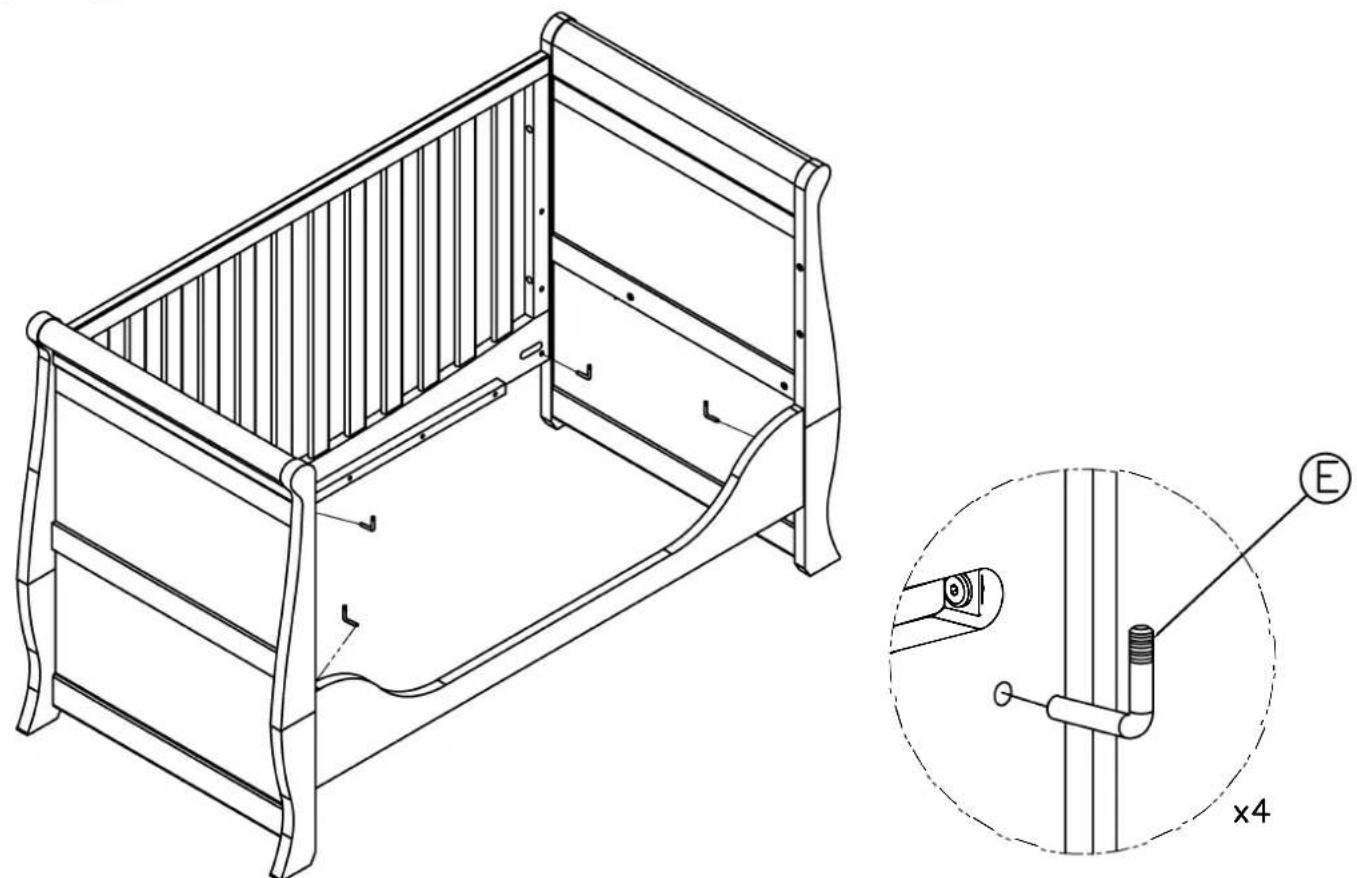

E = 4 pcs

F = 4 pcs

G = 1 1 pcs

Line drawing of a L-shaped tool handle (no text or symbols)

H = 1 pc

Step : 3

Note:
The mattress base can be fitted in three positions. The lowest position is the safest.

Step : 4

Step·.5

Line drawing of a baby crib with vertical slats and curved legs (no text or symbols)

Day Bed

Step ∴ 2

Step . 3

Technical line drawing of a two-level metal ladder structure with ribbed frame and support beams (no text or symbols)

Step .· 4

Line drawing of a baby crib with side panel and close-up detail (no text or symbols)

Step : 5

Line drawing of a baby crib with vertical slats and curved legs (no text or symbols)

To convert into

Toddler Bed mode

Step : 1

Remove the bottom panel

Step : 2

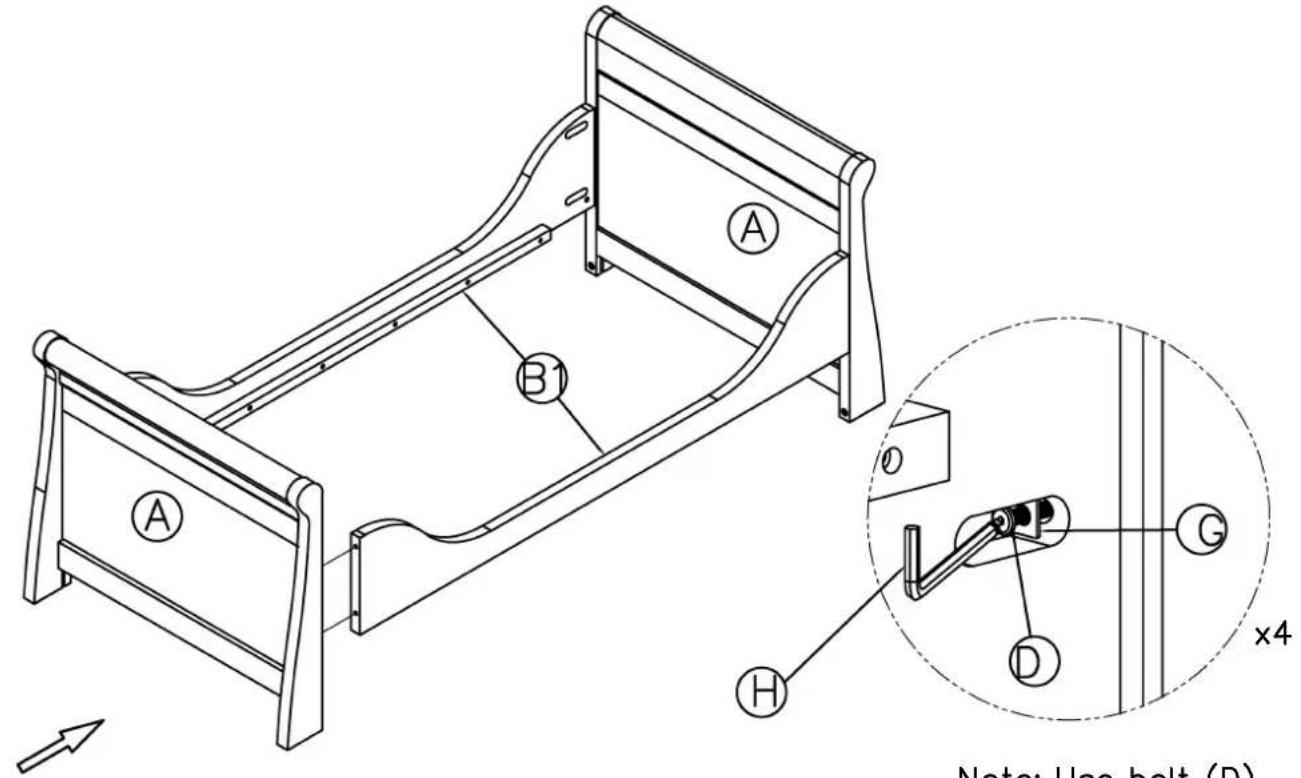

Note: Use bolt (D) and crescent (G) in 4 locations.

Step : 3

Note: Use bolt (D) and crescent G) in 4 locations.

Step : 4

Technical line drawing of a metal frame structure with an inset magnified view showing a pipe fitting (no text or symbols)

Step 5

Step : 6

Line drawing of a simple bed with slatted backrest and side supports (no text or symbols)

Warnings & Instructions For Safe Use & Maintenance

WARNING

Be aware of the risk of open fire and other sources of strong heat, such as electric bar gas fires, etc. in the near vicinity of the cot.

WARNING

Do not use the cot/bed if any part is broken, torn or missing and use only spare parts approved by Silver Cross.

WARNING

Do not leave anything in the cot or place the cot near to another product, which could provide a foothold or present a danger of suffocation or strangulation, e.g. strings, blinds, curtain cords, etc.

WARNING

Do not use more than one mattress in the cot.

WARNING

When converted into child's bed mode, do not place near heat sources, windows and other furniture.

The bed is designed to be dismantled for storage or transportation;

Any additional or replacement parts are obtained from the manufacturer or distributor.

All parts of the cot should be tightened correctly. Care should be taken to ensure that none of the fittings are loose or protruding as this could trap parts of the body or clothing, ribbons, drawstrings, necklaces etc., and pose a risk of strangulation.

The lowest position of the cot base is the safest position. You should use the cot in this position as soon as your baby is old enough to sit up.

The thickness of the mattress shall be such that the internal height (surface of the mattress to the upper edge of the cot frame) is at least 500 mm in the lowest position of the cot base and at least 200 mm in the highest position of the cot base.

The thickness of mattress shall not exceed 100 mm. We recommend the use of a 400 size mattress (1400 x 700mm).

The mattress length and width shall be such that the gap between the mattress and the sides and ends does not exceed 30 mm.

Your cot/bed may be cleaned with a damp cloth. Never use abrasives or bleach.

Thoroughly dry immediately after cleaning.

All assembly fittings should always be tightened properly and all fittings should be checked regularly and re-tightened as necessary.

To prevent injuries from falls, when a child is able to climb out of the cot, it should no longer be used for that child.

This cot bed is intended for children aged from birth to 4 years approximately. When converted into a COT bed it conforms to BS 8509:2008+A1:2011.

Children are likely to play, bounce, jump and climb on beds, therefore the child's bed should not be placed too close to other furniture or windows, blind cords, curtain pulls or other strings or cords, and should be placed either tight to any wall or have a gap of 300mm between the wall and the side of the bed.

THE BEST START IN LIFE

Silver Cross (UK) Ltd, Micklethorn, Broughton, Skipton, North Yorkshire, BD23 3JA

silvercrossbaby.com

THE BEST START IN LIFE

New Nostalgia Dresser

Assembly Instructions

Line drawing of a wooden side table with drawers and drawers (no text or symbols)

Decorative border pattern with repeating star and circle motifs (no text or symbols)

IMPORTANT: THE ASSEMBLY OF THIS

PRODUCT REQUIRES TWO PEOPLE

IMPORTANT: RETAIN FOR FURNITURE REFERENCE

READ CAREFULLY

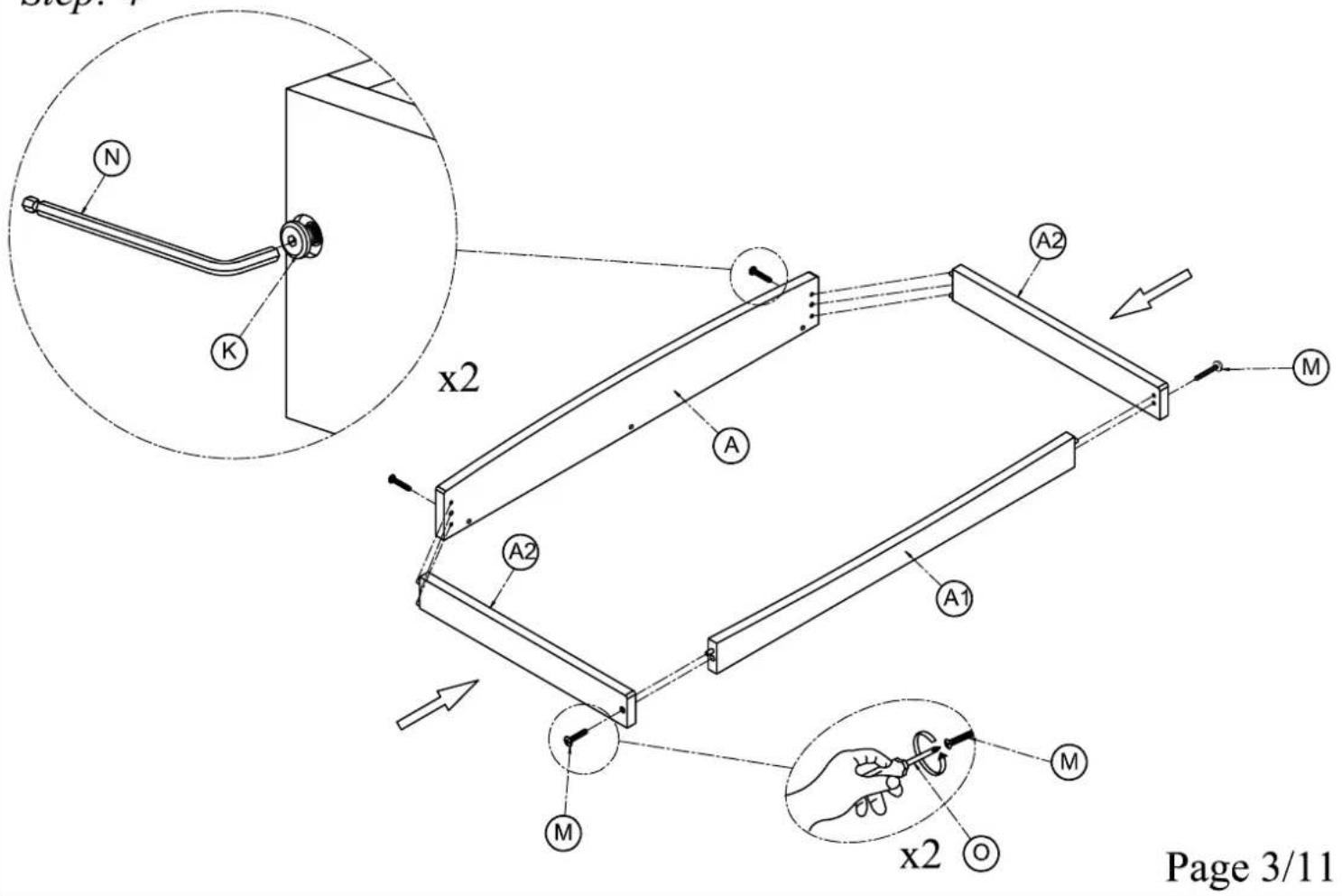

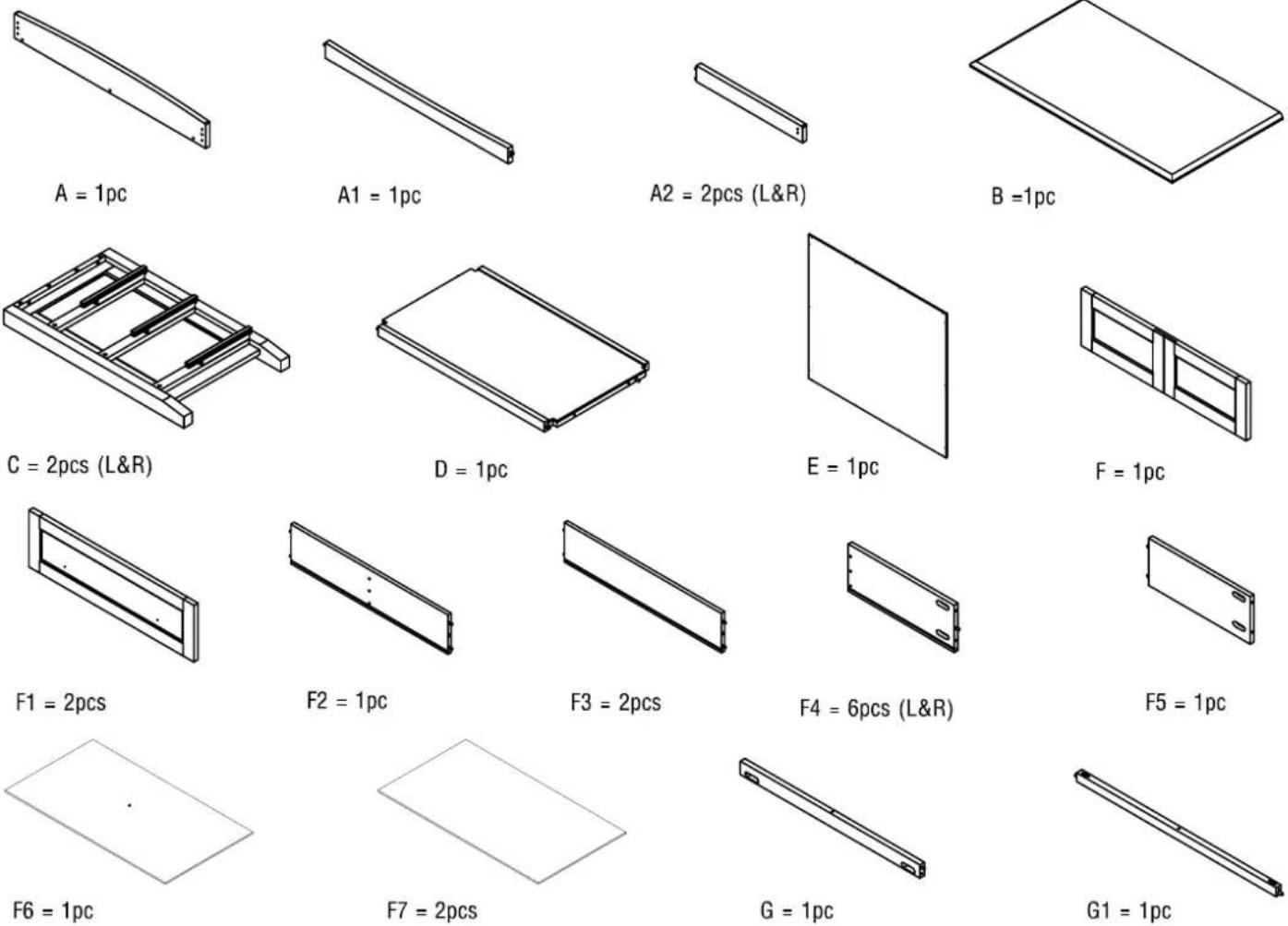

Parts List :

Fittings List :

K=20pcs
M6x30mm

K1= 18pcs
M6x40mm

M=2pcs
M4×30

Q=14pcs
M4×15

Q1=4pcs
M4×30

L=16pcs

N=1pc

O= 1pc

P=6pcs

Step: 3

Step: 4

Step: 5

Step: 6

Step: 7

Line drawing of a wooden table with metal supports and ladder mechanism (no text or symbols)

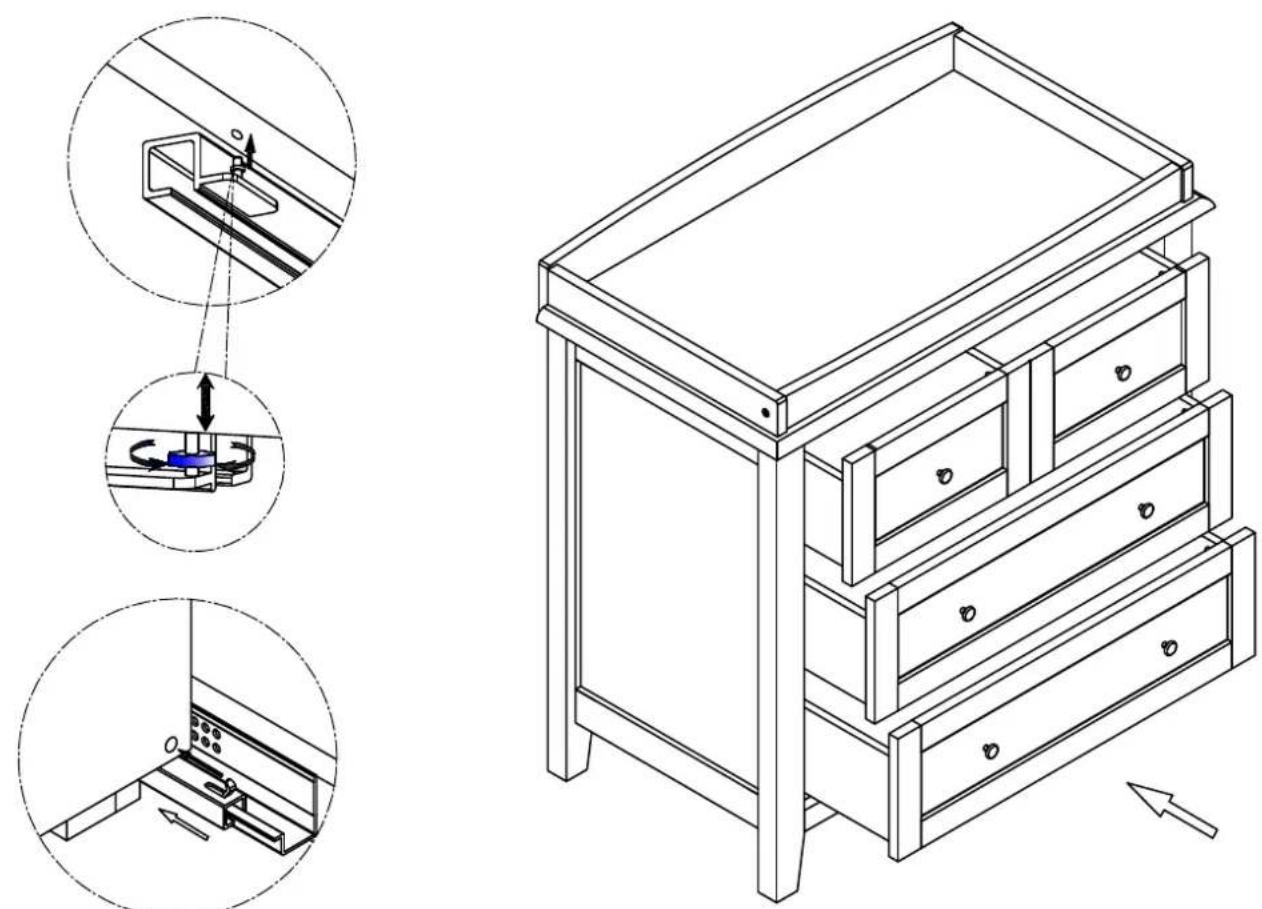

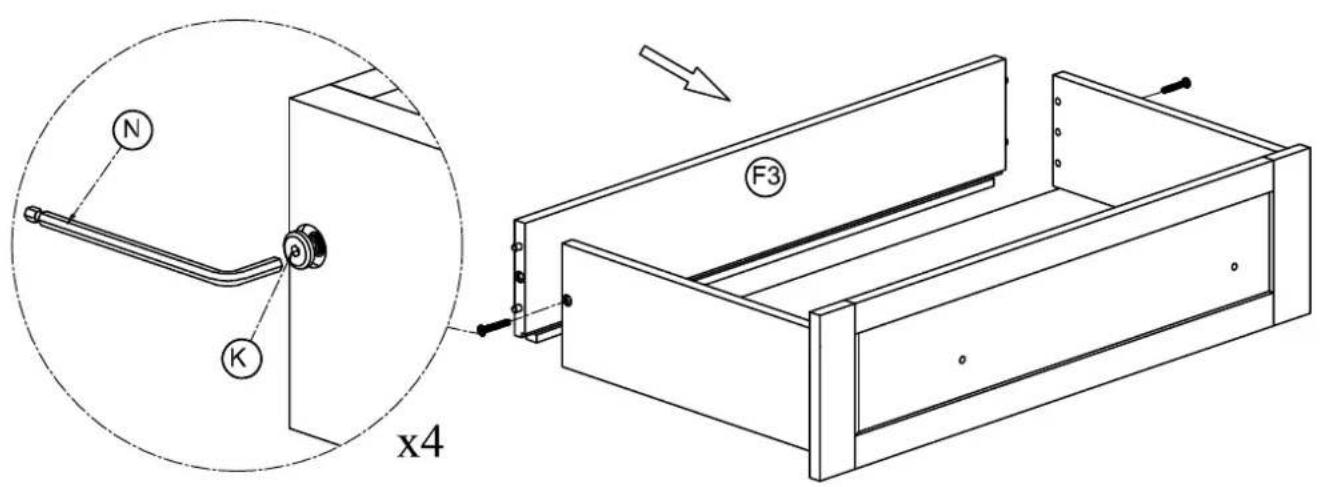

Step 8: x1 Drawer

Step: 9

Step: 10

Step: 11

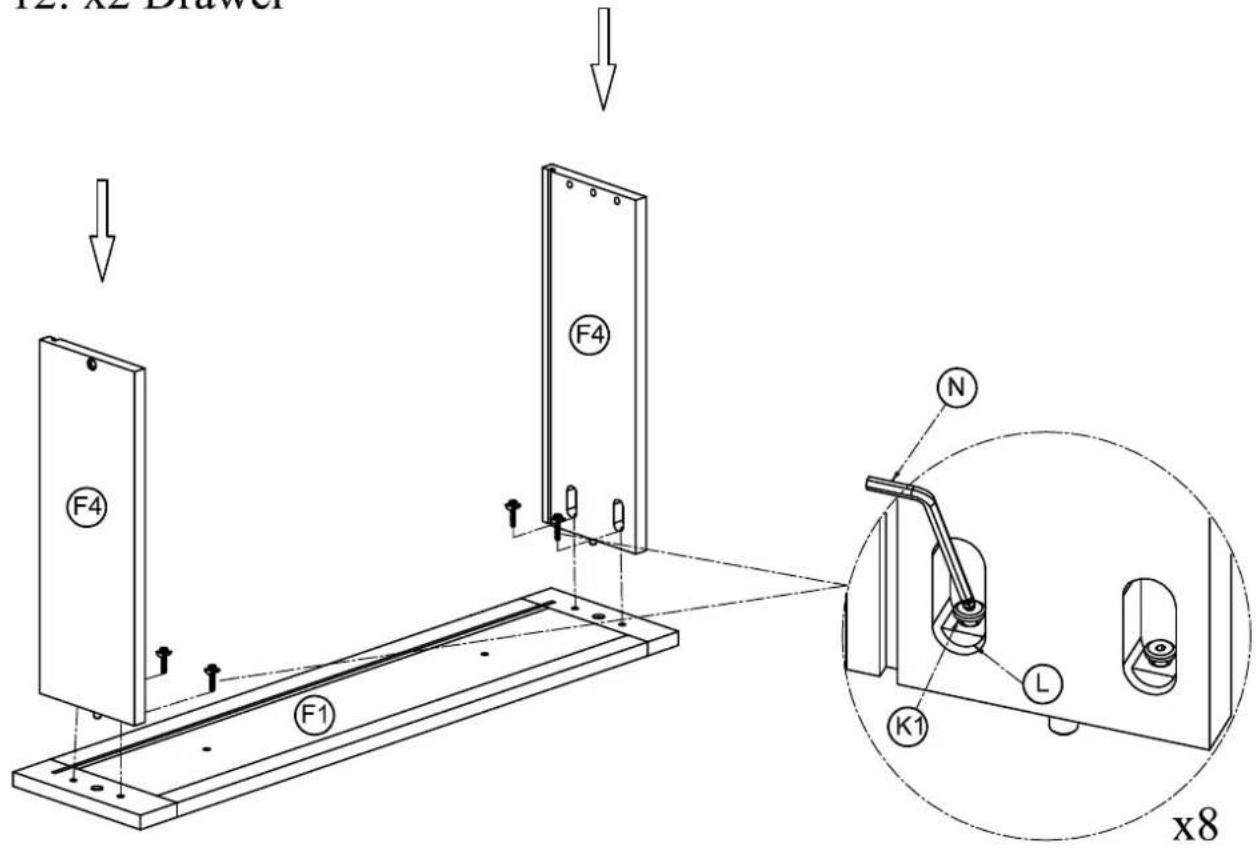

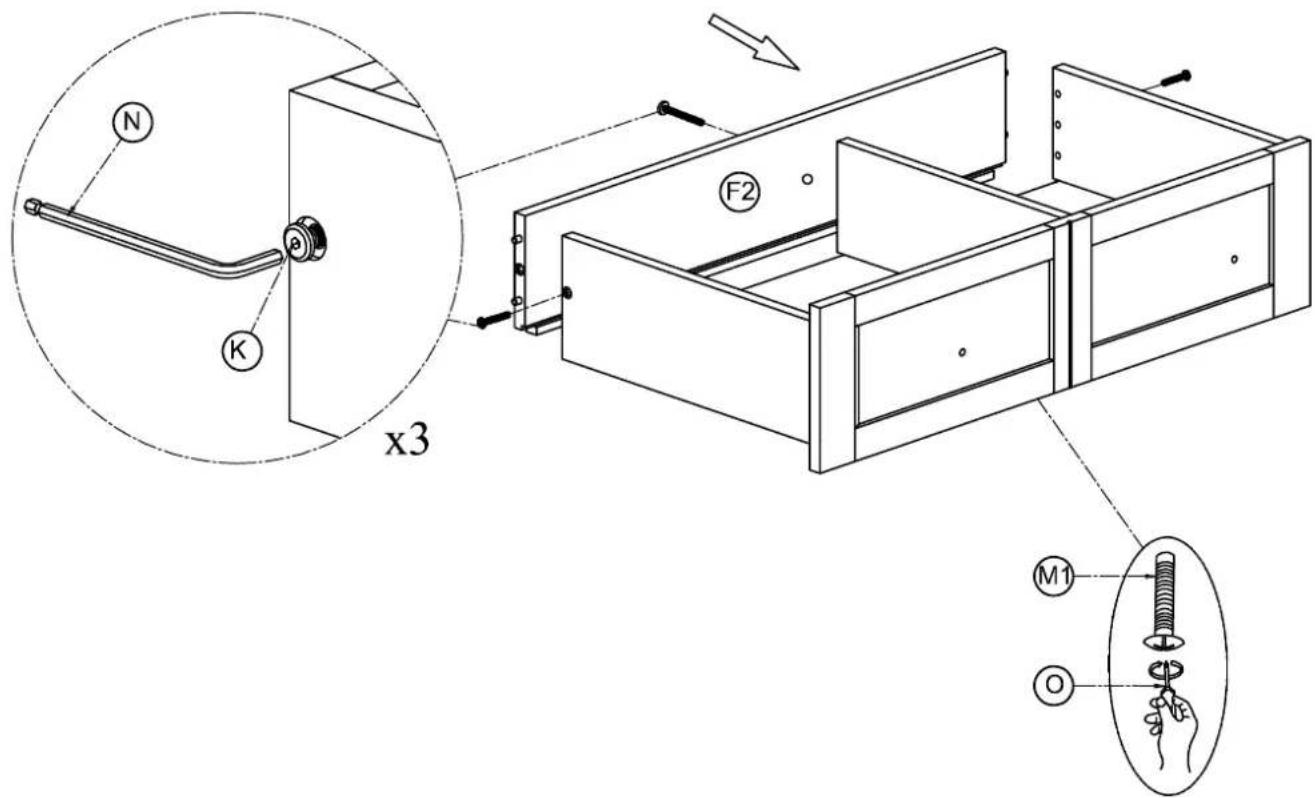

Step 12: x2 Drawer

Step: 13

Step: 14

Step: 15

Step: 16

Step: 17

Step: 18

Line drawing of a wooden side table with drawers and drawers (no text or symbols)

Note: The top rails can be removed when not required as a changing unit.

Step: 19

Line drawing of a wooden furniture cabinet with drawers and drawers (no text or symbols)

Warnings & Instructions For Safe Use & Maintenance

WARNING NEVER LEAVE YOUR CHILD UNATTENDED. The safety of your child is your responsibility.

Regularly check all fittings and components of the changer are fully tightened and in good working order. If any parts have become worn or damaged then do not use the product and seek advice from your retailer or Silver Cross. Only use spare parts supplied by Silver Cross.

Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires etc. in the near vicinity of the changing unit.

A changing mattress is not supplied with this product. Place the changing mattress on the changing surface inside the retaining rails.

We recommend the use of a 430x320x30 size mattress.

Suitable for children up to 12 months old (approximately). Maximum weight 11 kgs.

Never use the changer if any parts are broken or missing.

Never drag or pivot the Dresser Changer. It must be lifted and moved by at least two people.

Before use, ensure the changer is on a level, stable surface.

Do not allow children to climb on the changer.

The changer can be cleaned with a damp cloth. Never use bleach, abrasive or strong detergents. Thoroughly dry immediately after cleaning.

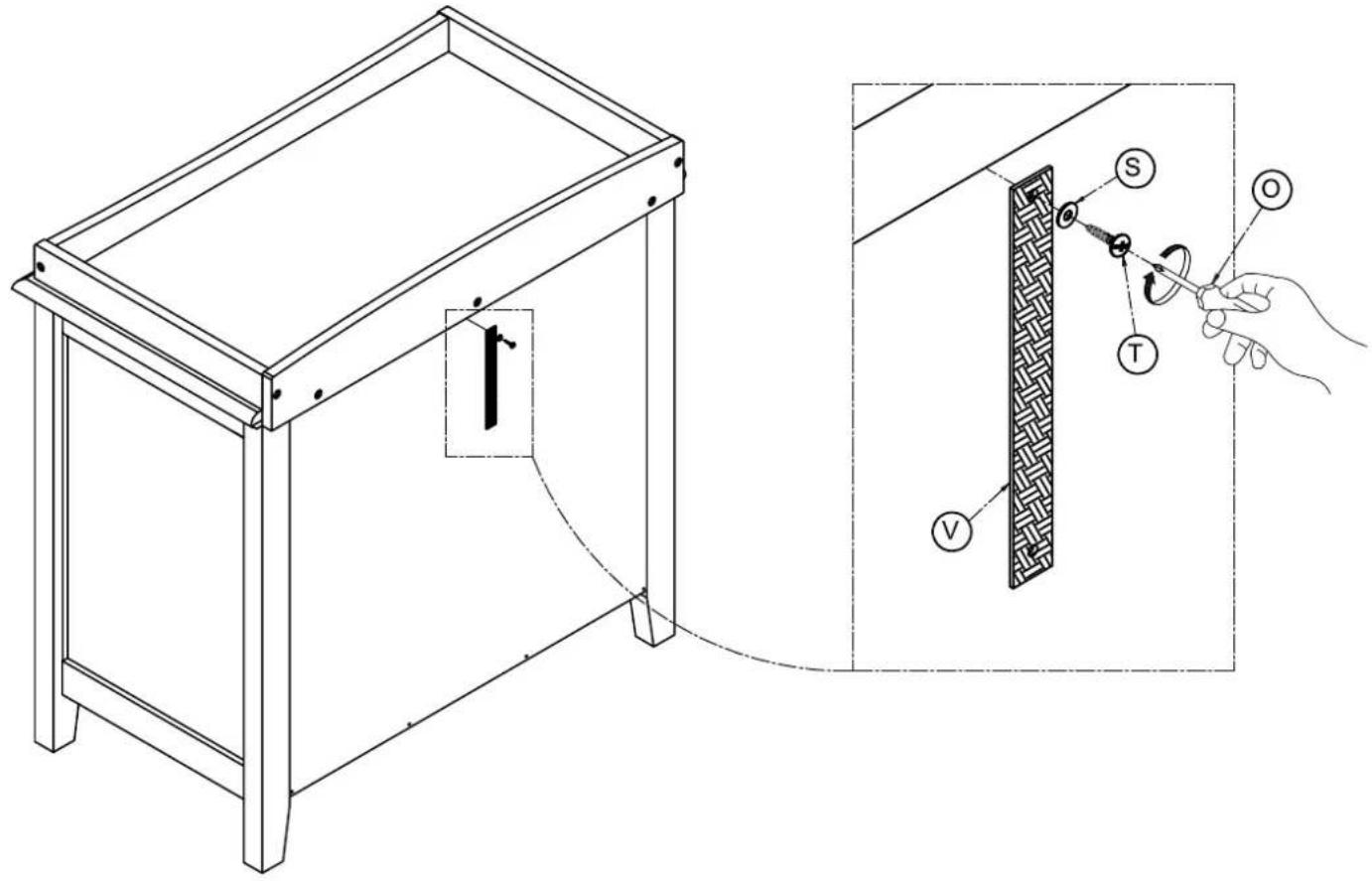

WALL STRAP INFORMATION

Never modify or change the wall strap in any way. Never use any other fittings other than those supplied to attach the wall strap to the dresser.

The wall strap provided is to be used with this product only.

Never use the screw provided to attach the strap to the wall. All walls are of different composition and it is important that the correct wall fittings are used. Consult a professional before attempting to attach the strap to the wall. No wall fittings are supplied with this product.

The wall strap must not be used to replace any other fittings supplied with this piece of furniture.

We recommend the wall strap is used in all cases. To improve the stability of the furniture an even wood or tiled floor is best. A carpeted or warped floor can enable the furniture to rock, increasing the potential of the furniture to fall over.
