Product Type	Freestanding washing machine
Brand	Electrolux
Model	EWF8025DGWA
Dimensions (H x W x D)	85 x 60 x 57 cm
Weight	68 kg
Rated Capacity	8 kg
Maximum Spin Speed	1200 rpm
Energy Efficiency Class	A++
Annual Energy Consumption	168 kWh
Water Consumption per Cycle	52 L
Noise Level (Wash/Spin)	52 / 78 dB(A)
Number of Programs	15
Key Functions	Cotton, Synthetics, Delicates, Wool, Quick 20 min, Eco, Hand Wash, Spin, Rinse, Drum Clean
Additional Features	Time Manager, Delay Start, Child Lock, AutoDry, Steam Option
Power Supply	220-240 V, 50 Hz
Rated Current	10 A
Water Connection	Cold water only, 3/4" threaded hose
Maintenance	Clean detergent drawer regularly, run drum clean program, clean filter after each use, check inlet hose for leaks
Safety Devices	Child lock, overflow protection, unbalanced load detection
Spare Parts and Repairability	Motor, pump, belt, door seal, filter, control board available; repair by qualified technician recommended
Warranty	2 years (parts and labor)

Frequently Asked Questions - EWF8025DGWA ELECTROLUX

What is the capacity of the Electrolux EWF8025DGWA washing machine?

The washing machine has a rated capacity of 8 kg, suitable for medium to large loads.

How do I start the machine after loading?

Close the door, select a program using the knob, adjust options if needed, press the Start/Pause button. Make sure the water tap is open.

What is the maximum spin speed?

The maximum spin speed is 1200 rpm, but you can adjust it per cycle for delicate fabrics.

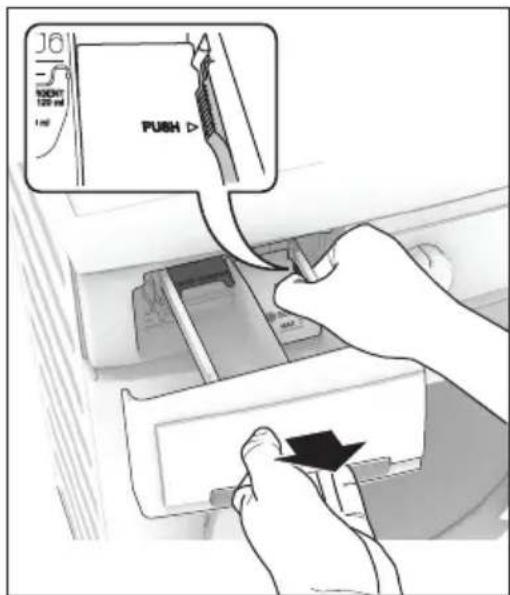

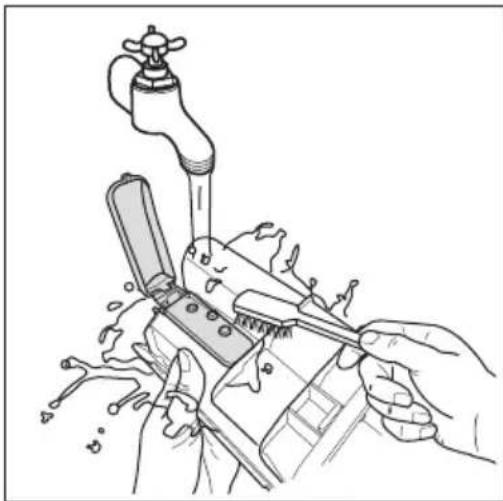

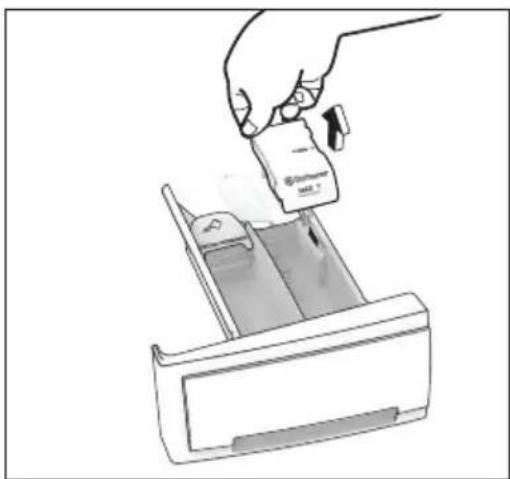

How do I clean the detergent drawer?

Push the release lever to remove the drawer, wash it under warm water, scrub compartments with a brush, and dry before reinserting.

Why is the door not opening after a cycle?

The door lock remains engaged for safety until the drum stops and the water drains. Wait a few minutes. If still locked, check if a program with water is still running or use the Drain program.

How do I prevent bad odors?

Run the Drum Clean program monthly, leave the door ajar after use, and avoid leaving wet clothes in the drum.

What should I do if the machine is not draining?

Check the drain hose for kinks, clean the pump filter located at the bottom front, and ensure the drain pipe is not blocked.

Can I use liquid detergent?

Yes, but use the correct compartment. For liquid, insert the supplied liquid detergent cup into the main wash compartment. Do not exceed the max level.

How do I activate the child lock?

Press and hold the Child Lock button (usually marked with a padlock) for 3 seconds. The symbol appears on the display. Repeat to deactivate.

What is the energy efficiency class?

The model is rated A++, indicating high energy efficiency. Actual consumption depends on usage.

USER MANUAL EWF8025DGWA ELECTROLUX

PRODUCT WITH YOUR SMARTPHONE

Photograph the camera icon located on your product's serial tag, including the 4 dots (●).

2 Send it in via Line, Facebook Messenger or go online.

@eluxreg eluxreg eluxreg.com

3 Enjoy many privileges.*

*Terms and conditions apply.

Electrolux

CONTENTS

1 SAFETY INFORMATION .... 3
2 PRODUCT DESCRIPTION 5
3 CONTROL PANEL 6
4 BEFORE FIRST USE 11
5 DAILY USE 11
6 WASHING HINTS 17
7 INTERNATIONAL WASH CODE SYMBOLS.... 19
8 CARE AND CLEANING 20
9 TROUBLESHOOTING 23
10 TECHNICAL DATA 27
11 INSTALLATION....28
12 ENVIRONMENT CONCERNS 30

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time. Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

⚠ Warning / Caution-Safety information.

i General information and tips.

Environmental information.

Subject to change without notice.

1. ⚠️ SAFETY INFORMATION

i Conditions of use

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environment;
• farm houses:
• by clients in hotels, motels, and other residential type environments:
  • bed and breakfast type environments:
• areas for communal use in blocks of flats or in launderettes.

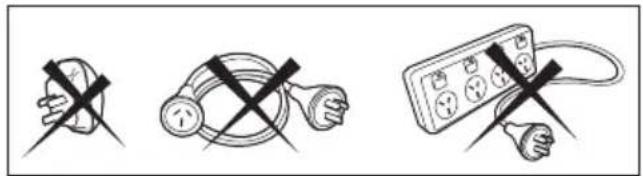

WARNING! The appliance must not be supplied through an external switching device, such as timer, or connected to a circuit that is regularly switched on and off by utility.

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings.

To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.

Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

1.1 GENERAL SAFETY

• It is dangerous to alter the specifications or attempt to modify this product in anyway.
• During high temperature wash program the door glass may get hot. Do not touch it!
  • Make sure that small pets do not climb into the drum. To avoid this, please check into the drum before using the appliance.

• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.

• Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum.

• Only use the advised quantities of fabric softener and detergent. Damage to the fabric or appliance can occur if you overfill. Refer to the manufacturer's recommendations of quantities.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Do not use your washing machine to wash articles with whalebones, material without hems or torn material.

• Always unplug the appliance and turn off the water supply after use, clean and maintenance.

- Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts.

1.2 INSTALLATION

• This appliance is heavy. Care should be taken when moving it.
- When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre.
- All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual.

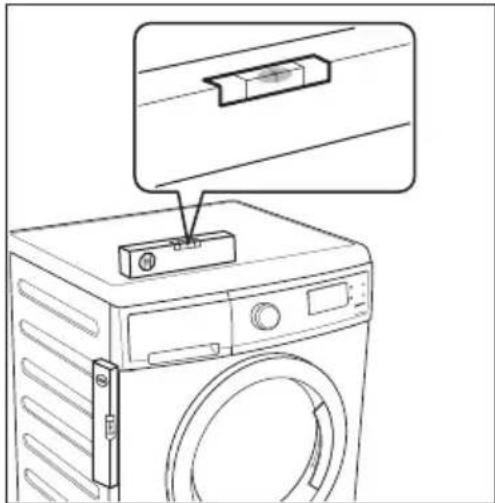

• After having installed the appliance, check that it is not standing on the inlet and drain hose and the worktop is not pressing the electrical supply cable.
- If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely.
• Always be sure, that there is no water leakage from hoses and their connections after the installation.
- Any plumbing work required to install this appliance should be carried out by a qualified plumber.
- Any electrical work required to install this appliance should be carried out by a qualified electrician.

1.3 USE

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label.
• Do not overload the appliance. See the relevant section in the user manual.
• Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing frayed or torn articles and treat stains such as paint, ink, rust, and grass before washing. Underwired bras must NOT be machine washed.
• Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.

- Never use the washing machine if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the washing machine is accessible.

1.4 CHILD SAFETY

• This washing machine is not intended for use by young children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with the appliance.
• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children's reach.
• Keep all detergents in a safe place out of children's reach.
  • Make sure that children or pets do not climb into the drum.

1.5 CHILD SAFETY DEVICE

When you activate this device, you cannot close the door. This prevents children or pets to be locked in the drum.

- To activate this device, rotate the button (WITHOUT pressing it) inside the door clockwise until the groove is horizontal. If necessary use a coin.

- To disable this device and restore the possibility of closing the door, rotate the button anti-clockwise until the groove is vertical.

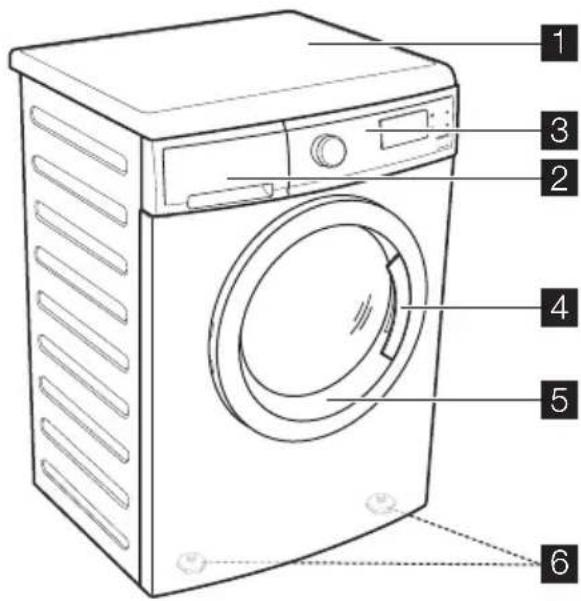

PRODUCT DESCRIPTION2.

1 Worktop
2 Detergent/Softener Dispenser
3 Control Panel
4 Door Handle
5 Door
6 Level Adjustment Feet (Front)

7 Mains Cable
8 Water Inlet Hose
9 Water Drain Hose
10 Hose Support
11 Transit Bolts
12 Back Feet

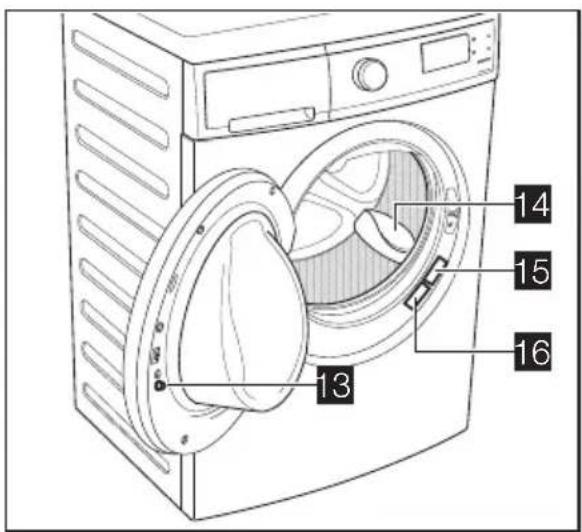

13 Door Blocking Button
14 Drum Lifter
15 Photo Register Label
16 Rating Label

ACCESSORIES

- Plastic caps

To close the holes on the rear side of the cabinet after the removal of the transit bolts.

- Plastic hose guide

To connect the drain hose on the edge of a sink.

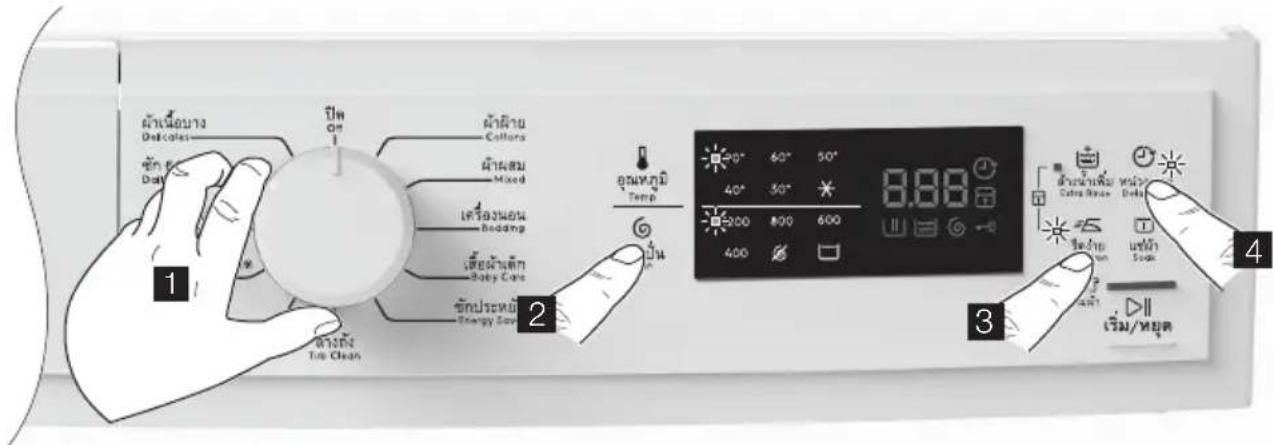

CONTROL PANEL3.

Turn this knob to set a program.

The washing machine will propose a temperature and automatically select the spin value provided for the program you have chosen.

The selector knob can be turned either clockwise or anticlockwise.

Position "off" to reset program/switching OFF the machine.

At the end of the program the selector dial must be turned to position "Off", to switch the machine off.

2 Spin Selection 📍 Touchpad

Press this touchpad repeatedly to increase or decrease the spin speed, if you want your laundry to be spun at a speed different from the one proposed by the washing machine.

No Spin

No spin option eliminates all the spin phases and increase the number of rinse.

Rinse Hold

By selecting this option the water of the last rinse is not emptied out and the drum turns regularly to prevent the laundry creases.

The door still locked to indicate that the water must be emptied out.

(To empty out the water see "When The Washing Program Is Completed, But There Is Water In The Drum" on page 16)

3 Temperature 🔊 Touchpad

Press this touchpad repeatedly to increase or decrease the wash temperature if you want your laundry to be washed at a temperature different from the one proposed by the washing machine (symbol “*” corresponds to cold wash).

4 Display

A) Digital Number; will tell you:

• Washing cycle time.
• Delay End time.
• The alarm codes. Refer to the chapter "Troubleshooting" for their description.

B) Washing Phase icon
C) Delay End icon
D) Child Lock icon
E) Door Lock icon

- It is on, you cannot open the door.

- It is off, you can open the door.

5 Child Lock ☐ Option

Your appliance is provided with CHILD SAFETY LOCK which permits you to leave the appliance unsupervised with the door closed without having to worry that children might be injured by or cause damage to the appliance.

Set this option before pressing the Start/Pause and after having selected the required wash program.

This function remains enabled even after the appliance is switched off.

Setting Child Lock option:

• To activate the function, press "Extra Rinse" and "Easy Iron" touchpads at the same time until indicator ☑ of this option comes on.

- To deactivate the function, press “Extra Rinse” and “Easy Iron” touchpads at the same time until indicator ☐ of this option goes off.

6 Extra Rinse 📋 Touchpad

This option is recommended for people who are allergic to detergents, and in areas where the water is very soft.

Press it to add rinsing phases to a program.

The indicator of this option comes on.

7 Delay End ⏻ Touchpad

Before you start the program, this option makes it possible to define the end of the washing program from minimum of 1 hour to maximum of 19 hours.

If program duration is longer than 3 hours, minimum Delay End option starts from 4 hours.

Press the Delay End touchpad to choose the end time as you wish. The display shows the number of hours and the indicator beside the touchpad is on.

This option must be selected after choosing the wash program, and before pressing the "Start/Pause" touchpad.

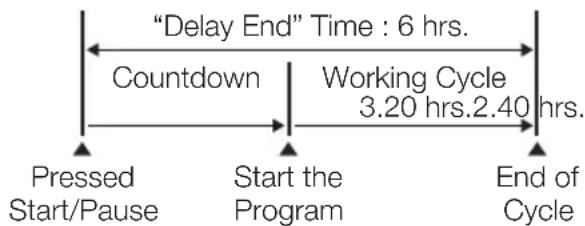

For example, if the program duration of your selected program is 3.20 hours and you define the "Delay End" time to 6 hours. This means your wash program will finish in 6 hours. (See diagram)

After selecting Delay End time, press Start/Pause touchpad to start the program. Machine will then countdown and update time on the display every hours until it reaches the starting point of the wash cycle.

If you wish to modify or cancel Delay End option after starting the program, follow the steps below:

• set the washing machine to PAUSE by pressing "Start/Pause" touchpad;
• deselect this option by pressing "Delay End" touchpad, the display shows delay time "☐"; or press this touchpad again to select your desired time.
• press the "Start/Pause" to start the program.

8 Easy Iron ≡5 Touchpad

When selecting this option, the laundry is gently washed and spun to avoid creasing. In this way, ironing is easier. The indicator of this option will be on.

9 Soak

This option allows you to soak heavily soiled clothes and stained items at the beginning of the wash before main washing phase. This option will increase the duration of the program selected for about 50 minutes. And uses more water from normal wash. The process is as follows.

1. fill water and turn the washing drum (this takes about 20 minutes)

After press Start/Pause touchpad, the machine will start add water to the washing drum, which will start to rotate slowly to dissolve detergent and evenly distribute cloths.

1. soak (this takes about 30 minutes.)

The machine will enter the process of soaking, The washing drum will stop and rotate once in a while in order to redistribute cloths.

1. Once the soak process complete, the machine will check the water level again and will start the selected program and continue by using the same soak water.

i NOTE

If you Do not wish to use the soak water to wash cloth, please follow the steps below:

1. Press Start/Pause to pause the washing machine. Then press On/Off to turn off the machine.
2. Press On/Off again to start the machine, add detergent, and select the program of your choice. Press Start/Pause again to start the selected program. The machine will detect and drain the water in the washing drum out automatically and fill in water once again to be used for washing.

i NOTE

• Any temperature may be selected, but “Cold” water is recommended with this cycle as hotter water may set some stains.
• Use the amount of detergent recommended for a normal wash cycle. If desired, use a bleach or a soaking agent safe for the fabric, by pouring it into the detergent compartment.

10 Start/Pause ▷ and Add Clothes 🔒 Touchpad

This touchpad has 2 functions:

- Start/Pause ( ▷ || ):

After you have selected the desired program and options, press this touchpad to start the machine. The Start/Pause pilot light will stop flashing and remain lit until the water level is above the bottom edge of the door then pilot light goes OFF. If you have selected a “Delay End” option, the countdown will begin and will be shown in the display.

To interrupt a program which is running, press this touchpad to pause the machine, the Start/Pause pilot light flashes.

To restart the program from the point at which it was interrupted, press this touchpad again, the Start/Pause pilot light will stop flashing.

- Add Clothes ( 📋 ):

You can only add clothes if "Start/Pause" pilot light is lit.

While running a program, you may add clothes by:

• Pressing the "Start/Pause" touchpad to pause the program.
• Wait for the machine to come to a complete stop before opening the door.
• Add clothing and close the door.
• Resume the program by pressing "Start/Pause" touchpad again.

11 Buzzer Sounds

The buzzer sounds operate when:

• The program is completed.
• The appliance has a malfunction.

If you want to disable the buzzer sound (except for event of appliance has a malfunction), press "Easy Iron" and "Soak" touchpads at the same time about 6 seconds, and listen for "BEEP, BEEP".

To return to default configuration press these 2 touchpads at the same time for 6 seconds, and listen for "BEEPS".

Programs + Options

Program; Temperature	Type of load;	Max. weight of load EWF7525DGWA EWF8025DGWA		Max. Spin (rpm)	Options can be combined
Off	This position to reset program/switching off the machine.	-	-	-	-
Cottons; Cold to 90°C	White and coloured cotton with heavy level of soil;		8.0 kg7.5 kg	1200
Mixed; Cold to 60°C	Synthetic or mixed fabric items;		3.5 kg3.5 kg	1200
Bedding; Cold to 60°C	Special program for one synthetic blanket, duvet, bedspread and so on;		3.5 kg3.5 kg	800
Baby Care; Cold to 40°C	Baby cotton clothes and delicate knitting items with normal soil;		3.5 kg3.5 kg	1200
Energy Saver;1) 40°C, 60°C	White and colourfast, cotton with normal soil. Set this program to have a good washing results and decrease the energy consumption. The time of the washing program is extended;		8.0 kg7.5 kg	1200
	For cleaning the tub.Tub Clean	-- --
Spin To spin the laundry and drain the water in the drum;		8.0 kg7.5 kg		1200
Rinse + Spin To rinse and spin the laundry;		8.0 kg7.5 kg		1200
Quick 20; Cold to 30°C	Synthetic and mixed fabric items. Light soil and items to freshen up;	1.5 kg1.5 kg		800
Daily 60; 30°C, 40°C, 50°C, 60°C	Coloured cotton e.g. shirts, blouses, towels and undergarments with normal level of soil;	4.0 kg4.0 kg		1200
Delicates; Cold to 40°C	Delicate fabrics such as acrylics, viscose, polyester items;	3.5 kg3.5 kg		1200

1) Energy Saver program with 60 °C option selected is recommended for a full load of normally soiled cottons.

BEFORE FIRST USE4.

1. Ensure that the electrical and water connections comply with the installation instructions.

2. Put 2 litres of water in the detergent compartment for washing phase. This activates the drain system.

Hand inserting a USB into a device (no text or symbols visible)

1. Select a Cottons cycle at 90 °C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the machine.

Illustration of a hand inserting a coin into a drawer (no text or symbols visible)

DAILY USE5.

• Connect the mains plug to the mains socket.
• Turn the water tap on.

5.1 Four Steps Start Up Guide

Step 1 - Setting A Program For Washing

1. Turn the program selector dial to the required program.

2. The selector dial can be turned either clockwise or anticlockwise.

3. Once you select a wash program, the program selected will stay at that position for the whole of the wash.

4. If you want your laundry to be spun or use temperature different from the one proposed by the washing machine, press the Spin "⑥" and the temperature " 🔍" touchpads repeatedly to change the spin speed and temperature.

5. Press the option touchpads, if you want your laundry to be washed with special functions.

Different functions can be combined which is dependent on the program selected.

When these touchpads are pressed, the corresponding pilot lights come on. When they are pressed again, the pilot lights go out.

1. If you want to define the end of the washing program, press the "Delay End (💡)" touchpad repeatedly to choose your washing machine working time.

Step 2 - Loading The Laundry

1. i Before loading the laundry, please make sure:

- Empty pockets.

- Tie the cords.

Simple line drawing of a bag with a handle and rope, no text or symbols present

- Fasten buttons.

Illustration of hands performing a finger manipulation or massage motion (no text or symbols)

- Close zippers.

- Underwired bras must NOT be machine washed.

Simple line drawing of a pair of eyeglasses with a black X symbol (no text or labels)

1. Open the door by carefully pulling the door handle outwards.

Line drawing of a hand adjusting a circular mechanical component with a rotating arrow (no text or symbols)

Check and remove objects (if there are any) that could be trapped in the fold.

1. Place the laundry in the drum, one item at a time, shaking them out as much as possible.

Line drawing of a hand cleaning a circular mechanical component with a cloth (no text or symbols)

1. Make sure that no laundry remains between the seal and the door.

Diagram of a washing machine with a cross mark indicating a warning symbol (no text or labels present)

1. Close the door.

Step 3 - Using Detergent And Additives

Detergent Dispenser Drawer1.

Interior view of a refrigerator drawer with handrails and doorways (no text or symbols visible)

The detergent dispenser is divided into two compartments.

- [III] Compartment "MAIN WASH" This compartment is used for detergent on all programs.

Detergent flap

Flap for powder or liquid detergent.

- Compartment "SOFTENER" This compartment is used for fabric conditioner and starching agent.

Powder or liquid detergent.

When you use the liquid detergent:

- Do not use gelatinous or thick liquid detergents.

- Do not put more liquid than the maximum level.

- Do not set the Delay End.

1. Measure out the detergent and the fabric softener;

2. Pull out the dispenser drawer until it stops.

3. Measure out the amount of detergent required, pour it into the main wash compartment (III).

Illustration of a hand inserting a coin into a drawer (no text or symbols visible)

- If required, pour fabric softener into the compartment marked ⚙ (the amount used must not exceed the "MAX" mark in the drawer).

Illustration of a hand inserting a component into a drawer (no text or symbols visible)

- Close the drawer gently.

Step 4 - Starting a program

To start a program, press the Start/Pause ( ▷∥ ) touchpad, the corresponding pilot light will stop flashing and a default program duration will be displayed on the screen (only for display models).

After approx. 15 minutes from the start of a program:

- The appliance will automatically adjust the selected program duration according to the type and size of the load.

NOTE

If you turn the program selector dial to another program when the machine is working, the symbol “- - -” will flash on display along with buzzer sound to indicate a wrong selection. The machine will not perform the new selected program.

If an option is not compatible with the wash program selected, the symbol “---” will flash on display along with buzzer sound.

5.2 Interruption Of A Program

• To pause press Start/ Pause. The indicator will start flashing.
• Press the Start/Pause again. The program will continue.

5.3 Changing A Program

Changing a running program is possible only by resetting it.

1. Turn the program selector knob to the position "Off" to cancel the program and to turn off the appliance.
2. Turn the program selector knob to the new program position and set the new option, then press "Start/Pause" touchpad again.

The appliance will not drain the water.

5.4 Changing The Options

It is possible to change only some option after the program has started.

1. Press the touchpad Start/Pause. The indicator will start flashing. Change the options.2.
2. Press Start/Pause again. The program will continue.

5.5 Opening The Door

While a program or the Delay End is operating, the appliance door is locked and the door lock indicator “→0” is on.

First set the machine to PAUSE by pressing the "Start/Pause" touchpad. Wait until the door lock indicator "→0" goes off, then the door can be opened.

If the door lock indicator “→” does not disappear, this means that the machine is already heating and the water level is above the bottom edge of the door or the drum is turning. In this case the door CAN NOT be opened. If you need to open it, you must drain the water to open the door.

To drain the water, you have to switch the machine off by pressing the "On/Off" button to deactivate the appliance. Turn On the machine and select "Spin" program, you can select "No Spin", if you want the machine to only drain the water then press Start/Pause touchpad to start the program.

5.6 At The End Of The Program

• The appliance stops automatically.
• The acoustic signal will operate.
• The display will show “☐”.
• The indicator of the Start/Pause touchpad goes off.
• The door lock indicator “→0” goes off.
• Remove the laundry from the appliance. Make sure that the drum is empty.
• Keep the door ajar, to prevent the mildew and odours.
• Turn off the water tap.

5.7 When The Washing Program Is Completed, But There Is Water In The Drum

(Option "Rinse & Hold □" is used)

• The drum turns regularly to prevent the creases in the laundry.
• The indicator "Start/Pause ( ▷∥ )" flashes to remind you to drain the water.
• The door lock indicator “→0” is on. The door stays locked.

You must drain the water to open the door.

To drain the water:

1. Press the "Start/Pause (▷II)" touchpad. The appliance drains the water and spins with the maximum spin speed for selected program.

Alternatively, before pressing the "Start/Pause" touchpad, you can press the "Spin" touchpad to change the spin speed. You can select "No Spin", if you want the machine to only drain the water.

1. When the program is completed and the door lock indicator “→0” goes off, you can open the door.
2. Turn the program selector knob to the position "Off" to turn off the appliance.

i NOTE:

After approximately 18 hours, if you do not press Start/Pause touchpad, the appliance will drain and spin automatically.

5.8 Stand By Mode

5 minutes after the washing program ends, if you do not deactivate the appliance, the energy saving function activates.

The energy saving function decreases the energy consumption when the appliance is in the stand by mode.

• All indicators and the display will switch off.
• The indicator of the touchpad Start/Pause will flash slowly.
• Press one of the touchpads to deactivate the energy saving status.

WASHING HINTS6.

6.1 Sorting The Laundry

Follow the wash code symbols on each garment label and the manufacturer's washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens.

6.2 Temperatures

Temp	Soil Level
90°C	For normally soiled white cottons and linen (e.g. teacloths, towels, tablecloths, sheets...).
60°C	For normally soiled, colourfast garments (e.g. shirts, night dresses, pyjamas....) in linen, cotton or synthetic fibres and for lightly soiled white cotton (e.g. underwear).
40°C	For delicate items (e.g. net curtains), mixed laundry including synthetic fibres and woollens bearing the label pure new wool, machine washable, non-shrink.

6.3 Before Loading The Laundry

Never wash whites and coloureds together. Whites may lose their “whiteness” in the wash.

New coloured items may run in the first wash; they should therefore be washed separately the first time.

Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins).

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

Remove persistent stains before washing.

Rub particularly soiled areas with a special detergent or detergent paste. Treat curtains with special care. Remove hooks or tie them up in a bag or a net.

6.4 Maximum Loads

Recommended loads are indicated in the program charts. General rules:

Cotton, linen:	drum full but not too tightly packed;
Synthetics:	drum no more than half full;
Delicate fabrics and woollens:	drum no more than one third full.

Washing a maximum load makes the most efficient use of water and energy. For heavily soiled laundry, reduce the load size.

6.5 Removing Stains

Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.

Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water.

Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times.

Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth.

Mould stains: treat with bleach, rinse well (whites and fast coloureds only).

Grass: soap lightly and treat with bleach (whites and fast coloureds only).

Rust: oxalic acid dissolved in hot water or a rust removing product used in cold water. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole.

Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain.

Lipstick: moisten with acetone (*) as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach.

Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach.

Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly.

Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste. (*) do not use acetone on artificial silk.

6.6 Detergents Type And Quantity Of Detergent

Low sudsing detergent is required for this washing machine to prevent oversudsing problems, unsatisfied washing result and harm to the machine.

Low sudsing detergents designed for front load washing machines are labelled “Front Loading”, “high efficiency”, “HE”, such as Cold Power for Front Loaders or “Matic”.

Do not use wrong types of detergent, such as Top Loading, Handwash detergent or Soap-Based products in your frontload washing machine. This can result in excessive suds, longer cycle time, low spin speeds, poor rinsing and overloading of the motor.

6.7 Quantity of detergent to be used

The choice of detergent and use of correct quantities not only affects your wash performance, but also helps to avoid waste and protect the environment. Although biodegradable, detergents contain substances which in large quantities can upset the delicate balance of nature.

The choice and quantity of detergent will depend on;

• type of fabric (delicates, woollens, cottons, etc.);
  • the colour of clothes;
• size of the load;
• degree of soil;
• wash temperature; and
• hardness of the water used.

Water hardness is classified by so-called “degrees” of hardness.

Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority.

You may have to try using the detergent quantity as per manufacturers' instructions then compare the wash result to the list below and adjust the amount of detergent for your future washes accordingly.

Not enough washing powder causes:

• the washload to turn grey,

- greasy clothes.

Too much washing powder causes:

• sudsing,
  • reduced washing effect,
• inadequate rinsing.

Use less detergent if:

• you are washing a small load,
  • the laundry is lightly soiled,
  • large amounts of foam during washing.

INTERNATIONAL WASH CODE SYMBOLS7.

These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.

Energetic washDelicate wash	Max. wash temperature 95 °C	Max. wash temperature 60 °C _		Max. wash temperature 40 °C _		Max. wash temperature 30 °C _		Hand wash		DO NOT wash at all
Bleaching	Bleach in cold water DO NOT bleach
Ironing	Hot iron max. 200 °C		Warm iron max. 150 °C			Lukewarm iron max. 110 °C			DO NOT iron
Dry cleaning	Dry cleaning in all solvents		Dry cleaning in perchlorethylene, petrol, pure alcohol, R 111 & R 113			Dry cleaning in petrol, pure alcohol and R 113			DO NOT dry clean
Drying Flat Tumble dry DO NOT On the line [C7AB] [Low temperature] [X4A0] tumble dry				On clothes hanger			High temperatureLow temperature			[X4A0]tumble dry

CARE AND CLEANING8.

WARNING!

You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work.

8.1 External Cleaning

Clean the appliance only with soap and warm water. Fully dry all the surfaces.

CAUTION!

Do not use alcohol, solvents or chemical products.

8.2 Descaling

The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine.

Do this separately from any laundry washing, and according to the softening powder manufacturer's instructions.

This will help to prevent the formation of lime deposits.

8.3 After Each Wash

Leave the door open for a while. This helps to prevent mould and stagnant smells forming inside the appliance. Keeping the door open after a wash will also help to preserve the door seal.

8.4 Maintenance Wash

With the use of low temperature washes it is possible to get a build up of residues inside the drum.

We recommend that a maintenance wash be performed on a regular basis.

To run a maintenance wash:

- The drum should be empty of laundry.

- Select the hottest "Regular" wash program.

- Use a normal measure of detergent, must be a powder with biological properties.

8.5 Cleaning The Dispenser Drawer

The washing powder and additive dispenser drawer should be cleaned regularly.

Remove the drawer by pressing the catch downwards and by pulling it out. Flush it out under a tap, to remove any traces of accumulated powder.

To aid cleaning, the top part of the additive compartment should be removed.

Hand inserting a card into a printer (no text or symbols visible)

8.6 Cleaning The Drawer Bottom

After washing cycle finish, residues of softener and water may remain in the softener dispenser. It is recommended to clean the bottom of softener dispenser regularly to remove any residue.

To clean the bottom of softener dispenser:

1. After pulling out the drawer from its recess, turn the bottom side up.

Illustration showing a device being rotated and then placed on a tray (no text or symbols present)

1. Push the catch and pull up the softener bottom cover.

Illustration showing two steps of a device being processed, with arrows indicating rotation (no text or symbols present)

1. Clean the dispenser with an old toothbrush under the water tap.

Line drawing of hands using a tool to lift a water tap into a machine (no text or symbols)

1. Close the softener bottom cover.

8.7 Cleaning The Drawer Recess

Having removed the drawer, use a small brush to clean the recess, ensuring that all washing powder residue is removed from the upper and lower part of the recess.

Replace the drawer and run the rinse program without any clothes in the drum.

Hand holding a tool interacting with an open electrical outlet (no text or symbols visible)

8.8 Cleaning The Water Inlet Filter

If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged.

It is therefore a good idea to clean it from time to time.

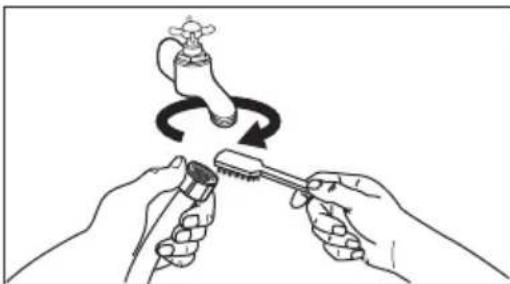

To clean the water inlet filters:

1. Close the water tap.

2. Remove the water inlet hose from the water tap.

3. Clean the filter in the inlet hose with a stiff brush.

Illustration of hands using a tool to interact with a faucet (no text or symbols present)

1. Remove the inlet hose behind the appliance.

2. Clean the filter in the valve with a stiff brush or a towel.

Diagram showing a device inside a housing with wiring and a close-up of its internal components (no text or symbols present)

1. Install again the inlet hose. Make sure that the couplings are tight to prevent leakages.

1. Open the water tap.

8.9 The Dangers Of Freezing

If the machine is exposed to temperatures below 0^ C, certain precautions should be taken.

Do this procedure also when you want to do the emergency drain.

Disconnect the mains plug from the mains socket.

Turn off the water tap.1.

1. Unscrew the inlet hose.

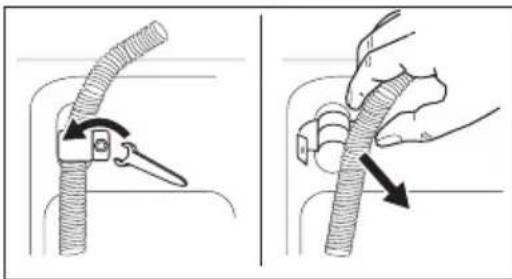

2. Remove the drain hose from the rear support and unhook it from sink or spigot.

Illustration showing two steps of a hairpin being adjusted, with no text or symbols present.

1. Put the ends of the drain and inlet hose in a container. Let the water flow out of the hoses.

2. When no more water flows, install the inlet hose and the drain hose again.

Make sure that the temperature is more than 0 °C before you use the appliance again. The manufacturer is not responsible for damages caused by low temperatures.

TROUBLESHOOTING9.

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please check possible cause of malfunction and solution listed below.

Once the problem has been eliminated, press the Start/Pause button to restart the program. If after all checks, the problem persists, contact your local Service Centre.

WARNING! Deactivate the appliance before you do the checks.

Alarm Code:

E10	The appliance does not fill with water properly.
E20	The appliance does not drain the water.
E40	The appliance door is open or not closed correctly. Please check the door!
E40	The main supply is unstable.Wait until the main supply is stable.
E91	No communication between electronic elements of the appliance.Switch off and switch on again.
EFO	Water leaks inside the machine.Please call Service Centre.

Malfunction Possible cause Solution
The washing machine does not start:	The door has not been closed. Error code: E40 .	Close the door firmly.
	The plug is not properly inserted in the power socket.	Insert the plug into the power socket.
	There is no power at the socket.	Please check your domestic electrical installation.
	The Start/Pause button has not been pressed.	Press the Start/Pause button.
	The Delay End has been selected.	If the laundry are to be washed immediately, cancel the Delay End.
	The Main supply is unstable. Error code: E40	Wait until the main supply is stable. Appliance will start automatically.
The machine does not fill the water:	The water tap is closed. Error code: E 10 .	Open the water tap.
	The inlet hose is squashed or kinked. Error code: E 10 .	Check the inlet hose connection.
	The filter in the inlet hose is blocked. Error code: E 10 .	Clean the water inlet hose filter.
	The door is not properly closed. Error code: E40 .	Close the door firmly.
The machine fills then empties immediately:	The end of the drain hose is too low.Error code: E 10 .	Refer to relevant paragraph in “water drainage” section.
The machine does not empty and/or does not spin:	The drain hose is squashed or kinked. Error code: E20 .	Check the drain hose connection.
	The option “Rinse Hold ☐” or “No Spin ☑” has been selected.	Press Start/Pause touchpad to drain the water or select spin program.
	The laundry is not evenly distributed in the drum.	Pause the machine and redistribute laundry manually.
There is water on the floor:	Too much detergent or unsuitable detergent (creates too much foam) has been used.	Reduce the detergent quantity or use another one.
	Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.	Check the water inlet hose connection.
	The drain hose is damaged. Change it with a new one.
	Water leaks inside the machine. (code: EFO )	Disconnect the main plug from the main socket. Turn off the water tap. Contact your local Service Centre.
Unsatisfactory washing results:	Too little detergent or unsuitable detergent has been used.	Increase the detergent quantity or use another one.
	Stubborn stains have not been treated prior to washing.	Use commercial products to treat the stubborn stains.
	The correct temperature was not selected.	Check if you have selected the correct temperature.
	Excessive laundry load. Reduce load.
The door will not open:	The program is still running. Wait until the end of washing cycle.
	There is water in the drum. You must drain the water to open the door (refer “Opening The Door” on page 15).
	This problem may be caused by a failure of the appliance.	Contact Service.
The machine vibrates or is noisy:	The transit bolts and packing have not been removed.	Check the correct installation of the appliance.
	The support feet have not been adjusted.	Check the correct levelling of the appliance.
	The laundry is not evenly distributed in the drum.	Pause the machine and redistribute laundry manually.
	There is very little laundry in the drum.	Load more laundry.
	Unstable floors eg. wooden floors.	Refer to relevant paragraph in “Positioning” section.
Cycle time longer than displayed:	Detergent over dose.	Reduce the detergent quantity or use another one.
	Machine unbalance.	Redistribute laundry manually in the drum and start the spin phase again. Refer to relevant paragraph in “Positioning” section.
Spinning starts late or the machine does not spin:	The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and select the spin program.	Pause the machine and redistribute laundry manually.
The machine makes an unusual noise:	Machine not installed properly.	Make sure the levelling of the appliance is correct. Refer to ‘Installation’.
	Transit bolts or packaging not removed.	Make sure that the packaging and/or the transit bolts are removed. Refer to “Installation”.
	The load may be too small.	Add more laundry in the drum.

Malfunction Possible cause Solution

No water is visible in the drum:

Machines based on modern technology operate very economically using very little water without affecting performance.

If you are unable to identify or solve the problem, contact our service centre.

Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

Line drawing of a front-loading washing machine with a close-up inset showing internal components (no text or symbols)

TECHNICAL DATA10.

Dimensions	Width		57 cm
	Height		85 cm
	Depth		60 cm
Power supply (voltage/frequency)			220-240 V/50 Hz
Total power absorbed			2000 W
Minimum fuse protection			10 A
Water supply pressure	Maximum		0.8 MPa
	Minimum		0.05 MPa
Maximum capacity (dry clothes)	EWF7525DGWA EWF8025DGWA
	Cottons	7.5 kg	8.0 kg
	Mixed 3.5 kg	3.5 kg
	Bedding 3.5 kg	3.5 kg
	Baby Care 3.5 kg	3.5 kg
	Energy Saving 8.0 kg	7.5 kg
	Tub Clean -	-
	Spin 8.0 kg	7.5 kg
	Rinse + Spin 8.0 kg	7.5 kg
	Quick 20 1.5 kg	1.5 kg
	Daily 60 4.0 kg	4.0 kg
	Delicates 3.5 kg	3.5 kg
Spin speed (Maximum / Minimum)			1200 rpm / 400 rpm

INSTALLATION11.

11.1 Positioning

It is important that your washing machine stands firm and level on the floor to ensure correct operation.

That the appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine door is restricted.

Use a spirit level on the top and side of the washing machine to check the levels.

Line drawing of a washing machine with a close-up inset showing the door handle (no text or symbols)

If you do not have a spirit level, as a guide use the edge of a door frame, cupboard or bench to check that the washing machine is level.

Loosen or tighten the feet to adjust the level. A correct adjustment of the appliance level prevents the vibration, noise and the movement of the appliance when in operation.

Pure mechanical diagram showing a bolt and nut assembly with rotational arrows (no text or symbols)

When the washing machine is levelled, try to rock it from corner to corner. If it does rock, adjust the legs again until it is levelled and does not rock.

Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor.

Install the machine on a flat hard floor. Make sure that air circulation around the machine is not impeded by carpets, rugs etc.

Check that the machine does not touch the wall or cupboard units.

11.2 Water Inlet

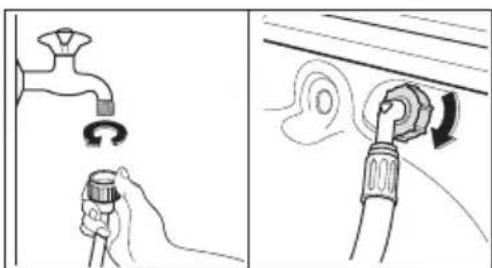

Connect the water inlet hose to a tap with 3/4" BSP thread.

Use the hose supplied with the washing machine. DO NOT USE OLD HOSES.

The other end of the inlet hose which connects to the machine can be turned in any direction.

Simply loosen the fitting, rotate the hose and retighten the fitting, making sure there are no water leaks.

The inlet hose must not be lengthened. If it is too short and you do not wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use.

11.3 Water Drainage

The end of the drain hose can be positioned in three ways:

Hooked over the edge of a sink using the plastic hose guide supplied with the machine.

Diagram of a pipe fitting with a valve attached, showing tubing and a handle (no text or symbols)

In this case, make sure the end cannot come unhooked when the machine is emptying.

This could be done by tying it to the tap with a piece of string or attaching it to the wall.

In a sink drain pipe branch. This branch must be above the trap so that the bend is at least 60 cm above the ground.

Directly into a drain pipe at a height of not less than 60 cm and not more than 90 cm.

The end of the drain hose must always be ventilated, i.e. the inside diameter of the drain pipe must be larger than the outside diameter of the drain hose.

The drain hose must not be kinked. Run it along the floor; only the part near the drainage point must be raised.

For the correct functioning of the machine the drain hose must remain hooked on the proper support piece situated on the top part of back side of the appliance.

11.4 Electrical Connection

This machine is designed to operate on a 220-240 V, single-phase, 50 Hz supply.

"An incorrect power supply may void your warranty."

Check that your domestic electrical installation can take the maximum load required (2.0 kW), also taking into account any other appliances in use.

CAUTION!

Connect the machine to an earthed socket outlet.

The manufacturer declines any responsibility for damage or injury through failure to comply with the above safety precaution.

Should the appliance power supply cable need to be replaced, this should be carried out by our Service Centre.

When the appliance is installed the power supply cable must be easily accessible.

For safety reasons do not use double adaptors, extension cords and multi-plug adapters.

Three black cross symbols on white background: plug, cable, and power plug (no text or labels)

ENVIRONMENT CONCERNS12.

12.1 Packaging Materials

The materials marked with the symbol 🌐 are recyclable.

$$ \begin{array}{l} > P E < = \text { polyethylene } \ > P S < = \text { polystyrene } \ > P P < = \text { polypropylene } \ \end{array} $$

This means that they can be recycled by disposing of them properly in appropriate collection containers.

12.2 Old Machine

Use authorised disposal sites for your old appliance. Help to keep your country tidy!

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

12.3 Ecological Hints

To save water, energy and to help protect the environment, we recommend that you follow these tips:

- Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the environment is protected too!).

• The machine works more economically if it is fully loaded.

- With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature.

• Measure out detergent according to the water hardness, the degree of soiling and the quantity of laundry being washed.

สารบัญ

7 สายไฟ

8 สายน้ำเข้า

9 สายน้ำทิ้ง

10 ที่เก็บสาย

Hand inserting a card into a file drawer (no text or symbols visible)

Hand inserting a coin into a drawer (no text or symbols visible)

Simple line drawing of a bag with a handle and rope, no text or symbols present

• ติดกระดุม

Illustration of hands performing a finger manipulation or massage motion (no text or symbols)

• รูดซิป

Diagram of a mechanical or fluidic component with an upward arrow indicating direction (no text or symbols)

Simple line drawing of a pair of eyeglasses with a black X mark (no text or symbols)

Hand holding a large circular device with a knob, showing mechanical components and a rotation arrow (no text or symbols)

Line drawing of a hand cleaning a washing machine with a cloth (no text or symbols)

Technical line drawing of a door opening with a cross mark indicating a specific component (no text or symbols present)

Interior view of a refrigerator drawer with drawer, door, and side panel (no visible text or symbols)

Hand inserting a coin into a drawer into a machine (no text or symbols visible)

Illustration of a hand inserting a file into a drawer (no text or symbols visible)

Hand inserting a card into a printer (no text or symbols visible)

Illustration showing a device being rotated and then placed on a tray (no text or symbols present)

Illustration showing two steps of a device being processed, with arrows indicating rotation and movement (no text or symbols present)

Illustration of hands using a tool to adjust or install a mechanical component, no text or symbols present

Line drawing of a hand using a tool to adjust or install electronic components on a device (no text or symbols visible)

Illustration of hands using a tool to interact with a faucet (no text or symbols present)

Diagram showing a device with wiring and a close-up of its internal components, no text or symbols present.

Diagram of a mechanical clamp or lever mechanism with a coiled tube and handle (no text or symbols)

Illustration of hands holding a threaded rod with a black arrow indicating force direction (no text or symbols)

Line drawing of a front-loading washing machine with a close-up inset showing internal components (no text or symbols)

1. ข้อมูลทางเทคนิค

Line drawing of a washing machine with a close-up inset showing a component (no text or symbols)

Pure mechanical diagram showing a lever mechanism with two curved arrows indicating rotational motion (no text or symbols)

Diagram of a pipe fitting with a valve and connector, no text or symbols present

P P < = \text { Florida Florida Florida } $$

Repeating pattern of gray squares with white border designs, no text or symbols present
