Product Type	Microwave Oven
Brand	Kenmore
Model	71613
Capacity	1.6 cu ft
Power Output	1000 Watts
Control Type	Touchpad with Digital Display
Dimensions (W x H x D)	20.5 x 12 x 16 inches
Weight	40 lbs
Voltage	120 V
Frequency	60 Hz
Turntable Diameter	12 inches
Functions	Auto Defrost, Popcorn, Reheat, Cook, Timer, Clock
Child Lock	Yes
Interior Light	Yes
Timer	Up to 99 minutes 99 seconds
Cleaning Instructions	Wipe interior and exterior with damp cloth; mild detergent
Safety Features	Auto shut-off, door interlock, child lock
Replaceable Parts	Turntable, glass tray, fuse
Warranty	1 year limited

Frequently Asked Questions - 71613 KENMORE

How do I set the clock on my Kenmore 71613 microwave?

Press the Clock button, then enter the time using the number pad. Press Clock again to confirm. Use AM/PM if applicable.

What is the maximum cooking time?

The timer allows up to 99 minutes 99 seconds for cooking.

How do I use the child lock feature?

Press and hold the Stop/Cancel button for 3 seconds. The display will show a lock icon. Repeat to unlock.

Can I use metal pans in this microwave?

No, do not use metal pans or aluminum foil as they can cause sparks and damage the microwave. Use microwave-safe glass or plastic.

How do I clean the microwave interior?

Wipe with a damp cloth and mild detergent. For tough stains, heat a bowl of water with lemon for 1-2 minutes to loosen residue, then wipe clean.

What does the 'Auto Defrost' function do?

It automatically sets time and power based on the weight of the frozen food. Enter the weight, and the microwave will defrost evenly.

Why is my microwave not heating?

Check if the door is properly closed, the timer is set, and the power cord is plugged in. If still not heating, the magnetron may be faulty; contact service.

How do I replace the turntable glass tray?

Remove the old tray and roller ring. Place the new tray on the roller ring, ensuring it sits flat. You can order replacement parts from Kenmore.

What is the recommended popcorn setting?

Use the Popcorn button which sets time for a standard 3.5 oz bag. For larger bags, adjust time manually.

Where can I find the user manual for model 71613?

Download the PDF manual from the Kenmore support website or the page you found this information on. It contains detailed instructions.

USER MANUAL 71613 KENMORE

For the most prompt assistance to order available replacement parts for this appliance, call 1-844-553-6667 and select option 2 "If you have purchased your Kenmore item at any other store".

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate this oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:
(1) DOOR (bent) or DOOR METAL SCREEN (cracks or breaks)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACES
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

WARNING! The use of this appliance can expose you to chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

Model:	111.71612810 / 111.71619810 / 111.71613810
Rated Voltage: 120V~ 60Hz
Rated Input Power(Microwave): 1600W
Rated Output Power(Microwave): 1100W
Oven Capacity: 1.6 cu.ft. / 45 L
Turntable Diameter: ∅ 13.4 inch / 340mm
External Dimensions: 23.2X18.1X13.3 inch (589X461X339 mm)
Net Weight: Approx. 39.0Lbs (17.7kg)

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic safety precautions, including the following:

1. Read all instructions before using the appliance.

2. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY" found on page 1.

3. As with most cooking appliances, close supervision is necessary to reduce the risk of a fire in the oven cavity.

4. To reduce the risk of fire in the oven cavity:

i) Do not overcook food. Carefully attend the appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. ii) Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. iii) If materials inside the oven ignite, keep the oven door closed. Turn the oven off, and unplug the appliance. Disconnect the power cord, shut off power at the fuse or circuit breaker panel.

iv) Do not use the oven cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

v) Never operate an empty microwave oven. Arcing or sparking in the oven cavity may occur.

1. This oven must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page 3.

2. Install or locate this oven only in accordance with the installation instructions provided.

3. Some products such as whole eggs and sealed containers-for example, closed glass jars- are able to explode and should not be heated in the oven.

4. Use this appliance only for its intended uses as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This oven is specifically designed to heat or cook or dry food. It is not designed for industrial or laboratory use.

5. As with any appliance, close supervision is necessary when used by children.

6. Do not operate this oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.

7. This microwave should be serviced only by qualified service personnel.

8. Do not cover or block any openings on the oven.

9. Do not store or use this appliance outdoors.

10. Do not use this oven near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.

11. Do not immerse cord or plug in water.

12. Keep cord away from heated surfaces.

13. Do not let cord hang over edge of table or counter.

14. When cleaning surfaces of door and oven that come together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth.

15. Do not consume foods immediately after the oven finishes cooking. Heated foods, especially pizza, may burn your mouth. Allow foods to cool to a safe eating temperature.

16. This appliance is for private household use only.

17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through heating it.
iii) Do not use straight-sided containers with narrow necks.
iv) After heating, allow the container to stand in the microwave oven for a short time before removing the container.
v) Use extreme care when inserting a spoon or other utensil into the container.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

DANGER

Electric Shock Hazard

An improperly grounded appliance can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

Three-pronged

(grounding) plug

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. To protect against electrical shock, this appliance is equipped with a cord having a 3-prong grounding-type plug for insertion into a proper grounding-type receptacle. DO NOT alter the plug for use in a 2-prong receptacle. DO NOT use a 3-prong adapter to enable the microwave to be plugged into a 2-prong receptacle. If the plug will not fit into a receptacle, have the proper receptacle installed by a qualified electrician.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that h as a 3-pronged grounding plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3. If a long cord sets or extension cord is used:
   i) The marked electrical rating of the cord set or extension marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   ii) The extension cord must be a grounding-type 3-wire cord.
   iii) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

Radio interference

1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the following measures:

i) Clean door and sealing surface of the oven.
ii) Reorient the receiving antenna of radio or television.
iii) Relocate the microwave oven with respect to the receiver.
iv) Move the microwave oven away from the receiver.
v) Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

CAUTION UTENSILS

Personal injury Hazard Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensils Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

SAFE AND UNSAFE MATERIALS

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5 mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by instructions on package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack or begin to smoke.

SETTING UP YOUR OVEN

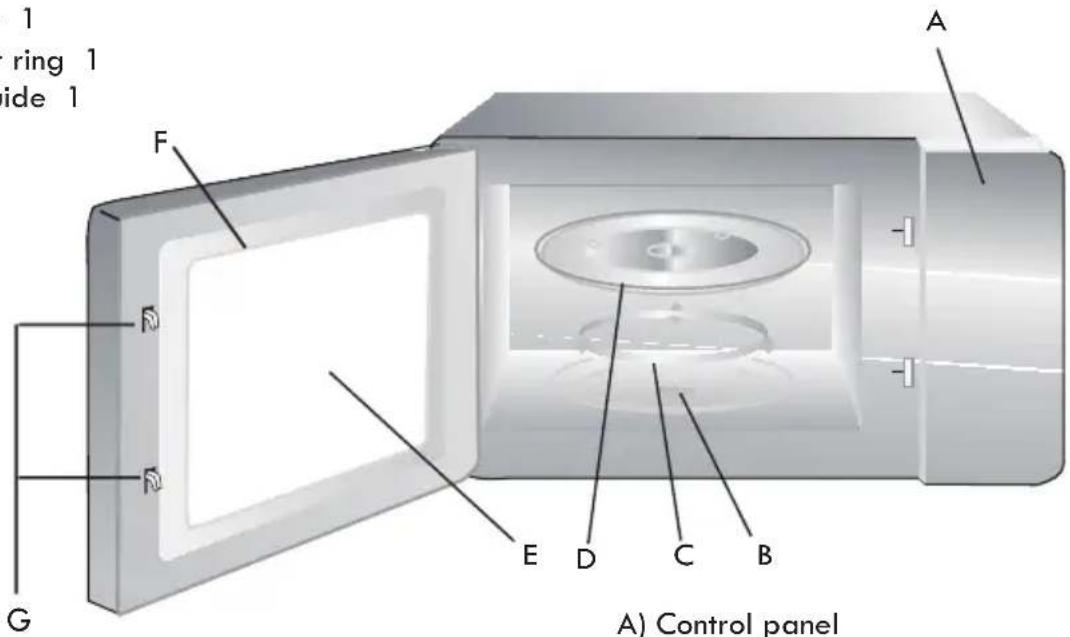

Names of oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass turntable 1

Turntable roller ring 1

Use & Care Guide 1

A) Control panel
B) Turntable shaft
C) Turntable roller ring
D) Glass turntable
E) Observation window
F) Oven Door
G) Safety interlock system

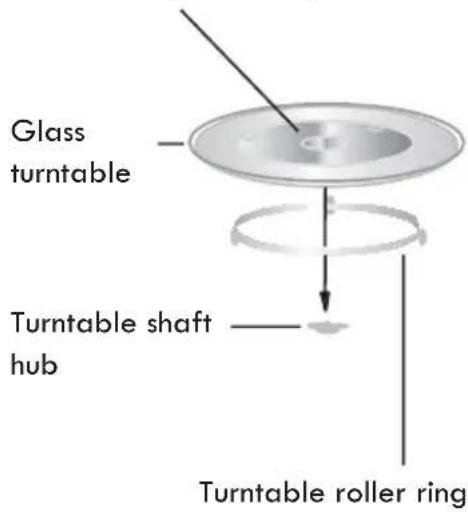

Turntable Installation

Turntable hub (underside)

a. Never place the glass turntable upside down. The glass turntable should never be restricted.

b. Both glass turntable and turntable roller ring must always be used during cooking.

c. All food and containers of food are always to be placed on the glass turntable for cooking.

d. The turntable and roller ring must always be properly installed before operating. First place the roller ring in the floor of the oven cavity. Then fit the knobs of the turntable hub into the notches of the turntable shaft hub. When the turntable is securely in place the turntable perimeter will be correctly positioned over the roller ring wheels.

e. If glass turntable or roller ring cracks or breaks, contact the following customer assistance number:

1-844-553-6667 press 2

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the off-white Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

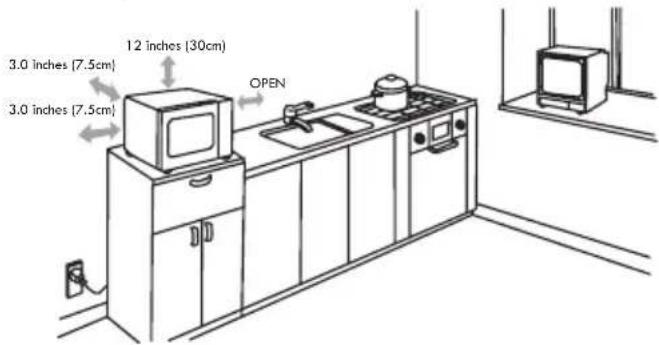

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

A minimum clearance of 3.0 inches

(7.5cm) is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake or outlet vent openings can damage the oven.

(4) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

OPERATION

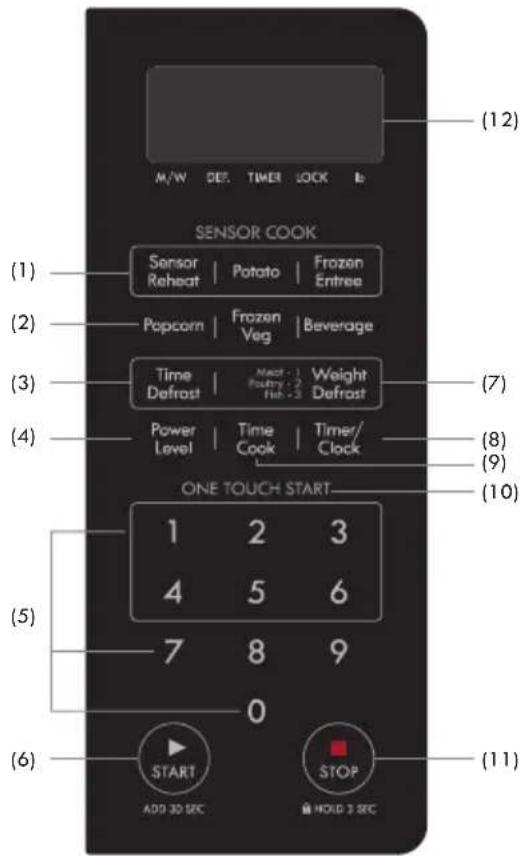

Control Panel and Features

(1) Sensor Cook (Sensor Reheat, Potato, Frozen Entrée) Sensor Cook items automatically program correct cooking time and power based on sensor assessment of the amount of steam emitted from food early in the cooking cycle.

(2) One Touch Cook (Popcorn, Frozen Veg, Beverage) The presets allow you to easily program cooking time based on food quantity.

(3) Time Defrost

(4) Power Level

(5) Number Pads

(6) START/ADD 30 SEC : Press to start cooking or defrosting after other input has been set. Press before any prior input to immediately start cooking at full power for 30 seconds. Press during operation to add 30 seconds to operation time.

(7) Weight Defrost

(8) Timer/Clock

(9) Time Cook

(10) One Touch Start Pads (1-6)

(11) STOP/HOLD 3 SEC : Before cooking starts, press to clear all previous settings. During cooking, press once to stop oven; press twice to stop oven and clear all settings.

Press pad for 3 seconds to lock or unlock display and control panel.

(12) Display Window

OPERATION

CLOCK SETTING

When the microwave oven is plugged into an outlet, " : 0" will display.

(1) Press Timer/Clock once, "12H" will appear in the display.
(2) Press the number pads and enter the current clock time. For example, if the time is now 8:30, press "8, 3, 0" in order. The numbers will flash in the display.
(3) Press Timer/Clock to finish clock setting, ":" will flash and the numbers will appear as a clock time in the display.

Note: (1) If you make a number entry mistake while in the process of setting clock, press to start over. (2) This is a 12 hour clock. If the numbers entered are not within the range between 1:00 to 12:59, the setting will not be accepted until valid numbers are entered.

TIMER

(1) Press Timer/Clock twice, " : 0" and TIMER indicator "v" will appear in the display window.
(2) Press the number pads to enter the time amount. The maximum amount of time that can be enter is 99 minutes 99 seconds.
(3) Press START to confirm setting.
(4) When the time amount elapses, the control panel will beep 3 times.

Note: The Timer setting is different from the Clock setting; it is simply a timer.

TIME COOK

(1) Press Time Cook, " : 0" and M/W (Microwave) indicator "v" will appear in the display window.
(2) Press number pads to enter the cooking time; the maximum cooking time is 99 minutes and 99 seconds.
(3) Press Power Level; PL10 will display. This is the default power level of 100%. Press number pads 0 through 9 to select a different power level if desired. See the Power Level table below.

(4) Press START to start cooking.

Example: To cook the food with 50% microwave power for 15 minutes.

a. Press the Time Cook, " : 0" and M/W (Microwave) indicator "v" will appear in the display window.
b. Press "1, 5, 0, 0" in order for 15:00 to appear in the display.
c. Press Power Level, then press "5" to select 50% microwave power.
d. Press ▶to start cooking.

Note: In the process of setting, if the STOP pad is pressed, the display will return to standby mode.

STANDING TIME

Standing time means that after the timed cooking period ends, food should be allowed to stand either inside or outside the oven to completely finish cooking. Outside oven standing time will allow the oven to be available for other use.

POWER LEVEL

Ten power levels are available.

Power level 0 is also available if you want to program a timed in-oven standing time.

After entering Time Cook digits and prior to starting operation, press Power Level and "PL10" will display. Adjust the power by pressing a number pad as indicated in the table below.

Level 10	9 8 7 6	5 4 3	2 1 0
Power 100	0% 90%	80%	70% 60	0% 50%	40%	30% 20	0% 10%	0%
Display	PL10	PL-9	PL-8	PL-7	PL-6	PL-5	PL-4	PL-3	PL-2	PL-1	PL-0

ONE TOUCH START

(1) Instant cooking at 100% power level and 1 to 6 minutes cooking time can be started by pressing number pads 1 to 6.

(2) Instant cooking at 100% power level and 30 seconds cooking time can be started by pressing START. Each repeated press will increase cooking time by 30 seconds.

The maximum cooking time is 99 minutes, 99 seconds.

Note: Time can also be added in 30 second increments by pressing START during Microwave Cooking.

WEIGHT DEFROST FUNCTION

(1) Press Weight Defrost, "dEF1" and DEF. indicator "v" will appear in the display window. Press the same pad repeatedly, "dEF1", "dEF2", "dEF3" will display in order.

LED display	dEF1	dEF2	dEF3
Food	Meat	Poultry	Fish

(2) Press number pads to enter the weight to be defrosted.

Input the weight range between 0.2 to 6.0 lbs.

The lb indicator ""v" will flash in the display window.

If the weight input is not between 0.2 to 6.0 lbs, the input will be invalid. The oven will not operate until valid numbers are entered.

(3) Press START to start defrosting and the cooking time remaining will be displayed.

Note: During the Defrost cycle, the oven will beep to remind you to turn over the food. Turn over food, close door and press ▶to resume defrost cycle.

TIME DEFROST FUNCTION

(1) Press Time Defrost, " : 0" and DEF. indicator "v" will appear in the display window.
(2) Press number pads to input defrosting time. The time range is between 00:01 and 99:99.
(3) Press (START) to start defrosting. The remaining cooking time will be displayed.

Note: During the Defrost cycle, the oven will beep to remind you to turn over the food. Turn over food, close door and press ▶to resume defrost cycle.

ONE TOUCH COOK

POPCORN

(1) Press Popcorn repeatedly until the number you wish appears in the display, "3.2", "3.0", "1.75" will appear in the display in order.

Press Once: Popcorn 3.2 oz

Press Twice: Popcorn 3.0 oz

Press 3 Times: Popcorn 1.75 oz

(2) Press ▶ to start cooking. Cook time for size chosen appears in the display. Oven beeps 3 times when cooking is finished.

FROZEN VEG

(1) Press Frozen Veg repeatedly until the number you wish appears in the display, "4", "8", "16" oz will display in order.
(2) Press ▶to start cooking. Cook time for number chosen appears in the display. Oven beeps 3 times when cooking is finished.

BEVERAGE

(1) Press Beverage repeatedly until the number you wish appears in the display, "1", "2", "3" cup will display in order.
(2) Press ▶to start cooking. Cook time for number chosen appears in the display. Oven beeps 3 times when cooking is finished.

Food Amount Comments
Popcorn	1.75oz.3.0oz.3.2oz. Use only with prepackaged microwave popcorn weighing 1.75, 3.0,3.2 ounces.Do not use this feature twice in succession on the same food portion –it may result in severely overcooked or burnt food.
Frozen Veg.	4oz.8oz.16oz. Follow package instructions for adding water. Cover with lid or vented plastic wrap.Do not use this feature twice in succession on the same food portion –it may result in severely overcooked or burnt food.
Beverage (200ml/1cup)	1cup2cups3cups Do not cover.Drinks heated with the Beverage feature may be very hot.Remove the container with care.Do not use this feature twice in succession on the same food portion –it may result in severely overcooked or burnt food.

SENSOR COOK (Sensor Reheat, Potato, Frozen Entrée)

CAUTION: DO NOT consume foods immediately after the oven finishes cooking. Heated foods, especially pizza, may burn your mouth. Allow foods to cool to a safe eating temperature.

(1) Place the food in the oven and close the door. Press the appropriate Sensor cook item pad, and Press START to start cooking.
(2) When the released steam is detected by the oven, the remaining cooking time will appear in the display. Oven beeps 3 times when cooking is finished.

Note:

(1) For best sensor cooking results:

a. The room temperature cannot be over 95^ F ( 35^ C).
b. The weight of food must be more than 4 oz (110g).
c. The oven cavity, glass tray and utensils must be dry.

(2) During cooking:

a. The food can be covered, but the cover or lid must be vented with a hole to allow steam to escape.
b. Do not open door or pressing (STOP) at any time during sensor cooking, or will stop the cooking process and return the oven to standby mode.

Example: Potato Sensor Pad

(1) Press Potato pad once, "SCPO" will appear in the display.
(2) Press ▶ to start cooking. "SEnS" will appear in the display.

Food Amount	Comments
Sensor Reheat 4-36oz.		Cover with vented plastic wrap.After removing food from the oven, stir, if possible, to even out the temperature. Reheated foods may have wide variations in temperature. Some areas may be extremely hot.If food is not hot enough after the countdown, use Time Cook for additional reheating time.
Potato	8-16oz.(1-2 potatoes)	Pierce skin with fork. Place potatoes on the turntable.
Frozen Entrée 8-32oz.		Cover with vented plastic wrap.After removing food from the oven, stir, if possible, to even out the temperature. Reheated foods may have wide variations in temperature. Some areas may be extremely hot.If food is not hot enough after the countdown, use Time Cook for additional reheating time.

MULTI-STAGE COOKING

At most 2 stages can be set for cooking.

Note: ONE TOUCH COOK, ONE TOUCH START and SENSOR COOK cannot be used in multi-stage cooking.

Example: 80% Power Level for 5 minutes followed by 60% Power Level for 10 minutes;

a. Press Time Cook once, then press "5", "0" and "0" to set first stage cook time.
b. Press Power Level once, then press "8" to choose 80% first stage cooking power.
c. Press Time Cook again, then press "1", "0", "0" and "0" to set second stage cook time.
d. Press Power Level again, then press "6" to choose 60% second stage cooking power.
e. Press ▶ to immediately start multi-stage cooking.

LOCK FUNCTION

To lock the microwave so that it cannot be operated by children or other unintended users, press STOP pad for 3 seconds. You will hear a long beep and "Loc" and LOCK indicator "v" will appear in the display window.

To Unlock, press STOP for 3 seconds, You will hear a long beep and the LOCK indicator "v" will disappear in the display window.

COOKING END REMINDER FUNCTION

The oven will beep 3 times to alert the user that cooking time has ended. "End" will display.

The time of day will display by opening the door or pressing ■ STOP pad.

Maintenance

CLEANING

Wipe the oven inside and outside with a soft cloth and a mild detergent solution. Then rinse and wipe dry. This should be done weekly or more often, if needed. Never use cleaning powders or rough pads. Excessive oil splatters on the inside top will be difficult to remove if left for many days. Wipe splatters with a wet paper towel, especially after cooking chicken or bacon.

REMOVABLE PARTS

The turntable and turntable roller ring are removable. They should be hand-washed in warm (not hot) water with a mild detergent and a soft cloth. Once they are clean, rinse well and dry with a soft cloth. Never use cleaning powders, steel wool, or rough pads.

• The turntable may be cleaned in the sink. Be careful not to chip or scratch the edges as this may cause the turntable to break during use.
• The turntable roller rest should be cleaned regularly.

SPECIAL CARE

For best performance and safety, the inner door panel and the oven front frame should be free of food or grease buildup. Wipe often with a mild detergent; then rinse and wipe dry.

Never use cleaning powders or rough pads.

After cleaning the control panel, touch STOP twice to clear any entries that might have been entered accidentally while cleaning the panel.

Troubleshooting

Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the following number for customer assistance: 1-844-553-6667 press 2.

TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Oven will not start	a. Electrical cord for oven is not plugged in.b. Door is open.c. Invalid operation settings.	a. Plug into the outlet.b. Close the door and try again.c. Check instructions.
Arcing or sparking	a. Materials to be avoided in microwave oven were used.b. The oven is operated when empty.c. Spilled food remains in the cavity.	a. Use microwave-safe cookware only. See Safe and Unsafe Materials.b. Do not operate with oven empty.c. Clean cavity with wet towel.
Unevenly cooked foods	a. Materials to be avoided in microwave oven were used.b. Food is not defrosted completely.c. Cooking time, power level is not suitable.d. Food is not turned or stirred.	a. Use microwave-safe cookware only. See Safe and Unsafe Materials.b. Completely defrost food.c. Use correct cooking time, power level.d. Turn or stir food.
Overcooked foods	Cooking time, power level is not suitable.	Use correct cooking time, power level.
Undercooked foods	a. Materials to be avoided in microwave oven were used.b. Food is not defrosted completely.c. Oven vents are blocked or restricted.d. Cooking time, power level is not suitable.	a. Use microwave-safe cookware only. See Safe and Unsafe Materials.b. Completely defrost food.c. Check to see that oven ventilation ports are not restricted.d. Use correct cooking time, power level.
Improper defrosting	a. Materials to be avoided in microwave oven were used.b. Cooking time, power level is not suitable.c. Food is not turned or stirred.	a. Use microwave-safe cookware only. See Safe and Unsafe Materials.b. Use correct cooking time, power level.c. Turn or stir food.

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is correctly installed, operated and maintained according to all supplied instructions.

WITH PROOF OF SALE a defective appliance will be replaced free of charge. For warranty coverage details to obtain free replacement, visit the web page: www.kenmore.com/warranty

This warranty does not cover the oven cavity light bulb, which is an expendable part that can wear out from normal use within the warranty period.

This warranty is void if this appliance is ever used for other than private household purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

GARANTÍA LIMITADA DE KENMORE

Sears Brands Management Corporation, Hoffman Estates, IL 60179
