USER MANUAL MDD264 LG

MDS714-A5U_karaoke_LGEPS_SPA 2/27/09 10:49 AM Page 1

SISTEMA MINI COMPONENTE CON KARAOKE

LG

Life's Good

MDS714 (MDS714-A5U, MDS714V/C/S/W)

MDT364 (MDT364-A5U, MDS364V/W)

JPEG disc compatibility with this player is limited as follows:

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction has been adhered to.

CAUTION: This product employs a Laser System.

To ensure proper use of this product, please read this owner's manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus. CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, trayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

As an ENERGY STAR ^1 Partner, LG has determined that this product or product models meet the ENERGY STAR ^2 guidelines for energy efficiency.

ENERGY STAR ^® is a U.S. registered mark.

Contents

Safety Precaution 2

Contents 3

Recording to USB	17
Recording to TAPE 18
Synchronized Recording from CD to TAPE	18

Setting up 4

Hooking up the unit 5

Main Unit 6

Remote control 7

Initial Setting the Area Code 8

Adjust the general settings 8-10

Setting the sound mode 10-11

Setting the clock 11

Karaoke Basic Playback	19
Reserving the Song	19
Karaoke Menu Playback	20

Displaying Disc Information 12

Playing a Disc 12-14

Viewing photo files 14

Listening to the radio 15

Listening to the cassette tapes 15

Listening to music from your portable player

or external device 16

Using an USB device 16

Language Codes 21
Area Codes	21
Troubleshooting	22
Types of Playable Discs	23
Specifications	24

Power Save Mode

You can set up the unit into an economic power save mode.

In power-on status, press and hold ⏻/1 button for about 3 seconds.

- Nothing is displayed in the display window when the unit is turned off.

To cancel, press ⏻/I.

MDS714-A5U_karaoke_LGEPS_ENG 2/27/09 10:11 AM Page 4

Setting up

Attaching the speakers to the unit

Connect the black end of each wire to the terminals marked - (minus) and the other end to the terminals marked + (plus).

To connect the cable to the each speakers, press each plastic finger pad to open the connection terminals on the back of each speaker. Insert the wire and release the finger pad.

MDS714 (5.1 channel)

COLOUR	SPEAKER	POSITION
Grey	Rear	Behind you and to your right.
Red	Front	In front of you, to the right of the screen.
Green	Center	Above screen, directly in front of you.
Orange	Sub Woofer	This can be placed in any front position.
Blue	Rear	Behind you and to your left.
White	Front	In front of you, to the left of the screen.

MDT364 (2.1 channel)

COLOUR	SPEAKER	POSITION
Red	Front	In front of you, to the right of the screen.
White	Front	In front of you, to the left of the screen.
Orange	Sub Wooler	This can be placed in any front position.

MDD264 (2 channel)

COLOUR	SPEAKER	POSITION
Red	Front	In front of you, to the right of the screen.
White	Front	In front of you, to the left of the screen.

Remote control Operation

Point the Remote Control at the display window and press the buttons.

Remote control Battery Installation

1 Detach the battery cover on the rear of the remote control2 Insert the R03 (size AAA) battery with ⊕ and ⊖ aligned correctly.

Be careful of the following

• Be careful to make sure children not to put their hands or any objects into the *speaker duct.
  * Speaker duct : A hole for plentiful bass sound on speaker cabinet (enclosure).

MDS714-A5U_karaoke_LGEPS_ENG

2/27/09

10:11 AM

Page 5

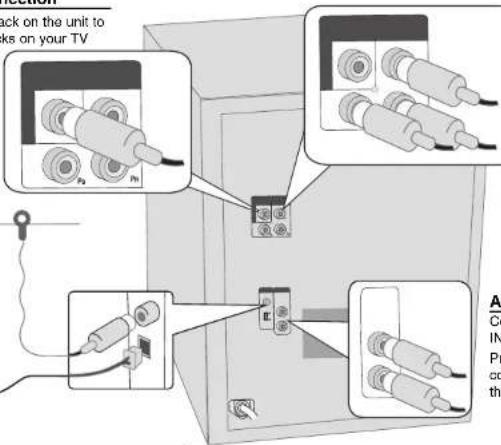

Hooking up the unit

VIDEO OUT Jack connection

Connect the VIDEO OUT jack on the unit to the corresponding input jacks on your TV using a Video cable.

COMPONENT VIDEO OUT (PROGRESSIVE SCAN) Jacks connection

Connect one end of the component(Y PB PR) cable to the COMPONENT VIDEO OUT (PROGRESSIVE SCAN) jack on the unit and other end to the COMPONENT INPUT jack on your TV.

Antenna connection

Fit the AM loop aerial to its stand

Connect the AM loop aerial to the unit.

Connect the FM aerial

The reception will be at its best when the two loose ends of the aerial are in a straight line and horizontal.

AUX IN (L/R) jacks connection

Connect a VCR or Auxiliary device, etc. to the INPUT jack of this unit.

Press the FUNCTION button on the remote control until the "AUX" indicator is displayed in the display window.

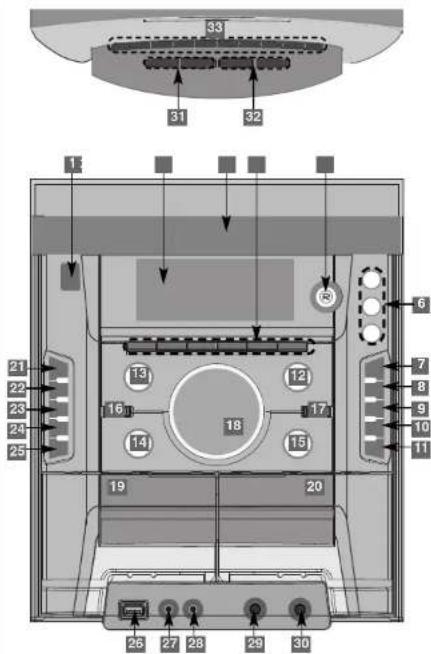

Main unit

1 Turn ON/OFF.
2 Display window
3 Disc tray
4 - ●/II Recording/Pauses

-

REWIND or FAST FORWARD

Auto Tuning/ SCAN/ Setting clock

- ◀▶ PRESET

FORWARD/ REVERSE PLAY

- ■Stop

5 USB direct recording

6 PRO EQ

BASS (100 Hz)/MIDDLE (1 KHz)/

TREBLE (10 KHz)

7 CD OPEN

8 DISC SKIP

Choose a desired disc.

9 DUBB. Recording from tape to tape.

CD SYNC. CD to Tape Synchronized.

ST./MO. To improve the FM reception

on TUNER.

10 SET Confirms the settings.

(TIMER/CLOCK/PRO EQ)

CD II Pauses

11 REV. MODE

Scroll through a selection of cassette

playing options.

DEMO

In power off state to

demonstrate the function on display

window. To cancel it, press 📋/ or

this button again.

12 AUX/PORT

Auxiliary device/ Portable in.

13 Selects TUNER function.

14 Selects TAPE function.

15 Selects KARAOKE/ DVD/CD function

16 Selects USB function.

17 PRO EQ

18 Volume control

19 20 Cassette Door 1, 2

21 TIMER

(Use your player as an alarm clock.)

22 CLOCK (See setting the Clock)

23 24 EQ/LG EQ

You can choose fixed sound

impression.

25 XDSS plus

Reinforce the treble, bass and surround effect.

26 USB connector

27 PHONES Headphone jack

28 PORT. IN For connecting a portable

device and playing it through this system's speakers.

29 30 MIC 1.2

31 ECHO VOL. A/V

Adjust microphone echo volume.

32 MIC VOL. ∧/V

Adjust microphone volume.

33 0-9 numerical buttons: Selects num-

bered options in a menu.

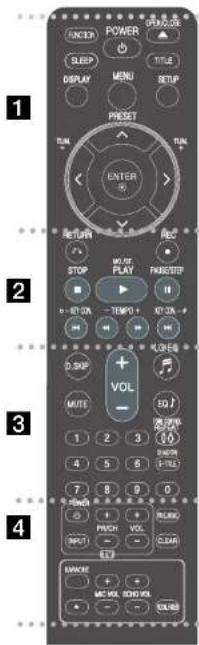

Remote control

1

POWER: Switches the unit ON or OFF.

FUNCTION: Changes the function.

SLEEP: Sets the System to turn off automatically at a specified time. (Dimmer : Dims the LED (Light-emitting diode) of front panel by half in power-on status.)

OPEN/CLOSE (▲): Open or close your CD door.

TITLE: If the current DVD title has a menu, the title menu appears on the screen. Otherwise, the disc menu may appear.

DISPLAY: Accesses On-Screen Display.

MENU: Accesses the menu on a DVD disc.

SETUP: Accesses or removes setup menu.

<> ∧ ∨ (left/right/up/down): Used to navigate on-screen

displays.

ENTER: Acknowledges menu selection.

PRESET (A V): Selects programme of Radio.

TUN. +/- (<>) : Tunes in the desired radio station,

2

RETURN (♂): Moving back wards in the menu.

REC (●): Recording to USB/TAPE.

STOP (■): Stops playback or recording.

PLAY (▶): Starts playback.

MO./ST.: MONO/STEREO FM mode state, selects MONO

or STEREO by pressing this button.

PAUSE/STEP(Ⅱ): Pausing playback.

KEY CON.(b/#): You can change the key to suit your vocal range in KARAOKE mode.

TEMPO (-/+): This function enable you to play fast or slow the music speed in KARAOKE mode.

SCAN(◄◄►): Search backward or forward.

SKIP(I<</▶▶): Go to next or previous chapter/track/Title.

3

D. SKIP(DISC SKIP): Choose a desired disc.

MUTE: To mute the sound.

VOL (Volume) +/-: Adjusts speaker volume.

EQ/LG EQ (EQUALIZER Effect): You can choose sound impressions.

0-9 numerical buttons: Selects numbered options in a menu.

TONE CONTROL( ) Adjusts man's or woman's key in the karaoke mode.

REPEAT: To select a play mode.(Random, Repeat)

SHADOW: It will be highlighted by background shadow.

S-TITLE: During playback, you can select a desired subtitle language.

4

Controlling the TV.

You can control the sound level, input source, and power switching of LG TVs as well. Hold POWER (TV) and press PR/CH (+/-) button repeatedly until the TV turns on or off.

TV Control buttons : Controls the TV. (LG TV only)

PROG./MEMO.: Accesses or removes Program menu.

CLEAR: Removes a track number on the Program List.

KARAOKE: In DVD Function, it can change to Karaoke

function.

MIC VOL.(+/−): Adjusts microphone volume.

ECHO VOL.(+/-): Adjusts echo volume.

VOCAL FADER: You can enjoy the function as karaoke, by reducing singer vocal of music in the various source.

* : This button is not available.

Initial Setting the Area Code

When you use this unit for the first time, you have to set the Area Code as shown below.
	ON REMOTE
1 Display setup menu SETUP
2 Select LOCK menu on the first level	V
3 Move to second levelThe activated Area Code appears on the second level.	>
4 Move to the third level	>
5 Enter a new password numerical buttons	(0-9) and ENTER
6 Recheck the entered new password numerical buttons (0-9) and ENTER
7 Select a code for a geographic areaAfter select, Rating and Password will be activated. (page 21) ENTER	V < > and
8 To confirm what you pressMake sure to finish setting the Area Code before leaving the setup menu if you cannot set the rating and Password ENTER

Adjust the general settings

	ON REMOTE
1 Display setup menu SETUP
2 Select a desired option on the first level	V
3 Move to second level	>
4 Select a desired option on the second level	V
5 Move to third level	>
6 Change the setting	V and ENTER

Adjust the general settings - More you can do

Adjust the language settings

OSD – Selects a language for the Setup menu and on-screen display.

Disc Audio/ Disc Subtitle/ Disc Menu – Selects a language for the Audio/

Menu/ Subtitle.

[Original]: Refers to the original language in which the disc was recorded.

[Others]: To select another language, press number buttons then ENTER to enter the corresponding 4-digit number according to the language code list in the reference chapter. Refer to the language code on Page 21.

[OFF] (for Disc Subtitle): Turn off Subtitle.

MDS714-A5U_karaoke_LGEPS_ENG 2/27/09 10:11 AM Page 9

Adjust the display settings

TV Aspect – Select which screen aspect to use based on the shape of your TV screen.

[4:3]: Select when a standard 4:3 TV is connected.

[16:9]: Select when a 16:9 wide TV is connected.

Display Mode – If you selected 4:3, you'll need to define how you would like widescreen programs and films to be displayed on your TV screen.

[Letterbox]: This displays a widescreen picture with black bands at the top and bottom of the screen.

[Panscan]: This fills the entire 4:3 screen, cropping the picture as necessary

Progressive Scan

Progressive Scan Video provides the high quality pictures with less flickering. If you are using the Component Video jacks for connection to a TV or monitor that is compatible with a progressive scan signal, set [Progressive Scan] to [On]. Press ENTER to confirm your selection - If you not press ENTER within 10 seconds it will be [OFF].

Adjust the audio settings

DRC (Dynamic Range Control) – Make the sound accurate when the volume is turned down (Dolby Digital only). Set to [On] for this effect.

Vocal – Select [On] to mix karaoke channels into normal stereo. This function is effective for multi-channel karaoke DVDs only.

5.1 Speaker Setup (MDS714)

	ON REMOTE
1 Open the settings menu SETUP
2 Select the audio icon	V
3 Select right to enter the audio menu, then select 5.1 Speaker Setup	> ENTER
4 Select the speaker you want to adjust	< >
5 Select an option and change the settings	V < >
6 Set the output level (volume) of a speaker from -5dB to +5dB.	< >
7 if you connect speakers to your unit, setting the Distance lets the speakers to know how far the sound has to travel to reach your set listening point. This allows the sound from each speaker to reach the listener at the same time.	< >
8 Test the signals of each speakerAdjust the volume to your taste according to these signals.	< >
9 Save your settings and exit the Setup menu	RETURN

MDS714-A5U_karaoke_LGEPS_ENG 2/27/09 10:11 AM Page 10

Adjust the lock settings

To access the lock options, you must enter the 4-digit password. If you have not yet entered a password you are prompted to do so. Enter a 4-digit password. Enter it again to verify. If you make a mistake while entering number, press CLEAR to delete numbers then correct it.

If you forget your password you can reset it. Press SETUP and Input '210499' and press ENTER. The password has now been cleared.

Area code – Select a code for a geographic area as the playback rating level. This determines which area's standards are used to rate DVDs

Rating – Select a rating level. The lower the level, the stricter the rating. Select [UNLOCK] to deactivate the rating.

Password – Sets or changes the password for lock settings.

[New]: Enter a new 4-digits password using the numerical buttons then press ENTER. Enter the password again to confirm.

[Change]: Enter the new password twice after entering the current password.

Adjust the others settings

DivX (R) Registration - We provide you with the DivX® VOD (Video on demand) registration code that allows you to rent and purchase videos using the DivX® VOD service.

For more information, visit www.divx.com/vod.

Press ENTER when [Select] icon is highlighted and you can view the registration code of the unit.

SSR (Real Time Score) - This function will be show the Score to real time by checking interval and beat during sing a song in the karaoke mode only.

Selects the [On]: Score bar shows levels while checking the interval and beat. Selects the [Off]: Score bar are not display on the screen. -This function is not supported the Semi karaoke mode.

Semi Karaoke - When a chapter/ title/ track is fully finished, this function shows the score in the screen with a fanfare sound.

• Semi Karaoke on:

When you finished singing a score will appear on the screen.

- Semi Karaoke off: Fanfare and score do not appear on the screen.

Notes:

- DVD, DVD Karaoke discs with more than 2 tracks are available discs for the this function.

- When you watch movies, "off" the Semi Karaoke at the SETUP menu or enjoy it without connecting the MIC if the fanfare or score appears during changing a chapter.

Setting the sound mode

PRO EQ

1 Press PRO EQ.
2 When "PRO EQ" is displayed.
3 Select the sound effect you want among BASS (100 Hz), MIDDLE (1 kHz), TREBIE (10 kHz).
4 Adjust sound level turning each band control knob.
5 To finish the setting, press SET/CD II.
- This function is not available when a microphone is connected.

VOCAL FADER

You can enjoy the function as karaoke, by reducing singer vocal of music in the various source. (MP3/ WMA/ CD/ Dolby Digital/ etc.) Press the VOCAL FADER, and "FADE ON" will appear in display window.

To cancel it, press VOCAL FADER again.

• This function is available to use only when a microphone is connected.
• The quality of the VOCAL FADER may be different depending on the recording conditions of music files.
• It is not available on the MONO mode.

Enjoying a pre-programmed sound field

The system has a number of pre-set surround sound fields. You can select a desired sound mode by using EQ/LG EQ.
The displayed items for the Equalizer may be different depending on sound sources and effects.

ON DISPLAY	Description
NATURAL You can	enjoy comfortable and natural sound.
Local Regionally optimized sound effect.(DANGDUT/ ARABIC/ Specialization PERSIAN/ INDIA/ REGUETON/ MERENGUE/ SAMBA/ equalizer SALSA)
AUTO EQ Realizes	the sound equalizer that is the most similar to the genre of which is included in the MP3 ID3 tag of song files.
POP This program	lends an enthusiastic atmosphere to the
CLASSIC sound, giving you the feeling you are at an actual rock, ROCK pop, jazz or JAZZ	classic concert.
MP3 OPT This function is optimized for compressible MP3/WMA file. It improves the bass sound.
XDSS ON Reinforce	the troble, bass and surround sound effect.
VIRTUAL You can	enjoy more virtual surround sound.
NORMAL(OFF)	You can enjoy the sound without equalizer effect.
PLII MOVIE	Dolby Pro Logic II enables you to play stereo source on 5.1-channel.
PLII MUSIC
PLII MTRX(matrix)

Setting the Clock

	ON PLAYER
1 Turn the power on	⚡/I
2 Press for at least 2 seconds	CLOCK
3 Choose from either AM 12:00 (for an AM and PM display) or 0:00 (for a 24 hour display)	Ivory/▶▶▶
4 Confirm your selection	SET
5 Select the hours	Ivory/▶▶▶
6 Press	SET
7 Select the minutes	Ivory/▶▶▶
8 Press	SET

Using your player as an alarm clock

1 Press and hold TIMER. Each functions flashes(Ex. TUNER, USB, ...)
2 Press SET when the function you want to be woken by is showing. If you choose TUNER, "PLAY" and "REC" flashes in the display window alternately.
3 Choose one of them by pressing the SET.
4 "ON TIME" will be displayed. This is where you set the time you want the alarm to start. Use ◄◀/▶◀ to change the hours and minutes and SET to save.
5 The "OFF TIME" will be displayed. This is where you set the time you want the function to stop.
6 Use ◀◀/▶◀ to change the hours and minutes and press SET to save.
7 You will be shown the volume (VOL) you want to be woken by. Use I◄◄/►► to change the volume and SET to save. Switch the system off. The clock icon "◎" shows that the alarm is set.
8 When the system is turned off you can check the time the alarm and turn the alarm on and off by pressing TIMER.

Fall asleep while listening to your player

Press SLEEP one or more times to select delay time between 10 and 180 minutes, after the player will turn off. To check the remaining time, press SLEEP.

Displaying Disc Information

	ON REMOTE
1 Press
2 Select an item	V
3 Adjust the Display menu settings	<<<>>
4 To return the exit DISPLAY

Displaying Disc Information - More you can do

You can select an item by pressing V and change or select the setting by pressing <>

Current title (or track/ file)

number/total number of titles (or tracks/files)

Current chapter number/total number of chapters

Elapsed playing time

Selected audio language or channel

Selected subtitle

Selected angle/total number of angles

Selected Sound/EQ mode

Symbol Used in this Manual

All discs and file listed below MP3		MP3A
DVD and finalized DVD ± R/RW WDVDs		WMA
DivX files	Audio CDs	ACDD

Playing a Disc

	ON PLAYER	ON REMOTE
1 Open the disc DISPLAY	CD OPEN	▲ OPEN/CLOSE
2 Insert a disc
3 Close the disc tray	CD OPEN	▲ OPEN/CLOSE
4 To Start playback	▶	▶
5 To stop playback	■	■

Playing a Disc - More you can do

Playing a DVD that has a menu DVD

Most DVDs now have menus which load first before the film begins to play. You can navigate these menus using < > V to highlight an option. Press ENTER to select.

Skipping to the next/previous chapter/ track/ file ALL

Press ▶▶ to move to the next chapter/ track/ file.

Press ◀◀ to return to the beginning of the current chapter/ track/ file.

Press ◀◀ twice briefly to step back to the previous chapter/ track/ file.

Pausing a playback ALL

Press PAUSE/STEP (III) to pause playback. Press ▶ to continue playback.

Frame-by-Frame playback DivXD

Press PAUSE/STEP (II) repeatedly to play Frame-by-Frame playback.

Playing repeatedly or randomly ALL

1 Press REPEAT repeatedly. The current track' file will be played back repeatedly or randomly.
2 To return to normal playback, press REPEAT repeatedly to select [Off].

Selecting a subtitle language DivXD

During playback, press S-TITLE on the remote control repeatedly.

Fast forward or fast reverse ALL

1 Press ◀◀ or ▶▶ on remote control during playback.
2 You can change the various playback speed by pressing ◀◀ or ▶▶ repeatedly.
3 Press ▶ to continue play at normal speed.

1.5 times faster playback DVD

1 Press ▶[when a disc is already playing to watch and listen.
2 ▶ x1.5 will appear on the screen.
3 Press ▶ again to return to normal playback speed.

Slow down the playing speed

1 While playback is paused, press ◀◀/▶▶.
2 You can change the various playback speed by pressing ◀◀/▶▶ repeatedly.
3 Press ▶ to continue play at normal speed.

Starting play from selected time DivXD

Searches for the starting point of entered time code.
1 Press DISPLAY then select clock icon. and then press ENTER.
2 Enter a time then press ENTER.
For example, to find a scene at 1 hour, 10 minutes, and 20 seconds, enter
"11020" by using numerical buttons and press ENTER. If you enter the wrong
number, press CLEAR to enter again.

Last Scene Memory DVD

This unit memorizes last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the player or switch off the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

Screen Saver

The screen saver appears when you leave the unit in Stop mode for about five minutes.

System Select - Optional

You must select the appropriate system mode for your TV system. In DVD/CD function, remove any disc that might be in the unit, press and hold PAUSE/STEP (II) for more than five seconds to be able to select a system (PAL, NTSC, AUTO).

Mixed disc or USB Flash Drive - DivX, MP3/WMA and JPEG

When playing a disc or USB Flash Drive contained with DivX, MP3/WMA and JPEG files together, you can select file type with MENU button on the remote control.

Changing the character set to display DivX® subtitle correctly DivX

1 If the subtitle dose not display properly, press and hold S-TITLE about
3 seconds to display the language code menu.
2 Press S-TITLE repeatedly to change the language code until the subtitle is displayed properly.

DivX disc compatibility with this player is limited as follows DivX

• Available resolution size of the DivX file is under 800x600 (W x H) pixel.
• The file name of the DivX subtitle is available by 45 characters.
- If there is impossible code to express in the DivX file, it may be displayed as " _ " mark on the display.
- If the number of the screen frame is over 30 per 1 second, this unit may not operate normally.
- If the video and audio structure of recorded files are not interleaved, either video or audio is outputted.

playable DivX file : ".avi", ".mpg", ".mpeg", ".divx"
playable Subtitle format : SubRip(*.srt/*.txt), SAMI(*.smi), SubStation
Alpha(*.ssa/*.txt) MicroDVD(*.sub/*.txt) SubViewer 2.0(*.sub/*.txt)
VobSub('.sub)
Playable Codec format : "DIVX3.xx", "DIVX4.xx", "DIVX5.xx", "MP4V3", "3IVX".
Playable Audio format: "AC3", "PCM", "MP3", "WMA".

Creating your own program IMP3V

You can play the contents of a disc in the order you want by arranging the order of the songs on the disc. The program is cleared when the disc is removed.

1 Select a desired music then press PROG./MEMO. or select "p+" and then press ENTER to add the music to the program list.
2 To add all music in the disc, select "n= * and then press ENTER.
3 Select a music from the program list then press ENTER to start programmed playback.
4 To clear a music from the program list, select the music you want to clear then press CLEAR or select "s" icon and then press ENTER.

To clear all music from the program list, select *a _i then press ENTER.

Displaying file information (ID3 TAG) MP3

While playing a MP3 file containing file information, you can display the information or time by pressing DISPLAY repeatedly.

MP3 / WMA disc compatibility with this player is limited as follows MP3V

• Sampling frequency: within 32 - 48 kHz (MP3/ WMA)
• Bit rate: within 32 - 320kbps (MP3). 40 - 192kbps (WMA)
• The unit cannot read an MP3/ WMA file that has a file extension other than ".mp3" / ".wma".

- CD-R physical format should be ISO 9660 LEVEL 1/ JOLIET

- If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.

- File names should have a maximum of 8 letters and must incorporate an .mp3 or .wma extension.

• They should not contain special letters such as /? *: * < > I etc.

- The total number of files on the disc should be less than 999.

This unit requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Viewing photo files

	ON PLAYER	ON REMOTE
1 Open the disc tray	CD OPEN	▲OPEN/CLOSE
2 Insert a Disc	-
3 Close the disc tray	CD OPEN	▲OPEN/CLOSE
4 Select a photo file on the menu	-	^V
5 Display the selected file in full screen	▶	ENTER
6 To stop playback	■	■

Viewing photo files - More you can do

Viewing photo files as a slide show

1 Use < > A V to highlight (▶Icon then press ENTER to start slide show.
2 You can change slide show speed (3, 5, 8 seconds) using < > when (图标) icon is highlighted.

Skipping to the next/previous photo

Press ◀◀ or ▶▶ to view the previous/next photo.

Rotating a photo

Use ∧ ∨ to rotate the photo in full screen.

Pausing a slide show

1 Press PAUSE/STEP (II).

2 Press ▶or ▶ to continue the slide show.

JPEG disc compatibility with this player is limited as follows:

• Normal: 5120 x 3840, Progressive: 2043 x 1536
• Recording condition: ISO9660 LEVEL 1/ JOLIET
• Maximum files : Under 999.
• Some discs may not operate due to a different recording format or the
condition of disc.
- File extensions: ".jpg"

Listening to the radio

	ON PLAYER	ON REMOTE
1 Select FM/ AM	TUNER	FUNCTION
2 Select the radio station	I◄◄/►►H	TUN. +/-
3 To 'save' a radio stationA preset number will show inthe display.		PROG./MEMO.
4 Select the preset number	◄ / ►	PRESET ∧ V
5 To confirm pressUp to 50 radio stations can besaved		PROG./MEMO.
6 To select a 'saved' stationpress	◄ / ►	PRESET ∧ V

Listening to the radio - More you can do

Looking for radio stations automatically

Press ◄◄◄/►► on the front panel (TUN.-/TUN.+) on the remote control) for more than 0.5 second. The tuner will scan automatically and stop when it finds a radio station.

Deleting all the saved stations

1 Press and hold PROG./MEMO. "ERASE ALL" shows. 2 Press PROG./MEMO. to erase all the saved stations.

Improving poor FM reception

Press PLAY (▶) (MO./ST.) on the remote control. This will change the tuner from stereo to mono and usually improve the reception.

Listening to the cassette tapes

	ON PLAYER	ON REMOTE
1 Open the tape door	▲ PUSH EJECT
2 Insert the tape
3 Close the tape door
4 Select the TAPE function	TAPE	FUNCTION
5 Start the tape playing	▶	▶
6 To stop a tape playing	■	■

Listening to the cassette tapes - More you can do

Playing Fast backward or Forward

After pressing |◀◀/▶▶| (◀◀/▶▶ on the remote control) during playback, press ▶ at a point you want.

Auto Reverse Deck

1 Press TAPE to select "TAPE-2".

2 You can set the tape to play one side, both sides one time, or both sides repeatedly, by pressing REV. MODE one or more times.

Dubbing

This function allows you to record from tape to tape.

1 Press TAPE to select "TAPE-1".

2 Insert the tape as follows.

TAPE1 - Insert a playback tape to dub.

TAPE2 - Insert a blank tape.

3 Press DUBB. "DUBBING" shows. Dubbing starts.

4 To stop dubbing, press ■.

Listening to music from your portable player or external device

The unit can be used to play the music from many types of portable player or external device.

	ON PLAYER ON REMOTE
1 Connect the portable player to the PORT.IN(PORTABLE IN) connector of the unit. OrConnect the external device to the AUX connector of the unit.>If your TV has only one output for audio(MONO), connect it to the left(while) audio jack on the unit.
2 Turn the power on.	∅∅	POWER
3 Select the PORTABLE or AUX function.	AUX PORT.	FUNCTION
4 Turn on the portable player or external device and start it playing.

Using an USB device

You can enjoy media files saved on an USB device by connecting the USB device to the USB port of the unit.

If you want to operate other function, see the CD playback section.

	ON PLAYER ON REMOTE
1 Connect the USB device to the USB port of the unit.
2 Select the USB function.	USB	FUNCTION
3 Select a file you want to play.	|◄◄/►►|	∧ V
4 Start your media playing.	►►	►[/ENTER
5 To stop, press	■□	■□
6 Before disconnecting the portable USB device, change to any other function.	TUNER/TAPE/...	FUNCTION

Compatible USB Devices

• MP3 Player : Flash type MP3 player.
- USB Flash Drive : Devices that support USB 2.0 or USB 1.1.
- This USB Function may not be available depending on devices.

USB device requirement

• Devices which require additional program installation when you have connected it to a computer, are not supported.

Look out for the follows.

- Do not extract the USB device while in operation.

• For a large capacity USB, it may take longer than a few minute to be
  searched.
  • To prevent data loss, back up all data.
• If you use a USB extension cable or USB hub, the USB device is not recognized.
• Using NTFS file system is not supported. (Only FAT(16/32) file system is supported.
• This unit is not supported when the total number of files is 1000 or more.
• External HDD, Locked devices or hard type USB devices are not supported.
  • The unit can not be used as a storage device
  • USB port of the unit can not be connected to PC.

Recording to USB

You can record a various sound source to USB.
	ON PLAYER ON REMOTE
1 Connect the USB device to the unit.
2 Select a mode in which you want to record. (TUNER/ CD/ ....)Play back a sound source first.	TUNER/TAPE/...	FUNCTION
3 Start the recording.> If you press the button on the remote control, the display changed in the following order, "USB REC" <-> "TAPE REC". Then press the button on "USB REC" once more.	R (USB REC)	● REC
4 To stop recording, press :	■	■

Recording to USB - More you can do

Recording Music file in disc source to USB

One track recording

If the USB recording is played during playback of the CD, the track/ file would be recording into the USB.

All tracks recording

If the recording button is pressed at the CD stop, all tracks/ files would be recording.

Program list recording

USB records after creating your own program if you want to record the track you want (Audio CD only).

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes.

Be responsible

Respect copyrights

When you are recording, look out for the following

• You can check the recording percentage rate for the USB record on the screen during the recording. (AUDIO, MP3/ WMA CD only)
• During recording MP3/ WMA, there is no sound.
• When you stop recording during playback, the file that has been recorded at that time will be stored.(Audio CD only)
• Do not remove the USB device or turn off during USB recording. If not, an incomplete file may be made and not deleted on PC.
• Recording through microphones is not available.
• If USB recording does not work, the message like "NO USB", "ERROR".
  "USB FULL" or "NO REC" is displayed on the display window.
• The file number of the recording is saved automatically.

AUDIO CD MP3/ WMA		the other sources

MDS714-A5U_karaoke_LGEPS_ENG 2/27/09 10:11 AM Page 18

Recording to TAPE
You can record a various sound source to TAPE.

	ON PLAYER ON REMOTE
1 Open the tape deck.> There are 2 tape decks on the unit, open the second one.	PUSH EJECT
2 Insert a blank tape and close the door.
3 Select a mode in which you want to record.	TUNER/USB/...	FUNCTION
4 Play back a sound source first.	▶	▶
5 Press> The display changed in the following order, "USB REC" <-> "TAPE REC"		● REC
6 Press the button once more when "TAPE REC" Is displayed.> Recording starts.		● REC
7 To stop recording, press	■	■□

Synchronized Recording from CD to Tape

	ON PLAYER	ON REMOTE
1 Open the tape deck and then insert a blank tape.	PUSH EJECT
2 Close the door and insert a CD. >Audio CD only	CD OPEN	▲-OPEN/CLOSE
3 To select CD function, press	KARAOKE DVD/CD	FUNCTION
4 Press the button on a stop status to move to CD synchronizing mode. >Recording automatically starts 7 seconds later after "CD SYNC" blinks.	CD SYNC.
5 To stop, press	■□	■□

Karaoke Basic Playback

	ON REMOTE
1 Check if the system is connected. (Page 4)
2 Turn on the power of TV and unit.	POWER
3 Open the disc tray and insert supplied karaoke disc.	OPEN/CLOSE
4 Close the disc tray.	OPEN/CLOSE
5 To enter to the DVD/CD(karaoke) mode.	FUNCTION(DVD/CD) KARAOKE
6 Connect the microphone to the MIC jacks.
7 Press the melody number you want. If you want to cancel the selected melody number, press the CLEAR.	NUMERIC No. 0 ~ 9
8 To start, press ENTER or	PLAY
9 To stop, press	STOP

Karaoke Basic Playback - More you can do

You can change the key to suit your vocal range with Key Control

You can adjust the key to 13 steps (6 steps higher, 6 steps lower and the original key).

• The setting appears on the screen.
• To flatten the key one by one, press the KEY CON.(b) repeatedly during playback.
• To sharp the key one by one, press the KEY CON.(#) repeatedly during playback.
• Press TONE CONTROL(00) on remote control repeatedly to change MAN's or WOMEN's tone.

To change tempo

You can use this function when you want to play fast or slow.
1 Press TEMPO + repeatedly during singing to play faster.
2 Press TEMPO - repeatedly during singing to play slower.

Shadow Function

If KARAOKE CD caption and the song's subtitle are mixed up, the song's subtitle may be invisible. In this case, to highlight the song's subtitle, press SHADOW.

- It will be highlighted by background shadow image.

To adjust ECHO Volume

You can give an echo effect to the sound from the microphones.
Press the ECHO VOL. + on the remote control to increase the echo volume or ECHO VOL. - decrease it. (MIN, 1–14, MAX steps)

Using Microphone

1 Connect your microphone to the MIC1/ MIC 2 Jacks.
"MIC IN" will be shown in the display window.
2 Play the music you want.
3 Sing along with the accompaniment.
Adjust the microphone volume by pressing MIC VOL.(+/-) button.

Notes:

• When not using the microphone, set the MIC VOL.(+/-) button to minimum or turn off the MICs and remove the microphone from the MIC Jacks.
• If the microphone is set too near the speaker, a howling sound may be produced. In this case, move the microphone away from the speaker or decrease the sound level by using the MIC VOL.(+/-) button.
• If sound through the microphone is extremely loud, it may be distorted. In this case, press the MIC VOL.(+/-) button toward minimum.

Reserving the Song

	ON REMOTE
1 To reserve melody number you want in the karaoke disc play mode, press	NUMERIC No. 0 ~ 9
2 To reserve, pressThe melody number is reserved	PROG./MEMO.
3 Repeat steps 1-2.You can reserve at most 8 songs

Reserving the Song - More you can do

To cancel the reserved song

Each time you press CLEAR, the reserved song will be cancelled one by one.

To cancel or change the wrong reserved song

1 Press the PROG./MEMO. to move to the desired position.
2 Press the CLEAR to cancel the reserved song.

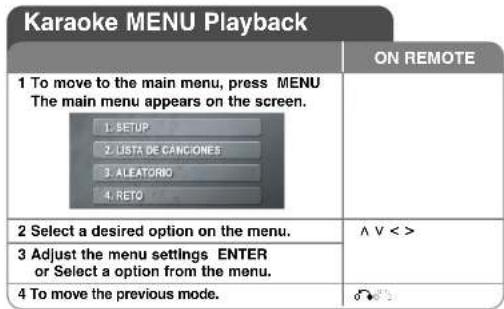

Karaoke MENU playback - More you can do

1. SETUP 1. SETUP Select one you want to activate/deactivate among the following functions.

2. SCORE

3. FANFARE

4. LYRIC

5. CHORUS

Select ON/OFF to activate/deactivate.

You can select a desired song on each music list

Select one among followings when you selected LOCAL SONG / POP SONG in the previous step.

Select one among followings when you selected CLASSIC LIST in the previous step.

1. CLASSIC LIST

2. COMPOSER LIST

Select initial of song title or entire title.

1. RANDOM 3. ALEATORIO

You can enjoy songs randomly.

1. CHALLENGE 4. RETO

You can enjoy a song game dividing by two teams of red team & blue team.

1 Select ESTABLEGER UN NÚMERO PARA GANAR

4 Select number to sing along with the accompaniment.

5 Repeat the step 4. Change the team of red or blue team alternately.

6 When reaching the targeted winning number, will be shown on the TV screen.

7 Whether you keep going the song game or not,

select 1.0 or 1.0

Language Codes
Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.

Language Code		Language Code		Language Code		Language Code		Language Code		Language Code
Afari	6565	Croatian	7282	Hausa	7265	Lingala	7678	Quechua	8185	Tajik	8471
Afrikaans	6570	Czech	6763	Hebrew	7367	Lithuanian	7694	Rhaco-Romance	8277	Tamil	6465
Albanian	8381	Danien	6865	Hindi	7273	Macedonian	7775	Humanian	8279	Telugu	8469
Ameharic	6577	Dutch	7876	Hungarian	7285	Malagasy	7771	Hussian	8285	Thal	8472
Arabic	6582	English	6978	Icelandic	7383	Malay	7783	Samoan	8377	Tonga	8479
Armenian	7289	Esperanto	6979	Indonesian	7378	Malayslam	7776	Sanakrit	8365	Turkish	8482
Assamese	6563	Estonian	6964	Interlingua	7365	Maori	7773	Scots Gaelic	7166	Turkmen	8475
Aymara	6588	Faroeese	7079	Irish	7165	Marathi	7782	Serolian	8382	Twi	8487
Azerbaijani	6590	Fiji	7074	Italian	7384	Moldavian	7779	Serbo-Croatian	8372	Ukrainian	8575
Bashkar	6665	Finnish	7073	Javanese	7487	Mongolian	7778	Shona	8378	Urdu	8582
Basque	6985	French	7082	Kannada	7578	Nauru 7865		Sindhi	8368	Uzbek	8590
Bengali, Bangla	6678	Frisian	7069	Kashmiri	7583	Nepali	7869	Singhalese	8373	Vietnamese	8673
Bhutanl	6890	Galician	7176	Kazakh	7575	Norwegian	7879	Slovak	8375	Volapuk	8679
Binar	6672	Georgian	7565	Kirghiz	7589	Oriya	7982	Slovenian	8376	Welsh	6789
Brelon	6682	German	6869	Korean	7579	Panjabi	8065	Spanish	6983	Wolof	8779
Bulgarian	6671	Greek	6976	Kurdish	7585	Pashto, Pusinto	8083	Sudanese	8385	Xnosa	8872
Burmese	7789	Greenlandic	7578	Laothian	7879	Persian	7065	Swahili	8387	Yiddish	7473
Byelorussian	6669	Guarani	7178	Latin	7665	Polish	8076	Swedish	8386	Yoruba	8979
Chinese	9072	Gujarati	7185	Latvian, Lettish	7686	Portuguese	8084	Tagalog	8476	Zulu	9085

Area Codes
Choose a area code from this list.

Area Code		Area Code		Area Code		Area Code		Area Code		Area Code
Afghanistan	AFT	Costa Rica	CR	Greenland	GL	Maldives	MV	Paraguay	PY	Sri Lanka	LK
Argentina	AR	Croatia	HR	Hong Kong	HK	Mexico	MX	Philippines	PH	Sweden	SE
Australia	AU	Czech Republic	CZ	Hungary	HU	Monaco	MC	Poland	PL	Switzerland	CH
Austria	AT	Denmark	DK	India	IN	Mongolia	MN	Portugal	PT	Taiwan	TW
Belgium	BE	Ecuador	EC	Indonesia	ID	Morocco	MA	Romania	RO	Thailand	TH
Brutan	BT	Egypt	EG	Israel	IL	Nepal	NP	Russian Federation	HU	Turkey	TR
Bolivia	BO	El Salvador	SV	Italy	IT	Netherlands	NL	Saudi Arabia	SA	Uganda	UG
Brazil	BR	Ethiopia	ET	Jamaica	JM	Netherlands Antilles	AN	Senegal	SN	Ukraine	UA
Cambodia	KH	Fiji	FJ	Japan	JP	New Zealand	NZ	Singapore	SG	United States	US
Canada	CA	Finland	FI	Konya	KE	Nigeria	NG	Slovak Republic	SK	Uruguay	UY
Chile	CL	France	FR	Kuwait	KW	Norway	NO	Slovenia	SIB	Uzbekistan	UZ
China	CN	Germany	DE	Libya	LY	Oman	OM	South Africa	ZA	Vietnam	VN
Colombia	CO	Great Britain	GB	Luxembourg	LU	Pakistan	PK	South Korea	KR	Zimbabwe	ZW
Congo	CG	Greece	GR	Malaysia	MY	Panama	PA	Spain	ES

MDS714-A5U_karaoke_LGEPS_ENG 2/27/09 10:11 AM Page 22

Troubleshooting

Symptom	Cause Correction
POWER
No power	The power cord is not plugged in.	Plug in the power cord.
RADIO
No sound	The function switch is not set to the Radio mode.	Set the switch to the Radio mode.
	There are electronic devices near the unit.	Set the unit far from the devices.
Some noise occurs.	The antenna is positioned or connected poorly	Check the antenna connection and adjust its position
DVD/CD
The unit does not start playback	An unplayable disc is inserted.The disc is placed upside down.	Insert a playable disc.Place the disc with the playback side down.
No picture	The disc is not placed within the guide.	Place the disc on the disc tray correctly inside the guide.Clean the disc.
	The TV is not set to receive the video signal	Select the appropriate video input model on the TV so the picture from the unit appears on the TV
REMOTE CONTROL
The remote control does not work properly.	The remote control is not pointed at the remote sensor of the unit directly.	Point the remote control to remote sensor directly of the unit.
	The battery in the remote control is exhausted. Replace the battery with new ones.
TAPE
Unable to record	Record protect tabs are removed. Cover holes on back edge	of tape with tap.

Types of Playable Discs

Type	Logo
DVD-VIDEO: Discs such as movies that can be purchased or rented.
DVD-R: Video mode and finalized only
DVD-RW: Video mode and finalized only DVD VR format that have been finalized can not be played in this unit.
DVD+R: Video mode only Supports the double layer disc also.
DVD+RW: Video mode only
Audio CD:

In addition, this unit can play a DVD±R/RW and CD-R or CD-RW that contains audio titles, MP3, WMA, JPEG files.
Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs may not be played on the unit due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. Player does not support these kinds of discs.

"Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license from Dolby Laboratories.

About the ⊗ Symbol Display

" ⊙ " may appear on your TV display during operation and indicates that the function explained in this owner's manual is not available on that specific DVD video disc.

Regional code

This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs labeled same as the rear of the unit or "ALL".

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit's regional code or the disc cannot play.
• If you try to play a DVD with a different regional code from your player, the message "Check Regional Code" appears on the TV screen.

Copyrights

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE 'STANDARD DEFINITION' OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p UNIT. PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

MDS714-A5U_karaoke_LGEPS_ENG 3/3/09 9:55 AM Page 24

Specifications

General
Power supplyRefer to main label.
Power consumption	MDS714: 105 W		MDT364: 60 W	MDD264: 60 W
Net Weight MDS714: 6.1 kg MDT364: 6.0 kg MDD264: 6.0 kgExternal dimensions (W x H x D) 273 x 337 x 340 mmOperating conditions Temperature: 5°C to 35°C, Operation status: HorizontalOperating humidity 5% to 85%
Tuner
FM Tuning Range 87.5 - 108.0 MHz or 87.50 - 108.00 MHzIntermediate Frequency 128 KHzAM Tuning Range 522 - 1,620 KHz or 522 - 1,710 KHz or 520 - 1,710 KHzIntermediate Frequency 45 KHz
Amplifier
OUTPUT POWER	Front: 130 W + 130 W (4 Ω, THD 10 %)Surround : 90 W + 90 W (6 Ω, THD 10 %)Center : 90W (6 Ω, THD 10 %)Subwoofer: 180 W (3 Ω, THD 10 %)
DVD/CD player		Cassette tape player
Frequency response (audio)	40 - 20000 Hz		F.F/REW Time 120 sec (C-60)
Signal-to-noise ratio (audio)	More than 75 dB (1 kHz)		Frequency Response	250 - 8000 Hz
Signal-to-noise ratio (video)	More than 55 dB (1 kHz)		Signal to Noise Ratio	43 dB
Dynamic range (audio)	More than 80 dB		Channel Separation	50 dB (P/B)/45 dB (R/P)
Video output 1.0 V (p-p), 75 Ω			Erase Ratio	55 dB (MTT-5511)
Component Video output	(Y) 1.0 V (p-p), 75 Ω(Pb)/(Pr) 0.7 V (p-p), 75 Ω
Speakers	MDS264VMDS364VMDS714VFront Speaker	MDS714CCenter Speaker	MDS714SMDS714WRear Speaker	MDS364WSubwoofer
Type	2 Way 2 Speaker	1 Way 1 Speaker	2 Way 2 Speaker	1 Way 1 Speaker
Impedance	4 Ω	6 Ω	6 Ω	3 Ω
Rated Input Power	130 W (MDS364V: 100 W)	90 W	90 W	180 W (MDS364W: 160 W)
Max. Input Power	260 W (MDS364V: 200 W)	180 W	180 W	360 W (MDS364W: 320 W)
Net Dimensions (WxHxD)	237 x 429 x 299 mm	274 x 148 x 202 mm	212 x 334 x 232 mm	274 x 333 x 391 mm
Net Weight (1 EA)	5.7 kg	2.4 kg	3.3 kg	6.8 kg

Designs and specifications are subject to change without prior notice.
