Brand	Ozito
Model	ODMM-P11
Product Type	Digital Moisture Meter
Power Supply	9V DC Battery (not included)
Measuring Range (Timber)	6% to 60%
Measuring Range (Building Materials)	0.2% to 2.9%
Measuring Range (Temperature)	0°C to 40°C (32°F to 104°F)
Accuracy (Timber)	±2%
Accuracy (Building Materials)	±0.1%
Accuracy (Temperature)	±1°C / ±2°F
Operating Temperature	0°C to 40°C, <85% RH
Weight	0.115 kg
Measurement Modes	Timber, Building Materials, Temperature (Celsius/Fahrenheit)
Display	Digital LCD with backlight
LED Indicators	3-color: Too dry, Normal, Slightly damp, Too damp (varies by mode)
Data Hold	Yes
Auto Power Off	After 15 seconds of inactivity
Probes	Two stainless steel probes, replaceable
Probe Cover	Included, protects probes when not in use
Replacement Probes	Spare pair included
Warranty	3 year replacement warranty

Frequently Asked Questions - ODMM-P11 Ozito

How do I turn on the Ozito ODMM-P11 moisture meter?

Press the ON | SET button once to switch on the unit. It will automatically power off after 15 seconds of inactivity.

What do the different measurement modes mean?

The meter has three modes: Timber (for wood, paper, cardboard), Building Materials (for mortar, concrete, plaster), and Temperature (Celsius or Fahrenheit). Press and hold the ON | SET button for 3 seconds to enter settings, then press to cycle modes.

How do I change the temperature unit?

With the unit on, press and hold the ON | SET button for 3 seconds until the mode icon flashes. Press the button to cycle to °C or °F. The selected icon will stop flashing after 3 seconds.

What does the LED indicator mean?

The LED indicators provide a quick reference for moisture levels: Green = normal, Yellow = slightly damp, Red = too dry or too damp depending on mode. Refer to the manual table for exact thresholds.

How do I replace the probes?

Loosen and remove the worn probes by turning them anti-clockwise. Screw the replacement probes (supplied) into place. Always fit the probe cover when not in use.

Why does the meter turn off automatically?

The unit has an auto power off feature to conserve battery. It will turn off after 15 seconds of inactivity. Press the ON | SET button to reactivate.

How do I clean the moisture meter?

Clean with a damp cloth only. Do not use cleaning agents or solvents. Ensure no water enters the interior. Remove battery before cleaning.

What should I do when the low battery icon appears?

Replace the 9V battery. The low battery icon indicates the battery is at low charge. Slide off the compartment lid, attach the battery tab correctly, and replace the lid.

Can I measure moisture in concrete?

Yes, set the meter to Building Materials mode. The measuring range is 0.2% to 2.9% for materials like mortar, concrete, and plaster.

How accurate is the moisture meter?

Accuracy for timber is ±2%, for building materials ±0.1%, and for temperature ±1°C / ±2°F. These are typical values under normal conditions.

USER MANUAL ODMM-P11 Ozito

ozito

DIGITAL

MOISTURE METER

6-60% | 0.2-2.9% INSTRUCTION MANUA

SPECIFICATIONS

Power: 9V DC Battery

Measuring Range: 6-60% (Timber)

0.2-2.9% (Building Materials)

0-40°C (Temperature)

Operating Temperature: 0-40°C, <85%RH

Accuracy. ±2% (Timber), +0.1% (Building materials)

±0.1% (Building material 1°C / 2°F (Temperature)

Weight: 0.115kg

ozito.com.au

3

ODMM-P11

YEAR REPLACEMENT WARRANTY

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS

WARRANTY YOU MUST RETURN THE PRODUCT

TO YOUR NEAREST BUNNINGS WAREHOUSE WITH

YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO

RETURNING YOUR PRODUCT FOR WARRANTY

PLEASE TELEPHONE OUR CUSTOMER SERVICE

HELPLINE:

Generally you will be responsible for all costs associated with a claim

under this warranty, however, where you have suffered any additional

New Zealand 0508 069 486

3 YEAR REPLACEMENT WARRANTY

TO ENSURE A SPEED RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF

HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE A CUSTOMER SERV

PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND

REPRESENTATIVE WILL TAKE YOUR CALL? ANSWER ANY QUESTIONS YOU MAY HAVE

ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR

RELATING TO PROCEDURE.

- If the tool has been operated on a supply voltage other than that

specified on the tool.

- If the tool shows signs of damage or defects caused by or

resulting from abuse, accidents or alterations.

- Failure to perform maintenance as set out within the instruction

manual.

- If the tool is disassembled or tampered with in any way.

• Professional, industrial or high frequency use.

GENERAL POWER TOOL SAFETY WARNINGS

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool

may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes

hain, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and

collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Use of dust collection can reduce dust-related hazards.

h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless

to become complacent and ignores too safety principle? Reactions action can cause severe injury within a fraction of a second.

1. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your

application. The correct power tool will do the job better and safer at

the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pac

from the power tool before making any adjustments, changing

accessories, or storing power tools. Such preventive safety

measures reduce the risk of starting the power tool accidentally.

d. Store Idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to

operate the power tool. Power tools are dangerous in the hands of

untrained users.

e. Maintain power tools. Check for misalignment or binding of moving

parts, breakage of parts and any other condition that may affect the

power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools

with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance

with these instructions, taking into account the working condition

and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

different from those intended could result in a hazardous situation.

II. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for

safe handling and control of the tool in unexpected situations.

1. Service

a. Have your power tool serviced by a qualified repair person using

only identical replacement

the power tool is maintained.

GENERAL POWER TOOL

WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

may result in electric shock, fire and/or serious injury.

"Save all warnings and instructions for future reference. The "er tool" in the warnings refers to your mains-operated (corded)

or battery-operated (cordless) power tool.

ea safety

ork area clean and well lit. Cluttered or dark areas invite

S.

operate power tools in explosive atmospheres, such as

esence of flammable liquids, gases of dust. Power tools parks which may ignite the dust or fumes

banks which may ignite the dust of flames. Children and bystanders away while operating a power tool

son can cause you to lose control.

I safety

pol plugs must match the outlet. Never modify the plug in

. Do not use any adapter plugs with earthed (grounded)

bols. Unmodified plugs and matching outlets will reduce risk of

shock.

body contact with earthed or grounded surfaces, such as radiosters, ranges and refrigerators. There is an increased risk

ndulators, ranges and refrigerators. There is an increased risk c shock if your body is earthed or grounded.

expose power tools to rain or wet conditions. Water entering

tool will increase the risk of electric shock.

abuse the cord. Never use the cord for carrying, pulling or

ing the power tool. Keep cord away from heat, oil, sharp

f moving parts. Damaged or entangled cords increase the risk

operating a power tool outdoors, use an extension cord

for outdoor use. Use of a cord suitable for outdoor use

the risk of electric shock.

I safety

rt, watch what you are doing and use common sense when

ing a power tool. Do not use a power tool while you are tired

of the influence of drugs, alcohol or medication. A moment option while operating power tools may result in serious personal

tion while operating power tools may result in serious personal

sonal protective equipment. Always wear eye protection.

e equipment such as dust mask, non-skid safety shoes, hard

earing protection used for appropriate conditions will reduce injuries.

unintentional starting. Ensure the switch is in the off

unintentional starting. Ensure the switch is in the off-before connecting to power source and/or battery pack

up or carrying the tool. Carrying power tools with your finger

witch or energising power tools that have the switch on invites

S.

[Non-Text]

· = 0

! BATTERY & MOISTURE METER WARNINGS

WARNING! The appliance is not to be used by persons (including children) with reduced physical, sensory or

WARNING! The appliance is not to be used by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge

mental capabilities, of lack of experience and knowledge, they have been given supervision or instruction.

children should be supervised to ensure that they do not play

appliance.

t store or use the tool and battery pack in locations where the

rature may reach or exceed 40°C (such as inside sheds or metal

gs in summer).

It incinerate the battery pack even if it is seriously damaged or is

stely worn out. The battery can explode in a fire.

[Non-Text]

-

-

te

17

p 1

1

a

[Non-Text]

b

B

[Non-Text]

[Non-Text]

C

[Non-Text]

2

a

a

[Non-Text]

[Non-Text]

[Non-Text]

b

[Non-Text]

[Non-Text]

C

[Non-Text]

d

a

[Non-Text]

[Non-Text]

[Non-Text]

e

[Non-Text]

[Non-Text]

3

。

a

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

b

[Non-Text]

[Non-Text]

[Non-Text]

G

。

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

m = 311

The purpose of this section is to review some basic facts about the properties of the -algebras. The reader should be familiar with the definitions of the algebraic structure and the fact that the algebraic structure of a -algebra is not necessarily closed under the usual operations.

The results of the present study are presented in Table 1. The mean values of the three parameters were 2.0% (range, 1.5 - 3.0% ) and 2.4% (range, 1.5 - 3.0% ). The mean values of the other parameters were 1.8% (range, 1.5 - 2.5% ) and 1.9% (range, 1.5 - 2.5% ).

The results of the present study are presented in Table 1. The mean values of the three parameters were 2.0% (range, 1.5 - 3.0% ) and 2.4% (range, 1.5 - 3.0% ). The mean values of the other parameters were 1.8% (range, 1.5 - 2.5% ) and 1.9% (range, 1.5 - 2.5% ).

The results of the present study are presented in Table 1. The mean values of the three parameters were 2.0% (range, 1.5 - 3.0% ) and 2.4% (range, 1.5 - 3.0% ). The mean values of the other parameters were 1.8% (range, 1.5 - 2.5% ) and 1.9% (range, 1.5 - 2.5% ).

m = 311

-

-

A

L

u

Y

w

1

1

[Non-Text]

。

. Do not

comple

[Non-Text]

[Non-Text]

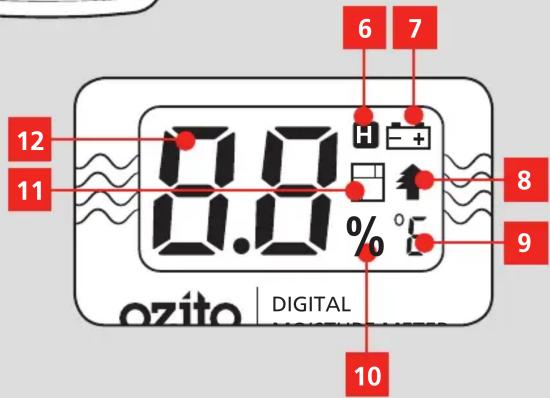

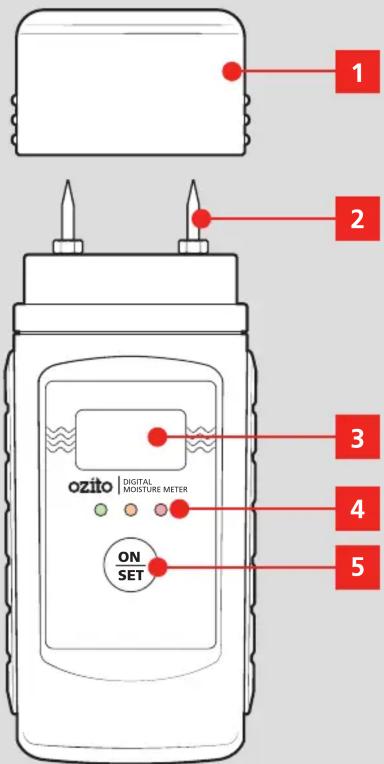

KNOW YOUR PRODUCT

DIGITAL MOISTURE METER

1. Probe Cover
2. Low Battery Icon
3. Probes
4. Timber Mode
5. Digital Display
   9.TemperatureUnits
6. LED Indicators
7. Moisture Percentage
8. 'ON | SET' Button
9. Building Materials Mode
10. Datahold Icon
11. Measurement Value

ONLINE MANUAL

Scan this QR Code with your mobile device to take you to the online manual.

SETUP & PREPARATION

1. POWERING THE METER

Installing Batteries

The moisture meter requires a 9V battery to operate.

1. Press down lightly and slide the lid of the battery compartment off.

Top-down diagram of a vehicle or container with a red arrow indicating direction (no text or symbols)

1. Attach the battery tab to the nodes on the battery in the correct orientation.

Top-down schematic of a mobile device layout (no text or symbols)

1. Tuck the battery into the compartment and replace the lid.

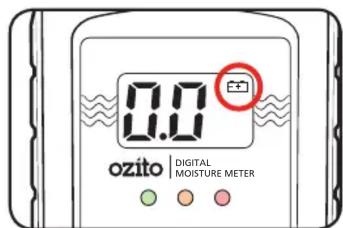

Low Battery Indicator

When the low battery icon appears, the batteries are at low charge and need to be replaced.

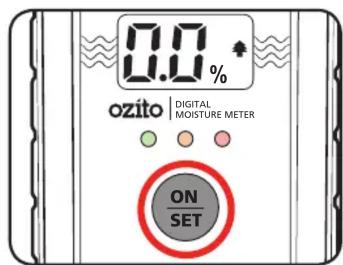

Switching The Unit On

1. Press the 'ON | SET' button once to switch on the unit.

2. The unit will automatically power off to conserve battery after 15 seconds of inactivity.

2. SETTINGS 3. USING THE METER

Changing The Measurement Mode

The unit can be used to measure the moisture levels in wood products (timber, paper & cardboard) or building materials (mortar, concrete & plaster). It can also be used to measure the ambient temperature in Celsius or Fahrenheit.

1. With the unit switched on, press and hold the 'ON | SET' button for 3 seconds to enter the settings menu. The mode icon will start flashing.

1. Press the 'ON | SET' button to cycle through the modes until the desired setting appears onscreen.

Set the unit to timber mode for sawn woods, paper & cardboard.

Set the unit to building materials mode for mortar, concrete or palster.

Set the unit to Celsius or Fahrenheit for ambient temperature measurements.

1. The selected icon will continue flashing for 3 seconds before resuming the measuring state.

Datahold & Backlight

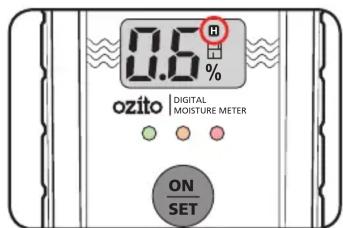

1. Pressing the 'ON | SET' button while the unit is on locks the present reading on the display. The datahold symbol appears on screen.

Note: The display backlight also switches on for 3 seconds.

1. Press the 'ON | SET' button button again to unlock the reading.

Measuring Ambient Temperature

1. Power on the meter and set the measurement mode to Celsius or Fahrenheit.
2. Squeeze the sides of the probe cover and pull it off.
3. Hold the unit in the air to measure the temperature.

Measuring Moisture Levels

1. Set the measurement mode to Timber or Building Materials depending on the material being measured.
2. Remove the probe cover and push the probes into the material. The LED indicators will light up accordingly.

LED Indicators

As a quick reference, the LED indicators let you know when a material is too dry, within workable range or too damp. This varies depending on the material measuring mode selected (timber mode or building materials mode); refer to the table below for an explanation of the LED colours.

These are a general indicator only and may not apply to specific applications.

LED Status		Timber Mode	Building Materials Mode
	Too dry <6% <0.2%
	Normal	≥ 6%< 16%	≥ 0.2%< 0.7%
	Slightly damp	≥ 16%< 20%	≥ 0.7%< 0.9%
	Too damp ≥	20% ≥ 0.9%

MAINTENANCE DESCRIPTION OF

SYMBOLS

WARNING! BEFORE CLEANING YOUR TOOL OR CARRYING OUT ANY MAINTENANCE PROCEDURE, MAKE SURE THAT THE POWER SUPPLY HAS BEEN REMOVED OR DISCONNECTED TO PREVENT ACCIDENTAL STARTING.

Replacing Worn Probes

If the tips of the probes become worn, they can be replaced with the spare pair of probes supplied with this unit.

1. Loosen and remove the worn probes by turning them anti-clockwise.

Diagram of a mechanical assembly with two upright pins and a red upward arrow indicating motion (no text or symbols)

1. Screw the replacement probes into place.

Note: To prevent the probes from getting damaged or prematurely worn, always fit the probe cover onto the unit when not in use.

Cleaning

Clean the appliance regularly with a damp cloth. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance. Ensure that no water can get into the interior of the appliance.

Storage

Switch off the tool and store it in a dry location which is not accessible to unauthorised persons.

Remove the batteries before storage if the tool will not be in use for a long time.

V	Volts		°C	Degrees Celsius
%RH	Percentage Relative Humidity Degrees PFrenheit
[BYCD]	Regulatory Compliance Mark (RCM)			Warning
[YHTS]		Read Instruction Manual

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.

SPARE PARTS

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]
