Product Type	Range Hood
Brand	Omega
Model	ORC97G
Width	90 cm
Depth	50 cm
Height	60-110 cm (adjustable chimney)
Net Weight	15 kg
Power Supply	220-240 V ~ 50/60 Hz
Motor Power	200 W
Extraction Rate	650 m³/h
Noise Level	55 dB (low speed), 65 dB (high speed)
Number of Speeds	3
Filter Type	Aluminum grease filter + optional carbon filter
Lighting	2 x 3 W LED
Controls	Electronic push buttons
Installation Type	Wall-mounted, ducted or recirculating
Duct Diameter	150 mm
Grease Filter Cleaning	Monthly in dishwasher or by hand
Carbon Filter Replacement	Every 3-6 months
Safety Features	Auto shut-off, overheating protection
Certification	CE, RoHS
Spare Parts Availability	Filters, LED bulbs, motor (via authorized service)

Frequently Asked Questions - ORC97G OMEGA

How do I install the Omega ORC97G range hood?

Installation should be carried out by a qualified professional. The hood must be mounted securely against the wall at a minimum distance of 65 cm above an electric hob or 75 cm above a gas hob. Ensure proper ducting to the outside or use the recirculation mode with a carbon filter.

How often should I clean the grease filters?

Grease filters should be cleaned at least once a month or more frequently if the hood is used heavily. They can be washed by hand in warm soapy water or in a dishwasher at low temperature.

Can I use the hood in recirculation mode?

Yes, the hood can be used in recirculation mode. You will need to install an additional activated carbon filter (not included) to absorb odors. The carbon filter should be replaced every 3-6 months.

What is the noise level of the ORC97G?

The noise level varies by speed: approximately 55 dB on low speed and 65 dB on high speed. This is comparable to normal conversation or background music.

How do I replace the LED light bulbs?

The hood is equipped with built-in LED lights that are not user-replaceable. If the lights fail, contact an authorized service center for assistance.

Why is my hood not extracting effectively?

Check if the grease filters are clogged and clean them if necessary. Also verify that the ductwork is not blocked or kinked. For recirculation mode, ensure the carbon filter is not saturated.

How do I reset the filter alarm?

After cleaning or replacing the filters, press and hold the filter alarm button for about 3 seconds until the indicator light turns off. This resets the counter.

What is the warranty on the Omega ORC97G?

The hood typically comes with a 2-year warranty for manufacturing defects. For warranty claims, contact your retailer or Omega's customer service with proof of purchase.

Can I control the hood remotely?

No, the ORC97G is controlled manually via physical buttons on the unit. It does not have remote control or smart connectivity.

What should I do if the hood makes unusual noises?

Turn off the hood and check for loose parts or foreign objects. If the noise persists, the motor bearings may be faulty. Contact a qualified technician for repair.

USER MANUAL ORC97G OMEGA

Instructions for the Use and Care and Installation of

ORC97G

Glass Canopy Rangehoods

CONTENTS

1 Notice
2 Features
3 Installation
4 Notice of installation
5 Safety Warning
6 Use Instructions
7 Maintenance
8 Troubleshooting
9 Specification

It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference.

Due to continual product development, Omega reserves the right to alter specifications or appearances without notice.

Dispose of packaging responsibly – recycle where facilities are available.

(1) NOTICE

1. Thank you for choosing our cooker hood. Please read the instruction manual carefully before use.
2. The installation work must be undertaken by a qualified electrician and competent installer.
3. The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text.

The cooker hood is rated for use on 220/240V, 50Hz.

(2) FEATURES

1. The cooker hood uses high quality materials, and is made with a streamlined design.
2. Equipped with a high power electric motor and centrifugal fan, it produces strong suction with low noise, and features a non stick grease filter which is easy to clean.
3. The isolated low voltage (12 volt) circuit board control, means the halogen lights are brighter and safer than incandescent alternatives.
4. Due to the special wind tunnel construction and filter design, any odours and dust will be absorbed quickly.

(3) INSTALLATION

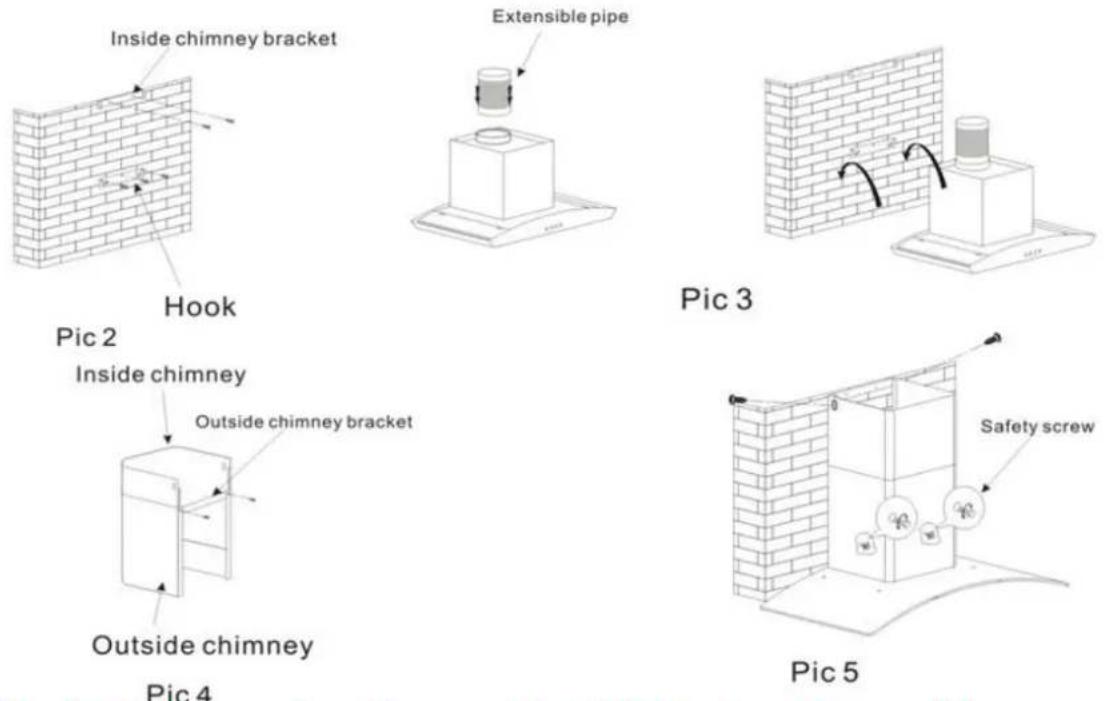

1) The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface for the best effect. See Pic 1.

2) Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney.

Pic1

3) Fix the extensible pipe according to the lead direction and way, and then put the cooker hood on the hook. See pic 3.
4) Lead the extensible pipe outside of the room, meanwhile adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by screw, here should be sure the inside chimney can be flexed freely. See Pic 4.
5) Put the two chimneys together onto the cooker hood body, meanwhile adjust the height of the inside chimney into the suitable height, and fix the inside chimney to the inside chimney bracket by screw. Finally, fix the body with safety screw. See Pic 5.

Note: Fix the Canopy with safety screws. See Pic 5. The two safety screw holes are positioned on the back casing, with diameter of 6mm.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

(4) NOTICE OF INSTALLATION

1. Before installation, please ensure the area is clean, to avoid suction of the remaining bits of broken wood and dust.
2. The canopy hood cannot share the same air ventilation ducting as other appliances, such as gas and electric heaters.
3. The bending of the ventilation ducting should be ≥ 120^ , parallel or above the exit vent, and should be connected through the external wall.

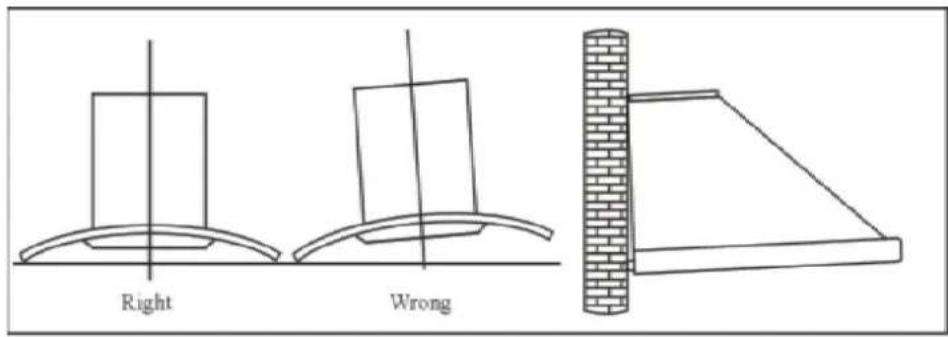

4. After installation, make sure that the extractor is level to avoid grease collection at one end.

Pic5

NOTE: Remove all protective plastic coatings from the stainless steel surfaces before use.

(5) SAFETY WARNING

Young children should be supervised to ensure that they do not play with the appliance.
The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervised or instruction concerning use of the appliance by a responsible person for their safely.
Your cooker hood is for domestic use only, not suitable for barbecue, fast - food shops, and other commercial use.
✿ Any installation work must be carried out by a qualified electrician or competent person.
The cooker hood and its filter mesh should be cleaned regularly in order to keep in good working order.
Before cleaning, always ensure that you have switched your cooker hood off.
Do not flambé under the range hood.
Clean the cooker hood according to the instruction manual, and keep the cooker hood away from the danger of flames.
If there is any fault with your cooker hood, please call the customer service number in the Warranty Card.
Please keep the room adequately ventilated when your cooker hood and gas hob are working.
Do not exhaust the gas from cooker hood through the same heated flue which is for the gas from gas hob and other kitchen appliances.
Before installation and usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on your cooker hood are exactly the same as the voltage (V) and the frequency (Hz) in your home.
To ensure that you get the best Warranty experience for your cooker hood, please provide copies of the Warranty Card and purchase receipt, when booking warranty work with the Customer Service department.

(6) USE INSTRUCTIONS

The re-usable aluminium grease filters supplied with this rangehood should be cleaned every month or so to avoid grease build-up.

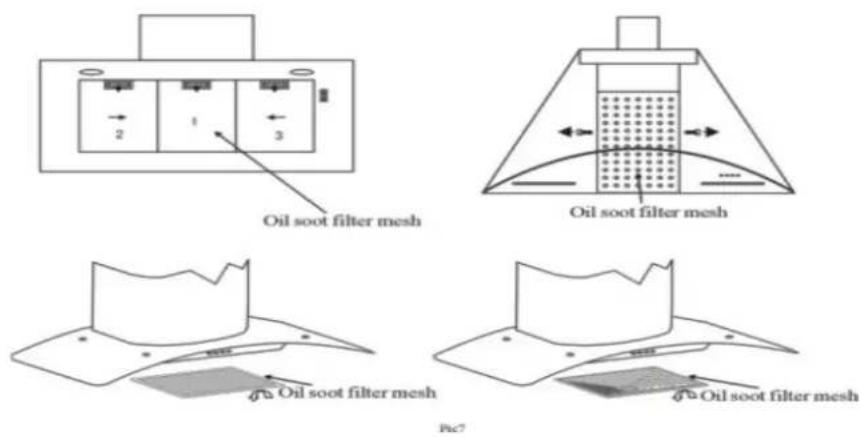

To remove the grease filter, release the locking mechanism at the front of the filter, and lower the filter slightly to unhook it at the back. Whilst the filter is removed, clean off any residual grease from the housing to avoid fire risk.

When replacing the grease filters, ensure that the locking mechanism is facing down.

If the rangehood is used in re-circulation mode, the activated charcoal filter must be in place. These charcoal filters are designed to absorb cooking odours and are located in the canopy above the grease filters. Before fitting or replacing charcoal filters, the grease filters must first be removed.

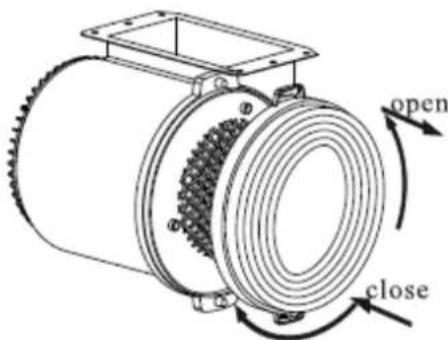

To remove, or install, the charcoal filter - twist the charcoal filter in the direction shown below.

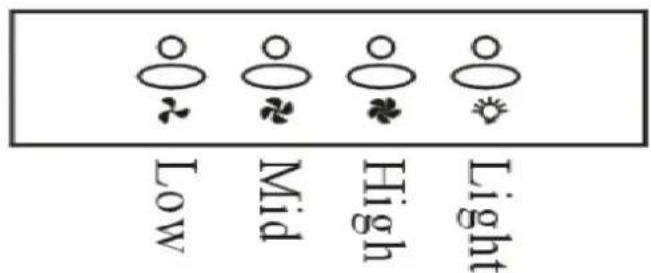

SPEED ADJUSTMENT - See pictures

1. Push the "Low" button, the indicating light 1 is on, and the motor runs at low speed. Push it again and the motor will stop.

2. Push the "Mid" button, the indicating light 2 is on, and the motor runs at mid speed. Push it again and the motor will stop.

3. Push the "High" button, the indicating light 3 on , and motor runs at high speed. Push it again and the motor will stop

4. Push the light button; the indicating light 4 on, and the two lighting lamps is on. Push it again and the lamps will be off.

Indicatorlight

Pic6A

(7) MAINTENANCE

7.1 Cleaning the grease filter mesh

The filter mesh is made of high-density stainless steel. Please do not use corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below.

Method 1: Place the mesh in 40 - 50 DegC clean water, add in a small amount of detergent, and soak for 2 - 3 minutes. Wear gloves, and clean with a soft brush. Do not apply too much pressure, as the mesh is delicate and will damage easily.

Method 2: The grease filters can be put into a dishwasher. To do so, set the temperature at around 60 degrees.

7.2 Notice of cleaning cooker hood

A. To protect the main body from corrosion over a long period of time, the cooker hood should be cleaned with hot water plus non corrosive detergent every two months.

B. Please do not use abrasive detergent for it will damage the body.

C. Keep the motor and other spare parts free from water, as this will cause damage to the appliance.

D. Before cleaning the appliance please remember to turn off power

E. If fitted with active charcoal filters, the charcoal filter should not be exposed to heat.

F. Please do not tear open the fixed bar around the active charcoal filter.

G. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

9

(8) TROUBLESHOOTING

Fault	Cause	Solution
Light on, but motor does not work	The fan is blocked	Remove the source of the blockage
	The capacitor damaged	Replace capacitor
	The motor jammed and bearing damaged	Replace motor
	A smell coming from the motor	Replace motor
Light does not work, motor does not work	Beside the above mentioned, check the following:
	Light damaged	Replace lights
	Power cord loose	Take to authorised service centre.
Oil leakage	One way valve and the air ventilation entrance are not tightly sealed	Take down the one way valve and seal with silicon rubber.
	Leakage from the connection of U-shaped section and cover	Take U-shaped section down and seal with silicon or paint
Shake of the body	The fan is damaged and causes shaking	Replace the fan
	The motor is not tightly mounted	Lock the motor mounts tightly
	The body is not tightly hung on wall	Fix the body tightly
Insufficient suction	The distance between the body and the gas top too long	Readjust the distance
	Too much ventilation or breeze from open doors or windows	Choose a better location and re-assemble the machine
The machine inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal
	The hanging screw not tight enough	Tighten the hanging screw and make it horizontal

10

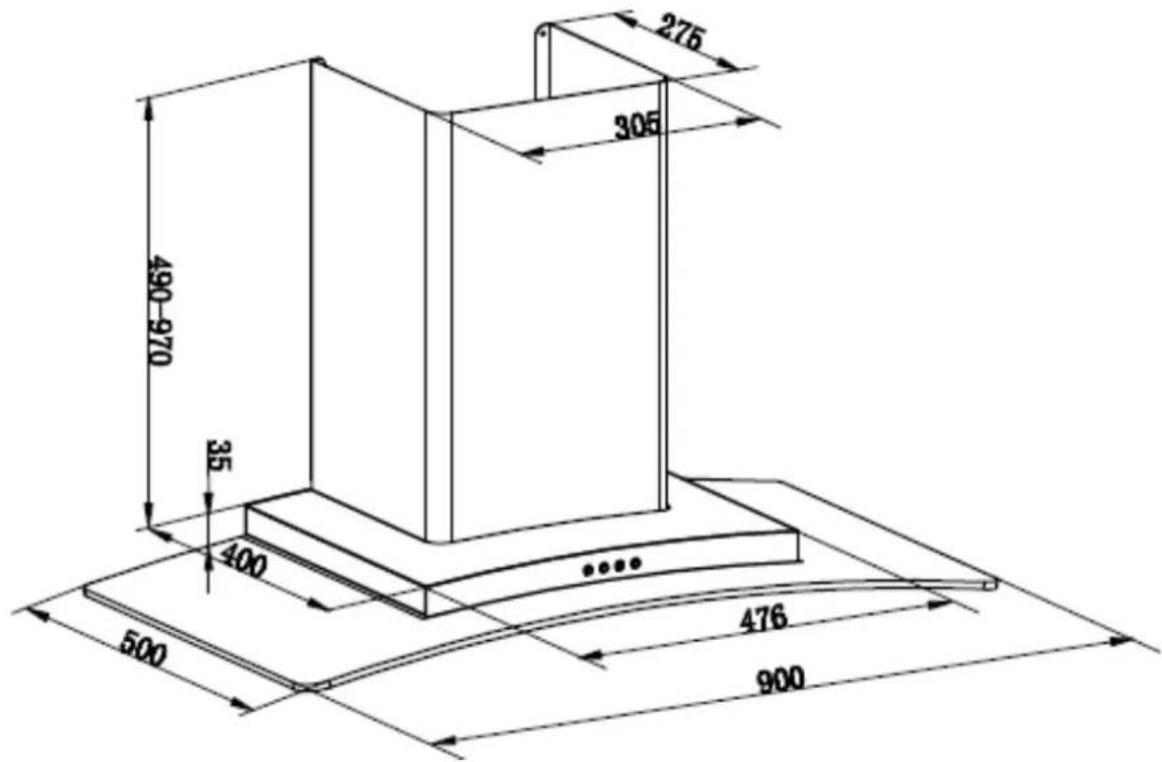

(9) SPECIFICATION

Model	ORC97G
Rated Input	220V-240V, 50Hz
Rated Power	305W
Lighting Power	20W X 2 (halogen capsule lamp)
Motor Power	265W
Air tube diameter	150MM
Air output	1000m3/h
