ORT90X - Range hood OMEGA - Free user manual and instructions

Product Type	Range Hood
Brand	Omega
Model	ORT90X
Installation Type	Built-in / Under Cabinet
Width	90 cm (approx.)
Height	15-20 cm (adjustable)
Depth	50 cm (approx.)
Weight	15 kg (approx.)
Power Supply	220-240 V, 50 Hz
Motor Power	200-300 W (estimated)
Extraction Rate	600-800 m³/h (estimated)
Noise Level	55-65 dB(A) (max speed)
Filter Type	Aluminum grease filter (washable)
Lighting	LED lamps (2 x 3 W)
Controls	Push buttons with 3 speeds + light
Ducting Options	Recirculation (with charcoal filter) or ducted
Charcoal Filter	Optional, replaceable every 3-6 months
Maintenance	Clean grease filter monthly; replace charcoal filter as needed
Safety Features	Overheat protection, motor thermal cut-off
Spare Parts	Filters, bulbs, motor available from service centers

Frequently Asked Questions - ORT90X OMEGA

How do I install the Omega ORT90X range hood?

Installation should be done by a qualified professional. Ensure the hood is mounted at least 65 cm above electric cooktops and 75 cm above gas cooktops. Use the provided template for drilling and secure the unit firmly.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every month with warm soapy water or in the dishwasher. A clean filter ensures optimal performance and prevents fire hazards.

Does the ORT90X come with a charcoal filter?

The unit includes a grease filter but not a charcoal filter. If you need recirculation mode, purchase a compatible charcoal filter separately. It should be replaced every 3-6 months.

How do I switch between ducted and recirculation mode?

For ducted mode, connect the outlet to a duct leading outside. For recirculation, install a charcoal filter and ensure the outlet is not blocked. Refer to the manual for the correct adapter.

Why is my range hood making excessive noise?

Noise may increase if the grease filter is clogged or if the motor bearings are worn. Clean the filter first. If noise persists, check for loose parts or contact support.

Can I use the range hood without a filter?

No, operating without a grease filter can allow grease to enter the motor and cause damage or fire. Always ensure the filter is properly installed.

How do I replace the light bulb?

The ORT90X uses integrated LED lights that are not user-replaceable. If the light fails, contact a service technician for replacement.

What is the recommended height for installation?

For safety and efficiency, install the hood at least 65 cm above electric hobs and 75 cm above gas hobs. This prevents heat damage and ensures proper capture of fumes.

How do I clean the exterior of the range hood?

Use a soft cloth dampened with mild detergent or glass cleaner. Avoid abrasive cleaners that can scratch the surface. Dry with a clean cloth.

Where can I find spare parts or service?

Contact Omega authorized service centers or check the brand's website for spare parts such as filters, bulbs, and motors. Use genuine parts for warranty compliance.

USER MANUAL ORT90X OMEGA

Instructions for the Use and Care and Installation of

ORT60X

ORT90X

Slide-out Rangehoods

CONTENTS

INSTALLATION INSTRUCTIONS

OPERATION

USE AND MAINTENANCE

SPECIFICATION

It is important that you retain these instructions, proof of purchase as well as other important documents about this product for future reference.

Due to continual product development, Omega reserves the right to alter specifications or appearances without notice.

Dispose of packaging responsibly – recycle where facilities are available.

WARNING

• Young children should be supervised to ensure that they do not play with the appliance.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervised or instruction concerning use of the appliance by a responsible person for their safely.
• Your cooker hood is for domestic use only, not suitable for barbecue, fast-food shops, and other commercial use.
• Any installation work must be carried out by a qualified electrician or competent person.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep in good working order.
• Before cleaning, always ensure that you have switched your cooker hood off.
• Do not flambé under the range hood.
• Clean the cooker hood according to the instruction manual, and keep the cooker hood away from the danger of flames.
• If there is any fault with your cooker hood, please call the customer service number in the Warranty Card.
• Please keep the room adequately ventilated when your cooker hood and gas hob are working.
• Do not exhaust the gas from cooker hood through the same heated flue which is for the gas from gas hob and other kitchen appliances.
• Before installation and usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on your cooker hood are exactly the same as the voltage (V) and the frequency (Hz) in your home.
• To ensure that you get the best Warranty experience for your cooker hood, please provide copies of the Warranty Card and purchase receipt, when booking warranty work with the Customer Service department.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room.
• Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

1. INSTALLATION INSTRUCTIONS

There are two methods to install the cooker hood:

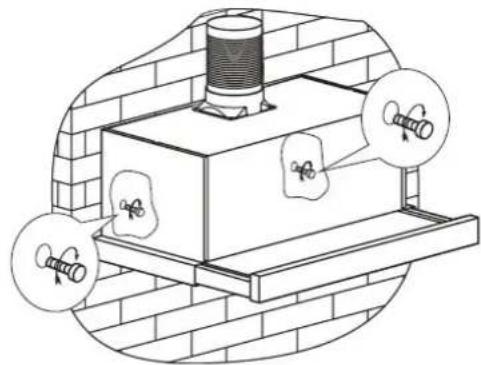

Method one: mounted on the wall:

1) The cooker hood should be placed at a distance of 65-75cm from the cooking surface for best effect.
2) To install onto the wall drill 4 holes of ∅8mm on a suitable place according with the centre distance of hole in the back of the cooker hood.
3) Insert the nut into the holes.
4) Insert the screws into the nuts and tight.

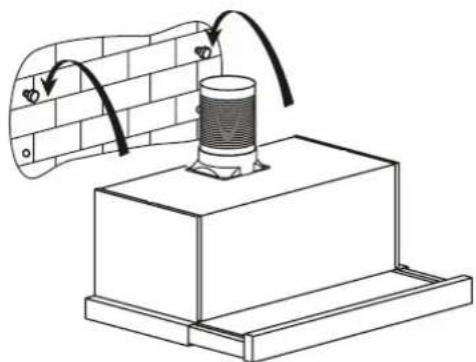

5) Put up the cooker hood onto the fixed screws.

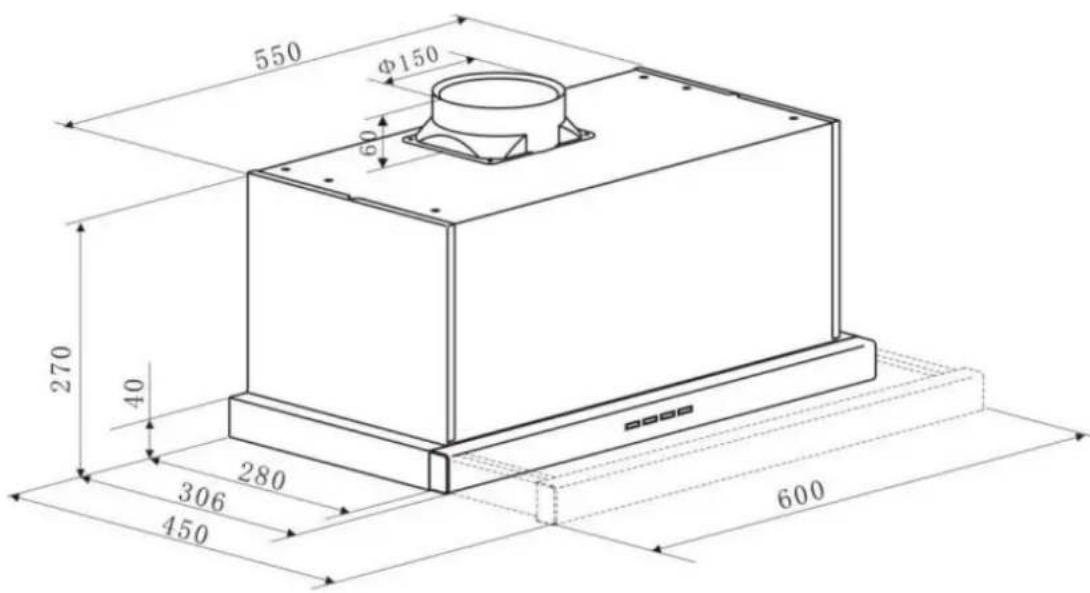

60cm

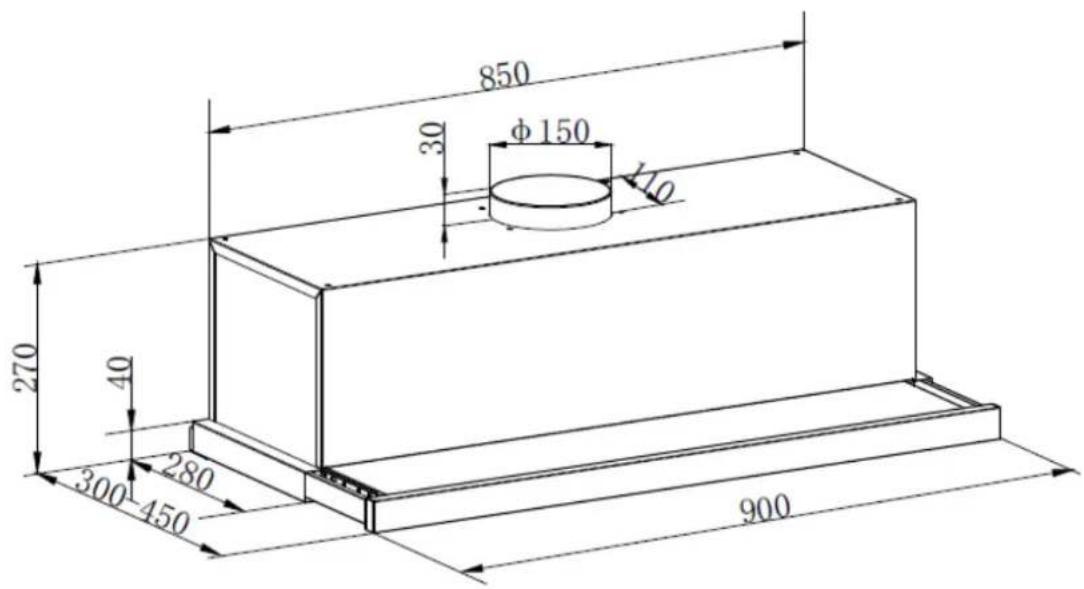

90cm

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and curved arrows indicating motion (no text or symbols)

Diagram of a brick wall with a cylindrical component and two circular components, no text or symbols present.

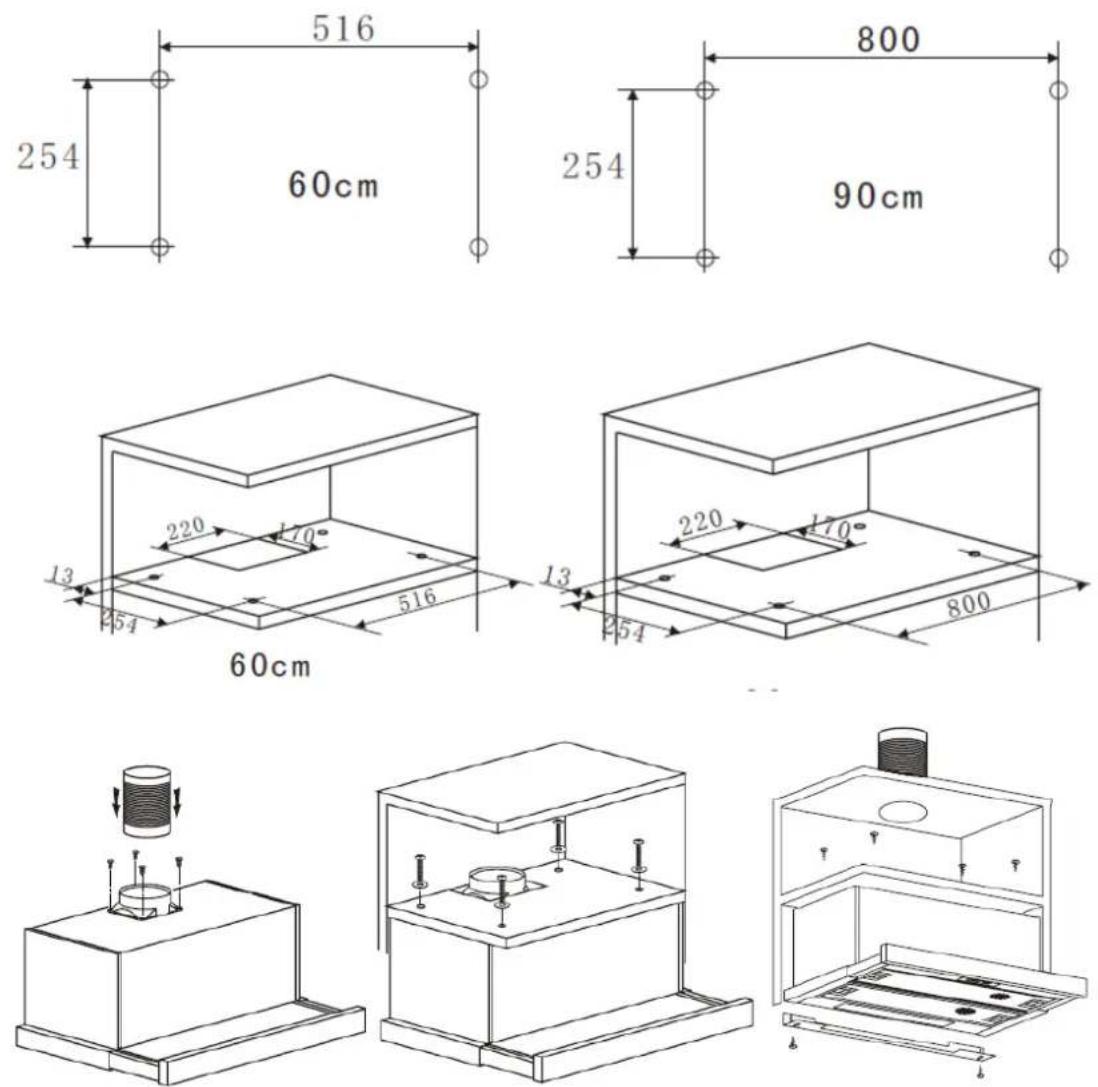

Method two: built-in the cabinet:

1) Drill 4 holes of 4mm diameter at the bottom of the hanging cupboard
2) Put the one way valve on the cooker hood, then install the cooker hood on the bottom of the cupboard, tighten the hood with the M4 screws.
3) Use two 3*12 screws to fix the adjusted board on the bottom of the hood in order to keep out the gap between hood back and cupboard.

2. OPERATION

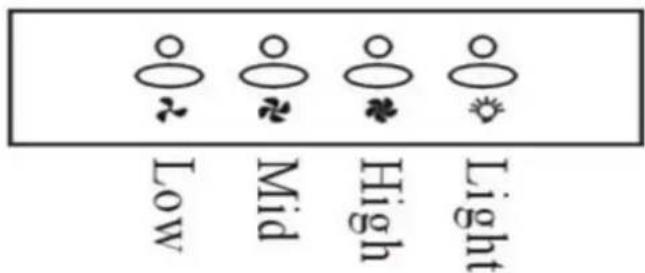

1) Push the "Low" button, the indicating light 1 is on, and the motor runs at low speed. Push it again and the motor will stop.
2) Push the "Mid" button, the indicating light 2 is on, and the motor runs at mid speed. Push it again and the motor will stop.
3) Push the "High" button, the indicating light 3 on , and motor runs at high speed. Push it again and the motor will stop
4) Push the light button; the indicating light 4 on, and the two lighting lamps is on. Push it again and the lamps will be off.

Indicatorlight

①

②

③

④

3. USE AND MAINTENANCE

1) It is recommended to operate the appliance prior to cooking.
2) There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room.
3) It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours.
4) If the appliance is not used, please turn off.
5) Don't have flame under the cooker hood.
6) Don't use or stop use if the appliance is damaged especially the supply cord and the case.
7) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
8) Don't immerse the appliance in liquid.
9) The exhaust air must not be discharge into a flue which is used for exhausting fumes from appliance burning gas or other fuels.
10) Regulations concerning the discharge of air have to be fulfilled.
11) The details concerning the method and frequency of cleaning.
12) In order to prevent fire hazard, it is recommendable to clean the filter at a maximum of 2 months by carrying out the followings:
13) Unplug before cleaning, then remove the filters from the cooker hood and wash them in a solution of water and neutral liquid detergent, leaving to soak.
14) Rinse thoroughly with warm water and leave to dry.
15) The filters may also be washed in the dishwasher.
16) The aluminum panels may alter in color after several washes. This is not cause for customer complaint nor replacement of panels.
17) Clean the surface of the cooker hood regularly using cloth moistened with denatured alcohol of non abrasive liquid detergent. (Remark: There can not clear the motor and inside part.)
18) Replace filters approximately every 4 months.
19) There is a fire risk if cleaning is not carried out in accordance with the instruction.

4. SPECIFICATION

Voltage	220V-240V~/50Hz
Rated Input Power 305W
Rated motor input power 265W
Illumination 20W+20W (halogen lights)
Airflow	1000m3/hr
Noise	65dBA
Outlet diameter 150mm
