Product Type	Elliptical Bike (Cross Trainer)
Brand	LifeSpan
Model	XT-38
Dimensions (approx.)	Length: 150 cm, Width: 65 cm, Height: 160 cm (estimated based on typical elliptical)
Weight (approx.)	65 kg (estimated)
Power Supply	AC adapter (included), 110-240V
Display Type	LCD computer with multiple workout programs
Resistance Levels	16 levels (manual and automatic adjustment)
Heart Rate Monitoring	Hand pulse sensors (EKG/ECG) with pulse recovery test
Workout Programs	Manual (P1), 6 Pre-programs (P2-P7), Body Fat (P8), Target Heart Rate (P9), 3 Heart Rate Control (P10-P12), User Program (P13)
Body Fat Measurement	Yes, via hand pulse sensors (calculates FAT%, BMR, BMI, Body Type)
Maximum User Weight	120 kg (typical for this class)
Intended Use	Indoor home use only
Safety Features	Emergency stop, stable frame, 2m clearance recommended
Maintenance Requirements	Regular tightening of nuts/bolts, lubrication of moving joints, dry cloth cleaning
Warranty	Refer to Australian Consumer Law; contact original place of purchase
Parts and Repairability	Spare parts available via warranty form at lifespanfitness.com.au
Assembly Required	Yes, manual included

Frequently Asked Questions - XT-38 LifeSpan

What is the maximum user weight for the LifeSpan XT-38?

The manual does not specify a maximum weight, but typical ellipticals in this class support up to 120 kg. For safety, ensure the machine is used on a solid flat surface.

How do I start a workout program?

After power-up, use the UP and DOWN keys to select a program (e.g., Manual P1, Pre-programs P2-P7, etc.), then press ENTER. Set parameters like Time, Distance, Calories, or Age using UP/DOWN and ENTER, then press START/STOP to begin.

How does the body fat measurement work?

Select the Body Fat Program (P8), enter your gender, height, weight, and age. Grip the hand pulse sensors firmly. After about 15 seconds, the display shows your body fat percentage, BMR, BMI, and body type. Note that this is not a medical device.

What should I do if the heart rate reading is inaccurate?

Ensure your hands are not too dry or too wet, maintain consistent contact on all four sensors, and avoid excessive movement. The hand pulse technology is sensitive to static electricity and grip changes. For best results, stand still on the side rails and test.

Can I customize my own workout program?

Yes, select User Program (P13). After setting time, distance, calories, you can define 10 resistance levels for the workout profile using UP/DOWN and ENTER. Press START/STOP to begin.

How do I maintain the elliptical machine?

Regularly check and tighten all nuts and bolts, including pedals and moving parts. Lubricate moving joints with grease. Clean with a dry cloth. Failure to maintain may void warranty.

What does the RECOVERY (TEST) button do?

Press RECOVERY when the computer displays your heart rate. It measures your recovery fitness level from F1 (best) to F6 (worst) over 1 minute. Release the hand grips during the test.

How do I set a target heart rate?

Select Target Heart Rate Program (P9). Set your desired time, distance, or calories, and the computer will automatically adjust the resistance to keep your pulse within ±5 beats of the target. You can also use Heart Rate Control programs (P10-P12) which use a percentage of your max HR based on age.

What should I do if the machine makes unusual noises?

Stop using the machine immediately. Check that all nuts and bolts are tightened. Inspect for any loose or damaged parts. If the noise persists, contact support via the warranty form at lifespanfitness.com.au.

Is the LifeSpan XT-38 suitable for physiotherapy?

No, the equipment is not suitable for therapeutic use. It is designed for indoor home fitness only. Always consult a physician before starting any exercise program, especially if you have health conditions.

USER MANUAL XT-38 LifeSpan

Read all instructions carefully before using this product. Retain this owner's manual for future reference.

IMPORTANT

All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your threads and void your warranty.

NOTE:

This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available through our website at www.lifespanfitness.com.au

TABLE OF CONTENTS

I. Important Safety Instructions 03
II. Care Instructions 04
III. Exploded Diagram 05
IV. Parts List 06
V. Assembly Instructions 09
VI. Seat and Handlebar Adjustment ..... 14

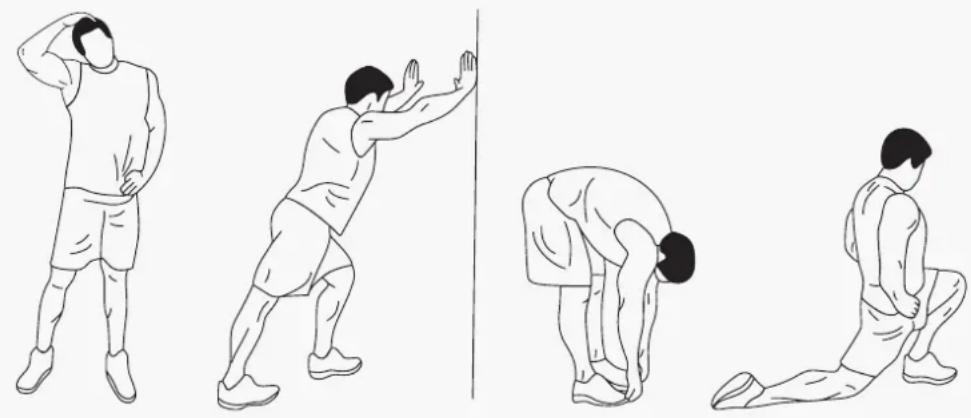

VII. Exercise Guide ......15
VII. Exercise Computer Instruction Manual 17
VIII. Warranty 18
IX. Hand Pulse Technology....19

I. IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all instructions before using this machine.

It is important your machine receives regular maintenance to prolong its useful life. Failing to regularly maintain your machine may void your warranty.

Please keep this manual with you at all times.

- It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

Please note: It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

- Before starting any exercise program you should consult your doctor to determine if you have any medical or physical conditions that could put your health and safety at risk, or prevent you from using the equipment properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.

- Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do experience any of these symptoms, you should consult your doctor before continuing with your exercise program.

- Keep children and pets away from the equipment. This equipment is designed for adult use only.

- Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 2 meters of free space around it.

- Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any unusual noises coming from the equipment during use and assembly, stop immediately. Do not use the equipment until the problem has been rectified.

- Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movement.

• This equipment is designed for indoor and family use only

- Care must be taken when lifting or moving the equipment so as not to injure your back.

• Always keep this instruction manual and assembly tools at hand for reference.

- The equipment is not suitable for therapeutic use.

- The pulse or heart rate sensors are not medical devices. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general.

II. CARE INSTRUCTIONS

- Lubricate moving joints with grease after periods of usage.

- Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.

- The machine can be kept clean by wiping it down using dry cloth.

- All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your thread and void your warranty.

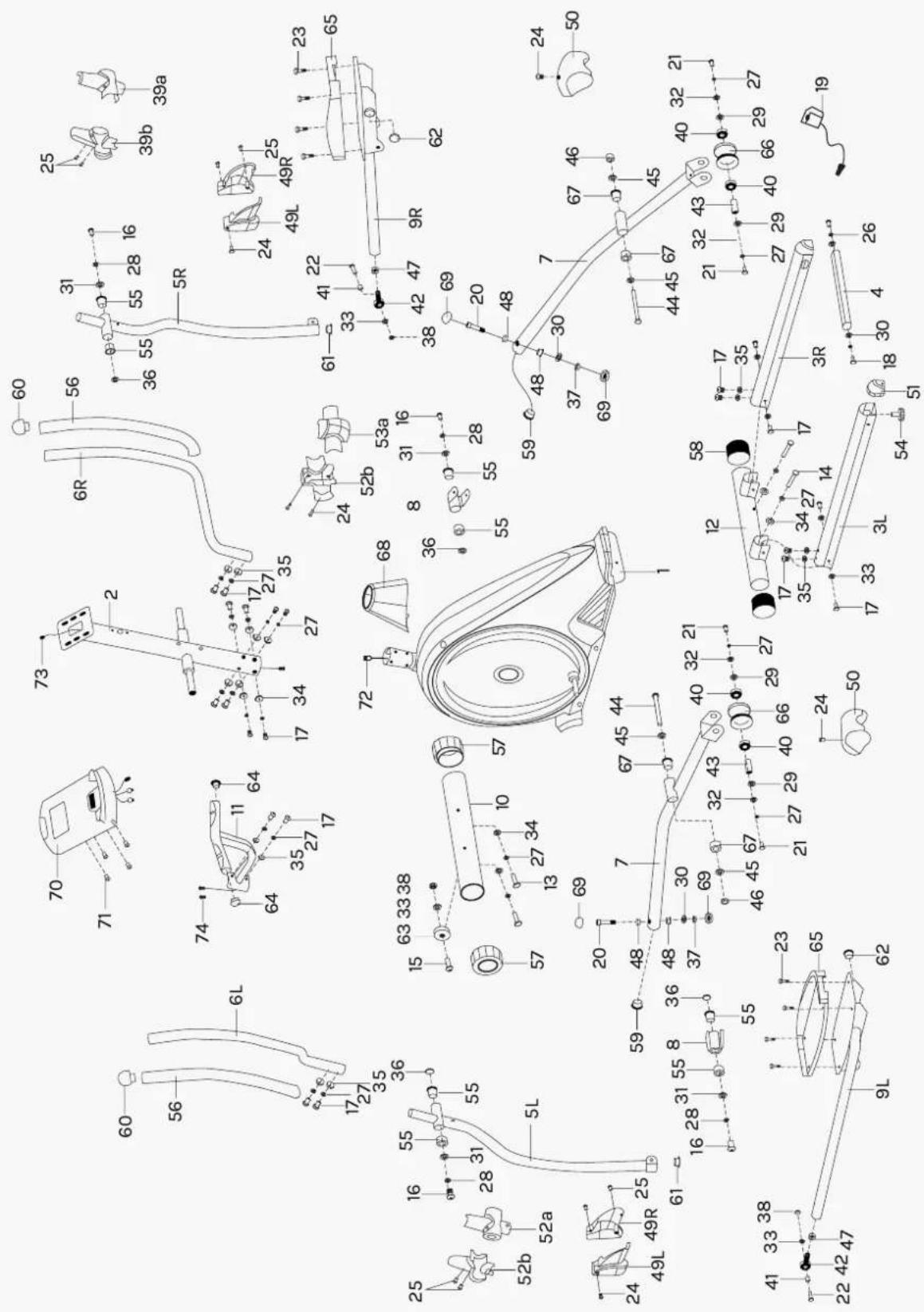

III. EXPLODED DIAGRAM

IV. PARTS LIST

NO. Name Qty

1	Main Frame 1
2	Handlebar post 1
3L/R	Guide rail 1pr
4	Rear supporting tube 1
5L/R	Swing bar 1pr
6L/R	Handlebar 1pr
7	Roller bracket 2
8	Connecting joint 2
9 L/R	Pedal bar 1pr
10	Front bottom tube 1
11 Handrail 1
12	Rear bottom tube 1
13	Inner hex screw M8 XL93	2
14	Inner hex screw M8 XL75	2
15	Hex bolt M8x38xL12	2
16	Hex bolt M8X20	4
17	Hex bolt M8X16	22
18	Hex bolt M10X20	2
19	Adaptor	1
20	Bolt M10x65xL20	2
21	Bolt M8*16	4
22	Bolt M8*30	2
23	Cross taping screw M6x15	8
24	Cross taping screw ST4.2*18	8
25	Cross taping screw ST4.2*12	6
26	Spring washer D10	2
27	Spring washer D8	22
28	Spring washer D8	4

NO. Name Qty

29	Flat washer 17* 22*2	4
30	Flat washer D10*D20*2	4
31	Flat washer D8 xD32 x2	4
32	Flat washer D8 xD20x2	4
33	Flat washer D8 xD16 x1.5	8
34	Arch washer 8*1.5* 25	12
35	Arch washer 8*1.5* 20	10
36	Wave washer D21	4
37	Nylon nut M10	2
38	Nylon nut M8	4
39a/b	Right swing tube cover	1pr
40	Bearing 6003Z	4
41	Bushing	2
42	Universal joint	2
43	Short axle	2
44	Hex bolt M12x125	2
45	Flat washer 12* 24*2	4
46	Nylon nut M12	2
47	Hex nut M12	2
48	Bushing	4
49L/R	Pedal bar cover	2pr
50	Roller cover	2
51	End cap	2
52a/b	Left swing tube cover	1pr
53a/b	Handlebar cover	1pr
54	Adjustable pad	2
55	Axle bushing	8
56	Foam grip	2

NO. Name Qty

57	End cap 2
58	Oval cap 2
59	Bushing 2
60	Round end cap 2
61	Round end cap φ32*2 2
62	Round end cap φ28*1.5 2
63	Roller 2
64	Round end cap 2
65	Pedal 2

NO. Name Qty

66	Roller of guide rail 2
67	Axle bushing 4
68	Front cover 1
69	End cap S17 4
70	Computer 1
71	Screw M4*10 4
72	Sensor wire	1
73	Extension wire	1
74	Pulse wire	2

V. ASSEMBLY INSTRUCTIONS

PREPARATION

Before assembling make sure that you will have enough space around the item.

1. Lock the front bottom tube (10) into the main frame (1) with Inner hex screw (13), spring washer (27) and arch washer (34).
2. Lock the rear bottom tube (12) into the main frame (1) with Inner hex screw (14), spring washer (27) and arch washer (34).
3. Insert the rear supporting tube (4) into the guide rail (3L/R), and lock it with hex bolt (18), spring washer (26), flat washer (30).
4. Lock the guide rail (3L/R) into the rear bottom tube (12) with hex bolt (17), spring washer (35), and flat washer (33).

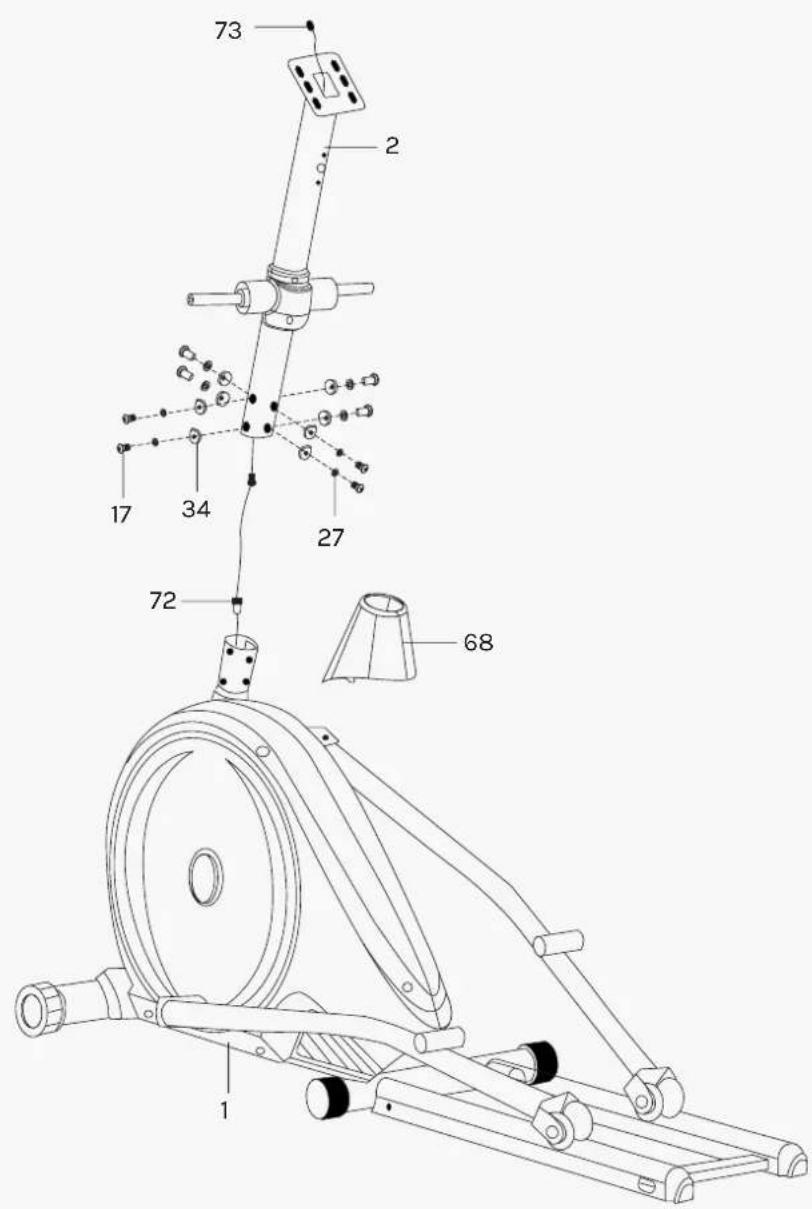

STEP 2

1. Cover the front cover (68) to handlebar post (2), then connect the sensor wire (72) and extension wire (73).

2. Insert the handlebar post (2) into the main frame (1) and lock it tightly with Hex bolt (17), spring washer (27), and arch washer (34).

STEP 3

1. Lock the swing bar (5L/R) to the long axis of handlebar post (2) with hex bolt (16), spring washer (28), flat washer (31) and wave washer (36).
2. Lock the pedal bar (9L/R) to the roller bracket (7) with hex bolt (44), flat washer (45) and nylon nut (46).
3. Connect the swing bar (5L/R) and pedal bar (9L/R) with hex bolt (22), flat washer (33) and nylon nut (38).
4. Lock the pedal (65) into the pedal bar (9L/R) with cross taping screw (23).

STEP 4

1. Lock the handlebar (6L/R) to swing bar (5L/R) with Hex bolt (17), spring washer (27) and Arch washer (35).
2. Put the pulse wire (74) through the hole of handlebar (2) and put it out from the bracket, and then lock the handrail (11) into the handlebar (2) with hex bolt (17), spring washer (27) and arch washer (35).

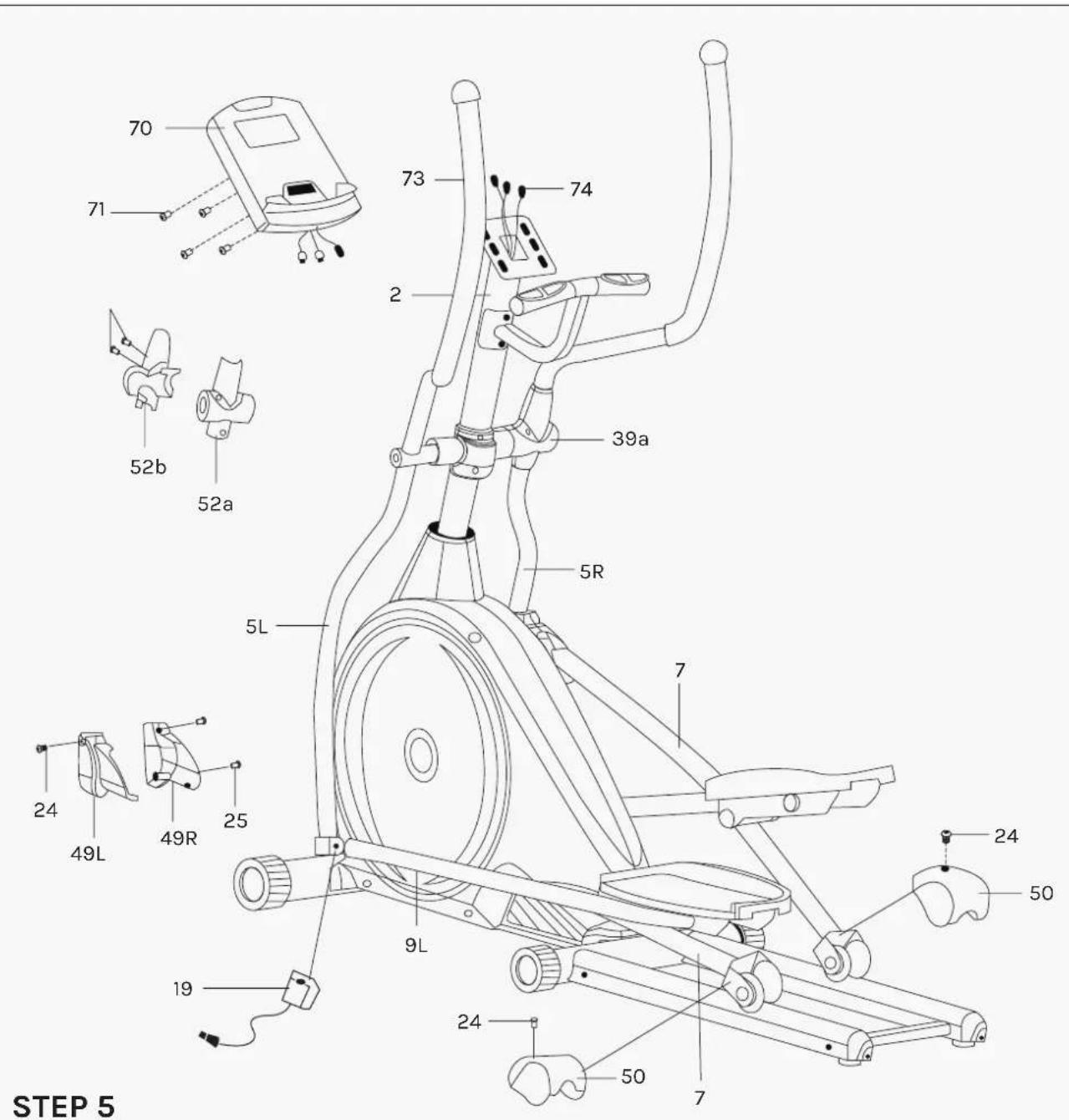

1. Connect the pulse wire (74) and extension wire (73) with the wires of the computer (70), and then lock the computer (70) into the bracket of handlebar (2) with screw (71).
2. Lock the left swing tube cover (52a/b) and right swing tube cover (39a/b) into the swing bar (5L/R) with screw (25).
3. Lock the pedal bar cover (49L/R) on the connect place of the swing bar (5L/R) and pedal bar (9L/R) with screw (24 & 25).
4. Lock the roller cover (50) into the Roller bracket (7) with cross taping screw (24).
5. Connect adapter (19) to the power slot located at the front-bottom flywheel area and then plug into a wall socket.

VI. COMPUTER OPERATION

Key Functions

START/STOP

1. Start & Pauses workouts.
2. Start body fat measurement and quit the body fat program.
3. Operates only when in stop mode. Holding key 3 seconds will reset all function value to be zero.

DOWN

Decrease value of selected workout parameter: TIME, DISTANCE, etc. During the workout, it will decrease the resistance lode.

UP

Increases value of selected workout parameter. During the workout, it will increase the resistance load.

ENTER

To input desired value or work out mode.

TEST (RECOVERY)

Press to enter into Recovery function when computer has the heart rate value. Recovery is Fitness Level 1-6 after 1 minute. F1 is best, and F6 is the worst.

MODE

Press to switch display form RPM to SPEED, ODO to DIST, and WATT to Calories during workout.

WORKOUT SELECTION

After power-up using UP or DOWN keys to select then pressing ENTER to enter the desired mode.

SETTING WORKOUT PARAMETERS

After selecting your desired program, you may pre-set several workout parameters for desired results.

WORKOUT PARAMETERS:

TIME/DISTANCE/CALORIES/AGE

Note: Some parameters are not adjustable in certain programs.

Once a program has been selected, pressing ENTER, will make "Time" parameter flash. Using UP OR DOWN KEY you may select desired time value. Press ENTER KEY to input value.

Flashing prompt will move to the next parameter. Continue use of UP OR DOWN KEY. Press START/STOP to start workout.

MORE ABOUT WORKOUT PARAMETERS

Field Setting	Range Default	value	Increment/Decrement	Description
Time	0:00~99:00 00:00 ±1:00			When display is 0:00, Time will count up.When Time is 1:00~99:00, it will countdown to 0.
Distance	0.00~999.0 0.00 ±1.0			When display is 0.0, Distance will count up.When distance is 1.0~999.0, it will countdown to 0.
Calories	0~9950 0 ±50			When display is 0, Calories will count up.When Calories is 50~9950, it will count down to 0.
Age	10~99 30 ±1			Target HR will be based on Age.When Heart Rate exceeds Target H.R, the number of Heart Rate will flash in programs.

PROGRAM OPERATION Manual (P1)

Selecting "Manual" using UP OR DOWN KEY then pressing ENTER KEY .1st parameter "Time" will flash so value can be adjusted using UP OR DOWN KEY. Press ENTER KEY to save value & move to next parameter to be adjusted.

Continue through all desired parameters, pressing START/STOP to start workout.

Note: One of workout parameters counts down to be zero, it will have bi sounds and stop the workout automatically. Press START KEY to continue the workout to reach the unfinished workout parameter.

PRE-PROGRAMS (P2-P7)

There are 6 program profiles ready for use. All program profiles have 16 level of resistance. Setting Parameters for Pre-programs

Selecting one of pre-programs using UP OR DOWN KEY then pressing ENTER KEY .1 ^st parameter "Time" will flash so value can be adjusted using UP OR DOWN KEY. Press ENTER KEY to save value & move to next parameter to be adjusted.

Continue through all desired parameters, pressing START/STOP to start workout.

NOTE: One of workout parameters counts down to be zero, it will have bi sounds and stop the workout automatically. Press START KEY to continue the workout to reach the unfinished workout parameter.

BODY FAT PROGRAM (P8)

Setting Data for Body Fat

Selecting "Body Fat Program" using UP OR DOWN KEY then pressing ENTER.

"Male" will flash so Gender can be adjusted using UP OR DOWN KEY, press ENTER to save gender & move to next data.

"175" of Height will flash so Height can be adjusted to use UP OR DOWN KEY, press ENTER KEY save value & move to next data.

"75" of Weight will flash so Weight can be adjusted to use UP OR DOWN KEY, press ENTER KEY to save value & move to next data.

"30" of age will flash so Age can be adjusted using UP OR DOWN KEY, press ENTER to save value. Press START/STOP to start measurement, please also grasp hand pulse grips.

After 15 seconds the display will show out Body Fat%, BMR, BMI & BODY TYPE.

NOTE:

Body Types: There are 5 body types divided according to the FAT% calculated.

BMR: Basal Metabolism Ratio.

BMI: Body Mass Index.

Press START/STOP KEY to return the main Display.

TARGET HEART RATE PROGRAM (P9)

Setting Parameter for TARGET H.R.

Selecting "TARGET H.R." using UP OR DOWN KEY then pressing ENTER KEY .1st parameter "Time" will flash so value can be adjusted using UP OR DOWN KEY. Press ENTER KEY to save value & move to next parameter to be adjusted.

Continue through all desired parameters, pressing START/STOP to start workout.

NOTE: If Pulse is above or below ( ±5 ) the set TARGET H.R., computer will adjust the resistance load automatically. It will check every 20 seconds approx. resistance load will increase or decrease.

(NOTE: Each resistance load represents 2 level of loading)

One of workout parameters counts down to be zero, it will have bi sounds and stop the workout automatically. Press START/STOP to continue the workout to reach unfinished workout parameter.

HEART RATE CONTROL PROGRAM (P10-P12)

There are 3 selection for target pulse:

P10-60% TARGET H.R. = 60% of (220-AGE)

P11-75% TARGET H.R. = 75% of (220-AGE)

P12-85% TARGET H.R. = 85% of (220-AGE)

SETTING PARAMETERS FOR HEART RATE CONTROL

Selecting "One of Heart Rate Control Program" using UP OR DOWN KEY then pressing ENTER KEY. 1st parameter "Time" will flash so value can be adjusted using UP OR DOWN KEY. Press ENTER KEY to save value & move to next parameter to be adjusted.

Continue through all desired parameters, pressing START/STOP to start workout.

NOTE: If Pulse is above or below (±5) the set TARGET H.R., computer will adjust the resistance load automatically. It will check every 20 seconds' approx. resistance load will increase or decrease

(Note: each resistance load represents 2 level of loading)

One of workout parameters counts down to be zero, it will have bi sounds and stop the workout automatically. Press START/STOP KEY to continue the workout to reach unfinished workout parameter.

USER PROGRAM (P13)

User program allows user to set their own program that can be used immediately.

SETTING PARAMETERS FOR USER PROGRAM

Selecting user using UP OR DOWN KEY then pressing ENTER KEY .1st parameter "Time" will flash so value can be adjusted using UP OR DOWN KEY. Press ENTER KEY to save value & move to next parameter to be adjusted.

Continue through all desired parameters.

After finished set up desired parameter, the level 1 will flash, use UP OR DOWN KEY to adjust then pressing ENTER until finished.(There are totally 10 times),Press START/STOP to start workout.

NOTE: One of workout parameters counts down to be zero, it will have bi sounds and stop the workout automatically. Press START/STOP KEY to continue the workout to reach unfinished workout parameter.

! PLEASE NOTE:

Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems.

The pulse sensors are not medical devices. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in determining heart rate trends in general.

Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.

The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will pump a lot fewer times per minute, reducing the wear and tear of your heart.

So as you can see, the fitter you are, the healthier and greater you will feel.

Four sequential illustrations of a person performing a stretching or martial arts movement, showing forward and backward angles (no text or symbols)

WARM UP

Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.

After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity for maximum performance. Breathe regularly and deeply as you exercise.

COOL DOWN

Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise problems.

WORKOUT GUIDELINES

This is how your pulse should behave during general fitness exercise. Remember to warm up and cool down for a few minutes.

VIII. WARRANTY

AUSTRALIAN CONSUMER LAW

Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Full details of your consumer rights may be found at www.consumerlaw.gov.au.

Please visit our website to view our full warranty terms and conditions:

http://www.lifespanfitness.com.au/warranty-repairs

WARRANTY AND SUPPORT

Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed.

If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form

For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service Request Form or Parts Purchase Form.

Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form

IX. HAND PULSE TECHNOLOGY

This product comes equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals that run through the body when your heart beats. These electrical EKG/ECG signals are very small and that they must be amplified 1000 times to make the signal useful for the computer to display your pulse.

To ensure proper operation:

• The user must maintain good, consistent contact on all four sensors.
• The users skin cannot be too dry or too wet.

Other factors that could affect the reading:

• Change of grip on the sensors (during slow pace walking and up to running).
• Tightening of hand muscles will produce small electrical signals.
• Static electricity charges from the air or from walking on the treadmill.

EKG/ECG Sensors may filter through actual EKG/ECG signals and "Noise" factors that may affect the reading. This will cause the pulse reading to be delayed and will take longer to update the display as the heart rate changes. Too much noise will create an incorrect reading. Medical conditions or having no electrical signal in the hands are other factors that may affect pulse readings as well.

These are limitations of hand pulse technology and even the most expensive systems (which can cost upwards of \$3,000) used in hospitals have the same problems. The difference is that a patient in a hospital is not running on a treadmill. Hand pulse technology works well on stationary exercise machines like bikes and even elliptical cross trainers but are not perfect on a treadmill. We offer treadmills with a wireless heart rate receiver which may be a more accurate option.

To test if your hand pulse sensors are working up to specification, hold them while standing on the sidestep rails, not walking, and see if the reading is more in line with what you would expect. This will eliminate the movement and static electricity factors. If your hands are dry, then wet them slightly (saliva works as a great conductor if this doesn't bother you).
