Product Type	Cordless Stick Vacuum Cleaner with Detachable Hand Vacuum
Model	Lynsey SC15820
Brand	Swan (Eureka)
Dimensions (LxWxH)	25 x 17 x 110 cm
Net Weight	2.6 kg
Battery Voltage	21.6 V
Motor Power	220 Watts
Dust Bin Capacity	0.5 L
Charging Time	3.5 hours
Running Time	Up to 30 minutes (varies by accessory and floor type)
Sound Level	80 dBA
Filtration	Washable dust cup filter (clean monthly), washable post-motor filter (clean every 6 months)
Accessories Included	2-in-1 upholstery tool, crevice tool, wall mount charging base, motorized Hyper head
Brushroll Maintenance	Cut tangled hair/debris; removable with screwdriver for deep cleaning
Safety Features	Thermal cut-off protection; automatic shutoff if overheated
Replacement Parts	Battery (SC15824N-01), charger (SC15824N-02), filters, wand, Hyper head, etc.
Warranty	2 years (UK and Eiro only)
Intended Use	Domestic indoor use only; not for wet surfaces or outdoors

Frequently Asked Questions - Lynsey SC15820 SWAN

How do I charge the vacuum cleaner?

Place the assembled vacuum on the wall mount (or set on a flat surface). Insert the charger plug into the charging port on the handle, then plug the charger into a wall outlet. The battery indicator lights will show the charging progress. Full charge takes about 3.5 hours. The vacuum will not operate while charging.

What should I do if the vacuum cleaner suddenly stops working?

This may be due to the thermal cut-off feature. Check for blockages (full dust cup, clogged wand or filters). Fix any issues and wait at least 30 minutes for the motor to cool. Then press the power button. If it still doesn't work, contact customer service at 0333 220 6050.

How often should I clean the filters?

The dust cup filter should be cleaned monthly by rinsing with water and drying thoroughly. The post-motor filter should be cleaned every 6 months by shaking off dust and rinsing if needed. Always allow filters to dry completely before reinstalling.

How do I empty the dust cup?

There are two methods: 1) Hold the vacuum over a waste basket and press the lever on the bottom lid to release debris. 2) Twist the dust cup to the 'unlock' position, remove it, empty the contents, then reattach and twist to 'locked' position.

Can I use the vacuum on wet surfaces?

No. The vacuum is designed for dry use only. Do not use on wet surfaces or outdoors to avoid electric shock or damage.

How do I maintain the brushroll?

Frequently cut tangled hair or threads from the brushroll using scissors. If debris is hard to remove, use a flathead screwdriver to turn the screw to the unlock position, slide off the retainer slip, and remove the brushroll for cleaning.

What is the running time of the battery?

Under normal conditions, the battery runs up to 30 minutes. However, using motorized heads (like the Hyper head) or cleaning carpets reduces runtime. The crevice tool uses less power and extends runtime.

Can I use the hand vacuum without the wand?

Yes. Press the release button to detach the hand vacuum from the wand. You can then use it directly with or without tools for spot cleaning, stairs, or upholstery.

What replacement parts are available?

Replacement parts include battery (SC15824N-01), charger (SC15824N-02), crevice tool, foam and fiber filters (SC15824N-04), post-motor filter (SC15824N-05), wall mount, 2-in-1 upholstery tool, wand, filter screen, and Hyper head. Visit www.eureka-swan.co.uk.

Is the vacuum covered by a warranty?

Yes, it comes with a 2-year guarantee from the date of purchase against faulty materials or workmanship. Conditions apply: must be used as per instructions, for domestic purposes only, and proof of purchase is required. Warranty valid in UK and Eiro only.

USER MANUAL Lynsey SC15820 SWAN

eureka

Swan

IMPORTANT SAFEGUARDS

Follow caution information wherever you see this symbol.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that has the switch on invites accidents.
• Do not touch nozzle when the vacuum cleaner is on. Danger.
• Do not put any object into openings. Do not use with any openings blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• Do not use outdoors or on wet surfaces.
• Do not operate the vacuum cleaner or charger if it has been damaged in any way. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call the Eureka | Swan Customer Service HELP LINE at 0333 220 6050
• To avoid excessive heat and damage to the unit or battery, the vacuum cleaner will not operate while charging.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a

eureka

Swan

IMPORTANT SAFEGUARDS

• This charger is not intended for use by travellers.
- Do not use extension cords or outlets with inadequate current-carrying capacity for the charger.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle charger or vacuum cleaner with wet hands.
- Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- DO NOT MUTILATE OR INCINERATE BATTERIES. THEY BECOME DANGEROUS AT HIGH TEMPERATURES.
- Liquid ejected from the battery may cause irritation or burns. If the liquid gets on the skin, (1) seek medical attention, (2) wash quickly with soap and water, and (3) neutralize with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
- This product has a functioning temperature range within 5°C - 40°C.
- Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
- Follow all charging instructions and do not charge the battery pack

eureka

Swan

IMPORTANT SAFEGUARDS

• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
• The terminals on both the vacuum cleaner and battery should be kept free and clean of objects. Do not insert metal objects inside the terminals.
• This vacuum cleaner creates suction. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters in place.
• Use extra care when cleaning stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline/petrol, or use in areas where they may be present.
• Store vacuum cleaner and charger indoors in a cool, dry area. To avoid electric shock and/or cleaner damage, do not expose to weather elements.
• Keep your work area well lit. Unplug electrical appliances before vacuuming them.
  • Overcharging, short circuiting, reverse charging, mutilating or incinerating the cells and the batteries must be avoided.
• If a cell or a battery has leaked or vented, it should be replaced immediately using protective gloves.
• If and when necessary, these cells or batteries must be replaced with identical new ones from the same manufacturer. If a cell or a battery to be replaced is connected with other cells or batteries in series, it is recommended that the other cells or batteries be

eureka

Swan

IMPORTANT SAFEGUARDS

• Do not incinerate this appliance even if it is severely damaged. Contact local waste facility before discarding in trash.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

SAVE THESE INSTRUCTIONS

eureka

Swan

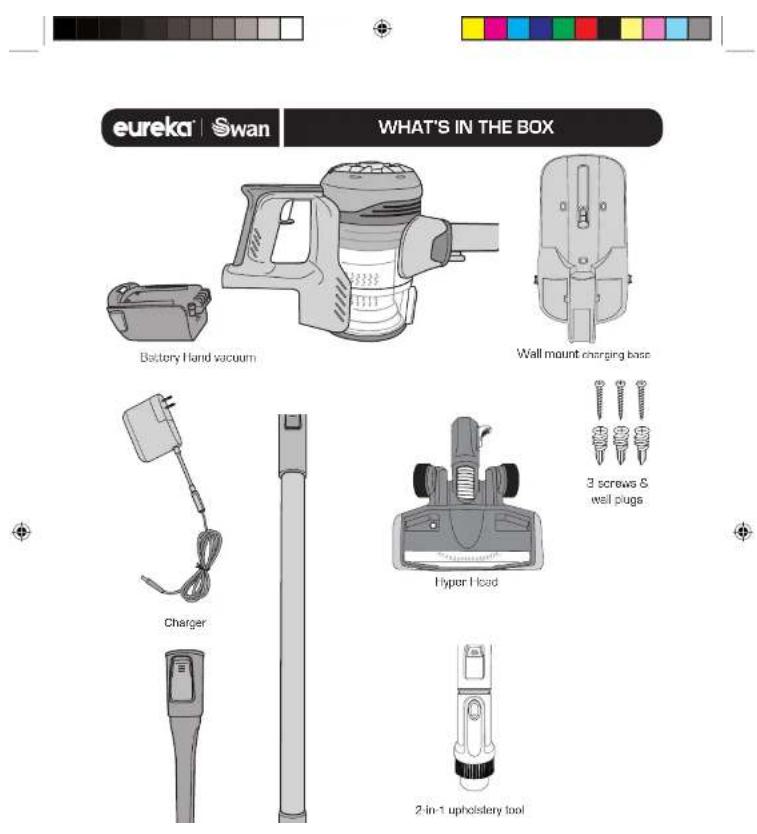

UNPACKING

Carefully unpack and inspect your new Eureka | Swan vacuum cleaner for shipping damage.

Each unit is tested and thoroughly inspected before shipping. For instructions regarding any shipping damage, call the Eureka | Swan Customer Service HELPLINE at 0333 220 6050 immediately.

eureka

Swan

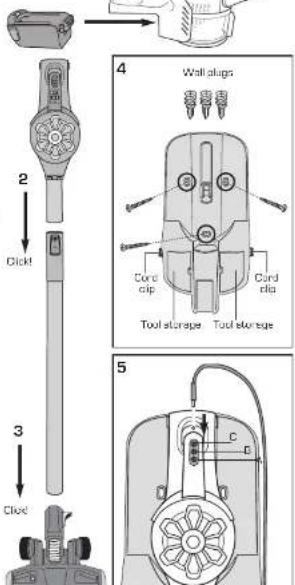

EASY ASSEMBLY

1. Slide battery onto hand vacuum until firmly attached (Fig. 1).
2. Slide wand onto hand vacuum until it clicks (Fig. 2).
3. Push wand into motorized floor nozzle until it clicks (Fig. 3).

How to install wall mount

• Choose location near power outlet. Locate point high enough on wall to allow wand and motorized floor nozzle to hang freely.
• Place mount against wall and use pencil to mark drill holes.
• Drill holes (with 6mm bit) and insert all plugs. Insert screws through holes on mount and tighten until firmly attached (Fig. 4).

How to charge battery and store accessories

• Place assembled vacuum cleaner on wall mount
• Plug charger into power outlets and then into charger port on handle (Fig. 5).
• Loop charger cord into clips on sides of wall mount
• Snap tool(s) into tool storage areas (Fig. 5).

Battery indicator lights show level of charge (Fig. 5):

A. Fully charged B. Half charged
C. Low power

1

[NO TEXT]

How to use cleaner for cleaning floors

1. Click power button once to start (Fig 1).

2. Using motorized floor head or plush brush roll (SC15822N only), glide back and forth on area to be cleaned. Avoid oversized or sharp items (such as screws) with cleaner.

3. Twist wrist to engage swivel function.

4. When done, click power button once to stop motor.

Empty dust cup after every use

There are two ways to empty the dust cup:

1. Hold cleaner over waste basket. Press lever to release bottom lid of dust cup to empty debris (Fig. 2).
2. Or, remove dust cup from hand vacuum by twisting to 'unlock' position (Fig. 3). Once emptied, reattach dust cup by lining up arrow and 'unlock' position. Twist dust cup until arrow lines up with 'locked' position.

How to use hand vacuum and accessories

The hand vacuum can be used with or without tools.

• To use without tools, press release button and remove wand. Collect debris directly with hand vacuum nozzle (Fig. 4)
- To use tools with wand, press release button to remove motorized floor nozzle. Slide tool onto end of wand until it clicks

1 Power button-

eureka | Swan

HOW TO USE

How to use hand vacuum and motorized floor head/plush brush roll

Ideal for cleaning stairs.

• Press release button to remove wand from hand vacuum. Attach Hyper-clean head directly to hand vacuum until it clicks.
• Click power button once to start.

Use with or without wand.

- 2-in-1 upholstery tool: Use brush to vacuum blinds, vents or upholstered surfaces. Use felt portion to clean delicate surfaces. To switch between felt and brush portions, press thumb release and slide brush up or down.

Close-up of a vacuum cleaner on a sofa, no visible text or symbols

Black and white photo of a vacuum cleaner on a wet surface (no text or symbols visible)

A small dog standing next to a vacuum cleaner on a textured surface (no text or symbols visible)

eureka

Swan

MAINTENANCE

CAUTION

Never operate vacuum cleaner without all filters, filter screen and dust cup in proper position.

WARNING: Moving parts! Recharge cleaner after each use.

OR

Hold over wastebasket and push lever to release bottom Id. Debris will empty.

Or, remove dust cup by tweeting to 'unlock position. Empty debris. Peettech dust cup and twist to lock position

Washable dust cup filter - clean monthly

1. Tais, dax, cup and remove.
2. Tais, the water and water.
3. Let me, I am the water.

4. Suppose I can the water if then be pulling them around.

5. Pine and dry THOROUGHLY.

6. Desembriosis is probably dry.

Washable post-motor filter - clean every 6 months

1. White like case and remove.
2. 19.6.3025:0007
3. Shake to return due.
4. Every 6 months, express that course and try THORCHLY
5. Deposition of the and power and waste in book

Brushroll maintenance - clean frequently or when brushroll indicator light turns red

Place motorized floor intake upside down. Use scissors or knife to cut strings and threads.

I debris cannot be removed easily. Remove retainer slip to access brushroll. Using fishhead screwdriver or coin, turn screw to the unlock position.

eureka

Swan

TROUBLE-SHOOTING

Make sure vacuum cleaner is off, and charging plug is unplugged.

NOTICE: Thermal cut-off

The vacuum cleaner has a special thermostat that protects it in ease of motor overheating. If the vacuum suddenly shots off, proceed as follows: 1) Check the vacuum for a possible source of overheating such as a full dust cap, blocked wend or clugged filters. If these conditions are found, fix them and walk at least 30 minutes before attempting to use the vacuum. 2) After the 30 minute period, press the power button. If the vacuum still does not work, call the Eureka (Swam Customer Service HELPLINE st. 0333 220 6050.

Problem Solution
Motor will not start	Make sure cleaner is fully powered.Push charger securely into electrical outlet, try another outlet or check circuit breaker.See detailed "thermal cut-off" instructions above.
Charging indicator lights are not lit while charging	Make sure charger is securely inserted into electrical outlet.Make sure charging plug is securely inserted into handle.Indicator lights stop blinking when fully charged.
Not enough suction power	Empty dust cup and clean or change filters. See page 11 for maintenance instructions.Make sure cleaner is fully powered. Charge battery.Remove clogs that restrict the airflow.
Not enough running time	Make sure cleaner is fully powered.Charge battery for 4 hours before using.
Hyperhead brush roll will not turn	Check brush roll for debris. See page 11 for maintenance instructions.

eureka | Swan

DISPOSAL

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeirland.io for access to information about the acquiring of electrical items purchased in Ireland. The IEEE directive introduced in

August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

eureka | Swan

TECHNICAL DATA

SC15820N

Performance

• Dust bin capacity: 0.5L
- Battery voltage: 2
• Motor power: 220 Watts
• Sound level: 80dBA
• Charging time: 3.5 Hours
- Running time: up to 30 mins (see note below)

Accessories

• 1 x 2-in-1 upholstery tool
- 1 x Crevice tool
- 1 x Wall mount charging base

- 1 x Hyper head

Weight & Dimensions

• Net weight: 2.6kg
  • Product size (LxWxH): 25 x 17 x 110cm

NOTE: Battery usage times can be affected/reduced by the following factors:

• The type of attachment being used. Eg the crevice tool will drain the power much more slowly than the motorised heads, which have their own motor.
• Carpeted floors offer more resistance than hard floors, so require more power from the battery.
  • Closed filters mean the motor has to work

eureka | Swan

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide.
- It must be used only for domestic purposes.
- It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eiro Only.
