SC15824N - Vacuum Cleaner SWAN - Free user manual and instructions

Product Type	Cylinder Vacuum Cleaner
Brand	Swan
Model	SC15824N
Dimensions (H x W x D)	35 cm x 25 cm x 25 cm
Weight	4.5 kg
Power Supply	220-240 V, 50-60 Hz
Power Consumption	800 W
Dust Capacity	2.0 L
Filtration System	HEPA Filter
Cord Length	6 m
Noise Level	72 dB
Cleaning Functions	Dry vacuuming, crevice tool, upholstery brush, floor nozzle
Maintenance	Empty dust container after each use; clean HEPA filter monthly; replace filter every 6 months
Safety Features	Thermal overload protection, automatic shut-off when overheated

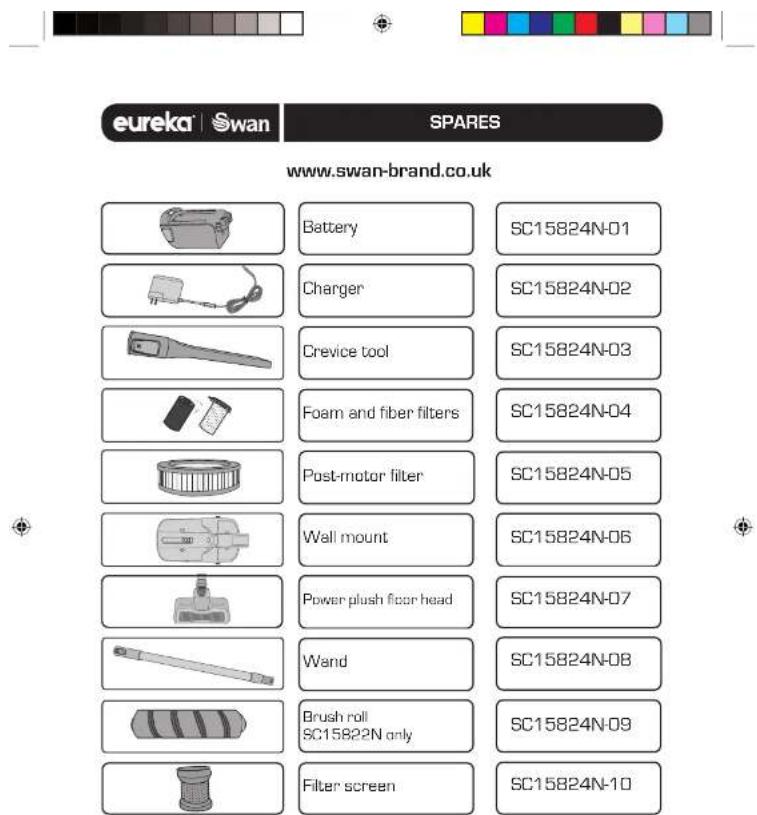

Spare Parts Available	Filters, hoses, nozzles, brush rolls
Repairability Index	7.5 / 10 (score based on spare parts availability and disassembly ease)
General Information	Suitable for carpets and hard floors; built-in carry handle; 360° swivel hose for maneuverability

Frequently Asked Questions - SC15824N SWAN

How do I empty the dust container?

Press the release button on the dust container and pull it out. Hold over a bin, press the bottom lid release to empty. Close lid and reattach.

How often should I clean the filters?

Clean the HEPA filter monthly under running water. Allow to dry completely for 24 hours before reinserting. Replace every 6 months.

What accessories are included?

The SC15824N comes with a crevice tool, upholstery brush, and a combination floor nozzle for carpets and hard floors.

Can I use it on pet hair?

Yes, the powerful suction and upholstery brush effectively remove pet hair from furniture and carpets. Regular filter cleaning is recommended.

Why is the vacuum losing suction?

Check if the dust container is full, filters are clogged, or the hose is blocked. Clean or replace filters as needed. Also ensure the nozzle is not obstructed.

How do I change the HEPA filter?

Unplug the vacuum. Open the filter compartment cover, remove the old filter, insert a new one (Swan model SC15824N compatible), and close the cover securely.

Is the vacuum cordless?

No, the Swan SC15824N is a corded vacuum with a 6 m power cord, providing continuous suction without battery limitations.

What is the warranty period?

Swan offers a 2-year warranty against manufacturing defects. Register your product on the Swan website for extended support.

Can I wash the dust container?

Yes, the dust container can be washed with warm soapy water. Ensure it is completely dry before reassembling. Do not wash the filters in the dishwasher.

How do I store the vacuum?

Wrap the cord around the cord hooks, attach the nozzle to the crevice tool for compact storage, and keep in a dry place. The vacuum has a vertical parking position.

USER MANUAL SC15824N SWAN

eureka

Swan

IMPORTANT SAFEGUARDS

Follow caution information wherever you see this symbol.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING

• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that has the switch on invites accidents.
• Do not touch nozzle when the vacuum cleaner is on. Danger.
• Do not put any object into openings. Do not use with any openings blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• Do not use outdoors or on wet surfaces.
• Do not operate the vacuum cleaner or charger if it has been damaged in any way. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call the Eureka | Swan Customer Service HELP LINE at 0333 220 6050
• To avoid excessive heat and damage to the unit or battery, the vacuum cleaner will not operate while charging.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a

eureka

Swan

IMPORTANT SAFEGUARDS

• This charger is not intended for use by travellers.
- Do not use extension cords or outlets with inadequate current-carrying capacity for the charger.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle charger or vacuum cleaner with wet hands.
- Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- DO NOT MUTILATE OR INCINERATE BATTERIES. THEY BECOME DANGEROUS AT HIGH TEMPERATURES.
- Liquid ejected from the battery may cause irritation or burns. If the liquid gets on the skin, (1) seek medical attention, (2) wash quickly with soap and water, and (3) neutralize with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
- This product has a functioning temperature range within 5°C - 40°C.
- Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
- Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
- Follow all charging instructions and do not charge the battery pack

eureka

Swan

IMPORTANT SAFEGUARDS

• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
• The terminals on both the vacuum cleaner and battery should be kept free and clean of objects. Do not insert metal objects inside the terminals.
• This vacuum cleaner creates suction. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters in place.
• Use extra care when cleaning stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline/petrol, or use in areas where they may be present.
• Store vacuum cleaner and charger indoors in a cool, dry area. To avoid electric shock and/or cleaner damage, do not expose to weather elements.
• Keep your work area well lit. Unplug electrical appliances before vacuuming them.
  • Overcharging, short circuiting, reverse charging, mutilating or incinerating the cells and the batteries must be avoided.
• If a cell or a battery has leaked or vented, it should be replaced immediately using protective gloves.
• If and when necessary, these cells or batteries must be replaced with identical new ones from the same manufacturer. If a cell or a battery to be replaced is connected with other cells or batteries in series, it is recommended that the other cells or batteries be

eureka

Swan

IMPORTANT SAFEGUARDS

• Do not incinerate this appliance even if it is severely damaged. Contact local waste facility before discarding in trash.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

SAVE THESE INSTRUCTIONS

eureka

Swan

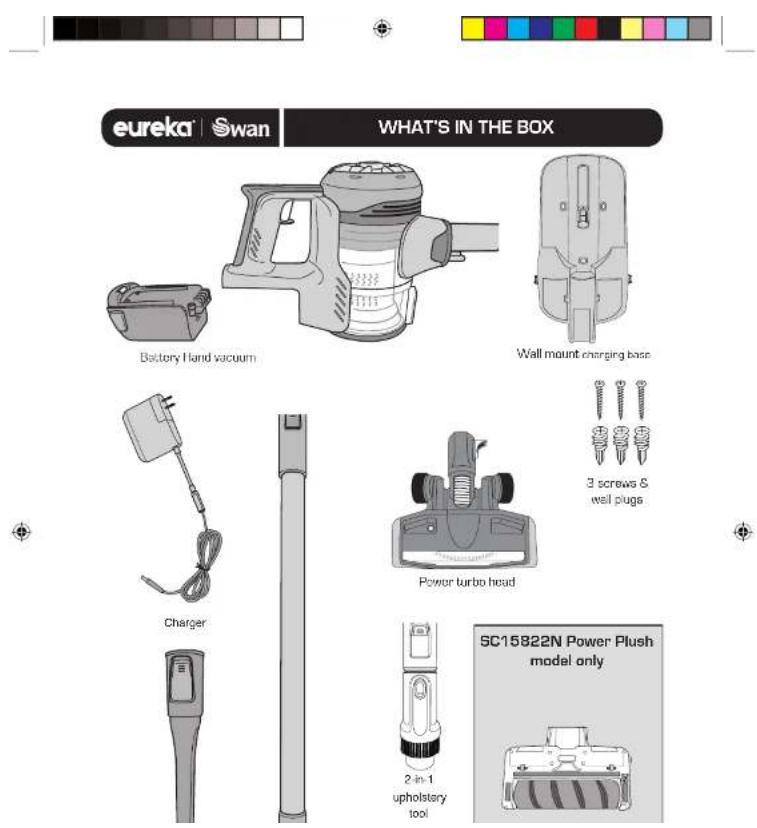

UNPACKING

Carefully unpack and inspect your new Eureka | Swan vacuum cleaner for shipping damage.

Each unit is tested and thoroughly inspected before shipping. For instructions regarding any shipping damage, call the Eureka | Swan Customer Service HELPLINE at 0333 220 6050 immediately.

eureka

Swan

EASY ASSEMBLY

1. Slide battery onto hand vacuum until firmly attached (Fig. 1).
2. Slide wand onto hand vacuum until it clicks (Fig. 2).
3. Push wand into motorized floor nozzle until it clicks (Fig. 3).

How to install wall mount

• Choose location near power outlet. Locate point high enough on wall to allow wand and motorized floor nozzle to hang freely.
• Place mount against wall and use pencil to mark drill holes.
• Drill holes (with 6mm bit) and insert all plugs. Insert screws through holes on mount and tighten until firmly attached (Fig. 4).

How to charge battery and store accessories

• Place assembled vacuum cleaner on wall mount
• Plug charger into power outlets and then into charger port on handle (Fig. 5).
• Loop charger cord into clips on sides of wall mount
• Snap tool(s) into tool storage areas (Fig. 5).

Battery indicator lights show level of charge (Fig. 5):

A. Fully charged
B. Half charged
C. Low power

How to use cleaner for cleaning

floors

1. Click power button once to start (Fig 1).
2. Using Power turbo head or plush brush roll (SC15B22N only), glide back and forth on area to be cleaned. Avoid oversized or sharp items (such as screws) with cleaner.
3. Twist wrist to engage swivel function.
4. When done, click power button once to stop motor.

Empty dust cup after every use

There are two ways to empty the dust cup:
1. Hold cleaner over waste basket. Press lever to release bottom lid of dust cup to empty debris (Fig. 2).
2. Or, remove dust cup from hand vacuum by twisting to 'unlock' position (Fig. 3). Once emptied, reattach dust cup by lining up arrow and 'unlock' position. Twist dust cup until arrow lines up with 'locked' position.

How to use hand vacuum and accessories

CAUTION

Moving parts! Always turn off hand vacuum before attaching accessories

The hand vacuum can be used with or without tools.

• To use without tools, press release button and remove wand. Collect debris directly with hand vacuum nozzle (Fig. 4)
• To use tools with wand, press release button to remove motorized floor nozzle. Slide tool onto end of wand until it clicks

1 Power button-

eureka | Swan

HOW TO USE

How to use hand vacuum and power turbo head/plush brush roll

Ideal for cleaning stairs.

• Press release button to remove wand from hand vacuum. Attach power turbo head/plush brush directly to hand vacuum until it clicks.

- Click power button once to start.

Additional accessory tools on selected models

Use with or without wand.

• 2-in-1 upholstery tool: Use brush to vacuum blinds, vents or upholstered surfaces. Use felt portion to clean delicate surfaces. To switch between felt and brush portions, press thumb release and slide brush up or down.

- Plush brush roll (SC15B22N only): Use to easily remove pet hair from stairs, carpet or upholstery. Adjust angle of motorized pot tool to suit different surfaces.

eureka

Swan

MAINTENANCE

CAUTION

Never operate vacuum cleaner without all filters, filter screen and dust cup in proper position.

WARNING: Moving parts! Recharge cleaner after each use.

OR

Hold over wastebasket and push lever to release bottom Id. Debris will empty.

Or, remove dust cup by tweeting to 'unlock position. Empty debris. Peettech dust cup and twist to lock position

Washable dust cup filter - clean monthly

1. Tais, dax, cup and remove.
2. Tais, the water and water.
3. Let me, I am the water.

4. Suppose I can the water if then be pulling them around.

5. Pine and dry THOROUGHLY.

6. Desembriosis is probably dry.

Washable post-motor filter - clean every 6 months

1. White like case and remove.
2. 19.6.3025:0007
3. Shake to return due.
4. Every 6 months, express that course and try THORCHLY
5. Deposition of the and power and waste in book

Washable plush brush roll (SC15822N only) - clean frequently

Place motorized floor nozzle upside down. Use fingers to remove clog or debris. Do not use scissors or knife to cut strings and throws.

If debris cannot be removed easily, remove leather clip to excess brush roll. Using flathead screwdriver or coin turn screw to the unlock position.

eureka

Swan

TROUBLE-SHOOTING

Make sure vacuum cleaner is off, and charging plug is unplugged.

NOTICE: Thermal cut-off

The vacuum cleaner has a special thermostat that protects it in ease of motor overheating. If the vacuum suddenly shots off, proceed as follows: 1) Check the vacuum for a possible source of overheating such as a full dust cap, blocked wend or clugged filters. If these conditions are found, fix them and walk at least 30 minutes before attempting to use the vacuum. 2) After the 30 minute period, press the power button. If the vacuum still does not work, call the Eureka (Swam Customer Service HELPLINE st. 0333 220 6050.

Problem Solution
Motor will not start	Make sure cleaner is fully powered.Push charger securely into electrical outlet, try another outlet or check circuit breaker.See detailed "thermal cut-off" instructions above.
Charging indicator lights are not lit while charging	Make sure charger is securely inserted into electrical outlet.Make sure charging plug is securely inserted into handle.Indicator lights stop blinking when fully charged.
Not enough suction power	Empty dust cup and clean or change filters. See page 11 for maintenance instructions.Make sure cleaner is fully powered. Charge battery.Remove clogs that restrict the airflow.
Not enough running time	Make sure cleaner is fully powered.Charge battery for 4 hours before using.
Plush brush roll will not turn	Check brush roll for debris. See page 11 for maintenance instructions.

eureka | Swan

DISPOSAL

Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. Please visit www.weeeirland.io for access to information about the acquiring of electrical items purchased in Ireland. The IEEE directive introduced in

August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

eureka | Swan

TECHNICAL DATA

SC15B22N

Performance

• Dust bin capacity: 0.5L
• Battery voltage: 21.6V
• Motor power: 120 Watts
- Sound level: 80dBA
• Charging time: 3.5 Hours
• Running time: 20 mins

Accessories

• 1 x 2-in-1 upholstery tool
- 1 x Crevice tool
- 1 x Wall mount charging base
• 1 x Power Plush Brush roll head
- 1 x Power turbo head

Weight & Dimensions

• Net weight: 2.4kg
  • Product size [LxWxH]: 25 x 17 x 110cm

SC15824N

Performance

• Dust bin capacity: 0.5L
• Battery voltage: 21.6V
• Motor power: 120 Watts
- Sound level: 80dBA
• Charging time: 3.5 Hours
• Running time: 20 mins

Accessories

• 1 x 2-in-1 upholstery tool
• 1 x Crevice tool
• 1 x Wall mount charging base
  • 1 x Power turbo head

Weight & Dimensions

• Net weight: 2.4kg
  • Product size (LxWxH): 25 x 17 x 110cm

eureka | Swan

WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide.
- It must be used only for domestic purposes.
- It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eiro Only.
