USER MANUAL OHNV 175-37 Otsein-Hoover

40003727Eng.qxd 04/08/2005 13:04 Page 1

Instruction Book

OHNV175

Vented Tumble Dryer

NEXTRA

7.5 kg family

40003727Eng.qxd 04/08/2005 13:04 Page 2

English 2

Español 18

Introduction 3

Delivery information 3

Unpacking the Product 3

Safety reminders....4

Installation 4

Use 4

The Laundry .... 4 Environmental Issues .... 5

Environmental Issues 5 GIAS Service 5

Installation....6

Electrical requirements 6

Adjusting the feet 6

Ventilation....7

Preparing the load 8

Clothes preparation....8

Sorting the load....9

Drying advice....10

Do not tumble dry....10 Energy saving....10

Energy saving....10 Drying guide....10

Controls and indicators 11

Door and Filter 12

40003727Eng.qxd 04/08/2005 13:04 Page 3

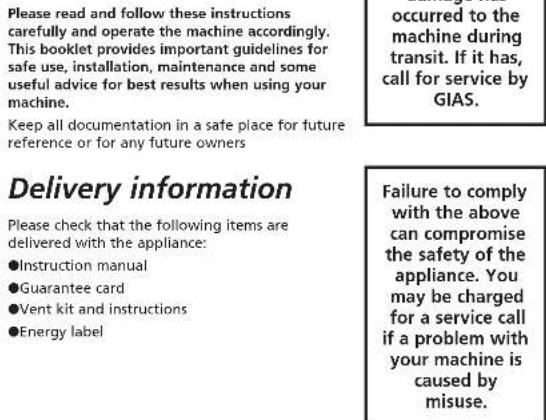

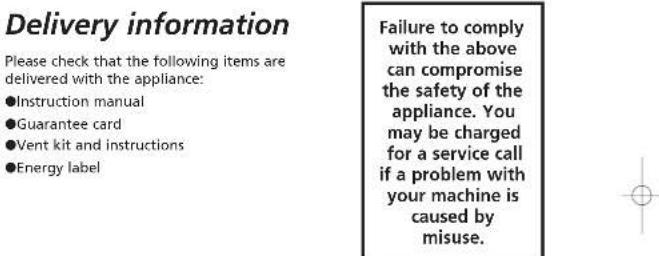

Introduction

. . . . . . . . .

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

40003727Eng.qxd 12/12/2005 12:06 Page 4

Safety reminders

Installation

• Check that the product has no visible signs of damage before use. If damaged do not use and please call GIAS Service.
  ●Do not use adapters, multiple connectors and/or extensions.
  ●This machine should not be installed in a bathroom or shower room.
  ●Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.

Use

●WARNING Misuse of a tumble dryer may create a fire hazard.
●This machine is solely for domestic use, i.e. to dry household textiles and garments.
●This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
●Do not touch the appliance when hands or feet are damp or wet.
●Do not lean on the door when loading the machine or use the door to lift or move the machine.
●Do not allow children to play with the machine or its controls.
● WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.
● WARNING Where the hot surface symbol ⚠ is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
- Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
●Do not continue to use this machine if it appears to be faulty.

40003727Eng.qxd 12/12/2005 12:07 Page 5

● Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.
● Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.
●Garments treated or contaminated with flammable cleaning sprays or liquids such as petrol, cooking oil or aerosol sprays MUST NOT be put in this machine.

Environmental Issues

●All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
●To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

GIAS Service

●To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS Service engineer.

European directive 2002/96/EC

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling

40003727Eng.qxd 04/08/2005 13:04 Page 6

Installation

You may be charged for a service call if a problem with your machine is caused by incorrect installation.

If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the GIAS spares service. It must

Electrical requirements

Tumble dryers are supplied to operate at a voltage of 230V, 50 Hz single phase. Check that the supply circuit is rated to at least 10A.

Electricity can be extremely dangerous.

This appliance must be earthed.

The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the appliance has been installed.

The wires in the mains lead are coloured in accordance with the following codes:

Blue NEUTRAL

Brown LIVE

Green and Yellow EARTH

CE Appliance complies with European Directive 89/336/EEC, 73/23/EEC and subsequent amendments.

Do not plug the machine in and switch it on at the mains until the installation

40003727Eng.qxd 04/08/2005 13:04 Page 7

Ventilation

Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

●Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

- Check regularly that the air flowing through the dryer is not restricted.

- Check the fluff filter after use, and clean, if necessary.

●The inlet and outlets should be kept free from obstructions. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed. There should be a gap of at least 12mm between the machine and any obstructions.

●Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet.

●NEVER install the dryer up against curtains.

Simple line drawing of a sock with a handle and buttons, no text or symbols present

Installation of the

40003727Eng.qxd 04/08/2005 13:04 Page 8

●Do not restrict the flow of air through the hose e.g. by kinking it or fitting a smaller diameter connector to mount to a wall opening.

●Avoid the hose making U shaped curves as this will restrict the flow of air and increase the chance that water will collect in the hose.

- Check the hose regularly to remove any build-up of fluff or water that may have collected in it.

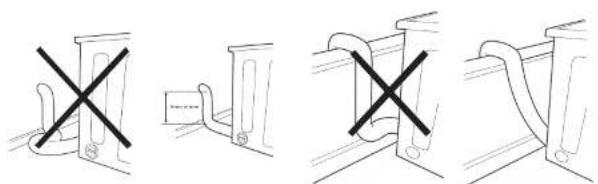

The following diagrams give examples of good and bad installations.

Four technical line drawings showing mechanical components with a black X mark, no text or symbols present

Preparing the load

Before using the tumble dryer for the first time:

●Please read this instruction book thoroughly

40003727Eng.qxd 04/08/2005 13:04 Page 9

Maximum drying weight

●Cottons Max. 7.5 kg
●Synthetics Max. 3.5 kg

Sort the load as follows:

●By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

●By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

●By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

40003727Eng.qxd 04/08/2005 13:04 Page 16

Drying advice

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

Do not tumble dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

Energy saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

During the last 15 minutes the load is always tumbled in cool air.

ALWAYS

●Try to dry the maximum weight of laundry, this will save time and electricity.
- Check that the filter is clean before every drying cycle.

NEVER

●Exceed the maximum weight, this will waste time and electricity.
●Put dripping wet items into the tumble drugs, this may damage the appliance

Controls and indicators

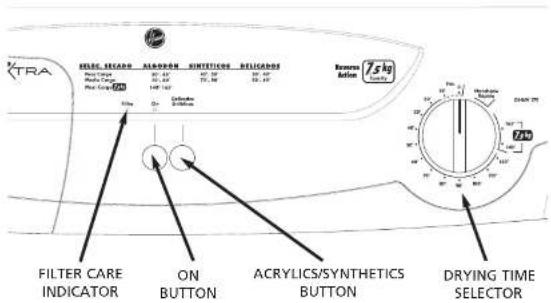

Control panel and indicator lights

'ON' Button and Indicator - press to switch on, the indicator will light.

'ACRYLICS/SYNTHETICS' Button (Delicados Sintéticos) – press to reduce the heat level for delicate items, press again to select high temperature.

HIGH heat setting
LOW heat setting

40003727Eng.qxd 04/08/2005 13:04 Page 12

Door and Filter

Opening the door

Pull on handle to open the door.

To restart the dryer, close the door and press On.

WARNING!

When the tumble dryer is in use the drum and door may be VERY HOT

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

1. Pull the filter upwards.
2. Open filter as shown.
3. Gently remove lint using a soft brush or your fingertips.
4. Snap the filter together and push back into place.

40003727Eng.qxd 04/08/2005 13:04 Page 13

Operation

Refer to the Drying guide table or the fabric labels to select the most suitable programme.

- Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.

- If drying delicate items press the Delicados Sintéticos button to reduce the heat level. Press again on completion, to select high temperature.

HIGH heat setting LOW heat setting

●Turn the 'DRYING TIME' Selector until the required drying time aligns with the dial.

●The Planchado Rápido programme provides a conditioning and anti-crease function. The dryer will heat the load for 8 minutes followed by a 2 minute cool down period and is especially good for garments which may have been left for some time prior to ironing, in a linen basket for example. Garments may also become stiffened when dried outside on a washing line or inside on radiators. This process relaxes the creases in the fabric making ironing quicker and easier

●Gently close the door pushing it slowly until

WARNING!

The drum, door and load may be very hot.

40003727Eng.qxd 04/08/2005 13:04 Page 14

Cleaning and Routine Maintenance

IMPORTANT

Always switch off and remove the plug from the electricity supply before cleaning this

Cleaning the dryer

●Clean the filter after every drying cycle.
●After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
●Wipe the outside of the machine and the door with a soft cloth.
●DO NOT use abrasive pads or cleaning agents.
●To prevent the door sticking or the build up of fluff periodically clean the inner door and gasket with a damp cloth.

Technical specifications

For electrical data refer to the rating label on the front of the driver cabinet

Drum capacity 115 litres

Maximum load 7.5 kg

Height 85cm

Width 60cm

Depth 60cm

40003727Eng.qxd 04/08/2005 13:04 Page 15

Troubleshooting

What might be the cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Drying time is too long/clothes are not dry enough...

●Have you selected the correct drying time/programme?

●Were the clothes too wet? Were the clothes thoroughly wrung or spin-dried?

●Does the filter need cleaning?
●Is the dryer overloaded?
●Is the venting hose kinked or blocked?
●Has the Delicados Sintéticos option been selected from a previous cycle?

The dryer does not operate...

●Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.
●Is the plug properly connected to the mains supply?
●Is there a power failure?
●Has the fuse blown?

40003727Eng.qxd 04/08/2005 13:04 Page 16

Customer Service

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

●Is found to be in working order.
●Has not been installed in accordance with the installation instructions.
●Has been used incorrectly.

Spares

Always use genuine spares, available direct from GIAS Service.

GIAS Service

For service and repairs call your local GIAS Service engineer.

40003727Eng.qxd 04/08/2005 13:04 Page 17

40003727SPA.qxd 04/08/2005 14:36 Page 18

Introducción 19

Información de entrega....19

Simple line drawing of a sock with a handle and circular button, no text or symbols present

Four technical line drawings showing mechanical components with cross marks, no text or symbols present

Pure geometric lines and markers without any text, numbers, or symbols

Pure geometric lines and markers without any text, numbers, or symbols

Pure geometric lines and markers without any text, numbers, or symbols

40003727Eng.qxd 04/08/2005 13:04 Page 18

Blank white image with no visible content, text, or symbols
