Product Type	Refrigerator
Brand	Tricity Bendix
Model	BR592W
Total Gross Capacity	140 L
Net Capacity	120 L
Energy Class	A+
Annual Energy Consumption	120 kWh/year
Noise Level	40 dB(A)
Climate Class	N-ST
Defrost Type	Automatic (Frost-Free)
Refrigerant	R600a
Temperature Range	+2°C to +8°C
Voltage / Frequency	220-240 V / 50 Hz
Power Input	80 W
Dimensions (H x W x D)	85 x 55 x 60 cm
Weight	32 kg
Reversible Door	Yes
Number of Shelves	3 glass shelves
Vegetable Crisper	1 drawer
Door Storage	2 door balconies + 1 egg tray
Cooling System	Static
Control Type	Thermostat dial
Lighting	LED interior light
Spare Parts Availability	7 years after end of production (EU regulations)

Frequently Asked Questions - BR592W Tricity Bendix

How do I adjust the temperature on my BR592W fridge?

The temperature is controlled by a thermostat dial inside the fridge compartment. Turn the dial to a higher number for colder temperatures (usually 1-7). A medium setting of 3-4 is recommended for normal use. Allow 24 hours for the temperature to stabilize after adjustment.

What should I do if the fridge is not cooling properly?

First, check that the door is closing properly and the seal is clean. Ensure the thermostat is set to a colder setting. Also verify that the condenser coils at the back are clean and free of dust. If the problem persists, there may be a refrigerant leak - contact a qualified technician.

How often should I defrost the fridge?

The BR592W is a frost-free model, meaning it defrosts automatically. You do not need to manually defrost the appliance. However, you should still clean the interior periodically to prevent ice buildup in hidden areas.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions. You will need a screwdriver and possibly a helper to hold the door. The process involves moving hinge brackets to the opposite side.

How do I clean the condenser coils?

Unplug the fridge and locate the coils at the back or bottom (pull off the grille if needed). Use a vacuum cleaner with a brush attachment or a coil cleaning brush to gently remove dust and debris. Clean every 6-12 months for optimal performance.

What should I do if I accidentally unplug the fridge?

Plug it back in as soon as possible. The fridge will resume cooling, but allow a few hours for the temperature to return to normal. If food has been above 4°C for more than 2 hours, check for spoilage. The LED light inside will turn on when the door is opened once power is restored.

Why is there water pooling at the bottom of the fridge?

This is usually due to a blocked defrost drain. Clean the drain hole at the back of the fridge using a pipe cleaner or cotton swab. Also ensure there is no food debris blocking the drain. If water continues to pool, check the door seal for damage.

What is the recommended temperature for storing meat and dairy?

For optimum freshness, store meat and poultry at the bottom shelf (coldest area) at around 0-2°C. Dairy products like milk and cheese are best at 4-6°C on the middle shelves. Use a fridge thermometer to verify temperatures.

How can I save energy with my fridge?

Place the fridge away from heat sources (oven, direct sunlight). Keep the door open as briefly as possible. Allow hot food to cool before placing it inside. Set the thermostat to a medium setting (3-4). Clean the condenser coils regularly to improve efficiency.

Where can I find spare parts for the BR592W?

Spare parts are available through authorized Tricity Bendix service centers or online retailers. Typical spare parts include door seals, thermostat knobs, shelves, and LED bulbs. Always provide the model number BR592W when ordering. The manufacturer guarantees parts availability for 7 years after the model's end of production.

USER MANUAL BR592W Tricity Bendix

IT IS MOST IMPORTANT THAT THIS INSTRUCTION BOOK SHOULD BE RETAINED WITH THE APPLIANCE FOR FUTURE REFERENCE. SHOULD THE APPLIANCE BE SOLD OR TRANSFERRED TO ANOTHER OWNER, OR SHOULD YOU MOVE HOUSE AND LEAVE THE APPLIANCE, ALWAYS ENSURE THAT THE BOOK IS SUPPLIED WITH THE APPLIANCE IN ORDER THAT THE NEW OWNER CAN GET TO KNOW THE FUNCTIONING OF THE APPLIANCE AND THE RELEVANT WARNINGS.

THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.

■ This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
■ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
■ This product should be serviced by an authorised Tricity Bendix Service Centre, and only genuine spare parts should be used.
■ It is dangerous to alter the specifications or modify this product in any way.
■ Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
■ Tricity Bendix domestic refrigerators, freezers and fridge/freezers are designed to be used specifically for the storage of edible foodstuffs only.
■ There are working parts in this product which heat up. Always ensure that there is adequate ventilation

The cooling plate or refrigerated freezer shelves in this appliance contain channels through which the refrigerant passes. If these are punctured this would cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance. See Defrost instructions.
- The appliance should be left for 2 hours after installation before it is turned on in order to allow the refrigerant to settle.
■ This appliance is heavy. Care should be taken when moving it.
- Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or "frost/freezer burns".
- Ice lollies can cause "frost/freezer burns" if consumed straight from the freezer.
■ Manufacturers' storage recommendations should be strictly adhered to. Refer to relevant instructions.
■ Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Tricity Bendix Service Centre and always insist on genuine spare parts.

CONSERVATION

In the interests of the Environment:

When disposing of your old fridge, freezer or fridge/freezer.

Help to keep your country tidy – use authorised disposal sites for your old appliances.

For maximum efficiency:

Make sure that the appliance is cleaned properly.

Make sure that the door is closed properly.

Do not position the appliance near to sources of heat.

Do not over-fill your appliance, air MUST be allowed to circulate.

INSTALLATION

Warning

IF YOU ARE DISCARDING AN OLD APPLIANCE THAT HAS A LOCK OR CATCH ON THE DOOR, YOU MUST ENSURE THAT IT IS MADE UNUSABLE TO PREVENT YOUNG CHILDREN BEING TRAPPED INSIDE.

Positioning

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc.; best performance is obtained with ambient temperature between +16°C and +32°C.

For building-in and door reversibility, if necessary, refer to the relevant instructions in the following pages.

Before using

Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0.5 litre of water). Do not use soap or detergent as the smell may linger. Dry thoroughly.

The electrical connections

WARNING: THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the appropriate plug fitted.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged into a 13amp socket in another part of your home.

Important

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

If you fit your own plug, the colours of the wires in the mains lead of your appliance may not correspond with the markings identifying the terminals in your plug, proceed as follows:

A replacement cover/carrier must be obtained from your local Tricity Bendix Service Centre whose address is listed in the Customer Care Booklet which accompanies your instruction manual.

This appliance complies with the E.E.C. Directive No. 87/308 of 2.6.87 relative to radio interference suppression.

CE This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

Fig. 1

Location

This appliance is designed to be built-in to a space having the dimensions given in Fig. 2.

Fig. 2

The height of the appliance can be altered if required by means of adjustable feet situated at its base (Fig. 3).

Technical line drawing of a cabinet or shelf assembly with mounting feet and a directional arrow (no text or symbols)

Fig. 3

Door reversibility

Remove the two screws which fix the upper hinge to the door.

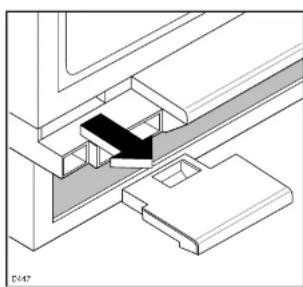

Carefully lean the appliance on its back and remove the plastic insert (Fig. 4).

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Fig. 4

Remove the two screws which fix the lower hinge to the door.

Remove the four screws which fix the lower hinge to the base of the appliance and remove the hinge itself; be very careful to recover all the screws.

Remove the four screws that fix the upper hinge to the appliance and remove the hinge itself.

Take the hinge removed from the upper part of the appliance on the opposite side (see Fig. 5), and, using the screws removed from the lower part, fix it to the base of the appliance itself.

Remove and refit the other hinge on the upper part of the appliance on the opposite side.

Fitting a decorative door panel

Important: The components needed to fit the decorative panel have been pre-fitted on the appliance.

The brackets are secured to the panel by means of the 7 ∅ 3.5x13 screws supplied.

Before starting to fit the panel, remove the large top bracket by unscrewing the screws and adjusting pins pre-fitted on the appliance door. The small bottom bracket need not be removed.

Place the appliance in the position where it is to be built in (Fig. 6).

The appliance is fitted with adjustable feet; screw the front and rear feet in or out to adjust the height of the appliance to that of the recess.

Keeping the appliance central in the recess, slide it in until its back touches the wall.

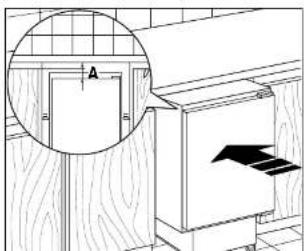

With a tape measure (or similar instrument), measure distance (A) between the top edge of the door and the top edge of the decorative panel, placing it next to the recess.

Fig. 6

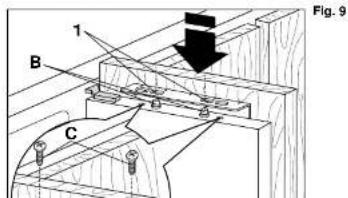

Insert the adjusting pins (B-Fig. 8) into their locations in the door and screw them in.

Hook the decorative panel onto the top part of the door, inserting the pins (B) (on the door) into the elongated holes (1) (in the top bracket fitted to the panel) (Fig. 9).

Insert the securing screws (C) through elongated holes (2) and fix the panel without tightening the screws (Fig. 9).

Once the top of the panel has been correctly positioned, fix it through the holes in the bottom bracket, without tightening the screws (Fig. 10).

Technical line drawing of a mechanical assembly with screws and a bracket (no text or symbols)

Check the position again by slackening the screws and pins then, once the best position has been obtained, fully tighten all the fixings.

Cover the visible part of the top bracket on the panel with plastic cover (D), inserting it in the locations provided in the bracket.

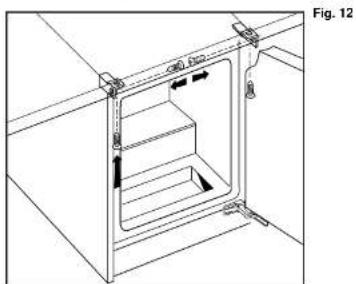

Once the door has been correctly aligned, tighten the holding nuts on the fixing brackets and attach the appliance to the adjacent units and the bottom of the work surface (Fig. 12).

Technical line drawing of a cabinet or enclosure with internal components and mounting brackets (no text or symbols)

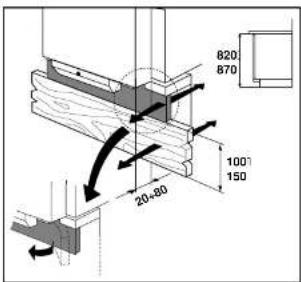

If the appliance has been fitted into a space 820 mm high and the maximum height of the base plate is 100 mm, fit the front cover plate by pushing the two vertical lugs into the rectangular holes on the bottom side of the ventilation duct until they click. The plate can be adjusted backwards or forwards in the holes (Fig. 13).

If the base plate is between 100 and 135 mm high, cut it as shown in Fig. 15 and mount as described above. If the base plate is between 135 and 170 mm high, cut it as shown in Fig. 13.

Fig. 14

If the appliance has been fitted into a space 870 mm high and the maximum height of the base plate is 150 mm, fit the front cover plate as described in Fig. 14.

If the base plate is between 150 and 185 mm high, cut it as shown in Fig. 15.

If the base plate is between 185 and 220 mm high, cut it as shown in Fig. 13.

Fig. 15

Changing the opening direction of the door (freezer compartment)

Having changed the opening direction of the appliance door, it is advisable to also change the opening direction of the freezer compartment door.

To do this, proceed as follows:

Unscrew the two fixing screws to remove the lower hinge from the door (Fig. 16).

Diagram of a door handle with an open panel showing directional arrows (no text or symbols)

Fig. 16

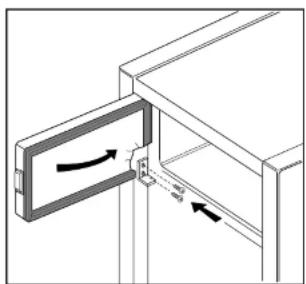

Remove the freezer compartment door and the upper hinge. Once the freezer door has been removed, remove the screws from the catch and refit it on the opposite side (Fig. 17).

Fig. 17

Refit the upper hinge and the door on the opposite side, then refit the lower hinge (Fig. 18).

Pure mechanical diagram showing a bracket with arrows indicating direction, no text or symbols present

Fig. 18

YOUR APPLIANCE

A - Dairy compartment
B - Shelf with egg trays

OPERATION

Setting the temperature

The temperature inside the refrigerator is regulated by a thermostat with 6 temperature positions and one «OFF» (O) position.

Position 1 = minimum coldness
Position 6 = maximum coldness

Turn the thermostat dial to the required position; the intermediate position is usually the most suitable (3-4).

The thermostat setting can vary as the temperature inside the refrigerator compartment depends on the following factors:

• room temperature
  – how often the door is opened
  – how much food is stored
• position of the appliance

Important

If the fridge is not defrosting correctly, it is possible that because a very low temperature has been selected, the motor is working continuously, which prevents the defrost cycle from operating.

To ensure correct defrosting, a lower number should be selected on the thermostat and you should notice that the motor cuts out from time to time, which is correct.

If you wish to return to a lower temperature, turn the thermostat to a higher number; however you should turn the setting lower occasionally to allow automatic defrosting.

Storing deep-frozen foods

The compartment marked reaches a temperature of -18^ and is therefore suitable for storing ice-creams and deep-frozen food.

For best use of the compartment, the following points should be noted: ensure that the deep-frozen products have been correctly stored by the shop-keeper; keep transport times from the shop to your home to a minimum; do not exceed the storage period specified by the manufacturer; when the freezer has not been used for some time; run it for at least two hours with the thermostat dial set to the lowest temperature before placing food inside and then reset to normal operation; do not open the door if there is a power failure. If the compartment is full and the failure does not last long, the food will not be affected; otherwise, you are advised to consume it soon after.

Ice cubes

Refrigerators with the compartment are provided with an ice cube tray. This tray must be filled with drinking water and placed in the compartment. Never use metal tools to detach the tray.

HEALTH AND SAFETY GUIDELINES

Because of consumer demand, preservatives have been removed from many pre-prepared food. This together with the changes in shopping habits to a once-a-week shop, mean that safe handling and storage of food is even more important than ever.

The following tips should help you to ensure that the food in your home is in as perfect condition as possible.

• Keep the time between buying chilled food and placing it in your fridge as short as possible. Tests showed that the temperature of 1 litre of orange juice rose to 22^ in an hour between the supermarket and home. It then took 11 hours to get down to 7^ in the refrigerator.
• Keep the refrigerator door closed as much as possible. Remember that warm air is flowing in as you are deciding what to have for tea!
• Do not push food together too much, try to allow air to circulate around each item.
• Cool cooked food as quickly as possible but do NOT place in the refrigerator until cool. (Leave food in a place as cool as possible in order that it can then be placed in the refrigerator as soon as possible).
• Do NOT mix raw and cooked meat, they must be in separate containers. Take care not to let the meat juices drip onto other food. If the meat does drip, remove everything and clean thoroughly.
  ■ Do not store food uncovered.

■ Remove suspect food from your refrigerator and clean the interior with a solution of bicarbonate of soda in warm water (5ml to 0.5 litre of water).
■ Never allow spillages to dry and harden.
■ Store eggs in the egg rack provided in the refrigerator door. Discard any broken or cracked eggs.
■ Regularly check the refrigerator door seal to ensure that it is clean and free from bits and pieces.
■ Always wash your hands with soapy water and dry them with a clean towel before handling food.
- Keep work surfaces clean and avoid cross contamination by not using the same work surface or knife, without washing them thoroughly in between.
■ Use kitchen roll wherever possible for cleaning up food. If you use a dishcloth, be sure to boil it frequently.

Fresh food refrigeration

To obtain the best performance, do not store warm food or evaporating liquids in the refrigerator; do cover or wrap the food, particularly if it has a strong flavour.

Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them.

To help you use your refrigerator correctly, here are some more useful hints:

Raw meat (beef, pork, lamb & game): wrap in polythene bags and place on top of the salad crispers.

Meat can only be stored safely in this way for one or two days at the most.

Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom salad crispers.

Butter & cheese: these should be placed in special air-light containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

The walls of the refrigerator are equipped with runners so that shelves can be positioned as desired.

Technical line drawing of a metal rack structure (no text or symbols)

Fig. 19

Defrosting

The refrigerator compartment evaporator is automatically defrosted every time the compressor stops. The water drains out through a channel (Fig. 20) into a bowl located at the base of the back of the appliance, where it evaporates.

In the compartment, the frost must be removed using the plastic scraper provided whenever a thick layer accumulates (approx. 4 mm). Do not use metal tools to remove the frost – they can cause serious damage.

Is is not necessary to switch the appliance off or take the food out of the compartment during this operation. If a thick layer of ice forms, the appliance must be completely defrosted.

Proceed as follows:

set the thermostat dial to the «O» position or unplug the appliance;

wrap the deep-frozen food in several sheets of newspaper and put in a cool place;

leave the door open and, if you wish to speed up defrosting times, place a bowl of very hot water inside the compartment (with a sheet of cardboard underneath);

soak up the water that collects on the bottom with a sponge and dry the walls thoroughly;

reset the thermostat dial to the required position or plug the appliance in again. After running for two or three hours, it will be ready to store deep-frozen foods again.

It is important to periodically clean the defrost water drain hole in the middle of the water-water system.

MAINTENANCE AND CLEANING

Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply.

Internal cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly.

NEVER USE DETERGENTS, ABRASIVE POWDERS, HIGHLY PERFUMED CLEANING PRODUCTS OR WAX POLISHES, TO CLEAN THE INTERIOR AS THESE WILL DAMAGE THE SURFACE AND LEAVE A STRONG SMELL.

Clean the drain hole of the water trough at regular intervals and make sure that the drain hole is never obstructed, so that the defrost water may flow freely.

When the appliance is not in use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Changing the light bulb

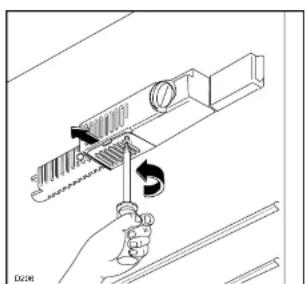

Should the interior light fail to work, first switch off the appliance and disconnect from the electricity supply, then replace the bulb as follows, see Fig. 21.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Fig. 21

Unscrew the light cover and then pull it outward toward the middle of the cabinet. Unscrew the bulb and replace it with a new 15 watt bulb (available from your nearest Tricity Bendix Service Centre).

Replace the light cover by sliding it into its original position and replacing the screw.

WHAT HAPPENS IF SOMETHING GOES WRONG?

Before contacting your local Tricity Bendix Service Centre, check the following points:

The appliance does not work...

Check that:

■ There is power at the socket.
■ Ensure that there is not a power cut by checking the household lights.
■ The fuse has not blown.
■ The air circulation passages are not covered.
■ The thermostat dial is in the correct position.

Vibration or abnormal noises...

- You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils of tubing at the rear, to the cooling plate/evaporator. When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring or pulsating noise from the compressor. A thermostat controls the compressor, and you will hear a faint "click" when the thermostat cuts in and out.

Traces of water on the bottom of the fridge compartment...

Check that:

■ The defrost water discharge hole is not obstructed.

The light does not come on...

Check that:

If, after the above checks, there is still a fault, call your local Tricity Bendix Service Centre, whose address can be found in the accompanying Customer Care Booklet, and can also be found in your local telephone directory under «Z». Please make sure you give the model and serial number of the appliance. This information can be found on the rating plate inside the fridge compartment on the left side behind the salad drawer, or on the guarantee certificate.

Original spare parts can be purchased from Tricity Bendix Service Centres.

In-guarantee customers should ensure that the above checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.

Please note that proof of purchase is required for any in-guarantee service calls.

PEACE OF MIND FOR TWENTYFOUR MONTHS

Guarantee conditions

We, Tricity Bendix, undertake that if, within twenty-four months of the date of the purchase, this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:

■ The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
■ The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's operating and maintenance instructions.
■ The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authorised by us.

All service work under this guarantee must be undertaken by a Tricity Bendix service representative or authorised agent.

Any appliance or defective part replaced shall become the property of Tricity Bendix.

This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a charge will be made.

Exclusions

This guarantee does not cover:

■ Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
■ Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
■ Appliances found to be in use within a commercial environment, plus those which are the subject of rental agreements.
■ Products of Tricity Bendix manufacture which are NOT marketed by Tricity Bendix.
■ EEC Countries - The standard guarantee is applicable but is subject to the owner's responsibility and cost to ensure the appliance meets the standards set by the country to which the product is taken. Proof of purchase may be required. Tricity Bendix Aftersales Service in the country concerned, with whom Tricity Bendix have an arrangement, will be pleased to advise further.

Tricity Bendix After Sales Service Service Centres Addresses

CENTRE POSTAL DISTRICTS SERVICE APPTS. ADDRESS
ABERDEEN AB 01224-696569 Tricity Bendix After Sales Service			Northeast Appliance Service, 8 Comhill Arcade, Comhill Arcade, Aberdeen, AB2 5UT
ARGYLL PA24-61 01369-703161 Tricity Bendix After Sales Service			T.D.C. Refrigeration, Briar Hill, 7 Hill Street, Duncon, Argyll, PA23 7AL
BARNSTAPLE EX18-23, 31-39 01271-328826 Tricity Bendix After Sales Service			Mc Bain Refrigeration, Unit 4 Upcott Avanua, Potlington Industrial Estate, Barnstaple, N. Davon, EX31 1HN
BORDERS TD 01573-224411 Tricity Bendix After Sales Service			James Stewart & Son, 2-8 Wood Market, Kelso, Borders, TD5 7AX
BRISTOL BA BS TA SP 0117-9211876 Tricity Bendix After Sales Service			Unit BE46, PO Box 372, Bristol, BS 99 1UD
CANVEY E EC EN N MW W WCAL CB HA HP LU MK SCUB WDCM CO IG RM SSIP NR PE14-19, 30-38		0181-443-34640181-965-96990181-965-969901268-69414401603-667017	Tricity Bendix After Sales Service2-4 Sandhurst,Kings Road, Canvey Island, SS8 0QY
CARDIFF CF NP1-4, 6, 9-44 SA1-18SA21-32		01222-460131 Tricity	Bendix After Sales ServiceGuardian Industrial Estate, Clydesmuir Road,Tremorfa, Cardiff, CF2 2GS
CUMBRIA CA 01228-594747 Tricity Bendix After Sales Service			FTS Services, Carlisle Enterprise Centre, James Street,Carlisle, CA2 5AP
DUMFRIES &GALLOWAY DC1-14		01387-265166 Tricity	Bandix After Sales ServiceAllan Crossan (service), 93 Irish Street, Dumfries, Scotland, DG1 2PC
DUNDEE Parkinson Cowan Gas Only		01382-642828	Tricity Bendix After Sales ServiceTayside Refrigeration, 3-7 Blackness Street,Dundee, DD1 5LR
DUNDEE DD1-14PH8-18		01250-876285 Tricity	Bendix After Sales ServiceI Brogan Domestics, 41 Leslie Street, Blairgownie, Perthshire, PH10 6AT
GLASGOW EH FK C KA KY1-16 MLPA1-23 PH1-7		0141-647-4381	Tricity Bendix After Sales Service20 Cunningham Road, Clyde Estate, Rutherglen, Glasgow, G73 1PP
GUERNSEY All Codes		01481-46931	Guarmsey ElectricityPO Box 4., Vale Guarnsey, Channel Islands
HAVERFORDWEST SA33-39SA41-44SA61-73		01437-710914 Tricity	Bendix After Sales ServiceC Butherway, 1 Church Road, Roch, Haverfordwest,Dyfed, SA62 6AG
HEREFORD HR1-9 LD1-8 SY7,18NP5 NP7-8		01432-340334 Tricity	Bendix After Sales ServiceDomestic Repair Centre, Unit 3 Bank Buildings.

Tricity Bendix After Sales Service Service Centres Addresses

CENTRE POSTAL DISTRICTS SERVICE APPTS. ADDRESS
LANCASTER LA1-23 01772-316175 Tricity Bendix After Sales Service
		NL Services, Unit 333 Ranglet Road, Walton Summit, Bamber Bridge, Preston, Lancs. PR5 8AR
LEEDS BD DN1-7, 10-12 HD HG HXLS S WF YO1-3, 5-8 DENC-1-22 & 25		0113-2608511 Tricity Bendix After Sales Service64-66 Cross Gates Road, Leads, LS15 7NN
LINCOLN DN21 sub codas 1,2 & 5 onlyLN 1,2,4-6LN3 sub codas 4,5 onlyLN8-10 NG23,24 31-34 PE1-13, 20-25		01522-514603 Tricity Bendix After Sales ServiceBrian Hudson, Unit 8 Stonefield Park, Clifton Stroot, Lincoln, LNS 8AA
LIVERPOOL FY PR L WN CH CW WA(Not WA14/15)		0151-2541724 Tricity Bendix After Sales ServiceUnit 1 Honeys Green Precinct, Honeys Green Lane, West Derby, Liverpool, L12 9JH
MANCHESTER BB BL OL M SKWA14 & 15 only		0161-4777758 Tricity Bendix After Sales ServiceUnit 30 Oakhill Trading Estate, Devonshire Road, Worsley, Manchester, M28 3PT
NEWTON ABBOTT EX1-17 TQPL1-9,16,19-21		01626-65909 Tricity Bendix After Sales ServiceSouth West Domestic Service, Unit 2 Zaalloy Industrial Estate, Kingstelgnton, Newton Abbott, South Devon, TO12 3SJ
NORTH WALES LL 01745-591616 Tricity Bendix After Sales Service		GMS (Cymru), Unit 2 Coed - Parc, Abergele Road, Rhuddan, Olwyd, Wales, LL18 5UG
NORTHERN	DL TS DH YO21,22DH NE SR	01325-301400Tricity Bendix After Sales ServicePO Box 40 Preston Road, Aycliffe Industrial Estate, Newton Aycliffe, Co. Durham, DL5 6XA
NORTHERNIRELAND EAST	BT1-30, 36-57, 63-67	01232-745591 Tricity Bendix After Sales ServiceUnit C3, Ecdonderry Industrial Estate, 326. Crumlin Road, Belfast. BT14 7EE
NORTHERNIRELAND WEST	BT31-35, 60-62, 68-82, 92-94	01861-510400 Tricity Bendix After Sales Service& O (Armagh) Service, Owenmore House, Kilwse Business Park, Upper Dunmurray Lane, Belfast. BT17 0HD
NUNEATON	B1-48 62-79, 90-94, DY STWS WVNNNCV LE	0121-358-7076Tricity Bendix After Sales ServiceUnit 23-24 Alliance Business Park, Townsend Drive, Nuneaton, Warwickshire, CV11 6RX
ORKNEY	KW15-17	01856-875457 Tricity Bendix After Sales Serviouse Refrigeration Sales and Serviços, Hatson Incl. Estate, Kirkwell, Orkney
REDDITCH	QL CX WR SNB49, 50, 60, 61, 80, 95-96..	01527-512919 Tricity Bendix After Sales ServiceHeming Road, Washford, Redditch, Worcestershire, B98 0DH
REDRUTH	TR1-20,26,27PL12-15-17-18, 92-95	01209-314407 Tricity Bendix After Sales ServiceCampbell Domestic Service, Unit 70 Road Industrial Estate, Wilcox Way
