GFO201RX - Barbecue GEORGE FOREMAN - Free user manual and instructions

Product Type	Indoor-Outdoor Electric Grill
Model	GFO201RX
Brand	George Foreman
Cooking Surface	Ceramic coated grill plate
Temperature Control	Adjustable with indicator light
Temperature Settings	Multiple settings including keep warm (setting 1)
Power Cord	Short cord; extension cord may be used with proper rating
Plug Type	Grounded 3-prong plug
Safety Features	Grounded plug, tamper-resistant screw, auto shut-off when unplugged
Assembly Required	Yes; includes pedestal, lid handle, and probe insertion
Tool Required for Assembly	Phillips screwdriver
Indoor Use	Yes; can be placed on heat-resistant countertop after removing pedestal
Outdoor Use	Yes; use on flat level surface with pedestal
Cleaning	Wash grill plate, drip tray, lid with warm soapy water; wipe probe with damp cloth
Replaceable Parts	Lid handle, lid, drip tray, grill base, tubes, base, feet, temperature control probe, grill plate
Warranty	3-year limited warranty (US and Canada)
Customer Service	1-800-231-9786 (warranty), 1-800-738-0245 (parts/accessories)
Not for Outdoor Storage	Yes; store indoors out of reach of children
Utensils	Use only plastic or wooden utensils to avoid scratching
Preheat Time	Approximately 10 minutes
Maximum Heat Tolerance for Surfaces	Countertop surfaces should withstand 150°F to prevent damage

Frequently Asked Questions - GFO201RX GEORGE FOREMAN

Can I use this grill indoors?

Yes, you can use the grill indoors by removing it from the pedestal and placing it on a heat-resistant countertop. Ensure the countertop can withstand temperatures up to 150°F.

What type of utensils should I use on the grill plate?

Use only plastic or wooden utensils to avoid scratching the ceramic coated grill plate. Metal utensils may damage the surface.

How do I clean the grill?

Allow the grill to cool completely. Remove the temperature control probe (do not immerse it), wipe it with a damp cloth. Wash the grill plate, drip tray, and lid with warm soapy water using a non-abrasive pad. Do not use steel wool or abrasive cleaners.

Can I leave the grill outdoors?

No, this product is not intended for outdoor storage. Store it indoors out of reach of children when not in use.

Does the grill use charcoal?

No, this is an electric grill. Fuel such as charcoal briquettes should not be used with this appliance.

How do I assemble the grill?

Assembly requires a Phillips screwdriver. Connect the pedestal tubes, insert feet into base, place grill base on pedestal, attach drip tray, insert grill plate, attach probe, and mount lid handle. Full instructions are in the manual.

What is the warranty coverage?

The grill comes with a 3-year limited warranty covering defects in material or workmanship. It applies only in the United States and Canada, with proof of purchase. Warranty does not cover commercial use, abuse, or modified products.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by qualified service personnel. In Latin America, contact an authorized service center. Do not use the appliance with a damaged cord.

How do I preheat the grill?

Turn the temperature control to the desired setting, place the lid on, and allow it to preheat for about 10 minutes. The indicator light will cycle on and off to maintain temperature.

Can I use an extension cord?

Yes, if needed, use a long detachable cord or extension cord with a rating at least as great as the appliance. Arrange it so it does not drape over countertops to avoid tripping. For outdoor use, use an extension cord marked 'W' suitable for outdoor appliances.

USER MANUAL GFO201RX GEORGE FOREMAN

Register your product at

www.prodprotect.com/applica

PLEASE READ AND SAVE THIS USE AND CARE BOOK.

IMPORTANT SAFEGUARDS.

When using electrical appliances, always follow basic safety precautions to reduce the risk of fire, electric shock, and/or injury, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock do not immerse cord, plugs or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact consumer support.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.

• Do not place on or near a hot gas or electric burner, or in a heated oven.

• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to OFF, then remove plug from wall outlet.
• Do not use this appliance for other than intended use.
• Fuel, such as charcoal briquettes, is not to be used with this appliance.
• Use only on properly grounded outlet.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This product is not intended for outdoor storage.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

SAFETY FEATURES

GROUNDED PLUG

As a safety feature, this product is equipped with a grounded plug, which will only fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

1. A short power cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

2. If a long detachable power cord or extension cord is used:

a) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, and
b) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.
c) Outdoor extension cords should be used with outdoor use products and are surface marked with the suffix letter "W" and with a tag stating, "SUITABLE FOR USE WITH OUTDOOR APPLIANCES".
d) The extension cord should be kept dry and off the ground.
e) Store product indoors when not in use – out of reach of children.
f) Do not clean this product with a water spray or the like.

Note: If the power cord is damaged, it should be replaced by qualified personnel; in Latin America, by an authorized service center.

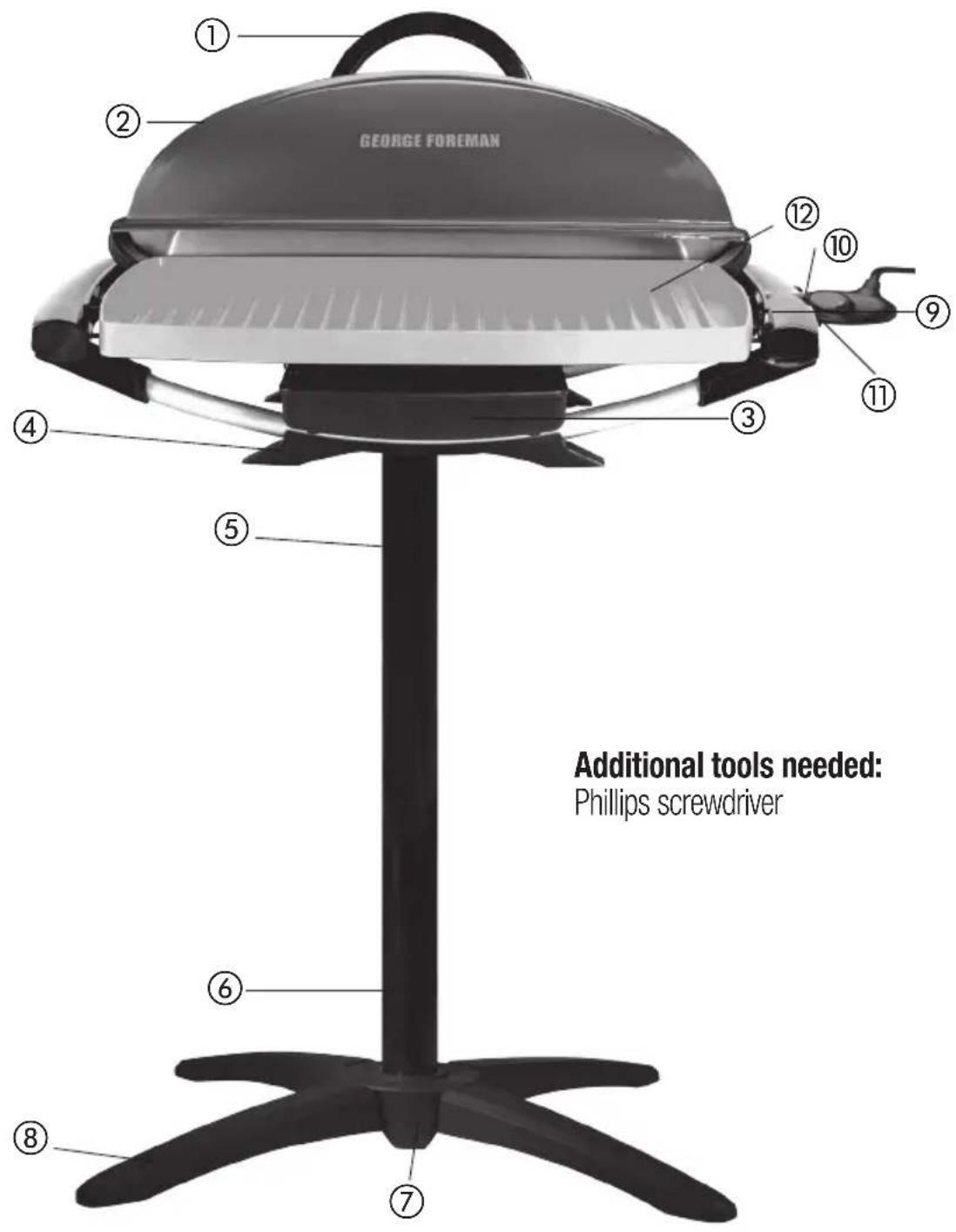

GETTING TO KNOW YOUR INDOOR-OUTDOOR GRILL

†1. Lid handle (Part # 22869)
†2. Lid (Part #22865)
†3. Drip tray (Part # 22868)
†4. Grill base (Part # 22867)
†5. Upper pedestal tube (Part #22872)
†6. Lower pedestal tube (Part # 22871)
†7. Pedestal base (Part # GFO201-01)
†8. Pedestal feet (Part # GFO201-02)

†9. Temperature control probe (Part # 22866)
10. Probe receptacle
11. Probe cutout
†12. Ceramic coated grill plate (Part # GFO201-03)
Note: † indicates consumer replaceable/removable parts

HOW TO USE

This product is for household use only.

GETTING STARTED

• Remove all packing material, any stickers, and the plastic band around the power plug.
• Remove and save literature.
• Please visit www.prodprotect.com/applica to register your warranty.
• Wash grill plate, drip tray and lid with warm, soapy water. Wipe dry.

Important: Do not immerse temperature control probe in water or any other liquid. To clean, wipe with a damp cloth and dry thoroughly.

ASSEMBLY INSTRUCTIONS

1. Assemble pedestal tube by connecting two halves of tube. Insert the tapered end of the Upper Pedestal Tube into the top of the Lower Pedestal Tube and screw the Tubes together.
2. Insert pedestal feet into pedestal base until they click into place. Place pedestal base on a flat, level surface.
3. Insert slotted end of assembled pedestal tube into center hole of pedestal base and push down firmly.
4. Place grill base on top of pedestal tube assembly, ensuring hole in center of grill base engages with tube.
5. Place drip tray securely into position inside grill base.
6. Rotate grill base until the notch on the bottom of the grill plate is aligned with the slot in the upper pedestal tube. Position grill securely on grill base. Attach clip from upper pedestal tube to grill base.
7. Position probe receptacle through probe cutout in top side of grill base.
8. Attach lid handle to lid from the inside using a screwdriver and included screws.
9. Place lid over grill. Your grill is now ready to use!

GRILLING OUTDOORS

1. Turn temperature control probe to OFF position and attach securely into probe receptacle.
2. Plug into standard electrical outlet. Align desired temperature setting with indicator light. Place lid securely on grill. Allow grill to preheat to desired temperature – for approximately 10 minutes.
3. Carefully remove lid and place food onto grill; cover for most foods. Cook until done, turning at least once halfway through cooking time for most food. Adjust temperature as needed.

Tip: Light on temperature control probe will cycle on and off as grill thermostat maintains proper temperature. This is normal operation.

Note: Condensation may collect on inside of lid when cooking.

Important: Use caution when removing lid.

1. When finished cooking, turn temperature control probe to OFF position. Temperature probe indicator light will go out. Unplug and allow grill to cool before disassembling and cleaning. See CARE AND CLEANING.

Note: Temperature control probe may be turned to setting 1 to keep foods warm for short periods of time.

Note: Use only plastic or wooden utensils on grill surface.

Caution: Grill surfaces are hot during use. Allow grill, drip tray, lid and grill base to cool completely before handling and cleaning.

USING INDOORS

- To use your grill indoors, simply unclip grill base from upper pedestal tube, then lift grill base off pedestal tube and place on a heat-resistant surface.

Important: Never use grill without the grill base securely in place.

Caution: Some countertop finishes are more affected by heat than others; make sure the countertop surface can withstand temperatures of 150^ F to prevent discoloration or other damage to countertop surface.

CARE AND CLEANING

Caution: To avoid accidental burns, allow your grill to cool completely.

This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Unplug and allow grill to cool before disassembling and cleaning. Thoroughly clean all parts after each use.
2. Remove temperature control probe (DO NOT IMMERSE). Wipe with a damp cloth and dry thoroughly.
3. Remove grill base and empty drip tray.
4. Wash grill plate, drip tray and lid with warm, soapy water. Wipe dry.

Important: Do not use metallic scrubbing pads, steel wool or any abrasive cleaners to clean any part of your grill; use only nylon or nonmetallic scrubbing pads.

Caution: Temperature control probe receptacle must always be completely dry before use. Make sure receptacle is dry before inserting control probe.

Note: This product is not intended for outdoor storage.

WARRANTY AND CUSTOMER SERVICE INFORMATION

For support or any questions regarding your appliance, call the appropriate 800 number listed within this section. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult our Product Protection Center at www.prodprotect.com/applica.

Three-Year Limited Warranty

(Applies only in the United States and Canada)

What does my warranty cover?

- Your warranty covers any defect in material or workmanship provided; however, the liability of Spectrum Brands Inc. will not exceed the purchase price of product.

How long is the warranty period?

- Your warranty extends three years from the date of original purchase with proof of purchase.

What support does my warranty provide?

- Your warranty provides you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get support?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does my warranty not cover?

• Damage from commercial use
- Damage from misuse, abuse or neglect
- Products that have been modified in any way
- Products used or serviced outside the country of purchase
- Glass parts and other accessory items that are packed with the unit
- Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law affect my warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.
