FP1000 - Food processor Campomatic - Free user manual and instructions

Product Type	Food processor with blender and citrus juicer
Brand	Campomatic
Model	FP1000
Motor Unit	Includes motor pin, feet, power cord storage
Bowl Capacity	1.5 L (max liquid)
Blender Jug Capacity	1.5 L (max liquid)
Accessories	Disc stem, blades, slicing disc, shredding disc, food pusher, filter, cone, jug cover, measuring cup, spatula
Functions	Blending, chopping, slicing, shredding, citrus juicing
Speed Control	Pulse, MIN (low), MAX (high), OFF
Safety Features	Motor stops if bowl, cover, or internal chute not correctly positioned; automatic stop when cover removed
Maximum Operating Time	3 minutes continuous, then 5 minutes pause
Max Food Temperature	50°C for bowl and jug
Cleaning	Motor unit wipe with damp cloth; other parts dishwasher safe up to 65°C; blades handle carefully
Disposal	Separate electronic waste; recycle per local regulations
Power Cord Storage	Underneath motor unit
Compliance	CE, 89/338 EEC, 2008/95/CE
Double Insulated	Yes (no earth connection required)

Frequently Asked Questions - FP1000 Campomatic

How do I assemble the food processor for chopping?

Place the disc stem on the motor pin. Attach the bowl and turn anticlockwise until it clicks. Insert the blades on the disc stem. Add food, place the cover, and lock the semi-removable internal food chute. Insert the food pusher and start.

What should I do if the motor does not start?

Ensure the bowl, cover, and semi-removable internal food chute are correctly positioned. Check that the jug or filter is properly seated for blender or citrus juicer. Verify the control knob is not set to OFF.

Can I wash the motor unit in water?

No. Never immerse the motor unit in water or other liquids. Wipe it with a damp cloth only. All other parts can be washed in warm water or dishwasher up to 65°C.

How do I use the citrus juicer?

Place the disc stem on the motor pin, then the bowl. Insert the filter and cone. Cut fruit in half, press onto the cone, and turn the control knob to MIN or MAX. The appliance only runs if the filter is correctly positioned.

What is the maximum capacity for blending?

Do not fill the jug beyond 1500 ml. During blending, volume increases, so leave space. For solid foods, cut into 2.5 cm pieces.

How do I crush ice with this appliance?

Use the blender jug. Add cold water (40%) and ice cubes (60%). Hold the cover firmly and use the PULSE function. Do not crush ice without water.

Why does the appliance stop when I remove the cover?

This is a safety feature. The motor stops automatically when the bowl cover is removed to prevent accidents. Reattach the cover to restart.

Can I process hot food?

No. Do not place food over 50°C in the bowl or jug. Let hot ingredients cool before processing.

How do I store the power cord?

After use, wind the cord and store it in the special compartment located on the bottom of the motor unit (label 1c in the manual).

What should I do if the blades become dull?

Blades are very sharp and should be handled with care. If they become dull, contact an authorized after-sales center for replacement. Do not sharpen them yourself.

USER MANUAL FP1000 Campomatic

-- General warnings --

• Before performing any cleaning or maintenance operation, disconnect the appliance from the mains outlet by removing the plug from the socket or by switching off the electrical installation.
• If the appliance breaks down or functions improperly, shut it off and do not tamper with it.
  Repairs must only be carried out by an after-sales centre authorized by the manufacturer. Always insist of genuine spare parts.
  Non-compliance with what has been stated above could compromise the safety of the appliance.
• If you decide not to use the appliance of this type anymore, it is recommended that you make it inoperable by cutting off the mains cord after removing the plug from the mains outlet.
  You should also render harmless these parts of the appliance that could be dangerous, especially for children who might use an abandoned appliance as a toy.

Installation must be performed according to the manufacturer's instructions. Incorrect installation could cause damage to person, animals and things, for which the manufacturer cannot be held responsible.
• To avoid dangerous overheating, it is recommended that you unwind the electrical cord to its entire length and that you use the appliance as recommended in "Precsutons".
- Do not leave the appliance connected when not in use. Remove the plug from the mains outlet when the appliance is not used.
- Do not block openings, air intakes or heat outlets.
- If the electrical cord of this appliance is damaged, it must be replaced by an Authorized Customer Service Centre since specialized tools are necessary.

The device complies with the following directives:

- 89/338 EEC (EMC)

CE·2008/95/CE

The manufacturer reserves the right to make changes for regulatory, industrial, commercial or aesthetic reasons.

-35-

EN

-- General warnings --

It is recommended that you carefully observe the

precautions marked with the symbol I

• Read these instructions carefully as they contain important information about safe installation, use, and maintenance. Keep this manual with care for future reference.
  • After removing the packaging, and before using the appliance, make sure the appliance and all the accessories are working well. If you have any doubt, do not use the appliance until you consult a professionally qualified electrician.
• The packing materials (plastic bags, expanded polystyrene, nails, etc) should be kept away from children since they are potential sources of danger.
• Before connecting the appliance, make sure the line voltage is correct. The tag is located on the bottom of the body of the motor unit.
• If the plug does not fit into the wall outlet, have the wall outlet replaced with another type by a qualified electrician. He must also check that the cord is suitable for the power absorbed by the appliance.
  In general, it is not advisable to use an adaptor, multiple sockets, or an extension card.

If they are necessary, use only simple or multiple adaptors and extension cords that conform to safety regulations. being careful not to exceed the load limits indicated on the adaptor and the extension cord, and the maximum power indicated on the multiple adaptor.
P/E This appliance should only be used for the purpose for which it was made: processing food.
Any other use is considered improper and therefore dangerous.
The manufacturer cannot be held responsible for any damage deriving from improper, incorrect, or unreasonable uses.
- The use of any electrical appliance implies observance of certain fundamental rules. In particular: - do not touch the appliance with wet or damp hands
- do not use the appliance with bare feet - do not pull on the electrical card
- do not pull on the calcination bars or the appliance to pull the plug out of the mains outlet
- do not leave the appliance exposed to atmospheric conditions (rain, sun, plc.)
- do not allow the appliance to be used by children or disabled persons without surveillance.

-3-
中
中

-- Disposal --

EN

Disposal

This produce complies with the Directive 2002/96/EC.

The symbol representing the crossed out trash can on the appliance indicates that the product, at the end of its useful life, must be treated separately from domestic waste. It must be taken to a recycling

centre for electrical and electronic appliances or turned in to the point of sale when purchasing a new, equivalent, appliance.

The user is responsible for taking the appliance to the recycling centre at the end of its life, under penalty of the sanctions foreseen by the current legislation on waste handling.

Correct consignment of the no-longer used appliance to a recycling centre for treatment and environmentally compatible elimination contributes to avoiding a negative impact on the environment and public health, and permits recycling of the materials from which the product is made.

For more detailed information regarding the available collection systems, contract the local refuse centre or the store where the product was purchased. For more detailed information regarding the available collection systems, contract the local refuse centre or the store where the product was purchased.

The manufacturer and the importers comply with their responsibility for recycling, treating, and environmentally compatible disposal of waste both directly and in a collective system.

-33-

EN

-- Maintenance --

- For UK only

• The wires in the mains lead are coloured in accordance with the following code.
• Blue - NEUTRAL Brown - LIVE.
• If your appliance is fitted with a non-rewtresable mains plug which is not suitable for the socket outlets in your home, the plug must be cut off and an appropriate one fitted.

NOTE

• A plug cut off from a flexible cord will give a shock hazard if inserted in a 13 amp socket elsewhere in the house. To avoid this, it should be disposed of immediately.
• If you are fliting an alternative type of plug then the colours of the wires in the mains lead of the appliances may not correspond with the coloured markings identifying the terminals on your plug.
  In this case proceed as follows:
• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

NOTE:

• For your additional safety, the appliance has been double insulated and must not be earthed.
• Therefore do not connect either of the wires to the earth terminal of the three pin plug.
• If a 13 amp (BS 1363) plug is used a 13 amp (BS 1362) fuse must be fitted either in the plug, adaptor or at the fuse board.

NOTE:

- The fuse cover of a non-rowircable plug must be rell tied when changing the fuse. Should the fuse cover become last, the plug must not be used until the correct replacement fuse cover is obtained from our service department or stockist.

-32-

中

⊕

-- Maintenance --

EN

Cleaning

Before cleaning, ALWAYS remove the plug from the mains socket.

Switch the appliance off prior to approaching the parts that are in movement during use.
• To clean the motor unit (1) use a damp cloth and avoid abrasive detergents.
▲ Never immerse the motor unit (1) in water or other liquids.
Never wash the motor unit (1) in the dishwasher (fi g."W").
• All parts, except the motor unit (1) can be washed with warm water and ordinary detergents for dishes.
Those parts, except the motor unit (1), can be washed in the dishwasher at a temperature not higher than 65°C (fig. "W").
The blades are very sharp; handle them with great care.

• Discoloration that may occur when the appliance comes into contact with certain foods (e.g. an orange colour when carrots are blended) can be removed with a cloth soaked in cooking oil.
  Before inserting the plug in the mains outlet, ensure that the appliance and all its components are completely dry and correctly assembled.
  Before putting the appliance away, make sure the parts are cleaned carefully to avoid the forming of bacteria.
• After use, the electric power cable can be stored in the special compartment (1c) on the base of the device (Fig. "X").

Cross-sectional diagram of a mechanical device showing internal components and labeled parts (no readable text or symbols)

-31

⊕

中

EN

-- Use --

Using the citrus juicer

• Place the disc stem (2) on the motor pin (1a) (Fig. "C").

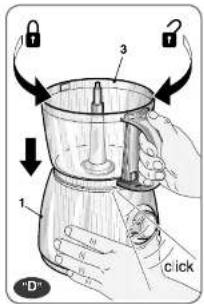

• Place the empty bowl (3) on the motor unit (1) and turn it "anticlockwise" until lining up the handle with the reference spot on the motor unit.
  When you hear a "click" it means the bowl is correctly positioned (Fig. "D").
• Place the filter (8) on the bowl (8) by turning it anticlockwise until you hear the engagement "click" (Fig. "U").
• Place the cone (9) on the disc stem (2), inserting it correctly on the filter (8) gears (Fig.7V).
• Insert the plug into the mains socket making sure that the mains voltage corresponds to that indicated on the ratings plate on the appliance.
• Cut the fruit into two halves.
• Pressing slightly with the fruit on the cone, turn the control knob (16) to "MIN" or to "MAX" to start the appliance (Fig.2").

The appliance does not start if the filter (8) is not correctly positioned on the motor unit (1).

• To stop the appliance turn the control knob (16) to "OFF".
- When juicing is completed, remove the cone (9) and the filler (6) by turning it clockwise (Fig.10).
- Lift the bowl (3) holding the handle and pour the juice.

-30-

中

中

-- Use --

EN

Using the blender

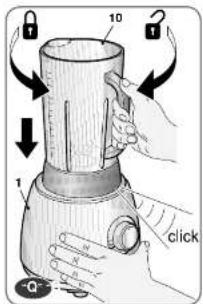

• Place the glass jug (10) on the motor unit (1) hooking it up until the engagement click. (Fig. 'Q')
• Insert the food to be blended in the jug (10).
  Place the cover (11) and the measuring cup (12) (Fig. "H")
  • Make sure the control knob (16) is turned to the "OFF" position.
• Insert the plug into the mains socket making sure that the mains voltage corresponds to that indicated on the ratings plate on the appliance.
• Start the appliance by turning the control knob (16) to "PULSE" or to "MIN" or to "MAX".

The appliance does not start if the jug (10) is not correctly positioned on the motor unit (1).

If you notice that the motor has difficulty with the rotation. Gradually add few amounts of liquid.
- If additional ingredients need to be added during blending, you can remove the measuring cup (12) (fig. ^4 ).
- To stop the appliance, turn the control knob (16) to the "OFF" position
- To remove food residue from the sides of the jug or to re-work them, re-turn the control knob (16) to "OFF" wait until the blades have stopped and use the supplied spatula (15) or appropriate tools.

DO NOT use fingers.

- To remove the jug (10) from the motor unit (1) hold the handle and turn it clockwise (Fig. "Q").

Tips

Insert the food to be blended in the jug (10) after cutting it in small pieces.
- Add a few ingredients at a time into the jug (10) to allow a correct working and to avoid the spillage of ingredients out of the lid.

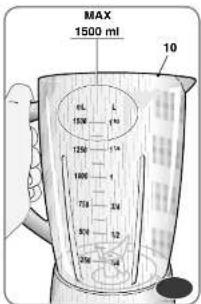

- NEVER fill the jug (10) to more than 1500 ml, during blending, the blades rotation determines an increase in load volume (li p. T).
- For better circulation of food, pour the liquid into the jug (10) first, then add solid foods. The presence of liquids facilitates and speeds up the processing even at MINI speed.
- To crush ice, it is recommended to now cold water in the jig (10).

Add Ice.

Pour the ingredients respecting the following quantities: cold water 40% and ice 60% (eg. For crushing 400 grams of ice, pour 160 ml of water fi rst).
- Hold firmly the cover (11) and start the appliance by turning the control knob (16) to "PULSE".
Pause occasionally during ice crushing and, if necessary, sod 1 ice cube at a time.

- Do not crush ice without cold water. Do not damage the blades by blending hard foods (coffee beans, bones, frozen food etc).

This blender is not suitable for: beating eggs or whipping cream, grinding meat, mixing dough.

Do not excessively overload the motor. If it stops, turn the appliance off immediately; remove the plug from the socket as well as food content processed and wait a few minutes before restarting.

-29

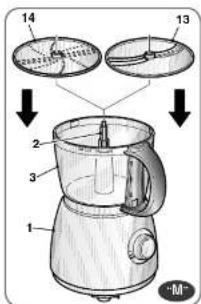

Tips for using the blades (4) and the discs (13, 14)

• The blades (4) are useful for cutting, mincing, mixing, blending and reduce to a purse raw or cooked meat, fruit, vegetables and salads.
• The disc (13) is useful for slicing fruit and vegetables (eg. courgettes, carrots plc.).
  • The disc (14) is useful for shredding or reduce fruit, vegetables and medium/soll chooses (e.g.: Emmental) into small pieces.
  • The fineness depends on how long the appliance operates.
• For processing food such as onion, garlic etc with the blades (4), use the minimum speed or the "PULSE" function to avoid reducing them into pulp
  • The longer the processing time the better the finishing quality obtained
• The smaller the pieces processed (max 2.5 cm.), the better the quality of the result obtained.
• When processing hard food like soya beans etc, soak them first, leaving them to sosk in water or other liquid prior to use.
• When adding liquid (milk, broth, fruit juice etc) to facilitate the processing, do not exceed the recommended quantity.
• If the result is not satisfactory:
• use the appliance at interval with the "PULSE" function;
• stop the functioning of the appliance, remove the cover (5) and amalgamate the mixture with a spatula (15) then re-process everything;
• divide the mixture into several portions and process them

-28-

-- Introduzione --

• Insert the plug into the mains socket making sure that the mains voltage corresponds to that indicated on the ratings plate on the appliance.
• Start the appliance turning the control knob (18) to "MIN" or to "MAX".
  With the disc (13, 14) it is not recommended to use the "PULSE" function.

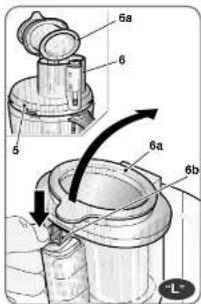

  The appliance does not start if the bowl (3), the cover (5) and semi-removable internal food chute (6a) are not correctly positioned.

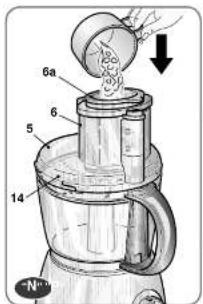

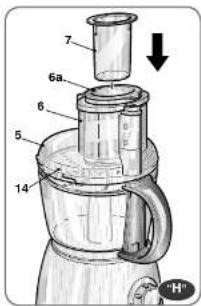

• Insert the food to be processed into the external food chute (6) after having cut it into suitably sized pieces. Small or long food may be inserted into the semi-removable internal food chute (6a) (fig.*N").

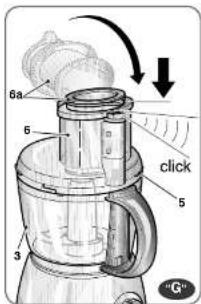

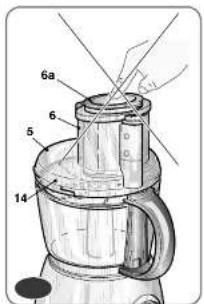

  Do not open the semi-removable internal food chute (6a). The appliance stops immediately.
• To re-start, re-insert the semi-removable internal food chute (6a) correctly (fig."G").
  For shredding, grating or mincing, cut the food into small cubes to facilitate the processing.
• Press the food into the external Food chute (6) using the food pusher (7) (fig. ^3 H ^4 ).
  Do not use fingers or other tools to process food (fork, etc.) (fig."P").
  While processing the food, take care not to fill the bowl (3) over the maximum capacity.

EN

If you notice that the motor has difficulty with the rotation, switch off the appliance and check that nothing is impeding the rotation or that there is not too much food to be processed.
Do not press too much with the food pusher (7).
Do not work for periods longer than 3 minutes. Take 5 minutes pauses between working cycles so as not to overheat the motor.
When the cover (5) is removed from the bowl (3), the device stops.
- To stop the appliance turn the control knob (16) to "OFF":
- Wait until the disc (13, 14) stops rotating;
- Remove the cover (5) by turning it clockwise until you hear the engagement "click":
- Remove the disc (13, 14) from the disc stem (2).
- To remove food residue from the sides of the bowl (3) wait until the blades have stopped and use the supplied spatula (15) or appropriate tools.

DO NOT use fingers

- To remove the bowl (3) from the motor unit (1) hold the handle and turn it clockwise (Fig. ^4 D ^+ ).

· 27 ·

EN

-- Use --

• When pulsing, hold the "PULSE" position for about 2-3 seconds, check the result and repeat for the desired consistency.
  The appliance does not start if the bowl (3), the cover (5) and the semi removable internal food chute (6a) are not correctly positioned.
  While processing the food make sure that you do not fill the bowl (3) over the recommended quantity.
  Do not insert food that has the possibility to increase in volume and therefore exceed the maximum level of the container.
  If you notice that the motor has difficulty with the rotation, switch off the appliance and check that nothing is impeding the rotation or that there is not too much food to be processed.
• Additional food can be added through the external food chute (6) by removing the food pusher (7) (11g.'H').
• To add bulky food press the release button (6b) and remove the semi-removable internal food chute (6a) pulling it upwards (Fig. ^1 L ^1 ).
• To re-start, insert the semi-removable internal food chute (6a) in the external food chute (6) until you hear the engagement "click" (Fig. 'G').
  When the cover (5) is removed from the bowl (3), the device stops.
  Before adding food, cut it into small pieces to facilitate the processing.

· 26 ·

To stop the appliance turn the control knpp (16) to "OFF" position:
- Wait until the blades (4) stop rotating;
- Open the cover (5) turning it clockwise until you hear the engagement "click".
- To remove the bowl (3) from the motor unit (1) hold the handle and turn it clockwise (Fig. D').
• To remove food residue from the sides of the bowl (3) wait until the blades have stopped and use the supplied spatula (15) or appropriate tools.

A DO NOT use 11 ngers.

Using the slicing disc (13) or the shredding disc (14)

• Place the disc stem (2) on the motor pin (1a) (fig. "C").
• Place the empty bowl (3) on the motor unit (1) and turn it "anticlockwise" until lining up the handle with the reference spot on the motor unit.
  When you hear a "click" it means the bowl is correctly positioned (Fig. "D").
• Place the slicing disc (13) or the shredding disc (14) on the disc stem (2) in the centre of the bowl (3) (Fig. ^2 ).
  If using the shredding disc (14), place the desidered cutting side facing upwards.

The discs blades (13, 14) are very sharp; handle them with great care.

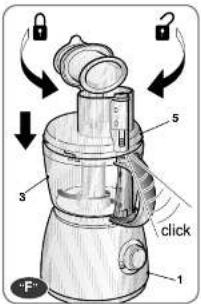

- Place the cover (5) on the bowl (3) then turn it "anti-clockwise" until you hear the engagement "click" (Ig. "F").

-- Caratteristiche --

Turn the control knob (16) to 'MIN', the unit will run at a low speed and will keep running until the control knob is turned to the 'OFF' position.

Turn the control knob (18) to "MAX", the unit will run at a high speed and will keep running until the control knob is turned to the "OFF" position.

Preliminary operations

When using for the first time, wash all the components (except the motor unit) with hot water and a normal dishwashing liquid; beware of the sharp blades.

Rinse thoroughly and dry the parts before using them again. Before using, make sure that none of the components are broken.

The blades and the discs (4, 13, 14) are very sharp; handle them with care.

• Make sure that the plug is disconnected from the socket and no buttons are pressed.

- Place the appliance on a flat, stable and dry surface and make sure that all the feet (1b) rest on the surface.

EN

Using the blades

Do not process food in pieces larger than 2.5cm.

- Place the Disc Stem (2) on the Motor Pin (1a) / [e °C]

- Place the empty bowl (3) on the motor unit (1) and turn it "anticlockwise" until lining up the handle with the reference spot on the motor unit. When you hear a "click" it means the bowl is correctly positioned (fig."D").

- Place the blades (4) on the Disc Stem (2) in the centre of the bowl (3) (fig. "E").

The blades (4) are very sharp; handle them with great care.

- Place the food in the bowl (3). - Place the cover (5) on the bowl (3) then turn it "anti-clockwise" until you hear the engagement "click" (fig."F").

- Make sure that the Semi- removable internal food chute (6a) is correctly locked, inserting it in the external food chute (6) downwards until you hear the engagement "click (10.0."3).

- Insert the food pusher (7) in the semi- removable internal food chule (6a) (11 g."H").

- Insert the plug into the mains socket making sure that the mains voltage corresponds to that indicated on the ratings plate on the appliance.

- Start the appliance turning the control knob (16) to "PULSE" or to "MIN" or to "MAX" for a continuous processing.

-25-

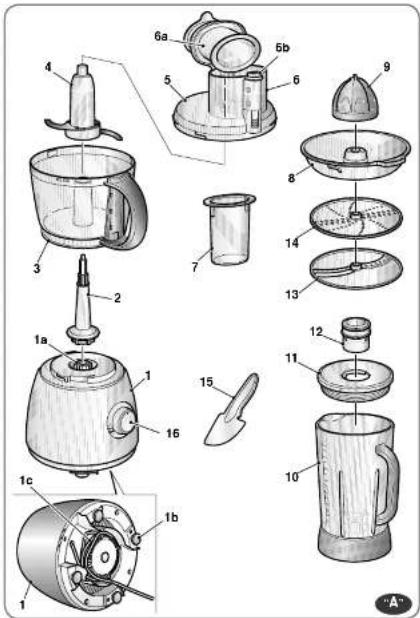

Description of the appliance (Fig. A)		Description of commands (Fig. B)

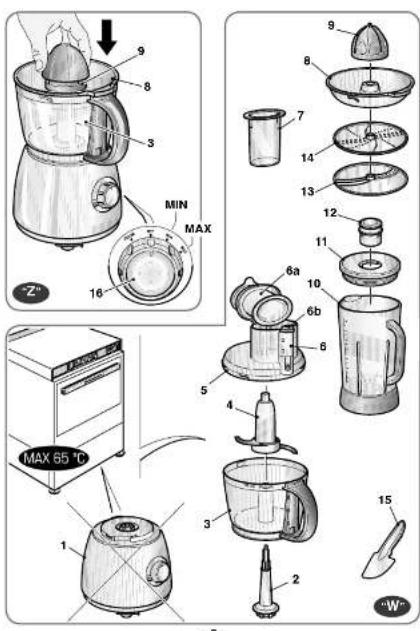

1)	Motor unit 1a) Motor pin 1b) Feet 1c) Power cord storage area 2) Disc stem 3) Bowl 4) Blades 5) Bowl cover 6) External Food chute 6a) Semi- removable internal food chute 6b) Release button for semi removable internal food chute 7) Food pusher 8) Filter 9) Cone 10) Jug 11) Jug cover 12) Measuring cup 13) Slicing Disc 14) Shredding Disc 15) Spatuts	16) Control knob •'PULSE' Turn the control knob (16) antolodowse and press the 'pulse' button for the necessary processing time. When released, the unit will stop. Use the "pulse" function for short processing tasks, such as chopping nuts, raw meat or vegetables in order to check the processed results and control the desired consistency. •'OFF' The food processor should always be let with the control knob (16) in the 'OFF' position when the unit is not in use.

-- Utilizzo --

Read these instructions carefully as they contain important information about

safe installation, use, and enance. Keep this manual with or future reference.

- Before using the appliance, make sure it is in perfect working order. The motor unit (1), the blades (4), the bowl (3), the jug (10), the filler (8), the cone (9) and the cover (5, 11) should not show any breaks or cracks.

The sheath and plug on the powercable must not show any cracks or breakages. If the conditions described above are observed, immediately unplug the appliance from mains outlet and take it to an authorized After- Sales Service Centre for necessary checking.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Do not leave the appliance unattended while turned on.

• Before inserting the plug into the mains socket, make sure that the control knob (16) is turned to the "OFF" position.

• For your personal safety, we suggest that you power the appliance by means of a differential switch (RCD), whose operating current does not exceed 30mA

• Never put the motor unit (1) into water.
  • After every use, carefully clean all the parts that come into contact with food by following the advice and indications contained in the chapter "Cleaning".
  Do not place food over 50°C in the bowl (3) or in the jug (10).
  Place the food to be processed in the bowl (3) or in the jug (10) after having cut it into small pieces. When processing liquids, NEVER exceed the bowl (3) or the jug (10) maximum capacity.
  To avoid dangerous overheating do not excessively push fruits against the cone of the citrus press.
  Do allow the cord to come into contact with hot surfaces, including stovetops, ovens etc
  Do not hang the cord from the table or workbench.
  Do not operate the appliance when it is open.
  The appliance has not been constructed to be used in the rain and should be left in outside or in humid places.
  Never run the appliance: if the bowl (2) empty.
• if the cover (5) not correctly positioned on the bowl (3);
• if the iug (10) empty;
• if the jug (10) empty;
• if the cover (11) is not correctly positioned on the jug (10).
• if the filter (8) is not correctly positioned on the bowl (3).

Technical diagram of a mechanical component with labeled parts (1, 1c), no readable text or symbols beyond labels

- 18 -

-- Smaltimento --

IT

Smaltimento
