Darky's - Broom FAKIR - Free user manual and instructions

Product Type	2-in-1 Stick Vacuum Cleaner
Brand	Fakir
Model	Darky's
Motor Power	800 W
Mains Voltage	230-240 V
Nominal Frequency	50 Hz
Energy Efficiency Class	A
Annual Energy Consumption	23.00 kWh/year
Carpet Cleaning Performance Class	E
Hard Floor Cleaning Performance Class	A
Dust Re-emission Class	E
Sound Power Level	79 dB
Usage Life	10 years
Intended Use	Dry vacuuming of hard floors, carpets, upholstery, and mattresses in private households
Included Accessories	Vacuuming nozzle, hard floor nozzle, parquet slide, ergonomic handle, instruction manual
Filter Type	Fabric filter with round motor protect sponge
Filter Maintenance	Shake out and rinse in lukewarm water; replace every 6 months
Dust Cup Capacity	Not specified in manual, but typical for stick vacuum: approx. 0.5 L
Cord Length	Not specified, but typically around 5-6 m
Weight	Not specified, approximate 2.5 kg
Safety Features	CE marked, automatic circuit breaker recommended, never vacuum liquids or hot ashes
Warranty	Subject to country regulations; refer to service list

Frequently Asked Questions - Darky's FAKIR

How do I assemble the Fakir Darky's stick vacuum cleaner?

Can I use the vacuum to pick up liquids?

How often should I clean the fabric filter?

What should I do if the vacuum loses suction?

Is it safe to use the vacuum on delicate floors like parquet?

What is the power consumption of this vacuum?

How do I empty the dust cup?

The vacuum makes loud noises. What could be wrong?

Can I use non-Fakir filters or accessories?

How do I store the vacuum cleaner?

USER MANUAL Darky's FAKIR

Stick Vacuum Cleaner

Fakir

HAUSGERÄTE

Black handheld electric shaver with a black handle and white spool, no visible text or symbols on the device itself.

İÇİNDEKİLER

Close-up of a black and white mechanical device with lever and handle (no visible text or symbols)

Information about the operating instructions ....14

Liability....14

Notices in the operating instructions 14

CE Declaration of Conformity 14

Unauthorized use 14

Safety is Important 16

Important Safeguards.... 16

Electric current electric 17 In case of danger 17

in case of danger .... 17 Safety in case of defects .... 17

Safety in case of defects 17 Important Safeguards 18

Important Safeguards.... 18 Technical data.... 19

Technical data 19 Unpacking 20

Assembling 21

Before vacuum cleaning 21

Parquet Slide 22

After vacuum cleaning....22

Storage 23 Maintenance 20

Maintenance 23 Cleaning 24

Cleaning 24 Waste disposal 25

If at once you don't succeed.... 25

Dispatch....25

EN

GENERAL

Information about the operating instructions

Thank you for purchasing Fakir Darky's 2 in 1 Stick Vacuum Cleaner. It was developed and manufactured to work reliably for many years.

These operating instructions are intended to enable the safe and proper handling and operation of the appliance

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

Fakir Elektrikli Ev Aletleri Diş. Tic. A.Ş. will accept no liability for damages resulting from failure to comply with the operating instructions.

Fakir Elektrikli Ev Aletleri Dış, Tic. A.Ş. cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

SAFETY

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2014/30/EU "Electromagnetic Compatibility" and 2014/35/EU "Low-Voltage Directive." The appliance bears the CE mark on the rating plate.

Intended use

The appliance may only be used in private homes and auxiliary rooms to vacuum clean dry dust material. It may be used only for cleaning hard floors and textile floor coverings, carpets, upholstered furniture, mattresses.

Check if the filter have been inserted properly before using the appliance. The appliance must not be used without filter. Use only original Fakir filters and accessories. Any other use is considered unauthorized and is prohibited.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury:

• This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance.
• Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance.
• Keep packaging films away from children - danger of suf-location!

EN

SAFETY

Safety is Important

WARNING!

Danger of injury from vacuuming:

- Never vacuum articles of clothing, hair, eyes, fingers or

other parts of the body.

- Nozzles and tube ends must never be brought close to

the eyes or ears.

- Never use the appliance to vacuum human beings or

animals. The manufacturer is not responsible for any

damages caused by unauthorized use or improper

operation.

Important Safeguards

HEALTH HAZARD

- Never vacuum hazardous materials, such as toner used in

laser printers or copiers.

DANGER OF FIRE AND EXPLOSION!

- Never vacuum hot ashes or burning objects, such as

cigarettes or matches.

- Never use the appliance in the vicinity of explosive or

flammable materials.

- Never vacuum any solvents, explosive gases or liquids.

ATTENTION!

• Risk of short circuits! Never vacuum water and other
  liquids, such as damp carpet cleaning solutions.
• Destruction of filter! Never vacuum sharp or pointed
  objects, such as glass splinters, nails, etc. Materials
  that harden when dry, such as plaster or cement, can
  also destroy the filter.
  • Damage to appliance from rain and dirt Never use or
  store the appliance outdoors.
• Danger from overheating! Always keep the openings in
  the appliance free.

SAFETY

EN

Electric current

ATTENTION!

- Incorrect voltage can destroy the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.

• The socket must be protected with a 16 A automatic circuit breaker.
• Use only extension cords designed for the power input of the appliance.

Danger of electric shock

WARNING!

• Never touch the plug with wet hands.
• When unplugging the appliance, always pull directly on the plug and never on the power cord.
• Do not kink, pinch or run over the power cord and do not expose it to heat sources.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service department or a person with similar qualifications to prevent any hazards.
• Do not put the appliance in operation if you detect any visible damage on the housing. If the power cord is defective or if you suspect a defect (e.g. after a fall).
• Do not use any damaged extension cords

In case of danger

In case of danger or accident, unplug the appliance immediately.

Safety In case of defects

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. There is a danger of electric shock.

Before contacting our service department, check to see if you can eliminate the problem yourself. Refer to the chapter "If at once you don't succeed".

If you were not able to eliminate the problem yourself.

EN

SAFETY

Important Safeguards

WARNING!

Repairs and maintenance may be performed only by trained technicians (e.g. Fakir customer service). Only original Fakir replacement parts may be used. Improperly repaired or serviced appliances may pose a danger to the user. Fakir Elektrikil Ev Aletleri Dis. Tic A.Ş. will Not be responsible of any problem if any repair or maintenance made by other than Fakir Services.

PRODUCT INFORMATION

Supplier name or trade name: Faklr Elektrikil Ev Aletleri Diş Ticaret A.Ş.

Model: Fakir Darky's Stick Vacuum Cleaner

Mains voltage: 230-240V

Nominal frequency: 50 Hz

Motor Power: 800 W

Energy efficiency class: A

Annual energy consumption: Annual energy consumption: Energy consumption per year is calculated on the basis of 50 test cycles and is 23,00 kWh. The actual energy consumption could vary, depending on how the device is used.

Carpet cleaning performance: E

Hard floor clearing performance: A

Dust re-emission class: E

Sound power level: 79 dB

Usage Life: 10 Years

*Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.

New energy-saving Technology

The Fakir vacuum cleaner is equipped with new energy-saving technology.

A combination of highly efficient accessories i.e. vacuum nozzle, tube, hose, 'HEmotor, filter and appliance provide

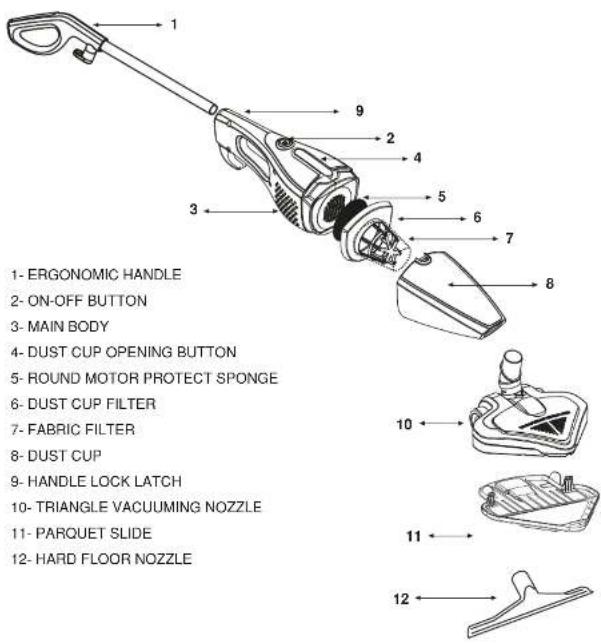

OVERVIEW

EN

EN

OVERVIEW

Unpacking

Unpack the device and check the content of the packaging for completeness (see scope of supply). Should you note any damage incurred during transit, please contact your dealer immediately.

WARNING!

Never use a defective appliance.

NOTICE!

Keep the packaging for storage and future transports (e.g. for moves, service).

Scope of delivery

Vacuum Cleaner....1

vacuuming nozzle 1 Hard floor nozzle

Hard floor nozzle .... 1

Ergonomic Handle.... 1

Instructions manual 1

Service List.... 1

WARNING!

Please ensure that the mains plug is disconnected before assembling the parts otherwise the appliance might start up unintentionally and cause injury.

USAGE

EN

Assembling

- Assemble the vacuuming nozzle (no:10) with dust cup (no:8). To do that, pls insert vacuuming nozzle into dust cup.

- Insert the ergonomic handle (no:1) to the main body (no:3) by pulling the latch(no:9) till you hear the click sound. Make sure it is locked properly.

• The vacuum cleaner is now ready for use.

Before vacuum cleaning

WARNING!

Check the appliance and the power cable before use. Faulty appliances may cause injury and should not be used.

Before use, ensure that dust filter have been inserted and that these are not damaged.

- Attach the vacuuming nozzle. - Pull out the power supply cable by means of the plug until the required length is reached and insert the plug into a mains socket.

EN

USAGE

Parquet Slide

Instructions of parquet slide for delicate surfaces:

• Use for cleaning delicate surfaces (parquet, wooden floor)
• Mount the parquet slide on triangle vacuum nozzle as shown in the figure before starting cleaning on delicate surfaces.

Cleaning and care:
- Dismantle the parquet slide from triangle vacuum nozzle by stepping up on the back of the parquet slide.
- You can use a wet cloth for cleaning (not suitable for cleaning under tab water, otherwise seal adhesive will lose its function in time.)

Hard floor nozzle:

The hard floor nozzle is used for cleaning hard floors such as tiles, parquet or PVC etc.

After vacuum cleaning

WARNING!

Follow the steps below as soon as you stop vacuum cleaning. Never leave the appliance unattended.

- Press the "On/Off" to switch off the vacuum cleaner. - Remove the plug from the mains socket.

USAGE

EN

Close-up of a black and white mechanical device with lever and handle (no visible text or symbols)

Wind the cable on cable winding hooks. Storage

CAUTION!

Never place the appliance next to heat sources and avoid direct sunlight, as the heat may damage the vacuum cleaner.

NOTICE!

Only use original Fakir filters. This is the only way to ensure that the excellent filter properties of the vacuum cleaner are utilised.

Maintenance

Spilling rubbish from the dust compartment subassembly

• Always operate the cleaner with the dust cup assembly whole installed.
- For the maximum performans and long lasting life, we advice you to empty and clean the dust cup after each use.
a) After removing the vacuum nozzle, open the dust cup by pressing the dust cup opening button.

b) Take out the round motor protect sponge from dust cup filter.

c) Take out the dustcup filter.
d) Shake the fabric filter well. PIs follow the cleaning instructions on page 24.
e) Replace the round motor protect sponge and filter on

EN

USAGE

Cleaning

WARNING!

Switch off the vacuum cleaner and disconnect the plug from the main socket before cleaning the appliance.

This ensures that the appliance is not switched on unintentionally.

CAUTION!

Do not use cleaning detergents, abrasive agents or alcohol as these will damage the casing.

Only dry-wipe the appliance or clean with a damp cloth. You can also clean the filter chamber with a damp cloth if necessary.

Nozzle should be regularly checked for blockages, cleaned and, washed and dried.

Cleaning fabric filter:

You take off the Fabric Filter and shake out. You can use a soft brush to clean the Filter gently. Change the fabric filter every 6 months. Rinse fabric filter in lukewarm water and dry completely. Replace the filter.

TICE!

We advice to change Fabric Filter every 6 months.

WASTE DISPOSAL

Waste disposal

If at once you don't succeed

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable.

Dispose of the device according to the environmental regulations applicable in your country. Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center. The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your dealer Dispose of used dust bag and filters in domestic waste.

Dear customer,

Our products are subject to strict quality control. If this device should not function trouble-free in spite of that, we regret this very much. Before you contact our Fakir Customer Service, check whether you can correct the fault yourself.

Malfunction	Possible cause Solution
Appliance does not work	Plug is not plugged in or the appliance is not switched on. Socket does not carry any current. Power cable is damaged.	Plug in the plug or switch the appliance on Test the cylinder vacuum cleaner at another socket which you are sure carries current Have the cable replaced by authorized Fakir services
Appliance does not suck up any dirt	Dust container is full or blocked.	Clean the corresponding filter. Remove the blockage. If necessary,
Appliance is making unusually loud noises while running	Sucked-in particles are blocking the air-way.	Remove the particles. If necessary, use a long wooden rod for this (e. g. a broom handle).

Dispatch Carry the appliance in the original package or a similar,
well-padded package to prevent damage to the appliance.
