Product Type	Heat Gun
Brand	Meec Tools
Model	051-010
Power Consumption	2000 W
Voltage	230 V ~ 50 Hz
Temperature Range	50 °C - 650 °C
Air Flow Settings	Two stages: 250 L/min and 500 L/min
Weight	0.8 kg
Dimensions (L x W x H)	260 x 185 x 85 mm
Cord Length	2.5 m
Overheat Protection	Yes
Variable Temperature	Yes, adjustable dial
Included Nozzles	Concentrator nozzle, reflector nozzle
Maintenance	Clean air vents regularly; store in dry place
Safety Features	Overheat protection, non-slip handle
Spare Parts Availability	Heating element and nozzles available
Repairability	Designed for easy replacement of heating element

Frequently Asked Questions - 051-010 Meec Tools

What is the maximum temperature of the Meec Tools heat gun 051-010?

The maximum temperature is 650 °C.

Can the heat gun be used for paint stripping?

Yes, with the concentrator nozzle it is suitable for paint stripping and removing adhesives.

How do I change the airflow setting?

Use the slide switch on the handle to choose between low (250 L/min) and high (500 L/min) airflow.

Is there an overheat protection feature?

Yes, the heat gun has automatic overheat protection that shuts off the device if it gets too hot.

What voltage does the heat gun require?

It operates on 230 V ~ 50 Hz.

How do I clean the heat gun?

Disconnect from power and allow to cool. Wipe exterior with a damp cloth. Clean air vents with a soft brush.

Can I use the heat gun for shrink tubing?

Yes, the reflector nozzle is ideal for evenly heating shrink tubing.

How long is the power cord?

The power cord is 2.5 meters long.

Is it safe to leave the heat gun unattended?

No, never leave the heat gun unattended while it is plugged in or hot. Always turn off and unplug after use.

Where can I find spare parts for this heat gun?

Spare parts such as heating elements and nozzles are available from Meec Tools service centers or authorized dealers.

USER MANUAL 051-010 Meec Tools

Operating instructions for Hot Air Gun

051-010

Exterior view of a Msec portable electric heater (no visible text or symbols on body)

SVENSKA

SÄKERHETSFÖRESKRIFTER

Exterior view of a JFACO air fryer with labeled parts (no additional text or symbols visible)

Exterior view of a portable electric heater with labeled parts (no text or symbols visible)

Exterior view of a JMEC 1990 heat exchanger (no visible text or symbols on body)

1. Dysza

POLSKI

OBSŁUGA

OSTRZEŻENIE!

Read the Operating Instructions carefully before use!

• Read these Operating Instructions carefully before use.
• Never leave the machine unattended when children are present.
  • Check that the mains voltage corresponds with the rated voltage for the tool.
• Never use the tool if it shows signs of damage.
• Do not tie knots in the power cord.
  • Always check that the power cord is in perfect condition. Risk of potentially fatal electric shock.
• Never use the machine if it has been dropped on the floor or is damaged or if the power cord and/or plug are damaged.
• The machine is intended for temporary use only.
  • Make sure the On and Off button is in the middle position before plugging into the mains.
  • The nozzle heats up to 600°C. Caution - fire hazard!
  • Always wear gloves and eye protection.
• Do not touch the nozzle when in use.
• Allow the hot air gun to cool completely before putting it away.
  • Never expose the machine to rain or moisture. Store in a dry place.
• Never leave the machine unattended.
• Keep children away from the machine.
• Never point the air flow at people or animals.
• The machine must not be used for drying clothes or hair
• Do not use in the vicinity of flammable or explosive substances or gases.
  • Do not obstruct the hot air flow by blocking or shielding the nozzle
• Only use original accessories and spare parts from the manufacturer.
• Do not wear loose-fitting clothing or jewellery. Wear non-slip shoes and use a hair net if you have long hair. Make sure you have a firm footing when working.
• Never use the machine in a wet environment or in areas with a high humidity level (bathrooms, saunas, etc.). Do not immerse any part of the machine in water. Risk of electric shock.
• Remove flammable substances and materials from the workplace before using the hot air gun.
• Do not carry the hot air gun by the power cord.
• Only use an extension cord with a minimum cable area of 1.5 mm2.
• Never use chemical removers or solvents at the same time as the hot air gun.
• Clean the nozzle if it gets dirty.

ENGLISH

TECHNICAL DATA

Rated voltage 230 V \~ 50 Hz

Power requirement 1500 Watt

Temperature 375°C / step 1, 495°C / step 2

Air volume 400 l /step 1, 550 l / step 2

Sound pressure level, LpA 72 dB(A)

Sound power level, LwA 82 dB(A)

Vibration: ah < 2.5 m/s2

Weight

0.7

kg

Wear hearing protection!

The declared vibration value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

WARNING!

The actual vibration level when using power tools may differ from the specified maximum value, depending on how the tool is used. It is therefore necessary to determine which safety precautions are required to protect the user, based on an estimate of exposure in actual operating conditions (taking into account all stages of the work cycle, e.g. the time when the tool is switched off and when it is idling, in addition to the start-up time).

DESCRIPTION

The hot air gun is intended for heating shrink hoses, removing paint, and for joining and shaping plastic materials.

NOTE!

Fire risk!

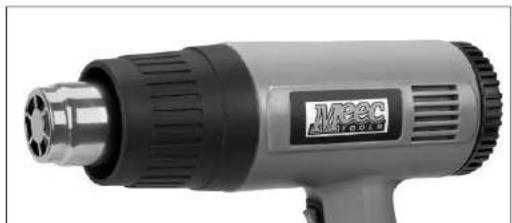

The hot air gun is illustrated and described below.

Exterior view of a JWEC air purifier with label (no additional text or symbols visible)

1. Nozzle

ENGLISH

OPERATION

WARNING!

High temperatures can result in a serious risk of fire or explosion! Make sure that the workplace is well ventilated. Gases and fumes can be hazardous to health and/or toxic.

Select the required working temperature and air volume with the switch (2). The hot air gun reaches its working temperature within one minute.

Switch in position 1: 1st step - 375°C / 400 litres/min

Middle position: The hot air gun is disconnected.

Switch in position 2: 2nd step - 5000 / 550 litres/min

Possible use:

1. Paint and varnish removal. Note: The removal of paint and varnish can create hazardous and/or toxic fumes. Make sure there is adequate ventilation.
2. Removing sticker labels and decorations.
3. Removal of rusty or tight nuts and metal screws.
4. Thawing of frozen pipes, door locks, etc. Note: do not thaw pipes made of plastic or other synthetic materials.
5. Accentuation of natural graining of wooden surfaces before staining or vanishing.
6. Shrinking of PVC foil packaging and insulation hoses.
7. Waxing and dewaxing of skis.

Selection of nozzle

The glass protector nozzle (5) deflects the air flow and protects windows from overheating.

Removing paint. The flat nozzle (6) is used for an even distribution of air over small surfaces.

The reducer nozzle (7) is used to concentrate the air flow at corners and when joining.

The reflector nozzle (8) is used for joining and shaping pipes, thawing water pipes and shrinking insulation hoses.

MAINTENANCE

Make sure that the vents for the air intake and hot air blower are always kept clean and free from dirt. Clean the hot air gun with a moist cloth and standard household detergent. Never use solvents or the equivalent for cleaning.

EC DECLARATION OF CONFORMITY EG FÖRSÄKRAN OM ÖVERENSSTÄMMELSE EF SAMSVARSERKLÆRING DEKLARACJA ZGODNOŚCI WE

Jula Postorder AB, Box 363, SE-532 24 SKARA, SWEDEN
