BRU7G - Range hood BLANCO - Free user manual and instructions

Product Type	Built-in Range Hood
Brand	BLANCO
Model	BRU7G
Width	60 cm (standard)
Depth	Approx. 50 cm
Height	Adjustable, typical 65-130 cm duct cover
Weight	Approx. 12 kg
Power Supply	220-240 V / 50 Hz
Motor Power	180 W
Max Airflow	550 m³/h
Noise Level	55-65 dB(A)
Number of Speeds	3 + intensive
Lighting	LED, 2 x 3 W
Filter Type	Aluminum grease filter (washable)
Air Extraction	Ducted or recirculation (with optional carbon filter)
Control Type	Slider or electronic push buttons
Energy Class	A+ (typical)
Installation	Built-in under cabinet
Maintenance	Clean grease filter monthly; replace carbon filter every 6 months
Safety Features	Auto shut-off timer, overheat protection
Spare Parts	Grease filter, carbon filter, LED lamps (available at service centers)
Manual Language	English (PDF available)

Frequently Asked Questions - BRU7G BLANCO

How do I install the BRU7G range hood?

Installation should be done by a qualified professional. Ensure the hood is mounted at the recommended height (65-75 cm above the cooking surface) and that the ducting is properly connected to the outside. Refer to the installation manual for detailed steps.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every month, or more frequently if you cook heavily. You can wash it by hand with mild detergent or in the dishwasher. Always dry it completely before reinserting.

Can I use the hood in recirculation mode?

Yes, the BRU7G can be used in recirculation mode by installing an optional carbon filter. This filter absorbs odors and needs to be replaced every 6 months.

What are the dimensions of the BRU7G?

The standard width is 60 cm, depth approximately 50 cm, and the canopy height is adjustable with the duct cover. Exact measurements are in the product specification sheet.

How do I replace the LED lights?

LED lights are integrated and should be replaced by a qualified technician. Contact BLANCO service or a professional electrician to ensure correct replacement.

Why is my hood making excessive noise?

Check if the grease filter is dirty or if the ducting is blocked. Also ensure the hood is properly installed and not vibrating against cabinets. If noise persists, contact customer support.

What should I do if the hood doesn't turn on?

First, check the power supply and circuit breaker. Ensure the hood is properly connected. If it still doesn't work, inspect the control board or motor. Contact a service technician.

Is the carbon filter included with the hood?

No, the carbon filter is not included in the standard package. It must be purchased separately if you plan to use the hood in recirculation mode.

How do I adjust the speed settings?

Use the control buttons or slider to select from 3 speeds plus an intensive boost mode. For heavy cooking, use the intensive setting temporarily.

Where can I download the user manual?

You can download the manual in PDF format from the notice-facile.com website for free. Search for BLANCO BRU7G to access the document.

USER MANUAL BRU7G BLANCO

Instructions for the Use and Care and Installation of

BRU5G

BRU7G

Under Cupboard Rangehood.

Dear Customer

You will find that the modern look of your Blanco rangehood blends in perfectly with your kitchen décor. It is easy to use and performs to a high standard.

Blanco also makes a range of products that will enhance your kitchen – such as cooktops, ovens, dishwashers, microwaves, sinks and taps. There are models to complement your new Blanco rangehood. Blanco now has a range of laundry products to choose from.

Of course, we make every effort to ensure that our products meet all your requirements, and our Customer Service Department is at your disposal, to answer your questions and to listen to your suggestions.

Please complete the warranty section of this manual and keep your receipt as proof of purchase. Retain all documents relating to the purchase of Blanco product.

Blanco is committed to providing increasingly efficient products that are easy to use, respect the environment and are attractive and reliable.

BLANCO

Simple line drawing of a light bulb with a handle and bulb, labeled 'OK' and 'OK' (no text or symbols on the bulb itself)

GENERAL

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed as a suction version (external exhaust) or as a filter version (internal air recycle) rangehood.

SAFETY PRECAUTION

1. Take care when the rangehood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the rangehood removes the air from the environment which a burner or fireplace need for combustion. The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the rangehood. Follow the local laws applicable for external air evacuation.

General Warnings.

- The appliance is not intended for use by young children or infirm persons without supervision.

· Young children should be supervised to ensure that they do not play with the appliance

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.

- Ensure that the range hood is cleaned frequently.

- There is a risk of fire if cleaning is not carried out in accordance with the instructions.

· Do not flambé under the range hood.

Warnings for Installation:

- The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

- The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the rangehood must be at least 65 cm. If the instructions for the hob specify a greater distance, please consider this.

· The regulations concerning the discharge of exhaust air have to be fulfilled.

INSTALLATION INSTRUCTIONS

Electric Connection

The appliance has been manufactured as a class II, therefore no earth cable is necessary. The connection to the mains is carried out as follows: BROWN = L line BLUE = N neutral if not provided, connect a plug for the electrical load indicated on the desorption label. Where a plug is provided, the rangehood must be installed in order that the plug is easily accessible. An omnipolar switch with a minimum aperture of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.

If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the rangehood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source.

MOUNTING OF THE HOOD IN THE LOWER PART OF A HANGING CUPBOARD

This appliance has to be built in the lower part of a hanging cupboard or in another support. For the fixing use 4 screws, which are appropriate to that kind of cupboard, drilling the holes corresponding to fig.1 and 2.

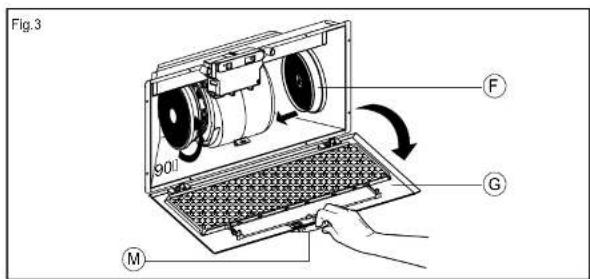

it 90 degrees until the stop click is heard to lock it (F) fig. 3. Remove the grills (G) fig. 3 to carry out this operation. The air is released in the room through a connecting pipe, which goes through the hanging cupboard and which is connected to the connecting ring supplied (B) fig. 1.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure technical line drawing of a vertical structure with no text, numbers, or symbols

Recirculated to kitchen area via Recirculated to kitchen area via ceiling

Pure architectural or mechanical line drawing with no text, numbers, or symbols

Technical line drawing of a vertical structure with horizontal dimension lines and a small container (no text or symbols)

Ducted to atmosphere through wall Ducted to atmosphere through roof

Rangehood Installation

Exercise care when a rangehood is installed in an area where a gas burner is operating. Depending

performance when ducting it is important the ducting that carries the fumes away, be as short and as straight as possible.

When incorporating a rangehood in the design of a kitchen the following points need to be considered to achieve the most benefit from the rangehood.

1. Ducting from a rangehood carrying the exhaust air, should not exceed a length of three (3) metres.
2. For ducted installation we recommend using galvanised or similar metal type flue pipe. PVC pipe is not recommended.
3. Ducting containing a 90° degree bend will encounter a loss in efficiency of approximately 35%. Additional 90° degree bends can cause losses of up to 15% per bend.
4. Ducting size should always comply with the manufacturers specification.
5. We recommend carbon filters be used when re-circulating the air into the room. There will be some loss of air movement when carbon filters are fitted.

USE AND MAINTENANCE

• It is recommended to operate the appliance prior to cooking. It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours. The proper function of the rangehood is conditioned by the regularity of the maintenance operations. In particular, the active carbon filter,
  • The aluminium filters capture the grease particles suspended in the air, and are therefore subject to clogging according to the frequency of the use of the appliance. In order to prevent fire hazard, it is recommendable to clean the filter at a maximum of 2 months by carrying out the following instructions:
• Remove the aluminium filters from the rangehood and wash them in a solution of water and neutral liquid detergent, leaving to soak.
• Rinse thoroughly with warm water and leave to dry.
• The aluminium filters may also be washed in the dishwasher. The aluminum panels may alter in colour after several washes. This is not cause for customer complaint nor replacement of panels.
• The active carbon filters purify the air that is replaced in the environment. The carbon filters are not washable nor re-useable and must be replaced at maximum every four months. The saturation of the active carbon filter depends on the frequency of use of the appliance, by the type of cooking and the regularity of cleaning the anti-grease filters.
• Clean the fan and other surfaces of the rangehood regularly using a cloth moistened with a non abrasive liquid detergent.
  • The rangehood lighting is designed for use during cooking and not for prolonged general illumination of the environment. Prolonged use of the lighting notably reduces the duration (life) of the bulb.
