Product Type	Slide-out range hood
Model	BRS60W
Brand	BLANCO
Width	60 cm (600 mm)
Mounting	Under cabinet
Versions	Ducted (external exhaust) or recirculating (with carbon filter)
Minimum Distance from Cooktop	65 cm
Motor Speed Settings	3 speeds + intensive boost (10 minutes)
Control Type	Push-button or slider (model dependent)
Display	Digital display showing speed and timer
Lighting	Halogen lamp (replaceable)
Grease Filter	Aluminum, washable (every 2 months)
Carbon Filter	Activated carbon, replaceable (every 4 months)
Timer Function	15-minute auto shut-off
Clean Air Function	Motor runs 10 minutes per hour at low speed
Filter Saturation Indication	Display flashes 'F' for grease, 'A' for carbon
Electrical Connection	Class II (double insulated, no earth required), 230 V, 50 Hz
Power Cord	Detachable (plug type varies by region)
Max Duct Length	3 meters for optimal performance
Duct Diameter	150 mm (typical, check specific model)
Weight	Approximately 15 kg
Warranty	See manufacturer's warranty card

Frequently Asked Questions - BRS60W BLANCO

What is the minimum distance between the cooktop and the range hood?

The minimum distance must be at least 65 cm according to safety instructions.

Can I use the range hood without ducting outdoors?

Yes, the hood can be used in recirculating mode by installing an activated carbon filter, which cleans the air and returns it to the kitchen.

How often should I clean the aluminum grease filters?

The aluminum filters should be cleaned at a maximum of 2 months. They can be washed in soapy water or in the dishwasher.

How often should I replace the activated carbon filter?

The carbon filter must be replaced at maximum every 4 months and is not washable.

What do the flashing letters 'F' and 'A' on the display mean?

'F' indicates that the grease filter needs cleaning, and 'A' indicates that the carbon filter needs replacement or cleaning.

How do I reset the filter saturation memory after cleaning?

Press button A (light switch) for approximately 5 seconds until the flashing indication stops.

What type of light bulb does the range hood use?

The hood uses halogen lamps. To replace, remove the metal surround and glass, then pull the lamp from its socket. Use same type and wattage.

What is the 'clean air' function and how do I activate it?

When the appliance is off, press key E for 2 seconds to activate. The motor runs for 10 minutes every hour at first speed to refresh the air.

How do I set the timer function?

Press key E to activate the timer; it will run for 15 minutes and then turn off the motor. The decimal point on the display flashes when active.

What should I do if the hood is not working properly?

Check the power supply, ensure filters are cleaned/replaced, and that ducting is not blocked. If problem persists, contact Blanco customer service.

USER MANUAL BRS60W BLANCO

Instructions for the Use and Care and Installation of

BRS60X Single Motor

BRS60W

BRS90X

BRS602X Twin Motor

BRS602W

BRS902X

BRS902W

BRSH60X Single Motor

BRSH90X

BRST60X Single Motor

BRST90X

Slide Out Rangehood

Dear Customer,

Thank you for buying a BLANCO rangehood.

Before we continue telling you about this rangehood, we cordially invite you to become part of the Blanco family by subscribing online.

Please visit our website where you can easily subscribe and request such things as' invitations to future cooking classes' and gourmet recipes.

Go to www.blanco-australia.com and fill in the subscription details.

You will find that the clean lines and modern look of your Blanco rangehood blends in perfectly with your kitchen décor. It is easy to use and performs to a high standard.

Blanco also makes a range of products that will enhance your kitchen such as cooktops, ovens, dishwashers and microwaves, sinks and taps. There are models to complement your new Blanco rangehood.

Of course, we make every effort to ensure that our products meet all your requirements, and our Customer Relations department is at your disposal, to answer all your questions and to listen to all your suggestions.

Please complete the warranty card and keep your receipt as proof of purchase. Retain all documents relating to the purchase of this product.

Blanco is committed to providing increasingly efficient products that are easy to use, and are not just beautiful, smart.

BLANCO

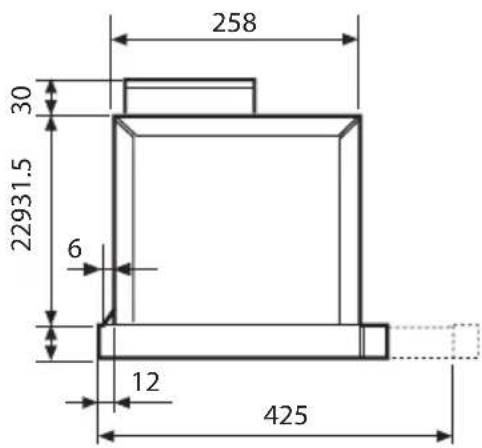

BRS 60/90/602/902

max 80 cm

Diagram showing a mechanical setup with a block, two sensors, and directional arrows indicating motion (no text or symbols)

BRSH 60/90 - BRST 60/90

Fig.1

Fig.2

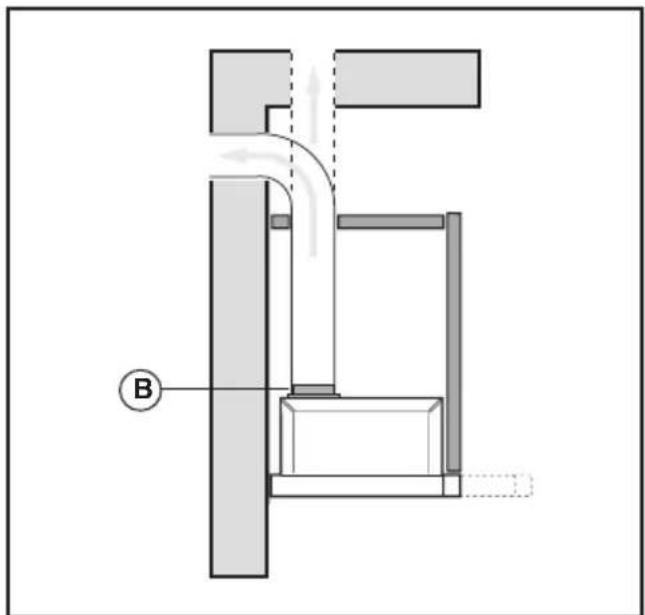

Technical diagram of a mechanical device with labeled component B, showing airflow and structural components (no text or symbols beyond label)

Fig.3

Pure mechanical assembly diagram without any text, numbers, or symbols

Fig.4

F

Diagram showing a mechanical setup with a tool interacting with a circular component, no text or symbols present

Fig.5B

Fig.6

Fig.7

GENERAL

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside), filtering version (air circulation on the inside) or with external motor.

SAFETY PRECAUTION

1. Take care when the rangehood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the rangehood re moves the air from the environment which a burner or fireplace need for combustion. The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the rangehood. Follow the local laws applicable for external air evacuation.

Before connecting the model to the electricity network:

Inspect the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.

General Warnings.

· The appliance is not intended for use by young children or infirm persons without supervision.
· Young children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
- Ensure that the range hood is cleaned frequently.
- There is a risk of fire if cleaning is not carried out in accordance with the instructions.
- Do not flambé under the range hood.

Warnings for Installation:

· The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
- The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the rangehood must be at least 65 cm.
· The regulations concerning the discharge of exhaust air have to be fulfilled.

Other Information:

This appliance conforms to the European Directive EC/2002/96, Waste Electrical and Electronic Equipment (WEEE). By making sure that this appliance is disposed of in a suitable manner, the user is helping to prevent potential damage to the environment or to public health.

The symbol on the product or on the packaging label on the carton indicates that the appliance should not be treated as domestic waste, but should be delivered to a suitable electric and electronic appliance recycling collection point. Follow local guidelines when disposing of waste. For more information on the treatment,

re-use and recycling of this product, please contact your local authority or domestic waste collection service.

INSTALLATION INSTRUCTIONS

• Electric Connection

The appliance has been manufactured as a class II, therefore no earth cable is necessary. The connection to the mains is carried out as follows:

BROWN = L line

BLUE = N neutral

If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the rangehood must be installed in order that the plug is easily accessible. An omnipolar switch with a minimum opening of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.

- The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the rangehood must be at least 65 cm . If a connection tube composed of two parts is used, the upper

part must be placed outside the lower part. Do not connect the rangehood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source. In the case of assembly of the appliance in the exhausting version prepare the hole for evacuation of the air.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards (see technical data if supplied).

Installation

The following instruction should be followed to carry out the correct installation of the rangehood.

1) Mounting of the rangehood on the lower side of the cupboard.

2) Selection of the version (extraction or filtration)

Mounting the rangehood on the lower side of the cupboard. This appliance must be fitted to a cupboard or other suitable support. For fixing use 4 screws suitable for the cupboard, using the hole in Fig.1. When mounting align the front of the rangehood to the door of the cupboard and regulate the L wall spacer through the screws marked P (Fig. 2). The rear of the appliance must then align with the cupboard.

Extraction through an outside wall

The appliance expels the fumes through an outside wall or a duct. It is necessary to buy a telescopic pipe in accordance with the standards in use and connect it to flange B (Fig.3-4).

Recirculation

To transform the rangehood from the extraction version to the re circulating one ask your supplier for an activated carbon filter. The activated carbon filter cleans the air of the room. This filter is not washable or re-usable and must be substituted at least every 4 months. Saturation of the activated carbon depends on how often the appliance is used, the type of kitchen and how regularly the grease filter is cleaned. The filter must be fitted to the motor in the centre of the fan grille by twisting it by 90 degrees until it is gripped securely. Remove the grill (G) fig. 2 to carry out this operation. The clean air is returned into the room through a connecting tube passing inside the cupboard and connected to the ring B (Fig.1).

Technical line drawing of a mechanical assembly with no visible text or symbols

Recirculated to kitchen area via

Technical line drawing of a mechanical assembly with no visible text or symbols

Recirculated to kitchen area via

Technical line drawing of a mechanical assembly with no visible text or symbols

Ducted to atmosphere through

Technical line drawing of a mechanical assembly with no visible text or symbols

Ducted to atmosphere through

Installation

Exercise care when a rangehood is installed in an area where a gas burner is operating. Depending on the size of the room, the rangehood may draw from the room air that is necessary for proper combustion of the burner. All Blanco rangehoods are used for indoor application only.

Rangehoods may be installed in two ways:

1. Ducted to the atmosphere (outside).

2. Recirculating.

We recommend ducting to the atmosphere to ensure optimum performance. Recirculating the air back into the room should only be used when outside extraction is not possible. To ensure maximum performance when ducting it is important the ducting that carries the fumes away, be as short and as straight as possible.

When incorporating a rangehood in the design of a kitchen the following points need to be considered to achieve the most benefit from the rangehood.

1. Ducting from a rangehood carrying the exhaust air, should not exceed a length of three (3) metres.
2. For ducted installation we recommend using galvanised or similar metal type flue pipe. PVC pipe is not recommended.
3. Ducting containing a 90° degree bend will encounter a loss in efficiency of approximately 35%. Additional 90° degree bends can cause losses of up to 15% per bend.
4. Ducting size should always comply with the manufacturers specification.
5. We recommend carbon filters be used when re-circulating the air into the room. There will be some loss of air movement when carbon filters are fitted.

USE AND MAINTENANCE

• It is recommended to operate the appliance prior to cooking. It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours. The proper function of the rangehood is conditioned by the regularity of the maintenance operations, in particular, the active carbon filter.
• The aluminium filters capture the grease particles suspended in the air, and are therefore subject to clogging according to the frequency of the use of the appliance.
  In order to prevent fire hazard, it is recommendable to clean the aluminium filter at a maximum of 2 months by carrying out the following instructions:
  -Remove the aluminium filters from the rangehood and wash them in a solution of water and neutral liquid detergent, leaving to soak.
• Rinse thoroughly with warm water and leave to dry.
  -The filters may also be washed in the dishwasher.
  The aluminum panels may alter in colour after several washes.
  This is not cause for customer complaint nor replacement of panels.
• The active carbon filters purify the air that is replaced in the environment. The carbon filters are not washable nor re-useable and must be replaced at maximum every four months. The saturation of the active carbon filter depends on the frequency of use of the appliance, by the type of cooking and the regularity of cleaning the aluminium filters.
• Clean the fan and other surfaces of the rangehood regularly using a cloth moistened with a non abrasive liquid detergent.
• The rangehood lighting is designed for use during cooking and not for prolonged general illumination of the environment. Prolonged use of the lighting notably reduces the duration (life) of the bulb.
• To replace the halogen lamp. With a small blade, remove the metal surround holding the glass in place. The lamp can be pulled outward from its socket.

- Replacing the halogen/incandescent lamps (Fig.5A):

Only use lamps of the same type and wattage installed on the device.

• Light replacement - halogen (Fig.5B)

Remove the glass retaining ring and glass.

Replace the globe with another of the same type.

Replace the glass and retaining ring.

- Commands (Fig.6):

Push-button A = On/off lights switch.

Push-button B = On/off cooker hood switch. The appliance switches on at speed level 1, If the cooker hood is on depress the push-button for 2 sec. to switch off the cooker hood. If the cooker hood is at speed level 1 it will not be necessary to depress the push-button to switch the cooker hood off. Decreases the motor speed.

Display C = Indicates the motor speed level selected and activates the timer.

Push-button D = Switches on the cooker hood. Increases the motor speed. Touching the key at 3rd speed, the intensive function runs for 10', then the appliance go back to work at the original speed. During this function the display blinks.

Key E = The Timer times the functions on activation for 15 minutes, after which they are switched off. The Timer is deactivated by re-pressing Key E.

When the Timer is activated the decimal point must flash on the display. The Timer cannot be activated if the intensive speed is functioning.

The "clean air" function is activated by pressing key E for 2 seconds when the appliance is switched off. This switches the motor on for 10 minutes every hour at the first speed. During functioning a rotary movement of the peripheral segments must be visualised on the display. When this time has passed the motor switches off and the fixed letter "C" must be visualised on the display until the motor re-starts after 50 minutes for another 10 minutes and so on. Press any key apart from the light keys to return to normal functioning. Press key E to deactivate the function.

- Anti-grease/active charcoal filters saturation:

-When display item C flashes, at a speed where it alternates with the letter F (e.g. 1 and F), the anti-grease filters must be washed.

-When display item C flashes, at a speed where it alternates with the letter A (e.g. 1 and A), the active carbon filters must be replaced or washed depending on the type of filter.

After the clean filter has been positioned correctly, the electronic memory must be reset by pressing button A for approximately 5 seconds, until the indication F or A shown on the display C stops flashing.

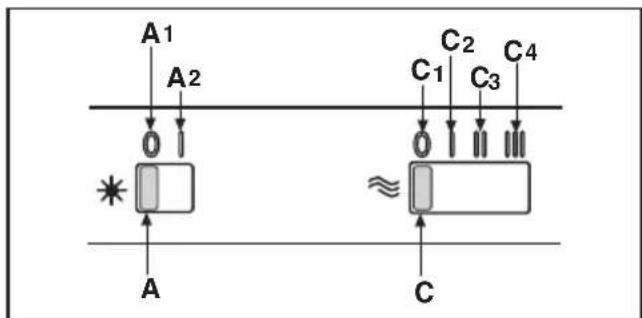

- Commands slider (Fig.7) the key symbols are explained below:

A = Light switch

A1= Off key

A2= On key

C = Speed control

C1 = Off key

C2 = FIRST SPEED key

C3 = SECOND SPEED key

C4 = THIRD SPEED key.
