CH-250 - Marine Radar FURUNO - Free user manual and instructions

Product Type	Color LCD Searchlight Sonar
Display	10.4-inch color active matrix LCD, 8 or 16 colors
Transmit Frequency	Selectable 60, 88, or 150 kHz
Output Power	0.8 kW (60 kHz) to 1.2 kW (150 kHz)
Horizontal Range (60 kHz)	10 to 1000 m (15 steps)
Vertical Fan Range	10 to 600 m (15 steps)
Echo Sounder Range	10 to 600 m (15 steps)
Display Modes	Horizontal, Expanded Horizontal, Vertical Fan, Echo Sounder, and combination displays (history, video plotter, strata)
Target Lock	Manual reverse, position (stationary), echo (fish school)
Event Marker	Up to 5 markers, inscribable and deletable
A-Scope Display	On/Off, shows echo amplitude vs. time

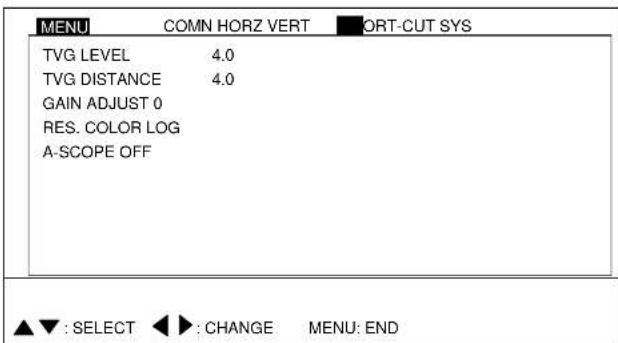

TVG (Time Variable Gain)	Level 0-10, Distance 0-10, adjustable per mode
Power Supply (Display/Control/Transceiver)	12-32 VDC, 4.7-1.8 A, within 58 VA
Power Supply (Hull Unit)	12/24-32 VDC, 4.7/2.3-1.8 A, within 58 VA (max 16.7/8.2-7.7 A, 200-246 VA)
Dimensions (Display Unit, approx.)	300 x 200 x 100 mm
Weight (Display Unit, approx.)	5 kg
Interface	NMEA0183 (IEC61162-1), input: DBS, DBT, DPT, GGA, GLL, HDG, etc.; output: SSTLL
Maintenance	Monthly cable check, annual greasing of raise/lower screw shaft, clean LCD with tissue
Safety	Do not open; shock hazard; use correct fuse; keep heater away; retract transducer before power off
Fuse Replacement (Transceiver Unit)	Use same amperage fuse; contact qualified technician

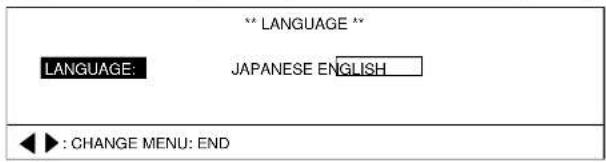

Language	English or Japanese (menu selectable)

Frequently Asked Questions - CH-250 FURUNO

How do I turn on the CH-250 sonar?

Press the POWER switch until you hear a click. A beep sounds, the lamp lights, and the last-used display appears. Wait at least five seconds before reapplying power.

How do I adjust the gain?

Use the GAIN control. Initially set between 4 and 6, then fine-tune so the bottom echo appears reddish-brown mixed with red. Proper gain is crucial for clear fish detection.

What is the correct tilt angle for detecting bottom fish?

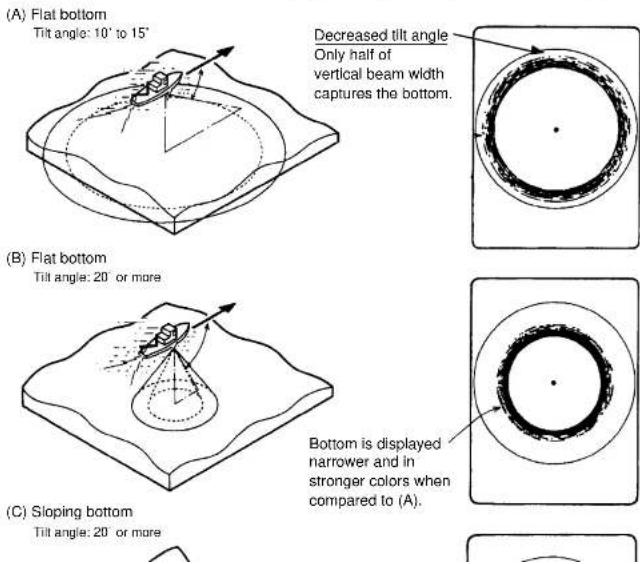

Set tilt angle between 30° and 40° to capture the entire bottom. For midwater fish, use 10° to 20°. For surface fish, set tilt to 5° to 6° to minimize sea surface reflections.

How can I discriminate fish echoes from the bottom?

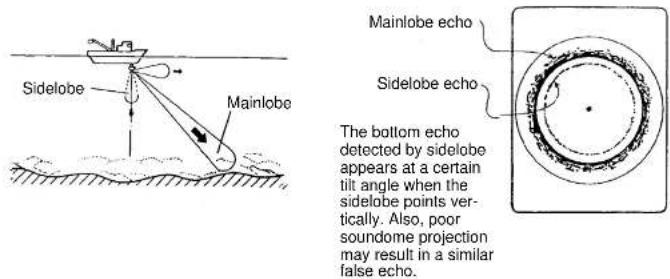

Use short pulse length on the COMN menu to reduce bottom tail. Adjust TVG to compensate for propagation loss. Also, try different tilt angles: lower tilt (0-5°) shows fish close to bottom; higher tilt (30-40°) separates fish from bottom.

How do I use target lock to track a fish school?

Select target lock mode (reverse, position, or echo) from the HORZ menu. For echo lock, press TARGET key, set detection area with SECTOR and TRAIN controls, and avoid including bottom echoes. The sonar will automatically track and sound a buzzer.

How do I inscribe an event marker?

Place the cursor on the desired location using the Omnipad, then press the EVENT key. The latest marker appears as a star (*), previous ones as plus signs (+). Up to 5 markers can be stored.

How can I reduce interference from other sonars?

On the COMN menu, set INT REJECT to ON. You can also adjust the Tx rate (transmission rate) to avoid sync with interfering signals. Changing frequency (if available) may also help.

How do I clean the display screen?

Use a soft, dry cloth for dust. For smudges, use tissue paper and an LCD cleaner. Do not use chemical cleaners as they can remove paint and markings. Wipe gently to avoid scratching.

What should I do if a fuse blows?

Turn off power at the switchboard. Have a qualified technician check the fuse in the transceiver unit. Use a fuse of the same amperage rating (see equipment label). Never use a wrong fuse; it can cause fire or damage.

How do I maintain the transducer?

When dry-docked, remove marine growth with fine sandpaper or a piece of wood. Do not paint the transducer face (loss of sensitivity). Do not use plastic solvents. Grease the raise/lower screw shaft yearly and the main shaft twice a year.

USER MANUAL CH-250 FURUNO

ELECTRICAL SHOCK HAZARD Do not open the equipment.

Only qualified personnel should work inside the equipment.

Immediately turn off the power at the switchboard if water leaks into the equipment or something is dropped in the equipment.

Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service.

Do not disassemble or modify the equipment.

Fire, electrical shock or serious injury can result.

Immediately turn off the power at the switchboard if the equipment is emitting smoke or fire.

WARNING

Keep heater away from equipment.

A heater can melt the equipment's power cord, which can cause fire or electrical shock.

Use the proper fuse.

The fuse in the hull and transceiver units protect them from overvoltage, equipment fault and reverse polarity of the ship's mains. If a fuse blows replace it with fuse of the same amperage. Use of a wrong fuse can result in equipment damage.

Retract the transducer before turning off the power.

Damage to the equipment may result. Wait until the transducer switch [1] lights steadily and then turn off the power.

CAUTION

Do not exceed 20 knots when operating the equipment and do not exceed 15 knots when lowering or raising the transducer.

The transducer may become damaged.

Do not use the equipment for other than its intended purpose.

Use of the equipment as a stepping stool, for example, may result in personal injury or equipment damage.

Warning labels are attached to the display, transceiver and hull units. Do not remove the labels. If a label is missing or illegible, contact a FURUNO agent or dealer.

Name: Warning Label (1) Type: 86-003-1011-0 Code No.: 100-236-230

DISPLAY UNIT, TRANSCEIVER UNIT

Name: "Finger Catch" Warning Label Type: 06-021-4015-0 Code No.: 100-281-590

CAUTION

WORKING WITH THE SONAR OIL

Precautions

• Keep oil away from eyes. Wear protective gloves when working with the oil. The oil can cause inflammation of the eyes.
• Do not touch the oil. Wear protective gloves when working with the oil. The oil can cause inflammation of the skin.
• Do not ingest the oil. Diarrhea and vomiting may result.
• Keep the oil out of reach of children.

Emergency procedures

• If the oil enters eyes, flush with clean water about 15 minutes. Consult a physician.
• If the oil is ingested, see a physician immediately.

Disposal of oil and its container

Dispose of oil and its container in accordance with local regulations. For further details, contact place of purchase.

Storage

Seal container to keep out foreign material. Store in dark, cool place.

TABLE OF CONTENTS

FOREWORD......v

SYSTEM CONFIGURATION......vii

1. OPERATIONAL OVERVIEW

1.1 Control Description 1-1
1.2 Remote Controller....1-2
1.3 Turning the Power On/Off 1-3
1.4 Raising, Lowering the Transducer....1-4
1.5 Adjusting Screen Brilliance, Panel Dimmer....1-5
1.6 Selecting a Display 1-6
1.7 Adjusting the Gain 1-7
1.8 Basic Menu Operation 1-7

2. HORIZONTAL MODE

2.1 Operational Overview 2-1
2.2 Typical Horizontal Mode Display....2-2
2.3 Selecting the Range 2-3
2.4 Selecting Sector Width....2-4
2.5 Selecting Train Center 2-5
2.6 Selecting the Tilt Angle 2-5
2.7 Selecting the Training Speed....2-9

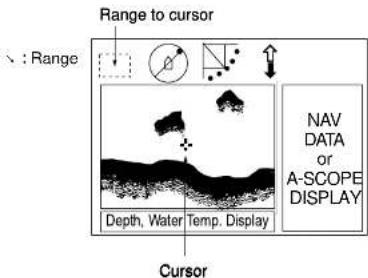

2.8 Finding Echo Position with the Cursor 2-9

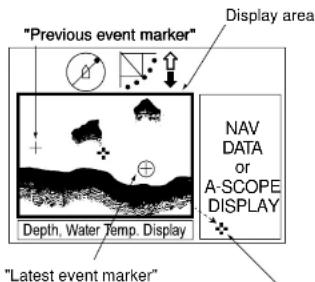

2.9 Event Marker 2-10
2.10 Range and Bearing Markers....2-11

3.11 Adjusting the Picture....3-10
3.12 Vertical Menu Overview 3-12
3.13 Interpreting the Vertical Fan Display 3-13

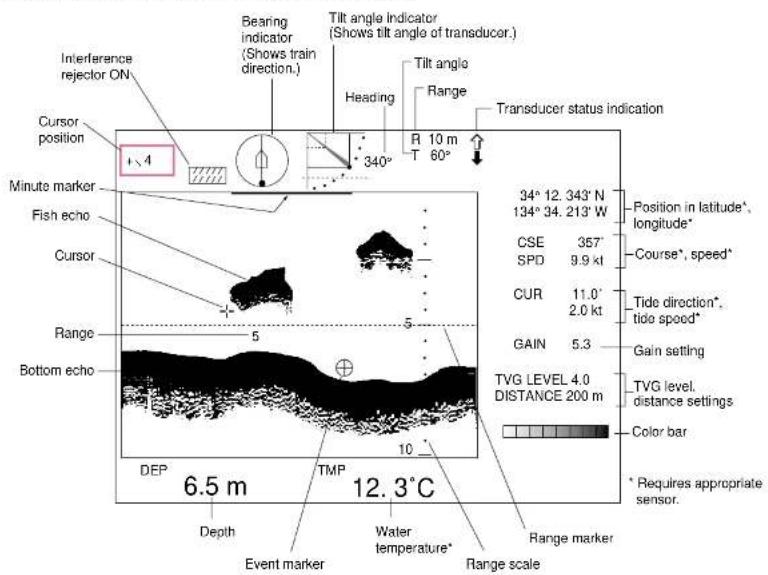

4. ECHO SOUNDER MODE

4.1 Operational Overview 4-1
4.2 Typical Echo Sounder Display 4-2
4.3 Selecting the Range 4-3
4.4 Train Direction 4-4
4.5 Selecting Tilt Angle 4-4
4.6 Selecting Picture Advance Speed....4-4
4.7 Measuring Range by Cursor....4-5
4.8 Event Marker 4-5
4.9 Range Marker 4-7
4.10 Adjusting the Picture 4-7
4.11 Echo Sounder Menu Overview....4-10

5. MENU OPERATION

5.1 COMN Menu....5-1
5.2 Short-cut Menu, Preset Menu 5-3

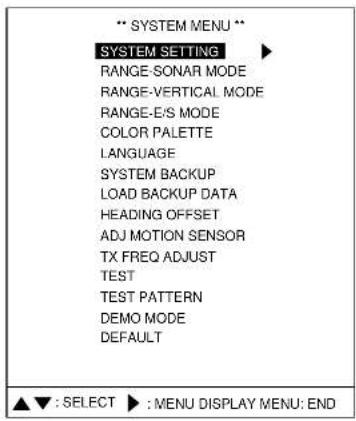

5.3 SYS Menu 5-7

6. MAINTENANCE, TROUBLESHOOTING

6.1 Preventive Maintenance 6-1
6.2 Cleaning the Equipment....6-1
6.3 Hull Unit Maintenance....6-2
6.4 Transducer Maintenance 6-3
6.5 Fuse Replacement....6-3

FOREWORD

Thank you for purchasing the CH-250 Color LCD Searchlight Sonar. We are confident you will discover why FURUNO has become synonymous with quality and reliability.

Dedicated in the design and manufacture of marine electronics equipment for half a century, FURUNO Electric Company has gained an unrivaled reputation as a world leader in the industry. This is the result of our technical excellence as well as our worldwide distribution and service network.

Please carefully read and follow the safety information and operating and maintenance instructions set forth in this manual before attempting to operate the equipment and conduct any maintenance. Your sonar will perform to the utmost of its ability only if it is operated and maintained in accordance with the correct procedures.

Features

The CH-250 displays underwater objects on a bright 10.4" color LCD display, in 8 or 16 colors according to received echo strengths. Operating frequency is selectable among 60, 88 and 150 kHz. Eight operating modes provide information for virtually any fishing application.

The main features of the CH-250 are

• High definition active matrix color LCD.
- Target lock on a fish school or stationary position (reef, etc.).
- Audible detection of echoes frees the operator from continuous watch of the display.
- Compact display and hull units permit installation where space is limited.
- Interface IF-8000 permits use of a commercial monitor instead of standard display unit.

Usage Precautions

• The Motion Sensor MS-100 compensates for ship's pitching and rolling. However, it does not compensate for load unbalance.
• If the equipment will not be used for a long time shut off the power to it at the mains switchboard to prevent battery discharge.
• If the soundome is to be operated while the ship is dry-docked set the transmitter output power to "minimum" on the COMN menu. Damage to the train-tilt section may result if it is operated with maximum transmitter power.
• When the ship is dry-docked check for signs of corrosion on the soundome. Find the reason for the corrosion and attach a zinc plate to the hull unit as an anticorrosion measure if necessary.

This page is intentionally left blank.

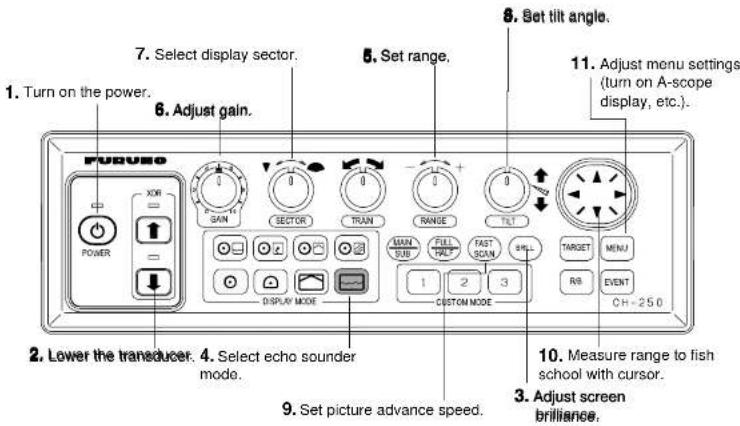

1. OPERATIONAL OVERVIEW

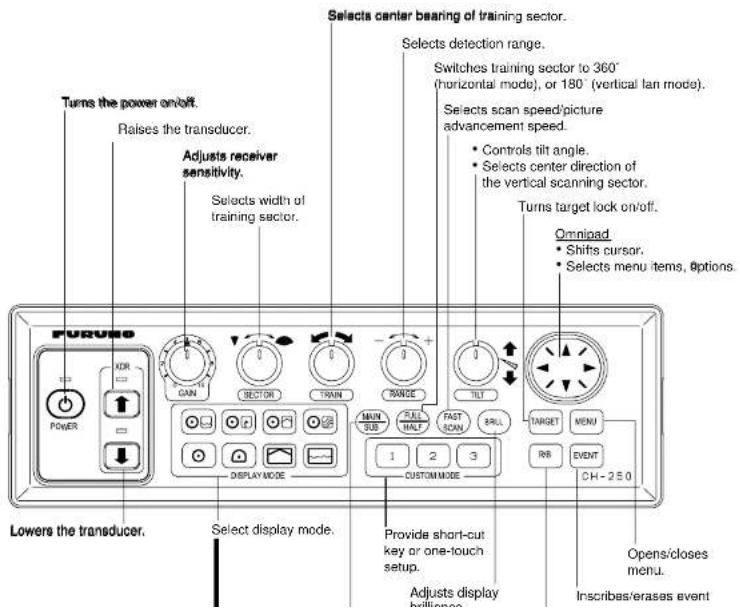

1.1 Control Description

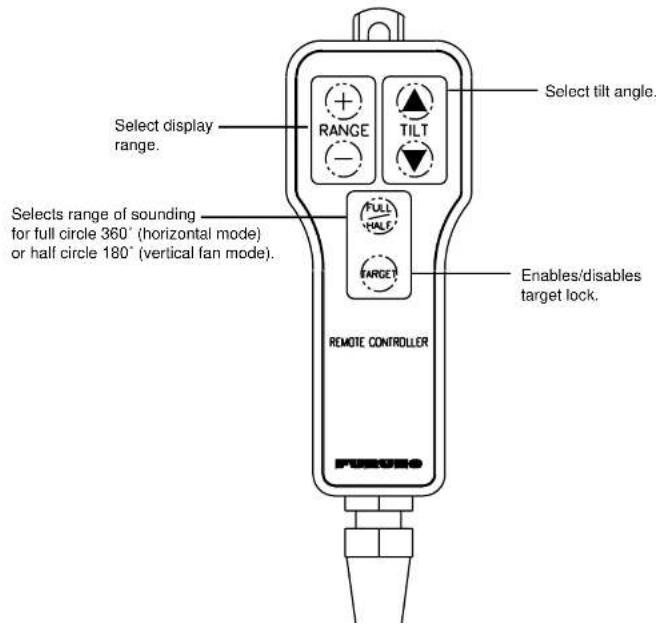

1.2 Remote Controller

The Remote Controller CH-256 (option) provides armchair control over range, tilt, target lock and range of sounding.

1.3 Turning the Power On/Off

1.3.1 Power on

This sonar has a demonstration mode which lets the operator become acquainted with the features of the sonar, without connecting the transducer. For further details see page 5-18.

Press the [POWER] switch on the control unit till hear "click." A beep sounds, the lamp above the switch lights and the last-used display appears.

Note: Wait at least five seconds before reapplying the power.

1.3.2 Power off

1. Press the [1] switch on the control panel. The lamp above the switch blinks while the transducer is being raised and lights steadily when it is fully raised.

Transducer status indicator

- Up arrow is filled when transducer has been retracted into the tank.

- Down arrow is filled when transducer has been fully lowered.

- Appropriate arrow flashes during raising/lowering of transducer.

NOTE: When the transducer is being raised automatically (auto raise feature), the arrows are filled and the up arrow flashes. When the transducer has been fully retracted, the up arrow lights and the down arrow becomes hollow.

1. Press the [POWER] switch after the [] switch lights steadily.

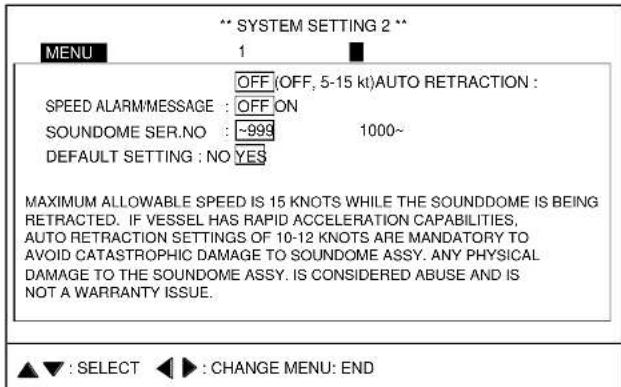

Note 1: The transducer is automatically retracted into the tank if the [POWER] switch is

1.4 Raising, Lowering the Transducer

1.4.1 Lowering the transducer

With the boat at the fishing ground, press the [1] switch to lower the transducer. The lamp above the switch blinks while the transducer is being lowered and lights when it is completely lowered. The down arrow of the transducer status indicator at the top right corner of the display is filled when the transducer is completely lowered.

CAUTION

Do not exceed 20 knots when operating the equipment and do not exceed 15 knots when lowering or raising the transducer.

The transducer may become damaged.

1.4.2 Raising the transducer

Press the [1] switch to raise the transducer. The lamp above the switch blinks while the transducer is being raised and lights steadily when it is fully raised. The up arrow of the transducer status indicator at the top right corner of the display is filled when the transducer is fully retracted.

Note 1: With speed input, the transducer can be raised automatically when the ship's speed exceeds a preset speed between 5 and 15 knots. If speed data is erroneous the transducer may be raised at a speed different from the preset speed. For further details about the automatic retraction feature, see AUTO RETRACTION on page 5-10.

Note 2: An alarm may sound depending on ship's speed. For details see page 5-11.

1.5 Adjusting Screen Brilliance, Panel Dimmer

Screen brilliance can be adjusted in nine steps and panel dimmer (backlighting) in four.

1. Press the [BRILL] key to open the dialog box for screen brilliance and panel dimmer. Do the next step within four seconds, otherwise the dialog box will be erased.

Figure 1-3 Brilliance, panel dimmer dialog box

1. Operate ◀ or ▶ to adjust screen brilliance (0 is the lowest brilliance; 9 the highest). Note that continuous pressing of the [BRILL] key also changes the brilliance level.
2. Operate ▲ or ▼ to adjust the panel dimmer (0 is the lowest level; 4 is the highest).
3. Press the [MENU] key to register settings and close the dialog box. Note that the dialog box is automatically erased if there is no control operation within about four seconds.

Note 1: The brilliance of a commercial monitor cannot be adjusted with the [BRILL] key. Use the associated control on the monitor.

Note 2: For the supplied monitor unit, if you turn off the power with the brilliance set at minimum the screen will show nothing at next power-up. In this case press the [BRILL] key several times.

1.6 Selecting a Display

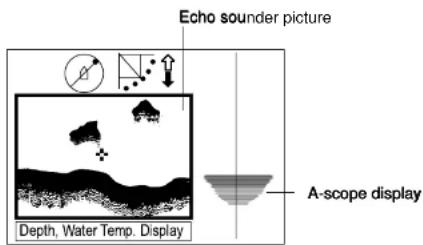

This sonar has eight display modes and you may select one with one of the DISPLAY MODE keys. Refer to the chapter shown in the illustration for more information about each mode.

Key	Picture	Key	Picture
	HORIZONTALThis mode provides 360 degree coverage. Useful for general search. (Chapter 2)		EXPANDED HORIZONTALZoomed horizontal picture appears over the entire screen. (Chapter 2)

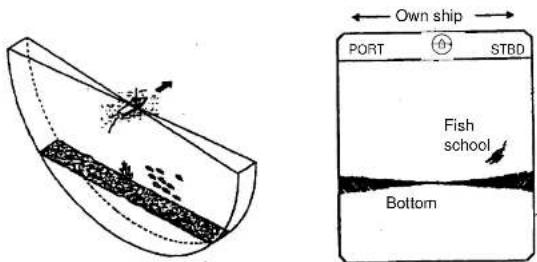

	VERTICAL FANVertical section of underwater conditions appears on the entire screen. (Chapter 3)		ECHO SOUNDERUsing a fixed spot beam this display shows fish echoes below or around the vessel. (Chapter 4)

1.7 Adjusting the Gain

The [GAIN] control adjusts the sensitivity of the receiver. Normally, the control is adjusted so that the bottom echo is displayed in reddish-brown mixed with red. Initially set the gain between "4" and "6" and then fine tune depending on fishing ground, etc.

Too Low Proper

Too High
Figure 1-5 How to adjust the gain

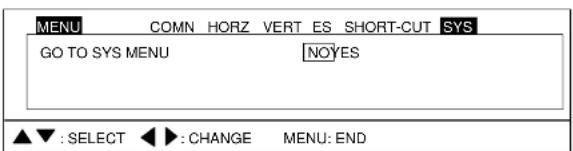

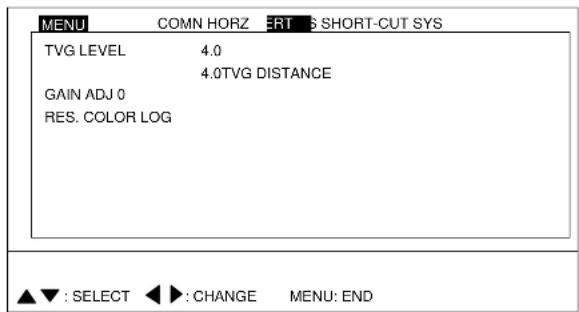

1.8 Basic Menu Operation

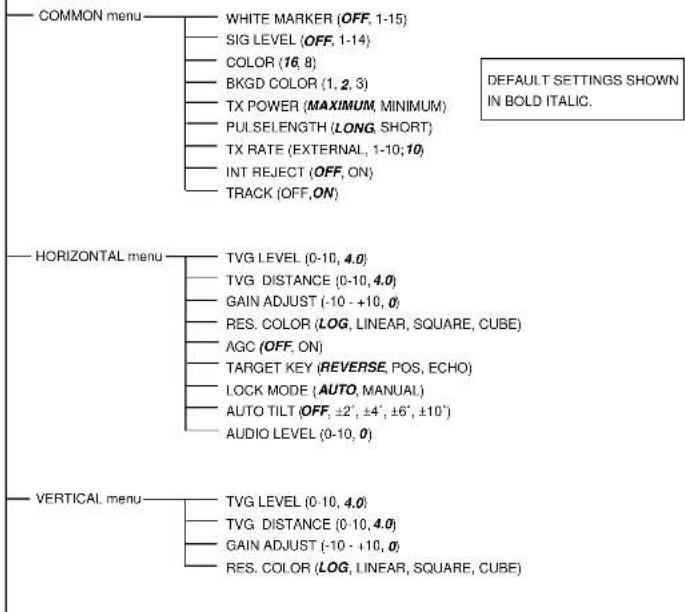

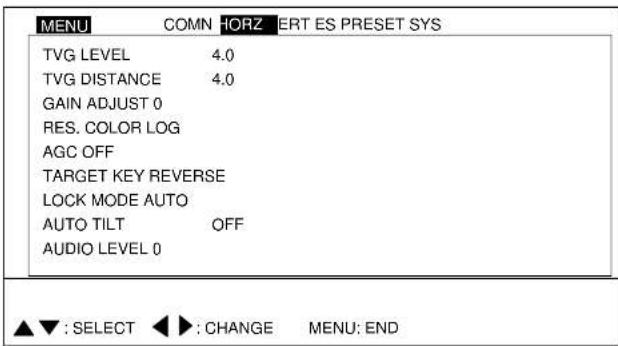

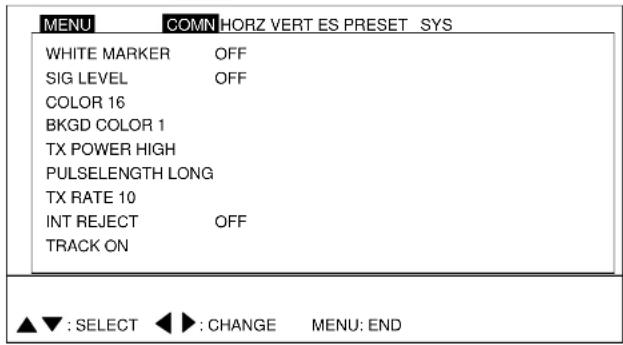

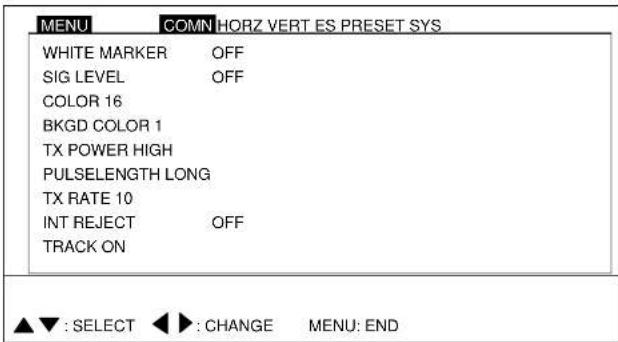

The menu, consisting of six menus, mostly contains items which once preset do not require frequent adjustment. Below is the procedure for basic menu operation.

1. Press the [MENU] key to open the menu.

Note: Either PRESET (default setting) or SHORT-CUT appears between ES and SYS at the top of the screen depending on the setting of CUSTOM KEY on the SYSTEM SETTING 1 menu, and they set the function of the custom keys [1], [2], [3]. For further details see pages 5-3 through 5-7.)

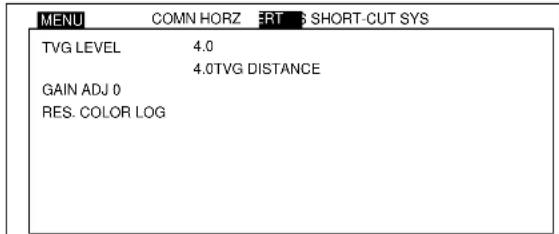

1. The last-used menu is displayed. (In Figure 1-6 the COMN (COMMON) menu is selected.) To select a different menu, press ▲ to select MENU at the top of the screen and then press ◀ or ▶ to select menu desired.
2. Press ▲ or ▼ to select menu item desired. At the bottom of the screen menu help is provided.
3. Press ▶ to open the corresponding dialog box. The example below shows the dialog box for BKGD COLOR (to choose background color) in the COMN menu.

Figure 1-7 Dialog box for background color

1. Press ◀ or ▶ to select option desired. If the option requires selection of numeric data, use ◀ or ▶ to lower or raise the figure, respectively.
2. Press ▲ or ▼o return to the menu, or press the [MENU] key to register your selection and close the menu.

2. HORIZONTAL MODE

2.1 Operational Overview

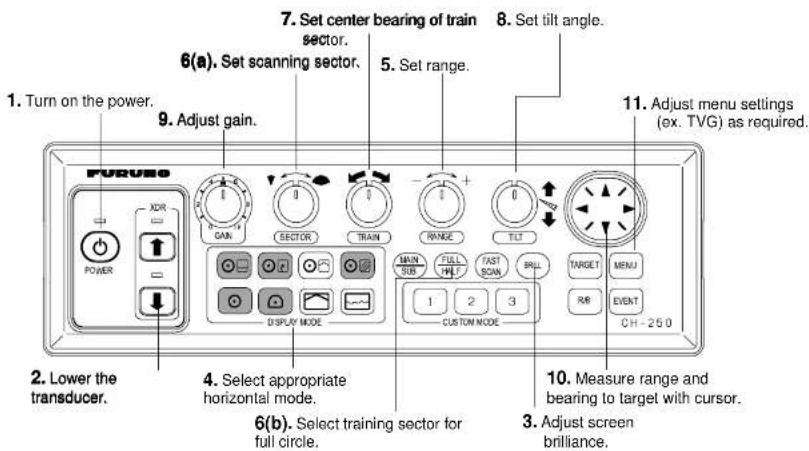

The figure below shows the typical horizontal mode operating sequence.

Figure 2-1 Control panel

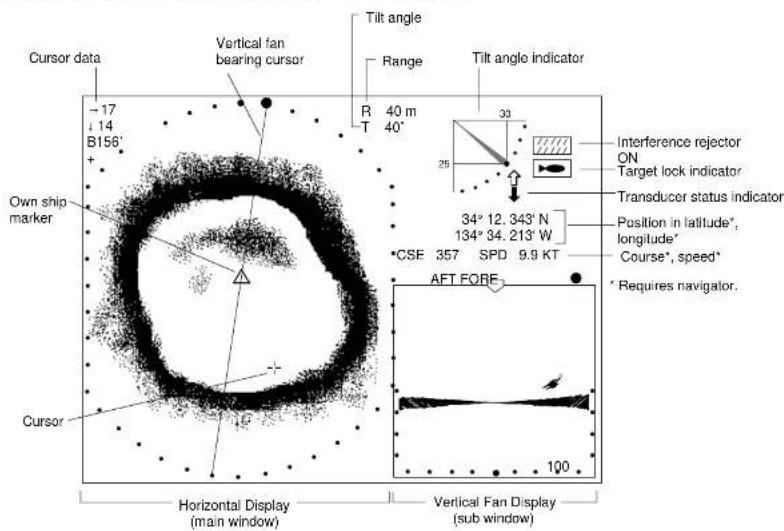

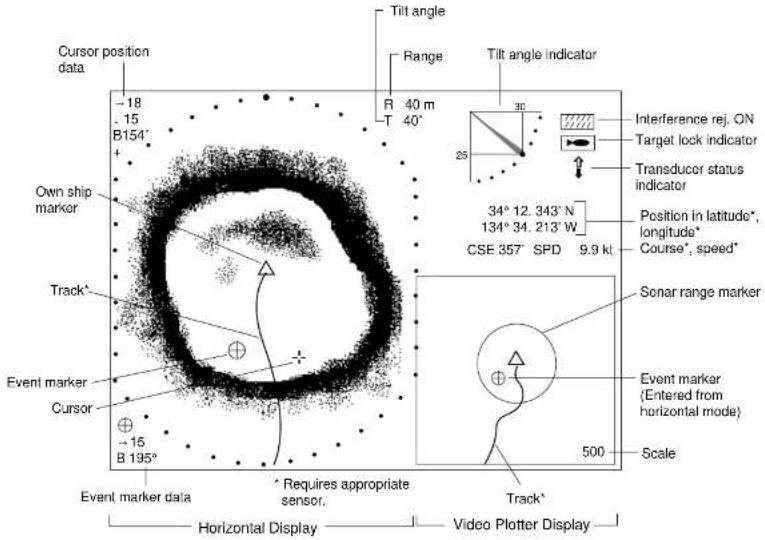

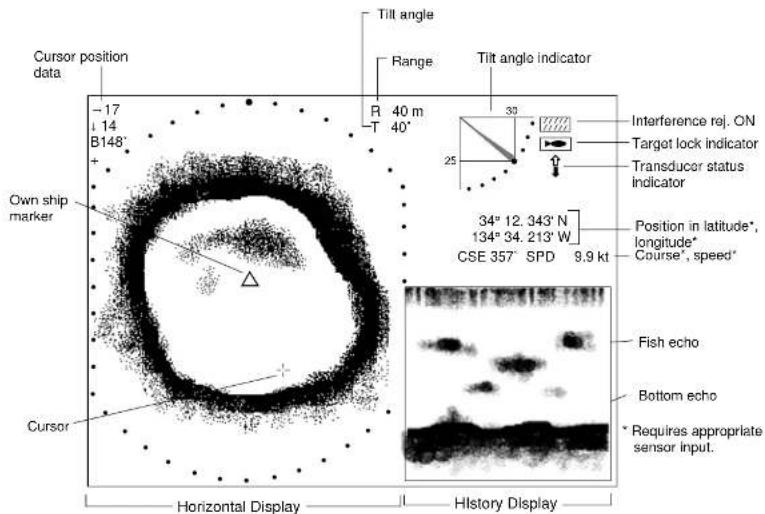

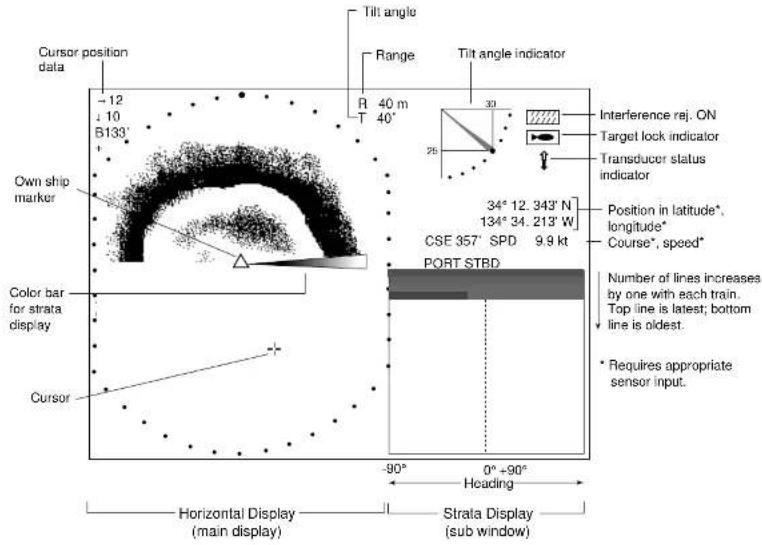

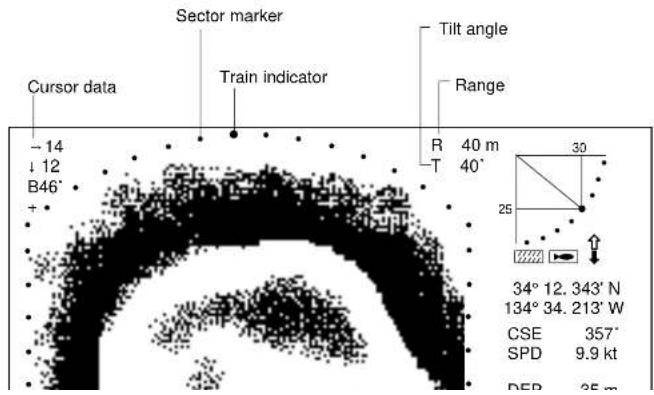

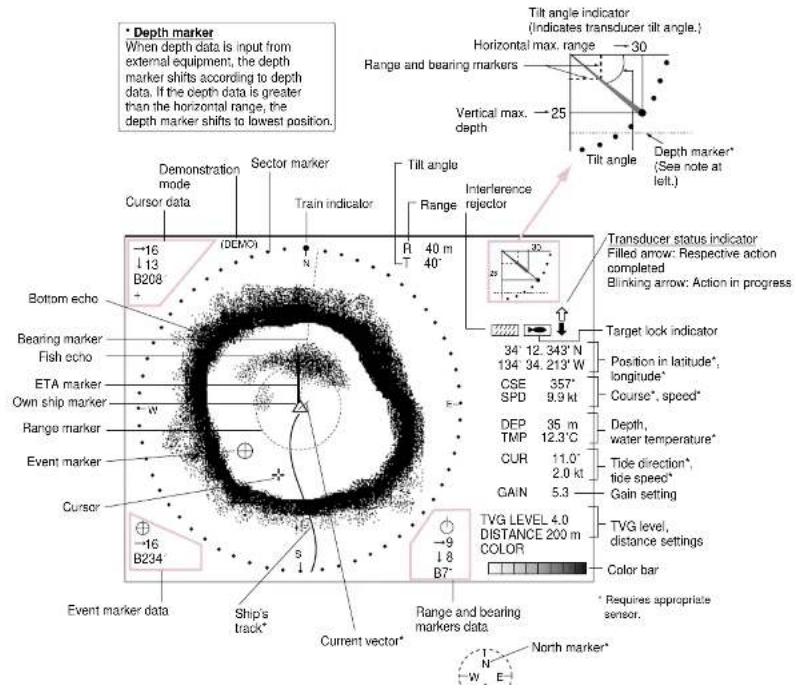

2.2 Typical Horizontal Mode Display

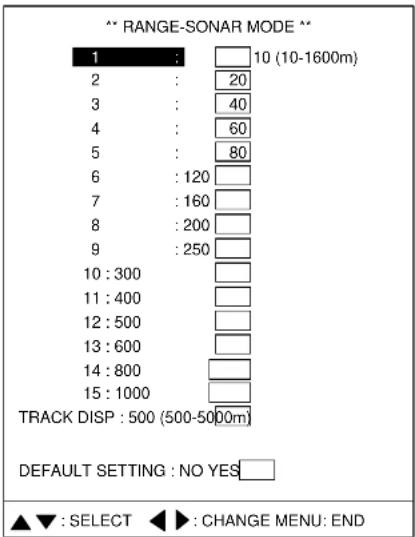

2.3 Selecting the Range

The [RANGE] control selects the detection (display) range. Select the range according to either the fish species being searched or the depth desired. 15 ranges are available and minimum and maximum ranges depend on the transducer used.

Figure 2-3 How to select the range

Default horizontal mode range settings

Range	60 kHz 88 kHz 150 kHz
	m	f	t	m	f	t
No.1 10 40	10 40	10 40
No.2 20 80	20 80	20 80
No.3 40 1	20 40	120 40 120
No.4 80 2	200 80	200 60 200
No.5 120	300 120	300 80 300
No.6 160	400 160	400 120	400
No.7 200	500 200	500 160	500
No.8 250	600 250	600 200	600
No.9 300	800 300	800 250	700
No.10 400	1000 400	1000 300	800

m f t

2.4 Selecting Sector Width

Sector means the width of the transducer training.

Figure 2-4 Display sector

The [SECTOR] control selects the training (display) area among the sixteen positions shown in the table below. Clockwise rotation of the control increases the sector width; counterclockwise rotation decreases it.

	1 2	3 4	5 6	7 8	9 10	11 12	13 14	15 16
Sector width (°)	6 24	48	72	96	120	144	168	192	216	240	264	288	312	336	360

In the full-circle mode (360°) the direction of training is clockwise; in the half-circle mode the direction is clockwise to counterclockwise alternately.

One-touch selection of 360° sector

Each pressing of the [FULL/HALF] key alternately selects 360° sector (full circle) or 168° sector (half circle). If the [SECTOR] control is operated following the selection of the full-circle display,

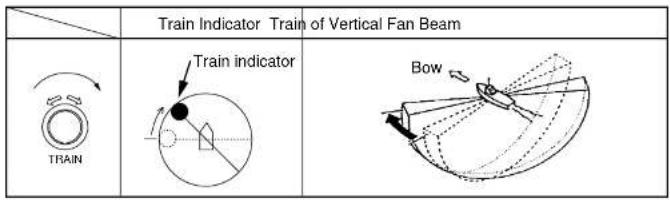

2.5 Selecting Train Center

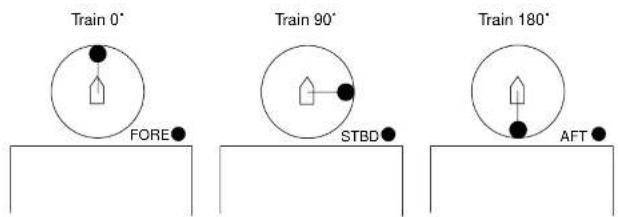

The [TRAIN] control selects the center direction of the detection range. The range of adjustment is 0^ to 354^ in increments of 6^ . The selected bearing is shown with a filled circle, the train indicator, on the bearing scale.

Figure 2-6 Train center

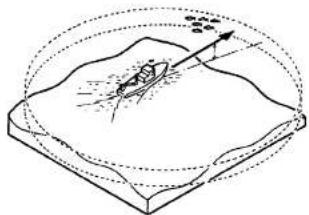

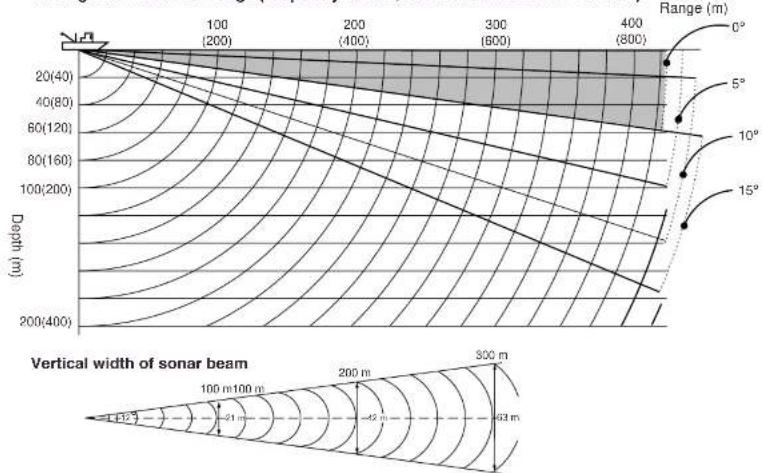

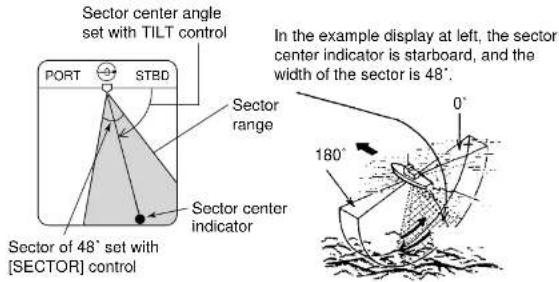

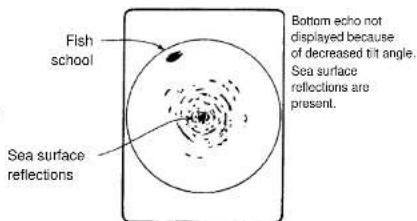

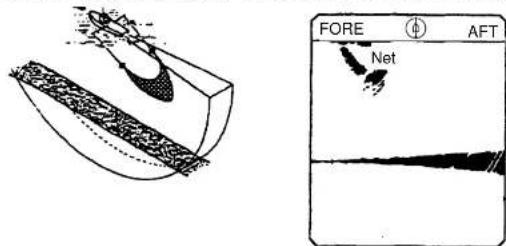

2.6 Selecting the Tilt Angle

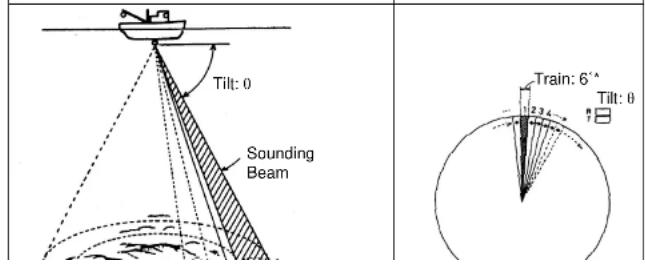

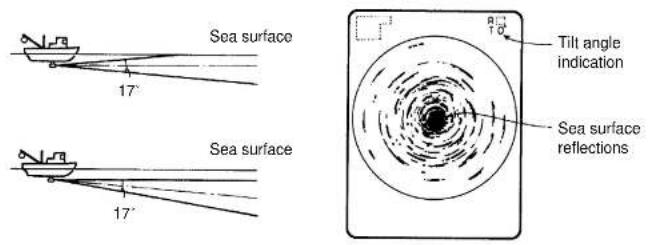

The tilt angle shows the direction to which the sound wave is emitted. When the sound wave is emitted horizontally, the tilt angle is said to be 0^ and when emitted vertically, 90^ .

To set a tilt angle, operate the [TILT] control. Watch the tilt angle indication and tilt angle

2.6.1 Bottom echo and tilt angle

Refer to the illustration below.

Case 1: Tilt angle 30° to 40°

This tilt angle will display the entire bottom since it is captured by the full width of the beam.

Case 2: Tilt angle 10^ to 20^

This tilt angle will only display half the bottom since it is only captured by the lower half of the beam.

Case 3: Tilt angle 0° to 5°

This tilt angle may or may not capture the bottom since the returning echo is weak.

2.6.2 How to discriminate fish echoes from the bottom

The figure at the bottom of this page illustrates how two fish schools "a" and "b" are displayed on the screen using three different tilt angles.

Case 1 (Tilt angle 30^ to 40^ ): Fish school is obscured by the bottom.

Case 2 (Tilt angle 10^ to 20^ ): Fish school is located above the bottom (midwater).

Case 3 (Tilt angle 0^ to 5^ ): Fish school is located close to the bottom.

Points to consider

Normally, a vertically distributed fish school is a better sonar target than the bottom, because it reflects the transmitted pulse back toward the transducer.

In case 3, both fish schools "a" and "b" are presented. Generally speaking, however, midwater fish schools tend to be larger than bottom fish schools and they are often displayed near the bottom on the display.

It is difficult to detect bottom fish when they are not distributed vertically.

2.6.3 Tilt angle for surface fish

Sound emitted from the sonar transducer forms an oval-shaped beam with a width of approximately 12^ (for 60 kHz transducer at -3 dB) in the vertical direction (vertical beam width). The tilt angle is indicated by the angle between the center line is parallel with the sea surface and one half of the emitted sound goes upward, toward the sea surface.

This causes one half of the emitted sound to be reflected toward the transducer and displayed on the screen as sea surface reflections. When the sea is calm, since the sound is reflected just like reflections become negligible.

However if the sea is not calm enough, they will become dominant and interfere with observation of wanted echoes. To minimize these sea surface reflections and to search fish schools effectively, the tilt angle is usually set between 5 and 6° so the upper portion of the beam becomes almost parallel with the sea surface. When the sea is rough, the tilt angle is slightly increased to lessen the affect of sea surface reflections.

2.6.4 Suitable tilt angle

The figure below illustrates the relationship among tilt angle, depth and detection range. Refer to it to find out the suitable tilt angle for a given depth/detection range.

Tilt angle and beam coverage (frequency 60 kHz, vertical beamwidth 12° at -3 dB)

Figure 2-9 Tilt angle and beam coverage

2.7 Selecting the Training Speed

The training speed selects how fast the transducer scans the sounding sector. Two choices are available, normal speed (default setting) and high speed, and one may be selected with the [FAST SCAN] key. Each time the key is pressed "NORM" (normal speed) or "FAST" (high speed) momentarily appears at the screen top.

NORM (6°): 60 transmissions required to complete full 360° picture (default setting).

FAST (12°): 30 transmissions required to complete the full 360° picture.

The time necessary to train a full circle depends on range and transducer used. The table below shows the time required to complete one full circle in the horizontal mode using the 150kHz transducer.

Ranges 1 2 3 4		5	6	7	8	9	1	0	1	1	1	2	1	3	1	4
Unit	m	10	20	40	60	80	120	160	200	250	300	400	500	600	800	1000
	ft	40	80	120	200	300	400	500	600	700	800	1000	1500	2000	2500	3500
Time required (sec) for one full circle	Norm	7	7	7	7	7	10	13	16	20	24	32	40	48	64	81
	Fast	7	7	7	7	7	9	11	13	15	17	21	25	28	36	45

Note 1: Above data for soundome having serial no. 1000 and higher.
Note 2: The range setting must be at least 160 m to activate high speed training, using the 150 kHz transducer. The [FAST SCAN] key is inoperative when the range setting is less than 160 meters.

2.8 Finding Echo Position with the Cursor

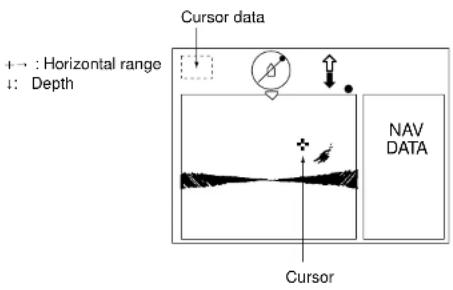

The cursor measures horizontal range, depth and bearing. Operate the Omnipad to place the cursor where desired. Cursor position data appears at the top left-hand corner on the screen.

2.9 Event Marker

The event marker functions to mark important locations on the screen, and five event markers may be inscribed. Each time the [EVENT] key is pressed the "latest event marker" (*) is inscribed at the cursor location and all previously entered event markers are shown by the "previous event marker" (+). When the capacity for event markers is reached the eldest event marker is erased from the screen to make room for the latest.

Note 1: With position data the event marker moves with ship's movement. The event marker can be inscribed without position data, however it will be stationary.

Note 2: The event marker cannot be inscribed from the sub window (strata, history and video plotter displays). It can only be inscribed from the main window.

Note 3: Event marker position can be output to external equipment and marked on the display of the external equipment. Each press of the [EVENT] key outputs event marker position. For details see EVENT MARK INFO on page 5-9.

2.9.1 Inscribing the event marker

1. Operate the Omnipad to place the cursor on the location desired for an event marker.
2. Press the [EVENT] key to inscribe the event marker. Event marker data appears at the bottom left-hand corner.

2.9.2 Deleting all event markers

All event markers can be erased from the screen as follows:

1. Operate the Omnipad to place the cursor outside the display area.
2. Press the [EVENT] key to show the following dialog box. Do the next step within four seconds, otherwise the dialog box will be erased.

1. Press ▶ to select YES and press the [MENU] key. All event markers are erased from the screen.

2.10 Range and Bearing Markers

The horizontal range, depth and bearing to a fish school can be measured by using the range and bearing markers.

1. Operate the Omnipad to place the cursor on the location desired.
2. Press the [R/B] key to display the range and bearing markers. Horizontal range, depth and bearing to the cursor location are shown at the bottom right-hand corner of the screen.
3. To erase the range and bearing markers, place the cursor outside the display area and press the [R/B] key, or place the cursor on the range or bearing marker and press the [R/B] key.

2.11 Adjusting the Picture

2.11.1 Suppressing bottom and surface reflections

In shallow fishing grounds, excessive sea surface and bottom reflections often interfere with wanted fish echoes and they cannot be eliminated sufficiently with the TVG controls. In such cases, try to reduce the output power, without turning down the gain. The picture becomes clearer when output power is reduced rather than when the gain is decreased.

1. Press the [MENU] key to open the menu.

2. Press ▲ to select MENU and then press ◀ to select the COMN menu.

Figure 2-13 COMMON menu

1. Press ▲ or ▼ to select TX POWER and press ▶. The following dialog box appears.

TV DOWED

2.11.2 Suppressing bottom tail

As described earlier, fish schools near the bottom are sometimes difficult to detect because you have to discriminate fish echoes from the bottom reflections. To discriminate fish echoes near the bottom, select the short Tx pulselength on the COMN menu to decrease the tail of bottom reflections.

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU and then press ◀ to select the COMN menu.
3. Press ▲ or ▼ to select PULSELENGTH and press ▶. The following dialog box appears.

1. Press ▶ to select SHORT.

2. Press the [MENU] key to register your selection and close the menu.

2.11.3 Displaying weak echoes clearly

Echoes from targets (such as the bottom or a fish) return to the transducer in order of the distance to them, and when their intensities are compared at the transducer face, those from nearer targets are generally stronger when their reflecting properties are nearly equal. The sonar operator will be quite inconvenienced if these echoes are directly displayed on the screen, since he won't be able to judge the actual size of the target from the size of echoes displayed on the screen. To overcome this inconvenience, use the TVG function. It compensates for propagation loss of sound in water: amplification of echoes on short range is suppressed and gradually increased as range increases, so that similar targets are displayed in similar intensities irrespective of the ranges to them.

To adjust TVG:

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU and then press ◀ or to select HORZ.

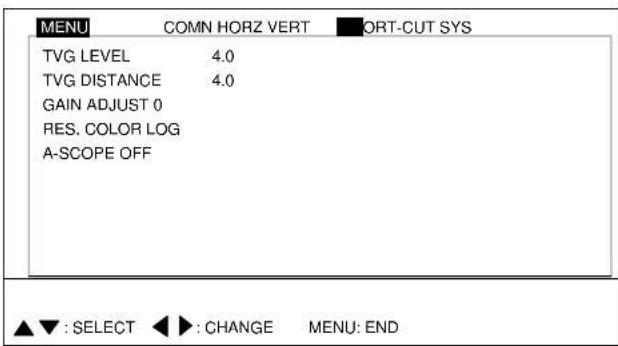

Figure 2-15 HORZ menu

1. Press ▲ or ▼ to select TVG DISTANCE and press ▶. The following dialog box appears.

1. Press ▲ or ▼ to close the TVG distance dialog box and return to the HORZ menu.
2. To suppress reflections by the sea surface or plankton, select TVG LEVEL and press ▶.
3. Press ◀ or ▶ to adjust TVG LEVEL, considering sea conditions. A setting between 2.0 and 5.0 should provide satisfactory results. The higher the figure the less the gain over distance.
4. Press the [MENU] key to register your selection and close the menu.
5. Watch a distant fish echo which is approaching own ship. Adjust the tilt angle so the fish echo is within the sounding beam. Observe color of fish echo. If the color and size of the echo stay the same as the echo approaches own ship, the TVG setting is proper. If the echo suddenly becomes smaller, the TVG level may be too high.

2.11.4 Erasing weak echoes

Weak echoes such as interference can be erased from the screen. This is useful when you want to observe a fish school echo.

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU.
3. Press ◀ to select COMN.
4. Press ▲ or ▼ to select SIG LEVEL.
5. Press ▶ to open the dialog box.

8-color display: OFF, 1-6 16-color display: OFF, 1-14

1. Press ◀ or ▶ to select echo color to erase. Pressing ▶ erases echoes from weak to strong in ascending order of strength. You can also see which echo color is erased by watching the

2.11.5 Enlarging fish echoes (expanded horizontal display)

Fish echoes may be enlarged 1.5 times by using the expanded horizontal display. Press the Ⓞ key to show the expanded horizontal display. The direction of expansion depends on the train direction as below.

Train center direction	Position after expansion Remarks
318°-42°	Moves to screen bottom For viewing forward
48°-123°	Moves to left side of screen For viewing starboard side
138°-222°	Moves to screen top For viewing aft
228°-312°	Moves to right side of screen For viewing port side

2.12 Target Lock

Three types of target lock modes are available:

Manual reverse: The transducer train direction is reversed manually. This is the default setting, and is available in the horizontal and vertical fan modes.

Position: Tracks stationary position (such as a reef) using position data from a navigator. Available in the horizontal mode only.

Echo: Tracks fish echo either manually or automatically. Available in the horizontal mode only.

2.12.1 Selecting target lock mode

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU and ◀ or ▶ to select the HORZ mode.
3. Press ▲ or ▼ to select TARGET KEY.
4. Press ▶ to show the following dialog box.

1. Press ◀ o▶ to select option desired.

2. Press the [MENU] key to register your selection and close the menu.

2.12.2 Manual reverse mode

2.12.3 Position mode

This mode tracks a stationary position (such as a reef) using position data fed from a navigator.

Note1: This function is inoperative in the echo sounder mode. In the vertical fan mode the reverse mode is automatically selected regardless of the setting in paragraph 2.12.1.

Note2: This mode requires position data. When there is no position data the message "NO POSITION DATA." appears for five seconds and tracking is automatically cancelled. Check the navigator.

To use the position mode:

1. Select POS following the procedure in paragraph 2.12.1.
2. Use the Omnipad to select the location to track.
3. Press the [TARGET] key.

The message "POS LOCK" appears momentarily at the screen top, the target lock marker is displayed at the cursor position and the target lock indicator appears at the top right-hand corner of the screen while tracking (with position data from external equipment) is occurring. If the position goes out of the display area target lock is automatically cancelled and the target lock indicator and target lock marker disappear. The SECTOR, TILT and TRAIN controls are inoperative since they are automatically adjusted.

2.12.4 Echo mode

The echo mode tracks a fish school either automatically or manually. The default setting is automatic, and you can select automatic or manual with "LOCK MODE" in the HORZ menu.

Automatic echo tracking mode

The automatic echo target lock function automatically tracks a fish school appearing in the operator-selected target lock zone. If the tracked fish school goes out of the zone in the range direction, tracking is suspended until it or a new fish school comes into the zone.

To use the automatic echo tracking mode:

1. Select ECHO following the procedure in paragraph 2.12.1.
2. If necessary select LOCK MODE to AUTO (default setting) on the HORZ menu.
3. Press the [TARGET] key. The dialog box below appears at the screen center, the message "ECHO LOCK" appears for three seconds at the top of the screen, the target lock area appears in the current train area and the target lock indicator appears at the right-hand side of the screen.

1. Use the [SECTOR] and [TRAIN] controls and the Omnipad to set the detection area. Do not include bottom echoes in the zone, so that target lock will not be activated by bottom echoes. When a target of red or reddish-brown color is detected in the zone, the target lock indicator blinks and a buzzer sounds to call the operator's attention. The [SECTOR], [TILT] and [TRAIN] controls are inoperative since they are automatically adjusted. When you attempt to operate those controls the message "TARGET LOCKING NOW," appears

When the fish echo is lost the tilt angle is automatically changed as below to continue tracking the echo:


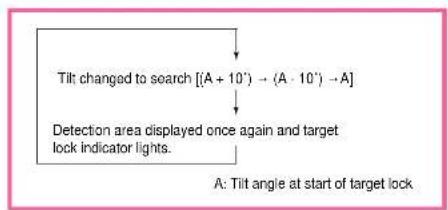

    A["Tilt changed to search [A + 10') → (A - 10') → A"] --> B["Detection area displayed once again and target lock indicator lights."]
    B --> C["A: Tilt angle at start of target lock"]

1. To turn off the target lock, press the [TARGET] key again. The message "LOCK END" appears for three seconds at the screen top, the target lock indicator disappears and operation continues with current train and tilt settings.

Manual echo tracking mode

1. Select ECHO following the procedure in paragraph 2.12.1.
2. Select LOCK MODE to MANUAL on the HORZ menu.
3. Press the [TARGET] key when a wanted target echo appears.

The message "ECHO LOCK" appears along with the target lock indicator. Then, the transducer train direction is reversed and searching starts with the current tilt angle. When a target echo appears the transducer train direction is again reversed automatically, the buzzer sounds and the target lock indicator blinks.

If the fish echo is lost the tilt angle is automatically changed to continue tracking as below.

1. Tilt angle is changed by +10° (A+10°). (A is the tilt angle used when tracking began.)

2.13 Horizontal Menu Overview

This section presents an overview of the items on the HORZ menu.

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU and then press ◄ or ▶ to select the HORZ menu.

Figure 2-19 HORZ menu

1. Press ▲ or ▼o select item desired.
2. Press ▶ to show corresponding dialog box.
3. Press ◀ or ▶ to select option desired.
4. Press the [MENU] key to register your selection and close the menu.

0.12.4 Horizontal menu description

RES. COLOR: Sets transfer characteristics of input signal level versus display echo level. Echo strength is emphasized in order of CUBE, SQUARE, LINEAR, LOG, and you can observe the characteristics of each by watching the color bar as you change the setting.

LOG: Displays weak to strong echoes in their respective levels. This is the default setting, and is suitable for general use.

LINEAR: Downplays the weak echoes when compared with LOG. Effective for suppressing weak echoes such as plankton.

SQUARE: Strong echoes are emphasized more than in LINEAR.

CUBE: Strong echoes are emphasized even more than in SQUARE.

AGC: Automatically lowers sensitivity against strong echoes such as those from the bottom and large fish schools to emphasize weak echoes such as those from fish close to the bottom. The default setting is OFF.

TARGET KEY: Selects target lock function among reverse, position and echo. Default setting is REVERSE. For further details see paragraph 2.12 on page 2-17.

LOCK MODE: Selects how to track fish echo in "echo" target lock; automatically or manually. Default setting is AUTO. For further details see paragraph 2.12 on page 2-17.

AUTO TILT: Turns automatic tilt on or off, and the default setting is OFF. The choices are ±2^ , ±4^ , ±6^ , and ±10^ . Automatic tilt adjusts the tilt angle in the following sequence:

$$ \mathrm{B} \rightarrow (\mathrm{B} - \mathrm{A}) \rightarrow \mathrm{B} \rightarrow (\mathrm{B} + \mathrm{A}) \rightarrow \mathrm{B} \rightarrow (\mathrm{B} - \mathrm{A}) \rightarrow \mathrm{B} \rightarrow (\mathrm{B} + \mathrm{A}) \dots $$

B: Current tilt angle

A: Auto tilt setting

For example, the tilt angle is 30^ and the automatic tilt setting is ±4^ . Then, the tilt angle is changed in the following sequence: 30^ 26^ 30^ 34^ 30^ 26^ 30^ 34^

Note: The [TILT] control is inoperative when automatic tilt is active.

AUDIO LEVEL: Adjusted the audio level of the external loudspeaker (option). Setting range is 0.

2.14 Interpreting the Horizontal Display

This section provides information necessary for interpreting the horizontal display.

2.14.1 How the horizontal mode picture is painted

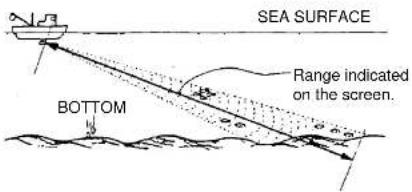

The wide sounding beam is emitted from the soundome at a certain tilt angle (see hatched area in the figure below). The information (target echoes) obtained by this beam is displayed in sectors of increments of 12^ of the screen. Thus, all directions around the boat are sounded in 30 times of transmissions.

Note: When the "FAST SCAN" is switched off, the equipment operates in a narrow sounding beam. Then, the echoes appear on a 6° sector in each transmission, so 60 transmissions are required to complete the full 360° picture (6° x 60 = 360°). This means that training speed is slower. However, since transmission power is concentrated into the narrow sounding beam, a superior detection range is obtained. Furthermore, since the bottom contour is painted distinctly, bottom fish may be more easily detected.

Sounding Beam Screen Display

2.14.2 Sample echo displays

Bottom echoes

When the tilt angle is changed, the bottom echo illustrated below will appear on the display. When the tilt is decreased (toward 0^ ), the bottom trace becomes wider and weaker. By observing the bottom condition on the display, the skipper can prevent net damage.

Fish schools

A fish school appears as a mass of echoes on the screen. The color of the mass shows the density of fish schools on the sonar beam. To find distribution and center point of a fish school, try several different tilt angles.

(A) Sea surface fish Till angle: 0° to 10°

Diagram of a boat navigating a rectangular platform with dotted circular boundaries and an arrow indicating direction (no text or symbols)

(B) Midwater, bottom fish Till angle: 30° or more Fish echo which appears before bottom can be detected.

Diagram of a scientific instrument interacting with a circular target, showing no text or symbols

Tilt angle: 0° to 20° Fish echo which appears together with or after bottom can be detected.

Sea surface reflections

To reduce sea surface reflections, set the tilt angle to 5^ or higher, so the upper edge of the sonar beam does not hit the sea surface, or adjust TVG. When a decreased tilt angle is used, sea surface reflections cover a large area as illustrated below.

Figure 2-23 Sea surface reflections

Wake

A wake produced by own ship or another ship can be a strong reflecting object when a decreased tilt angle is used. As the wake appears as a thick continuous line, it can be easily distinguished from a fish school. A wake contains many air bubbles which attenuate ultrasonic energy, making it difficult to sound beyond the wake.

Sidelobe echo (false echo)

An ultrasonic wave is emitted only in the direction set by the [TILT] control, however there are some emissions outside the main beam. These are called sidelobes. The energy of the sidelobe is fairly weak but when the water is comparatively shallow and the bottom is rocky and hard, strong signals are detected by the sidelobe. These are represented on the display as a false echo as shown below.

Figure 2-25 Sidelobe echoes

Noise and interference

When the fishing ground is crowded with many fishing boats, the sonar is subject to interference from ultrasonic equipment (echo sounder or sonar) on other boats as well as those on own ship.

For instance, interference from the sonar operated on other boats will show itself on the display as in (A) in the figure below. This interference can be suppressed by changing the Tx rate on the COMN menu. Noise from marine life shows itself on the displays as in (B) in the figure below.

2.14.3 Combination display examples

Horizontal/history display

Press the Key to display the horizontal/history display.

Figure 2-27 Horizontal/history display

The horizontal display appears in the main window; the history display in the sub window. The

Horizontal/video plotter display

Press the 📄y to display the horizontal/video plotter display.

Figure 2-28 Horizontal/Video Plotter display

The horizontal display appears in the main window; the video plotter display, which traces ship's track on the display. In the sub window. Compared to the horizontal display the video plotter's

Horizontal/strata display

Press the 📄 to display the horizontal/strata display.

Figure 2-29 Horizontal/strata display

The horizontal display appears in the main window; the strata display in the sub window. The strata picture shows bottom undulations in different colors. This is useful in bottom trawling to

Color bar for the strata display

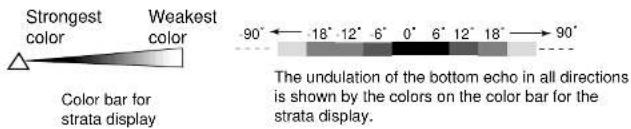

The depth of the bottom echo in all directions is displayed in the sub window, in the colors set by the color bar for the strata display.

The position of the weakest echo can be changed with the [RANGE] control, and the width of each color on the color bar for the strata display with the [SECTOR] control.

Note: TILT, TRAIN, FULL/HALF, FAST SCAN, R/B, EVENT, TARGET, CUSTOM MODE controls may only be operated from the main window. When you attempt to operate them from the sub window the message "SELECT MAIN WINDOW." appears for about four seconds.

Flat bottom and strata display

Projection in fore direction and strata display

Color "b" on the color bar is displayed here.

-90°

PORT STBD

+90°

Color "a" on the color bar

Color "b"

Color "a"

Figure 2-31 Projection in fore direction and strata display

Depth becoming shallower gradually in fore direction and strata display

Color "c"

Color "b"

-90°

PORT STBD

+90°

Color "a"

Color "c"

Color "a"

Color "b"

3. VERTICAL FAN MODE

3.1 Operational Overview

The figure below shows the typical vertical fan mode operating sequence.

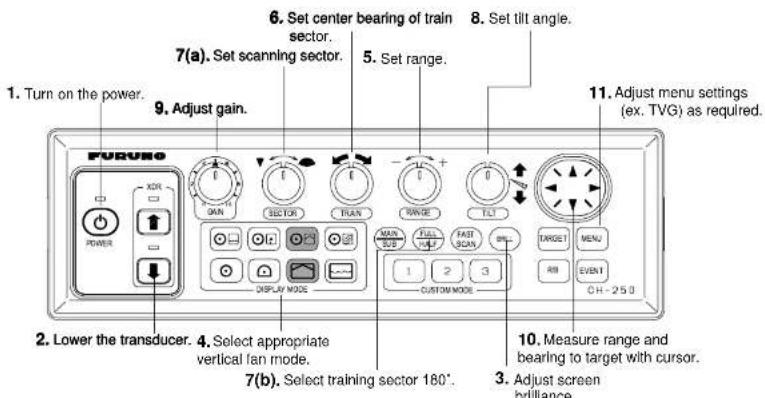

Figure 3-1 Control panel

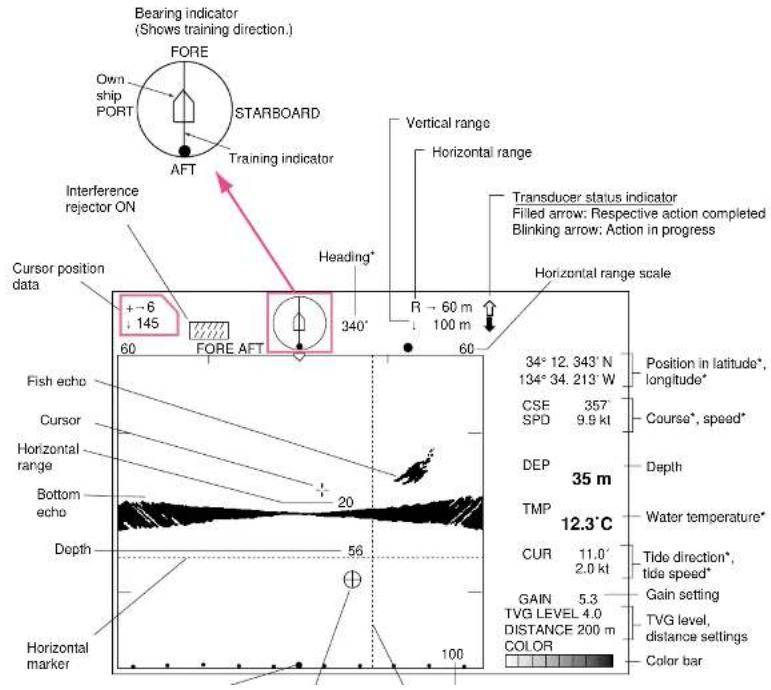

3.2 Typical Vertical Fan Mode Display

3.3 Selecting the Range

The [RANGE] control selects the detection (display) range, in 15 settings. Select the range according to either the fish species being searched or the depth desired. Each time the control is operated the newly selected range briefly appears in large characters at the screen top. Range is permanently displayed at the top right-hand corner of the screen.

Normally the range is set so that the bottom is traced at the lower part of the screen (like an echo sounder).

Figure 3-3 Range concept

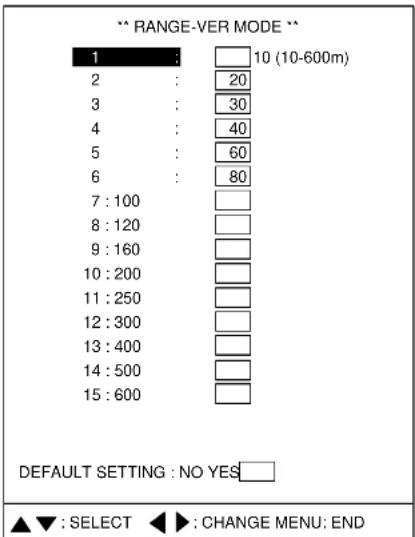

Default vertical fan mode range settings

U n	i	t		1	2	3	4		5		6	7	8	9	1	0
Meters	10	20	30	40	60	80	100	120	160	200	250	300	400	500	600
Feet	30	60	90	120	150	200	250	300	400	500	600	800	1000	1500	2000

Note 1: Unit of range measurement may be selected for meters, feet, fathoms, passi/braza or Hiro (Japanese) with UNIT on the SYSTEM SETTING 1 menu. For details see page 5-9.
Note 2: Ranges may be freely preset as desired. For details see page 5-14.

3.4 Selecting Train Center

The [TRAIN] control determines the bearing of the vertical fan beam, from 0° to 180°. Bearing of beam position can be found with the train indicator.

Figure 3-4 Train indicator

Figure 3-5 Train indicator and display

3.5 Selecting Display Sector

Sector means the width of the transducer training, from 6° to 180°.

Figure 3-6 Sector

The [SECTOR] control selects the training area among the sixteen positions shown in the table below. Clockwise rotation of the control increases the sector width; counterclockwise rotation decreases it.

	1 2	3 4	5 6	7 8	9 10	11 12	13 14	15 16
Sector width (°)	6 12	24	36	48	60	7	2 84	96	108	120	132	144	156	168	80

One-touch selection of 180° sector

1. Press the [FULL/HALF] key. A half-circle display of 180^ is presented.
2. Press the [FULL/HALF] key again, and a 120°-sector display is presented.

Note: Operating the [SECTOR] control between steps 1 and 2 in the procedure above displays the 180^ sector at the next pressing of the [FULL/HALF] key.

Sector set with

...

3.6 Selecting Sector Center

The center direction of the sounding beam in the vertical direction can be changed with the [TILT] control. The setting range is 0^ to 180^ in increments of 6^ . Select the setting which places the sector center in the middle of the detection range.

Figure 3-8 Sector center

Automatic shifting of own ship position

Own ship position on the screen is automatically shifted either rightward or leftward according to the direction of the sector center and display sector width.

The figure below shows the own ship position has been shifted rightward on the screen to provide the wider view at the port side.

Sector center 0° to 60°: Own ship position shifted to port side Sector center 66° to 114°: Own ship position shifted to center

3.7 Selecting the Training Speed

The training speed selects how fast the transducer scans the display sector. Two choices are available, 3^ (normal speed, default setting) and 6^ (high speed), and one may be selected with the [FAST SCAN] key. Each time the key is pressed the display momentarily shows “NORM” (normal speed) or “FAST” (high speed).

Normal: 60 transmissions for half circle in increments of 3^ .

High: 30 transmissions for half circle in increments of 6^ .

3.8 Finding Echo Position with the Cursor

The cursor measures horizontal range and depth. Operate the Omnipad to place the cursor where desired. Cursor data appears at the top left-hand corner on the screen.

Figure 3-10 Location of cursor position data

3.9 Event Marker

The event marker functions to mark important locations on the screen, and five event markers may be inscribed. Each time the [EVENT] key is pressed the "latest event marker" (*) is inscribed at the cursor location and all previously entered event markers are shown by the "previous event marker" (+). When the capacity for event markers is reached the eldest event marker is erased from the screen to make room for the latest.

Note 1: Event marker position can be output to external equipment and marked on the display of the external equipment. Each press of the [EVENT] key outputs event marker position. For details see EVENT MARK INFO on page 5-9.

Note 2: Event markers cannot be inscribed from the vertical fan display when it is in the sub window (Horizontal/vertical fan display). Inscribe the marker from the horizontal display to show it in the vertical fan display.

1. Operate the Omnipad to place the cursor on the location desired for an event marker.
2. Press the [EVENT] key to inscribe the event marker. The event marker is inscribed on the vertical fan display, as well as the horizontal and video plotter displays.

1 Deleting all event markers

All event markers can be erased from the screen as follows:

1. Operate the Omnipad to place the cursor outside the display area.
2. Press the [EVENT] key to show the following dialog box. Do the next step within four seconds, otherwise the dialog box will be erased.

DELETE EVENT MARK?

YESNO

1. Press ▶ to select YES and press the [MENU] key. All event markers are erased from the screen.

3.10 Depth and Horizontal Range Markers

The depth and horizontal range markers function to measure the horizontal range and depth to a desired echo.

Note: Depth and horizontal range markers cannot be inscribed from the vertical fan display when it is in the sub window (Horizontal/vertical fan display). Inscribe the markers from the horizontal display to show it in the vertical fan display.

1. Operate the Omnipad to place the cursor on the location desired.
2. Press the [R/B] key to display the depth and horizontal range markers. Horizontal range and depth appear on the screen.
3. To erase the depth and horizontal range markers, press the [R/B] key again, or place the cursor on the depth or horizontal range marker and press the [R/B] key.

3.11 Adjusting the Picture

3.11.1 Displaying weak echoes clearly

Echoes from targets (such as the bottom or a fish) return to the transducer in order of the distance to them, and when their intensities are compared at the transducer face, those from nearer targets are generally stronger when their reflecting properties are nearly equal. The sonar operator will be quite inconvenienced if these echoes are directly displayed on the screen, since he won't be able to judge the actual size of the target from the size of echoes displayed on the screen. To overcome this inconvenience, use the TVG function. It compensates for propagation loss of sound in water: amplification of echoes on short range is suppressed and gradually increased as range increases, so that similar targets are displayed in similar intensities irrespective of the ranges to them.

The TVG also functions to suppress unwanted echoes and noise which appears in a certain range area on the screen.

To adjust TVG:

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU and then press ◀ or ▶ to select the VERT menu.

1. Press ◀ or ▶ to adjust TVG distance, considering sea conditions. The larger the figure the greater the distance at which the TVG works.

TVG Distance Setting	0 0.5	1.0 1.5	2.0 2.	2.5 3.0	3.5 4.0	4.5 5.0						....	10.0
Meters 3 8 20	40 60	100 1	30 160	200 250	320							....	1000
Feet 10 30 70	130 210	330 410	520 660	820 1040	3280
Passi/braza 2	5 10	20 40	60 80	100 120	150 180		600
Hiro	2 5 10	20 40	60 80	100 130	170 210							....	660

1. Press ▲ or ▼ to close the dialog box and return to the VERT menu.
2. To suppress reflections by the sea surface or plankton, select TVG LEVEL and press ▶.
3. Press ◀ or ▶ to adjust TVG LEVEL, considering sea conditions. The larger the figure the less the gain over distance.
4. Press the [MENU] key to register your selection and close the menu.

Wrong

Correct

Level too high Distance too high

Figure 3-14 Examples of proper and improper TVG

3.11.2 Suppressing noise and interference

You may encounter occasional or intermittent noise and interference as shown below. This is

3.12 Vertical Menu Overview

This section presents an overview of the items on the VERT menu.

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU and then press ◀ or to select the VERT menu.

Figure 3-16 VERT menu

1. Press ▲ or ▼ to select item desired.
2. Press ▶ to show corresponding dialog box.
3. Press ◀ or ▶ to select option desired.
4. Press the [MENU] key to register your selection and close the menu.

3.12.1 Vertical menu description

3.13 Interpreting the Vertical Fan Display

This section provides information necessary for interpreting the vertical fan display.

3.13.1 How the vertical fan mode picture is painted

The sounding beam is emitted and the information (target echoes) obtained by the beam appears in the corresponding sector as it appears on the sonar mode. The difference is that the training is performed only in vertical direction. It forms a sounding area of a half-circle (like a slice of watermelon) to observe a vertical section of underwater conditions.

The bearing of the vertical sounding beam can be selected manually or automatically.

Sounding Beam	Screen Display
(1) Bearing of the sounding beam	Freq: 60 kHz
	(1) Bearing of the sounding beam
(3) Display area
Select the bearing of the sounding beam (1) by [TRAIN] control, the sounding sector center (2) by the [TILT] control and the display area (3) by the [SECTOR] control.

3.13.2 Sample echo displays

Port-starboard picture (bottom)

You can see fish echoes at the center-right of the screen. The bottom is displayed wider as the distance from the ship's position increases. Therefore, it may be difficult to discriminate bottom fish.

Figure 3-18 Port-starboard picture

When ship passes over fish schools

The sounding beam is directed fore-aft and the display is off-centered* to present a wider view of the area forward of the ship. You can clearly see fish schools approaching from the bow of the ship.

*: Automatically shifted.

Display of net hauling

This is an example of net hauling display. The location of the net is indicated clearly.

Figure 3-20 Net hauling and sonar picture

False echo

In shallow water (depth less than 100 m) detection, unwanted echoes shown in the figure may appear. This phenomenon is caused by the false echo from the previous transmission. Reducing the Tx rate on the COMN menu may lessen this effect.

3.13.3 Horizontal/vertical fan display

Press the Key to display the horizontal/vertical fan display.

Figure 3-22 Horizontal/vertical fan display

The horizontal display appears in the main window; the vertical fan display in the sub window.

The displays are independent of each other so you can adjust them as desired. Pass the

SECTOR control

For the vertical fan display: When the display sector is 6^ (minimum) the tilt angle of the horizontal and vertical fan modes are interlocked and each transmission on the horizontal display is reflected on the vertical fan display. The message TILT ANGLE MONITOR WINDOW momentarily appears on the screen and the vertical bearing cursor disappears.

Note: Only the [SECTOR] control may be operated in this condition.

This page is intentionally left blank.

4. ECHO SOUNDER MODE

4.1 Operational Overview

The figure below shows the typical echo sounder mode operating sequence.

Figure 4-1 Control panel

4.2 Typical Echo Sounder Display

Press the key to display the echo sounder picture.

Figure 4-2 Typical echo sounder display

4.3 Selecting the Range

The [RANGE] control selects the detection (display) range, in 15 settings. Select the range according to either the fish species being searched or the depth desired. Each time the control is operated the newly selected range briefly appears in large characters at the screen top. Range is permanently displayed at the top right-hand corner.

Normally the range is set so that the bottom is traced at the lower part of the screen.

Figure 4-3 Range concept

Default echo sounder mode range settings

U	n		i		t		1		2		3		4		5		6		7		8		9		1		0		1		1
Meters	10	20	30	40	60	80	100	120		160	200		250	300	400		500		600
Feet		30		60		90		120		150		200		250		300		400		500		600		800		1000		1500		2000

Note 1: Unit of range measurement may be selected for meters, feet, fathoms, passi/braza or Hiro (Japanese). For details see page 5-9.

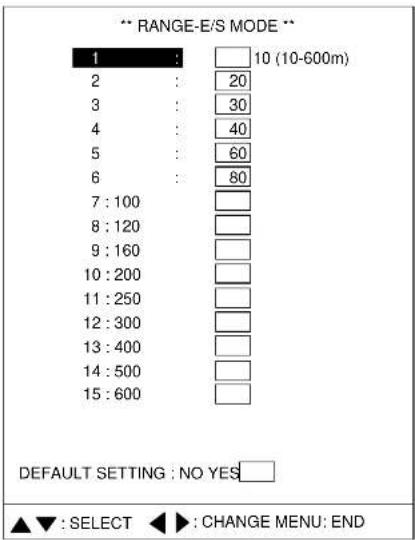

Note 2: Ranges may be freely preset as desired. For details see page 5-15.

1 2 1

4.4 Train Direction

The sounding beam may be directed toward fore, aft, port or starboard. Operate the [TRAIN] control to select sounding beam direction. Each setting on the control is an increment of 6^ . The train indicator at the top of the screen shows training direction: 0^ , fore direction; 90^ , starboard direction; 180^ , aft direction, and 270^ , port direction.

Train 0°

Train 90°

Train 180°

Train 270°

Figure 4-4 Train indicator and display

4.5 Selecting Tilt Angle

The transducer can pointed directly toward the bottom or forward of the ship. Operate the [TILT] control to select an appropriate tilt angle. The available tilt angle is 0^ (horizontal direction) to 90^ (vertical) in increments of 1^ . Selected tilt angle appears at the top of the display to the right of "T".

4.6 Selecting Picture Advance Speed

The picture advance speed determines how quickly the vertical scan lines run across the screen, from right to left. When selecting a picture speed, keep in mind that a fast advance speed will

4.7 Measuring Range by Cursor

Use the cursor to display the range from own ship to the cursor location. Use the Omnipad to place the cursor where desired. The range to the cursor appears at the upper left-hand corner of the screen.

Figure 4-4 How to measure range with the cursor

4.8 Event Marker

The event marker functions to mark important locations on the screen, and five event markers may be inscribed. Each time the [EVENT] key is pressed the "latest event marker" (⊕) is inscribed at the cursor location and all previously entered event markers are shown by the "previous event marker" (+). When the capacity for event markers is reached the eldest event marker is erased from the screen to make room for the latest.

Note 1: The event marker inscribed on the echo sounder display will also be inscribed on the horizontal and video plotter displays. However, the mark is always inscribed at own

4.8.1 Inscribing the event marker

1. Operate the Omnipad to place the cursor on the location desired for an event marker.
2. Press the [EVENT] key to inscribe the event marker.

To delete all event markers, place the cursor outside the display area and press the [EVENT] key.

Figure 4-5 How to inscribe, delete the event markers

4.8.2 Deleting all event markers

All event markers can be erased from the screen as follows:

1. Operate the Omnipad to place the cursor outside the display area.
2. Press the [EVENT] key to show the following dialog box. Do the next step within four seconds, otherwise the dialog box will be erased

4.9 Range Marker

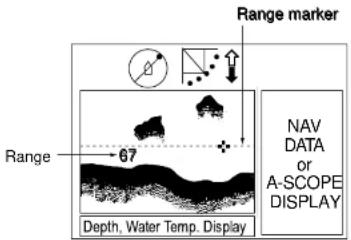

The range marker functions to measure the range to a target echo (fish school, bottom, etc.)

1. Operate the Omnipad to place the cursor on the location desired.
2. Press the [R/B] key to display the range marker. The range marker appears along with range indication.
3. To erase the range marker, press the [R/B] key again, or place the cursor on the range marker and press the [R/B] key.

Figure 4-6 Range marker

4.10 Adjusting the Picture

4.10.1 Displaying weak echoes clearly

Echoes from targets (such as the bottom or a fish) return to the transducer in order of the distance to them, and when their intensities are compared at the transducer face, those from nearer targets are generally stronger when their reflecting properties are nearly equal. The sonar

Figure 4-7 ES menu

1. Press ▲ or ▼ to select TVG DISTANCE and press ▶. The following dialog box appears.

1. Press ◀ or▶ to adjust TVG distance.

4.10.2 Finding echo strength (A-scope display)

The A-scope display shows echoes at each transmission with amplitudes and tone proportional to their intensities on the right 1/4 of the screen. It is useful for estimating the kind of fish school and bottom composition.

1. Press the [MENU] key.
2. Press ▲ to select MENU.
3. Press ◀ or ▶ to select ES.
4. Press ▼ to select A-SCOPE.
5. Press ◀ or ▶ to open the dialog box.

A-SCOPE

OFF ON

1. Press ▶ to select ON.
2. Press the [MENU] key to close the dialog box.

4.11 Echo Sounder Menu Overview

This section presents an overview of the items on the ES menu.

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU and then press ◀ or ▶ to select the ES menu.

Figure 4-9 ES menu

1. Press ▲ or ▼ to select item desired.
2. Press ▶ to show corresponding dialog box.
3. Press ◀ or ▶ to select option desired.
4. Press the [MENU] key to register your selection and close the menu.

A 44.4 Fake currency money description

RES. COLOR: Sets transfer characteristics of input signal level versus display echo level. Echo strength is emphasized in order of CUBE, SQUARE, LINEAR, LOG. You can see the characteristics of each by watching the color bar as you change the setting. The default setting is LOG.

LOG: Displays weak to strong echoes in their respective levels. This setting is suitable for general use.

LINEAR: Downplays the weak echoes when compared with LOG. Effective for suppressing weak echoes such as plankton.

SQUARE: Strong echoes are emphasized more than in LINEAR.

CUBE: Strong echoes are emphasized even more than in SQUARE.

A-SCOPE: Turns the A-scope display on/off. Default setting is OFF. See paragraph 4.10.2 on page 4-9.

This page is intentionally left blank.

5. MENU OPERATION

This chapter provides menu operating information on menus not previously discussed: COMN (Common) menu, PRESET (or SHORT-CUT, depending on the setting of CUSTOM KEY on the SYSTEM SETTING 1 menu) and SYS (System) menu.

5.1 COMN Menu

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU, and then press ◀ to select COMN.

Figure 5-1 COMN menu

1. Press ▲ or ▼ to select item; ◀ or ▶ to open associated dialog box.

5.1.1 COMN menu description

WHITE MARKER: Displays desired echo in white. It is useful for discriminating bottom fish from the seabed. The setting range for the 8-color display is OFF, 1-7, and for the 16-color display, OFF, 1-15. The default setting is "0."

SIG LEVEL: Dirty water or reflections from plankton may be painted on the screen in green or light-blue. These weak echoes may be erased in order of strength with SIG LEVEL. Select the signal level to erase with the Omnipad. The setting range for the 8-color display is OFF, 1-6, and for the 16-color display, OFF, 1-14. The default setting is "OFF."

COLOR: Selects 8- or 16-color display. The default setting is 16.

BKGD COLOR: Selects color of background, text and menu in choices 1, 2 and 3. The default settings for each choice is as below. The default background color arrangement is BKGD2.

BKGD COLOR Background Text Menu
1 Black Gray Dark-blue
2 Dark-blue White	Medium blue
3 White Black	Gray

TX POWER: Selects transmitter output power to maximum or minimum. The default setting is "maximum." For further details see page 2-12.

PULSELENGTH: Selects pulselength to short or long (default setting). For details see paragraph 2.11.2 on page 2-13.

TX RATE: The Tx rate may be set between 1-10 (default setting: 10) in the case of the internal transmitter, or an external synchronous signal may be used. The higher the number the greater the number of transmissions. For operation in shallow waters, select the Tx rate which displays the second reflection from the bottom between the sea surface and bottom. For use of an external video sounder or sensor, select EVT.

5.2 Short-cut Menu, Preset Menu

These menus program the CUSTOM MODE keys [1], [2] and [3], and one of the menus appears according to the setting of CUSTOM KEY on the SYSTEM SETTING 1 menu.

Short-cut key: One-touch activation of corresponding dialog box. This is the default setting. Preset key: One-touch setup of mode, sector, train, range, tilt and speed controls. Below are the default settings for PRESET.

CUSTOM MODE key Display Mode Sector Train Range (m)* Tilt Speed
Key 1 Expanded Horizontal	240°	0°	250	30°	Fast
Key 2 Horizontal	360°	0°	250	30°	Fast
Key 3 Vertical Fan	180°	90°	120	90°	Fast

* - Default range for 60 kHz transducer. Default range changes with transducer.

5.2.1 Selecting short-cut or preset

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU, and then press ▶ to select SYS.

Figure 5-2 Display for opening system menu

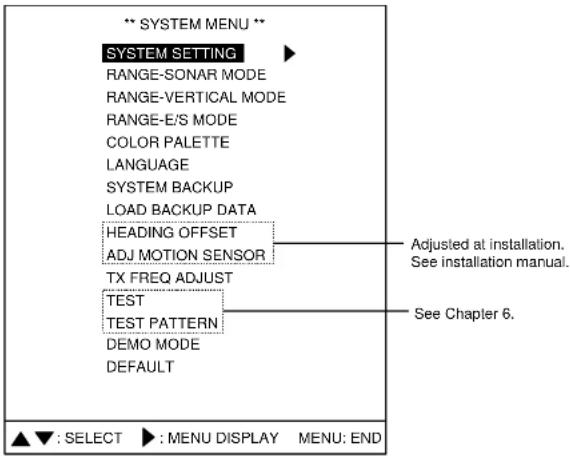

Figure 5-3 System menu

1. Press ▶ to open the SYSTEM SETTING menu.

5.2.2 Preset key

1. Select PRESET KEY following the procedure in paragraph 5.2.1 on page 5-3.
2. Press the [MENU] key to open the menu.
3. Press ▲ to select MENU, and then press ◀ or ▶ to select PRESET.

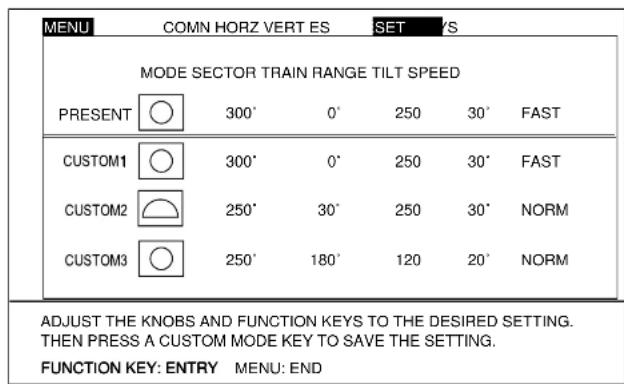

Figure 5-5 PRESET menu

1. Set the [MODE], [SECTOR], [TRAIN], [RANGE], [TILT] and [FAST SCAN] controls according to target fish or fishing area.
2. Press the CUSTOM MODE keys [1], [2] or [3] to program. You are asked if you want to save the settings to the custom key pressed. (In the example, the custom key [1] was pressed.)

5.2.3 Short-cut key

The default settings are key [1], interference rejector; key [2], signal level, and key [3], background color. The operator may change their functions as desired.

Note: In the combination modes the short-cut key operation is only possible from the main window.

1. Select SHORT-CUT following the procedure in paragraph 5.2.1 on page 5-3.
2. Press the [MENU] key to open the menu.
3. Press to select MENU, and then press or to select SHORT-CUT.

MENU COMN HORZ VERT ES SYS

IR SIG LEVEL BKGD WHITE MARKER COLOR RES.COLOR TRACK

KEY 2 IR SIG LEVEL BKGD WHITE MARKER COLOR RES.COLOR TRACK

KEY 3 IR SIG LEVEL BKGD WHITE MARKER COLOR RES.COLOR TRACK

SELECT FUNCTION TO BE ALLOCATED TO EACH CUSTOM KEY. CUSTOM KEY MAY BE USED AS A PRESET KEY.

: SELECT : CHANGE MENU: END

Figure 5-6 SHORT-CUT menu

1. Press or to select key to preset. For example select KEY 1.
2. Press or to select item.

5.3 SYS Menu

This menu provides items which may be set according to operator's preference. A demonstration mode is provided to acquaint you with the many functions of this equipment, and it may be used without connection of the transducer.

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU, and then press ▶ to select SYS.
3. Press ▼ to select GO TO SYS MENU.
4. Press ◀ to select YES.

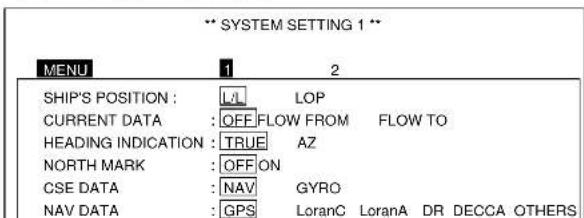

SYSTEM SETTING 1 menu

1. Display the SYSTEM menu and press ▲ or ▼ to select SYSTEM SETTING.
2. Press ▶.
3. Press ▲ to MENU.
4. Press ◀ to select "1."

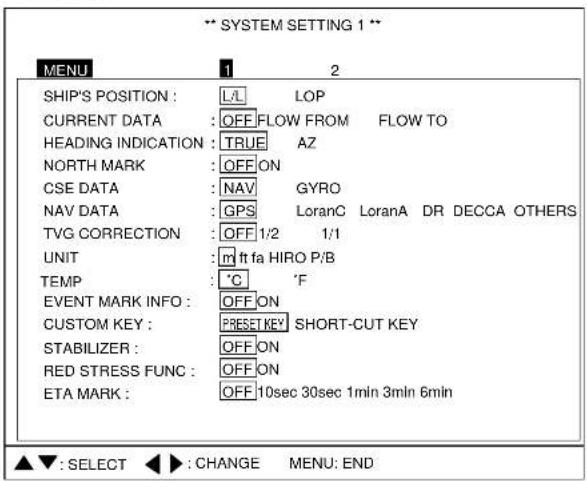

Figure 5-8 System setting 1 menu

HEADING INDICATION: Selects heading indication format, true (default setting) or azimuth, for the echo sounder and vertical fan modes. The default setting is TRUE. Requires heading data.

NORTH MARK: Turns the north marker on or off (default setting). Requires heading data.

CSE DATA: Selects heading data source, navigator or gyrocompass, to draw ship's track. The default setting is navigator. For heading sensor or gyrocompass connection, choose gyrocompass.

NAV DATA: Selects source of position data, GPS, Loran C, Loran A, DR (Dead Reckoning), Decca or Others (for equipment not shown, receives talker only). Default setting is GPS.

TVG CORRECTION: Changes TVG curve to compensate for attenuation absorption of ultrasonic wave in water. OFF (default setting), standard TVG curve; 1/2, 1/2 of the theoretical absorption value added to TVG curve, and 1/1, full theoretical absorption value added to TVG curve.

UNIT: Selects unit of depth measurement: meters (default setting), feet, fathoms, passi/braza, Hiro.

TEMP: Selects unit of water temperature measurement: °C (default setting), °F.

EVENT MARK INFO: Turn on to output event marker position to external equipment. Requires heading and latitude and longitude data from external equipment. Default setting is OFF.

CUSTOM KEY: Selects function of custom mode keys: preset (default setting) or short-cut. For details see paragraph 5.2 on page 5.3.

STABILIZER: Select ON (default setting) to compensate for effects of ship's pitching and rolling. Requires motion sensor.

RED STRESS FUNC: Turn on to stretch strongest strength echo in range direction. Default setting is OFF.

ETA MARK: A vector line extends from the own ship marker in direction of ship's bow on the

SYSTEM SETTING 2 menu description

Figure 5-11 System setting 2 menu

AUTO RETRACTION: Turn on to automatically retract the transducer when ship's speed exceeds the speed set here. The ship's speed range for automatic retraction is from 5 to 15 knots. The default setting is OFF (no automatic retraction). Requires speed input.

Note: The transducer may be retracted at a speed other than the intended one when ship's speed data is erroneous.

SPEED ALARM MESSAGE: Turn on (default setting) to display speed alarm message and sound the audio alarm when ship's speed exceeds allowable speed for a given transducer operation. The audio alarm can be silenced with the [R/B] key.

[1] pressed to lower transducer
Speed above 15 kts	Message 1 appears. Reduce speed below 15 kts to restore normal operation.
Transducer being lowered
Speed over 15 kts Message 1 appears and lowering continues.
Transducer lowered
Speed above 20 kts	Message 2 appears accompanied with the aural alarm. Reduce the speed below 20 kts to restore normal operation.
[·] pressed to raise transducer
Speed above 15 kts	Message 1 appears accompanied with the aural alarm. Transducer is not raised. Reduce the speed below 15 kts to erase the message and restore normal operation. Then, press [·] again to raise the transducer.
Transducer being raised
Speed above 15 kts	Message 1 appears and raising continues. Reduce the speed below 15 kts to erase the message and restore normal operation.

SHIPS SPEED

EXCEEDS 15 kt.

(SLOW DOWN UNDER 15 kt WHEN

MOVING TRANSDUCER UNIT.)

PRESS R/B KEY TO SILENCE ALARM.

TRANSDUCER REMAINS

LOWERED.

(REDUCE SHIP'S SPEED AND PRESS

- TO RETRACT IT.)

PRESS R/B KEY TO SILENCE ALARM.

DEFAULT SETTING: Select YES and press the [MENU] key to restore all default system menu settings. Several beeps sound while default settings are being restored and then normal operation is restored.

Figure 5-12 FACTORY SETTING menu

5.3.2 Sonar (horizontal) mode range settings

The user may preset horizontal mode ranges as desired.

1. Select RANGE-SONAR MODE at the SYS menu and then press ▶.

Figure 5-13 Range-sonar mode menu

1. Drop - 1 or 2 to select range numbers desired

5.3.3 Vertical fan mode range settings

As with the horizontal mode, the user may preset the vertical fan mode's ranges.

1. Select RANGE-VER MODE at the SYS menu and then press ▶.

5.3.4 Echo sounder mode range settings

As with the horizontal and vertical fan modes, the user may preset the echo sounder mode's ranges.

1. Select RANGE-E/S MODE at the SYS menu and then press ▶.

The color palette lets the user change the color of echoes, background, text and menu as desired.

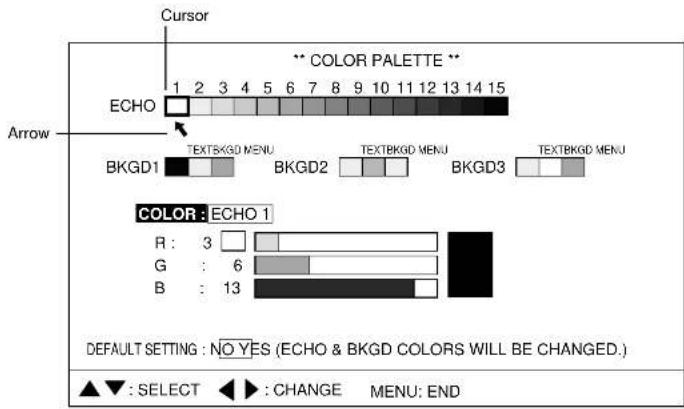

Figure 5-16 Color palette

1. Press ◀ or ▶ to place the cursor and arrow on the item to change. Pressing ▶ shifts the arrow and cursor from left to right and top to bottom.
2. Press ▲ or ▼ to select R(red), G(green) or B(blue) as appropriate.
3. Press ◀ or ▶ to adjust color.
4. Press the [MENU] key to register your settings and close the menu.

5.3.6 Language

Menu language can selected to English or Japanese and the default language is English.

Figure 5-17 Language menu

5.3.7 System backup

User settings can be backed up with the menu item SYSTEM BACKUP.

Figure 5-18 System backup menu

5.0.01 leading bootwin data

5.3.9 Transducer frequency adjustment

If the CH-250 is receiving interference from a video sounder or other sonar on board your ship, adjust the frequency of the CH-250's transducer to reduce the interference.

Figure 5-20 TX frequency adjustment menu

5.3.10 Demonstration mode

The demonstration mode provides a simulated sonar picture which helps you become acquainted with how your sonar works. Connection of the transducer is not required. All controls are operational.

1. Display the SYS menu.
2. Select DEMO MODE.
3. Press ▶ to open the menu.

5.3.11 Restoring all default settings

The item DEFAULT lets you restore all default menu settings. Select YES and press the [MENU] key to restore all default settings. Note that settings stored in SYSTEM BACKUP are not disturbed.

Figure 5-22 Default menu

CAUTION

All default settings will be restored.If necessary jot down settings which must be restored.

This page is intentionally left blank.

6. MAINTENANCE, TROUBLESHOOTING

This chapter provides information necessary for keeping the equipment in good working order.

WARNING

Do not open the equipment.

Hazardous voltage which can cause electrical shock exists inside the equipment. Only qualified personnel should work inside the equipment.

6.1 Preventive Maintenance

Check the following points monthly.

• Check all cables. If damaged, replace.
• Check connectors at rear of each unit. Clean if necessary.
• Check earth of each unit. Clean if necessary.
• Check voltage of ship's mains to be sure it is within the equipment's power rating.

6.2 Cleaning the Equipment

Dust or dirt can be removed from the equipment with a soft, dry cloth. Do not use chemical cleaners to clean the equipment – they can remove paint and markings.

For screen, wipe the LCD carefully to prevent scratching, using tissue paper and an LCD

6.3 Hull Unit Maintenance

6.3.1 Lubrication

Grease the raise/lower screw shaft once a year. Also, grease the raise/lower main shaft (upper part of the grease cotton retainer) twice a year. These parts can be accessed by removing the raise/lower drive assembly cover.

6.3.2 Manually raising, lowering transducer

WARNING

Turn off the power at the ship's mains switchboard before conducting the procedure below.

Rotating motor can cause bodily injury.

1. Turn off the breaker on the hull unit.
2. Set 19 mm ratchet wrench to nut and turn.
3. Check that the transducer raises and lowers smoothly, from the upper to the lower limit positions. If the transducer cannot be raised smoothly, do not use excessive force; the shaft may bend, causing damage to other components.
4. Check soundome and tank. Remove marine life with fine sandpaper or piece of wood.

Simple line drawing of a 3D rectangular prism with an angle and corner label (no text or symbols)

6.4 Transducer Maintenance

When the ship is dry-docked remove marine growth from the transducer with fine sandpaper or a piece of wood.

CAUTION

Do not paint the transducer face.

Loss of sensitivity will result.

Do not use plastic solvents to clean the transducer.

They can damage the transducer.

6.5 Fuse Replacement

The fuse in the hull and transceiver units protect them from overvoltage, equipment fault and reverse polarity of the ship's mains. If the power cannot be applied first check the power cable between the transceiver unit and the display unit. If the power still cannot be applied, the fuse in the transceiver unit may have blown. Have a suitably qualified technician check the fuse.

CAUTION

Use the proper fuse.

Use of a wrong fuse can cause fire or equipment damage.

6.6 Troubleshooting

The table below provides common symptoms of equipment troubles and the means to rectify them.

Symptom	Check,	Remedy
Cannot turn on the power.	Check cable between transceiver unit and display unit.Check ship's mains.Have a suitably qualified technician check the fuse in the transceiver unit.
Bottom echo becomes irregular.	Rough seas. Distance to the bottom changes due to rolling and pitching.Long range selected. Transmission period is longer so ship's pitching and rolling are apt to affect detection of echo.
Weak echo	Output power set to minimum. Set to maximum, on the COMN menu.Excessive TVG. Readjust TVG on the appropriate menu (HORZ. VERT, ES). Note that readjustment of TVG is necessary when gain is adjusted.
Somewhat strange color	[BRILL] key setting too low. Increase brightness with [BRILL] key.
Picture contains noise.	Equipment not grounded properly. Check equipment ground.Power cable is too close to the signal cable. Relocate power cable or signal cable.Debris may be on sea surface. Reject unwanted noise with the interference rejector on the COMN menu.
Picture does not change when tilt angle is changed. (Bottom is not displayed in vertical fan picture when bottom is flat.)	Problem in tilt mechanism or control line. Contact a FURUNO agent or dealer for advice.

6.7 Error Messages

The table below shows the error messages which may appear on the display. All error messages are accompanied by an audio alarm, which you may silence with the [R/B] key.

Message Meaning, Remedy
Hull Unit
HULL UNITPOWER OFF(CHECK BREAKER AND FUSE.)PRESS R/B KEY TO SILENCE ALARM.	Hull unit is not powered. Silence the audio alarm with the [R/B] key, and then turn on the hull unit to erase the message and restore normal operation.
RAISE/LOWER FUNCTION HAS NOT BEEN COMPLETED.CHECK IF THE BREAKER AT THE HULL UNIT HAS BEEN ACTIVATED.MAXIMUM ALLOWABLE SPEED IS 15 KNOTSWHILE SOUNDOME IS BEING RETRACTED.PRESS R/B KEY TO SILENCE ALARM.	You attempted to raise or lower the transducer when the ship's speed is above 15 knots or the breaker on the hull unit tripped. Check the breaker and lower the ship's speed below 15 knots to execute function desired.
Frequency Code Error
FREQUENCY CODE ERROR(CHECK TRANSCEIVER UNIT.)PRESS R/B KEY TO SILENCE ALARM.	CPU does not receive frequency flag from transducer. Silence the audio alarm with the [R/B] key, and then check the transceiver unit.
Train Error
TRAIN NG CPU does not receive heading signal. Check source of heading signal.
Excessive Speed
SHIPS SPEED EXCEEDS 15 kt.(SLOW DOWN UNDER 15 kt WHEN MOVING)	See page 5-11 for details.

6.8 Diagnostics

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU, and then press ▶ to select SYS.
3. Press ▼ to select GO TO SYS MENU.
4. Press ◀ to select YES.

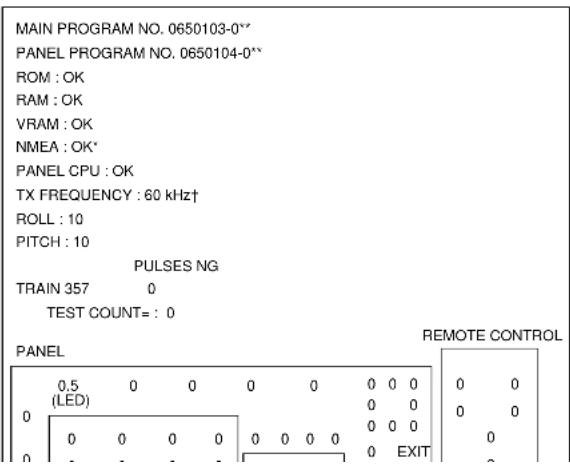

5. Select TEST and press ▶ to start the test. The lamps above the XDR switches light alternately for one second while the test is being conducted. In a few moments the results of the test appear.

• TRAIN shows a figure between 355-359 if normal. NG appears in case of train error.
• TEST COUNT shows the number of times the test has been consecutively executed.
• At the bottom of the screen there are two major groups of zeroes (0), and they represent the keys and controls on the control panel and remote controller. Press a key and its on-screen location shows "1" while the key is pressed and "0" when it is released. Operate a control and its on-screen location changes as below. When the [GAIN] control is operated the panel dimmer increases or decreases with adjustment of the control.

GAIN control: Shows 0-127.

Other controls: Shows 0-19.

To quit the test, press the [MENU] key three times.

6.9 Test Pattern

A test pattern can be displayed to check for proper display of colors.

1. Press the [MENU] key to open the menu.
2. Press ▲ to select MENU, and then press ▶ to select SYS.
3. Press ▼ to select GO TO SYS MENU.
4. Press ◀ to select YES.
5. Select TEST PATTERN and press ▶ to display the test pattern. Press ▶ again to change the test pattern. The pattern changes in the sequence shown below with each press of ▶.


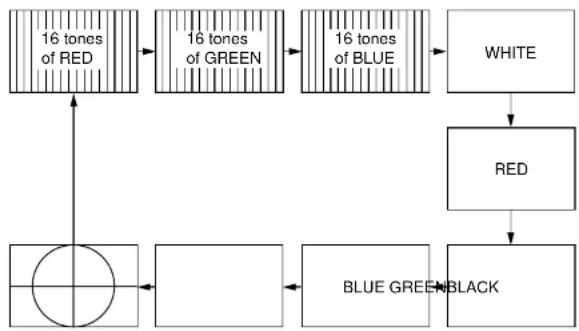

Figure 6-3 Test pattern

To quit the test pattern, press the [MENU] key three times.

MENU TREE

[MENU] key

[MENU] key

SYSTEM menu

SYSTEM SETTING (See next page.)

RANGE-SONAR MODE (all default ranges)

60 kHz (min. range: m, 10; ft, 40 ft; fa, p/b, hiro, 5, max. range: m, 1600; ft, 5000; fa, 800: p/b, hiro, 1000)

88 kHz (min. range: m, 10; ft, 40 ft; fa, p/b, hiro, 5, max. range: m, 1600; ft, 4000; fa, 700; p/b, 800; hiro, 900)

150 kHz (min. range: m, 10; ft, 40 ft; fa, p/b, hiro, 5, max. range: m, 1000; ft, 3500; ta, 700; p/b, hiro 700)

180 kHz (min. range: m, 10; ft, 40 ft; fa, p/b, hiro, 5, max. range: m, 800; ft, 2500; fa, 500; p/b, 600, hiro 700)

240 kHz (min. range: m, 10; ll, 30 ll; la, p/b, hiro, 5, max. range: m, 600; ll, 2000; fa, p/b, hiro, 400)

RANGE-VER MODE (all default ranges)

m: 10, 20, 30, 40, 60, 80, 100, 120, 160, 200, 250, 300, 400, 500, 600

ft: 30, 60, 90, 120, 150, 200, 250, 300, 400, 500, 600, 800, 1000, 1500, 2000

fa, P/B: 10, 20, 30, 40, 50, 60, 80, 100, 120, 140, 160, 200, 250, 300, 400

Hiro: 10, 20, 30, 40, 50, 60, 80, 100, 120, 140, 160, 200, 250, 300, 400

RANGE-E/S MODE (all default ranges)

m: 10, 20, 30, 40, 60, 80, 100, 120, 160, 200, 250, 300, 400, 500, 600

ft: 30, 60, 90, 120, 150, 200, 250, 300, 400, 500, 600, 800, 1000, 1500, 2000

fa, P/B: 10, 20, 30, 40, 50, 60, 80, 100, 120, 140, 160, 200, 250, 300, 400

Hiro: 10, 20, 30, 40, 50, 60, 80, 100, 120, 140, 160, 200, 250, 300, 400

COLOR PALETTE (Adjusts color of echoes, text and background.)

LANGUAGE (ENGLISH, JAPANESE)

SYSTEM BACKUP (NO, YES)

LOAD BACKUP DATA (NO, YES)

HEADING OFFSET (-30° - +30°, 0)

ADJ MOTION SENSOR (ROLL ANGLE: -10° - -10°, 0; PITCH ANGLE: -10° - +10°, 0)

TX FREQ ADJUST (60 kHz: 57 - 63 kHz, 60 kHz: 88 kHz: 83 - 93 kHz, 88 kHz: 150 kHz: 142 - 158 kHz; 150 kHz: 180 kHz: 171 - 189 kHz, 180 kHz: 240 kHz: 228 - 252 kHz, 252 kHz)

TEST (Checks equipment for proper operation.)

TEST PATTERN (Displays series of test patterns.)

SYSTEM SETTING 1

SHIP'S POSITION (L/L, LOP)
CURRENT DATA OFF. FLOW FROM, FLOW TO)
HEADING INDICATION (TRUE. AZ)
NORTH MARK (OFF, ON)
CSE DATA (NAV, GYRO)
NAV DATA (GPS LoranC. LoranA. DR, DECCA, OTHERS)
TVG CORRECTION (OFF, 1/2, 1/1)
UNIT (m, ll, la, HIRO, P/B)
TEMP(°C,°F)
EVENT MARK INFO (OFF, ON)
CUSTOM KEY (PRESET KEY, SHORT-CUT KEY)
STABILIZER (OFF,ON)
RED STRESS FUNC (OFF, ON)
ETA MARK (OFF, 10sec, 30sec, 1min, 3min, 6min)

SYSTEM SETTING 2

AUTO RETRACTION (OFF, ON(5-15 kts))
SPEED ALARM/MESSAGE (OFF, ON)
SOUNDOME SER.NO. (\~999, 1000-)
DEFAULT SETTING(NO, YES)

SPECIFICATIONS OF 10.4 INCH COLOR SEARCHLIGHT SONAR CH-250

1 GENERAL

1.1 Display System 10.4 inch Color LCD

1.2 Transmit Frequency 60, 88 or 150 kHz selected

1.3 Output Power 0.8 kW (60 kHz) to 1.2 kW (150 kHz)

1.4 Range (factory setting)

Range	Detection Range (m) [H: horizontal mode, V: vertical fan mode]
	60 kHz		88 kHz		150 kHz
	H	V	H	V	H	V
1	10	10	10	10	10	10
2	20	20	20	20	20	20
3	40	30	40	30	40	30
4	80	40	80	40	60	40
5	120	60	120	60	80	60
6	160	80	160	80	120	80
7	200	100	200	100	160	100
8	250	120	250	120	200	120
9	300	160	300	160	250	160
10	400	200	400	200	300	200
11	500	250	500	250	400	250
12	600	300	600	300	500	300

2.9 Audio Monitor 2 W output (4 ohms), Freq. 1.0 kHz (external speaker required)
2.10 Event Mark 5 points
2.11 Hue Low level enhanced echo disappeared
2.12 Red Color Enhancement Strong echo indicated as expanded to range direction
2.13 Arrival Mark Vector estimated point after 10 seconds to 6 min. (menu setting)
2.14 Target Lock (three function selected on menu)

Scanning Reverse Scanning orientation changed by pressing key

Location Search Auto-search for marker setting location

Echo Search Auto-search for signal level in a search zone,

or manual echo search

3 TRANSCEIVER UNIT

3.1 Frequency 60/88/150 kHz, Auto-setting according to Hull Unit Specs.
3.2 Output Power 0.8-1.2 kW (due to frequency), power reduction function available
3.3 Output Pulse Length 0.2 to 20.0 ms, according to range
3.4 TVG Level: 100 dB max., Distance: 1000 m

4 HULL UNIT

4.1 Transducer Travel 400 mm or 250 mm
4.2 Raise/lower Time 30 s at 400 mm travel
4.3 Ship's Bow Setting Setting offset on menu at installation within ±30^
4.4 Horizontal Mode Control

Scanning Angle 6° to 360°, 24° step

Scanning Center 6° steps, 360° setting available

Scanning Angle 6° to 180°, 12° step

Scanning Center 0° to 180°, 6° step

Scanning Step Angle Normal: 3°, High speed: 6°

Time to Train 360°, 6° step

4.7 Transceiver Beam Width (-3 dB)

Frequency Vertical Horizontal

60 kHz: 12° 15°

88 kHz: 9.5° 11.5°

150 kHz: 6.5° 6.5°

4.8 Allowable Ship's Speed 20 knot or less (15 knot during raise/lower operation)
4.9 Stabilizer Within 30°, optional motion sensor or clinometers required

5 I/O INTERFACE

5.1 Data format IEC61162-1 (NMEA0183 Ver 1.5/2.0)
5.2 Input DBS, DBT, DPT, GGA, GLL, HDG, HDM, HDT, MDA, MTW, RMA, RMC, VDR, VHW, VTG
5.3 Output SSTLL

6 POWER SUPPLY

6.1 Display Unit/ Control Unit/ Transceiver Unit
12-32 VDC: 4.7-1.8 A, within 58 VA
6.2 Hull Unit 12/24-32 VDC: 4.7/2.3-1.8 A, within 58 VA
Max. 16.7/8.2-7.7 A, within 200-246 VA
6.3 Rectifier (option) 110/220 VAC, 13 A, 1 phase, 50/60 Hz

7 ENVIRONMENTAL CONDITION

INDEX

A

AGC 2-22

A-scope display 4-9

Audio level....2-22

Automatic tilt....2-22

B

Background color....5-2

Backup data

loading 5-17

saving 5-17

Bearing marker.... 2-11

BRILL control....1-5

C

Color palette 5-16

COMN menu....5-1

Control description....1-1

Course data....5-9

Current (tide) data 5-8

Cursor data

echo sounder mode.... 4-5

horizontal mode....2-9

selection of function....5-3

short-cut function....5-6

Event marker

deleting from echo sounder mode...... 4-6

deleting from horizontal mode....2-11

deleting from vertical fan mode.... 3-9

inscribing from echo sounder mode...... 4-6

inscribing from horizontal mode 2-10

inscribing from vertical fan mode 3-8

output on/off 5-9

Expanded horizontal mode 2-16

F

FAST SCAN key

echo sounder mode.... 4-4

horizontal mode.... 2-9

vertical fan mode.... 3-7

FULL/HALF key

horizontal mode.... 2-4

Heading indication.... 5-9

History display.... 2-28

Horizontal range marker (vertical fan mode)... 3-9

HORZ menu 2-21

Hull unit maintenance....6-2

P

Position display format 5-8

POWER switch....1-3

PRESET menu 5-5

Pulselength....2-13

R

R/B key

echo sounder mode....4-7

horizontal mode.... 2-11

presetting for echo sounder mode...... 5-15

presetting for horizontal mode.... 5-13

presetting for vertical fan mode.... 5-14

Remote controller 1-2

Resolution color

echo sounder mode.... 4-11

horizontal mode....2-22

TARGET key 2-17 - 2-19

Target lock

echo mode.... 2-19

manual reverse mode 2-17

position mode.... 2-18

selection of mode.... 2-17

Test pattern.... 6-8

TILT control

echo sounder mode.... 4-4

horizontal mode.... 2-5

Transducer (XDR) switches 1-3

Transmitter output power 2-12

Troubleshooting.... 6-4

TVG

echo sounder mode.... 4-7

horizontal mode.... 2-13
