| Product Type | Hardware Firewall (Unified Threat Management) |
| Brand | WatchGuard |
| Model | Firebox T10 + 3Y Total Security Suite (UK) |
| Processor | Power Architecture Single Core |
| Flash Memory | 512 MB |
| RAM | 512 MB |
| Power Supply | 12V DC, 1.25A |
| Depth | 15.2 cm (6") |
| Width | 19 cm (7.5") |
| Height | 3.2 cm (1.25") |
| Weight | 0.23 kg (0.5 lbs) |
| Network Interfaces | 3 x GbE RJ45 (10/100/1000 Mbps) |
| Package Contents | Firebox T10 device, Quick Start Guide, AC adapter, Ethernet cable |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% - 85% non-condensing |
| Included Subscription | 3-Year Total Security Suite |
| Security Features | UTM, Fireware OS, VPN, IPS, Anti-malware, WebBlocker, Reputation Enabled Defense |
| Certifications | FCC Part 15 Class B, CE, UL, CSA, EN60950-1 |
| Warranty | 1-Year Limited Hardware Warranty |
Frequently Asked Questions - Firebox T10 + 3Y Total Security Suite (UK) WatchGuard
User questions about Firebox T10 + 3Y Total Security Suite (UK) WatchGuard
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hardware firewall in PDF format for free! Find your manual Firebox T10 + 3Y Total Security Suite (UK) - WatchGuard and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Firebox T10 + 3Y Total Security Suite (UK) by WatchGuard.
USER MANUAL Firebox T10 + 3Y Total Security Suite (UK) WatchGuard
Copyright and Patent Information
Copyright© 1998–2014 WatchGuard Technologies, Inc. All rights reserved.
WatchGuard, the WatchGuard logo, LiveSecurity, Firebox, and any other mark listed as a trademark in the "Terms of Use" portion of the WatchGuard Web site that is used herein are either registered trademarks or trademarks of WatchGuard Technologies, Inc. and/or its subsidiaries in the United States and/or other countries. All other trademarks are the property of their respective owners.
Printed in the United States of America.
Part Number: 275-4725-001 Rev E
Revised: August 9, 2016
U.S. Patent Nos. 6,493,752; 6,597,661; D473,879. Other Patents Pending.
Complete copyright, trademark, patent, and licensing information can be found in the WatchGuard product documentation. You can find this document online at: http://www.watchguard.com/help/documentation/
Notice to Users
Information in this guide is subject to change without notice. Updates to this guide are posted at:
http://www.watchguard.com/help/documentation/hardware.asp
Companies, names, and data used in examples herein are fictitious unless otherwise noted. No part of this guide may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of WatchGuard Technologies, Inc.
Hardware Specifications
WatchGuard security appliances deliver unparalleled unified threat management, superior performance, ease of use, and value. Powerful subscription-based security services boost protection in critical attack areas for multiple layers of defense.
This guide introduces the WatchGuard Firebox T10, a RoHS-compliant (lead-free) hardware product. The Firebox T10 is recommended for small office/home office and small retail environments.
Fireware OS
The Firebox T10 device uses WatchGuard's next generation UTM OS—Fireware OS. Each Firebox T10 device includes Fireware OS and delivers exceptional protection against today's sophisticated threats to make sure that your business stays connected. For more information on the features of Fireware, see the current Fireware Help.
Hardware Specifications
Package Contents
■ Firebox T10 device
Quick Start Guide
■ AC adapter (12V/1.25A)
■ 1 straight-through Ethernet cable
Hardware Description
Hardware Specifications
Processor Power Architecture® Single Core
Memory: Flash 512 MB
Memory: RAM 512 MB
Power supply 12V/1.25A
Dimensions D = 15.2 cm (6") W = 19 cm (7.5") H = 3.2 cm (1.25")
Weight 0.5 lbs (.23 kg)
Interface Specifications
Network interfaces 3 GbE Copper RJ45, 1000 Base TX (10/100/1000Mbps) (Firebox T10 and Firebox T10-W)
Front View
Fail Over
The Fail Over indicator is lit when there is a WAN failover from the primary external interface to the backup interface. After the external interface connection fails back to the primary external interface, the indicator is not lit.
WAP (Firebox T10-W only)
On the Firebox T10-W, the WAP indicator is lit when the appliance is activated as a wireless access point or a wireless client. The color indicates the active wireless radio band..
| Indicator Indicator color Wireless Band |
| WAP Yellow 2.4 GHz radio band |
| Green 5 GHz radio band |
Ethernet interface status indicators
Firebox T10 and Firebox T10-W devices have three Ethernet interfaces labeled 2, 1, 0. A Firebox T10-D, has two Ethernet Interfaces labeled 2 and 1. There are two status indicators for each interface.
| Indicator Indicator color Interface Status |
| 1000 Yellow Link speed: 1000 Mbps |
| Blinks * Data sent and received |
| 10/100 Green Link speed: 10 Mbps or 100 Mbps |
| Blinks * Data sent and received |
Power (↓)
The power indicator is lit when the device is on.

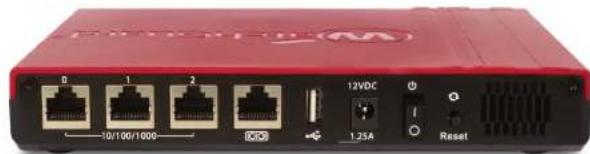

Rear View
Firebox T10 or Firebox T10-W:
Ethernet interfaces have standard RJ45 connectors and are labeled 0, 1, and 2. On a Firebox T10-D, these are labeled 1 and 2. All Ethernet interfaces support link speeds of 10, 100, or 1000 Mbps.
DSL interface
On a Firebox T10-D, the DSL interface is labeled interface 0. The DSL interface supports all VDSL2 profiles (8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a) and all ADSL standards (ADSL1/2/2+). The Firebox T10-D supports PPPoE over Ethernet (PPPoE) only. It does not support PPP over ATM (PPPoA).
AC Power Adapter
The AC power adapter supplies power for the Firebox device. The power adapter included with your device is compatible with the region for which it was purchased.
Environmental Requirements
To safely install your Firebox device, we recommend that you:
- Install it indoors.
- Put it in a secure area, such as a locked room, to block the device from people who do not have permission to use it
- Connect it to a conditioned power supply to prevent damage from sudden power changes
Other environmental requirements:
Operating temperature 0 - 40°C (32 - 104°F)
Operating relative humidity 10% - 85% non-condensing
Non-operating temperature -40 - 70^ (-40 - 158°F)
Non-operating relative humidity 10% – 95% non-condensing
Restore Factory Default Settings
If you have a problem in your configuration file that you cannot correct, you can restore the factory default settings and start from a new configuration file. For example, if you do not know the administrator account passphrase, or if a power interruption causes damage to the Fireware XTM OS, you can restore the Firebox device to the factory default settings and build your configuration again.
Safety Notices
All WatchGuard products are designed and tested to meet strict safety requirements. These requirements include product safety approvals and other global compliance standards. Read these instructions carefully before you operate the product, and refer to them as needed for continued safe operation of your product.
Product Safety Certification
The WatchGuard product is safety certified for these standards:
Firebox T10, Firebox T10-W
■ CAN/CSA C22.2 No.60950-1-07+A1:2011
■ UL 60950-1:2007 R12.11
■ EN 60950-1:2006+A11+A1+A12 (2nd Edition)
■ IEC 60950-1:2005 (2nd Edition)+A1:2009
Firebox T10-D
■ EN 60950-1:2006+A11+A1+A12 (2nd Edition)
Safety Warning
- Do not place objects on the power cord.
- Do not obstruct the ventilation openings. These openings prevent overheating of the device.
- Never push objects of any kind into slots or openings on this equipment. If you make contact with a voltage point or short out a part, it can result in fire or electrical shock.
- When you remove or install a device, follow the general installation safety instructions provided in this Hardware Guide to avoid Injury or damage to the device.
- The lithium battery used in the security appliance may not be replaced by the user. Return the appliance to a WatchGuard authorized service center for replacement with the same or equivalent type recommended by the manufacturer. If, for any reason, the battery or security appliance must be disposed of, do so following the battery manufacturer's instructions.
Hardware Specifications
Legal and Regulatory Information
Limited Hardware Warranty
This Limited Hardware Warranty (the "Warranty") applies to the enclosed hardware product, not including any associated software, which is licensed pursuant to a separate end-user license agreement and warranty (the "Product"). BY USING THE PRODUCT, YOU (either an individual or a single entity) AGREE TO THE TERMS HEREOF. If you do not agree to these terms, please return this package, along with proof of purchase, to the authorized dealer from which you purchased it for a full refund. WatchGuard Technologies, Inc. ("WatchGuard") and you agree as set forth below or on the reverse side of this card, as applicable:
- LIMITED WARRANTY. WatchGuard warrants that upon delivery and for one (1) year thereafter (the "Warranty Period"): (a) the Product will be free from material defects in materials and workmanship, and (b) the Product, when properly installed and used for its intended purpose and in its intended operating environment, will perform substantially in accordance with WatchGuard applicable specifications.
This warranty does not apply to any Product that has been: (i) altered, repaired or modified by any party other than WatchGuard except for the replacement or inclusion of specified components authorized in, and performed in strict accordance with, documentation provided by WatchGuard; or (ii) damaged or destroyed by force majeure events, accidents, power spikes or similar events, or by any intentional, reckless or negligent acts or omissions of any party. You may have additional warranties with respect to the Product from the manufacturers of Product components. However,
OBLIGATION, LIABILITY, RIGHT, CLAIM OR REMEDY FOR LOSS OR DAMAGE TO, OR CAUSED BY OR CONTRIBUTED TO BY, THE PRODUCT).
-
LIMITATION AND LIABILITY. WATCHGUARD'S LIABILITY (WHETHER ARISING IN CONTRACT (INCLUDING WARRANTY), TORT (INCLUDING ACTIVE, PASSIVE OR IMPUTED NEGLIGENCE AND STRICT LIABILITY AND FAULT) OR OTHER THEORY) WITH REGARD TO ANY PRODUCT WILL IN NO EVENT EXCEED THE PURCHASE PRICE PAID BY YOU FOR SUCH PRODUCT. THIS SHALL BE TRUE EVEN IN THE EVENT OF THE FAILURE OF ANY AGREED REMEDY. IN NO EVENT WILL WATCHGUARD BE LIABLE TO YOU OR ANY THIRD PARTY (WHETHER ARISING IN CONTRACT (INCLUDING WARRANTY), TORT (INCLUDING ACTIVE, PASSIVE OR IMPUTED NEGLIGENCE AND STRICT LIABILITY AND FAULT) OR OTHER THEORY) FOR COST OF COVER OR FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING WITHOUT LIMITATION LOSS OF PROFITS, BUSINESS, OR DATA) ARISING OUT OF OR IN CONNECTION WITH THIS WARRANTY OR THE USE OF OR INABILITY TO USE THE PRODUCT, EVEN IF WATCHGUARD HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS SHALL BE TRUE EVEN IN THE EVENT OF THE FAILURE OF ANY AGREED REMEDY.
-
MISCELLANEOUS PROVISIONS. This Warranty will be governed by the laws of the state of Washington, U.S.A., without reference to its choice of law rules. The provisions of the 1980 United Nations Convention on Contracts for the International Sales of Goods, as amended, shall not apply. You agree not to directly or indirectly transfer the Product or use of the product or associated documentation to any country to which such transfer would be prohibited by the U.S. Export laws and regulations. If any provision of this Warranty is found to be invalid or unenforceable, then the remainder shall have full force and effect and the invalid provision shall be modified or partially enforced to the maximum extent permitted by law to effectuate the purpose of this Warranty. This is the entire agreement between WatchGuard and you relating to the Product, and supersedes any prior purchase order, communications, advertising or representations concerning the Product AND BY USING THE PRODUCT YOU AGREE TO THESE TERMS. IF THE PRODUCT IS BEING USED BY AN ENTITY, THE INDIVIDUAL INDICATING AGREEMENT TO THESE TERMS BY USING THE PRODUCT REPRESENTS AND WARRANTS THAT (A) SUCH INDIVIDUAL IS DULY AUTHORIZED TO ACCEPT THE WARRANTY ON BEHALF OF THE ENTITY AND TO BIND THE ENTITY TO THE TERMS OF THIS WARRANTY; (B) THE ENTITY HAS THE FULL POWER, CORPORATE OR OTHERWISE, TO ENTER INTO THE WARRANTY AND PERFORM ITS OBLIGATIONS UNDER THE WARRANTY AND; (C) THE WARRANTY AND THE PERFORMANCE OF THE ENTITY'S OBLIGATIONS UNDER THE WARRANTY DO NOT VIOLATE ANY THIRD-PARTY AGREEMENT TO WHICH THE ENTITY IS A PARTY. No change or modification of the Warranty will be valid unless it is in writing and is signed by WatchGuard.
Declaration of Conformity
Firebox T10
DECLARATION OF CONFORMITY
WatchGuard Technologies, Inc.
505 Fifth Ave. South, Suite 500
Seattle, WA 98104-3892 USA
WatchGuard Technologies Inc. hereby declares that the product(s) listed below conform to the
European Union directive 93/68/EU and standards identified in this declaration.
Product(s):
WatchGuard Model: Firebox T10
Low Voltage (2006/95/EC)
Electromagnetic Compatibility (2004/108/EC)
RoHS (2011/65/EC)
WEEE Directive 2002/96/EC
REACH EC 1907/2006
Standard(s):
Safety: EN 60950-1:2006+A11+A1+A12
Emission: EN 55022:2010
C
Part 15 Subpart B:2011 Class B
ICES-003: Issue 5 2012 Class B
CISPR 22:2008 Class B
VCCI V-3/2011.04 Class B
AS/NZS CISPR 22.2009+A1:2010
Firebox T10-W
DECLARATION OF CONFORMITY
WatchGuard Technologies, Inc.
505 Fifth Ave. South, Suite 500
Seattle, WA 98104-3892 USA
WatchGuard Technologies Inc. hereby declares that the product(s) listed below conform to the European Union directive 93/68/EU and standards identified in this declaration.
Product(s): WatchGuard Model: Firebox T10-W, Hardware Model: DS3AE3
EU Directive(s):
Low Voltage (2006/95/EC)
Electromagnetic Compatibility (2004/108/EC)
RoHS (2011/68/EC)
WEEE Directive 2002/96/EC
REACH EC 1907/2006
Standard(s):
Standards: EN 60950-1:2006+A11+A1+A12
| E | N | 3 | 0 | 1 | - | 4 | 8 | 9 |
| E | N | 3 | 0 | 1 | - | 4 | 8 | 9 |
| E | N | 55022:2010+AC:2011, Class B | ||||||
| E | N | 61000-3-2:2006+A1:2009+A2:2009, Class A | ||||||
| E | N | 61000-3-3:2013 | ||||||
| E | N | 61000-4-2:2009 | ||||||
| E | N | 61000-4-3:2006+A1:2008+A2:2010 | ||||||
| E | N | 61000-4-4:2012 | ||||||
| E | N4-5:2006 | 61000 | ||||||
| E | N | 61000-4-6:2014 | ||||||
| E | N | 61000-4-11:2004 | ||||||
Immunity: EN 61000-3-2:2006+A2:2009
| E | N | 61000-3-3:2008 |
| E | N | 55024:2010 |
| E | N | 51000-1-3:2008 |
Firebox T10-D
DECLARATION OF CONFORMITY
WatchGuard Technologies, Inc.
505 Fifth Ave. South, Suite 500
Seattle, WA 98104-3892 USA
WatchGuard Technologies Inc. hereby declares that the product listed below conform to the European
Union Directive 93/68/EU and standards identified in this declaration.
Product(s): WatchGuard Model: Firebox T10-D
Low Voltage (2006/95/EC)
Electromagnetic Compatibility (2004/108/EC)
RoHS (2011/65/EU)
WEEE Directive 2002/96/EC
REACH EC 1907/2006
Standard(s):
Safety: EN 60950-1:2006+A11+A1+A12+A2
Emission: EN 55022:2010+AC:2011, Class B
EN 61000-3-2:2006+A1:2009+A2:2009, Class A
EN 61000-3-3:2013
Immunity: EN 55024:2010
EN 61000-4-2:2009
EN 61000-4-3:2006+A1:2008+A2:2010
EN 61000-4-4:2012
EN 61000-4-5:2006
EN 61000-4-6:2014
EN 61000-4-8:2010
EN 61000-4-11:2004
表 1 2008-1 2009
Legal and Regulatory Information
CE Notice
The CE symbol on your WatchGuard Technologies equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU).
CE
FCC Certification
Federal Communication Commission Interference Statement
Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the device.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
Caution (Wireless)
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
(iii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
Europe – EU Declaration of Conformity (Wireless)
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
EN 60950-1 - Safety of Information Technology Equipment
EN 50385 - Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure to electromagnetic fields (0 Hz - 300 GHz)
EN 300 328 - Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive
EN 301 893 - Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of article 3.2 of the R&TTE Directive
EN 301 489-1 - Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-17 - Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment
This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, event in France and Italy where restrictive use applies.
CE Notice
CE 0560 Ⓘ
| csČasky [Czech] | WatchGuard timto prohlašuje, že tento Firebox T10-W je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směmice 1999/5/ES. |
| daDansk [Danish] | Undertegnede WatchGuard erklærer herved, at følgende udstyr Firebox T10-W overholder de væsonllige krav og øvrige relevante krav i direktiv 1999/5/EF. |
| deDeutsch [German] | Hiermit erklärt WatchGuard, dass sich das Gerät Firebox T10-W in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. |
| etEesti [Estonian] | Käesolevaga kinnitab WatchGuard seadme Firebox T10-W vastavust direktlivvi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. |
| enEnglish | Hereby, WatchGuard, declares that this Firebox T10-W is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. |
| esEspañol [Spanish] | Por medio de la presente WatchGuard Firebox T10-W cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. |
| elEλληνική [Greek] | ME THN ΠΑΡΟΥΣΑ WatchGuard ΔΗΛΩΝΕΙ OTI Firebox T10-W ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ EK. |
| frFrançais [French] | Par la présente WatchGuard déclare que l'appareil Firebox T10-W est conforme aux exigences essentielles et aux autres dispositions pertinentes da la directive 1999/5/CE. |
| itItaliano [Italian] | Con la presente WatchGuard dichiara che questo Firebox T10-W è conforme ai requisiti essenziall ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. |
| lvLatviski | Ar šo WatchGuard deklară, ka Firebox T10-W atbilst Direktīvas 1999/5/EK būtiskajām |
| Slovensko [Slovenian] | WatchGuard izjavlja, da je ta Firebox T10-W v skladu z bistvenlmi zahtevami in ostallmi relevantnimi določili direktive 1999/5/ES. |
| Slovensky [Slovak] | WatchGuard týmto vyhlasuje, že Firebox T10-W splňa základné požiadavky a všetky príslušné ustanovenia Smarnice 1999/5/ES. |
| Suomi [Finnish] | WatchGuard vakuuttaa täten että Firebox T10-W typpinen laite on direktlivin 1999/5/EY oleellisten vaatimusten ja sită koskevien direktiivin muiden ehtojen mukainen. |
| Svenska [Swedish] | Härmed intygar WatchGuard att denna Firebox T10-W står I överensstämmelse med de väsentilga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. |
Industry Canada
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES-3(B)/NMB-3(B)
Legal and Regulatory Information
France (Wireless)
Taiwan Class B Notice
People's Republic of China Electronic Industry Standard
This table is presented in accordance with SJ/T11364-2006, Marking for Control of Pollution Caused by Electronic Information Products, implemented in November 2006.
Management Methods on Control of Pollution From Electronic Information Products
(China RoHS declaration)
產品中有毒有害物質的名稱及含量
Hazardous Substances Table
| 部件名稱Parts | 有毒有害物質或元素(Hazardous Substance) | |||||
| 鉛(Pb) | 汞(Hg) | 錫(Cd) | 六價鉻(Cr6+) | 多溴聯苯(PBB) | 多溴二苯醚(PBDE) | |
| 板金件(Metal) | O | O | O | O | O | O |
| PCBA 板(PCBA Component) | X | O | O | O | O | O |
| 開鎖電源(Power supply) | X | O | O | O | O | O |
| 微處理器(CPU) | O | O | O | O | O | O |
| 記憶模組(RAM Module) | X | O | O | O | O | O |
| 風扇(Fan) | X | O | O | O | O | O |
Legal and Regulatory Information
RoHS Statement
The member states of the European Union approved directive 2002/95/EC, Restrictions of Hazardous Substances ("RoHS directive") that became valid on July 1, 2006. It states that all new electrical and electronic equipment put on the market within the member states must not contain certain hazardous materials. This WatchGuard device complies with the European Union's R0HS directive 2002/95/EC and similar regulations that may be adopted by other countries for European Sales.
WEEE Statement
WEEE is a general set of requirements dictated in the EU Directive 2002/96/EC. This Directive mandated that member EU countries enact regulations governing the Waste of Electrical and Electronic Equipment (WEEE). The Directive, and its individual transpositions into specific country laws and legislation, is aimed at the reduction of WEEE through reuse, recovery, and recycling of WEEE.
WatchGuard is working in partnership with our European Union (EU) distribution partners to ensure that our products are in compliance with the WEEE statutes, and that the recovery of our product per the specific EU country legislative requirements is seamless for our product's end users. If you have a WatchGuard product that is at its end of life and needs to be disposed of, please contact WatchGuard Customer Care Department at:
U.S. Customers: 877.232.3531
International Customers: +1.206.613.0456
WatchGuard is reasonably confident that our products do not contain any substances or hazardous materials presently banned by any legislation, and do not present a risk due to hazardous materials. WEEE recovery professionals should also note that these products do not have any materials that are of particular high value in their individual form.
REACH Certificate of Compliance
The EU chemicals policy REACH (Registration, Evaluation, Authorization and restriction of Chemicals) came into effect on June 1st 2007. REACH is Europe's new chemicals legislation, which is applicable in all 27 EU Member States as well as the EFTA European Economic Area (EEA). REACH creates a new system for gathering information, assessing risks to human health and the environment, and authorizing or restricting the marketing and use of chemicals produced or supplied in the EEA. REACH has an impact on EEA producers and importers of finished products and users of chemicals in the course of industrial or professional activities.
WatchGuard supports the overall REACH objective of improving the protection of human health and the environment and will meet all applicable REACH requirements. WatchGuard is strongly committed to working with our customers and supply chain to define and implement the REACH requirements and ensure a smooth transition to compliance.
One of the REACH requirements is that manufacturers and importers have the duty to register substances they are producing or importing. In accordance with the regulations, the products of WatchGuard do not need to be registered for the following reasons:
- WatchGuard does not import more than 1 metric ton per year of a substance as defined by REACH.
- WatchGuard products are non-chemical products that are not designed to release any substance under normal and reasonably predictable application.
- Our products do not contain the listed substances at more than 0.1% by weight of the whole product/part.
Legal and Regulatory Information
Licensing
Some components of the WatchGuard System Manager software and Fireware XTM OS are distributed with source code covered under one or more third party or open source licenses.
You can find full licensing information in the product documentation on our public web site at www.watchguard.com/help/documentation.
To get the source code covered by this license, contact WatchGuard Technical Support at:
United States or Canada: 877.232.3531
All other countries: +1.360.482.1083
You can download the source code at no charge. If you request the material be sent to you on CD-ROM, there is a \$35 charge for administration and shipping.
- Copyright and Patent Information
- Notice to Users
- Hardware Specifications
- Fireware OS
- Package Contents
- Hardware Description
- Interface Specifications
- Front View
- Fail Over
- WAP (Firebox T10-W only)
- Ethernet interface status indicators
- Power (↓)
- Rear View
- Ethernet interfaces
- DSL interface
- AC Power Adapter
- Environmental Requirements
- Restore Factory Default Settings
- Safety Notices
- Product Safety Certification
- Safety Warning
- Legal and Regulatory Information
- Limited Hardware Warranty
- Declaration of Conformity
- Product(s):
- Standard(s):
- Firebox T10-W
- EU Directive(s):
- Firebox T10-D
- CE Notice
- FCC Certification
- Federal Communication Commission Interference Statement
- Caution (Wireless)
- Europe – EU Declaration of Conformity (Wireless)
- CE 0560 Ⓘ
- Industry Canada
- France (Wireless)
- Taiwan Class B Notice
- People's Republic of China Electronic Industry Standard
- RoHS Statement
- WEEE Statement
- REACH Certificate of Compliance
- Licensing
Brand : WatchGuard
Model : Firebox T10 + 3Y Total Security Suite (UK)
Category : Hardware firewall
