Product Type	Immersion Temperature Probe
Brand	Fluke
Model	80PK-22
Category	Temperature Controller
Thermocouple Type	K (Ni-Cr vs. Ni-Al)
Measurement Range	-40 °C to 1090 °C (-40 °F to 1994 °F)
Output at 25 °C	1.00 mV (reference junction @ 0 °C)
Seebeck Coefficient	40.50 μV/°C at 25 °C
Time Constant	3.0 seconds in 100 °C still water
Maximum Voltage	24 V ac rms or 60 V dc
Maximum Tip Temperature	1090 °C (1994 °F)
Sheath Material	Inconel (Alloy 600)
Sheath Diameter	3.175 mm (1/8 in)
Sheath Length	212.725 mm (8.375 in)
Cable Length	1 m (40 in)
Cable Insulation	PVC, rated to 105 °C
Connector	Type K miniature, 0.792 mm pin spacing
Handle Material	Hytrel
Grounding	Junction welded to sheath
Warranty	1 year limited
Compatibility	Any instrument accepting Type K thermocouples with miniature connector
Not Recommended For	Food or beverage preparation (use 80PK-25)

Frequently Asked Questions - 80PK-22 FLUKE

What type of thermocouple is the 80PK-22?

The 80PK-22 is a Type K thermocouple (Ni-Cr vs. Ni-Al).

What is the temperature measurement range of the 80PK-22?

It measures from -40 °C to 1090 °C (-40 °F to 1994 °F).

What instruments are compatible with the 80PK-22?

Any instrument that accepts Type K thermocouples with a miniature connector and cold junction compensation.

What is the maximum voltage the probe can withstand?

The maximum voltage is 24 V ac rms or 60 V dc. Avoid exceeding this to prevent electrical shock.

Can the 80PK-22 be used in food or beverages?

No, it is not recommended for food or beverage preparation. Use the 80PK-25 for that purpose.

What is the sheath material and its dimensions?

The sheath is made of Inconel (Alloy 600), with a diameter of 3.175 mm (1/8 in) and length of 212.725 mm (8.375 in).

How deep should the probe be inserted for accurate measurement?

Insert at least 6.35 cm (2.5 in) into the medium to minimize thermal shunting.

What is the time constant of the probe?

The time constant is 3.0 seconds in 100 °C still water. Complete step change requires 5 time constants (3.75 seconds).

How do I clean and maintain the 80PK-22?

Clean with a damp cloth and mild detergent if needed. Avoid abrasive cleaners. Store in a dry place.

How can I check if the probe has a broken connection?

Use an ohmmeter to check continuity between the pins. A reading of 10 ohms or less indicates continuity.

USER MANUAL 80PK-22 FLUKE

To avoid electrical shock, do not use this probe when voltages exceeding 24 V ac rms or 60 V dc are present. The probe tip is electronically connected to the output terminals.

Introduction

The 80PK-22 SureGrip ^™ Immersion Temperature Probe is designed for use in liquids or gels. The probe can also be used as a general purpose temperature probe. The thermocouple junction is protected from tip to handle by an Inconel sheath. The 40-inch (1 meter) cable is terminated with a Type K miniature thermocouple connector with 0.792-mm (0.312-in) pin spacing. The 80PK-22 can be used with any temperature-measuring instrument that is designed to accept Type K thermocouples and has a miniature connector input.

Note

The 80PK-22 is not recommended for use in food or beverage preparation. Use 80PK-25 for food preparation.

Specifications

Type

K Standard grade Ni-Cr vs. Ni-Al (Chromel vs. Alumel)

Measurement Range

-40 °C to 1090 °C (-40 °F to 1994 °F)

Output

@ 25 °C (77 °F) = 1.00 mV (reference junction @ 0 °C)

Seebeck Coefficient

@ 25 °C (77 °F) = 40.50 μV / °C

Measurement Time

(Time Constant): 3.0 seconds in 100 °C still water at sea level pressure. Complete step change equals 5 time constants (3.75 seconds).

Maximum Voltage

24 V ac rms or 60 V dc

Maximum Temperature of Tip

1090 °C (1994 °F)

Sheath

Material: Alloy 600

Dimensions:

Diameter: 3.175 mm (1/8 in)

Length: 212.725 mm (8.375 in)

Grounding

Junction welded to sheath.

Cable

Length: 40 inches (1 meter)

Insulation

Material: PVC

Maximum Temperature: 105 °C (220 °F)

Jacket Color: Gray

Conductors

Type: K

Size: AWG #24 stranded (7 strands of #32)

Handle

Material: Hytrel

Measurement Considerations

Instrument Compatibility

The 80PK-22 is compatible with any temperature-measuring instrument that accepts Type K thermocouples, has a miniature thermocouple connector, and has cold reference junction compensation. Accuracy of the temperature-measuring instrument must be considered along with the 80PK-22 accuracy specification to determine the overall accuracy of the combination.

Temperature Limitations

The probe tip of the 80PK-22 has a continuous temperature rating of 1090^ (1994 °F). However the opposite end of the sheath nearest the handle should not be subjected to temperatures greater than 125^ (257 °F). This is the maximum temperature limitation of the handle.

Media Limitations

The sheath material of the 80PK-22 is Inconel, an alloy of chromium and nickel. It has excellent resistance to oxidation and corrosion at high temperatures, but it should not be used in the presence of sulfur above 537^ (1000 °F).

Operation

Use the 80PK-22 as follows:

1. Connect the 80PK-22 to a compatible Type K temperature measuring instrument using the miniature (0.312-inch pin spacing) thermocouple connector.
2. Turn on the measuring instrument, and select the appropriate range and scale.
3. Check the readout on the measuring instrument. With no heat or cold source applied to the tip of the probe, the measuring instrument should display the ambient (room) temperature. If the instrument does not read out properly, refer to "Troubleshooting".

Minimizing Thermal Shunting

The 80PK-22 Immersion Probe should be inserted at least 6.35 cm (2.5 in) into the environment to be measured to minimize the shunting effect of the sheath.

1. If you suspect a broken connection, use an ordinary ohmmeter to read the continuity of the probe from pin to pin. The ohmmeter should read 10 ohms or less if there is continuity.

Scale Conversions

Use the following equation to convert °C to °F:

$$ (^ {\circ} \mathrm{C} \times 1. 8) + 3 2 = ^ {\circ} \mathrm{F} $$

Use the following equation to convert °F to °C:

$$ (^ {\circ} F - 3 2) \times 0. 5 5 5 6 = ^ {\circ} C $$

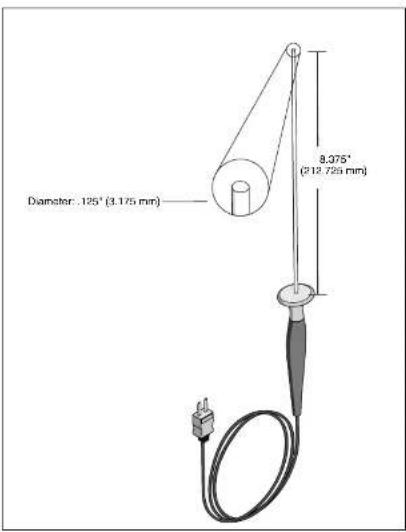

Figure 1. 80PK-22

ONE YEAR LIMITED WARRANTY

This Fluke product will be free from defects in material and workmanship for one year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling. Resellers are not authorized to extend any other warranty on Fluke's behalf. To obtain service during the warranty period, contact your nearest Fluke authorized service center to obtain return authorization information, then send the product to that Service Center with a description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSED OR IMPLIED. FLUKE IS NOT LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some states or countries do not allow the exclusion or limitation of an implied warranty or of incidental or consequential damages, this limitation of liability may not apply to you.

Fluke Corporation

P.O. Box 9090

Everell, WA 98206-9090

U.S.A.

Fluke Europe B.V.

P.O. Box 1186

5602 BD Eindhoven

The Netherlands
