Product Type	Interactive Flat Panel Display
Brand	Sony
Model	PT-1185-IR10
Screen Size	85 inches (diagonal)
Resolution	4K UHD (3840 x 2160)
Aspect Ratio	16:9
Brightness	350 cd/m²
Contrast Ratio	4000:1
Response Time	8 ms
Viewing Angle	178° / 178°
Connectivity	HDMI (x3), USB (x2), VGA, DisplayPort, Audio Out
Power Consumption	200 W (typical)
Weight	50 kg (110 lbs)
Dimensions (W x H x D)	1900 x 1100 x 80 mm
Mounting	VESA 600 x 400 mm
Operating Temperature	0°C to 40°C
Features	Infrared touch, built-in speakers, anti-glare coating
Cleaning	Use a soft dry cloth; avoid liquid cleaners
Safety	Keep away from moisture and heat sources
Spare Parts	Contact Sony authorized service center

Frequently Asked Questions - PT-1185-IR10 SONY

How do I clean the screen?

Use a soft, dry microfiber cloth. Gently wipe the screen in a circular motion. Avoid using any liquid cleaners or abrasive materials as they may damage the surface.

How do I connect external devices?

Connect devices using the HDMI ports, VGA, or DisplayPort. For touch functionality, connect the USB touch cable from the screen to your computer. Ensure the correct input source is selected via the remote or on-screen menu.

What should I do if there is no power?

Check that the power cable is securely plugged into the screen and a working outlet. Press the power button on the screen or remote. If still no power, try a different outlet or contact Sony support.

Can I mount this screen on a wall?

Yes, the screen supports VESA 600 x 400 mm mounting. Use a compatible wall mount and follow the instructions in the manual. Ensure the wall can support the weight (50 kg).

The touch function is not working. What can I do?

Check that the USB cable for touch is connected between the screen and the computer. Install the required drivers if prompted. Restart both devices. If problem persists, test with another computer.

How do I change the display resolution?

Go to your computer's display settings. Select the Sony screen and choose 3840 x 2160 for native 4K resolution. The screen also supports lower resolutions, but picture quality may degrade.

Does the screen have built-in speakers?

Yes, the screen has built-in speakers (10W each). Audio can be output through the speakers or via the audio out jack. Adjust volume using the remote or on-screen menu.

Is a remote control included?

Yes, a remote control is included. It allows you to power on/off, change input source, adjust volume, and access the menu. Batteries (AAA) are required but not included.

What is the warranty period?

Sony typically offers a 3-year warranty for commercial displays. Check your local warranty card or contact Sony support for specific terms and conditions.

What are the physical dimensions of the screen?

The screen dimensions are approximately 1900 mm wide, 1100 mm high, and 80 mm deep (without stand). Weight is about 50 kg. Ensure adequate space for ventilation.

USER MANUAL PT-1185-IR10 SONY

1 x Touch overlay
3 x Brackets
13 x Phillips screws

Simple 3D rendering of a rectangular panel with black border and gray interior (no text or symbols)

Table of Contents

Introduction	2
Capabilities	3
Unpacking the Unit 4
Installation Instructions 5 - 6
USB Installation	7
Operating the Touch Screen 8
Cleaning the Touch Screen 9
Troubleshooting	9 -11
Specifications	12

Terminology

Monitor: refers to the Sony FWL-55W805C / FW-55X8570C LCD screen.

Sometimes referred to as "display screen."

Touch overlay: refers to the PresTop overlay that fits onto the monitor and provides the touch functionality.

Introduction

Congratulations on your purchase of a PresTop PT Touch Overlay. This product turns a Sony FWL-55W805C / FW-55X8570C large-format display, into an interactive display. You can control a computer application simply by touching the screen.

The PT Touch Overlay can be connected to the computer via USB cable, thus providing maximum versatility. The USB is HID compliant, providing true plug-and-play operation, just like a USB mouse.

The standard PT Touch Overlay is powered via the USB interface from the computer and hence does not require a separate power supply.

The main steps to install the PT Touch Overlay are as follows:

• Unpack the PT Touch Overlay.
• Unpack the screen.
  • Fit the touch overlay to the display screen.
• Connect all the cables.

Touch service Software Suite

For USB communications, you do not need to install any software. However, an optional USB Configuration program that allows you to change various default settings is available in the Touch service software suite.

Touch service software can be downloaded from http://prostonproducts.com/support/

Capabilities

The following table shows the touch functionality provided by a PresTop PT touch overlay with different operating systems.

	XP/2000/Vista	Windows 7		Windows 8 ^1)	Windows 10 ^1)	Linux	Mac OS X	Android
		StarterHomeBasic	HomePremiumProfessional
Single touch	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes ^4)
multi-touch	No	No	Yes	Yes	Yes	Yes ^5)	No ^3)	Yes ^6)

1) Windows must be non OEM version.
2) Kernal 3.0+, csn support multitouch by adding patch.
Kernal 3.5+, HID compliance support multitouch.
3) Gesture support on request.
4) Kernal 2.6.32+, we can provide patch Kernal 3.5+, HID compliance support Multi-touch

Multi-Touch and Gestures on Windows 7, 8, 10

The latest operating systems from Microsoft and other vendors support multi-touch features such as two-touch gestures. The PresTop PT touch overlay is multi-touch capable and supports gestures.

Unpacking the Unit

Unpack the unit, taking care not to damage the surfaces. Check the product for any signs of damage in transit.

Installation Requirements

Once you have unpacked the unit, make sure you have the following:

• The display monitor that you are going to mount the touch overlay onto.
• The computer that runs your software application, including the cable that connects the computer to the display screen.

Safety Notes

• The touch overlay contains glass that can add significant weight, especially for large-format displays. It is essential that the monitor's stand is strong and stable enough to support the combined weight of the touch overlay and monitor.
• For a large screen, you need two people to install the touch overlay safely.

Parts of the Touch Overlay

The PresTop PT Touch Overlay consists of metal frame, in this frame is the touch and glass.

The overlay is secured with brackets on the monitor, which are screwed in the frame.

Installation Instructions

Depending on the size the installation normally requires two people.

Preparation

1. After unpacking and checking for any damage, place the touch overlay face down on a clean, soft surface, such as a clean carpet.
2. Make sure the back surface of the glass is clean. (See for instructions page 9).
3. Unpack the monitor.
4. Make sure that the monitor is clean.

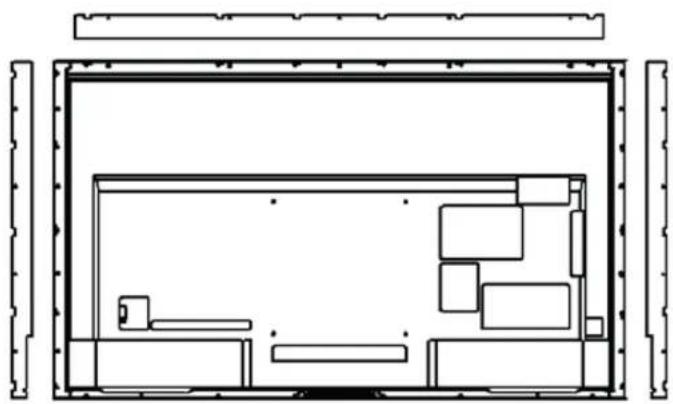

Installing on the monitor

1. Unpack the touch overlay and place this, face down, on a flat and clean soft surface.

Simple line drawing of a rectangular frame with vertical supports (no text or symbols)

1. Place the monitor gently in the touch overlay with 2 persons.
2. Attach the brackets that hold the monitor in place to the touch overlay with the Philips screws.

Architectural floor plan showing room layout with furniture placement (no text or labels)

Connecting Cables and Switching On

USB Installation

USB installations require no special software; the touch overlay communicates directly with the computer's operating system via the USB interface, just like a USB mouse.

Connect the USB cable from the touch overlay to the computer.

Once the cable is connected, the computer automatically detects the USB device (the touch overlay). This takes a few seconds.

(Note: the computer only displays the above message the first time you plug in the USB cable. The next time you plug in the cable, the computer will be already configured for the device.)

For USB communications, you do not need to install any software. However, an optional USB Configuration program is available that allows you to change the default operating parameters if required.

USB Calibration

1. Click Start and then Control Panel and next Hardware and Sound

Operating the Touch Screen

Mouse actions

PresTop PT Touch Overlay provides full mouse functionality—click, drag, double-click and right-click.

• Single click is performed by tapping you finger once on the screen.
• Double click is performed by tapping your finger twice on the screen in quick succession.
• Drag is performed by touching and moving your finger across the screen without lifting off.
• Right click is performed by touching and holding your finger in one position for a short time.

Operating notes

The touch screen does not require pressure to sense a touch.

For best results, point at roughly right angles to the screen and keep the rest of your hand clear of the glass.

When removing your finger, lift it straight off the screen, making sure you don't drag it across the screen.

Cleaning the Touch Screen

To clean the touch screen, use a lint-free, soft cloth dampened with standard, household glass cleaning solution as follows:

1. Spray a small amount of glass cleaner onto the cloth.
2. Wipe the glass of the touch screen to remove any dirt, dust, or finger marks.
3. Wipe the clear surfaces around the edges of the screen.
4. Remove any residual glass cleaner with a dry, soft, lint-free cloth.

WARNING:

Do not spray the cleaner directly onto the touch screen as this could leave residue on the infrared surfaces.

Do not use an abrasive cleaner or rough cloth as this could damage the infrared.

Troubleshooting

This section provides some solutions to possible problems that might occur with the touch screen.

Unable to calibrate the touch overlay

If you have a problem with calibrating the touch overlay, contact your PresTop support provider for assistance.

The cursor moves erratically

Make sure there is nothing blocking the optics of the touch screen.

Clean the glass and edges of the screen. For instructions, see Cleaning the Touch Screen on page 7.

"USB not recognized" message appears on screen

To remedy, unplug the USB cable, then plug in the USB cable again. If this does not fix the problem, you may need to uninstall and reinstall the USB device. See the next section.

Some types of USB extenders and/or USB (booster) extension cables can course problems.

Connect the overlay without any extensions to the pc.

Sun and/or spot-light can affect the working of the touch.

Shield the screen from the sun and/or spot-light.

Uninstalling and Reinstalling the USB Device

1. From the Start menu on Win 7, select:

Settings / Control Panel / System / Device Manager/Universal Serial Bus Controllers

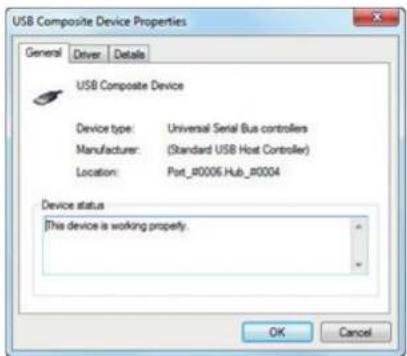

1. Right click on [USB Composite Device] and choose [Properties].

1. On the Properties screen, verify that the location refers to the touch screen.
2. Close the Properties screen.
3. With USB Composite Device selected in the Device Manager list, press [Delete] on your keyboard.

The computer displays the following dialog.

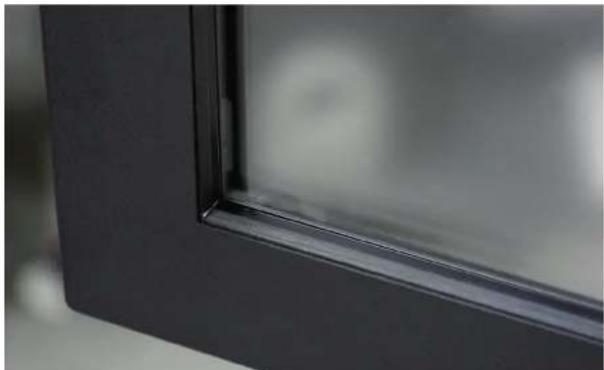

Specifications:

Weight	screen:		20	kg
55" IR	overlay:			22kg
Thickness	glass:		6	mm

Outside sizes touch frame: 1295 x 768 mm

Thickness screen incl. IR touch frame: 78 mm

Thickness screen incl. IR touch frame

and back cover: 110 mm

Close-up of a dark, rectangular window frame with a small recessed opening (no text or symbols visible)

Address: De Dintel 29-35

5684 PS Best

The Netherlands

Tel: [phone]

Fax: [phone]

[e-mail]

www.prestopproducts.com
