| Product Type | Behind-the-ear hearing aid (Motion P micon) |
| Model | Motion P micon |
| Brand | Siemens |
| Battery Type | Non-rechargeable (replaceable, size 13 typical) |
| Battery Compartment | Lockable with child lock (optional) |
| Controls | Push button and rocker switch |
| Hearing Programs | Up to 6 configurable programs |
| Wireless Connectivity | e2e wireless for binaural control |
| Telecoil | Yes (for audio induction loops) |
| Audio Input | Via audio shoe for FM systems |
| AutoPhone | Automatic telephone program detection |
| Power-on Delay | Yes (prevents whistling during insertion) |
| Ear Pieces | LifeTip with LifeTube or earhook |
| Color Markers | Red for right ear, blue for left ear |
| Remote Control | Optional (sold separately) |
| Child Lock | Optional battery compartment lock |
| Maintenance | Daily cleaning with soft cloth; dry overnight |
| Storage | Keep dry with open battery compartment |
| Safety | Avoid impact, extreme heat, humidity; read safety section |
| Compliance | FCC, IC, CE, WEEE |
Frequently Asked Questions - Motion P micon SIEMENS
User questions about Motion P micon SIEMENS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hearing aid in PDF format for free! Find your manual Motion P micon - SIEMENS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Motion P micon by SIEMENS.
USER MANUAL Motion P micon SIEMENS
www.siemens.com/hearing
Life sounds brilliant.
Content
Welcome 4
Your hearing instruments 5
Getting to know your hearing instruments 5
Components and names 6
Controls 8
Settings 10

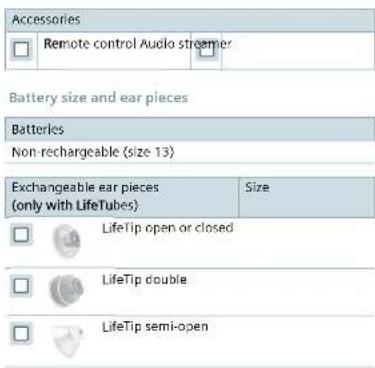

Battery size and ear pieces 11
Service information 12
Batteries 13
Replacing non-rechargeable batteries 13
Child lock (optional) 15
Daily use 19
Turning on and off 19
Inserting 21
Removing 23
Adjusting the volume 24
Changing the hearing program 25
Further adjustments (optional) 26
Locking the controls 26
Using two hearing instruments 27
On the phone 28
Telephone program 28
Automatic program switch (AutoPhone) 29
2 Content
Audio induction loops 31
| Telecoil program and remote control 31 |
| Audio input 32 |
| Attaching the audio shoe 33 |
| Removing the audio shoe 34 |
Maintenance and care 36
| Cleaning | 36 |
| Drying | 38 |
| Storage | 38 |
| Exchanging ear pieces and tubes 38 | |
| Troubleshooting | 39 |
Important information 40
| Intended use 40 |
| Explanation of symbols 40 |
| Transport and storage conditions 41 |
| Disposal information 41 |
| Technical information 42 |
| Conformance information 44 |
Important safety information 45
| Personal safety | 45 |
| Product safety | 47 |
| Country-specific information | 49 |
Welcome
You have chosen a Siemens hearing instrument, a reliable partner to accompany you through everyday life. Like everything new, it will take you a little while to become familiar with it.
This document, along with support from your Hearing Care Professional, will help you. You will quickly come to appreciate the advantages and greater quality of life your hearing instrument offers.
CAUTION
Read this user guide thoroughly and completely and follow the safety information in this document to avoid damage or injury.
To benefit most from your hearing instrument, wear it daily and all day long. Especially after longer periods of living with hearing loss, a dedicated hearing training is recommended - with a Hearing Care Professional or at home.
Your hearing instruments
Getting to know your hearing instruments
It is recommended to familiarize yourself with your new hearing instruments. With the instruments in your hand try using the controls and note their location on the instrument. This will make it easier for you to feel and press the controls while wearing the hearing instruments
If you have problems pressing the controls of your hearing instruments while wearing them, you can ask your Hearing Care Professional about a remote control option.
Your hearing instruments 5
Components and names
This user guide describes several types of hearing instruments. Use the following pictures to identify the type of hearing instrument that you use.
Your hearing instruments are either equipped with a LifeTube or with an earhook.
MotionM
① Ear piece (LifeTip)
② Concha lock (optional)
③ Tube (LifeTube)
4 Earhook
⑤ Microphone openings
6 Push button
⑦ Rocker switch
Battery compartment
Your hearing instruments6
MotionP
1 Ear piece (LifeTip)
⑤ Microphone openings
② Concha lock (optional)
6 Push button
③ Tube (LifeTube)
7 Rocker switch
Earhook
Battery compartment
Controls
With the controls you can, for example, adjust the volume or switch hearing programs. Your hearing instruments have a push button and a rocker switch.
i Ask your Hearing Care Professional to mark your controls and their functions on the following pages.
i You can also use a remote control.
Your hearing instruments8
Pushbutton
| Function Left Right | ||||
| Program change | ||||
| Standby/tum on | ||||
| press briefly, press 2 seconds | ||||
Rockerswitch
| Function Left Right | ||
| Volume up/down | ||
| Tinnitus noiser levelup/down | ||
| Sound balance |
Push button and rocker switch
| Function | Left | Right |
| Lock / Unlock the controls | ||
| Read more in section "Locking the controls". | ||
Settings
i Ask your Hearing Care Professional to mark your individual settings on the following pages.
Hearing programs
| 1 |
| 2 |
| 3 |
| 4 |
| 5 |
| 6 |
Read more in section "Changing the hearing program".
Features
Power-on delay enables whistle-free insertion of hearing instruments. Read more in section "Turning on and off".
☐ e2e wireless enables simultaneous control of both hearing instruments. Read more in section "Using two hearing instruments".
AutoPhone automatically switches to the telephone program when the telephone receiver approaches the ear. Read more in section "On the phone".
Your hearing instruments10
Your hearing instruments 11
Service information
Serial numbers
Left:
Right:
Service dates
1
2
3
4
5
6
Your Hearing Care Professional
Date of purchase:
Batteries
When the battery is low the sound becomes weaker or you will hear an alert signal. It depends on the battery type how long you have until you have to replace the battery.
When the battery compartment is locked, you need a tool to open it. Read more in section "Child lock".
Replacing non-rechargeable batteries
Remove empty batteries immediately and dispose of according to local regulations.
Remember to have your replacement batteries with you at all times.
Removing:
▶ Open the battery compartment.
Lightly tap the instrument or use the magnet stick to remove the battery. The magnet stick is available as an accessory.
Batteries 13
Inserting:
Remove the protective film from the new battery.
Insert the battery with the "1" symbol facing up (refer to the picture).
Carefully close the battery compartment. If you feel resistance, the battery is not inserted correctly. Do not attempt to close the battery compartment by force. It can be damaged.
Child lock (optional)
Your hearing instruments can be equipped with a battery compartment that can be locked (child lock). With the child lock enabled, the battery compartment is automatically locked when closed. This prevents e.g. a child from removing and swallowing the battery. Ask your Hearing Care Professional to enable the child lock by locking the battery compartment.
The locked battery compartment can be opened by a few millimeters to turn the hearing instrument off via the battery compartment.
To open the locked battery compartment completely, you need a tool. The tool is included with delivery.
Opening a locked battery compartment:
▶ Use the tool to push tie white locking bar to the opposite side.
Hold it in place and at the same time open the battery compartment.
Batteries 15
Locking / Unlocking the battery compartment
i
To lock or unlock the battery compartment, a special tool is required. Your Hearing Care Professional will lock or unlock the battery compartment for you. The following instructions are for your Hearing Care Professional only.
The position of the locking bar in the battery compartment indicates whether the battery compartment is locked.
The upper image shows an unlocked battery compartment. To lock it, the Hearing Care Professional has to remove the highlighted part.
The lower image shows a locked battery compartment. To unlock it, the Hearing Care Professional has to install a child lock disabler.
Locking the battery compartment:
Insert the tip of the tool into the small opening.
Push / Lever the small plastic part out of the battery compartment.
The battery compartment is locked.
The battery compartment can be unlocked by the Hearing Care Professional again.
Unlocking the battery compartment:
▶ Push the locking bar with the child lock disabler to the other side.
▶ Ensure that the child lock disabler is completely inserted.
Rotate the shaft to break it off.
Daily use
Turning on and off
You have several options to turn your hearing instruments on or off.
Via battery compartment:
▶ Turning on: Close the battery compartment.
The default volume and hearing program are set.
▶ Turning off: Open the battery compartment.
If the battery compartment is locked it can be opened by a few millimeters only. This is enough to turn the hearing instrument off.
Via push button:
▶ Turning on or off: Press the push button for 2 seconds. Refer to section "Controls" for your personal settings.
After turning on, the previously used volume and hearing program are set.
Via remote control:
▶ Follow the instructions in the remote control's user guide.
After turning on, the previously used volume and hearing program are set.
i
■ When wearing the hearing instruments, an optional signal can indicate when an instrument is turned on or off.
■ Remove the batteries if the hearing instruments are not used for several days.
When the power-on delay is activated, the hearing instruments turn on after a delay of several seconds. During this time you can insert the hearing instruments without experiencing unpleasant whistling.
The "power-on delay" can be activated by your Hearing Care Professional.
Inserting
Your hearing instruments have been fine-tuned for your right and left ear. Colored markers indicate the side:
- red marker – right ear
blue marker = left ear
To insert the hearing instrument:
Hold the tube at the bend.
Carefully push the ear piece in the ear canal.
Twist it slightly until it sits well.
Open and close your mouth to avoid accumulation of air in the ear canal.
▶ Lift the hearing instrument and slide it over the top of your ear.
CAUTION
Risk of injury!
Insert the ear piece carefully and not too deeply into the ear.
i
■ Insert the right hearing instrument with the right hand and the left hearing instrument with the left hand.
If you have problems inserting the ear piece, use the other hand to gently pull your earlobe downwards. This opens the ear canal and eases insertion of the ear piece.
The optional concha lock helps to securely retain the ear piece in your ear. To position the concha lock:
Bend the concha lock and position it carefully into the bowl of your ear (refer to the picture).
Removing
▶ Lift the hearing instrument and slide it over the top of your ear.
Hold the tube and pull the ear piece carefully out.
CAUTION
Risk of injury!
In very rare cases the ear piece could remain in your ear when removing the hearing instrument. If this happens, have the ear piece removed by a medical professional.
Clean and dry your hearing instruments after usage. Read more in section "Maintenance and care".
Adjusting the volume
Your hearing instruments automatically adjust the volume to the listening situation.
If you prefer manual volume adjustment, press the rocker switch or use a remote control.
Refer to section "Controls" for your personal settings.
An optional signal can indicate the volume change.
Changing the hearing program
Hearing programs change the characteristics of the sound coming through the hearing instrument. They help you to select the optimal setup for every listening situation. An optional signal can indicate the change of the hearing program.
To change the hearing program, press the push button briefly or use a remote control.
Refer to section "Controls" and to section "Settings" for your personal settings and for a list of your hearing programs.
i
If the AutoPhone function is activated, the hearing program switches automatically to a telephone program when the telephone receiver is close to the ear. Read more in section "On the phone".
i
Your Hearing Care Professional can configure your hearing instruments so that they switch automatically to the audio shoe program if the audio shoe has been attached. Read more in section "Audio input".
Further adjustments (optional)
The controls of your hearing instruments can also be used to change, for example, the sound balance or the tinnitus noiser level. Sound balance allows you to adjust the bass and treble to your preferences.
Refer to section "Controls" for your personal settings.
Locking the controls
To prevent any accidental operation you can lock the controls. When the controls are locked, both push button and rocker switch are disabled.
To lock the controls, press the top of the rocker switch and hold it. Simultaneously press the push button for 3 seconds.
To unlock the controls, press the bottom of the rocker switch and hold it. Simultaneously press the push button for 3 seconds.
Using two hearing instruments
Very rarely does hearing loss occur in only one ear, therefore the use of two instruments ensures that you are improving your hearing in all situations allowing you to better participate in your daily life.
When controlling two instruments you have the following options to, for example, change the hearing program:
- You can control each hearing instrument separately. - You can control both hearing instruments simultaneously.
Your Hearing Care Professional has to activate the "e2e wireless" function, enabling both hearing instruments to exchange information. You can then use either a remote control or the user controls on either of your instruments for the desired function e.g. volume change.
The control elements of both instruments can even be set differently – thus offering you the degree of control you really need.
On the phone
When you are on the phone, hold the telephone receiver slightly above your ear. The hearing instrument and telephone receiver have to be aligned. Turn the receiver slightly so that the ear is not completely covered.
Telephoneprogram
You may prefer a certain volume when using the phone. Ask your Hearing Care Professional to configure a telephone program.
Switch to the telephone program whenever you are on the phone or use the automatic program switch. Whether a telephone program or the automatic program switch are configured for your hearing instrument is listed in section "Settings".
Automatic program switch (AutoPhone)
Your hearing instrument can automatically select the telephone program when you hold the telephone receiver close to the ear. When you end the phone call, the previously used program is activated.
If you want to use this function, ask your Hearing Care Professional to do the following:
■ Activate the AutoPhone function.
- Check the telephone receiver's magnetic field.
For the automatic program switch, your hearing instrument detects the telephone receiver's magnetic field. Not all telephones produce a magnetic field strong enough to activate the AutoPhone function. In this case, you can use the Siemens AutoPhone magnet, which is available as an accessory, and attach it to the telephone receiver.
NOTICE
See the AutoPhone magnet user guide for instructions on how to position the magnet.
▶ Use the approved AutoPhone magnet only. Ask your Hearing Care Professional for this accessory.
NOTICE
Magnets can disturb electrical devices and delete stored data.
Keep magnets away from computers, monitors, television sets, storage media and other electronic equipment/devices.
WARNING
Risk of affecting life support systems!
Use a magnet only when it is a safe distance away from life support systems, such as pacemakers or magnetic valves. For example, the safe distance between pacemaker and magnet should be at least 10 cm (4 inches).
Audio induction loops
Many telephones as well as public places like theatres offer the audio signal (music and speech) via an audio induction loop. With this system, your hearing instruments can directly receive the desired signal – without distracting noise in the environment.
You can usually recognize audio induction loop systems by certain signs.
Ask your Hearing Care Professional to configure a telecoil program.
Switch to the telecoil program whenever you are in a place with an audio induction loop.
Whether the telecoil program is configured for your hearing instrument is listed in section "Settings".
Telecoil program and remote control
NOTICE
For instruments with wireless connectivity: When the telecoil program is active, the remote control may cause a pulsing noise.
▶ Use the remote control with a distance greater than 10 cm (4 inches).
Audioinput
With an audio shoe you can connect your hearing instrument to an FM system. An FM system gathers speech at the voice source (via a separate microphone) and transmits the sound directly to the hearing instrument. This can be useful for adults in difficult listening situations and for children in classrooms.
Nowadays, most FM systems allow for coupling with audio devices like a MP3 player.
Your Hearing Care Professional can configure your hearing instruments so that they switch automatically to the audio shoe program if the audio shoe has been attached
WARNING
Risk of electric shock!
Connect audio input only to a device conforming to IEC 60065, the IEC-Norm for audio, video and other electronic devices.
NOTICE
Use an approved audio shoe only. Ask your Hearing Care Professional for this accessory.
NOTICE
Hold the audio shoe tightly when you remove the FM receiver.
Audio input32
Attaching the audio shoe
▶ Open the battery compartment.
Pull the cover out.
The shape of the cover depends on your type of hearing instrument.
Slide the audio shoein.
▶ Ensure that it clicks noticeably in place.
▶ Close the battery compartment.
Audio input 33
Removing the audio shoe
When the audio shoe is not attached, you can install a cover to prevent dirt and dust from entering the housing.
Open the battery compartment.
Audio input34
▶ Slide the cover in the direction of the arrow into position.
The shape of the cover depends on your type of hearing instrument.
▶ Close the battery compartment.
Maintenance and care
Siemens hearing instruments are so robust that they will function reliably for years. It is, however, important that you take care of your instruments and observe a few basic rules, which will soon become habit.
Cleaning
For hygiene reasons and to maintain functionality, clean your hearing instruments daily.
NOTICE
Do not put the hearing instruments in water.
Do not put LifeTubes or LifeTips in water.
Clean your hearing instruments with a soft, dry tissue.
If your hearing instruments are equipped with LifeTubes, regularly clean the tubes with special cleaning wires.
Refer to section "Cleaning the LifeTubes" for details.
▶ Ask your Hearing Care Professional for recommended cleaning products, special care sets and further information on how to keep your hearing instruments in good condition.
For a more thorough professional cleaning, take your instruments to your Hearing Care Professional.
Maintenance and care36
Cleaning the LifeTubes
If your hearing instruments are equipped with LifeTubes, you can remove cerumen from the tubes using a special cleaning wire. Ask your Hearing Care Professional for suitable cleaning wires.
Screw off the tube.
Carefully insert the cleaning wire into the tube. Start from the side opposite to the ear piece adapter.
▶ Push the cleaning wire all the way through the tube.
Wipe away any cerumen or debris that is dislodged from the tube.
▶ Completely remove the cleaning wire from the tube.
▶ Screw the tube onto the hearing instrument.
CAUTION
Risk of damage to ear canal and ear drum.
Always remove the Life Cleaning Wire from the LifeTube before reattaching it to your hearing instrument.
Drying
Dry your hearing instruments overnight.
▶ Ask your Hearing Care Professional for recommended drying products.
Storage
During longer periods of non-use, store your hearing instruments with open battery compartment (and batteries removed) in a drying system in order to prevent the penetration of moisture.
Exchanging ear pieces and tubes
For hearing instruments with a LifeTube:
▶ Ask your Hearing Care Professional to exchange the ear pieces and tubes approximately every 3 to 6 months or as needed.
Troubleshooting
| Problem Possible solution | |
| Sound is weak. Increase the volume. Replace the empty battery. Clean or exchange the tube and the ear piece. | |
| Hearing instrument emits whistling sounds. | Reinsert the ear piece until it fits securely. Decrease the volume. Clean or exchange the ear piece. |
| Sound is distorted. Decrease the volume. Replace the empty battery. Clean or exchange the tube and the ear piece. | |
| Hearing instrument emits signal tones. | Replace the empty battery. |
| Hearing instrument does not work. | Turn the hearing instrument on. Gently close battery compartment completely. Replace the empty battery. Make sure the battery is inserted correctly. Power-on delay is active. Wait several seconds and check again. |
Consult your Hearing Care Professional if you encounter further problems.
Importantinformation
Intendeduse
Hearing instruments are intended to improve the hearing of hearing impaired persons. Diagnosis and prescription of a hearing instrument must be performed by hearing health specialists, e.g. acousticians, audiologists or ENT doctors.
Use the hearing instruments and accessories only as described in this user guide.
Explanation of symbols
Points out a situation that could lead to serious, moderate, or minor injuries.
Indicates possible property damage.
Advice and tips on how to handle your device better.
Information and warnings for children with hearing instruments.
Transport and storage conditions
During extended periods of transport and storage, please observe the following conditions:
Storage Transport
Temperature 10 to 40 °C -20 to 60 °C
Relative humidity 10 to 80 % 5 to 90 %
Air pressure 700 to 1050 hPa 200 to 1200 hPa
For other parts, such as batteries, other conditions may apply.
Disposalinformation
Within the European Union, the marked equipment covered by *Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003 on waste electrical and electronic equipment."
Amended by "Directive 2003/108/EC" (WEEE).
NOTICE
▶ Recycle hearing instruments, accessories and packaging according to national regulations.
NOTICE
To avoid environmental pollution, do not throw batteries into household trash.
▶ Recycle or dispose of batteries according to national regulations or return them to your Hearing Care Professional.
Technical information
Motion P Xmi, Motion M Xmi, where "X" stands for any digit (e.g. Motion P 7mi, Motion P 5mi, Motion M 7mi,
Motion M 5mi, ...) FCC ID: SGI-WL002BTE
IC: 267AB-WL002 Operating frequencies: F=3.28 MHz
N14203 (EMC and radio communications compliance) (Australia)
This Class B digital apparatus complies with Canadian ICES-003.
Changes or modifications made to this equipment not expressly approved by Siemens Audiologische Technik GmbH for compliance may void the FCC authorization to operate this equipment.
FCC compliance
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following conditions:
■ this device may not cause harmful interference, and
■ this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Conformanceinformation
With the CE marking Siemens confirms compliance with the European Directive 93/42/EEC concerning medical devices.
For the products with e2e wireless 2.0 Siemens additionally confirms compliance with the European Directive 99/5/EC (R&TTE) concerning radio and telecommunications terminal equipment.
Important safety information
Personal safety
CAUTION
Risk of injury!
Always wear the tube with an ear piece.
Make sure that the ear piece is completely attached.
WARNING
Risk of affecting electronic equipment!
In areas where the use of electronics or wireless devices are restricted, verify if your device has to be turned off.
WARNING
Risk of impairing the residual hearing of the user.
▶ Use only hearing instruments that have been fitted especially for your needs.
WARNING
Risk of injury!
Do not use obviously damaged devices and return them to point of sale.
WARNING
Risk of explosion!
Do not use your hearing instruments in explosive atmospheres (e.g. in mining areas).
WARNING
Choking hazard!
Your hearing instruments contain small parts which can be swallowed.
▶ Ensure adequate supervision if infants, small children or mentally disabled persons need to wear hearing instruments.
▶ Check the completeness of the hearing instruments regularly.
▶ Ensure that your child does not detach the hearing instrument from the earmold.
Consult your Hearing Care Professional if the housing is deformed.
Keep the battery compartment locked. Verify the proper function of the locking mechanism.
Keep batteries and accessories out of children's reach.
If swallowed consult a physician or a hospital immediately.
Important safety information46
Product safety
NOTICE
Leaking batteries damage the hearing instruments.
▶ Turn the hearing instruments off when not in use to preserve the battery.
Remove batteries when the instruments are not in use for a prolonged period of time.
NOTICE
Protect your hearing instruments from extreme heat. Do not expose them to direct sunlight.
NOTICE
Do not dry your hearing instruments in the microwave oven.
NOTICE
Different types of strong radiation, e. g. during X-ray or MRI head examinations, may damage hearing instruments. ▶ Do not wear the hearing instruments during these or similar procedures. Weaker radiation, e. g. from radio equipment or airport security, does not damage the hearing instruments.
NOTICE
Protect your hearing instruments from high humidity. Do not wear them in the shower or when you apply make-up, perfume, aftershave, hairspray or suntan lotion.
Only for two instruments or the use of a remote control:
In some countries restrictions for the usage of wireless equipment exist.
▶ Refer to local authorities for further information.
NOTICE
Your hearing instruments are designed to comply with international standards on electromagnetic compatibility but interference with nearby electronic devices could occur. In this case, move away from the source of interference.
Country-specific information
Printed in Germany | © Siemens AG, 01.2013
www.siemens.com/hearing
- Content
- Welcome
- CAUTION
- Your hearing instruments
- Controls
- Settings
- Features
- Batteries
- Child lock (optional)
- Opening a locked battery compartment:
- Daily use
- Inserting
- Removing
- Changing the hearing program
- Further adjustments (optional)
- Locking the controls
- On the phone
- Automatic program switch (AutoPhone)
- NOTICE
- WARNING
- Audio induction loops
- Audioinput
- Maintenance and care
- Cleaning the LifeTubes
- Drying
- Storage
- Importantinformation
- Intendeduse
- FCC compliance
- Important safety information
- Product safety
Brand : SIEMENS
Model : Motion P micon
Category : Hearing aid
