RH 12 - Heating FAKIR - Free user manual and instructions

Product Type	Halogen Oil Filled Radiator
Brand	Fakir
Model	RH 12
Dimensions (HxWxD)	635 x 610 x 280 mm
Power Supply	220-240V, 50Hz
Power Stages	800W (Stage 1), 1200W (Stage 2), 2000W (Stage 3), 800W Halogen, Max 2800W
Cable Length	1.8 m
Heating Elements	Oil-filled radiator + halogen tube
Number of Heat Settings	4 (3 power stages + halogen boost)
Thermostat	Adjustable, with automatic temperature control
Safety Features	Overheat protection, tip-over switch, safety thermostat, Class I insulation
Assembly Required	Yes: attach wheels and front legs
Wheels Included	Yes (2 wheels with axle)
Front Legs Included	Yes
Indicator Light	Green power indicator
Control Type	Rotary knobs for stage and thermostat
Usage Location	Indoor, dry rooms only (not bathroom or laundry)
Cleaning	Wipe with soft damp cloth; do not use abrasives
Maintenance	No regular maintenance required; if oil leaks, contact authorized service
Certifications	Complies with safety standards

Frequently Asked Questions - RH 12 FAKIR

How do I assemble the wheels and front legs?

To assemble, place the radiator upside down on a soft surface. Attach the two wheels to the front leg bracket until they click. Then, pass the U-shape bolt through the last stage of the radiator and through the wheel axle, tighten with the wing nut. Finally, fix the front leg stand to the radiator body using the provided screws. Ensure the radiator is upright before use.

What are the power settings and how do I use them?

The radiator has four power settings: Stage 1 (800W), Stage 2 (1200W), Stage 3 (2000W), and a separate Halogen Heater (800W). The stage adjust button selects these. For maximum heat, use Stage 3 plus halogen (total 2800W). The thermostat controls the room temperature. For economical use, select lower power stages.

Can I use this heater in the bathroom?

No, the manual explicitly states: "The appliance must not be used in the bathroom, laundry or any other kinds of interior rooms. It is forbidden to place it near swimming pools or shower bath." Use only in dry areas.

How do I clean the radiator?

Before cleaning, unplug the radiator and let it cool completely. Wipe the exterior with a soft, damp cloth. Do not use abrasive soaps, cleansers, or scouring pads. The radiator does not require internal maintenance.

What should I do if the radiator tips over?

The radiator is equipped with a roll-over safety switch that automatically cuts power if it tips over. If this happens, simply set the radiator upright again. The switch will reset. If it doesn't work, contact authorized service.

Why is the heater not turning on?

Check if the plug is properly inserted and the socket is live. Ensure the power switch is on. Also verify that the thermostat is not set to minimum. If the cable is damaged, it must be replaced by authorized service. If still not working, consult the troubleshooting section.

How do I adjust the thermostat?

The thermostat adjust button controls the desired room temperature. Turn it clockwise (right) to increase the temperature. Once the room reaches the set temperature, the radiator will cycle off automatically. To lower temperature, turn counterclockwise. The halogen heater is not controlled by the thermostat.

Is it safe to cover the radiator?

No, never cover the radiator. The manual warns: "Do not cover the radiator with anything. Otherwise the temperature of the appliance can increase and cause fire." Keep it away from curtains, furniture, and other objects.

Can I use an extension cord?

No, the manual states: "It is forbidden to use the extension cord." Plug the radiator directly into a grounded wall socket. The socket's amperage should be at least 16A.

What does the halogen heater do?

The halogen heater provides additional instant heat (800W) and can be used alone or together with the oil radiator stages. It is controlled by the stage adjust button. When set to halogen position, it works independently. Combined with Stage 3, it delivers maximum 2800W output.

USER MANUAL RH 12 FAKIR

Exterior view of a white portable air conditioner unit (no visible text or labels)

iÇİNDEKİLER

TR

Genel 4

Sorumluluk 5

Yetklisz Kullanım 5

Safety Instructions 19 Technical Specifications 21

Technical Specifications 21 Overview 22

Overview 22 Superior Features 22

Preparation 22

Usage 24

Connecting Power Supply 24

Operating 24

Turn Off 25 Cleaning and Maintenance 25

Cleaning and Maintenance 25 Troubleshooting 26

Troubleshooting 26 Dispatch 26

Recycling 27

GENERAL

General

Thank you for purchasing Fakir RH-12 halogen oil filled radiator which has been designed and manufactured to give you many years of trouble-free service. You may already be familiar with using a similar product, but do please take time to read these instructions - they have been written to ensure you get the very best from your purchase. If you are experiencing any problem with the product please apply to Authorized Fakir Service. Safety is important. To ensure your safety and the safety of others, please ensure you read the Safety Instructions before you operate this product. Keep this information in a safe place for future reference. Safety is important. To ensure your safety and the safety of others, please ensure you read the Safety Instructions before you operate this product.

WARNING!

Indicates notices which, if ignored, can result in risk of in jury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

GB

GENERAL

Liability

Fakir will accept no liability for damages resulting from failure to comply with the operating instructions. We cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly by a different service than Fakir.

Unauthorized Use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury:

• This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance.
- Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not play the appliance and store the appliance
- Not let the power cord dangle from the appliance. - Keep packaging films away from children - danger of suffocation! Otherwise children can hurt themselves by eating!

SAFETY INSTRUCTIONS

GB

Safety Instructions

This appliance is adjusted 220-240V. Use this radiator only with alternative current (AC) and please take care volt value on the rating label.

1. The appliance may be plugged in just the power net with ground connection. For your safety, the ground connection must correspond with state rules and standards.

2. The amper value of switch should not be lower than 16 A in your house.

3. Take off plug of appliance form power socket when it is not used.

4. Do not cover the radiator with anything. Otherwise the temperature of the appliance can increase and cause fire.

5. The radiator is filled with special oil. In case of leak, it must be replaced by the manufacturer or Fakir Authorized Service in order to avoid a hazard.

6. The appliance must not be used in the bathroom, laundry or any other kinds of interior rooms. It is forbidden to place it near swimming pools or shower bath.

7. The cord should not be placed nearby the hot surface of the appliance.

8. The radiator should always be placed in vertical position.

9. If the power supply cord is damaged, it must be replaced by Fakir Authorized Service in order to avoid a hazard.

10. The radiator should be placed at the distance of 90 centimeters from any other objects and pieces of furniture. The distance from the front panel should be more than 120 centimeters.

11. Do not carry the appliance holding it by the power cord, make sure that the wheels are on the floor.

12. It is forbidden to use the extension cord.

13. This appliance is intended for household use only, not for commercial or industrial use.

14. When plugging in, be sure, that the appliance is switched off.

15. Close supervision is necessary when any appliance

SAFETY INSTRUCTIONS

Safety instructions

1. You should not repair the appliance by yourself. It must be done just by Fakir Authorized Service.
2. Only original spare parts may be used for repair.
3. Do not use nearby the highly inflammable liquid like gasoline, oil, varnish, solvent etc.

TECHNICAL SPECIFICATIONS

GB

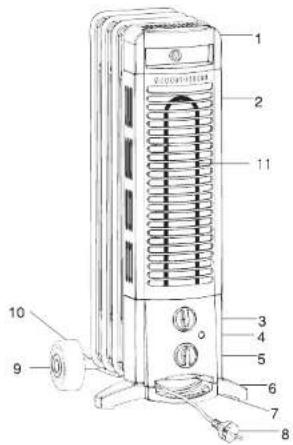

1. Handle
2. Holojen heater part
3. Thermostat adjust button
4. Indicator
5. Stage adjust button
6. Front legs
7. Cort storage
8. Power cord
9. Roller
   10.Roller axle
10. Halogen tube

Dimensions (mm)

Height:635

Width : 610

Langht:280

Power (W)

Stage 1:800 W

Stage 2:1200 W

Stage 3:2000 W

Halogen Heater : 800 W

Maksimum Power:2800 W

Voltage (V / Hz) : 220-240V 50Hz

GB

OVERVIEW

Superior Features of Halogen Oil Radiator

• Electric Oil Radiator has stage adjust button that provides working at automatic thermostat and 5 different power levels
• The signal lamp that is on the light indicator is designed to show the device is switch on. The power lamp will light up all positions that device is switched on.
• This radiator is specially equipped with a safety thermostat.
- This radiator is equipped with safety system against over-temperature.
- This radiator equipped roll-over safety switch against roll-over. - Electric Oil Radiator has special high-efficiency heat transfer oil, powder painted, painted and fully secure.
- Protection against electric shock: 1. class - Type: more than one heating step and heater that the room temperature on the thermostat
• Cable lenght : 1.8 Meter

Preparation

Wheel assebling to the electric oil radiator.

Do not use this appliance without front stand and wheels.

1. The radiator is supplied with two rollers and one axle block, one front leg platform and two fixing screws, U-shape bolt and one wing nut. (Picture 1)
2. Connect wheels with front leg. Push the wheels until hearing click sound. (Picture 2,3)

OVERVIEW

GB

1. Turn over the radiator on the soft floor. When the radiator is upside down, the liquid oil in it can be made a noise.
2. Pass U-shape bolt through the last stage of radiator. (Picture4)
3. Pass U-shape bolt through holes on the wheel axle, tiighten it with wing nut. (Picture 5)
   6.Pass front stand part to the fixing holes while radiator is upside down.
4. Fix the front stand part to the radiator body with the given front stand screws. (Picture 6)

USAGE OF HALOGEN OIL RADIATOR

Connecting Electric Oil Radiator to AC power supply

Set the distance between radiator and plug to avoid cable tense. Turn thermostat adjust button 'MIN' position. Connect plug of radiator to the grounded power socket.

Operating Electric Oil Radiator:

Check whether thermostat adjust button is on 'MIN' position. Connect plug of radiator to the grounded power socket. In the first usage, set it maximum temperature stage by turning thermostat adjust button to the clockwise (right).

Set it 3. stage (…) working position by turning stage adjust button to the clockwise (right).

1. When stage adjust button is turned to 1. stage, the resistance starts to work at the lowest heat level of 800W. (*)
2. When stage adjust button is turned to 2. stage, the resistance starts to work at the middle heat level of 1200W. (**)
3. When stage adjust button is turned to 3. stage, the resistance starts to work at the highest heat level of 1200+800=2000W. (…)
4. 800W stage can be switch on and off due to the room temperature for secure working.
5. Stage adjust button is set to halogen heater position, halogen heater starts to work. (800W)
6. When it is set to halogen heater + 3.stage, they start to work all together. (800+2000=2800W)

ATTENTION

Thermostat that is used in appliance can only be used for cut the circuit of the radiator when the temperature becomes desired room temperature. Thermostat do not cut the halogen heaters' cuircuit.

USAGE OF HALOGEN OIL RADIATOR

GB

Turn Off Electric Oil Radiator:

NOTICE!

Note: Set thermostat adjust and stage adjust buttons to the highest level until the temperature reaches desired room temperature. Turn thermostat adjust button to the counter clockwise (left) until hear click to reach the desired room temperature. If the weather is not so cold, it is economical to let it work at 800W or 1200W stages.

To turn off electric oil radiator, firstly turn stage adjust button to '0' position then turn thermostat adjust button to 'MIN' position. Take off the plug of the radiator from the power socket.

Cleaning and Maintenance

• Before cleaning, be sure the radiator is unplugged, and it has cooled completely.
• Wipe the exterior of the radiator with a soft and damp cloth.
• Do not use abrasive soaps, cleansers, or scouring pads on any part of the radiator.
  • Electric Oil Radiator does not require maintenance that has been prepared to give you years of service

GB

TROUBLESHOOTING

If at once you don't succeed

Our products are subject to strict quality control.

Before you contact our Fakir Customer Service, check whether you can correct the fault yourself.

Malfunction	Possible cause Solution
Appliance does not work	Plug is not plugged in or the appliance is not switched on. Socket does not carry any current. Power cable is damaged.	Plug in the plug or switch the appliance on Test the cylinder vacuum cleaner at another socket which you are sure carries current Have the cable replaced by authorized Fakir services

Dispatch Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

RECYCLING

GB

Each user can protect the natural environment. It is neither difficult nor expensive. In order to do it:

• Put the polyethylene (PE) bags into container for plastic.
• When worn out, dispose the appliance to particular disposal
  • centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.
