Product Type	Roof Box
Brand	Yakima
Model	RocketBox 11
Capacity	11 cubic feet
Crossbar Spread Required	30 - 36 inches (76 - 91 cm)
Locking System	Same-Key-System® (SKS) compatible
Clamp Mechanism	Adjustable clamps with red knobs and thumb wheels
Material	Polypropylene (UV-resistant)
Care Instructions	Wash with mild soap and water; wax with automotive wax/UV protectant
Lock Maintenance	Lubricate monthly with spray lubricant
Key Features	Removable key only when box is closed; SKS lock core replaceable
Safety Warning	Do not exceed rack weight limit; check hardware periodically
Installation Notes	Remove fairing before installation; tighten knobs and thumb wheels
Compatible With	Yakima crossbars and most factory racks with proper crossbar spread
Weight	Approximately 35 lbs (15.9 kg)

Frequently Asked Questions - RocketBox 11 Yakima

How do I open the Yakima RocketBox 11 roof box?

Insert the key into the lock and turn to unlock. While the key is still inserted, lift the lid. The key cannot be removed when the box is open.

What is the correct crossbar spread for the RocketBox 11?

The recommended crossbar spread is 30 to 36 inches (76 to 91 cm). Ensure your crossbars are within this range for proper installation.

How do I adjust the clamps on the RocketBox 11?

Loosen the red knobs and slide the clamps along the tracks inside the box to align with the crossbars. Tighten the knobs to engage the clamps, then tighten all thumb wheels.

Can I use the RocketBox 11 with any roof rack?

The box requires crossbars within 30-36 inches apart. It is compatible with Yakima crossbars and most factory racks that meet this spread.

How do I lock and secure the box after closing?

Close the lid firmly and push up to check closure. Turn the key fully to the right (horizontal) to lock. Remove the key. The key can only be removed when the box is locked.

What maintenance does the RocketBox 11 need?

Clean with mild soap and water, then apply automotive wax with UV protectant. Lubricate the lock mechanism monthly with spray lubricant.

Can I go through an automatic car wash with the box installed?

No, do not enter a car wash with the box installed. Remove the box before using automated car washes to avoid damage.

How do I install the optional SKS locks?

Use the control key from the SKS kit to remove the existing lock core. Insert the new lock core with the depression aligned to the point, push in fully, and turn the key to horizontal. Then remove the control key.

What should I do if the box does not close properly?

Do not overstuff the box. Ensure cargo is not preventing closure. Check that the lid seals evenly. If necessary, redistribute the load.

How often should I check the box attachment?

Periodically check the knobs and thumb wheels inside the box and tighten if necessary. Always inspect before driving. Hardware can loosen over time.

USER MANUAL RocketBox 11 Yakima

rack weight if appropriate)

box contents

DO NOT EXCEED YOUR RACK'S WEIGHT LIMIT!
Check with your Yakima dealer or on the internet

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL YAKIMA RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED WITH YOUR YAKIMA PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A

CROSSBAR SPREAD

RocketBox 16 ....30" - 36" (76 - 91 cm)

RocketBox 11....30" - 36" (76 - 91 cm)

RocketBox 15s .....24" - 36" (61 - 91 cm)

BARS THAT MOVE: TIGHTEN YOUR CROSSBARS IF YOU LOOSENED THEM.

If your vehicle has a fairing, remove the fairing prior to box installation.

OPEN THE BOX

(Use the key to

unlock the box).

• TO OPEN THE BOX, unlock it.

- With the key still inserted,

raise the lid.

The key cannot be removed

while the box is open.

INSIDE THE BOX:

Loosen red knobs and open clamps. Do not remove knobs.

Loosen track thumb wheels 1/2 turn. Do not remove wheels.

REMOVING THUMBWHEELS WILL CAUSE DISASSEMBLY OF LEVER/CLAMP MECHANISM.

LOAD CARGO BOX ONTO VEHICLE:

Place box on vehicle with clamps in front of crossbars. A friend could help with this.

Simple line diagram showing a curved top edge and two horizontal lines with small black triangles at the bottom (no text or symbols)

6
OPEN LID TO GAIN ACCESS TO KNOBS.

Illustration of a hand using a tool to lift a curved object into a container, with no visible text or symbols.

• Check clamp opening for crossbar clearance.
• Loosen red knob further if necessary.

7

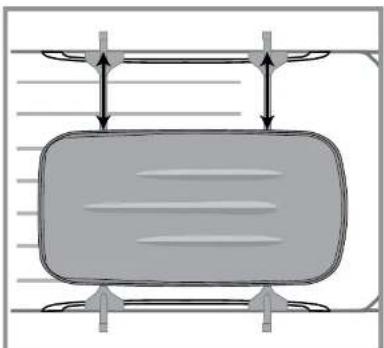

Adjust box on top of car. Measure from towers for reference.

Pure diagram of a rectangular object with horizontal arrows and horizontal lines, no text or symbols present

8
Tighten knobs to engage clamps.

Hand operating a mechanical device with a circular button and arrow indicating rotation (no text or symbols)

⑨
TIGHTEN ALL THUMB WHEELS.

Illustration of hands using a tool to adjust or install a small component (no text or symbols visible)

• Overstuffing the box will prevent closure.
- Check the closure by pushing up on the lid.
• To lock the box, turn key all the way to the right until horizontal. Remove key.

TO OPEN THE BOX, unlock it. With the key still inserted, raise the lid. The key cannot be removed while the box is open.

UNLOCK / OPEN

LOCK NOT LOCKED! *

* See 11a below.

11 REPLACEMENT LOCK FOR SAME-KEY-SYSTEM® USERS:

Yakima SKS® locks purchased separately. (If you wish to install matched-key locks; keep this instruction for replacement lock installation).

• Insert lock key and rotate the lock to align lock depression with point on rim.
• REMOVE lock key.
• Insert control key (from kit purchased separately).

Remove key with lock attached.

Insert control key into the new lock, and install.

Keep the depression aligned to the point.

• Push the core completely into the housing.
• Turn the key to a horizontal position.
• Hold the core with the tip of your thumb and pull out control key. The lock should remain in the housing.

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

12 CHECK INSTALLATION BEFORE DRIVING AWAY

a The boy should not slide

TO REMOVE CARGO BOX:

• Do not remove or adjust thumb wheels.
• Simply loosen red knobs and remove box from crossbars.

TO REINSTALL:

• With gear box adjusted to your vehicle, simply reload onto car, tighten red knobs and check for tightness.

To retain the adjustments for your vehicle, leave thumb wheels tightened. REMOVING THUMBWHEELS WILL CAUSE DISASSEMBLY OF LEVER/CLAMP MECHANISM.

CARE AND MAINTENANCE

BOX CARE:

Use a clean soft cloth. Wash with mild soap and water. Polish with automotive type wax and UV protectant to prevent color fade.

LOCK MAINTENANCE:

Spray a small amount of lubricant into lock mechanism once a month.

AUTOMATIC CAR WASHES:

Do not enter car wash with box installed on vehicle.

KEEP YOUR SECOND KEY IN A SAFE PLACE!

CAUTION

IF YOUR VEHICLE

HAS A REAR HATCH:

On some vehicles, hatch interference is unavoidable.

Use caution when opening your hatch.

READ THESE WARNINGS!

Periodically check the knobs inside the box and tighten if

ATTACHMENT

HARDWARE CAN LOOSEN OVER TIME. CHECK AND TIGHTEN IF NECESSARY,

BE SURE ALL HARDWARE IS SECURED ACCORDING TO

INSTRUCTIONS. FAILURE TO PERFORM SAFETY CHECKS

BEFORE DRIVING AWAY CAN RESULT IN PROPERTY

IF YOU NEED FURTHER

TECHNICAL ASSISTANCE

OR REPLACEMENT PARTS

Contact your dealer, or visit www.yakima.com, or call [phone]

Monday through Friday,

7:00 AM to 5:00 PM, PST

THIS PRODUCT IS COVERED

BY YAKIMA'S

TO OBTAIN A COPY OF THIS WARRANTY, GO ONLINE TO

WWW.YAKIMA.COM OR EMAIL US AT

[e-mail]

OR CALL [phone]
