STX008 - Vacuum Cleaner Kunft - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	Kunft
Model	STX008
Dimensions (L x W x H)	30 x 25 x 20 cm (11.8 x 9.8 x 7.9 in)
Weight	3.5 kg (7.7 lbs)
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1200 W
Dust Capacity	1.5 L (bagless)
Filtration System	HEPA filter
Cord Length	5 m (16.4 ft)
Noise Level	75 dB
Suction Power Control	Yes, electronic
Attachments Included	Crevice tool, dusting brush, upholstery nozzle
Material	Plastic with metal telescopic tube
Color	Black and red
Operating Radius	8 m (with cord)
Filter Cleaning	Washable HEPA filter
Replacement Parts	Filter, belt, dust bin
Certification	CE
Warranty	2 years

Frequently Asked Questions - STX008 Kunft

How do I clean the HEPA filter?

Turn off and unplug the vacuum cleaner. Remove the dust bin. Take out the filter and tap it gently to remove loose dust. Rinse the filter under lukewarm water (do not use detergent). Let it air dry completely for at least 24 hours before reinserting. Do not use the vacuum without a dry filter.

How do I empty the dust bin?

Press the release button to detach the dust bin from the main body. Hold it over a trash can and press the bottom release or slide the lid to empty. For thorough cleaning, use a dry cloth to wipe the inside. Avoid washing the dust bin.

What should I do if suction power decreases?

First, empty the dust bin and clean/replace the filter. Check the hose and attachments for blockages. Inspect the brush roll for tangled hair or debris. If problem persists, refer to the manual or contact customer service.

Is this vacuum cleaner bagless?

Yes, the Kunft STX008 is a bagless vacuum cleaner. It uses a transparent dust bin that you empty directly, saving on replacement bag costs.

How do I assemble the vacuum cleaner?

Connect the metal tube sections to the main body. Attach the hose to the tube or directly to the vacuum. Select the desired floor nozzle and click it onto the tube. For accessories, push onto the handle or tube end.

How should I store the vacuum cleaner?

Wrap the power cord around the cord hooks on the back of the vacuum. Stand the unit upright and park the floor nozzle in the provided parking slot or vertical position. Keep in a dry, cool place.

What to do if the vacuum cleaner overheats?

If the vacuum suddenly stops or emits a hot smell, switch off and unplug it. Check for blockages in the hose, tube, or dust bin. Clean the filter and empty the bin. Allow the vacuum to cool for at least 30 minutes before restarting. If the problem recurs, contact service.

How do I clean the brush roll?

Remove the floor nozzle. Use scissors or a seam ripper to cut and remove hair, threads, or fibers wound around the brush. Wipe brush with a damp cloth. For deep clean, remove the brush roll cover and take out the brush if necessary.

Can I wash the filter?

Yes, the HEPA filter is washable. Rinse under cold water without soap. Let it dry completely for 24 hours before reinstalling. Do not use a hairdryer or microwave to dry.

Where can I buy replacement parts?

Replacement filters, belts, and dust bins are available online through Kunft's official website or authorized retailers. Check the model number STX008 to ensure compatibility.

USER MANUAL STX008 Kunft

Product photo of a vacuum cleaner with black handle and green handle against orange background (no text or symbols on device)

vacuum cleaner bagless STX008

Dear client,

We thank for purchasing this product.

This appliance was submitted to several laboratorial tests, which certify its quality. For the use of the appliance to be simpler, together we send you its detailed instructions.

Please read carefully the instructions and safety measures described in this manual.

We wish our clients great satisfaction in using their new appliance.

KUNFT®

EN

INDEX

1. SAFETY INSTRUCTIONS ....4

1.1. Power Energy ....4
1.2. Power Cord and Other Cables ....4
1.3. Humidity and Water 5
1.4. Cleaning ....5
1.5. General Precautions ....5

1. UTILIZATION AND FUNCTIONING ....7

2.1. Identification of the Parts .....7
2.2. Assembling the Vacuum Cleaner .....7
2.3. Fitting the Flexible Tube 7
2.4. Fitting the Extension Tubes and Accessories ..7
2.5. Removing the Extension Tubes and Accessories ....7
2.6. Instructions for Use ....8
2.7. How to Clean the Dust Cabin ....8
2.8. Using the Cleaning Accessories .....8

1. MAINTENANCE 9

2. AFTERMARKET 9

3. FLOWABLE SWITCH

vacuum cleaner bagless STX008

1. SAFETY INSTRUCTIONS

	ATTENTION	[AYCB]
	Risk of Electric ShockDo Not Open

Attention: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that may be repaired by the user. Ask for assistance to qualified personnel.

Important Warnings

Before using your appliance, read carefully this instructions' manual and keep it in a safe place, as you may need it for future consultations.

Before you start your appliance, and to ensure a correct use, do not use it if:

- It felt on the ground;

- You notice any evidence of damage;

- Any anomaly occurs during its operation;

To avoid hazards and deterioration of your appliance by an incorrect

use, it is advisable to read the instructions carefully and attentively.

Your appliance must not be used to other ends than the ones foreseen in the instructions manual. Your safety is only guaranteed in a household use and not for commercial use. The incorrect use will not be covered and automatically cancels the right to warranty Assistance.

Assistance

Be sure that, in case of malfunction, you deliver your appliance for assistance to a qualified technician.

THIS APPLIANCE CAN BE USED BY CHILDREN FROM 8 YEARS OLD AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION.

- THESE INSTRUCTIONS ARE ALSO AVAILABLE ON WWW.SUPORTEWORTEN.PT

1.1. Power Energy

Check if the voltage of the electric power is compatible with the

KUNFT®

Never use this appliance if it has a damaged cord or plug, nor if it is not working correctly.

If the power cord is damaged, do not use your appliance, take it to an authorized technical assistance to be replaced.

1.3. Humidity and Water

Do not use your appliance in moist environments. Do not let your appliance subject to get wet in any way, since it may be dangerous. TO AVOID FIRE OR ELECTRIC HAZARD DO NOT EXPOSE THE APPLIANCE TO WATER NOR MOISTURE. Do not put your appliance under water (for example, to wash it).

1.4. Cleaning

Turn off your appliance before cleaning it; some time after clean it with a soft and dry cloth. Do not use cleaning products.

1.5. General Precautions

• Do not use outdoors or on wet surfaces.
  • Use only manufacturer recommended components.
• Do not roll the cable around corners of walls or sharp surfaces.
• Do not run the appliance over the power cable.
• Do not place any objects in the openings nor use the appliance with the openings blocked, keeping them free of dust, dirt or hair. In case the openings, the brushes or the hose get stuck, immediately turn off the appliance and remove any substance that causes the jam.
• Remove any sharp objects that may be on the floor before vacuuming.
• Keep any body part and also clothing away from the openings and the appliance moving parts.
  • Beware when using the appliance in stairs.
• Do not use the appliance to vacuum inflammable liquids or combustibles, nor use it in areas were these products maybe.
• Do not use the appliance to vacuum inflammable substances, like cigarettes and hot ashes, as it may damage the appliance.
• Do not touch the power cord or plug with wet hands.
• Do not vacuum with children nearby the appliance due to the risk of allergic reactions.
• Never allow children to use this appliance.
• Do not expose the appliance to adverse climate conditions, such

vacuum cleaner bagless STX008

• Use the appliance only with a filter and an engine protection inserted. The filter cannot be damaged, and should only use the filters mentioned ahead in this manual.
• Before vacuum a rug that it has just been washed, let it dry completely.
• Never leave the vacuum cleaner near heat sources, such as ovens or heaters.
• Store this appliance package for warranty purposes.
• Do not vacuum toner powders, plaster, grit or powder drill, because this can block the filter.
  • Turn off the control before unplugging.
  • Always turn off the appliance after using.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• If the cleaner is damaged, don't use it any more, it must be repaired by the service agent authorized by the factory.

Do not remove the plug from the socket by pulling the cable or the appliance itself.

Do not run the appliance over the power cable.

Do not let the appliance to vacuum lighted matches, cigarette ends or hot ashes.

Do not use the appliance on wet surfaces.

Do not use the appliance when it is upright.

Do not use the appliance to vacuum needles, drawing-pins or sting.

Do not use the appliance to vacuum needles, drawing-pins or sting.

KUNFT®

2. UTILIZATION AND FUNCTIONING

2.1. Identification of the Parts

(A) Floor brush
(B) Hose
(C) Tube
(D) Handle for tube
(E) Dust cup
(F) Base
(1G) Big wheel
(H) Hose connector

2.2. Assembling the Vacuum Cleaner

Always remove the plug from the power socket before fitting or removing accessories.

2.3. Fitting the Flexible Tube

Insert the flexible tube into the air intake duct on the appliance. To do this, slide the intake duct cover insert the tube and press until it clicks into position.

2.4. Fitting the Extension Tubes and Accessories

2.5. Removing the Extension Tubes and Accessories

vacuum cleaner bagless STX008

2.6. Instructions for Use

1. Before using the appliance, unwind length of cable and insert the plug into the power socket.
2. Press the ON/OFF button to switch the appliance on. It is advisable to set the electronic power regulator to MIN before switching the appliance on.

2.7. How to Clean the Dust Cabin

1. Push the sliding lock button meanwhile press the cabin pressing button, to take out duct cabin;
2. The dust is dropped out when the dust cabin lock button is pressed;
3. To turn the cover of dust cabin, take out HEPA, to clean up HEPA;
4. To take out and clean up the cyclone segregator when the dust is fulfilled in cabin; it's assembled in turn after cleaned.
5. Push the sliding lock button meanwhile press the cabin pressing button, to take out duct cabin;
6. The dust is dropped out when the dust cabin lock button is pressed;
7. To turn the cover of dust cabin, take out HEPA, to clean up HEPA;
8. To take out and clean up the cyclone segregator when the dust is fulfilled in cabin; it's assembled in turn after cleaned.

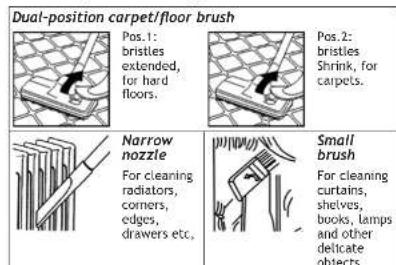

2.8. Using the Cleaning Accessories

KUNFT®

3. MAINTENANCE

When the motor filter is dirty remove the filter and wash carefully in liquid or water. Allow the filter to dry completely before replacing it.

1. To clean or replace the air outlet filter, first detach the grille by pulling firmly away from the appliance.
2. Remove the filter from the appliance. Clean or replace the filter. The filter should be washed regularly under the tap and allowed to dry before replacing it in the filter grille.
3. Replace the filter every 2-3 months, depending on the quantity it is used.

4. AFTERMARKET

KUNFT has designed this appliance in order to guarantee the maximum reliability.

Do not open the appliance - there is a risk of electric shock.

If you are not able to solve the problem, please contact your seller or manufacturer.

WARNING: any attempt of fixing the appliance without contacting the manufacturer will nullify the warranty.

In case the problem persists, take your appliance to an aftermarket section of any Worten, Modelo or Continente store in order to solve the problem.

Worten Equipamentos para o Lar ensures for a period of 2 years, counting from the date of purchase of this appliance, a warranty against any found manufacturing defect. The warranty supposes a correct use and maintenance of the appliance, namely according to the instructions expressed in this manual. In case otherwise identified, the malfunctions will not be under the warranty.

The repairing of electrical appliances must only be made by qualified technicians, as otherwise there may occur future complications on the appliances.

To avoid unnecessary dangers, in case there are malfunctions on the cables or other components, repairing must be done by specialized technical assistance, due to the need of appropriate tools.

5. ENVIRONMENT CONSERVATION

Aiming to protect the environment, we try to reduce to a maximum the volume of the packages which are confined to three easy separation materials: cardboard, paper and plastic.

The appliance is made of recyclable material, once disassembled by a specialized company. Follow the local

aspirador sin bolsa STX008

(A) Escova de chão

(B) Mangueira

(C) Tubo

(D) Pega para tubo

(E) Compartimento

de pó

(F) Base

(G) Roda grande

(H) Conector

de manguetra

2.2. Montar o Aspirador

vacuum cleaner bagless

STX008
