HVC-M1400 - Vacuum Cleaner Heinner - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Model	HVC-M1400
Brand	Heinner
Power Consumption	1400 W
Dust Capacity	1.5 L (bagless dust cup)
Filtration System	HEPA filter + washable sponge
Dimensions (L x W x H)	Approx. 40 x 30 x 25 cm
Weight	Approx. 5 kg
Cord Length	5 m
Noise Level	75 dB
Accessories Included	Crevice tool, brush nozzle, upholstery tool
Dust Collection Method	Cyclonic bagless
Suction Power	200 air watts (approx.)
Cleaning Surface	Hard floors, carpets, upholstery
Maintenance	Empty dust cup after each use; wash filters every 3 months
Safety Precautions	Unplug before cleaning; do not vacuum liquids or hot ashes
Spare Parts Available	HEPA filter, dust cup assembly, brush roll
Reparability	User-replaceable filters and brush; service center for motor
Energy Efficiency	Class A (estimated)

Frequently Asked Questions - HVC-M1400 Heinner

How do I empty the dust cup?

Press the release button on the dust cup and pull it out. Hold over a trash bin, press the bottom flap to empty, then reattach.

How often should I clean the filters?

Clean the washable sponge filter every 3 months. Tap off dust or rinse with water and dry completely before reinstalling. Replace the HEPA filter every 6-12 months.

What should I do if the suction is weak?

Check if the dust cup is full, filters are clogged, or hose/brush is blocked. Clean or replace as needed. Also check that the vacuum is set to proper power mode.

Can I use the vacuum to pick up water?

No, this vacuum is designed for dry dust only. Do not vacuum liquids or wet debris to avoid electrical damage.

How do I attach the crevice tool?

Push the accessory directly onto the hose handle or wand until it clicks. To remove, press the release button if present and pull.

Is the vacuum suitable for pet hair?

Yes, the brush nozzle and cyclonic action help pick up pet hair. However, check the brush roll for hair tangles periodically.

What is the cord length?

The power cord is 5 meters long, which should cover most medium-sized rooms without switching outlets.

How do I replace the HEPA filter?

Open the filter cover (usually on the side of the dust cup), remove the old filter, insert a new one, and close the cover. Ensure it is compatible with HVC-M1400.

Why does the vacuum smell burnt?

A burnt smell may indicate a full dust cup, clogged filter, or debris overheating the motor. Turn off immediately, unplug, and inspect. Clean filters and empty cup.

Where can I find spare parts?

Visit Heinner's official website or contact authorized service centers. Use model HVC-M1400 to find compatible filters and accessories.

USER MANUAL HVC-M1400 Heinner

Two identical black rope tied with a string, each holding a red object (no text or symbols visible)

WW. heinner.ro

V. INSTRUCTIUNI DE UTILIZARE

Line drawing of a vacuum cleaner with attached hose (no text or symbols)

Line drawing of a vacuum cleaner with attached housing (no text or symbols)

VI. CURATARE SI INTRETINERE

Copyright © 2013 Network One Distribution. All rights reserved.

http://www.nelner.com, http://www.nod.ro

HEINNER

Two identical black l-branded sportswear designs with red accents, shown against white background (no text or symbols)

WW. heinner.ro

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

III. SAFETY MEASURES

For household use only!

When using your vacuum, basic safety precautions should always be observed, including the following:

1. Do not leave vacuum cleaner unattended when it is plugged in. Unplug from outlet when not in use and before pulling filters out.
2. To reduce the risk of electric shock-do not use outdoors or on wet surfaces.
3. Do not allow children to use as a toy. Close attention is necessary when used near children.
4. Use only as described in this manual. Use only manufacturer's recommended attachments.
5. Do not use with damaged cord or plug. Do not use vacuum cleaner if it has been dropped, damaged, left outdoor, or dropped into water. Return appliance to the appliance customer service for examination repair or adjustment.
6. Do not pull or carry by cord. Do not use cord as a handle. Close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
8. Do not handle plug or vacuum cleaner with wet hands. Dot not use outdoors or on wet surfaces.

9. Do not put any objects into openings. Do not use with any openings blocked and do not restrict airflow. Keep all opening free of dust, lint, hair, and anything that may reduce airflow.

10. Use only on dry, indoor surfaces.

11. Do not use for any purpose other than described in this user's guide.
12. Store your appliance indoor in a cool, dry area.
13. Keep your work area well dry.
14. Do not immerse the hand vacuum into water or other liquids.
15. Keep end of hose, wands and other openings away from your face and body.
16. Do not use the cleaner to clean your pets or any animal.
17. Keep the head (eyes, ear, mouth, etc.) away from the openings, when the cleaner is working or plugging.

WARNING:

If the suction openings of the unit, the hose or the tube are blocked, switch off the vacuum clearer and remove the blocking substance before you start the unit again.

1. Do not operate the vacuum cleaner too close to heater or radiators.
2. Before inserting the power plug into the wall outlet, make sure that your hands are dry.
3. Before you start the unit, make sure to remove large or sharp objects that might damage the dust tank and hose.
4. When pulling out the power plug from the wall outlet, pull the plug not the power cord.
5. Do not use without all filters in place.
6. When using, if you learn of squeak from the cleaner, it must be suction appears to be reduced, so you must stop (make sure the cleaner is not plugging), then clean the all air filter.

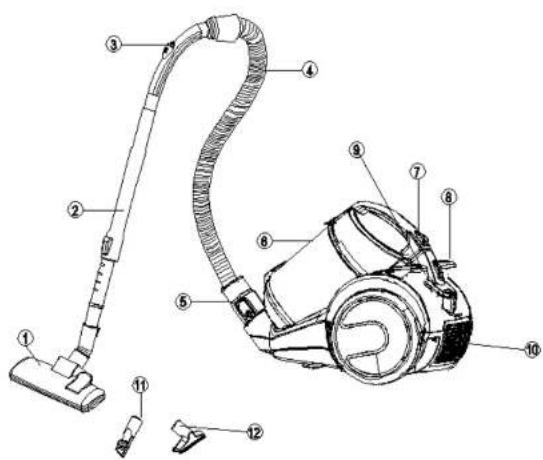

IV. DESCRIPTION

V. USING INSTRUCTIONS

1. Assembling vacuum cleaner

Note: Always remove the power plug from the wall outlet before assembling or removing accessories.

Attaching the Flexible Hose into the vacuum connect the flexible hose into the air intake duct until you hear a "click", indicating it is in its locked position.

Line drawing of a vacuum cleaner with attached cable (no text or symbols)

● Fitting the tube to the curved wand/hose extension.

Note:

Once all attachments are in place, unwind a sufficient length of cable and insert the plug into the wall outlet. A yellow mark on the power cord shows the ideal cable length. Do not pull the power cord beyond the red mark..

1. Insert the power plug into the wall outlet.
2. Press the power on/off button located the unit to turn the vacuum cleaner "on".
3. To rewind the power cord, press the cord rewind button with one hand and guide the power cord with the other hand to ensure that it does not whip causing damage or injury.

Line drawing of a vacuum cleaner next to a box (no text or symbols)

VI. CLEANING AND MAINTENANCE

Fully clean/wash dust cup

1. Open the top cover from dust container (Fig 3)
2. Take the HEPA filter frame from dust container (Fig 4)
3. Take the plastic frame out from dust container (Fig 5), then fully clean or wash dust container.

Illustration of three kitchen utensils: a handle, a lid with a pan, and a faucet with liquid drop (no text or symbols)

Fig.3
Fig. 4
Fig. 5

Carry and move away the unit:

Note: There is a handle on the top. You could use it to conveniently carry the unit.

Removing & cleaning centric HEPA filter, and air outlet filter

Warning: Always unplug the unit from electrical outlet before getting out the dust cup.

A. Centric HEPA filter

1. Open the top cover from dust container (Fig 3)
2. Take the HEPA filter frame from dust container (Fig 4)
3. Take out centric HEPA filter.

Cleaning the exhaust air filter or HEPA filter

The exhaust air filter or HEPA filter cleans the air a final time before it leaves the vacuum cleaner. You can clean the exhaust air filter or HEPA filter as follows:

1. Switch off the vacuum cleaner and disconnect the plug from the mains. To do this always pull on the plug and not on the cable.
2. Open the exhaust air grill.
3. The exhaust air filter or HEPA filter is visible when the grill has been opened.
4. Rinse the filter or HEPA filter under cold running water and allow dry.
5. Put the exhaust air filter or HEPA filter back into place (or replace with a new one)
6. Close the exhaust air filter grill.

VII. ADVICES

Note: The sponge filter material in the cleaner will become dusty over time. This is normal and will not affect the performance of the filter. If the sponge filter is so dusty that suction does not return to 100%, then we suggest that the filter be removed then rinsed under the faucet and allowed to dry for 24 hours by airing not near the fire or some high

VIII. TECHNICAL DETAILS

Power	1400W
Suction power	≥245W
Voltage:	220-240V, 50/60Hz
Noise level	<76dB
Dust bag capacity:	2.2L

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

HEINNER

ПРАХОСМУКАЧКА ЕКОМЕЙТ Модел:HVC-M1400RD/HVC-M1400WH

Two identical black cable or wire connectors with looped ends, shown against a white background (no text or symbols)

WW. heinner.ro

V. ИНСТРУКЦИИ ЗА РАБОТА

Line drawing of a vacuum cleaner with attached hose (no text or symbols)

Line drawing of a vacuum cleaner with attached housing (no text or symbols)

Line drawing of a handheld device with a handle and control panel (no text or symbols)

Решетка за въздъх

Two identical black metal looped objects with curved ends, isolated on white background (no text or symbols)

WW. heiiner.ro

V. HASZNÁLATI ÚTMUTATÓ

Line drawing of a vacuum cleaner with attached cable (no text or symbols)

Line drawing of a hand holding a coiled tube with an arrow indicating direction (no text or symbols)

Megjegyzés:

Line drawing of a vacuum cleaner next to a mailbox (no text or symbols)

Illustration of three types of kitchen mugs with different shapes and colors, no text or symbols present

3.ábra 4.ábra 5.ábra

Two identical black cable or wire connectors with metallic leads, shown against a white background (no text or symbols)

WW. heiiner.ro

V. INSTRUKCJA OBSŁUGI

Line drawing of a vacuum cleaner with attached hose (no text or symbols)

Line drawing of a vacuum cleaner with attached housing (no text or symbols)

VI. CZYSZCZENIE I KONSERWACJA

Copyright © 2013 Network One Distribution. All rights reserved.

http://www.heinner.com, http://www.noah.co

CE
