Type	Automatic Washing Machine
Brand	Heinner
Model	HWM-M7012A
Loading Capacity	7 kg
Max Spin Speed	1200 rpm
Net Dimensions (W x D x H)	595 mm x 495 mm x 850 mm
Net Weight	61 kg
Power Supply	220-240 V, 50 Hz
Rated Power	2150 W
Energy Efficiency Class	A+
Annual Energy Consumption	224 kWh
Water Consumption (Cotton 60°C full load)	52 L per cycle
Programs	8: Cotton, Synthetic, Wool, Quick, Underwear, Cotton Intensive, Spin, Drum Clean
Display Type	LED
Motor Type	Universal Motor
Drum Volume	46 L
Drum Diameter	472 mm
Door Diameter	300 mm
Water Pressure Range	0.05 - 1 MPa
Child Lock	Yes (combined)
Delay Start	Up to 24 hours
Power Cord Length	150 cm
Inlet Hose Length	100 cm
Outlet Hose Length	160 cm

Frequently Asked Questions - HWM-M7012A Heinner

How do I remove the transport bolts?

Loosen all bolts with a spanner, remove them, and insert the transport hole plugs. Keep the bolts for future use.

What should I do if the washing machine does not start?

Check that the door is closed tightly, the power plug is inserted, the water tap is open, and the Start/Pause button is pressed. Also ensure the On/Off button is activated.

How do I clean the detergent drawer?

Press the arrow on the softener cover, lift the clip, remove the cover, and wash all grooves with water. Reassemble and push the drawer back.

How do I clean the drain pump filter?

Disconnect the appliance, wait for water to cool, open the service panel, place a container underneath, unscrew the pump cover, remove objects, rotate the pump impeller, screw the cover back, and close the panel.

What is the Drum Clean program for?

It cleans the drum and tubes using 90°C high-temperature sterilization. Do not add clothes; for better results, add chlorine bleach. Use regularly as needed.

How do I activate the child lock?

Press the Temp.&Spin button for 3 seconds to enable/disable the child lock. When activated, the buzzer will be deactivated after a beep.

Can I wash waterproof clothing in this machine?

No, do not wash waterproof materials like ski suits, raincoats, or car covers. They can cause unbalanced loads and damage.

What should I do if there is excessive foam?

The machine has a bubble removal function that automatically detects and removes excess foam. Use low-bubble detergent suitable for drum machines.

What is the maximum load capacity?

The maximum load capacity is 7 kg for cotton and underwear programs. For synthetic and wool, it is 3.5 kg and 2 kg respectively.

How do I adjust the feet if the machine is unstable?

Loosen the lock nut with a spanner, turn the leg by hand until it contacts the floor, then tighten the nut. Use a level to check by placing a cylinder on the top cover.

USER MANUAL HWM-M7012A Heinner

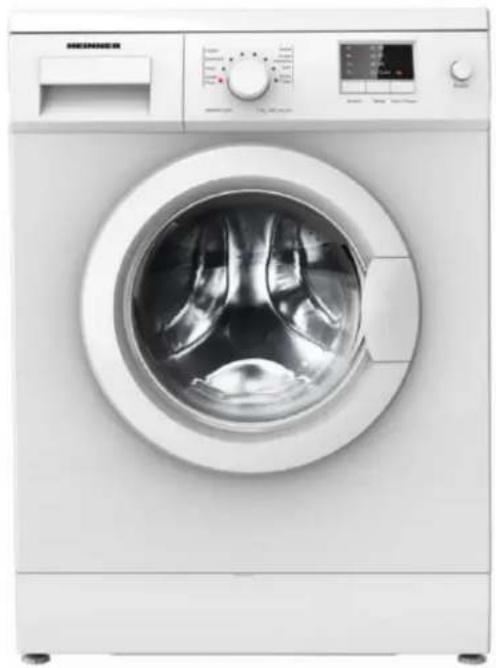

Front view of a white HONIKER washing machine with control panel and side panel (no visible text or symbols)

• Automatic washing machine
- Loading capacity: 7 kg
- Spin: 1200rpm

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. YOUR PACKAGE CONTENT

Washing machine
User manual
Warranty card

III. SAFETY MEASURES

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

- This washing machine is for indoor use only.

- The openings must not be obstructed by a carpet.

- (This warning is only for EUROPEAN market). This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safeway and underst and the hazards involved. Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision.

- (This warning is not for EUROPEAN market). This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Pull out its plug from the power socket before cleaning or maintenance.

- Make sure that all pockets are emptied.

- Sharp and rigid items such as coin, brooch, nail, screw or stone etc. may cause serious damages to this machine.

- Pull out its plug and cut off water supply after the operation.

- Please check whether the water inside the drum has been drained before opening its door. Please do not open the door if there is any water visible.

- Pets and kids may climb into the machine. Check the machine before every operation.

- Glass door may be very hot during the operation. Keep kids and pets far away from the machine during the operation.

- Take care that power voltage and frequency shall be identical to those of washing machine.

- Do not use any socket with rated current less than that of washing machine. Never pull out power plug with wet hand.

- To ensure your safety, power cord plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.

- Children of less than 3 years should be kept away unless continuously supervised.

- Kids should be supervised to ensure that they do not play with the machine.

- Packing materials may be dangerous to the kids. Please keep all packing materials (plastic bags, foams etc) far away from the kids.

- Be careful of burning when washing machine drains hot washing water.

- Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.

- Make sure that the water and electrical devices must be connected by a qualified technician i accordance with the manufacturer's instructions and local safety regulations.

- Before operating this machine, all packages and transport bolts must be removed. Otherwise, the washing machine may be seriously damaged while washing the clothes.

- Before washing the clothes at first time, the washing machine shall be operated in one round of the whole procedures without the clothes inside.

- The washing machine with single inlet valve only can be connected to the cold water supply. The washing machine with double inlet valves can be connected to the hot water and cold water supply.

- Your washing machine is only for home use and is only designed for the textiles suitable for machine washing.

- Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc. Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.

- It is forbidden to wash carpets.

- Never refill the water by hand during washing.

- After the program is completed, please wait for two minutes to open the door.

- Please remember to disconnect water and power supply immediately after the clothes are washed.

- Do not climb up and sit on top cover of the machine.

- Do not lean against machine door.

- Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the excessive clothes are put in or distributed well.

- The household washing machine isn't intended to be built-in.

- Cautions during handling machine

1. Transport bolts shall be reinstalled to the machine by a specialized person.

2. The accumulated water shall be drained out of the machine.

3. Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door can not be used as the handle during the conveyance.

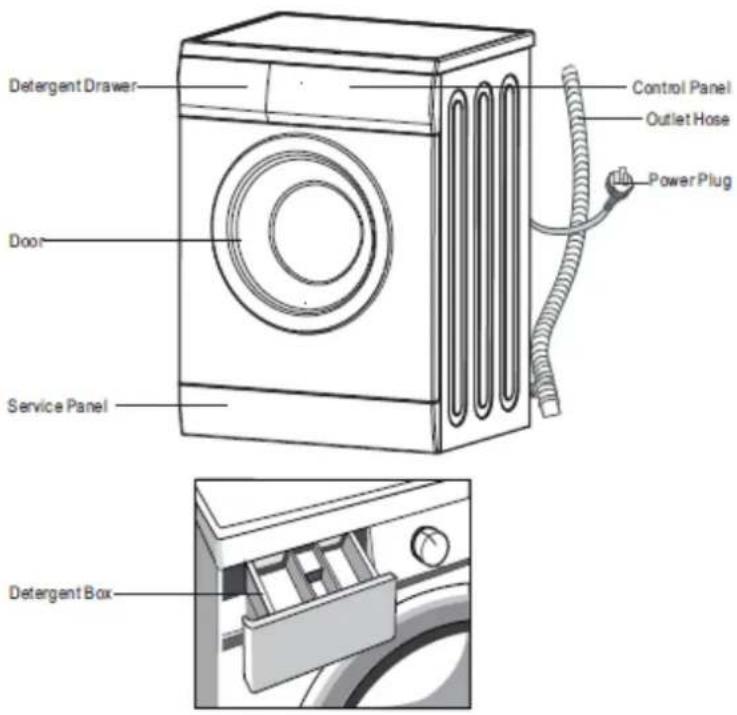

IV. PRODUCT DESCRIPTION

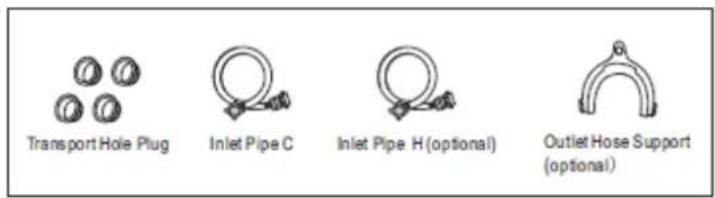

■ Accessories

V. UNPACKING THE PRODUCT

Unpack your washing machine and check if there is any damage during the transportation. Also make sure that all the items in the attached bag are received. If there is any damage to the washing machine during the transportation, or any item is missing, please contact the local dealer immediately. Dispose the packing materials The packing materials of this machine may be dangerous to kids. Please dispose them properly and avoid easy touch by kids. Please dispose the related packing materials according to the relevant local regulations. Please do no throw the packing materials away together with the other daily living rubbishes.

VI. INSTALLING

REMOVE TRANSPORT BOLTS

Before using this washing machine, transport bolts must be removed from the backside of this machine.

Please take the following steps to remove the bolts:

1. Loosen all bolts with spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

Pure mechanical component diagram without any text, numbers, or symbols

SELECT THE LOCATION

Before installing the washing machine, the location characterized as follows shall be selected:

• Rigid, dry, and level surface (if not level, please make it level with reference to the following figure "Adjust Leg")
• Avoid direct sunlight
• Sufficient ventilation
• Room temperature is above 0^ C
• Keep far away from the heat resources such as coal or gas.
  Make sure that the washing machine will not stand on power cord.
  Do not install the washing machine on the carpet floor.

ADJUST LEG

1. When positioning the washing machine, please first check if the legs are closely attached to the cabinet. If not, please turn them to their original positions with hand or spanner and tighten the nuts with spanner.

2. After positioning the washing machine, press four corners on top cover of washing machine in sequence. If the washing machine is not stable when being pressed, this leg shall be adjusted.

3. Ensure the positioning status of washing machine. Loosen the lock nut with spanner and turn the leg with hand until it closely contacts with the floor. Press the leg with one hand and fasten the nut closely to the cabinet with the other hand.

4. After being locked properly, press four corners again to make sure that they has been adjusted properly. If it is still unstable, it has to repeat Steps 2 and 3.

5. Put a solid cylinder (e.g. pop cans) oppositely on the top cover of the washing machine from in the left, right, front and back directions. If the cylinder keeps stable, the washing machine is positioned level. If it rolls, the washing machine is positioned unlevel. The rolling direction is the direction of lower ground surface. Then, the two legs in this direction shall be raised at the same time until the washing machine is level. Steps 1\~3 are repeated to make the bottom legs closely against the ground and the nuts shall be locked tightly.

CONNECT INLET PIPE

Connect the inlet pipe as indicated in the figure. For the model which has hot valve, please connect the hot vale to hot water tap. Energy will decrease automatically for some program.

INSTALL INLET PIPE

1. Connect the elbow to tap and fasten it clockwise.
2. Connect the other end of inlet pipe to the inlet valve at the backside of washing machine and fasten the pipe tightly clockwise.

Notes: after connection, if there is any leakage with hose, then repeat the steps to connect inlet pipe. The most common type of tap shall be used to supply water. If tap is square or too big, then standard tap shall be changed.

PLACE OUTLET HOSE

There are two ways to place the end of outlet hose:

1. Put it beside the water trough.

Simple line drawing of a bathtub with a piping bag and handle (no text or symbols)

1. Connect it to the branch drain pipe of the trough.

Position outlet hose properly so that the floor will not be damaged by water leakage.

Notes: If the machine has outlet hose support, please install it like the following pictures.

Line drawing of a kitchen sink with a hand tool and faucet (no text or symbols)

• When installing outlet hose, fix it properly with a rope.
• Position outlet hose properly so that the floor will not be damaged by water leakage.

- If outlet hose is too long, do not force it into washing machine as it will cause abnormal noises.

ELECTRICAL CONNECTION

• As the maximum current through the unit is 10A when you are using its heating function, please make sure the power supply system (current, power voltage and wire) at your home can meet the normal loading requirements of the electrical appliances.
• Please connect the power to a socket which is correctly installed and properly earthed.
• Make sure the power voltage at your place is same to that in the machine's rating label.
• Power plug must match the socket and cabinet must be properly and effectively earthed.
• Do not use multi-purpose plug or socket as extension cord.

• Do not connect and pull out plug with wet hand.

• When connecting and pulling out the plug, hold the plug tightly and then pull it out. Do not pull power cord forcibly.

• If power cord is damaged or has any sign of being broken, special power cord must be selected or purchased from its manufacturer or service center for replacement.

WARNING!

1. This machine must be earthed properly. If there is any short circuit, earthing can reduce the danger of electrical shock.
   This machine is equipped with power cord, which includes plug, earthing wire at earthing terminal.
2. Washing machine shall be operated in a circuit separate from other electrical appliances. Otherwise, power protector may be tripped or fuse may be burned out.

VII. USING INSTRUCTIONS

CHECKLIST AND PREPARATION BEFORE WASHING CLOTHES

Please read this operation method carefully to avoid the troubles of washing machine and damages of clothes.

Check if the first-washed clothes will bed decolorized.

After a white towel touched with liquid detergent is used to wash the invisible corners of the clothes, check if the white towel is stained with clothes' original color.

As for the scarves and those clothes that easily get decolorized among imported clothes, please wash them separately before washing.

As for the stains on sleeves, collars and pockets, use the liquid detergent and wash it with brush gently.

Finally put them into the washing machine to achieve more ideal washing effects.

As for temperature-sensitive clothes, they shall be washed as required in the labels. Otherwise, it may cause color change or distortion.

Illustration of a bag being loaded into a basket with an arrow indicating process (no text or symbols)

Keep in Mind:

Never put the clothes to be washed in washing machine for a long period of time.

Otherwise it may get moldy and cause spots. Therefore, please wash the clothes in time.

The clothes also may get color changed or distorted if they are not washed according to the stated washing temperature.

Clothes that can not be washed by washing machine

The clothes that may get distorted if being immersed in water: ties, waistcoats, western-style clothes, outer garments etc. may have obvious shrinkage if being immersed in water; the decolorized clothes such as blended spinning clothes of artificial fiber etc.

Wrinkle-style clothes, embossed clothes, resin clothes etc. may get distorted when being immersed in water. Among cotton and wool materials, the clothes that get easily distorted are wrinkle-style silk, fur products and fur decorations;

Clothes with decoration, long dress and traditional clothes etc are the products to get decolorized easily.

Please do not wash the clothes without material labels and washing requirements.

Never wash the clothes stained with the chemicals such as gasoline, petroleum, benzene, paint thinner and alcohol.

Please pay attention with regard to detergents

"Low bubble" detergent or washing powder or washing powder special for drum washing machine shall be selected according to fiber types (cotton, synthetic fiber, soft products and wool products), colors, washing temperatures, dirty degrees and types. Otherwise, excessive bubbles may be generated and overflowed out of the drawer so that accidents may take place.

Bleacher belongs to alkali type and can damage clothes, so it is suggested to use as little as possible.

Powder detergents can easily leave the residues in the clothes so as to generate the bad smell, so they shall be sufficiently rinsed.

Detergent can not easily get dissolved completely if there is too much detergent or water temperature is rather low. It can remain in clothes, pipes and washing machines to pollute the clothes.

Washing shall follow the weight of clothes, dirty degrees, local water hardness as well as the recommendations from the detergent manufacturers. Please consult the water company if you are not clear of water hardness.

Notes: Keep detergents and additives in safe and dry places out of touch by kids.

CHECKLIST AND PREPARATION BEFORE WASHING CLOTHES

Please take out the items out of the pockets.

Please check the pockets of the clothes to be washed, empty the rigid items such as decorations and coins, otherwise washing machine may be damaged or have abnormal troubles.

Illustration of a person in casual shorts with arrows indicating movement or interaction (no text or symbols)

For the clothes to be washed, they are classified according to the following characteristics:

The symbol types of care labels: the clothes to be washed are classified into cotton, blended fiber, synthetic fiber, silk, wool and artificial fiber.

Color: white and colorful colors shall be identified. All new colorful articles shall be washed in a separate way.

Size: the articles of different sizes are washed together to increase the washing effects.

Sensitivity: soft articles shall be washed separately. As for new pure wool textiles, curtains and silks, the soft washing procedure shall be selected. Check the labels in all washing articles.

The clothes shall be sorted before being put into washing machine. As for the curtains with hooks, the hooks shall be removed before being washed.

The decorations on the clothes may damage the washing machine. As for the clothes with buttons or embroideries, they shall be turned over before being washed.

Clean up fasteners:

Zips shall be zipped close and buttons or hooks shall be fixed. The loose band or ribbon shall be bound together.

It is suggested to put bras into the pillow slip with zip or buttons sealed to prevent the steel

wire from popping out of bras into the drum and damaging the machine.

Especially delicate textiles such as laced curtains, straight jackets, small articles (tight socks, handkerchiefs, ties etc.) shall be put into string bag for washing. When washing a single big and heavy dress such as Turkish towels, jeans, wadded jackets etc., it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.

Clean away dusts, stains and pet hairs from the clothes.

The clothes may be damaged and disturb washing effects during the friction between dusts, stains and clothes.

To protect baby skin

Baby articles (baby clothes and towels) including napkins shall be washed separately. If they are washed together with the adults' clothes, they may be infected. Rinsing times shall be increased to ensure the thorough rinsing and cleaning without the detergent residues.

It is suggested that the parts that are easily stained such as white sockets, collars and sleeves etc. shall be hand washed before being put into washing machine to achieve more ideal washing effects.

Please use powder or liquid detergents. The residues of the soap could remain in the gaps of the clothes if soap is used.

The clothes which easily get fuzzed shall be turned over for washing

The clothes which easily get fuzzed shall be washed separately; otherwise the other articles can be stained with dust and thrum etc. Preferably, black clothes and cotton clothes shall be washed separately because they can easily get stained with the thrums of other colors when being washed together. Please check before washing.

Washing machine shall not wash water-proof materials (ski suits, outside napkin pads, curtains).

As for the fiber products that water can not get soaked easily into such as water-proof cushions, and clothes, it is better not to wash. Otherwise there will be water bursting aut or abnormal vibration to cause danger while rinsing and draining so that the clothes also may be damaged. (Such as outside napkin pads, raincoats, umbrella, ski suits, car covers, sleeping sacks etc.)

Cautions during Draining

Draining of normal clothes: Moistures of washings are drained through drain hole.

Draining of water-proof clothes and fiber products: In the normal washing and draining status, moistures of water-proof clothes and fiber products can not be drained while washing water is gathered in one direction so that the eccentricity of washing machine is too great and vibration or moving is caused.

ROTARY SWITCH FUNCTION

There are 8 types of washing selection functions in display. For example:

Cotton: With the corresponding temperature selections: 20, 40, 60, 90 C,Cold

Quick: Synthetic: 20, 40, 60 C, Cold

Cotton Intensive: 20, 40, 60, 90 C, Cold

Wool: 20,40 C,Cold

Spin

Underwear: 20, 40, 60, 90 C, Cold

Drum Clean:90 C

Cold: When the lights of Temp. (20.40.60.90 C) are off means the water temperature is Cold

Notes:

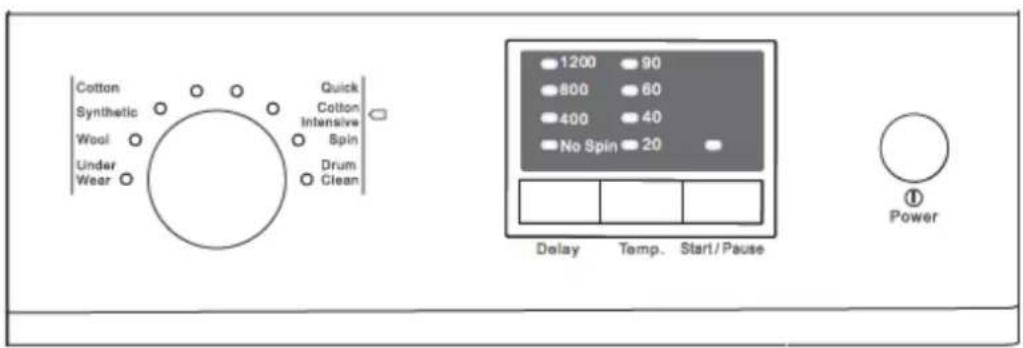

1. The Control panel line chart is for reference only, Please refer to real product as standard.
2. The Control panel could be changed without written notice. Please visit the website of Washing Machine or call up the service line for consultation.

WASHING CLOTHES AT FIRST TIME

Before washing clothes at first time, the washing machine shall be operated in ne round of the whole procedures without clothes in as follows:

1. Connect power source and water.
2. Put a little detergent into the box and close it.
3. Press the button "On/Off".
4. Press the button "Start/Pause".

The drawer is separated as follows:

I: Pre-detergent or washing powder.

II: Main detergent, softener, pre-dip, bleaching or decontaminating products.

※: Washing additive, such as fabric softener or tackifier.

PUT DETERGENT INTO WASHING MACHINE.

1. Pull out the drawer.
2. Fill pre-detergent into Case I (when necessary).
3. Fill detergent into Case II.
4. Fill softener into Case (when necessary).

Notes:

• As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.
• Please choose suitable type of detergent for the various washing temperature to get the best washing effect with less water and energy consumption.

START UP WASHING MACHINE

Connect the power. Check if water pipes are connected properly. Open the tap completely. Put in the clothes to be washed and fill in the detergent and tackifier. Then press the button "On/Off", Select the proper procedures and functions and press the button "Start/Pause".

SELECT THE PROCEDURE

The proper washing procedures shall be selected according to the types, quantities, and dirtiness of the clothes to be washed in combination with the following washing temperature table.

90°C	Seriously besmirched, pure white cotton or flax (for example: coffee table cloths, canteen table cloths, towels, bed sheets)
60°C	Moderately besmirched, colorful flax, cotton and synthetic articles with certain decolorizing degree (for example: shirts, night pajamas; Slightly besmirched, pure white flax (for example: underwear)
40°C, 20°C Cold water	Normally besmirched articles (for example:synthetic and wool)

First, turn the rotary switch to select the corresponding procedures according to the types of textiles.

Second, select the proper temperature according to the dirtiness. Generally, the higher the temperature is, the more the power is consumed.

Last, select the proper revolution speed. The higher the revolution speed is, the drier the textiles are spun, but higher the noises will also be increased.

The surfaces of delicate textiles will have wrinkles and the working life of washing machine will be shortened.

PLEASE NOTE: to protect the clothes, the lower revolution speed shall be selected for delicate textiles. The main washing procedures depend on the types of the clothes to be washed. The main washing troubles can be selected as follows:

- Cotton

You can select this procedure to wash the daily washable clothes. The washing period is quite long with quite strong washing intensions. It is recommended to wash the daily cotton articles, for example: bed sheets, quilt covers, pillowcases, gowns, underwear etc.

- Synthetic

You can select this procedure to wash the quite delicate clothes. The procedure is shorter compared with that for cottons and the washing intension is quite gentle. It is recommended to wash synthetic articles, for example: shirts, coats, blending. As for curtains and laced textiles, the procedure “Synthetic” shall be selected. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.

- Wool

You can select this procedure to wash the wool textiles labeled with "Machine Wash". Please select the proper washing temperature according to the label on the articles to be washed. Furthermore, the proper detergent shall be selected for wool textiles.

- Underwear

Underwear cycle which is specially made for washing underwears is more demanding on rinsing strength and will operate one more time than other cycles.

- Quick

This procedure is suitable for washing few and not very dirty clothes quickly.

- Spin

Separate Spin Procedure. Soap water or rinse water shall be drained out before spinning.

- Cotton Intensive

To increase the washing effects, main additional washing time is increased.

It is recommended to wash the clothes for babies or worn by the persons with allergic skin.

- Drum Clean

This cycle is specially set in this machine to clean the drum and tube. It applies 90°C high temperature sterilization to make the clothes washing more green. When this procedure is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent is put in, the barrel cleaning effect will be better. The customer can use this procedure regularly according to the need.

- Suppression of the acoustic signals

This is an additional buzzer function on your appliance. After deactivating the buzzer function, the buzzer will be closed.

After starting the machine, press the "Temp.&Spin" button for 3 seconds and you will hear a beep, then the buzzer will be closed. To restart the buzzer function, press the "Temp.&Spin" button again for 3 seconds. The setting will be kept until the next reset.

Warning: After deactivating the buzzer function, the sounds will not be activated any more.

- Bubble Removal Function

Bubble Check Function: Redundant bubbles will occur when there is excessive detergent, which will affect wash and rinse effects. The procedure will check automatically and one bubble removal procedure will be added automatically to remove bubbles when excessive bubbles are checked.

TABLE OF WASHING PROCEDURES

Procedure Description	Load	Detergent Box			Default Temp.(°C)	Default Time (Min)	Default Speed (rpm)
		Case I	Case II	Softener Case
Quick	2.0	×	●	○	Cold	15	1200
Cotton Intensive	7.0	×	●	○	40	200	1200
Spin	7.0	×	×	×	NA	15	1200
Drum Clean	0	×	×	×	90	75	400
Cotton	7.0	×	●	○	60	126	1200
Synthetic	3.5	×	●	○	40	100	800
Wool	2.0	×	●	○	40	80	400
Underwear	7.0	×	●	○	40	110	1200

The energy class is A+

Energy test program: Cotton ECO 60/40°C

Speed: the highest speed; Other as the default.

Half load for 7.0Kg machine:3.5Kg.

"Cotton intensive 60°C/40°C" are the "standard cotton 60°C/40°C" programme and the standard washing programs to which the information in the label and the fiche relates, and they are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton laundry, that the actual water temperature may differ from the declared cycle temperature.

- Means must

o Means optional

X Means not necessary

Notes: The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

WARNING!

• Solvents are forbidden to avoid that the washing machine is damaged, and toxic gases are generated or exploded.
• Never use water to sprinkle and wash the washing machine.
• It is forbidden that the detergents containing PCMX are used to clean the washing machine.

VIII. CLEANING AND MAINTENANCE

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed to strike the cabinet.

Notes: formic acid and its diluted solvents or equivalent are forbidden.

CLEAN INTERNAL DRUM

The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents.

Never use steel wool.

DISPOSE A FROZEN WASHING MACHINE

When the temperature drops below zero and your washing machine gets frozen, you may:

1. Disconnect the power supply for the washing machine.

2. Wash the tap with warm water to loosen inlet pipe.

3. Take down inlet pipe and immerse it in warm water.

4. Pour warm water into washing drum and wait for 10 minutes.

5. Reconnect inlet pipe to the tap and check whether inlet and outlet are working normally.

Notes: when the washing machine is reused, make sure the ambient temperature is above 0 C

ANTI-FREEZE

If your washing machine is located in the room where it can get frozen easily, please drain the remaining water inside drain pipe and inlet pipe thoroughly.

Remove the remaining water in inlet pipe:

1. Close the tap.

2.Screw off the inlet pipe from tap and put its end into the container.

1. Start up any procedure except single Wash or Drain procedure. Water will be drained out of inlet pipe if any for about 40 seconds.

2. Reconnect the inlet pipe to tap.

Remove the remaining water in drain pump

WARNING!

To avoid burning, it shall be done after the hot water inside the machine cools down.

Illustration of a hand using a tool to lift a circular component (no text or symbols visible)

CLEAN DETERGENT BOX AND GROOVES

Clean detergent drawer and grooves

1. Press down the arrow location on softener cover inside the drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water.
   3.Restore the softener cover and push the drawer into position.

CLEAN INLET FILTER

Inlet filter shall must be cleaned if there is not any or insufficient water in when the tap is opened.

Clean the tap filter:

1. Close the tap.
2. Select any procedure except "Wash" or "Drain" procedure.
3. Press the button "Start/Pause" and keep the procedure running for about 40 seconds.
4. Remove the inlet pipe from the tap.
5. Use water to wash the filter.
6. Reconnect the inlet pipe.

Washing the filter in washing machine:

1. Screw off the inlet pipe from the backside of the machine.
2. Pull out the filter with long nose pliers and reinstall it back after being washed.
3. Reconnect the inlet pipe.
4. Open the tap and make sure there is no water leakage.
5. Close the tap.

Notes: Generally, the tap filter is washed first and then the filter in washing machine will be washed.

If only the filter in washing machine is washed, then the steps 1\~3 in cleaning the tap filter shall be repeated.

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Diagram of a mechanical device with a rotating lever and handle (no text or symbols)

Diagram of a mechanical device with arrows indicating direction (no text or symbols)

Illustration of a faucet with a hand holding a water tap, showing mechanical components and a close-up view (no text or symbols)

Pure mechanical diagram showing a pipe fitting inside a cabinet (no text or symbols)

Illustration of plumbing fixtures including a pipe fitting and a drain valve (no text or symbols)

WARNING!

Pull out the power plug to avoid electrical shock before washing.

After using the washing machine, pull out the power cord and close the door tightly to avoid pinching the kids.

Remove foreign matters

Drain Pump Filter:

Drain pump filter can filter the yarns and small foreign matters from the washings. Clean the filter periodically to ensure the normal operation of washing machine.

WARNING!

First, drain the water with drain pump and then open the drain pump to clean away foreign matters from drain pump filter.

Take care if the drained water is hot.

Cleaning the pump

Important!

According to the soil level within the cycles and the frequency of the cycles, you have to inspect and clean the filter regularly.

The pump should be inspected if the machine does not empty and/or spin;

The machine makes an unusual noise during draining due to objects such as safety pins,coins etc.

blocking the pump.

The service panel proceed as follows:

Person holding a white electronic device with buttons and a cable, no visible text or symbols

Open the service panel

Hand pressing down on a white surface with a curved arrow indicating motion (no text or symbols visible)

Unscrew the pump cover

Hand pressing down on a white appliance with a circular arrow indicator (no visible text or symbols)

Screw the pump cover

Close-up of a hand pressing down on a white surface with a black arrow pointing to a small object (no text or symbols visible)

Close the service panel

1 Disconnect the appliance

2 If necessary wait until the water has cooled down.

3 Open the service panel. Place a container close to collect any spillage.

4 When no more water comes out, unscrew the pump cover and remove it.

Always keep a rag nearby to dry up spillage of water when removing the cover.

5 Remove any objects from the pump impeller by rotating it.

6 Screw the pump cover fully in.

7 Close the service panel.

Warning!

When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely retight end so.

IX. TROUBLESHOOTING

Troubles	Reason	Solution
Washing machine cannot start up		Check if the door is closed tightly.Check if power plug is inserted well.Check if water supply tap is opened.Check if button “Start/Pause” is pressed.Check if button “On/Off” is pressed.
Door cannot be opened	Machine's safety protection design is working.	Disconnect the power.
Heating fault	NTC is damaged and heating pipe is aging.	Can normally wash the clothes.Only cannot wash with heating.Shall contact the service center promptly
Water leakage	The connection between inlet pipe or outlet hose and tap or washing machine is not tight.Drain pipe in the room is blocked	Check and fasten water pipes.Clean up outlet hose and ask a specialized person to repair it when necessary.
Water is overflowed from the bottom of the machine	The inlet pipe is not connected firmly.Outlet hose has water leakage.	Fix the inlet pipe.Replace the drain hose
Indicator or display does not light.	Power is disconnected.PC board has problems.Harness has connection problem.	Check if the power is shut down and power plug is connected correctly.If not, please call up service line.
Detergent residues in the box	Washing powder is dampened and agglomerated.	Clean and wipe the box.Use liquid detergents or the detergents special for drum.
Washing effects are not good	The clothes are too dirty.Insufficient detergent quantity	Select a proper procedure.Add the proper detergent quantity according to the instructions in detergent package.
Abnormal noise Great vibration		Check if the fixing (bolts) has been removed.If cabinet is installed on the solid and level floor.Check if there are any barrettes or metal articles inside.Check if the legs in the washing machine are adjusted level.

Status of Corresponding Indicators				Description	Reason	Solution
Temp.90	Temp.60	Temp.40	Temp.20
Off	Off	Off	Flash	Door lock problem	Door is not closed properly.	Restart after the door is closed
					Please call up service line if there are still troubles.
Off	Off	Flash	Off	Water injecting problem when washing (water injecting time exceeds 7 minutes)	Tap is not opened or water flows too slowly.Inlet valve filter is blocked.Inlet pipe is twisted.If water is not supplied	Open the tap or wait till the water supply becomes normal.Check inlet valve filter.Straighten the water pipeCheck the other taps in the room.
					Please call up service line if there are still troubles.
Off	Off	Flash	Flash	Drain problem while washing (drain time exceeds 3 minutes)	Outlet hose is blocked or twistedDrain pump is blocked	Wash and straighten outlet hose.Wash drain pump filter
					Please call up service line if there are still troubles.
Please call up the service line if there is any other problem.

ELECTRICAL WARNING

To avoid fire, electrical shock and other accidents, please remember the following reminding:

• Only the voltage indicated in power label can be used. If you are not clear of the voltage at home, please contact the local power bureau.
• When you are using the heating function, the maximum current through the washing machine will reach 10A. Therefore, please make sure the power supply units (current, voltage and cable) can meet the normal load requirements for the machine.
• Protect the power cord properly. Power cord shall be fixed well so that it will not trip the people or other things and be damaged. Special attention shall be paid to the socket. It shall be plugged into the sockets easily and attention shall be paid to the plug location.
• Do not make the wall-mounted socket overloaded or cable extended. Overloading of the wiring may cause fire or electrical shock. Do not pull out power plug with wet hand.
• To ensure your safety, power plug shall be inserted into an earthed three-pole socket.
  Carefully check and ensure that your socket is properly and reliably earthed.

PRODUCT FICHE AUTOMATIC WASHING MACHINE HEINNERHWM-M7012A+
Brand name		HEINNER
Category		Washing machine
Code		HWM-M7012A+
ENERGY RATING
Energy efficiency class		A+
Washing Performance Class		A
Spin-drying Efficiency Class		B
Annual energy consumption (AEC)	kW·h/annum	224
Energy consumption (cotton 60°C full load)	kW·h/cycle	1.2
Energy consumption (cotton 60°C partial load)	kW·h/cycle	0.98
Energy consumption (cotton 40°C partial load)	kW·h/cycle	0.71
Weighted annual water consumption (AWC)	L/annum	10800
Water consumption (cotton 60°C full load)	L/cycle	52
Water consumption (cotton 60°C partial load)	L/cycle	46
Water consumption (cotton 40°C partial load)	L/cycle	46
Programm time (cotton 60°C full load)	min	210
Programm time (cotton 60°C partial load)	min	200
Programm time (cotton 40°C partial load)	min	187
Airborne washing acoustical noise emissions	dB	58
Airborne spinning acoustical noise emissions	dB	76
FEATURES
Rated Power Supply	V	220-240 V
Rated Frequency	Hz	50
Rated Washing Capacity	Kg	7
Rated Spinning Capacity	Kg	7
Rated Power	W	2150
Power consumption left-on mode	W	0.5
Power consumption off-mode	W	0.5
Max. Spin Speed	RPM	1200
Standard Water Pressure	MPa	0.05~1 Mpa
Display Type		LED
Motor		Universal Motor
Power cord length	cm	150
Water Inlet Hose Length	cm	100
Water Outlet Hose Length	cm	160
PROGRAMS:
Cotton
Synthetic
Wool
Quick
Underwear
Cotton Intensive ◇
Spin
Drum clean
BUTTONS FUNCTIONS
Power
Delay	24 hours
Speed selector	0-400-800-1200
Temp selector	cold-20-40-60-90
Start/Pause
PRODUCT FUNCTIONS
Child Lock (Combined)
SPECIFICATIONS
Volume Of Inner Tub	L	46
Diameter Of Inner Tub	mm	472
Door Diameter	mm	300
Net Dimensions (W x D x H)	mm	595 × 495 × 850
Gross Dimensions (W x D x H)	mm	650 × 575 × 885
Net Weight	kg	61
Gross Weight	kg	65

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

CE

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

MAŞINĂ DE SPĂLAT AUTOMATĂ

Model: HWM-M7012A+

Front view of a white washing machine with a circular vent and control panel (no visible text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

ALEGEREA LOCULUI AMPLASĂRII MAŞINII DE SPĂLAT

Simple line drawing of a bathtub with a piping bag and two circular ports above it (no text or symbols)

Simple line drawing of a kitchen sink with a saw and faucet (no text or symbols)

Illustration of a bag being woven in a basket with an arrow indicating process (no text or symbols)

Illustration of a pair of shorts with accessories and a tool, no text or symbols present

FUNCTIILE BUTONULUI ROTATIV

Rapid: Sintetic: 20, 40, 60 C, Rece

Bumbac Intensiv: 20, 40, 60, 90 C, Rece

Delicate: 20, 40, 60, 90 C, Rece

Autocurățare: 90 °C

Illustration of a hand holding a ring with a circular base, no text or symbols present

CURĂȚAREA SERTARULUI PENTRU DETERGENT ȘI A COMPARTIMENTELOR ACESTUIA

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Diagram of a mechanical device with a rotating lever and handle mechanism (no text or symbols)

Diagram of a mechanical device with arrows indicating direction, no text or symbols present

Illustration of a faucet with a handle and valve, showing mechanical assembly (no text or symbols)

Pure mechanical diagram showing a pipe inserted into a housing (no text or symbols)

Illustration of plumbing fixtures including a faucet and pipe assembly (no text or symbols)

AVERTISMENT!

Close-up of hands installing or adjusting a white panel on a surface (no visible text or symbols)

Close-up of a hand pressing down on a white surface with a curved arrow symbol (no text or symbols visible)

Hand pressing down on a white appliance with a circular arrow indicator (no visible text or symbols)

Close-up of a hand pressing down on a white surface with a black arrow pointing to the corner (no text or symbols visible)

Front view of a white Siemens washing machine with visible fan, control panel, and side buttons (no text or symbols on main body)

Pure diagram of mechanical components without any text, numbers, or symbols

Simple line drawing of a bathtub with a piping bag and a handle (no text or symbols)

Line drawing of a kitchen sink with faucet and drain (no text or symbols)

Illustration of a food sorting process showing a basket with leaves and a bag with a triangular shape (no text or symbols)

Запомнете следното:

Illustration of a person in a short-sleeve shirt with arrows indicating movement or action (no text or symbols)

Illustration of a hand using a tool to lift a circular component (no text or symbols visible)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical device with a rotating lever and handle mechanism (no text or symbols)

Diagram of a mechanical device with arrows indicating direction (no text or symbols)

Illustration of a shower faucet with a magnified inset showing the handle (no text or symbols)

Pure diagram of a pipe connection without any text, numbers, or symbols

Illustration of plumbing fixtures including a faucet and drain pipe (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ!

Close-up of a hand holding a white plastic container with small buttons, no visible text or symbols

Hand pressing a button on a white surface, no visible text or symbols

Close-up of a hand pressing down on a white appliance with a circular arrow indicating rotation (no text or symbols visible)

Close-up of a hand pressing down on a white plastic bag (no visible text or symbols)

Front view of a white HONIKER washing machine with control panel and display (no visible text or symbols)

V. A TERMÉK KICSOMAGOLÁSA

Pure mechanical component diagram without any text, numbers, or symbols

A MOSÓGÉP ELHELYEZÉSI HELYÉNEK KIVÁLASZTÁSA

Illustration of a food sorting process showing a bag being lifted into a basket with a bag removed (no text or symbols)

Illustration of a pair of shorts with arrows indicating movement or change, no text or symbols present

A FORGATHATÓ GOMB FUNKCIÓI

Illustration of a hand holding a circular object with a curved handle, no text or symbols present

A MOSÓSZER-ADAGOLÓ FIÓK ÉS REKESZEINEK

TISZTÍTÁSA

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Diagram of a mechanical device with a rotating lever and handle mechanism (no text or symbols)

Diagram of a mechanical device with arrows indicating direction (no text or symbols)

Diagram showing a pipe valve being inserted into a sink, with an inset close-up of the insertion (no text or symbols present)

Pure mechanical diagram showing a pipe inserted into a housing (no text or symbols)

Illustration of plumbing fixtures including a faucet and pipe with a valve (no text or symbols)

FIGYELMEZTETÉS!

Close-up of a hand holding a white appliance with small components, possibly a kitchen or appliance (no visible text or symbols)

Hand pressing a button on a white appliance with a circular arrow (no visible text or symbols)

Close-up of a hand pressing down on a white appliance with a circular arrow indicating rotation (no visible text or symbols)

Close-up of a hand pressing down on a white surface with a black arrow pointing to a small dark object (no text or symbols visible)

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

CE

Front view of a white Siemens washing machine with visible fan, control panel, and side buttons (no text or symbols on main body)

Pure mechanical component diagram without any text, numbers, or symbols

WYBÓR MIEJSCA USTAWIENIA PRALKI

Simple line drawing of a bathtub with a coiled tube and handle (no text or symbols)

Illustration of a bag being disposed of clothes into a basket, with arrows indicating the process (no text or symbols present)

Zapamiętaj:

Illustration of a pair of shorts with accessories and motion arrows indicating movement (no text or symbols)

Illustration of a hand using a tool to lift a circular component (no text or symbols visible)

CZYSZCZENIE ZASOBNIKA NA DETERGENT I JEGO KOMÓR

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Diagram of a mechanical device with a rotating lever and handle (no text or symbols)

Diagram of a mechanical device with arrows indicating direction of movement or force (no text or symbols present)

Illustration of a hand pouring liquid into a pipe with a valve, showing mechanical components and a magnified view (no text or symbols)

Pure mechanical diagram showing a pipe fitting inside a cabinet (no text or symbols)

Illustration of plumbing fixtures including a faucet and pipe assembly (no text or symbols)

OSTRZEŻENIE!

Close-up of a hand holding a white appliance with small components, possibly a battery or switch (no visible text or symbols)

Hand pressing down on a white surface with a curved arrow (no text or symbols visible)

Hand pressing down on a white appliance with a circular arrow indicator (no visible text or symbols)

Close-up of a hand pressing down on a white surface with a black arrow pointing to the edge (no text or symbols visible)

Copyright © 2013 Network One Distribution. All rights reserved.

http://www.heinner.com, http://www.nod.ro
