BRS60X - Range hood BLANCO - Free user manual and instructions

Brand	BLANCO
Model	BRS60X
Product Type	Range Hood
Width	60 cm
Height	60-100 cm (adjustable)
Depth	50 cm
Weight	Approx. 12 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	180 W
Lighting	2 x 20 W halogen
Suction Power (max)	650 m³/h
Noise Level (max)	63 dB
Number of Speeds	3 speeds + intensive
Filter Type	Aluminum grease filter
Filter Cleaning	Dishwasher safe every 2 months
Charcoal Filter	Optional for recirculation mode
Exhaust Duct Diameter	150 mm
Installation Type	Wall-mounted
Control Type	Electronic push buttons
Safety Features	Overheat protection, auto shut-off after 10h
Spare Parts Available	Grease filter, charcoal filter, light bulbs
Repairability Index	8.5/10 (easy to access components)
Energy Class	A+

Frequently Asked Questions - BRS60X BLANCO

How to install the BRS60X range hood?

Installation should be done by a qualified professional. Ensure the hood is mounted at least 65 cm above the cooking surface and securely attached to a wall. Connect to a 220-240 V power supply with a proper earth connection.

How often should I clean the grease filter?

Clean the aluminum grease filter every two months or more frequently if using the hood heavily. It is dishwasher safe at low temperature.

Can I use the hood in recirculation mode?

Yes, you need to install a charcoal filter (sold separately). The hood then recirculates filtered air back into the kitchen.

How to replace the halogen lights?

Turn off power. Remove the light cover and replace the bulb with a 20 W halogen (max) of the same type. Use gloves to avoid touching the glass.

What does the intensive speed do?

The intensive speed runs the motor at maximum power for about 10 minutes to quickly remove strong odors, then automatically returns to the previous speed.

Why is the hood not extracting properly?

Check if the grease filter is clogged. Also ensure the exhaust duct is not blocked or too long. If using recirculation, the charcoal filter may need replacement.

How to clean the exterior?

Use a damp cloth with mild detergent. Avoid abrasive cleaners. Wipe in the direction of the stainless steel grain to prevent scratches.

What is the noise level of this hood?

Noise level varies by speed: from 48 dB at low speed to 63 dB at maximum speed (intensive mode).

Can I control the hood remotely?

No, the BRS60X is controlled via panel push buttons. No remote control or smart features are included.

How to change the charcoal filter?

Remove the grease filter first, then locate the charcoal filter behind it. Turn it to unlock and pull it out. Install the new one in reverse order. Replace every 6-12 months.

USER MANUAL BRS60X BLANCO

Instructions for the Use and Care and Installation of

BRS60X

Single

Motor

BRS60W

BRS90X

BRS602X

Twin

Motor

BRS602W

BRS902X

BRS902W

BRSH60X Single Motor

BRSH90X

Slide Out Rangehood.

Dear Customer

You will find that the modern look of your Blanco rangehood blends in perfectly with your kitchen décor. It is easy to use and performs to a high standard.

Blanco also makes a range of products that will enhance your kitchen – such as cooktops, ovens, dishwashers, microwaves, sinks and taps. There are models to complement your new Blanco rangehood. Blanco now has a range of laundry products to choose from.

Of course, we make every effort to ensure that our products meet all your requirements, and our Customer Service Department is at your disposal, to answer your questions and to listen to your suggestions.

Please complete the warranty section of this manual and keep your receipt as proof of purchase. Retain all documents relating to the purchase of Blanco product.

Blanco is committed to providing increasingly efficient products that are easy to use, respect the environment and are attractive and reliable.

BLANCO

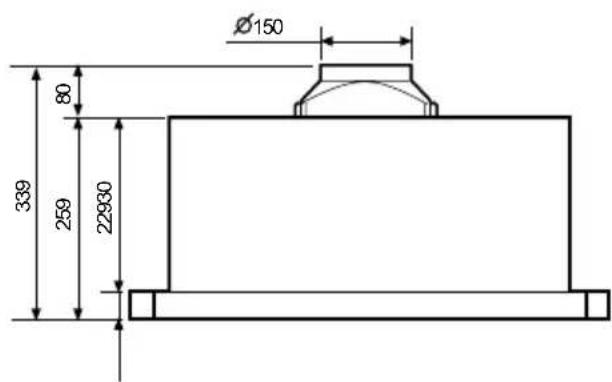

Fig.1

max 80 cm

Diagram showing a mechanical setup with a block, a circular hole, and directional arrows indicating motion (no text or symbols)

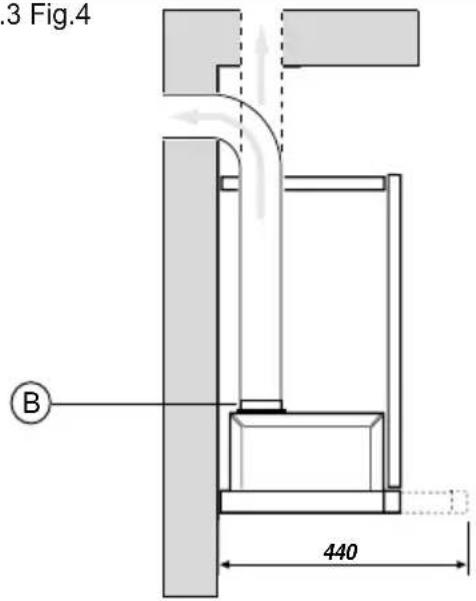

Fig.3 Fig.4

GENERAL

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. The appliance has been designed for use in the ducting version (air exhaust to the outside), filtering version (air circulation on the inside) or with external motor.

SAFETY PRECAUTION

1. Take care when the rangehood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the rangehood removes the air from the environment which a burner or fireplace need for combustion. The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the rangehood. Follow the local laws applicable for external air evacuation.

Before connecting the model to the electricity network:

Inspect the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.

General Warnings.

· The appliance is not intended for use by young children or infirm persons without supervision.
· Young children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
- Ensure that the range hood is cleaned frequently.
- There is a risk of fire if cleaning is not carried out in accordance with the instructions.
· Do not flambé under the range hood.

Warnings for Installation:

• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the rangehood must be at least 65 cm.
  · The regulations concerning the discharge of exhaust air have to be fulfilled.

INSTALLATION INSTRUCTIONS

• Electric Connection

The appliance has been manufactured as a class II, therefore no earth cable is necessary. The connection to the mains is carried out as follows: BROWN = L line BLUE = N neutral If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the rangehood must be installed in order that the plug is easily accessible. An omnipolar switch with a minimum opening of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.

- The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the rangehood must be at least 65 cm. If a connection tube composed of two parts is used, the upper part must be placed outside the lower part. Do not connect the rangehood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source. In the case of assembly of the appliance in the exhausting version prepare the hole for evacuation of the air.

INSTALLATION

The following instruction should be followed to carry out the correct installation of the rangehood.

1) Mounting of the rangehood on the lower side of the cupboard.

2) Selection of the version (extraction or filtration)

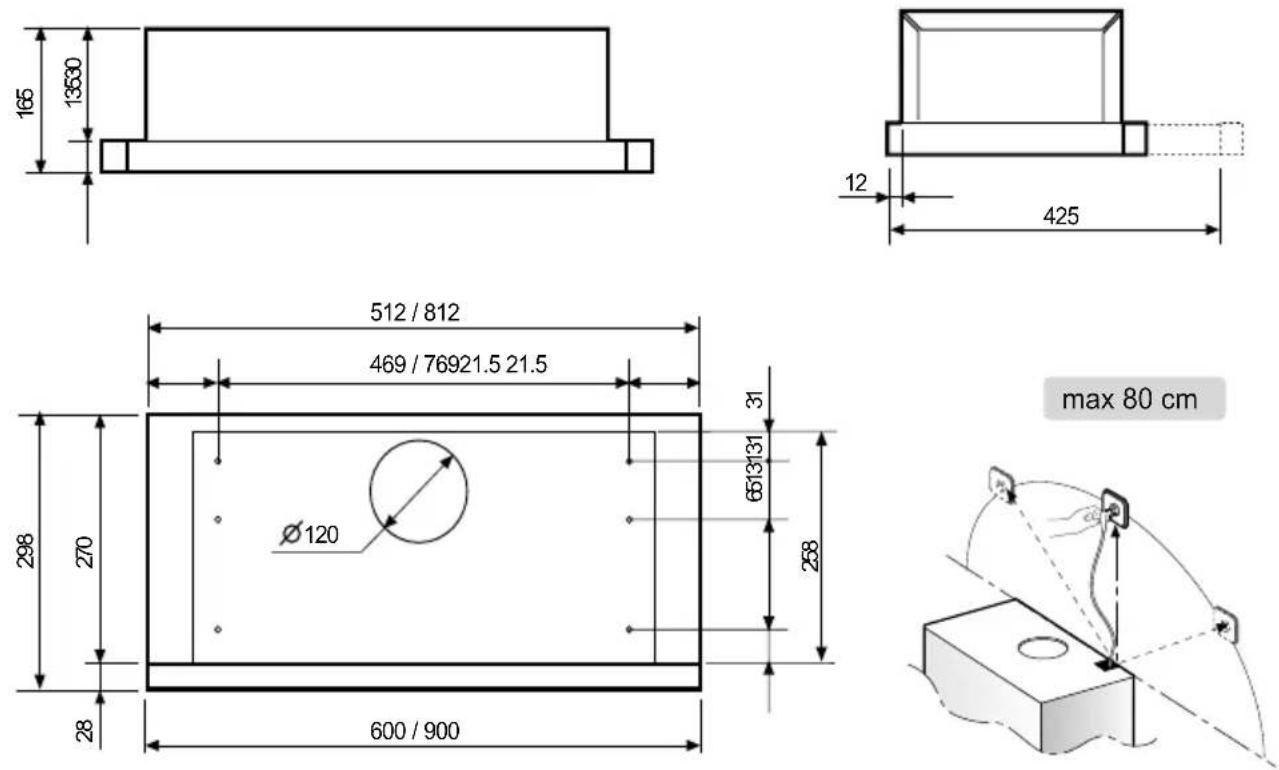

Mounting the rangehood on the lower side of the cupboard. This appliance must be fitted to a cupboard or other suitable support. For fixing use 4 screws suitable for the cupboard, using the hole

in Fig.1. When mounting align the front of the rangehood to the door of the cupboard and regulate the L wall spacer through the screws marked P (Fig. 2). The rear of the appliance must then align with the cupboard.

EXTRACTION THROUGH AN OUTSIDE WALL The appliance expels the fumes through an outside wall or a duct. It is necessary to buy a telescopic pipe in accordance with the standards in use and connect it to flange B (Fig.1).

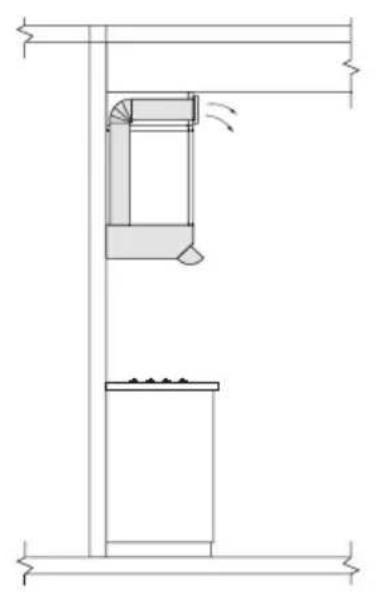

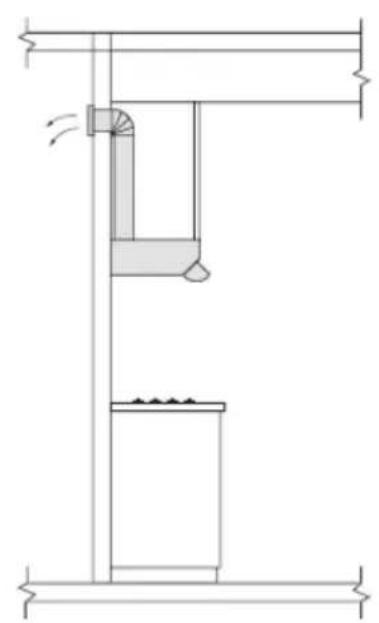

RECIRCULATION.

To transform the rangehood from the extraction version to the re circulating one ask your supplier for an activated carbon filter. The activated carbon filter cleans the air of the room. This filter is not washable or re-usable and must be substituted at least every 4 months. Saturation of the activated carbon depends on how often the appliance is used, the type of kitchen and how regularly the grease filter is cleaned. The filter must be fitted to the motor in the centre of the fan grille by twisting it by 90 degrees until it is gripped securely. Remove the grill (G) fig. 2 to carry out this operation. The clean air is returned into the room through a connecting tube passing inside the cupboard and connected to the ring B (Fig.1).

Technical line drawing of a mechanical assembly with no visible text or symbols

Recirculated to kitchen area via

Technical line drawing of a mechanical assembly with no visible text or symbols

Recirculated to kitchen area via

Technical line drawing of a mechanical assembly with no visible text or symbols

Ducted to atmosphere through Ducted to atmosphere through

Technical line drawing of a mechanical assembly with no visible text or symbols

Installation

Exercise care when a rangehood is installed in an area where a gas burner is operating. Depending on the size of the room, the rangehood may draw from the room air that is necessary for proper combustion of the burner. All Blanco rangehoods are used for indoor application only.

Rangehoods may be installed in two ways:

1. Ducted to the atmosphere (outside).

2. Recirculating.

We recommend ducting to the atmosphere to ensure optimum performance. Recirculating the air back into the room should only be used when outside extraction is not possible. To ensure maximum performance when ducting it is important the ducting that carries the fumes away, be as short and as straight as possible.

When incorporating a rangehood in the design of a kitchen the following points need to be considered to achieve the most benefit from the rangehood.

1. Ducting from a rangehood carrying the exhaust air, should not exceed a length of three (3) metres.
2. For ducted installation we recommend using galvanised or similar metal type flue pipe. PVC pipe is not recommended.
3. Ducting containing a 90° degree bend will encounter a loss in efficiency of approximately 35%. Additional 90° degree bends can cause losses of up to 15% per bend.
4. Ducting size should always comply with the manufacturers specification.
5. We recommend carbon filters be used when re-circulating the air into the room. There will be some loss of air movement when carbon filters are fitted.

USE AND MAINTENANCE

• It is recommended to operate the appliance prior to cooking. It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours. The proper function of the rangehood is conditioned by the regularity of the maintenance operations, in particular, the active carbon filter.
• The aluminium filters capture the grease particles suspended in the air, and are therefore subject to clogging according to the frequency of the use of the appliance.

In order to prevent fire hazard, it is recommendable to clean the aluminium filter at a maximum of 2 months by carrying out the following instructions:

-Remove the aluminium filters from the rangehood and wash them in a solution of water and neutral liquid detergent, leaving to soak.
- Rinse thoroughly with warm water and leave to dry.
-The filters may also be washed in the dishwasher. The aluminum panels may alter in colour after several washes. This is not cause for customer complaint nor replacement of panels.
- The active carbon filters purify the air that is replaced in the environment. The carbon filters are not washable nor re-useable and must be replaced at maximum every four months. The saturation of the active carbon filter depends on the frequency of use of the appliance, by the type of cooking and the regularity of cleaning the aluminium filters.
- Clean the fan and other surfaces of the rangehood regularly using a cloth moistened with a non abrasive liquid detergent.
- The rangehood lighting is designed for use during cooking and not for prolonged general illumination of the environment. Prolonged use of the lighting notably reduces the duration (life) of the bulb.
- To replace the halogen lamp. With a small blade, remove the metal surround holding the glass in place. The lamp can be pulled outward from its socket.
