Product Type	Built-in Dishwasher
Brand	BLANCO
Model	BDW4510X
Color	Stainless Steel
Dimensions (H x W x D)	81.8 cm x 59.8 cm x 57.5 cm
Capacity	12 Place Settings
Weight	45 kg
Energy Rating	Class E
Annual Energy Consumption	295 kWh
Water Consumption	10 L per cycle
Noise Level	46 dB(A)
Number of Programs	6 (Eco, Auto, Intensive, Normal, Quick, Glass)
Drying System	Heat Exchanger + Zeolite
Delay Start	Yes, up to 24 hours
Child Lock	Yes
Self-Cleaning Filter	Yes, with reminder
Adjustable Racks	Upper basket with height adjustment
Cutlery Basket	Third cutlery tray
Water Stop System	AquaStop (full protection)
Spare Parts Availability	10 years

Frequently Asked Questions - BDW4510X BLANCO

What are the dimensions of the BLANCO BDW4510X dishwasher?

The dimensions are approximately 81.8 cm in height, 59.8 cm in width, and 57.5 cm in depth. It is designed to fit standard 60 cm cabinets.

How do I install the dishwasher properly?

Ensure the water supply and drain connections are correct. Level the dishwasher using the adjustable feet. Secure it to adjacent cabinets. Refer to the installation manual for detailed steps.

What programs are available on this model?

The BDW4510X offers 6 programs: Eco (energy-saving), Auto (sensor-based), Intensive (for heavily soiled items), Normal (daily use), Quick (30-minute cycle), and Glass (for delicate glassware).

How do I clean the filters?

Turn off the dishwasher and remove the lower rack. Unscrew the filter assembly. Rinse under running water and scrub if needed. Reassemble and ensure it locks into place. Clean filters monthly.

Why is the dishwasher not draining?

Check if the drain hose is kinked or clogged. Clean the filter and the drain pump area. Ensure the garbage disposal (if connected) is clear. If problem persists, call a service technician.

Can I use regular dishwasher detergent tablets?

Yes, any standard dishwasher detergent tablet or powder works. Ensure the rinse aid dispenser is filled for better drying. Use salt for water hardness according to settings.

How do I activate the child lock?

Press and hold the 'Start' button for 3 seconds until a lock symbol appears on the display. Repeat to deactivate. The child lock prevents unintended operation.

What is the noise level during operation?

The noise level is approximately 46 dB(A), which is quiet enough for open-plan kitchens. It may vary slightly depending on the program.

How long is the warranty?

BLANCO typically offers a 2-year warranty on dishwashers. Extendable to 5 years with registration. Check your local retailer for details.

Where can I find spare parts?

Spare parts are available for at least 10 years from BLANCO service centers or authorized retailers. Use the model number BDW4510X for ordering.

USER MANUAL BDW4510X BLANCO

Line drawing of a wine glass and a decorative circle with starburst elements (no text or symbols)

CONTENTS

• Technical specifications .... 4
• Conformity with the standards and Test data 4

Safety information and Recommendations.... 5

• Recycling 5
• Safety information .... 5
• Recommendations 8
• Items not suitable for dishwashing 9

Installing the machine 9

• Positioning the machine 9
  • Water connections 10
  • Water inlet hose 11
  • Water outlet hose 12
  • Electrical connection.... 13
  • Fitting the machine undercounter 14

Preparing the machine for use 16

• Prior to using the machine 16
• Detergent usage 16
• Filling the detergent compartment.... 16
• Combined detergent.... 16

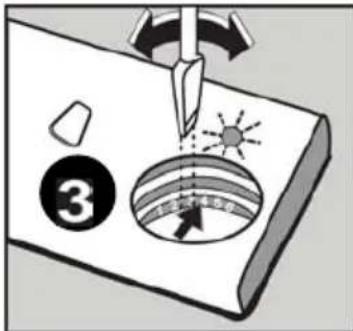

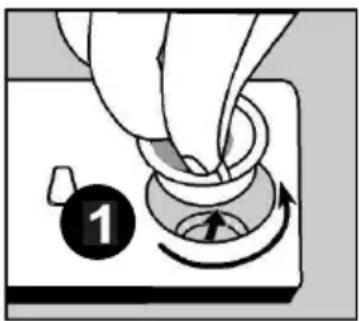

• Filling with rinse aid and making the setting.... 17

Loading your dishwasher 19

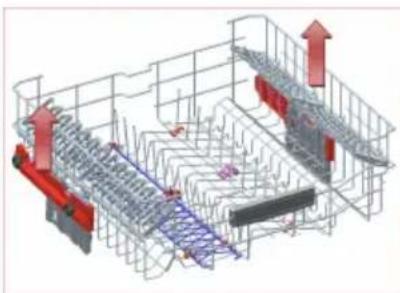

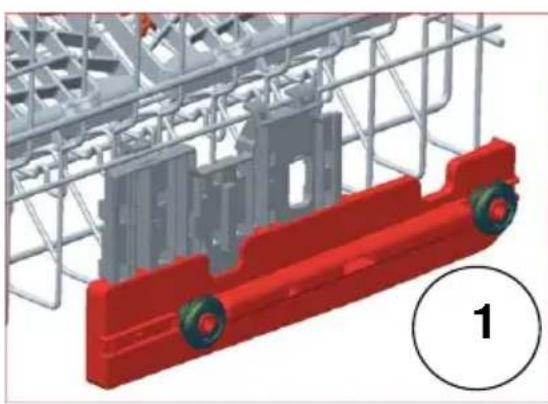

• Top basket.... 19
• Lower basket.... 20

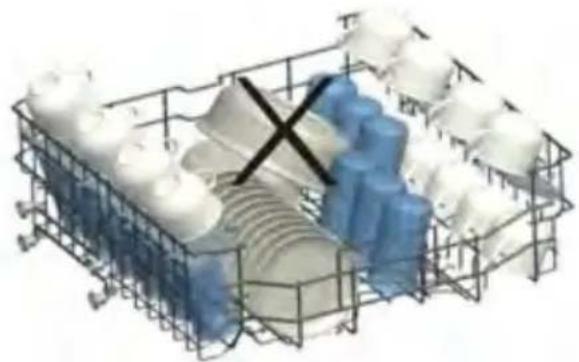

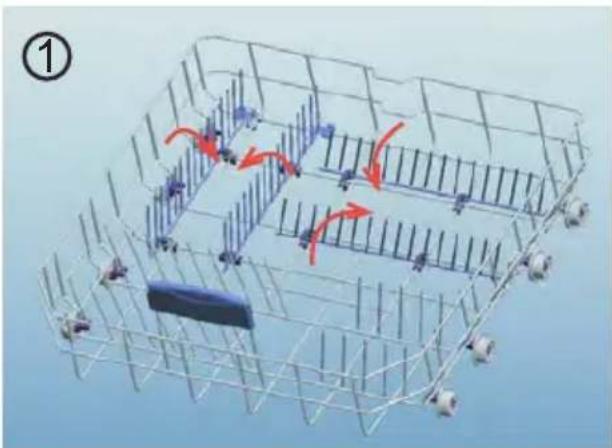

  • Alternative basket loads 22

Programme descriptions 24

- Programme items 24

Getting familiar with your machine 25

Selection of Program and Starting of the Machine.... 26

• Selection of Program and Starting of the Machine 29
- Programme follow-up 30
- Adding Additional Functions to the Program 31
- Changing a programme /Changing a programme with resetting ...... 32
- Settings Menu 33

Maintenance and Cleaning 36

• Filters 36

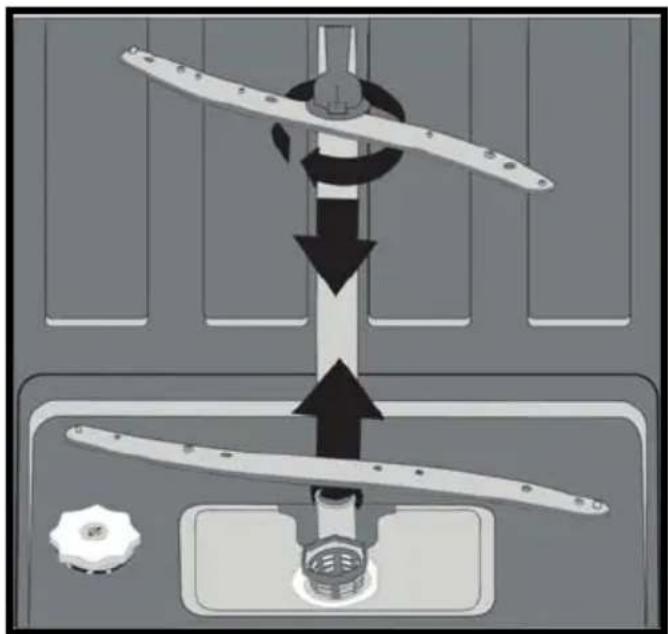

• Spray arms 37
• Hose filter 37

Failure codes and what to do in case of failure 38

Practical and useful information.... 40

Turbo Drying Unit: This system provides better drying performance for your dishes.
Ceiling Spray Arm: It provides better washing for the dishes at upper basket.

Rating plate

Control Panel

Detergent and rinse-aid dispenser

Upper basket track latch

Upper Cutlery Basket

7.

8.

9.

10.

Lower spray arm

Worktop

Upper basket with racks

Upper spray arm

Lower basket

Lower

1.

2.

3.

4.

5.

Technical specifications

Capacity 15 place settings
Height 850 mm
Height (without worktop) 820 mm
Width 598 mm
Depth 598 mm
Net Weight 62 kg
Electricity input 220-240 V, 50 Hz
Total Power 2200 W
Heating Power 2000 W
Pump Power 100 W
Drain Pump Power 30 W
Water supply pressure 0.03 MPa (0,3 bar)-1 MPa (10 bar)
Current 10 A

Producer company has its right to amend design and technical specifications reserved. The machine's service life is 10 years (the duration required to keep spare parts for the machine to fulfil its usage functions).

Conformity with the standards and Test data / EC Declaration of Conformity

All stages related to the machine are executed in accordance with the safety rules provided in all relevant directives of the European Community. 2004/108/EC, 2006/95/EC, IEC 436/DIN 44990, AS/NZS 2007.1/2:2005

Important Note for User: For softcopy of this user manual, please contact following address:

"[e-mail]". In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door.

SAFETY INFORMATION AND RECOMMENDATIONS

Recycling

• Certain components and the packaging of your machine have been produced from recyclable materials.
• Plastic parts are marked with international abbreviations: (>PE<, >PS<, >POM<, >PP<, )
• Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling.
• Such materials are not suitable for being disposed of into garbage bins. They should be delivered to recycling centres instead.
• Contact relevant centres in order to obtain information on methods and points of disposal.

Safety Information

When you take delivery of your machine

• Check for any damage to your machine or to its packaging. Never start a machine damaged in any way, make sure to contact an authorised service.
• Unwrap the packaging materials as indicated and dispose of them in accordance with the rules.

The points to pay attention during machine installation

• Choose a suitable, safe and level place to install your machine.
• Carry out the installation and connection of your machine by following the instructions.
• This machine should be installed and repaired by an authorised service only.
• Only original spare parts should be used with the machine.

• Before installing, be sure that the machine is unplugged.

• Check whether the indoor electrical fuse system is connected according to the regulations.

• All electrical connections must match the values indicated on the rating plate.
• Pay special attention and be sure that the machine does not stand on the electricity supply cable.
• Never use an extension cord or a multiple socket for making a connection. The plug should be comfortably accessible after the machine has been installed.
  • After installing the machine to a suitable place, run it unloaded for the first time.

In daily use

• This machine is for household use; do not use it for any other purpose. Commercial usage of the dishwasher will void the guarantee.
• Do not get up, sit or place a load on the open door of the dishwasher, it may fall over.
• Never put into the detergent and rinse aid dispensers of your machine anything other than those detergents and rinse aids which are produced specifically for dishwashers. Our company will not be responsible for any damage that might occur in your machine otherwise.
• The water in the machine's washing section is no drinking water do not drink it.
• Due to danger of explosion, do not put into the machine’s washing section any chemical dissolving agents such as solvents.
• Check whether plastic items are heat-resistant before washing them in the machine.
  •This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision.

• Do not put into your machine those items which are not suitable for dishwashing. Also, do not fill any basket above its capacity. Our company will not be responsible for any scratch or rust to form on the inner frame of your machine due to basket movements otherwise.
• Especially because hot water may flow out, the machine door should not be opened under any circumstances while the machine is in operation. In any case, a safety devices ensures that the machine stops if the door is opened.
• Do not leave your dishwasher's door open. Failure to do so may lead to accidents.
• Place knives and other sharp-ended objects in the cutlery basket in blade-down position.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including - children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• If EnergySave option is selected as "Yes", The door will be opened at the end of the program. Do not force to close the door to avoid harm auto door mechanism during 1 minutes. The door must be open during 30 minutes to get effective drying.(in models with auto door opening system)
  Warning: Do not stand in front of the door after the signal sounds belonging auto-open.

For your children's safety

• After removing the machine’s packaging, make sure that the packaging material is out of reach of children.
• Young Children should be supervised to ensure they do not play with the appliance.
• Keep your children away from detergents and rinse aids.
• WARNINGS: Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open. Check the detergent receptacle is empty after completion of the wash cycle.
• Keep children away from the machine while it is open because there may still be residues of cleaning substances inside the machine.
• Be sure that your old machine does not pose any threat to your children. Children are known to have gotten themselves locked in old machines. To forestall such a situation, break your machine's door lock and tear off the electrical cables.

In case of malfunctioning

• Any malfunction in the machine should be repaired definitely by qualified persons. Any repair work performed by anyone other than the authorised service personnel will cause your machine to be left outside the scope of warranty.
• Prior to any repair work on the machine, be sure that the machine is cut off from the mains.Switch off the fuse or unplug the machine.Do not pull by the cable when unplugging. Make sure to turn off the water tap.

Recommendations

- For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it.

• Use the pre-wash programme only whenever necessary.
• Place such hollow items as bowls, glasses and pots into the machine in such a way that they will face down.
• You are recommended not to load into your machine any dishes different or more than indicated.

Items not suitable for dishwashing:

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials;
• Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items, items soiled with abrasive, acidic or base chemicals.
• Plastic items that are not heat-resistant, copper or tin-coated containers.
• Aluminium and silver objects (they may discolour, become dull).
• Certain delicate glass types, porcelains with ornamental printed patterns as they fade even after the first wash; certain crystal items as they lose their transparency over time, adhered cutlery that is not heat-resistant, lead crystal glasses, cutting boards, items manufactured with synthetic fibre;
• Absorbent items as sponges or kitchen rags are not suitable for dishwashing.

Warning: Take care to buy dishwasher-proof sets in your future purchases.

INSTALLING THE MACHINE

Positioning the machine

When determining the place to put your machine on, take care to choose a place where you can easily load and unload your dishes.

Do not put your machine in any location where there is the probability for the room temperature to fall below 0° C.

Before positioning, take the machine out of its packaging by following the warnings located on the package.

Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made.

Do not grip the machine by its door or panel in order to move it.

Take care to leave a certain clearance from all sides of the machine so that you can comfortably move it back and forth during cleaning.

Make sure that the water inlet and outlet hoses do not get squeezed while positioning the machine. Also, make sure that the machine does not stand on the electrical cable.

Adjust the machine's adjustable feet so that it can stand level and balanced. Proper positioning of the machine ensures problem-free opening and closing of its door.

If the door of you machine does not close properly, check if the machine is stable on the floor it stands; if not, adjust the adjustable feet and ensure its stable position.

Water connection

Be sure that the indoor plumbing is suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing.

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Water inlet hose

Do not use the water inlet hose of your old machine, if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long - unused water inlet hose to your machine , run water through it for a while before making the connection. Connect the water inlet hose directly to the water inlet tap. The pressure supplied by the tap should be at a minimum of 0.03 Mpa and and at a maximum of 1 Mpa. If the water pressure is above 1 Mpa, a pressure-relief valve should be fitted inbetween.

After the connections are made, the tap should be turned on fully and checked for water tightness. For the safety of your machine, make sure to always turn off the water inlet tap after each wash programme is finished.

Line drawing of a faucet with a flanged handle and a base pipe (no text or symbols)

Simple line drawing of a faucet with a valve and a valve component (no text or symbols)

NOTE: Aquastop water spout is used in some models. In case of using Aquastop, a dangerous tension exists. Do not cut Aquastop water spout. Do not let it get folded or twisted.

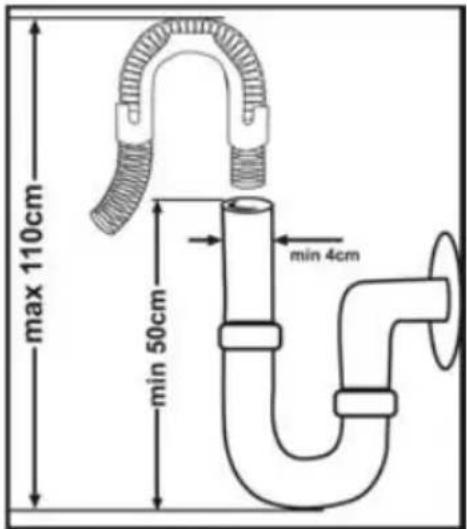

Water outlet hose

The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink. This connection should be at a minimum of 50 cm and at a maximum of 110 cm from the floor plane.

Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, our company will not accept responsibility.

Simple line drawing of a curved ramp with a cross symbol, no text or labels present

Electrical connection

The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

The indoor fuse current value should be 10-16 A.

Your machine is set according to 220-240 V. If the mains voltage in your location is 110 V, connect a transformer of 110/220 V and 3000 W in between. The machine should not be plugged in during positioning.

Always use the coated plug supplied with your machine.

Running in low voltage will cause a decline in washing quality.

The machine's electrical cable should be replaced by an authorised service or an authorised electrician only. Failure to do so may lead to accidents.

For safety purposes, always make sure to disconnect the plug when a wash programme is finished.

In order not to cause an electric shock, do not unplug when your hands are wet.

When disconnecting your machine from the mains supply, always pull from the plug. Never pull the cord itself.

Fitting the machine undercounter

If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.1 If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration.2

Warning: The stand part which we will settle our machine under it by removing its worktop has to be stable in such a way not to allow balance disorder.

To remove the worktop, remove the screws that hold the worktop which are located at the rear of the machine; then push the front panel 1 cm from the front side towards the rear and lift it.

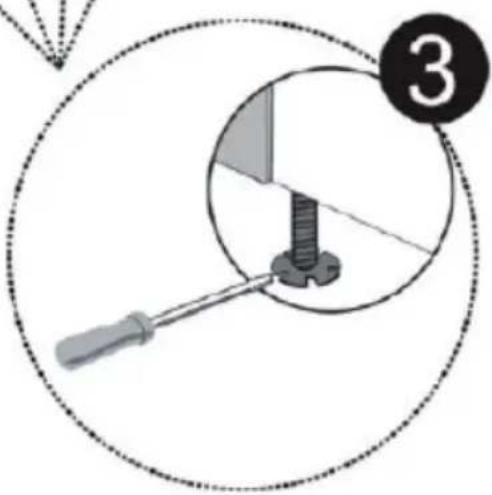

Adjust the machine feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4

	Product
	Without Insulation	With Insulation
	All Product	For 2nd Basket	For 3rd Basket
Height820	mm830mm835 mm

Diagram showing a screwdriver inserted into a circular component, with a numbered label '3' in the corner (no text or symbols on the diagram itself)

Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.

PREPARING THE MACHINE FOR USE

Prior to using the machine for the first time

• Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine.
• Remove all packaging materials inside the machine.
• Fill the rinse aid compartment.

Detergent usage

Use a detergent specifically designed for use in domestic dishwashers.

You can find powder, gel, and tablet detergents in the market that have been designed for household dishwashers.

Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children.

Do not fill detergent into the detergent compartment more than required; otherwise it may cause scratches on your glasses as well as lead to a poorly dissolved detergent.

Should you need more information concerning the detergent you will use, contact detergent manufacturers directly.

Diagram of a door handle with a curved arrow indicating rotation or movement (no text or symbols)

Filling the detergent compartment

Push the latch to open the detergent container as shown in the image. 1 Detergent pod has level lines inside. It is possible to

measure the right detergent amount using these lines. Detergent pod can take totally 40 cm ³ detergent.

Open the dishwasher detergent and pour into

the larger compartment b 25 cm ³ if your dishes are heavily soiled or 15 cm ³ if they are less soiled. If your dishes have been kept dirty for a very long time, if there are dried food wastes on them, and if you have overly

loaded the dishwasher, pour 5 cm ³ detergent into the pre-wash compartment and start your machine.

You may have to add more detergent into your machine, depending on the degree of soil and on the water hardness level in your area.

Combined detergent

Detergent manufacturers also produce combined detergents called "2 in 1", "3 in 1" or "5 in 1" etc.

"2 in 1" detergents contain detergent + salt or rinse aid. When using "2 in 1" detergents make sure to check the specifications of the tablet.

Other tablet detergents contain detergent + rinse aid + salt + various extra functions.

Generally, combined detergents produce sufficient results under certain usage conditions only. Such detergents contain rinse aid and/or salt in preset amounts

Points to consider when using this type of products:

• Always make sure to check the specifications of the product you will use or whether or not it is a combined product.
• Check if the detergent used is appropriate for the hardness of mains water that machine is appertaining to.
• Observe the instructions on packagings when using such products.
• If such detergents are in the form of tablets, never put them into the interior section or the cutlery basket of the dishwasher. Always put the tablets into the detergent compartment in the detergent dispenser.
• They produce good results for certain types of usage only. If you are using this type of detergents, you need to contact the manufacturers and find out about the suitable conditions of use.
• When the conditions of use of such products and the machine settings are appropriate, they ensure savings in rinse aid consumption.
• Contact the detergent manufacturers if you are not obtaining good wash results (if your dishes stay calcareous and wet) after having used 2 in 1 or 3 in 1 detergents. The scope of warranty for your machine does not cover any complaints caused by the use of these types of detergents.

Recommended usage: If you want to obtain better results while using combined detergents, add rinse aid into your machine and adjust the rinse aid setting to the lowest position.

Solubility of the tablet detergents produced by different companies can vary on the temperature and time. Therefore, it is not recommended to use such agents in short programs. It is more suitable to use powder detergents in suchams.

Warning: Should any problem, which you have not encountered before, arise with the use of this type of detergents, contact the detergent manufacturers directly.

When you give up using combined detergents

• Fill the rinse aid compartment.
• Make the suitable rinse aid setting.

Filling with rinse aid and making the setting

Hand turning a knob with a numbered dial (1) and rotational arrow, no text or symbols present

Rinse aid is used to prevent the stay of white water drops, lime stains, white film strip-shaped stains that may form on the dishes, as well as to increase the drying performance. Contrary to the popular beliefs, it is used not only for obtaining shinier dishes but also for obtaining sufficiently dried dishes. For this reason, care should be taken that there is adequate amount of rinse aid in the rinse aid compartment and only polishing material produced for use at dishwashers should be used.

If the rinse aid lamp on the control panel becomes on fill the rinse aid compartment with rinse.

To put rinse aid, remove the rinse aid compartment cap by turning it. Fill the rinse aid compartment with rinse aid until the rinse aid level indicator becomes dark;2 refit the cap and close it by turning it in a way that the nails will correspond to one another. By checking the rinse aid level indicator on the detergent dispenser, you can understand whether or not your machine needs rinse aid. A dark indicator means that there is rinse aid in the compartment, while a

light indicator a shows that you need to fill the compartment with

rinse aid.

The rinse aid level adjuster can be set to a position between 1 and 6. Factory setting for rinse aid is the position 3. You need to increase the degree of the adjuster if water stains form on your dishes after a wash, whereas you need to decrease the degree if a blue stain is left when wiped by hand.

Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag.

LOADING YOUR DISHWASHER

If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

There are two separate baskets for you to load your dishes into your machine. You can load into the lower basket such round and deep items as pots with long handles, pot lids, plates, salad plates, cutlery sets.

The upper basket has been designed for tea plates, dessert plates, salad bowls, cups and glasses. When placing long-stem glasses and goblets, lean them against the basket edge, rack or glass supporter wire and not against other items. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

It is more appropriate to locate the thin narrow parts into the middle sections of baskets.

You can place spoons among the other cutlery sets in order to prevent them from sticking to one another. You are recommended to use the cutlery grid in order to obtain the best result.

To avoid any possible injuries, always place such long-handle and sharp-pointed dishes as serving fork, bread knife etc. with their sharp points facing down or horizontally on the baskets.

Warning: Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms from spinning.

Top basket

Height Adjustable Rack

These racks are designed to increase the capacity of the top basket. You can place your glasses and cups on the racks. You can adjust the height of these racks. Thanks to this feature, you can place different sizes of glasses under these racks.

Thanks to height adjustment plastics mounted on the basket, you can use your racks in 2 different heights. In addition, you can place long forks, knives and spoons on these racks laterally, so that they do not block the revolution of propeller.

3D wireframe diagram of a mechanical or structural component with two red lines labeled 1 and 2, no visible text or symbols.

3D wireframe diagram of a structural grid with red arrows indicating direction (no text or symbols)

Foldable racks on the upper basket are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use foldable racks by raising them upwards, or by folding down.

Top basket height adjustment while it is full

3D architectural or engineering diagram showing structural framework with red and blue elements and directional arrows (no text or symbols)

Basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed. Basket of your machine is set to upper position in factory settings.

In order to raise your basket, hold it from both sides and pull it upwards. In order to lower it, hold it from both sides again, and leave it.

In loaded basket adjustment mechanism, make sure that both sides are in the same position (up or down).

3D rendering of a red and gray mechanical component with wheels, enclosed in a metal frame structure (no text or symbols visible)

3D mechanical assembly diagram showing red and gray components with wheels, no visible text or symbols

Lower Basket

Folding Racks

Folding racks consisting of four parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use folding racks by raising them upwards, or by folding.

3D wireframe diagram of a mechanical or structural assembly with no visible text, numbers, or symbols.

3D wireframe diagram of a warehouse or storage unit with workers and equipment, no visible text or symbols

Upper Cutlery Basket

The upper cutlery basket is designed for you to place forks, spoons and knives, long dippers and small items.

Interior view of a modern kitchen appliance drawer with cutlery and white cups (no text or symbols visible)

Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with the basket after washing.

3D rendering of a mechanical assembly with layered components and mounting brackets (no visible text or symbols)

The Upper Cutlery Basket is composed of two pieces; if you need to make space for the dishes in the upper basket, you can take out the left or right part of the upper cutlery basket in order to obtain more space.

Two-panel illustration of a washing machine interior showing internal components and exterior view (no text or symbols)

Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket.

Alternative basket loads

Lower Basket

3D cutaway view of a kitchen appliance showing multiple fans and dish components (no text or labels visible)

3D rendering of four cooking pots in a wire basket (no text or symbols visible)

Top basket

3D rendered mechanical components arranged in a grid, featuring white and green spherical parts (no text or symbols visible)

Faulty loads

3D rendered diagram of white and blue spherical objects arranged in a grid, with a black 'X' symbol overlay (no text or symbols present)

Technical diagram of a mechanical assembly with multiple components and a grid structure (no visible text or labels)

3D wireframe model of a grid structure with embedded components and a black X mark (no text or symbols)

3D wireframe model of a shopping basket filled with white and blue plastic containers, no text or symbols visible

Important Note for Test Laboratories

For detailed information on performance tests, please contact following address: "[e-mail]". In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.

PROGRAM DESCRIPTIONS

Program items

Program No				Reference
Name of Program	Prewash	*Jet Wash 15°	Quick 30°	Economic 60°C	Super 50°.	Daily 60°C	Dual Pro Wash	Auto 30°C-50°C	Auto 50°C-60°C	Auto 60°C-70°C
Washing Temperature	-	35°C	40°C	50°C	65°C	60°C	65°C	30-50°C	50-60°C	60-70°C
Type of Food Fragment	Fresh less dirty, coffee,milk, tea	Less dirty, coffee, milk tea,not kept for long	Fresh coffee, milk, tea, cold meat, vegetables	For a normal soiled load.	Tarried soup, sauce, pastry, egg, rice, potato and meals cooked inoven, fried food	Tarried soup, sauce, pastry, egg, rice, potato and meals cooked inoven, fried food	Soups, sauces, pasta, eggs, pilaf, potato and oven dishes, fried foods, kept for long	Automatically adjust the washing time with temperature and amount of water by determining the soil level of dishes
Level of Contamination	- small	small	small	Medium	Medium	Medium	high	small	high	high
Amount of Detergent B: 25 cm 3 /15 cm 3 A: 5 cm 3	-	**A	B	A+B	A+B	A+B	A+B	B	A+B	A+B

Prewash	35°C Wash	40°C Wash	Prewash	65°C Wash	Prewash	40°C Wash
End	Hot Rinse	Cold Rinse	50°C Wash	Warmish Rinse	60°C Wash	65°C Wash
	End	Hot Rinse	Cold Rinse	Hot Rinse	Warmish Rinse	45°C Wash
		End	Hot Rinse	End	Hot Rinse	Hot Rinse
			Dry		End	Dry
		End				End

Program Period (minutes)	15	18	30	138	50	95	106	79-87	102-117	107-171
Power Consumption (kW hour)	0,02	0.57	0,74	0,65	1,21	1,28	1,33	0,70-0,89	1,03-1,36	1,20-1,85
Water Consumption (liters)	4,2	7,7	10,9	12,2	10,77	14.9	15,4	10,6-17,7	10,9-18,5	12,3-24,6

In case option of 1/2 Half-load is used, the values in the program list will be as follows.

Program Period (minutes)	15	18	30	108	46	83	88	62-75	82-97	123-151
Power Consumption (kW hour)	0,02	0.57	0,74	0,62	1,21	1,25	1,28	0,67-0,86	1,00-1,33	1,17-1,82
Water Consumption (liters)	4,2	7,7	10,9	12,2	10,7	11,1	11,1	9,9-13,7	10,5-14,3	11,9-19,9

Dual Wash: The delicate dishes on the upper basket are washed at a lower pressure and the heavily soiled dishes on the lower basket are washed at a higher pressure by the help of a variable-speed engine. Therefore, you can wash both delicate/less soiled dishes and heavily soiled dishes at the same time.
*Off mode and end of cycle mode test in accordance with AS/NZS 62301 must be carried out with Ecomode brightness level.
Jetwash 18 min programme can be used for not kept for long, less dirty dishes. It is suitable for dishes of four persons.
Jetwash 18 min. Only powder detergent should be used.
Warning: In Jetwash 18 min, Fast 30 min and Super 50 min programmes, there is no drying step. Values above have been tested according to related standards in lab condition. These values may vary due to environment conditions (mains voltage, water pressure, water inlet temperature and ambient test

GETTING FAMILIAR WITH YOUR MACHINE

1-On/Off
2-Door Handle
3-Confirmation Button
4-Option Button

5-Delay Button
6-Start/Pause button
7-Up Selection Button
8-Down Selection Button

Selection of Program and Starting of the Machine

1-On/Off

2-Door Handle

3-Confirmation Button

4-Option Button

5-Delay Button

6-Start/Pause button

7-Up Selection Button

8-Down Selection Button

9-Extra Hygiene Indicator

10-Tablet Indicator

11-Half Load Indicator

12-Extra Fast Indicator

13-Extra Silent Indicator

14-Extra Drying Indicator

15-Rinse Aid Level Warning Indicator

16-Child Lock Indicator

17-Delay Indicator

18-Remaining Time/Delay Time Indicator

19-Program Number Indicator

20-Display Information Line

21-Washing cycle progress indicators

a-Washing Cycle Symbol

b-Rinse Cycle Symbol

c-Drying Cycle Symbol

d-End Cycle Symbol

BUTTONS

Power On/Off Button 1

When you press the on/off button, the machine is energized and the display shows the last used program; in the off position, the LCD on the display are off.

Door Handle 2

Please use the door handle to open-close the door of your machine.

Confirmation Button 3

Confirms (saves) your additional functions and settings.

Option Button 4

Allows you to use the functions in the additional functions menu.(9-10-11-12-13-14)

Delay Button 5

Delays the starting time of the program you have selected (1-24 hours).

You may see the delay time in the Remaining Time/Delay Time Indicator (19).

When the delay button is pressed, Delay Indicator (18) is seen on the display.

Start/Pause Button 6

When you press the Start/Standby Button, the selected program starts and washing symbol (a) appears on the display.

You may follow the washing phases on the display. (22-a-b-c-d)

Up / Down Buttons 7 8

Allows you to browse in Program, Additional functions, delay and settings menus.

Additional Functions

Extra Hygiene function 9

You may select this function in order to obtain extra hygiene and a cleaner washing process by altering the water temperature and washing time of the program you have selected.

Tablet Detergent function 10

Please use the Tablet Detergent function while using rinse agent and combined deterjents with extra properties.

Half Load Function 11

Using the Half load function, three sorts of washing up can be done those being lower basket, upper basket and both baskets.

If you have little amount of dishes in your machine and if you have to wash them, you can also activate the semi-filling function for some programs.

If you have dishes in both baskets, select the half load function and select the position in which both images are highlighted.

If you have dishes only in the upper basket, select the position in which the upper image is illuminated.

Thus, washing up shall be done only on the upper basket of your machine.

If you have dishes only in the lower basket select the position in which the lower image is illuminated. Thus, washing up shall be done only on the lower basket of your machine. In using this feature, make sure that there are no dishes in the upper basket.

Extra Fast Function

12

Washes the dishes with more pressure, thus shortens the time of the selected program and provides economical water usage.

Extra Silent Function

13

Washes the dishes with less pressure, thus provides more sensitive and silent washing.

Extra Drying function

14

With extra drying function, you may add extra drying steps to your program and thus obtain drier dishes.

Warning Indicator

Rinse Agent Level Warning Indicator

15

In order to understand whether the rinse agent in your machine is sufficient or not, please check the rinse agent level warning display.

If this display is illuminated, fill the rinse agent section.

Selection of Program and Starting of the Machine

1- Press Power On/Off switch.

Note: Select your washing program appropriate for your dishes by the help of the program items page in the user guide.

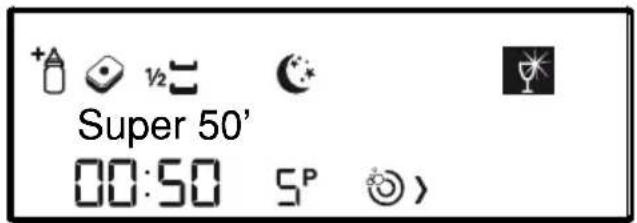

2- You may select the washing program by using up/down (7,8) selection buttons.

Note: You may follow the program time in the time indicator. (19)

3- If necessary, you may select additional functions by using option button (4). (9-10-11-12-13-14)

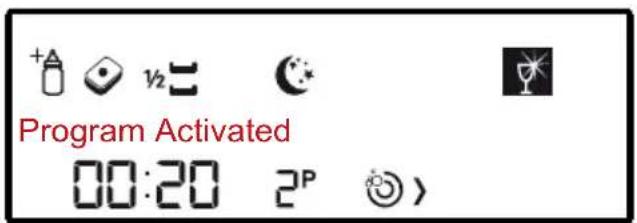

4- You may start the programme by pressing the Start/Pause button. "Program Activated" will appear on the display and the selected program will start.

When the program starts, you may see the name of the selected program in the Display information line (21), remaining washing time in the remaining time indicator (19) and the program number of the selected program in the program number indicator (20).

Note: Try not to open the door of the machine while it is operating; if you absolutely need to, stop the programme by pressing Start/Pause button.

"Program Paused" will appear on the display. Once you see this text, you may open the door. Steam might come out when you open the door – be careful. You may resume the programme after closing the door and pressing the Start/Pause button again. When you press the Start/Pause button, "Program Activated" will appear on the display.

Program Follow-up

You can follow the progress by the help of the program follow-up symbols on the display.(22 - a,b,c,d).

Pure graphical icons on black background, no text or symbols present

Abstract white swirl logo on black background with blue border (no text or symbols)

As the washing proceeds, respectively Washing and Drying symbols will be illuminated. When the drying symbol is on, the machine remains silent for about 40-50 minutes.

Abstract blue and white graphic with a stylized circular symbol and arrow, no text or symbols present.

Do not open the door before the completion indicator light is on. When the programme ends, Completion indicator light is illuminated.

Black rectangular background with a blue border and a white circular logo featuring the letters 'OK' (no additional text or symbols)

When the program you have selected starts, you may see the estimated remaining time in the time indicator.

NOTE: A few minutes after the program finishes and the Completion lamp is illuminated, you may open the door slightly and leave it ajar in order for the drying process to be faster.

NOTE: If the machine door is opened or a power failure occurs during washing, the machine will proceed from where it stopped after the door is closed or power is restored.

NOTE: If a power cut occurs or if the door is opened during drying, the programme ends. The machine will be ready for selecting a new programme.

NOTE: The total time of the programme depends on the room temperature, mains water temperature and amount of dishes.

Adding Additional Functions to the Program

You may change the program according to your preferences by adding additional functions to the washing program. The washing programs have been designed so as to obtain the best cleaning considering the type of smear, amount of smear and properties of the washing materials. The additional functions were developed in order to save time, water and electricity and thus allow you to wash your dishes more conveniently. For example, if you think your dishes are slightly dirty, you may select the Fast function (12) and make your washing process more economical in terms of time and water.

If you are going to use a multipurpose detergent, you obtain better performance by selecting tablet detergent (10) function.

If you live in a place where electricity is cheaper to use at night, you might select the silent function (13) and wash your dishes more economically and silently; this function was developed also for a more sensitive washing process.

Additional functions are not suitable for every program; you might find below the functions suitable for the programs. For the programs not suitable for functions, you will see that the function indicator is not illuminated.

PROGRAMS	OPTIONS
	Delay Start	Half Load (3 modes)	Tablet	Child Lock	Extra Fast	Extra Hygiene	Extra Silent	Extra Drying
Prewash X X	- X -	- - -
Jet Wash 18 X	X - X	- - - -
Quick 30'	X X	- X - - -	X
Economic 50°C	X	X	X	X	X	X	X	X
Dual Pro Wash	X	X	X	X	X	X	X	X
Super 50'	X X	X	X		-	X -	X
Daily 60	X	X	X	X	X	X	X	X
Auto 30°C-50°C	X	X	X	X	-	X	-	X
Auto 50°C-60°C	X	X	X	X	-	X	-	X
Auto 60°C-70°C	X	X	X	X	-	X	-	X

“-” Function cannot be selected “x” function can be selected.

* Economic 50°C is used for a normal soiled load.
** Programmes are indicated generally and might differ among models.

In order to add additional functions to the program;

1-Select the appropriate washing program for your dishes using the up/down buttons (7,8) after pressing the option button.
2- Enter the additional functions menu (4) by pressing the option button. After selecting the additional function using up/down buttons (7,8), illuminate the additional function indicators (9-10-11-12-13-14) by pressing the confirmation button.
3- You may start the programme by pressing the Start/Standby button.
"Programme activated" will appear on the display.

Some functions cannot be selected at the same time; please refer to the scheme below

Options	Delay Start	Half Load(3 modes)	Tablet Child Lock		Extra Fast	Extra Hygiene	Extra Silent	Extra Drying
Delay Start	OK OK OK OK OK OK OK
Half Load (3 modes)	OK	OK OK OK OK OK OK OK
Tablet	OK OK		OK OK OK OK OK OK
Child Lock	OK OK OK			OK OK OK OK OK
Extra Fast	OK OK OK OK				-- OK
Extra Hygiene	OK OK OK OK -					--
Extra Silent	OK OK OK OK - -						OK
Extra Drying	OK OK OK OK OK - OK

Changing the Program

If you want to change a washing programme after it has been started;

1- Pause the programme by pressing the Start/Pause (6) button. "Programme paused" will appear on the display.
2- Select the desired programme by pressing the selection buttons (7,8).
3- You may start the programme by pressing the Start/Pause button again.
"Programme activated" will appear on the display.

Note: The new program starts from the step where the previous program was left.

NOTE: If you want the new program to start from the beginning, you must first cancel the previous program and then select a new one.

Cancelling the Program

1- Hold the Start/pause button (6) for 3 seconds to cancel a program.
2- The display will show an expression ("Program Cancelling ..X") to let you know how many more seconds you have to hold the button. 1 minute after you do this,
"Program Finished" will appear.
3- After this warning, you may select and additional function or time setting.
NOTE: Depending on the step where the cancelled program was left, there may be detergent leftovers within the machine or on the dishes.

Settings Menu

In order to enter the Settings Menu, hold the option and delay buttons for 3 seconds. The display will show an expression ("Keep Pressing ..X") to let you know how many more seconds you have to hold the button. When this number is zero, you will see the Menu settings on the display. You may navigate within the menu by using the selection buttons. In order to exit the menu, you may hold the option and delay buttons for 3 seconds like you did when entering the menu or you may select the seventh row in the menu with the confirmation button.

The menu content is as follows:

1. Language
2. Water Hardness
3. Volume
4. Brightness
5. Eco mode
6. Factory Settings
7. Exit Menu √

1- Language settings

After you enter the menu settings, use up/down selection buttons to select the language. You will see an expression (1.Language: X) in which "X" is the current language. After that, press the confirmation button to activate the language selection and after selecting the new language, save it by pressing the confirmation button again.

Available languages that you can select :

English	Greek	Nederlands	Polish
Turkish	Croatian	Swedish	Czech
French	Russian	Dansk	Slovene
Deutsch	Finnish	Spanish	Hungarian
Italian	Norwegian	Portuguese

2- Water hardness setting

You may find this in the section where water softening setting is explained. (page 15)

3- Volume level

You may adjust the level of your machine's audible alarms here. After entering the menu, select the "3-Volume" by using the selection buttons. Here you will see "Volume:X" (X:L1,L2,L3). L1 is the lowest, L3 is the highest volume level. After pressing the confirmation button, activate "X", select the desired noise level and save the selection by pressing the confirmation button once more.

4- Brightness level

You may adjust the level of your machine's display brightness here After entering the menu, select the "4-Brightness" by using the selection buttons. Here you will see "brightness :X" (X:L1,L2,L3). L1 is the lowest, L3 is the highest brightness level. Select the desired brightness level and save the selection by pressing the confirmation button. After pressing the confirmation button, activate "X" and confirmation button once more.

5- Eco mode

This mode saves energy by minimizing the display brightness level after 30 seconds of non-operation. After entering the menu, select the "5-Eco mode" by using the selection buttons. Here you will see "Ecomode:X" (X:YES or NO). After pressing the confirmation button, activate "X"; you might use your machine with Eco mode on or off.

6- Factory Settings

In order to discard all the settings you made and restore the factory settings, select the "6- Factory settings" by using the selection buttons. Here you will see "6.Factory settings:X" (X:yes or no). After pressing the confirmation button, activate "X"; you might save your selection by selecting "Yes" or "No" expression and pressing the confirmation button again.When you restore the factory settings, the machine will return to the following settings:

1- Language : English
2- Water hardness setting : L☐
3- Volume : L2
4- Brightness : L2
5 -Eco Mode : <HV

Child Lock

You might prevent others from modifying your settings while the machine is in operation. After starting the programme, press the up selection button (7) and down selection button (8) at the same time for 3 seconds. This screen will inform you as to how many seconds you need to hold the buttons by "Keep Pressing..X". When this time is over, the child lock is activated, "Child Lock ON" appears on the screen and the indicator (17 8) is illuminated. When the child lock is active, all the buttons are deactivated.

In order to cancel the child lock, press the up selection button (7) and down selection button (6) at the same time for 3 seconds. This screen will inform you as to how many seconds you need to hold the buttons by "Keep Pressing..X". When this time is over, the child lock is cancelled, "Child Lock OFF" appears on the screen and the indicator(17 ☐) is off

Delayed Start:(Snooze)

You may delay the starting time of the selected programme up to 24 hours. You can not make a delay setting after the programme starts. In order for you to be able to make a delay setting, the selected programme needs not to be in operation.

1- Press the delay button (5)
2- Hour "00:00" is displayed on the display information line (19) and the delay symbol (18) starts flashing.
3- You may set the delay time with the selection buttons (7,8) to the desired time. The “” button (7) increases the time by 1 hour while “v” button (8) decreases by 1 hour. By pressing the Start/Pause button, you may start the countdown until the delay time.
The delay symbol (18) will continuously be illuminated during this period. Remaining Time/Delay Time (19) indicators display the delay time. After the countdown is over, the selected programme will start. The indicator screen will begin to show the time remaining until the end of the selected programme.

Changing the programme or function on delay

Pause the machine by pressing the Start/Pause button; the countdown will stop and the "program paused" and "Delay timer active" appear on screen. If you press the buttons without pausing the machine, you will receive warnings such as "Delay timer active" or "invalid".

After pausing the snooze, you may select programmes and add functions to the programme like it was told in the relevant topics.

By pressing the Start/Pause button once more, start the countdown until the delay time.

If you want to cancel or make a new time setting when the machine is on snooze

If you want to reschedule the delay time, stop the countdown by pressing the start/standby button. Press the delay button to enter the delay menu; set the new Delay time by pressing the selection buttons. Start the countdown by pressing the Start/Standby button.

If you want to cancel the delay setting

Hold the Start/Pause button for 3 seconds.

The display will inform you how many seconds you need to hold the button by

"Program Cancelling .. X". This way, the delay countdown is cancelled.

Warning Messages

Your machine provides feedbacks while in operation

Turn on the Tap

When above warning is seen;

1- Make sure that the water is not cut off
2- Make sure that the hydrant is open
3- If both are true, call the qualified technician.
Whenever an error which you cannot fix occurs, above warning will be displayed.
When you see it, call the qualified technician.

Call Service

When your machine gives the above warnings, the error codes are specified after the definition.

You might find related information in the

"FAILURE CODES AND WHAT TO DO

IN CASE OF FAILURE" section in your user guide.

MAINTENANCE AND CLEANING

Cleaning the machine in regular intervals prolongs the machine's service life.

Oil and lime may accumulate in the machine's washing section. In case of such accumulation

-Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. In case of insufficiency, use special cleansing material available in the market. (Cleansing material produced special to machines by detergent producers.)

Cleaning the seals in the machine door

-To clean any accumulated residues in the door seals, wipe the seals regularly by using a dampened cloth.

Cleaning the machine

Clean the filters and spray arms at least once a week.

Unplug your machine and turn off its tap before starting the cleaning.

Do not use hard materials when cleaning your machine. Wipe with a fine cleaning material and a dampened cloth.

Filters

Check if any food wastes have remained on the coarse and fine filters. If any food wastes are left, remove the filters and clean them thoroughly under the water tap.

a. Micro Filter
b. Coarse Filter
c. Metal/Plastic Filter

Diagram of a mechanical component with directional arrows and a numbered label (1), no readable text or symbols present.

To remove and clean the filter combination, turn it counter clockwise and take it out by lifting upwards.

Pull and remove the metal/plastic filter. 3 Then pull the coarse filter out of the micro filter.2 Rinse it with lots of water under the tap. Refit the metal/plastic filter. Insert the coarse filter into the micro filter in a way that the marks will correspond to one another. Attach micro filter into the metal/plastic filter and turn to the direction of arrow and it is locked when the arrow on micro filter can be seen from across. 4

Diagram of a mechanical component with labeled parts (3 and C), no readable text or symbols present.

• Never use your dishwasher without any filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are very important in terms of the proper running of the machine.

Diagram of a mechanical device with directional arrows indicating motion or assembly (no text or symbols)

Spray arms

Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water.

You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.

Be sure that the nut is perfectly tightened when refitting the upper spray arm.

Hose filter

Water is prevented by the inlet hose filter so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing. Check the filter and the hose from time to time and clean them if necessary. To clean the filter, first turn off your tap and then remove the hose. After removing the filter from the hose, clean it under the tap. Insert the cleaned filter back into its place inside the hose. Refit the hose.

FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE

ERROR CODE ERROR	DESCRIPTION CONTROL
F5	Inadequate water supply	Make sure the water input tap is totally open and that there is no water cut.Close the water input tap, separate the water input hose from the tap and clean the filter at the connection end of the hose.Restart your machine, contact the service person if the error resumes.
F3	Error of continuous water input	Close the tap.Contact the service person.
F2	The waste water in the machine cannot be discharged.	Water discharge hose is clogged.The filters of your machine might be clogged.Power off-on your machine and activate the program cancellation command.If the error continues, contact the service person.
F8	Heater error	Contact the service person.
F1	Alarm is active against water overflow	Power off your machine and close the tap.Contact the service person.
FE	Faulty electronic card	Contact the service person.
F7	Overheating error (temperature in the machine is too high)	Contact the service person.
F9	Divisor position error	Contact the service person.
F6	Faulty heater sensor	Contact the service person.

If one of program monitor lights is on and start/Pause light is on and off

Your machine's door is open, shut the door.

If the programme won't start

• Check if the plug is connected.
• Check your indoor fuses.
• Be sure that the water inlet tap is turned on.
• Be sure that you have closed the machine door.
• Be sure that you switched off the machine by pressing the Power On / Off button.
• Be sure that the water inlet filter and the machine filters are not clogged.

If the control lamps won't go out after a wash operation

The Power On/Off button is released yet.

If detergent residues are left in the detergent compartment

Detergent has been added when the detergent compartment was wet.

If water is left inside the machine at the end of the programme

• The water drain hose is clogged or twisted.
• The filters are clogged.
• The programme is not finished yet.

If the machine stops during a wash operation

• Power failure.
  • Water inlet failure.
• Programme can be on standby mode.

If shaking and hitting noises are heard during a wash operation

• Dishes placed incorrectly.
• Spray arm hitting the dishes.

If there are partial food wastes left on the dishes

• Dishes placed incorrectly into the machine, sprayed water did not reach related places.
• Basket overly loaded.
• Dishes leaning against one another.
  • Very small amount of detergent added.
• An unsuitable, rather weak wash programme selected.
• Spray arm clogged with food wastes.
• Filters clogged.
• Filters incorrectly fitted.
  • Water drain pump clogged.

If there are whitish stains on the dishes

• A very small amount of detergent is being used.
- Rinse aid dosage setting at a very low level.

If the dishes won't dry up

• A programme without a dry operation selected.
• Rinse aid dosage set too low
• Dishes unloaded too fast.

If there are rust stains on the dishes

• Stainless-steel quality of the dishes washed is insufficient.
• Unhealthy mains grounding.

Call an authorised service if the problem still persists after the controls or in case of any malfunction not described above.

PRACTICAL AND USEFUL INFORMATION

1. Whenever you will not be operating your machine
2. Unplug the machine and then turn the water off.
3. Leave the door slightly ajar in order to prevent the formation of unpleasant smells.

4. Keep the machine interior clean.

5. Eliminating water droplets

6. Wash the dishes with the intensive programme.
   • Take all of the metal containers in the machine out.

7. Do not add detergent.

8. If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

9. Clean all rough waste before you place dirty dishes to the machine.
10. Operate the machine after it is completely full.
11. Use pre-washing program only when necessary.
12. Observe program information and average consumption values table when selecting a program.

13. Since the machine will reach high temperatures, it should not be mounted near refrigerator.

14. If the appliance is located in a place where the risk of freezing exists, you must completely drain the water that has remained in the machine. Turn off the water tap, disconnect the water inlet hose from the tap and allow the interior water to drain.

AUSTRALIAN & NEW ZEALAND PRODUCT WARRANTY STATEMENT OF STANDARD WARRANTY CONDITIONS

AUSTRALIAN CUSTOMERS

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

NEW ZEALAND CUSTOMERS

Nothing herein contained shall be construed in any way as excluding or limiting your rights under the Consumer Guarantee Act 1993.

OUR WARRANTY

This product is also covered by the manufacturer's warranty set out in this document (Our Warranty).

Our Warranty is for a period of twenty four (24) months from the date of purchase and for dishwasher & refrigeration appliances will have an additional thirty six (36) months after the first twenty four (24) months on the wash motor for dishwashers & on the Sealed System (PARTS only Compressor & condenser etc) for refrigeration appliances. The labour cost to replace these parts is the responsibility of the customer.

This is in addition to (and does not exclude, restrict or modify) any rights or remedies to which you may already be entitled under the Australian consumer Law or the New Zealand Consumer Guarantee Act 1993 relating to this product.

Our Warranty (which is subject to the conditions below) covers rectification free of charge of any fault arising from defective materials or components, or faulty workmanship. The product will be repaired or replaced at the option of Blanco, and all costs of installation, removal, cartage, freight travelling expenses and insurance are to be paid by the customer.

Our Warranty is subject to the following conditions:

1. That the purchaser contact Blanco prior to any product repair.

2. That the purchaser carefully follows all instructions provided with the product and complies with all relevant electrical & plumbing regulations in their State when installing the product.

3. That the purchaser carefully follows the instructions provided in the owner's handbook relating to the proper use and care of the product and does not use the product for any purpose other than the DOMESTIC use for which it has been designed. If the appliance is used in commercial applications or for rental purposes, Our Warranty is limited to a warranty of Twelve (12) months covering all parts with Three (3) months on any labour cost of service or repair.

SERVICE AREA

The provision of service under Our Warranty is limited by the boundary / territory area of the nearest service centre. Travelling cost incurred for service outside this area is not covered by Our Warranty and service will incur commercial cost to be paid by the customer regulated by the number of kilometres travelled beyond the service area. These costs will be disclosed to you for acceptance by you prior to your claim being processed.

Microwave ovens must be returned to your nearest Authorised Service Centre for repair as they are a carry in serviceable appliance.

WHAT IS COVERED: By Our Warranty

During the warranty period, Blanco or its authorised Service Centre will at no extra charge, if your appliance is readily accessible without the need of special equipment and subject to the terms and conditions of this warranty, repair or replace any parts which it considers defective.

WHAT IS NOT COVERED: By Our Warranty

1. Products installed damaged or incomplete or not in compliance with the relevant electrical & plumbing regulations in their State.

2. Normal wear and tear e.g. cleaning, light globes, filters etc.

3. Failure resulting from power surges and electrical storms.

4. Insect or vermin infestation.

5. Unauthorised repairs or use of non genuine Blanco parts.

6. Any failure caused by the product not being used in accordance with the instruction and the installation manual provided with the product.

7. Misuse or abuse, including failure to properly maintain or service.

8. The clearing of blockages in pumps and hoses.

9. Damage which occurs during delivery or installation.

10. Claims to product surface coating due to liquid or solid spill-overs, accidental damage or damage caused from cleaning products not recommended by Blanco.

HOW TO CLAIM OUR WARRANTY

You will need to contact Blanco in Australia or New Zealand by using the contact details below.

IN AUSTRALIA

IN NEW ZEALAND

Blanco is distributed by Shriro Australia Pty Ltd (Member of Shriro Australia Pty Ltd)

Blanco is distributed by Monaco Corporation

Locked Bag 5002, Kingsgrove, NSW, 2208

PO Box 4399, Shortland St, Auckland, 1140

Phone: [phone] Fax: [phone]

Phone: [phone] Fax: [phone]

Email: [e-mail]

Email: [e-mail]

Web: http://www.blanco-australia.com/

Web: http://www.blanco-australia.com/

Note: Please complete the following details when you have unpacked the product and staple this card with the purchase invoice or sales docket.

Model No....

Serial No....

Date of Purchase....

Retailer....
