BDW3456X - Dishwasher BLANCO - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	BLANCO
Model	BDW3456X
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	Approximately 50 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Efficiency Class	A++
Noise Level	44 dB (A)
Capacity	14 place settings
Wash Programs	Eco 50°C, Auto 45-65°C, Intensive 70°C, Quick 30 min, Glass Care, Rinse & Hold
Drying System	Heat exchanger with automatic condensation drying
Water Consumption	9.5 L per cycle (Eco program)
Annual Energy Consumption	266 kWh/year (based on 280 cycles)
Control Type	Electronic touch panel with LED display
Safety Features	Child lock, leak protection system, overflow protection
Interior Lighting	LED interior light
Rinse Aid Indicator	Yes
Salt Indicator	Yes
Remaining Time Display	Yes
Delay Start	Up to 24 hours
Cleaning & Maintenance	Self-cleaning filter, descaling indicator, periodic cleaning of spray arms recommended
Spare Parts Availability	Filters, spray arms, racks, heating elements available through BLANCO service
Repairability Index	8.5/10 (highly repairable)
Warranty	2 years standard, extension available

Frequently Asked Questions - BDW3456X BLANCO

How do I install the BLANCO BDW3456X dishwasher?

Ensure the appliance is placed on a level floor. Connect the water inlet hose to a cold water supply (3/4 inch thread). The drain hose can be connected to the sink drain or a dedicated waste pipe. Electrical connection must be to a grounded socket. For detailed steps, see the installation section of the manual.

What wash programs are available on the BDW3456X?

Programs include Eco 50°C (energy-saving), Auto 45-65°C (sensor-based), Intensive 70°C (heavy soil), Quick 30 min (light loads), Glass Care (delicate items), and Rinse & Hold (for later washing).

How do I clean the filters in the dishwasher?

Turn off the appliance and remove the lower rack. Unscrew the coarse filter and microfilter assembly. Rinse under running water with a soft brush. Avoid using abrasive cleaners. Replace and lock securely. Clean once a month for optimal performance.

Why is my dishwasher not drying dishes properly?

Check that rinse aid is filled and the setting is appropriate. Ensure the heat exchanger is not clogged. Use a program with drying phase (e.g., Eco or Intensive). Open the door slightly after cycle to release steam. If persistent, the heating element may need service.

How do I reset the BDW3456X after an error code?

Press and hold the Start/Reset button for 3 seconds until the display shows 'E...' codes clear. If error persists, turn off the power for 10 seconds and restart. Refer to the manual for specific error code meanings.

What type of detergent should I use?

Use any dishwasher detergent (powder, gel, or tablets) designed for household dishwashers. For best results, use a multi-tablet with built-in rinse aid and salt. Ensure the detergent dispenser is not overfilled.

How do I adjust the water hardness setting?

Use the water hardness test strip provided. Turn on the appliance, press the Program button repeatedly until 'H' appears on display. Use the arrow buttons to set the level (1-7) matching your hardness. Confirm with Start.

Can I put pots and pans in the dishwasher?

Yes, but scrape off large food residues. Place pots and pans face down in the lower rack. Avoid aluminium or copper items unless marked dishwasher safe. For non-stick cookware, use a gentle program like Glass Care.

What should I do if the dishwasher is noisy?

Ensure the appliance is level (adjust feet). Check that dishes are not protruding and hitting spray arms. Clear any items that may have fallen to the bottom. If noise persists, inspect the circulation pump or motor.

How long is the warranty on the BDW3456X?

The standard warranty is 2 years from purchase date. Registration may extend coverage. For commercial use, warranty terms may differ. Contact BLANCO customer service for details.

USER MANUAL BDW3456X BLANCO

Line drawing of a wine glass and a decorative circle with starburst elements (no text or symbols)

CONTENTS

Getting familiar with your machine 4

• Technical specifications .... 6
• Conformity with the standards and Test data 6

Safety information and Recommendations.... 6

• Recycling 6
• Safety information 6
• Recommendations 7
• Items not suitable for dishwashing 8

Installing the machine 8

• Positioning the machine 8
  • Water connections 8
• Water inlet hose 9
  • Water outlet hose 9
• Electrical connection....9
• Fitting the machine undercounter 10

Preparing the machine for use 12

• Prior to using the machine 12
• Detergent usage 12
• Filling the detergent compartment.... 12
• Combined detergent.... 12
• Filling with rinse aid and making the setting.... 13

Loading your dishwasher 14

• Alternative basket loads 19
• Standard loading and Test data 20

Programme descriptions 21

- Programme items 21

Switching on the machine and selecting a programme.... 22

• Switching on the machine.... 22
• Programme follow-up 22
• Changing a programme 22
• Changing a programme with resetting 23

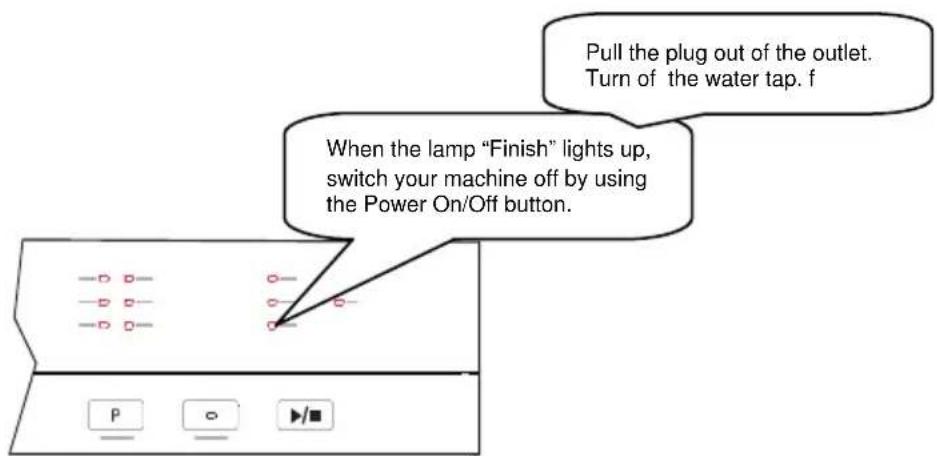

• Switching the machine off 23

Maintenance and Cleaning 24

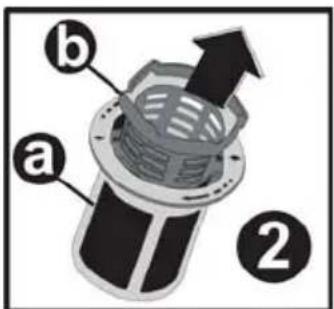

• Filters 24
• Spray arms 25
• Hose filter 25

Failure codes and what to do in case of failure 26

Practical and useful information.... 28

Close-up of mechanical components with a numbered arrow pointing to a circular component (no text or symbols visible)

Active Drying Unit: This system provides better drying performance for your dishes.

Rating plate

Control Panel

Detergent and rinse-aid dispenser

Cutlery basket

Upper basket track latch

Worktop

8.

9.

10.

Lower spray arm

1.

2.

3.

4.

5.

GETTING FAMILIAR WITH YOUR MACHINE

1.) ON/OFF Button

When one presses the on/off button, the machine is energized and the light on Start/Standby button goes on.

2.) Extra Hygiene Button

By using this option, washing temperature and periods during respective cycles may be changed, which ensures more hygienic washing.

3.) Tablet Detergent Button

Push Tablet Detergent button when using combined detergent that contains rinse aid and extra functions.

4.) Door Handle

Use door handle to open-close the door of the machine.

5.) Program 6election Button

With the program selector button, you can select a suitable program for your dishes.

6.) Upper Basket 2 ption

By using the 'upper basket' feature of your dishwasher, you can reduce the duration of your selected programs, and decrease your power and water consumption by using less electricity and water.

☐.) Start/Pause Button

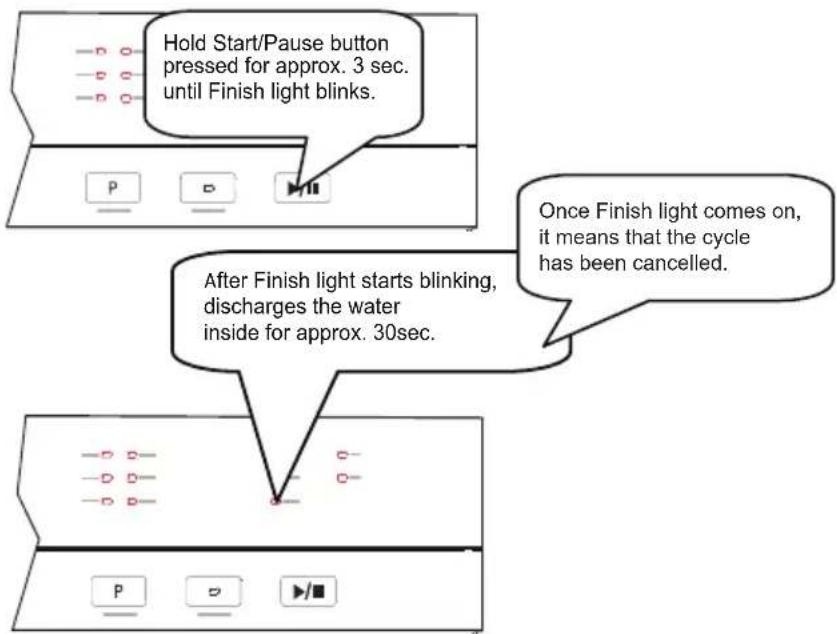

Once you press the Start/Pause button, the programme you selected with the programme selector button will start running and the status indicator lamp "wash" will light up. In the stop condition while wash led light is On, Start/Pause led will blink.

8.)Rinse \$id Lack Warning ,indicator

In order to check that there is sufficient rinse aid in your machine check rinse aid lack warning light on the display. When rinse aid warning light starts coming on, fill in rinse aid chamber.

Note : If you have used an extra feature on the latest washing program, this feature will remain active also on the next washing program. If you do not want to use this feature on the newly selected washing program, press the selected feature button again, and check that the light on the button goes off.

9.) Program Monitor Lights

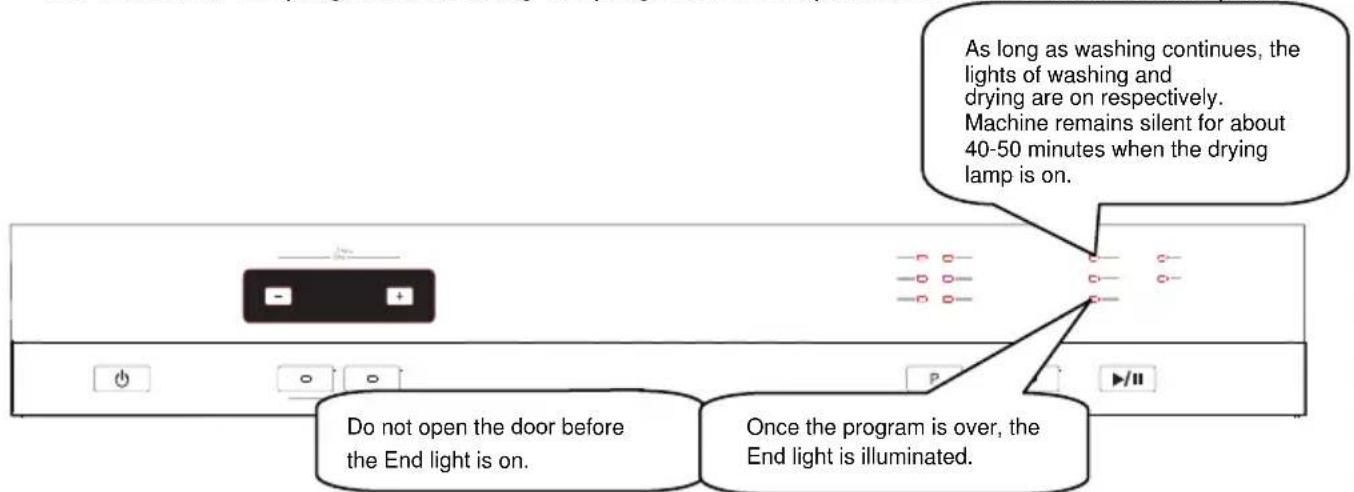

Program flow can be monitored via program monitor lights on control panel.

• Wash
  Dry
• End

10.) Remaining Time Indicator

Remaining Time Indicator displays the program time and the remaining time the program will be operating. In addition, you can adjust program delay time by pressing the buttons on the indicator before program starts. If you want to change delay time, you can set the time by pressing Start/Pause button and using buttons on the indicator. Press Start/Pause button again in order to activate.

Child Lock Operation

In order to activate child lock, press "+" and "-" buttons on Remaining time indicator simultaneously for 3 seconds. At this time, "CL" appears for 2 seconds on remaining time indicator. To deactive the child lock, press "+" and "-" buttons again simultaneously for 3 seconds. "CL" will blink once

Technical specifications

Capacity	15 place settings
Height	845 mm
Height (without worktop)	815 mm
Width	596 mm
Depth	598 mm
Net Weight	46 kg
Electricity input	220-240 V, 50 Hz
Total Power	2200 W
Heating Power	2000 W
Pump Power	100 W
Drain Pump Power	30 W
Water supply pressure	0.03 MPa (0,3 bar) - 1 MPa (10 bar)
Current	10 A

- Producer company has its right to amend design and technical specifications reserved.

Conformity with the standards and Test data / EC Declaration of Conformity

All stages related to the machine are executed in accordance with the safety rules provided in all relevant directives of the European Community.

2004/108/EC, 2006/95/EC, IEC 436/DIN 44990, AS/NZS 2007.1/2:2005

SAFETY INFORMATION AND RECOMMENDATIONS

Recycling

• Certain components and the packaging of your machine have been produced from recyclable materials.
• Plastic parts are marked with international abbreviations: (>PE<, >PS<, >POM<, >PP<, ....)
• Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling.
• Contact relevant centres in order to obtain information on methods and points of disposal.

Safety Information

When you take delivery of your machine

• Check for any damage to your machine or to its packaging. Never start a machine damaged in any way, make sure to contact an authorised service.
  • Unwrap the packaging materials as indicated and dispose of them in accordance with the rules.

Please note the following before installing this machine

• Choose a suitable, safe and level place to install your machine.
• If the appliance is installed on a carpet floor, take care that the openings in its base are not obstructed.
• Carry out the installation and connection of your machine by following the instructions.
  • This machine should be installed and repaired by an authorised person only.
• Only original spare parts should be used with the machine.
• Before installing, be sure that the machine is unplugged.
  • The dishwasher must always be connected to the water system using new hose sets.

• Check whether the indoor electrical fuse system is connected according to the regulations.

• All electrical connections must match the values indicated on the rating plate.
  • Pay special attention and be sure that the machine does not stand on the electricity supply cable.

• Never use an extension cord or a multiple socket for making a connection. The plug should be comfortably accessible after the machine has been installed.
• After installing the machine to a suitable place, run it unloaded for the first time.

In daily use

7KLV□DSS□LDQFH□LV□LQ□HQGHG□R□EH□XVHG□LQ□KRXVHKR□G□DQG□VLP □DU□DSS□LFD□LRQV□VXFK□DV□
□6 WDIJNLWFKHQDUHDVQLQIVKRSVRIILFHVDDQGRWKHUZRUNLQJHQYLURQPHQNV□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□
FOLHQWVLOKRWHOVP RWHOVDQGRIWKHUUHVLGHQWLDCNWSHHQYLURQP HQNV
%%HG□DQG□%UHDNIDVN□A SH□HQYLURQP HQVV□□

• Do not get up, sit or place a load on the open door of the dishwasher, it may fall over.
• Never put into the detergent and rinse aid dispensers of your machine anything other than those detergents and rinse aids which are produced specifically for dishwashers. Our company will not be responsible for any damage that might occur in your machine otherwise.
  • The water in this machine is not drinking water.
• Due to danger of explosion, do not put into the machine's washing section any chemical dissolving agents such as solvents.
• Check whether plastic items are heat-resistant before washing them in the machine.
• Do not put into your machine those items which are not suitable for dishwashing. Also, do not fill any basket above its capacity. Our company will not be responsible for any scratch or rust to form on the inner frame of your machine due to basket movements otherwise.
• Especially because hot water may flow out, the machine door should not be opened under any circumstances while the machine is in operation. In any case, a safety device ensures that the machine stops if the door is opened.
• Please do not leave the door open as this will cause a tripping hazard.
• Place knives and other sharp-ended objects in the cutlery basket in blade-down position.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

For your children's safety

• After removing the machine's packaging, make sure that the packaging material is out of reach of children.
  • Young Children should be supervised to ensure they do not play with the appliance.
• Keep your children away from detergents and rinse aids.
• WARNINGS: Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed, avoid contact with skin and eyes and keep children away from the
  • dishwasher when the door is open.

In case of malfunctioning

• Any malfunction in the machine should be repaired by qualified persons. Any repair work performed by anyone other than the authorised service personnel will 9RLG\ RXU: DUUDQ\
• Prior to any repair work on the machine, be sure that the machine is cut off from the mains. Switch off the fuse or unplug the machine. Do not pull by the cable when unplugging. Make sure to turn off the water tap.

5 HFRP P HQGDWLRQV

• For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it
• Use the pre-wash programme only whenever necessary.
• Place such hollow items as bowls, glasses and pots into the machine in such a way that they will face down.

• You are recommended not to load into your machine any dishes different or more than indicated.

Items not suitable for dishwashing:

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials;
- Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items, items soiled with abrasive, acidic or base chemicals
- Plastic items that are not heat-resistant, copper or tin-coated containers;
- Aluminium and silver objects (they may discolour, become dull)
- Certain delicate glass types, porcelains such as sponges or kitchen rags with ornamental printed patterns as they fade even after the first wash; certain crystal items as they lose their transparency over time, adhered cutlery that is not heat-resistant, lead crystal glasses, cutting boards, items manufactured with synthetic fibre;
- Absorbent items as sponges or kitchen rags are not suitable for dishwashing.

Warning: Take care to buy dishwasher-proof sets in your future purchases.

INSTALLING THE MACHINE

Positioning the machine

When determining the place to put your machine on, take care to choose a place where you can easily load and unload your dishes.

Do not put your machine in any location where there is the probability for the room temperature to fall below 0° C.

Before positioning, take the machine out of its packaging by following the warnings located on the package.

Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made.

Do not grip the machine by its door or panel in order to move it.

Take care to leave a certain clearance from all sides of the machine so that you can comfortably move it back and forth during cleaning.

Make sure that the water inlet and outlet hoses do not get squeezed while positioning the machine. Also, make sure that the machine does not stand on the electrical cable.

Adjust the machine's adjustable feet so that it can stand level and balanced. Proper positioning of the machine ensures problem-free opening and closing of its door.

If the door of you machine does not close properly, check if the machine is stable on the floor it stands; if not, adjust the adjustable feet and ensure its stable position.

Water connection

Be sure that the indoor plumbing is suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing.

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Water inlet hose

Do not use the water inlet hose of your old machine, if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long-unused water inlet hose to your machine, run water through it for a while before making the connection. Connect the water inlet hose directly to the water inlet tap. The pressure supplied by the tap should be at a minimum of 0.03 Mpa and and at a maximum of 1 Mpa. If the water pressure is above 1 Mpa, a pressure-relief valve should be fitted inbetween.

After the connections are made, the tap should be turned on fully and checked for water tightness.

For the safety of your machine, make sure to always turn off the water inlet tap after each wash programme is finished.

Diagram of a faucet with a valve and a valve component (no text or symbols)

Line drawing of a faucet with a flanged handle and a flanged base (no text or symbols)

NOTE: Aquastop water spout is used in this model. In case of using Aquastop, a dangerous tension exists. Do not cut Aquastop water spout. Do not let it get folded or twisted.

Water outlet hose

The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink.

This connection should be at a minimum of 50cm and at a maximum of 110 cm from the floor plane.

Warning: When a drain hose longer than 4m is used, the dishes might remain dirty. In that case, our company will not accept responsibility.

Pure electrical circuit lines without any symbols

Electrical connection

The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

The indoor fuse current value should be 10-16 A.

Your machine is set according to 220-240 V. If the mains voltage in your location is 110 V, connect a transformer of 110/220 V and 3000 W in between. The machine should not be plugged in during positioning.

Always use the coated plug supplied with your machine.

Running in low voltage will cause a decline in washing quality.

The machine's electrical cable should be replaced by an authorised person or an authorised electrician only. Failure to do so may lead to accidents.

For safety purposes, always make sure to disconnect the plug when a wash programme is finished.

In order not to cause an electric shock, do not unplug when your hands are wet.

When disconnecting your machine from the mains supply, always pull from the plug. Never pull the cord itself.

Fitting the machine undercounter

If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so. If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration. To remove the worktop, remove the screws that hold the worktop which are located at the rear of the machine; then push the front panel 1cm from the front side towards the rear and lift it.

Warning: The stand part which we will settle our machine under it by removing its worktop has to be stable in such a way not to allow balance disorder.

Adjust the machine feet according to the slope of the floor. 3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.

Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig. 4

PREPARING THE MACHINE FOR USE

Prior to using the machine for the first time

• Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine.
• Remove all packaging materials inside the machine.
  • Fill the rinse aid compartment.

Detergent usage

Use a detergent specifically designed for use in domestic dishwashers.

You can find powder, gel, and tablet detergents in the market that have been designed for household dishwashers.

Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children.

Do not fill detergent into the detergent compartment more than required; otherwise it may cause scratches on your glasses as well as lead to a poorly dissolved detergent.

Should you need more information concerning the detergent you will use, contact detergent manufacturers directly.

Diagram of a door handle with a curved panel and a circular arrow indicating rotation (no text or symbols)

Filling the detergent compartment

Push the latch to open the detergent container as shown in the image. 1 Detergent pod has level lines inside. It is possible to

measure the right detergent amount using these lines. Detergent pod can take totally 40 cm ³ detergent.

Open the dishwasher detergent and pour into

the larger compartment b 25cm ³ if your dishes are heavily soiled or 15 cm ³ if they are less soiled. If your dishes have been kept dirty for a very long time, if there are dried food wastes on them, and if you have overly loaded the dishwasher, pour a 5cm ³ detergent into the machine.

You may have to add more detergent into your machine, depending on the degree of soil.

Combined detergent

Detergent manufacturers also produce combined detergents called "2 in 1", "3 in 1" or "5 in 1" etc.

“2 in 1” detergents contain detergent or rinse aid. When using “2 in 1” detergents make sure to check the specifications of the tablet.

Other tablet detergents contain detergent + rinse aid + various extra functions.

Generally, combined detergents produce sufficient results under certain usage conditions only. Such detergents contain rinse aid in preset amounts.

Points to consider when using this type of products:

• Always make sure to check the specifications of the product you will use or whether or not it is a combined product.
- Observe the instructions on packagings when using such products.
- If such detergents are in the form of tablets, never put them into the interior section or the cutlery basket of the dishwasher. Always put the tablets into the detergent compartment in the detergent dispenser.

• They produce good results for certain types of usage only. If you are using this type of detergents, you need to contact the manufacturers and find out about the suitable conditions of use.
• When the conditions of use of such products and the machine settings are appropriate, they ensure savings in rinse aid consumption.
• Contact the detergent manufacturers if you are not obtaining good wash results (if your dishes stay calcareous and wet) after having used 2 in 1 or 3 in 1 detergents. The scope of warranty for your machine does not cover any complaints caused by the use of these types of detergents.

Recommended usage: If you want to obtain better results while using combined detergents, add rinse aid into your machine and adjust the rinse aid setting to the lowest position.

Solubility of the tablet detergents produced by different companies can vary depending on the temperature and time. Therefore, it is not recommended to use such detergents in short programs. It is more suitable to use powder detergents in such programs.

Warning: Should any problem, which you have not encountered before, arise with the use of this type of detergents, contact the detergent manufacturers directly.

When you give up using combined detergents

• Fill the rinse aid compartments.
• Make the suitable rinse aid setting.

Filling with rinse aid and making the setting

Hand turning a knob on a control panel with a numbered dial (no text or symbols)

Rinse aid is used to prevent the stay of white water drops, lime stains, white film strip-shaped stains that may form on the dishes, as well as to increase the drying performance. Contrary to the popular beliefs, it is used not only for obtaining shinier dishes but also for obtaining sufficiently dried dishes. For this reason, care should be taken that there is adequate amount of rinse aid in the rinse aid compartment and only polishing material produced for use at dishwashers should be used.

If the rinse aid lamp on the control panel becomes on fill the rinse aid compartment with rinse.

To put rinse aid in, remove the rinse aid compartment cap by turning it. Fill the rinse aid compartment with rinse aid until the rinse aid level indicator comes dark; refit the cap and close it by turning it in a way that the nails will correspond to one another. By checking the rinse aid level indicator on the detergent dispenser, you can understand whether or not your machine needs rinse aid. A dark indicator b means that there is rinse aid in the compartment, while a light indicator e shows that you need to fill the compartment with

rinse aid.

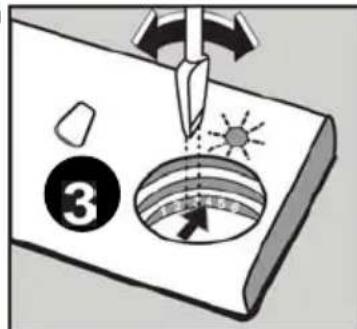

The rinse aid level adjuster can be set to a position between 1 and 6. Factory setting for rinse aid is the position 3. You need to increase the degree of the adjuster if water stains form on your dishes after a wash, whereas you need to decrease the degree if a blue stain is left when wiped by hand.

Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag.

LOADING YOUR DISHWASHER

If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

There are two separate baskets for you to load your dishes into your machine. You can load into the lower basket such round and deep items as pots with long handles, pot lids, plates, salad plates, cutlery sets.

The upper basket has been designed for tea plates, dessert plates, salad bowls, cups and glasses. When placing long-stem glasses and goblets, lean them against the basket edge, rack or glass supporter wire and not against other items. Do not lean long glasses against one another as they cannot remain steady and may receive damage.

It is more appropriate to locate the thin narrow parts into the middle sections of baskets.

You can place spoons among the other cutlery sets in order to prevent them from sticking to one another. You are recommended to use the cutlery grid in order to obtain the best result. To avoid any possible injuries, always place such long-handle and sharp-pointed dishes as serving fork, bread knife etc. with their sharp points facing down or horizontally on the baskets.

Warning: Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms from spinning.

Top basket

Height Adjustable Rack

These racks are designed to increase the capacity of the top basket. You can place your glasses and cups on the racks. You can adjust the height of these racks. Thanks to this feature, you can place different sizes of glasses under these racks.

Thanks to height adjustment plastics mounted on the basket, you can use your racks in different heights. In addition, you can place long forks, knives and spoons on these racks laterally, so that they do not block the revolution of propeller.

Spoon rack

It allows your long-stemmed goblets to be washed safely as well as it is a part to provide your spoons and forks put easily to spoon rack. Do not lean your long-stemmed goblets and glasses against each other but spoon rack, thus during the washing it is ensured your glasses and goblets stay in place and a safe washing by preventing contact each other.

3D wireframe model of a mechanical assembly with blue components and gray components inside a metal cage (no text or symbols)

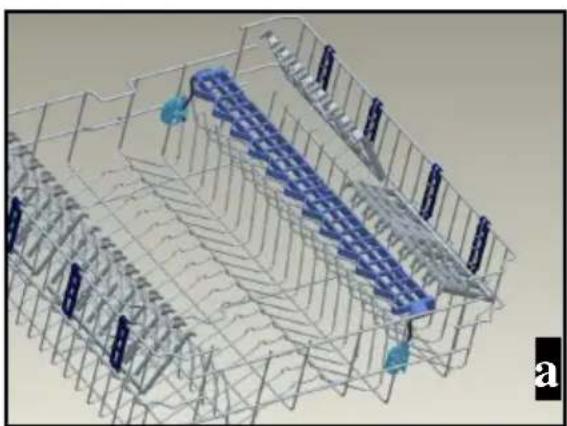

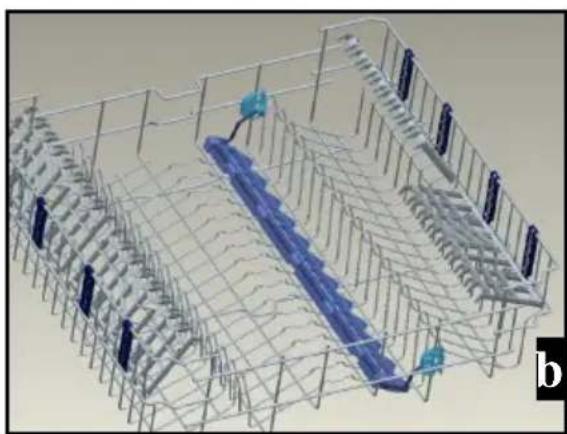

There are 4 different positions for your spoon rack.

According to the status of your goblets and glasses, you can set your spoon rack to the positions number 1 and 2.

Use it for your spoons and forks while it was in position 1.

Diagram showing a mechanical or electrical component with curved arrows indicating motion (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a mechanical component with a lever and base, no text or symbols present

If you do not want to use spoon rack, you can bring it to the positions 3 or 4, so that you can form larger-volume areas in the upper basket.

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

3D wireframe model of a mechanical or structural assembly with blue components and no visible text or symbols

3D wireframe model of a warehouse or storage facility with blue structural elements and black components (no text or symbols visible)

Top basket height adjustment while it is full

3D architectural or engineering diagram showing structural framework with red and gray components and directional arrows (no text or labels)

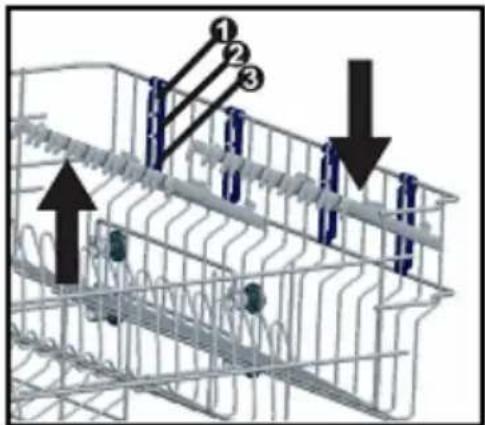

Basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed. Basket of your machine is set to upper position in factory settings. In order to raise your basket, hold it from both sides and pull it upwards. In order to lower it, hold it from both sides again, and leave it.

In loaded basket adjustment mechanism, make sure that both sides are in the same position (up or down).

3D rendering of a red and gray mechanical component with wheels, enclosed in a metal frame structure (no text or symbols visible)

3D mechanical assembly diagram showing red and gray components with wheels, no visible text or symbols

Lower Basket

Folding Racks

Folding racks consisting of four parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use folding racks by raising them upwards, or by folding.

3D wireframe diagram of a warehouse or storage facility with vertical supports and internal components, marked with red arrows indicating flow or movement (no text or symbols present)

3D wireframe diagram of a warehouse or storage unit with internal components and directional arrows (no text or symbols)

Modular fork spoon

According to the number of your dirty forks, spoons and knives, you can separate your basket of modular fork and spoon into two separate parts. Hold your basket from both sides to separate it and you can separate your basket into two separate parts by moving the one side forward while moving the other side back. To combine your basket back to the same, make the inverse of the same movement.

3D illustration of a multi-level industrial or warehouse structure with red arrows indicating flow or movement, no visible text or symbols.

Modular basket handle has a feature of adjustable height. Once you have separated your modular basket into two parts, you can place your upper basket. Depending on the sub-top position of your upper basket, you can use handle level of the modular basket by bringing to the positions a or b.

By placing your modular fork spoon basket in different places at upper or lower basket, you can form appropriate fields for your other dishes.

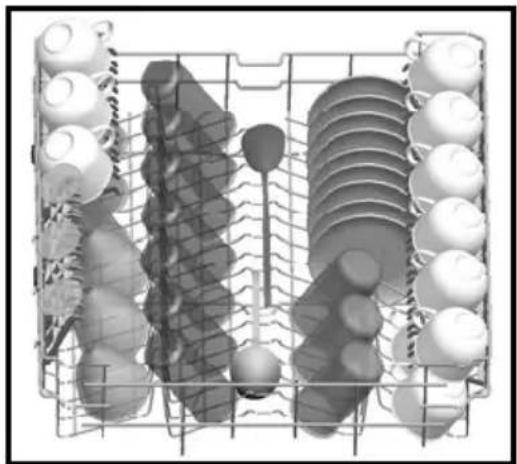

Below you can see several recommended settlements.

3D isometric rendering of a multi-level industrial machine or factory structure with no visible text or symbols

3D technical illustration of a mechanical assembly with meshed components and no visible text or symbols

Alternative basket loads Lower Basket

Cutaway illustration of internal components of a vehicle engine cylinder (no text or symbols)

Black-and-white photo of a basket containing four cooking pots (no text or symbols visible)

Top Basket

Diagram of a multi-layered industrial or storage unit with cylindrical tanks and heat sinks (no text or labels)

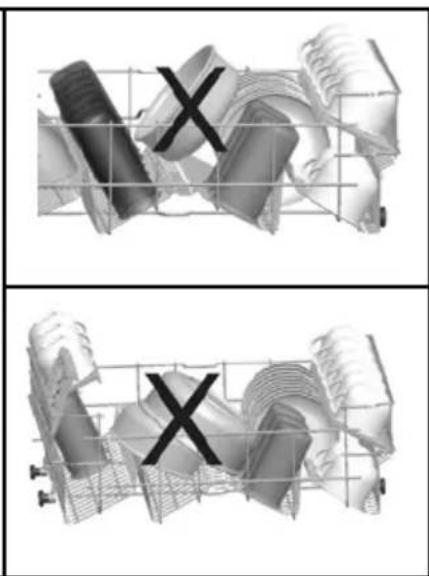

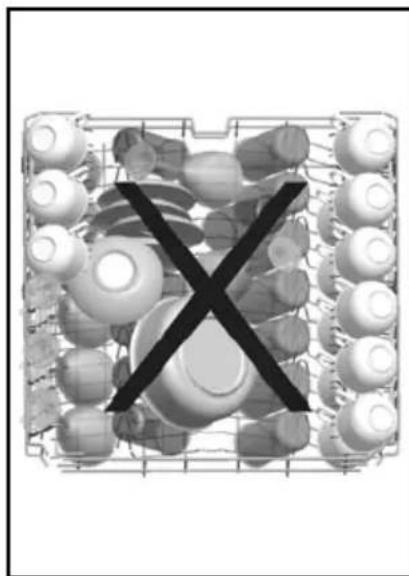

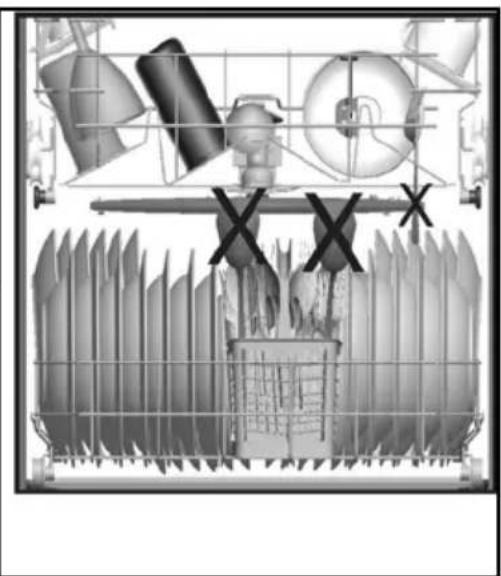

Faulty loads

Diagram of a grid with circular objects and a black X symbol overlay (no text or labels)

3D rendered mechanical components with grid overlay, no visible text or symbols

Cross-sectional diagram of a mechanical or industrial assembly with no visible text, numbers, or symbols.

Standard loading and test data

Capacity:

Upper and lower baskets: 15 place settings. The upper basket should be adjusted to lower position. Cups should be placed on to the dish rack pins.

Detergent / Rinse aid

5+25 cm ³ , in accordance with AS/NZS 2007.1/2:2005 (international norms) / Rinse aid dosage adjustment: 4

Programme Test

Economic 50°C, in accordance with AS/NZS 2007.1/2:2005 & AS/NZS 6400:2005 (international norms) At the end of the drying cycle for drying performance test the door should be opened approximately 50 mm.

LOWER BASKET

SPOON RACK IN UPPER BASKET

PROGRAMMDESCRIPTIONS

Programme items

Programme No	Prewash	Quick 40°C 30 min.	Economic 50°C	***Super 50 min. 65°C	Daily	Intensive
Programme names and temperatures	-	40°C	50°C	65°C 65°C	C 60°C
Type of food waste	Pre-wash to rinse and loosen residue- awaiting full load- then select a program	coffee, milk, tea, cold meats, vegetables, not kept for long	Normally soiled load at treated capacity	soups, sauces, pasta, eggs, pilaf, potato and oven dishes, fried foods	cold meats, vegetables, not kept for long	Dishes with dense dirt waiting for a long time or requiring hygienic washing.
Level of soil	-	small	medium	medium	small	high
Detergent amount A: 25 cm3/15 cmB: 5 cm3	-	A	A+B	A+B	A	A+B
	Prewash	40°C Wash	Prewash 1	65°C Wash	Prewash	Prewash
	End	Cold rinse	50°C Wash	Intermediate rinse	40°C Wash	65°C Wash
		Hot rinse	Cold rinse	Hot rinse	Cold rinse	Cold rinse
		End	Hot rinse	End	Hot rinse	Hot rinse
			Dry	Dry	Dry	Dry
			End	End	End	End

Programme duration (min.)	15	30	122	50	90	177
Electricity consumption (kW hours)	0,02	0,84	0,95	1,21	1,34	1,73
Water consumption (liters)	4,2	10,9	13,5	10,7	14,4	24,6

** Only powder detergent should be used in cycle of prewash programme.

Warning : Short programs do not include a drying step.

The values declared above are the values obtained under laboratory conditions according to relevant standards. These values can change depending on conditions of product's use and environment (network tension, water pressure, water input temperature and environment temperature).

SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME

Switching on the machine

Program follow-up

You can follow the program flow using the program follow-up lamps located on the control panel.

Changing a programme

If you would like to change programs while a washing program is continuing.

Changing a programme with resetting

If you would like to cancel a program while a washing program is resumed.

Switching the machine off

Note: You can slightly open the door in order for the machine to perform a faster dry operation after the wash programme is finished.

Note: If the machine door opens during washing or the power is cut off, the machine will go on to the program in case the door is shut or the power is back.

MAINTENANCE AND CLEANING

Cleaning the machine in regular intervals prolongs the machine's service life.

Oil and lime may accumulate in the machine's washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. In case of insufficiency, use special cleansing material available in the market. (Cleansing material produced special to machines by detergent producers.)

Cleaning the seals in the machine door,

-To clean any accumulated residues in the door seals, wipe the seals regularly by using a dampened cloth.

Cleaning the machine,

Clean the filters and spray arms at least once a week.

Unplug your machine and turn off its tap before starting the cleaning.

Do not use hard materials when cleaning your machine. Wipe with a fine cleaning material and a dampened cloth.

Filters

Check if any food wastes have remained on the coarse and fine filters. If any food wastes are left, remove the filters and clean them thoroughly under the water tap.

a. Micro Filter
b. Coarse Filter
c. Metal/Plastic Filter

Diagram of a mechanical component with directional arrows and a numbered label (1), no readable text or symbols present.

To remove and clean the filter combination, turn it counter clockwise and take it out by lifting upwards.

Pull and remove the metal/plastic filter. 3 Then pull the coarse filter out of the micro filter.2 Rinse it with lots of water under the tap. Refit the metal/plastic filter. Insert the coarse filter into the micro filter in a way that the marks will correspond to one another. Attach micro filter into the metal/plastic filter and turn to the direction of arrow and it is locked when the arrow on micro filter can be seen from across. 4

• Never use your dishwasher without any filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are very important in terms of the proper running of the machine.

Diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols)

Spray arms

Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water.

You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.

Be sure that the nut is perfectly tightened when refitting the upper spray arm.

Hose filter

Water is prevented by the inlet hose filter so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing. Check the filter and the hose from time to time and clean them if necessary. To clean the filter, first turn off your tap and then remove the hose. After removing the filter from the hose, clean it under the tap. Insert the cleaned filter back into its place inside the hose. Refit the hose.

FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE

ERROR CODE ERROR	DESCRIPTION CONTROL
F5	Inadequate water supply	Make sure the water input tap is totally open and that there is no water cut.Close the water input tap, separate the water input hose from the tap and clean the filter at the connection end of the hose.Restart your machine, contact the service person if the error resumes.
F3	Error of continuous water input	Close the tap.Contact the service person.
F2	The waste water in the machine cannot be discharged.	Water discharge hose is clogged.The filters of your machine might be clogged.Power off-on your machine and activate the program cancellation command.If the error continues, contact the service person.
F8	Heater error	Contact the service person.
F1	Alarm is active against water overflow	Power off your machine and close the tap.Contact the service person.
FE	Faulty electronic card	Contact the service person.
F7	Overheating error (temperature in the machine is too high)	Contact the service person.
F9	Divisor position error	Contact the service person.
F6	Faulty heater sensor	Contact the service person.

If one of program monitor lights is on and start/Pause light is on and off, Your machine's door is open, shut the door.

If the programme won't start

• Check if the plug is connected.
• Check your indoor fuses.
• Be sure that the water inlet tap is turned on.
- Be sure that you have closed the machine door.
- Be sure that you switched off the machine by pressing the Power On / Off button.
- Be sure that the water inlet filter and the machine filters are not clogged.

If the control lamps won't go out after a wash operation

Check if the Power On/Off button is released yet.

If detergent residues are left in the detergent compartment

Detergent has been added when the detergent compartment was wet.

If water is left inside the machine at the end of the programme

• The water drain hose is clogged or twisted.
• The filters are clogged.
• The programme is not finished yet.

If the machine stops during a wash operation

• Power failure.
• Water inlet failure.
• Program can be on standby mode.

If shaking and hitting noises are heard during a wash operation

• Dishes placed incorrectly.
• Spray arm hitting the dishes.

If there are partial food wastes left on the dishes

• Dishes placed incorrectly into the machine, sprayed water did not reach related places.
- Basket overly loaded.
• Dishes leaning against one another.
• Very small amount of detergent added.
• An unsuitable, rather weak wash programme selected.
• Spray arm clogged with food wastes.
- Filters clogged.
• Filters incorrectly fitted.
• Water drain pump clogged.

If there are whitish stains on the dishes

• A very small amount of detergent is being used.
- Rinse aid dosage setting at a very low level.

Call an authorised person if the problem still persists after the controls or in case of any malfunction not described above.

PRACTICAL AND USEFUL INFORMATION

1. Whenever you will not be operating your machine

2. Unplug the machine and then turn the water off.

3. Leave the door slightly ajar in order to prevent the formation of unpleasant smells.

4. Keep the machine interior clean.

5. Eliminating water droplets

6. Wash the dishes with the intensive programme.
   • Take all of the metal containers in the machine out.

7. Do not add detergent.

8. If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

9. Clean all rough waste before you place dirty dishes to the machine.
10. Operate the machine after it is completely full.
11. Use pre-washing program only when necessary.
12. Observe program information and average consumption values table when selecting a program.
13. Since the machine will reach high temperatures, it should not be mounted near refrigerator.
14. If the appliance is located in a place where the risk of freezing exists, you must completely drain the water that has remained in the machine. Turn off the water tap, disconnect the water inlet hose from the tap and allow the interior water to drain.

AUSTRALIAN & NEW ZEALAND PRODUCT WARRANTY STATEMENT OF STANDARD WARRANTY CONDITIONS

AUSTRALIAN CUSTOMERS

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

NEW ZEALAND CUSTOMERS

Nothing herein contained shall be construed in any way as excluding or limiting your rights under the Consumer Guarantee Act 1993.

OUR WARRANTY

This product is also covered by the manufacturer's warranty set out in this document (Our Warranty).

Our Warranty is for a period of twenty four (24) months from the date of purchase and for dishwasher & refrigeration appliances will have an additional thirty six (36) months after the first twenty four (24) months on the wash motor for dishwashers & on the Sealed System (PARTS only Compressor & condenser etc) for refrigeration appliances. The labour cost to replace these parts is the responsibility of the customer.

This is in addition to (and does not exclude, restrict or modify) any rights or remedies to which you may already be entitled under the Australian consumer Law or the New Zealand Consumer Guarantee Act 1993 relating to this product.

Our Warranty (which is subject to the conditions below) covers rectification free of charge of any fault arising from defective materials or components, or faulty workmanship. The product will be repaired or replaced at the option of Blanco, and all costs of installation, removal, cartage, freight travelling expenses and insurance are to be paid by the customer.

Our Warranty is subject to the following conditions:

1. That the purchaser contact Blanco prior to any product repair.
2. That the purchaser carefully follows all instructions provided with the product and complies with all relevant electrical & plumbing regulations in their State when installing the product.
3. That the purchaser carefully follows the instructions provided in the owner's handbook relating to the proper use and care of the product and does not use the product for any purpose other than the DOMESTIC use for which it has been designed. If the appliance is used in commercial applications or for rental purposes, Our Warranty is limited to a warranty of Twelve (12) months covering all parts with Three (3) months on any labour cost of service or repair.

SERVICE AREA

The provision of service under Our Warranty is limited by the boundary / territory area of the nearest service centre. Travelling cost incurred for service outside this area is not covered by Our Warranty and service will incur commercial cost to be paid by the customer regulated by the number of kilometres travelled beyond the service area. These costs will be disclosed to you for acceptance by you prior to your claim being processed.

Microwave ovens must be returned to your nearest Authorised Service Centre for repair as they are a carry in serviceable appliance.

WHAT IS COVERED: By Our Warranty

During the warranty period, Blanco or its authorised Service Centre will at no extra charge, if your appliance is readily accessible without the need of special equipment and subject to the terms and conditions of this warranty, repair or replace any parts which it considers defective.

WHAT IS NOT COVERED: By Our Warranty

1. Products installed damaged or incomplete or not in compliance with the relevant electrical & plumbing regulations in their State.
2. Normal wear and tear e.g. cleaning, light globes, filters etc.
3. Failure resulting from power surges and electrical storms.
4. Insect or vermin infestation.
5. Unauthorised repairs or use of non genuine Blanco parts.
6. Any failure caused by the product not being used in accordance with the instruction and the installation manual provided with the product.
7. Misuse or abuse, including failure to properly maintain or service.
8. The clearing of blockages in pumps and hoses.
9. Damage which occurs during delivery or installation.
10. Claims to product surface coating due to liquid or solid spill-overs, accidental damage or damage caused from cleaning products not recommended by Blanco.

HOW TO CLAIM OUR WARRANTY

You will need to contact Blanco in Australia or New Zealand by using the contact details below.

IN AUSTRALIA

IN NEW ZEALAND

Blanco is distributed by Shriro Australia Pty Ltd (Member of Shriro Australia Pty Ltd)

Blanco is distributed by Monaco Corporation

Locked Bag 5002, Kingsgrove, NSW, 2208 PO Box 4399, Shortland St, Auckland, 1140

Phone: [phone] Fax: [phone] Phone: [phone] Fax: [phone]

Email: [e-mail]

Email: [e-mail]

Web: http://www.blanco-australia.com/

Web: http://www.blanco-australia.com/

Note: Please complete the following details when you have unpacked the product and staple this card with the purchase invoice or sales docket.

Model No....

Serial No....

Date of Purchase....

Retailer....
