Quick operation guide
Fordetailedoperatingmethodreadthecorrespondingcontentontheinstructionmanual.
Switch on the appliance
Press the On/Off button to switch on the appliance, Open the door.
Checktherinseaidlevel
Mechanical indicator C.
Electricindicatoroncontrolpanel(ifprovided).
Loadthebaskets
Scrapeoffanylargeamountofleftoverfood. Softenremnantsofburntfoodinpans, thenloadthebaskets. Refertothedishwasherloadinginstructions.
Selectaprogramme
Closethedoor, press the ProgrammeButton until theselectedprogrammelightsup. (See the section entitled "Operation instruction")
Runningthedishwasher
Turnonthewatertapandpressthe. Them Stainé-Pallster-Buttling afterabout10seconds.
- Changingtheprogramme
-
A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispensermustberefilled.
-
Press the Start/Pause button, press the program button for more than three seconds, the machinewillbeinstandbystate, thenyoucanchangetheprogramtothedesiredcyclesetting
- Addforgottendishesinthe dishwasher.
-
Press the Start/Pause Button to stop the washing.
-
Openthedoor alittle.
-
After the spray arms stop working, you can open the door completely.
4.Addforgottendishes.
5.Closethedoor.
- Press the Start/Pause Button, the dishwasher will run after 10 seconds.
WARNING
Openthedoorcarefully.
Hotsteammayescape
when the door is opened.
- If the appliance is switched off during a wash cycle.
If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-onstate.
Switchofftheappliance
Whentheworkingcyclehasfinished,thebuzzerof the dishwasherwillsound8times, thenstop.
TurnofftheapplianceusingtheOn/OffButton.
Turnoffthewatertap, unloadthebaskets
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and moresusceptibletobreak.
They will also dry better. Unload the appliance, starting from the lower basket.
Read this Manual
DearCustomer,
This appliance is intended to be used in household and similar applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farmhouses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
- Keepitas areferenceforlaterdays.
■ Passitonto any subsequent owner of the appliance.
This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.
Before Calling for Service
The section on troubleshooting Tips will help you to solve some common problems by yourself.
If you can not solve the problems by yourself, please ask for the help of professional technicians.
NOTE:
The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
CONTENTS
1) Safety Information....1
2) Operating Instructions....2
Control Panel....2
Dishwasher Features....2
3) Prior using for the first time....3
A、Fill the Rinse Aid Dispenser....3
B、Function of Detergent 4
4) Loading the Dishwasher Basket....6
AttentionbeforeorafterloadingtheDishwasher Baskets....6
The Method of Loading Normal Dishware....7
5) Starting a washing programme....9
Wash Cycle Table....9
Turning on the Appliance....9
Change the Programme....10
At the End of the Wash Cycle....10
6) Maintenance and cleaning....11
Filtering System....11
Caring for the Dishwasher....12
7) Installation instruction....13
Positioning the Appliance....13
About Power Connection....13
Water Connection....14
Start of dishwasher....15
8) Troubleshooting Tips....16
Before calling for service....16
Error codes....17
Technical information....18
Loading the baskets according to (*AS/NZS 2007.1)....19
WARNING
When using your dishwasher, follow the precautions listed below:
GROUNDING INSTRUCTIONS
Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofanelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith alllocalcodesandordinances.
▲ WARNING
■ Improperconnectionoftheequipment-grounding conductorcanresultintheriskofanelectricshock.
■ Checkwithaqualifiedelectricianorservice representativeifyouareindoubtwhetherthe applianceisproperlygrounded.Donotmodifythe plugprovidedwiththeappliance;Ifitdoesnotfit theoutlet.Haveaproperoutletinstalledbya qualifiedelectrician.
WARNING, PROPER USE
■ Donotabuse, siton, orstandonthedo rackofthedishwasher.
■ Donottouchtheheatingelementduringor immediatelyafteruse.
(Thisinstructionisonlyapplicabletomachines withavisualheatingelement.)
■ Donotoperateyourdishwasherunlessall enclosurepanelsareproperlyinplace.Open thedoorverycarefullyifthedishwasheris operating,thereisariskof watersquirtingout.
■ Donotplaceanyheavyobjects onorstandothe doorwhenitisopen.Theappliancecouldtip forward.
■ When loading items to be washed:
1) Locatesharpitemssothattheyarenotlikely todamagethedoorseal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element.(This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
■ Donotwashplasticitemsunlesstheyaremarked dishwashersafeortheequivalent.Forplasticitems notsomarked,checkthemanufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.
Keep children away from detergent and reinseaid, keep child away from the open door of the dishwasher, there could still besomed detergent left inside.
This appliance is not intended for use by persons (including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Childrenshouldbesupervisedtoensurethattheydo notplaywiththeappliance.
■ Thedishwashermustalwaysbeconnectedto thewatersystemusingnewhosesets.
■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher whenthedoor is open.
■ The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
If the appliance is installed on a carpet floor, take care that the openings in its base are not obstructed.
■ Removethedoortothewashingcompartmentwhen removinganolddishwasherfromserviceordiscardingit.
■ Please dispose of packing materials properly.
■ Usethedishwasheronlyforitsintendedfunction.
During installation, the power supply must not be excessively or dangerously bent or flattened. Donottamperwithcontrols.
The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not bereused.
■ The maximum number of place settings to be washed is 14.
■ The maximum permissible inlet water pressure is 1 Mpa.
■ The minimum permissible inlet water pressure is 0.04Mpa.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS
2. Operation Instruction
IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions beforeusingitforthefirsttime.

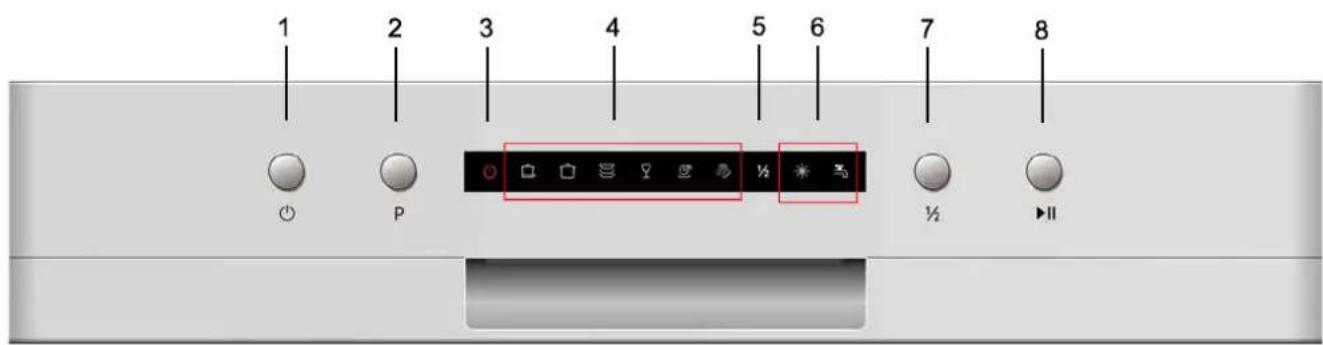

Control Panel
- On/Off Button: to switch On/Off the appliance.
- Program Button: To Press the button to select appropriate Program.
- Power indicator: To show when the power is on.
- Program indicators: To show which program you have choose.
- Half load indicators: To show Half load function startingupornot.
-
* Rinse aid warning lights: To show when the dispenser needs to be refilled
Water faucet light: to show when the water faucet is not turned on.
-
Half load function Button: To select Half load function. (With this Halfloadfunction you can only use it when you have only about or less than 6 place setting, dishware will see less water and energy consumption. This function can only be used with Intensive, Heavy, Normal, Glass and 1 Hour.)
- Start /Pause button: To start the selected washing program or pause the washing program when the machine is working.
Dishwasher Features
3. Prior using for the first time
Before using your dishwasher for the first time:
A Filltherinseaiddispenser
B FunctionOfDetergent
A. Fill the Rinse Aid Dispenser
RinseAidDispenser
Therinseaidisreleasedduringthefinalrinsetopreventwaterfromformingdropletsonyourdishes,whichcan leavespotsandstreaks.Italsoimprovesdryingbyallowingwatertorolloffthedishes.Yourdishwasheris designedtouseliquidrinseaids.Therinseaiddispenserislocatedinsidedehoornexttothedetergentdispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black.Thevolumeoftherinseaidcontainerisabout110ml.
FunctionofRinseAid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
Attention.
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full.
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
- 1/4full-Shouldrefilltoeliminatespotting
○ Empty
RINSEAIDDISPENSER


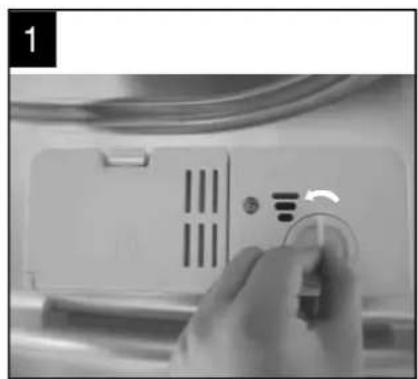

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.

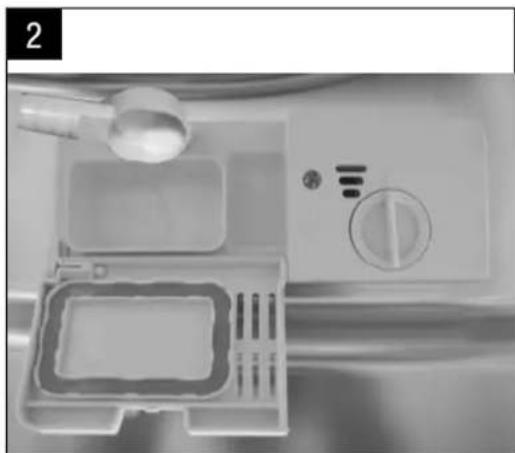

2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with adampcloth. Don't forget to replace the cap before you close the dishwasher door.
Attention.
Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during then next wash.
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes are still not drying properly or are showing spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)
NOTE:
Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knifeblades.
B. Function of Detergent
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.
Detergents
Thereare3sortsofdetergents
- With phosphate and with chlorine
- With phosphate and without chlorine
- Without phosphate and without chlorine
Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hardwater often white spots appear on dishes and glasses. In this case please add more detergent to achieve better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.
Concentrated Detergent
Based on their chemical composition, detergents can be split into two basic types:
■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes
The use of normal washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
“normal” wash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using “intensive” programs.
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the completeremoval of detergent residuals.
Detergent Dispenser
The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.
Amount of Detergent to Use
NOTE:
■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher.
WARNING
Dishwasher detergent is corrosive. Take care to keep it out of reach of children.
Proper Use of Detergent
Use of detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes.
FillinDetergent
Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

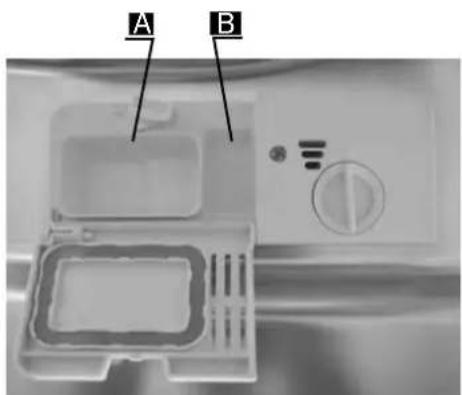

A Theplaceformainwashcycledetergent.
B The place for pre-wash cycle detergent.
Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
NOTE:
■ Information about the amount of detergent for the single programme is located at the washing cycle table.
■ Please be aware, that according to the level soiling and the specific hardness of water differences are possible.
- Please observe the manufacturer's recommendations on the detergent packaging.
4. Loading the Dishwasher Baskets
Recommendation
■ Consider buying utensils which are identified as dishwasher-proof.
■ Useamild detergentthat is described as 'kindtodishes'. If necessary, seek further information from the detergent manufacturers.
■ Forparticularitems, select a program with as low atemperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.
For washing in the dishwasher the following cutlery/dishes
Are not suitable
■ Cutlery with wooden, hornchina or mother-of-pearlhandles
■ Plastic items that are not heat resistant
■ Oldercutlerywithgluedpartsthatarenot temperatureresistant
■ Bonded cutlery items or dishes
■ Pewterorcooperitems
■ Crystalglass
■ Steel items subject to rusting
■ Woodenplatters
■ Items made from synthetic fibres
Are of limited suitability
■ Some types of glasses can become dull after a large number of washes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently
Attention before or after loading the Dishwasher Baskets
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.

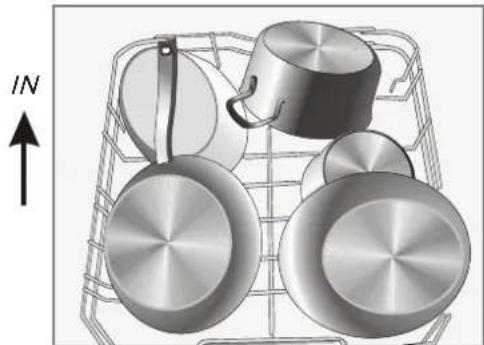

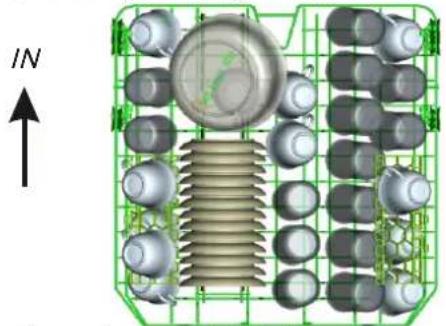

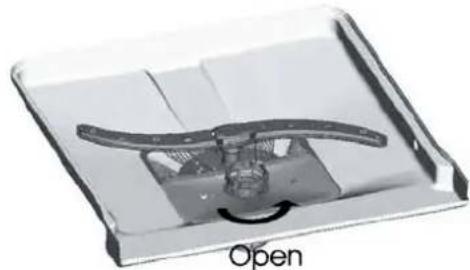

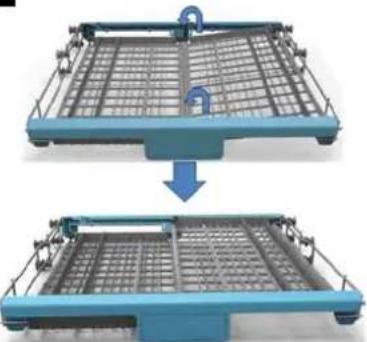

Place objects in the dishwasher in the following way:
- Items such as cups, glasses, pots/pans, etc. are faced downwards.
- Curved items, or ones with recesses, should be loaded aslant so that water can run off.
- All utensils are stacked securely and can not tip over.
- All utensils are placed in the way that the spray arms can rotate freely during washing.
NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
- Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
■ Dishes and items of cutlery must not lie inside one another, or cover each other.
■ To avoid damage to glasses, they must not touch.
■ Load large items which are most difficult to clean into the lower basket.
■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups
■ Long bladed knives stored in an upright position are a potential hazard.
■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.
Removing the Dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.
The Method Loading Normal Dishware
The Method Lo
Loading the Upper Basket
Loading the Lower Basket Loading
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
Please be reminded that:
We suggest that you place large items and the most difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.
■ Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
Adjusting the Upper Basket
The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by lift up the basket for the upper position, and up press the handle to lower the upper basket, see the picture below:
Lift the basket
for upper position
Up press the handle to lower the basket
Folding back the cup shelves
For better stacking of pots and pans, the spikes can be folded down as show in the picture right.
Folding Spikes of Lower Basket
For better stacking of pots and pans, the spikes can be folded down as show in the picture right.
Cutlery Basket Cutlery Basket
Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.
For a top quality cleaning, place the silverware in the basket making sure that:
■ They do not stick together. They do not stick together.
■ Silverware is placed with the male face up. Silverware is placed with the
■ Long utensils in the middle.
Cutlery tray can be 5 different positions
Mode 1
Position one: lift the left basket up, both left and right basketsareslanting.
Mode2
Position two: adjust the left basket to lower position, left basket is flat and right basket is slanting.
Mode3
Position three: lift the right basket up, both left and right basketsareflat.
Mode4
Position Four: Move the right basket from right to left, two basket are overlapping.
Mode5
Position Five: Remove the right basket from the tray, only hastheleftbasket.
5. Starting a washing program
Wash Cycle Table
NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.
| Program | Cycle Selection Information | Description of Cycle | Detergent pre/main | Running time(min) | Energy (Kwh) | Water (L) | Rinse Aid |
| Intensive [220H] | For heaviest soiled crockery, and soiledpots, pans, dishesetcwithdried onsoiling. | Pre-wash(50°C)Wash(65)°CRinseRinseRinse(65°C)Drying | 5/27.5g(OrAll in1) | 135 | 1.40 | 18.0 | |
Heavy  | Forheavilysoiledloads, such aspots,plates,glasses and lightly soiledpans. | Pre-wash(45)°CWash(55)°CRinseRinse(60)°CDrying | 5/27.5g(OrAll in1) | 165 | 1.15 | 14.5 | |
| Normal [83X8] (*AS/NZS2007.1) | Standarddailycyclefor normally soiledloads,such as pots,plates,glasses. | Pre-washWash(50)°CRinseRinse(50°C)Drying | 5/27.5g(OrAll in1) | 160 | 0.87 | 13.6 | |
| Glass [40TT] | Forlightly soiledcrockery andglass. | Pre-washwash(40°C)RinseRinse(60°C)Drying | 20g | 115 | 0.80 | 14.5 | |
1Hour  | For lightly soiled loads that do not need excellent drying efficiency. | Pre-wash(50°C)Wash(60°C)Rinse(55°C)Drying | 5/27.5g | 6010.0 | 0.90 | | |
| Soak [TAZW] | To rinse dishes that you plan to wash later that day. | Pre-wash | | 8 | 0.01 | 3.8 | |
NOTE:
*AS/NZS2007.1 : This program is the test cycle. The information for comparability test in accordance with AS/NZS2007.1, as follows:
■ Capacity:14setting
■ Position Upper basket: upper wheels on rails
■ Rinseaidsetting:6
■ Open the door slightly 50mm to assist in drying of the dishes after every wash
Turning On the Appliance
Starting acyclewash
1 Draw out the lower and upper basket, load the dishes and push them back. It is recommended to load the lower basket first, then the upper one (see the section entitled "Loading the Dishwasher").
2 Pour in the detergent (see the section entitled “Detergent and Rinse Aid”).
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 Hz, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4 Close the door, press the ON/OFF Button, and the display will turn on.
5 Press the program Button, the wash program will be changed as follows direction: Intensive->Heavy->Normal->Glass->1 Hour->Soak;
If a program is selected, the response light will light. Then press the Start/Pause button, the dishwasher begins to start.
When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will be beeping every minute unless you press the Start/Pause button to start.
Change the Program
A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Press the Start/Pause button, the machine will be in standby state, press the program button for more than 3 seconds then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle").
NOTE:
If you open the door during a washcycle, the machine will pause. The program light will stop blinking and the buzzer will be beeping every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.
Forgot to Add a Dish?
Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.
1 PresstheStart/Pausebutton
4 Addforgottendishes.
2 Openthedooralittletostopthewashing.
5 Closethedoor
3 Afterthesprayarmsstopworking,youcanopenthedoor completely.
6 Pressthe Start/Pausebutton,thedishwasherwillrun after10seconds.
At the End of the Wash Cycle
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.
■ SwitchOfftheDishwasher
The program light is on but is not blinking, only in this case the programme has ended.
1. Switch off the dishwasher by pressing the Power button.
2. Turnoff the watertap.
■ Openthedoorcarefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.
Open the dishwasher door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.
■ Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.
WARNING
It is dangerous to open the door when washing, because the hot water may scald you.
6. Maintenance and Cleaning
Filtering System
The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.
The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).
Mainfilter 1
Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.
Coarsefilter 2
Larger items, such as pieces of bones or glass, that could block the drain to determine become trapped in the course filter the items caught by the filter, gently squeeze the tapon the top of this filter and liftout.
Finefilter 3
This filter holds soil and food residues in the sumparea and prevents it from being redeposited on the dishes during wash cycle.
Filterassembly
The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.
WARNING
■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damaged dishes and utensils.
1
Step 1: Turn the filter in anti-clockwise direction,
2
Step 2: lift the filter up
NOTE: When following this procedure from step 1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filtersystemwillbeinstalled.
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters underrunning water.
NOTE: The entire filter assembly should be cleaned once a week.
Cleaning the Filter
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the previous page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.
WARNING
When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.
Caring for the Dishwasher
The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Cleaning The Door
To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.
WARNING
■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.
ProtectAgainstFreezing
please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows :
- Cutoff the electrical power to the dishwasher.
- Turn off the water supply and disconnect the water inlet pipe from the water valve.
- Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
- Reconnect the water inlet pipe to the water valve.
- Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.
CleaningtheSprayArms
It is necessary to clean the spray arms regularly for hard waterchemicalswillclogthesprayarmjetsandbearings.
To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.
Toremovethelowerspray arm, pull out the spray arm upward.
Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.
How to Keep Your Dishwasher in Shape
■ After Every Wash
After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.
■ Remove the Plug
Before cleaning or performing maintenance, always remove the plug from the socket.
■ No Solvents or Abrasive Cleaning
Toclean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.
■ When not in Use for a Long Time
It is recommend that your run a washcycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seal to last longer and prevent odours from forming within the appliance.
■ Moving the Appliance
If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.
Seals
One of the factor that cause odoursto for min the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.
7. Installation instruction
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.
Levelling the Appliance
Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2°.
About Power Connection
WARNING
Forpersonalsafety:
■ DONOTUSEAN EXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE.
■ DONOT, UNDERANYCIRCUMSTANCES, CUTORREMOVETHEEARTHING CONNECTIONFROMTHE POWERCORD.
Electrical Requirements
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.
⚠ Insure proper ground exists before use
Electrical Connection
Ensure the voltage and frequency of the power being used corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptor or the likes as they could cause overheating and burns.
GROUNDING INSTRUCTIONS
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.
WARNING
- Improperconnectionoftheequipmentearthingconductorcanresultintheriskofan electricshock.
Checkwithaqualifiedelectricianorservicerepresentativeifyouareindoubtwhetherthe applianceisproperlyearthed.
■ Donotmodifytheplugprovidedwiththeappliance.Iftheplugdoesnotfitproperlytothe outlet,pleasehaveaqualifiedelectriciantoinstallaproperoutlet.
Water Connection
How to Connect the safety supply hose
The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.
Waterpressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consultour Service Department for advice.
1 PullThesafetysupplyhosescompletelyoutfromthestoragecompartmentlocatedatrearof dishwasher.
2 Tightenthescrewsofthesafetysupplyhosetothefaucetwiththread3/4inch.
3 Turnwaterfullyonbeforestartingthedishwasher.
ABOUT THE SAFETY SUPPLY HOSE.
Thesafety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.
▲WARNING
Ahose that attachesto asinkspray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.
How to Disconnect the safety supply hose
1 Turnoffthewater.
2 Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severesplashing.
3 Unscrewthesafetysupplyhosefromthefaucet.
COLD WATER CONNECTION
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.
How to Drain Excess Water From Hoses
If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excesswater from hoses into a bowl or suitable container that is held outside and lower than the sink.
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.
Extension Hose
If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.
SyphonConnection
Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.
Start of Dishwasher
The following things should be checked before starting the dishwasher.
1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is no leakage at the connections of the conducts
4 The wires are tightly connected
5 Thepowerisswitchedon
6 The inlet and drain hoses are knotted
7 Allpacking materials and printings should be taken out from the dishwasher
Attention: Afterinstallation, please make sure to keep this manual.
The content of this manual is very helpful to the users.
| Technical problems | Problem | Possible Causes What To Do |
| Dishwasher doesn't start | Fuseblown,orthehome circuitbreakerhasbeen triggered. | Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher |
| Powersupplyisnot turnedon | Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket. |
| Errorcode:E1; Waterpressureislow | Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon. |
| Doorofdishwasher notproperlyclosed. | Makesuretoclosethedoorproperlyandlatchit. |
| water not pumped from dishwasher | Kinkindrainhose | Checkdrainhose. |
| Filterclogged | Checkthefilter (seesectiontitled)"CleaningTheFilter" |
| Kitchensinkclogged | Checkthekitchensinktomakesureitisdrainingwell.Iftheproblemisthekitchensinknotdraining,youmay needaplumberratherthanaservicemanfordishwashers. |
| General problems | Suds in the tub | Improperdetergent | Useonlythespecialdishwasherdetergenttoavoidsuds.Ifthisoccurs,openthedishwasherandletsudsevaporate.Add1gallonofcoldwatertothetub.Closeandlatchthe dishwasher,thenselectanycycle.Dishwasherwilldrain outthewateratthefirststep. Openthodoorafterthedraining hasstoppedandcheckifthesudshavedisappeared.Repeatifnecessary. |
| Spilledrinse-aid | Alwayswipeuprinse-aidspillsimmediately. |
| Stained tub interior | Detergentwith colourantwasused | Makesurethatthedetergentistheonewithout colourant. |
| White film on inside surface | Hardwaterminerals | Tocleantheinterior,useadampspongewith dishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds. |
| There are rust stains on cutlery | Theaffecteditemsare notcorrosionresistant. | Theitemsshouldbecorrosionresistant. |
| Noise | Knocking noise in the wash cabinet | As p ay arm is knockingagainst aniteminabasket | Interrupttheprogramme,andrearrangetheitems whichareobstructingthespayarm.r |
| Rattling noise in the wash cabinet | Itemsofcrockery arelooseinthe washcabinet | Interrupttheprogramme,andrearrangetheitemsofcrockery. |
| Knocking noise in the water pipes | Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping. | Thishasnoinfluenceonthedishwasherfunction.ifindoubt,contactasuitablyqualifiedplumber. |
| Problem | Possible Causes | What To Do |
| Unsatis-factory washing result | The dishes are not clean | Thedisheswerenot loadedcorrectly. | Seenotesin"LoadingtheDishwasherBaskets". |
| Theprogrammewas notpowerfulenough. | Selectamoreintensiveprogramme.See"WashCycleTable." |
| Notenoughdetergent wasdispensed. | Usemoredetergent,orchangeyourdetergent. |
| Itemsareblocking thepathofspayarms.r | Rearrangetheitemssothatthespaycanrotatefreely.r |
| Thefiltercombination in the base of wash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked. | Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms". |
| Cloudiness on glassware | Combinationofsoft waterandtoomuch detergent. | Uselessdetergentifyouhavesoftwaterandselect ashortercycletowashtheglasswareandtoget themclean. |
| Black or grey marks on dishes | Aluminumutensils haverubbedagainst dishes. | Useamildabrasivecleanertoeliminateethosemarks. |
| Detergent left in dispenser cups | Dishesblock detergentcups. | Re-loadingthedishesproperly. |
| Unsatis-factory drying result | The dishes are not drying | Improperloading | Loadthedishwasherassuggestedinthedirections. |
| Toolittlerinse-aid | Increasetheamountofrinse-aid/refilltherinse-aid dispenser. |
| Dishesareremoved toosoon | Donotemptyyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyonce thedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket. |
| Wrongprogram hasbeenselected | Inshortprogramthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose aprogramwithalongwashingtime. |
| Useofcutlerywith alow-qualitycoating | Waterdrainageismoredifficultwiththeseitems.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher. |
Error Codes
When some malfunctions come on, the appliance will display error codes to warn you:
| Codes | Meanings | Possible Causes |
| The Soaklightflickerfleetly | Longerinlettime. | Faucetsisnotopened,orwaterintakeis restricted,orwaterpressureistoolow. |
| The Glass light flicker fleetly | Overflow. | Someelementofdishwasherleaks. |
WARNING
■ If overflow occurs, turn off the main water supply before calling service.
■ If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.
| Height:845mm | |
| Width:598mm | |
| Depth:600mm | (withthedoorclosed) |
| Waterpressure:0.04-1.0MPa |
| Powersupply:seerating label |
| Capacity:14placesettings |
Loading the baskets according to (*AS/NZS 2007.1):
1. Upper basket: 1. Upper basket:
- Lower basket: 2. Lower basket:
Information for comparability tests in accordance with (*AS/NZS 2007.1)
■ Voltage:230V/50Hz
■ Capacity: 14 place settings
■ Position of the upper basket: lowe
■ Programme: Normal
■ Detergent(Pre/main): 5 g/27.5 g
■ Rinse aid setting: 6
4 Teaspoons
5 Knives
