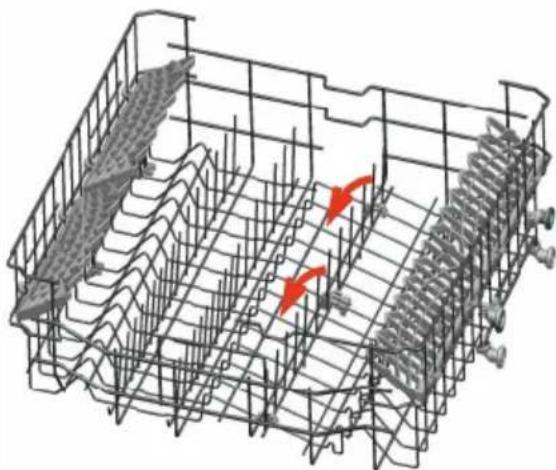

Upper Basket Features	Height-adjustable (loaded), foldable racks, upper cutlery basket (removable two-part)

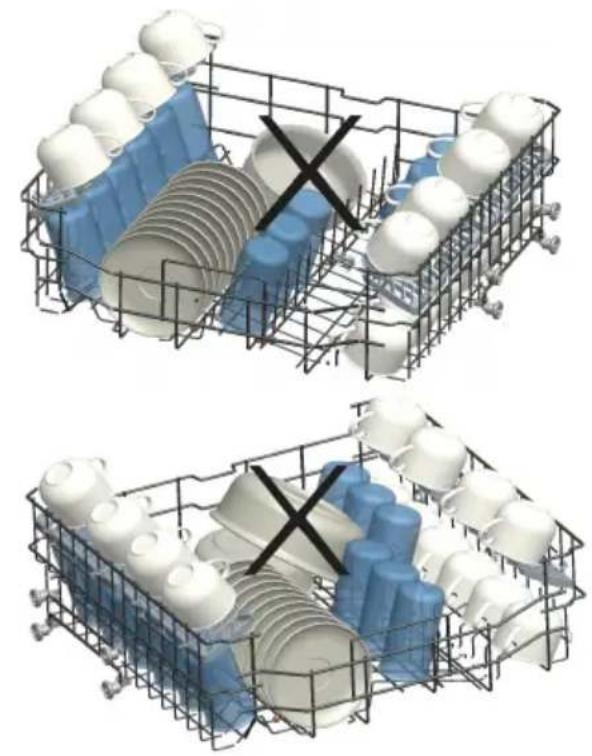

Lower Basket Features	Folding racks (4-part)
Spray Arms	Upper (ceiling), lower; removable for cleaning
Filters	Micro, coarse, metal/plastic – removable for cleaning
Warranty	24 months (Australia/New Zealand: additional 36 months on motor and sealed system parts only, labour extra)
Service Life	10 years (spare parts availability)
Installation Requirements	Undercounter or freestanding; water inlet max 1 MPa; drain hose length 0.5-1.1 m; max drain extension 4 m

Frequently Asked Questions - BDW3458X BLANCO

What should I do if the dishwasher does not start?

Check that the plug is connected, the indoor fuses are working, the water tap is open, the door is closed, and the machine is switched on via the Power On/Off button. Also ensure the water inlet filter and machine filters are not clogged.

How do I adjust the rinse aid setting?

The rinse aid level adjuster can be set between 1 and 6. The factory setting is 3. Increase the setting if water stains appear on dishes; decrease if a blue stain is left when wiped by hand.

Can I use combined detergents like '2 in 1' or '3 in 1'?

Yes, but always follow the manufacturer's instructions. If you use combined detergents, you may still need to add rinse aid and set it to the lowest position for best results. For short programs, powder detergent is recommended over tablets.

What is the Child Lock and how do I activate it?

The Child Lock prevents accidental button presses. To activate, press and hold the '+' and '-' buttons on the remaining time indicator simultaneously for 3 seconds. 'CL' appears for 2 seconds. To deactivate, repeat the same action.

How do I clean the filters?

Unplug the machine and turn off the water. Remove the filter combination by turning counter-clockwise and lifting. Separate the micro, coarse, and metal/plastic filters. Rinse them under running water. Reassemble and lock by aligning arrows and turning clockwise.

What error code F5 means and how to fix it?

F5 indicates inadequate water supply. Ensure the water tap is fully open and there is no water cut. Close the tap, disconnect the inlet hose, clean the filter at the hose connection, then restart the machine. If the error persists, contact service.

How do I change the programme while the dishwasher is running?

Press the Start/Pause button once to stop the programme. Then select a new programme using the Programme Selector button. Press Start/Pause again to start the new programme.

Why are there white stains on my dishes after washing?

This is usually caused by using too little detergent or a rinse aid setting that is too low. Increase the amount of detergent and/or adjust the rinse aid setting to a higher level.

Can I place sharp knives in the cutlery basket?

Yes, but they must be placed with blades pointing downward to avoid injury. Alternatively, place them horizontally in the upper cutlery basket or on the foldable racks.

What is the recommended maintenance schedule?

Clean the filters and spray arms at least once a week. Wipe the door seals regularly with a damp cloth. Run a high-temperature programme with detergent (no dishes) periodically to remove oil and lime buildup.

USER MANUAL BDW3458X BLANCO

Line drawing of a wine glass and a decorative circle with starburst elements (no text or symbols)

CONTENTS

• Technical specifications .... 4
• Conformity with the standards and Test data 4

Safety information and Recommendations.... 5

• Recycling 5
- Safety information .... 5
- Recommendations 8
- Items not suitable for dishwashing 9

Installing the machine 9

• Positioning the machine 9
  • Water connections .... 1
• Water inlet hose 11
  • Water outlet hose 12
• Electrical connection.... 1
• Fitting the machine undercounter 14

Preparing the machine for use 16

• Prior to using the machine .... 16
• Detergent usage .... 16
• Filling the detergent comp arment...... 16
• Combined detergent.... 16
• Filling with rinse aid and making the setting.... 1

Loading your dishwasher 18

• Alternative basket loads 22

Programme descriptions 24

- Programme items 24

Getting familiar with your machine 25

Switching on the machine and selecting a programme.... 27

• Switching on the machine.... 27
• Programme follow-up 27
• Changing a programme 27
• Changing a programme with resetting 28
• Switching the machine off 28

Maintenance and Cleaning 29

• Filters 29
• Spray arms 30
• Hose filter 30

Failure codes and what to do in case of failure 31

Practical and useful information.... 33

Close-up of a mechanical pulley system with a circular component and a numbered arrow pointing to it (no text or symbols on the components)

Turbo Drying Unit: This system provides better drying performance for your dishes.

Ceiling Spray Arm: It provides better washing for the dishes at upper basket.

Rating plate

Control Panel

Detergent and rinse-aid dispenser

Cutlery basket

Upper basket track latch

Worktop

8.

9.

10.

Lower spray arm

1.

2.

3.

4.

5.

Technical specifications

Capacity 15 place settings
Height 850 mm
Height (without worktop) 820 mm
Width 598 mm
Depth 598 mm
Net Weight 56 kg
Electricity input 220-240 V, 50 Hz
Total Power 2200 W
Heating Power 2000 W
Pump Power 100 W
Drain Pump Power 30 W
Water supply pressure 0.03 MPa (0,3 bar)-1 MPa (10 bar)
Current 10 A

Producer company has its right to amend design and technical specifications reserved. The machine's service life is 10 years (the duration required to keep spare parts for the machine to fulfil its usage functions).

Conformity with the standards and Test data / EC Declaration of Conformity

All stages related to the machine are executed in accordance with the safety rules provided in all relevant directives of the European Community. 2004/108/EC, 2006/95/EC, IEC 436/DIN 44990, AS/NZS 2007.1/2:2005

SAFETY INFORMATION AND RECOMMENDATIONS

Recycling

• Certain components and the packaging of your machine have been produced from recyclable materials.
• Plastic parts are marked with international abbreviations: (>PE<, >PS<, >POM<, >PP<,)
• Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling.
• Such materials are not suitable for being disposed of into garbage bins. They should be delivered to recycling centres instead.
• Contact relevant centres in order to obtain information on methods and points of disposal.

Safety Information

When you take delivery of your machine

• Check for any damage to your machine or to its packaging. Never start a machine damaged in any way, make sure to contact an authorised service.
• Unwrap the packaging materials as indicated and dispose of them in accordance with the rules.

The points to pay attention during machine installation

• Choose a suitable, safe and level place to install your machine.
• Carry out the installation and connection of your machine by following the instructions.
• This machine should be installed and repaired by an authorised service only.
• Only original spare parts should be used with the machine.

• Before installing, be sure that the machine is unplugged.

• Check whether the indoor electrical fuse system is connect according to the regulations.

• All electrical connections must match the values indicated on the rating plate.
• Pay special attention and be sure that the machine does not stand on the electricity supply cable.
• Never use an extension cord or a multiple socket for making a connection. The plug should be comfortably accessible after the machine has been installed.
• After installing the machine to a suitable place, run it unload for the first time.

In daily use

- This machine is for household use; do not use it for any other purpose. Commercial usage of the dishwasher will void the guarantee.

- Staff kitchen areas in shops, offices and other working environments;

- Farm houses;

- By clients in hotels, motels and other residential type environments;

- Bed and Breakfast type environments.

- Do not get up, sit or place a load on the open door of the dishwasher, it may fall over.

- Never put into the detergent and rinse aid dispensers of your machine anything other than those detergents and rinse aids which are produced specifically for dishwashers. Our company will not be responsible for any damage that might occur in your machine otherwise.

- The water in the machine's washing section is no drinking water do not drink it.

• Due to danger of explosion, do not put into the machine's washing section any chemical dissolving agents such as solvents.
• Check whether plastic items are heat-resistant before washing them in the machine.
• Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision.
• Do not put into your machine those items which are not suitable for dishwashing. Also, do not fill any basket above its capacity. Our company will not be responsible for any scratch or rust to form on the inner frame of your machine due to basket movements otherwise.
• Because hot water may flow out, the machine door should not be opened under any circumstances while the machine is in operation. In any case, a safety devices ensures that the machine stops if the door is opened.
• Please do not leave the door open as this will cause a tripping hazard.
• Place knives and other sharp-ended objects in the cutlery basket in blade-down position.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including - children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• If EnergySave option is selected as "Yes", The door will be opened at the end of the program. Do not force to close the door to avoid damaging the auto door mechanism.
  The door must be open during 30 minutes to get effective drying.(in models with auto door opening system)
  Warning: Do not stand in front of the door after the signal sounds belonging auto-open.

For your children's safety

• After removing the machine’s packaging, make sure that the packaging material is out of reach of children.
• Do not allow children to play with or start the machine.
• Keep your children away from detergents and rinse aids.
• Keep children away from the machine while it is open because there may still be residues of cleaning substances inside the machine.
• Be sure that your old machine does not pose any threat to your children. Children are known to have gotten themselves locked in old machines. To forestall such a situation, break your machine's door lock and tear off the electrical cables.

In case of malfunctioning

• Any malfunction in the machine should be repaired definitely by qualified persons. Any repair work performed by anyone other than the authorised service personnel will cause your machine to be left outside the scope of warranty.
• Prior to any repair work on the machine, be sure that the machine is cut off from the mains.Switch off the fuse or unplug the machine.Do not pull by the cable when unplugging. Make sure to turn off the water tap.

Recommendations

- For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it.

• Use the pre-wash programme only whenever necessary.
• Place such hollow items as bowls, glasses and pots into the machine in such a way that they will face down.
• You are recommended not to load into your machine any dishes different or more than indicated.

Items not suitable for dishwashing:

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials;
• Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items, items soiled with abrasive, acidic or base chemicals.
• Plastic items that are not heat-resistant, copper or tin-coated containers.
• Aluminium and silver objects (they may discolour, become dull).
• Certain delicate glass types, porcelains with ornamental printed patterns as they fade even after the first wash; certain crystal items as they lose their transparency over time, adhered cutlery that is not heat-resistant, lead crystal glasses, cutting boards, items manufactured with synthetic fibre;
• Absorbent items as sponges or kitchen rags are not suitable for dishwashing.

Warning: Take care to buy dishwasher-proof sets in your future purchases.

INSTALLING THE MACHINE

Positioning the machine

When determining the place to put your machine on, take care to choose a place where you can easily load and unload your dishes.

Do not put your machine in any location where there is the probability for the room temperature to fall below 0° C.

Before positioning, take the machine out of its packaging by following the warnings located on the package.

Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made.

Do not grip the machine by its door or panel in order to move it.

Take care to leave a certain clearance from all sides of the machine so that you can comfortably move it back and forth during cleaning.

Make sure that the water inlet and outlet hoses do not get squeezed while positioning the machine. Also, make sure that the machine does not stand on the electrical cable.

Adjust the machine's adjustable feet so that it can stand level and balanced. Proper positioning of the machine ensures problem-free opening and closing of its door.

If the door of you machine does not close properly, check if the machine is stable on the floor it stands; if not, adjust the adjustable feet and ensure its stable position.

Water connection

Be sure that the indoor plumbing is suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing.

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Water inlet hose

Do not use the water inlet hose of your old machine, if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long - unused water inlet hose to your machine , run water through it for a while before making the connection. Connect the water inlet hose directly to the water inlet tap. The pressure supplied by the tap should be at a minimum of 0.03 Mpa and and at a maximum of 1 Mpa. If the water pressure is above 1 Mpa, a pressure-relief valve should be fitted inbetween.

After the connections are made, the tap should be turned on fully and checked for water tightness. For the safety of your machine, make sure to always turn off the water inlet tap after each wash programme is finished.

Line drawing of a faucet with a flanged handle and a base pipe (no text or symbols)

Simple line drawing of a faucet with a valve and a valve component (no text or symbols)

NOTE: Aquastop water spout is used in some models. In case of using Aquastop, a dangerous tension exists. Do not cut Aquastop water spout. Do not let it get folded or twisted.

Water outlet hose

The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink. This connection should be at a minimum of 50 cm and at a maximum of 110 cm from the floor plane.

Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, our company will not accept responsibility.

Electrical connection

The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

The indoor fuse current value should be 10-16 A.

Your machine is set according to 220-240 V.

The machine should not be plugged in during positioning.

Always use the coated plug supplied with your machine.

Running in low voltage will cause a decline in washing quality.

The machine's electrical cable should be replaced by an authorised service or an authorised electrician only. Failure to do so may lead to accidents.

For safety purposes, always make sure to disconnect the plug when a wash programme is finished.

In order not to cause an electric shock, do not unplug when your hands are wet.

When disconnecting your machine from the mains supply, always pull from the plug. Never pull the cord itself.

Fitting the machine undercounter

If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.1 If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration.2 If the appliance is installed on a carpet floor, take care that the openings in its base are not obstructed.

Warning: The stand part which we will settle our machine under it by removing its worktop has to be stable in such a way not to allow balance disorder.

To remove the worktop, remove the screws that hold the worktop which are located at the rear of the machine; then push the front panel 1 cm from the front side towards the rear and lift it.

Adjust the machine feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4

	Product
	Without Insulation	With Insulation
	All Product	For 2nd Basket	For 3rd Basket
Height820	mm830mm835 mm

Diagram showing a screwdriver inserted into a circular component, with a numbered circle highlighting the part (no text or symbols present)

Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.

PREPARING THE MACHINE FOR USE

Prior to using the machine for the first time

• Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine.
• Remove all packaging materials inside the machine.
  • Fill the rinse aid compartment.

Warning: Some dishwasher detergents are strongly alkaline.

They can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.

Detergent usage

Use a detergent specifically designed for use in domestic dishwashers.

You can find powder, gel, and tablet detergents in the market that have been designed for household dishwashers.

Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children.

Do not fill detergent into the detergent compartment more than required; otherwise it may cause scratches on your glasses as well as lead to a poorly dissolved detergent.

Should you need more information concerning the detergent you will use, contact detergent manufacturers directly.

Diagram of a door handle with a curved handle and a circular arrow indicating direction (no text or symbols)

Filling the detergent compartment

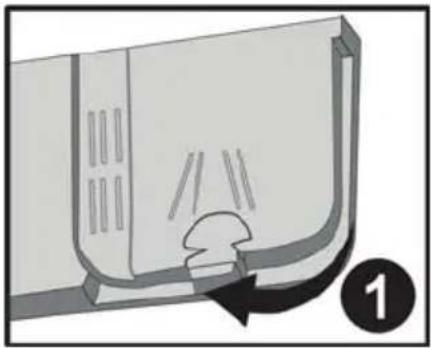

Push the latch to open the detergent container as shown in the image. 1 Detergent pod has level lines inside. It is possible to

measure the right detergent amount using these lines. Detergent pod can take totally 40 cm ³ detergent.

Open the dishwasher detergent and pour into

the larger compartment b 25cm ³ if your dishes are heavily soiled or 15 cm ³ if they are less soiled. If your dishes have been kept dirty for a very long time, if there are dried food wastes on them, and if you have overly loaded the dishwasher, pour a 5cm ³ detergent into the machine.

You may have to add more detergent into your machine, depending on the degree of soil.

Combined detergent

Detergent manufacturers also produce combined detergents called "2 in 1", "3 in 1" or "5 in 1" etc.

“2 in 1” detergents contain detergent or rinse aid. When using “2 in 1” detergents make sure to check the specifications of the tablet.

Other tablet detergents contain detergent + rinse aid + various extra functions.

Generally, combined detergents produce sufficient results under certain usage conditions only. Such detergents contain rinse aid in preset amounts.

Points to consider when using this type of products:

- Always make sure to check the specifications of the product you will use or whether or not it is a combined product.

• Observe the instructions on packagings when using such products.
• If such detergents are in the form of tablets, never put them into the interior section or the cutlery basket of the dishwasher. Always put the tablets into the detergent compartment in the detergent dispenser.
• They produce good results for certain types of usage only. If you are using this type of detergents, you need to contact the manufacturers and find out about the suitable conditions of use.
• When the conditions of use of such products and the machine settings are appropriate, they ensure savings in rinse aid consumption.
• Contact the detergent manufacturers if you are not obtaining good wash results (if your dishes stay calcareous and wet) after having used 2 in 1 or 3 in 1 detergents. The scope of warranty for your machine does not cover any complaints caused by the use of these types of detergents.

Recommended usage: If you want to obtain better results while using combined detergents, add rinse aid into your machine and adjust the rinse aid setting to the lowest position.

Solubility of the tablet detergents produced by different companies can vary depending on the temperature and time. Therefore, it is not recommended to use such detergents in short programs. It is more suitable to use powder detergents in such programs.

Warning: Should any problem, which you have not encountered before, arise with the use of this type of detergents, contact the detergent manufacturers directly.

When you give up using combined detergents

- Fill the rinse aid compartment.

- Run an empty-wash.

• Make the suitable rinse aid setting

Filling with rinse aid and making the setting

Hand turning a button with an arrow, no text or symbols visible

Rinse aid is used to prevent the stay of white water drops, lime stains, white film strip-shaped stains that may form on the dishes, as well as to increase the drying performance. Contrary to the popular beliefs, it is used not only for obtaining shinier dishes but also for obtaining sufficiently dried dishes. For this reason, care should be taken that there is adequate amount of rinse aid in the rinse aid compartment and only polishing material produced for use at dishwashers should be used.

If the rinse aid lamp on the control panel comes on fill the rinse aid compartment with rinse.

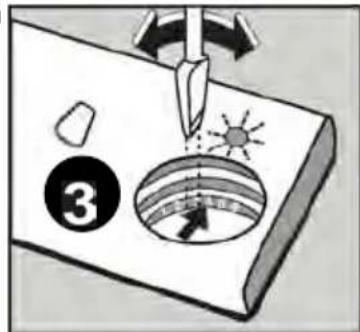

To put rinse aid in, remove the rinse aid compartment cap by turning it. Fill the rinse aid compartment with rinse aid until the rinse aid level indicator becomes dark;2 refit the cap and close it by turning it in a way that the nails will correspond to one another. By checking the rinse aid level indicator on the detergent dispenser, you can understand whether or not your machine needs rinse aid. A dark indicator means that there is rinse aid in the compartment, while a light indicator e shows that you need to fill the compartment with

rinse aid.

The rinse aid level adjuster can be set to a position between 1 and 6. Factory setting for rinse aid is the position 3. You need to increase the degree of the adjuster if water stains form on your dishes after a wash, whereas you need to decrease the degree if a blue stain is left when wiped by hand.

Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag.

LOADING YOUR DISHWASHER

If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

There are two separate baskets for you to load your dishes into your machine. You can load into the lower basket such round and deep items as pots with long handles, pot lids, plates, salad plates, cutlery sets.

The upper basket has been designed for tea plates, dessert plates, salad bowls, cups and glasses. When placing long-stem glasses and goblets, lean them against the basket edge, rack or glass supporter wire and not against other items. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

It is more appropriate to locate the thin narrow parts into the middle sections of baskets.

You can place spoons among the other cutlery sets in order to prevent them from sticking to one another. You are recommended to use the cutlery grid in order to obtain the best result.

To avoid any possible injuries, always place such long-handle and sharp-pointed dishes as serving fork, bread knife etc. with their sharp points facing down or horizontally on the baskets.

Warning: Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms from spinning.

Top basket

Height Adjustable Rack

These racks are designed to increase the capacity of the top basket. You can place your glasses and cups on the racks. You can adjust the height of these racks. Thanks to this feature, you can place different sizes of glasses under these racks.

Thanks to height adjustment plastics mounted on the basket, you can use your racks in 2 different heights. In addition, you can place long forks, knives and spoons on these racks laterally, so that they do not block the revolution of propeller.

3D wireframe diagram of a grid structure with red arrows indicating directional flow or movement (no text or symbols)

Foldable racks on the upper basket are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use foldable racks by raising them upwards, or by folding down.

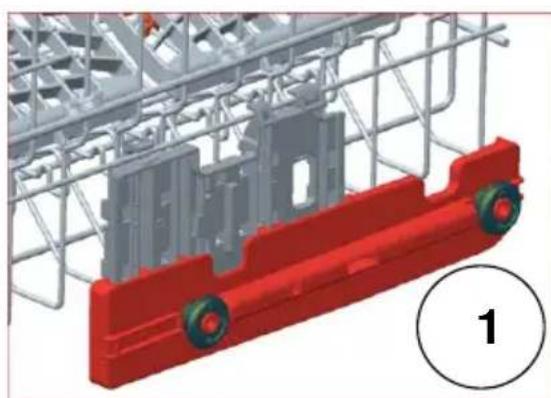

Top basket height adjustment while it is full

3D architectural or engineering diagram showing structural framework with red and blue arrows indicating direction (no text or symbols)

Basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed. Basket of your machine is set to upper position in factory settings. In order to raise your basket, hold it from both sides and pull it upwards. In order to lower it, hold it from both sides again, and leave it.

In loaded basket adjustment mechanism, make sure that both sides are in the same position (up or down).

3D model of a red and gray mechanical component with wheels, enclosed in a wire cage (no text or symbols visible)

3D mechanical assembly diagram showing red and gray components with green wheels, no visible text or symbols

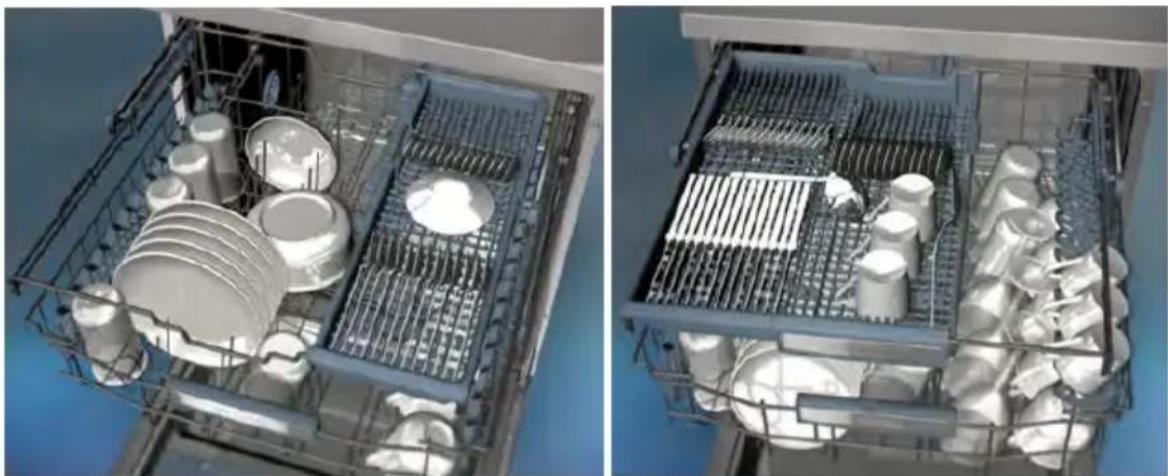

Upper Cutlery Basket

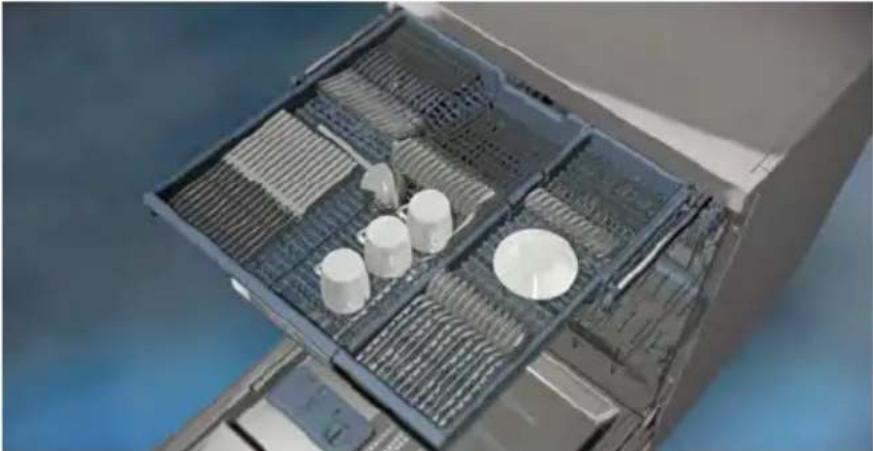

The upper cutlery basket is designed for you to place forks, spoons and knives, long dippers and small items.

Interior view of a modern kitchen appliance drawer with cutlery and white cups (no text or symbols visible)

Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with the basket after washing.

3D rendering of a mechanical assembly with layered components and mounting brackets (no visible text or symbols)

The Upper Cutlery Basket is composed of two pieces; if you need to make space for the dishes in the upper basket, you can take out the left or right part of the upper cutlery basket in order to obtain more space.

Two-panel illustration of a washing machine interior showing internal components and exterior view (no text or symbols)

Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket.

Lower Basket

Folding Racks

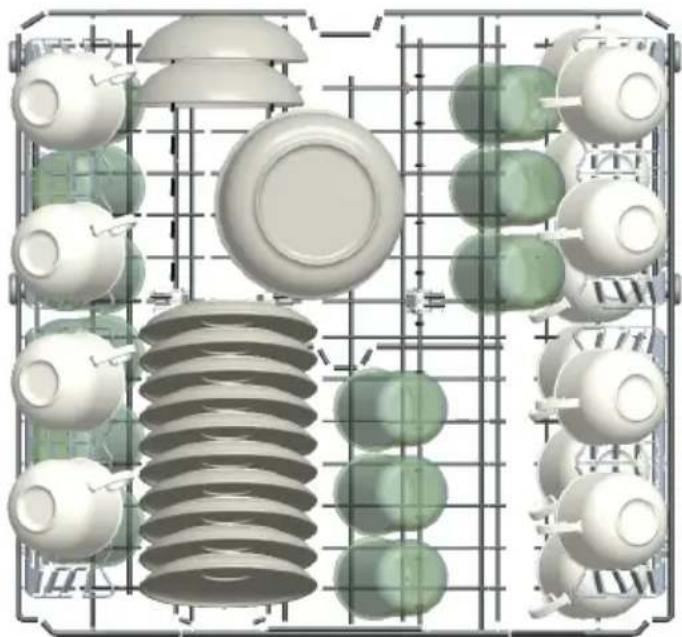

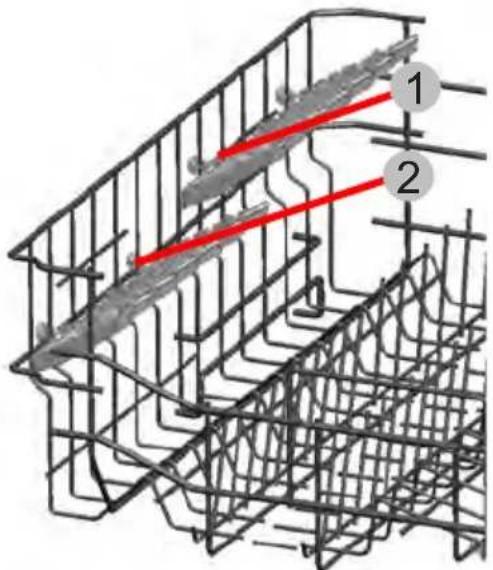

Folding racks consisting of four parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use folding racks by raising them upwards, or by folding.

3D wireframe diagram of a mechanical assembly with no visible text, numbers, or symbols

3D wireframe diagram of a vehicle chassis with labeled components and directional arrows (no text or symbols)

Alternative basket loads

Lower Basket

Two 3D cutaway views of kitchen utensils in a grid, showing interior and exterior views (no text or symbols)

Top basket

3D rendering of industrial equipment components including insulators, capacitors, and a motor (no text or symbols visible)

Faulty loads

3D rendered diagram of a grid with white and blue circular objects and a black 'X' symbol overlay (no text or labels)

Technical diagram of a mechanical assembly with components and a grid-patterned base (no visible text or symbols)

3D wireframe models of a multi-compartment storage unit with blue and white components, no text or symbols present

PROGRAM DESCRIPTIONS

Program items

Name of Program Prewash Auto		Quick 30 min.	Economic 50°C	Super 50 min.	Daily	Delicate	Auto Auto	Intensive
Washing Temperature - 30-50		40°C	50°C	65°C	60°C	°C 50-60	°C 60-70	°C
Type of Food Fragment	Fresh loss dirty, coffee,milk, tea	Fresh coffee, milk, tea, cold meat, vegetables	Normally soiled load at rated capacity	Tarried soup, sauce, pastry, egg, rice, potato and meals cooked in oven, fried food	Fresh coffee, milk, tea, cold meat, vegetables	Detects contamination level of dishes and sets temperature and amount of washing water and washing period automatically
Level of Contamination - small high high		small	Medium	Medium	Medium
Amount of Detergent B: 25 cm2/15 cm2A: 5 cm2	A**		B	B+A B+A	B+A			B+A B+A B

Program Period(minutes)	15	30	159	50	90	64 - 92	100 - 127	111 - 183
Power Consumption (kW hour)	0.02	0.84	0.95	1,25	1.34	0.76 - 0.95	1.09 - 1.40	1.22 - 1.85
Water Consumption(liters)	4.2	10.9	13,5	10.7	14.4	10.6 - 17.7	10.9 - 18.5	12.3 - 24.6

Warning: Short programs do not include a drying step.
The values declared above are the values obtained under laboratory conditions according to relevant standards. These values can change depending on conditions of product's use and environment (network tension, water pressure, water input temperature and environment temperature).
Open the door slightly 50mm to assist in drying of the dishes after every wash.

GETTING FAMILIAR WITH YOUR MACHINE

1.) ON/OFF Button

When one presses the on/off button, the machine is energized and the light on Start/Standby button goes on.

2.) Extra Rinse / Dry Button

You can add extra rinsing or drying functions into the selected program by using extra button.

Once you selected extra rinsing function, the light for extra rinsing on the left upper - hand side of the indicator will come on, and thus washing-rinsing steps will be added into the selected program, so you can ensure that your dishes will be extracted cleaner and glosser.

Once you selected, extra drying function, the light for extra drying on the left lower -hand side of the indicator will come on, and thus the extra heating and drying steps will be added into the selected program, so you can ensure that your dishes will be extracted dryer.

3.) Extra Hygiene Button

By using this option, washing temperature and periods during respective cycles may be changed, which ensures more hygienic washing.

4.) Tablet Detergent Button

Push Tablet Detergent button when using combined detergent that contains rinse aid and extra functions.

5.) 1/2 Half Load Button

Using the function 1/2 , three sorts of washing up can be done those being lower basket, upper basket and both baskets.

If you have little amount of dishes in your machine and if you have to wash them, you can also activate the semi-filling function in some of the

programs additionally. If you have dishes in both baskets, press the key 1/2 and select the position in which both lamps are highlighted.

If you have dishes only in the upper basket, pres the key 1/2 and select the position in which the upper lamp is illuminated. Thus, washing up shall be done only on

the upper basket of your machine. No dishes should certainly be available in the lower basket while using this feature.

If you have dishes only in the lower basket, press the key 1/2 and select the position in which the lower lamp is illuminated.

Thus, washing up shall be done only on the lower basket of your machine. In using this feature, make sure that there are no dishes in the upper basket.

Note : If you have used an extra feature on the latest washing program, this feature will remain active also on the next washing program. If you do not want to use this feature on the newly selected washing program, press the selected feature button again, and check that the lamp on the button goes off.

6.) Door Handle

The door handle is used to open/close the door of your machine.

7.) Programme selector Button

With the program selector button, you can select a suitable program for your dishes.

8.) Start/Pause Button

Once you press the Start/Pause button, the programme you selected with the programme selector button will start running and the status indicator lamp "wash" will light up. In the stop condition while wash led is On, Start/Pause led will blink.

9.) Rinse aid Lack Warning indicator

In order to check that there is sufficient rinse aid in your machine check rinse aid lack warning light on the display. When rinse aid warning light starts coming on, fill in rinse aid chamber.

10.) Program Monitor Lights

Program flow can be monitored via program monitor lights on control panel.

• Wash
• Rinse
  Dry
• End

11.) Remaining Time Indicator

Remaining Time Indicator displays the program times and remaining time during the program is in operation. In addition, you can adjust program delay time by pressing the buttons on the indicator before program starts. If you want to change delay time, you can set the time by pressing Start/Pause button and using buttons on the indicator. Press Start/Pausebutton again in order to activate.

Child Lock Operation

In order to activate child lock, press “+” and “-” buttons on Remaining time indicator simultaneously for 3 seconds. At this time, "CL" appears for 2 seconds on remaining time indicator. To inactive child lock, press “+” and “-” buttons again simultaneously for 3 seconds. "CL" will blink once.

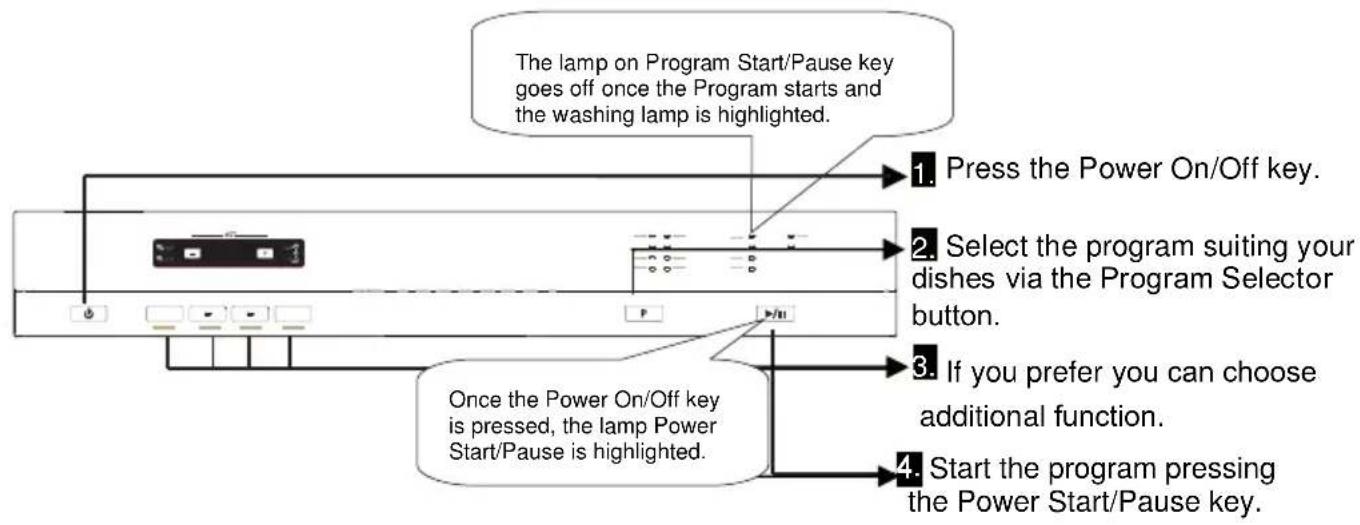

SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME

Switching on the machine

Program follow-up

You can follow the program flow using the program follow-up lamps located on the control panel.

Changing a programme

If you would like to change programs while a washing program is continuing.

Changing a programme with resetting

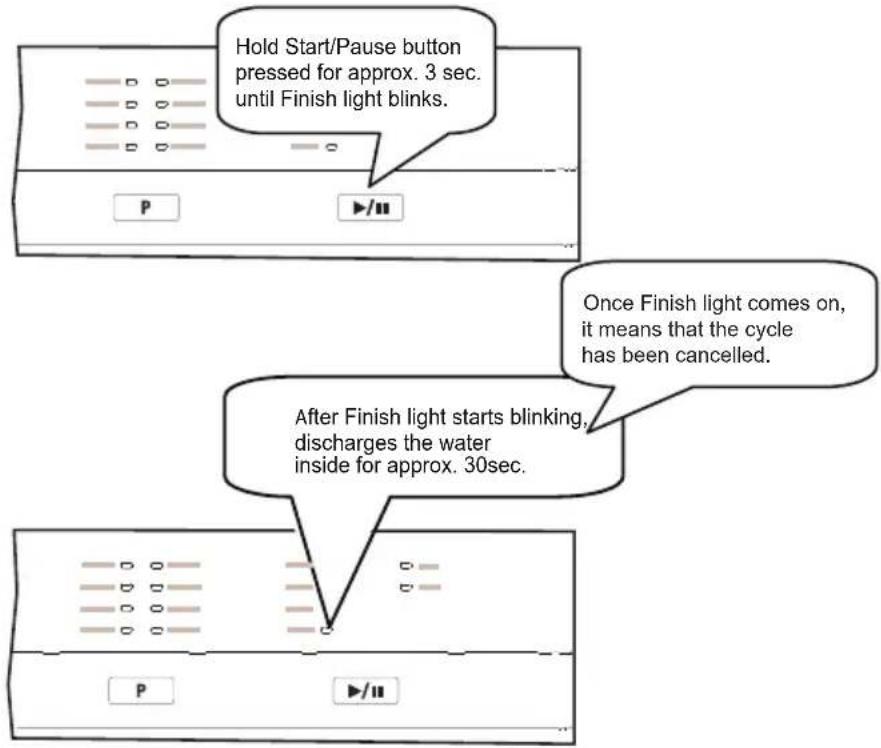

If you would like to cancel a program while a washing program is resumed.

Switching the machine off

Note: You can slightly open the door in order for the machine to perform a faster dry operation after the wash programme is finished.
Note: If the machine door opens during washing or the power is cut off, the machine will go on to the program in case the door is shut or the power is back.

MAINTENANCE AND CLEANING

Cleaning the machine in regular intervals prolongs the machine's service life.

Oil and lime may accumulate in the machine's washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine. In case of insufficiency, use special cleansing material available in the market. (Cleansing material produced special to machines by detergent producers.)

Cleaning the seals in the machine door,

-To clean any accumulated residues in the door seals, wipe the seals regularly by using a dampened cloth.

Cleaning the machine,

Clean the filters and spray arms at least once a week.

Unplug your machine and turn off its tap before starting the cleaning.

Do not use hard materials when cleaning your machine. Wipe with a fine cleaning material and a dampened cloth.

Filters

Check if any food wastes have remained on the coarse and fine filters. If any food wastes are left, remove the filters and clean them thoroughly under the water tap.

a. Micro Filter
b. Coarse Filter
c. Metal/Plastic Filter

To remove and clean the filter combination, turn it counter clockwise and take it out by lifting upwards.

Pull and remove the metal/plastic filter. 3 Then pull the coarse filter out of the micro filter.2 Rinse it with lots of water under the tap. Refit the metal/plastic filter. Insert the coarse filter into the micro filter in a way that the marks will correspond to one another. Attach micro filter into the metal/plastic filter and turn to the direction of arrow and it is locked when the arrow on micro filter can be seen from across. 4

• Never use your dishwasher without any filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• CI ean filters are very important in terms of the proper running of the machine.

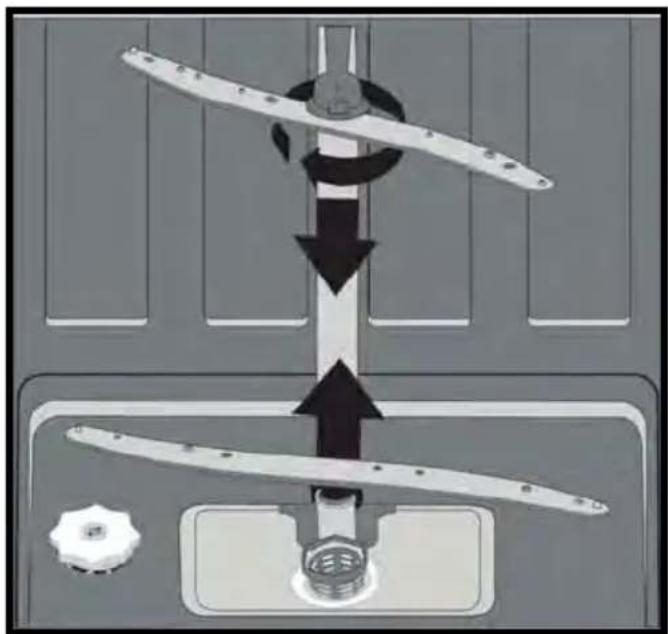

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Spray arms

Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water.

You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.

Be sure that the nut is perfectly tightened when refitting the upper spray arm.

Hose filter

Water is prevented by the inlet hose filter so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to forestall such complaints as yellowing and formation of deposits after washing. Check the filter and the hose from time to time and clean them if necessary. To clean the filter, first turn off your tap and then remove the hose. After removing the filter from the hose, clean it under the tap. Insert the cleaned filter back into its place inside the hose. Refit the hose.

FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE

ERROR CODE ERROR	DESCRIPTION CONTROL
F5	Inadequate water supply	Make sure the water input tap is totally open and that there is no water cut.Close the water input tap, separate the water input hose from the tap and clean the filter at the connection end of the hose.Restart your machine, contact the service person if the error resumes.
F3	Error of continuous water input	Close the tap.Contact the service person.
F2	The waste water in the machine cannot be discharged.	Water discharge hose is clogged.The filters of your machine might be clogged.Power off-on your machine and activate the program cancellation command.If the error continues, contact the service person.
F8	Heater error	Contact the service.
F1	Alarm is active against water overflow	Power off your machine and close the tap.Contact the service person.
FE	Faulty electronic card	Contact the service person.
F7	Overheating error (temperature in the machine is too high)	Contact the service person.
F9	Divisor position error	Contact the service person.
F6	Faulty heater sensor	Contact the service person.

If one of program monitor lights is on and start/Pause light is on and off,

Your machine's door is open, shut the door.

If the programme won't start

• Check if the plug is connected.
• Check your indoor fuses.
• Be sure that the water inlet tap is turned on.
• Be sure that you have closed the machine door.
• Be sure that you switched off the machine by pressing the Power On / Off button.
• Be sure that the water inlet filter and the machine filters are not clogged.

If the control lamps won't go out after a wash operation

The Power On/Off button is released yet.

If detergent residues are left in the detergent compartment

Detergent has been added when the detergent compartment was wet.

If water is left inside the machine at the end of the programme

• The water drain hose is clogged or twisted.
• The filters are clogged.
• The programme is not finished yet.

If the machine stops during a wash operation

• Power failure.
• Water inlet failure.
• Program can be on standby mode.

If shaking and hitting noises are heard during a wash operation

• Dishes placed incorrectly.
• Spray arm hitting the dishes.

If there are partial food wastes left on the dishes

• Dishes placed incorrectly into the machine, sprayed water did not reach related places.
• Basket overly loaded.
• Dishes leaning against one another.
  • Very small amount of detergent added.
• An unsuitable, rather weak wash programme selected.
• Spray arm clogged with food wastes.
• Filters clogged.
• Filters incorrectly fitted.
  • Water drain pump clogged.

If there are whitish stains on the dishes

• A very small amount of detergent is being used.
- Rinse aid dosage setting at a very low level.

If the dishes won't dry up

• A programme without a dry operation selected.
• Rinse aid dosage set too low
• Dishes unloaded too fast.

If there are rust stains on the dishes

• Stainless-steel quality of the dishes washed is insufficient.
• Unhealthy mains grounding.

Call an authorised service if the problem still persists after the controls or in case of any malfunction not described above.

PRACTICAL AND USEFUL INFORMATION

1. Whenever you will not be operating your machine
2. Unplug the machine and then turn the water off.
3. Leave the door slightly ajar in order to prevent the formation of unpleasant smells.

4. Keep the machine interior clean.

5. Eliminating water droplets

6. Wash the dishes with the intensive programme.
   • Take all of the metal containers in the machine out.

7. Do not add detergent.

8. If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

9. Clean all rough waste before you place dirty dishes to the machine.
10. Operate the machine after it is completely full.
11. Use pre-washing program only when necessary.
12. Observe program information and average consumption values table when selecting a program.
13. Since the machine will reach high temperatures, it should not be mounted near refrigerator.
14. If the appliance is located in a place where the risk of freezing exists, you must completely drain the water that has remained in the machine. Turn off the water tap, disconnect the water inlet hose from the tap and allow the interior water to drain.

AUSTRALIAN & NEW ZEALAND PRODUCT WARRANTY STATEMENT OF STANDARD WARRANTY CONDITIONS

AUSTRALIAN CUSTOMERS

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

NEW ZEALAND CUSTOMERS

Nothing herein contained shall be construed in any way as excluding or limiting your rights under the Consumer Guarantee Act 1993.

OUR WARRANTY

This product is also covered by the manufacturer's warranty set out in this document (Our Warranty).

Our Warranty is for a period of twenty four (24) months from the date of purchase and for dishwasher & refrigeration appliances will have an additional thirty six (36) months after the first twenty four (24) months on the wash motor for dishwashers & on the Sealed System (PARTS only Compressor & condenser etc) for refrigeration appliances. The labour cost to replace these parts is the responsibility of the customer.

This is in addition to (and does not exclude, restrict or modify) any rights or remedies to which you may already be entitled under the Australian consumer Law or the New Zealand Consumer Guarantee Act 1993 relating to this product.

Our Warranty (which is subject to the conditions below) covers rectification free of charge of any fault arising from defective materials or components, or faulty workmanship. The product will be repaired or replaced at the option of Blanco, and all costs of installation, removal, cartage, freight travelling expenses and insurance are to be paid by the customer.

Our Warranty is subject to the following conditions:

1. That the purchaser contact Blanco prior to any product repair.

2. That the purchaser carefully follows all instructions provided with the product and complies with all relevant electrical & plumbing regulations in their State when installing the product.

3. That the purchaser carefully follows the instructions provided in the owner's handbook relating to the proper use and care of the product and does not use the product for any purpose other than the DOMESTIC use for which it has been designed. If the appliance is used in commercial applications or for rental purposes, Our Warranty is limited to a warranty of Twelve (12) months covering all parts with Three (3) months on any labour cost of service or repair.

SERVICE AREA

The provision of service under Our Warranty is limited by the boundary / territory area of the nearest service centre. Travelling cost incurred for service outside this area is not covered by Our Warranty and service will incur commercial cost to be paid by the customer regulated by the number of kilometres travelled beyond the service area. These costs will be disclosed to you for acceptance by you prior to your claim being processed.

Microwave ovens must be returned to your nearest Authorised Service Centre for repair as they are a carry in serviceable appliance.

WHAT IS COVERED: By Our Warranty

During the warranty period, Blanco or its authorised Service Centre will at no extra charge, if your appliance is readily accessible without the need of special equipment and subject to the terms and conditions of this warranty, repair or replace any parts which it considers defective.

WHAT IS NOT COVERED: By Our Warranty

1. Products installed damaged or incomplete or not in compliance with the relevant electrical & plumbing regulations in their State.

2. Normal wear and tear e.g. cleaning, light globes, filters etc.

3. Failure resulting from power surges and electrical storms.

4. Insect or vermin infestation.

5. Unauthorised repairs or use of non genuine Blanco parts.

6. Any failure caused by the product not being used in accordance with the instruction and the installation manual provided with the product.

7. Misuse or abuse, including failure to properly maintain or service.

8. The clearing of blockages in pumps and hoses.

9. Damage which occurs during delivery or installation.

10. Claims to product surface coating due to liquid or solid spill-overs, accidental damage or damage caused from cleaning products not recommended by Blanco.

HOW TO CLAIM OUR WARRANTY

You will need to contact Blanco in Australia or New Zealand by using the contact details below.

IN AUSTRALIA

IN NEW ZEALAND

Blanco is distributed by Shriro Australia Pty Ltd (Member of Shriro Australia Pty Ltd)

Blanco is distributed by Monaco Corporation

Locked Bag 5002, Kingsgrove, NSW, 2208

PO Box 4399, Shortland St, Auckland, 1140

Phone: [phone] Fax: [phone]

Phone: [phone] Fax: [phone]

Email: [e-mail]

Email: [e-mail]

Web: http://www.blanco-australia.com/

Web: http://www.blanco-australia.com/

Note: Please complete the following details when you have unpacked the product and staple this card with the purchase invoice or sales docket.

Model No....

Serial No....

Date of Purchase....

Retailer....
