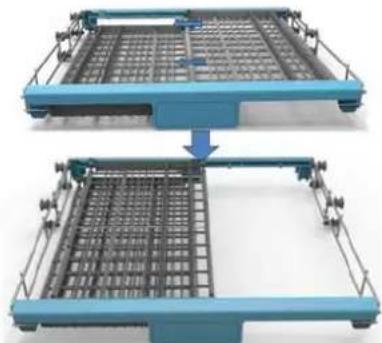

Cutlery Basket	Yes, 5 configuration modes
Child Lock	Yes
Extra Drying Function	Yes
Delay Start	Yes
Filter System	3-stage (coarse, main, fine)
Control Type	Electronic with display

Frequently Asked Questions - BFD645X BLANCO

How do I start a wash cycle on my BLANCO BFD645X dishwasher?

First, load the dishes and add detergent. Close the door and press the On/Off button. Select the desired program using the Program button. Then press Start/Pause. The cycle will begin after a few seconds. Refer to the manual for detailed instructions.

What type of detergent should I use?

Use only detergents specifically designed for automatic dishwashers. Avoid soap, laundry detergent, or hand washing liquid. You can use powder, gel, or tablets. For best results, follow the dosage instructions on the detergent packaging. Do not use detergents with chlorine if you have delicate items.

How often should I clean the filters?

The filter system should be cleaned once a week to maintain performance. To clean, remove the filter assembly by turning counterclockwise and lifting. Rinse under running water and use a brush if needed. Reassemble and reinstall. Never operate the dishwasher without filters.

Why are my dishes not drying properly?

Common causes include: insufficient rinse aid (refill or increase setting), wrong program selection (use a program with drying), dishes removed too soon (wait 15 minutes after cycle), or improper loading (ensure no nesting). Check that the extra drying function is enabled if needed.

How do I adjust the rinse aid dispenser?

The rinse aid dispenser has a rotary dial inside the cap. To adjust, open the cap and turn the dial to a higher number (max 6) for more rinse aid, or lower for less. The factory setting is 4. Increase if you see water spots, decrease if there are sticky stains.

What does error code E1 mean?

Error code E1 indicates a longer inlet time. This usually means the water supply is off, water pressure is too low, or the inlet hose is kinked. Check that the faucet is fully open and the hose is not bent. If problem persists, contact service.

How should I load the dishes for best results?

Place larger items in the lower basket and delicate items in the upper basket. Ensure items are not nested and spray arms can rotate freely. Scrape off food residues but do not pre-rinse. Face cups and bowls downwards. Use the folding spikes for pots and pans.

Can I use regular dish soap in my dishwasher?

No. Regular dish soap creates excessive suds that can cause leaks and damage. Only use detergents marked for automatic dishwashers. If suds appear, open the door to let them evaporate, add cold water, and run a drain cycle.

What are the installation requirements for the dishwasher?

The appliance must be connected to a cold water supply with pressure 0.04-1.0 MPa. Use new hose sets. The drain hose must be at a height less than 1000mm. Electrical connection requires a grounded 10A socket. Ensure the unit is level (max 2° incline). Follow the installation instructions in the manual.

How do I enable or disable the child lock?

Press the Delay button and Alt button simultaneously for more than 3 seconds to lock the program. Repeat to unlock. The child lock prevents accidental button presses during operation.

USER MANUAL BFD645X BLANCO

Cutaway view of a white kitchen appliance showing internal components like dishwashers and refrigerators (no text or labels visible)

Quick operation guide

Fordetailedoperatingmethodreadthecorrespondingcontentontheinstructionnmanual.

Switch on the appliance

Press the On/Off button to switch on the appliance, Open the door.

With each wash cycle.

Compartment B:

Forprogrammeswithpre-washonly.

(Followthe!)UserManual

Checktherinseaidlevel

Mechanical indicator C.

Electricindicatoroncontrolpanel(ifprovided).

Loadthebaskets

Scrapeoffanylargeamountofleftoverfood. Softenremnantsofburntfoodinpans, thenloadthebaskets. Refertothedishwasherloadinginstructions.

Selectaprogramme

Closethedoor, presstheProgrammeButton until theselectedprogrammelightsup. ( See the section entitled "Operation instruction")

Runningthedishwasher

Turnonthewatertapandpressthe. Them Schäte-Pallster-Buttling afterabout10seconds.

- Changingtheprogramme

1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispensermustberefilled.

2. Press the Start/Pause button, press the program button for more than three seconds, the machinewillbeinstandbystate, thenyoucanchangetheprogramtothedesiredcyclesetting

- Addforgottendishesinthe dishwasher.

1. Press the Start/Pause Button to stop the washing.

2. Openthedoor alittle.

3. After the spray arms stop working, you can open the door completely.

4.Addforgottendishes.

5.Closethedoor.

1. Press the Start/Pause Button, the dishwasher will run after 10 seconds.

WARNING!

Openthedoorcarefully. Hotsteammayescape when the door is opened!

- If the appliance is switched off during a wash cycle.

If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-onstate.

Switchofftheappliance

Whentheworkingcyclehasfinished,thebuzzerof the dishwasherwillsound8times, thenstop.

TurnofftheapplianceusingtheOn/OffButton.

Turnoffthewatertap, unloadthebaskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and moresusceptibletobreak.

They will also dry better. Unload the appliance, starting from the lower basket.

Read this Manual

DearCustomer,

This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farmhouses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.

- Keep it as a reference in the later days.

■ Passitonto any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

The section on troubleshooting Tips will help you to solve some common problems by yourself.

If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

CONTENTS

1) Safety Information....1

2) Operating Instructions....2

Control Panel....2

Dishwasher Features....2

3) Prior using for the first time....3

A、Fill the Rinse Aid Dispenser....3

B、Function of Detergent 4

4) Loading the Dishwasher Basket....6

AttentionbeforeorafterloadingtheDishwasher Baskets....6

The Method of Loading Normal Dishware....7

5) Starting a washing programme....9

Wash Cycle Table....9

Turning on the Appliance....9

Change the Programme....10

At the End of the Wash Cycle....10

6) Maintenance and cleaning....11

Filtering System....11

Caring for the Dishwasher....12

7) Installation instruction....13

Positioning the Appliance....13

About Power Connection....13

Water Connection....14

Start of dishwasher....15

8) Troubleshooting Tips....16

Before calling for service....16

Error codes....17

Technical information....18

Loading the baskets according to (*AS/NZS 2007.1)

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING! When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofanelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith alllocalcodesandordinances.

▲ WARNING!

■ Improperconnection of the equipment-grounding conductor can result in the risk of an electric shock.
Check with a qualified electrician or service representative if you are indoubt whether the appliance is properly grounded. Donot modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

■ Donotabuse, siton, orstandonthedo rackofthedishwasher.
■ Donottouchtheheatingelementduringor immediatelyafteruse. (Thisinstructionisonlyapplicabletomachines withavisualheating element.)
Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of watersquirting out.
■ Do notplaceanyheavyobjects on or stand the door when it is open. The appliance could tip forward.
■ When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element.(This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

Keep children away from detergent and reinseaid, keep child away from the open door of the dishwasher, there could still be some detergent left inside.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Children should be supervised to ensure that they do not playwiththeappliance.
■ Thedishwashermustalways beconnected to the watersystemusingnewhose sets.
■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
■ The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
If the appliance is installed on a carpet floor, take care that the openings in its base are not obstructed.
■ Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
■ Please dispose of packing materials properly.
■ Use the dishwasher only for its intended function.
During installation, the power supply must not be excessively or dangerously bent or flattened. Donottamperwith controls.
■ The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
■ The maximum number of place settings to be washed is15.
■ The maximum permissible inlet water pressure is 1 Mpa.
■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2. Operation Instruction

IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions before usingitforthefirsttime.

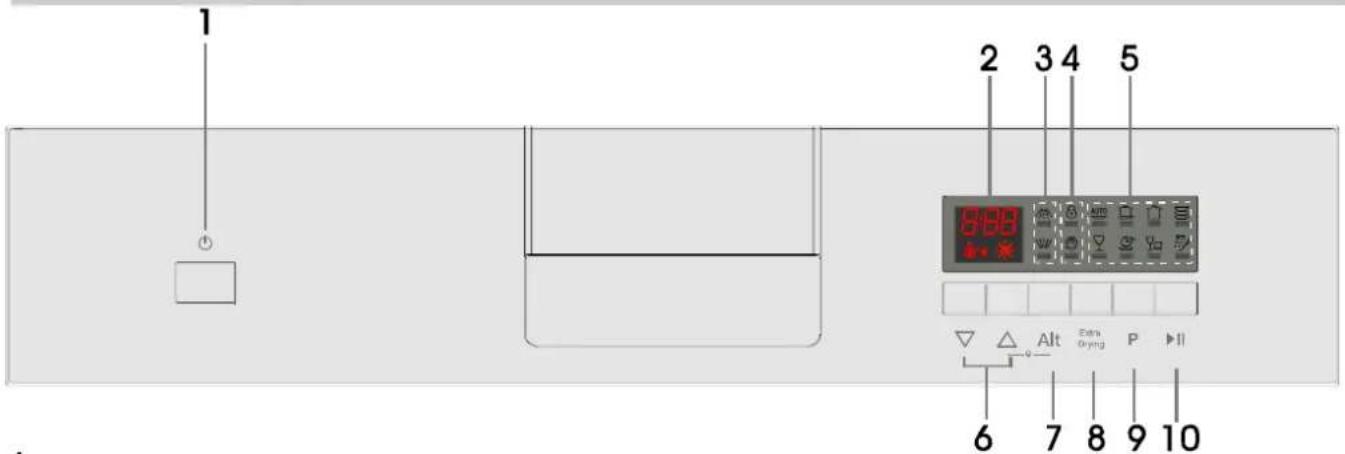

Control Panel

1 On/OffButton: Toturnon/offthepowersupply.
2 Display screen: to show the reminding time and the state(running state, delay time etc)

• RinseAidindicator: * Indicates when the dispenser needs to be refilled.
• Delay time, Remain time, or error codes indicator: 8:88

3 Altfunctionindicator:

4 Child lock and Extra Drying indicator

Child lock function: press Delay Button and Alt Button simultaneously for more than 3 seconds to lock the program, use the same method to cancel the child lock function.

Extradrying: An increased temperature during the final rinse to increase drying well. There is a slight increase in the energy consumption.

5 Programindicators: AUTO
6 Delay Button : Press the button to delay.

7 AltButton: Dualzonewash function, press the button to select either upper basket or lower basket loaded, and the response indicator.
8 Extra Drying function select Button :To select Extra Dryingfunction. (This function can only be used with programmes Intensive, Heavy, Normal, Glass and 1 Hour)
9 Program Button: Press the button to select appropriateProgram.
10 Start/PauseButton: To start the selected washing program or pause the washing program when the machine is working.

Dishwasher Features

1 Topsprayarm

4 Innerpipe

Back view of a device with coiled cable and mesh base, labeled 10 and 11 (no text or symbols on the diagram itself)

2 Cutleryrack

5 Lowerbasket

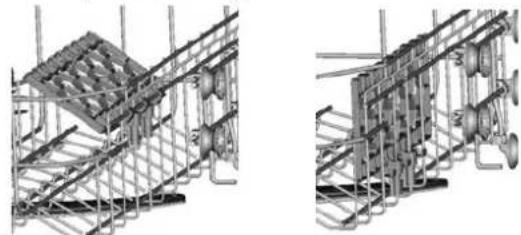

7 Cupshelf

10 Inletpipeconnector

3 Upperbasket

6 Dispenser

8 Sprayarms

11 Drainpipe

3.Prior using for the first time

Before using your dishwasher for the first time:

A. Fill the Rinse Aid Dispenser

RinseAidDispenser

Therinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing watert or roll off the dishes. Your dishwasher is designed to use liquid rinse aids. Therinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

FunctionofRinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aiddispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4full
1/2full
1/4full-Shouldrefilltoeliminatespotting
Empty

Top-down schematic of a microwave oven system with air ducts and control panel (no text or labels)

RINSE AID DISPENSER

Illustration of a device with a bulb and a magnified view of its tip, no text or symbols present.

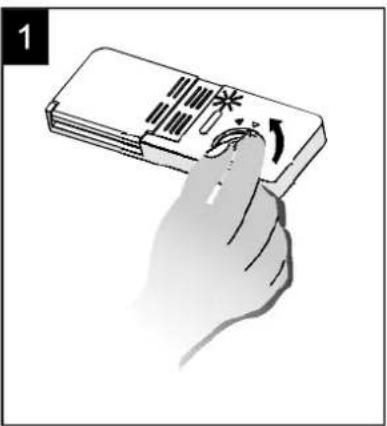

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.

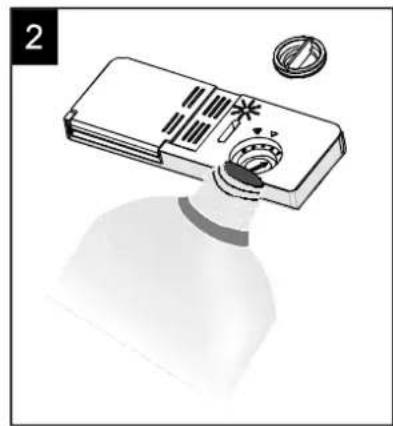

2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with adampcloth. Don't forget to replace the cap before you close the dishwasher door.

Attention!

Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during then nextwash.

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are showing spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knifeblades.

B. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split into two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

The use of normal washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason

“normal” wash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using “intensive” programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the completeremoval of detergent residuals.

Detergent Dispenser

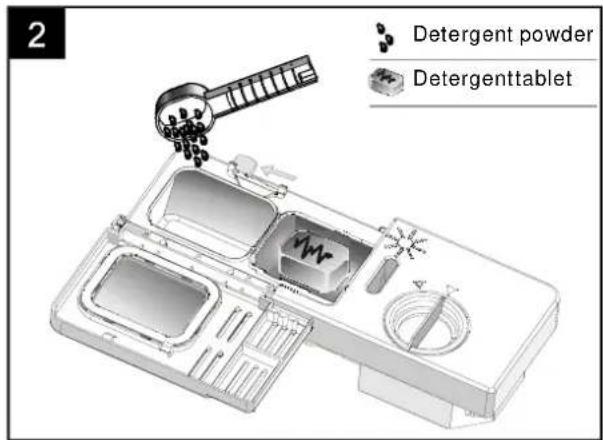

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

NOTE:

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep pit out of reach of children.

ProperUseofDetergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Fillin Detergent

The marking indicates the dosing levels, as illustrated on the right:

A The place for main wash cycle detergent.

B The place for pre-wash cycle detergent.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional

detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ You find information about the amount of detergent for the single programme on the last page.
■ Please be aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

4. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Useamild detergentthat is described as 'kindtodishes'. If necessary, seek further information from the detergent manufacturers.
■ Forparticularitems, select a program with as low atemperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Are not suitable

■ Cutlery with wooden, hornchina or mother-of-pearlhandles
■ Plastic items that are not heat resistant
■ Oldercutlerywithgluedpartsthatarenot temperatureresistant
■ Bonded cutlery items or dishes
■ Pewterorcooperitems
■ Crystalglass
■ Steel items subject to rusting
■ Woodenplatters
■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after a large number of washes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in the following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method of Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cook wares so that they will not get moved by the spray of water.

3D diagram of a mechanical assembly with springs and cylinders, no text or symbols present

Pleaseberemindedthat:
Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by lifting up the basket for the upper position, and up press the handle to lower the upper basket, see the picture below:

Lift the basket for upper position

Up press the handle to lower the basket

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Illustration of kitchen utensils including a pot, lid, and panes arranged in a wire basket (no text or symbols)

Folding back the cup shelves

For better stacking of pots and pans, the spikes can be folded down as shown in the pictureright.

Technical line drawings of mechanical components and structural elements (no text or symbols)

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down as shown in the pictureright.

Close-up of a hand holding a grid notebook with metal wire, no visible text or symbols

Cutlery Basket

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

For a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the male face up.
■ Long utensils in the middle.

Technical diagram of a grid-patterned industrial or thermal fan structure with internal structural elements (no text or symbols)

Cutlerybasketcouldbehave5positions:

Mode 1

Blue and gray metal rack with grid pattern (no text or symbols visible)

Position one: lift the left basket up, both left and right basketsaresideling.

Mode2

Two blue metal shelving units with grid patterns, one showing a drop and the other a solid outline (no text or symbols)

Position two: adjust the left basket to lower position, left basket is flat and right basket is sideling.

Mode3

Two blue plastic shopping carts with metal grids, one being lifted by a blue arrow (no text or symbols visible)

Position three: lift the right basket up, both left and right basketsareflat.

Mode4

Two blue metal truss structures with grid patterns, one showing a downward arrow (no text or symbols)

Position Four: Move the right basket from right to left, two basket are overlapping.

Mode5

Two identical blue metal frame structures with grid patterns, each being rotated by a blue arrow (no text or symbols)

Position Five: Remove the right basket from the tray, only hastheleftbasket.

5. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
	Auto sensing wash, lightly, normally or heavily soiled crockery, with or with out dried-on food	Pre-wash (45°C) Autowash (50-60°C) Rinse Rinse (60°C) Drying	5/27.5g(OrAll in1)	120~170	1.1~1.4	10~13.5
Intensive	For heaviest soiled crockery and normally soiledpots、pansdishesetcwithdried onsoiling.	Pre-wash (50°C) Wash (65°C) Rinse Rinse Rinse (55°C) Drying	5/27.5g(OrAll in1)	150	1.3	16.5
Heavy [HSYG]	For heavily soiled loads, such aspots, plates, glasses and lightly soiledpans.	Pre-wash (45°C) Wash (55°C) Rinse Rinse (60°C) Drying	5/27.5g(OrAll in1)	180	1.15	13
Normal (*AS/NZS2007.1)	Standarddailycycle for normally soiled loads, such aspotsplates glasses.	Pre-wash Wash (45°C) Rinse Rinse (50°C) Drying	5/27.5g(OrAll in1)	165	0.7	12.6
Glass	For lightly soiled crockery and glass.	Pre-wash wash (40°C) Rinse Rinse (60°C) Drying	5/27.5g	120	0.85	13
1Hour [TDTW]	For lightly soiled loads that do not need excellent drying efficiency.	Pre-wash (50°C) Wash (60°C) Rinse (50°C) Drying	5/27.5g	60	0.8	9
Rapid	A shorter wash for lightly soiled loads that do not need drying.	Wash (40°C) Rinse Rinse (45°C)	20g	40	0.5	10
Soak [BHTK]	Torinsedishesthatyouplan towashlaterthatday.	Pre-wash		8	0.01	3.5

NOTE:

*AS/NZS program is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1 as follows:

■ Capacity:14 setting
■ Position Upper basket: upper wheels on rails
■ Rinseaidsetting:6
■ Open the door slightly 50mm to assist in drying of the dishes after every wash

Turning On the Appliance

Starting a cycle wash

Draw out the lower and upper basket, load the dishes and push them back. It is recommended to load the lower basket first, then the upper one (see the section entitled "Loadingthe Dishwasher").
■ Pour in the detergent (see the section entitled “Detergent and Rinse Aid”).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
■ Close the door, press the ON/OFF Button, and the display will turn on.
■ Press the program Button, the wash program will be changed as follows direction:

Auto->Intensive->Heavy->Normal->Glass->1Hour->Rapid->Soak;

If a program is selected, the response light will light. Then press the Start/Pause button, the dishwasherbeginstostart. ____ 9 ____

When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will be beeping every minute unless you press the Start/Pause button to start.

Change the Program...

Premise:

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Press the Start/Pause button, the machine will be in standby state, press the program button for more than 3 seconds then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle...").

NOTE:

If you open the door during a washcycle, the machine will pause. The program light will stop blinking and the buzzer will be beeping every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish?

Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.

1 PresstheStart/Pausebutton

4 Addforgottendishes.

2 Openthedooralittletostopthewashing.

5 Closethedoor

3 Afterthesprayarmsstopworking,youcanopenthedoor completely.

6 Pressthe Start/Pausebutton,thedishwasherwillrun after10seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ SwitchOfftheDishwasher

The program light is on but is not blinking, only in this case the programme has ended.

1. Switch off the dishwasher by pressing the Power button.
2. Turnoffthewatertap.

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloadingthedishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

6. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

Mainfilter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilter 2

Larger items, such as pieces of bones or glass, that could block the drain and easily become trapped in the course filter. Toremove the items caught by the filter, gently squeeze the tapon the top of this filter and liftout.

Finefilter 3

This filter holds soil and food residues in the sumparea and prevents it from being redeposited on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damaged dishes and utensils.

1

Close-up of a transparent plastic tray with a curved handle and a central button, labeled 'Open' below (no other text or symbols)

Step 1: Turn the filter in anti-clockwise direction,

2

Mechanical component diagram showing a housing with internal parts and an upward arrow indicator (no text or symbols)

Step 2: lift the filter up

NOTE: When following this procedure from step 1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filtersystemwillbeinstalled.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters underrunning water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the previous page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Interior view of a rectangular electronic device with internal components and a black arrow pointing to a section (no visible text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows :

1. Cutoff the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

CleaningtheSprayArms

It is necessary to clean the spray arms regularly for hard waterchemicalswillclogthesprayarmjetsandbearings.

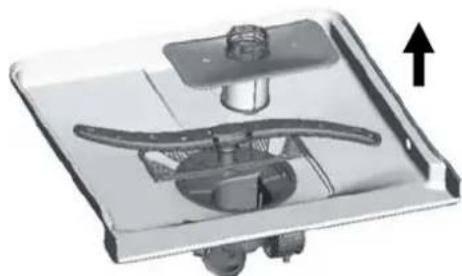

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

Toremovethelowerspray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

Toclean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.

■ When not in Use for a Long Time

It is recommend that your run a washcycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seal to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factor that cause odoursto for min the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

7. Installation instruction

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2°.

About Power Connection

WARNING!

Forpersonalsafety:

■ DONOTUSEAN EXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE.
■ DONOT, UNDERANYCIRCUMSTANCES, CUTORREMOVETHEEARTHING CONNECTIONFROMTHE POWERCORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being used corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptor or the likes as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING!

• Improperconnectionoftheequipmentearthingconductorcanresultintheriskofan electricshock.
  Checkwithaqualifiedelectricianorservicerepresentativeifyouareindoubtwhetherthe applianceisproperlyearthed.
  ■ Donotmodifytheplugprovidedwiththeappliance.Iftheplugdoesnotfitproperlytothe outlet,pleasehaveaqualifiedelectriciantoinstallaproperoutlet.

Water Connection

How to Connect the safety supply hose

Hand holding a faucet with a handle, no text or symbols visible

The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.

Waterpressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consultour Service Department for advice.

1 PullThesafetysupplyhosescompletelyoutfromthestoragecompartmentlocatedatrearof dishwasher.
2 Tightenthescrewsofthesafetysupplyhosetothefaucetwiththread3/4inch.
3 Turnwaterfullyonbeforestartingthedishwasher.

ABOUT THE SAFETY SUPPLY HOSE.

Thesafety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

▲ WARNING!

Ahose that attachesto asinkspray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to Disconnect the safety supply hose

1 Turnoffthewater.
2 Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severesplashing.
3 Unscrewthesafetysupplyhosefromthefaucet.

COLD WATER CONNECTION

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

How to Drain Excess Water From Hoses

If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excesswater from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

ExtensionHose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SyphonConnection

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is no leakage at the connections of the conducts
4 The wires are tightly connected
5 Thepowerisswitchedon
6 The inlet and drain hoses are knotted

7 Allpacking materials and printings should be taken out from the dishwasher

Attention: Afterinstallation,pleasemake sure to keep this manual.

The content of this manual is very helpful to the users.

Technical problems	Problem	Possible Causes What To Do
	Dishwasher doesn't start	Fuseblown,orthehome circuitbreakerhasbeen triggered.	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
		Powersupplyisnot turnedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket.
		Errorcode:E1; Waterpressureislow	Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon.
		Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
	water not pumped form dishwasher	Kinkindrainhose	Checkdrainhose.
		Filterclogged	Checkthefilter (seesectiontitled)"CleaningTheFilter"
		Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell. Iftheproblemisthekitchensinknotdraining,youmay needaplumberratherthanaservicemanfordishwashers.
General problems	Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoidsuds. Ifthisoccurs,openthedishwasherandletsudsevaporate. Add1gallonofcoldwatertothetub.Closeandlatchthe dishwasher,thenselectanycycle.Dishwasherwilldrain outthewateratthefirststep. Openthedoorafterthedraining hasstoppedandcheckithesudshavedisappeared.Repeatifnecessary.
		Spilledrinse-aid	Alwayswipeuprinse-aidspillsimmediately.
	Stained tub interior	Detergentwith colourantwasused	Makesurethatthedetergentistheonewithout colourant.
	White film on inside surface	Hardwaterminerals	Tocleantheinterior,useadampspongewith dishwasherdetergentandwearrubbergloves. Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds.
	There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.
		Aprogrammewasnot runafterdishwasher saltwasadded. Tracesofsalthave gottenintothewashcycle.	Alwaysrunthequickwashprogramme withoutanycrockeryinthedishwasherand withoutselectingtheTurbofunction(ifpresent), afteraddingdishwashersalt.
		Thelidofthesofter isloose	Checkthelip.Ensurethefixisfine.
Noise	Knocking noise in the wash cabinet	As p a y a r m i s knockingagainst aniteminabasket	Interrupttheprogramme,andrearrangetheitems whichareobstructingthespayarm.r
	Rattling noise in the wash cabinet	Itemsofcrockery arelooseinthe washcabinet	Interrupttheprogramme, andrearrangetheitemsofcrockery.
	Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping.	Thishasnoinfluenceonthedishwasherfunction. ifindoubt,contactasuitablyqualifiedplumber.
	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemsareblocking thepathofspayarms.r	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination in the base of wash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect ashortercycletowashtheglasswareandtoget themclean.
	Black or grey marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminateethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Toolittlerinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
		Dishesareremoved toosoon	Donotemptyyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyonce thedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogram hasbeenselected	Inshortprogramthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose aprogramwithalongwashingtime.
		Useofcutlerywith alow-qualitycoating	Waterdrainageismoredifficultwiththeseitems.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
E1	Longerinlettime.	Faucetsisnotopened,orwaterintakeis restricted,orwaterpressureistoolow.
E4	Overflow.	Someelementofdishwasherleaks.
E8	Failureofdivertervalve	Opencircuitorbreakofdivertervalve

WARNING!

■ Ifoverflowoccurs,turnoffthemainwatersupplybeforecallingservice.
■ Ifthereiswaterinthebasepanbecauseofanoverfillorsmallleak, thewatershouldberemovedbeforererestartingthedishwasher.

Technical Information

Height:845mm
Width:598mm
Depth:605mm	(withthedoorclosed)
Waterpressure:0.04-1.0MPa
Powersupply:seerating label
Capacity:14placesettings

Loading the baskets according to (*AS/NZS 2007.1):
1. Upper basket:

1. Lower basket:


Information for comparability tests in accordance with (*AS/NZS 2007.1)
- Voltage:230V/50Hz - Capacity: 14 place settings - Position of the upper basket: lower - Programme: Normal - Detergent(Pre/main): 5 g/27.5 g - Rinse aid setting: 6

1 Forks 2 Soup spoons 4 Teaspo 5 Knives
1 Forks 2 Soup spoons 4 Teaspo 5 Knives
1 Forks 2 Soup spoons 4 Teaspo 5 Knives
1 Forks 2 Soup spoons 4 Teaspo 5 Knives
1 Forks 2 Soup spoons 4 Teaspo 5 Knives
