BSID346X - Dishwasher BLANCO - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	BLANCO
Model	BSID346X
Installation	Fully integrated
Width	60 cm
Height	81.5 cm
Depth	55 cm
Weight	Approximately 40 kg
Place Settings	14
Energy Efficiency Class	E
Water Consumption per Cycle	9.5 L
Energy Consumption per Cycle	0.95 kWh
Noise Level	47 dB(A)
Number of Programs	6
Programs	Eco, Auto, Intensive, 90 min, Quick, Pre-rinse
Drying System	Condensation drying
Water Connection	Cold water only
Power Supply	220-240 V, 50 Hz, 10 A
Safety Features	AquaStop, child lock
Control Type	Electronic with LED display
Adjustable Rack	Height-adjustable upper basket
Delay Start	Yes, up to 24 h
Cutlery Tray	Yes
Material	Stainless steel interior
Spare Parts Availability	7 years minimum

Frequently Asked Questions - BSID346X BLANCO

How do I start a wash cycle on the BLANCO BSID346X dishwasher?

Press the Power button, select the desired program using the program button, and press Start. Ensure the door is closed securely.

What should I do if the dishwasher does not clean dishes properly?

Check that the spray arms are not blocked, use the proper detergent amount and rinse aid, and select the appropriate program. Also, ensure the water temperature is hot enough.

How do I clean the filters?

Remove the lower basket, unscrew the filter assembly, rinse under running water, and replace. Clean filters after every few cycles to maintain performance.

Can I use any detergent in this dishwasher?

Use only detergents specifically designed for dishwashers, preferably in tablet or powder form. Do not use hand dish soap as it can cause excessive foaming.

What does the AquaStop feature do?

AquaStop is a safety system that prevents water leaks. It includes a double-walled hose and an electrovalve that shuts off water supply in case of a leak.

How do I activate the child lock?

Press and hold the Child Lock button (usually marked with a key icon) for 3 seconds until the indicator lights up. Repeat to deactivate.

What is the energy efficiency class of the BSID346X?

The BSID346X has an energy efficiency class of E on the EU energy label.

How do I adjust the upper basket height?

Remove the upper basket, pull out the side rails, and reposition the basket on a different pair of rollers. Some models have a simple lever mechanism.

Why is the dishwasher not starting?

Ensure the door is closed properly, the power cord is plugged in, and the water supply is turned on. Check the circuit breaker if necessary.

Where can I find spare parts for this model?

Spare parts are available from BLANCO authorized dealers or online spare parts stores. The manufacturer guarantees availability for at least 7 years.

USER MANUAL BSID346X BLANCO

Cutaway view of a kitchen appliance showing internal components like dishwashers and fans (no text or labels visible)

Quick operation guide

For detailed operating method read the corresponding content on the instruction manual.

Switch on the appliance

Press the On/Off button to switch on the appliance, Open the door.

With each wash cycle.

Compartment B:

Forprogrammeswithpre-washonly.

(Followthe)UserManual

Close-up of a battery pack labeled A and B with a control knob, no visible text or symbols beyond labels

Checktherinseaidlevel

Mechanical indicator C.

Electricindicatoroncontrolpanel(ifprovided).

Loadthebaskets

Scrape off any large amount of leftover food. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions.

Selectaprogramme

Closethedoor, presstheProgrammeButton until theselectedprogrammelightsup. ( See the section entitled "Operation instruction" )

Runningthedishwasher

Turnonthewatertapandpressthe. Them Schäte-Pallster-Buttling afterabout10seconds.

- Changingtheprogramme

1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispensermustberefilled.

2. Press the Start/Pause button, press the program button for more than three seconds, the machinewillbeinstandbystate, thenyoucanchangetheprogramtothedesiredcyclesetting

- Addforgottendishesinthe dishwasher.

1. Press the Start/Pause Button to stop the washing.

2. Openthedoor alittle.

3. After the spray arms stop working, you can open the door completely.

4.Addforgottendishes.

5.Closethedoor.

1. Press the Start/Pause Button, the dishwasher will run after 10 seconds.

- If the appliance is switched off during a wash cycle.

If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-onstate.

WARNING!

Open the door carefully. Hotsteam may escape when the door is opened

Switchofftheappliance

Whentheworkingcyclehasfinished,thebuzzerof the dishwasherwillsound8times, thenstop.

TurnofftheapplianceusingtheOn/OffButton.

Turnoffthewatertap, unloadthebaskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and moresusceptibletobreak.

They will also dry better. Unload the appliance, starting from the lower basket.

Read this Manual

DearCustomer,

This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farmhouses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.

- Keepitas areferenceforlaterdays.

■ Passitonto any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

The section on troubleshooting Tips will help you to solve some common problems by yourself.

If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

CONTENTS

1) Safety Information....1

2) Operating Instructions....2

Control Panel....2

Dishwasher Features....2

3) Prior using for the first time....3

A、Fill the Rinse Aid Dispenser....3

B、Function of Detergent 4

4) Loading the Dishwasher Basket....6

AttentionbeforeorafterloadingtheDishwasher Baskets....6

The Method of Loading Normal Dishware....7

5) Starting a washing programme....9

Wash Cycle Table....9

Turning on the Appliance....9 Change the Programme....10

At the End of the Wash Cycle....10

6) Maintenance and cleaning....11

Filtering System....11

Caring for the Dishwasher....12

7) Installation instruction....13

Positioning the Appliance....13

Water Connection....19

Start of dishwasher....19

8) Troubleshooting Tips....20

Before calling for service....20

Error codes....21

Technical information....22

Loading the baskets according to (*AS/NZS 2007.1)

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING! When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofanelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith alllocalcodesandordinances.

▲ WARNING!

■ Improperconnection of the equipment-grounding conductor can result in the risk of an electric shock.
Check with a qualified electrician or service representative if you are indoubt whether the appliance is properly grounded. Donot modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

■ Donotabuse, siton, orstandonthedo rackofthedishwasher.
■ Donottouchtheheatingelementduringor immediatelyafteruse. (Thisinstructionisonlyapplicabletomachines withavisualheating element.)
Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of watersquirting out.
■ Do notplaceanyheavyobjects on or stand the door when it is open. The appliance could tip forward.
■ When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element.(This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

Keep children away from detergent and reinseaid, keep child away from the open door of the dishwasher, there could still be some detergent left inside.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Children should be supervised to ensure that they do not playwiththeappliance.
■ Thedishwashermustalways beconnected to the watersystemusingnewhose sets.
■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
■ The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
If the appliance is installed on a carpet floor, take care that the openings in its base are not obstructed.
■ Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
■ Please dispose of packing materials properly.
■ Use the dishwasher only for its intended function.
During installation, the power supply must not be excessively or dangerously bent or flattened. Donottamperwith controls.
■ The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
■ The maximum number of place settings to be washed is 14.
■ The maximum permissible inlet water pressure is 1 Mpa.
■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2. Operation Instruction

IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions before usingitforthefirsttime.

Control Panel

1 On/Off Button: To turn on/off the power supply.
2 Program Button: Press the button to select appropriate Program.
3 Delay Button : Press the button to delay.
4 Option Button: To select Halfload and Extradry functions, these functions can only be used with programmes Intensive, Heavy, Normal, Glass and 1 Hour.
5 Start /Pause Button: To start the selected washing program or pause the washing program when the machine is working.
6 Extra Drying indicator: Extradrying: An increased temperature during the final rinse to increase drying well. There is a slight increase in the energy consumption.
7 Rinse aid warning lights: To be of when dispenser need to berefilled

8 Haftloadindicator: Toshowwhenyouselectthe haft load function. If you have only about or less than half of full load dishes of the dishwasher, you can select the half load function and your desired program according to the dishes contaminated degree (The quick and soak programs can't select this function). A program select the half load function, it can save time, energy, and water compare to the program hasn't select the half load function. After the half load function is selected, all the spray arms are running, you can load all the baskets.
9 Delay indicators: to show the delay time. (3h/6h/9h)
10 Program indicators: Intensive, Heavy, Normal, Glassand1 Hour and Rapid.
11 Power indicator: To show when the power on.

Dishwasher Features

1 Topsprayarm
2 Cutleryrack
3 Upperbasket

4 Innerpipe
5 Lower basket
6 Dispenser

7 Cupshelf
8 Sprayarms
9 Filterassembly

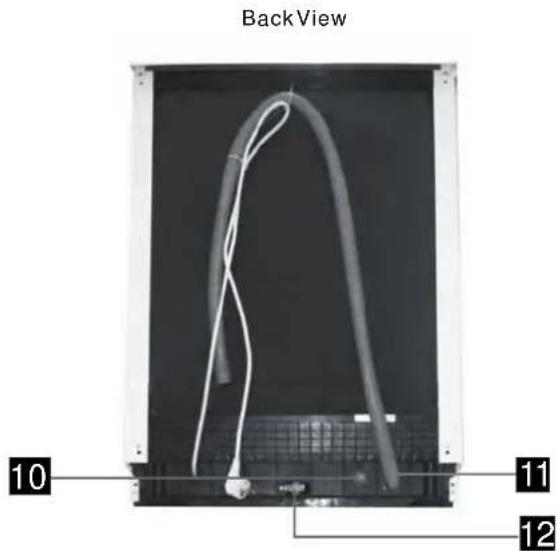

10 Inletpipeconnector
11 Drainpipe
12 Adjuster

3. Prior using for the first time

Before using your dishwasher for the first time:

A Filltherinseaiddispenser
B FunctionOfDetergent

A. Fill the Rinse Aid Dispenser

RinseAidDispenser

Therinseaidisreleasedduringthefinalrinsetopreventwaterfromformingdropletsonyourdishes,whichcan leavespotsandstreaks.Italsoimprovesdryingbyallowingwatertorolloffthedishes.Yourdishwasheris designedtouseliquidrinseaids.Therinseaiddispenserislocatedinsidedehoornexttothedetergentdispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black.Thevolumeoftherinseaidcontainerisabout110ml.

FunctionofRinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4full
1/2full
⊕ 1/4full-Shouldrefilltoeliminatespotting
Empty

RINSEAIDDISPENSER

Close-up of a hand pressing a button on a device panel with cables in the background (no visible text or symbols)

Medical imaging device showing a patient in use, no visible text or symbols

Close-up of a hand holding a circular button next to a white electronic device with three vertical slots and a handle (no visible text or symbols)

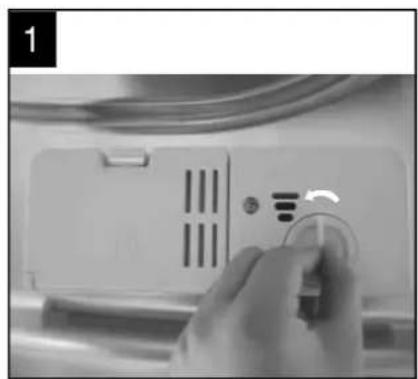

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with adampcloth. Don't forget to replace the cap before you close the dishwasher door.

Attention!

Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during then next wash.

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes are still not drying properly or showing spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

B. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split into two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

The use of “normal” washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason

“normal” wash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using “intensive” programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the completeremoval of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

AmountofDetergenttoUse

Close-up of a kitchen appliance with a plastic tray, handle, and control panel (no visible text or symbols)

NOTE:

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher.

WARNING!

Dishwasher detergent is corrosive. Take care to keep it out of reach of children.

ProperUseofDetergent

Use of detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Fillin Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A Theplaceformainwashcycledetergent.
B The place for pre-wash cycle detergent.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ Information about the amount of detergent for the single programme is located at the washing cycle table.
■ Please be aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

4. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Useamild detergent that is described as 'kindtodishes'. If necessary, seek further information from the detergent manufacturers.
■ Forparticularitems, selectaprogramwithaslowa temperatureaspossible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Are not suitable

■ Cutlery with wooden, horn china or mother-of-pearl handles

■ Plastic items that are not heat resistant

■ Oldercutlerywithgluedpartsthatarenot temperatureresistant

■ Bondedcutleryitemsordishes

■ Pewterorcooperitems

■ Crystalglass

■ Steelitemssubjecttorusting

■ Woodenplatters

■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after al argenumber of washes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in the following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups
  ■ Long bladed knives stored in an upright position are a potential hazard.
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method of Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

3D diagram of a mechanical assembly with springs and cylinders, showing internal components and a north arrow (no text or symbols)

Pleaseberemindedthat:
Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

Adjusting the Upper Basket

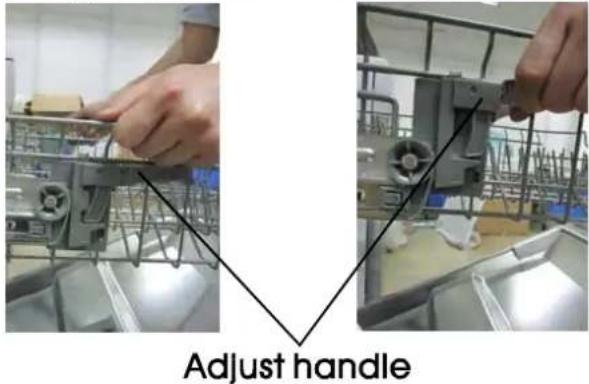

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by lifting up the basket for the upper position, and up press the handle to lower the upper basket, see the picture below:

Lift the basket for upper position

Up press the handle to lower the basket

Foldingback the cupshelves

For better stacking of pots and pans, the spikes can be folded down as shown in the pictureright.

Two technical diagrams showing structural steel framework with internal components and connections (no text or symbols)

Folding SpikesofLowerBasket

For better stacking of pots and pans, the spikes can be folded down as shown in the pictureright.

Hand holding a wire fence inside a grid-patterned container (no text or symbols visible)

Cutlery Tray

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

For a top quality cleaning, place the silverware in the basket making sure that:

■ They do not stick together.
■ Silverware is placed with the male face up.
■ Long utensils in the middle.

Technical diagram of a heat exchanger or cooling unit with grid-like structure and internal heat dissipation zones (no text or symbols)

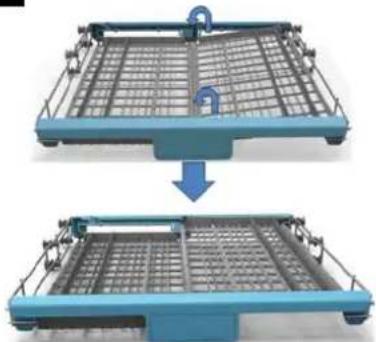

Cutlerytraycouldbehave5positions:

Mode 1

Blue and gray metal rack with grid pattern (no text or symbols visible)

Position one: lift the left basket up, both left and right basketsareslanting.

Mode2

Two identical blue metal shelving units with grid patterns, one showing a drop and the other a solid outline (no text or symbols)

Position two: adjust the left basket to lower position, left basket is flat and right basket is slanting.

Mode3

Two blue plastic shopping carts with metal grids, one being lifted by a blue arrow (no text or symbols visible)

Position three: lift the right basket up, both left and right basketsareflat.

Mode4

Two blue metal truss structures with grid patterns, one showing a downward arrow (no text or symbols)

Position Four: Move the right basket from right to left, two basket are overlapping.

Mode5

Two blue metal frame structures with grid patterns, one showing a downward arrow (no text or symbols)

Position Five: Remove the right basket from the tray, only hastheleftbasket.

5. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensive[27AH]	Fortheheaviestsoiled loads, such as pots, pans, casseroledishesanddishes thathavebeensittingwith driedfoodonthemfora while.	Pre-wash(50°C)Wash(65 °C)RinseRinseRinse(65)CDrying	5/27.5g(OrAll in1)	135	1.4	18
Heavy	Forheavilysoiledloads, suchaspots,plates,glasses and lightly soiledpans.	Pre-wash(45 °C)Wash(55 °C)RinseRinse(60 °C)Drying	5/27.5g(OrAll in1)	165	1.15	14.5
Normal(*AS/NZS2007.1)	For normally soiled loads, such as pots, plates,glasses and lightly soiled pans. standard daily cycle.	Pre-washWash(50 °C)RinseRinse(50)CDrying	5/27.5g(OrAll in1)	160	0.87	13.6
(HWX2)	Forlightly soiledloads, suchasglasses, crystal and finechina.	Pre-washwash(40°C)RinseRinse(60)CDrying	20g	115	0.8	14.5
1 Hour	Daily wash in only 1 hour. For lightly and normally soiled plates and pans for everyday.	Pre-wash(50 °C)Wash(60°C)Rinse(55°C)Drying	5/27.5g	60	0.9	10
	A shorter wash for lightly soiled loads that do not need drying.	Wash(40 °C)RinseRinse(45 °C)	20g	40	0.5	10.5

NOTE:

*AS/NZS 2007.1: This program is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1, as follows:

■ Capacity:14setting
■ Position Upperbasket: upperwheelsonrails
■ Rinseaidsetting:6
■ Open the door slightly 50mm to assist in drying of the dishes after every wash

Turning On the Appliance

Starting acycle wash

1 Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one (see the section entitled "LoadingtheDishwasher)."

2 Pour in the detergent (see the section entitled "Detergent and Rinse Aid").

3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure. 4 Open the door, press the ON/OFF Button, and the Power indicator light will turn on.

5 Press the program Button, the wash program will be changed as follows direction: Intensive->Heavy->Normal->Glass->1Hour->Rapid;

If a program is selected, the response light will light. Then close the door, the dishwasher beginstostart.

When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will be beeping every minute unless you press the Start/Pause button to start.

Change the Program

1 A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Press the Start/Pause button, the machine will be in standby state, press the program button for more than 3 seconds then you can change the program to the desired cycle setting (see the section entitled " Starting a wash cycle...").

NOTE:

If you open the door during a washcycle, the machine will pause. The program light will stop blinking and the buzzer will be beeping every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish?

Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.

PresstheStart/Pausebutton

4 Addforgottendishes.

2 Openthedooralittletostopthewashing.

5 Closethedoor

3 Afterthesprayarmsstopworking, you can open the door completely.

6 Pressthe Start/Pausebutton,thedishwasherwillrun after10seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ SwitchOfftheDishwasher

The program light is on but is not blinking, only in this case the programme has ended.
1. Switch off the dishwasher by pressing the Power button.
2. Turnoff the watertap.

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloadingthedishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

6. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

Mainfilter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilter 2

Larger items, such as pieces of bones or glass, that could block the drain and easily become trapped in the course filter. Toremove the items caught by the filter, gently squeeze the tapon the top of this filter and liftout.

Finefilter 3

This filter holds soil and food residues in the sumparea and prevents it from being redeposited on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damaged dishes and utensils.

1

Close-up of a transparent plastic tray with a curved handle and a central button, labeled 'Open' below (no other text or symbols)

Step 1: Turn the filter in anti-clockwise direction,

2

3D mechanical component diagram showing a housing with internal components and an upward arrow indicator (no text or symbols)

Step 2: lift the filter up

NOTE: When following this procedure from step 1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filtersystemwillbeinstalled.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters underrunning water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the previous page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Interior view of a rectangular electronic device with internal components and a black arrow pointing to a section (no visible text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows :

1. Cutoff the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

CleaningtheSprayArms

It is necessary to clean the spray arms regularly for hard waterchemicalswillclogthesprayarmjetsandbearings.

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

Toremovethelowerspray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ RemovethePlug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

Toclean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.

■ WhennotinUseforaLongTime

It is recommend that your run a washcycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seal to last longer and prevent odours from forming within the appliance.

■ MovingtheAppliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factor that cause odoursto form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

7. Installation instruction

Positioning the Appliance

▲Attention:

The installation of the pipes and electrical equipments should bedone by professionals.

Warning

ElectricalShockHazard Disconnect electrical power before installing dishwasher.

Failure to do so can result in death or electrical shock.

• Installation preparation

The installation position of dishwasher should be near the existing inlet and drain hoses and powercord.

One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Note: please check the accompanying installation accessories(hook for aesthetic panel,screw)

Please carefully read the installation instruction.

● Illustrations of cabinet dimensions and installation position of the dishwasher Preparations should be made before moving the dishwasher to the installation place.
1 Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1).
2 If dishwasher is installed at the corner of the cabinet, there should be some space (illustrated in figure 2) when the door is opened.

【Figure1】

Cabinet dimensions Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

【Figure2】

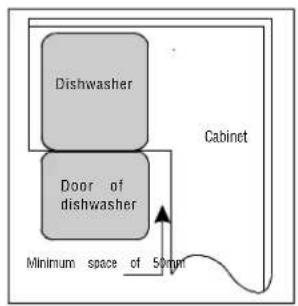

Minimum space when the door is opened

● Aesthetic panel's dimensions and installation

The aesthetic wooden panel could be processed according to the Figure 3.

【Figure3】

The aesthetic panel should be processed in accordance with the illustrated dimensions

(Unit: mm)

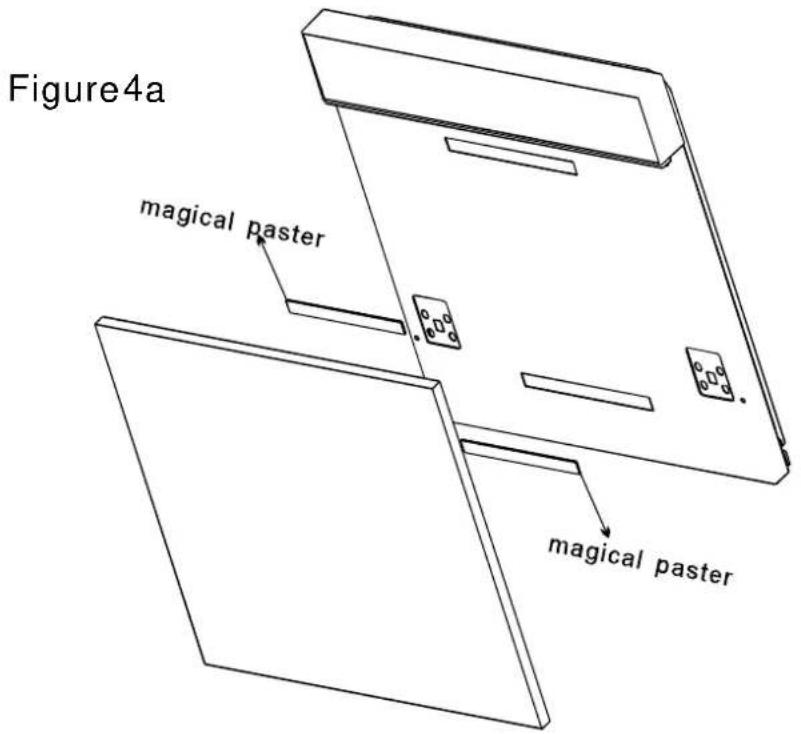

2 magical paster A and magical paster B be disjoined, magical paster A on the aesthetic wooden panel and felted magical paster B of the outer door of dishwasher(see figure 4a). After positioning of the panel, fix the panel onto the outer door by screws and bolts(See figure 4b)

【 】 Installation of aesthetic panel

【 】

Installation of aesthetic wooden panel

1. take away the four shortscrews
2. pinupthefourlong screws

Figure4b

- Tension adjustment of the doorspring

The doorsprings are set at the factory to the propertension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustortostrain or relax the steel cable (see figure 5).

Door spring tension is correct when the door remains horizontal in the fully opened position yet rises to a close with the slight lift of a finger.

【 】 Tensionadjustment of the doorspring

- Connectionofdrain hoses

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

- Dishwasherinstallationsteps

1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets.
2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right doors springs. Failure to do this could cause damage to your dishwasher (Illustration 2).
3 Connect the inlet hose to the cold water supply.
4 Connect the drain hose. Refer to diagram. (Figure 6)
5 Connectthepowercord.
6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with hedge of work surface.
7 Place the dishwasher into position.(Illustration 4)
8 Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust the front feet, use a flatscrew driver and turn the front feet until the dishwasher is level (Illustration 5B).
9 The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws (Illustration 6).
B. Marble or granite work top: Fix the side with Screw. (Illustration 7).

Dishwasher must be level for proper dish rack operation and wash performance.

1 Place aspiritlelondoorandracktrackinsidethetubasshowntocheckthatthe dishwasherislevel.
2 level the dishwasher by adjusting the three levelling legs individually.
3 When level the dishwasher, please pay attention not to let the dishwashertipover.

【 】

Illustration of feet adjustment

NOTE:

The maximum adjustment height of the feet is 50 mm.

About Electricity Connecting

WARNING!

For personal safety: DONOTUSEANEXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE. DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING CONNECTIONFROMTHEPOWERCORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠️ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being correspond to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

▲WARNING!

Improper connection of the equipment-grounding conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it is not fit for the outlet. Have a proper outlet installed by a qualified electrician.

WARNING!

■ Improperconnectionoftheequipmentearthingconductorcanresultintheriskofan electricshock.
Checkwithaqualifiedelectricianorservicerepresentativeifyouareindoubtwhetherthe applianceisproperlyearthed.
■ Donotmodifytheplugprovidedwiththeappliance. If theplugdoesnotfitproperlytothe outlet, please have a qualified electriciantoinstallaproperoutlet.

Water Connection

How to Connect the safety supply hose

Line drawing of a hand using a tool to press or install a mechanical component (no text or symbols)

The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.

Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice.

1 PullThesafetysupplyhosescompletelyoutfromthestoragecompartmentlocatedatrearof dishwasher.
2 Tighten the screws of the safety supply hose to the faucet with thread 3/4inch.
3 Turnwaterfullyonbeforestartingthedishwasher.

ABOUT THE SAFETY SUPPLY HOSE.

The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

▲ WARNING!

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to Disconnect the safety supply hose

1 Turnoffthewater.
2 Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severesplashing.
3 Unscrewthesafetysupplyhosefromthefaucet.

COLD WATER CONNECTION

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damagethe appliance.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 Thedishwasher is level and fixed properly
2 The inlet valve is open
3 There is no leakage at the connections of the conducts
4 The wires are tightly connected
5 Thepowerisswitchedon
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

	Problem	Possible Causes What To Do
	Dishwasher doesn't start	Fuseblown,orthehome circuitbreakerhasbeen triggered.	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
		Powersupplyisnot turnedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket.
Technical problems		Errorcode:E1; Waterpressureislow	Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon.
		Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
	water not pumped from dishwasher	Kinkindrainhose	Checkdrainhose.
		Filterclogged	Checkthefilter (seesectiontitled)"CleaningTheFilter"
		Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell.Iftheproblemisthekitchensinknotdraining,youmay need aplumberratherthanaservicemanfordishwashers.
General problems	Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoidsuds.Ifthisoccurs,openthedishwasherandletsudsevaporate.Add1gallonofcoldwatertothetub.Closeandlatchthe dishwasher,thenselectanycycle.Dishwasherwilldrain outthewateratthefirststep. Openthodoorafterthe draininghasstoppedandcheckifthesudshave disappeared.Repeatifnecessary.
		Spilledrinse-aid	Alwayswipeuprinse-aidspillsimmediately.
	Stained tub interior	Detergentwith colourantwasused	Makesurethatthedetergentistheonewithout colourant.
	White film on inside surface	Hardwaterminerals	Tocleantheinterior,useadampspongewith dishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerhandishwasher detergentfortheriskoffoamingorsuds.
	There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.	The itemsshouldbe corrosionresistant.
Noise	Knocking noise in the wash cabinet	Asprayarmis knockingagainst aniteminabasket	Interrupttheprogramme,andrearrangetheitems whichareobstructingthespayarm.r
	Rattling noise in the wash cabinet	Itemsofcrockery arelooseinthe washcabinet	Interrupttheprogramme,andrearrangetheitemsofcrockery.
	Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-section of thepiping.	Thishasnoinfluenceonthedishwasherfunction. ifindoubt,contactasuitablyqualifiedplumber.
	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemsareblocking thepathofspayarms.r	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination in the base of wash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect ashortercycletowashtheglasswareandtoget themclean.
	Black or grey marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminatethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Toolittlerinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
		Dishesareremoved toosoon	Donotemptyyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyonce thedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogram hasbeenselected	Inshortprogramthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose aprogramwithalongwashingtime.
		Useofcutlerywith alow-qualitycoating	Waterdrainageismoredifficultwiththeseitems.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
The Rapid light flicker fleetly	Longerinlettime.	Faucetsisnotopened,orwaterintakeis restricted,orwaterpressureistoolow.
The Glass light flicker fleetly	Overflow.	Someelementofdishwasherleaks.lem

WARNING!

■ Ifoverflowoccurs,turnoffthemainwatersupplybeforecallingservice.
■ Ifthereiswaterinthebasepanbecauseofanoverfillorsmallleak, thewatershouldberemovedbeforererestartingthedishwasher.

Technical Information

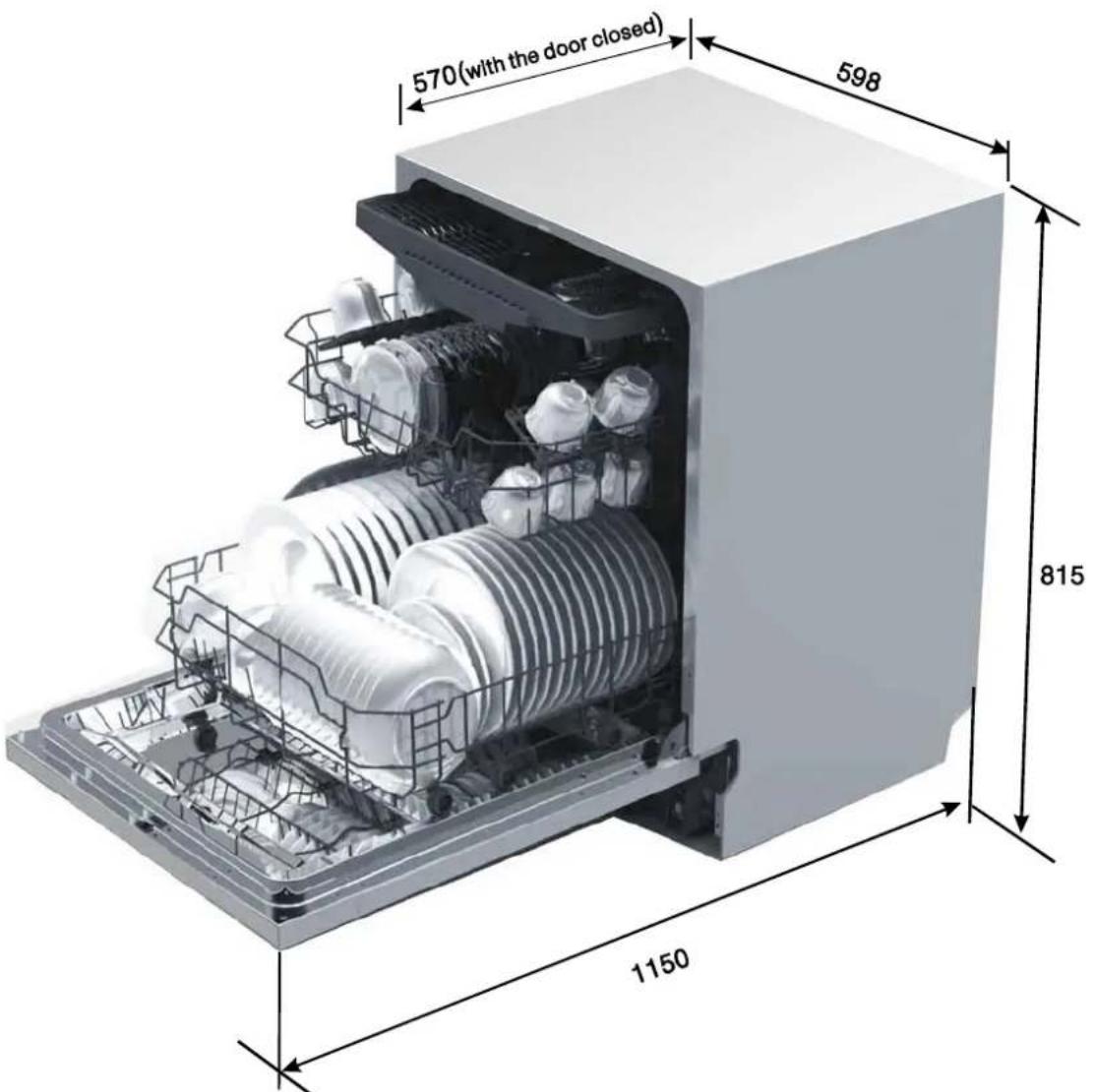

Height:815mm
Width:598mm
Depth:570mm	(withthedoorclosed)
Water pressure:	0.04-1.0MPa
Power supply:	see rating label
Capacity:14placesettings

Loading the baskets according to (*AS/NZS 2007.1):

Information for comparability tests in accordance with (*AS/NZS 2007.1) ■ Voltage:220-240V/50Hz ■ Capacity: 14 place settings ■ Position of the upper basket: lower ■ Programme: Normal ■ Detergent(Pre/main): 5 g/27.5 g ■ Rinse aid setting: 6

1. Upper basket:


1. Lower basket:
