Product Type	Built-in Dishwasher
Brand	BLANCO
Model	DWF45X
Power Supply	220-240 V, 10 A, 1900-2200 W
Heat Output	1800 W
Water Pressure Range	0.3 - 10 bar
Salt Container Capacity	Approx. 2 kg
Detergent Dispenser Capacity	40 cm³
Rinse Aid Dispenser Setting	Adjustable, levels 1-6
Water Inlet Connection	3/4 inch external thread
Drainage Height	50-100 cm above floor
Max Drainage Hose Length	4 m

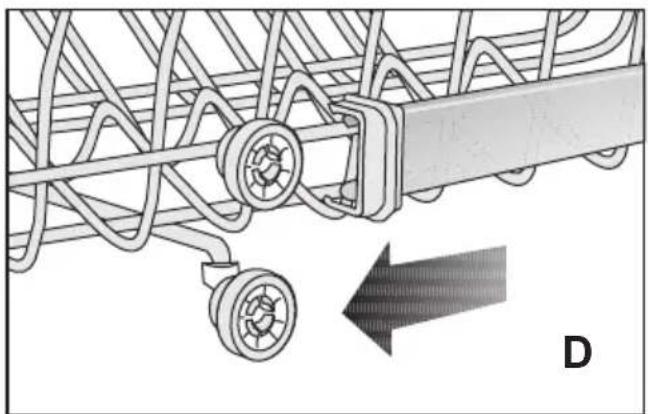

Upper Basket Height Adjustment	Yes, 2 positions

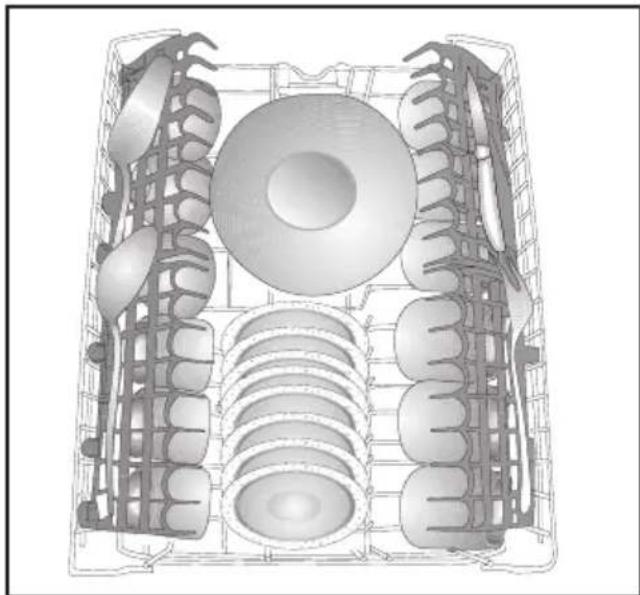

Folding Plate Support Rods	Yes, 2 sections
Cutlery Basket	Yes
Filter System	Main filter, coarse filter, micro filter
Spray Arms	Upper and lower, removable for cleaning
Drying System	Turbo fan heat drying (depending on model)
Safety Features	Child safety warnings, AQUASAFE+ leak protection (if equipped)
Warranty	2 years (parts and labor)
Approved Use	Domestic use

Frequently Asked Questions - DWF45X BLANCO

What should I do if my dishwasher does not start?

Check that the mains plug is properly connected, all fuses are working, the water supply is fully turned on, the door is closed firmly, and you have pressed the On/Off button. Also ensure the filter on the water intake is not clogged.

Why are my dishes not clean after a cycle?

Possible causes include improper loading, incorrect program selection, blocked spray arms, clogged filters, inadequate detergent or rinse aid, or overloading. Refer to the manual for loading suggestions and program selection.

How often should I clean the filters?

Clean the filters regularly. The manual recommends removing the complete filter system and washing it under running water from time to time. The frequency depends on usage, but monthly cleaning is a good practice.

Can I use regular table salt instead of dishwasher salt?

No, use only special dishwasher salt. Table salt does not dissolve properly and can damage the water softener. The salt container holds approx. 2 kg of dishwasher salt.

Why is there water remaining in the dishwasher after a cycle?

This could be due to clogged filters, a blocked or twisted drainage hose, or improper siphon connection. Check and clean the filters, ensure the drainage hose is not kinked, and verify the drainage height is between 50 and 100 cm.

How do I adjust the rinse aid dosage?

Open the rinse aid dispenser cap, then rotate the dispenser regulator (levels 1-6). The factory setting is 3. Increase if watermarks are visible, decrease if streaks appear. Use only dishwasher rinse aid.

What should I not wash in the dishwasher?

Avoid washing rust-sensitive steel parts, wooden or horn-handled cutlery, non-heat-resistant plastics, glued items, copper/tin/aluminium items, decorative glass, lead crystal, art and craft items, and items soiled with ash, wax, varnish, paints, or chemicals.

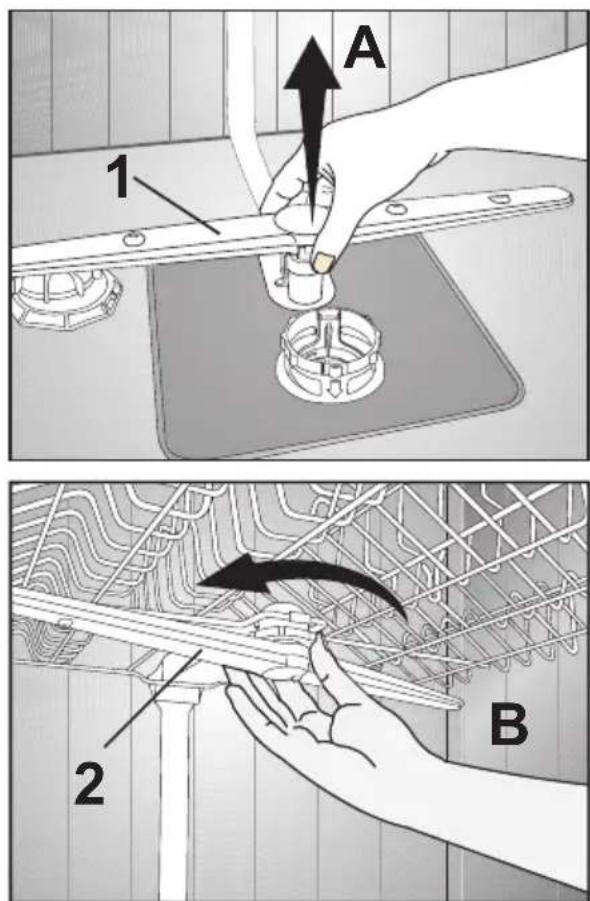

How do I clean the spray arms?

Remove the lower basket, then pull off the lower spray arm upward. For the upper spray arm, loosen the fastening screw and pull it off. Clean both under running water and replace. Ensure screws are tightened.

What does the AQUASAFE+ system do?

AQUASAFE+ is a water protection system that prevents water damage from the inlet hose. It contains electrical components; do not immerse the valve box in water. If damaged, unplug the appliance and do not shorten or lengthen the hose.

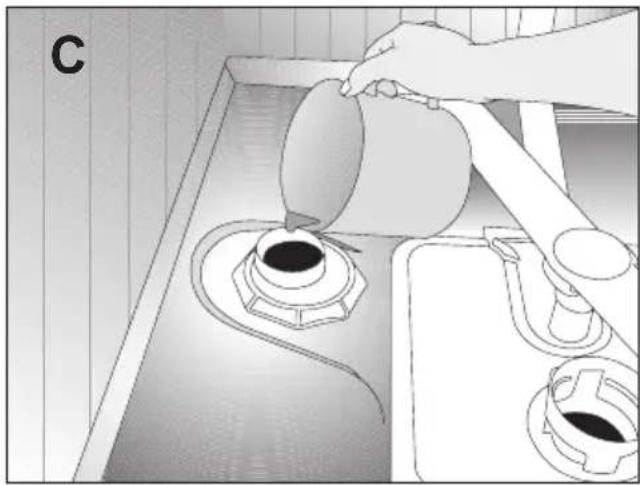

How do I fill the salt container for the first time?

Remove the lower basket, open the salt container cap, pour 1 liter of water into the container, then add approximately 2 kg of dishwasher salt using the provided funnel. Close the cap tightly and run a wash program immediately.

USER MANUAL DWF45X BLANCO

Instructions for the Use and Care and Installation of

DWF45X

Dishwasher

Dear customer,

Please read carefully right through this instruction booklet before installing or operating your dishwasher. The following instructions should prevent the risk of personal injury and/or damage to the appliance.

Please keep these documents in a safe place for later reference.

This operating manual has been written for several different machines, and some of the features mentioned here may not apply to your particular model.

Symbols and legend

Following symbols are included in the user manual:

i Important information and tips about usage.

⚠ Warning for hazardous situations with respect to security of life and property.

⚠ Warning for electrical voltage and shock hazard.

TABLE OF CONTENTS

1 Getting To Know Your Machine 3

View of the Machine 3

2 Safety Instructions 4

Before Installation 4

Before First Use 4

Child Safety 4

Technical Specifications 4

For daily operation 5

Problems 5

What should not be washed in

your dishwasher 5

3 Directions for Assembly 6

Safety notes for installation 6

Installing Your Dishwasher 6

Water connection 7

Connect water inlet hose 7

Water drainage 8

Electrical connection 8

Disposal 8

4 Using Your Dishwasher 9

Filling the dishwasher salt 9

When operating for the first time: 10

Filling the Rinse Aid Dispenser 11

Filling the Detergent Dispenser 11

Detergent 12

Multipurpose Detergents 13

Loading the dishwasher 13

Suggestions for loading the

dishwasher 14

Loading suggestions 15

5 How to clean your dishwasher 17

Cleaning the filters 17

Cleaning the spray arms 18

6 Troubleshooting: 19

What to do if the dishwasher will not run 19

The cleaning results are unsatisfactory 19

Service 24

1 Getting To Know Your Machine

View of the Machine

1. Upper dish basket with shelf
2. Guide rail for the upper dish basket
3. Salt container
4. Cutlery basket
5. Detergent dispenser
6. Door
7. Control panel
8. Filters
9. Lower sprayer arm
10. Lower basket
11. Upper sprayer arm
12. Housing (depends on the model)

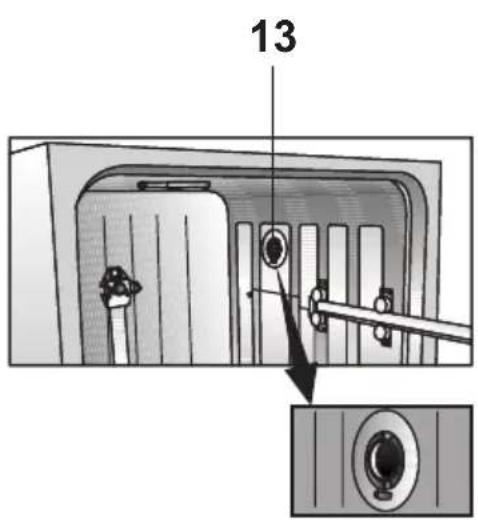

13. Turbo fan heat drying system (depends on the model)

Technical Specifications

Permitted water pressure: 0,3–10

bar (= 3 - 100 N/cm² = 0,01-1,0Mpa)

Electrical connection: 220-240 Volts,

10 Amps (see type plate)

Output: 1900-2200 W

Heat output: 1800 W

This device corresponds to the following EU directives:

2006/95/EC: Low Voltage

Directive

2004/108/EC: EMV Directive

DIN EN 50242: Electrical dishwasher for home use Testing procedures for practical service conditions

Because we continually strive to

improve our products, we may change our specifications and designs without prior notice.

Note for Testing Institutes

The necessary information for performance testing will be provided upon request. The request can be done by e-mail through:

[e-mail]

Please do not forget to write the model code and stock code information of the appliance besides your contact information in the e-mail. The model code and stock code information can be found on the rating label, which is placed on the side of the door.

2 Safety Instructions

Before Installation

Check the appliance for transit damage. Never install or use damaged machines. If in doubt, contact your supplier.

Before First Use

• See Notes for Installation on page 6.
• Have the grounding system installed by a qualified electrician. The manufacturer cannot be held liable for any damage caused by operating the appliance without proper grounding.
• Before operating the system, please check that the information on the type plate corresponds to the information on your power supply.
• The dishwasher must be disconnected from the mains

during installation.

• The appliance must not be connected to the mains using an extension cable. Extension cables do not provide the necessary safety (e.g. danger of overheating).
  • Always use the original plug delivered with the appliance.
• The plug must be freely accessible after the appliance has been installed.

⚠️ Child Safety

• Do not allow children to play with the appliance.
• Dishwasher detergents are caustic and may cause injury to the eyes, mouth and throat. Please note the safety instructions provided by the manufacturers of the detergents.
  • Never leave children unsupervised

while the appliance is open, as the appliance may still contain detergent leftovers.

• The water in the dishwasher is not drinking water. Danger of caustic injuries.
• Always place long and sharp/ pointed objects (e.g. serving forks, bread knives) into the cutlery basket with the pointed end down or flat on the upper basket to avoid possible injuries.

⚠ For daily operation

• Use your appliance only for the following domestic uses: Washing household dishes.
• Do not use chemical solvents in the appliance; there is a danger of explosion.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not sit or stand on the opened door or place other objects on it. The appliance may tip over.
• Do not open the door while the appliance is running, as hot water or steam may escape.
• Do not leave the door open – an open door can be a hazard.
• If you need to move your appliance, do it in upright position and hold from the rear side. Tilting the appliance onto its front side may cause the electronic parts in it to get wet and damaged.

Problems

- Repairs and modifications to the appliance may only be carried out by qualified customer service personnel. - In the event of a problem, or before performing a repair, disconnect the appliance from the mains supply:

- disconnect the appliance by pulling out the mains plug - shut off the power.

- Do not pull on the cable – pull on the plug. Turn off the water supply tap.

What should not be washed in your dishwasher

• Rust sensitive steel parts
- Cutlery with wooden or horn handles
- Cutlery with mother of pearl or porcelain handles
• Non heat resistant plastic parts
• No glued dish or cutlery parts
- No items made out of copper, tin or aluminium
- Sensitive decorative glasses and porcelain parts
- Lead crystal glasses
• Art and crafted articles
- Aluminium and silver tend to discolour
- Glass and crystal articles may lose their shine over time
• Sponges and dishcloths

Do not wash items soiled with cigarette ash, candle wax, varnish, paints or chemicals.
Recommendation: When buying new dishes, note whether they are suitable for the dishwasher. (marked as dishwasher proof)

3

Directions for Assembly

Safety notes for installation

Prior to installing and using your appliance, please check it for possible transit damage.

If the appliance is damaged, please contact your supplier.

⚠️ Never install or use a damaged appliance.

The following directions must be followed to connect the dishwasher properly.

Before operating your dishwasher, please ensure that the information on the type plate corresponds to the current and voltage of your power supply.

The appliance may only be connected using a properly grounded socket. Ensure that the appliance is grounded according to regulations. The grounded socket must be easily accessible and close to the appliance.

⚠️ Do not use extension cables or multiple adapters, as this can lead to overheating, which can be a fire hazard.

⚠️ Hardwiring may only be carried out by a qualified electrician.

⚠️ Check the power cable, the water inlet hose and the drainage hose. Damaged parts may only be replaced by customer service personnel or by a qualified electrical service expert.

Installing Your Dishwasher

• Choose a suitable location for your dishwasher. Take care to ensure that the appliance is stable on a level surface.
• Unevenness in the floor can be equalised by adjusting the screw feet. When the appliance is standing correctly, the door can be closed without difficulty.
• Water inlet and drainage hoses must be positioned so that they can move freely without bending or squeezing.
• The appliance may not be installed in a room where the temperature is below 0° Celsius.

Water connection

⚠️ Not recommended to run with hot water.

• There are two different types of water inlet hoses:
• Cold water inlet hose (up to 25°C)
• Hot water inlet hose (up to 60°C) please check which one is applicable to your model.

If you are willing to connect your machine to natural energy resources or to the central hot water supply, first check out whether your water inlet hose type is suitable by checking the temperature values written on the hose. If your hose is not suitable, apply to your authorized service to change the hose.

- The dishwasher may not be connected to open warm water devices or flow-through water heaters.

Permitted water pressure:

Lowest permitted water pressure: 0.3 bars = 3 N/cm ² = 30 kPa

When the water pressure is below 1 bar, please contact your technician.

Highest permitted water pressure: 10 bar = 100N/cm ² = 1Mpa

When the water pressure is above 10 bars, a pressure reduction valve must be installed (available in trade supply stores).

Connect water inlet hose

Ensure that the water inlet hose is not bent or squeezed. Do not install a used hose set.

connect the water inlet hose to a water tap with a 3/4 inch external thread. If required, use a filter insert to filter deposits from the pipes.

Check that the connection does not leak.

For safety reasons, turn off the tap after every rinse process.

AQUASAFE+ (some models)

The AQUASAFE+ System protects against water damage which may be caused at the water inlet hose.

Do not immerse the system's valve box into water; it contains electrical components.
⚠ In case of damage, pull out the power supply plug.
Do not shorten or lengthen the hose insert as it contains electrical cables and components.

Use a screw-on hose connector to

Water drainage

Connecting the drainage hose.

Take care to ensure that the drainage hose is not bent or squeezed.

Check that the drainage hose is firmly seated.

Extension hoses

If a hose extension is required, a drainage hose of equal quality must be used.

i The maximum length must not exceed 4m. Using a longer hose will produce poorer cleaning results.

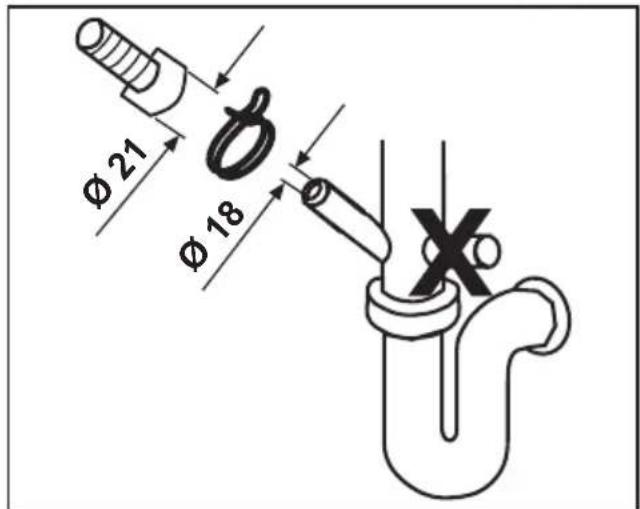

Siphon connection

The drainage height must be between 50 and 100cm above the floor.

Use hose clamps to fasten the drainage hose to the siphon.

Electrical connection

Please refer to the type plate for information on current type, mains voltage, and fuse protection.

The type plate is located on the inside of the door.

The mains plug must be freely accessible after installation.

Power cables and insulated cables must not be accessible (exposed) after installation.

Disposal

Packaging

The packaging and some parts of your appliance are made from recyclable materials. These materials are marked with the recycling symbol and the relevant material type (PE, PS, POM).

Before operating your appliance, remove the packaging material and dispose of it in accordance with regulations.

⚠️ Packaging materials may be dangerous to children. Reusable substances may be dropped off at your local disposal facilities. You may obtain further information from your local authorities and disposal facilities.

Used appliances – Environmental notice

This product must not be disposed of with your regular household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. This is indicated by a symbol to be found on the product, it's packaging or in the manual.

Materials used are recyclable according to their labelling. Reuse, recycling of materials and further reutilization of used products are important contributions to protect our environment.

Please ask your local town council for the nearest collection point.

⚠️ To avoid possible dangers, disable your waste appliance prior to discarding it. Pull the mains plug and cut the power cord. Disable any door locks.

4 Using Your Dishwasher

⚠ The electricity and water connections of the dishwater must be in compliance with the instructions in this booklet.

Filling the dishwasher salt

i Only use special dishwasher salt in your appliance. The manufacturer is not liable for damage resulting from the use of the wrong type of salt.

Use Diswasher salt only. Moderate or coarse grained and easily soluble salts are recommended. Don't use table salt, or any other type, these types of salt

do not dissolve in water easily and will damage the softening device.

Remove the lower basket from the appliance.

Open the screw-in cap of the salt container by turning it counter clockwise (fig. A,B).

When operating for the first time:

• Pour 1 litre of water into the salt container (Fig. C).
• Pour the salt into the container with the aid of the salt funnel provided (Fig. D).
• Pour in enough salt to fill the container. The container holds approx. 2 kg.
• To speed up the rate of dissolution of salt in water, stir it with a spoon.
• Close the cap tightly.
• Begin a washing program immediately after filling the salt container. The washing program prevents damage to the appliance which may be caused by any spilled salt solution. After the first washing cycle, the salt level indicator light will go out.

Depending on the particle sizes of different salt brands in the market, tablet properties and water hardness, dissolution of the salt in water may take a couple of hours.

So, the salt indicator continues lighting for a while after filling salt into the machine. (For models with a salt indicator)

Technical line drawing of a mechanical component on a workbench, no text or symbols present

Illustration of a kitchen sink with a hand adjusting a valve, showing the knob and three switches (no text or symbols present)

Illustration of a hand pouring liquid into a gas stove (no text or symbols)

Illustration of a kitchen scene with a funnel pouring liquid from a paper into a stove (no text or symbols)

Filling the Rinse Aid Dispenser

Rinse aids allow washing water to rinse off more cleanly and prevent watermarks or streaks on the dishes. Only use rinse aid designed for use in dishwashers.

If you use "2 in 1" or "3 in 1" detergents / tablets, you do not need an additional rinse aid.

Open the rinse aid dispenser by pressing the locking lever (B)

Carefully pour in rinse aid to the MAX mark. Close the lid until it clicks (3).

Carefully wipe off spilled rinse aid. Excessive rinse aid causes excessive foam formation, which may hinder cleaning.

Set the dose of rinse aid

The dose of rinse aid to be used can be set by means of the dispenser regulator (between levels 1 and 6) (4). Your appliance is pre-set at the factory to level 3.

Only change the setting if the following applies after washing:

• Watermarks are visible on the dishes: Set dosage higher
- Streaks are visible on the dishes: Set dosage lower

Filling the Detergent Dispenser

i Only use detergents formulated for use in dishwashers.

Do not put solvents into the washing compartment; there is the risk of explosion!

Open the detergent container by pushing the locking lever to the right (A).

The lines on the inside of the detergent container will help you measure the correct amount of detergent.

The detergent container holds a total of 40 cm ³ of detergent (1).

When the dishwasher is fully loaded and the dishes are very dirty, we recommend filling the detergent container up to the 25 cm ³ mark. When the dishes are less dirty, it is generally sufficient to fill the detergent up to the 15 cm ³ mark.

If your dishes have been in the dishwasher for some time without being washed, you should also fill the small detergent container up to the line (2).

The programme table shows the amounts of detergent required for the different wash programmes.

These may differ according to how dirty the dishes are and the water hardness in your location.

Detergent

Please use detergents produced specially for the dishwashers in your machine.

Keep the opened detergent packages in a cool and dry place where children can not reach.

We recommend you not to use detergents that contain chlorine and phosphate as they are harmful for the environment. Detergents that contain enzymes are effective in temperatures below 50 °C and help to obtain the same washing efficiency as obtained at higher temperatures.

Put the detergent into the detergent dispenser just before operating the machine.

Please contact the manufacturer to get detailed information about the detergent you are using.

Always use powder detergents in short programs without pre-washing. Fill in the powder detergent into the compartment nr. 2 with a grid cover as shown in the picture and close the detergent box lid. When completely full, this compartment will contain 6 g of powder detergent.

Do not use tablet detergents in short programs since the solubility of them changes depending on the temperature and time.

In programs with pre-washing and high temperature, in which you may use tablet detergents, make sure that the detergent box lid is closed firmly.

Excessive usage of powder detergents can cause the detergent not dissolve completely and can also cause scratches on the glassware.

Multipurpose Detergents

The best washing results in dishwashers is obtained by using detergent, rinse aid and water softening salt individually.

New products of the detergent producers what they call as "Multipurpose Detergent" can act as water softening salt and/or rinse aid in addition to acting as a detergent. Some types of these detergents can also contain special-purpose washing chemicals such as glass and stainless steel protectors.

Multipurpose detergents commonly found in the market:

2in1: Those contain detergent, rinse aid or water softening salt.
3in1: Those contain detergent, rinse aid and water softening salt.
4in1: Those containing glass protectors in addition to detergent, rinse aid and water softening salt.
5in1: Those containing glass and stainless steel protectors in addition to detergent, rinse aid and water softening salt.

Multipurpose detergents give satisfying results only under certain usage conditions. Observe the instructions of the detergent manufacturer on the package when using such detergents.

Contact the detergent producer if your dishes are wet and/or if you notice lime spots particularly on your glasses after the washing program is over.

When you give up using such detergents:

Make sure that salt and rinse aid compartments are full.

Set the water hardness to its highest degree and perform an empty run.

After the empty washing review the user manual and readjust the water hardness level so as to suit your water supply.

Make the appropriate rinse aid settings.

Depending on the model, salt indicator and/or rinse aid indicator should be enabled again if they are disabled before.

Loading the dishwasher General:

Before you load the dishwasher with dishes

• Remove coarse food leftovers
• Place all containers such as cups, glasses and pots into the machine with the opening facing downwards (so that no water can collect)
• Dishes and cutlery may not be placed above each other
  • Glasses may not touch
• The movement of the spray arms must not be hindered
• Place all large and very dirty items in the lower basket.
• Small and light items can go into the upper basket.
• Long and narrow items are placed in the middle of the baskets.

⚠ Knives and other utensils with sharp tips and edges must be placed horizontally into the upper basket due to risk of injury.

i Please do not overload your dishwasher and pay attention to the notes regarding dishes which are suited to the dishwasher. Only in this manner will you obtain optimal washing results with a sensible use of energy.

i Start unloading the dishes from the lower basket, then switch to the upper basket.

Suggestions for loading the dishwasher

Use the lower basket for plates, bowls, pots etc.

Cross-sectional diagram of a kitchen appliance showing internal components like a bowl, spoon, and dish (no text or labels)

2 folding plate support rods (depending on the model)

There are two separate "folding plate support rods" in the lower basket of your dishwasher designed to allow you more space to accommodate saucepans and large bowls in the lower basket. You can either fold each section (1, 2) individually or, all at once, to create a large empty space. Simply press the handgrips (A) and fold them down.

Cutlery basket

Rack

Cross-sectional technical drawing of a mechanical assembly (no text or labels visible)

Line drawing of a woven basket with handles and a spoon, no text or symbols present

Diagram of a conveyor belt system with directional arrows indicating flow or movement (no text or symbols)

Loading suggestions

Load the upper basket with dessert plates, cups, glasses etc.

Diagram of a mechanical assembly with multiple spherical components arranged in a grid (no text or labels)

Height setting with empty basket (depends on the model)

In this model, the height setting of the upper basket may be changed using the wheels which are mounted at two different heights.

Release the latches on both the right and left tracks of the upper basket by pushing them outwards (C).

Pull out the basket out completely (D).

Place the basket back into the tracks at the desired height (E).

Push the latches back into the correct position.

Illustration of a hand holding a wire mesh component with an arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a wheel and rope system with directional arrow (no text or symbols)

Diagram of a mechanical assembly with spring-loaded components and directional arrow (no text or symbols)

5 How to clean your dishwasher

Cleaning your machine at regular intervals ensures longer product life and reduces the risk of recurring problems.

⚠ Always unplug the machine and turn off the water supply before cleaning. Use a gentle household cleaner for the outside and the door seals. Clean the control panel only with a moist cloth and clear water.

Cleaning the filters

Clean the filters and the spray arms regularly. A dirty machine will have a negative effect on the cleaning results.

1. Main filter
2. Coarse filter
3. Micro filter
4. Remove the lower basket from the machine.
5. Turn the coarse filter to the right and pull it out in an upward direction (A).
6. Pull out the main filter (B).
7. Press on the two tongues of the coarse filter and remove the micro filter (C).
8. Clean the filters thoroughly under running water. Use a brush if necessary.
9. Replace main fitler.
10. Replace the micro filter and the coarse filter into the main filter. Twist it clockwise until it clicks in.

Do not operate your dishwasher without a filter. Ensure that your filters are correctly installed. Clean the filters regularly.

Cleaning the spray arms

Dirt or calcium residue may block the nozzles on the spray arms. For this reason, regularly check the spray nozzles.

1. Lower spray arm
2. Upper spray arm
3. Remove the lower basket from the machine.
4. Pull off the lower spray arm in an upward direction (A).
5. Loosen the fastening screw of the upper spray arm and pull off the spray arm (B).
6. Clean the spray arms under running water.
7. Replace the spray arms.

i Ensure that the fastening screws are screwed tight.

Cleaning the filter inset in the water inlet hose (depends on the model)

Dirt from deposits in the water pipes is prevented by a filter in the water inlet hose. Check the filter and the water inlet from time to time.

1. Close the water tap and unscrew the water inlet hose.
2. Take out the filter and clean it under running water.
3. Replace the cleaned filter.
4. Fasten the water inlet hose to the water tap again.

What to do if the dishwasher will not run

• Check that the mains plug is properly connected.
  • Are all fuses working?
  • Is the water supply fully turned on?
  • Is the dishwasher door closed firmly?
  • Have you pressed the On/Off button?
  • Is the filter on the water intake and dishwasher clogged?

The cleaning results are unsatisfactory

Hand holding a white bowl containing liquid, with industrial equipment in the background (no visible text or symbols)

Uncleaned Dishes

Disorderly placement

- Load your dishes as described in the manual.

Program selection

- For products with program selecting feature, choose a longer program that washes in higher temperatures.

Blocked impellers

- Prior to starting the program, ensure by turning by hand that the upper and lower impellers are freely rotating.

Clogged filters

- From time to time, remove the complete filter system as shown in the manual and wash it under flowing water.

Misplaced or displaced filters

- After washing the filter system, replace them as shown in the manual.

Clogged impeller holes

- Take out and clean the impellers from time to time as shown in the figure.

Overloading the baskets

- Do not overload the baskets in excess of their capacity

Detergent kept under unsuitable conditions

- If you are using powder detergents, do not store them in humid places after you open their boxes. Keep them in a closed container, if possible. For ease-of-storing, we recommend you to use tablet detergents.

Inadequate detergent

- If you are using powder detergents, adjust the amount of detergent according to the soiling degree of your dishes and/or program definitions. We recommend you to use tablet detergents for optimum results.

Inadequate rinse aid

- Increase rinse aid setting or add rinse aid into rinse aid compartment.

Unsealed detergent dispenser lid

- Always ensure that the detergent compartment lid is closed tightly after every detergent filling process.

Drying

Disorderly placement

- Load your dishes as described in the manual.

Inadequate rinse aid

- Increase rinse aid setting or add rinse aid into rinse aid compartment.

Unloading the machine right after dishwashing

- Do not unload your dishwasher right after washing process is completed. Slightly open the door and wait for evacuation of the inside steam for a while. Unload the dishes after the pieces cool down to a touchable level. Start unloading process from the lower basket.

Program Selection

- For products with program selecting feature, choose a longer program that washes in higher temperatures.

Close-up of a hand holding a cup filled with light-colored tea, blurred green background (no text or symbols visible)

Tea, Coffee And Lipstick Stains

Program Selection

- For products with program selecting feature, choose a longer program that washes in higher temperatures.

Detergent kept under unsuitable conditions

• If you are using powder detergents, do not store them in humid places after you open their boxes. Keep them in a closed container, if possible.
• For ease-of-storing, we recommend you to use tablet detergents.

Usage of silverware-kitchenware with corrupted surface quality

- Silverware or kitchenware with corrupted surface quality should not be washed in dishwashers.

Close-up of a wine glass against a solid blue background (no text or symbols visible)

Lime Stains, Hazy Look

Inadequate rinse aid

- Increase rinse aid setting or add rinse aid into rinse aid compartment.

Insufficient water softening

- In products equipped with water softening setting, water softening should be properly set in accordance with the hardness of the supply water. Add salt into the salt container, if necessary.

Salt leakage\*

- Use the supplied salt funnel while filling in softening salt. Make sure that the salt box cover is tightly closed after finishing the filling process. Run a washing program to clean up the salts spilled in the machine. Recheck the salt box cover after the program is completed.

Metallic Look In Bluish Rainbow Color

Excessive rinse aid

- Lower rinse aid setting.

Close-up of a gloved hand holding a transparent glass with liquid, against a dark blue background (no text or symbols visible)

Hazy, Milky-Dish Look And Bluish / Rainbow Color Appearance In Glassware When They Are Hold Against Light

Glass corrosion due to soft water

- In products equipped with water softening setting, water softening should be properly set in accordance with the hardness of the supply water. If your supply water is soft (<5dH), do not use salt. For products with program selecting feature, choose programs that wash in higher temperatures (e.g. 60-65°C).

Kitchenware containing Aluminum

- Kitchenware that contains aluminum should not be washed in dishwashers.

Salt leakage\*

- Use the supplied salt funnel while filling in softening salt. Make sure that the salt box cover is tightly closed after finishing the filling process. Run a washing program to clean up the salts spilled in the machine. Recheck the salt box cover after the program is completed.

Low water softening setting, inadequate salt\*

- In products equipped with water softening setting, water softening should be properly set in accordance with the hardness of the supply water. Add salt into the salt container, if necessary.

Detergent kept under unsuitable conditions

- If you are using powder detergents, do not store them in humid places after you open their boxes. Keep them in a closed container, if possible. For ease-of-storing, we recommend you to use tablet detergents.

Overloading the baskets

- In order to avoid scratches and breaks in glasses and other glass tableware because of collision with each other during washing process arising from their placement, do not overload the baskets in excess of their capacity.

Close-up of two metallic surgical instruments against a blue background (no text or symbols visible)

Rusts, Blackening And Corruption Of Surface

Unsealed closing of the salt box cover\*

- Salt may cause oxidation on metal surfaces. Use the supplied salt funnel while filling in softening salt. Make sure that the salt box cover is tightly closed after finishing the filling process. Run a washing program to clean up the salts spilled in the machine. Recheck the salt box cover after the program is completed.

Grounding line

- Check if your dishwasher is connected to the actual grounding line. Otherwise, the static electric created in the dishwasher may remove the protective coating on metal surfaces and cause blackening and corruption.

White plastic mechanical component with internal cavities and a small button, placed on a tray (no visible text or symbols)

Detergent Remains In The Detergent Dispenser

Damp detergent compartment

- Make sure that the detergent dispenser is well dried prior to filling it with detergent.

Putting detergent in the detergent dispenser long before washing

- Take care that detergent is put shortly before startup of washing.

Blocking the opening of detergent dispenser lid dwing washing

- Ensure that the lid of detergent dispenser is not blocked by improper loaded dishes. The detergent dispenser lid should op/en without any block during washing.

Detergent kept under unsuitable conditions

- If you are using powder detergents, do not store them in humid places after you open their boxes. Keep them in a closed container, if possible. For ease-of-storing, we recommend you to use tablet detergents.

Clogged impeller holes

Close-up of a mechanical component with a white plastic blade and central hub (no visible text or symbols)

Water Remained In The Dishwashing Compartment After Washing

Clogged filters

- From time to time, remove the complete filter system as shown in the manual and wash it under flowing water.

Blocking / twisting of drainage hose

- Connect the drainage hose as described in the manual.

Odour

Odor of new dishwasher

- A new dishwasher has a peculiar odor. It will fade out after a couple of washing.

Clogged filters

- From time to time, remove the complete filter system as shown in the manual and wash it under flowing water.

Leaving the dishes in the dishwasher for a long time

- If you are not going to run your dishwasher immediately, load the dishes into your machine after scraping the excessive soil on them and do not tightly close the door of the machine. Every other day, perform washing without detergent in the shortest program for products with program selecting feature.

Interior view of a transparent laboratory apparatus with glass partitions and a white surface (no visible text or symbols)

Foam

Loading the dishes into the dishwasher without completely drying after washing them with hand-wash detergent.

- Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes with detergent before loading the dishes into the machine. Scraping the coarse soil on the surfaces with a tissue paper or fork will be sufficient.

Spilling rinse aid in the machine while filling

- Take care that rinse aid is not spilled in the machine when you are filling it. Clean any spilled amount with the help of a tissue paper/towel.

Leaving the rinse aid lid open or not closing it

- Rinse aid compartment should always be closed as shown in the manual after it is filled with rinse aid.

Two decorative plates with floral patterns on a blue background (no text or symbols)

Erasing Of Decorations

Usage of decorated glasses and porcelains

- Decorated glasses and decorated luster porcelains are not suitable for dishwasher washing. Manufacturers of glassware and porcelain tableware items do not recommend washing these items in the dishwashers either.

*: In products with a salt container

Service

If your appliance ever malfunctions, check the notes and advice given in the operating manual.

If this does not fix the problem, our customer service staff are available to assist you.

Because Life's Meant To Be Easy

BLANCO DISHWASHER PRODUCT WARRANTY

1. Subject to the "Statement of Standard Warranty Conditions" this product is covered by the following Warranty.
   TWO (2) YEARS WARRANTY from date of purchase, covering all parts and labour.
2. The appliance is warranted under normal single family domestic installation and use, as set out in the instruction manual, against manufacturing defects for the Warranty periods shown above.
3. Should service be required under this Warranty, the purchaser should contact an approved BLANCO Service Provider during their normal business hours.
4. At no time does BLANCO/MEA have liability for any freight or transportation costs or for any damage during transit or for any consequence of failure of this appliance outside of the normal service area, unless such limitation of liability is prohibited by statute.
5. This Warranty excludes replacement of parts required due to normal wear and tear including light globes.
6. This Warranty only applies, provided the appliance has been used in accordance with the manufacturer's instructions and provided an accident, misuse, neglect or abuse has not damaged the appliance.
7. None of the above Warranties purport to exclude, restrict or modify either the application or the exercise of a right conferred by any applicable Statute.
8. Please complete the details below, which should be retained for future reference along with your proof of purchase:

Date of Purchase: ....

Model No: ....

Serial No:

STATEMENT OF STANDARD WARRANTY CONDITIONS

1. The Warranty only applies provided that the appliance has been used in accordance with the manufacturer's instructions and provided that the appliance has not been damaged by an accident, misuse, neglect or abuse of any person other than the manufacturer or BLANCO/Major Electrical Appliances ("MEA") or from faulty installation, misadjustment or tampering by unauthorised persons.
2. When a service inspection reveals the alleged fault or faults are caused by incorrect operation, contrary to the instruction manual, and otherwise the appliance is in good order and working condition, the purchaser shall be liable for a service fee charged by BLANCO/MEA or one of its' Service Providers.
3. If the appliance is used in Commercial Applications or for Rental purposes, a separate warranty of Twelve (12) months covering all parts with Three (3) months on the labour will apply.
4. Subject to the provisions of any applicable statute this Warranty applies to the original retail purchaser only and is not transferable.
5. Subject to the provisions of any applicable statute, at no time does BLANCO/MEA have liability for freight, transport or travel costs outside normal service areas.
6. None of the above Warranties purport to exclude, restrict or modify either the application or the exercise of a right conferred by any applicable statute.
7. Subject to any Warranties implied by statute, at no time will BLANCO/MEA or its' Service Providers be liable for any economic loss consequent upon the failure of the appliance.
8. This Warranty is only valid for major appliances imported and distributed by BLANCO/MEA, purchased and used in Australia.

Blanco Contact Information.

NEW SOUTH WALES

Head Office, Sales & Marketing Office

104 Vanessa Street

Kingsgrove NSW 2208

Telephone: [phone]

Facsimile: 02 9503 2810

NSW Showroom*

40 Ebley Street

Bondi Junction NSW 2022

Telephone: [phone]

Facsimile: 02 9386 1671

Service and Spare Parts

All General Whitegoods Service

Telephone: [phone]

Facsimile: 02 9756 1091

AUSTRALIAN CAPITAL TERRITORY

Service and Spare Parts

Detlevs Appliance & Electrical Care

1/88 Sheppard Street

Hume

ACT 2905

Telephone: [phone]

Facsimile: 02 6260 1035

VICTORIA

State Office and Showroom*

35 Centre Road

Scoresby VIC 3179

Telephone: [phone]

Facsimile: 03 8756 7907

Service and Spare Parts

Advantage Appliances

Telephone: [phone]

Facsimile: 03 9874 6917

QUEENSLAND

State Office and Showroom*

148 Robinson Road - East

Geebung

QLD 4034

Telephone: [phone]

Facsimile: 07 3265 6933

Service and Spare Parts

Endeavour Appliances

Telephone: [phone]

Facsimile: 07 3852 2465

Platinum Appliance Service

Telephone: [phone]

Facsimile: 07 3862 1114

Roshad (Gold Coast)

Telephone [phone]

Facsimile 07 5535 7407

SOUTH AUSTRALIA & NORTHERN TERRITORY

Agent and Sales Office

S C Lighting & Electrical Supplies

47 North Terrace

Hackney SA 5069

Telephone: [phone]

Facsimile: 08 8362 4591

Service and Spare Parts

Prestige Appliance Repair Centre

Telephone: [phone]

Facsimile: 08 8352 3044

WESTERN AUSTRALIA

1 Alvan Street

SUBIACO WA 6008

Telephone: [phone]

Facsimile: 08 9382 1622

Service and Spare Parts

Metropolitan Appliance Repairs

Telephone: [phone]

Facsimile: 08 9317 1296

TASMANIA

Agent and Sales Office

Mark Pearce Agencies

23 Tranmere Road

Howrah TAS 7018

Tel/Fax: [phone]

Service and Spare Parts

Electrical Equipment Service (Launceston)

Telephone: [phone]

Facsimile: 03 6339 4588

Baldocks Appliance Service (Hobart)

Telephone: [phone]

Facsimile: 03 6234 8134

BLANCO CUSTOMER SERVICE

1300 739 033

Website: www.meaappliances.com.au

* Contact Showrooms to confirm hours of business.
