Product Type	Built-in Dishwasher
Brand	BLANCO
Model	DWS5X
Dimensions (H x W x D)	845 mm x 598 mm x 573 mm
Weight	45 kg
Energy Efficiency Class	A+
Annual Energy Consumption	290 kWh
Water Consumption per Cycle	12 L
Noise Level	44 dB(A)
Number of Place Settings	13
Programs	Eco, Auto, Intensive, Quick, Glass, Pre-rinse
Key Features	AquaStop, Delayed Start, Half Load, VarioSpeed
Control Panel	Electronic push buttons with LED display
Drying System	Heat exchanger
Filter System	Self-cleaning with fine mesh
Water Protection	AquaStop with double-walled hose
Child Safety Lock	Yes
Installation Type	Built-in (door panel not included)
Electrical Connection	220-240 V, 10 A, 50 Hz
Spare Parts Availability	Minimum 10 years
Periodic Maintenance	Clean filter monthly, run machine cleaner every 2 months

Frequently Asked Questions - DWS5X BLANCO

How do I install the dishwasher?

Ensure the installation site is level and has a water supply and drain connection. Connect the inlet hose to a cold water supply (max 60°C). Plug the power cord into a grounded outlet. Level the appliance using the adjustable feet. For detailed steps, refer to the installation section of the manual.

How to clean the filter?

Turn off the dishwasher and remove the bottom basket. Twist the filter assembly counterclockwise and lift it out. Rinse under running water, scrubbing away debris. Reinsert and lock by turning clockwise. Perform this monthly to prevent clogs.

What detergents should I use?

Use high-quality dishwasher tablets or powder, combined with rinse aid and dishwasher salt. Avoid regular dish soap. For best results, use a multi-tablet with salt and rinse aid functions. Adjust rinse aid dosage based on water hardness.

What do error codes E15 or E24 mean?

E15 indicates a water intake fault – check the inlet hose for kinks and ensure the water tap is open. E24 means a drain blockage – clean the filter and drain hose. If the error persists, contact support.

Why are my dishes not drying completely?

Ensure you use a rinse aid and set the dosage correctly. Select a program with a drying phase (e.g., Eco or Intensive). Open the door slightly after cycle to release steam. If using plastic items, they retain moisture.

How to reset the dishwasher?

Press and hold the Start/Reset button for 3 seconds. The display will show a countdown and the appliance will drain and reset. If the unit is unresponsive, disconnect power for 30 seconds and reconnect.

When should I add salt and rinse aid?

Add dishwasher salt when the salt indicator lights up – typically every 1-2 months depending on water hardness. Fill the rinse aid reservoir when the rinse aid indicator is low. Adjust the rinse aid setting (1-6) to avoid streaks.

Why is my dishwasher making loud noises?

Check for large debris (e.g., bones, pits) in the filter or spray arms. Ensure the spray arms rotate freely and are not blocked by tall items. A grinding noise may indicate a worn bearing – contact service.

How to save energy and water?

Use the Eco program for normally soiled dishes – it uses less energy and water. Scrape off food but do not pre-rinse. Run the dishwasher only when fully loaded. Use air-dry instead of heated dry if available.

What is the warranty period?

BLANCO offers a 2-year warranty on the DWS5X. Register your product on the BLANCO website for extended coverage. The warranty covers manufacturing defects but not damage from improper use or installation.

USER MANUAL DWS5X BLANCO

Instructions for the Use and Care and Installation of

DWF5X

DWS5X

Dishwasher

Dear customer,

Please read carefully right through this instruction booklet before installing or operating your dishwasher. The following instructions should prevent the risk of personal injury and/or damage to the appliance.

Please keep these documents in a safe place for later reference.

This operating manual has been written for several different machines, and some of the features mentioned here may not apply to your particular model.

Symbols and legend

Following symbols are included in the user manual:

i Important information and tips about usage.

⚠ Warning for hazardous situations with respect to security of life and property.

⚠ Warning for electrical voltage and shock hazard.

TABLE OF CONTENTS

1 Getting To Know Your Machine 3

View of the Machine 3

2 Safety Instructions 4

Before Installation 4

Before First Use 4

Child Safety 4

Technical Specifications 4

For daily operation 5

Problems 5

What should not be washed in your dishwasher 5

3 Directions for Assembly 6

Safety notes for installation 6

Installing Your Dishwasher 6

Water connection 7

Connect water inlet hose 7

Water drainage 8

Electrical connection 8

Disposal 8

4 Using Your Dishwasher 9

Filling the dishwasher salt 9

When operating for the first time: 10

Filling the Rinse Aid Dispenser 10

Filling the Detergent Dispenser 11

Detergent 12

Multipurpose Detergents 13

Loading the dishwasher 13

Suggestions for loading the

dishwasher 14

Loading suggestions 19

5 Program Selection and

Operating Your Machine 23

Button and Button Descriptions 24

Program Selection 25

Adding Functions to the Program 25

Program Steps Follow-up 25

Canceling a Program 25

Changing a Program 26

Programming the Delayed Start 26

Usage of Child Lock 27

Salt Indicator 27

Rinse Aid Indicator 27

Rinse Aid Indicator Setting 27

Starting Your Machine 27

6 How to clean your

dishwasher 30

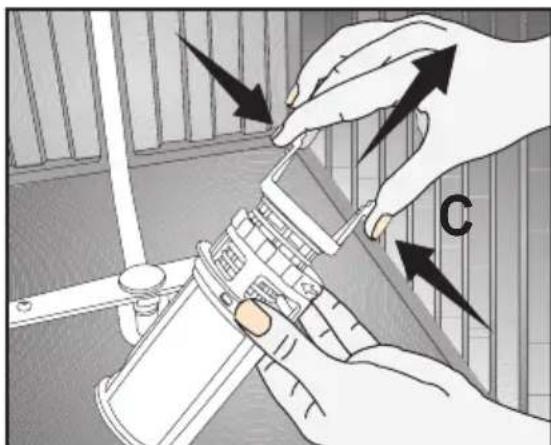

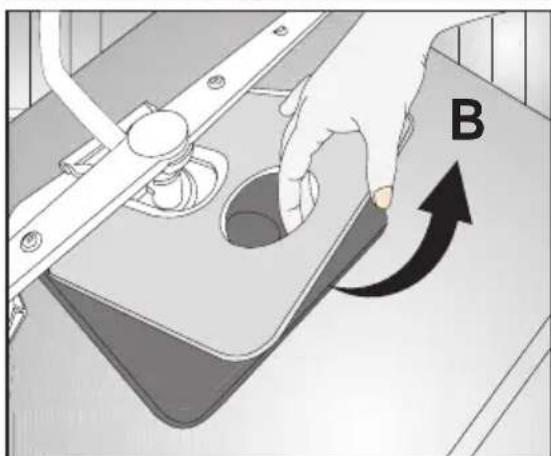

Cleaning the filters 30

Cleaning the spray arms 31

7 Troubleshooting: 32

What to do if the dishwasher will not run

The cleaning results are

unsatisfactory 32

Service 37

1 Getting To Know Your Machine

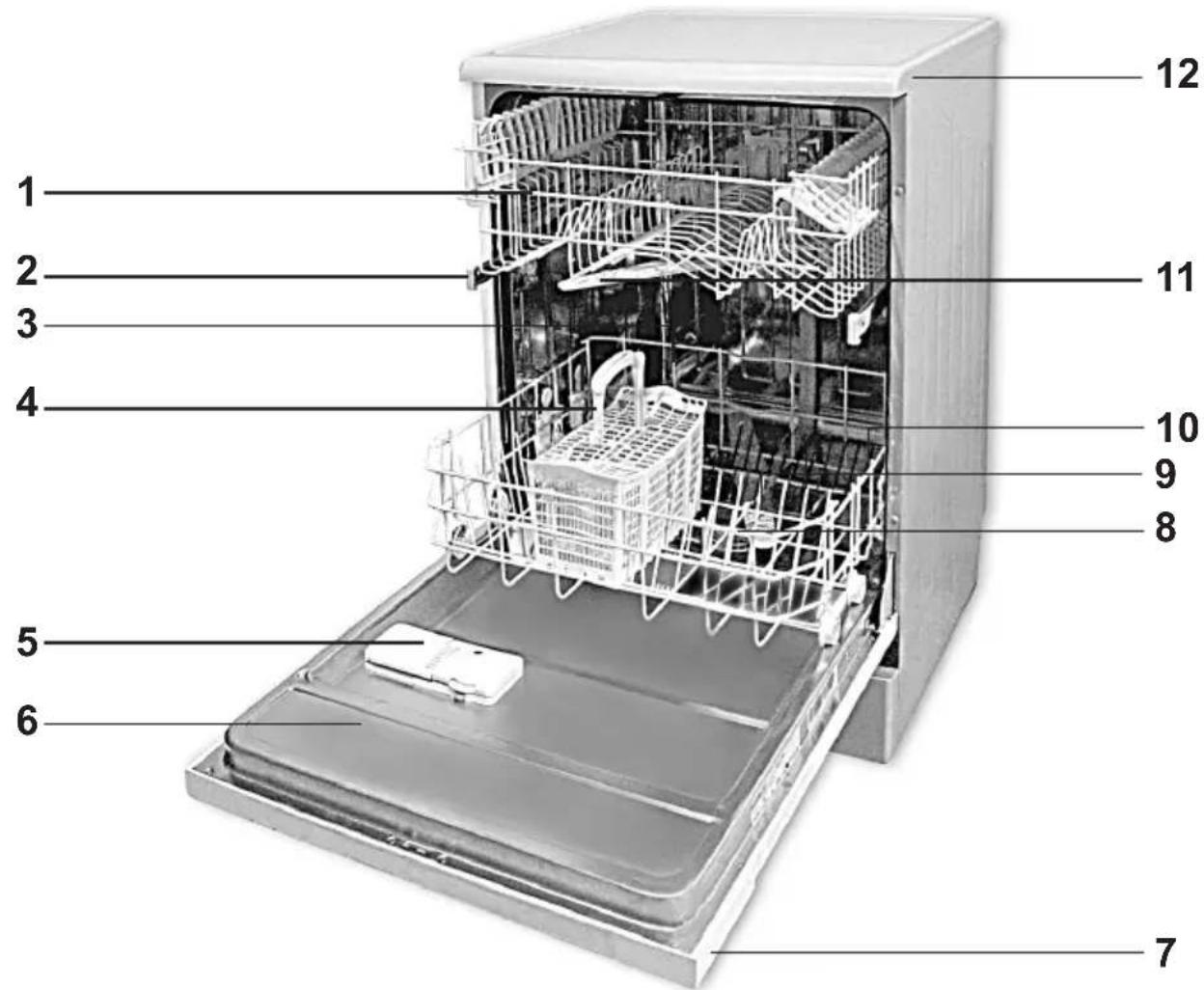

View of the Machine

1. Upper dish basket with shelf
2. Guide rail for the upper dish basket
3. Salt container

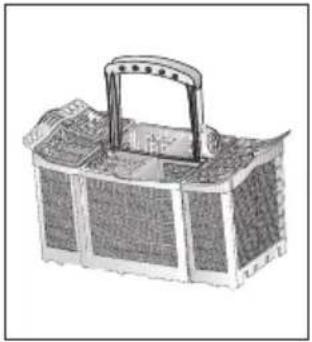

4. Cutlery basket
5. Detergent dispenser
6. Door
7. Control panel
8. Filters
9. Lower sprayer arm
10. Lower basket
11. Upper sprayer arm
12. Housing (depends on the model)
13. Turbo fan heat drying system (depends on the model)

Technical Specifications

Permitted water pressure: 0,3–10

bar (= 3 - 100 N/cm² = 0,01-1,0Mpa)

Electrical connection: 220-240 Volts,

10 Amps (see type plate)

Output: 1900-2200 W

Heat output: 1800 W

This device corresponds to the following EU directives:

2006/95/EC: Low Voltage Directive

2004/108/EC: EMV Directive

DIN EN 50242: Electrical dishwasher for home use Testing procedures for practical service conditions

Because we continually strive to improve our products, we may change our specifications and designs without prior notice.

Note for Testing Institutes

The necessary information for performance testing will be provided upon request. The request can be done by e-mail through:

[e-mail]

Please do not forget to write the model code and stock code information of the appliance besides your contact information in the e-mail. The model code and stock code information can be found on the rating label, which is placed on the side of the door.

2 Safety Instructions

Before Installation

Check the appliance for transit damage. Never install or use damaged machines. If in doubt, contact your supplier.

Before First Use

• See Notes for Installation on page 6.
• Have the grounding system installed by a qualified electrician. The manufacturer cannot be held liable for any damage caused by operating the appliance without proper grounding.
• Before operating the system, please check that the information on the type plate corresponds to the information on your power supply.
• The dishwasher must be disconnected from the mains

during installation.

• The appliance must not be connected to the mains using an extension cable. Extension cables do not provide the necessary safety (e.g. danger of overheating).
  • Always use the original plug delivered with the appliance.
• The plug must be freely accessible after the appliance has been installed.

⚠️ Child Safety

• Do not allow children to play with the appliance.
• Dishwasher detergents are caustic and may cause injury to the eyes, mouth and throat. Please note the safety instructions provided by the manufacturers of the detergents.
  • Never leave children unsupervised

while the appliance is open, as the appliance may still contain detergent leftovers.

• The water in the dishwasher is not drinking water. Danger of caustic injuries.
• Always place long and sharp/ pointed objects (e.g. serving forks, bread knives) into the cutlery basket with the pointed end down or flat on the upper basket to avoid possible injuries.

⚠ For daily operation

• Use your appliance only for the following domestic uses: Washing household dishes.
• Do not use chemical solvents in the appliance; there is a danger of explosion.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not sit or stand on the opened door or place other objects on it. The appliance may tip over.
• Do not open the door while the appliance is running, as hot water or steam may escape.
• Do not leave the door open – an open door can be a hazard.
• If you need to move your appliance, do it in upright position and hold from the rear side. Tilting the appliance onto its front side may cause the electronic parts in it to get wet and damaged.

Problems

- Repairs and modifications to the appliance may only be carried out by qualified customer service personnel. - In the event of a problem, or before performing a repair, disconnect the appliance from the mains supply:

- disconnect the appliance by pulling out the mains plug - shut off the power.

- Do not pull on the cable – pull on the plug. Turn off the water supply tap.

What should not be washed in your dishwasher

• Rust sensitive steel parts
- Cutlery with wooden or horn handles
- Cutlery with mother of pearl or porcelain handles
• Non heat resistant plastic parts
• No glued dish or cutlery parts
- No items made out of copper, tin or aluminium
- Sensitive decorative glasses and porcelain parts
- Lead crystal glasses
• Art and crafted articles
- Aluminium and silver tend to discolour
- Glass and crystal articles may lose their shine over time
• Sponges and dishcloths

Do not wash items soiled with cigarette ash, candle wax, varnish, paints or chemicals.
Recommendation: When buying new dishes, note whether they are suitable for the dishwasher. (marked as dishwasher proof)

3

Directions for Assembly

Safety notes for installation

Prior to installing and using your appliance, please check it for possible transit damage.

If the appliance is damaged, please contact your supplier.

⚠️ Never install or use a damaged appliance.

The following directions must be followed to connect the dishwasher properly.

Before operating your dishwasher, please ensure that the information on the type plate corresponds to the current and voltage of your power supply.

The appliance may only be connected using a properly grounded socket. Ensure that the appliance is grounded according to regulations. The grounded socket must be easily accessible and close to the appliance.

⚠ Do not use extension cables or multiple adapters, as this can lead to overheating, which can be a fire hazard.

⚠️ Hardwiring may only be carried out by a qualified electrician.

⚠️ Check the power cable, the water inlet hose and the drainage hose. Damaged parts may only be replaced by customer service personnel or by a qualified electrical service expert.

Installing Your Dishwasher

• Choose a suitable location for your dishwasher. Take care to ensure that the appliance is stable on a level surface.
• Unevenness in the floor can be equalised by adjusting the screw feet. When the appliance is standing correctly, the door can be closed without difficulty.
• Water inlet and drainage hoses must be positioned so that they can move freely without bending or squeezing.
• The appliance may not be installed in a room where the temperature is below 0° Celsius.

Water connection

⚠️ Not recommended to run with hot water.

• There are two different types of water inlet hoses:
• Cold water inlet hose (up to 25°C)
• Hot water inlet hose (up to 60°C) please check which one is applicable to your model.

If you are willing to connect your machine to natural energy resources or to the central hot water supply, first check out whether your water inlet hose type is suitable by checking the temperature values written on the hose. If your hose is not suitable, apply to your authorized service to change the hose.

- The dishwasher may not be connected to open warm water devices or flow-through water heaters.

Permitted water pressure:

Lowest permitted water pressure: 0.3 bars = 3 N/cm ² = 30 kPa

When the water pressure is below 1 bar, please contact your technician.

Highest permitted water pressure: 10 bar = 100N/cm ² = 1Mpa

When the water pressure is above 10 bars, a pressure reduction valve must be installed (available in trade supply stores).

Connect water inlet hose

Ensure that the water inlet hose is not bent or squeezed. Do not install a used hose set.

Use a screw-on hose connector to connect the water inlet hose to a water tap with a 34 inch external thread. If required, use a filter insert to filter deposits from the pipes.

Check that the connection does not leak.

For safety reasons, turn off the tap after every rinse process.

AQUASAFE+ (some models)

The AQUASAFE+ System protects against water damage which may be caused at the water inlet hose.

Do not immerse the system's valve box into water; it contains electrical components.
In case of damage, pull out the power supply plug.
Do not shorten or lengthen the hose insert as it contains electrical cables and components.

Water drainage

Connecting the drainage hose.

Take care to ensure that the drainage hose is not bent or squeezed.

Check that the drainage hose is firmly seated.

Extension hoses

If a hose extension is required, a drainage hose of equal quality must be used.

i The maximum length must not exceed 4m. Using a longer hose will produce poorer cleaning results.

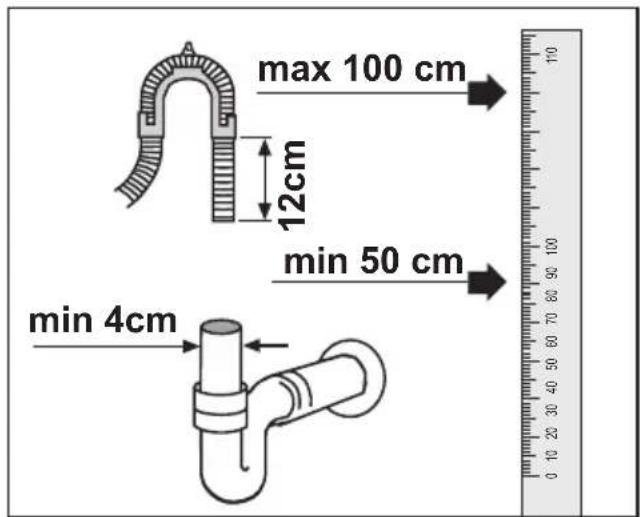

Siphon connection

i The drainage height must be between 50 and 100cm above the floor.

Use hose clamps to fasten the drainage hose to the siphon.

Electrical connection

Please refer to the type plate for information on current type, mains voltage, and fuse protection.

The type plate is located on the inside of the door.

The mains plug must be freely accessible after installation.

Power cables and insulated cables must not be accessible (exposed) after installation.

Disposal

Packaging

The packaging and some parts of your appliance are made from recyclable materials. These materials are marked with the recycling symbol and the relevant material type (PE, PS, POM).

Before operating your appliance, remove the packaging material and dispose of it in accordance with regulations.

⚠️ Packaging materials may be dangerous to children. Reusable substances may be dropped off at your local disposal facilities. You may obtain further information from your local authorities and disposal facilities.

Used appliances – Environmental notice

This product must not be disposed of with your regular household waste. Instead, you need to dispose of the waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. This is indicated by a symbol to be found on the product, it's packaging or in the manual.

Materials used are recyclable according to their labelling. Reuse, recycling of materials and further reutilization of used products are important contributions to protect our environment.

Please ask your local town council for the nearest collection point.

⚠️ To avoid possible dangers, disable your waste appliance prior to discarding it. Pull the mains plug and cut the power cord. Disable any door locks.

4 Using Your Dishwasher

⚠ The electricity and water connections of the dishwater must be in compliance with the instructions in this booklet.

Filling the dishwasher salt

i Only use special dishwasher salt in your appliance. The manufacturer is not liable for damage resulting from the use of the wrong type of salt.

Use Diswasher salt only. Moderate or coarse grained and soluble salts are recommended. Don't use table salt, or any other type, these types of salt do not dissolve in water easily and will damage the softening device.

Remove the lower basket from the appliance.

Open the screw-in cap of the salt container by turning it counter clockwise (fig. A,B).

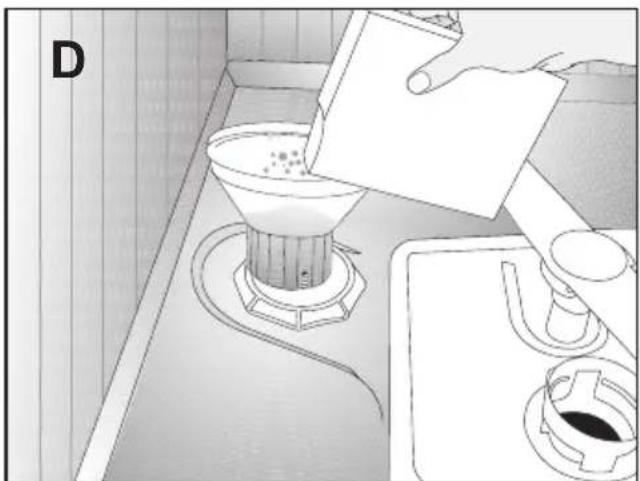

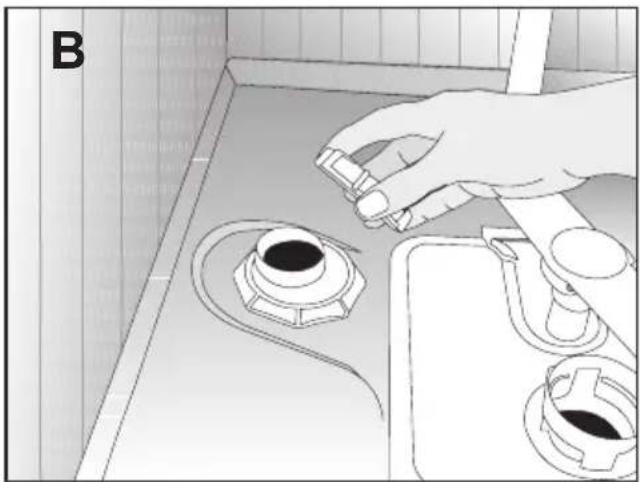

When operating for the first time:

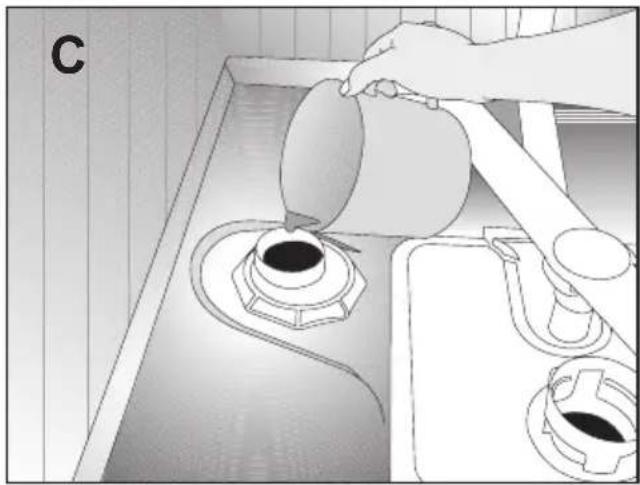

• Pour 1 litre of water into the salt container (Fig. C).
• Pour the salt into the container with the aid of the salt funnel provided (Fig. D).
• Pour in enough salt to fill the container. The container holds approx. 2 kg.
• To speed up the rate of dissolution of salt in water, stir it with a spoon.
• Close the cap tightly.
• Begin a washing program immediately after filling the salt container. The washing program prevents damage to the appliance which may be caused by any spilled salt solution. After the first washing cycle, the salt level indicator light will go out.

Depending on the particle sizes of different salt brands in the market, tablet properties and water hardness, dissolution of the salt in water may take a couple of hours.

So, the salt indicator continues lighting for a while after filling salt into the machine. (For models with a salt indicator)

Technical line drawing of a mechanical component with a base and handle, no visible text or symbols

Illustration of a hand using a tool to switch a kitchen appliance on a stove (no text or symbols visible)

Illustration of a hand pouring liquid into a tank with a valve, showing components like a bulb and side screens (no text or symbols)

Illustration of a kitchen scene with a funnel pouring liquid into a stove (no text or symbols)

Filling the Rinse Aid Dispenser

Rinse aids allow washing water to rinse off cleaner and prevent watermarks or streaks on the dishes. Only use rinse aid designed for use in dishwashers.

If you use “2 in 1” or “3 in 1” detergents / tablets, you do not need an additional rinse aid.

Open the rinse aid dispenser by pressing the locking lever (B)

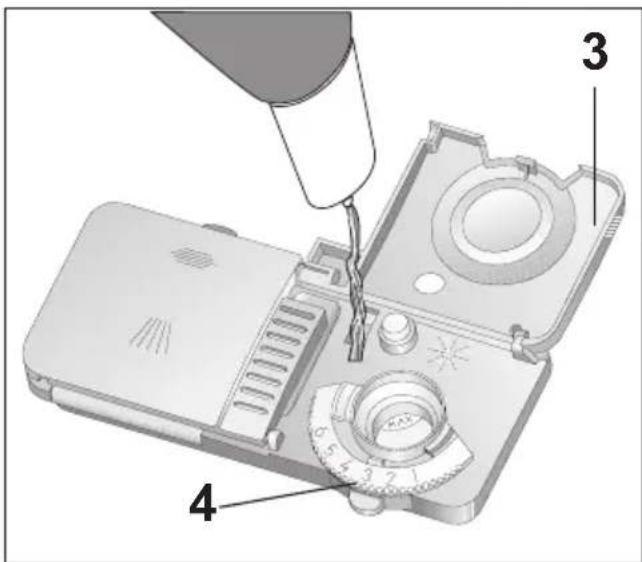

Carefully pour in rinse aid to the MAX mark. Close the lid until it clicks (3).

Carefully wipe off spilled rinse aid. Excessive rinse aid causes excessive foam formation, which may hinder cleaning.

Set the dose of rinse aid

The dose of rinse aid to be used can be set by means of the dispenser regulator (between levels 1 and 6) (4). Your appliance is pre-set at the factory to level 3.

Only change the setting if the following applies after washing:

• Watermarks are visible on the dishes: Set dosage higher
- Streaks are visible on the dishes: Set dosage lower

Filling the Detergent Dispenser

i Only use detergents formulated for use in dishwashers.

⚠ Do not put solvents into the washing compartment; there is the risk of explosion!

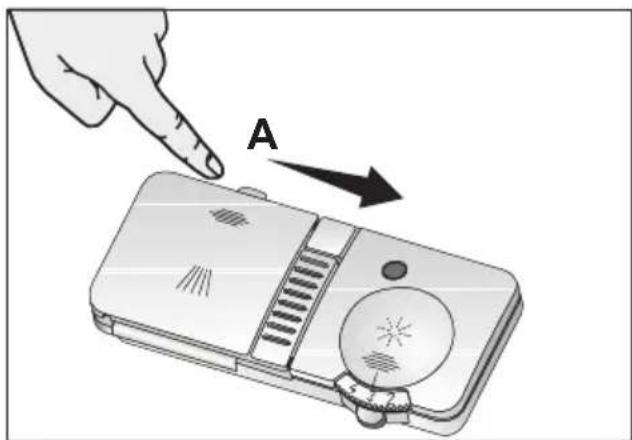

Open the detergent container by pushing the locking lever to the right (A).

The lines on the inside of the detergent container will help you measure the correct amount of detergent.

The detergent container holds a total of 40 cm³ of detergent (1).

When the dishwasher is fully loaded and the dishes are very dirty, we recommend filling the detergent container up to the 25 cm ³ mark. When the dishes are less dirty, it is generally sufficient to fill the detergent up to the 15 cm ³ mark.

If your dishes have been in the dishwasher for some time without being washed, you should also fill the small detergent container up to the line (2).

The programme table shows the amounts of detergent required for the different wash programmes.

These may differ according to how dirty the dishes are and the water hardness in your location.

Detergent

Please use detergents produced specially for the dishwashers in your machine.

⚠️ Keep the opened detergent packages in a cool and dry place where children can not reach.

⚠️ We recommend you not to use detergents that contain chlorine and phosphate as they are harmful for the environment. Detergents that contain enzymes are effective in temperatures below 50 °C and help to obtain the same washing efficiency as obtained at higher temperatures.

Put the detergent into the detergent dispenser just before operating the machine.

Please contact the manufacturer to get detailed information about the detergent you are using.

Always use powder detergents in short programs without pre-washing. Fill in the powder detergent into the compartment nr. 2 with a grid cover as shown in the picture and close the detergent box lid. When completely full, this compartment will contain 6 g of powder detergent.

Do not use tablet detergents in short programs since the solubility of them changes depending on the temperature and time.

In programs with pre-washing and high temperature, in which you may use tablet detergents, make sure that the detergent box lid is closed firmly.

Excessive usage of powder detergents can cause the detergent not dissolve completely and can also cause scratches on the glassware.

Multipurpose Detergents

The best washing results in dishwashers is obtained by using detergent, rinse aid and water softening salt individually.

New products of the detergent producers what they call as "Multipurpose Detergent" can act as water softening salt and/or rinse aid in addition to acting as a detergent. Some types of these detergents can also contain special-purpose washing chemicals such as glass and stainless steel protectors.

Multipurpose detergents commonly found in the market:

2in1: Those contain detergent, rinse aid or water softening salt.
3in1: Those contain detergent, rinse aid and water softening salt.
4in1: Those containing glass protectors in addition to detergent, rinse aid and water softening salt.
5in1: Those containing glass and stainless steel protectors in addition to detergent, rinse aid and water softening salt.

Multipurpose detergents give satisfying results only under certain usage conditions. Observe the instructions of the detergent manufacturer on the package when using such detergents. Contact the detergent producer if your dishes are wet and/or if you notice lime spots particularly on your glasses after the washing program is over.

When you give up using such detergents:

Make sure that salt and rinse aid compartments are full.

Set the water hardness to its highest degree and perform an empty run.

After the empty washing review the user manual and readjust the water hardness level so as to suit your water supply.

Make the appropriate rinse aid settings.

Depending on the model, salt indicator and/or rinse aid indicator should be enabled again if they are disabled before.

Loading the dishwasher General:

Before you load the dishwasher with dishes

• Remove coarse food leftovers
• Place all containers such as cups, glasses and pots into the machine with the opening facing downwards (so that no water can collect)

• Dishes and cutlery may not be placed above each other
  • Glasses may not touch

• The movement of the spray arms must not be hindered

• Place all large and very dirty items in the lower basket.
• Small and light items can go into the upper basket.
• Long and narrow items are placed in the middle of the baskets.

⚠ Knives and other utensils with sharp tips and edges must be placed horizontally into the upper basket due to risk of injury.

i Please do not overload your dishwasher and pay attention to the notes regarding dishes which are suited to the dishwasher. Only in this manner will you obtain optimal washing results with a sensible use of energy.
i Start unloading the dishes from the lower basket, then switch to the upper basket.

Suggestions for loading the dishwasher

Use the lower basket for plates, bowls, pots etc.

Cross-sectional diagram of a mechanical device with multiple components and no visible text or symbols

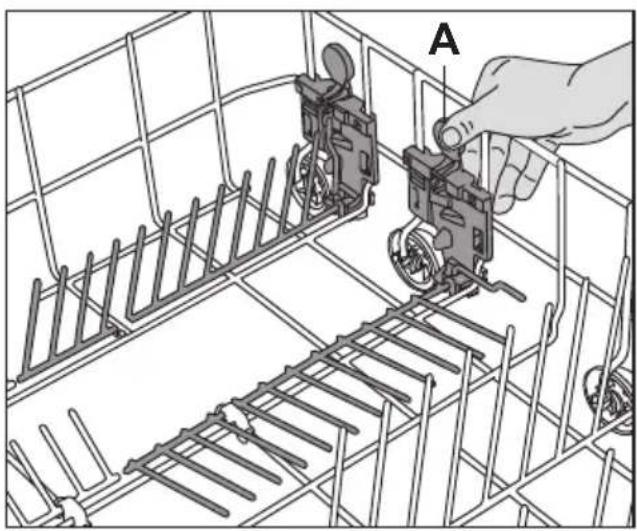

4 folding plate support rods (depends on the model)

There are four separate "folding plate support rods" in the lower basket of your dishwasher designed to allow you more space to accommodate saucepans and large bowls in the lower basket. You can either fold each section (1, 2, 3, 4) individually or, all at once, to create a large empty space. Simply press the handgrips (A) and fold them down"

Diagram of a hand operating a small mechanical device inside a wire cage (no text or symbols visible)

2 folding plate support rods (depends on the model)

There are two separate "folding plate support rods" in the lower basket of your dishwasher designed to allow you more space to accommodate saucepans and large bowls in the lower basket. You can either fold each section (1, 2) individually or, all at once, to create a large empty space. Simply press the handgrips (A) and fold them down"

Bottle holder (depends on the model)

For cleaning your bottles. To remove, pull the holders apart in opposite directions (H).

Technical line drawing of a mechanical assembly with labeled component 'H' (no readable text or symbols beyond label)

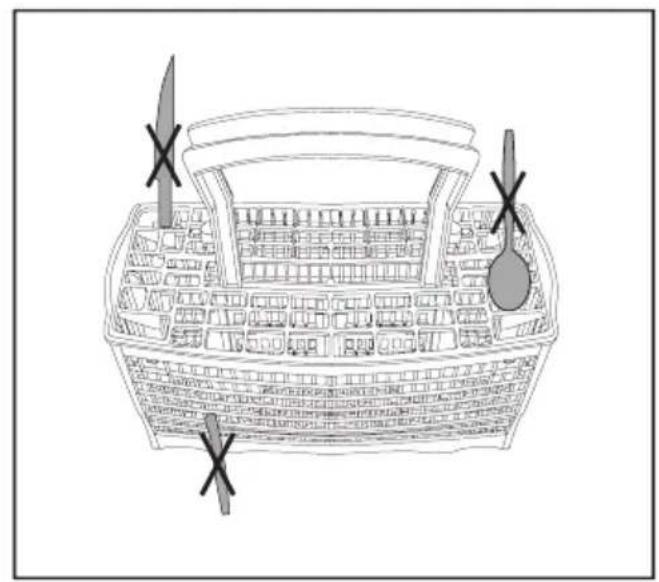

Variable cutlery basket (depends on the model)

The variable cutlery basket can be separated into 3 parts depending on the amount of cutlery and the degree of dirtiness.

Small cutlery basket sections also fit into the upper basket.

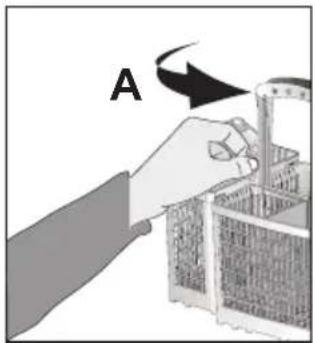

To do this, turn the lock on the handle to the right (A).

Pull the smaller cutlery basket upwards and out of its holders (B).

To put the parts together again, proceed in the opposite direction.

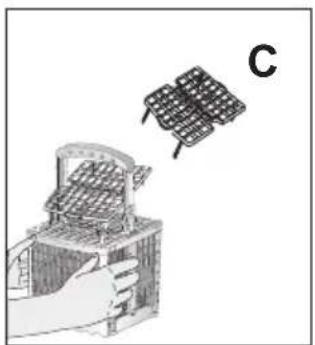

Use the basket inset (C) for your cutlery so that all items in the basket are surrounded by a sufficient water flow.

For larger items (e.g. wire whisks), the basket inset may be removed (C).

To make loading easier, the cutlery basket can be removed.

Place long items such as ladles, cooking spoons etc. on the rack in the upper basket.

Illustration of a woven textile box with handle and side panels (no text or symbols)

Illustration of a woven basket with multiple metal trays above it, no text or symbols present.

Illustration of a hand placing a container into a container with a curved arrow labeled 'A' pointing to it (no text or symbols on the diagram itself)

Architectural diagram of a multi-story building with a chimney and window, showing an upward arrow labeled 'B' (no text or symbols on the structure itself)

Illustration of a hand holding a small electronic device with a grid array and a labeled component 'C' (no text or symbols on the device itself)

Illustration of a hand holding a building with an overhead figure above (no text or symbols)

Illustration of a construction site with scaffolding and workers, no visible text or symbols

Diagram showing a model's decomposition of a brick-walled storage unit into a grid-patterned model (no text or symbols on the diagram itself)

Cutlery Basket (depends on the model)

Line drawing of a basket with handles and spoons, no text or symbols present

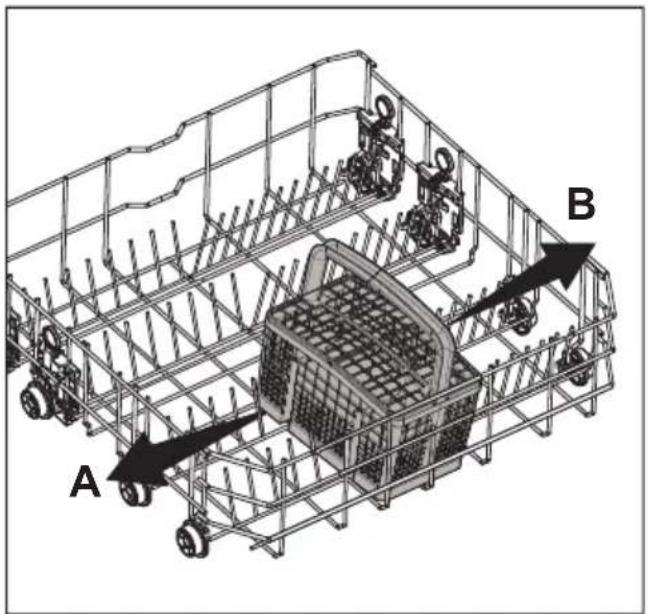

Movable Cutlery Basket (depends on the model)

Designed to allow free placement of the dishes according to their size, the movable cutlery basket can slide over the tines to the left (A) and right (B) side.

3D wireframe diagram of a shopping cart with labeled parts A and B, showing internal structure and wheels (no text or symbols beyond labels)

Illustration of a hand assembling a wire rack into a container with arrows indicating assembly or movement (no text or symbols present)

Basket insert with variable height settings (depends on the model)

You can also use this insert in the lower basket for glasses and long-handled cutlery / utensils.

If you do not need the insert, fold the rack upwards at the angle shown (A).

Push the entire insert upwards (B). Place the insert in the upright position (C). Push the insert downwards and lock it into place with the holder (D).

When you want to use the basket again, reverse the procedure.

To set the height, push the rack upwards and fold it open in position (G).

When finished, check that the sprayer arm can still move freely.

Technical line drawing of a mechanical assembly with two cylindrical components mounted on metal supports (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Loading suggestions

Load the upper basket with dessert plates, cups, glasses etc.

Illustration of a multi-tiered plastic container filled with various cylindrical and cylindrical components (no text or symbols visible)

Upper basket with variable height setting

(depends on the model)

The upper basket is equipped with a lifting mechanism which enables you to change the height of the basket without having to remove it from the dishwasher, even if it is fully loaded.

Technical illustration of a hand interacting with a mechanical device inside a wire mesh cage (no text or symbols)

The height of the upper basket was set to its lowest position at the factory. To lift the upper basket to the “high” (A) position, hold it on one side and carefully pull it upwards. To lift the opposite side of the basket, hold it and pull it upwards in the same manner (A).

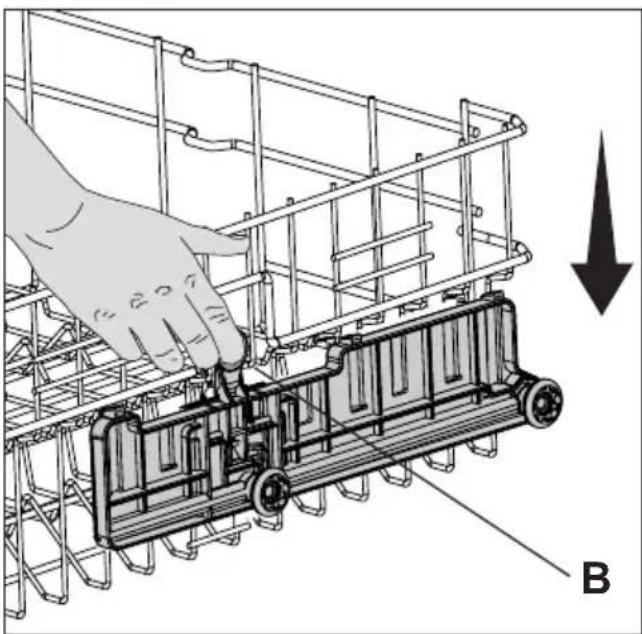

To lower the upper basket, hold the basket lever on one side and carefully lower the basket without releasing the lever (B). Repeat the procedure with the lever on the opposite side of the basket. Make sure that both levers catch at the same height.

Upper basket with variable height setting (depends on the model)

The upper basket is equipped with a lifting mechanism which enables you to change the height of the basket without having to remove it from the dishwasher, even if it is fully loaded.

The height of the upper basket was set to its lowest position at the factory. To lift the upper basket to the “high” (A) position, hold it on one side and carefully pull it upwards. To lift the opposite side of the basket, hold it and pull it upwards in the same manner (A).

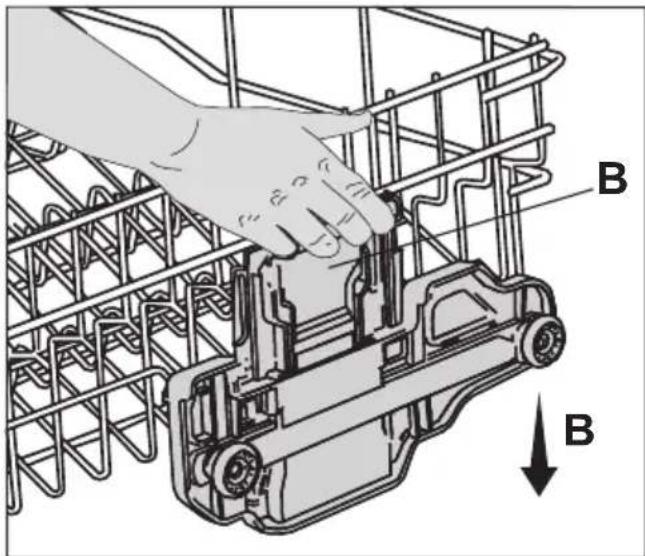

To lower the upper rack, hold and press in the rack lever on one side and carefully lower the rack without releasing the lever (B). Repeat the procedure with the lever on the opposite side of the basket. Make sure that both levers catch at the same height.

Illustration of a hand interacting with a mechanical device structure, showing no text or symbols present.

Diagram of a hand operating a mechanical device with a downward arrow indicating motion (no text or symbols present)

Height setting with empty basket (depends on the model)

In this model, the height setting of the upper basket may be changed using the wheels which are mounted at two different heights.

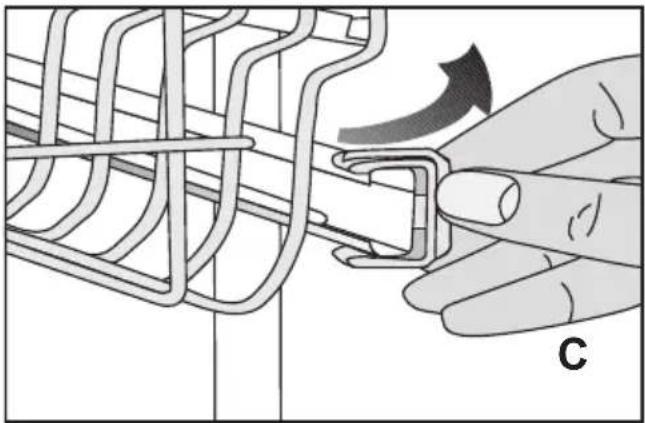

Release the latches on both the right and left tracks of the upper basket by pushing them outwards (C).

Pull out the basket out completely (D).

Place the basket back into the tracks at the desired height (E).

Push the latches back into the correct position.

Diagram showing a hand holding a wire mesh structure with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a wheel and chain with directional arrow (no text or symbols)

Diagram of a mechanical assembly with spring-loaded components and directional arrow (no text or symbols)

Folding Tines (depends on the model)

There are "folding tines" in the upper rack to allow you more space to accommodate glasses or cups.

Simply pull in the first front folding tine, move it to left (A) and right (B) to place in another position. When you need, take the tines down until the tines fall down.

Glass Support (depends on the model)

When placing the glasses or goblets with a long grip, lean them against the glass support, the edge of the basket or the shelf but not against the other pieces. Do not lean the long glasses against each other, otherwise they do not remain stable during washing cycle and may get damaged.

When you need to place the bulky pieces into the upper basket, disconnect the lug of the glass support from the bar of the basket where it is attached to. Thus, you will acquire a wider place.

3D wireframe diagram of a container with internal components and spherical objects (no text or symbols)

Topographic map view showing contour lines and a small building silhouette with an arrow indicating direction (no text or labels)

Upper Basket Drawer (depends on the model)

You can easily place additional desert spoons, small forks and knives into the drawer installed to the upper basket of your machine.

Technical illustration of a mechanical component with internal grid structure and mounting bracket (no text or symbols)

Rack (depends on the model)

Depending on the size of the glasses and cups, the rack height setting may be adjusted (C, D, E).

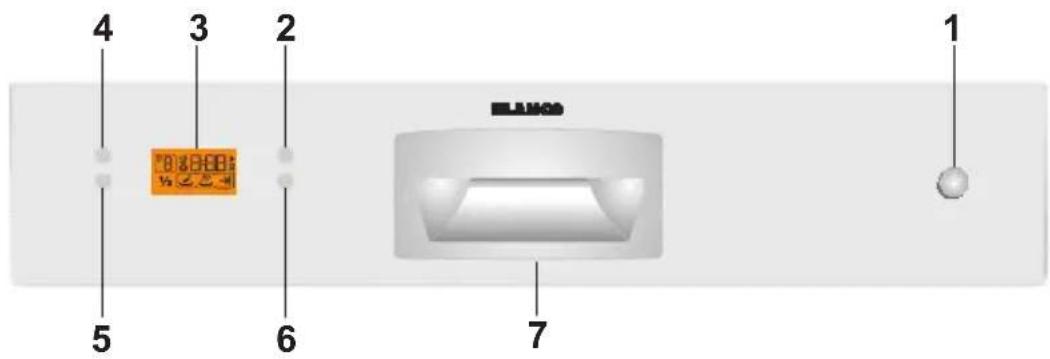

5 Program Selection and Operating Your Machine

1. On / Off Button
2. Start/Pause/Cancel Button
3. Display

4. Program Selection Button

5. Half Load Button

6. Delayed Start Button
7. Handle
8. Program Indicator

1. Salt Indicator
2. Rinse Aid Indicator
3. Remaining Time Indicator/Delay Time Indicator
4. Start Indicator

5. Delayed Start Indicator

6. Half Load "1/2 Indicator

7. Program Steps Follow-up Indicator
   a Washing Step Indicator " "
   b Drying Step Indicator " "
   c End of Program Indicator " "

Button and Button Descriptions On / Off Button (1)

When you press the On/Off button, the display switches on with the last program used and it dims when you turn the machine off.

If the Half Load (5), function are enabled during the last program used, these functions will remain active when the machine is turned off and on again. If you would like to disable these functions after turning the machine off and on again, you must press the relevant buttons.

Start / Pause / Cancel Button (2)

It is used to start, pause or cancel the selected program or the delayed start countdown. The selected program will start running when the Start / Pause / Cancel button (2) is pressed. When the button is pressed, (12) lights up.

Wait for two seconds to view the full display on the screen after you turn on the machine by pressing the On/Off button (1) before you press Start / Pause / Cancel (2) button.

Program Selection Button (4)

You can select the washing program you want to use with the aid of the “Program Data and Table of Average Consumption Values” after pressing the program selection button. Number of the selected program appears in the program indicator (8) on the display (3) in the format of ..... Program number will increase by one each time you press the program selection button. Number of the defined programs can change depending on the model you have purchased.

Half Load Button (5)

If you want to run your machine without loading it completely, place your dishes into the machine as you desire. First, press the On / Off Button (1). Select the desired program and press the Half Load (5) button. You must see the Half Load indicator (14) 12 appearing on the screen. Start the program by pressing the Start / Pause / Cancel button (2). Thanks to the Half Load option, you can use both lower and upper baskets of your machine and you can save water and energy.

Delayed Start Button (6)

You can delay the start of the selected program until 9 hours with increments of 1 hour by means of the Delayed Start Function.

Program Selection

You can select the desired program after turning on the machine by pressing the On / Off button (1). Switch to the program you want to operate by pressing program selection button (4). You can follow up the program you are in from the program indicator (8) on the screen. Program number will increase by one each time you press the program selection button (Number of the defined programs can change depending on the model you have purchased). The selected washing program will start running when the Start / Pause / Cancel button (2) is pressed ▶ symbol (12) light up. Time indicator (11) will start displaying the estimated remaining time to the end of program.

Total time can be different from the time indicated at the beginning since it can change while the program is running, depending on the temperature of the room where your machine is installed, temperature of the supply water, auto-cleaning of the water softening system (regeneration) and amount of the dishes.

Adding Functions to the Program

With the help of the add function buttons, you can run the selected program together with the Half Load 12 (5) and Delayed Start (6) functions.

To add a function to the program:

1. Select the program by pressing program selection button (4).
2. Press the button of the function that you want to enable and check to see a indicator for the relevant function on the display.
3. You can start the program by pressing the Start / Pause / Cancel button (2).

Program Steps Follow-up

You can follow up the step while current program is running from the Program Steps follow up indicator (15)

a Washing Step Indicator (15 a)
b Drying Step Indicator (15 b)
c End of Program Indicator (15 c)

The display shows the steps for washing 15 a and drying 15 b, respectively, while the selected program is running. Only the End of Program indicator 15 c lights up when the program is over. Remaining Time Indicator (3) displays “0:00”.

Canceling a Program

Press Start / Pause / Cancel button (2) for three seconds to cancel a program that is already running. Release the button when ▶symbol (12) start flashing in the display. For a couple of minutes the machine will fulfill the necessary operations required for cancellation. Remaining time indicator (11) displays "0:00". You may select and operate a new program following the program cancellation process. There might be residues of detergent or rinse aid left in the machine and/or on the pieces being washed depending on the step the previous program was in at the time of such cancellation.

Changing a Program

If you want to change running program, first of all press Start / Pause / Cancel button (2) to switch your machine into pause mode. Second, switch to the desired program by pressing Program Selection button (4). Third, Start the new program by pressing Start / Pause / Cancel button (2) again. Your new selection will resume operation from the step in the previous program (For example, if the previous program was in rinsing step, the new one will also start from the rinsing step). If you want to run the newly selected program from the beginning, you have to apply the program cancellation process first and then select a new program.

Programming the Delayed Start

You can delay the start of the selected program until 9 hours. Delayed start can not be set after the program starts. The selected program must not be

started in order to be able to set the delay time.

Delayed start indicator 📁sand glass (13) will start flashing when the delayed start button (6) is pressed. You can set the desired time by pressing the delayed start button (6). Press the Start / Pause / Cancel button (2) after setting the time. The delayed start indicator 📁sand glass (13) and play icon (12) will remain lit on the display during the delayed start countdown and the delay time indicator (11) will display the remaining time. Program will start automatically when the countdown is over.

You can use the delayed start function if you are utilizing the economic electricity tariff.

If you want to change the program or functions while the delayed start function is enabled, then pause the machine by pressing the Start / Pause / Cancel button (2). You will see that the countdown stops. The delayed start indicator 📁will start flashing. Select the new program and/or add the functions as described in Program Selection and Table of Average Consumption Values. Resume the delayed start countdown by pressing the Start / Pause / Cancel button (2).

If you want to cancel delayed start countdown while it is in progress, then press the Start / Pause / Cancel button (2) for three seconds. Release the button when ▶ symbols (12) start flashing in the display. For a couple of minutes the machine will fulfill the necessary operations required for cancellation. Remaining time indicator (11) displays "0:00". You may select and operate a new program following the delayed start countdown cancellation process.

If you want to select a new delayed start time while the delayed start countdown is in progress, then pause the machine by pressing the Start / Pause / Cancel button (2). Set the desired time by pressing the Delayed Start Button (6). Start the countdown for the new time by pressing the Start / Pause / Cancel button (2) again.

Salt Indicator

Please check the salt indicator (9) on the display to see whether there is enough softening salt in your machine or not. You need to refill the powder dispenser whenever the salt warning indicator light lights.

WARNING:

If the water hardness level is stored as (r1), salt indicator will never come on even if the salt container is empty. (Adjusting the water hardness level is explained in Water Softening System section.)

Rinse Aid Indicator

Check the rinse aid warning display (10) on the screen to find out if there is sufficient amount of rinse aid in your machine. You must refill the rinse aid container when the rinse aid indicator comes on.

WARNING:

If the Rinse Aid Indicator is set to

(OFF), rinse aid indicator will never come on even if the rinse aid container is empty.

Rinse Aid Indicator Setting

• When your machine is switched off, press Half Load 1/button (5) and then On / Off button (1) to switch it on.
• Hold Half Load 1/2 button (5) pressed and release On / Off button (1).
• Keep Half Load 1/2 button (5) pressed for three seconds more.
• Rinse Aid Indicator (10) comes on and the stored rinse aid indicator status of your machine appears on the display in the format of "ON" or "OFF".
• You can change the status of the indicator as "ON" or "OFF" with Start / Pause / Cancel button (2). If you switch off the machine with "On/Off" button (1) when the status is "ON", then the rinse aid indicator will come on when the rinse aid level in your machine becomes low while the machine is in use. If you switch off the machine with "On/Off" button (1) when the status is "OFF", then the rinse aid indicator will never come on.

Starting Your Machine

• Plug the mains plug into the wall socket.
• Open the tap.
• Open the door.
• Place the dishes.
• Check if the upper and lower

impellers rotate freely.

• Put sufficient amount of detergent in the detergent dispenser and close its lid.
• Press On/Off button.
• Check if the salt and rinse aid warning indicators (9,10) light and add salt and/or rinse aid if needed.
• Determine your washing program with the aid of the Program Data and Table of Average Consumption Values.
• You can select the determined washing program by pressing program selection button (4).
• You can see the program time in the Remaining Time Indicator (11).
• If necessary, you can change your washing program as you prefer by means of the Add Function Buttons (6, 5).
• Start the program by pressing the Start / Pause / Cancel button (2).

WARNING:

Pay attention not to open the door of the machine when it is running. Stop the machine by pressing Start / Pause / Cancel button (2) if you have to open the door. Then, open the door of your machine. There may be a rush of vapor when you open the door of your machine; be careful. Close the door and press Start/Pause/Cancel button (2) again. Program will resume running.

• End of Program indicator (15 c) will light up.

• Turn off your machine by pressing On / Off button (1).

• Close the tap.

• Unplug the mains plug from the wall socket.
• Leave your dishes in the machine for about 15 minutes after they are washed in order to have them cooled down. Your dishes will dry in a shorter time if you leave the door of your machine ajar during this period. This will increase the drying effectiveness of your machine.

Programme Table

Programme number	1 2 3 4 Reference* 5 6
Programme name	Pre-wash	Mini 30'	Delicate	Eco	Daily	Intensive
Cleaning temperature	-	35 °C	40 °C	45 °C	60 °C	70 °C
Degree of Soiling	Suitable for removing the remnants on the soiled dishes that will be kept waiting in the machine for a few days, and thus, for preventing the bad odor buildup.	Suitable for lightly soiled daily dishes that are scraped or pre-cleaned.	Suitable for dishes that are not pre-cleaned but washed immediately.	Most economical washing program for the medium soiled daily dishes that are kept waiting.	Daily washing program at which the medium soiled dishes that are kept waiting are cleaned in the fastest way.	Suitable for heavily soiled dishes, pots and pans.
	- Few Few Medium Medium High
Detergents A=25 cm3/15 cm3 B=5 cm3	-A A A+B A+B A+B
Programme sequence (without options)	Pre-wash▼End	Wash▼Cold rinse▼Hot Rinse▼End	Pre-wash▼Wash▼Cold rinse▼Hot Rinse▼Dry▼End	Wash▼Cold rinse▼Cold rinse▼Hot Rinse▼Dry▼End	Wash▼Cold rinse▼Hot Rinse▼Dry▼End	Pre-wash▼Wash▼Cold rinse▼Hot Rinse▼Dry▼End
Duration (min)	20 30 71 120	60 136
Water (l)	7,4 10,2 13,2	13,6 10,2 14,8
Energy (kWh)	0,5 0,75 0,9 0	729	1,24 1,45

The consumption values shown in the table were determined under standard conditions. Differences may therefore occur under practical conditions.
* Reference programme for testing institutes The tests in accordance with EN 50242 must be carried out with a full water softener salt dispenser and a full rinse aid reservoir, and using the test programme.

6

How to clean your dishwasher

Cleaning your machine at regular intervals ensures longer product life and reduces the risk of recurring problems.

⚠ Always unplug the machine and turn off the water supply before cleaning. Use a gentle household cleaner for the outside and the door seals. Clean the control panel only with a moist cloth and clear water.

Cleaning the filters

Clean the filters and the spray arms regularly. A dirty machine will have a negative effect on the cleaning results.

1. Main filter
2. Coarse filter

3. Micro filter

4. Remove the lower basket from the machine.

5. Turn the coarse filter to the right and pull it out in an upward direction (A).

6. Pull out the main filter (B).

7. Press on the two tongues of the coarse filter and remove the micro filter (C).

8. Clean the filters thoroughly under running water. Use a brush if necessary.

9. Replace main fitler.

10. Replace the micro filter and the coarse filter into the main filter. Twist it clockwise until it clicks in.

Do not operate your dishwasher without a filter. Ensure that your filters are correctly installed. Clean the filters regularly.

Illustration of a hand operating a mechanical device with a circular opening and an arrow indicating rotation (no text or symbols)

Cleaning the spray arms

Dirt or calcium residue may block the nozzles on the spray arms. For this reason, regularly check the spray nozzles.

1. Lower spray arm
2. Upper spray arm
3. Remove the lower basket from the machine.
4. Pull off the lower spray arm in an upward direction (A).
5. Loosen the fastening screw of the upper spray arm and pull off the spray arm (B).
6. Clean the spray arms under running water.
7. Replace the spray arms.

i Ensure that the fastening screws are screwed tight.

Cleaning the filter inset in the water inlet hose (depends on the model)

Dirt from deposits in the water pipes is prevented by a filter in the water inlet hose. Check the filter and the water inlet from time to time.

1. Close the water tap and unscrew the water inlet hose.
2. Take out the filter and clean it under running water.
3. Replace the cleaned filter.
4. Fasten the water inlet hose to the water tap again.

7 Troubleshooting:

What to do if the dishwasher will not run

• Check that the mains plug is properly connected.
  • Are all fuses working?
  • Is the water supply fully turned on?
  • Is the dishwasher door closed firmly?
  • Have you pressed the On/Off button?
  • Is the filter on the water intake and dishwasher clogged?

The cleaning results are unsatisfactory

Hand holding a white ceramic plate with visible liquid, no text or symbols present

Uncleaned Dishes

Disorderly placement

- Load your dishes as described in the manual.

Program selection

- For products with program selecting feature, choose a longer program that washes in higher temperatures.

Blocked impellers

- Prior to starting the program, ensure by turning by hand that the upper and lower impellers are freely rotating.

Clogged filters

- From time to time, remove the complete filter system as shown in the manual and wash it under flowing water.

Misplaced or displaced filters

- After washing the filter system, replace them as shown in the manual.

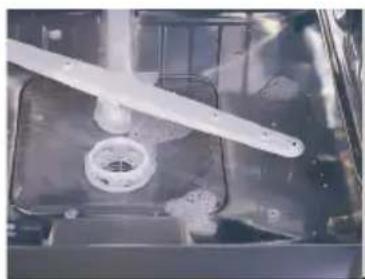

Clogged impeller holes

- Take out and clean the impellers from time to time as shown in the figure.

Overloading the baskets

- Do not overload the baskets in excess of their capacity

Detergent kept under unsuitable conditions

- If you are using powder detergents, do not store them in humid places after you open their boxes. Keep them in a closed container, if possible. For ease-of-storing, we recommend you to use tablet detergents.

Inadequate detergent

- If you are using powder detergents, adjust the amount of detergent according to the soiling degree of your dishes and/or program definitions. We recommend you to use tablet detergents for optimum results.

Inadequate rinse aid

- Increase rinse aid setting or add rinse aid into rinse aid compartment.

Unsealed detergent dispenser lid

- Always ensure that the detergent compartment lid is closed tightly after every detergent filling process.

Drying

Disorderly placement

- Load your dishes as described in the manual.

Inadequate rinse aid

- Increase rinse aid setting or add rinse aid into rinse aid compartment.

Unloading the machine right after dishwashing

- Do not unload your dishwasher right after washing process is completed. Slightly open the door and wait for evacuation of the inside steam for a while. Unload the dishes after the pieces cool down to a touchable level. Start unloading process from the lower basket.

Program Selection

- For products with program selecting feature, choose a longer program that washes in higher temperatures.

Close-up of a hand holding a white cup filled with light-colored tea, blurred green background (no text or symbols visible)

Tea, Coffee And Lipstick Stains

Program Selection

- For products with program selecting feature, choose a longer program that washes in higher temperatures.

Detergent kept under unsuitable conditions

• If you are using powder detergents, do not store them in humid places after you open their boxes. Keep them in a closed container, if possible.
• For ease-of-storing, we recommend you to use tablet detergents.

Usage of silverware-kitchenware with corrupted surface quality

- Silverware or kitchenware with corrupted surface quality should not be washed in dishwashers.

Close-up of a wine glass against a solid blue background (no text or symbols visible)

Lime Stains, Hazy Look

Inadequate rinse aid

- Increase rinse aid setting or add rinse aid into rinse aid compartment.

Insufficient water softening

- In products equipped with water softening setting, water softening should be properly set in accordance with the hardness of the supply water. Add salt into the salt container, if necessary.

Salt leakage\*

- Use the supplied salt funnel while filling in softening salt. Make sure that the salt box cover is tightly closed after finishing the filling process. Run a washing program to clean up the salts spilled in the machine. Recheck the salt box cover after the program is completed.

Metallic Look In Bluish Rainbow Color

Excessive rinse aid

- Lower rinse aid setting.

Close-up of a gloved hand holding a transparent glass with blue liquid, against a dark background (no text or symbols visible)

Hazy, Milky-Dish Look And Bluish / Rainbow Color Appearance In Glassware When They Are Hold Against Light

Glass corrosion due to soft water

- In products equipped with water softening setting, water softening should be properly set in accordance with the hardness of the supply water. If your supply water is soft (<5dH), do not use salt. For products with program selecting feature, choose programs that wash in higher temperatures (e.g. 60-65°C).

Kitchenware containing Aluminum

- Kitchenware that contains aluminum should not be washed in dishwashers.

Salt leakage\*

- Use the supplied salt funnel while filling in softening salt. Make sure that the salt box cover is tightly closed after finishing the filling process. Run a washing program to clean up the salts spilled in the machine. Recheck the salt box cover after the program is completed.

Low water softening setting, inadequate salt\*

- In products equipped with water softening setting, water softening should be properly set in accordance with the hardness of the supply water. Add salt into the salt container, if necessary.

Detergent kept under unsuitable conditions

- If you are using powder detergents, do not store them in humid places after you open their boxes. Keep them in a closed container, if possible. For ease-of-storing, we recommend you to use tablet detergents.

Overloading the baskets

- In order to avoid scratches and breaks in glasses and other glass tableware because of collision with each other during washing process arising from their placement, do not overload the baskets in excess of their capacity.

Close-up of two metallic surgical instruments against a solid blue background (no text or symbols visible)

Rusts, Blackening And Corruption Of Surface

Unsealed closing of the salt box cover\*

Salt may cause oxidation on metal surfaces. Use the supplied salt funnel while filling in softening salt. Make sure that the salt box cover is tightly closed after finishing the filling process. Run a washing program to clean up the salts spilled in the machine. Recheck the salt box cover after the program is completed.

Grounding line

- Check if your dishwasher is connected to the actual grounding line. Otherwise, the static electric created in the dishwasher may remove the protective coating on metal surfaces and cause blackening and corruption.

White plastic mechanical component with internal parts, placed on a tray (no visible text or symbols)

Detergent Remains In The Detergent Dispenser

Damp detergent compartment

- Make sure that the detergent dispenser is well dried prior to filling it with detergent.

Putting detergent in the detergent dispenser long before washing

- Take care that detergent is put shortly before startup of washing.

Blocking the opening of detergent dispenser lid dwing washing

- Ensure that the lid of detergent dispenser is not blocked by improper loaded dishes. The detergent dispenser lid should op/en without any block during washing.

Detergent kept under unsuitable conditions

- If you are using powder detergents, do not store them in humid places after you open their boxes. Keep them in a closed container, if possible. For ease-of-storing, we recommend you to use tablet detergents.

Clogged impeller holes

- Take out and clean the impellers from time to time as shown in the figure.

Close-up of a white plastic kitchen appliance with a circular component inside, no visible text or symbols

Water Remained In The Dishwashing Compartment After Washing

Clogged filters

- From time to time, remove the complete filter system as shown in the manual and wash it under flowing water.

Blocking / twisting of drainage hose

- Connect the drainage hose as described in the manual.

Odour

Odor of new dishwasher

- A new dishwasher has a peculiar odor. It will fade out after a couple of washing.

Clogged filters

- From time to time, remove the complete filter system as shown in the manual and wash it under flowing water.

Leaving the dishes in the dishwasher for a long time

- If you are not going to run your dishwasher immediately, load the dishes into your machine after scraping the excessive soil on them and do not tightly close the door of the machine. Every other day, perform washing without detergent in the shortest program for products with program selecting feature.

Interior view of a transparent laboratory enclosure with glass panels and metal framing (no visible text or symbols)

Foam

Loading the dishes into the dishwasher without completely drying after washing them with hand-wash detergent.

- Hand-wash detergents do not contain antifoam. There is no need to hand-wash the dishes with detergent before loading the dishes into the machine. Scraping the coarse soil on the surfaces with a tissue paper or fork will be sufficient.

Spilling rinse aid in the machine while filling

- Take care that rinse aid is not spilled in the machine when you are filling it. Clean any spilled amount with the help of a tissue paper/towel.

Leaving the rinse aid lid open or not closing it

- Rinse aid compartment should always be closed as shown in the manual after it is filled with rinse aid.

Two decorative plates with floral patterns on a blue background (no text or symbols)

Erasing Of Decorations

Usage of decorated glasses and porcelains

- Decorated glasses and decorated luster porcelains are not suitable for dishwasher washing. Manufacturers of glassware and porcelain tableware items do not recommend washing these items in the dishwashers either.

*: In products with a salt container

Service

If your appliance ever malfunctions, check the notes and advice given in the operating manual.

If this does not fix the problem, our customer service staff are available to assist you.

Because Life's Meant To Be Easy

BLANCO DISHWASHER PRODUCT WARRANTY

1. Subject to the "Statement of Standard Warranty Conditions" this product is covered by the following Warranty.
   TWO (2) YEARS WARRANTY from date of purchase, covering all parts and labour.
2. The appliance is warranted under normal single family domestic installation and use, as set out in the instruction manual, against manufacturing defects for the Warranty periods shown above.
3. Should service be required under this Warranty, the purchaser should contact an approved BLANCO Service Provider during their normal business hours.
4. At no time does BLANCO/MEA have liability for any freight or transportation costs or for any damage during transit or for any consequence of failure of this appliance outside of the normal service area, unless such limitation of liability is prohibited by statute.
5. This Warranty excludes replacement of parts required due to normal wear and tear including light globes.
6. This Warranty only applies, provided the appliance has been used in accordance with the manufacturer's instructions and provided an accident, misuse, neglect or abuse has not damaged the appliance.
7. None of the above Warranties purport to exclude, restrict or modify either the application or the exercise of a right conferred by any applicable Statute.
8. Please complete the details below, which should be retained for future reference along with your proof of purchase:

Date of Purchase: ....

Model No: ....

Serial No:

STATEMENT OF STANDARD WARRANTY CONDITIONS

1. The Warranty only applies provided that the appliance has been used in accordance with the manufacturer's instructions and provided that the appliance has not been damaged by an accident, misuse, neglect or abuse of any person other than the manufacturer or BLANCO/Major Electrical Appliances ("MEA") or from faulty installation, misadjustment or tampering by unauthorised persons.
2. When a service inspection reveals the alleged fault or faults are caused by incorrect operation, contrary to the instruction manual, and otherwise the appliance is in good order and working condition, the purchaser shall be liable for a service fee charged by BLANCO/MEA or one of its' Service Providers.
3. If the appliance is used in Commercial Applications or for Rental purposes, a separate warranty of Twelve (12) months covering all parts with Three (3) months on the labour will apply.
4. Subject to the provisions of any applicable statute this Warranty applies to the original retail purchaser only and is not transferable.
5. Subject to the provisions of any applicable statute, at no time does BLANCO/MEA have liability for freight, transport or travel costs outside normal service areas.
6. None of the above Warranties purport to exclude, restrict or modify either the application or the exercise of a right conferred by any applicable statute.
7. Subject to any Warranties implied by statute, at no time will BLANCO/MEA or its' Service Providers be liable for any economic loss consequent upon the failure of the appliance.
8. This Warranty is only valid for major appliances imported and distributed by BLANCO/MEA, purchased and used in Australia.

Blanco Contact Information.

NEW SOUTH WALES

Head Office, Sales & Marketing Office

104 Vanessa Street

Kingsgrove NSW 2208

Telephone: [phone]

Facsimile: 02 9503 2810

NSW Showroom*

40 Ebley Street

Bondi Junction NSW 2022

Telephone: [phone]

Facsimile: 02 9386 1671

Service and Spare Parts

All General Whitegoods Service

Telephone: [phone]

Facsimile: 02 9756 1091

AUSTRALIAN CAPITAL TERRITORY

Service and Spare Parts

Detlevs Appliance & Electrical Care

1/88 Sheppard Street

Hume

ACT 2905

Telephone: [phone]

Facsimile: 02 6260 1035

VICTORIA

State Office and Showroom*

35 Centre Road

Scoresby VIC 3179

Telephone: [phone]

Facsimile: 03 8756 7907

Service and Spare Parts

Advantage Appliances

Telephone: [phone]

Facsimile: 03 9874 6917

QUEENSLAND

State Office and Showroom*

148 Robinson Road - East

Geebung

QLD 4034

Telephone: [phone]

Facsimile: 07 3265 6933

Service and Spare Parts

Endeavour Appliances

Telephone: [phone]

Facsimile: 07 3852 2465

Platinum Appliance Service

Telephone: [phone]

Facsimile: 07 3862 1114

Roshad (Gold Coast)

Telephone [phone]

Facsimile 07 5535 7407

SOUTH AUSTRALIA & NORTHERN TERRITORY

Agent and Sales Office

S C Lighting & Electrical Supplies

47 North Terrace

Hackney SA 5069

Telephone: [phone]

Facsimile: 08 8362 4591

Service and Spare Parts

Prestige Appliance Repair Centre

Telephone: [phone]

Facsimile: 08 8352 3044

WESTERN AUSTRALIA

1 Alvan Street

SUBIACO WA 6008

Telephone: [phone]

Facsimile: 08 9382 1622

Service and Spare Parts

Metropolitan Appliance Repairs

Telephone: [phone]

Facsimile: 08 9317 1296

TASMANIA

Agent and Sales Office

Mark Pearce Agencies

23 Tranmere Road

Howrah TAS 7018

Tel/Fax: [phone]

Service and Spare Parts

Electrical Equipment Service (Launceston)

Telephone: [phone]

Facsimile: 03 6339 4588

Baldocks Appliance Service (Hobart)

Telephone: [phone]

Facsimile: 03 6234 8134

BLANCO CUSTOMER SERVICE

1300 739 033

Website: www.meaappliances.com.au

* Contact Showrooms to confirm hours of business.
