S560 - Mobile Phone LENOVO - Free user manual and instructions

Product Type	WCDMA Digital Mobile Phone
Model	Lenovo S560
Operating System	Android 4.0.4
Dimensions	124.3 x 63.4 x 12.3 mm
Weight	154 g (including battery)
Battery Capacity	2000 mAh
Standby Time	250-430 hours
SAR Value (Head)	0.670 W/kg@1g
SAR Value (Body)	0.614 W/kg@1g
Body-worn Distance	Minimum 1.0 cm
Display Features	Gravity sensor, multi-touch
Internet Browser	Yes (via Wi-Fi)
Email Client	Yes
Gallery	Image browsing and editing, slideshow, share
Contacts	Add, delete, edit
Calendar	Event creation, day/week/month views, reminders
Audio	Dolby licensed
Screen Rotation	Auto-rotate based on device orientation
Charging	Via cable connector
SIM Card Slot	Yes
Memory Card Slot	Yes
Cleaning	Damp, soft, lint-free cloth
Operating Temperature	-10°C to 50°C
Avoid	Magnetic fields, dampness, corrosive cleaners
Antenna	Use only supplied or approved antenna

Frequently Asked Questions - S560 LENOVO

How do I insert the SIM card?

Refer to the initial setup procedure in the manual. Insert the SIM card into the designated slot, ensuring the gold contacts face down. A line drawing in the manual shows the correct orientation.

How do I insert a memory card?

Locate the memory card slot, then gently push the memory card in until it clicks. The manual provides a line drawing indicating the insertion direction with an upward arrow.

How can I charge the Lenovo S560?

Connect the charging cable to the phone's charging port and plug the other end into a power source. The manual shows a line drawing of the cable connector.

How do I open an application?

Simply tap the application icon on the home screen. To return to the home screen, press the Home key.

How do I scroll on the screen?

Drag up or down on the content to scroll the screen. This action is described in the manual as a basic navigation gesture.

How can I zoom in or out on a web page or map?

Use the multi-touch function: move two fingers apart to zoom in, or bring them together to zoom out.

What are the precautions for using the Lenovo S560?

Avoid dropping, striking, or exposing the phone to extreme temperatures (below -10°C or above 50°C). Keep it away from magnetic substances, damp environments, and do not use corrosive cleaners.

How should I clean the screen?

Use a damp, soft, lint-free cloth to wipe fingerprints off the screen. Do not use corrosive detergents or solvents.

What is the battery capacity and standby time?

The battery capacity is 2000 mAh. Standby time ranges from 250 to 430 hours, depending on local signal strength.

What is the SAR value of the Lenovo S560?

The SAR value is 0.670 W/kg@1g for head and 0.614 W/kg@1g for body. Maintain a distance of at least 1.0 cm from the body during body-worn operation.

USER MANUAL S560 LENOVO

Read this manual carefully

before operating the handset

Technical Parameters

Product: WCDMA digital mobile phone

Model: Lenovo S560

System: Android4.0.4

Size: Approximately 124.3*63.4*12.3mm

Weight: Approximately 154g (including battery)

Standby time: 250-430 hours*

Battery capacity: 2000 mAh

*may vary depending on local signal strength

SAR Information

0.670 W/kg@1g (HEAD) 0.614 W/kg@1g (BODY)

Body-worn Operation

This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 1.0 cm must be maintained between the user's body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided.

Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna.

Procedure Initial Setup Procedure

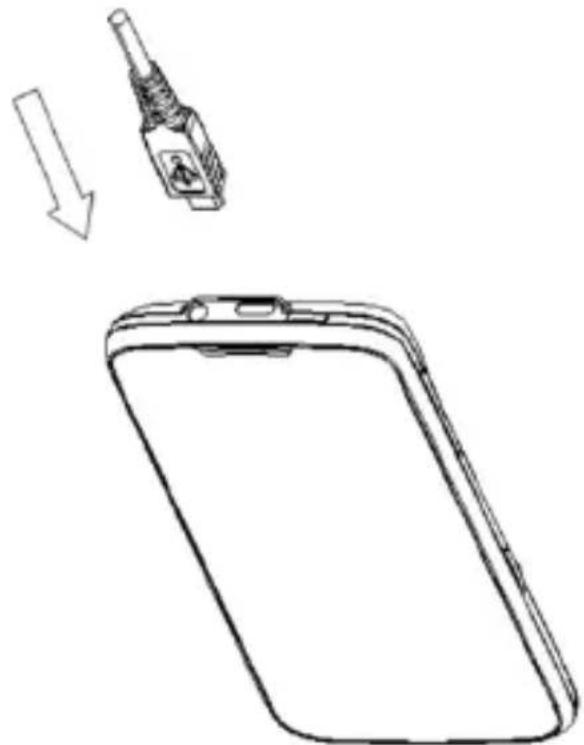

Charging the phone

Line drawing of a smartphone with a cable connector and a downward arrow indicating compression or disassembly (no text or symbols)

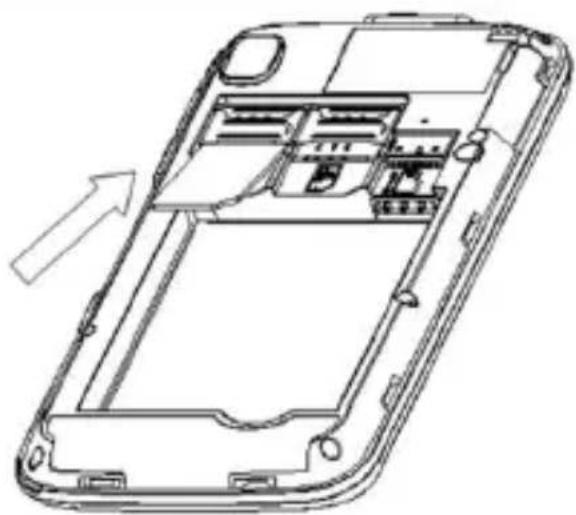

Inserting the SIM card

Line drawing of a smartphone interior showing internal components and casing (no text or symbols)

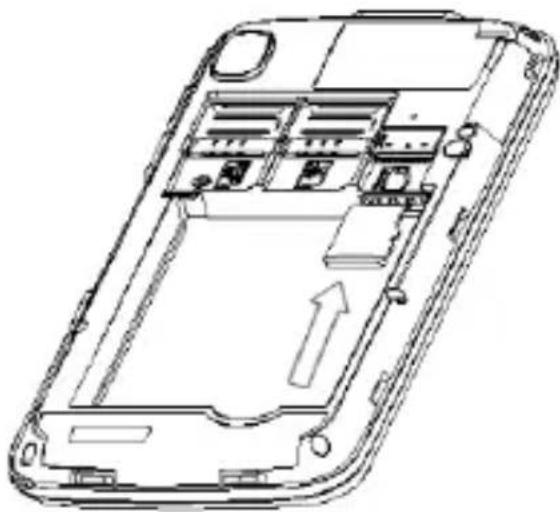

Inserting the memory card

Line drawing of a smartphone internal structure showing internal components and an upward arrow (no text or symbols)

Port Assignment and Button Layout

MENU key
BACK key
MULTITASK key

Applications Overview

	Browser	Browses websites. The web browser in this unit can access the Internet via the WIFI network for business and personal use.
	Email	Receives/Sends and views mails by linking directly to your mailbox.
	Gallery	Browses and edits images. In an image full-screen page it supports slideshow functions and such operations as, Share, Set as, and Details.
	Contacts	Allows you to add or delete contacts and edit or delete particulars of a contact.
	Calendar	Creates new events, toggles the day view, the week view and the month view, and enables the event reminder function.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Gravity sensor and multi-touch

Auto rotate screen according to the rotation of the device. You can lock the S560 screen in the current direction screen rotation lock downward. To unlock the screen direction: Menu - System settings - Display - Auto-rotate screen.

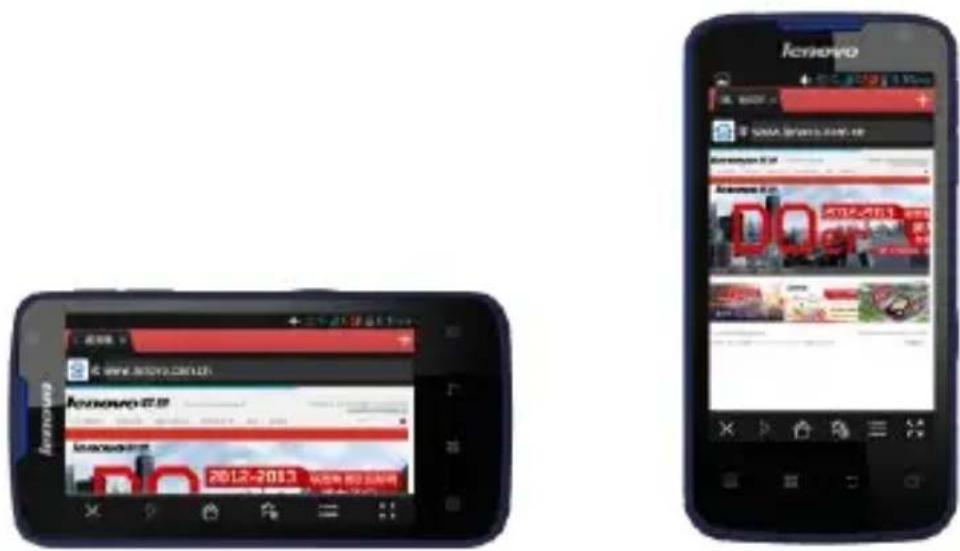

Use the S560 in the landscape or portrait mode

After launching one application, you can rotate the screen to your preferred direction.

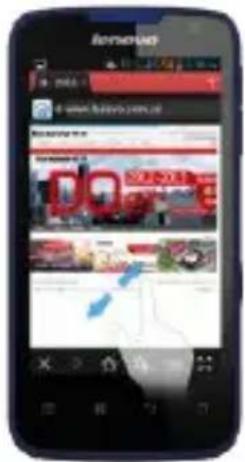

Use the multi-touch function

The multi-touch function enables you to perform various operations on the screen.

Open an application

Open an application: Tap the icon of this application on the screen. By clicking home key, you can return to the home screen.

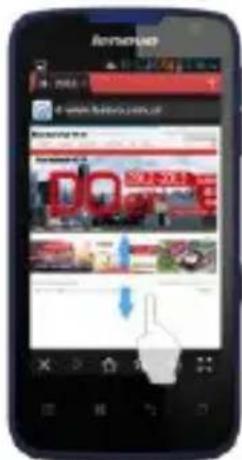

Scroll

Scroll the screen by dragging up or down on the content.

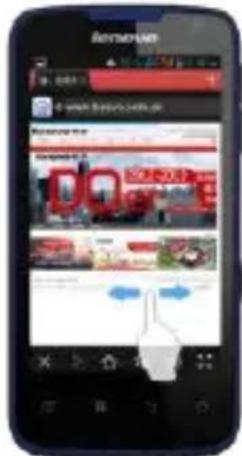

Zoom in or out

You can zoom in or out a map or web page while viewing it. To do so, just move your two fingers apart or together.

Precautions and Tips for S560

Never drop, strike, scratch, twist, knock, vibrate or push the S560 or place any heavy objects on it.

Gently touch the S560.

Keep the S560 away from any magnetic substances, mobile phones in conversation, electrical appliances or speakers.

Avoid exposing the S560 to extreme temperatures (lower than -10^irc C or higher than 50^irc C).

Do not place the S560 in a damp environment.

Do not use corrosive detergents or solvents to clean your S560. Just wipe the S560 screen with a damp, soft, lint-free cloth to clear fingerprints off it.

Ponsel Lenovo

Panduan Penggunaan

Model: Lenovo S560

Line drawing of a smartphone with a device attached, showing a downward arrow and a small connector (no text or symbols)

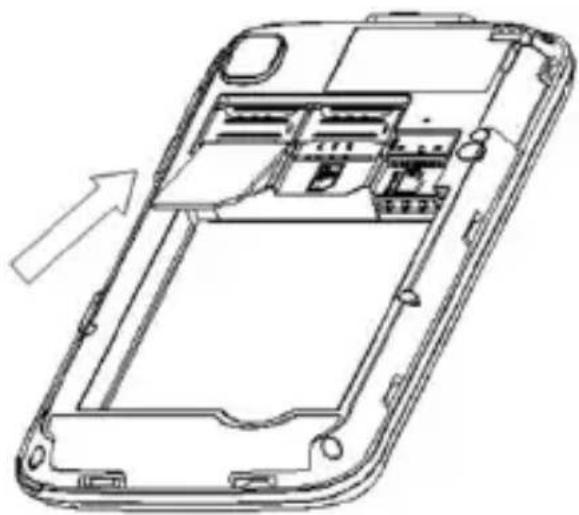

Memasukkan kartu SIM

Line drawing of a smartphone interior showing internal components and casing (no text or symbols)

Memasukkan kartu memori

Line drawing of a smartphone internal structure showing battery pack, circuit board, and ventilation unit (no text or symbols)

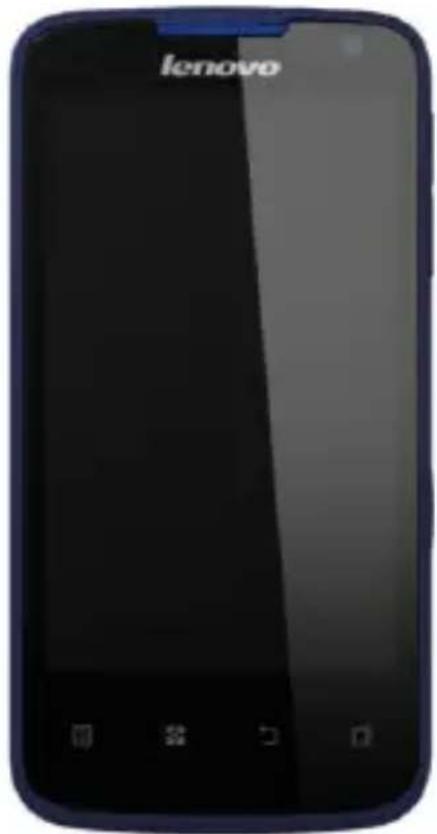

Front view of a Lenovo smartphone with no visible text or symbols on its body

Solid dark purple cylindrical object with no visible text or symbols

tombol MENU

tombol Awal

tombol KEMBALI

tombol MULTITUGA

Tinjauan Aplikasi

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Membuka aplikasi

Line drawing of a smartphone with a device attached, showing a downward arrow and a small connector (no text or symbols)

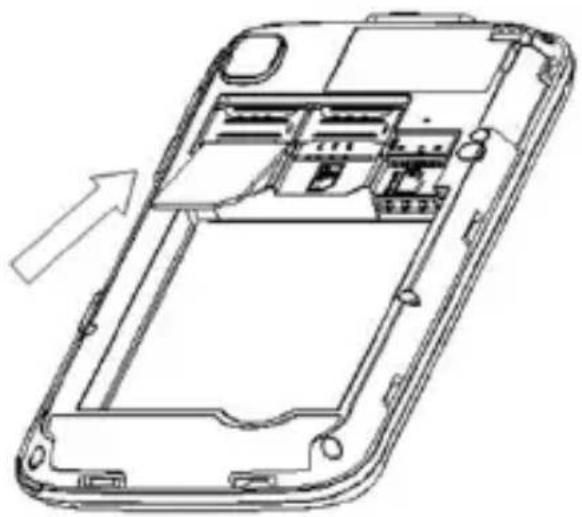

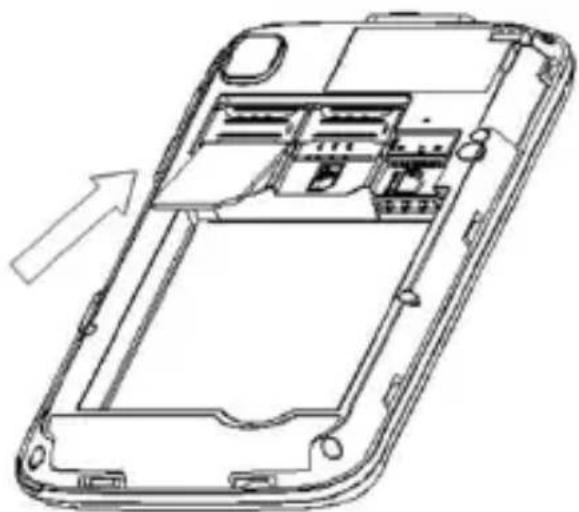

Установка SIM-карты

Line drawing of a smartphone interior showing internal components and casing (no text or symbols)

Line drawing of a smartphone internal structure showing internal components and an upward arrow (no text or symbols)

Открытие приложения

Прокрутка

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Line drawing of a smartphone with a device attached, showing a downward arrow and a small connector (no text or symbols)

Lắp thể SIM

Line drawing of a smartphone interior showing internal components and casing (no text or symbols)

Lắp thể nhớ

Line drawing of a smartphone internal structure showing internal components and an upward arrow (no text or symbols)

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Mở ứng dụng

Cuôn
