Product Type	CD Stereo Cassette Receiver System
Model	NSX-D20 (CX-ND20 + SX-ND20)
Dimensions (Receiver)	260 x 324 x 315 mm (10.25 x 12.875 x 12.5 in)
Weight (Receiver)	5.8 kg (12.8 lb)
Dimensions (Front Speakers)	210 x 324 x 215 mm (8.375 x 12.875 x 8.5 in) each
Weight (Front Speakers)	3.0 kg (6.6 lb) each
Power Supply	120 V AC, 60 Hz
Power Consumption	61 W (normal), 0.6 W (ECO standby), 20 W (standby without ECO)
Amplifier Output	32 W + 32 W (6 ohms, 40 Hz – 20 kHz, THD <1%)
CD Player	3-disc changer, plays CD, CD-R/RW (finalized)
Radio Tuner	FM/AM with 32 presets, FM stereo/mono
Cassette Deck	Double deck (DECK 1 playback, DECK 2 recording/playback), supports Type I and II tapes
Audio Features	Super T-BASS (3 levels), TREBLE enhancement (3 levels), Spectrum Analyzer display
Timer Functions	Sleep timer, Timer playback, Timer recording (TUNER/AUX only)
Inputs/Outputs	VIDEO/AUX (RCA), FM/AM antenna terminals, Speaker terminals, Phones jack (3.5mm)
ECO Mode	Reduces power consumption, display off in standby
Care & Maintenance	Clean cabinet with dry cloth; clean tape heads every 10 hours; demagnetize heads every 20-30 hours; clean CDs from center out
Safety	Polarized plug, keep away from water/heat, do not block ventilation, refer servicing to qualified personnel
Spare Parts & Repairability	Use manufacturer-specified replacement parts; do not attempt self-service; safety check after repairs
General Information	ENERGY STAR compliant; FCC Class B; Canadian ICES-003; copyright laws apply to recordings

Frequently Asked Questions - NSX-D20 AIWA

How do I set the clock?

Press CLOCK on the remote control. Use ◀◀ or ▶▶ to set the time (1-minute steps, hold for 10-minute steps). Press SET or ENTER to confirm. The clock starts from 00 seconds. To display the time, press CLOCK again.

How can I activate the sleep timer?

Press SHIFT+SLEEP on the remote control. '*SLP*' appears. Use ◀◀ or ▶▶ to set duration from 5 to 240 minutes (5-minute steps). The unit turns off automatically after the set time. To cancel, press SHIFT+SLEEP twice until 'SLP OFF' is displayed.

How do I record from a CD to a cassette?

Insert a blank Type I tape in DECK 2. Select the CD function and load the disc. Press ●REC/REC MUTE to start recording. The CD playback starts automatically. To record only selected tracks, use Programed Playback first, then press REC. For AI Edit Recording, press SHIFT+CD EDIT/CHECK and follow the prompts.

What should I do if the CD player does not work?

Check if the disc is correctly loaded (label side up). Clean the disc if dirty. If condensation occurs (e.g., after moving from cold to warm), wait about one hour and try again. If problems persist, reset the unit by holding ■ and pressing POWER (after turning off). Ensure discs are finalized CD-R/RW.

How can I clean the tape heads?

After every 10 hours of use, clean the tape heads with a head cleaning cassette following the cleaning cassette's instructions. Dirty heads can cause sound deterioration. Also demagnetize the heads every 20 to 30 hours using a demagnetizing cassette.

Can I play CD-R/RW discs?

Yes, the unit can play finalized CD-R and CD-RW discs as well as standard audio CDs. However, it may not play discs recorded on personal computers or certain recorders. Do not attach adhesive labels to discs or use irregular-shaped CDs.

How do I preset radio stations?

Press TUNER/BAND to select a band (FM/AM). Tune to the desired station using ◀◀ or ▶▶. Press II SET to store the station (preset number starts from '1'). Repeat to store up to 32 stations. To tune to a preset, press ▶PRESET or use numbered buttons on the remote.

What is the ECO mode and how to enable it?

ECO mode reduces power consumption when the unit is off. In ECO mode, the display blacks out and only the red indicator lights up (when clock is set). To enable, press DEMO/ECO once while the unit is on, then press ENTER. Use MULTI JOG to select 'ECO ON' and press ENTER. To disable, repeat and select 'ECO OFF'.

How do I use the timer playback feature?

First set the clock correctly. Press TIMER (or SHIFT+TIMER on remote). Use ◀◀/▶▶ to set timer-on time, source (CD, TUNER, TAPE, VIDEO/AUX), timer-activated duration (5-240 min), and volume (0-16). Prepare the source (e.g., load CD, tune radio). Turn the unit off. At the set time, playback starts and stops after the duration.

What are the specifications of the speakers?

The NSX-D20 includes SX-ND20 front speakers: 3-way bass-reflex (magnetic shielded), woofer 120 mm cone, tweeter 60 mm cone, super tweeter 20 mm ceramic, impedance 6 ohms. Dimensions: 210 x 324 x 215 mm each, weight 3.0 kg each. Surround speakers are not included with NSX-D20 (only NSX-D22).

USER MANUAL NSX-D20 AIWA

Record the model number and serial number of your set (found at the rear of your set) below. Refer to them when contacting your Aiwa dealer.

Model No. ____

Serial No. ____

For assistance and information call toll free 1-800-BUY-AIWA (United States and Puerto Rico)

OPERATING INSTRUCTIONS

Toreduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.

Warning

To prevent electric shock or injury, these safety instructions should be followed in the installation, use and servicing the unit.

Installation

Attachments - Do not use attachments not recommended by the unit manufacturer as they may result in the risk of fire, electric shock or injury to persons.

Water and Moisture - Do not use this unit near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

Heat - Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C (41°F) or greater than 35°C (95°F).

Mounting surface - Place the unit on a flat, even surface.

Accessories - Do not place this unit on an unstable cart, stand, tripod, bracket, or table. The unit may fall, causing serious injury to a child or an adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the unit. Any mounting of the appliance should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

Portable cart - An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

Ventilation - The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm clearance from the rear and the top of the unit, and 5 cm from the each side.

Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the unit and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the unit on a bed, sofa, rug or other similar surface. This unit should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

Object and Liquid Entry - Never push objects of any kind into this unit through the cabinet slots as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the unit.

Electric Power

Power Sources - This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. To operate unit on battery power, or other sources, refer to the operating instructions.

Grounding or Polarization - This unit is provided with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

Overloading - Do not overload wall outlets, extension cords, integral convenience receptacles as this can result in a risk of fire or electric shock.

Outdoor Antenna

Power lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

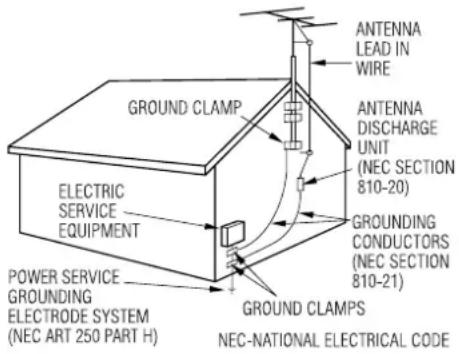

Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See the figure.

Lightning

For added protection for this unit receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit due to lightning and powerline surges.

Maintenance

Cleaning - Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Damage Requiring Service

Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the unit.
• If the unit has been exposed to rain or water.
• If the unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the unit to normal operation.
• If the unit has been dropped or the cabinet has been damaged.
• When the unit exhibits a distinct change in performance - this indicates a need for service.

Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

Safety Check - Upon the completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ..... 2

PREPARATIONS 4

PARTS AND CONTROLS .... 5

ADJUSTMENTS BEFORE OPERATIONS ..... 8

CD OPERATIONS ...... 10

RADIO OPERATIONS ...... 12

TAPE OPERATIONS 14

SOUND ADJUSTMENTS ...... 17

TIMER OPERATIONS ...... 18

REFERENCE 20

System and accessories

NSX-D20

CX-ND20 CD stereo cassette receiver

SX-ND20 Front speakers

NSX-D22

CX-ND22 CD stereo cassette receiver

SX-ND22 Front speakers

SX-R160 Surround speakers

Remote control

FM antenna

AM antenna

PREPARATIONS

Connection

Plug in the AC power cord to the AC power outlet after all other connections are made.

1 Connect the front speakers.

Connect the right front speaker to the SPEAKERS R terminals and place it on the right side of the unit. Connect the left to the SPEAKERS L terminals and place it on the left side. The speaker cords with the white stripes go to the + terminals.

2 Connect the surround speakers (only for NSX-D22)

Connect each surround speaker cord to the SURROUND SPEAKERS R jack or the SURROUND SPEAKERS L jack.

Strip off the insulation of the FM antenna with twisting the cord.

Connect the FM antenna to the FM 75 Ω terminal without the ⏚ mark and the AM antenna to the AM LOOP terminals.

4 Connect the AC power cord to an AC outlet.

When the AC power cord is connected to an AC outlet for the first time, DEMO appears on the display. To deactivate the DEMO, press DEMO/ECO.

- Do not short-circuit the + and - speaker cord leads.

- Do not leave objects generating magnetism or objects affected by magnetism near the speakers.

To position the surround speakers (only for NSX-D22)

Position the surround speakers behind the listening area to make the most of the surround effect.

3D diagram of a mechanical or electrical component with labeled component SX-R160 (no readable text or symbols beyond label)

AIWA disclaims any responsibility for injury to persons or other accidents caused by not fitting the surround speakers properly or if the place of the installation is not suitable.

PARTS AND CONTROLS

Remote control

Detach the battery compartment lid at the rear of the remote control and insert two R6 (size AA) batteries with correct polarity.

• Replace the batteries with new ones when the operational distance between the remote control and main unit becomes shorter.
• Remove the batteries if the unit is not going to be used for an extended period of time.
• The remote control may not operate if it is used under intense sunlight, etc., or if its line of sight is obstructed.

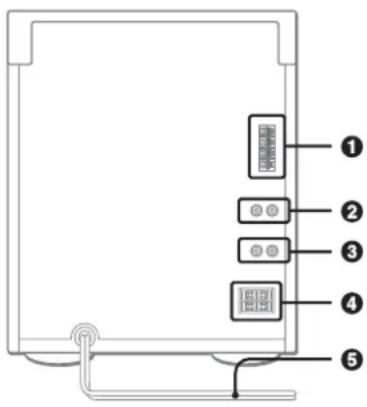

Main unit: rear

* This illustration is only for NSX-D22. There are no SURROUND SPEAKERS jacks on CX-ND20 for NSX-D20.

①AM LOOP, FM 75 Ω terminals

Plug in the supplied AM and FM antennas here.

②VIDEO/AUX jacks

Accepts analog sound signals from external equipment. Connect using an optional connecting cable with RCA phono plugs (red plug to R jack, white plug to L jack). Refer also to the operating instructions of your equipment. To switch function to external input, press VIDEO/AUX.

Tip:

To change the displayed name for this function, turn the unit on, then hold down VIDEO/AUX and press POWER on the unit. Repeat the procedure to select "AUX", "VIDEO" or "TV".

③ SURROUND SPEAKERS Jacks (only for NSX-D22)

Connect the speaker cord of the supplied surround speakers here.

④SPEAKERS terminals

Connect the speaker cord of the supplied front speakers here.

⑤AC power cord

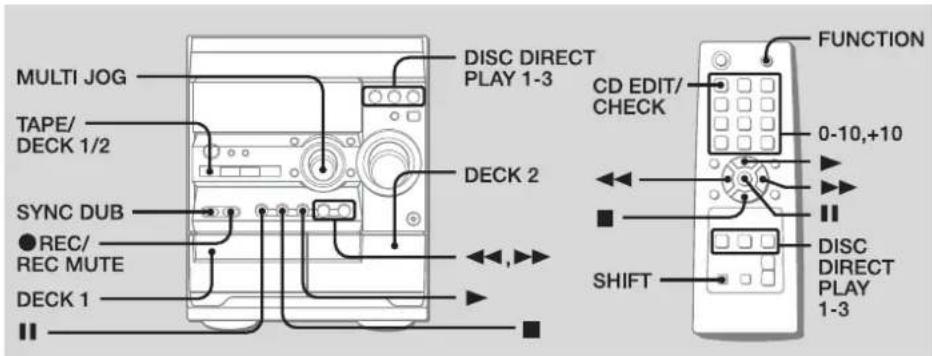

Main unit: front

①TAPE/DECK 1/2

Selects Tape function, and deck 1 or 2.

TUNER/BAND

Selects Radio function and the radio band.

VIDEO/AUX

Selects the function of external equipment connected to VIDEO/AUX jacks.

CD

Selects CD function.

②POWER ⏻STANDBY/ON

Switches the unit on and off (standby).

DEMO/ECO

When the unit is turned off: switches DEMO on and off. When the unit is turned on: enters ECO or dimmer setting mode.

TIMER

Enters timer setting mode.

③SYNC DUB

Starts dubbing a whole tape.

●REC/REC MUTE

Starts recording.

④ II PAUSE/SET

CD and Tape: pauses playback. Radio: stores the received station to preset.

■ STOP/CLEAR

CD and Tape: stops playback. Radio: clears a station preset.

▶ PLAY/PRESET

CD and Tape: starts playback. Radio: tunes into a preset station.

◀◀/I◀◀DOWN, ▶▶/▶▶IUP TUNING

CD: skips to a previous or a succeeding track when pressed, searches a track in fast forward or fast reverse playback when held down. Tape: fast forwards or rewinds the tape. Radio: manually tunes down or up within the band.

⑤ MULTI JOG

CD: skips to a previous or a succeeding track. Radio: selects a preset number. Clock and Timer: sets the time. ECO and Dimmer: selects the mode.

ENTER

Determines the mode and the time (ECO, dimmer, clock and timer).

DISPLAY

Selects a spectrum analyzer display.

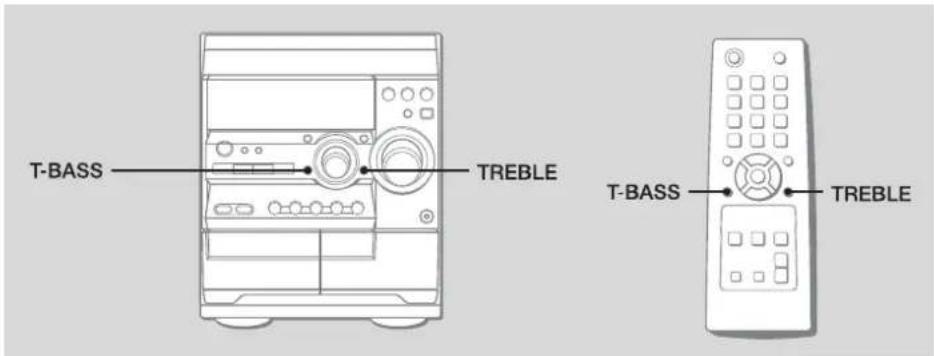

TREBLE

Enhances high frequency sound.

T-BASS

Emphasizes low frequency sound.

⑥DISC DIRECT PLAY 1-3

Selects a CD tray.

DISC CHANGE

Rotates the CD trays.

▲CD OPEN/CLOSE

Opens or closes the disc compartment.

7VOLUME

Adjusts the volume.

⑧ PHONES jack

Plug in here an optional headphones set with a mini stereo plug (ø3.5 mm). Speaker output is canceled.

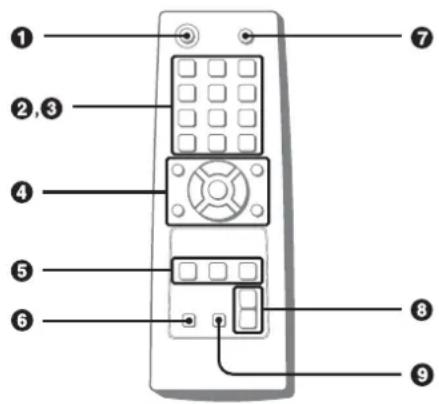

Remote control

Buttons with the same or similar names with the main unit basically have the same function.

①POWER

②0-10,+10

CD: selects a CD track of the specified number.

Radio: tunes in to the station with the specified preset number.

③ The numbered buttons take on these functions when pressed together with SHIFT held down:

CD EDIT/CHECK

Displays the remaining playback time of a CD when pressed during playback.

Enters AI Edit Recording or Programed Edit Recording mode when pressed during stop.

PROGRAM

Enters programmed CD playback mode.

RANDOM/REPEAT

Enters random or repeat CD playback mode.

TIMER

SLEEP

Enters sleep-timer setting mode.

④MONO TUNER

Switches between stereo or monaural FM reception.

BAND

Selects a band in Tuner function.

IISET

T-BASS

TREBLE

⑤DISC DIRECT PLAY 1-3

6SHIFT

Hold down when pressing a numbered button to change its function to that printed above the number. e.g.)

"Press SHIFT+SLEEP on the remote control" indicates "Hold down SHIFT and press '5' (SLEEP)", so that you can use 'Sleep timer' function.

7FUNCTION

Switches the active function among TAPE (DECK 1/2), TUNER, VIDEO/AUX and CD.

⑧ VOLUME (+, -)

⑨CLOCK

Enters clock adjustment mode.

ADJUSTMENTS BEFORE OPERATIONS

Power

Turning the unit on

Press POWER ⬤STANDBY/ON (POWER on the remote control).

Pressing TAPE, TUNER, VIDEO/AUX or CD also turns the unit on (Direct Play Function.) When a disc or tape is inserted, the playback will start automatically.

Turning the unit off

Press POWER ⏻STANDBY/ON again.

The unit goes into standby.

Volume

Turn VOLUME (Press VOLUME +, - on the remote control).

Adjust from 0 (minimum) to 30 and MAX (maximum).

Tip:

Volume level setting is retained during power-off standby. If the unit is turned off with the volume set to 17 or more, it is automatically turned down to 16 the next time the unit is turned on.

DEMO

If the clock has not been set, a DEMO appears on the display when the unit is turned off.

To deactivate and activate the DEMO

Press DEMO/ECO when the unit is turned off.

Spectrum analyzer display

You can change the spectrum analyzer display.

Press DISPLAY repeatedly to select one of the three spectrum analyzer displays.

- NORMAL: Displays the fluctuation from low frequencies to high ones

- BASS : Displays the fluctuation of low frequencies only

- LEVEL: Displays the fluctuation of the average of all the frequencies.

ECO mode

Reduces power consumption with the following operations, etc.

• The unit blacks out when the unit is turned off. Only the red indicator lights up. (Only when the clock is set.)
• If dimmer mode is set to on, the unit illumination brightens (for 10 seconds) only when you operate the unit.

1 Press DEMO/ECO once when the unit is turned on, and then within 4 seconds press ENTER.

2 Turn MULTI JOG to select "ECO ON" and then press ENTER. If there is no MULTI JOG or button operation within 4 seconds, the setting is canceled.

To cancel the ECO mode

Repeat the above and select "ECO OFF".

Dimmer

Adjusts the brightness of the display.

1 Press DEMO/ECO twice when the unit is turned on, and then within 4 seconds press ENTER.

2 Turn MULTI JOG to select one of the three dimmer modes or "DIM-OFF", and then press ENTER.

"DIM-OFF" is the brightest and "DIMMER 3" is the dimmest. If there is no MULTI JOG or button operation within 4 seconds, the setting is canceled.

To cancel the dimmer

Repeat the above and select "DIM-OFF".

Setting the clock

1 Press CLOCK on the remote control. When the unit is turned off, you can also press ⚪SET.
2 Press ◀◀ or ▶▶ to set the time. Each press changes the time in 1-minute steps. Holding it down changes the time in 10-minute steps. If ◀◀ or ▶▶ is not pressed within 4 seconds, the setting is canceled. • MULTI JOG is also available in place of ◀◀ or ▶▶.
3 Press ■SET or ENTER. The time display stops flashing and the clock starts from 00 seconds.

To display the time

Press CLOCK on the remote control.

The time will be displayed for 4 seconds, but it cannot be displayed during recording.

To switch to the 24-hour standard

Display the time and press ■ within 4 seconds.

With each press, the clock alternates between the 12-hour standard and the 24-hour standard.

Tip:

In the 12-hour standard, "AM 12:00" indicates midnight and "PM 12:00" noon.

If the clock display flashes when the unit is turned off

There has been a power interruption. Re-set the clock.

CD OPERATIONS

This unit plays back finalized CD-R/RW discs as well as audio CDs.

Playback

1 Press CD and load disc(s).

Press ▲CD OPEN/CLOSE to open the disc compartment and place one or two disc(s) with the labelled side up. Toplace three discs, press DISC CHANGE so that the trays rotate, then place the third one. Lastly, close the compartment with ▲CD OPEN/CLOSE.

• When loading an 8-cm (3-inch) disc, place it on the inner circle of the tray.
• When pressing ▲CD OPEN/CLOSE or DISC CHANGE, the unit switches to the CD from any other functions.

2 To play all discs, press ▶.

To play one desired disc, press DISC DIRECT PLAY 1-3.

Tray number indicator being played back flashes on the display.

To stop playback

Press ■.

To pause playback

Press ■. Press again to resume playback.

To skip to the beginning of the current/preceding/succeeding track

Press ◀◀ or ▶▶ repeatedly or turn MULTI JOG.

To search (playback in fast forward or fast reverse)

Hold down ◀◀ or ▶▶. Release at the desired point.

To select a disc and a track with the remote control Press DISC DIRECT PLAY 1-3 to select a disc, and then press the numbered buttons to select a track.

• To select track 20, press +10, +10 and 0.
• T o select track 15, press +10 and 5.

To display the remaining playback time of the CD

Press SHIFT+CD EDIT/CHECK on the remote control. Press again to return to the elapsed time display.

- Remaining playback time cannot be displayed during random playback or programmed playback.

To replace disc(s) during playback without interruption

While one disc is being played back, press DISC CHANGE so that the compartment opens, replace disc(s) with other one(s), and press DISC CHANGE to close the compartment.

Random/Repeat playback

Random playback plays all the tracks on one desired disc or all the discs in random order. Repeat playback plays all the tracks repeatedly on one desired disc or all the discs.

1 Press SHIFT+RANDOM/REPEAT repeatedly on the remote control to select one of the following modes:

• Random playback: "RNDM" lights up.
• Repeat playback: "◀" lights up.
• Random and repeat playback: "RNDM" and " lights up.

2 To play one desired disc, press DISC DIRECT PLAY 1-3.

To play all discs, press ▶.

To cancel random/repeat playback

Press SHIFT+RANDOM/REPEAT repeatedly on the remote control so that both "RNDM" and "⊂" disappear on the display.

To repeat a selected set of tracks

Select the tracks with programmed playback, then press SHIFT+RANDOM/REPEAT on the remote control to select repeal playback.

- It is impossible to play a selected set of tracks in random order.

Programed playback

Plays back up to 30 selected tracks in programmed order.

1 Press SHIFT+PROGRAM on the remote control during stop.
"PRGM" flashes on the display.

2 Press DISC DIRECT PLAY 1-3 to select a disc. Go to the next step when the tray stops rotating.

3 Press the numbered buttons on the remote control to program a track.

The selected track number lights up on the display.

-To select the 20th track, press +10, +10 and 0.

-To select the 15th track, press +10 and 5.

4 Repeat step 2 and 3 to program other tracks.

5 Press ▶.

• During programmed playback, you cannot select a disc or a track with the numbered buttons. "CAN'T USE" is displayed when you try to select a track.
• If the total playback time of the program exceeds 99:59 minutes, or if a track with a track number exceeding 30 is programmed, the playing time is displayed as "-" - - - -".
• You cannot program more than 30 tracks. "FULL" is displayed.

To check the program

Press ◀◀ or ▶▶ repeatedly during stop. The track number and program number are displayed in succession.

To clear the program

Press ■ during stop. "PRGM" disappears on the display.

To add tracks to the program

Repeat step 2 and 3 before starting playback. The tracks are added to the end of the program.

To change the programmed tracks

Clear the program and reselect the tracks in your desired order.

Notes on CDs

• Do not place more than one disc on one tray.
• Do not tilt the unit with discs loaded.
• The unit may not play a CD-R/RW disc recorded on personal computers or certain kinds of CD-R/RW recorders.
• Do not attach adhesive label, etc. to either side of a CD-R/RW disc, as doing so may cause malfunction.
• Do not load an unrecorded CD-R/RW disc. The disc may be damaged.
• Do not use irregular-shaped CDs.

RADIO OPERATIONS

Manual tuning

1 Press TUNER/BAND (BAND on the remote control) repeatedly to select a band (FM or AM.)
2 Press ◀◀ or ▶▶ to tune in to a station. "TUNE" is displayed when a station is tuned in. "{{{OOO}}" lights up for FM stereo reception.

To search for a station automatically (Auto Search) Hold down ◀◀ or ▶▶.

The unit searches for a station up or down the band and stops at reception.
To stop the search manually, press ◀◀ or ▶▶.
• Auto Search may not stop at stations with weak signals.

Preset tuning

Preset your favorite stations and tune them in directly.

Presetting stations

1 Press TUNER/BAND to select a band.
2 Press ◀◀ or ▶▶ to tune in to the desired station.
3 Press II SET to store the station. The preset number, beginning from "1", appears on the display.
4 Repeat step 1 to 3 to preset other stations.
- You cannot store more than a total of 32 preset stations. "FULL" is displayed.

Tuning in to preset stations

On the unit

1 Press TUNER/BAND to select a band.
2 Press ▶PRESET repeatedly or turn MULTI JOG. With each press, the station with the succeeding preset number is tuned in.

On the remote control

1 Press BAND to select a band.
2 Press the numbered buttons for the preset number of your desired station.
- T o select preset number 20, press +10, +10 and 0.
- T o select preset number 15, press +10 and 5.
- Pressing ▶PRESET repeatedly can also select the preset number.

To clear a preset station

1 T une in to the station by preset tuning.
2 Press ■ CLEAR, then press ■ SET within 4 seconds.
Preset numbers of preset stations in the band with higher numbers decrease by one.

Adjustments

Antennas

Keep antennas away from metallic objects, electrical equipment and cords.

FM antenna: Extend fully and position for the best reception. If receiving condition is poor, connect optional outdoor antenna to FM 75 Ω terminal. Be sure to connect the shield braid of the antenna to the π terminal.

AM antenna: Rotate to find best reception.

To switch to monaural FM reception

Press MONO TUNER on the remote control. With each press, "MONO" and "STEREO" are displayed alternately on the display.

Tip:

When FM stereo reception is poor, switching to monaural reduces noise.

To switch the AM tuning interval

Hold down TUNER/BAND and press POWER on the unit. With each press, the AM tuning interval alternates between 9 kHz/step and 10 kHz/step.

Tip:

The default is 10 kHz/step. Change it only when using the unit in a 9 kHz/step area. Switching AM tuning interval clears all the preset stations.

Dynamic Integrated Neo Amplifier

is a brand-new amplifier system where clear mid-to-high range frequency sound, as well as rich low frequency sound, can be reproduced and listeners can enjoy the close-to-original sound with less distortion at either high or low volume levels.

TAPE OPERATIONS

Playback

Use only type I (normal) tapes.

1 Press TAPE/DECK 1/2 and insert the tape in either deck.

Press ▲PUSH EJECT to open the cassette holder, and insert with the exposed side down and playback side facing out from the unit. Push ▲PUSH EJECT to close.

2 Press ▶.

To stop playback

Press ■.

To pause playback (DECK 2 only)

Press Ⅱ. Press again to resume.

To fast forward or rewind

Press ◀◀ or ▶▶.

To select a deck (DECK 1 or DECK 2)

Press TAPE/DECK 1/2 (FUNCTION on the remote control) in stop mode when tapes are loaded in both decks. The deck number ("T1" or "T2") is displayed.

To reset the tape counter

Press ■ in stop mode, and the tape counter on the display is reset to "0000". Opening and closing the cassette holder will also reset the tape counter.

To play continuously (DECK 1 to DECK 2)

Load tapes in both decks and start playback on DECK 1. Then, as soon as playback on DECK 1 finishes, playback on DECK 2 will start without interruption.

• The both decks play one side of the tapes.

To play back type II (High position) tapes

Turn MULTI JOG until "SOFT" is displayed while playing a type II tape.

Then, the unit provides the optimum playback sound for type II tapes.

To eject the tape

Press ▲ PUSH EJECT after the deck stops completely.

Notes on cassettes

• Use of 120-minute or longer tapes is not recommended since they are extremely thin and easily deformed or damaged.
  • Take up any slack in the tape with a pencil or similar tool before use. Slack tape may jam in the mechanism.
• "SOFT" sound for type II tapes described above is canceled when the cassette holder is opened, the function is changed, or the unit is turned off.

Basic recording

Use only type I (normal) tapes. DECK 2 is the recording deck. Only one side of the tape can be recorded at a time.

1 Insert the recording tape in DECK 2.

Press ▲ PUSH EJECT to open the cassette holder, and insert with the exposed side down and the side to be recorded on facing out from the unit. Wind up the tape to the desired point if needed.

2 Prepare the source.

To record CD(s), select the CD function and load disc(s). To record a radio broadcast, tune in to the desired station. To record a tape, insert the source tape in DECK 1 and select the TAPE function (DECK 1).

To record from connected external equipment, select the VIDEO/AUX function and prepare the equipment.

3 Press ● REC/REC MUTE to start recording.

When recording a CD or tape, playback starts automatically.

When recording input from connected equipment, manually start playback of the source.

• Volume or tone adjustment does not affect recording.
- "CAN'T REC" is displayed if you attempt to record a tape with the tab broken off.

To stop recording

Press ■.

To pause recording (only for TUNER or VIDEO/AUX source)

Press Ⅲ. Press again to resume.

To record a selected set of tracks from a CD

Program the desired tracks (see "Programed playback") and then press ●REC/REC MUTE.

To record a 4-second blank space (only for TUNER or VIDEO/AUX source)

1 Press ●REC/REC MUTE during recording or in recording pause mode.

"REC" flashes on the display for 4 seconds (a blank space is made in the meantime) and then the unit enters recording pause mode.

To record less than a 4-second blank space, press ●REC/REC MUTE again while "REC" flashes.

To record more than a 4-second blank space, press ● REC/REC MUTE again after the unit enters recording pause mode.

Each time the button is pressed, a 4-second blank space is added.

2 Press ■ to resume recording.

To erase a tape

1 Insert the tape in DECK 2. Set the tape to the desired point if needed.
2 Press TAPE/DECK 1/2 to select "T2".
3 Press ●REC/REC MUTE.

Whole tape dubbing

1 Press TAPE/DECK 1/2 to select the TAPE function.
2 Insert the original tape in DECK 1 and the recording tape in DECK 2.
3 Press SYNC DUB.
The tapes are rewound to the beginning of the front side and recording starts.
- Dubbing cannot start from a point halfway in the tape.
- Only one side of the tape can be recorded at a time.

To stop dubbing

Press ■

Edited CD recording

AI Edit Recording

When recording a whole CD, AI Edit Recording takes the length of your tape into account and rearranges the recording order of the tracks if necessary, so that no track is cut short at the end of the side. Prepare a tape long enough to record the CD.

1 Insert the recording tape in DECK 2.
2 Select the CD function and load disc(s).
3 Press SHIFT+CD EDIT/CHECK once on the remote control.
"EDIT" is displayed and "AI C-00" appears on the display.

4 Press DISC DIRECT PLAY 1-3 to select a disc.
5 Press the numbered buttons on the remote control to enter the length of the recording tape. 10 to 99 minutes can be specified.
- For a 60-minute tape press 6 and 0.
In a few seconds, the unit determines the tracks to be recorded for each side.
The recording time left for side A appears on the display.
- ◀◀◀, ▶▶▶ or MULTI JOG can also be used to specify tape length.
6 Press ●REC/REC MUTE to start recording on side A.
The tape is rewound to the beginning of side A and recording starts.
Go to the next step when recording on side A finishes.
7 Press SHIFT+CD EDIT/CHECK once on the remote control.
The recording time left for side B appears on the display.
8 Turn over the tape and press ●REC/REC MUTE to start recording on side B.
- AI Edit Recording cannot be used with discs with more than 30 tracks. "TR OVER" is displayed.
- Recording cannot start from a point halfway in the tape.

Programed Edit Recording

As you program the CD tracks to record, Programed Edit Recording displays the remaining recording time for each side of the tape, so you can easily select a set of desired tracks within the length of your tape.

1 Insert the recording tape in DECK 2.
2 Select the CD function and load disc(s).
3 Press SHIFT+CD EDIT/CHECK twice on the remote control.
"PRGM" and "EDIT" are displayed and "P C-00" appears on the display.
4 Press the numbered buttons on the remote control to enter the length of the recording tape. 10 to 99 minutes can be specified.
- ◀◀, ▶▶ or MULTI JOG can also be used to specify tape length.
5 Press DISC DIRECT PLAY 1-3 to select a disc. Then, press the numbered buttons on the remote control to select the first track to be recorded on side A.
-To select the 20th track, press +10, +10 and 0.
-To select the 15th track, press +10 and 5.
6 Repeat step 5 to select the rest of the tracks for side A.
The remaining recording time of side A is displayed. You cannot select a track with a longer playing time.
7 Press SHIFT+CD EDIT/CHECK on the remote control to switch to side B and select the tracks for the side.

8 Press SHIFT+CD EDIT/CHECK on the remote control to switch back to side A.

9 Press ●REC/REC MUTE to start recording on side A.

The tape is rewound to the beginning of side A and recording starts.

Go to the next step when recording on side A finishes.

10 Press SHIFT+CD EDIT/CHECK on the remote control to switch to side B.

11 Turn over the tape, and press ● REC/REC MUTE to start recording on side B.

• You cannot program more than 30 tracks. "FULL" is displayed.
• You cannot program a track with a track number larger than 30.
• Recording cannot start from a point halfway in the tape.

To stop recording

Press ■. Recording and CD playback stop simultaneously.

To check the program

1 Before recording, press SHIFT+CD EDIT/CHECK on the remote control to select side A or B.

2 Press ◀◀ or ▶▶ repeatedly. The track number and program number are displayed in succession.

To change the program of each side

Press SHIFT+ CD EDIT/CHECK on the remote control to select side A or B, and press ■ to clear the program for the selected side. Then, select tracks again.

To clear the edit program

Press ■ twice so that "EDIT" disappears from the display.

To prevent accidental erasure

Break off the plastic tab of the cassette tape with a screwdriver or other pointed tool. To record on the tape again, cover the detection slot with adhesive tape.

SOUND ADJUSTMENTS

Super T-BASS

Emphasizes low frequencies for a powerful sound.

Press T-BASS repeatedly to select one of the three emphasis levels (1-3) or the off position (0).

- When the sound becomes distorted with the T-BASS effect, cancel it.

TREBLE

Enhances high frequency for sound clarity.

Press TREBLE repeatedly to select one of the three enhancement levels (1-3) or the off position (0).

- When the sound becomes distorted with the TREBLE effect, cancel it.

TIMER OPERATIONS

Sleep timer

Tums off the unit automatically after a specified time.

1 Press SHIFT+SLEEP on the remote control. *SLP* appears on the display.
2 Press ◀◀ or ▶▶ repeatedly to set the sleep timer duration. With each press, the timer duration changes in 5-minute steps between 5 to 240 minutes. If there is no button input for 4 seconds, the current setting is entered automatically. The unit turns off after the selected time. • MULTI JOG is also available in place of ◀◀ or ▶▶.

Tip: The display is dimmed while the sleep timer is active.

To check the remaining time until the unit turns off Press SHIFT+SLEEP on the remote control. The remaining time is displayed for 4 seconds.

To cancel the sleep timer

Press SHIFT+SLEEP twice on the remote control so that "SLP OFF" is displayed.

Timer playback

Turns on the unit at a specified time for the specified duration. Make sure the clock is set correctly.

1 Press TIMER (SHIFT+TIMER on the remote control). "◎" indicator lights up and "◎" PLRY" appears on the display. Then, the timer-on time and the source name appear alternately on the display.
2 Press ◀◀ or ▶▶ to set the timer-on time, then press ■SET or ENTER. If ◀◀ or ▶▶ is not pressed within 6 seconds, you will exit the timer setting mode and the previous setting, however, is entered.
3 Press ◀◀ or ▶▶ to select the source, then press ■SET or ENTER.
4 Press ◀◀ or ▶▶ to set the timer-activated duration, then press ■SET or ENTER. With each press, the timer-activated duration changes in 5-minute steps between 5 to 240 minutes.

5 Press ◀◀ or ▶▶ to adjust the volume level for timed playback, then press ■SET or ENTER. Adjustable range: 0 to 16
6 Prepare the source. To play CD(s), load disc(s).

To play the radio, select the band and tune in to the desired station.

To play a tape, insert the tape and select the deck.

To play external equipment connected to the VIDEO/AUX jacks, set an external timer for the equipment so that its playback begins at the same time.

7 Press POWER ⬤STANDBY/ON to turn the unit off.

At timer-on time, the unit turns on and plays the selected source. After the specified timer-activated duration, the unit turns off again.

Tip:

The display is dimmed while the timer playback is active.

• To stop timer setting in steps 2 to 5, press ■. Timer standby mode is also canceled.
• Timer playback will not begin unless the unit is turned off first.
• Connected equipment cannot be turned on or off by the built-in timer of this unit. Use an external timer.
• MULTI JOG is also available in place of ◀◀ or ▶▶
• In step 3, TAPE, TUNER, VIDEO/AUX, CD or FUNCTION is also available to select the source. In step 5, VOLUME +, - or VOLUME is also available to adjust the volume level.

To display the timer setting

Press TIMER.

The timer-on time, the source and the timer-activated duration are displayed for 6 seconds.

Tip:

Timer setting can be displayed even while the unit is turned off, and at that time if you press ENTER or ■ within 6 seconds after TIMER is pressed, you can enter the timer setting mode and change the setting.

To change the timer setting

Re-set the timer again.

To cancel the timer

Press TIMER repeatedly until "OFF" is displayed. "DISP" disappears from the display.

Tip:

Your timer setting is retained even if the timer is canceled. Next time the timer is activated, you can change your previous setting, or simply use the same setting again.

Timer recording

Timer recording is available only for TUNER and VIDEO/AUX (with an external timer) sources.

1 Press TIMER (SHIFT+TIMER on the remote control) repeatedly until "⊕REC" appears on the display.
2 Carry out step 2 to step 5 described in "Timer playback".
3 Prepare the source.
To record the radio, select the band and tune in to the desired station.
To record external equipment connected to the VIDEO/AUX jacks, set an external timer for the equipment so that its playback begins at the same time.
4 Insert the recording tape in DECK 2 and then turn the unit off.

Tip:

The display is dimmed while the timer recording is active.

REFERENCE

Care and maintenance

Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit.

To clean the cabinet

Use a soft and dry cloth. If the unit surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents such as alcohol, benzine or thinner.

To clean the tape heads

Dirty tape heads cause sound deterioration. After every 10 hours of use, clean the tape heads with a head cleaning cassette. Refer to the instructions of the cleaning cassette.

To demagnetize the tape heads

Use a demagnetizing cassette after every 20 to 30 hours of use. Refer to the instructions of the demagnetizing cassette.

Care of CDs

When a CD becomes dirty, wipe it from the center out with a cleaning cloth. After playing a CD, store it in its case. Do not keep it in hot or humid places.

Care of tapes

Store tapes in their cases after use. Do not leave tapes near magnets, motors, television sets, or any source of magnetism. Do not expose tapes to direct sunlight, or leave them in a car parked in direct sunlight.

Troubleshooting

If your unit fails to perform properly, check the following guide and the relevant sections of the Operating Instructions.

There is no sound.

- Are the speakers and AC power cord connected properly?

The unit shut off suddenly.

- Possibly a short circuit in the speaker terminals. Disconnect the AC power cord from the AC power outlet and re-connect the speaker cords correctly.

The unit blacks out when the unit is turned off.

- Is ECO mode set to on?

Erroneous display.

- Reset the unit.

Poor radio reception.

- Check antenna connection. Adjust the antenna to find the best reception.

- Move unit and antenna away from other electric appliances and cords.

The tape does not run.

- Is the deck in pause?

Poor tape sound.

- Check for dirty heads. Clean them if needed.

- Use type I (normal) tapes.

Cannot record.

- Is the erasure prevention tab of the tape broken off? If so, cover the detection slot with adhesive tape.

The CD player works poorly.

• Is the disc correctly loaded?

- Is the disc dirty?

- Is the lens affected by condensation? If so, wait approximately one hour and try again.

Condensation

Moisture may form on the CD pickup lens when:

• The unit is moved from a cold spot to a warm spot
• The heating system has just been turned on
• The unit is used in a very humid room
• The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.

Resetting the unit

If an unusual condition occurs in the display window or the cassette deck, reset the unit as follows:

1 Press POWER to turn off the power.

If the power cannot be turned off, disconnect the AC power cord, then plug it in again.

2 Hold down ■ and press POWER.

Everything stored in memory after purchase is cleared.

Specifications

MAIN UNIT CX-ND20/CX-ND22

TUNER

FM tuning range 87.5 MHz to 108 MHz

FM usable sensitivity (IHF) 13.2 dBf

FM antenna terminal 75 ohms (unbalanced)

AM tuning range 530 kHz to 1710 kHz (10 kHz step)

531 kHz to 1602 kHz (9 kHz step)

AM usable sensitivity 350 μV/m

AM antenna Loop antenna

AMPLIFIER

CX-ND20:

Power output 32 W + 32 W (40 Hz - 20 kHz, THD

less than 1 %, 6 ohms)

40 W + 40 W (1 kHz, THD less than

10%, 6 ohms)

Total harmonic distortion 0.08 % (20 W, 1 kHz, 6 ohms, DIN

AUDIO)

CX-ND22:

Power output 32 W + 32 W (40 Hz - 20 kHz, THD

less than 1 %, 6 ohms)

50 W + 50 W (1 kHz, THD less than

10%. Front speakers 6 ohms +

Surround speakers 8 ohms)

Total harmonic distortion 0.08 % (20 W, 1 kHz, 6 ohms, DIN

AUDIO)

Input VIDEO/AUX: 500 mV

Outputs SPEAKERS: 6 ohms or more

SURROUND SPEAKERS (only for

CX-ND22): 8 ohms to 16 ohms

PHONES: 32 ohms or more

CASSETTE DECK

Track format 4 tracks, 2 channels stereo

Frequency response 50 Hz - 15 kHz

Recording system AC bias

Heads DECK 1: playback x 1

DECK 2: recording/playback x 1.

erase x 1

CD PLAYER

Laser

D/A converter

Signal-to-noise ratio

Harmonic distortion

Semiconductor laser (λ = 780 nm)

1 bit dual

85 dB (1 kHz, 0 dB)

0.05 % (1 kHz, 0 dB)

GENERAL

Power requirements

CX-ND20:

Power consumption

Power consumption

in standby mode

Dimensions (W x H x D)

120 V AC, 60 Hz

61 W

With ECO mode on: 0.6 W

With ECO mode off: 20 W

260 x 324 x 315 mm

(101/4 x 12 7/8 x 12 1/2 in.)

5.8 kg (12 lbs 13 oz)

CX-ND22:

Power consumption

Power consumption

in standby mode

Dimensions (W x H x D)

73 W

With ECO mode on: 0.6 W

With ECO mode off: 20 W

260×324×315mm

(10 ^1 /4 x 12 7/8 x 12 1/2 in.)

6.0 kg (13 lbs 4 oz)

FRONT SPEAKERS SX-ND20 (for NSX-D20)

Speaker system

3 way, bass reflex (magnetic

shielded)

Woofer: 120 mm (4 ^3 /4 in.) cone

Tweeter: 60 mm (2 3/8 in.) cone

Super tweeler: 20 mm (13/16 in.)

ceramic

6 ohms

210×324×215mm

(8 3/8 x 12 7/8 x 8 1/2 in.)

3.0 kg (6 lbs 10 oz)

FRONT SPEAKERS SX-ND22 (for NSX-D22)

Speaker system

2 way, bass reflex (magnetic

shielded)

Speaker units

Woofer: 120 mm (4 ^3 /4 in.) cone

Tweeter: 60 mm (2 ^3 /s in.) ceramic

Impedance

6 ohms

Dimensions (W x H x D)

210×324×215mm

(8 3/8 x 12 7/8 x 8 1/2 in.)

Weight

3.0 kg (6 lbs 10 oz)

SURROUND SPEAKERS SX-R160 (only for NSX-D22)

Speaker system

1 way, closed

Speaker unit

Full range: 80 mm (3 1/4 in.) cone

Impedance

8 ohms

Dimensions (W x H x D)

194×117×132mm

(7 3/4 × 45/8 × 51/4 in.)

Weight

0.8 kg (1 lbs 12 oz)

Specifications and external appearance are subject to change without notice.

COPYRIGHT

Check copyright laws relevant to recordings from discs, radio or tape for the country where the unit is to be used.

As an ENERGY STAR® Partner, AIWA has determined that this product meets the ENERGY

STAR® guidelines for energy efficiency.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.

REMARQUE

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

This Class B digital apparatus complies with Canadian ICES-003.

(Only for C models)

ATTENTION

POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS UTILISER CETTE FICHE POLARISEE AVEC UN PROLONGATEUR, UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT.

For assistance and information

call toll free 1-800-BUY-AIWA

(United States and Puerto Rico)

AIWA CO.,LTD.

http://www.aiwa.co.jp

Printed in China
