Product Type	Audio Multi-Channel Receiver Subwoofer and Satellite Speaker System
Model Number	HTP-LX70
Brand	Pioneer
Amplifier Power (Front L/R)	100 W (50 W + 50 W) at 1 kHz, 10% THD, 8 Ω
Amplifier Power (Dual Center)	100 W (50 W + 50 W) at 1 kHz, 10% THD, 8 Ω
Amplifier Power (Surround)	100 W (50 W + 50 W) at 1 kHz, 10% THD, 8 Ω
Amplifier Power (Subwoofer)	100 W (50 W + 50 W) at 100 Hz, 10% THD, 8 Ω
Subwoofer Driver	18 cm cone × 2, bass-reflex enclosure
Subwoofer Frequency Range	30 Hz – 500 Hz
Satellite Speaker Driver	5.2 cm cone (front/center: 3 drivers, surround: 2 drivers)
Satellite Speaker Frequency Range	200 Hz – 20 kHz
Satellite Impedance	8 Ω
Receiver Subwoofer Dimensions (W × H × D)	245 mm × 409 mm × 600 mm
Receiver Subwoofer Weight	17.8 kg
Satellite Speaker Dimensions (each)	122.5 mm × 89.5 mm × 104 mm
Satellite Speaker Weight (front/center)	0.5 kg
Satellite Speaker Weight (surround)	0.44 kg
Power Requirements	AC 110 V – 240 V, 50/60 Hz
Power Consumption	69 W (standby: 0.39 W with HDMI Control ON, 0.29 W OFF)
Audio Inputs	2× Optical digital, 1× Analog RCA, 1× Front Audio mini-jack, 1× iPod 20-pin
HDMI	3 inputs, 1 output (HDMI 1.3a, HDCP compatible)
Tuner	FM/AM with 30 presets
Auto MCACC	Yes (automatic acoustic calibration)
Remote Control	LCD touch screen with multi-device control
Special Features	Effective Sound, Sound Retriever, Genre Sync, HDMI Control, sleep timer, dimmer

Frequently Asked Questions - HTP-LX70 PIONEER

How do I set up the speakers for optimal surround sound?

You can choose between Standard surround setup (rear speakers behind) or Front surround setup (speakers in front). Attach the supplied speaker bases and non-skid pads. Connect the speakers using the color-coded cables to the receiver subwoofer. After placement, run the Auto MCACC setup to calibrate.

How do I run the Auto MCACC setup?

1. Connect the supplied microphone to the MCACC SETUP MIC jack on the display unit. 2. Place the microphone at your listening position (ear height). 3. Press MCACC on the remote. The system outputs test tones and automatically adjusts speaker levels, distances, and equalization. Keep quiet during the process. Once complete, MCACC Effect is activated.

How can I connect my iPod to this system?

Connect your iPod using the supplied iPod cable to the iPod input on the display unit. The input automatically switches to iPod. You can control playback via the iPod itself or the remote control.

What should I do if there is no sound?

Check that the correct input is selected. Ensure the volume is not muted (press MUTE). Verify speaker connections are secure. If using HDMI, set HDMI Mode to AMP Mode (not Through Mode). For external components, confirm they are powered on and the audio cable is connected properly.

How do I use the HDMI Control function?

Connect the system to an HDMI Control-compatible Pioneer plasma TV via HDMI. In the setup menu, set HDMI Control to On. You can then control the system from the TV remote, and the TV will automatically switch inputs when you select a source on the receiver.

How can I improve poor FM or AM reception?

For FM, fully extend the supplied wire antenna or connect an outdoor FM antenna. You can also switch to mono mode (press SETUP > Tuner Setup > FM Auto/Mono > FM Mono). For AM, adjust the position and direction of the loop antenna, keep it away from other electronics, and try changing the Noise Cut mode (1, 2, or 3).

What does the Sound Retriever feature do?

The Sound Retriever restores CD-quality sound to compressed audio sources like MP3 or WMA. It uses DSP to smooth artifacts and restore sound pressure. Press SOUND RTRV on the remote while listening to a stereo source to toggle it on or off.

How do I reset the system to factory defaults?

Press the SETUP button, select System Setup, then choose Reset. Confirm with ENTER. The system will reset all settings to factory defaults. Alternatively, you can unplug the power cord, wait a minute, then plug it back in.

Can I use the remote control to operate other Pioneer components?

Yes, the remote can control Pioneer plasma TVs, DVD players, Blu-ray disc players, and HDD/DVD recorders. Press the appropriate input button (e.g., TV, BD, DVD) and the LCD touch screen will show relevant controls. You may need to set up the TV preset codes first (see manual).

How do I clean the speakers and receiver subwoofer?

Use the provided cleaning cloth to wipe the cabinet. Do not use alcohol, thinner, benzene, or insecticides as they may discolor the finish. For the speaker grilles, gently dust with a soft cloth. Avoid touching the grille forcibly as it cannot be removed.

USER MANUAL HTP-LX70 PIONEER

Pioneer sound.vision.soul

Operating Instructions | 操作手册

AUDIO MULTI-CHANNEL RECEIVER SUBWOOFER SX-LX70W 多聲道音效接收重低音

Downloaded from www.Manualslib.com manuals search engine

HTP-LX 70

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. D3-4-2-1-1_En-

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_B_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A_En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c_A_En

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation). D3-4-2-2-1a A En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. S002_En

CAUTION

The Ⓧ STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2-2a_A_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. D3-4-2-1-4 A En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041. En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b_A_En

WARNING

To prevent injury, the receiver subwoofer must be securely attached to the floor in accordance with this operating instructions.

Contents

Contents

What's in the box 5

01 Speaker Setup Guide

Safety precautions when setting up 6

Home theater sound setup 6

Standard surround setup....6

Front surround setup....6

Preparing the speakers....6

Using the supplied speaker bases 6

When not using the supplied speaker bases .....7

Connect the speaker system....7

Additional notes on speaker placement .....7

02 Connecting up

Receiver subwoofer 8

Side panel 8

Rear panel 9

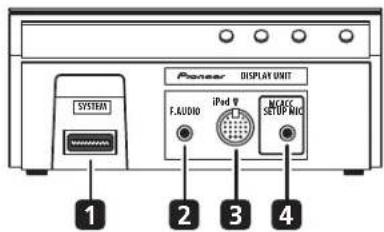

Back of display unit 9

Basic connections 10

03 Controls and displays

Display unit 13

Display....14

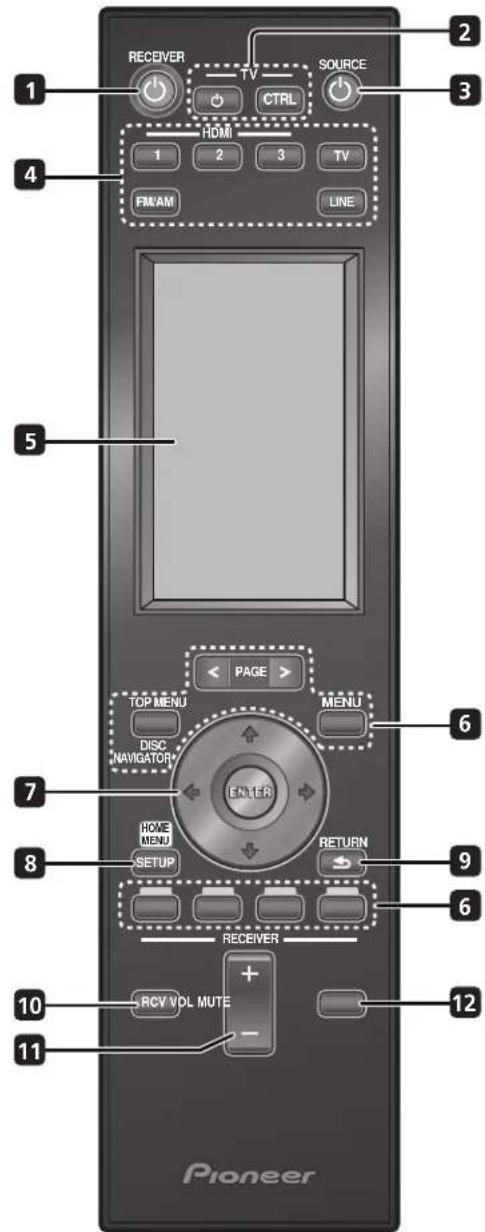

Remote control....15

Operating the receiver subwoofer 15

Operating the built-in FM/AM tuner....16

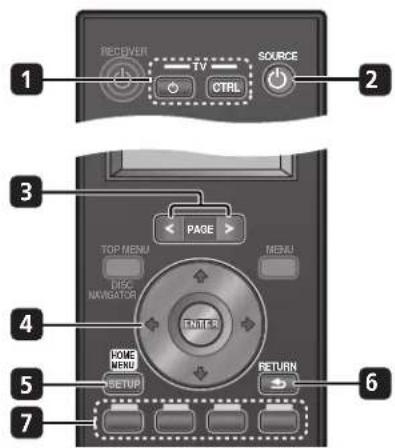

Operating Pioneer plasma televisions and TVs....17

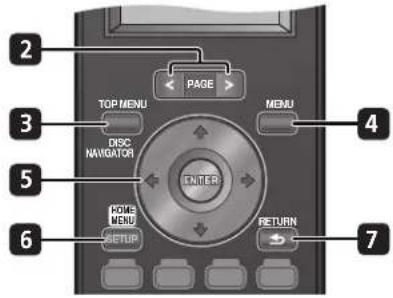

Operating a Pioneer Blu-ray Disc player....18

Operating a Pioneer DVD player....19

Operating a Pioneer HDD/DVD Recorder....20

Putting the batteries in the remote control .....21

Using the remote control 22

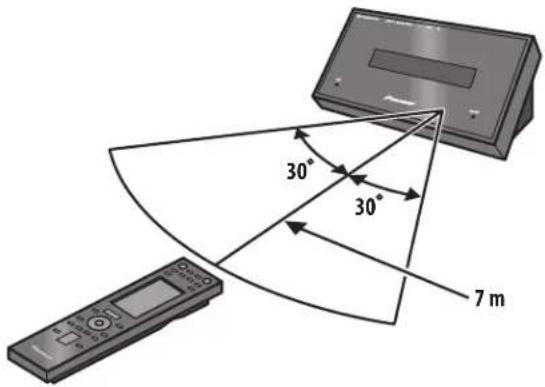

Operating the remote control 22

Using the LCD touch screen 22

04 Getting started

Using the Auto MCACC setup

for optimal surround sound 23

05 Listening to your system

Effective Sound (for optimum sound)....24

Auto listening mode 24

Listening in surround sound....24

Dolby Pro Logic II Music settings 25

Center image setting 25

Using Advanced Surround 25

Using Front Stage Surround Advance .....26

Listening in stereo 26

Genre Sync Mode 26

Using the Sound Retriever 26

Listening with MCACC Effect 27

Using Midnight, Loudness and

Quiet listening modes 27

Adjusting the bass and treble 27

Adjusting sound delay 27

06 Listening to the radio

Listening to the radio 28

Improving poor FM reception....28

Improving poor AM sound 28

Changing the noise cut mode 28

Memorizing stations....29

Listening to station presets 29

Changing the frequency step....29

07 Surround sound settings

Using the Sound Setup menu....30

Channel level setting 30

Speaker distance setting1 30

Dynamic Range Control 31

Dual mono setting 31

Using the Virtual Surround Back mode .....32

LFE Attenuate....32

Adjusting the channel levels using the test tone....32

08 Other connections

Connecting auxiliary components ....33

Connecting for digital audio....33

Connecting an analog audio component ..... 33

Connecting an iPod 34

Listening to an external audio source....34

Connecting external antennas 35

About control out connections....35

Connecting using HDMI 35

HDMI mode setting 36

About HDMI....36

Contents

09 HDMI Control

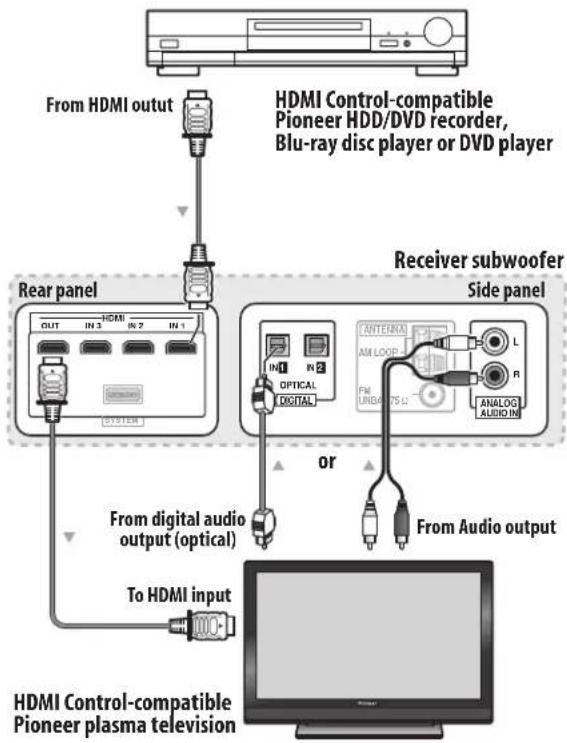

Making the HDMI Control connections ..... 37

Setting the HDMI options 38

Setting the HDMI Control mode 38

Setting the Auto Delay.... 39

Audio input settings from plasma televisions (TV Input).... 39

Before using synchronization 39

Synchronized amp mode 39

Synchronized amp mode operations 39

Canceling synchronized amp mode.... 39

10 Additional information

Dimming the display 40

Setting the sleep timer.... 40

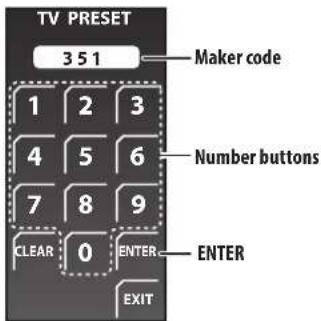

Setting up the remote to control your TV 40

TV Preset code list 41

Resetting the system.... 42

Installation and maintenance 42

Hints on installation 42

Surround sound formats 42

Dolby....42

DTS 43

Troubleshooting.... 44

General 44

Tuner....45

HDMI 45

Displayed Messages 46

Specifications 47

What's in the box

Please confirm that the following items are all supplied.

Accessory box (AS-LX70):

- Remote control (page 15)

• AA/LR6 alkaline batteries x4 (page 21)

• Power cords x3 (page 12)

- Display unit (page 13)

• AM loop antenna (page 11)

• FM wire antenna (page 11)

- Microphone (for Auto MCACC setup) (page 23)

- HDMI cable

• Control cable (page 35)

• Display cable (page 11)

• Optical digital cable (page 12)

• This operating instructions

Receiver subwoofer (SX-LX70W) box:

- Cleaning cloth

Speakers (SSP-LX70ST) box:

- Speakers (front/center x2, surround x2) (page 6, 11)

- Speaker cables x6 (page 11)

- Speaker bases x4 (page 6)

• Non-skid pads x16 (page 6, 7)

- Screws x4 (page 7)

Chapter 1

Speaker Setup Guide

Safety precautions when setting up

When assembling the speakers, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up, and placing the speakers.

Home theater sound setup

Depending on the size and characteristics of your room, you can place your speakers in one of two ways using this system.

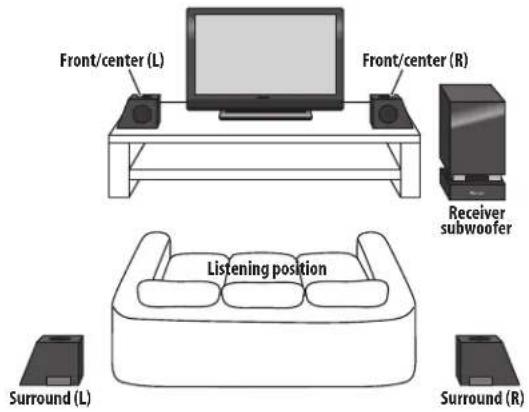

Standard surround setup

This is a standard multichannel surround sound speaker setup for optimal 5.1 channel home theater sound.

Front surround setup

This setup is ideal when rear surround speaker placement isn't possible or you want to avoid running long speaker cables in your listening area. Use this setup together with the Front Stage Surround Advance modes in page 26.

Preparing the speakers

This unit comes with speaker bases that can be used to adjust the speakers to the design of the room in which they are placed.

Using the supplied speaker bases

1 Attach the non-skid pads to the speaker bases, as shown below.

Use the adhesive side of the pads to attach them to the base of each speaker base.

2 Attach the speaker bases.

Place the speaker atop a supplied speaker base, and fix the base in place by using one of the supplied screws.

- The supplied speaker bases come in two different shapes. You can determine the correct base for a speaker by checking if the screw's location lines up correctly when the speaker is placed atop the base. (There are specific bases for the front/center (L) and surround speaker (R), and for the front/center (R) and surround speaker (L), with two of each type included.)

When not using the supplied speaker bases

- Attach the non-skid pads to the base of each of the front/center and surround speakers (as shown).

Use the adhesive side of the pads to attach them to the base of each speaker.

Front/center and surround speakers

Connect the speaker system

Refer to Connecting up to connect the speakers properly. After connecting everything, place the speakers as shown in the diagram above for optimal surround sound. After placing the speakers, run the Auto MCACC setup (page 23) to complete your surround sound setup.

Additional notes on speaker placement

• Install the main front left and right speakers at an equal distance from the TV.
- When using the Standard surround setup, install the surround speakers slightly above ear level for optimum effect.
- When using the Front surround setup, separate the left and right speakers by about 1.5 m for optimum effect.

Precautions:

• Do not place the speaker on an unstable surface, as doing so may cause the speaker to fall and cause damage or bodily injury.
• All speakers supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if a speaker is installed extremely close to the screen of a television set. If this happens, turn the power switch of the television set OFF, and turn it ON after 15 min to 30 min. If the problem persists, place the speaker system away from the television set.
• For safety, make sure that there is no exposed bare speaker wire outside of the speaker terminals.
• Do not connect the supplied speakers with any other amplifier. This may result in malfunction or fire.
• Do not connect any speakers other than those supplied to this system.
• The speaker system grill cannot be removed. Do not try to forcibly remove it since doing so may damage the grille.
• When cleaning the cabinet, use the provided cleaning cloth. Do not allow alcohol, thinner, benzene, or insecticides to come into contact with the surface, since finish discoloration may occur. Also, when using chemically impregnated cleaning cloths, follow their precautions carefully.

Chapter 2

Connecting up

Receiver subwoofer

Side panel

- There is a cover over the connectors on the side panel.

A. When making connections, lift the two hooks and remove the cover.
B. Once connections are finished, line up the three positions and place the cover back in its original position.

1 CONTROL OUT jacks (x2)

Connect other Pioneer components with the supplied control cable.

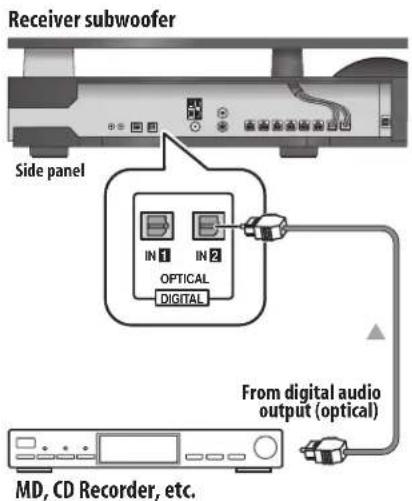

2 DIGITAL OPTICAL IN jacks (x2)

To listen to optical digital audio, change the input to Digital 1 or Digital 2.

When the digital output jacks of your TV are connected to these jacks, set TV Input' (see page 39).

3 AM LOOP antenna terminal

4 FM antenna socket

5 ANALOG AUDIO IN jacks

Handle sound from an external component by using stereo audio code. To listen to analog audio, change the input to Analog.

When the analog output jacks of your TV are connected to these jacks, set 'TV Input' (see page 39).

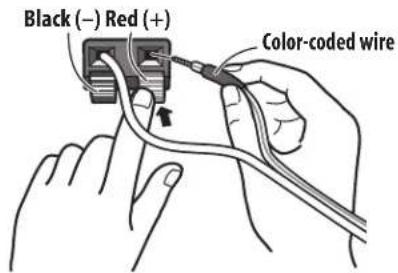

6 SPEAKERS terminals

Match the colors of the speaker cords to their respective connectors.

7 AC IN - Power inlet

Rear panel

8 HDMI OUT connector

Connect to a television that has an HDMI terminal.

9 HDMI IN connectors (x3)

Use high-quality audio/video connection with compatible HDMI devices.

To select this input, choose HDMI 1 to HDMI 3.

10 SYSTEM connector

Connect to the display unit.

Back of display unit

1 SYSTEM connector

Connect to the receiver subwoofer.

2 F.AUDIO input

To listen to audio from an external component, connect with a stereo mini-plug cable. Once connected, the input automatically changes to Front Audio In.

3 iPod input terminal

Use to connect your Apple iPod as an audio source. When you connect an iPod, the input automatically changes to iPod.

4 MCACC SETUP MIC jack

Use to connect the supplied microphone for the Auto MCACC setup (see page 23).

Basic connections

Important

- When connecting this system or changing connections, be sure to switch power off and disconnect the power cord from the wall socket. After completing all connections, connect the power cords to the wall socket.

WARNING

- Pioneer bears no responsibility for accidents resulting from faulty assembly or installation, insufficient mounting strength of walls, mounting fixtures (or other building fixtures), misuse or natural disasters.

1 Connect the display unit to the receiver subwoofer.

Plug the display cable into the connector on the rear of the display unit, then plug the other end of the display cable into SYSTEM connector on the receiver subwoofer.

Caution

- Do not attempt to attach the display unit to the wall.

2 Assemble the AM loop antenna.

a. Bend the stand in the direction indicated by the arrow.
b. Clip the loop onto the stand.
c. If you want to fix to a wall or other surface, perform step b after first securing the stand with screws.
It is recommended that you determine the reception strength before securing the stand with the screws.

3 Connect the AM and FM antennas 1.

a. Connect one wire of the AM loop antenna to each AM antenna terminal ² .

For each terminal, press down on the tab to open; insert the wire, then release to secure.

b. Push the FM antenna ³ plug onto the center pin of the FM antenna socket.

4 Connect each speaker.

• Each speaker cable has a color-coded connector at one end and two wires at the other end.

Color-coded wire (Connect to speaker)

Color-coded connector (Connect to receiver subwoofer)

- Twist and pull off the protective shields on each wire.

- Connect the wires to the speaker. Each speaker in the illustration can be identified by means of the color-coded indicator provided on the rear-surface model label. Match the color-coded wire with the color indicator on the model label, then insert the color-coded wire into the red (+) side and the other wire into the black (−) side.

- Connect the other end to the color-coded speaker terminals on the side of the receiver subwoofer. Make sure to insert completely.

Be careful when inserting the speaker plug, as it must be inserted in the proper direction when being plugged into one of the terminals. Please make sure to connect correctly.

Note

1 • Keep antenna cables away from other cables, the display unit and receiver subwoofer.
- II reception with the supplied antenna is poor, see Improving poor FM reception and Improving poor AM soundon page 28 or Connecting external antennas on page 35.
- Do not attach any antenna other than the provided loop antenna, or an external antenna as described on page 35.
2 • Don't let it come into contact with metal objects and avoid placing near computers, television sets or other electrical appliances.
- If radio reception is poor, you may be able to improve it by re-inserting each antenna wire into the opposite terminal.
- For best reception, do not untwist the AM loop antenna wires or wrap them around the loop antenna.
3 To ensure optimum reception, make sure the FM antenna is fully extended and not coiled or hanging at the rear of the unit.

Caution

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
- Do not connect any speakers other than those supplied to this system.
- Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.
• After connecting the plugs, pull lightly on the cables to make sure that the ends of the cables are securely connected to the terminals. Poor connections can create noise and interruptions in the sound.
- If the cables' wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the amp. This may cause the amp to stop functioning, and may even damage the amp.

5 If you have a DVD player or other source ¹ component you want to connect, connect it now before connecting the power cord in the next step.

See page 33 for how to connect a digital source component.

6 Connect the receiver subwoofer to your TV.

- Connect the HDMI OUT jack on receiver subwoofer to an HDMI input on your TV.

7 Connect an audio cable from your TV to the receiver subwoofer.

• To listen to TV audio on this unit, you must connect the TV's audio output to an audio input jack on this unit. You can connect by either a digital (optical) or analog audio cable. For digital audio, connect to DIGITAL OPTICAL IN 1 on the receiver subwoofer. To use the HDMI Control function when you are connected to a supported Pioneer plasma television, you must connect via HDMI.
• You must first set 'TV Input' to switch the audio from a plasma television with the HDMI Control function or to switch the input source of this unit to TV audio and operate your TV with the supplied remote control. For more information, see Operating Pioneer plasma televisions and TVs on page 17 and Audio input settings from plasma televisions (TV Input) on page 39.

8 Connect the power cord. 2

• Connect each power cord to the AC inlet on the receiver subwoofer. Connect each power cord to a wall socket in the following order.
• Receiver subwoofer
• TV
• Run the cords that are connected to the side panel of the receiver subwoofer over the back side of the unit, and replace the cover on the side panel.

Note

1 Make sure to connect a TV or monitor (for video sources) to take advantage of this system's home theater potential. Please refer to the instruction manual supplied with your TV or monitor for connection details.

2 • Do not use any power cord other than the one supplied with this system.

• Do not use the supplied power cord for any purpose other than connecting to this system.
• After connecting this unit to an AC outlet, a 15-second initialization process begins. You cannot carry out any operations during initialization. The HDMI indicator on the display unit blinks during initialization, and you can turn this unit on once it has stopped blinking.

Chapter 3

Controls and displays

Display unit

1 ⏻ STANDBY/ON

Press to switch the receiver subwoofer on/into standby.

2 INPUT SELECTOR (page 33)

Press repeatedly to select one of the external audio inputs (HDMI 1 to HDMI 3, Digital 1, Digital 2, Analog, iPod or Front Audio In).

3 VOL +/- buttons

Use to adjust the volume.

4 POWER ON indicator (Blue)

5 Front panel display

See page 14 for details.

6 IR remote sensor (page 22)

7 HDMI indicator (Red)

Lights when this receiver subwoofer is connected to HDMI (HDCP) compatible component. Also lights during initialization, after you plug this unit into an AC outlet.

Display

1 DIRECT

Lights when Direct Sound is selected (i.e. Effective Sound is off)(page 24).

2 Listening mode indicators

STEREO

Lights when the Stereo mode is selected or when a stereo source is being played back in the Auto listening mode (page 26).

F.S.SURR.

Lights when one of the Front Stage Surround Advance listening modes is selected (page 26).

ADV.SURR.

Lights when one of the Advanced Surround listening modes is selected (page 25).

3 PRO LOGIC II

Lights during Dolby Pro Logic II decoding (page 25).

4 Sound processing indicators

Lights when any of the Loudness, Midnight, Quiet or tone controls feature is selected (page 27)

5 S.RTRV

Lights when Sound Retriever is active (page 26).

6 HDMI THROUGH

Lights when HDMI Mode is set to Through Mode.

7 MCACC

Lights when MCACC Effect is switched on (page 27). Blinks during Auto MCACC Setup (page 23).

8 Digital format indicators

DIGITAL

Lights during playback of a Dolby Digital source (page 24).

DTS

Lights during playback of a DTS source (page 24).

DTS 96/24

Lights during playback of a DTS 96/24 decoding (page 24).

DSD▶PCM

Lights during DSD (Direct Stream Digital) to PCM conversion with SACDs.

PCM

Lights during playback of PCM signals.

9 Character display

10 Tuner indicators

Lights when a broadcast is being received.

∞

Lights when a stereo FM broadcast is being received in auto stereo mode.

O

Lights when FM mono reception is selected.

11

Lights when sleep timer is active (page 40).

Remote control

- For more information on using the remote control, see Operating the remote control on page 22.

Operating the receiver subwoofer

This section explains how to operate the remote control for the receiver subwoofer. Note that the controls change when you have chosen the input function for separate connected devices.

1 📍 RECEIVER

Switches the receiver subwoofer to On/Standby.

2 TV

Switches the TV to On/Standby.

TV CTRL

Switches the remote control to the TV operating mode (no effect on the current input source of this unit).

3 SOURCE

Switches the power for the selected component to On/Standby (page 22).

4 Input select buttons

Change the input for this unit. You will also need to press one of these buttons when operating another connected component via this remote control.

HDMI 1 to HDMI 3

Switch input from HDMI 1 to HDMI 3.

TV

Switches to the input selected at TV Input setup (page 39).

FM/AM (page 28)

Switches between FM and AM bands.

LINE (page 34)

Press repeatedly to select one of the receiver subwoofer's audio inputs (Digital 1, Digital 2,

Analog, iPod or Front Audio In).

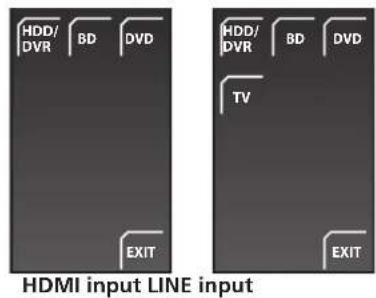

5 LCD touch screen

Displays the buttons used to control external components such as a receiver subwoofer, plasma television, DVD player, Blu-ray disc player, and HDD/DVD recorder. The current operating mode is displayed at the top of the remote control's screen.

Although the LCD touch screen disappears if you do not perform any operations for a while, it appears when the screen is touched or a button on the remote control is pressed.

6 Other component button

Use to operate an HDD/DVD recorder or other connected component.

7 ↑/↓/←/→ (cursor buttons) and ENTER

Use to control receiver functions.

8 SETUP

Use to access the menu system for surround sound setup, tuner settings and so on (page 28, 30, 38, 40).

9 RETURN

Use to cancel settings.

10 RCV

Use to switch to the receiver subwoofer operating mode when this unit is in the other operating modes. Press again to return to the previous operating mode.

11 VOL +/-

Use to adjust the volume of the receiver subwoofer.

12 MUTE

Mutes the sound or restores the sound if it has been muted (adjusting the volume also restores the sound).

LCD touch screen

13 SURR

Use to select a Surround mode (page 24).

ADV.SURR

Use to change the audio setting to Pioneer's original Advanced Surround mode (page 25).

F.S.SURR

Use to select a Front Stage Surround Advance mode (page 26).

14 GENRE

Use to listen to audio in Genre Sync mode (page 26). (This button is displayed only when the RECEIVER screen is shown during HDD/DVD recorder operation.)

15 SOUND RTRV

Press to restore CD quality sound to compressed audio sources (page 26).

16 DIRECT

Use to switch on/off the Effective Sound mode (page 24).

17 MCACC

Starts the Auto MCACC setup (page 23).

18 TEST TONE

Use to output the test tone (for speaker setup) (page 32).

19 SOUND

Press to access the sound menu, from which you can adjust bass and treble, etc.

20 SLEEP

Press to set the sleep timer (page 40).

21 EXIT

Cancel settings and exit the RECEIVER screen.

Operating the built-in FM/AM tuner

1 ↑/↓/←/→ (cursor buttons) and ENTER

Use to control FM/AM tuner functions.

2 SETUP

Use to access the menu system or tuner settings.

3 RETURN

Use to cancel settings.

LCD touch screen

4 Number buttons

Use to directly choose a preset radio station.

CLEAR

Press to clear an entry and start again.

5 TUNE +/-

Use to find radio frequencies.

6 ST +/-

Use to select a station preset.

Operating Pioneer plasma televisions and TVs

First, refer to Setting up the remote to control your TV on page 40 for information about setting up your TV's presets. Note that certain buttons may not work with some TVs.

1 TV

Switches the TV to On/Standby.

TV CTRL

Switches the remote control to the TV operating mode (no effect on the current input source of this unit).

2 SOURCE

Switches the power for the TV to On/Standby.

3 PAGE

Switches pages on the LCD touch screen.

4 ↑/↓/←/→ (cursor buttons) and ENTER

Use to navigate all on-screen displays. Press ENTER to select the currently highlighted option.

5 HOME MENU

Display the HOME MENU screen.

6 RETURN

Restores the previous menu screen.

7 Color (RED/GREEN/YELLOW/BLUE) buttons

Selects a page.

Shown when not set to a Pioneer plasma television.

LCD touch screen

8 Number buttons

Selects a channel.

9 CH RTN

Returns to the previously selected channel.

10 CH ENTER

Executes a channel number.

11 P +/-

Selects the channel.

12 INPUT

Selects an input source of the TV.

13 MUTE

Mutes the sound.

14 TV VOL +/-

Sets the volume.

Operating a Pioneer Blu-ray Disc player

1 SOURCE

Switches the power for a Blu-ray disc player to On/Standby.

2 PAGE

Switch between pages on the LCD touch screen when multiple pages are present.

3 TOP MENU / DISC NAVIGATOR

Press to display the top menu of a BD-ROM or DVD-Video disc.

When playing a DVD-R/-RW disc, press to display/exit the Disc Navigator.

4 MENU

BD-ROM: Press to display/hide the pop-up menu.

DVD-Video: Press to display the disc menu (if there is one).

5 ↑/↓/←/→ (cursor buttons) and ENTER

Use to navigate on-screen displays and menus. Press

ENTER to select an option or execute a command.

6 HOME MENU

Press to display the player's Home Menu, access most of the player's functions.

7 RETURN

Press to return to a previous screen.

8 Color (RED/GREEN/YELLOW/BLUE) buttons

Use to navigate BD-ROM menus.

LCD touch screen

9 (AUDIO)

Press to select the audio channel or language.

(SUBTITLE)

Press to select a subtitle display.

(ANGLE)

Press to change the camera angle during BD-ROM or DVD-Video movie multi-angle scene playback.

10 Playback controls

Press to start or resume playback.

Press to stop playback (you can resume playback by pressing ▶).

Press to pause playback; press again to restart.

Press to start reverse/forward scanning.

Press to jump to the start of the previous/next chapter/track.

Use for slow motion and step frame.

11 ZOOM

Press to zoom the screen when displaying a still image.

12 DISP

Press to display information.

13 Number buttons

Use to enter title, chapter or track numbers, etc.

ENTER

Press to select an option or execute a command.

CLEAR

Press to clear a numeric entry, etc.

14 PLAY MODE

Press to change the Play Mode (repeat play, for example).

15 VIDEO ADJ

Press to display the Video Adjust screen.

Operating a Pioneer DVD player

1 SOURCE

Switches the power for a DVD player to On/Standby.

2 PAGE

Switch between pages on the LCD touch screen when multiple pages are present.

3 TOP MENU

Press to display the top menu of a DVD-Video disc.

4 MENU

Displays a DVD disc menu – this varies with the disc and may be the same as the 'top menu'.

5 ↑/↓/←/→ (cursor buttons) and ENTER

Moves the cursor around the screen. Press ENTER to select the current menu option.

6 HOME MENU

Display/exit the on-screen display.

7 RETURN

Returns to the previously displayed menu screen.

LCD touch screen

8 (AUDIO)

Press to select the audio channel or language.

(SUBTITLE)

Press to select a subtitle display.

(ANGLE)

Press to change the camera angle during DVD-Video movie multi-angle scene playback.

9 Playback controls

Press to start or resume playback.

Press to stop playback (you can resume playback by pressing ▶).

Press to pause playback; press again to restart.

Press to start reverse or forward scanning. Press again to change the speed.

While paused, press and hold to start slow-motion playback. Press repeatedly to change the playback speed.

While paused, press to advance a single frame in either direction.

Press to skip to the previous or next title/chapter/track/folder; or to display the previous or next menu page.

10 ZOOM

Press to zoom the screen when displaying a still image.

11 DISP

Press to display information.

12 Number buttons

Use to enter title, chapter or track numbers, etc.

ENTER

Press to select an option or execute a command.

CLEAR

Press to clear a numeric entry, etc.

13 PLAY MODE

Press to change the Play Mode (repeat play, for example).

Operating a Pioneer HDD/DVD Recorder

1 SOURCE

Switches the power for a HDD/DVD recorder to On/Standby.

2 PAGE

Switch between pages on the LCD touch screen when multiple pages are present.

3 TOP MENU /DISC NAVIGATOR

Press to display the top menu if a DVD-Video or finalized DVD-R/-RW (Video) disc is loaded, or the Disc Navigator screen.

4 MENU

Press to display the disc menu if a DVD-Video, finalized DVD-R/-RW or finalized DVD+R/+RW disc is loaded.

5 ↑/↓/←/→ (cursor buttons) and ENTER

Use to navigate all on-screen displays. Press ENTER to select the currently highlighted option.

6 HOME MENU

Press to display the Home Menu, from which you can navigate all the functions of the recorder.

7 RETURN

Press to go back one level in the on-screen menu or display.

LCD touch screen

8 HDD

Press to select the hard disk (HDD) for recording and playback.

DVD

Press to select the DVD for recording and playback.

9 Playback controls

Press to start playback.

Press to stop playback.

Press to pause playback or recording.

Press to start reverse or forward scanning. Press again to change the speed.

Press to skip to the previous or next title/ chapter/ track/folder; or to display the previous or next menu page.

While paused, press and hold to start slow-motion playback. Press repeatedly to change the playback speed.

While paused, press to advance a single frame in either direction.

10 CM BACK (commercial back)

Press repeatedly to skip progressively backward through the video playing.

CM SKIP (commercial skip)

Press repeatedly to skip progressively forward through the video playing.

11 JUKEBOX

Press to display the Jukebox screen of a HDD/DVD recorder, from which you can copy music to the HDD for playback.

12 (AUDIO)

Press to change the audio language or channel. (When the recorder is stopped, press to change the tuner audio.)

(SUBTITLE)

Press to display/change the subtitles included in multilingual DVD-Video discs.

(ANGLE)

Press to switch camera angles on discs with multi-angle scenes.

13 Number buttons

Use the number buttons for track/chapter/title selection; channel selection, and so on.

CLEAR

Press to clear an entry and start again.

14 CH +/-

Press to change the channel of the built-in TV tuner.

15 INPUT

Press to change a HDD/DVD recorder input to use for recording.

16 DISP

Displays/changes the on-screen information displays.

17 Recording controls

● REC

Press to start recording. Press repeatedly to set the recording time in blocks of 30 mins.

STOP REC

Press to stop recording.

Putting the batteries in the remote control

1 Open the battery compartment cover on the back of the remote control.

2 Insert four AA/LR6 alkaline batteries into the battery compartment following the indications (⊕,⊖) inside the compartment.

3 Close the cover.

Caution

Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:

• Don't mix new and old batteries together.
• Don't use different kinds of battery together — although they may look similar, different batteries may have different voltages.
• Make sure that the plus and minus ends of each battery match the indications in the battery compartment.
• Remove batteries from equipment that isn't going to be used for a month or more.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country /area.

WARNING

- Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Using the remote control

Please keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit's remote sensor.
• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.
• Replace the batteries when you notice a fall off in the operating range of the remote.
• Use within the operating range in front of the remote control sensor on the display unit, as shown.

Operating the remote control

The supplied remote control can control not only the receiver subwoofer, but also other Pioneer products such as a plasma television, DVD player, Blu-ray disc player, and HDD/DVD recorder.

To operate these components, orient the remote control toward the display unit.

Operating the receiver subwoofer

RCV

Press to display the RECEIVER screen.

The RECEIVER screen is shown on the remote control's LCD screen, and the remote is switched to Receiver mode.

Choosing and operating a source component

Press to cycle through connected components.

The selected component changes, and the LCD screen on the remote control changes to that of the appropriate component.

• To select input for Digital 1, Digital 2, Analog, Front Audio In, or iPod, press the LINE button until the desired input function is shown on the display unit.

2 Choose the input source you are using when you have selected HDMI 1 to HDMI 3 or LINE.

The LCD screen changes to that for the selected component, and you can then operate the desired component.

- When the desired source cannot be found, or when you have a component not manufactured by Pioneer connected, press RCV to put the remote control into Receiver mode. The input for this unit remains unchanged.

Note

To temporarily control the receiver while listening to audio from a connected component on this unit, press RCV. The selected input will not change, and the remote changes to Receiver mode. To return to the previous operating mode, press RCV once more.

Using the LCD touch screen

Depending on the type of connected component you are operating (such as DVD player), there may be multiple pages of information for the LCD touch screen. When the component you would like to control is not displayed, press PAGE to scroll to the page where the component you would like to control is located.

- When no operations are carried out for over 10 seconds, the display on the LCD touch screen of the remote control is automatically turned off. To have the display shown once again, either touch the LCD or press a button on the remote control.

Chapter 4

Getting started

Important

- RCV Press to set the remote control to receiver control mode in order to operate the receiver subwoofer (make sure that the LCD displays the RECEIVER screen, as shown below).

Using the Auto MCACC setup for optimal surround sound

The Multichannel Acoustic Calibration (MCACC) system measures the acoustic characteristics of your listening area, taking into account ambient noise, and testing for channel delay and channel level. After you have set up the microphone provided, the system uses the information from a series of test tones to measure standing wave and reverb, optimizing the speaker settings and equalization (MCACC Effect) for your particular room. ¹

Important

• The test tones used for Auto MCACC setup are loud; however, do not turn the volume down during setup as this may result in a sub-optimal setup.
• Make sure the microphone and speakers are not moved during the MCACC setup.

1 Connect the microphone to the MCACC SETUP MIC jack on back of the display unit.

2 Place the microphone at your normal listening position.

Place it about ear height, and make sure it is level by using a table or chair.

Make sure there are no obstacles between the speakers and the microphone.

RECEIVER

3 If the receiver subwoofer is off, press ⏻ RECEIVER to turn the power on.

4

Press MCACC.

Try to be as quiet as possible after pressing MCACC. The volume increases automatically and the system outputs a series of test tones.

• To cancel Auto MCACC setup before it has finished, press MCACC. The unit will continue to use the previous settings.
• If the ambient noise level is too high, Noisy! blinks in the display for five seconds. To exit and check the noise levels ² , press MCACC, or to try again, press ENTER when Retry shows in the display.
• If you see an Error MIC! or Error Speaker! message in the display, there may be a problem with your mic or the speaker connections. To try again, press ENTER ³ .

When the MCACC setup is complete, the volume level returns to normal, Complete ⁴ shows in the display, and MCACC Effect is activated. ⁵

- Be sure to disconnect the microphone from this unit upon completion of the Auto MCACC setup.

Note

1 You only need to use the Auto MCACC setup once (unless you change the placement of your speakers or your room layout).
2 • If the room environment is not optimal for the Auto MCACC setup (too much ambient noise, echo off the walls, obstacles blocking the speakers from the microphone) the final settings may be incorrect. Check for household appliances (air conditioner, fridge, fan, etc.), that may be affecting the environment and switch them off if necessary.
- Some older TVs may interfere with the operation of the mic. If this seems to be happening, switch off the TV during Auto MCACC setup.
3 If this doesn't work, press MCACC, turn off the power, and check the problem indicated by the Error message, then try the Auto MCACC setup again.
4 If Complete doesn't appear, it is likely an error occurred during the setup. Please check all connections and try again.
5 See Listening with MCACC Effect on page 27 to switch on/off MCACC Effect.

Chapter 5

Listening to your system

Important

- RCV Press to set the remote control to receiver control mode in order to operate the receiver subwoofer (make sure that the LCD displays the RECEIVER screen, as shown below).

Effective Sound (for optimum sound)

With the uniquely shaped high-quality speakers supplied with this unit, the Effective Sound mode enables the following Pioneer exclusive audio technologies designed to maximize the real experience of sound originally inherent in movies and music.

Turn on the Effective Sound mode under normal circumstances to maximize the capabilities of this unit.

• Dialogue Enhancement
  Clarifies dialogue in movies to make it stand out from other background sounds.
  • Dynamic Range Compression
  Resuscitates detailed sound susceptible to ambient noise to create an acoustic environment where you feel as if you are right in the action.

• Original Channel Balance & Channel Mix

Since the orientation of the supplied speaker units is uniquely designed, channels are mixed down and balanced in a special manner. Also, the optimum balance is automatically achieved according to the contents being played back.

• Frequency Characteristic Correction

Realizes the playback characteristic optimized for long hours of listening in addition to the added features of the supplied speaker units.

- Stereo Playback in Surround

Outputs audio from the surround speakers while directing vocal sound to the front channels. You can play back stereo sources like CDs in seamless, comfortable surround sound.

This effect is available when you play back stereo sources in the Auto listening mode (see below).

The Effective sound mode can be turned off (activating Direct mode) by doing the following:

Press to switch to Direct Sound.

Press this button to switch between Effective Sound and Direct Sound.

- When Direct Sound is selected, the DIRECT indicator lights.

Auto listening mode

The Auto listening mode is the simplest way to listen to any source as it was mastered: the output from the speakers mirrors the channels in the source material. If you set up the system for Front surround (page 6), the Front Stage Surround modes will give the best results (see page 26).

Press to select the Auto listening mode.

Listening in surround sound

You can listen to stereo or multichannel sources in surround sound. Surround sound is generated from stereo sources using one of the Dolby Pro Logic or DTS Neo:6 decoding modes. ¹

If you set up the system for Front surround (page 6), the Front Stage Surround modes will give the best results (see page 26).

Press repeatedly to select a listening mode.

The choices that appear in the display will vary according to the type of source that's playing. ²

Note

1 After the surround back signals of the 6.1/7.1-channel audio represented by DTS-ES are properly decoded, the original virtual surround back function outputs the surround back signals in combination with surround signals.
2 You cannot select a mode other than Auto and Stereo while playing back DTS-HD, DTS-Express, or Dolby TrueHD (176.4 kHz/192 kHz). Also, you cannot select DTS Neo:6 for Dolby Digital Plus or Dolby TrueHD (below 96 kHz).

With two channel sources, you can select from:

• Auto – Auto listening mode (see page 24)
• ☐☐ PL II Movie (Dolby Pro Logic II Movie) – 5.1 channel surround sound, especially suited to movie sources
• DOLPL II Music (Dolby Pro Logic II Music) – 5.1 channel surround sound, especially suited to music sources; see Dolby Pro Logic II Music settings below
• DPL II Game (Dolby Pro Logic II Game) – 5.1 channel surround sound, especially suited to video games
• Pro Logic (Dolby Pro Logic) – 4.1 channel surround sound for use with any two-channel source
• Neo:6 Cinema – 6.1 channel sound, especially suited to movie sources
• Neo:6 Music –6.1 channel sound, especially suited to music sources; see Center image setting below
• Stereo – See Listening in stereo on page 26

With multichannel sources, you can select (according to format):

• Auto – Auto listening mode (see page 24)
• StandardDecode – Listening in Dolby Digital or DTS surround decoding. Plays back multichannel sources like Dolby Digital, DTS, and multichannel PCM with the most standard decoder
• Stereo – See Listening in stereo on page 26

Dolby Pro Logic II Music settings

When listening in Dolby Pro Logic II Music mode (see above), there are three settings you can adjust: Center Width, Dimension, and Panorama.

1

active.

2

Press when Dolby Pro Logic II Music mode is

Select 'Center Width', 'Dimension' or

'Panorama' then press ENTER.

• Center Width ¹ – Provides a better blend of the front speakers by spreading the center channel between the front right and left speakers, making it sound wider (higher settings) or narrower (lower settings).
• Dimension – Adjusts the depth of the surround sound balance from front to back, making the sound more distant (minus settings), or more forward (positive settings).

[Non-Text]

Note

1 As this product uses a dual center speaker system, you should normally use the C.Width 3 setting. 2 As this product uses a dual center speaker system, you should normally use the C.Image 3 setting.

3 You cannot use this function for the following audio streams:

• Dolby TrueHD: over 88.2 kHz
• DTS-HD: over 88.2 kHz or with the channel format of 2/0
• DTS-Express: with the channel format of 2/0

- Panorama – Extends the front stereo image to include the surround speakers for a 'wraparound' effect.

3

Adjust the setting, then press ENTER to

confirm.

Center image setting

When listening to two channel sources in Neo:6 Music mode (see page 24), you can also adjust the center image effect.

Adjusts the center image to create a wider stereo effect with vocals. ²

1

Press when Neo:6 Music mode is active.

2

Select 'Center Image' then press ENTER.

3

Adjust the setting, then press ENTER to

confirm.

- Adjust the effect from 0 (all center channel sent to front right and left speakers) to 10 (center channel sent to the center speaker only).

Using Advanced Surround

The Advanced Surround effects can be used with any multichannel or stereo source for a variety of additional surround sound effects. These modes are designed to provide optimum listening effect when using the Standard surround setup described on page 6.

.

Press to select an Advanced Surround mode.

The ADV.SURR. indicator lights when one of these modes is chosen. You cannot switch between modes for some audio streams. ³

Press repeatedly to select:

• Action – Designed for action movies with dynamic soundtracks
• Drama – Designed for movies with lots of dialog
  • Sci-Fi – Designed for science fiction with lots of special effects
• Mono Film – Creates surround sound from mono soundtracks

• Ent.Show – Suitable for musical sources
• Expanded – Creates an extra wide stereo field
• TV Surround – Provides surround sound for both mono and stereo TV sources
• Advanced Game – Suitable for video games
• Sports – Suitable for sports programs
  • Classical – Gives a large concert hall-type sound
• Rock/Pop – Creates a live concert sound for rock and/or pop music
• Unplugged – Suitable for acoustic music sources
• Ext.Stereo – Gives multichannel sound to a stereo source, using all of your speakers

Using Front Stage Surround Advance

The Front Stage Surround Advance modes are effective when you are using the Front surround speaker setup as described on page 6.

Press to select a Front Stage Surround

Advance mode.

The F.S.SURR indicator lights.

Press repeatedly to select Focus 5.1ch, Wide 5.1ch or Extra Power. You cannot select a mode other than Extra Power for some audio streams. ¹

• Focus 5.1ch – Use to provide a rich surround sound effect directed to the center area where the left and right speakers sound projection converges.
• Wide 5.1ch – Use to provide a surround sound effect to a wider area than Focus 5.1ch mode.
• Extra Power – Outputs stereo sound (in the case of multi-channel sources, down-mixed stereo sound) from the surround speakers for powerful stereo effect.

Listening in stereo

You can listen to any source — stereo or multichannel — in stereo. When playing a multichannel source, all channels are downmixed to the front left/right speakers and the subwoofer.

Press repeatedly until STEREO shows in the

Genre Sync Mode

Only when you have this unit connected to an HDMI Control-compatible Pioneer HDD/DVD recorder and are using the HDMI Control function, you can make use of the Genre Sync Mode to have the listening mode automatically change to that which best matches the genre of the contents playing from the recorder.

- Set the HDMI Mode to AMP Mode (page 36).

- GENRE Press when listening to media contents from a recorder.

The most appropriate listening mode is selected and shown in the display. When the related genre could not be determined, No Genre or Can't use may be displayed and the listening mode remains unchanged.

Tip

• Mainly used with Jukebox and MP3 sources.
• To use this function, you must have an HDMI Control-compatible Pioneer HDD/DVD recorder connected via HDMI, and have the HDMI Control function set to On.

Using the Sound Retriever

When audio data is removed during the MP3 or WMA compression process, sound quality often suffers from an uneven sound image. The Sound Retriever feature employs new DSP technology that helps bring CD quality sound back to compressed two channel audio by restoring sound pressure and smoothing jagged artifacts left over after compression.

• SOUND RTRV Press while listening to a stereo ² source

Press repeatedly to switch between:

• Retriever On — Switches the Sound Retriever on.
• Retriever Off — Switches the Sound Retriever off.

Note

1 You cannot use this function for the following audio streams:

• Dolby TrueHD: over 88.2 kHz
• DTS-HD: over 88.2 kHz or with the channel format of 2/0
• DTS-Express: with the channel format of 2/0

2 This setting cannot be used with multichannel sources. Also, in case of SACD, DTS-HD, DTS-Express, Dolby TrueHD, Dolby Digital Plus, and PCM (192 kHz/176.4 kHz), even stereo sources cannot be used.

Listening with MCACC Effect

Listen to sound using the corrected acoustic field settings obtained by MCACC.

1

Press to open the sound menu.

2

Select 'MCACC Effect' then press ENTER.

3

Switch 'MCACC On' or 'MCACC Off'

press ENTER to confirm.

• When MCACC Effect is off, equalization, channel delay, channel level and standing wave are set to off.
• When MCACC Effect is off, the channel delay and channel level can be adjusted manually and the settings stored separately from when MCACC Effect is on.
• MCACC Effect is set to on automatically after Auto MCACC setup is used.

Using Midnight, Loudness and Quiet listening modes

The Midnight listening feature allows you to hear effective surround sound of movies at low volume levels. The Loudness listening feature can be used to get good bass and treble from music sources at low volume levels. The Quiet listening feature reduces excessive bass or treble in a sound source.

1

Press to open the sound menu.

2

Select 'Tone' then press ENTER.

3

then press ENTER to confirm. ²

- To cancel the Midnight, Loudness or Quiet listening modes, select Bass/Treble.

Adjusting the bass and treble

Use the bass and treble controls to adjust the overall tone.

1

Press to open the sound menu.

2

Select 'Tone' then press ENTER.

3

Select 'Bass/Treble' then press ENTER.

then Selecting Bass/Treble cancels the Midnight, Loudness and Quiet listening modes. These modes cannot be used at the same time.

4

←setbuttons to select 'Bass' or

'Treble'; use the ↑/↓ buttons to adjust the sound then press ENTER to confirm.

• Bass and Treble can be adjusted from -6dB to +6dB.
• When the Bass or Treble is set to something other than 0dB, the TONE indicator lights.

Adjusting sound delay

Some monitors have a slight delay when showing video, so the soundtrack will be slightly out of sync with the picture. By adding a bit of delay, you can adjust the sound to match the presentation of the video.

There are a total of 60 steps (levels) that you can adjust, with a total range of 200 msec.

1

Press to open the sound menu.

2

Select 'Sound Delay' then press ENTER.

3

Select the length of the delay in sound,

then press ENTER to confirm.

- This option is deactivated and not displayed if you have AutoDelay set to On in HDMI Setup (see Setting the Auto Delay on page 39).

Note

1 While playing back DTS-HD (over 88.2 kHz) or Dolby TrueHD (over 88.2 kHz) audio streams, you cannot select Tone if a mode other than Bass/Treble is selected.

2 While playing back DTS-HD (over 88.2 kHz) or Dolby TrueHD (over 88.2 kHz) audio streams, you cannot select a mode other than Bass/Treble.

Chapter 6

Listening to the radio

Important

- FM/AM To listen to the radio, preFM/AM button to set the remote control to FM/AM control mode. The LCD screen on the remote control changes to the FM/AM screen.

Listening to the radio

The tuner can receive both FM and AM broadcasts, and lets you memorize your favorite stations so you don't have to manually tune in every time you want to listen.

1 FM/AM Switch to the tuner, then press repeatedly to select the FM or AM band.

The display shows the band and frequency.

2 - TUNE + Tune to a frequency.

There are three tuning modes — manual, auto, and high-speed:

• Manual tuning – Press TUNE +/- repeatedly to change the displayed frequency.
• Auto tuning – Press and hold TUNE +/- until the frequency display starts to move, then release. The tuner will stop on the next station it finds. Repeat to keep searching.
• High-speed tuning – Press and hold TUNE +/- until the frequency display starts to move rapidly. Keep the button held down until you reach the frequency you want. If necessary, fine tune the frequency using the manual tuning method.

Improving poor FM reception

If you're listening to an FM station in stereo but the reception is weak, you can improve the sound quality by switching to mono.

1

Press after tuning to an FM radio station.

2

Select 'Tuner Setup' then press ENTER.

3

Choose 'FM Auto/Mono' then press

ENTER.

Select 'FM Mono' then press ENTER.

The mono indicator (●) lights when the tuner is in mono reception mode.

Select FM Auto above to switch back to auto-stereo mode (the stereo indicator lights when receiving a stereo broadcast).

Improving poor AM sound

The simplest way to improve the sound quality of AM radio is to make sure that the TV in the room is switched off. Also try changing the position and direction of the AM loop antenna.

Changing the noise cut mode

If you find that the AM sound quality is bad even after trying the above, you may be able to improve it using a different noise cut mode. Just choose the one that sounds best.

1

Press after tuning to an AM radio station.

2

Select 'Tuner Setup' then press ENTER.

3

Choose 'Noise Cut' then press ENTER.

4

Select a Noise cut mode (1, 2 or 3) then ER.

Memorizing stations

You can save up to 30 station presets so that you always have easy access to your favorite stations without having to tune in manually each time.

1 Tune to an FM or AM radio station.

Select mono or auto-stereo reception (FM) or the Noise Cut mode (AM) as necessary. These settings are saved along with the preset.

2 SETUP Press SETUP.

3 Select 'Tuner Setup' then press ENTER.

4 Choose 'ST.Memory' then press ENTER.

5 Select the station preset you want then press ENTER.

Listening to station presets

1 M ake sure the tuner function is selected.

2 - 31 + Select a station preset.

- Alternatively, use the number buttons to select a preset directly.

Changing the frequency step

If you find that you can't tune into stations successfully, the frequency step may not be suitable for your country/region.

1 SETUP Press SETUP.

2 Select 'System Setup' then press ENTER.

3 Select 'AM9K/10K', then press ENTER.

4 Select a setting then press ENTER to

• AM 9K – 9 kHz step for AM; 50 kHz step for FM

• AM 10K – 10 kHz step for AM; 100 kHz step for FM

Chapter 7

Surround sound settings

Important

- RCV Press to set the remote control to receiver control mode in order to operate the receiver subwoofer (make sure that the LCD displays the RECEIVER screen, as shown below).

Using the Sound Setup menu

From the Sound Setup menu you can access all the surround sound settings of the system.

During setup, the speakers are represented by the following letters:

• L-Front left speaker
• C – Center speaker
- R – Front right speaker
• SR – Surround right speaker
- SL – Surround left speaker
- SW - Subwoofer

Channel level setting ¹

The Auto MCACC feature (see page 23) should give you the best surround sound setup. However you may find that by further adjustment of the channel levels you can improve the surround sound in your listening room.

This method of setting the channel levels allows you to listen to a source and adjust the levels of each playback channel.

A further method of setting the channel levels is to use the test tone method. See Adjusting the channel levels using the test tone on page 32 for more on this.

1 SETUP Press SETUP.
2 Select 'Sound Setup' then press ENTER.
3 Select 'ChannelLevel', then press ENTER.

4 Use buttons to select a channel or the ↑/↓ buttons to adjust the level of that channel.

- You can adjust the level of each channel by ± 10 dB. ²

5 ENTER Press once when you're finished.

- If you use the Auto MCACC feature again, it will overwrite the settings you have made here.

Speaker distance setting ¹

The Auto MCACC feature (see page 23) should give you the best surround sound setup. However you may find that by further adjustment of the speaker distance settings you can improve the surround sound in your listening room.

Set the distance of each speaker from your normal listening position.

1 SETUP Open the 'Sound Setup' menu.

2 Select 'Distance' then press ENTER.

3 Use buttons to select a speaker or the ↑/↓ buttons to adjust the distance.

Each speaker can be adjusted from 0.1m to 9.0m.

4 ENTER Press ENTER when you're finished.

- If you use the Auto MCACC feature again, it will overwrite the settings you have made here.

Note

1 When this function is set while MCACC Effect is on, the value for the same function adjusted with the Auto MCACC feature is overwritten. When MCACC Effect is off, the value set here is applied, regardless of the value adjusted with the Auto MCACC feature. (The Auto MCACC setting is not overwritten.)
2 The range of adjustment is limited when the volume level is set over 51.

Dynamic Range Control

When watching Dolby Digital or DTS material at low volume, low level sounds — including some of the dialog — can be difficult to hear properly. Using one of the Dynamic Range Control (DRC) settings can help by bringing up the low level sounds, while controlling high level peaks.

Dynamic Range Control works only with Dolby Digital soundtracks and some DTS soundtracks.

1

SETUP

Open the 'Sound Setup' menu.

2

Select 'D.R.C.', then press ENTER.

3

Select a setting.

Select one of the following:

• D.R.C. Auto – Only available for Dolby TrueHD signals. Select D.R.C. High or D.R.C. Mid for signals other than Dolby TrueHD.
- D.R.C. High – Dynamic range is reduced (loud sounds are reduced in volume while quieter sounds are increased)
• D.R.C. Mid – Mid setting
- D.R.C. Off – No dynamic range adjustment (use when listening at higher volume)

4

Press to exit.

Dual mono setting

Specifies how dual mono encoded Dolby Digital soundtracks should be played. You can also use this setting to switch the audio channel on DVD-RW discs recorded with bilingual audio.

1

SETUP

Open the 'Sound Setup' menu.

2

Select 'Dual Mono', then press ENTER.

3

Select a setting.

Select one of the following:

• CH1 Mono – Only channel 1 is played
• CH2 Mono – Only channel 2 is played
• CH1/CH2 – Both channels are played through the front speakers

4

Press to exit.

Using the Virtual Surround Back mode

This mode allows you to hear a virtual surround back channel through your surround speakers. You can choose to listen to sources with no surround back channel information, or if the material sounds better in the format (for example, 5.1) for which it was originally encoded, you can have the receiver only apply this effect to 6.1 encoded sources like Dolby Digital EX or DTS-ES. ¹

1

SETUP

Open the 'Sound Setup' menu.

2

Select 'Virtual SB', then press ENTER

Adjusting the channel levels using the test tone

If you prefer, you can set the channel levels using a test tone as a reference, rather than playing a source (see Channel level setting on page 30). A test tone is played through each speaker in turn, allowing you to adjust the level as it plays.

You can also adjust the channel levels for surround sound using test tone.

1

Carry out tone testing.

The test tone is output from each speaker in turn. *Adjust the volume level below 50.

3

Select a setting.

Select one of the following:

• Vir.SB On – Virtual Surround Back is always used (for example, on 5.1 encoded material)
• Vir.SB Auto – Virtual Surround Back is automatically applied to 6.1 encoded sources (for example, Dolby Digital EX or DTS-ES), DTS Neo:6 or Advanced Surround mode
• Vir.SB Off – Virtual Surround Back mode is switched off

4

Press to exit.

2

Adjust the channel level of a tune while it

is playing.

The aim is to adjust the levels so that you hear the test tone at the same volume from each speaker. You can adjust the level of each channel by ±10 dB.

• You can adjust the overall volume of test tone output using the VOL +/- buttons (this does not affect the channel level settings).
• Because of the ultra low frequencies the subwoofer produces, it may sound quieter than it really is. We suggest adjusting the subwoofer level while listening to a source. See the method described in Channel level setting on page 30.

LFE Attenuate

Some Dolby Digital and DTS audio sources include ultra-low bass tones.

Set the LFE attenuator as necessary to prevent the ultralow bass tones from distorting the sound from the speakers.

The LFE is not limited when set to 0dB, which is the recommended value. When set to -5dB, -10dB, -15dB or -20dB, the LFE is limited by the respective degree. When Off is selected, no sound is output from the LFE channel.

2

Press to exit test tone setup once you have

finished.

- If you use the Auto MCACC feature again, it will overwrite the settings you have made here.

1

SETUP

Open the 'Sound Setup' menu.

2

Select 'LFE ATT', then press ENTER.

3

Adjust the setting then press ENTER to

confirm.

Note

1 Depending on the input signal and the listening mode, the Virtual Surround Back mode may not be effective.

En

Chapter 8

Other connections

Important

- When making or changing connections on the side panel of this unit, be sure to switch power off and disconnect the power cord from the wall socket. After completing all connections, connect the power cord to the wall socket.

Connecting auxiliary components

You can connect both analog and digital external audio sources to this system. Digital audio sources include digital satellite receivers, CD recorders, etc.

We recommend using an HDMI cable to connect sources that have HDMI terminals. For more information see Connecting using HDMI on page 35.

To listen to audio from a TV, connect the TV's audio cable to one of the inputs on this unit.

Connecting for digital audio

This system has optical-type digital inputs. Use these to connect external components, such as your MD or CD recorder.

- Connect the OPTICAL IN 2 jack on the side panel to the optical output of an external playback component.

These include digital components such as an MD player, digital satellite, or a game system.

You can also use the OPTICAL IN 1 jack to connect external components when not using it for sound input from a TV.

Connecting an analog audio component

You can use the ANALOG AUDIO IN jacks to connect an analog audio component, such as a tape player.

You can use the F.AUDIO input jack on the display unit to easily playback audio from a digital audio player or PC. Use a stereo mini-plug cable to connect a source to the display unit.

- When you connect a cable to the F.AUDIO jack, this unit's input automatically switches to Front Audio In.

Connecting an iPod

You can use the iPod jack on the display unit to playback music from an iPod. All operations can be carried out via the iPod. Use the supplied iPod cable to connect an iPod to this unit.

• When you connect an iPod, this unit's input automatically switches to iPod.
• Certain iPod models have connectors that are not compatible with this unit.

iPod ^® is a trademark of Apple Inc., registered in the U.S. and other countries.

Listening to an external audio source

To listen to audio from a connected external component on this unit, choose its input function on the remote control. Some Pioneer products can be controlled via this remote.

1 If the system isn't already on, press ⏻ RECEIVER to switch on.

Also make sure that the external source (TV, satellite receiver, etc.) is switched on.

2 LINE Select an audio input source.

Input sources are cycled through as shown below:

The LCD screen changes to that of the selected input source.

3 Press the button for the appropriate connected component.

When a connected component is not displayed on the screen, or when you have connected a component not manufactured by Pioneer, press RCV button to put the remote control on the receiver subwoofer operation screen.

4 If necessary, start playback of the external source.

Connecting external antennas

For an external AM antenna, use 5 to 6 meters of vinyl-insulated wire and set up either indoors or outdoors. Leave the loop antenna connected.

For an external FM antenna, use a PAL connector to hook up an external FM antenna.

About control out connections

Many Pioneer components support CONTROL connections, by which you can use the remote controls of any connected components by aiming them at the sensor of just one component.

When you use a remote control, the control signal is passed along the chain to the appropriate component.

If you choose to use this feature, you must make sure that you also have at least one set of HDMI or analog audio jacks connected to another component for grounding purposes.

- Using the supplied control cable on either side, connect the CONTROL IN jack on another Pioneer component to the CONTROL OUT jack on the receiver subwoofer.

This will allow you to control the other component by pointing its remote at the display unit supplied with this receiver subwoofer.

Connecting using HDMI

If you have an HDMI or DVI (with HDCP) equipped component, you can connect it to this receiver using a commercially available HDMI cable. ¹

The HDMI connection transfers uncompressed digital video, as well as almost every kind of digital audio that the connected component is compatible with, including DVD-Video, DVD-Audio, SACD, Blu-ray Disc, Video CD/ Super VCD, CD and MP3, etc.

Note

1 An HDMI connection can only be made with DVI-equipped components compatible with both DVI and High Bandwidth Digital Content Protection (HDCP). If you choose to connect to a DVI connector, you will need a separate adaptor (DVI → HDMI) to do so. A DVI connection, however, does not support audio signals. Consult your local audio dealer for more information.

• This unit has been designed to be compliant with HDMI (High-Definition Multimedia Interface) Version 1.3a. Depending on the component you have connected, using a DVI connection may result in unreliable signal transfers. Also, when using a component with HDMI version 1.0, it is not possible to output copy-controlled DVD-Audio CPPM sources from the HDMI connection.
• This unit supports SACD, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio. To take advantage of these formats, however, make sure that the component connected to this unit also supports the corresponding format.

1 Use an HDMI cable to connect the HDMI IN 1 to 3 interconnect on this receiver subwoofer to an HDMI output on your HDMI component.

Once this receiver subwoofer is properly connected to your HDMI component, the HDMI indicator (red) lights up on the display unit when you watch HDMI contents.

2 Use an HDMI cable to connect the HDMI OUT interconnect on this receiver subwoofer to an HDMI interconnect on a HDMI-compatible display.

- The arrow on the cable connector body should be facing right for correct alignment with the connector on the player.

3 Use the HDMI 1 to 3 button to select the HDMI input you've connected to (for example, HDMI 2).

You can also use the display unit INPUT SELECTOR to carry out this operation.

• Set the HDMI Mode in HDMI mode setting below to Through Mode if you want to hear HDMI audio output from your TV or plasma television (no sound will be heard from this receiver subwoofer).
• If the video signal does not appear on your TV or plasma television, try adjusting the resolution settings on your component or display.

HDMI mode setting

Specifies the routing of the HDMI audio signal out of this receiver subwoofer (amp) or through to a TV or plasma television. You cannot use a number of sound functions of this unit when HDMI Mode is set to Through Mode.

3

Select 'HDMI Mode', then press ENTER.

4

Adjust the setting then press ENTER to

confirm.

• AMP Mode – Output an HDMI audio signal from this unit.
• Through Mode – Output an HDMI audio signal from a TV or plasma television. The HDMI THROUGH indicator lights.

About HDMI

HDMI (High-Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD players, DTV, set-top boxes, and other AV devices. HDMI was developed to provide the technologies of High-bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface (DVI) in one specification. HDCP is used to protect digital content transmitted and received by DVI-compliant displays.

HDMI has the capability to support standard, enhanced, or high-definition video plus standard to multi-channel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to 2.2 gigabytes per second (with HDTV signals), one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Important

- RCV Press to set the remote control to receiver control mode in order to operate the receiver subwoofer (make sure that the LCD displays the RECEIVER screen).

1

Press SETUP.

2

Select 'HDMI Setup' then press ENTER.

Chapter 9

HDMI Control

By connecting this unit to an HDMI Control-compatible Pioneer plasma television or the HDD/DVD recorder with an HDMI cable, you can control this unit from the remote control of a connected plasma television, as well as have the connected plasma television automatically change inputs in response to operations carried out on this unit.

Refer to the operating instructions for your plasma television for more information about which operations can be carried out by connecting via HDMI cable.

• You cannot use this function with components that do not support HDMI Control.
  • We cannot guarantee this unit will work with HDMI Control-compatible components other than those made by Pioneer.

Important

- RCV Press to set the remote control to receiver control mode in order to operate the receiver subwoofer (make sure that the LCD displays the RECEIVER screen, as shown below).

Making the HDMI Control connections

You can use synchronized operation for a connected plasma television and up to three other components (including a maximum of two recorders or players).

Be sure to connect the plasma television's audio cable to the audio input of this unit.

- If you use a commercially available HDMI cable, check whether the cable supports the HDMI 1.3 standard. Otherwise, the HDMI Control function may not operate properly.

- Connect the plasma television directly to this unit. Interrupting a direct connection with other amps or an AV converter (such as an HDMI switch) can cause operational errors.

- Only connect components you intend to use as a source to the HDMI input of this unit. Interrupting a direct connection with other amps or an AV converter (such as an HDMI switch) can cause operational errors.

Important

• When connecting this system or changing connections, be sure to switch the power off and disconnect the power cord from the wall socket. After completing all connections, connect the power cords to the wall socket.
  • After connecting this unit to an AC outlet, a 15-second initialization process begins. You cannot carry out any operations during initialization. The HDMI indicator on the display unit blinks during initialization, and you can turn this unit on once it has stopped blinking.
  • To get the most out of this function, we recommend that you connect your HDMI component not to a plasma television but rather directly to the HDMI terminal on this unit.

Setting the HDMI options

You must adjust the settings of this unit as well as HDMI Control-compatible connected components in order to make use of the HDMI Control function. For more information see the operating instructions for each component.

Setting the HDMI Control mode

Choose whether to set this unit's HDMI Control function On or Off. You will need to set it to Control On to use the HDMI Control function.

- When using a TV not manufactured by Pioneer, put this setting to Control Off.

1

Press SETUP.

2

Select 'HDMI Setup' then press ENTER.

3

Select 'HDMI Ctrl', then press ENTER.

4

Adjust the setting then press ENTER to

confirm.

• Control On – Enables the HDMI Control function. When this unit's power is turned off and you have a supported source begin playback while using the HDMI Control function, the audio and video output from the HDMI connection are output from the plasma television.
• Control Off – The HDMI Control is disabled. Synchronized operations cannot be used. When this unit's power is turned off, audio and video of sources connected via HDMI are not output.

Setting the Auto Delay

This feature automatically corrects the audio-to-video delay between components connected with an HDMI cable. The audio delay time is set depending on the operational status of the display connected with an HDMI cable. The audio delay time is automatically adjusted according to the video delay time.

1

Press SETUP.

2

3

4

press ENTER to confirm.

Important

- You must set this setting to activate the HDMI Control function.

Before using synchronization

Once you have finished all connections and settings, you must:

1 Put all components into standby mode.

Select 'HDMI Setup' then press ENTER 2 Turn the power ON for all components, with the power for the plasma television being turned on last.

Select 'Auto Delay', then press ENTER. 3 Choose the HDMI input to which the TV is connected to this unit, and see if video output from connected components displays properly on the screen on not.

Tip

- This feature is only available when the connected display supports the automatic audio/video synchronizing capability ('lip-sync') for HDMI or HDMI Control. If you find the automatically set delay time unsuitable, set A.Delay to Off and adjust the sound delay settings manually (page 27).

Audio input settings from plasma televisions (TV Input)

To listen to audio from a plasma television on this device, you will need to connect an audio cable other than an HDMI cable. From this menu, set the audio input to that which you would like to connect. Press TV on the remote control to switch this unit to the input source selected here. This setting is changed to the selected input and the audio from the plasma television is output from this device.

Select from inputs Digital 1, Digital 2 and Analog

1

Press SETUP.

2

3

4

confirm.

Synchronized amp mode

Synchronized amp mode begins once you carry out an operation for the plasma television. For more information, see the operating instructions of your plasma television.

Synchronized amp mode operations

By connecting a component to this unit with an HDMI cable you can use synchronized amp mode, which allows you to synchronize the following operations:

• Displays on the plasma television when you mute or adjust the volume of this unit.
• The input of this unit is automatically changed when playback occurs on a connected component.
• Even if you change this unit's input to a device that is not connected by HDMI, the synchronized amp mode remains in effect.
• By pressing GENRE when listening to a source from an HDD/DVD recorder, the most appropriate listening mode is automatically selected (page 26).

Canceling synchronized amp mode

If you cancel synchronized amp mode while connected via HDMI to a plasma television or while you are watching a TV programme, the power for this unit is turned off.

Select 'System Setup' then press ENTER. If you cancel synchronized amp mode while connected via HDMI to a plasma television or while you are watching a TV programme, the power for this unit is turned off.

Select 'TV Input', then press ENTER.

Adjust the setting then press ENTER to

Chapter 10

Additional information

Important

- RCV Press to set the remote control to receiver control mode in order to operate the receiver subwoofer (make sure that the LCD displays the RECEIVER screen, as shown below).

Setting up the remote to control your TV

You can use the supplied remote to control your TV. To be able to use this feature you first have to program the remote with a maker code from the table on the following page.

1

Set the input to TV.

2 Press and hold the TV button and press SETUP.

The TV preset screen is shown on the remote control, and the current maker code is displayed on the LCD screen.

Dimming the display

You can choose to dim the display of the display unit if you find it too bright. ¹

1

Press SETUP.

2

Select 'System Setup' then press ENTER.

3

Select 'Dimmer' then press ENTER.

4

Select 'Dimmer Light' or 'Dimmer Da then press ENTER to confirm.

Setting the sleep timer

The sleep timer switches off the receiver subwoofer after a specified time so you can fall asleep without worrying about it.

.

Press to select an option.

Choose between the following options:

• Sleep On – Switches off after about an hour
• Sleep Off – Cancels the sleep timer

After selecting Sleep On, you can press SLEEP again to check how much time is left. Each line indicates approximately 12 minutes (remaining):

3 Use the number buttons to input the maker code for your TV, and press ENTER.

See the table on the next page for the list of maker codes. If there is more than one code given for your make, input the first one in the list.

- If the maker's name of your TV doesn't appear in the table, you will not be able to use this remote to control your TV.

4 Point the remote towards your TV and press

SOURCE to check that the remote works with your TV.

If the remote is set up correctly, the TV should switch off. If it doesn't and there is another code given for your maker, repeat step 1 with a new code.

Sleep----

Note

1 The display of the display unit dims when the sleep timer is set, regardless of this setting.

40

En

Downloaded from www.Manualslib.com manuals search engine

TV Preset code list

Please note that there are cases where only certain functions may be controllable after assigning the proper preset code, or the codes for the manufacturer in the list will not work for the model that you are using.

Manufacturer Code(s)

Manufacturer Code(s)

Admiral 003, 004, 005Aiwa 006, 007, 008Akai 009, 010Alba 011AOC 012Bell&Howell 013, 014Bestar 015Blaupunkt 016, 017Blue sky 018Brandt 019Brocsonic 020, 021Bush 022Clatronic 023Craig 024, 025, 026, 027Croslex 028Curtis Mathis 029, 030, 031Daewoo 032, 033, 034, 035, 036, 037Daytron 038Dual 039, 040Emerson 041, 042, 043, 044, 045, 046, 047Ferguson 048, 049, 050First line 051Fisher 052, 053Fraba 054Fujitsu General 055Funai 056, 057, 058, 059, 060GE 061, 062, 063, 064, 065Goldstar 066, 067, 068, 069, 070Goodmans 071, 072, 073Grundig 074, 075, 076Hitachi 077, 078, 079, 080, 081, 082HYUNDAI 083ICE 084Irradio 085Itt 086, 087JC Penny 088, 089, 090, 091JVC 092, 093, 094, 095, 096, 097Kendo 098KTV 099, 100, 101LG 102Loewe 103, 104, 105LXI 106, 107, 108, 109, 110, 111Magnavox 112, 113, 114, 115Mark 116Matsui 117, 118Medion 119Mitsubishi 120, 121, 122, 123, 124, 125, 126Mivar 127

NEC 128, 129, 130, 131Nokia 086, 087, 132, 133, 134Nokia Oceanic 135, 136Nordmende 137, 138, 139Okano 140Onwa 141Orion 142Panasonic 143, 144, 145, 146, 147, 148, 149, 150Philco 151, 152, 153Philips 154, 155, 156Phonola 157Portland 158, 159Proscan 160Quasar 161, 162Radio 163Radio Shack 164, 165, 166, 167Radiola 168RCA 169, 170, 171, 172, 173, 174, 175SABA 176, 177, 178, 179, 180Samsung 181, 182, 183, 184, 185, 186, 187, 188Sanyo 189, 190, 191, 192, 193, 194, 195, 196, 197, 198Schneider 199, 200, 201, 202Scott 203, 204Sharp 205, 206, 207, 208, 209, 210, 211Siemens 212Signature 213, 214Sony 215, 216Sylvania 217, 218, 219Symphonic 220Tatung 221Telefunken 222, 223, 224, 225Thomson 226, 227Thorn 228Toshiba 229, 230, 231, 232, 233, 234Universum 235Videch 236, 237, 238W.Whouse 239Wards 240, 241, 242, 243Watson 244Yamaha 245, 246, 247, 248, 249Zenith 250, 251PIONEER 001, 002

Resetting the system

Use this procedure to reset all system settings to the factory default.

1 S witch the system on.

2 Press and hold INPUT SELECTOR then press the ⏻ STANDBY/ON button on the display unit.

The next time you switch on, all the system settings should be reset.

Installation and maintenance

Hints on installation

We want you to enjoy using this system for years to come, so please bear in mind the following points when choosing a location:

Do...

√ Use in a well-ventilated room.
√ Place on a solid, flat, level surface, such as a table, shelf or stereo rack.

Don't...

✗ Use in a place exposed to high temperatures or humidity, including near radiators and other heat-generating appliances.
✗ Place on a window sill or other place where the system will be exposed to direct sunlight.
✗ Use in an excessively dusty or damp environment.
✗ Place directly on top of an amplifier, or other component in your stereo system that becomes hot in use.
✗ Use near a television or monitor as you may experience interference — especially if the television uses an indoor antenna.
✗ Use in a kitchen or other room where the system may be exposed to smoke or steam.
✗ Use on a thick rug or carpet, or cover with cloth — this may prevent proper cooling of the system unit.
✗ Place on an unstable surface, or one that is not large enough to support all four of the system unit's feet.

Surround sound formats

Below is a brief description of the main surround sound formats you'll find on DVDs, satellite, cable and terrestrial broadcasts, and video cassettes.

Dolby

The Dolby technologies are explained below. See www.dolby.com for more detailed information.

Dolby Digital

Dolby Digital is a multichannel digital audio coding system widely used in cinemas, and in the home for DVD and digital broadcast soundtracks. It can deliver up to six discrete audio channels, comprising five full range channels and a special LFE (low frequency effects) channel used mainly for deep, rumbling sound effects; hence the term "5.1-channel" Dolby Digital.

In addition to the format features above, Dolby Digital decoders offer downmixing for compatibility with mono, stereo and Dolby Pro Logic audio from a number of bit rates and channels. Another feature, called Dialog Normalization, attenuates programs based on the average level of dialog in a program relative to its peak level (also known as Dialnorm) in order to achieve uniform playback level.

Dolby Pro Logic II and Dolby Surround

Dolby Pro Logic IIx is an improved version of the Dolby Pro Logic II (and Dolby Pro Logic) decoding system. Using the innovative "steering logic" circuit, this system extracts surround sound from sources as follows:

• Dolby Pro Logic – 4.1 channel sound (mono surround) from any stereo source
• Dolby Pro Logic II – 5.1 channel sound (stereo surround) from any stereo source

With two channel sources, the ".1" subwoofer channel is generated by bass management in the receiver.

Dolby Surround is an encoding system which embeds surround sound information within a stereo soundtrack, which a Dolby Pro Logic decoder can then use for enhanced surround listening with greater sound detail.

Dolby Digital Plus

Dolby Digital Plus is the next-generation audio technology for all high-definition programming and media. It combines the efficiency to meet future broadcast demands with the power and flexibility to realize the full audio potential expected in the upcoming high-definition era. Built on Dolby Digital, the multi-channel audio standard for DVD and HD broadcasts worldwide, Dolby Digital Plus was designed for the next-generation A/V receivers but remains fully compatible with all current A/V receivers.

Dolby Digital Plus delivers multi-channel audio programs of up to 7.1 channels (*) and supports multiple programs in a single encoded bitstream with the maximum bit rate potential of up to 6 Mbps and the maximum bit rate performance of up to 3 Mbps on HD DVD and 1.7 Mbps on Blu-ray Disc, and it outputs Dolby Digital bitstreams for playback on existing Dolby Digital systems. Dolby Digital Plus can accurately reproduce the sound originally intended by directors and producers.

It also features multi-channel sound with discrete channel output, interactive mixing and streaming capability in advanced systems. Supported by High-Definition Media Interface (HDMI), a single-cable digital connection is possible for high-definition audio and video.

Dolby TrueHD

Dolby TrueHD is the next-generation lossless encoding technology developed for high-definition optical discs in the upcoming era. Dolby TrueHD delivers tantalizing sound that is bit-for-bit identical to the studio master, unlocking the true high-definition entertainment experience on high-definition optical discs in the next generation. When coupled with high-definition video, Dolby TrueHD offers an unprecedented home theater experience with stunning sound and high-definition picture.

It supports bit rates of up to 18 Mbps and records up to 8 full-range channels (*) individually with 24-bit/96 kHz audio. It also features extensive metadata including dialogue normalization and dynamic range control. Supported by High-Definition Media Interface (HDMI), a single-cable digital connection is possible for high-definition audio and video.

* HD DVD and Blu-ray Disc standards currently limit their maximum number of audio channels to eight, whereas Dolby Digital Plus and Dolby TrueHD support more than eight audio channels.

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

DTS

The DTS technologies are explained below. See www.dtstech.com for more detailed information.

dts-HD ^TM

Master Audio

DTS Digital Surround

DTS Digital Surround is a 5.1-channel audio coding system from DTS Inc. now widely used for DVD-Video, DVD-Audio, 5.1 music discs, digital broadcasts, and video games. It can deliver up to six discrete audio channels, comprising five full range channels, including an LFE channel. Higher sound quality is achieved through the use of a low compression rate, and high rates of transmittance during playback.

DTS-ES

DTS-ES (the ES stands for Extended Surround) is a decoder that is capable of decoding both DTS-ES Discrete 6.1 and DTS-ES Matrix 6.1 encoded sources. DTS-ES Discrete 6.1 gives 'true' 6.1 channel sound, with a completely separate (discrete) surround back channel. DTS-ES Matrix 6.1 has a surround back channel matrixed into the surround left/right channels. Both sources are also compatible with a conventional DTS 5.1 channel decoder.

DTS Neo:6

DTS Neo:6 can generate 6.1 channel surround sound from any matrixed stereo source (such as video or TV) and from 5.1 channel sources. It uses both the channel information already encoded into the source, as well as its own processing to determine channel localization (with two channel sources, the ".1" subwoofer channel is generated by bass management in the receiver). Two modes (Cinema and Music) are available using DTS Neo:6 with two channel sources.

DTS 96/24

DTS 96/24 is an extension of the original DTS Digital Surround which offers high quality 96 kHz/24-bit audio using a DTS 96/24 decoder. This format is also fully backward compatible with all existing decoders. This means that DVD players can play this software using a conventional DTS 5.1 channel decoder.

DTS-EXPRESS

DTS-EXPRESS is a low-bitrate encoding technology supporting up to 5.1 channels with fixed data transfer rates. This format is incorporated with sub audio on HD DVD and secondary audio on Blu-ray Disc while boasting the potential applicability to upcoming broadcasts and memory audio contents.

DTS-HD Master Audio

DTS-HD Master Audio is a technology that delivers master audio sources recorded in a professional studio to listeners without any loss of data, preserving audio quality. DTS-HD Master Audio adopts variable data transfer rates, facilitating data transfer to the maximum rate of 24.5 Mbps in the Blu-ray disc format, 18.0 Mbps in the HD-DVD format, which by far exceeds that of a standard DVD. These high data transfer rates enable lossless transmission of 96 kHz/24-bit 7.1-channel audio sources without deteriorating the quality of the original sound. DTS-HD Master Audio is an irreplaceable technology that can reproduce sound faithfully as intended by the creator of music or movies.

"DTS" is a registered trademark of DTS, Inc. and "DTS-HD Master Audio" is a trademark of DTS, Inc.

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• If the system does not operate normally due to external effects such as static electricity disconnect the plug from the outlet and insert again to return to normal operating conditions.
• For audio-related problems, please also check the settings of the audio playback device. See the operating instructions for the device for detailed information.

General

Problem	Remedy
The power does not turn on, or switches off suddenly (an error message may be displayed at startup). Or, the display disappears suddenly and no sound is output (with the POWER ON indicator (Blue) and the HDMI indicator (Red) lit up).	Leave the unit plugged in, wait for one minute, then switch back on.Make sure there are no loose strands of wire touching the unit. This could cause the system to shut off automatically.Check that the speakers are connected correctly.Make sure there is enough space for ventilation around the receiver subwoofer.Make sure the voltage of the mains power source is correct for the model.Try reducing the volume level.If the problem persists, take it to your nearest Pioneer authorized service center or your dealer for servicing.Do not block the air intake opening on the bottom as well as the air exhaust opening on the back of this unit.
No sound is output when an input function is selected.	If you're using the line input, make sure the component is connected correctly and the volume level of your external component (i.e. a portable player, etc.) is adjusted (see Connecting auxiliary components on page 33).Turn up the volume.No audio is output from the speakers connected to this unit if HDMI Mode is set to Through Mode(page 36).No audio is output if a DVI component is connected via HDMI.Press MUTEon the remote control to turn muting off.
No sound from surround speaker.	Refer to Channel level setting on page 30 to check the speaker levels.Check that you haven't selected the Stereo mode (see Listening in surround sound on page 24).Connect the speakers properly (refer to Connecting up on page 8).Verify the audio output and HDMI settings of your external component when connecting an external component via an optical digital cable or HDMI cable.
Can't operate using the remote control.	Replace the batteries (Putting the batteries in the remote control on page 21).Operate within 7 m, 30° of the remote sensor (Using the remote control on page 22).Remove any obstacles or operate from another position.Avoid exposing the remote sensor on the front panel to direct light.For operating the other Pioneer component connected to the CONTROL OUTjack of this receiver subwoofer, make sure that the control cable and either an HDMI or analog audio cable are connected (page 35).

Tuner

Problem	Remedy
Considerable noise in radio broadcasts.	Connect the AM antenna (refer to Connecting up on page 8) and adjust the direction and position for best reception. You may also connect an additional internal or external AM antenna (refer to Connecting external antennas on page 35).Fully extend the FM wire antenna, position for best reception, and secure to a wall. You may also connect an outdoor FM antenna (see Connecting external antennas on page 35).Turn off other equipment that may be causing the noise or move it further away.The tuning interval is incorrect for your country or region. See Changing the frequency step on page 29 to switch the tuning interval.
Auto tuning does not pick up some stations.	The radio signal is weak. Auto tuning will only detect radio stations with a good signal. For more sensitive tuning, connect an outdoor antenna.

HDMI

Symptom	Remedy
No picture or sound. • This receiver is HDCP-compatible. Check that the components you are connecting are also HDCP-compatible.• Depending on the connected source component, it's possible that it will not work with this receiver (even if it is HDCP-compatible).• If the problem still persists when connecting your HDMI component directly to your monitor, please consult the component or monitor manual or contact the manufacturer for support.
No sound, or sound suddenly ceases.	• Check that the HDMI Mode setting is set to AMP Mode/Through Mode.• If the component is a DVI device, use a separate connection for the audio.• Check the audio output settings of the source component.

Displayed Messages

Message	Description
192kHz PCMSACDDTS-HDDTS ExpressDolby TrueHDDolby D+	These messages are displayed when you operate a function incompatible with the audio source being played back.
No MIC	Displays when you press MCACC when the MCACC setup mic is not connected.
Muting	Displays when you press TEST TONE or MCACC while this unit is muted.
2ch Only	An operation is prohibited because it is only applicable to 2 channel sources, while the current source is a multichannel source.
Exit	Appears when a menu is automatically exited after a set period of inactivity.
HDMI Through	Displays when you change the Listening Mode, the volume level, or some sound settings when the HDMI Mode is set to Through Mode.
Unknown	The genre information for contents being played back on the HDD/DVD recorder cannot be obtained.
No Genre	There is no genre set for contents being played back on the HDD/DVD recorder.
HDMI C.ERR 2C*	The connected component is not compatible with synchronized genre mode.
Can't use	You tried to use Genre Sync Mode for a source component that does not support this function.The source component is in a situation where Genre Sync Mode cannot be used.You tried to use Genre Sync Mode when the input source of this unit is a source other than HDMI.The operation is forbidden due to the surround settings.When the volume level is over 51, some functions are restricted.
HDMI C.ERR 1**	Check if the HDMI cable is properly connected. If the cable is properly connected, this unit may be damaged. In such an event, please contact a Pioneer-authorized service center or your nearest dealer.
Noisy!	Background noise is too high to complete MCACC setup successfully.
Error MIC!	An error occurred during MCACC setup because the microphone is not connected or is not connected properly.
Error Speaker!	An error occurred during MCACC setup because the speakers are not connected or are not connected properly.
Over Temp	Try lowering the volume. If this problem is not fixed by removing and inserting the power cable, this unit may be damaged. In such an event, please contact a Pioneer-authorized service center or your nearest dealer.
OC Error1OC Error2	Check whether the speaker cables are short-circuited. If the error message continues to be displayed, contact your Pioneer authorized service center or your dealer for servicing.
*** BackUpERR	Contact your Pioneer authorized service center or your dealer for servicing.

Specifications

SX-LX70W Audio Multi-channel Receiver Subwoofer

- Amplifier section

RMS Power Output (8 channel output):

Front (L/R) 100 W (50 W + 50 W)

(1 kHz, 10 % T.H.D., 8 Ω)

Dual Center (CL/CR)....100 W (50 W + 50 W)

(1 kHz, 10 % T.H.D., 8 Ω)

Surround (L/R) 100 W (50 W + 50 W)

(1 kHz, 10 % T.H.D., 8 Ω)

Double Subwoofer (2 channel) .....100 W (50 W+ 50 W)

(100 Hz, 10 % T.H.D., 8 Ω)

• F M tuner section

Frequency range 87.5 MHz to 108 MHz

Antenna 75Ω, unbalanced

• A M tuner section

Frequency range

With 9 kHz step.... 531 kHz to 1602 kHz

With 10 kHz step. 530 kHz to 1700 kHz

Antenna....Loop antenna

- Subwoofer section

Enclosure.....Bass-reflex floor type

(magnetically shielded)

System 18 cm 1-way system

Speaker 18 cm cone type x2

Impedance....8Ω

Frequency range 30 Hz to 500 Hz

Maximum Input Power....50 W x2

- Input/Output section

HDMI terminal

input....19 pin x3

output 19 pin (5 V, 100 mA)

Other connector

System connector....26 pin

Audio input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Optical x2 (Digital)

RCA (2 pin) (Analog)

Control output.... Mini jack x2

Display unit

System connector....26 pin

Front Audio input....Mini jack

MCACC input ....Mini jack

iPod input 20 pin (12 V, 420 mA)

- M is cell lane o u s

Power requirements ..... AC 110 V to 240 V, 50 Hz/60 Hz

Power consumption 69 W

Power consumption in standby

.0.39 W (HDMI Control ON)

0.29 W (HDMI Control OFF)

Dimensions ..... 245 mm (W) x 409 mm (H) x 600 mm (D)

Weight 17.8 kg

SSP-LX70ST Satellite Speaker

(Front/center speakers x2, Surround speakers x2)

- Front/center speakers

Enclosure....Closed-box bookshelf type

(magnetically shielded)

System 5.2 cm 1-way system

Speakers....5.2 cm cone type x3

Impedance

Front channel 8 Ω

Center channel 8 Ω

Frequency range 200 Hz to 20 kHz

Maximum input power

Front channel 50 W

Center channel 50 W

Dimensions . . . 122.5 mm (W) x 89.5 mm (H) x 104 mm (D)

Weight 0.5 kg

- Surround speakers

Enclosure....Closed-box bookshelf type

(magnetically shielded)

System 5.2 cm 1-way system

Speakers....5.2 cm cone type x2

Impedance 8 Ω

Frequency range 200 Hz to 20 kHz

Maximum input power 50 W

Dimensions . . . . 122.5 mm (W) x 89.5 mm (H) x 104 mm (D)

Weight 0.44 kg

Accessories

- Accessory box (AS-LX70):

Remote control 1

AA/LR6 alkaline batteries 4

Power cords....3

Display unit 1

AM loop antenna 1

FM wire antenna 1

Microphone (for Auto MCACC setup) 1

HDMI cable 1

Control cable 1

Display cable....1

Optical digital cable....1

iPod cable....1

This operating instructions

- Receiver subwoofer (SX-LX70W) box:

Cleaning cloth 1

• Satellite Speakers (SSP-LX70ST) box:

Speaker cables. 6

Speaker bases 4

Non-skid pads 16

Screws 4

Note

- Specifications and design subject to possible modification without notice, due to improvements.

Published by Pioneer Corporation.

Copyright © 2007 Pioneer Corporation.

All rights reserved.

感謝您購買本台先鋒產品。

「廢電池請回收」

用於台灣地區

台灣雙腳扁平插頭

目錄

包裝箱內容物 5

01 揚聲器設定指南

設定時應注意的安全措施....6

家庭劇院音效設定 6

標準環繞設定....6

前環繞設定....6

準備揚聲器....6

使用隨附的揚聲器支座....6

不使用隨附的揚聲器支座時....7

揚聲器系統接線 7

關於揚聲器擺設的其他注意事項....7

02 接線

接收重低音揚聲器 8

側面板 8

後面板....9

顯示裝置背面 9

基本連接....10

03 控制與顯示

顯示裝置....13

顯示幕 14

遙控器 15

操作接收重低音揚聲器....15

1 CONTROL OUT 插孔 (x2)

使用隨附的控制連接線連接其他先鋒設備。

2 DIGITAL OPTICAL IN 插孔 (x2)

8 HDMI OUT 接頭

連接至有 HDMI 端子的電視機。

9 HDMI IN 接頭 (x3)

1 SYSTEM 接頭

連接至接收重低音揚聲器

2 F.AUDIO 輸入插孔

4 MCACC SETUP MIC 插孔

顏色代碼線 (連接至揚聲器)

3 闔上電池蓋。

注意

操作遥控器

Downloaded from www.Manualslib.com manuals search engine

以 MCACC 效果聆聽

The image contains a graphical symbol (a black circle with crosshairs) and no textual content. Therefore, the correct OCR output is an empty string.

Downloaded from www.Manualslib.com manuals search engine

動態範圍控制

Downloaded from www.Manualslib.com manuals search engine

第8章

其他接線

重要

DTS Digital Surround

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: [phone] K002_B_En

Published by Pioneer Corporation.

Copyright © 2007 Pioneer Corporation.

All rights reserved.

Printed in
