USER MANUAL S-DV180 PIONEER
Operating Instructions
操作手册
VIDEO
DIGITAL AUDIO
DIGITAL VIDEO
VIDEO
CD
SUPER VIDEO
HDMI
RW
COMPATIBLE
IMPORTANT
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
D3-4-2-1-1_A1_En
WARNING
This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. m D3-4-2-1-3_B_En
WARNING
Before plugging in for the first time, read the following section carefully.
The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. D3-4-2-1-4_A_En
WARNING
To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A_En
VENTILATION CAUTION
When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side).
WARNING
Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. D3-4-2-1-7b A En
CAUTION
The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2a_A_En
CAUTION
This product is a class 1 laser product, but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel. The following caution label appears on your unit. Location: top of the unit
CLASS 1 LASER PRODUCT
D3-4-2-1-8* C En
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. S002* En
This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_En
Operating Environment
Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)
D3-4-2-1-7c * _A1_En
If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).
D3-4-2-2-1a_A1_En
Thank you for buying this Pioneer product.
Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.
Contents
01 Speaker Setup Guide
Home theater sound setup 6
5 spot/4 spot speaker layout 6
3 spot/2 spot speaker layout 6
Preparing the speakers.... 6
Preparation common to all models ..... 6
Preparation for the HTZ280DVD/ HTZ280DVD-AP/HTZ282DVD/ HTZ282DVD-AP 6
Preparation only for the HTZ181DVD ..... 7
Wall mounting the speakers 7
Before mounting 7
Attaching the brackets only for the HTZ180/181DVD 8
Additional notes on speaker placement ..... 8
02 Connecting up
Basic connections 9
03 Controls and displays
Front panel 13
Display 13
Remote control 14
Putting the batteries in the remote control 15
Using the remote control 16
04 Getting started
Setting Speaker Layout 17
Setting the channel levels 17
Using the on-screen displays 18
Playing discs 18
Basic playback controls 19
Resume and Last Memory 19
DVD-Video disc menus.... 19
Video CD/Super VCD PBC menus ..... 19
Listening to the radio 20
Improving poor FM reception 20
Reducing AM reception noise 20
Memorizing stations.... 20
Listening to station presets 21
Listening to other sources 21
Setting the sleep timer 21
05 Listening to your system
Selecting Listening mode 22
Auto listening mode 22
Listening in surround sound 22
Using Front Surround 23
Listening in stereo....23
Listening with headphones 23
Adjusting the bass and treble ..... 23
Using the SFC modes 23
Boosting the bass level 24
Using the MP3 Expander....24
Using the Voice Enhancer mode ..... 24
Effective Sound (for optimum sound) ..... 24
06 Disc playback features
Scanning discs 25
Playing in slow motion 25
Frame advance/frame reverse ..... 25
Playing a JPEG slideshow 25
Browsing DVD or Video CD/Super VCD discs with the Disc Navigator 26
Browsing Windows Media TM Audio (WMA),
MP3, MPEG-4 AAC, DivX video/WMV and
JPEG files with the Disc Navigator .....27
Using Playlists....27
Programming playlists 27
Listening to playlists 28
Clearing files from a playlist 28
Looping a section of a disc 28
Using repeat play 28
Using random play 28
Creating a program list 29
Other functions available from the program menu 29
Searching a disc 29
Switching subtitles 30
Switching language/audio channels ..... 30
Zooming the screen 30
Switching camera angles 30
Displaying disc information....30
07 USB playback and Recording
Using the USB interface 31
Recording the tracks of a music CD on
a USB device....31
Recording all the tracks 31
Recording specific tracks 32
08 Singing karaoke
Singing karaoke 33
Changing the vocal mix 33
Changing the backing track 33
09 Audio Settings and Video Adjust menus
Audio Settings menu....34
Audio DRC 34
Video Adjust menu 34
10 Initial Settings menu
Using the Initial Settings menu 35
Video Output settings 35
Language settings....36
Display settings....37
Options settings 37
Speakers settings 37
Parental Lock 37
About DivX® VOD content 38
Speaker Distance 39
11 Other connections
Connecting auxiliary audio components .... 40
Connecting using the component video
output 41
About progressive scan video ..... 41
Connecting using HDMI 41
Switching the HDMI audio setting .....41
Resetting the HDMI connection ..... 42
About HDMI 42
Connecting external antennas....42
Bluetooth ® ADAPTER for Wireless Enjoyment
of Music 42
Wireless music play 42
Remote control operation 43
Connecting Optional Bluetooth
ADAPTER 43
Pairing Bluetooth ADAPTER and Bluetooth
wireless technology device 43
Listening to Music Contents of Bluetooth
wireless technology device with
Your System 44
Clearing Pairing 44
12 KURO LINK
Making the KURO LINK connections.....45
KURO LINK Setup 45
Setting the KURO LINK mode ..... 45
Before using synchronization ..... 46
Synchronized amp mode 46
Synchronized amp mode operations ..... 46
Canceling synchronized amp mode .....46
13 Additional information
Disc/content format playback
compatibility 47
Disc compatibility table 47
About DVD+R/DVD+RW compatibility....48
About DivX 48
About WMV....49
About MPEG-4 AAC....49
About WMA 49
Using and taking care of discs....49
DVD Video regions 50
Installation and maintenance 50
Hints on installation 50
Cleaning the pickup lens. 50
Problems with condensation....50
Moving the system unit 50
Screen sizes and disc formats ..... 51
Widescreen TV users....51
Standard TV users 51
TV system setting....51
Frequency step setting....52
Dimming the Display 52
Setting the Key Lock 52
Troubleshooting....53
General 53
DVD/CD/Video CD player....54
Tuner....55
USB connection 55
HDMI connection 55
Bluetooth connection 56
Error Messages 56
Resetting the system 57
Using the language code list ..... 57
Language code list....58
Country/Area code list 58
Specifications 59
Chapter 1
Speaker Setup Guide
Home theater sound setup
Depending on the size and characteristics of your room, you can place your speakers in one of two ways using this system. For the speaker configuration, see the Setup Guide.
5 spot/4 spot speaker layout
This is a standard multichannel surround sound speaker setup for optimal 5.1 channel home theater sound.
3 spot/2 spot speaker layout
This setup is ideal when rear surround speaker placement isn't possible or you want to avoid running long speaker cables in your listening area.
Preparing the speakers
Preparation common to all models
Attaching non-skid pads
- Attach the smaller non-skid pads to the base of each of the speakers. The four large non-skid pads are for the subwoofer.
Use the supplied adhesive to attach 3 or 4 pads to the base (flat surface) of each speaker.
Preparation for the HTZ280DVD/ HTZ280DVD-AP/HTZ282DVD/ HTZ282DVD-AP
The layouts of the 5-spot speaker and 3-spot speaker are the same:
Assembling the speaker stands
- Attach the speaker stand bases to the stems using the screws provided.
Once you have aligned the stem and base, secure with the small screws at the points see the Setup Guide. Note that the speaker should face in the direction of the base of the isosceles triangle.
CAUTION
- Be careful not to tighten screws excessively.
- If excessive force is used to tighten screws, the threads of screw and/or nut may be damaged. Use a middle-sized manual screwdriver during assembly.
- Do not use power screwdrivers or oversized screwdrivers that may exert excessive force on the screws and nuts.
- Confirm that no foreign matter is stuck to the stand base or the tall speaker during assembly.
- If the unit is assembled with foreign matter stuck between the stand base and the tall speaker the unit may not be assembled securely, resulting in tipping or falling.
- Do not stand on the speaker stand base of the tall speaker to push or swing the speaker. The speaker may fall and break, or someone may be injured. Pay special attention to children.
Securing your front and surround speakers
- Secure each of the front and surround speakers using the plastic catch provided.
Screw two supporting hooks into the wall behind the speaker. Pass a thick cord around the hooks and through the plastic catch so that the speaker is stabilized (make sure to test that it supports the weight of the speaker). After installing, make sure the speaker is securely fixed.
Plastic catch
Speaker Setup Guide
CAUTION
- The plastic catch is not a mounting fixture, and the speaker should not be hung directly from the wall using this catch. Always use a cord when stabilizing the speaker.
- Pioneer disclaims all responsibility for any losses or damage resulting from improper assembly, installation, insufficient strength of the installation materials, misuse, or natural disasters.
- When placing this unit, ensure that it is firmly secured and avoid areas where it may be likely to fall and cause injury in the event of a natural disaster (such as an earthquake).
Preparation only for the HTZ181DVD Stack the speakers and fix the brackets
Each speaker is provided with a color-coded indicator on the model label on the rear side to assist identification. Refer to the color indicators and install the speakers correctly. As shown in the illustration, stack the speakers. 1 Align the bracket with the respective upper and lower screw holes as shown in each figure below and fasten the screws securely.
4 spot/3 spot speaker layout:
2 spot speaker layout:
CAUTION
- Do not attempt to carry the speakers when they are connected with the bracket. Doing so may cause damage to the bracket or worsen damage to the bracket and speakers in the event they are dropped.
Wall mounting the speakers
For the HTZ180DVD, the front and surround speaker have mounting brackets. For the HTZ181DVD, the front, center and surround speaker have mounting brackets. For the HTZ280DVD/280DVD-AP, the center and surround speaker have mounting holes. For the HTZ282DVD/HTZ282DVD-AP, only the center speaker has a mounting hole.
Before mounting
- Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker
Note
1 When using the Front Surround mode, do not stack the surround speakers, but place them beside the front speaker and face them about 60 degrees outward from the front speaker to obtain the best sound effect.
Speaker Setup Guide
falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls.
- Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.
CAUTION
- If you are unsure of the qualities and strength of the wall, consult a professional for advice.
- Pioneer is not responsible for any accidents or damage that result from improper installation.
Attaching the brackets only for the HTZ180/181DVD
- Make sure to tighten the supplied screw as securely as possible when attaching the bracket to the back of the speaker.
- Please do not attach the brackets to the center speaker.
Additional notes on speaker placement
• Install the main front left and right speakers at an equal distance from the TV.
- When using the 5 spot speaker layout, install the surround speakers slightly above ear level for optimum effect.
Precautions:
- When installing the center speaker on top of the TV, be sure to secure it with tape or some other suitable means. Otherwise, the speaker may fall from the TV due to external shocks such as earthquakes, endangering those nearby or damaging the speaker.
• Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the bare speaker wire touches the back panel it may cause the power to cut off as a safety measure. - The front, center and surround speakers supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker is installed extremely close to the screen of a television set. If this case happens, turn the power switch of the television set OFF, and turn it ON after 15 min. to 30 min. If the problem persists, place the speaker system away from the television set.
- The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as floppy discs and tape or video cassettes) should also not be kept close to the subwoofer.
- Do not attach the center speaker (only of the HTZ180DVD) the front (of the HTZ280/282DVD)/surround speaker (only of the HTZ282DVD) and subwoofer to a wall or ceiling. They may fall off and cause injury.
- Do not place the surround speaker on the top of the front speaker, as it may injure someone in the event that it falls (only for the HTZ280DVD).
Connecting up
Chapter 2
Connecting up

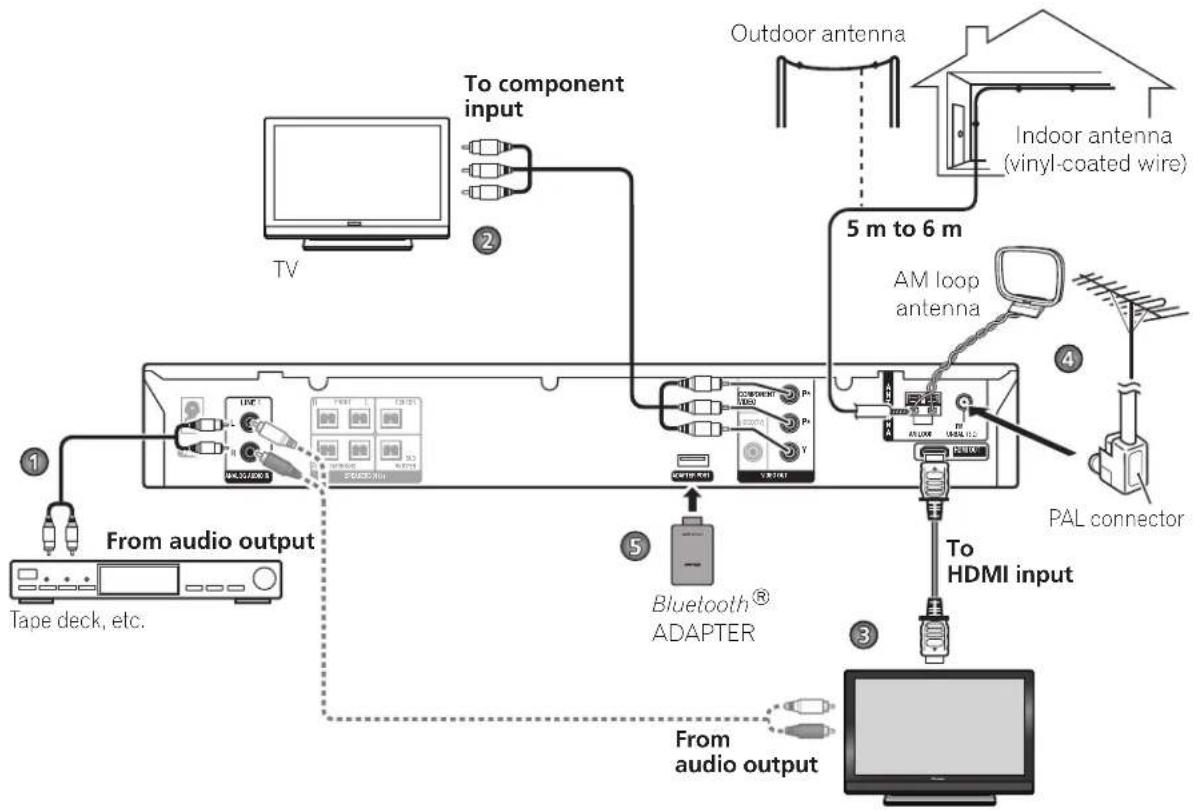

Basic connections
For the best surround sound, setup your speakers as below. The front left and right speaker should be about 1.8 m to 2.7 m apart.
The speakers in the illustration below are the HTZ180DVD.
Important
- When connecting this system or changing connections, be sure to switch power off and disconnect the power cord from the wall socket.
After completing all connections, connect the power cords to the wall socket.
WARNING
- Pioneer bears no responsibility for accidents resulting from faulty assembly or installation, insufficient mounting strength of walls, mounting fixtures (or other building fixtures), misuse or natural disasters.
1 Assemble the AM loop antenna.
fig. a
fig. b
fig. c
a. Bend the stand in the direction indicated by the arrow.
b. Clip the loop onto the stand.
c. If you want to fix to a wall or other surface, perform step b after first securing the stand with screws.
It is recommended that you determine the reception strength before securing the stand with the screws.
Connecting up
2 Connect the AM and FM antennas. 1
a. Pull off the protective shields of both AM antenna wires. Connect one wire of the AM loop antenna to each AM antenna terminal. 2
For each terminal, press down on the tab to open; insert the wire, then release to secure.
b. Push the FM antenna 3 plug onto the center pin of the FM antenna socket.
3-1 Connect each speaker.
- Connect the wires to the speaker.
- Twist and pull off the protective shields on each wire.
- Match the color-coded wire with the color indicator on the label, then insert the color-coded wire into the red (+) side and the other wire into the black (−) side.
HTZ180DVD only:
When you select the 3 spot speaker layout, follow steps a through c below to set up the speakers.
a. The base of each surround speaker fits into the circular groove on the top of the front speakers as shown.
Note
1 • Keep antenna cables away from the receiver and other cables.
- If reception with the supplied antenna is poor, see Improving poor FM reception on page 20 or Connecting external antennas on page 42.
- Do not attach any antenna other than the provided loop antenna, or an external antenna as described on page 42.
2 • Don't let it come into contact with metal objects and avoid placing near computers, television sets or other electrical appliances.
- If radio reception is poor, you may be able to improve it by re-inserting each antenna wire into the opposite terminal. - For best reception, do not untwist the AM loop antenna wires or wrap them around the loop antenna.
3 To ensure optimum reception, make sure the FM antenna is fully extended and not coiled or hanging at the rear of the unit.
Connecting up
b. Secure the speaker wire.
After testing for the slack necessary to turn the speaker (see the following step), use the groove provided to secure the speaker wire.
c. Turn the speakers towards the closest wall, lining the arrows up for optimal Front Surround.
For Front Surround mode, turn each surround speaker so that the ▼ arrow at the base is lined up with the ▲ (FRONT SURROUND) arrow on the front speaker. For Extra Power mode, have all the speakers facing forward. See the Listening to your system for more on using Front Surround and Extra Power modes.
CAUTION
• To prevent accidents, make sure the surround speaker is placed securely on top of the front speaker.
- Please don't attach the speakers to the wall or speaker stands for 3 spot speaker layout.
HTZ181DVD only :
a. When connecting the center speakers, connect the Y-cable dual end to the two center speakers in the same way.
To Main Unit
When you select a 4-spot, 3-spot or 2-spot layout where the brackets are used for assembling, also follow step b below.
b. When connections are completed, secure the speaker cables. Fix the cables to the groove in the brackets.
3-2 Connect each speaker terminals on the receiver.
- Connect the other end to the color-coded speaker terminals on the rear of the receiver. Make sure to insert completely. The small lug at the wire-end of the speaker plug should face up or down depending on whether it's being plugged into one of the upper or lower speaker terminals. Please make sure to connect correctly.
Upper terminal Lower terminal
Connecting up
CAUTION
• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
- Do not connect any speakers other than those supplied to this system.
- Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire.
• After connecting the plugs, pull lightly on the cables to make sure that the ends of the cables are securely connected to the terminals. Poor connections can create noise and interruptions on the sound.
- If the cable's wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the amp. This may cause the amp to stop functioning, and may even damage the amp.
4 Connect one end to a video input on your TV.
- Use the supplied video cable.
5 Connect the other end to the video output of the receiver.
- This unit is equipped with copy protection technology. Do not connect this unit to your TV via a VCR using AV cables, as the picture from this unit will not appear properly on your TV.
6 Connect the power cord. 1
- Connect the power cord to AC inlet on the receiver. Connect the power cord to a wall socket.
Note
1 • Do not use any power cord other than the one supplied with this system.
- Do not use the supplied power cord for any purpose other than connecting to this system.
Chapter 3
Controls and displays
Front panel
1 ⏻ STANDBY/ON (page 17, 32, 43, 50, 52 and 54)
2 ▲ OPEN/CLOSE (page 18, 32 and 53)
3 Function
4 ▶/II
5 ■
6 VOLUME +/- (page 19)
7 Disc tray (page 18)
8 Remote Sensor (page 15)
9 Display
10 USB interface (page 31)
11 MIC input jacks (page 33)
12 PHONES jack (page 23)
Display
1 Decord indicators (page 22)
DTS lights during playback of a DTS source. ☐☐PL II lights during ☐☐Dolby Pro Logic II decoding and ☐☐D lights during playback of Dolby Digital sources.
2 PRGSVE (page 41)
Lights when progressive scan video signal is given from the component video output terminal.
3 SOUND (page 23)
Lights when the SFC modes, the tone controls (treble, bass or bass boost), MP3 Expander mode, Voice Enhancer mode are active.
4 F.SURR. (page 23)
Lights when the Extra Power mode/Front surround mode is selected.
5 RPT and RPT-1 (page 28)
RPT lights during repeat play. RPT-1 lights during repeat one-track play.
6 PGM (page 27 and 29)
Lights during program or playlist playback.
7 Tuner indicators (page 20)
Lights when a broadcast is being received, Lights when a stereo FM broadcast is being received, lights when FM mono reception is selected.
8 RDM (page 28)
Lights during random play.
Controls and displays
9 kHz/MHz (page 20)
Indicates the frequency unit shown in the character display (kHz for AM, MHz for FM).
10 Character display
11 (page 21)
Lights when sleep timer is active.
12 ▶
Lights during playback.
Remote control
The illustration shows the HTZ280/282DVD-AP.
1 ⏻ STANDBY/ON (page 17, 32, 43, 50, 52 and 54)
2 Function select buttons 1
3 Number buttons, CLEAR, DISPLAY, SLEEP and DVD controls
CLEAR
DISPLAY (page 30)
SHIFT+SLEEP (page 21)
SHIFT+USB REC (page 31)
SHIFT+AUDIO (page 30)
SHIFT+SUBTITLE (page 30)
Note
1 Only the HTZ280/282DVD-AP models are equipped with the adapter port.
Controls and displays
SHIFT+ANGLE (page 30)
SHIFT+ZOOM (page 30)
4 TOP MENU (page 19 and 30)
SHIFT+SETUP (page 17, 20, 41, 43, 44, 45, 51, 52 and 57)
5 SHIFT+KARAOKE (page 33)
SHIFT+ECHO (page 33)
SHIFT+b / SHIFT+# (page 33)
Cursor buttons
ENTER
TUNE (page 20)
PRESET (page 20)
6 HOME MENU
7 Sound controls
AUTO/STEREO (page 22 and 23)
SURROUND (page 22 and 23)
SOUND (page 23 and 24)
MP3 EXP/V.ENH (page 24)
8 Playback controls (page 19 and 25)
9 TV CONTROL buttons
These control Pioneer flat screen TVs. 1
10 SHIFT
11 ▲ OPEN/CLOSE (page 18, 32 and 53)
12 PLAYLIST buttons (page 27)
13 MIC VOL +/- (page 33)
14 MENU (page 19, 26 and 30)
15 RETURN
16 Tuner controls
CLASS (page 21)
SHIFT+T.EDIT (page 20)
17 MUTE
18 VOLUME +/- (page 18)
Putting the batteries in the remote control
1
2
3
1 Open the battery compartment cover on the back of the remote control.
2 Insert two AA/R6 batteries into the battery compartment following the indications (⊕, ⊖) inside the compartment.
3 Close the cover.
CAUTION
Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:
- Always insert batteries into the battery compartment correctly matching the positive and negative polarities, as shown by the display inside the compartment.
- Never mix new and used batteries.
- Batteries of the same size may have different voltages, depending on brand. Do not mix different brands of batteries.
- When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.
Note
1 Hold down the number button 1 for over three seconds with the CLEAR pressed. If the TV refuses to respond, hold down the number button 2. After control is properly switched over, the power to the TV can be operated by directing the TV CONTROL ◦ toward the TV and pressing it.
Controls and displays
- In order to prevent battery leakage, remove the batteries when not using the remote control for an extended period (one month or more). If leakage occurs, carefully wipe away any battery fluid inside the compartment, and replace the batteries with new ones.
- Do not allow books or other objects to rest on top of the remote control, since the buttons may be depressed, causing faster exhaustion of the batteries.
- Do not use or store batteries in direct sunlight or excessively hot places, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.
Using the remote control
The remote control can be used within a range of about 7 meters from the remote sensor on the front panel, and within a 30 degree angle.
- The remote control may not work if there is an obstacle between the remote control and the display unit, or if the remote control is not directed towards the remote sensor of the display unit at the correct angle.
- The remote control may not work properly if strong light such as direct sunlight or fluorescent light is shining onto the unit's remote sensor.
- The remote control may not work properly when this unit is used near devices emitting infrared rays, or when remote controls of other devices which use infrared rays are used. Also, the use of this remote control may cause other devices to work improperly.
- When the operating range of the remote becomes too short, replace the batteries.
Chapter 4
Getting started
Setting Speaker Layout
Select the speaker layout for the speaker setting you arranged to your listening area environment.
First time you switch on the system, the following speaker layout setting appears. If you switch off the system without finishing this setting, the same appears again next time you switch on the system.
1 Press ⏻ STANDBY/ON and confirm WELCOME is shown on the display.
2 SELECT SPEAKER LAYOUT will run on the display for about 10 seconds.
3 U s e ↑/↓ to select appropriate speaker layout. 1 P
There are two speaker layout modes – 5 spot speaker layout and 3 spot speaker layout.
See Setup Guide for more details about speaker layout and mode description.
- 5 SPOT – Optimal for 5.1 channel home theater sound by placing the two surround speakers in the rear of the listening position.
- 4 SPOT (HTZ181DVD only) – This is the standard layout for listening to the surround sound, which is similar to the 5 spot speaker layout. The two center speakers are separated to the right and left sides, and neatly arranged around the TV.
- 3 SPOT – This is the classic layout for the Front Surround mode. The two surround speakers are placed in front of the listening position.
- 2 SPOT (HTZ181DVD only) – This layout for the Front Surround mode is the same as the 3 spot speaker layout. The two center speakers are separated to the right and left sides, and neatly arranged around the TV.
4 Press ENTER to confirm. 1
Setting the channel levels
Set the relative channel levels from your main listening position. 2
1 P r SHIFT+SETUP.
2 U s e ←/→ to select SOUNDSET, then press ENTER.
3 U s e ←/→ to select CH LEVEL, then press ENTER.
4 U s e ←/→ to select TESTTONE, then press ENTER.
The test tone is output in the following order (from the speakers active in the current listening mode):
- L - Front left speaker
- C – Center speaker
- R – Front right speaker
- SR – Surround right speaker
- SL – Surround left speaker
- SW – Subwoofer 3
Note
1 To change the setting, press SHIFT+SETUP, use ⇐/⇒ to select SYS SET, then use ⇐/⇒ to select LAYOUT to start setting procedure.
2 • This is only available when DVD/CD is selected and playback is stopped. Also make sure headphones are unplugged.
- To adjust the overall balance while listening to any sound source you want, press SHIFT+SETUP, use ←/→ to select SOUNDSET, then press ENTER. Use ←/→ to select CH LEVEL, then press ENTER. Use ←/→ to switch between channels, and / to adjust the channel levels. Press ENTER when you're finished.
3 Since the subwoofer produces ultra-low frequencies its sound may seem quieter than it actually is.
Getting started
5 Use the VOLUME +/- to adjust the volume to an appropriate level. 1
6 U s e ↑/↓ to adjust the channel turn.
You should hear the test tone at the same volume from each speaker when seated in the main listening position. The channel level range is ±10 dB.
7 When you're done, press ENTER to exit test tone setup.
Using the on-screen displays
For ease of use, this system makes extensive use of graphical on-screen displays (OSDs).
All the screens are navigated in basically the same way, using , , ← , → to change the highlighted item and pressing ENTER to select it. 2
Important
- Throughout this manual, 'Select' means use the cursor buttons to highlight an item on-screen, then press ENTER.
Button What it does
| HOME MENU | Displays/exits the on-screen display. |
| ←↑↓→ | Changes the highlighted menu item. |
| ENTER | Selects the highlighted menu item. |
| RETURN | Returns to the main menu without saving changes. |
Tip
- The button guide at the bottom of every OSD screen shows you which buttons you'll need to use for that screen.
Playing discs
The basic playback controls for playing DVD, CD, Video CD/Super VCD, DivX video/WMV and WMA/MP3/MPEG-4 AAC discs are covered here. Further functions are detailed in chapter 6.
Important
- Throughout this manual, the term 'DVD' means DVD-Video, DVD-R and DVD-RW.
1 If the player isn't already on, switch it on.
If you're playing a disc with video, also turn on your TV and make sure that it is set to the correct video input.
2 Press ▲ OPEN/CLOSE to load a disc.
Load a disc with the label side facing up, using the disc tray guide to align the disc (if you're loading a double-sided DVD disc, load it with the side you want to play face down).
3 Press ▶ (play) to start playback.
If you're playing a DVD or Video CD/Super VCD, a menu may appear. See DVD-Video disc menus and Video CD/Super VCD PBC menus on page 19 to navigate these.
If you loaded a disc containing JPEGs, a slideshow will start. See Playing a JPEG slideshow on page 25 for more on this.
- If a disc contains a mixture of DivX video/WMV and other media file types (MP3, for example), first select whether to play the DivX video/WMV files (DivX/WMV) or the other media file types (MP3/WMA/JPEG/MPEG-4 AAC) from the on-screen display.
Note
1 When the volume is set to 51 or more, TESTTONE cannot be selected and the channel level setting range is restricted. In addition, if the channel level range of any speaker is set to the + side, the maximum volume is also restricted. 2 The screen saver will appear after five minutes of inactivity.
Getting started
- Please see Disc/content format playback compatibility on page 47 if you want to play a DualDisc (DVD/CD hybrid disc).
4 Adjust the volume.
Use the VOLUME +/- control.
Basic playback controls
The following table shows the basic controls on the remote for playing discs. 1 You can find other playback features in chapter 6.
Button What it does
▶ Starts/resumes normal playback.
- If the display shows RESUME or LAST MEM playback starts from the resume or last memory point (see Resume and Last Memory below).
II Pauses/unpauses a disc.
■ Stops playback or cancels the resume function (if the display shows RESUME).
◀◀ Press to start fast reverse scanning.
▶▶ Press to start fast forward scanning.
◀◀◀ Skips to the start of the current track or chapter, then previous tracks/chapters.
▶▶▶| Skips to the next track or chapter.
Numbers Use to enter a title/chapter/track number. Press ENTER to select.
• If the disc is stopped, playback starts from the selected title (for DVD) or track (for CD/Video CD/Super VCD).
• If the disc is playing, playback jumps to the start of the selected title (VR mode DVD-R/-RW), chapter (DVD-Video) or track (CD/Video CD/Super VCD).
Resume and Last Memory
When you stop playback of a disc, RESUME shows in the display indicating that you can resume playback from that point.
With DVDs and Video CD/Super VCDs, even if ejected, the play position is stored in memory. 2 The next time you load the disc, the display shows LAST MEM and you can resume playback.
If you want to clear the resume point, press
■ (stop) while RESUME is displayed.
DVD-Video disc menus
Many DVD-Video discs contain menus from which you can select what you want to watch. Sometimes DVD-Video menus are displayed automatically when you start playback; others only appear when you press MENU or TOP MENU.
| Button | What it does |
| TOP MENU | Displays the 'top menu' of a DVD disc — this varies with the disc. |
| MENU | Displays a DVD disc menu — this varies with the disc and may be the same as the 'top menu'. |
| ←↑↓→ | Moves the cursor around the screen. |
| ENTER | Selects the current menu option. |
| RETURN | Returns to the previously displayed menu screen. |
| Numbers | Highlights a numbered menu option (some discs only). Press ENTER to select. |
Video CD/Super VCD PBC menus
Some Video CD/Super VCDs have menus from which you can choose what you want to watch. These are PBC (Playback control) menus.
Note
1 You may find with some DVD discs that some playback controls don't work in certain parts of the disc.
2 • The Resume and the Last Memory functions may not work with some discs.
- For DVD-Video discs (except VR mode DVD-R/-RW), the player stores the play position of the last five discs.
Getting started
You can play a PBC Video CD/Super VCD without having to navigate the PBC menu by starting playback using a number button to select a track, rather than the ▶ (play) button.
Button What it does
| RETURN | Displays the PBC menu. |
| Numbers | Selects numbered menu options.Press ENTER to select. |
| ◀◀ | Displays the previous menu page(if there is one). |
| ▶▶I | Displays the next menu page(if there is one). |
Listening to the radio
The tuner can receive both FM and AM broadcasts, and lets you memorize your favorite stations so you don't have to manually tune in every time you want to listen.
1 P r TUNER to switch to the tuner, then press repeatedly to select the AM or FM band. The display shows the band and frequency.
2 Tune to a frequency.
There are three tuning modes — manual, auto, and high-speed:
- Manual tuning: Press TUNE repeatedly to change the displayed frequency.
- Auto tuning: Press and hold TUNE until the frequency display starts to move, then release. The tuner will stop on the next station it finds. Repeat to keep searching.
- High-speed tuning: Press and hold TUNE until the frequency display starts to move rapidly. Keep the button held down until you reach the frequency you want. If necessary, fine tune the frequency using the manual tuning method.
Improving poor FM reception
If you're listening to an FM station in stereo but the reception is weak, you can improve the sound quality by switching to mono.
1 Tune to an FM radio station then press SHIFT+SETUP.
2 U ←/→ to choose TUNERSET then press ENTER.
3 U ←/→ to choose FM MODE then press ENTER.
4 U ↑/↓ to select FM MONO then press ENTER.
The mono indicator ( lights when the tuner is in mono reception mode.
Select FM AUTO above to switch back to auto-stereo mode (the stereo indicator (lights when receiving a stereo broadcast).
Reducing AM reception noise
If AM reception seems particularly poor, or the AM radio station you're listening to seems noisy, try using the Noise Cut feature for better sound quality.
1 Tune to an AM radio station then press SHIFT+SETUP.
2 U ←/→ to choose TUNERSET then press ENTER.
3 U ←/→ to choose NOISECUT then press ENTER.
4 U ↑/↓ to select the noise cut mode then press ENTER.
Select an effect level between 1 or 2.
Memorizing stations
This system can memorize up to 30 stations, stored in three banks, or classes (A, B and C) of 10 stations each.
1 Tune to an AM or FM radio station.
For the FM band, select mono or auto-stereo reception as necessary. This setting is saved along with the preset.
2 Press SHIFT+T.EDIT.
3 Press CLASS to select one of the three classes, then use the PRESET buttons to select the station preset you want.
You can also use the number buttons to select a preset.
Getting started
4 Press ENTER.
After pressing ENTER, the preset class and number stop blinking and the system memorize station.
Listening to station presets
You will need to have some presets stored to do this.
1 Make sure the TUNER function is selected.
2 Press CLASS to select the class in which the channel is stored. Press repeatedly to cycle through classes A, B and C.
3 U s PRESETbuttons to select a station preset.
- You can also use the number buttons to do this.
Listening to other sources
You can connect auxiliary sources (TV, satellite receiver, etc.) to this unit for playback through the speaker system. See Connecting auxiliary audio components on page 40 for more on this.
• To connect a USB device to the USB terminal, see USB playback and Recording on page 31.
- HTZ280/282DVD-AP only: Bluetooth ADAPTER is selectable when it is plugged and detected. See Bluetooth® ADAPTER for Wireless Enjoyment of Music on page 42 for more on this.
1 Make sure that the external source (TV, satellite receiver, etc.) is switched on.
2 Press LINE to select the source.
3 If necessary, start playback of the source.
Setting the sleep timer
The sleep timer switches off the system after about an hour so you can fall asleep without worrying about it. 1
- Press SHIFT+ SLEEP repeatedly to select an option then press ENTER.
Choose between the following options:
- SLP ON – Switches off after about an hour. The indicator lights.
- SLP OFF – Cancels the sleep timer.
After selecting SLP ON, you can press SHIFT+SLEEP again to check how much time is left. Each line indicates approximately 12 minutes (remaining):
S LP ---
Note
1 The display dims when the sleep timer is set.
Chapter 5
Listening to your system
Important
- This unit's audio function may be restricted depending on the sound source, HDMI audio setting (page 41) or karaoke mode with the microphone plugged in (page 33). In this event, the menus may not appear, or a message may be displayed instead (page 56).
Selecting Listening mode
Various listening modes are available for enjoyment of diverse sound effects and for sound field correction according to your preference. Depending on the speaker layout you have chosen in the Home theater sound setup on page 6, the listening mode you can set differs. Read the following and proceed with each setting.
- 5 spot/4 spot speaker layout
When you have chosen 5 spot speaker layout, select one listening mode from the surround sound mode. See Listening in surround sound below.
• 3 spot/2 spot speaker layout
When you have chosen 3 spot speaker layout which places the surround speakers in front of you, select one listening mode from the front surround mode. See Using Front Surround on page 23.
Auto listening mode
The Auto listening mode is the simplest way to listen to any source as it was mastered: the output from the speakers mirrors the channels in the source material.
- Press AUTO/STEREO to select the AUTO listening mode. 1
The listening mode is automatically allotted according to the source material as shown in the table below.
| source | 5 SPOT | 3 SPOT |
| 4 SPOT | 2 SPOT |
two-ch STEREO STEREO
multi-ch STANDARD F.SURR
Listening in surround sound
When you set up the system for 5 spot/4 spot speaker layout, the surround sound mode is available.
You can listen to stereo or multichannel sources in surround sound. 2 Surround sound is generated from stereo sources using one of the Dolby Pro Logic decoding modes.
- Press SURROUND repeatedly to select a listening mode. 1
The choices that appear in the display will vary according to the type of source that's playing.
- STANDARD – Standard decoding mode (This mode can be selected only when the source is multi channel)
• MOVIE (Dolby Pro Logic II Movie) – Pro Logic II 5.1 channel surround sound, especially suited to movie sources (use with any two-channel source)
Note
1 If the source is Dolby Digital or DTS, the corresponding indicator lights in the front panel display. 2 Note that the input source must be switched to DVD/CD or USB for multichannel playback.
Listening to your system
- MUSIC (Dolby Pro Logic II Music) – Pro Logic II 5.1 channel surround sound, especially suited to music sources (use with any two-channel source)
• DOLBY PL (Dolby Pro Logic) – 4.1 channel surround sound (use with any two-channel source)
Using Front Surround
The Front Surround mode and Extra Power mode are effective when DVD/CD or USB is selected as the input source and you are using 3 spot (/2 spot only for HTZ181DVD) speaker layout as described in Home theater sound setup on page 6.
- Press SURROUND repeatedly to select a front surround mode.
- F.SURR – Use to provide rich surround sound effect.
- EXTRAPWR – Outputs stereo sound (in the case of multi-channel sources, down-mixed stereo sound) from the surround speakers for powerful stereo effect.
For HTZ180DVD
For Front Surround mode
For Extra Power mode
For HTZ181DVD
For Front Surround mode
This illustration is 3 spot layout.
Listening in stereo
You can listen to any source — stereo or multichannel — in stereo. When playing a multichannel source, all channels are downmixed to the front left/right speakers and the subwoofer.
- P r AUTO/STEREO repeatedly until STEREO shows in the display.
Listening with headphones
When headphones are connected, the STEREO playback mode starts. The listening mode cannot be changed. 1
Adjusting the bass and treble
Use the bass and treble controls to adjust the overall tone.
1 P r SOUND.s
2 U ←/→ to select BASS/TRE then press ENTER.
3 U ←/→ to select BASS or TREBLE.
4 U ⬤/↓ to adjust the sound then press ENTER to confirm.
- Bass and Treble can be adjusted from -6dB to +6dB.
Using the SFC modes
The SFC (Sound Field Control) modes can be used with any multichannel or stereo source for a variety of additional surround sound effects.
1 P r SOUND.s
2 U ←/→ to select SFC MODE then press ENTER.
3 P r ↑e↓ then ENTER to select an SFC Sound mode.
Select between OFF, LIVE, HALL, POP, ROCK, DRAMA or ACTION.
Note
1 When you disconnect the headphones, the system reverts to the previous surround setting mode.
Listening to your system
Boosting the bass level
There are two bass modes you can use to enhance the bass in a source.
1 P r SOUND.s
2 U ←/→ to select BASSMODE then press ENTER.
3 U ↑/↓ to adjust the sound then press ENTER to confirm.
Select between OFF, MUSIC or CINEMA.
Using the MP3 Expander
Reproduce the comfortable sound for compressed music (MP3, WMA, MPEG-4 AAC).
- Press MP3 EXP/V.ENH repeatedly to select MP3 EXP. 1
Using the Voice Enhancer mode
This mode is used for easy listening to the spoken lines of the movies or dialogs.
- Press MP3 EXP/V.ENH repeatedly to select VOICE E. 2
Effective Sound (for optimum sound)
With the uniquely shaped high-quality speakers supplied with this unit, the Effective Sound mode enables the following Pioneer exclusive audio technologies designed to maximize the real experience of sound originally inherent in movies and music.
Turn on the Effective Sound mode under normal circumstances to maximize the capabilities of this unit. 3
• Dynamic Range Compression
Resuscitates detailed sound susceptible to ambient noise to create an acoustic environment where you feel as if you are right in the action.
• Frequency Characteristic Correction
Realizes the playback characteristic optimized for long hours of listening in addition to the added features of the supplied speaker units.
1 Press SHIFT+SETUP and use ←/→ to select SOUNDSET, then press ENTER.
2 U ←/→ to select S.FIELD then press ENTER.
3 U ↑/↓ to adjust the setting then press ENTER to confirm.
- EFFECT (Effective Sound) – Plays the sound with the characteristics optimized for the included speakers.
- DIRECT (Direct Sound) – Turns off the Effective Sound mode.
Note
1 When turned on, the SFC mode will be turned off.
2 • When turned on, the SFC mode will be turned off.
- Not applicable to the HTZ180/181DVD model - Effective only for the center channel when a multi channel source is played.
3 The Sound Field will not affect the headphone outputs.
Chapter 6
Disc playback features
Important
- Many of the functions covered in this chapter apply to DVD discs, Video CDs/ Super VCDs, CDs, DivX video/WMV and WMA/MP3/MPEG-4 AAC/JPEG discs, although the exact operation of some varies slightly with the kind of disc loaded.
- Some DVDs restrict the use of some functions (random or repeat, for example) in some or all parts of the disc. This is not a malfunction.
- When playing Video CD/Super VCDs, some of the functions are not available during PBC playback. If you want to use them, start the disc playing using a number button to select a track.
Scanning discs
You can fast-scan discs forward or backward at various different speeds. 1
- During playback, press ◀◀ or ▶▶ to start scanning.
Press repeatedly to increase the scanning speed (shown on-screen).
• To resume playback, press ▶ (play). 2
Playing in slow motion
You can play DVDs, Video CD/Super VCDs and DivX video/WMV at four different forward slow motion speeds. DVD discs can also be played in reverse slow motion.
1 During playback, press II (pause).
2 Press and hold ◀/◄◄ or |►/|► until slow motion playback starts.
Press repeatedly to change the slow motion speed (shown on-screen).
• To resume playback, press ▶ (play). 2
Frame advance/frame reverse
You can advance or back up DVD discs frame-by-frame. With Video CD/Super VCDs and DivX video/WMV you can only use frame advance.
1 During playback, press Ⅱ (pause).
2 P r ◀/◄| or |►/|► to reverse or advance a frame at a time.
• To resume playback, press ▶ (play). 2
Playing a JPEG slideshow
After loading a disc containing JPEG pictures, press ▶ to start a slideshow from the first folder/picture on the disc. 3 The player displays the pictures in each folder in alphabetical order.
- If the disc contains WMA/MP3/MPEG-4 AAC files, playback of the slideshow and audio files repeats. During audio playback, you can still use the skip (I◄◄/►►I), scan (◄◄/►►) and pause (■) functions.
Pictures are automatically adjusted so that they fill as much of the screen as possible.
Note
1 Only one speed is available for DivX video/WMV discs.
2 • Depending on the disc, normal playback may automatically resume when a new chapter is reached on a DVD disc.
- For Video CDs/Super VCDs in PBC mode and WMA/MP3/MPEG-4 AAC tracks (in Scan mode only) normal playback resumes when you reach the beginning or the end of track.
3 • The time it takes for the player to load a file increases with large file sizes.
- Discs can contain up to 299 folders and up to 648 folders and files combined.
Disc playback features
While the slideshow is running:
Button What it does
| II Pauses the slideshow (or audio);press again to restart. | |
| |◀◀ Jumps to the previous picture (oraudio file with audio playback). | |
| ▶▶I Jumps to the next picture (oraudio file with audio playback). | |
| ←/→/↑/↓ Pauses the slideshow androtates/flips the displayedpicture (Press ▶ (play) to restartslideshow). | |
| SHIFT+ZOOM Pauses the slideshow and zoomsthe picture. Press again to togglebetween 1x, 2x and 4x zoom(Press ▶ (play) to restartslideshow). | |
| MENU Displays the Disc Navigatorscreen (see below). |
Browsing DVD or Video CD/ Super VCD discs with the Disc Navigator
Use the Disc Navigator to browse through the contents of a DVD or Video CD/Super VCD disc to find the part you want to play.
1 During playback, press HOME MENU and select 'Disc Navigator' from the on-screen menu.
Disc Navigator
2 Select a view option.
The options available depend on the kind of disc loaded and whether the disc is playing or not, but include:
• Title – Titles from a DVD-Video disc.
- Chapter – Chapters from the current title of a DVD-Video disc.
- Track – Tracks from a Video CD/Super VCD disc.
- Time – Thumbnails from a Video CD/Super VCD disc at 10 minute intervals.
- Original: Title – Original titles from a VR mode DVD-R/-RW disc.
- Playlist: Title – Playlist titles from a VR mode DVD-R/-RW disc.
- Original: Time – Thumbnails from the Original content at 10 minute intervals.
- Playlist: Time – Thumbnails from the Playlist at 10 minute intervals.
The screen shows up to six moving thumbnail images displayed one after another. To display the previous/next six thumbnails, press ◄◀◀/▶◀◀.
3 Select the thumbnail image for what you want to play.
You can use either ↑/↓/←/→ and ENTER to select a thumbnail, or the number buttons.
To select using the number buttons, enter a two-digit number then press ENTER.
Disc playback features
Browsing Windows Media™ Audio (WMA), MP3, MPEG-4 AAC, DivX video/WMV and JPEG files with the Disc Navigator
Use the Disc Navigator to find a particular file or folder by filename.
1 Press HOME MENU and select 'Disc Navigator' from the on-screen menu.
2 Use ↑/↓/↔/→ and ENTER to nav Use ↑/↓ to move up and down the folder/file list.
Use ← to return to the parent folder. 1
Use ENTER or → to open a highlighted folder.
- When a JPEG file is highlighted, a thumbnail image is displayed on the right.
3 To play the highlighted track or DivX video/WMV file or display the highlighted JPEG file, press ENTER.
- When a WMA/MP3/MPEG-4 AAC or DivX video/WMV file is selected, playback begins from that file, and continues until the end of the folder.
- When a JPEG file is selected, a slideshow begins, starting with that file, and continues to the end of the folder.
Note
1 You can also do this by going to the '..' folder at the top, then pressing ENTER. 2 The disc must be loaded for the files in your playlist to play back.
Tip
- You can also play a JPEG slideshow while listening to WMA/MP3/MPEG-4 AAC playback. Simply select the audio file you want to listen to followed by the JPEG from which you want the slideshow to start. Playback of both the slideshow and the audio files repeats. Playback controls are effective for the JPEG slideshow only.
- To play the contents of the whole disc rather than just the current folder, exit the Disc Navigator and start playback using the ▶ (play) button.
Using Playlists
With this feature, you can make up to three playlists of 30 files each for discs containing WMA, MP3, MPEG-4 AAC and JPEG files.
Since this unit will remember all playlists for the last ten discs you have loaded, this is useful if you have a large number of files that you want to organize quickly and easily. 2
Programming playlists
1 With the disc stopped, press HOME MENU and select 'Disc Navigator' from the on-screen menu.
2 Select the file you want to add to the playlist.
See Browsing Windows Media™ Audio (WMA), MP3, MPEG-4 AAC, DivX video/WMV and JPEG files with the Disc Navigator above if you don't know how to do this.
3 P r PleAYLIST 1, 2 or 3.
The file is added to the playlist you select.
4 Repeat steps 2 and 3 until you're done.
Disc playback features
Tip
- To add files without the on-screen display, simply press PLAYLIST 1, 2 or 3 during normal playback of the file you want (except when a JPEG slideshow is playing at the same time as audio).
Listening to playlists
- With playback stopped, press PLAYLIST 1, 2 or 3.
During playback, PGM lights in the front panel display. If no playlist has been programmed, NO LIST shows in the display.
- If the playlist contains both JPEG and audio files, playback of the slideshow and audio files starts.
Clearing files from a playlist
1 Start playback of your playlist.
2 From the 'Disc Navigator' screen, highlight the file you want to remove from the playlist and press CLEAR.
Looping a section of a disc
The A-B Repeat function allows you to specify two points (A and B) within a track (CD, Video CD/Super VCD) or title (DVD) that form a loop which is played over and over.
1 During playback, press HOME MENU and select 'Play Mode'.
Play Mode
2 Select 'A-B Repeat'.
3 P r ENTER on 'A(Start Point)' to set the loop start point.
4 Press ENTER on 'B(End Point)' to set the loop end point.
After pressing ENTER, playback jumps back to the start point and plays the loop.
5 To resume normal playback, select 'Off'.
Using repeat play
In addition to various repeat play options, it's also possible to use repeat play together with program play (see Creating a program list on page 29).
1 During playback, press HOME MENU and select 'Play Mode'.
2 Select 'Repeat' then select a repeat play option. 1
If program play is active, select Program Repeat to repeat the program list, or Repeat Off to cancel.
- For DVD discs, select Title Repeat or Chapter Repeat.
- For CDs and Video CD/Super VCDs, select Disc Repeat or Track Repeat.
- For DivX video/WMV discs, select Title Repeat (or Repeat Off).
Using random play
Use this function to play titles or chapters (DVD-Video) or tracks (CD and Video CD/Super VCD) in a random order. 2
1 During playback, press HOME MENU and select 'Play Mode'.
2 Select 'Random' then select an option.
- For DVD discs, select Random Title or Random Chapter.
- For CDs and Video CD/Super VCDs, select On or Off to switch random play on or off.
Note
You can't use repeat play with WMA/MP3/MPEG-4 AAC discs.
2 • You can set the random play option when a disc is playing or stopped. However, you can't use random play together with program play.
- You can't use random play with VR format DVD-R/-RW discs, WMA/MP3/MPEG-4 AAC discs, DivX video/WMV discs, or while a DVD disc menu is being displayed.
Disc playback features
Tip
- Use the following controls during random play:
Button What it does
▶▶ Selects a new track/title/chapter at random.
Returns to the beginning of the current track/title/chapter; further presses select another random track/title/chapter.
- Random play remains in effect until you select Random Off from the random play menu options.
Creating a program list
This feature lets you program the play order of titles/chapters/tracks on a disc. 1
1 During playback, press HOME MENU and select 'Play Mode'.
2 Select 'Program' then select 'Create/Edit' from the list of program options.
3 U s↑/↓/←/→ and ENTER to select a title, chapter or track for the current step in the program list.
- For a DVD disc, you can add a title or a chapter.
- For a CD or Video CD/Super VCD, select a track to add to the program list.
After pressing ENTER to select the title/chapter/track, the step number automatically moves down one.
4 Repeat step 3 to build up a program list.
A program list can contain up to 24 steps.
- You can insert steps by just highlighting the position where you want the new step to appear and entering a title/chapter/track number.
• To delete a step, highlight it and press CLEAR.
Note
1 You can't use Program play with VR format DVD-R/-RW discs, WMA/MP3/MPEG-4 AAC discs, DivX video/WMV discs, or while a DVD disc menu is being displayed.
5 To play the program list, press ▶ (play).
Program play remains active until you turn off program play (see below), erase the program list (see below), eject the disc or switch off.
Tip
- Use the following controls during program play:
Button What it does
HOME Save the program list and exit MENU without starting playback.
▶▶1 Skip to the next step in the program list.
Other functions available from the program menu
There are a number of other options in the program menu in addition to Create/Edit.
- Playback Start – Starts playback of a saved program list
- Playback Stop – Turns off program play, but does not erase the program list
- Program Delete – Erases the program list and turns off program play
Searching a disc
You can search DVD discs by title or chapter number, or by time; CDs and Video CD/Super VCDs by track number or time; DivX video/WMV discs by time.
1 P r HOME MENU and select 'Play Mode'.
2 Select 'Search Mode'.
The search options that appear depend on the kind of disc loaded.
3 Select a search mode.
- The disc must be playing in order to use time search.
Disc playback features
4 Use the number buttons to enter a title, chapter or track number, or a time.
- For a time search, enter the number of minutes and seconds into the currently playing title (DVD/DivX video/WMV) or track (CD/Video CD/Super VCD) you want playback to resume from. For example, press 4, 5, 0, 0 to have playback start from 45 minutes into the disc. For 1 hour, 20 minutes and 30 seconds, press 8, 0, 3, 0.
5 P r ENTER to start playback.
Switching subtitles
Some DVD discs and DivX video discs have subtitles in one or more languages; the disc box will usually tell you which subtitle languages are available. You can switch subtitle language during playback. 1
- P r SHIFTs+SUBTITLE repeatedly to select a subtitle option.
- To set subtitle preferences, see Language settings on page 36.
• See Displaying DivX subtitle files on page 48 for more on DivX subtitles.
Switching language/audio channels
When playing discs recorded with dialogue in two or more languages, or with dual-mono audio 2 you can switch these during playback. 3 When playing a Video CD/Super VCD, you can switch between stereo, just the left channel or just the right channel.
- P r SHIFTs+AUDIO repeatedly to select an audio language option.
- To set audio language preferences, see Language settings on page 36.
Zooming the screen
Using the zoom feature you can magnify a part of the screen by a factor of 2 or 4, while watching a DVD, DivX video/WMV title or Video CD/Super VCD or playing a JPEG disc.
1 During playback, press SHIFT+ZOOM to select the zoom factor (Normal, 2x or 4x).
2 U ↑/↓/←/→ to change the zoomed area.
You can change the zoom factor and the zoomed area freely during playback. 4
Switching camera angles
Some DVD discs feature scenes shot from two or more angles — check the disc box for details.
When a multi-angle scene is playing, a 📄 icon appears on screen (this can be switched off if you prefer — see Display settings on page 37).
- During playback (or when paused), press SHIFT+ANGLE to switch angle.
Displaying disc information
Various track, chapter and title information can be displayed on-screen during playback.
- To show/switch/hide the information displayed, press DISPLAY repeatedly.
Limited disc information also appears in the front panel display. Press DISPLAY to change the displayed information.
Note
1 Some discs only allow you to change subtitle language from the disc menu. Press TOP MENU or MENU to access.
2 Some Super VCDs have two soundtracks. With these discs you can switch between the two soundtracks as well as individual channels in each.
3 Some discs only allow you to change audio language from the disc menu. Press TOP MENU or MENU to access.
4 • Since DVD, Video CD/Super VCD, DivX video/WMV title and JPEG pictures have a fixed resolution, picture quality will deteriorate, especially at 4x zoom. This is not a malfunction.
- If the navigation square at the top of the screen disappears, press SHIFT+ZOOM again to display it.
Chapter 7
USB playback and Recording
Using the USB interface
It is possible to listen to two-channel audio 1 and watch DivX video/WMV/JPEG files using the USB interface on the front of this unit. Connect a USB mass storage device 2 as shown below.
1 With the player switched on, press USB.
Make sure your TV is on and set to the correct video input.
2 Connect your USB device.
The USB terminal is located on the front panel.
3 Press ▶ (play) to start playback.
If your USB device contains JPEGs, a slideshow will start. See Playing a JPEG slideshow on page 25 for more on this.
- Make sure USB DATA is showing in the Press ■ to stop playback. front panel display (or the system is in standby) when disconnecting.
Important
If a USB ERR message lights in the display, it may mean that the power requirements of the USB device are too high for this player, or that the device is incompatible. Try the following:
- Switch the player off, then on again.
- Reconnecting the USB device with the player switched off.
- Selecting to another input source (like DVD/CD), then back to USB.
• Using a dedicated AC adapter (supplied with the device) for USB power.
If this doesn't remedy the problem, it is likely your USB device is incompatible.
Recording the tracks of a music CD on a USB device
The tracks of a music CD loaded in this unit can be recorded on a USB connected to the USB port.
Recording all the tracks
1 Load the music CD.
Note
1 This includes playback of DivX video/WMV/WMA/MP3/MPEG-4 AAC files (except files with copy-protection or restricted playback).
2 • Compatible USB devices include external magnetic hard drives, portable flash memory (particularly keydrives) and digital audio players (MP3 players) of format FAT16/32. It is not possible to connect this unit to a personal computer for USB playback.
- Pioneer cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assumes no responsibility for any loss of data that may occur when connected to this unit.
- With large amounts of data, it may take longer for the system to read the contents of a USB device.
- Some USB devices may not be properly recognized.
- Even when they are in a supported format, some files may not play or display depending on the content.
USB playback and Recording
2 P r SHIFT+USB REC to display the 'CD -> USB Rec' screen.
3 P r ENTER to start recording.
Recording starts. The screen shown below is displayed during recording. 1
Recording specific tracks
1 Load the music CD.
Press ■ to stop playback.
2 Press HOME MENU and select 'CD ->USB Rec'.
CD -> USB Rec can only be selected when the music CD is stopped.
3 Make setting using ↑/↓/←/→ and ENTER.
4 Select the track you want to record.
- Individual — Select one track at a time.
- Select All — Select all the tracks.
- All Clear — Clear all selected tracks.
5 Select the bit rate (transfer rate).
Select 128 kbps, 192 kbps or 320 kbps.
6 S e Start' using the ↑/↓/←/→, then press ENTER. 2
Recording starts.
Note
1 Recording cannot be started if there is not enough free space on the USB device. In this case, "Available USB space is low" is displayed.
2 • When recording is finished, a folder named "PIONEER" is created automatically on the USB device. The recorded tracks are stored in this folder.
- Up to 99 "PIONEER" folders can be created.
- Recording is not possible if the USB device contains 300 folders or more.
- When recording on a USB device is under way, all DVD-related key operations are disabled except for the operation of
○ STANDBY/ON and ▲ OPEN/CLOSE buttons and switchover of the functions. - When the sleep timer is ON, it is cancelled once recording on a USB device is started.
Chapter 8
Singing karaoke
Singing karaoke
Using the karaoke features you can plug in a microphone and mix the sound of your own voice with a backing track. 1 You can select a backing track from audio sources such as CDs, DVDs, VCDs or USB devices. Adjust the microphone level relative to the backing track.
1 Plug in the microphone(s).
If you're only using one mic, plug it into the MIC (MAIN) jack. The MIC (SUB) jack can be used only if MIC (MAIN) is also connected.
- If the microphone has an on/off switch, make sure it's on.
2 Load a karaoke backing disc.
You can also use tracks on a USB device as source material for a backing track.
3 Adjust KARAOKE mode settings.
- Press SHIFT+KARAOKE to turn KARAOKE mode on or off for discs that have vocals on both Left and Right channels:
KARAOKE (Vocal Fade) – Vocals in the backing track are partially eliminated.
OFF (default) – Switches the Karaoke mode off.
- P r SHIFT+AUDIO to switch between audio channels (except Data discs and USB sources) with discs that have vocal tracks on only one channel:
Left – Left channel only. Use for tracks that have a vocal recorded in the right channel.
Right – Right channel only. Use for tracks that have a vocal recorded in the left channel.
STEREO – Switches the Karaoke mode off.
4 Play the backing track.
5 Adjust the MIC VOL +/- to get the sound you want. 2
To avoid unpleasant feedback, make sure you don't point the microphone(s) at the speakers. 3
Changing the vocal mix
Adding some effects to the microphone mix can sometimes improve the overall sound. 4 You can choose between three echo levels.
- To add effects to the microphone mix, press SHIFT+ECHO.
Pressing repeatedly switches between echo levels 1 to 3 and off.
Changing the backing track
You may want to lower or raise the pitch of the backing track to match your vocal range. 5
- Press SHIFT+b or SHIFT+# to lower or raise the pitch of the backing track.
Note
1 • These features are only possible when a microphone is connected. If you try to use SHIFT+KARAOKE, SHIFT+ECHO, SHIFT+b, SHIFT+# or MIC VOL when no mic is connected, a NO MIC error message is displayed. Also note that during DVD playback, when you connect a mic sound settings are automatically switched to STEREO playback and the player downmixes multichannel sources to 2.1 channels.
• These features are only available with the DVD/CD or USB input functions.
2 MIC VOL is set to 0 when you remove the microphone, change the function or turn the power off.
3 Depending on the microphone level, the sound of the disc may distort. If this happens, turn down the volume.
4. You cannot adjust SFC modes, tone controls (bass, treble, and bass boost), Extra Power mode, Front Surround mode, MP3 Expander mode or Voice Enhancer mode when a microphone is plugged in.
5 This feature is not compatible with DTS signals.
Chapter 9
Audio Settings and Video Adjust menus
Audio Settings menu
The Audio Settings menu offers features for adjusting the way discs sound.
1 P r HOME MENU and select 'Audio Settings' from the on-screen display.
2 Select and change settings using ↑/↓/←/→ and ENTER.
Audio DRC
- Settings: High, Medium, Low, Off (default)
When watching Dolby Digital DVDs at low volume, it's easy to lose the quieter sounds completely — including some of the dialog. Switching Audio DRC (Dynamic Range Control) to on can help by bringing up the quieter sounds, while controlling loud peaks.
How much of a difference you hear depends on the material you're listening to. If the material doesn't have wide variations in volume, you may not notice much change. 1
Video Adjust menu
From the Video Adjust screen you can adjust settings that affect picture presentation.
1 Press HOME MENU and select 'Video Adjust' from the on-screen display.
2 Make settings using ↑/↓/←/→ and ENTER.
You can adjust the following settings:
- Sharpness – Adjusts the sharpness of edges in the picture (Fine, Standard, Soft)
- Brightness – Adjusts the overall brightness (-20 to +20)
- Contrast – Adjusts the contrast between light and dark (-16 to +16)
- Gamma – Adjusts the 'warmth' of the picture (High, Medium, Low, Off)
- Hue – Adjusts the red/green balance (Green 9 to Red 9)
- Chroma Level – Adjusts how saturated colors appear (-9 to +9)
Adjust the Brightness, Contrast, Hue and Chroma Level settings using ←/→.
3 Press ENTER to return to the Video Adjust screen, or HOME MENU to exit.
Note
1 Audio DRC is only effective with Dolby Digital audio sources.
Chapter 10
Initial Settings menu
Using the Initial Settings menu
The Initial Settings menu provides audio and video output settings, parental lock settings, and display settings, among others.
If an option is grayed out it means that it cannot be changed at the current time. This is usually because a disc is playing. Stop the disc, then change the setting.
1 P r DVD/CDs
2 With playback stopped, press HOME MENU and select 'Initial Settings'.
3 U //↔/→ and ENTER to select the setting and option you want to set.
All the settings and options are explained on the following pages. 1
Video Output settings
| Setting Option What it means | ||
| TV Screen(See also Screen sizes and disc formats on page 51.) | 4:3 (Letter Box) Set if you have a conventional 4:3 TV. Widescreen movies are shown with black bars top and bottom. | |
| 4:3 (Pan & Scan) Set if you have a conventional 4:3 TV. Widescreen movies are shown with the sides cropped so that the image fills the screen. | ||
| 16:9 (Wide) Set if you have a widescreen TV. | ||
| 16:9 (Compressed) Set if you have a widescreen TV. 4:3 material is shown with black bars on either side of the screen. 2 | ||
| Component Out(See also Connecting auxiliary audio components on page 40.) | Interlace | Set if your TV is not compatible with progressive scan video. |
| Progressive | Set if your TV is compatible with progressive scan video (see your TV's instruction manual for details). Press ENTER once more to confirm (or RETURN to cancel).Note that progressive scan video is only output from the component video jacks. | |
Note
1 • In the table, the default setting is shown in bold: other settings are shown in italics.
- Some settings, such as TV Screen. Audio Language and Subtitle Language may be overridden by the DVD disc. Often these settings can also be made from the DVD disc menu.
- The HDMI Resolution and HDMI Color settings only need to be set if you connected this player to an HDMI-compatible component using the HDMI connector.
- This setting can only be used when you are connected via HDMI and have the HDMI resolution set to 1920x1080p, 1920x1080i or 1280x720p. When using this setting, only the HDMI connection is available.
Initial Settings menu
Setting Option What it means
| HDMI Resolution*(See Connecting using HDMI on page 41.)* Default changes with TV format (PAL/NTSC). | 1920x1080p | Set if your TV supports 1920 x 1080 pixel progressive-scan video. |
| 1920x1080i Set if your TV supports 1920 x 1080 pixel interlace video. | ||
| 1280x720p | Set if your TV supports 1280 x 720 pixel progressive-scan video. | |
| 720x480p (NTSC)/720x576p (PAL) | Set if your TV supports 720 x 480 (NTSC)/720 x 576 (PAL) pixel progressive-scan video. | |
| 720x480i (NTSC)/720x576i (PAL) | Set if your TV supports 720 x 480 (NTSC)/720 x 576 (PAL) pixel interlace video. | |
| HDMI Color*(See Connecting using HDMI on page 41.)* Default changes depending on device connected. | Full range RGB | If colors are weak, this gives brighter colors and deeper black (default setting for HDMI-compatible DVI devices). |
| RGB | Use this setting if colors appear overly rich on the Full Range RGB setting. | |
| Component | Outputs 8-bit component video format (default setting for HDMI-compatible devices). | |
Language settings
| Setting Option What it means | ||
| Audio Language | English | If there is an English soundtrack on the disc, it is played. |
| Languages as displayed | If there is a language selected on the disc, it is played. | |
| Other Language Select to choose a language other than the ones displayed (see Using the language code list on page 57). | ||
| Subtitle Language | English | If there are English subtitles on the disc they are displayed. |
| Languages as displayed | The subtitle language selected on the disc is displayed. | |
| Other Language Select to choose a language other than the ones displayed (see Using the language code list on page 57). | ||
| DVD Menu Language | w/Subtitle Lang. | DVD disc menus are displayed in the same language as your selected subtitle language, if possible. |
| Languages as displayed DVD menus are displayed in the selected language, if possible. | ||
| Other Language Select to choose a language other than the ones displayed (see Using the language code list on page 57). | ||
| Subtitle Display | On | Subtitles are displayed in your selected subtitle language. |
| Off | Subtitles are always off by default when you play a DVD disc. | |
Initial Settings menu
Display settings
| Setting Option What it means | ||
| OSD Language | English | On-screen displays are shown in English. |
| Languages as displayed | On-screen displays are shown in the language selected. | |
| Angle Indicator | On | A camera icon is displayed on-screen during multi-angle scenes on a DVD disc. |
| Off No multi-angle indication is shown. | ||
Options settings
| Setting Option What it means | ||
| Parental Lock | - | See Parental Lock below. |
| DivX(R) VOD | Display | See About DivX® VOD content below. |
Speakers settings
| Setting Option What it means | ||
| Speaker Distance | - | Specify the distance of your speakers from your listening position (see Speaker Distance on page 39). |
Parental Lock
- Default level: Off; Default password: none; Default Country/Area code: us (2119)
To give you some control over what your children watch on your DVD player, some DVD-Video discs feature a Parental Lock level. If your player is set to a lower level than the disc, the disc won't play.
Some discs also support the Country/Area Code feature. The player does not play certain scenes on these discs, depending on the Country/Area Code you set.
Registering a new password
Register a password to change the Parental Lock level or enter a Country/Area code. 1
1 Select 'Password'.
2 Use the number buttons to input a four-digit password then press ENTER.
Changing your password
To change your password, confirm your existing password then enter a new one.
1 Select 'Password Change', input your existing password, then press ENTER.
2 Enter a new password and press ENTER.
Note
1 • Not all discs use Parental Lock, and will play without requiring the password first.
- If you forget your password, you'll need to reset the player to register a new password (see Resetting the system on page 57).
Initial Settings menu
Setting/changing the Parental Lock
1 Select 'Level Change'.
2 Use number buttons to enter your password, then press ENTER.
3 Select a new level and press ENTER.
- Press ← repeatedly to lock more levels (more discs will require the password); press → to unlock levels. You can't lock level 1.
Setting/changing the Country/Area code
You can find the Country/Area code list on page 58.
1 Select 'Country Code', input your password, then press ENTER.
2 Select a Country/Area code then press ENTER.
There are two ways you can do this:
- Select by code letter: Use ↑/↓ to change the Country/Area code.
- Select by code number: Press → then use the number buttons to enter the four-digit Country/Area code.
The new Country/Area code takes effect after ejecting the disc once.
About DivX® VOD content
In order to play DivX VOD (video on demand) content on this player, you first need to register the player with your DivX VOD content provider. You do this by generating a DivX VOD registration code, which you submit to your provider. 1
Important
- DivX VOD content is protected by a DRM (Digital Rights Management) system. This restricts playback of content to specific, registered devices.
- If you load a disc that contains DivX VOD content not authorized for your player, the message Authorization Error is displayed and the content will not play.
Displaying your DivX VOD registration code
1 Press HOME MENU and select 'Initial Settings'.
2 Select 'Options', then 'DivX (R) VOD'.
3 Select 'Display'.
Your eight-digit registration code is displayed.
Make a note of the code as you will need it when you register with a DivX VOD provider.
Playing DivX® VOD content
Some DivX VOD content may only be playable for a fixed number of times. When you load a disc containing this type of DivX VOD content, the remaining number of plays is shown on-screen and you then have the option of playing the disc (thereby using up one of the remaining plays), or stopping. If you load a disc that contains expired DivX VOD content (for example, content that has zero remaining plays), the message Rental Expired is displayed.
If your DivX VOD content allows an unlimited number of plays, then you may load the disc into your player and play the content as often as you like, and no message will be displayed.
Note
Resetting the player (as described in Resetting the system on page 57) will not cause you to lose your registration code.
Initial Settings menu
Speaker Distance
- Default setting: 3.0m
To get the best surround sound from your system, you should set up the speakers equal distances from your listening position.
1 Press HOME MENU and select 'Initial Settings'.
2 Select 'Speakers', then 'Speaker Distance'.
3 U ↑/↓ to select a speaker.
4 P r → to change the speaker distance for the highlighted speaker.
5 U / to change the distance.
- When you change the distance settings of the front left (L) or front right (R) speakers, all the other speaker distances change relative to it.
- Front left/right (L/R) speaker distances can be set from 30 cm to 9 m in 30 cm increments. 1
- The center speaker (C) can be set from -2.1m to 0m relative to the front left/right speakers.
- Surround left/right (SL/SR) speakers can be set from -6.0 m to 0 m relative to the front left/right speakers. 2
- The subwoofer (SW) can be set from -2.1 m to 0 m relative to the front left/right speakers.
6 P r ← tosgo back to the speaker list if you want to modify another speaker, or press ENTER to exit the Speaker Distance screen.
Note
1 The L and R speakers are paired; you can't set them differently. 2 Make sure to set them the same distance when using the Extra Power mode (page 23).
Other connections
Chapter 11
Other connections
Important
- When making or changing connections on the rear panel of this unit, be sure to switch power off and disconnect the power cord from the wall socket. After completing all connections, connect the power cord to the wall socket.
KURO LINK-compatible
Pioneer flat screen TV
Connecting auxiliary audio components
Using the stereo analog inputs, you can connect an external component such as a tape deck or MD player for playback through this system.
For the connection diagram, see 1 above.
- Connect the ANALOG AUDIO IN ( LINE 1) jacks to the analog outputs of an external playback component.
Connect using RCA pin-plug stereo cables.
Other connections
Connecting using the component video output
If your TV has component video inputs, you can use these instead of the standard video outputs for a better quality picture. 1
For the connection diagram, see 2 on page 40.
- Use a component video cable to connect the COMPONENT VIDEO OUT to a set of component inputs on your TV.
About progressive scan video
Compared to interlace video, progressive scan video effectively doubles the scanning rate of the picture, resulting in a very stable, flicker-free image. Progressive scan video is available only from the component video output.
Compatibility of this player with progressive-scan and high-definition TVs.
- This player is compatible with progressive video Macro Vision System Copy Guard. 2
Connecting using HDMI
If you have a HDMI or DVI (with HDCP) equipped monitor or display, you can connect it to this player using a commercially available HDMI cable for high quality digital video. 3
For the connection diagram, see 3 on page 40.
- Use an HDMI cable to connect the HDMI OUT interconnect on this player to an HDMI interconnect on a HDMI-compatible display.
- The arrow on the cable connector body should be face down for correct alignment with the connector on the player.
You can also adjust the HDMI settings for resolution and color. For more on these settings see Video Output settings on page 35.
Switching the HDMI audio setting
You can select the system speaker or the TV through the HDMI to output the audio sound of the DVD/CD or USB function. 4 You cannot use a number of sound functions of this system when HDMI audio is set to TV.
1 P r SHIFT+SETUP.
2 U ←/→ to select HDMI SET then press ENTER.
3 U s←/→ to choose HDMI MODE then press ENTER.
4 U ⬤/↓ to choose the setting you want then press ENTER.
- AMP – Output Audio sound of the DVD/CD and USB function signal from this system.
Note
1 • The component video output is switchable between interlaced and progressive formats. See Video Output settings on page 35.
- While the player is connected using HDMI cable, the component video output cannot be switched between Interlace and Progressive formats. When HDMI Resolution is set to 720x480i (NTSC)/720x576i (PAL). Interlace format is automatically selected, and Progressive format is automatically selected in other settings.
2 Consumers should note that not all high-definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 progressive scan picture problems, it is recommended that the user switch the connection to the 'standard definition' output (Interlace). If there are questions regarding our TV set compatibility with this model, please contact our customer service center.
3 • An HDMI connection can only be made with DVI-equipped components compatible with both DVI and High Bandwidth Digital Content Protection (HDCP). If you choose to connect to a DVI connector, you will need a separate adaptor (DVI→HDMI) to do so. A DVI connection, however, does not support audio signals. Consult your local audio dealer for more information.
- Depending on the component you have connected, using a DVI connection may result in unreliable signal transfers.
- When you change the component connected to the HDMI output, you will also need to change the HDMI settings to match the new component (see Video Output settings on page 35 to do this).
4 It is not possible to switch this setting when KURO LINK setting is ON and flat screen TV is in synchronized amp mode.
Other connections
- TV – Output Audio sound of the DVD/CD and USB function signal from a TV or flat screen TV. 1
Resetting the HDMI connection
If you get an error message (the display shows HDMI ERR) or if the screen goes blank (for example, after changing the resolution), check the troubleshooting guide on page 53. If this doesn't solve the problem, follow the steps below to reset the HDMI connection.
1 P r SHIFT+SETUP.
2 U ←/→ to select INITIAL then press ENTER.
3 U ←/→ to choose HDMIINIT then press ENTER.
4 P r ENTER while INIT OK is blinking.
The system will restart and the HDMI settings are automatically reset to the factory defaults. See Video Output settings on page 35 for more on these settings.
About HDMI
HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD players, DTV, set-top boxes, and other AV devices. HDMI was developed to provide the technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface (DVI) in one specification. HDCP is used to protect digital content transmitted and received by DVI-compliant displays.
HDMI has the capability to support standard, enhanced, or high-definition video plus standard to multichannel surround-sound audio. HDMI features include uncompressed digital video, a bandwidth of up to five
gigabytes per second (with HDTV signals), one connector (instead of several cables and connectors), and communication between the AV source and AV devices such as DTVs.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
Connecting external antennas
For an external AM antenna, use 5 m to 6 m of vinyl-insulated wire and set up either indoors or outdoors. Leave the loop antenna connected. Only use the included AM loop antenna.
For an external FM antenna, use a PAL connector to hook up an external FM antenna. For the connection diagram, see 4 on page 40.
Bluetooth® ADAPTER for Wireless Enjoyment of Music
HTZ280/282DVD-AP models only
Wireless music play
When the Bluetooth ADAPTER (Pioneer Model No. AS-BT100) is connected to this unit, a product equipped with Bluetooth wireless technology (portable cell phone, digital music player, etc.) can be used to listen to music wirelessly. 2 Also, by using a commercially available transmitter supporting Bluetooth wireless technology, you can listen to music on a device not equipped with Bluetooth wireless technology. The AS-BT100 model supports SCMS-T contents protection, so music can also be enjoyed on devices equipped with SCMS-T type Bluetooth wireless technology.
Note
This makes it possible to use the TV's built-in speakers to listen to the audio input from a DVD or USB device. Audio output from the HDMI terminal is 2 channel linear PCM only. In this event, no sound will be heard from this unit's speakers (or headphones). All other audio sources (including TUNER) are output from this unit normally.
2 It may be necessary that the Bluetooth wireless technology enabled device supports A2DP profiles.
Other connections
Remote control operation
The remote control supplied with this system allows you to play and stop media, and perform other operations. 1
Connecting Optional Bluetooth ADAPTER
1 Switch the system into standby and connect Bluetooth ADAPTER to the ADAPTER PORT located in the rear panel.
For the connection diagram, see 5 on page 40.
2 P r ♦e STANDBY/ON
3 P r ADABTER PORT and to switch to BT AUDIO input mode. 2
Pairing Bluetooth ADAPTER and Bluetooth wireless technology device
"Pairing" must be done before you start playback of Bluetooth wireless technology content using Bluetooth ADAPTER. Make sure to perform pairing first time you operate the system or any time pairing data is cleared. "Pairing" is the step necessary to register Bluetooth wireless technology device to enable Bluetooth communications. 3 For more details, see also the operating instructions of your Bluetooth wireless technology device.
1 P r SHIFT+SETUP to select BT SETUP, then press ENTER.
2 U ←/→ to select PAIRING, then press ENTER.
3 Select the PIN code to be used from 0000/1234/8888 using ↑/↓, then press ENTER.
PAIRING blinks.
CAUTION
- You can use any of 0000/1234/8888 PIN codes. Bluetooth wireless technology device using any other PIN code cannot be used with this system.
4 Switch on the Bluetooth wireless technology device that you want to make pairing, place it near the system and set it into the pairing mode.
Note
1 • It may be necessary that the Bluetooth wireless technology enabled device supports AVRCP profiles.
- Remote control operations cannot be guaranteed for all Bluetooth wireless technology enabled devices.
2 When the Bluetooth ADAPTER is not plugged in the ADAPTER PORT, BT AUDIO input mode cannot be entered even if ADAPTER PORT is pressed.
3 • Pairing is required when you first use Bluetooth wireless technology device and Bluetooth ADAPTER.
- To enable Bluetooth communication, pairing should be done with both of your system and Bluetooth wireless technology device.
Other connections
5 Check to see that the Bluetooth ADAPTER is detected by the Bluetooth wireless technology device.
When the Bluetooth wireless technology device detects the Bluetooth ADAPTER, the adapter's identification "AS-BT100" appears in the Bluetooth wireless technology device list. 1
6 F r o Bluetoothwireless technology device list, select Bluetooth ADAPTER and enter the PIN code selected in the step 3.2
Listening to Music Contents of Bluetooth wireless technology device with Your System
1 P r ADABTER PORT and to switch to BT AUDIO input mode.
2 Connect the Bluetooth wireless technology device to the Bluetooth ADAPTER.
When Bluetooth wireless technology device is connected:
Bluetooth wireless technology device name appears in the system display. 3
When Bluetooth wireless technology device is not connected:
NODEVICE appears in the system display.
3 Start playback of music contents stored in Bluetooth wireless technology device.
The following operations are now possible for Bluetooth wireless technology devices, using the button at the top of the system and remote controller. 4
Button What it does
▶/II (system)
Starts normal playback and pauses/unpauses playback.
Button What it does
| ▶ (remote control) | Starts normal playback. |
| ■ (remote control) | Pauses playback. |
| ■ (system/ remote control) | Stops playback. |
| ◀◀ (remote control) | Press to start fast reverse scanning. |
| ▶▶ (remote control) | Press to start fast forward scanning. |
| I◀◀ (remote control) | Skips to the start of the current file, then previous files. |
| ▶▶I (remote control) | Skips to the next file. |
Clearing Pairing 5
1 Press SHIFT+SETUP, select BT SETUP, then press ENTER.
2 U ←/→ to select PAIR CLR, then press ENTER.
3 When CLR OK appears, press ENTER.
The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Pioneer Corporation is under license. Other trademarks and trade names are those of their respective owners.
Note
When a Bluetooth wireless technology device does not appear in the list of detected devices or has no display, the Bluetooth wireless technology device list does not appear. In some cases, you may pair the Bluetooth ADAPTER and that Bluetooth wireless technology device by using the pairing mode.
2 PIN code may in some case be referred to as PASSKEY.
3 The system can display alphanumeric characters only. Other characters may not be displayed correctly.
4 • Bluetooth wireless technology device should be compatible with AVRCP profile.
- Depending on Bluetooth wireless technology device you use, operation may differ from what is shown in this table.
5 • Clearing should be done with Bluetooth wireless technology device being disconnected.
- When you connect Bluetooth wireless technology device again after clearing, repeat the pairing steps referring to Pairing Bluetooth ADAPTER and Bluetooth wireless technology device on page 43.
Chapter 12
KURO LINK
Not applicable to the HTZ180/181DVD models
By connecting this unit to a KURO LINK-compatible Pioneer flat screen TV with a HDMI cable, you can control this unit from the remote control of a connected flat screen TV, as well as have the connected flat screen TV automatically change inputs in response to operations carried out on this unit.
In addition, when language information is input from the connected flat screen TV, this unit's GUI display language automatically changes (only when playback is stopped and GUI screen is not displayed, with DVD/CD function only).
Refer to the operating instructions for your flat screen TV for more information about which operations can be carried out by connecting via HDMI cable.
- You cannot use this function with components that do not support KURO LINK.
- We cannot guarantee this unit will work with KURO LINK-compatible components other than those made by Pioneer.
Making the KURO LINK connections
You can use synchronized operation for a connected flat screen TV.
Be sure to connect the flat screen TV's audio cable to the audio input of this unit.
For the connection diagram, see 3 on page 40.
- KURO LINK may not operate properly if you do not use a High Speed HDMI cable.
- Connect the flat screen TV directly to this unit. Interrupting a direct connection with other amps or an AV converter (such as an HDMI switch) can cause operational errors.
Important
- When connecting this system or changing connections, be sure to switch the power off and disconnect the power cord from the wall socket.
After completing all connections, connect the power cords to the wall socket.
KURO LINK Setup
You must adjust the settings of this unit as well as KURO LINK-compatible connected components in order to make use of the KURO LINK function. For more information see the operating instructions for each component.
Setting the KURO LINK mode
Choose whether to set this unit's KURO LINK function ON or OFF. You will need to set it to LINK ON to use the KURO LINK function.
- When using a TV that does not support the KURO LINK function, set this to LINK OFF.
KURO LINK
1 Press SHIFT+SETUP.
2 U ←/→ to select HDMI SET then press ENTER.
3 U ←/→ to select KURO LINK, then press ENTER.
4 U s↑/↓ to select the setting then press ENTER to confirm.
- LINK ON – Enables the KURO LINK function.
- LINK OFF – The KURO LINK is disabled. Synchronized operations cannot be used.
Before using synchronization
Once you have finished all connections and settings, you must:
1 Put all components into standby mode.
2 Turn the power ON for all components, with the power for the flat screen TV being turned on last.
3 Choose DVD/CD and see if video output displays properly on the screen or not.
Synchronized amp mode
The synchronized amp mode can be set from the KURO LINK-compatible TV's remote control. See the explanation below for operations in the synchronized amp mode.
These functions are set from the TV's menu screen. For more information, refer to the operating instructions of the KURO LINK-compatible TV.
Synchronized amp mode operations
When using the synchronized amp mode, the KURO LINK-compatible component connected to this unit operates in sync as described below.
- The unit's volume can be set and the sound can be muted using the TV's remote control.
- When the TV's power is set to standby, the unit's power is also set to standby. (The unit's power is automatically turned off when the TV's power is turned off while a video DVD is being played on the unit. However, the unit's power may not turn off automatically in some cases, for example, if you are listening to a CD or radio and turn off the output device.)
- The unit's input switches automatically when the TV's channel is switched.
- The synchronized amp mode remains in effect even if the unit's input is switched to a function other than the DVD/CD.
The operations below can also be used on Pioneer KURO LINK-compatible flat screen TVs.
- When the unit's volume is adjusted or the sound is muted, the volume status is displayed on the flat screen TV's screen.
- When the OSD language is switched on the flat screen TV, the unit's language setting also switches accordingly.
Canceling synchronized amp mode
- When the synchronized amp mode is canceled, the unit's power turns off if you were viewing a TV program on the TV.
- When in the synchronized amp mode, the synchronized amp mode is canceled when the unit's power is turned off. To turn the synchronized amp mode back on, select the synchronized amp mode using the TV's remote control.
- When in the synchronized amp mode, the synchronized amp mode is canceled if an operation that produces sound from the TV is performed from the TV's menu screen, etc.
Chapter 13
Additional information
Disc/content format playback compatibility
This player is compatible with a wide range of disc types (media) and formats. Playable discs will generally feature one of the following logos on the disc and/or disc packaging. Note however that some disc types, such as recordable CD and DVD, may be in an unplayable format.
See the Disc compatibility table below for more information.
DVD-Video DVD-R DVD-RW
Audio CD CD-RVCD-RCD
FUJICOLOR CD COMPATIBLE
FUJICOLOR CD COMPATIBLE
Fujicolor CD
• This unit will play DVD+R/+RW discs.
• is a trademark of FUJIFILM Corporation.
• BYD trademark of DVD Format/Logo Licensing Corporation.
• Also compatible with KODAK Picture CD.
This player supports the IEC's Super VCD standard for superior picture quality, dual soundtracks, and widescreen support.
Super Video CD (Super VCD)
About DualDisc playback
A DualDisc is a new two-sided disc, one side of which contains DVD content video, audio, etc. while the other side contains non-DVD content such as digital audio material.
The non-DVD, audio side of the disc is not compliant with the CD Audio specification and therefore may not play.
The DVD side of a DualDisc plays in this product. DVD-Audio content will not play.
For more detailed information on the DualDisc specification, please refer to the disc manufacturer or disc retailer.
Disc compatibility table
Media Compatible formats
CD-R/-RW
- CD-Audio, Video CD/Super VCD, ISO 9660 CD-ROM* containing MP3, WMA, MPEG-4 AAC, JPEG or DivX video/WMV files.
* ISO 9660 Level 1 or 2 compliant. CD physical format: Mode1, Mode2 XA Form1. Romeo and Joliet file systems are both compatible. - Multi-session playback: No
• Unfinalized disc playback: No
DVD-R/-RW
- DVD-Video (Video mode), Video Recording (VR)*, UDF Bridge DVD-ROM containing MP3, WMA, MPEG-4 AAC, JPEG or DivX video/WMV files.
* Edit points may not play exactly as edited; screen may go momentarily blank at edited points. - Multi Border playback: No
• Unfinalized playback: No
PC-created disc
- Discs recorded using a PC may not be playable due to the setting of the software used to create the disc. In these instances, check the DVD-R/-RW or CD-R/-RW software manual or disc boxes for more on compatibility.
• Discs recorded in packet write mode are not compatible.
Additional information
Media Compatible formats
| Compressed audio | MPEG-1 Audio Layer 3 (MP3), Windows Media Audio (WMA), MPEG-4 AACSampling rates: 32 kHz/44.1 kHz/48 kHzBit-rates: Any (128 kbps or higher recommended)VBR (variable bit rate) MP3/WMA/MPEG-4 AAC playback: NoWMA lossless encoding: NoDRM (Digital Rights Management) compatible: Yes (DRM-protected audio files will not play in this player.)File extensions: .mp3, .wma, .m4a (these must be used for the player to recognize MP3/WMA/MPEG-4 AAC files)File structure (may differ): Up to 299 folders on a disc; up to 648 folders and files (combined) within each folder |
| JPEG file | Baseline JPEG and EXIF 2.2* still image files up to a resolution of 3072 x 2048*File format for digital still camerasProgressive JPEG compatible: NoFile extensions: .jpg (must be used for the player to recognize JPEG files)File structure (may differ): Up to 299 folders on a disc; up to 648 folders and files (combined) within each folder |
About DVD+R/DVD+RW compatibility
Only DVD+R/DVD+RW discs recorded in 'Video Mode (DVD Video Mode)' which have been finalized, can be played back. However, some editing made during the recording may not be played back accurately.
About DivX
DivX is a digital video format created by DivX, Inc. This player can play DivX videos recorded on DVDs, CDs, or USB storage devices.
Keeping the same terminology as DVD-Video, individual DivX video files are called "Titles".
DivX video compatibility
- Plays DivX video 1
- File extensions: .avi and .divx (these must be used for the player to recognize DivX video files). Note that all files with the .avi extension are recognized as MPEG4, but not all of these are necessarily DivX video files and therefore may not be playable on this player.
Displaying DivX subtitle files
The font sets listed below are available for DivX external subtitle files. You can see the proper font set on-screen by setting the Subtitle Language (in Language settings on page 36) to match the subtitle file. 2
Group 1: Albanian (sq), Basque (eu), Catalan (ca), Danish (da), Dutch (nl), English (en), Faroese (fo), Finnish (fi), French (fr), German (de), Icelandic (is), Irish (ga), Italian (it), Norwegian (no), Portuguese (pt), Rhaeto-Romanic (rm), Scottish (gd), Spanish (es), Swedish (sv)
Group 2: Albanian (sq), Croatian (hr), Czech (cs), Hungarian (hu), Polish (pl), Romanian (ro), Slovak (sk), Slovenian (sl)
Note
Playback of .avi video files larger than 4 GB is not possible.
2 • For external subtitle files the following subtitle format filename extensions are supported (please note that these files are not shown within the disc navigation menu): .srt, .sub, .ssa, .smi
- Some external subtitle files may be displayed incorrectly or not at all.
- The filename of the movie file has to be repeated at the beginning of the filename for the external subtitle file.
- The number of external subtitle files which can be switched for the same movie file is limited to a maximum of 10.
Additional information
Group 3: Bulgarian (bg), Byelorussian (be), Macedonian (mk), Russian (ru), Serbian (sr), Ukrainian (uk)
Group 4: Hebrew (iw), Yiddish (ji)
Group 5: Turkish (tr)
DivX ® is a registered trademark of DivX, Inc., and is used under license.
About WMV
WMV is an acronym for Windows Media Video and refers to a video compression technology developed by Microsoft Corporation. WMV content can be encoded by using Windows Media Encoder.
- This player is compatible with WMV9 files that are encoded by using the Windows Media Encoder 9 Series, with .wmv as an extension.
- Compatible with size under 720 x 576 pixels/720 x 480 pixels.
- Advanced Profile is not supported.
- DRM-protected video files will not play in this player.
- File extensions .wmv.
- Compatible with bit rate under 192 kbps.
About MPEG-4 AAC
Advanced Audio Coding (AAC) is at the core of the MPEG-4 AAC standard, which incorporates MPEG-2 AAC, forming the basis of the MPEG-4 audio compression technology. The file format and extension used depend on the application used to encode the AAC file. This unit plays back AAC files encoded by iTunes® bearing the extension '.m4a'. DRM-protected files will not play, and files encoded with some versions of iTunes® may not play, or filenames may display incorrectly.
Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.
About WMA
This player can playback Windows Media Audio content.
WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation. WMA content can be encoded by using Windows Media Player version 7.7.1, Windows Media Player for Windows XP, or Windows Media Player 9 series.
Windows Media is a trademark of Microsoft Corporation.
This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.
Using and taking care of discs
Handling discs
Hold the disc by its edges when handling so as not to leave fingerprints, dirt or scratches on either side of the disc. Damaged or dirty discs can affect playback performance.
If a disc becomes marked with fingerprints, dust, etc., clean using a soft, dry cloth.
Wipe lightly from the center of the disc using straight strokes. Don't wipe the disc surface with circular strokes.
If necessary, use a cloth soaked in alcohol, or a commercially available CD/DVD cleaning kit to clean a disc more thoroughly. Never use benzine, thinner or other cleaning agents such as those designed for cleaning vinyl records.
Storing discs
Avoid leaving discs in excessively cold, humid, or hot environments (including under direct sunlight). Don't glue paper or put stickers onto the disc, or use a pencil, ball-point pen or other sharp-tipped writing instrument. These could all damage the disc.
Additional information
Discs to avoid
Discs spin at high speed inside the player. If a disc is cracked, chipped, warped, or otherwise damaged, don't risk using it in your player — you could end up damaging the unit.
This unit is designed for use with conventional, fully circular discs only. Pioneer disclaims all liability arising in connection with the use of shaped discs.
DVD Video regions
All DVD Video discs carry a region mark that indicates which region(s) of the world the disc is compatible with. Your DVD system also has a region mark (on the rear panel). Discs from incompatible regions will not play in this player. Discs marked ALL play in any player.
When you insert a disc that cannot be played on this player, one of the following messages is displayed:
Incompatible disc region number
Can't play disc
Installation and maintenance
Hints on installation
We want you to enjoy using this system for years to come, so please bear in mind the following points when choosing a location:
Do...
√ Use in a well-ventilated room.
√ Place on a solid, flat, level surface, such as a table, shelf or stereo rack.
Don't...
✗ Use in a place exposed to high temperatures or humidity, including near radiators and other heat-generating appliances.
✗ Place on a window sill or other place where the system will be exposed to direct sunlight.
✗ Use in an excessively dusty or damp environment.
✗ Place directly on top of an amplifier, or other component in your stereo system that becomes hot in use.
✗ Use near a television or monitor as you may experience interference — especially if the television uses an indoor antenna.
✗ Use in a kitchen or other room where the system may be exposed to smoke or steam.
✗ Use on a thick rug or carpet, or cover with cloth — this may prevent proper cooling of the system unit.
✗ Place on an unstable surface, or one that is not large enough to support all four of the system unit's feet.
Cleaning the pickup lens
The DVD player's lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners are commercially available, we do not recommend using them since some may damage the lens.
Problems with condensation
Condensation may form inside the player if it is brought into a warm room from outside, or if the temperature of the room rises quickly. Although the condensation won't damage the player, it may temporarily impair performance. Leave it to adjust to the warmer temperature for about an hour before switching on.
Moving the system unit
If you need to move the main unit, first remove a disc if there's one in the player, then press ⏻ STANDBY/ON on the front panel to turn the system off. Wait for -OFF- to disappear from the display, then unplug the power cord. 1 Never lift or move the unit during playback — discs rotate at high speeds and may damage.
Note
Unplugging the unit before -OFF- disappears from the display may cause the system to return to the factory settings.
Additional information
Screen sizes and disc formats
DVD-Video discs come in different screen aspects, ranging from TV programs, which are generally 4:3, to CinemaScope widescreen movies 1 , with an aspect ratio of up to about 7:3. Televisions also come in different aspect ratios; 'standard' 4:3 and widescreen 16:9. 2
Widescreen TV users
If you have a widescreen TV, the TV Screen setting (page 35) of this player should be set to 16:9 (Wide) or 16:9 (Compressed).
When you watch discs recorded in 4:3 format with the 16:9 (Wide) setting, you can use the TV controls to select how the picture is presented. Your TV may offer various zoom and stretch options; see the instructions that came with your TV for details.
Please note that some movie aspect ratios are wider than 16:9, so even though you have a widescreen TV, these discs will still play in a 'letter box' style with black bars at the top and bottom of the screen.
Standard TV users
If you have a standard TV, the TV Screen setting (page 35) of this player should be set to 4:3 (Letter Box) or 4:3 (Pan & Scan), depending on which you prefer.
Set to 4:3 (Letter Box), widescreen discs are shown with black bars top and bottom.
Set to 4:3 (Pan & Scan), widescreen discs are shown with the left and right sides cropped. Although the picture looks larger, you don't actually see the whole picture.
Please note that many widescreen discs override the player's setting so that the disc is shown in letter box format regardless of the setting.
TV system setting
The default setting of this system is AUTO, and unless you notice that the picture is distorted when playing some discs, you should leave it set to AUTO. If you find picture distortion with some discs, set the TV system to match your country or region's system. However, this may restrict the kinds of disc you can watch. See the table for the kinds of discs compatible with each setting (AUTO, PAL and NTSC). 3
1 P r SHIFT+SETUP.
2 U ←/→ to select SYS SET then press ENTER.
3 U ←/→ to choose TV SYS then press ENTER.
The TV system changes as follows:
- AUTO → NTSC
- NTSC → PAL
- PAL → AUTO
Note
1 Many widescreen discs override the system's settings so that the disc is shown in letterbox format regardless of the setting.
2 Using the 16:9 (Wide) or 16:9 (Compressed) setting with a standard 4:3 TV, or one of the 4:3 settings with a widescreen TV, will result in picture distortion.
3 Most models of the newly developed countdown PAL TV system detect 50 Hz (PAL)/60 Hz (NTSC) and automatically switch vertical amplitude, resulting in a display without vertical shrinkage. However, in some cases, the image may appear without color. If your PAL TV does not have a V-Hold control, you may not be able to watch NTSC discs because of picture roll. If the TV has a V-Hold control, adjust it until the picture stops rolling. On some TVs, the picture may shrink vertically, leaving black bands at the top and bottom of the screen.
Additional information
4 Press ENTER while CHANGE is blinking.
The system will automatically enter standby mode, then turn on again. You'll see the new TV system setting in the display after seeing
POWER ON.
| Media Type | Player setting | |
| Format NTSC PAL AUTO | ||
| DVD/Super VCD/Video CD/DivX video/WMV | NTSCPAL | NTSC PAL NTSCNTSC PAL PAL |
| CD/MP3/WMA/MPEG-4 AAC/JPEG/no disc | — | NTSC PAL NTSC orPAL |
Frequency step setting
Not applicable to Saudi Arabia, Israel, South Africa, other middle eastern contries and duty free models
If you find that you can't tune into stations successfully, the frequency step may not be suitable for your country/region.
1 P r SHIFT+SETUP.
2 U ←/→ to choose AM 9K/10K then press ENTER.
3 U ↑/↓ to select AM 9K or AM 10K then press ENTER.
Dimming the Display
You can adjust the brightness of the text in the front panel display.
1 P r SHIFT+SETUP.
2 U ←/→ to select SYS SET then press ENTER.
3 U ←/→ to select DIMMER then press ENTER.
This is shown in the front panel display.
4 U ↑/↓ to select LIGHT or DARK then press ENTER.
Note
You have to switch the player into standby (press Ⓧ STANDBY/ON) before each change.
Setting the Key Lock
You can disable the front panel buttons by switching the Key Lock feature on.
1 Press SHIFT+SETUP.
2 U ←/→ to select SYS SET then press ENTER.
3 U ←/→ to choose KEYLOCK then press ENTER.
4 U ↑/↓ to select LOCK ON or LOCK OFF then press ENTER.
Additional information
Troubleshooting
Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.
- If the system does not operate normally due to external effects such as static electricity, disconnect the plug from the outlet and insert again to return to normal operating conditions.
General
| Problem Remedy | |
| The power does not turn on, or switches off suddenly (an error message may be displayed at startup). | Wait for one minute before switching back on.Make sure there are no loose strands of wire touching the unit. This could cause the system to shut off automatically.Check that the speakers are connected correctly.Make sure the voltage of the mains power source is correct for the model.Try reducing the volume level.If the problem persists, take it to your nearest Pioneer authorized service center or your dealer for servicing. |
| No sound is output when a function is selected. | If you're using the line input, make sure the component is connected correctly (see Connecting auxiliary audio components on page 40).No audio is output from the speakers connected to this unit if HDMI audio mode is set to TV (page 41).Press MUTE on the remote control to turn muting off.Turn up the volume. |
| No sound from surround or center speakers. | Refer to Setting the channel levels on page 17 to check the speaker levels.When TUNER, ADAPTER PORT or LINE is selected, you can only hear the source in stereo. Switch the input source to DVD/CD or USB for multichannel sound.Check that you haven't selected the STEREO mode (see Listening in surround sound on page 22).Check if a microphone is connected or not.Connect the speakers properly (see Basic connections on page 9). |
| Can't operate the remote control. | Replace the batteries (see Putting the batteries in the remote control on page 15).Operate within 7 m, 30° of the remote sensor (see Using the remote control on page 16).Remove any obstacles or operate from another position.Avoid exposing the remote sensor on the front panel to direct light. |
| The microphone can't be heard. | You are only using one microphone and it's plugged into the MIC (SUB) jack. The MIC (SUB) jack can only be used if there is also a microphone plugged into the MIC (MAIN) jack.Adjust the MIC VOL +/- |
| Feedback noise when mic is switched on. | The mic is pointing toward the speakers. Keep the mic pointed away from the speakers.The microphone level is set too high. Turn down the mic control level. |
| TRAYLOCK shows in the display and the tray can't be ejected. | Press and hold ▲ OPEN/CLOSE on the front panel for about eight seconds. Then the tray can be opened/closed using ▲ OPEN/CLOSE. |
Additional information
DVD/CD/Video CD player
| Problem Remedy | |
| The disc is ejected automatically after loading. | Clean the disc and align the disc properly in the disc guide.If the region number on a DVD-video disc does not match the number on the player, the disc cannot be used (seeDVD Video regionson page 50). In this instance, one of the following messages appears on screen:Incompatible disc region number/Can't play disc.Allow time for any condensation inside the player to evaporate. Avoid using the player near an air-conditioning unit. |
| Playback not possible. | If the disc is loaded upside down, reload the disc with label side face up. |
| Picture playback stops and buttons cannot be used. | Press ■ (stop), then ▶ (play) to start playback again.Switch the power off once, then on again using the front panel Ⓧ STANDBY/ON button. |
| Settings are canceled. | When the power is cut, settings will be canceled. |
| No picture/No color. | Check that connections are correct and that plugs are inserted fully.Check the manual of the TV/monitor to make sure the settings are correct.If theProgressivesetting is selected and you have used component video cables to connect a TV that is not compatible with a progressive scan signal, you will not be able to see any picture at all. With your TV connected using either the composite or S-video terminals, change theComponent Outsetting to Interlace(see Video Output settings on page 35). |
| Screen is stretched or aspect doesn't change. | TheTV Screensetting is incorrect. Set the TV Screen option to match the TV/ monitor you're using (seeVideo Output settings on page 35). |
| When recorded on a VCR or passed through an AV selector, there is disturbance in the playback picture. | This system uses copy-protection technology which may prevent recording or cause picture problems when connected through a VCR or AV selector. This is not a malfunction. |
| Picture disturbance during playback or dark. | This player is compatible with Macro-Vision System copy guard. Some discs include a copy prevention signal, and when this type of disc is played back, stripes etc., may appear on some sections of the picture depending on the TV. This is not a malfunction.Discs respond differently to particular player functions. This may result in the screen becoming black for a brief instant or shaking slightly when the function is executed. These problems are largely due to differences between discs and disc content and are not malfunctions of this player. |
| Noticeable difference in DVD and CD volume. | DVDs and CDs use different recording methods. This is not a malfunction. |
| CD-ROM disc is not recognized. | Make sure that the CD-ROM was recorded using the ISO 9660 disc format. SeeDisc compatibility tableon page 47 for more on disc compatibility. |
| DVD-ROM disc is not recognized. | Make sure that the DVD-ROM was recorded using the UDF bridge format. SeeDisc compatibility tableon page 47 for more on disc compatibility. |
| Files don't show up in the Disc Navigator/Photo Browser. | The files on the disc must be named with the correct file extension:.mp3 for MP3 files;.wma for WMA files;.m4a for MPEG-4 AAC files;.jpg for JPEG files (upper or lower-case is OK). SeeDisc compatibility tableon page 47. |
| Can't play WMA or MPEG-4 AAC files. | The files were recorded using DRM (digital rights management). This is not a malfunction. |
Additional information
Problem Remedy
| Can't play WMV files. | • When the bit rate the file is more than 192 kbps, the file cannot be played back. |
Tuner
Problem Remedy
| Considerable noise in radio broadcasts. | Connect the AM antenna (see Basic connections on page 9) and adjust the direction and position for best reception. You may also connect an additional internal or external AM antenna (refer to Connecting external antennas on page 42).Fully extend the FM wire antenna, position for best reception, and secure to a wall. You may also connect an outdoor FM antenna (see Connecting external antennas on page 42).Turn off other equipment that may be causing the noise or move it further away.The tuning interval is incorrect for your country or region. See Frequency step setting on page 52 to switch the tuning interval. |
| Auto tuning does not pick up some stations. | The radio signal is weak. Auto tuning will only detect radio stations with a good signal. For more sensitive tuning, connect an outdoor antenna. |
USB connection
Problem Remedy
| USB mass storage device is not recognized by the system. | Make sure you have completely inserted the USB connector to this unit.Check that the memory format is FAT16 or FAT32.USB devices with an internal USB hub are not supported. |
| Files don't show up in the Navigator/Photo Browser. | The files must have the correct file extension: .mp3 for MP3 files; .wma for WMA files; .m4a for MPEG-4 AAC files; .jpg for JPEG files (upper or lower-case is OK).Make sure the file permission hasn't been restricted (through a password, etc.). |
| Can't play WMA or MPEG-4 AAC files. | The files were recorded using DRM (digital rights management). This is not a malfunction. |
HDMI connection
Problem Remedy
| No HDMI video output. • Make sure that you've selected this player as the HDMI input in the settings for the component you're using (refer to the component's instruction manual).• Check that the HDMI cable is connected properly and isn't damaged.• Check that components connected using the HDMI interface are switched on and HDMI compatible (components must be compatible with both DVI and High Bandwidth Digital Content Protection (HDCP)).• Depending on the component you have connected, using a DVI connection may result in unreliable signal transfers.• Make sure the resolution on this player matches that of the component you have connected using HDMI. See Video Output settings on page 35 to change the HDMI resolution.• If the screen goes blank after changing the resolution, it means the resolution you selected is incompatible with your monitor. See Resetting the HDMI connection on page 42 to reset to the factory defaults. | |
| Color problems occur with your monitor after changing the HDMI Color setting (page 36). | • Depending on the connected equipment, some HDMI Color settings may cause the picture to be displayed incorrectly. In this case, use the TV's own video input settings to select RGB, if possible. Alternatively, revert to the previous HDMI Color setting. |
Additional information
Problem Remedy
| No picture or sound. • If the problem still persists when connecting your HDMI component directly to your monitor, please consult the component or monitor manual or contact the manufacturer for support. | |
| No HDMI audio output. | • See Switching the HDMI audio setting on page 41 to make sure that TV is selected. |
| KURO LINK does not function. | • Verify that the HDMI cable is firmly connected.• Make sure that this unit's KURO LINK mode is set to LINK ON (page 45).• Check whether the connected component supports KURO LINK or not. For more information refer to the operating manual of your flat screen TV.• KURO LINK may not work properly if a SCART cable and an HDMI cable are connected simultaneously. Set KURO LINK mode to LINK OFF when connecting SCART and HDMI cables simultaneously. |
| Your TV automatically change inputs. | • The connected TV automatically may change inputs in response to this unit starting playback DVD or having the GUI screen (ex. Disc Navigator) displayed, etc. If you do not want your TV to change inputs in this way, set this unit KURO LINK mode to LINK OFF (page 45). |
Bluetooth connection
Problem Remedy
| The Bluetooth wireless technology device cannot be connected or operated. Sound from the Bluetooth wireless technology device is not emitted or the sound is interrupted. | Check that no object that emits electromagnetic waves in the 2.4 GHz band (microwave oven, wireless LAN device or Bluetooth wireless technology apparatus) is near the unit. If such an object is near the unit, set the unit far from it. Or, stop using the object emitting the electromagnetic waves.Check that the Bluetooth wireless technology device is not too far from the unit and that obstructions are not set between the Bluetooth wireless technology device and the unit. Set the Bluetooth wireless technology device and the unit so that the distance between them is less than about 10 m and no obstructions exist between them.Check that the Bluetooth ADAPTER and the ADAPTER PORT of the unit are correctly connected.The Bluetooth wireless technology device may not be set to the communication mode supporting the Bluetooth wireless technology. Check the setting of the Bluetooth wireless technology device.Check that pairing is correct. The pairing setting was deleted from this unit or the Bluetooth wireless technology device. Reset the pairing.Check that the profile is correct. Use a Bluetooth wireless technology device that supports A2DP profile and AVRCP profile. |
Error Messages
Message Description
| EXTRAPWR | • You cannot adjust SFC modes, tone controls (bass, treble, and bass boost), MP3 Expander mode, Voice Enhancer mode when using Extra Power mode. |
| CANNOT • Operation is prohibited because DVD/CD or USB isn't selected, or SHIFT+KARAOKE, SHIFT+ECHO, SHIFT+b or SHIFT+# has been pressed.• Appears when DVD/CD is not selected and SHIFT+USB REC is pressed. | |
| TRAYLOCK | • The tray lock is on. See General in Troubleshooting on page 53. |
Additional information
| Message | Description |
| STEREO | • STEREO appears when SURROUND or AUTO/STEREO is pressed in the TUNER, LINE or ADAPTER PORT input mode. |
| KEYLOCK | • The key lock is enabled. See Setting the Key Lock on page 52. |
| USB ERR | • See Important in Using the USB interface on page 31 for more on this. |
| HDMI ERR | • See HDMI connection above for troubleshooting tips. See also Resetting the HDMI connection on page 42 if the problem persists. |
| EEP ERR | • Contact your Pioneer authorized service center or your dealer for servicing. |
| EXIT • Appears when any prohibited signal is input or the headphones are connected while the menu screen is displayed, and then the display returns to the normal display. | |
| NO MIC | • Appears when you press SHIFT+KARAOKE, SHIFT+ECHO, SHIFT+b, SHIFT+# or MIC VOL +/- when no mic is inserted. |
| OC ERR 1OC ERR 2 | • Check whether the speaker cables are short-circuited. If the error message continues to be displayed, contact your Pioneer authorized service center or your dealer for servicing. |
| OVER TEMP | • Try lowering the volume. If this problem is not fixed by removing and inserting the power cable, this unit may be damaged. In such an event, please contact a Pioneer-authorized service center or your nearest dealer. |
| BT ERR | • Power consumption by Bluetooth ADAPTER is too high to supply the power. Reconnect the Bluetooth ADAPTER. |
| TV AUDIO | • Indicator is lit for two seconds if the listening mode is changed while HDMI audio mode is set for TV. |
| KARAOKE | • Appears when you press SURROUND, SOUND, AUTO/STEREO or MP3 EXP/V.ENH when a mic is inserted. |
| PHONESIN | • Appears when you press SURROUND, SOUND, AUTO/STEREO or MP3 EXP/V.ENH when a headphone is inserted. |
Resetting the system
Use this procedure to reset all system settings to the factory default.
1 With the system on, press SHIFT+SETUP.
2 U ←/→ to select INITIAL then press ENTER.
3 U ←/→ to select ALL INIT then press ENTER.
- INIT OK is displayed.
4 Press ENTER while INIT OK is blinking. 1
Using the language code list
Some of the language options (see Language settings on page 36) allow you to set your preferred language from any of the 136 languages in the Language code list below.
1 Select 'Other Language'.
2 U ←/→ to select either a code letter or a code number.
3 U ↑/↓ to select a code letter or a code number.
See the Language code list below for a complete list of languages and codes.
Note
1 Do not operate the unit without reason or pull the power cord because the system's power automatically turns on.
Additional information
Language code list
Language (Language code letter), Language code
| Japanese (ja), 1001 | Estonian (et), 0520 | Lingala (ln), 1214 | Slovak (sk), 1911 |
| English (en), 0514 | Basque (eu), 0521 | Laothian (lo), 1215 | Slovenian (sl), 1912 |
| French (fr), 0618 | Persian (fa), 0601 | Lithuanian (lt), 1220 | Samoan (sm), 1913 |
| German (de), 0405 | Finnish (fi), 0609 | Latvian (lv), 1222 | Shona (sn), 1914 |
| Italian (it), 0920 | Fiji (fj), 0610 | Malagasy (mg), 1307 | Somali (so), 1915 |
| Spanish (es), 0519 | Faroese (fo), 0615 | Maori (mi), 1309 | Albanian (sq), 1917 |
| Dutch (nl), 1412 | Frisian (fy), 0625 | Macedonian (mk), 1311 | Serbian (sr), 1918 |
| Russian (ru), 1821 | Irish (ga), 0701 | Malayalam (ml), 1312 | Siswati (ss), 1919 |
| Chinese (zh), 2608 | Scots-Gaelic (gd), 0704 | Mongolian (mn), 1314 | Sesotho (st), 1920 |
| Korean (ko), 1115 | Galician (gl), 0712 | Moldavian (mo), 1315 | Sundanese (su), 1921 |
| Greek (el), 0512 | Guarani (gn), 0714 | Marathi (mr), 1318 | Swedish (sv), 1922 |
| Afar (aa), 0101 | Gujarati (gu), 0721 | Malay (ms), 1319 | Swahili (sw), 1923 |
| Abkhazian (ab), 0102 | Hausa (ha), 0801 | Maltese (mt), 1320 | Tamil (ta), 2001 |
| Afrikaans (af), 0106 | Hindi (hi), 0809 | Burmese (my), 1325 | Telugu (te), 2005 |
| Amharic (am), 0113 | Croatian (hr), 0818 | Nauru (na), 1401 | Tajik (tg), 2007 |
| Arabic (ar), 0118 | Hungarian (hu), 0821 | Nepali (ne), 1405 | Thai (th), 2008 |
| Assamese (as), 0119 | Armenian (hy), 0825 | Norwegian (no), 1415 | Tigrinya (ti), 2009 |
| Aymara (ay), 0125 | Interlingua (ia), 0901 | Occitan (oc), 1503 | Turkmen (tk), 2011 |
| Azerbaijani (az), 0126 | Interlingue (ie), 0905 | Oromo (om), 1513 | Tagalog (tl), 2012 |
| Bashkir (ba), 0201 | Inupiak (ik), 0911 | Oriya (or), 1518 | Setswana (tn), 2014 |
| Byelorussian (be), 0205 | Indonesian (in), 0914 | Panjabi (pa), 1601 | Tonga (to), 2015 |
| Bulgarian (bg), 0207 | Icelandic (is), 0919 | Polish (pl), 1612 | Turkish (tr), 2018 |
| Bihari (bh), 0208 | Hebrew (iw), 0923 | Pashto, Pushto (ps), 1619 | Tsonga (ts), 2019 |
| Bislama (bi), 0209 | Yiddish (ji), 1009 | Portuguese (pt), 1620 | Tatar (tt), 2020 |
| Bengali (bn), 0214 | Javanese (jw), 1023 | Quechua (qu), 1721 | Twi (tw), 2023 |
| Tibetan (bo), 0215 | Georgian (ka), 1101 | Rhaeto-Romance (rm), 1813 | Ukrainian (uk), 2111 |
| Breton (br), 0218 | Kazakh (kk), 1111 | Kirundi (rn), 1814 | Urdu (ur), 2118 |
| Catalan (ca), 0301 | Greenlandic (kl), 1112 | Romanian (ro), 1815 | Uzbek (uz), 2126 |
| Corsican (co), 0315 | Cambodian (km), 1113 | Kinyarwanda (rw), 1823 | Vietnamese (vi), 2209 |
| Czech (cs), 0319 | Kannada (kn), 1114 | Sanskrit (sa), 1901 | Volapük (vo), 2215 |
| Welsh (cy), 0325 | Kashmiri (ks), 1119 | Sindhi (sd), 1904 | Wolof (wo), 2315 |
| Danish (da), 0401 | Kurdish (ku), 1121 | Sangho (sg), 1907 | Xhosa (xh), 2408 |
| Bhutani (dz), 0426 | Kirghiz (ky), 1125 | Serbo-Croatian (sh), 1908 | Yoruba (yo), 2515 |
| Esperanto (eo), 0515 | Latin (la), 1201 | Sinhalese (si), 1909 | Zulu (zu), 2621 |
Country/Area code list
Country/Area, Country/Area code, Country/Area code letter
| Argentina, 0118, ar |
| Australia, 0121, au |
| Austria, 0120, at |
| Belgium, 0205, be |
| Brazil, 0218, br |
| Canada, 0301, ca |
| Chile, 0312, cl |
| China, 0314, cn |
| Denmark, 0411, dk |
| Finland, 0609, fi |
| France, 0618, fr |
| Germany, 0405, de |
| Hong Kong, 0811, hk |
| India, 0914, in |
| Indonesia, 0904, id |
| Italy, 0920, it |
| Japan, 1016, jp |
| Korea, Republic of, 11 |
| Malaysia, 1325, my |
| Mexico, 1324, mx |
| Netherlands, 1412, nl |
| New Zealand, 1426, n |
| Norway, 1415, no |
| Pakistan, 1611, pk |
| Philippines, 1608, ph |
| Portugal, 1620, pt |
| Russian Federation, 1821, ru |
| Singapore, 1907, sg |
| Spain, 0519, es |
| Switzerland, 0308, ch |
| Sweden, 1905, se |
| Taiwan, 2023, tw |
| Thailand, 2008, th |
| United Kingdom, 0702, gb |
| United States of America, 2119, us |
Additional information
Specifications
- Amplifier section
RMS Power Output:
Front, Center, Surround ... 60 W per channel
(1 kHz, 10 % T.H.D., 4 Ω)
Subwoofer... 60 W (100 Hz, 10 % T.H.D., 4 Ω)
- Disc section
Type. . . . . . DVD system, Video CD/Super VCD system and Compact Disc digital audio system
- FM tuner section
Frequency range ..... 87.5 MHz to 108 MHz
Antenna 75 Ω, unbalanced
- AM tuner section
Frequency range:
Saudi Arabia, Israel, South Africa, other middle eastern contries and duty free models 531 kHz to 1602 kHz
All other models
With 9 kHz step ..... 531 kHz to 1602 kHz
With 10 kHz step ..... 530 kHz to 1700 kHz
Antenna Loop antenna
- Miscellaneous
Power requirements:
Singapore, Indonesia, Hong Kong, Malaysia,
Philippines models
AC 220 V to 240 V, 50 Hz/60 Hz
All other models
AC 110 V to 240 V, 50 Hz/60 Hz
Power consumption ....55 W
Power consumption in standby:
For HTZ180/181DVD....0.48 W
Others
KURO LINK ON 0.73 W
KURO LINK OFF....0.48 W
Dimensions
• Accessories (DVD/CD receiver)
Remote control 1
AA/R6 dry cell batteries
(to confirm system operation) 2
Video cable (yellow plugs) 1
AM loop antenna 1
FM antenna 1
Power cord....1
Setup Guide
Operating instructions (This document)
S-DV180 Speaker system
- Front speakers
Enclosure .... Closed-box bookshelf type (magnetically shielded)
System 7.7 cm 1-way system
Speakers 7.7 cm cone type
Impedance 4Ω
Frequency range 90 Hz to 20 kHz
Maximum input power 60 W
Dimensions
..... 105 mm (W) × 115 mm (H) × 114 mm (D)
Weight 0.6 kg
- Center speaker
Enclosure .... Closed-box bookshelf type (magnetically shielded)
System 7.7 cm 1-way system
Speakers 7.7 cm cone type
Impedance 4Ω
Frequency range 90 Hz to 20 kHz
Maximum input power 60 W
Dimensions
Enclosure .... Closed-box bookshelf type (magnetically shielded)
System 7.7 cm 1-way system
Speakers 7.7 cm cone type
Impedance 4Ω
Frequency range 98 Hz to 20 kHz
Maximum input power 60 W
Dimensions
..... 105 mm (W) x 118 mm (H) x 114 mm (D)
Weight 0.6 kg
- Subwoofer
Enclosure .... Bass-reflex floorstanding type System .... 16 cm 1-way system
Speaker....16 cm cone type
Impedance 4Ω
Frequency range 28 Hz to 1 kHz
Maximum Input Power....60 W
Dimensions
.... 190 mm (W) x 360 mm (H) x 317 mm (D)
Weight 3.8 kg
- Accessories
Non-skid pads (small) 12
Non-skid pads (large) 4
Mounting brackets 4
Screws (for mounting brackets) 4
Additional information
S-DV585 Speaker system
• Front/surround speakers
Enclosure....Closed-box bookshelf type (magnetically shielded) System....6.6 cm 1-way system Speakers....6.6 cm cone type Impedance....4 Ω Frequency range....82 Hz to 20 kHz Maximum input power....100 W Dimensions ....96 mm (W) x 96 mm (H) x 96 mm (D) Weight....0.5 kg
- Center speaker
Enclosure.... Closed-box bookshelf type (magnetically shielded) System.... 6.6 cm 1-way system Speakers.... 6.6 cm cone type Impedance.... 8 Ω Frequency range.... 82 Hz to 20 kHz Maximum input power.... 50 W Dimensions .... 96 mm (W) x 96 mm (H) x 96 mm (D) Weight.... 0.5 kg
- Subwoofer
Enclosure.... Bass-reflex floorstanding type System .... 16 cm 1-way system Speaker .... 16 cm cone type Impedance .... 4 Ω Frequency range .... 34 Hz to 1 kHz Maximum Input Power.... 100 W Dimensions .... 230 mm (W) x 380 mm (H) x 360 mm (D) Weight .... 5.4 kg
- Accessories
Speaker cables....5 Brackets....2 Mounting brackets....6 Screws (common use for brackets and mounting brackets)....8 Non-skid pads (small)....18 Non-skid pads (large)....4
S-DV280T Speaker system
- Front speakers
Enclosure .... Closed-box floorstanding type (magnetically shielded) System .... 2-way system Speakers: Woofer .... 7.7 cm cone type Tweeter .... 2.6 cm semi-dome type
Impedance 4 Ω Frequency range 62 Hz to 20 kHz Maximum input power .60 W Dimensions .260 mm (W) x 1097 mm (H) x 260 mm (D) Weight 3.8 kg
- Center speaker
Enclosure .... Closed-box bookshelf type (magnetically shielded) System .... 7.7 cm 1-way system Speaker .... 7.7 cm cone type Impedance .... 4 Ω Frequency range .... 72 Hz to 20 kHz Maximum input power .... .60 W Dimensions .... .220 mm (W) x 90 mm (H) x 100 mm (D) Weight .... 0.7 kg
- Surround speakers
Enclosure .... Closed-box bookshelf type (magnetically shielded) System .... 7.7 cm 1-way system Speakers.... 7.7 cm cone type Impedance .... 4 Ω Frequency range .... 84 Hz to 20 kHz Maximum input power .... 100 W Dimensions ....100 mm (W) x 100 mm (H) x 100 mm (D) Weight .... 0.5 kg
- Accessories
Speaker cables....5 Non-skid pads (small)....8 Non-skid pads (large)....8 Speaker stand bases....2 Screws (for bases)....6
S-DV282T Speaker system
• Front/surround speakers
Same as S-DV280T Front speakers (see above)
- Center speaker
Same as S-DV280T Center speaker (see above)
- Accessories
Speaker cables....5 Non-skid pads (large)....16 Speaker stand bases....4 Screws (for bases)....12
Additional information
S-DV5SW Speaker system
- Sub woofer
Enclosure ....Bass-reflex floorstanding type System ....16 cm 1-way system Speaker....16 cm cone type Impedance....4 Ω Frequency range....34 Hz to 1 kHz Maximum Input Power....100 W Dimensions .....230 mm (W) x 380 mm (H) x 360 mm (D) Weight....5.4 kg
- Accessories
Non-skid pads (large) 4
Note
- Specifications and design subject to possible modification without notice, due to improvements.
This product includes FontAvenue® fonts licenced by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
DRM (digital rights management) copy protection is a technology designed to prevent unauthorized copying by restricting playback, etc. of compressed audio files on devices other than the PC (or other recording equipment) used to record it. For detailed information, please see the instruction manuals or help files that came with your PC and/or software.
Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.
Digital Surround
Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.
Published by Pioneer Corporation. Copyright © 2009 Pioneer Corporation. All rights reserved.
重要
CAUTION CLASS IS WABLE AND INVISIBLE LABOR RADATION WHEN OPEN, AVOID EXPOSURE TO THE SEMA.
ATTENTION RADATIONS LASER VISIBLES ET INVISIBLES DE CLASSE 38 QUAND
ADVANCED: 100% EBITE 1987 EXPUESTION AS FINANCIAL
ADVARSEL UNOGÅ LOSSETTELSE FOR STRÅLING.
VARNING KASS 38 SYNUG OCH OSYNUG LASERSTRÅLNING Når DENNA DEL
附註
上方端子 下方端子
02 接線
注意
2 P R G S V E (第 41 頁)
4 選取您要錄製的曲目。
附註
1 插入麥克風。
您可以調整以下的設定值：
3 使用 ↑/↓ 以選取一揚聲器。
Can't play disc (無法播放碟片
安裝及保養
安裝提示
Published by Pioneer Corporation.
Copyright © 2009 Pioneer Corporation.
All rights reserved.
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404
PIONEER ELECTRONICS OF CANADA, INC.
300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: 1-877-283-5901, 905-479-4411
PIONEER EUROPE NV
Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: 03/570.05.11
PIONEER ELECTRONICS ASIACENTRE PTE. LTD.
253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555
PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: (03) 9586-6300
PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.
Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: 55-9178-4270
K002_B_En
- IMPORTANT
- CAUTION
- WARNING
- VENTILATION CAUTION
- CLASS 1 LASER PRODUCT
- POWER-CORD CAUTION
- OPERATING ENVIRONMENT
- THANK YOU FOR BUYING THIS PIONEER PRODUCT
- CONTENTS
- 01 SPEAKER SETUP GUIDE
- 02 CONNECTING UP
- 03 CONTROLS AND DISPLAYS
- 04 GETTING STARTED
- 05 LISTENING TO YOUR SYSTEM
- 06 DISC PLAYBACK FEATURES
- 07 USB PLAYBACK AND RECORDING
- 08 SINGING KARAOKE
- 09 AUDIO SETTINGS AND VIDEO ADJUST MENUS
- 10 INITIAL SETTINGS MENU
- 11 OTHER CONNECTIONS
- 12 KURO LINK
- 13 ADDITIONAL INFORMATION
- CHAPTER 1
- SPEAKER SETUP GUIDE
- HOME THEATER SOUND SETUP
- 5 SPOT/4 SPOT SPEAKER LAYOUT
- 3 SPOT/2 SPOT SPEAKER LAYOUT
- PREPARING THE SPEAKERS
- PREPARATION COMMON TO ALL MODELS
- ATTACHING NON-SKID PADS
- PREPARATION FOR THE HTZ280DVD/ HTZ280DVD-AP/HTZ282DVD/ HTZ282DVD-AP
- ASSEMBLING THE SPEAKER STANDS
- SECURING YOUR FRONT AND SURROUND SPEAKERS
- PREPARATION ONLY FOR THE HTZ181DVD STACK THE SPEAKERS AND FIX THE BRACKETS
- WALL MOUNTING THE SPEAKERS
- BEFORE MOUNTING
- NOTE
- ATTACHING THE BRACKETS ONLY FOR THE HTZ180/181DVD
- ADDITIONAL NOTES ON SPEAKER PLACEMENT
- PRECAUTIONS
- CONNECTING UP
- CHAPTER 2
- BASIC CONNECTIONS
- 1 ASSEMBLE THE AM LOOP ANTENNA
- 2 CONNECT THE AM AND FM ANTENNAS. 1
- CONNECT EACH SPEAKER
- THE BASE OF EACH SURROUND SPEAKER FITS INTO THE CIRCULAR GROOVE ON THE TOP OF THE FRONT SPEAKERS AS SHOWN
- SECURE THE SPEAKER WIRE
- TURN THE SPEAKERS TOWARDS THE CLOSEST WALL, LINING THE ARROWS UP FOR OPTIMAL FRONT SURROUND
- CONNECT EACH SPEAKER TERMINALS ON THE RECEIVER
- 4 CONNECT ONE END TO A VIDEO INPUT ON YOUR TV
- 5 CONNECT THE OTHER END TO THE VIDEO OUTPUT OF THE RECEIVER
- 6 CONNECT THE POWER CORD. 1
- CHAPTER 3
- CONTROLS AND DISPLAYS
- FRONT PANEL
- DISPLAY
- 1 DECORD INDICATORS (PAGE 22)
- 2 PRGSVE (PAGE 41)
- 3 SOUND (PAGE 23)
- 4 F.SURR. (PAGE 23)
- 5 RPT AND RPT-1 (PAGE 28)
- 6 PGM (PAGE 27 AND 29)
- 7 TUNER INDICATORS (PAGE 20)
- 8 RDM (PAGE 28)
- 9 KHZ/MHZ (PAGE 20)
- 10 CHARACTER DISPLAY
- 11 (PAGE 21)
- 12
- REMOTE CONTROL
- PUTTING THE BATTERIES IN THE REMOTE CONTROL
- USING THE REMOTE CONTROL
- CHAPTER 4
- GETTING STARTED
- SETTING SPEAKER LAYOUT
- SETTING THE CHANNEL LEVELS
- USING THE ON-SCREEN DISPLAYS
- TIP
- PLAYING DISCS
- 1 IF THE PLAYER ISN'T ALREADY ON, SWITCH IT ON
- 2 PRESS ▲ OPEN/CLOSE TO LOAD A DISC
- 3 PRESS ▶ (PLAY) TO START PLAYBACK
- 4 ADJUST THE VOLUME
- BASIC PLAYBACK CONTROLS
- BUTTON WHAT IT DOES
- RESUME AND LAST MEMORY
- DVD-VIDEO DISC MENUS
- VIDEO CD/SUPER VCD PBC MENUS
- LISTENING TO THE RADIO
- 2 TUNE TO A FREQUENCY
- IMPROVING POOR FM RECEPTION
- REDUCING AM RECEPTION NOISE
- MEMORIZING STATIONS
- 1 TUNE TO AN AM OR FM RADIO STATION
- 2 PRESS SHIFT+T.EDIT
- 4 PRESS ENTER
- LISTENING TO STATION PRESETS
- 1 MAKE SURE THE TUNER FUNCTION IS SELECTED
- 3 U S PRESETBUTTONS TO SELECT A STATION PRESET
- LISTENING TO OTHER SOURCES
- SETTING THE SLEEP TIMER
- PRESS SHIFT+ SLEEP REPEATEDLY TO SELECT AN OPTION THEN PRESS ENTER
- CHAPTER 5
- LISTENING TO YOUR SYSTEM
- SELECTING LISTENING MODE
- AUTO LISTENING MODE
- PRESS AUTO/STEREO TO SELECT THE AUTO LISTENING MODE. 1
- LISTENING IN SURROUND SOUND
- PRESS SURROUND REPEATEDLY TO SELECT A LISTENING MODE. 1
- USING FRONT SURROUND
- LISTENING IN STEREO
- LISTENING WITH HEADPHONES
- ADJUSTING THE BASS AND TREBLE
- USING THE SFC MODES
- BOOSTING THE BASS LEVEL
- USING THE MP3 EXPANDER
- USING THE VOICE ENHANCER MODE
- EFFECTIVE SOUND (FOR OPTIMUM SOUND)
- DYNAMIC RANGE COMPRESSION
- FREQUENCY CHARACTERISTIC CORRECTION
- 3 U ↑/↓ TO ADJUST THE SETTING THEN PRESS ENTER TO CONFIRM
- CHAPTER 6
- DISC PLAYBACK FEATURES
- SCANNING DISCS
- PLAYING IN SLOW MOTION
- FRAME ADVANCE/FRAME REVERSE
- PLAYING A JPEG SLIDESHOW
- BROWSING DVD OR VIDEO CD/ SUPER VCD DISCS WITH THE DISC NAVIGATOR
- BROWSING WINDOWS MEDIA™ AUDIO (WMA), MP3, MPEG-4 AAC, DIVX VIDEO/WMV AND JPEG FILES WITH THE DISC NAVIGATOR
- 3 TO PLAY THE HIGHLIGHTED TRACK OR DIVX VIDEO/WMV FILE OR DISPLAY THE HIGHLIGHTED JPEG FILE, PRESS ENTER
- USING PLAYLISTS
- PROGRAMMING PLAYLISTS
- LISTENING TO PLAYLISTS
- CLEARING FILES FROM A PLAYLIST
- LOOPING A SECTION OF A DISC
- USING REPEAT PLAY
- USING RANDOM PLAY
- CREATING A PROGRAM LIST
- OTHER FUNCTIONS AVAILABLE FROM THE PROGRAM MENU
- SEARCHING A DISC
- 1 P R HOME MENU AND SELECT 'PLAY MODE
- 4 USE THE NUMBER BUTTONS TO ENTER A TITLE, CHAPTER OR TRACK NUMBER, OR A TIME
- SWITCHING SUBTITLES
- P R SHIFTS+SUBTITLE REPEATEDLY TO SELECT A SUBTITLE OPTION
- SWITCHING LANGUAGE/AUDIO CHANNELS
- P R SHIFTS+AUDIO REPEATEDLY TO SELECT AN AUDIO LANGUAGE OPTION
- ZOOMING THE SCREEN
- 1 DURING PLAYBACK, PRESS SHIFT+ZOOM TO SELECT THE ZOOM FACTOR (NORMAL, 2X OR 4X)
- 2 U ↑/↓/←/→ TO CHANGE THE ZOOMED AREA
- SWITCHING CAMERA ANGLES
- DISPLAYING DISC INFORMATION
- TO SHOW/SWITCH/HIDE THE INFORMATION DISPLAYED, PRESS DISPLAY REPEATEDLY
- CHAPTER 7
- USB PLAYBACK AND RECORDING
- USING THE USB INTERFACE
- 1 WITH THE PLAYER SWITCHED ON, PRESS USB
- 2 CONNECT YOUR USB DEVICE
- RECORDING THE TRACKS OF A MUSIC CD ON A USB DEVICE
- RECORDING ALL THE TRACKS
- 2 P R SHIFT+USB REC TO DISPLAY THE 'CD -> USB REC' SCREEN
- 3 P R ENTER TO START RECORDING
- RECORDING SPECIFIC TRACKS
- 1 LOAD THE MUSIC CD
- 2 PRESS HOME MENU AND SELECT 'CD ->USB REC
- 3 MAKE SETTING USING ↑/↓/←/→ AND ENTER
- 4 SELECT THE TRACK YOU WANT TO RECORD
- 5 SELECT THE BIT RATE (TRANSFER RATE)
- 6 S E START' USING THE ↑/↓/←/→, THEN PRESS ENTER. 2
- CHAPTER 8
- SINGING KARAOKE
- 1 PLUG IN THE MICROPHONE(S)
- 2 LOAD A KARAOKE BACKING DISC
- 3 ADJUST KARAOKE MODE SETTINGS
- 4 PLAY THE BACKING TRACK
- CHANGING THE VOCAL MIX
- CHANGING THE BACKING TRACK
- CHAPTER 9
- AUDIO SETTINGS AND VIDEO ADJUST MENUS
- AUDIO SETTINGS MENU
- AUDIO DRC
- VIDEO ADJUST MENU
- CHAPTER 10
- INITIAL SETTINGS MENU
- USING THE INITIAL SETTINGS MENU
- 1 P R DVD/CDS
- 3 U //↔/→ AND ENTER TO SELECT THE SETTING AND OPTION YOU WANT TO SET
- PARENTAL LOCK
- REGISTERING A NEW PASSWORD
- 1 SELECT 'PASSWORD
- CHANGING YOUR PASSWORD
- SETTING/CHANGING THE PARENTAL LOCK
- SETTING/CHANGING THE COUNTRY/AREA CODE
- ABOUT DIVX® VOD CONTENT
- DISPLAYING YOUR DIVX VOD REGISTRATION CODE
- 3 SELECT 'DISPLAY
- PLAYING DIVX® VOD CONTENT
- SPEAKER DISTANCE
- OTHER CONNECTIONS
- CHAPTER 11
- CONNECTING AUXILIARY AUDIO COMPONENTS
- CONNECTING USING THE COMPONENT VIDEO OUTPUT
- ABOUT PROGRESSIVE SCAN VIDEO
- COMPATIBILITY OF THIS PLAYER WITH PROGRESSIVE-SCAN AND HIGH-DEFINITION TVS
- CONNECTING USING HDMI
- SWITCHING THE HDMI AUDIO SETTING
- RESETTING THE HDMI CONNECTION
- ABOUT HDMI
- CONNECTING EXTERNAL ANTENNAS
- BLUETOOTH® ADAPTER FOR WIRELESS ENJOYMENT OF MUSIC
- WIRELESS MUSIC PLAY
- REMOTE CONTROL OPERATION
- CONNECTING OPTIONAL BLUETOOTH ADAPTER
- PAIRING BLUETOOTH ADAPTER AND BLUETOOTH WIRELESS TECHNOLOGY DEVICE
- LISTENING TO MUSIC CONTENTS OF BLUETOOTH WIRELESS TECHNOLOGY DEVICE WITH YOUR SYSTEM
- CLEARING PAIRING 5
- CHAPTER 12
- KURO LINK
- MAKING THE KURO LINK CONNECTIONS
- KURO LINK SETUP
- SETTING THE KURO LINK MODE
- BEFORE USING SYNCHRONIZATION
- SYNCHRONIZED AMP MODE
- SYNCHRONIZED AMP MODE OPERATIONS
- CANCELING SYNCHRONIZED AMP MODE
- CHAPTER 13
- ADDITIONAL INFORMATION
- DISC/CONTENT FORMAT PLAYBACK COMPATIBILITY
- ABOUT DUALDISC PLAYBACK
- DISC COMPATIBILITY TABLE
- MEDIA COMPATIBLE FORMATS
- CD-R/-RW
- DVD-R/-RW
- PC-CREATED DISC
- ABOUT DVD+R/DVD+RW COMPATIBILITY
- ABOUT DIVX
- DIVX VIDEO COMPATIBILITY
- DISPLAYING DIVX SUBTITLE FILES
- ABOUT WMV
- ABOUT MPEG-4 AAC
- ABOUT WMA
- USING AND TAKING CARE OF DISCS
- HANDLING DISCS
- STORING DISCS
- DISCS TO AVOID
- DVD VIDEO REGIONS
- INSTALLATION AND MAINTENANCE
- HINTS ON INSTALLATION
- DO
- DON'T
- CLEANING THE PICKUP LENS
- PROBLEMS WITH CONDENSATION
- MOVING THE SYSTEM UNIT
- SCREEN SIZES AND DISC FORMATS
- WIDESCREEN TV USERS
- STANDARD TV USERS
- TV SYSTEM SETTING
- 4 PRESS ENTER WHILE CHANGE IS BLINKING
- FREQUENCY STEP SETTING
- DIMMING THE DISPLAY
- SETTING THE KEY LOCK
- TROUBLESHOOTING
- BLUETOOTH CONNECTION
- ERROR MESSAGES
- RESETTING THE SYSTEM
- USING THE LANGUAGE CODE LIST
- LANGUAGE CODE LIST
- COUNTRY/AREA CODE LIST
- SPECIFICATIONS
- AMPLIFIER SECTION
- DISC SECTION
- FM TUNER SECTION
- AM TUNER SECTION
- MISCELLANEOUS
- ACCESSORIES (DVD/CD RECEIVER)
- S-DV180 SPEAKER SYSTEM
- FRONT SPEAKERS
- CENTER SPEAKER
- SUBWOOFER
- ACCESSORIES
- S-DV585 SPEAKER SYSTEM
- FRONT/SURROUND SPEAKERS
- S-DV280T SPEAKER SYSTEM
- SURROUND SPEAKERS
- S-DV282T SPEAKER SYSTEM
- S-DV5SW SPEAKER SYSTEM
- 重要
- 附註
- 02 接線
- 注意
- 4 選取您要錄製的曲目。
- 1 插入麥克風。
- 3 使用 ↑/↓ 以選取一揚聲器。
- 安裝及保養
- 安裝提示
- PIONEER CORPORATION
- PIONEER ELECTRONICS (USA) INC
- PIONEER ELECTRONICS OF CANADA, INC
- PIONEER EUROPE NV
- PIONEER ELECTRONICS ASIACENTRE PTE. LTD
- PIONEER ELECTRONICS AUSTRALIA PTY. LTD
- PIONEER ELECTRONICS DE MEXICO S.A. DE C.V
Brand : PIONEER
Model : S-DV180
Category : Loudspeaker
