SWHOM-DC805B - Doorbell SWANN - Free user manual and instructions

Product Type	Wireless Door Chime (Doorbell)
Brand	Swann
Model	SWHOM-DC805B
Transmission Frequency	433 MHz
Maximum Range	Up to 50 m (165 ft) in open area
Chime Unit Power	3 x AA alkaline batteries (not included)
Doorbell Unit Power	1 x 23A/12V battery (included)
Number of Chimes	16 selectable
Tune Selection	Press Chime Select button inside doorbell unit
Mounting (Doorbell)	Adhesive strip on flat, clean, dry surface in sheltered location
Mounting (Chime)	Freestanding or wall-mounted with a screw (not included)
Water Resistance	Not waterproof; must be installed indoors or sheltered from rain
Included Accessories	Doorbell battery, adhesive strip, user manual
Warranty	1 year limited warranty from date of purchase

Frequently Asked Questions - SWHOM-DC805B SWANN

How do I install the batteries in the chime unit?

Open the battery cover on the rear of the chime unit. Insert 3 x AA alkaline batteries (not included) following the polarity markings inside the compartment. Close the cover.

How do I change the doorbell battery?

Insert a small flat-head screwdriver into the notch at the base of the doorbell and lift off the front cover. Replace with a 23A/12V battery (same type as included), ensuring correct polarity. Refit the cover.

How do I select a different chime tune?

Remove the doorbell front cover using a small flat-head screwdriver. Press the purple Chime Select button repeatedly until you hear the desired tune. The last tune played is automatically selected. Refit the cover.

The chime does not ring when I press the doorbell. What should I do?

Check that the units are within 50 meters range of each other. Ensure batteries are correctly inserted with matching polarity. Replace old batteries with fresh alkaline batteries. Try moving the chime unit closer to the doorbell.

Can I use the doorbell outdoors?

No, the doorbell is not weatherproof. It must be installed in a sheltered location away from rain, moisture, and direct sunlight to avoid damage.

What is the maximum operating range?

The doorbell and chime unit can operate up to 50 meters (165 feet) apart in open conditions. Walls and obstacles may reduce the range.

How do I mount the chime unit on a wall?

Screw a screw into the wall (not included), leaving about 7mm (1/4 inch) protruding. Place the chime onto the screw through the mounting hole on the rear, then slide it down to secure.

Is the doorbell battery included?

Yes, a 23A/12V battery is pre-installed in the doorbell unit. Remove the plastic tab to activate. The chime unit requires 3 x AA batteries which are not included.

What type of warranty comes with this product?

Swann offers a 1-year limited warranty against defects in workmanship and material. Proof of purchase (receipt) is required for warranty service.

How do I clean the doorbell or chime unit?

Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or immerse in water. Ensure units are dry before reconnecting batteries.

USER MANUAL SWHOM-DC805B SWANN

Two white electronic devices: a ventilation unit and a digital door with a purple button, both without any visible text or symbols.

Wireless Door Chime

Operating Instructions

Operating Guide

Thank you for choosing the Swann Wireless Door Chime. It's an ideal unit for easily installing a doorbell without the hassle of wiring. Simply add some batteries, mount the two pieces where needed and you are ready to go! The doorbell features 16 chimes to suit your needs.

Installing Batteries (Chime unit)

• The chime unit requires 3 x AA batteries to operate (which are not included). For best performance, use fresh, high quality AA alkaline batteries.
• To install them, unclip the battery cover on the rear of the unit to reveal the battery compartment.
• The polarity of batteries is indicated by the markings inside the battery compartment.

Changing Batteries (Doorbell unit)

• The doorbell requires 1 x 23A/12V battery (included).
• The battery is already installed; simply remove the small plastic tab from the slot on the back of the doorbell to power it up.
• If you need to replace the battery, insert a small flat-head screwdriver into the small notch at the base of the doorbell and lift the front cover off.
• Replace with a battery of the same type. Make sure the battery is oriented properly before refitting the doorbell front cover.

Changing the Chime Tune

• To change the chime tune, remove the front cover of the doorbell using a small flat-head screwdriver.

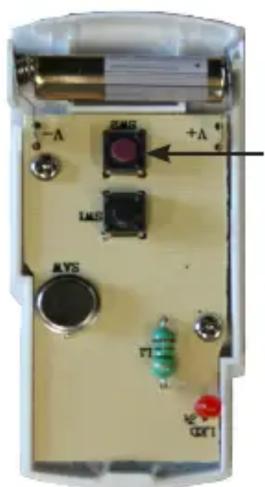

• Inside the doorbell unit, locate the purple Chime Select button as shown opposite. Press the Chime Select button to play the next tune. Keep pressing the button until you hear a tune you like. You do not need to confirm your selection. The tune playing is the tune selected and the one which will be heard when the doorbell is pressed.
• Refit the doorbell front cover.

White electronic device with ventilation grille and ventilation slots (no text or symbols visible)

Chime unit (speaker)

Doorbell

Front view of a white electronic device back panel with a ventilation grille and a small connector (no text or symbols visible)

Battery Compartment

Chime Select Button

Installation

Mounting the Doorbell

The doorbell is mounted by sticking it to a wall using the included adhesive strip(s).

The doorbell is not water nor weatherproof, and must be installed in a sheltered location. Exposure to rain, moisture or direct sunlight will adversely affect the performance and durability of the doorbell.

• Find the area you want to mount the doorbell. Flat, smooth surfaces are ideal. Make sure they are clean and dry before mounting.
• Peel off the covering of the adhesive strip, and attach the doorbell to the wall in the location you want.

Mounting the Chime (speaker unit)

There is no requirement to mount the chime unit. You may find it more convenient to place it on a shelf or table. One of the benefits of a battery operated wireless doorbell is that if you have a large house, you can take the receiver with you. No more missing visitors because you were all the way at the back of the house or by the pool!

If you would like to mount the device, you simply need to attach a screw to a wall. Depending on the surface, you may need to drill guide holes and/or use masonry plugs or dry wall anchors.

Do not insert the screw all the way. Leave about 7mm / 1/4" protruding from the wall. Then place the unit onto the screw, ensuring the heads of the screw passes through the mounting hole on the rear of the unit. You can then shift the unit downwards to ensure it sits on the screw firmly.

!

WARNING: When fitting the screws into the wall, make sure you are not inserting them anywhere near electrical wires, including wires that may be behind the wall. If you are unsure at all, please get a professional to check first and install the screws for you.

Troubleshooting

The chime does not work...

• Check that the units are within 50 meters range of each other. Try placing the chime unit in another location nearer to the doorbell.
• Check that batteries are fitted correctly with matching polarity.
• Batteries could be flat and need to be replaced. Only use alkaline batteries.

Operating current (receiver unit): Operating current (doorbell unit): Transmission Frequency: Transmission Range: Internal Sounds:

4.5V (3 x AA Batteries, not included) 12V (1 x 23A Battery, included) 433Mhz Up to 50m/165ft (typical) 16 chimes

Helpdesk / Technical Support Details

Swann Technical Support All Countries E-mail: [e-mail]

Telephone Helpdesk

USA toll free 1-800-627-2799

AUSTRALIA 1300 138 324

USA Exchange & Repairs 1-800-627-2799 (Option 1) (M-F, 9am-5pm US PT)

NEW ZEALAND toll free 0800 479 266

UK 0203 027 0979

Swann

Limited Warranty Terms & Conditions

Swann Communications warrants this product against defects in workmanship and material for a period of one (1) year from its original purchase date. You must present your receipt as proof of date of purchase for warranty validation. Any unit which proves defective during the stated period will be repaired without charge for parts or labour or replaced at the sole discretion of Swann. The end user is responsible for all freight charges incurred to send the product to Swann's repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin.

The warranty does not cover any incidental, accidental or consequential damages arising from the use of or the inability to use this product. Any costs associated with the fitting or removal of this product by a tradesman or other person or any other costs associated with its use are the responsibility of the end user. This warranty applies to the original purchaser of the product only and is not transferable to any third party. Unauthorized end user or third party modifications to any component or evidence of misuse or abuse of the device will render all warranties void.

By law some countries do not allow limitations on certain exclusions in this warranty. Where applicable by local laws, regulations and legal rights will take precedence.

For Australia: Our goods come with guarantees which cannot be excluded under Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to major failure.

FCC Verification

This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
- Increase the separation between the equipment and the receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help
WARNING: Modifications not approved by the party responsible for compliance could void user's authority to operate the equipment.
