Product Type	Ice Maker with Cold Water Dispenser
Model Number	WIMD332PC-IS
Brand	Avanti
Power Supply	115/120V AC, 60Hz, 15A
Ice Cube Sizes	Small (S) and Large (L)
Control Type	LCD Display and Push Buttons
Ice Dispensing	Push-to-dispense actuator
Cold Water Dispensing	Push button marked WATER
Water Reservoir	Behind access door, fill to MAX line
Drain Plug	At rear for drainage
Drip Tray	Included with cover
Accessories	Water cup, plastic ice scoop
Ventilation Clearance	5 inches back and sides, 6 inches top
Fuse/Circuit Breaker	15 amperes
Recommended Surge Protector	Yes (for power surges)
Cleaning Agent	Diluted vinegar and water
Water Change Interval	Every 24 hours
Ice Bin Full Sensor	Yes (ICE FULL indicator)
Water Level Sensor	Yes (ADD WATER indicator)
Ice Making Cycle Status	Fan symbol with S or L
Warranty	1 year limited parts and labor, compressor 2-5 years
Manual Included	24 pages PDF
Installation Requirements	Level surface, avoid heat sources, upright 2 hours before use

Frequently Asked Questions - WIMD332PC-IS Avanti

How do I start ice production?

Press the ON/OFF button to turn on the unit. Ensure the water reservoir is filled to the MAX line. Select ice size by pressing the SELECT button (S for small, L for large). The ice maker will automatically begin the ice-making cycle.

What do the ADD WATER and ICE FULL indicators mean?

The ADD WATER indicator lights when water level is low; fill the reservoir. The ICE FULL indicator lights when the ice bin is full; remove ice cubes to restart the cycle.

How do I clean the ice maker?

Unplug the unit and remove all ice. Clean interior surfaces with a diluted vinegar and water solution, then rinse thoroughly. Replace water in the reservoir every 24 hours for hygiene.

What should I do if no ice is produced?

Check that the unit is plugged in and the circuit breaker is not tripped. Ensure water level is adequate. If compressor runs but no ice, open the drain plug to release air, then press ON/OFF to restart. If still not working, call service.

Can I use an extension cord?

It is strongly recommended not to use an extension cord due to safety hazards. If necessary, use a UL-listed, 3-wire grounding cord rated 115V and at least 10 amperes.

How do I dispense cold water?

Place a cup under the cold water outlet and press the WATER button. Release the button to stop dispensing. Water becomes cold after a few ice-making cycles.

How to select ice cube size?

Press the SELECT button to toggle between S (small) and L (large). The default is small. The setting remains until changed or a power failure.

What to do if ice cubes clump together?

When ambient temperature is below 59°F (15°C), use the small ice size setting to prevent clumping. Remove any clumped ice from the bin.

How long does it take to make ice?

Time varies with ice size selected; larger cubes take longer. The first batch after installation or long shutdown should be discarded.

What is the warranty coverage?

Avanti provides a 1-year limited warranty covering parts and labor for defects. The compressor is covered for an additional 2 to 5 years (parts only). See manual for exclusions and conditions.

USER MANUAL WIMD332PC-IS Avanti

Line drawing of a modern water dispenser with digital display and control panel (no text or symbols)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

TABLE OF CONTENTS

Appliance Safety	3
Important Safeguides	4
Help Us Help You	5
Parts and Features	6
Electrical Connection \ Extension Cord \ Surge Protector	7
Important Safety Instructions	8
Installation Instructions	8
Before Using Your Appliance	8
Installation of Your Appliance	8
Operating Your Appliance	9
Control Panel Description	9
Operating instructions	10 - 11
Care and Maintenance	11
Cleaning Your Appliance	11
Space Requirements	11
Power Failure	11
Troubleshooting Guide	12
Service for Your Appliance	13

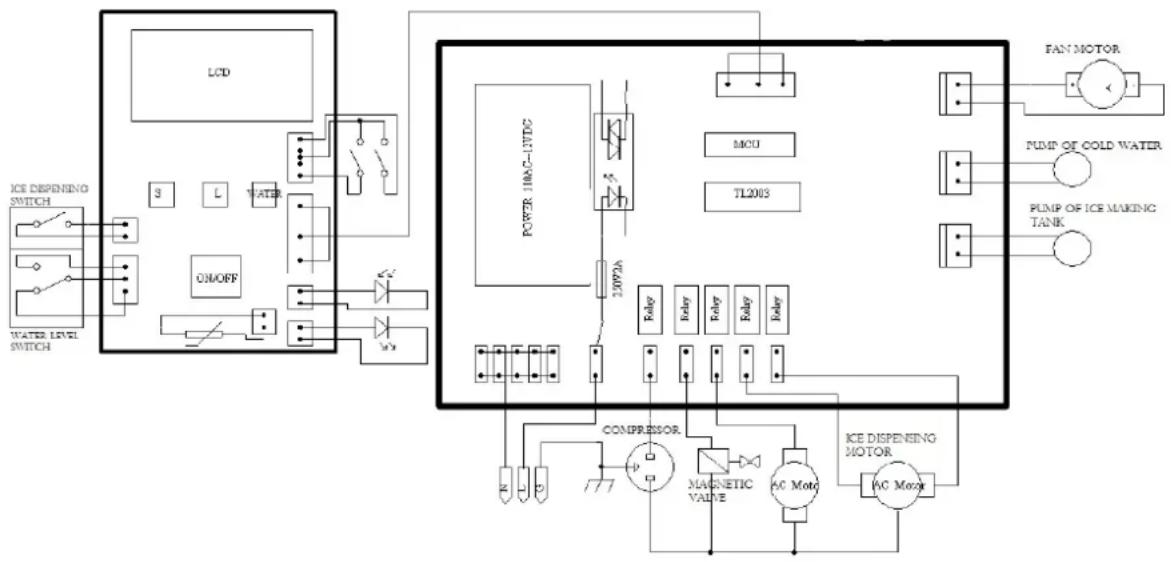

Wiring Diagram	13
Your Avanti Products Warranty	14
Instrucciones en Español	15 – 20
Registration Information and Registration Card	23

APPLIANCE SAFETY

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT.

We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to

Potential hazards that can kill or injure you and others.

All safety messages will follow the safety alert symbol

And either the words" DANGER", "WARNING" or "CAUTION".

! DANGER !

Danger means that failure to heed this safety statement may result in severe personal injury or death.

WARNING

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.

All safety messages will alert you to know what potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUIDES

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, Including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

WARNING

FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install appliance. Failure to do so can result in back or other injury.
- To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60^ f ( 16^ c) and below 90^ f ( 32^ c). This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.
• The appliance should not be located next to ovens, grills or other sources of high heat.
- The appliance must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 v ac only, 60 Hz), properly grounded in accordance with the national electrical code and local codes and ordinances is required.
- Do not kink or pinch the power supply cord of appliance.
• The fuse (or circuit breaker) size should be 15 amperes.
- It is important for the appliance to be leveled in order to work properly. You may need to make several adjustments to level it.
• All installation must be in accordance with local plumbing code requirements.
• Make certain that the pipes are not pinched or kinked or damaged during installations.
- Check for leaks after connection.
- Never allow children to operate, play with or crawl inside the appliance.
- If you use the drainage container, you must set the drain select switch to off or the water can overflow from the drainage container
- Although the unit has been tested at the factory, due to long-term transit and storage, the first batch of cubes must be discarded.
- Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.
- Do not use this apparatus for other than its intended purpose.

Help us help you...

Read this guide carefully.

It is intended to help you operate and maintain your new ice maker properly.

Keep it handy to answer your questions. If you don't understand something or you need more help, please call:

Avanti customer service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

Write down the model and serial numbers.

You'll find them on a plate located on the rear wall of the ice maker.

Please write these numbers here:

Date of purchase

Model number

Serial number

Use these numbers in any correspondence or service calls concerning your ice maker.

If you received a damaged ice maker, immediately contact the dealer (or builder) that sold you the ice maker.

Save time and money. Before you call for service, check the troubleshooting guide. It lists causes of minor operating problems that you can correct yourself.

If you need service

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

First, contact the people who serviced your ice maker. Explain why you are not pleased. In most cases, this will solve the problem.

Next, if you are still not pleased, write all the

details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 ^th Street

Miami, Fl 33172 USA

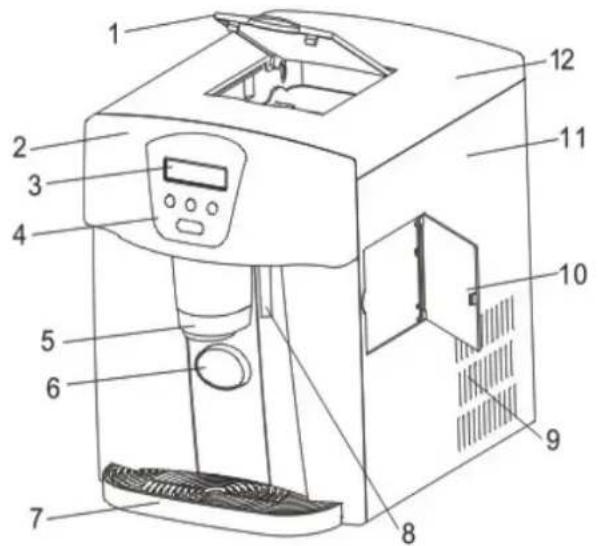

PARTS AND FEATURES

1	ICE BIN ACCESS LID
2	FRONT COVER PANEL
3	LCD DISPLAY
4	CONTROL PANEL
5	ICE DISPENSER OUTLET
6	ICE DISPENSER ACTUATOR
7	WATER DRIP TRAY WITH COVER
8	COLD WATER DISPENSER OUTLET
9	FAN VENT
10	WATER RESERVOIR ACCESS DOOR
11	SIDE PANEL
12	TOP PANEL

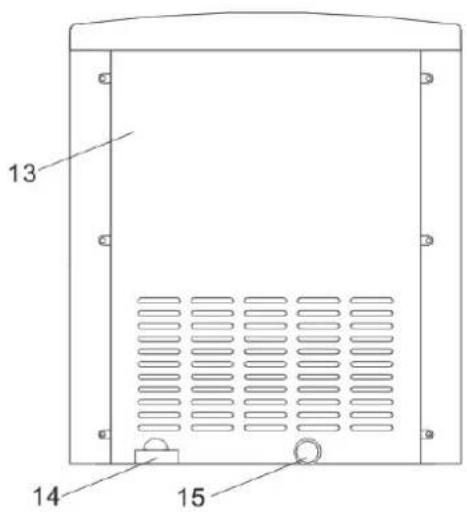

13	BACK PANEL
14	POWER CORD
15	DRAIN HOLE WITH CAP

WARNING

IMPROPER USE OF THE GROUNDED PLUG CAN RESULT IN THE RISK OF ELECTRICAL SHOCK. IF THE POWER CORD IS DAMAGED, HAVE IT REPLACED BY AN AUTHORIZED AVANTI PRODUCTS SERVICE CENTER.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This appliance requires a standard 115/120 Volt AC \~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

EXTENSION CORD

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 115 volts and at least 10 amperes.

SURGE PROTECTOR

Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.

If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area.

Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your ice maker, follow these basic precautions:

Read all instructions before using the ice maker.Danger or Warning:risk of child entrapment.Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous. . . Even if they will “just sit in the garage a few days.”Never allow children to operate, play with, or crawl inside the appliance.Never clean ice maker parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other ice maker. The fumes can create a fire hazard or explosion.-Save These Instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Ice Maker

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:

• 1 Instruction Manual
• 1 Drip Tray Assembly
- 1 Water Cup
- 1 Plastic Ice Scoop

• Before connecting the ice maker to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.

Installation of Your Appliance

• Place your ice/water dispenser on counter that is strong enough to support the unit when it is fully loaded with water.
• Allow 5 inches of space between the back and sides of the unit, which allows the proper air circulation to cool the compressor and condenser.
• Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the ice/water dispenser not to perform properly.
• Avoid locating the unit in moist areas.
• Plug the unit into an exclusive properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.

IMPORTANT: Do not install the Ice maker near an oven, radiator, or other heat source.

OPERATING YOUR ICE MAKER

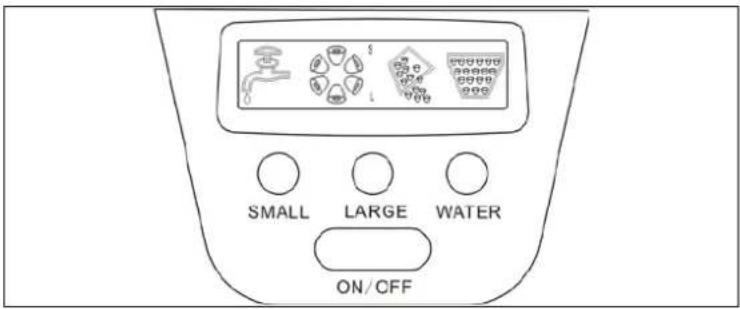

Control Panel Description

Display		Meanings and How to operate
		ADD WATERWater level in reservoir is not sufficient to begin the ice making cycle.Using the water cup included with the unit, fill the water reservoir up to the line marked “MAX”.
		ICE MAKING CYCLE STATUSWhen the fan is rotating this means the unit is currently in the ice making cycle.When the fan is stopped this mean the unit is not currently making ice.If there is an “S” at the top right corner of the fan symbol, this means the small sized ice cubes has been selected.If there is an “L” at the bottom right corner of the fan symbol, this means the large sized ice cubes has been selected.
		DISPENSING ICEThe unit will show this icon while dispensing ice.
		ICE BIN IS FULLAfter you dispensed or removed the ice, unit will restart automatically.

Button	Operation
	Press this button to select the small sized ice cubesThis is the DEFAULT setting.
	Press this button to select the large sized ice cubes.
	Press this button to dispense cold water.
ON/OFF	Press this button to turn the unit ON / OFF or to reset the ice making cycle.

Ice Size Selector

The size selection will stay as selected unless changed or there is a power failure. For the most efficient operation when ambient temperature is below 15^ (59°F) use the small cube size setting.

Starting your Ice maker

• Plug in the appliance to an appropriate power supply
- Press the ON / OFF button to turn the unit on.

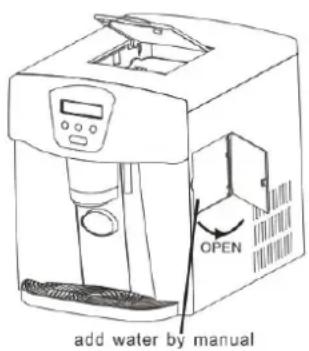

- Open the reservoir cover door located on the right side panel.
- Remove any dust or foreign objects that may be in the water reservoir
- Using the water cup included with your unit, fill the water tank up to the area marked "MAX":
- Dispense approximately 1 cup of water by pressing the button marked WATER on the control panel to clear out the water dispenser system.
- Open the drain plug located at the rear of the unit to drain out any remaining water, make sure you have a bucket or other object to collect the water to avoid spillage.
- Return the drain plug to its original position.
- Open the reservoir cover door and fill the reservoir to the max position.
- Close the reservoir cover door and press the ON/OFF to turn the unit off.

Warning:

Never add water past the line marked "MAX", this will cause water to flow out of the reservoir and soak electronic components inside the unit.

Warning:

Never fill the dispenser with any liquid other than water. This will cause damage to the dispensing systems and void the warranty.

Starting the Ice Making Cycle

• Turn the unit ON by pressing the "Power ON / OFF" button.
• Select desired ice cube size by pressing the "SELECT" BUTTON (S or L).
• The ice-maker will automatically check the water level in the reservoir periodically. The ice maker will detect any shortage of water and will stop the ice-making cycle, the ADD WATER indicator will be lit. Turn the unit OFF by pressing the Power ON / OFF button and fill the reservoir with water. Press the Power ON / OFF button again to restart the ice-making cycle after the ADD WATER indicator goes out the ice-maker will begin It's normal operation cycle automatically.
• When the ice cubes are collected and reach the bin-full sensor, the ice maker will stop operating and the ICE FULL indicator will be illuminated.
• There are two sizes of ice cubes available, therefore the larger the ice cube selected, the longer the time it will take to complete the cycle. When the ambient temperature is lower than 15^ C ( 59^ F), the small or medium ice cubes sizes are recommended to avoid ice cubes clumping together.

Dispensing ice.

• Place the glass or cup directly below the dispenser and press gently against the dispenser actuator.
• Remove the amount of ice as desired by continuously pressing against the dispenser actuator.
• Once the desired amount of ice has been dispensed release the dispenser actuator and the machine will stop dispensing ice.
• Never remove the cup from below the dispensing outlet before the ice or water are finished dispensing.

Dispensing Cold Water.

• Place the glass or cup directly below the dispenser and press gently against the button marked WATER.
• Remove the amount of water as desired by continuously pressing against the button marked water.
• Once the desired amount of water has been dispensed release the button and the machine will stop dispensing water.
• Never remove the cup from below the dispensing outlet before the ice or water are finished dispensing.

NOTE: Water will be cold after a few ice-making cycles.

CARE AND MAINTENANCE

Caution

Failure to unplug the ice maker could result in electrical shock or personal injury.

Cleaning Your Ice Maker

• To ensure the cleanliness of the ice cubes, water in the reservoir should be replaced every 24 hours.
• Remove the drain plug to drain remaining water from the water reservoir when the ice maker will not be used for long period of time. Screw the drain plug back in place after the water has been drained.
• Always change with fresh water before starting ice production at initial installation or after long shut-off periods.
• Please clean your ice maker regularly. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the Ice maker. Do not spray ice maker with chemicals or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting.

Space Requirements

• During transportation, the incline angle of the cabinet should not be over 45^
• Do not turn the Ice maker upside down. Problems could occur in the compressor and sealed system.
  • The Ice maker should be placed horizontally on a properly leveled surface.
• To ensure proper ventilation for your Ice maker allow 6" of space at the top, the back and on each side.
  • Before using the Ice maker for the first time, please wait 2 hours after positioning it.
• Clean the inner liner, ice-bin, water box, water cup frequently.

IMPORTANT: Do not install the Ice maker near an oven, radiator, or other heat source.

Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your ice maker if you minimize the number of times the ice-bin is opened. If the power is going to be OFF for a longer period of time, you need to take the proper steps to disconnect your appliance.

PROBLEMS WITH YOUR ICE MAKER?

You can solve many common ice maker problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE	RESOLVING
Unit does not start.	1. Not plugged in.2. The circuit breaker tripped or a blown fuse.3. The unit is at OFF position.	1. Plug unit in.2. Call for service.3. Push the ON/OFF button to switch unit on.
Compressor and fan motor work but no ice made	1. Air blocked the water system.2. Cooling system leakage3. Water shortage	1. Open the drain hose to release some water and then push the ON/OFF button.2. Call for service.3. Add water
Ice can't be dispensed even there is ice inside ice reservoir	1. Ice melt together because long time	1. Take out the ice cubes from ice re\servoir.

i ATTENTION i

ICE MAKER USAGE

For best results and most efficient operation of your ice-maker, it is recommended that you consume the ice as it is made or store the cubes in a separate container. Ice cubes left in the ice-bin will begin to slowly melt and the water will re-deposit into the water tray.

• If you are not going to consume the ice cubes as they are made, do not fill the water tray to the full line while the ice-bin is full.
• When the red “ICE FULL” indicator is on, remove the cubes and store in a separate suitable container.
• If you plan to leave the unit running overnight, it is recommended that you remove any cubes left in the bin and store in a separate container.
• If at any time the “ICE FULL” and “ADD WATER” indicators are on and flashing at the same time, push the POWER button, remove all the ice from the drawer, check and fill water when needed, wait for 3 minutes and then push Power button to start the ice making again.

This unit is not designed to store the ice cubes produced for long periods of time.

Service For Your Ice Maker

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti ice maker. With the purchase of your Avanti ice maker, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

Avanti Products Customer Services

Product information800-323-5029	Whatever your questions are about our products, help is available.
Part orders800-220-5570	You may order parts and accessories that will be delivered directly to your home, by personal check, money order, master card, or visa.
In-home repair service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your ice maker inside and out.

WIRING DIAGRAM

YOUR AVANTI PRODUCTSWARRANTY	Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.
WHAT IS COVERED - LIMITED ONE-YEAR WARRANTYAvanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 4.2 cubic feet capacity or less must be brought/sent to the appliance service center for repair.
LIMITED SECOND THROUGH FIFTH YEAR WARRANTYFor the second through the fifth year from the date of original purchase, Avanti Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Costs involved to move the product to the service center and back to the user's home, as maybe required, are the user's responsibility.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED:The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:
A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
Content losses of food or other content due to spoilage.Incidental or consequential damagesParts and labor costs for the following will not be considered as warranty:Light bulbs and/or plastic housing.Plastic cabinet liners.Punctured evaporator that voids the warranty on the complete sealed system.	Shipping and handling costs associated with the replacement of the unit.Repairs performed by unauthorized servicers.Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God.Failure of the product if it is used for other than it intended purpose.The warranty does not apply outside the Continental USA.Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas.
In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCTAvanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.WARRANTY - REFRIGERATION - COMPRESSOR

MEDIDAS DE PRECAUCION IMPORTANTES

AVISO:

Dispensing Cold Water.

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

AVANTI PRODUCTS LLC P.O.Box 520604 – Miami, Florida 33152

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

-(detach here)-

Avanti Registration Card

Name			Model #	Serial #
Address			Date Purchased	Store / Dealer Name
City	State	Zip	E-mail Address
Area Code	Phone Number		Occupation
Did You Purchase An Additional Warranty			As your Primary Residence, Do You:
☐ Extended☐ None			☐ Own ☐ Rent
Reason for Choosing This Avanti Product:Please indicate the most important factorsThat influenced your decision to purchase this product:			Your Age:☐ under 18 ☐ 18-25 ☐ 26-30☐ 31-35 ☐ 36-50 ☐ over 50Marital Status:☐ Married ☐ Single
☐ Price☐ Product Features☐ Avanti Reputation☐ Product Quality☐ Salesperson Recommendation☐ Other:____☐ Friend / Relative Recommendation☐ Warranty☐ Other:____			Is This Product Used In The:☐ Home ☐ Business
			How Did You Learn About This Product:☐ Advertising☐ In-Store Demo☐ Personal Demo

Comments:

WIMD332PC-IS - 03262014

PRINTED IN CHINA
