Brand Avanti
Model EWC18N2PD
Product Type Wine Cellar / Wine Chiller
Color Black (typical)
Total Capacity 18 standard (750 ml) bottles
Number of Zones 2 (upper and lower, independently controlled)
Upper Zone Temperature Range 46°F – 64°F (8°C – 18°C)
Lower Zone Temperature Range 54°F – 64°F (12°C – 18°C)
Cooling Technology Thermoelectric (superconductor, no compressor)
Rated Voltage 115 V AC
Rated Frequency 60 Hz
Rated Input Power 140 W
Number of Shelves 4 (wire shelves)
Door Type Full-length glass door with gasket
Interior Light Yes, with auto-off after 10 minutes
Control Panel Digital with lock function
Temperature Display Switchable between °F and °C
Leveling Legs Yes
Installation Type Freestanding (not built-in)
Clearance Required 5 inches (12.7 cm) on back and sides for ventilation
Weight (approx.) 35 lbs (15.9 kg)
Dimensions (W x D x H) 18.5 x 20 x 31 inches (47 x 51 x 79 cm)

Frequently Asked Questions - EWC18N2PD Avanti

What is the capacity of the Avanti EWC18N2PD wine cellar?
The Avanti EWC18N2PD can hold up to 18 standard 750 ml wine bottles. The upper zone holds 6 bottles and the lower zone holds 12 bottles.
Does the wine cellar have dual temperature zones?
Yes, the EWC18N2PD features two independently controlled zones. The upper zone can be set between 46°F–64°F (8°C–18°C) and the lower zone between 54°F–64°F (12°C–18°C).
How do I set the temperature on the Avanti EWC18N2PD?
First, unlock the control panel by pressing the ▲ and ▼ buttons simultaneously for 3 seconds (you'll hear a beep). Then press the ☑ button for the zone you want to adjust. Use ▲ to increase or ▼ to decrease the temperature. The temperature changes by 1°F or 1°C per press.
Why is the control panel not responding?
The control panel has an auto-lock feature that activates after 12 seconds of inactivity. To unlock, press and hold the ▲ and ▼ buttons together for 3 seconds until you hear a beep. If it still doesn't respond, check if the unit is plugged in and the circuit breaker is not tripped.
What should I do if the interior light doesn't turn on?
First, ensure the wine cellar is plugged in and the circuit breaker is on. Press the Light button on the control panel. The light automatically turns off after 10 minutes; press the Light button again to reactivate it. If the light still doesn't work, the bulb may need replacement.
How do I clean the Avanti EWC18N2PD?
Unplug the unit and remove all bottles and shelves. Wash interior surfaces with a solution of 2 tablespoons baking soda per quart of warm water. Clean shelves with mild detergent. Wipe the exterior with warm water and mild liquid detergent. Avoid abrasive cleaners. Dry thoroughly before plugging back in.
What should I do during a power failure?
Most power failures last only a few hours and will not affect the wine temperature if you minimize door openings. The wine cellar will automatically reset to the default temperature (54°F / 12°C) when power is restored after an outage.
Why is the door not closing properly?
Check if the wine cellar is level. Adjust the leveling legs if needed. Ensure the door gasket is clean and not obstructed. Also verify that the shelves are correctly positioned and nothing is blocking the door closure.
How much clearance is needed for installation?
The EWC18N2PD requires at least 5 inches (12.7 cm) of clearance on the back and sides for proper air circulation. It is designed for freestanding use and should not be recessed or built-in.
What type of cooling technology does the Avanti EWC18N2PD use?
This wine cellar uses thermoelectric (superconductor) cooling technology, which is compressor-free. It is silent, vibration-free, and environmentally friendly, but it operates best when ambient temperature is 23°C–26°C (72°F–78°F). It can cool up to 30°F below ambient temperature.

User questions about EWC18N2PD Avanti

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Wine cellar in PDF format for free! Find your manual EWC18N2PD - Avanti and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EWC18N2PD by Avanti.

USER MANUAL EWC18N2PD Avanti

natural_image Line drawing of a refrigerator with open shelves and internal compartments (no text or symbols)

(Image may vary)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti Products has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

THIS PAGE LEFT BLANK INTENTIONALLY

TABLE OF CONTENTS

Appliance Safety4
Important Safeguides5
Help Us Help You6
Parts and Features7
Important Safety Instructions8
Installation Instructions8
Before Using Your Wine Chiller8
Installation of Your Wine Chiller8
Electrical Connection9
Extension Cord9
Operating Your Wine Chiller10
Temperature Control10
Storage Capacity11
Interior Light11
Care and Maintenance11
Cleaning Your Wine Chiller11
Power Failure11
Moving Your Wine Chiller11
Energy Saving Tips12
Troubleshooting Guide12
Service for Your Appliance13

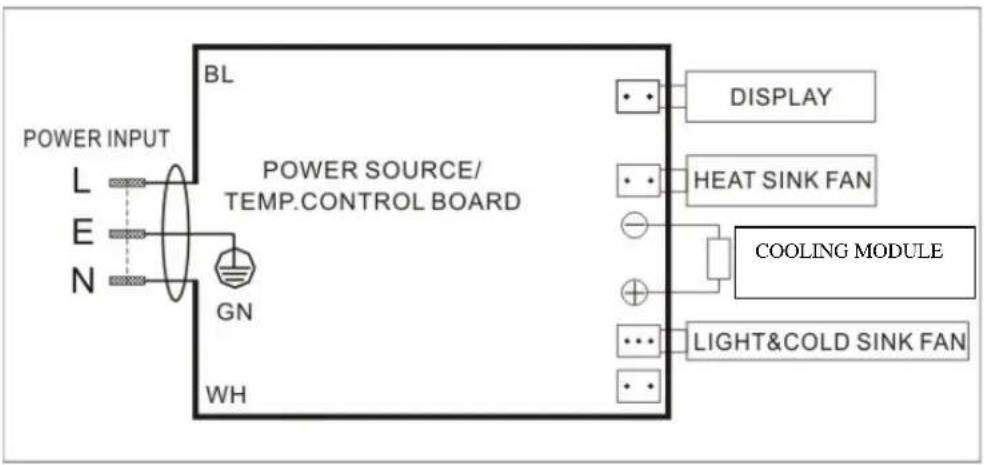

Wiring Diagram13
Your Avanti Products Warranty14
Instrucciones en Español15 – 18
Registration Information and Registration Card19

APPLIANCE SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

Avanti EWC18N2PD - APPLIANCE SAFETY - 1

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words "DANGER", "WARNING" or "CAUTION".

! DANGER !

WARNING

CAUTION

Danger means that failure to heed this safety statement may result in severe personal injury or death.

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, or property or equipment damage.

All safety messages will alert you do what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUIDES

Avanti EWC18N2PD - IMPORTANT SAFEGUIDES - 1

Before the appliance is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the appliance, follow basic precaution, including the following:

Avanti EWC18N2PD - IMPORTANT SAFEGUIDES - 2

DANGER

Avanti EWC18N2PD - DANGER - 1

  • Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
  • Replace all panels before operating.
  • It is recommended that a separate circuit, serving only your appliance be provided. Use receptacles that cannot be turned off by a switch or pull chain.
  • Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
  • Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
  • Do not connect or disconnect the electric plug when your hands are wet.
  • Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
  • Do not attempt to repair or replace any part of your appliance unless it is specifically recommended in this material. All other servicing should be referred to a qualified technician.

Avanti EWC18N2PD - DANGER - 2

WARNING

Avanti EWC18N2PD - WARNING - 1

FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

  • Use two or more people to move and install appliance. Failure to do so can result in injury.
  • To ensure proper ventilation for your appliance, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60^ F ( 16^ C) and below 90^ F ( 32^ C). This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.
  • The appliance should not be located next to ovens, grills or other sources of high heat.
  • The appliance must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
  • Do not kink or pinch the power supply cord of appliance.
    • The fuse (or circuit breaker) size should be 2.5 amperes.
  • It is important for the appliance to be leveled in order to work properly. You may need to make several adjustments to level it.
  • Never allow children to operate, play with or crawl inside the appliance.
  • Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.
  • Do not use this apparatus for other than its intended purpose.

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new Wine Chiller properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

CAUTION:

THIS WINE CHILLER IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.

Write down the model and serial numbers.

You'll find them on a plate located on the rear outside wall of the Wine Chiller.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your Wine Chiller.

If you received a damaged Wine Chiller, immediately contact the dealer (or builder) that sold you the Wine Chiller.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your Wine Chiller. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

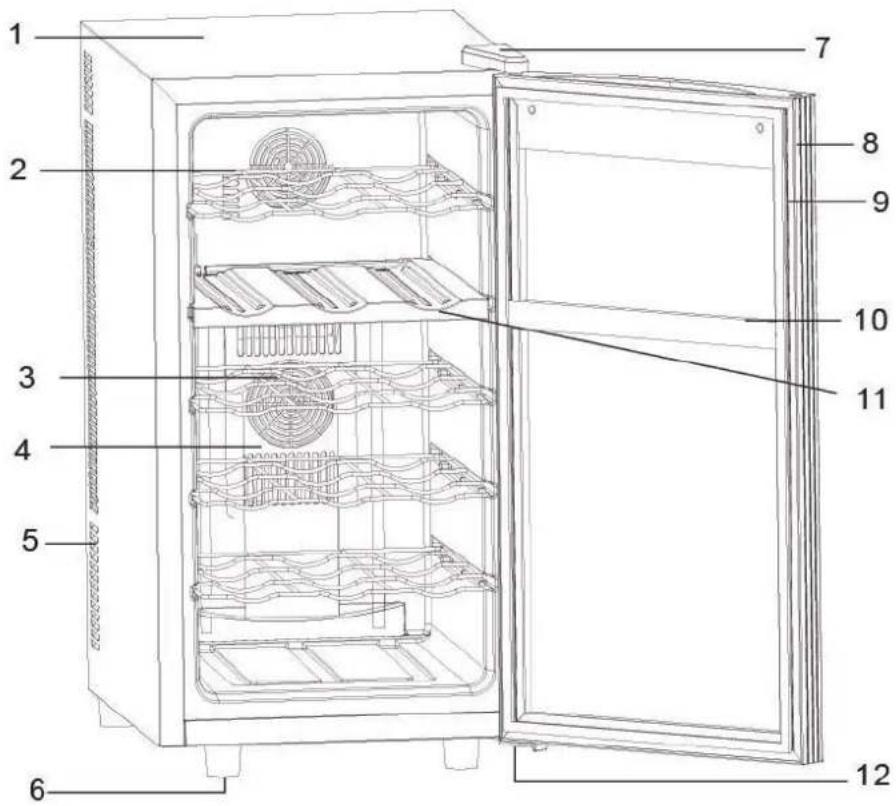

PARTS & FEATURES
1 2 3 4 5 6 7 8 9 10 11 12

1Cabinet7Upper Door Hinge w/ Cover
2Shelves (Total 4)8Glass Door
3Cold Sink Fan9Gasket
4Cold Sink Fan Cover10Zone Separator (Door)
5Ventilation Holes11Zone Separator Unit
6Leveling Legs12Bottom Hinge

IMPORTANT SAFETY INSTRUCTIONS

WARNINGTo reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:
Read all instructions before using the Wine Chiller.DANGER or WARNING:Risk of child entrapment.Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.Before you throw away your old Wine Chiller:Take off the door. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the appliance.Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.Do not repair or replace any part of the wine chiller or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions. Replace the fuse with the same type.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Wine Chiller

  • Remove the exterior and interior packing.
  • Check to be sure you have all of the following parts:

(4) Shelves

(1) Instruction manual

- Clean the interior surface with lukewarm water using a soft cloth.

Installation of Your Wine Chiller

  • This Wine Chiller is designed to be free standing installation only, and should not be recessed or built-in (Fully recessed).
  • Place your Wine Chiller on a surface that is strong enough to support it when it is fully loaded.
  • Allow 5 inches of space between the back and sides of the wine chiller, which allows the proper air circulation to cool the heat sink.
  • Locate the Wine Chiller away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
  • This Wine Chiller uses superconductor refrigeration technology (no compressor) and is not recommended for storage in hot areas like garages, warehouses or outdoors since it is designed to operate at a maximum of 30 degrees below the ambient temperature.
  • Avoid locating the unit in moist areas.
  • Plug the Wine Chiller into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
  • After plugging the Wine Chiller into a wall outlet, allow the unit to cool down for 2-3 hours before placing any items in the compartment.

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied. For personal safety, this appliance must be properly grounded.

This appliance requires a standard 115/120 Volt AC \~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The cord should be secured behind the appliance and not left exposed or dangling to prevent accidental injury.

The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating label on the appliance. This provides the best performance and also prevent overloading house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.

EXTENSION CORD

Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it be a UL/CUL-Listed, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 300 volts and at least 10 amperes.

SURGE PROTECTOR

Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible to power surges and could be damaged or destroyed.

If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is suggested that you use a power surge protector for all electrical devices / appliances you use. The surge protector that you select must have a surge block high enough to protect the appliance it is connected to. If you have any questions regarding the type and size of surge protector needed contact a licensed electrician in your area.

Damages due to power surges are not considered a manufacturer covered defect and will void your product warranty.

It is recommended you install the Wine Chiller in a place where the ambient temperature is between 23^-26^/72^-78^ . If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The range of 8^-18^/46^-64^ may not be reached. The default temperature set at the factory is 12^/54^ .

Recommended Temperatures for Chilling Wine.

Red Wines 14^ - 18^ C 57-64^ F
Dry/White Wines 9^ - 14^ C 49 - 58^ F
Rose Wines 10^ - 11^ C 51 - 53^ F
Sparkling Wines 8^ - 9^ C 46 - 49^ F

Temperature Ranges For Your Wine Chiller

Upper Zone 8^ - 18^ C 46^ - 64^ F
Lower Zone 12^ - 18^ C 54^ - 64^ F

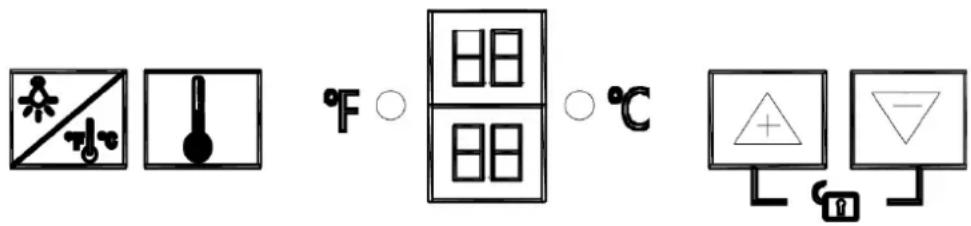

CONTROL PANEL

Diagram showing symbols for temperature, humidity, and temperature difference with accompanying circuit diagrams

Avanti EWC18N2PD - CONTROL PANEL - 2

You can select temperature display setting from Fahrenheit to Celsius degree by pushing this button approximately for 3 seconds. The degrees will appear in blue color in the temperature display window.

SETTING THE TEMPERATURE CONTROL
➢ Upper zone and bottom zone are each controlled separately
Your Wine Cellar has been equipped with an "automatic" control panel lock, that will activate 12 seconds after the last time a button has been touched.
Push the Ⓐ and Ⓥ button simultaneously for 3 seconds to unlock the control panel. You will hear a “BEEP” sound to alert you that the control is now active.
You can set the temperature as you desire by pushing the ☑ button on the control panel for each zone. The temperature that you desire to set will increase 1°F or 1°C if you push the Ⓗ button once, on the contrary the temperature will decrease 1°F or 1°C if you push the ⏱ button once.

NOTE:

  • Default Temperature Setting: 54^ (This is the default temperature set at the factory).
  • When you use the wine chiller for the first time or restart the wine chiller after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the wine chiller is running for a few hours everything will be back to normal.

Storage Capacity

You can place 18 standard bottles in this wine chiller.

Upper zone: 6 bottles

Bottom zone: 12 bottles

Many bottles may differ in size and dimensions. As such the actual number of bottles you may be able to store may vary. Bottle capacities are approximate maximums when storing traditional Bordeaux 750ml bottles.

> Interior Light

Avanti EWC18N2PD - > Interior Light - 1

You can turn the interior light ON or OFF by pushing the button marked with the "Light" symbol. The light will be turned off automatically if it remains ON for 10 minutes. You have to push the button marked with the "Light" symbol again and the light will turn back on.

CARE AND MAINTENANCE

> Cleaning Your Wine Chiller

  • UNPLUG the Wine Chiller, and remove all items including shelves.
  • Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
  • Wash the shelves with a mild detergent solution.
  • Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
  • Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

CAUTION

Failure to unplug the Wine Chiller could result in electrical shock or personal injury.

Power Failure

  • Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.
  • Your wine chiller is designed to return to the factory default temperature setting once power the unit is plugged in or once the power has returned after an outage.

Moving Your Wine Chiller

  • Remove all bottles.
  • Securely tape down all loose items (shelves) inside your appliance.
  • Tape the door shut.
  • Protect outside of appliance with a blanket, or similar item.

Energy Saving Tips

  • The Wine Chiller should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
  • One characteristic of superconductor units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for this type of unit.

PROBLEMS WITH YOUR WINE CHILLER?

You can solve many common Wine Chiller problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEMPOSSIBLE CAUSE
Wine Chiller does not operate or cool.Not plugged in.The circuit breaker tripped or a blown fuse.
Control panel is lockedPush the [IMAGE] and [IMAGE] button simultaneously for 3 seconds to unlock the control panel.Wait for beep sound.
Wine Chiller is not cold enough.Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.The Wine Chiller does not have the correct clearances.Abnormal voltage.
The light does not work.Not plugged in.The circuit breaker tripped or a blown fuse.The light button is “OFF”.
Vibrations.Check to assure that the Wine Chiller is level.
The door will not close properly.The Wine Chiller is not level.The door was not properly installed.The gasket is dirty.The shelves are out of position.

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can have the confidence that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029Whatever your questions are about our products, help is available.
Part Orders800-220-5570You may order parts and accessories that will be delivered directly to your home by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your appliance inside and out.

WIRING DIAGRAM
Avanti EWC18N2PD - PROBLEMS WITH YOUR WINE CHILLER? - 1

TECHNICAL / ELECTRICAL SPECIFICATIONS

Rated Voltage115V
Rated Frequency60Hz
Rated Input Power140W
YOUR AVANTI PRODUCTSWARRANTYStaple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.
WHAT IS COVERED – LIMITED ONE-YEAR WARRANTYAvanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 4.2 cubic feet capacity or less must be brought/sent to the appliance service center for repair.
WARRANTY EXCLUSIONS / WHAT IS NOT COVERED:The warranty coverage described herein excludes all defects or damage that are not the direct fault of Avanti Products, including without limitation, one or more of the following:
A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
Content losses of food or other content due to spoilage.Incidental or consequential damagesParts and labor costs for the following will not be considered as warranty:Inner door panels, door shelves, door rails, and/or door supports.Light bulbs and/or plastic housing.Plastic cabinet liners.Punctured evaporator that voids the warranty on the complete sealed system.Shipping and handling costs associated with the replacement of the unit.Repairs performed by unauthorized servicers.Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or any other acts of God.Failure of the product if it is used for other than it intended purpose.The warranty does not apply outside the Continental USA.Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas.
In no event shall Avanti Products have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures and/or objects around the product. Also excluded from this warranty are scratches, nicks, minor dents, and other cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced or removed; service visits for customer education, or visits where there is nothing wrong with the product; correction of installation problems (you are solely responsible for any structure and setting for the product, including all electrical, plumbing and/or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving etc., as well as the resetting of breakers or fuses.
OUT OF WARRANTY PRODUCTAvanti Products is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or product replacement, once this warranty has expired.WARRANTY - REFRIGERATION - NON COMPRESSOR

Thank you for purchasing this fine Avanti product. Please fill out this form and return it to the following address within 100 days from the date of purchase and receive these important benefits:

Avanti Products LLC.

P.O.Box 520604 – Miami, Florida 33152

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Card

NameModel #Serial #
AddressDate PurchasedStore / Dealer Name
CityStateZipE-mail Address
Area CodePhone NumberOccupation
Did You Purchase An Additional WarrantyAs your Primary Residence, Do You:
☐ Extended☐ None☐ Own ☐ Rent
Reason for Choosing This Avanti Product: Please indicate the most important factors That influenced your decision to purchase this product:Your Age:
☐ under 18 ☐ 18-25 ☐ 26-30☐ 31-35 ☐ 36-50 ☐ over 50Marital Status:☐ Married ☐ Single
☐ Price☐ Product Features☐ Avanti Reputation☐ Product Quality☐ Salesperson Recommendation☐ Other: ____☐ Friend / Relative Recommendation☐ Warranty☐ Other: ____Is This Product Used In The:☐ Home ☐ BusinessHow Did You Learn About This Product:☐ Advertising☐ In-Store Demo☐ Personal Demo

Comments:

EWC18N2PD - 10312014

PRINTED IN CHINA

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Avanti

Model : EWC18N2PD

Category : Wine cellar
